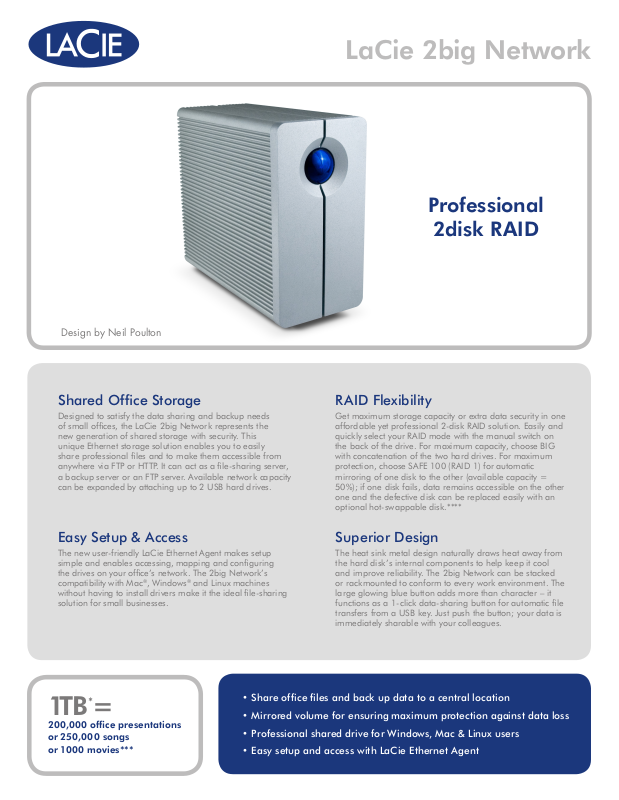

Lacie 2BIG NETWORK 2-DISK RAID User Manual
Design by Neil Poulton
LaCie 2big Network
Professional 2disk RAID
Professional
2disk RAID
Shared Office Storage
Designed to satisfy the data sharing and backup needs
of small offices, the LaCie 2big Network represents the
new generation of shared storage with security. This
unique Ethernet storage solution enables you to easily
share professional files and to make them accessible from
anywhere via FTP or HTTP. It can act as a file-sharing server,
a backup server or an FTP server. Available network capacity
can be expanded by attaching up to 2 USB hard drives.
Easy Setup & Access
The new user-friendly LaCie Ethernet Agent makes setup
simple and enables accessing, mapping and configuring
the drives on your office’s network. The 2big Network’s
compatibility with Mac®, Windows® and Linux machines
without having to install drivers make it the ideal file-sharing
solution for small businesses.
RAID Flexibility
Get maximum storage capacity or extra data security in one
affordable yet professional 2-disk RAID solution. Easily and
quickly select your RAID mode with the manual switch on
the back of the drive. For maximum capacity, choose BIG
with concatenation of the two hard drives. For maximum
protection, choose SAFE 100 (RAID 1) for automatic
mirroring of one disk to the other (available capacity =
50%); if one disk fails, data remains accessible on the other
one and the defective disk can be replaced easily with an
optional hot-swappable disk.****
Superior Design
The heat sink metal design naturally draws heat away from
the hard disk’s internal components to help keep it cool
and improve reliability. The 2big Network can be stacked
or rackmounted to conform to every work environment. The
large glowing blue button adds more than character – it
functions as a 1-click data-sharing button for automatic file
transfers from a USB key. Just push the button; your data is
immediately sharable with your colleagues.
1TB*=
200,000 office presentations
or 250,000 songs
or 1000 movies***
• Share office files and back up data to a central location
• Mirrored volume for ensuring maximum protection against data loss
• Professional shared drive for Windows, Mac & Linux users
• Easy setup and access with LaCie Ethernet Agent
Features
1-CLICK DATA SHARING
Automatically transfer files with one button.
Maximum
CAPACIT Y
BIG (concatenation)
Maximum
Sec ur i ty
SAFE 100 (RAID 1)
RAID FLEXIBILITY
PDF
Maximum
CAPACIT Y
BIG (concatenation)
Maximum
Sec ur i ty
SAFE 100 (RAID 1)
RAID FLEXIBILITY
PDF
• Ethernet for file sharing
• RAID 1 mode with automatic data-rebuilding
• 2 hot-swappable disks with locks
• 1-click data sharing for automatic file transfers
• 2 USB ports for storage expansion
• Heat sink metal design for natural cooling
• Configure vertically, horizontally or rackmounted
Box Content
• LaCie 2big Network
• Ethernet cable
• External power supply
• CD-ROM with User Manual and Utilities
• Quick Install Guide
Minimum System Requirements
• Ethernet switch or router
• PC or Mac equipped with a network adapter
• Intel Pentium 500MHz processor / G4 with Mac Intel 500MHz
processor or greater
• Minimum 512MB RAM
• Web browser (Internet Explorer®, Safari®, Firefox®)
RACKMOUNTED 2 SWAPPABLE DISKS
LaCie 2big Network
Capacity*
Item Number
Interface
Rotational Speed / Cache
Expansion Ports
Processor / Memory
Network Protocols
Network Setting
RAID Modes
1TB 1.5TB 2TB
301257 301258 301259
1 x Gigabit Ethernet 10/100/1000 Mbits
7200rpm / 1TB & 1.5TB: 16MB (each disk) or greater; 2TB: 32MB (each disk)
2 x USB 2.0 for additional storage
400MHz / DDR2 RAM
SMB (Windows/Linux); AFP (Mac); FTP; HTTP; Apple Bonjour
New web-based management, Auto IP configuration (DHCP client compatible)
SAFE 100 (RAID 1): maximum security
BIG (concatenation)
Supported OS
Software
Cooling System
Dimensions
Weight
Warranty
*1TB (Terabyte) = 1000GB. 1GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 10–15% less). Capacity also varies depending upon RAID mode.
BIG (concatenation) = 100% capacity; SAFE 100 (RAID 1) = 50% capacity.
**Not compatible with LaCie Ethernet Agent and ‘1-Click’ Backup Software
***Calculations are based on 1GB/200 office presentations, 2.5MB/3-minute song, and 1GB/movie encoded in MPEG-4 or equivalent codec.
****Sold separately
© 2007, LaCie. The LaCie logo is a trademark of LaCie. Other product and brand names mentioned herein
may be trademarks or registered trademarks of their respective owners. Specifications and appearance are
given as guidelines and may change at any time without notice. www.lacie.com 070907
Windows 98SE**, Window Me**, Window 2000, Window XP, Window Vista™ / Mac OS 9**, Mac OS X** or higher
/ Linux 2.4 or higher**
LaCie Ethernet Agent (for accessing, mapping & configuring drives on the network); LaCie ‘1-Click’ Backup Software
Thermoregulated, linear, quiet smart fan; heat sink metal design for natural cooling
91 x 200 x 172 mm / 3.5 x 7.8 x 6.7 in.
2630 g / 5.8 lbs.
3 year limited
