Page 1
Professional 2disk RAID
Gigabit Ethernet
user manual
manuel utilisateur
manual de instrucciones
gebruikershandleiding
2big network
guída utente
handbuch
ユーザー マニュアル
用户手册
용자 설명서
Page 2
LaCie 2big Network
User Manual
Table of Contents
Health and Safety Precautions 4
General Use Precautions 4
1. Introduction to the LaCie 2big Network 6
I want to: 6
1.1. Box Content 7
1.2. Minimum System Requirements 8
1.3. Hard Drive Heat Management 9
1.4. Racking Options 10
1.5. Views Of e Drive 11
Front View/1-click Data Sharing 11
Rear View 12
1.6. Cables and Connectors 13
Table of Contents
page 1
2. Setting Up Your LaCie 2big Network 1
2.1. Turning the Drive On 15
2.2. Connecting the Ethernet Cable 16
2.3. Connecting with LaCie Ethernet Agent (Windows) 17

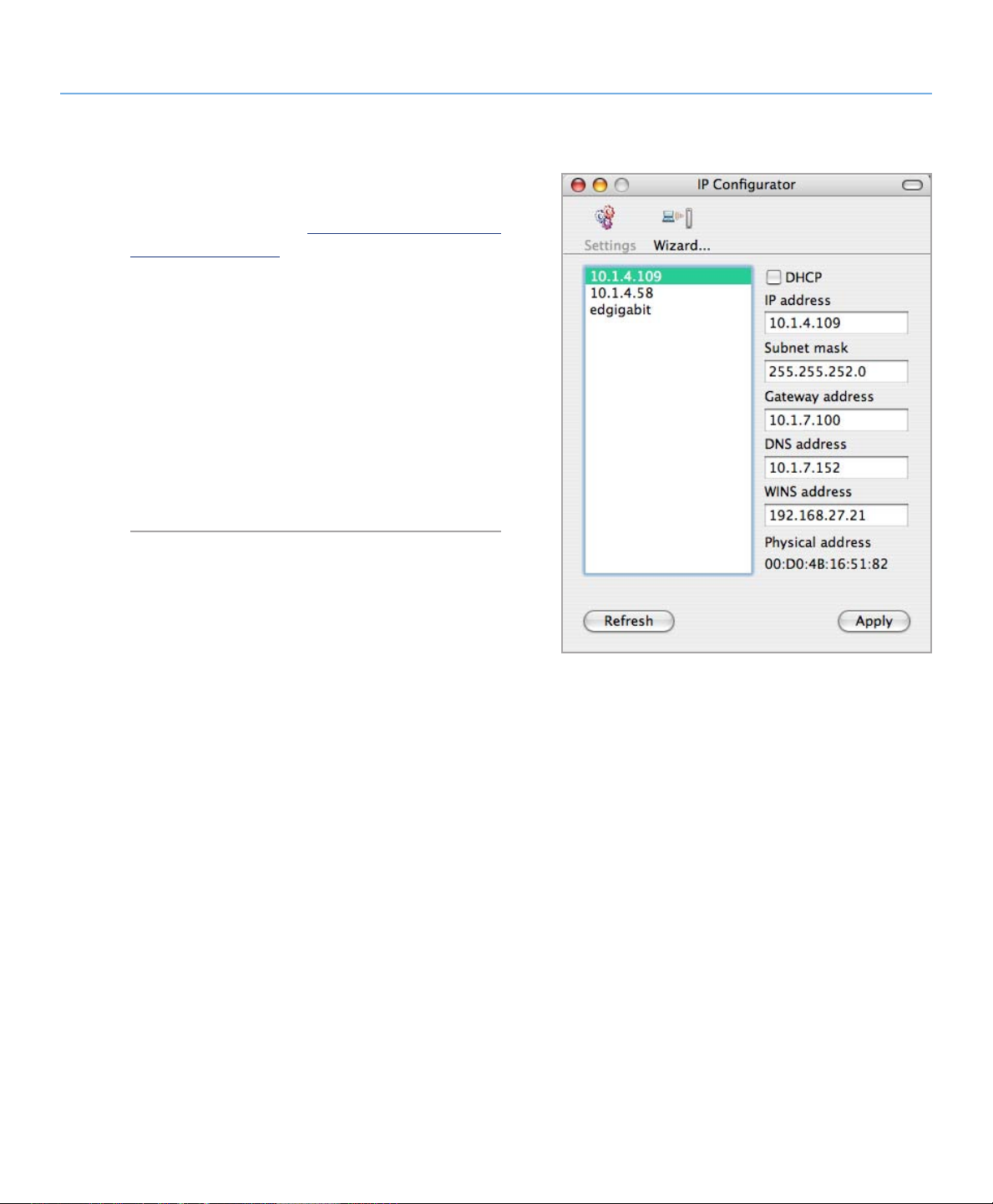

2.4. Connecting with the IP Configurator Wizard (Mac) 19
2.5. Configuring the 2big Network on a LAN Without a DHCP Server 20
2.5.1. Configure with LaCie Ethernet Agent (Windows) 20
2.5.2. Configure with LaCie IP Configurator (Mac) 21
2.6. Disconnecting the 2big Network (Ethernet Connection) 22
3. Administering Your LaCie 2big Network 2

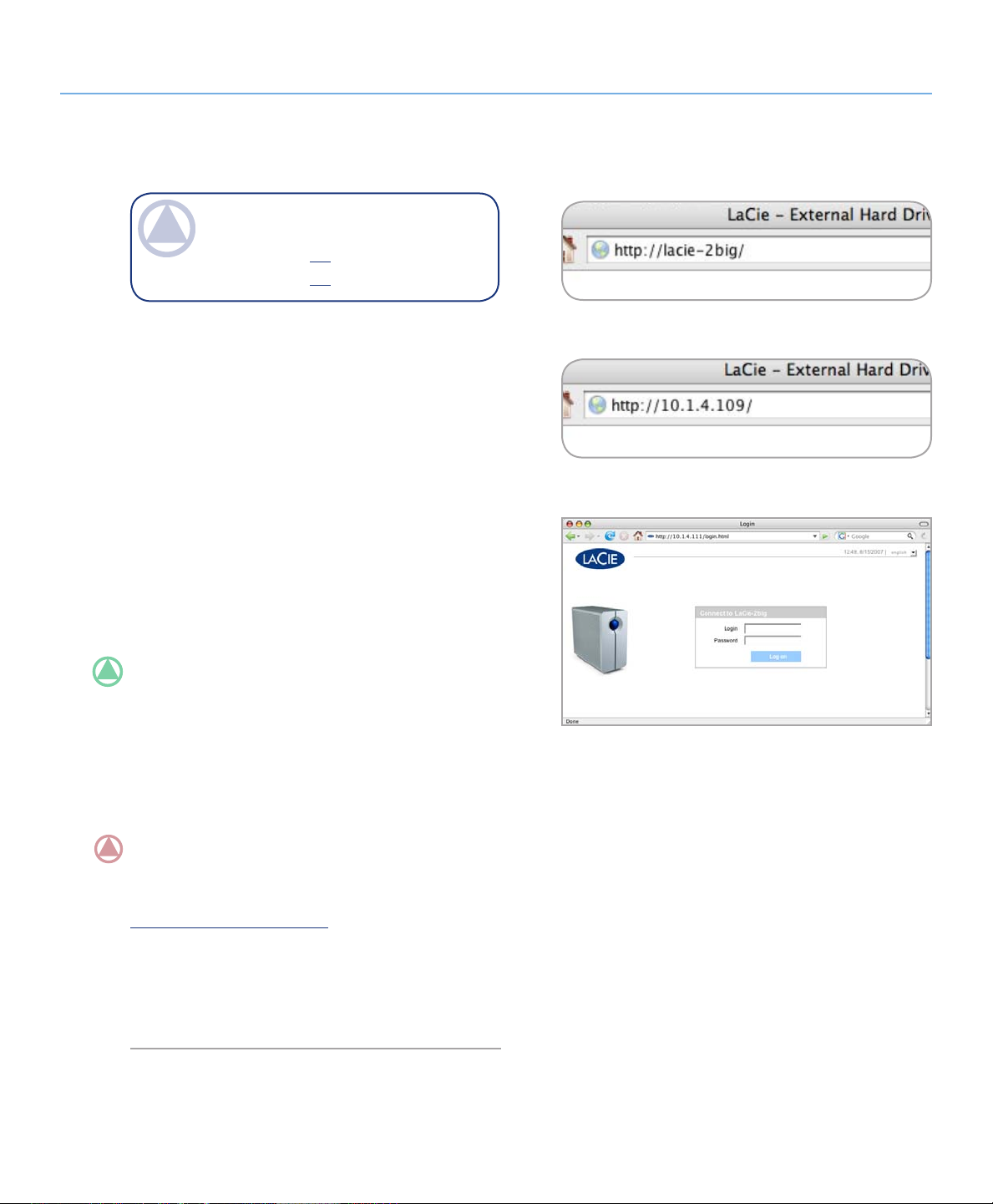

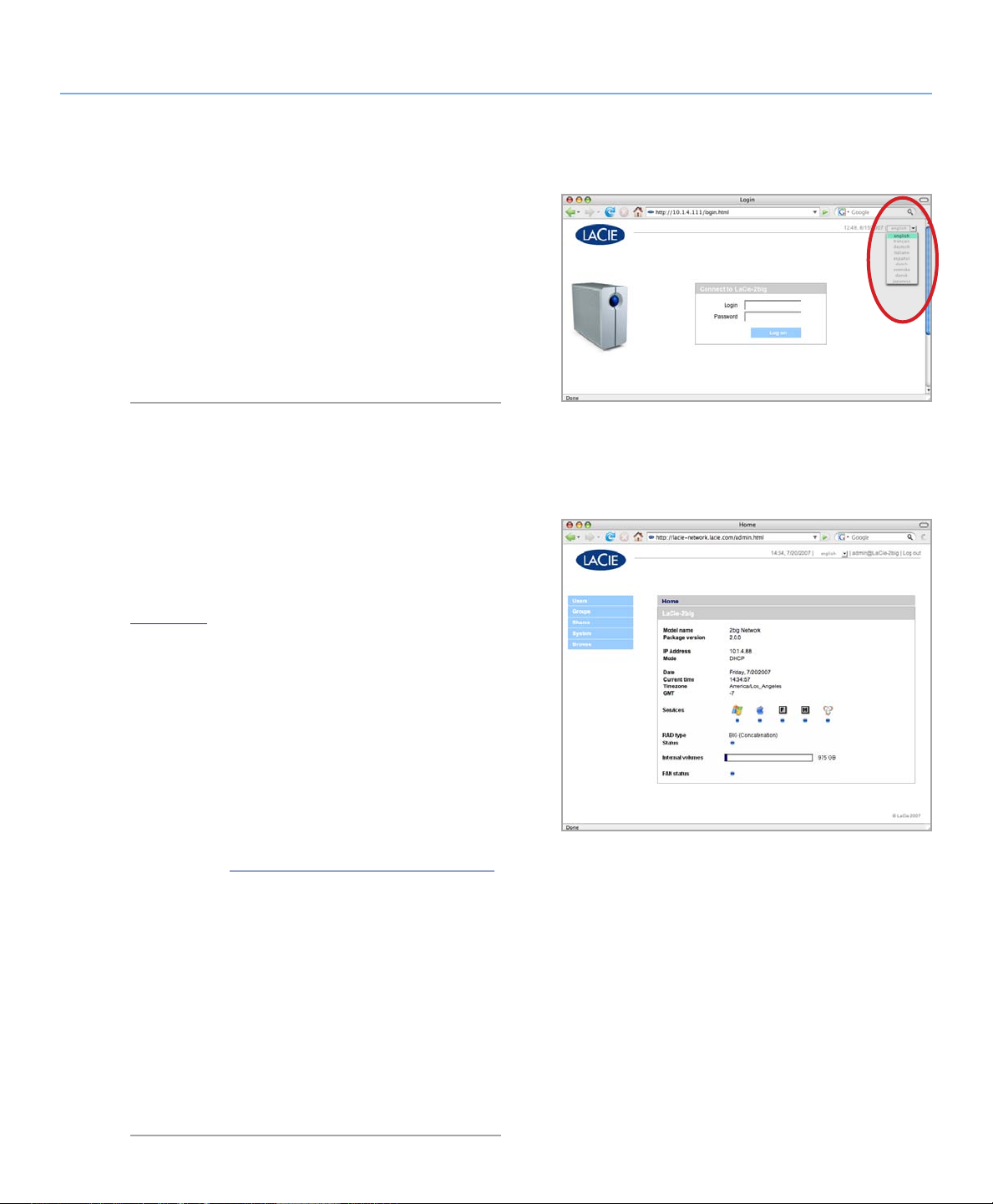

3.1. Accessing the NAS Administration Page 24
3.2. Setting the Display Language 25

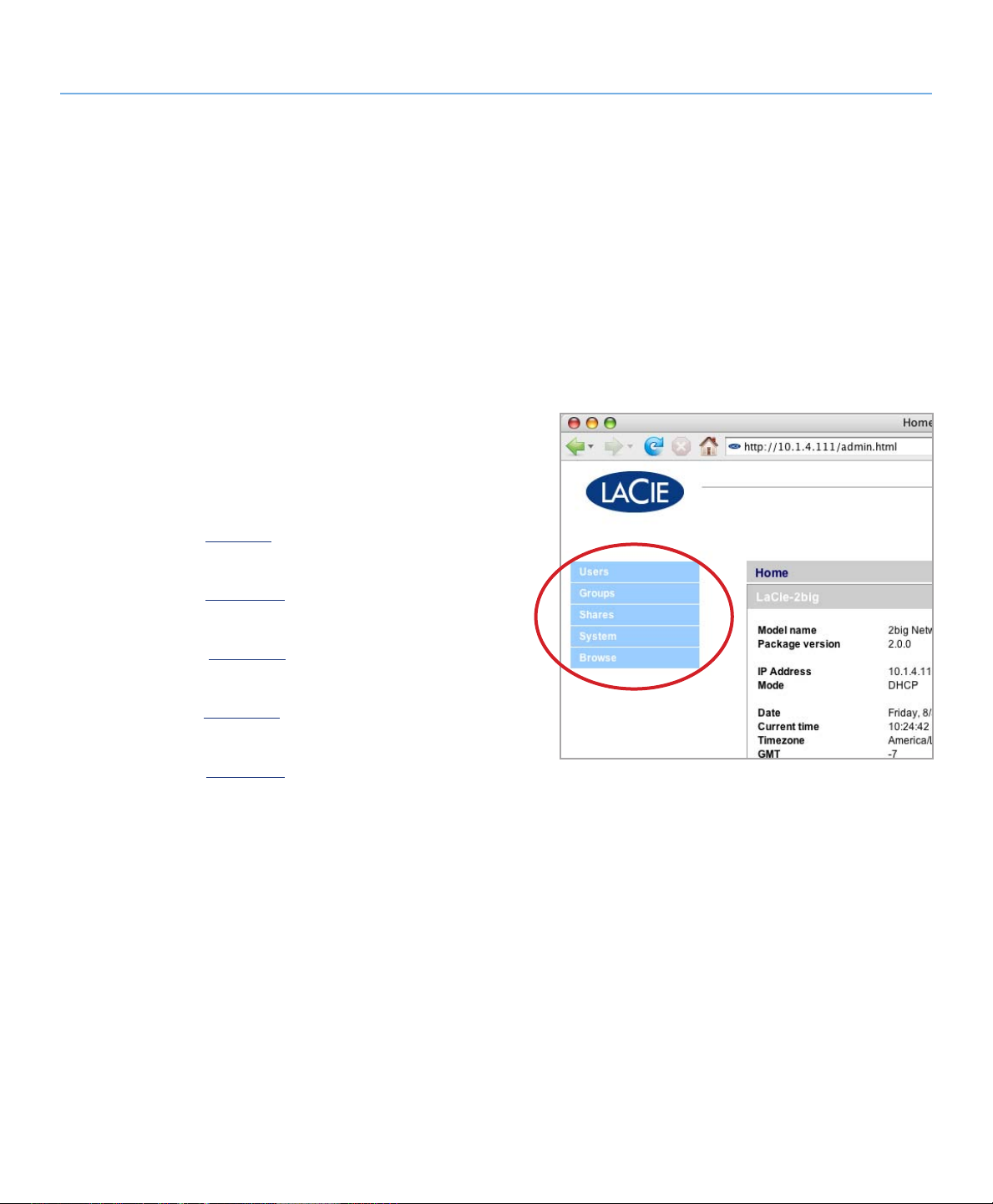

3.3. Administration Home Page 25
3.4. Users 26
3.4.1. Administrator Account 26

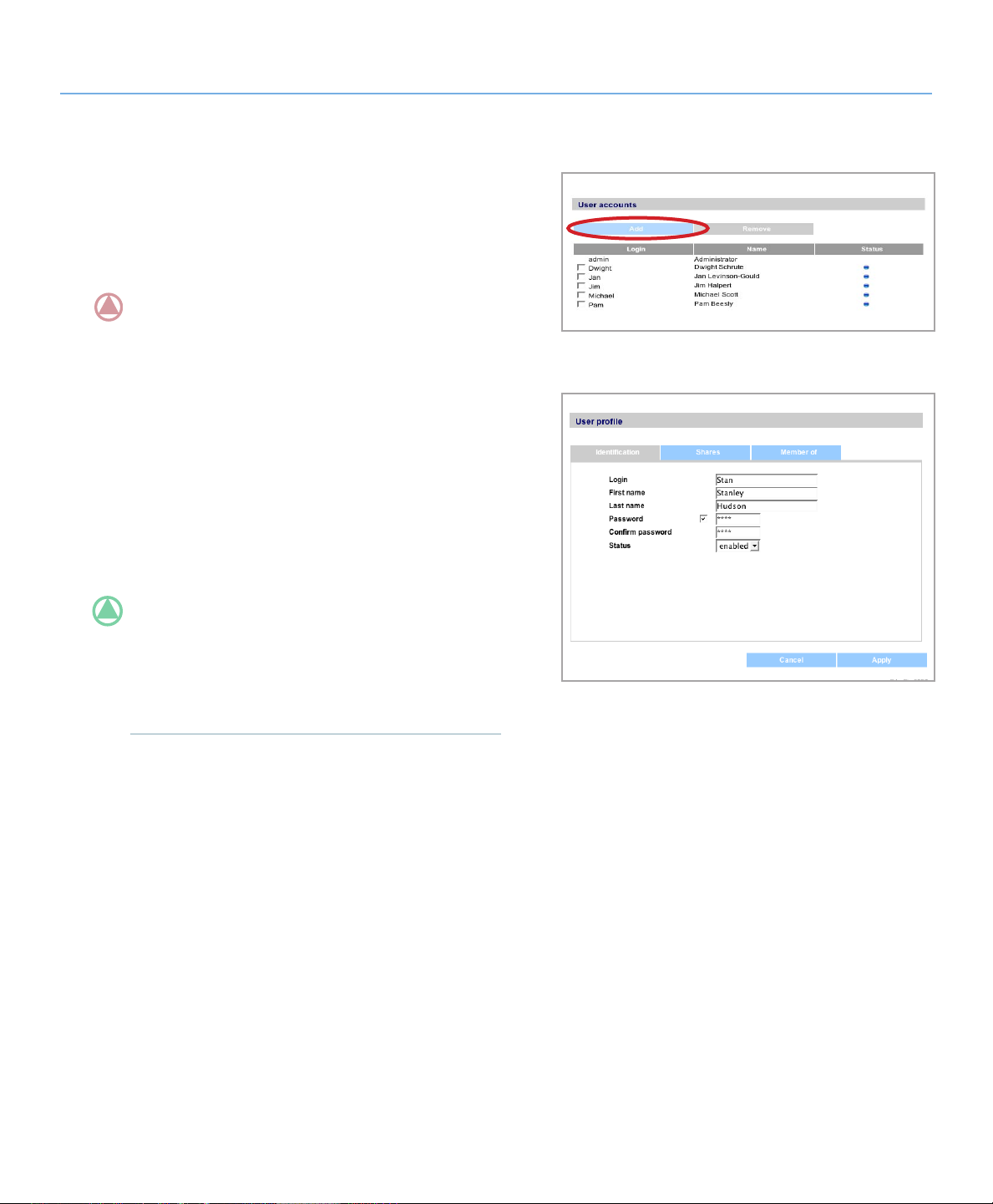

3.4.2. Adding Users 27

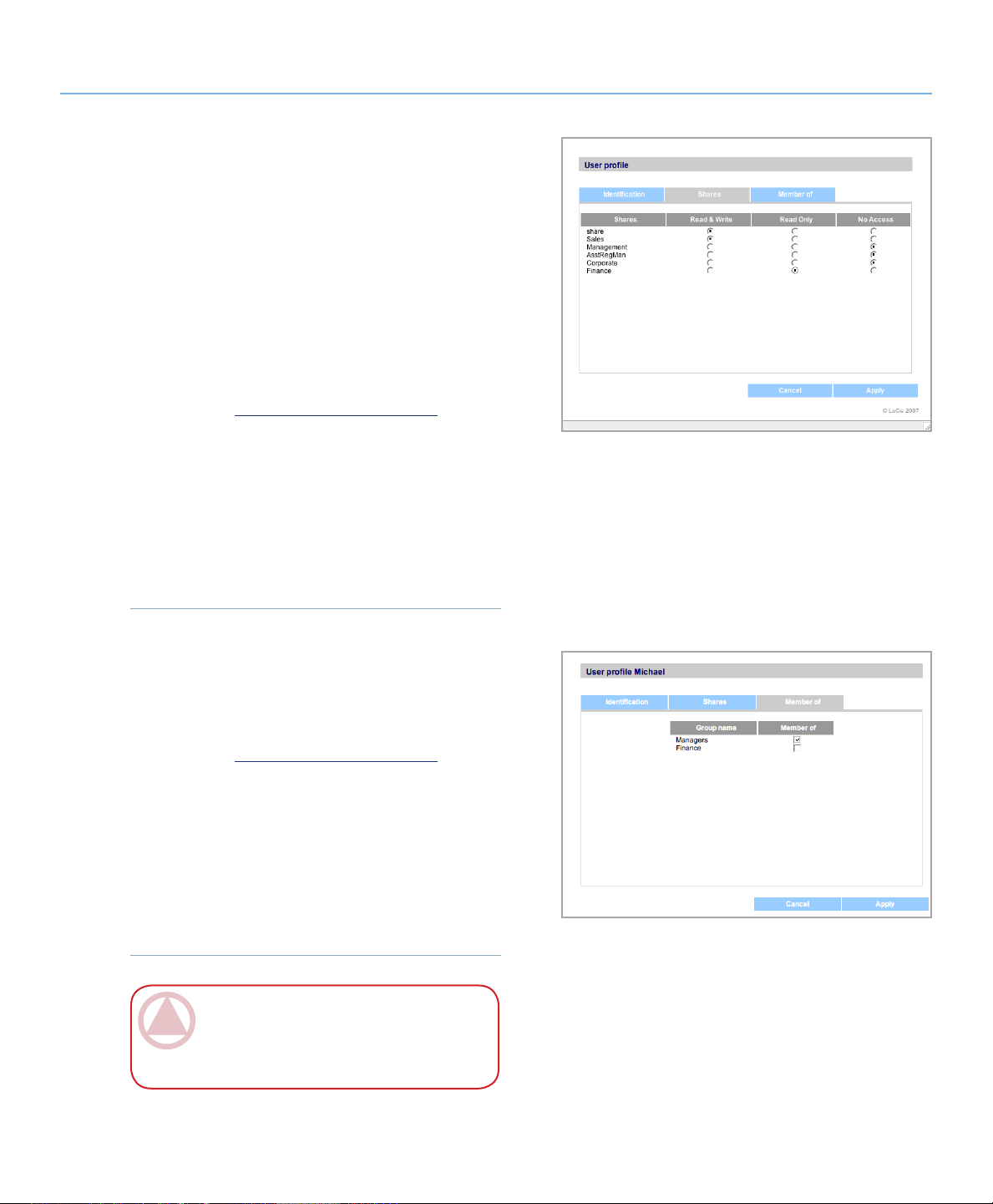

3.4.3. Setting User Access to Shares 28
3.4.4. Setting Group Membership 28
3.4.5. About Access Privileges 29
3.4.6. Deleting User Accounts 29
3.4.7. Editing User Accounts 2

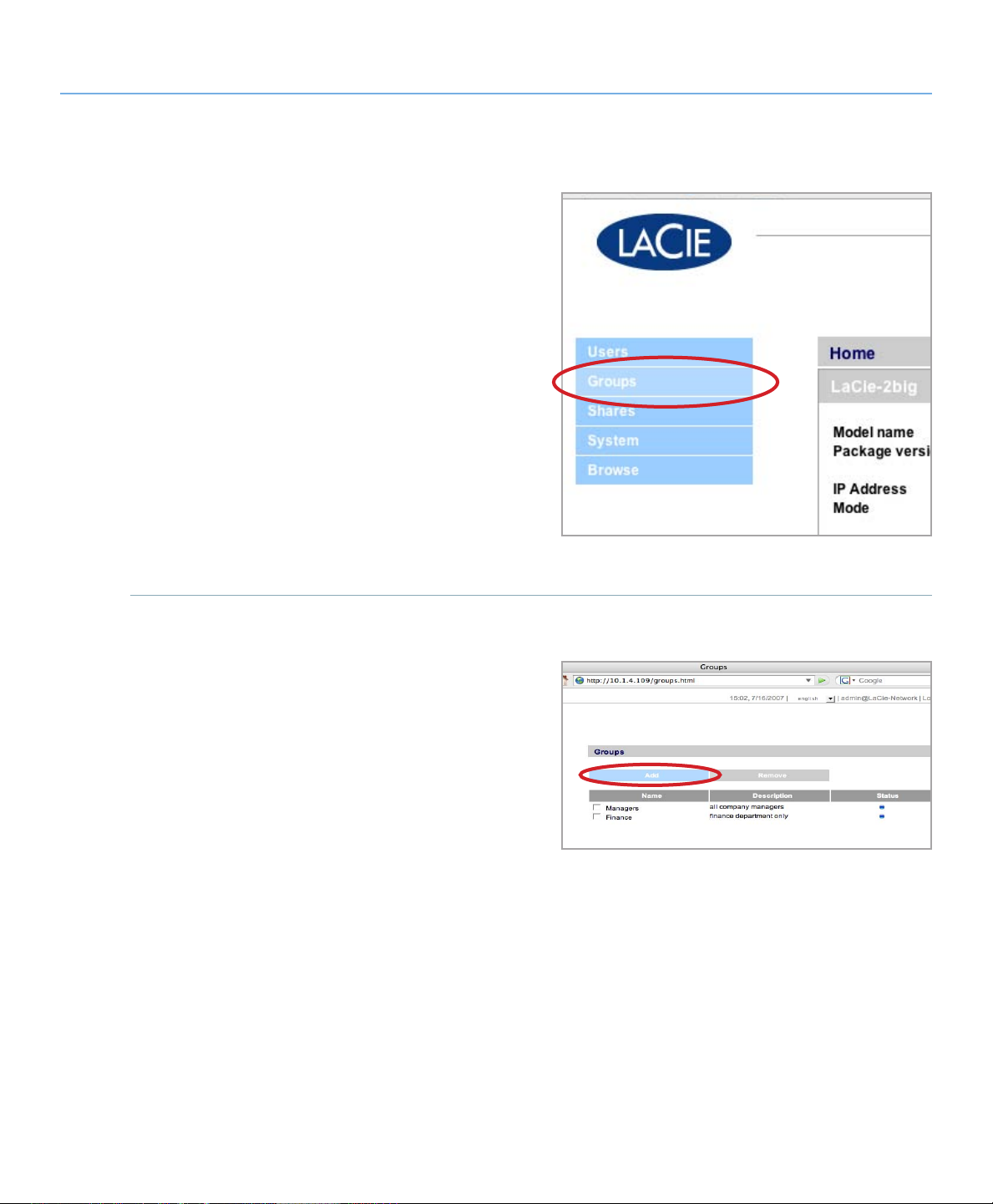

3.5. Groups 30
3.5.1. Adding Groups 30
3.5.2. Setting Group Access to Shares 31
3.5.3. Deleting Groups 32
3.5.4. Editing Groups 32
4
3
9
Page 3
LaCie 2big Network
User Manual

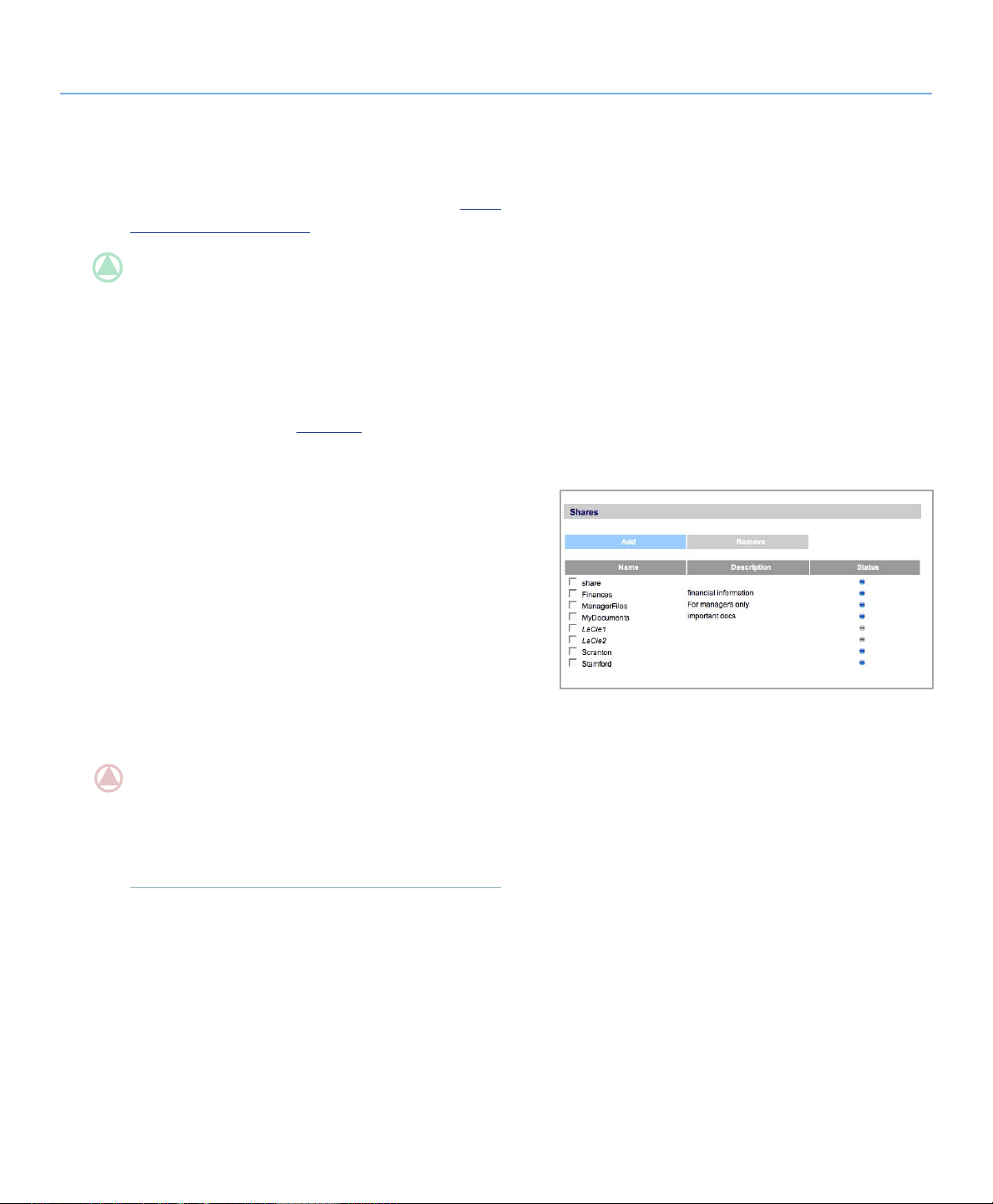

3.6. Shares 33

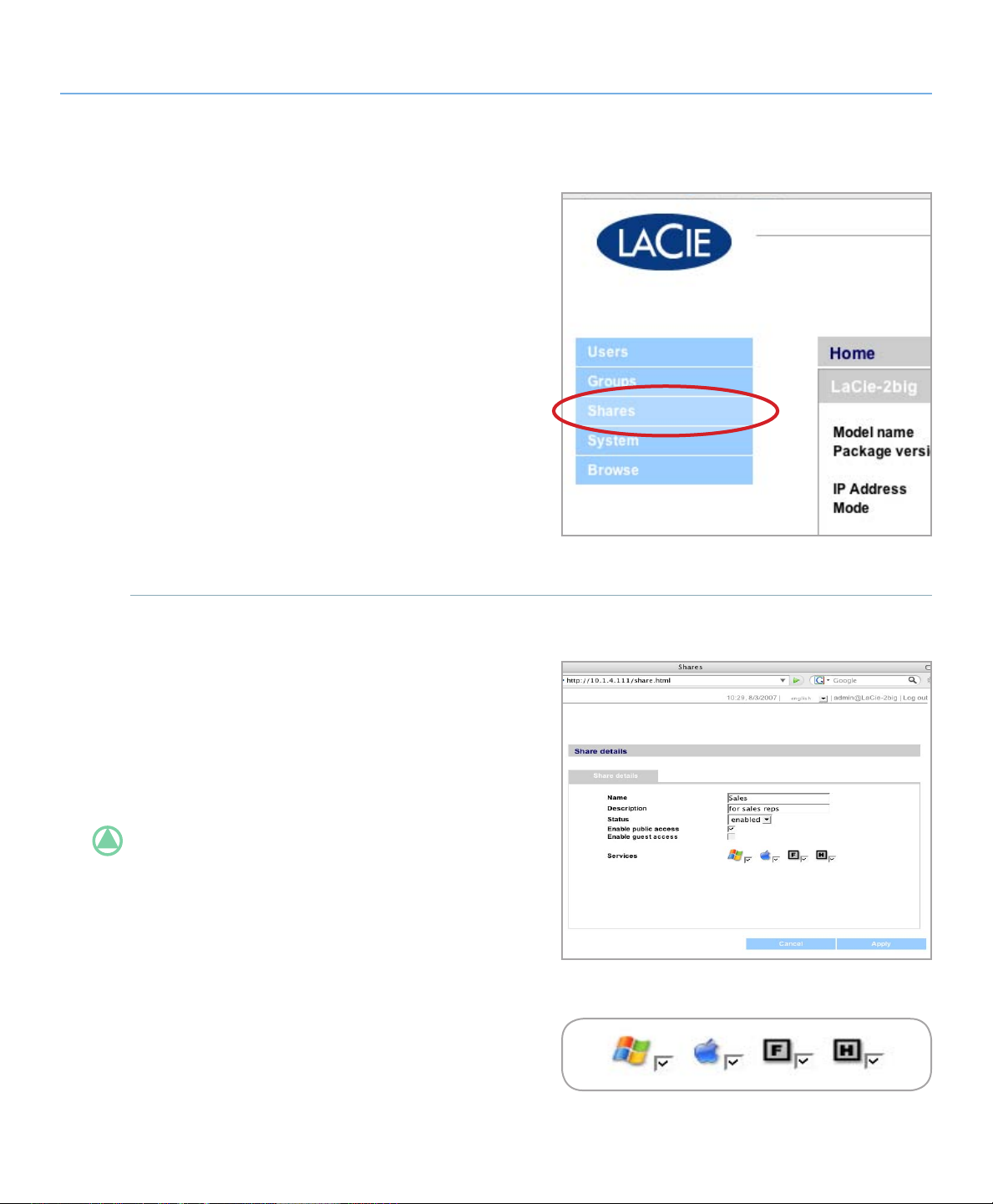

3.6.1. Creating Shares 33
3.6.2. Creating a Share from a USB Key 34
3.6.3. Deleting Shares 35
3.6.4. Editing Shares 35
3.7. System 36

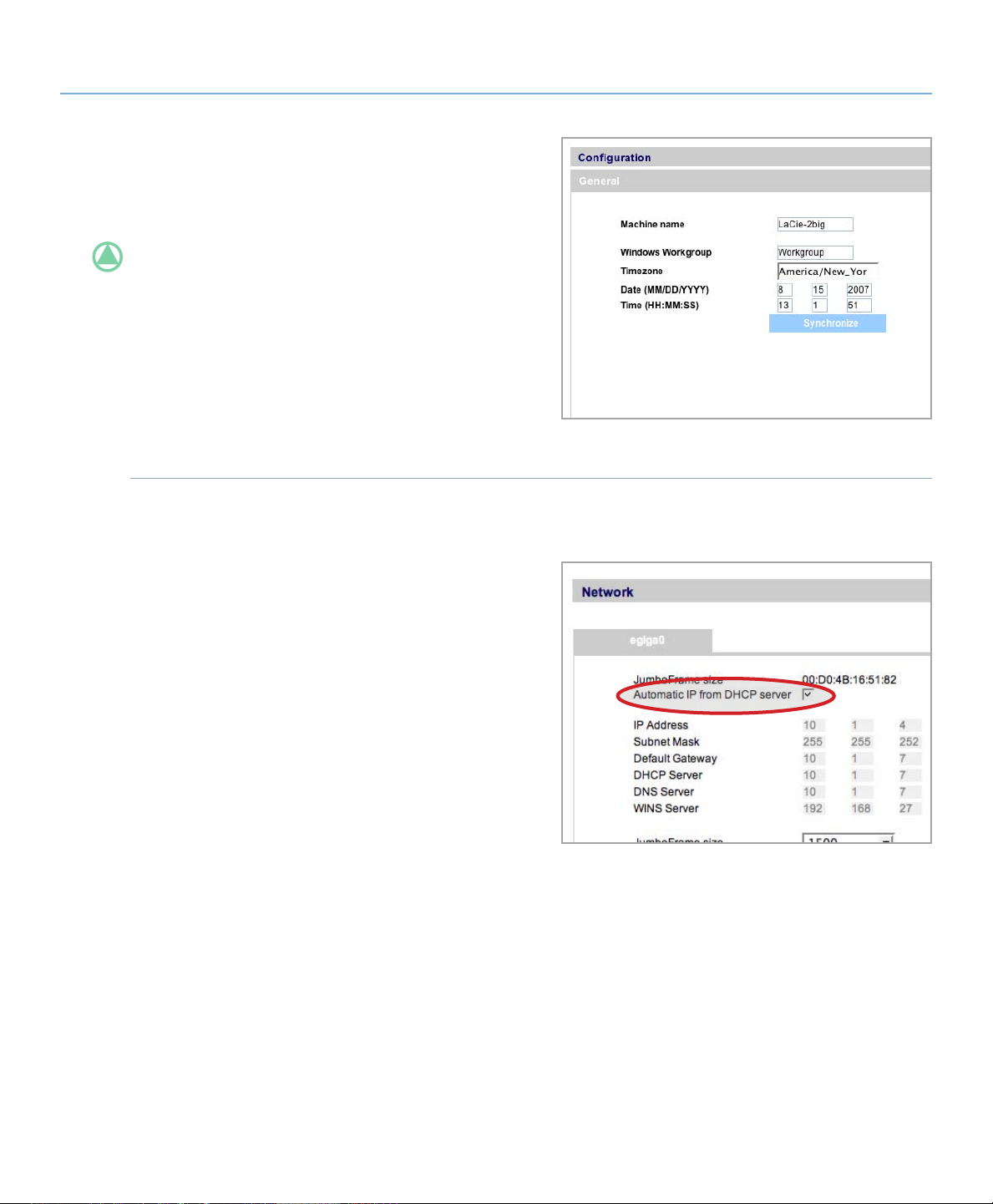

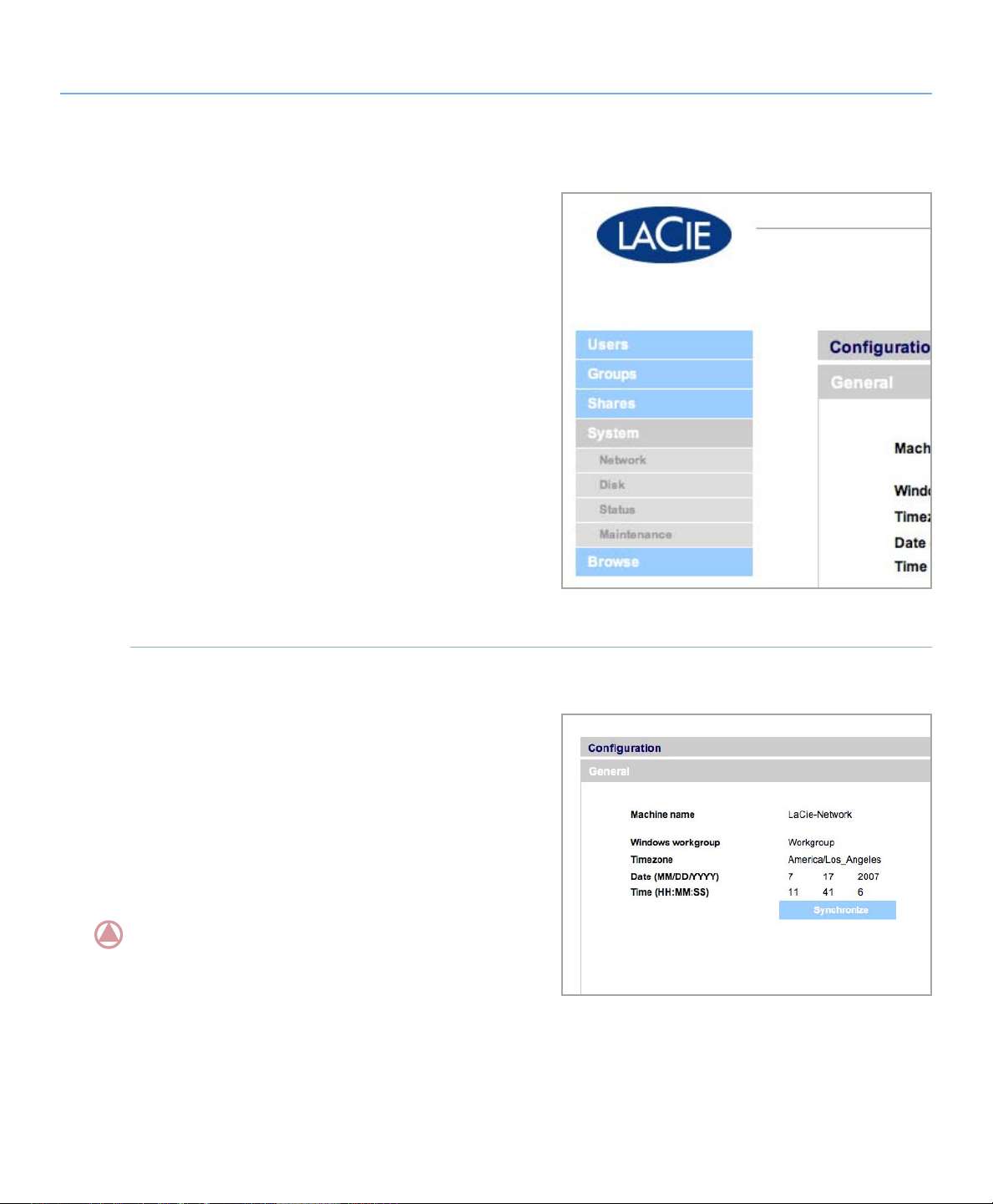

3.7.1. Configuration 36
3.7.2. Network 37
3.7.2.1. Obtain IP from DHCP Server 37
3.7.2.2. Configure IP Manually 38
3.7.3. Disk 39
3.7.3.1. Formatting Disks 39
3.7.3.2. Adding additional storage space 39
3.7.4. Status 41

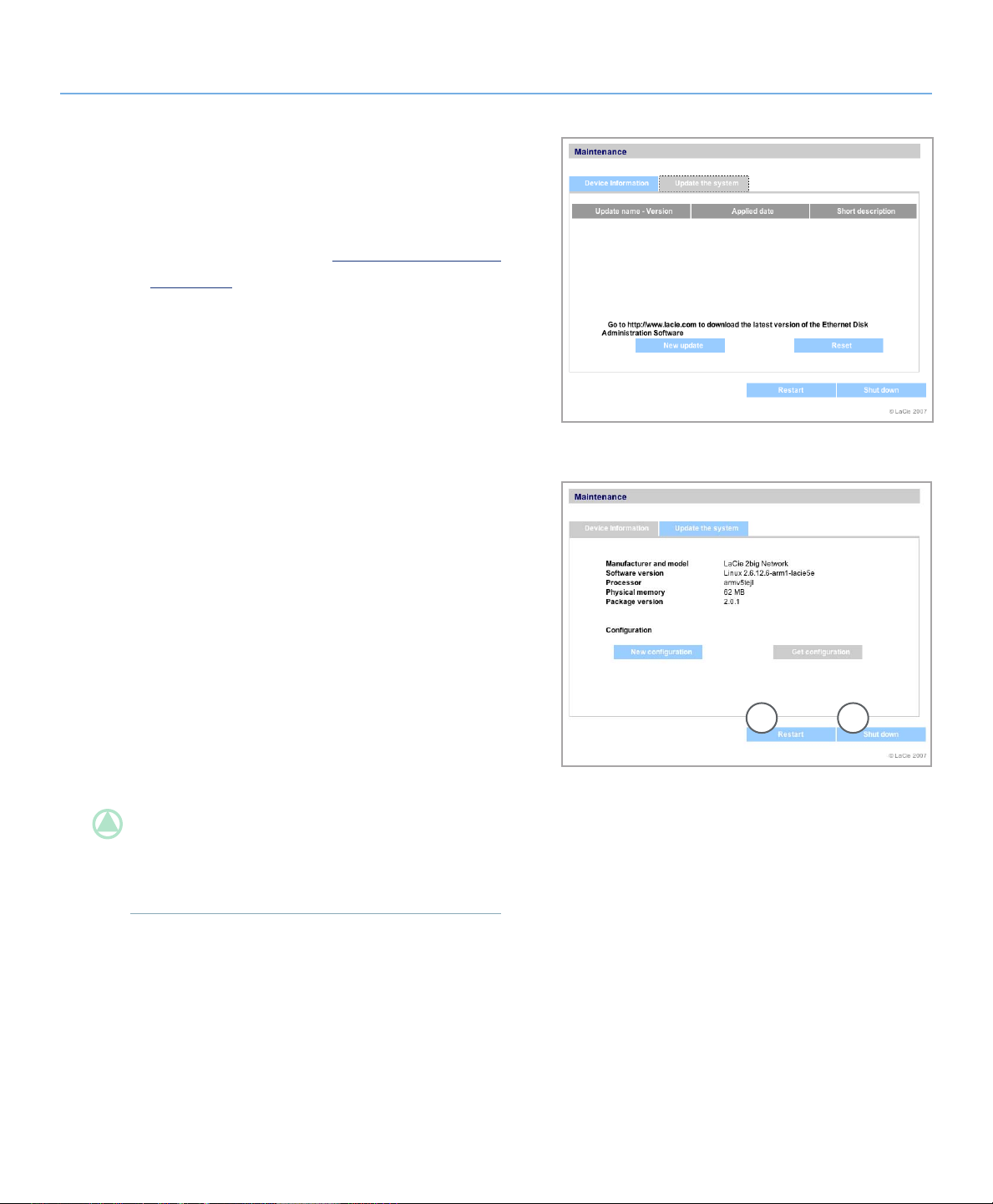

3.7.5. Maintenance 41

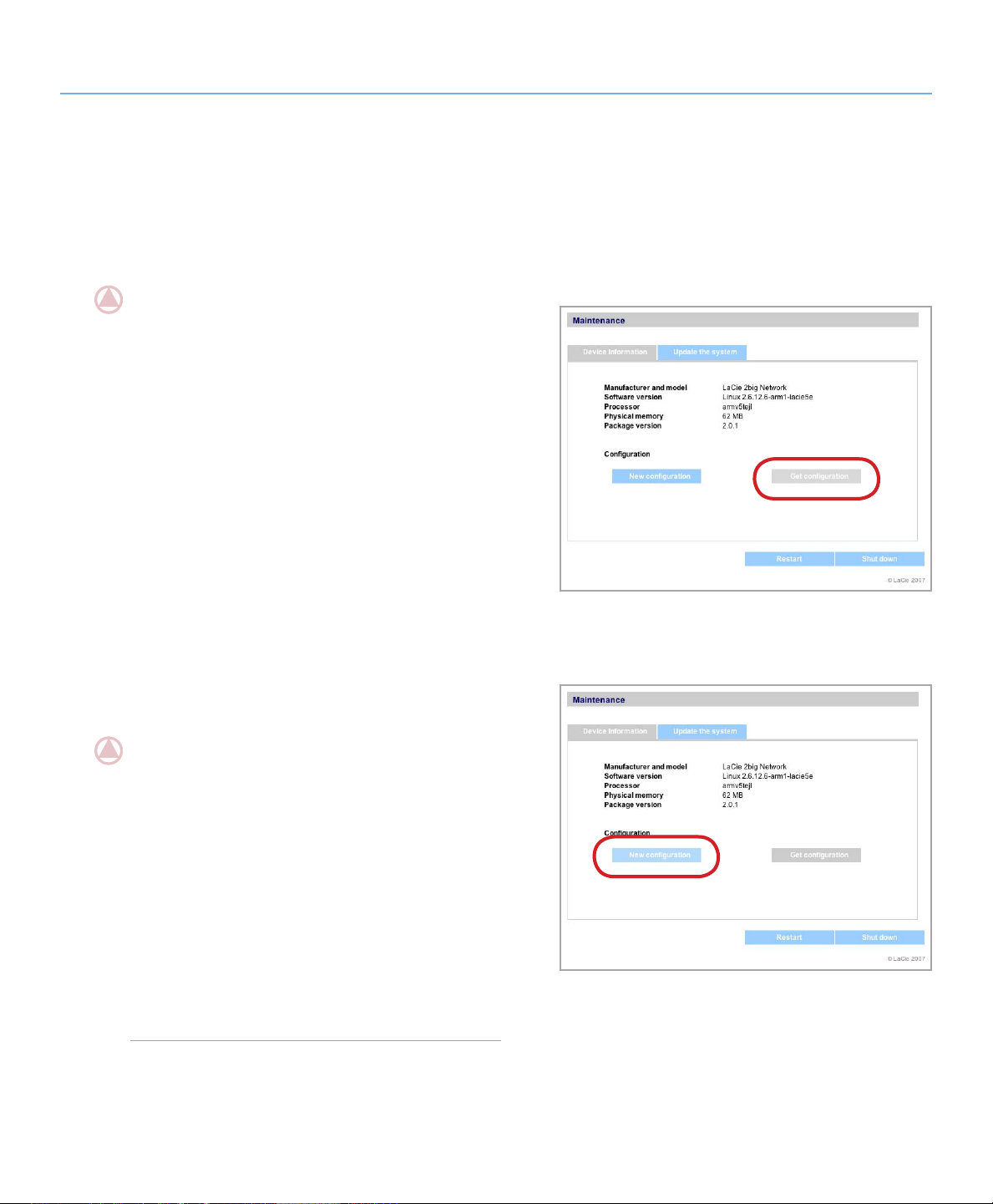

3.7.5.1. Saving and Loading System Configurations 42
3.7.5.2. Updating the System 43
3.7.5.3. Restart 43
3.7.5.4. Shut Down 43

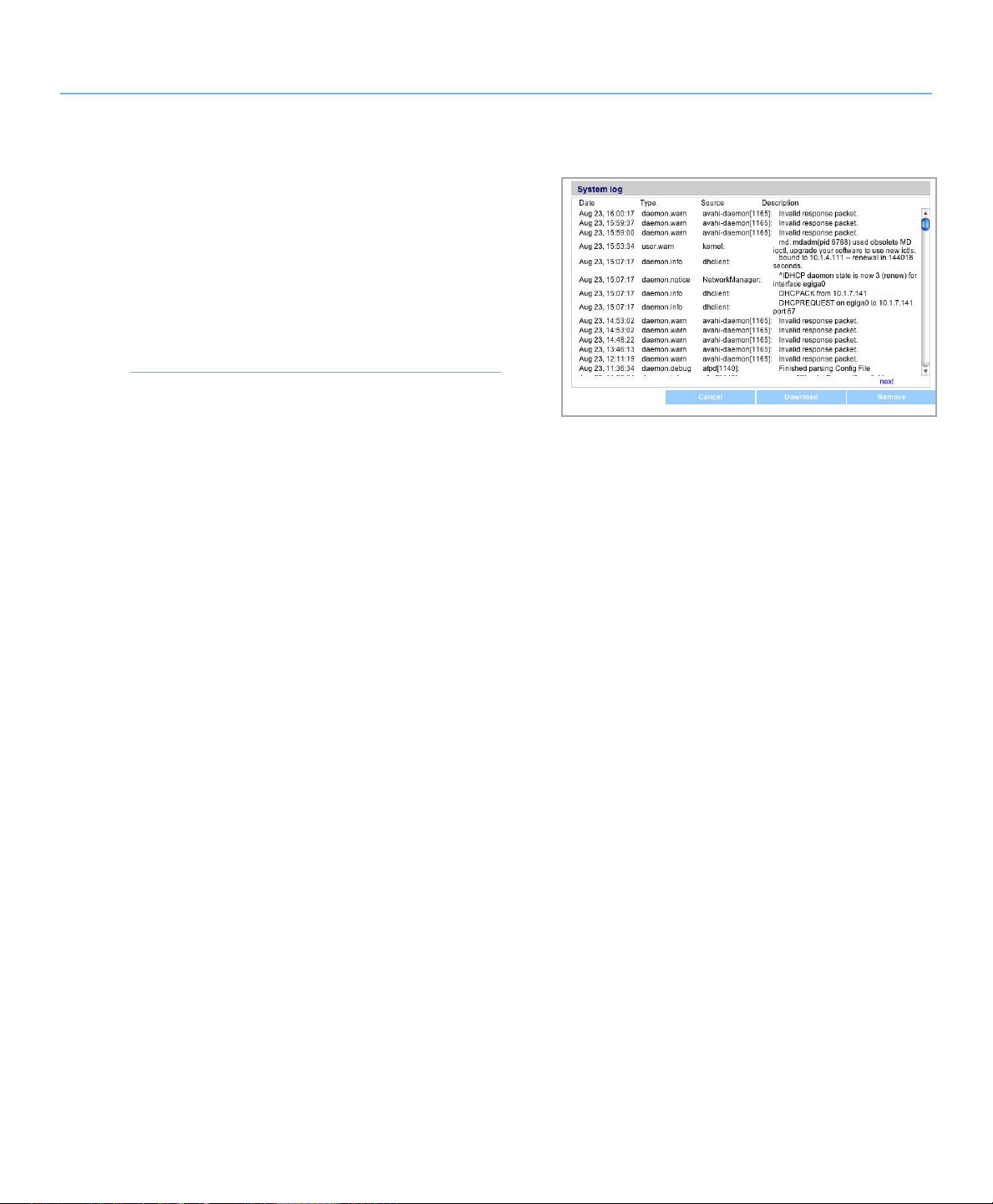

3.7.6. System Log 44
Table of Contents
page 2
4. Accessing the Shared Storage 45

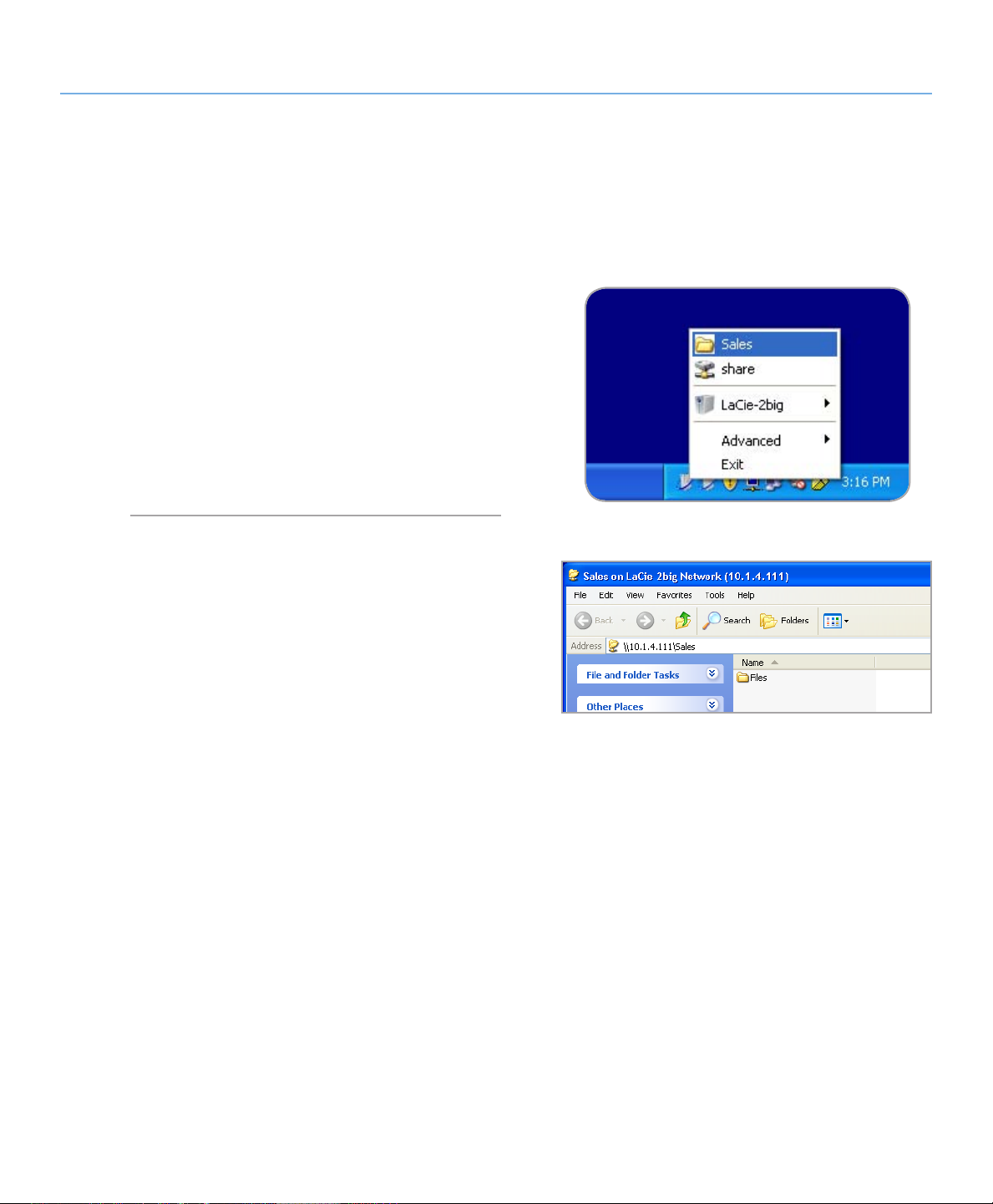

4.1. Connect to a Share with Ethernet Agent (Windows) 45

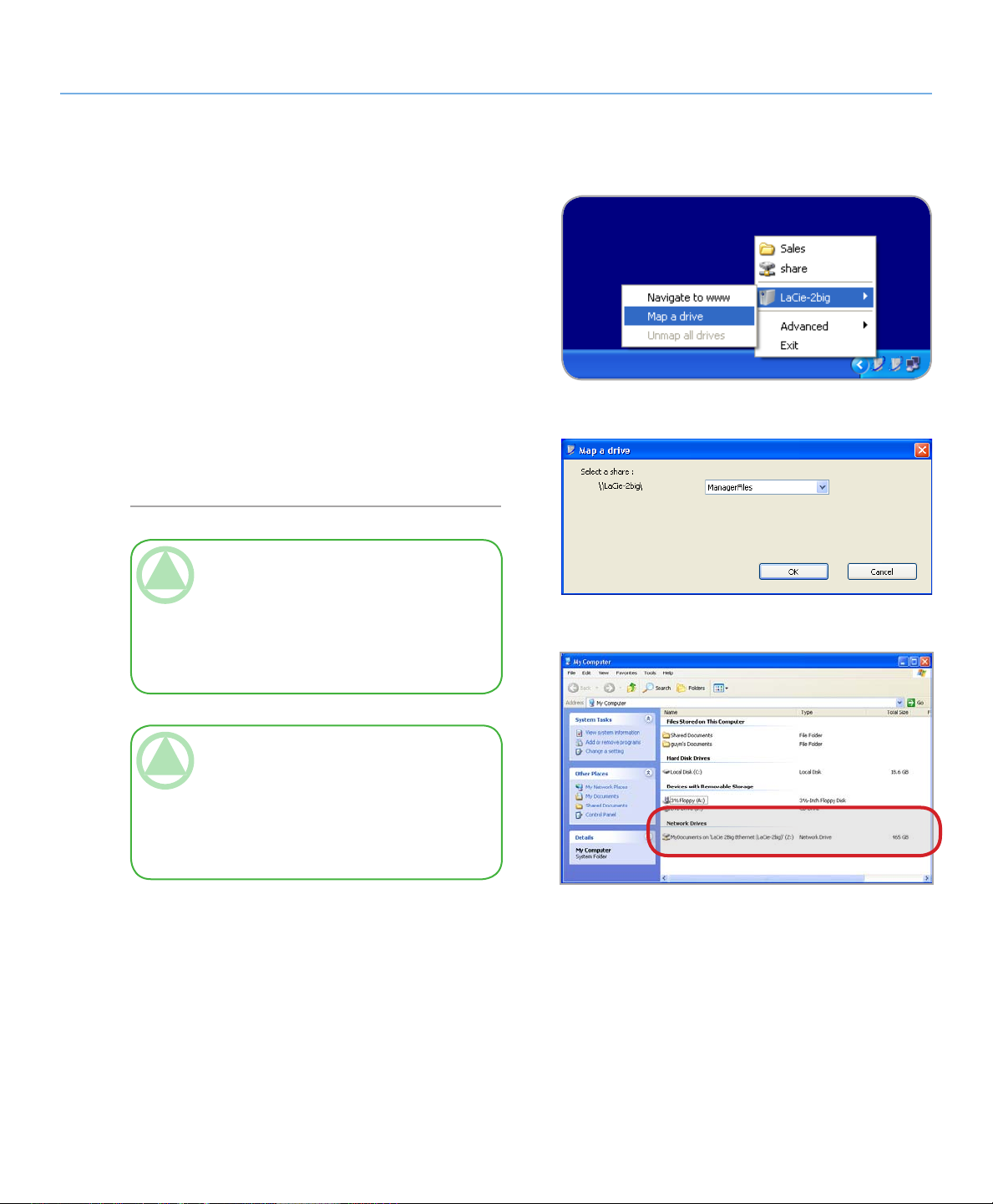

4.2. Map a Drive with Ethernet Agent (Windows) 46

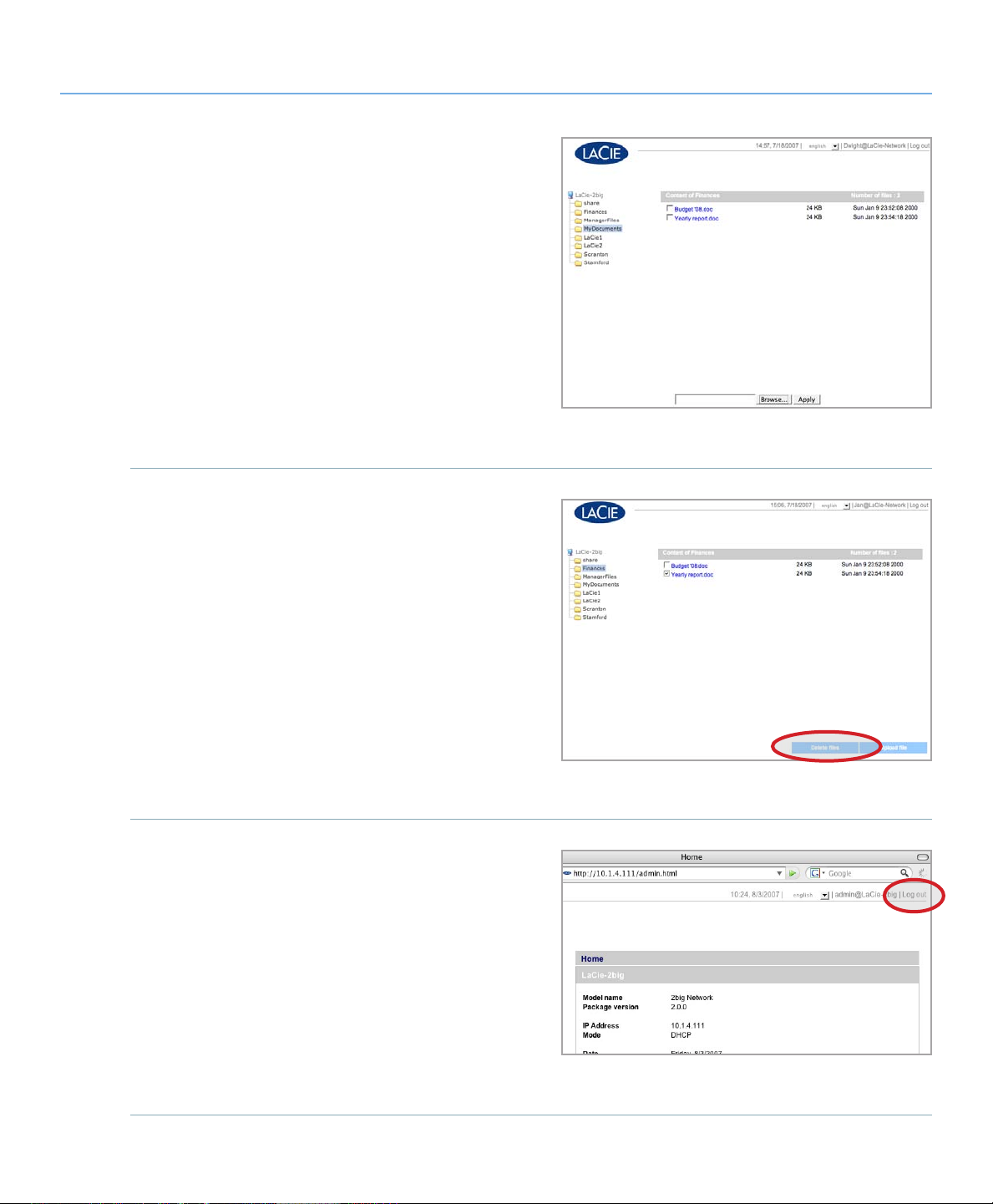

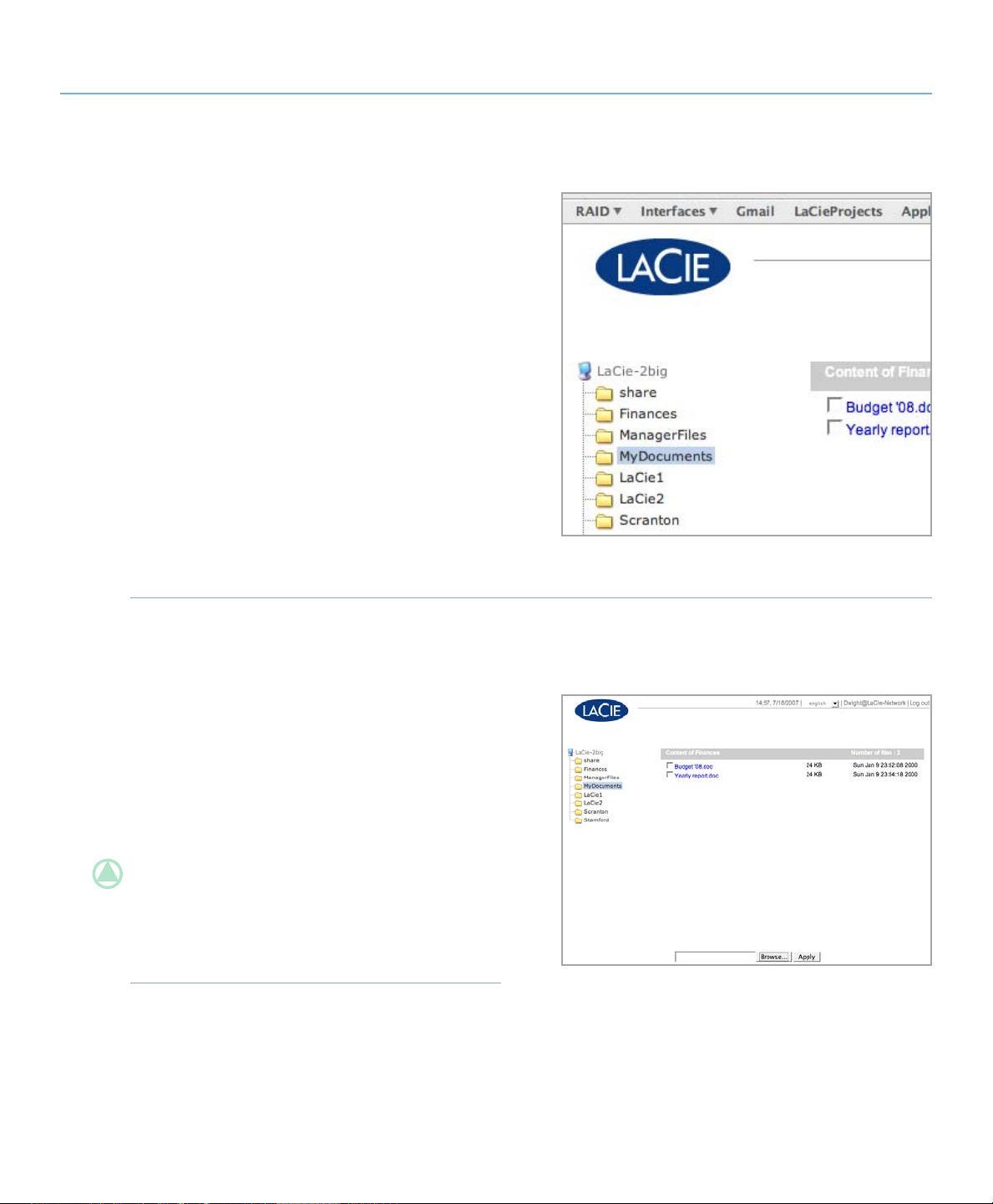

4.3. NAS Administration Page – Browse 47
4.3.1. Uploading Files 47
4.3.2. Downloading Files 48
4.3.3. Deleting Files 48
4.3.4. Logging Out 48

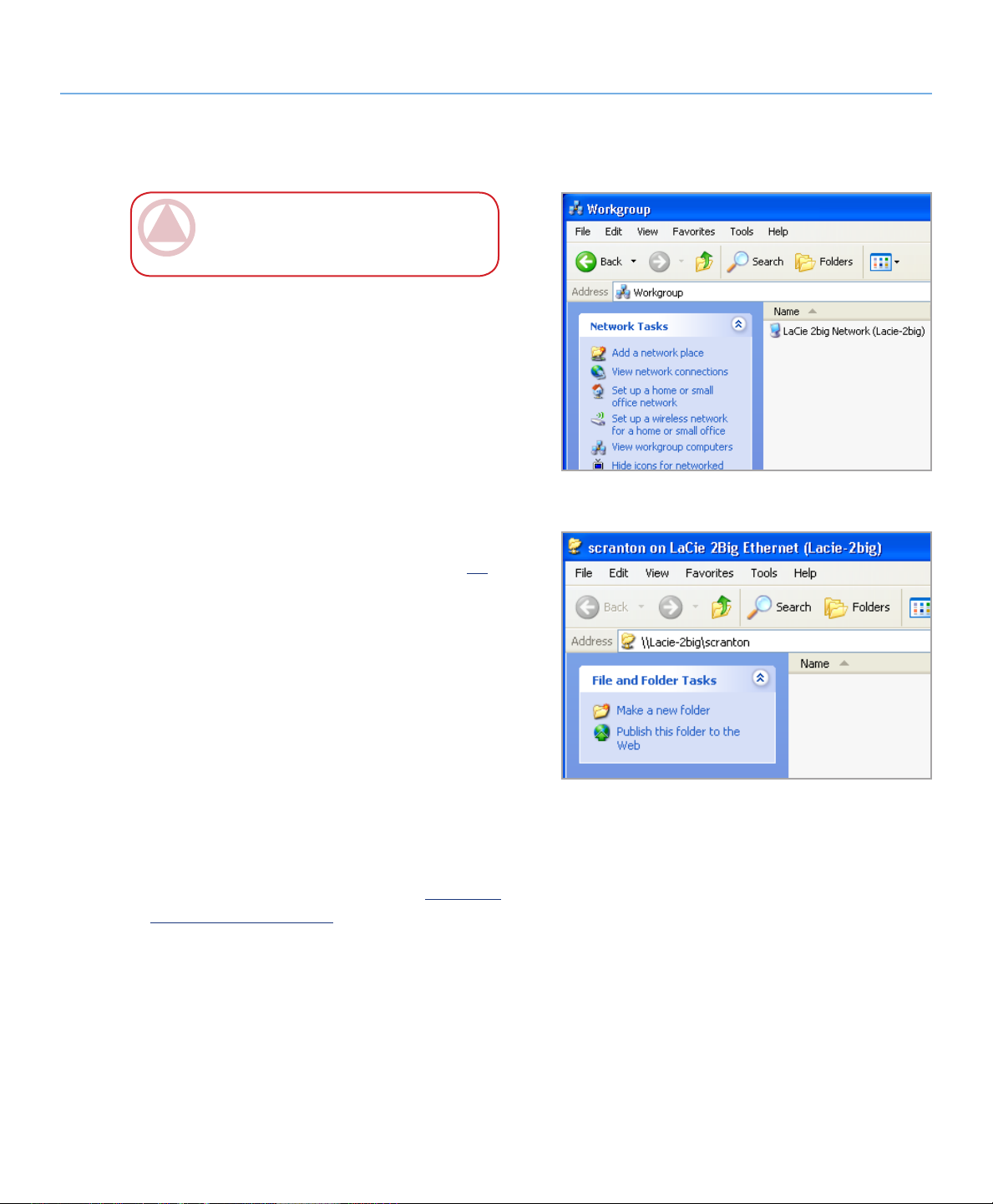

4.4. My Network Places – Windows Vista/XP/2000 Users 49
4.5. Mac Users 51
4.6. Linux Users 52
5. RAID 5
5.1. 2big Network RAID Modes 53

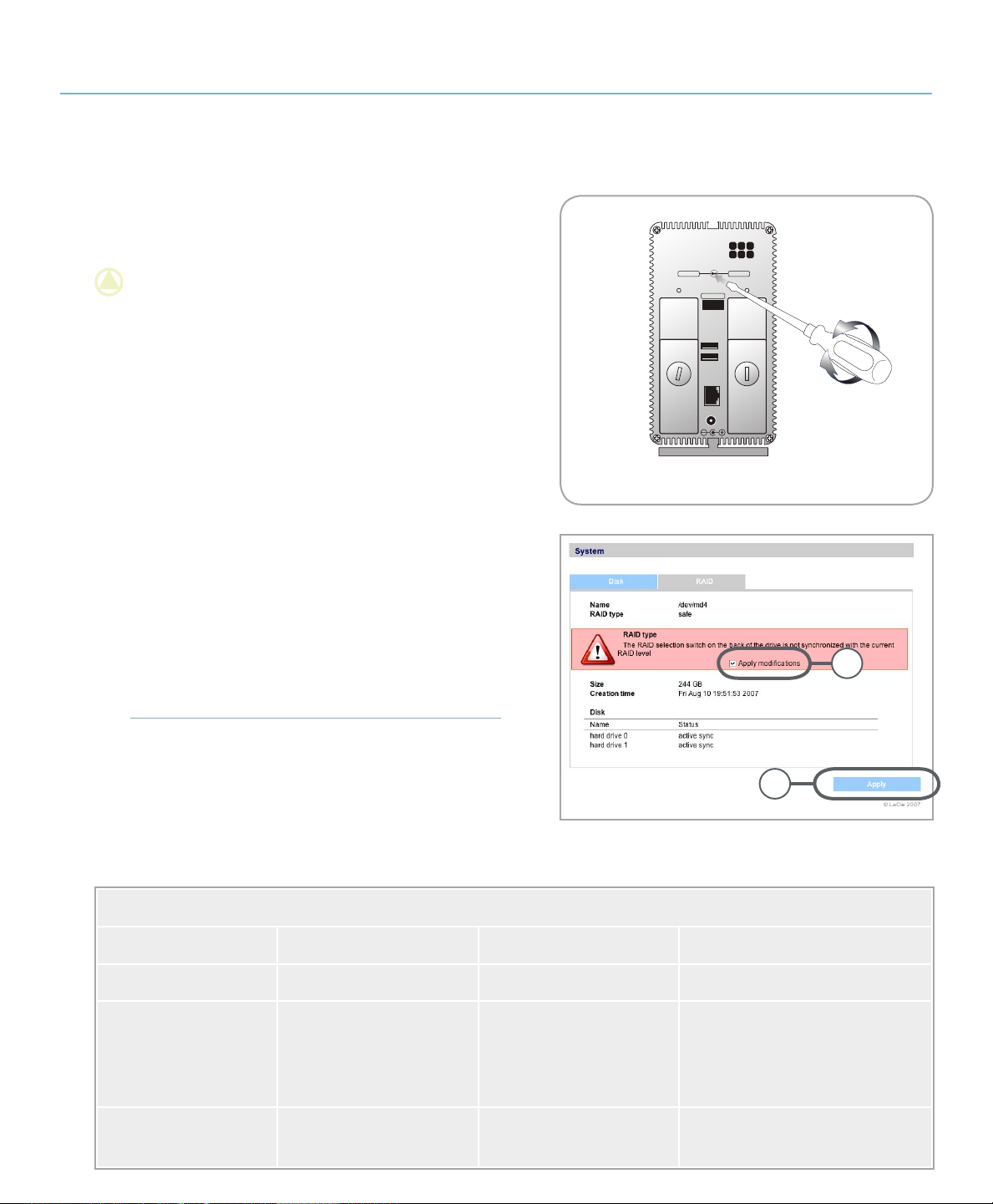

5.2. Changing the RAID Mode 54
5.3. Replacing Drives 55
5.3.1. Installing a New Drive 55
5.3.2. Initializing the New Drive 5
6. LED Indicators 5
7. Troubleshooting 58
3
6
7
8. Contacting Customer Support 6
8.1. LaCie Technical Support Contacts 62
9. Warranty Information 63
1
Page 4
LaCie 2big Network
User Manual
Copyrights
Copyright © 2007 LaCie. All
rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any
form or by any means, electronic, mechanical, photocopying, recording or
otherwise, without the prior written
consent of LaCie.
Trademarks
Apple, Mac, and Macintosh are registered trademarks of Apple Computer,
Inc. Microsoft, Windows 98, Windows
98 SE, Windows 2000, Windows Millennium Edition and Windows XP
are registered trademarks of Microsoft
Corporation. Other trademarks mentioned in this manual are the property
of their respective owners.
Changes
e material in this document is
for information only and subject to
change without notice. While reasonable efforts have been made in the
preparation of this document to assure
its accuracy, LaCie assumes no liability
resulting from errors or omissions in
this document, or from the use of the
information contained herein. LaCie
reserves the right to make changes or
revisions in the product design or the
product manual without reservation
and without obligation to notify any
person of such revisions and changes.
Canada Compliance Statement
is Class A digital apparatus
meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
FCC Statement
LaCie 2big Network
Tested To Comply
With FCC standards
For Home of Office Use
is device complies with Part 15
of the FCC Rules. Operation is subject
to the following conditions:
e devices may not cause harmful
1.
interference
e devices must accept any inter-
2.
ference received, including interference that may cause undesired
operation.
NOTE: is equipment has been
tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
ese limits are designed to provide
reasonable protection against harmful
interference in a residential installation. is equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning
the equipment off and on, the user is
encouraged to try and correct the interference by one or more of the following measures:
Reorient or relocate the receiving
❖
antenna.
Increase the separation between the
❖
equipment and receiver.
Forward
page 3
Connect the equipment into an out-
❖
let on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
❖
radio/TV technician for help.
Modifications to this product not
authorized by LaCie could void the
FCC & Industry Canada regulations
and negate your authority to operate
the product.
CAUTION: e LaCie 2big Net-
work’s warranty may be void as a result
of the failure to respect the precautions
listed above.
CAUTION: Modifications not autho-
rized by the manufacturer may void the
user’s authority to operate this device.
Manufacturer’s Declaration for CE Certification
We, LaCie, solemnly declare that this
product conforms to the following European standards: Class B EN60950,
EN55022, EN50082-1, EN61000-3-2
With reference to the following conditions: 73/23/EEC Low Voltage Directive; 89/336/EEC EMC Directive
ROHS Compliance
is product is ROHS compliant
(European Directive 2002/95/EC on
the Restriction of Hazardous Substances).
Page 5
LaCie 2big Network
User Manual
Forward
page 4
is symbol on the product or on its packaging
indicates that this prod-
uct must not be disposed
of with your other household waste.
Instead, it is your responsibility to
dispose of your waste equipment by
handing it over to a designed collec-
tion point for the recycling of waste
electrical and electronic equipment.
e separate collection and recycling
of your waste equipment at the time of
disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects human
health and the environment. For more
Health and Safety Precautions
Only qualified persons are autho-
❖
rized to carry out maintenance on
this device.
Read this User Manual carefully
❖
and follow the correct procedure
when setting up the device.
Do not open your LaCie 2big Net-
❖
work or attempt to disassemble or
modify it. Never insert any metallic object into the drive to avoid any
risk of electrical shock, fire, shortcircuiting or dangerous emissions.
Your LaCie 2big Network contains
no user-serviceable parts. If it appears to be malfunctioning, have
it inspected by a qualified LaCie
Technical Support representative.
Never expose your device to rain,
❖
or use it near water, or in damp or
wet conditions. Never place objects
containing liquids on the LaCie
2big Network, as they may spill into
its openings. Doing so increases the
risk of electrical shock, short-cir-
information about where you can drop
off your waste equipment for recycling,
please contact your local city office,
your household waste disposal service,
or the shop where you purchased the
product.
cuiting, fire or personal injury.
Make sure that the computer and
❖
LaCie 2big Network are electrically
grounded. If the devices are not
grounded, there is an increased risk
of electrical shock. Power requirements 100-240 V~, X.x A, 60-50
Hz, (Supply voltage fluctuations not
exceeding ± 10% of the nominal,
transient over-voltages according to
over-voltage category II).
General Use Precautions
Do not expose the LaCie 2big
❖ dow). Inversely, placing your LaCie
Network to temperatures outside
the range of 5° C to 35° C (41° F
to 95° F); or to operational humidity beyond 5-80%, non-condensing,
or non-operating humidity beyond
10-90%, non-condensing. Doing so
may damage the LaCie 2big Network or disfigure its casing. Avoid
placing your LaCie 2big Network
near a source of heat or exposing
it to sunlight (even through a win-
2big Network in an environment
that is too cold or humid may damage the unit.
Always unplug the LaCie 2big
❖
Network from the electrical outlet
if there is a risk of lightning or if
it will be unused for an extended
period of time. Otherwise, there is
an increased risk of electrical shock,
short-circuiting or fire.
Use only the power supply shipped
❖
with the device.
Do not use the LaCie 2big Network
❖
near other electrical appliances such
as televisions or radios. Doing so
may cause interference which will
adversely affect the operation of the
other products.
Do not place the LaCie 2big
❖
Network near sources of magnetic interference, such as com-
Page 6
LaCie 2big Network
User Manual
Forward
page 5
puter displays, televisions or speakers. Magnetic interference can
affect the operation and stability of your LaCie 2big Network.
Do not place heavy objects on top
of the LaCie 2big Network or use
excessive force on it.
ImpOrTANT INfO: 1GB = 1,000,000,000 bytes. 1TB = 1,000,000,000,000 bytes. Once formatted, the actual available
storage capacity varies depending on operating environment (typically 10-15% less). 1GB = 1,000,000,000 bytes. 1TB =
1,000,000,000,000 bytes.
ImpOrTANT INfO: Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of
the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data. To help prevent the
loss of your data, LaCie highly recommends that you keep TWO copies of your data; one copy on your external hard drive, for
instance, and a second copy either on your internal hard drive, another external hard drive or some other form of removable
storage media. LaCie offers a complete line of CD and DVD drives. If you would like more information on backup, please
refer to our website.
Never use excessive force on your
❖
LaCie 2big Network. If you detect
a problem, see the Troubleshooting
section in this manual.
CAUTION: A shielded-type power
cord is required in order to meet FCC
emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only
the supplied power cord be used.
Page 7
LaCie 2big Network
User Manual
1. Introduction to the LaCie 2big Network
Congratulations on your purchase of a LaCie 2big Network. Designed to satisfy the data sharing and backup needs of
small offices, the LaCie 2big Network represents the new generation of shared storage with security.
Introduction
page 6

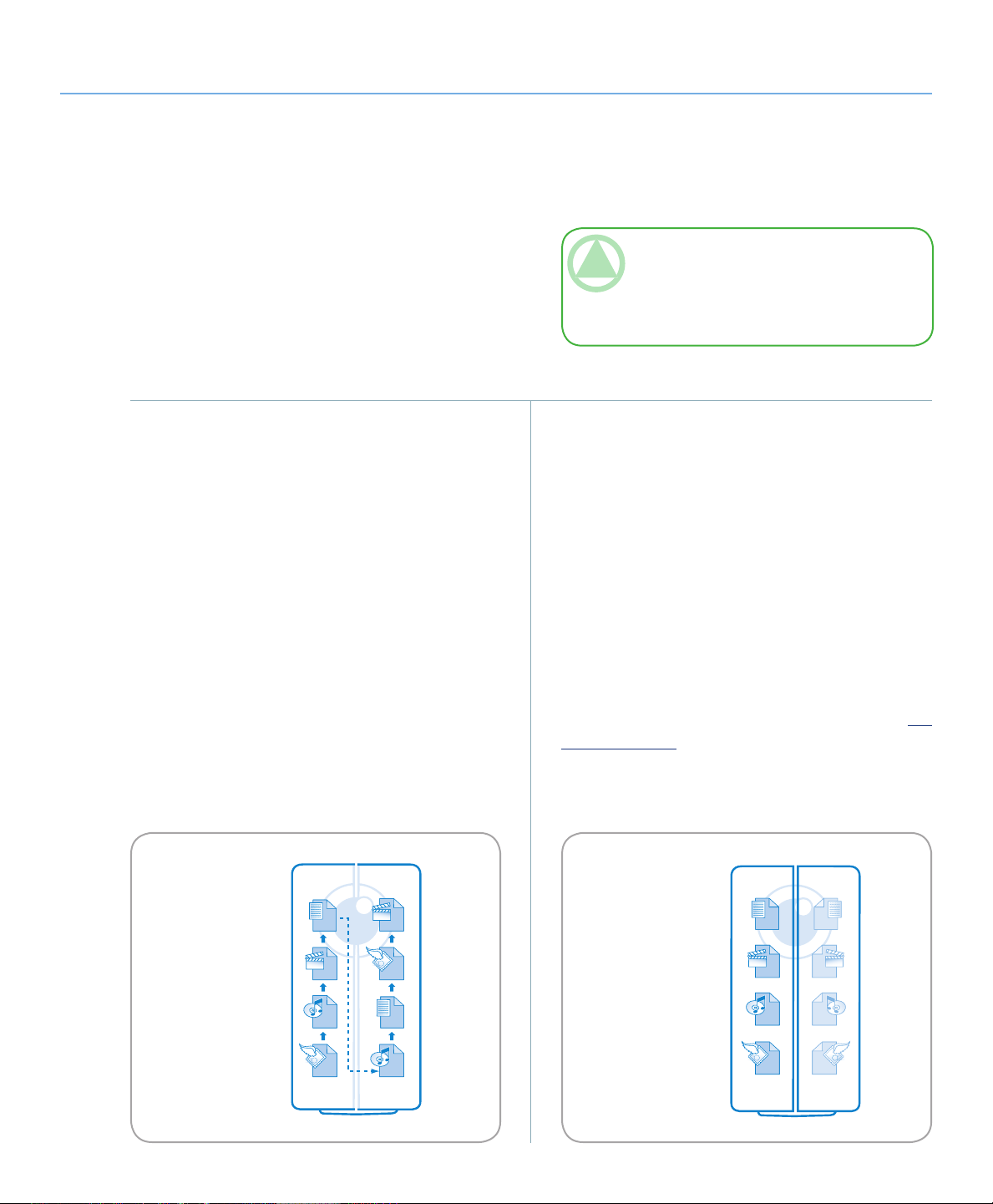

RAID Flexibility
Get maximum storage capacity or extra data security
in one affordable RAID solution. Easily and quickly select your RAID mode with the manual switch on the
back of the drive. For maximum capacity, choose BIG
with concatenation of the two hard drives. For security,
choose SAFE 100 (RAID 1) with automatic mirroring,
which ensures maximum protection against data loss by
splitting the whole capacity into two identical volumes.
Superior Design
e advanced heat-dissipating metal casing and
thermoregulated fan ensure long-lasting reliability and
quiet operation. e 2big Network can be stacked or
rackmounted to conform to every work environment.
e large glowing blue button adds more than character – it functions as a 1-click data-sharing button for
automatic file transfers from a USB key. Just push the
button; your data is immediately sharable with your colleagues.
Easy Setup & Access
e new user-friendly LaCie Ethernet Agent makes
setup simple and enables accessing, mapping and configuring the drives on your office’s network. e 2big
Network’s compatibility with Mac®, Windows® and
Linux machines without having to install drivers make
it the ideal file-sharing solution for small businesses.
I want to:
Install my LaCie 2big Network
❖
Create a new share
❖
Add a new user
❖
Access my shares directly
❖
Change the RAID mode of my 2big
❖
Page 8
LaCie 2big Network
Quick Install Guide
2big network
Professional 2disk RAID
User Manual
1.1. Box Content
Your LaCie 2big package contains the system tower
with attached drive stand and an accessories box containing items 2-5, listed below.
1
Introduction
LaCie 2big RAID system tower with two tray-
1
less, hot-swappable hard drives
Ethernet cable
2
External power supply
3
LaCie Utilities CD-ROM
4
Quick Install Guide
5
page 7
3
2
aging. In the event that the drive should need to
be repaired or serviced, it must be returned in its
original packaging.
ImpOrTANT INfO: Please save your pack-
4
5
Page 9
LaCie 2big Network
User Manual
1.2. Minimum System Requirements
Introduction
page 8
Windows Users
Windows 98SE, Windows Me, Windows 2000,
❖
Windows XP (SP1 & SP2) or Windows Vista
500MHz Pentium III or higher (or equivalent
❖
processor)
512MB RAM or greater
❖
Ethernet router (10/100)
❖
Web browser (Internet Explorer®, Firefox™)
❖
ImpOrTANT INfO: e 2big Network’s per-
formance can be affected by such external forces as
network activity, hardware, distance and setup.
Mac Users
Mac OS 9 or Mac OS X
❖
G4, G5, Intel Core Duo or Intel Core 2 Duo
❖
512MB RAM or greater
❖
Ethernet router (10/100)
❖
Web browser (Internet Explorer®, Safari™,
❖
Firefox™)
ImpOrTANT INfO: For optimal perfor-
mance, use a Gigabit Ethernet router and a Gigabit Ethernet board in your host PC or MAC.
Page 10
LaCie 2big Network
User Manual
1.3. Hard Drive Heat Management
Heat Dissipation Design■
e LaCie 2big Network’s metal body is ideal for naturally dissipating internal drive heat. Its unique design actually
draws heat away from the internal drives toward the external
casing. is feature takes heat away from the internal drive,
keeping it safe and prolonging its life and reliability. As a
consequence, it is normal for the external casing to be hot to
the touch. Please make sure that the vents on the back bezel
are not obstructed so that there is a natural airflow across the
casing.
Introduction
page 9
Vertical, Horizontal & Rackmount■
Heat dissipation is maximized when the drive is in the
vertical position. If you have several LaCie drives stacked on
each other, please remember to attach the included rubber
feet on the under side of your drives. is will allow for some
airflow between your drives so that the heat dissipation can
work effectively - especially if your LaCie drive does not include a fan. LaCie does not recommend stacking or racking
more than 3 drives on top of each other, especially if these
drives are turned ON simultaneously.
Smart Fan Technology■
e casing alone is a great way to dissipate heat without the need of a fan, but the 2big Network comes with a
thermo-regulated “smart fan”, which activates when the heat
inside the casing reaches a certain temperature. e smart fan
operates at two different speeds, and adjusts automatically to
changes in temperature.
VERTICAL
HORIZONTAL
RACKMOUNTED
Page 11
LaCie 2big Network
User Manual
1.4. Racking Options
Standalone Installation■ Rackmount Installation■
Introduction
page 10
e LaCie 2big Network includes a convenient drive
stand, which allows the drive to be placed in an upright
position. Please refer to the instruction sheet included
with the drive stand for specific instructions.
e LaCie 2big Network can be incorporated into
standard 19” computer equipment racks, using the LaCie Rackmount Kit or used with the LaCie d2 Desk
Rack (sold separately). Please refer to the instructions
included with the LaCie Rackmount Kit or LaCie d2
Desk Rack for specific instructions.
Page 12
LaCie 2big Network
User Manual
1.5. Views Of The Drive
Front View/1-click Data Sharing■
e blue button (A) on the front of the LaCie 2big
is allows you automatically copy data to the 2big from
a USB key. Just plug the USB key into a USB port on
the back of the 2big and push the button. All data on
the USB key will be automatically copied to a new share
on the 2big, making the data available on the network
at all times.
Introduction
page 11
Fig. 1.5-A
Page 13
LaCie 2big Network
safe 100
big
off auto on
User Manual
Rear View■
RAID selection switch
1
off/auto/on power switch
2
USB 2.0 expansion ports
3
Ethernet port
4
Power input connection
5
Drive lock
6
Drive tray handle
7
Left drive status LED
8
Rigth drive status LED
9
Introduction
page 12
1
9
8
2
7
3
ImpOrTANT INfO: e 2big Network will
restart automatically after a power failure.
CAUTION: To avoid overheating, the LaCie
2big should be installed in a well-ventilated area
and in such a way as to maintain sufficient airflow
across the controller chips. Also ensure that the
Ventilation Fan is not obstructed.
Please use the included plastic stands and rubber
feet which elevate the Two Big and allow for better
heat dissipation.
Environmental Requirements:
Temperature: 0 – 35° C (32 – 95° F)
Operation Humidity: 20 – 80%, non-condensing
Storage Humidity: 10 – 90%, non-condensing
6
Fig. 1.5-B
4
5
Page 14
LaCie 2big Network
User Manual
1.6. Cables and Connectors
Gigabit Ethernet■
Ethernet Symbol
is icon will help you easily identify the ethernet
interface. It appears on the back of the 2big Network
and next to the Ethernet port connectors on certain
computers.
Ethernet Symbol
Introduction
page 13
Gigabit Ethernet Cables And Connectors
e cables and connectors used to attach Gigabit
Ethernet devices are as follows:
Gigabit Ethernet Connectors
Page 15
LaCie 2big Network
User Manual
2. Setting Up Your LaCie 2big Network
Follow these steps to getting your 2big Network up
and running:
Setup Steps
Step 1 2.1 Turning the Drive On Page 15
Step 2 2.2, Connecting the Ethernet Cable Page 16
Step 3 Connecting to the 2big Network:
2.3, Connecting with LaCie Ethernet Agent (Windows)

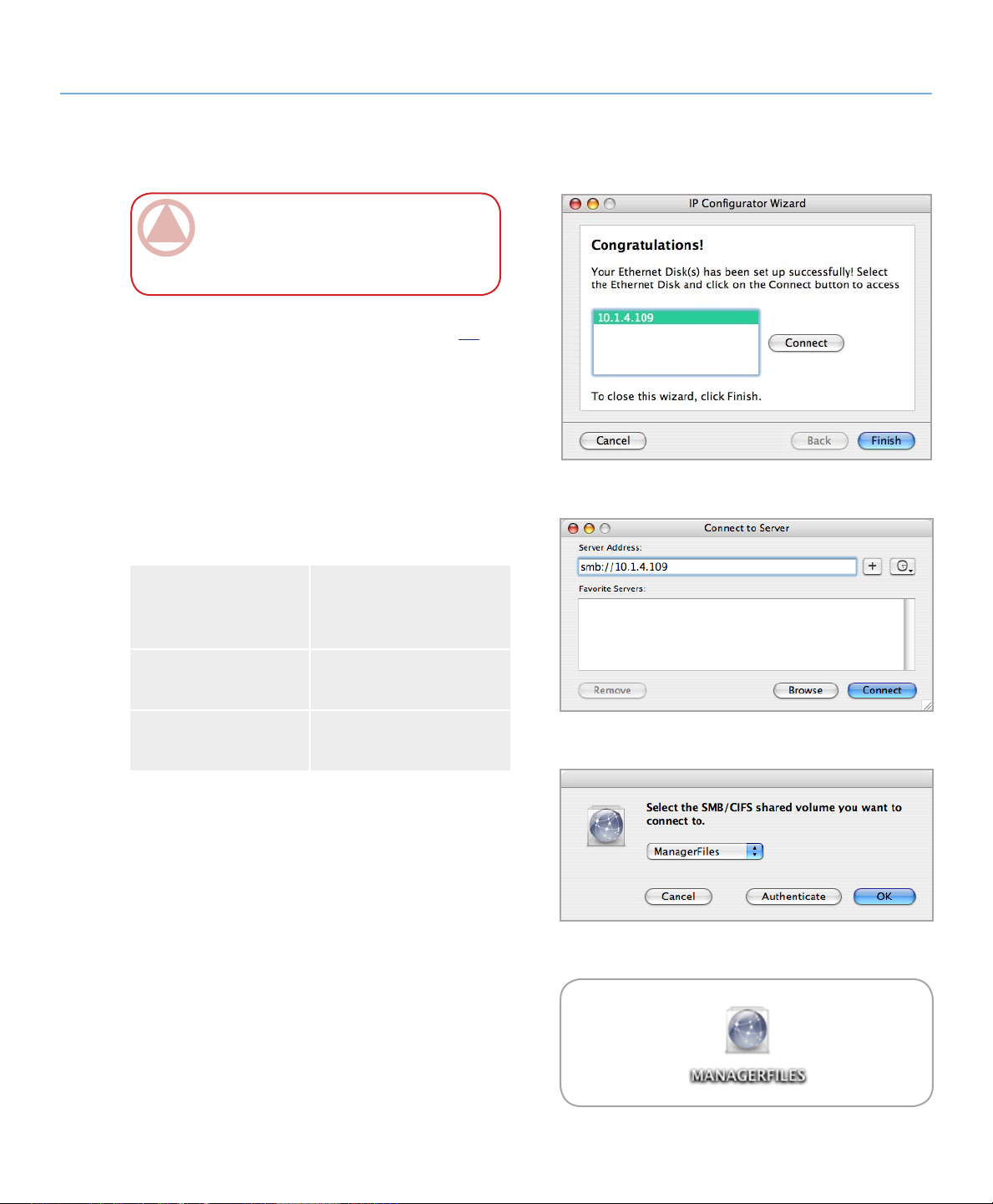

2.4, Connecting with the IP Configurator Wizard (Mac)
OR
2.5, Configuring the 2big Network on a LAN Without a DHCP Server
Setup
page 14
Page 17
Page 19
Page 20
Page 16
LaCie 2big Network
safe 100
big
off auto on
User Manual
2.1. Turning the Drive On
e power supply kit is composed of two cables: one
cable (A) connects to the LaCie drive; and the other
cable (B) connects to a power outlet, such as a wall outlet or a surge protector.
Setup
page 15
B
Fig. 2.1
Connect Cable A to your LaCie Drive.
1.
Connect Cable B to the power supply brick (C).
2.
Connect Cable B to a surge protector or wall outlet.
3.
Turn on the drive by moving the power switch on the
4.
C
back of the drive to the “On” position (D).
CAUTION: Only use the AC adapter supplied with your specific LaCie drive. Do not use a power supply from
another LaCie drive or another manufacturer. Using any other power cable or power supply may cause damage to
the device and void your warranty.
Always remove the AC adapter before transporting your LaCie drive. Failure to remove the adapter may result in
damage to your drive and will void your warranty.
TeChNICAl NOTe: You may use your LaCie drive when in a foreign country thanks to its 100-240 Volt power
supply. To be able to use this feature, you may need to purchase an appropriate adapter or cord. LaCie accepts no
responsibility for any damage to the drive resulting from the use of an inappropriate adapter. Using an adapter other
than one authorized by LaCie will void your warranty.
Page 17
LaCie 2big Network
safe 100
big
off auto on
User Manual
2.2. Connecting the Ethernet Cable
Unlike regular desktop hard drives, the 2big Network is only accessible when attached to your network
and does not connect directly to your computer.
To connect the Ethernet cable:
Turn the drive on. See 2.1, Turning the Drive On.
1.
Connect the Ethernet cable to the Ethernet port on
2.
the back of the LaCie 2big Network (Fig. 2.2-A).
Connect the other end of the Ethernet cable into an
3.
available Ethernet port on your router (Fig. 2.2-B).
Allow a few moments for your network to recognize
the drive.
Now move on to step 3, Connecting with LaCie
Ethernet Agent (Windows) or Connecting with the IP
Configurator Wizard (Mac) .
Setup
page 16
Fig. 2.2-A
To 2big Network
Fig. 2.2-B
Page 18
LaCie 2big Network
User Manual
2.3. Connecting with LaCie Ethernet Agent (Windows)

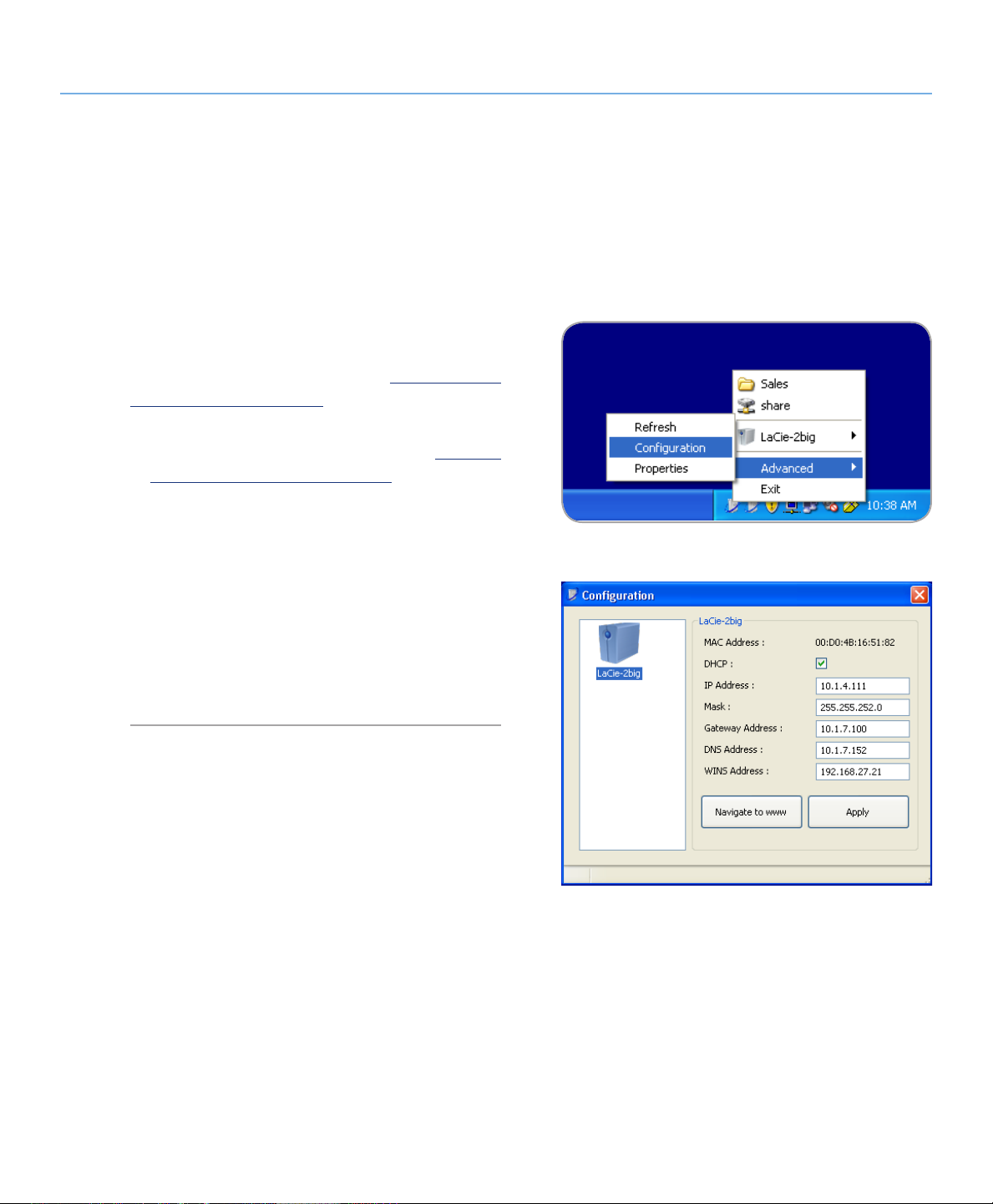

LaCie Ethernet Agent detects all network attached
storage devices on your network and gives you easy ways
to connect to or configure them.
Once installed and running, Ethernet agent will
appear in your task bar (Fig. 2.3-A) and automatically
search for storage devices on your network. When a new
device is found, an info bubble containing the name of
the device will appear (Fig. 2.3-B).
When Ethernet Agent finds your LaCie 2big Network, you can connect to any of the shares on the 2big
Network, log in to the NAS administration page, configure the 2big Network’s network settings or map it as
a drive on your computer, all from the Ethernet Agent
menu.
Setup
page 17
LaCie Ethernet Agent Icon
To install LaCie Ethernet Agent:
Insert the LaCie 2big Network CD-ROM into your
1.
computer’s CD-ROM drive.
e CD should appear in My Computer. Double-
2.
click the CD icon, then double-click “LaCie Eth-
ernet Agent Setup”.
Follow the Wizard to complete installation.
3.
(continued on next page)■
Figure 2.3-A
Figure 2.3-B
Page 19
LaCie 2big Network
User Manual
To connect to the 2big Network:
Select LaCie Ethernet Agent in Start/Programs. An
1.
Ethernet Agent icon will appear in the system tray
(Fig. 2.3-C) and the Agent will automatically detect
your 2big Network and any other storage devices on
your network (Fig. 2.3-D).
Click on the icon in the system tray and select Navi-
2.
gate to www from the 2big Network sub-menu
(Fig. 2.3-E). e 2big Network administration page
will open in your default browser.
To log in to 2big Network administration (Fig. 2.3-
3.
E), enter:
Login: admin
Password: admin
Click Log on.
4.
Continue to section 3, Administering Your 2big
Network.
Setup
page 18
Figure 2.3-C
Figure 2.3-D
Figure 2.3-E
Figure 2.3-F
Page 20
LaCie 2big Network
User Manual
2.4. Connecting with the IP Configurator Wizard (Mac)
NOTe: Windows users, see section 2.3, Con-
necting with LaCie Ethernet Agent.
e IP Configurator Wizard will help you get connected to your 2big Network and make initial settings.
Insert the LaCie 2big Network CD-ROM into
1.
your computer’s CD-ROM drive.
e CD should appear on the desktop. Double-
2.
click the CD icon, then double-click “Install the
IP configurator”.
Follow the Wizard to complete installation.
3.
Setup
page 19
Fig. 2.4-A
ImpOrTANT INfO: e Wizard installer will request
Administrator rights to complete installation.
From the application folder, open Utilities / LaCie
4.
IP Configurator.
Follow the steps indicated in the Wizard. Once
5.
the Wizard locates your 2big Network (represented
by its IP address), select it and click Connect (Figs.
2.4-A – 2.4-C).
Fig. 2.4-B
Fig. 2.4-C
Page 21
LaCie 2big Network
User Manual
2.5. Configuring the 2big Network on a LAN Without a DHCP Server
In the case that your server is not DHCP-enabled,
you will need to manually assign the correct network
settings for your LaCie 2big Network.
2.5.1. Configure with LaCie Ethernet Agent (Windows)■
e easiest way to modify your LaCie 2big Network’s network configuration on a PC is to use the
LaCie Ethernet Agent. See section 2.3, Connecting
with LaCie Ethernet Agent for information on install-
ing the network configuration software.
Start LaCie Ethernet Agent (see section 2.3, Con-
1.
necting with LaCie Ethernet Agent).
Click on the Ethernet Agent icon in the system
2.
tray and select Advanced > Configuration (Fig.
2.5.1-A). e Ethernet Agent Configuration window (Fig. 2.5.1-B) opens.
Setup
page 20
Fig. 2.5.1-A
Uncheck the “DHCP” box.
3.
Modify the network settings to work with your net-
4.
work.
Click Apply.
5.
Fig. 2.5.1-B
Page 22
LaCie 2big Network
User Manual
2.5.2. Configure with LaCie IP Configurator (Mac)■
e easiest way to modify your LaCie 2big Network’s
network configuration on a Mac is to use the LaCie IP
Configurator. See section 2.4. Connecting with the IP
Configurator Wizard for information on installing the
network configuration software.
From the application folder, open Utilities > LaCie
1.
IP Configurator.
When the Wizard opens, select Advanced
2.
Mode…
Uncheck the “DHCP” box (Fig. 2.5.2).
3.
Modify the network settings to work with your net-
4.
work.
Click Apply.
5.
Setup
page 21
Fig. 2.5.2
Page 23
LaCie 2big Network
User Manual
2.6. Disconnecting the 2big Network (Ethernet Connection)
ere are two ways to disconnect the Ethernet connection:
Move the power switch to the off position. e
❖
system will shut down and power off. When the
shutdown process is complete, you can safely remove
the Ethernet cable.
From the NAS administration page, click System
❖
> Maintenance > Shut down (Fig. 2.6). When
the shutdown process is complete, you can safely
remove the Ethernet cable. See section 3.7.5.4, Shut
Down for more information.
Setup
page 22
ImpOrTANT INfO: Any data transfers un-
derway during a shut down will be interrupted and
data may be lost. Make sure no users are connect-
ed or transferring data to or from the 2big before
shutting down.
Fig. 2.6
Page 24
LaCie 2big Network
User Manual
3. Administering Your LaCie 2big Network
e LaCie 2big Network features an easy-to-use
Web-based tool for configuring the drive and administering users, referred to here as the NAS (Network Attached Storage) Administration Page.
Accessing the NAS Administration Page is easy,
whether you’re using a browser (all users), the IP Configurator (Mac users) or the Ethernet Agent (Windows
users).
When you log in as “admin”, you will see a series
of blue navigation links on the left side of the page
(Fig. 3) to help you navigate and configure the LaCie
2big Network:
Administration
page 23
Section 3.4, Users: Add, delete or edit users, includ-
❖
ing assignment of folder access privileges.
Section 3.5, Groups: Add, delete or edit groups, add
❖
users to groups, assign group access privileges
Section 3.6, Shares: Create, delete or edit shares,
❖
change access restrictions
Section 3.7, System: Change system settings, manage
❖
disks and RAID settings, manage system updates
Section 3.8, Browse: access files and folders, upload
❖
and download files, delete files
Figure 3
Page 25
LaCie 2big Network
User Manual
3.1. Accessing the NAS Administration Page
NOTe: e easiest way to access the NAS Ad-
ministration Page is to use LaCie Ethernet Agent
(Windows, see section 2.3) or LaCie IP Configu-
rator (Mac, see section 2.4).
To access the NAS Administration page with a
browser:
In your browser’s URL (web address) field, type one
1.
of the following:
http://lacie-2big (Fig. 3.1-A)
or
http://IP address (Fig. 3.1-B)
Find the IP address by running the LaCie IP
Configurator Wizard on a Mac (section 2.4) or the
LaCie Ethernet Agent on a PC (section 2.3).
Administration
page 24
Figure 3.1-A
Figure 3.1-B
TeChNICAl NOTe: e IP addess of your LaCie
2big may be different than the IP address shown in
Fig. 3.1-B.
On the login page (Fig. 3.1-C), type:
2.
Login: admin
Password: admin
ImpOrTANT INfO: e login name and password
are both set to “admin” by default. e admin password
can be changed, but not the login name. See section
3.4.1, Administrator Account for more information.
If you logged in as “admin”, the NAS Administration page will open. For non-admin users the file browsing page will open.
Figure 3.1-C
Page 26
LaCie 2big Network
User Manual
3.2. Setting the Display Language
e default display language is set to your browser’s
language. If your browser’s display language is not supported, 2big administration will default to English. You
can change the display language at any time by selecting a language from the menu in the upper right corner
of the administration page (Fig. 3.2). is can be done
from the Log On page, as shown, so you can proceed
from the beginning in your own language.
3.3. Administration Home Page
When you log into LaCie 2big Network administration, the Home page opens. is page contains information about the status of the 2big. Most of the information here is also located under System (see section
3.7, System).
Administration
page 25
Figure 3.2
e Fan Status indicator will be in one of three
states:
Blue – the fan is on and working.
❖
Gray – the fan is off.
❖
Red – the fan has failed. e 2big Network will con-
❖
tinue to function with a failed fan, but overall system
reliability is impacted. Contact your LaCie reseller or
LaCie customer support in the even of a fan failure.
See section 8.1, LaCie Customer Support Contacts.
e RAID Status indicator will be in one of three
states:
Blue – the disks are on and working.
❖
Gray – disks are functional, but not accessible (ex,
❖
data rebuild in SAFE mode or formatting in BIG
mode.
Red – RAID not functional. Check the Disk page
❖
(System > Disk) for error messages.
Figure 3.3
Page 27
LaCie 2big Network
User Manual
3.4. Users

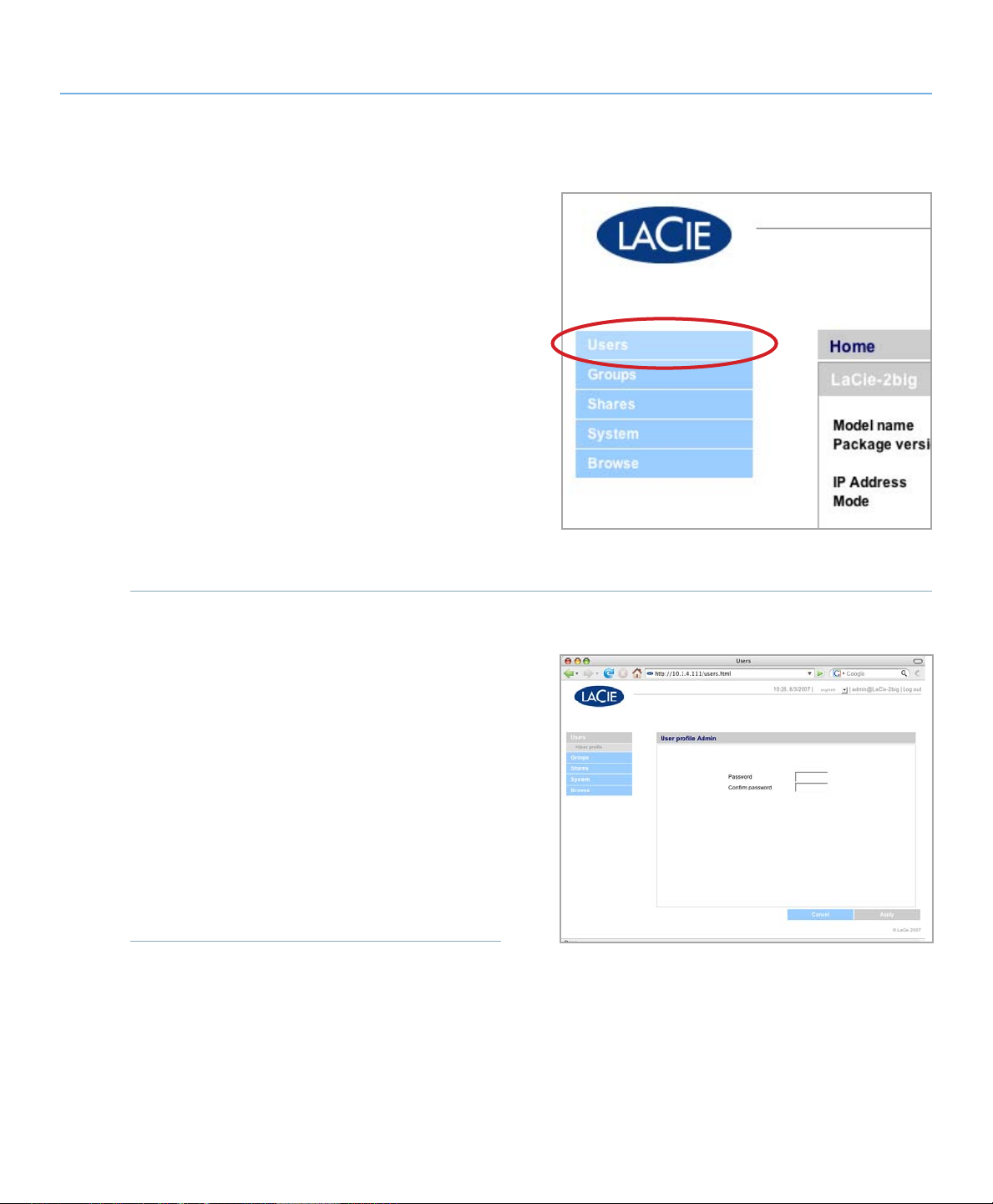

Click on the Users link in the navigation bar to
open the User Accounts page. Use this page to create,
edit and delete user accounts.
Administration
page 26
3.4.1. Administrator Account■
Only one user can have administrative privileges
for the 2big Network. is user’s login name cannot be
chaged from “admin”, but the user’s password can be
changed.
To change the administrator’s password:
Click on the “admin” user in the user list on the Users
1.
page. e “User profile Admin” page opens.
Enter a new password in the “Password” field. Enter
2.
the password again in the “Confirm password” field.
Click Apply.
3.
Figure 3.4
Figure 3.4.1
Page 28
LaCie 2big Network
User Manual
3.4.2. Adding Users■
To add a user account:
Click Add on the User Accounts page (Fig. 3.4.2-
1.
A). e User Profile page opens (Fig. 3.4.2-B).
Enter a login name in the “Login” field.
2.
ImpOrTANT INfO: Login names are case-sensitive.
(Ex. “User” is not the same as “user”.)
Enter the user’s fist and last name in the First name
3.
and Last name fields. is information only appears
to the administrator as part of the User Profile on
this page.
Check Password to require the user to log in with a
4.
password. If the Password box is unchecked, the user
can log in with a Login name only.
Administration
page 27
Figure 3.4.2-A
Enter a password in the “Password” and “Confirm
5.
password” fields, if applicable.
TeChNICAl NOTe: Passwords cannot exceed 8 char-
acters.
To enable the user account (allow the user to log in),
6.
select Enable from the Status menu.
Figure 3.4.2-B
Page 29
LaCie 2big Network
User Manual
3.4.3. Setting User Access to Shares■
All of the shares on your 2big Network are listed on
the Shares tab of each user’s profile page. Shares have
three access levels:
Read & Write – users with Read & Write access
❖
can upload, download and save files
Read Only – users with Read only access can down-
❖
load and open files but cannot save files
No Access
❖
See section 3.4.5, About Access Privileges for more
information.
To set user access to shares:
Click the Shares tab on the user’s User Profile
1.
page.
Administration
page 28
Figure 3.4.3
Select Read & Write, Read Only or No Access
2.
for each share. No Access is selected by default.
3.4.4. Setting Group Membership■
All of the groups on your 2big Network are listed on
the Member of tab of each user’s profile page. Users
can belong to an unlimited number of groups.
See section 3.4.5, About Access Privileges for more
information.
To set user group membership:
Click the Member of tab on the user’s User Profile
1.
page.
Check the box for each group to which you want to
2.
assign the user.
ImpOrTANT INfO: When you are done
configuring the new user click Apply to save your
settings for the new user and to add the user to the
users list.
Figure 3.4.4
Page 30
LaCie 2big Network
User Manual
3.4.5. About Access Privileges■
Access privileges can be assigned to users on an individual user basis or on a group basis. User-level access
is more restrictive.
Here is an example of the way access privileges work
when a user has different kinds of access to the same
share as member of a group and as an individual:
User U belongs to groups G1 and G2, and has access to share S.
If G1 has read-only access to S and G2 has read-
❖
write access to S, then U will have read-write access
to S.
If U has read-only access to S and G2 has read-write
❖
access to S, then U will have read-only access.
Administration
page 29
3.4.6. Deleting User Accounts■
On the User Accounts page, check the box beside
each user you want to delete and click Remove.
3.4.7. Editing User Accounts■
e administrator can edit the details of a user account at any time by clicking on a user on the User Accounts page to view the user’s profile.
Figure 3.4.6
Page 31
LaCie 2big Network
User Manual
3.5. Groups
Click on the Groups link in the navigation bar to
open the Groups page. Use this page to create, edit and
delete groups.
If you use your 2big Network in an office setting
where many different people from different departments need to have access to the 2big Network, setting
up groups is a good way to organize users and to give the
most appropriate access to shares. You can specify which
shares groups can access, which users belong to which
groups and enable or disable entire groups.
Administration
page 30

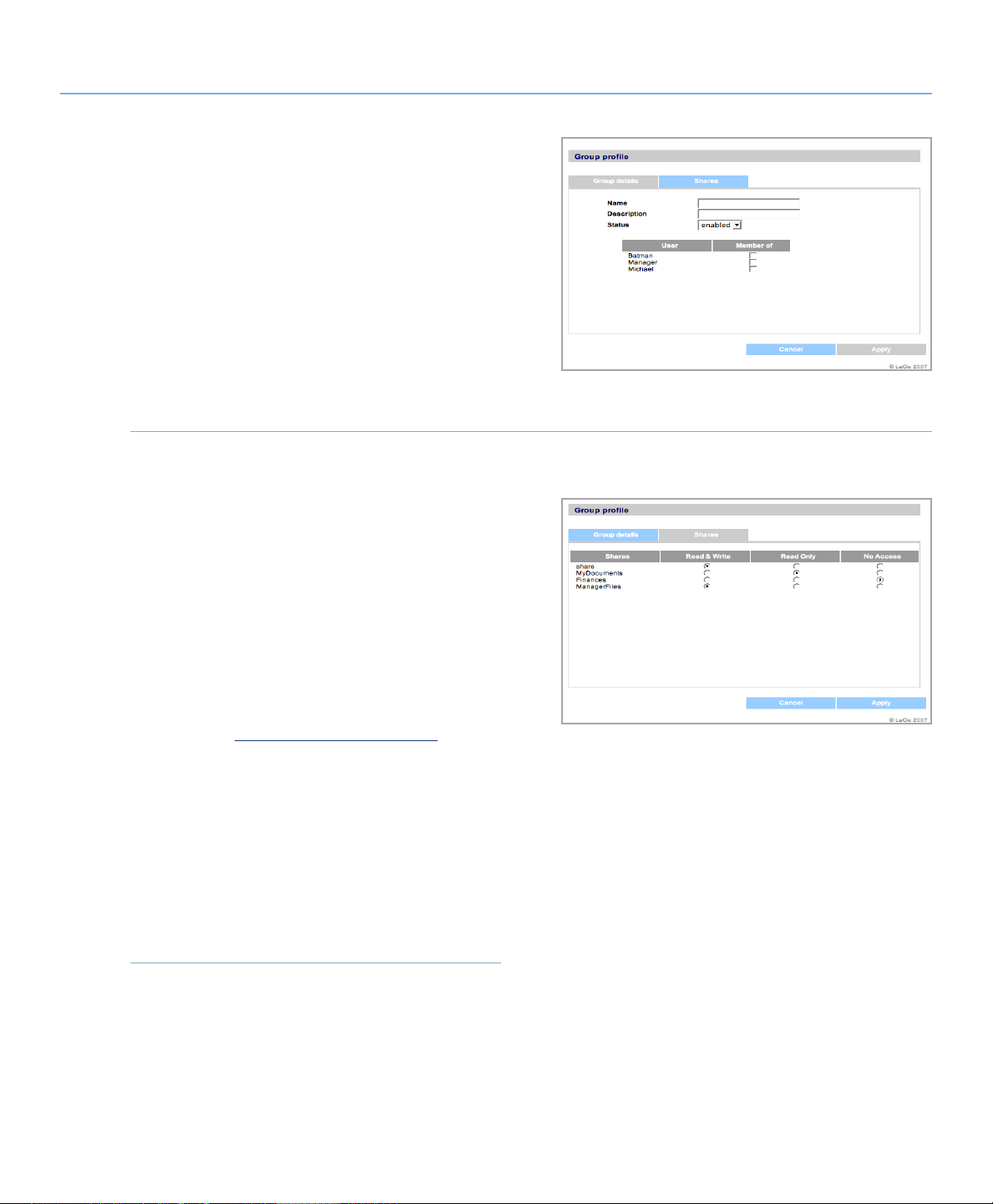

3.5.1. Adding Groups■
To add a group:
Click Add on the Groups page (Fig. 3.5.1-A). e
1.
Group Profile page opens (Fig. 3.5.1-B).
(continued on next page)■
Figure 3.5
Figure 3.5.1-A
Page 32
LaCie 2big Network
User Manual
Enter a name and description for the group. e de-
2.
scription only appears to the administrator as part of
the Group Profile on this page.
Select “enabled” to activate the group as soon as your
3.
changes are applied.
All user accounts on the 2big Network are listed in
4.
the User column. Select the users you want to be in
the group.
Click Apply.
5.
3.5.2. Setting Group Access to Shares■
All of the shares on your 2big Network are listed
on the Shares tab of each group’s profile page. Shares
have three access levels:
Administration
page 31
Figure 3.5.1-B
Read & Write – groups with Read & Write access
❖
can upload, download and save files
Read Only – groups with Read only access can
❖
download and open files but cannot save files
No Access
❖
See section 3.4.5, About Access Privileges for more
information.
To set group access to shares:
Click the Shares tab on the group’s Group Profile
1.
page.
Select Read & Write, Read Only or No Access
2.
for each share. No Access is selected by default.
Click Apply.
3.
Figure 3.5.2
Page 33
LaCie 2big Network
User Manual
3.5.3. Deleting Groups■
On the Groups page, check the box beside each
group you want to delete and click Remove.
ImpOrTANT INfO: Deleting a group does not de-
lete the users within the group. Go to the Users page to
delete user accounts.
3.5.4. Editing Groups■
e administrator can edit the details of a group’s
profile at any time by clicking on a group on the Groups
page to view the group’s profile.
Administration
page 32
Figure 3.5.3
Page 34
LaCie 2big Network
User Manual
3.6. Shares
Click on the Shares link in the navigation bar to
open the Shares page. Use this page to create, edit and
delete shares.
Administration
page 33
3.6.1. Creating Shares■
To create a share:
Click Add on the Shares page. e Share Details
1.
page opens (Fig. 3.6.1).
Enter a name and description for the share. e de-
2.
scription only appears to the administrator as part of
the Share Profile on this page.
TeChNICAl NOTe: e share name cannot contain
any of the following characters: \ / [ ] : | < > + = ; , ? * @
and space.
Select Enabled from the Status menu to make the
3.
share accessible. Select Disabled to create the share
but make it inaccessible.
(continued on next page)■
Figure 3.6
Figure 3.6.1
Page 35
LaCie 2big Network
User Manual
Select “Enable public access” to make the share ac-
4.
cessible in read/write mode to anyone. No password
is needed to access the share. Select “Enable guest
access” to require a password for read/write access.
Anyone can access a “guest access” share in read-only
mode.
Select the protocols which will be used to access the
5.
share. You can choose from Windows , Apple (SMB),
FTP or HTTP.

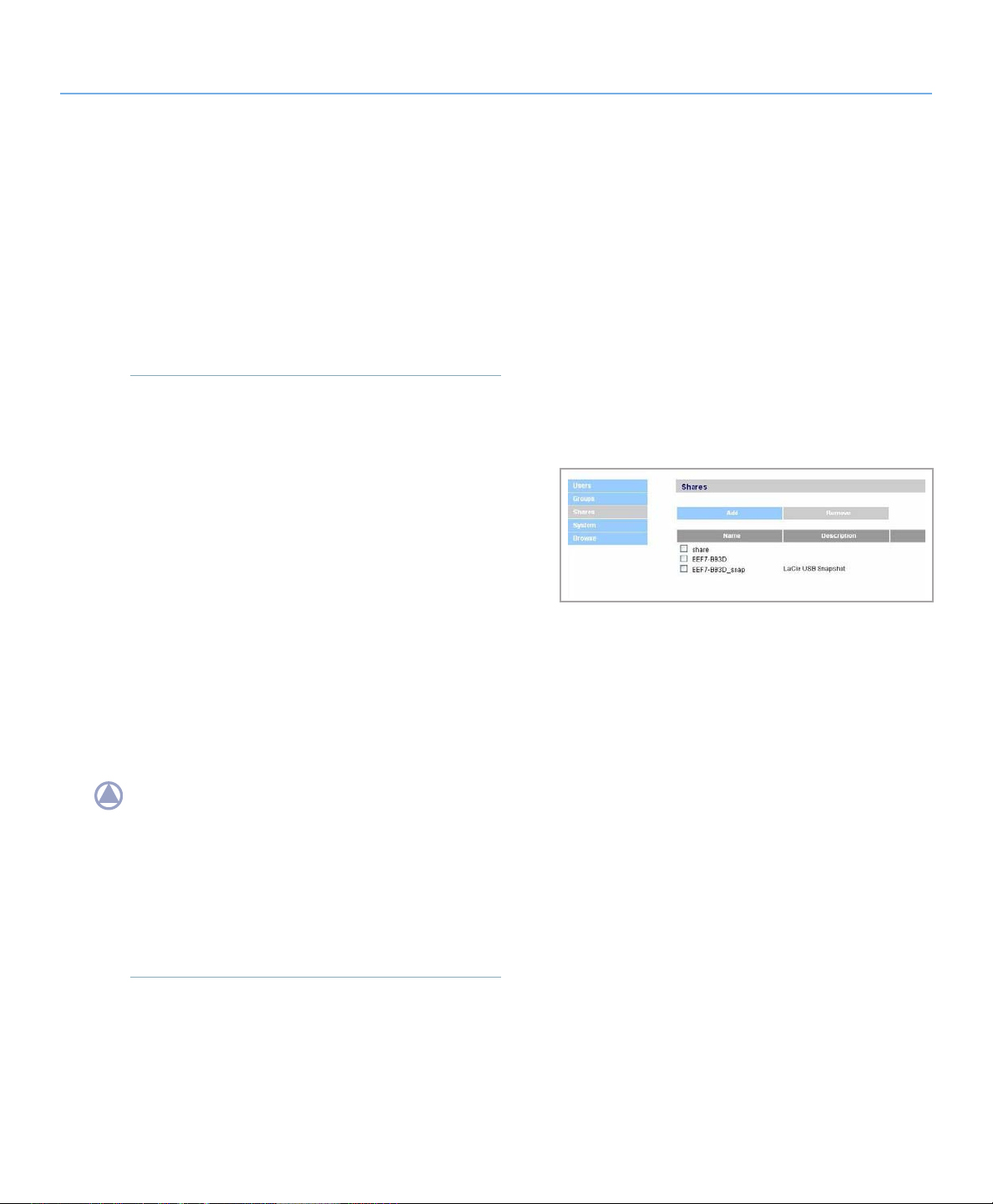

3.6.2. Creating a Share from a USB Key■
To automatically create a share from a USB key, just
connect the USB key to a USB port on the back of the
2big Network and push the big blue button on the front
of the drive.
Administration
page 34
e following things will happen:
A new share will be created on the 2big (Fig. 3.6.2).
❖
e share gets its name from the USB key. You can
rename the share at any time.
All data on the USB key will be copied to the new
❖
share. When you disconnect the USB key from the
2big the data will still be available because it has been
copied to the 2big.
NOTe: Shares created with 1-click data sharing (USB
keys) are different from shares created by attaching exernal storage devices like USB hard drives. When a share
is created by attaching a USB hard drive, the drive must
be connected at all times for its data to be accessible.
Shares created from USB keys with 1-click data sharing
are created on the 2big and are always accessible.
Figure 3.6.2
Page 36
LaCie 2big Network
User Manual

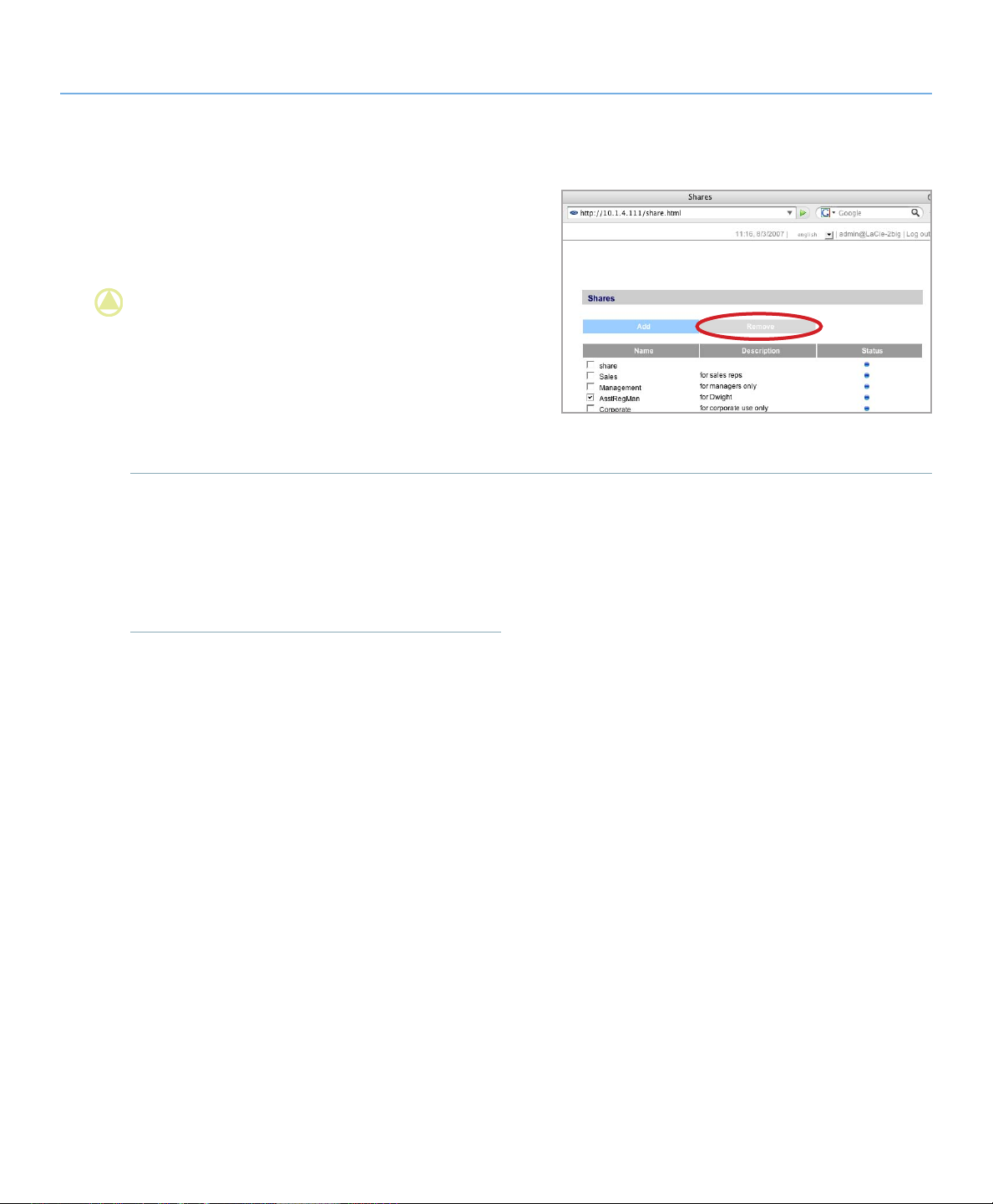

3.6.3. Deleting Shares■
On the Shares page, check the box beside each share
you want to delete and click Remove. Deletion of the
share could take just a few seconds to several minutes,
depending on the size of the share.
CAUTION: Deleting a share deletes all files contained
within the share folder. Back up any data you want to
save before deleting a share.
3.6.4. Editing Shares■
Administration
page 35
Figure 3.6.3
e administrator can edit the details of a group’s
profile at any time by clicking on a group on the Groups
page to view the group’s profile.
Page 37
LaCie 2big Network
User Manual
3.7. System
In addition to the Configuration page, which is the
main System page, the System menu has four sub-sections: Network, Disk, Status and Maintenance, each accessible from the navigation bar when you click System
(Fig. 3.7).
Administration
page 36
3.7.1. Configuration■
Click on the System link in the navigation bar to
open the Configuration page. is page displays basic
information about the 2big Network including the Machine name, the Windows workgoup, time zone and
date and time.
To change the machine name, highlight the
machine name (“LaCie-Network” by default), delete it
and enter a new name. Click Apply.
ImpOrTANT INfO: e machine name can only
contain the following characters ‘a-z’, ‘A-Z’, ‘0-9’, ‘-’ and
must begin with a letter.
To change the Windows workgroup, highlight the workgroup name, delete it and enter a new
name. Click Apply.
Figure 3.7
Figure 3.7.1-A
Page 38
LaCie 2big Network
User Manual
To change the time zone, click on the current
time zone location to activate the time zone dropdown menu and select a location in your time zone.
Click Apply.
TeChNICAl NOTe: e 2big Network has a 5-min-
ute time-out cycle. Selecting a different time zone may
cause the 2big to log you out. If this happens, just log in
again and return to the Configuration page.
To change the date and time, select a time
zone and click the Synchronize button. e date and
time will automatically synchronize with your browser.
Click Apply.
3.7.2. Network■
Administration
page 37
Figure 3.7.1-B

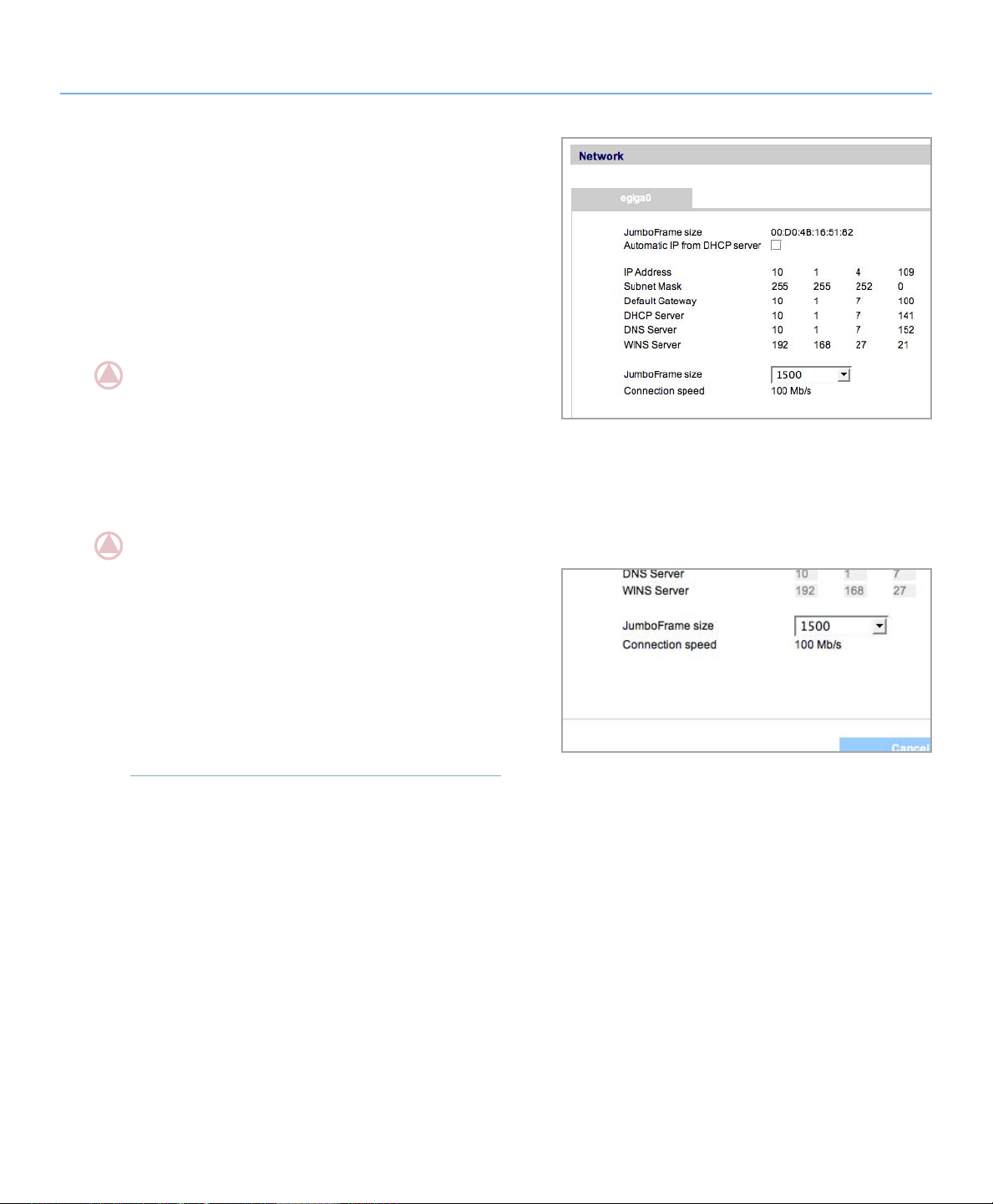

e Network page allows you to choose how the
IP address of the 2big Network is obtained, either automatically from a DHCP server on your Network, or
manually with settings that you input.
3.7.2.1. Obtain IP from DHCP Server
If your 2big Network is connected to a network with
a DHCP server, simply check the “Automatic IP from
DCHP server” box (Fig. 3.7.2). Your DHCP server will
assign an IP address to the 2big Network every time it
connects to your network.
Figure 3.7.2
Page 39
LaCie 2big Network
User Manual
3.7.2.2. Configure IP Manually
is method is used when the LaCie 2big Network
is connected to a non-DHCP enabled network. In this
case, you will need to manually assign the correct network settings for your LaCie 2big Network. Please check
with your network administrator for more information
about your network and which parameters you should
use. For more information, see section 2.5, Configuring
the 2big Network on a LAN Without a DHCP Server.
ImpOrTANT INfO: If the DHCP server’s automatic
IP address configuration function is selected/activated
and there is no DHCP server on the network, the 2big
Network will check first the DHCP, then the APIPA. If
no address is found, an address ranging from 169.254.1.1
to 169.254.254.254 will be assigned.
Administration
page 38
Figure 3.7.2.2-A
ImpOrTANT INfO: e 2big Network supports
frame (i.e. packets) sizes larger than 1500 bytes on the
Gigabit Ethernet interface. JumboFrame capability extends supported frame size to 9000 bytes (9KB). In general, the higher the frame size, the better the network
performance. Do not modify the JumboFrame size if
your network is not configured for JumboFrame functionality. Check with your network administrator.
Figure 3.7.2.2-B
Page 40
LaCie 2big Network
safe 100
big
off auto on
User Manual
3.7.3. Disk■
Use the disk page to format the 2big Network’s disks
and view information about the disks and RAID level.
To view information about the RAID mode, click on
the RAID tab.

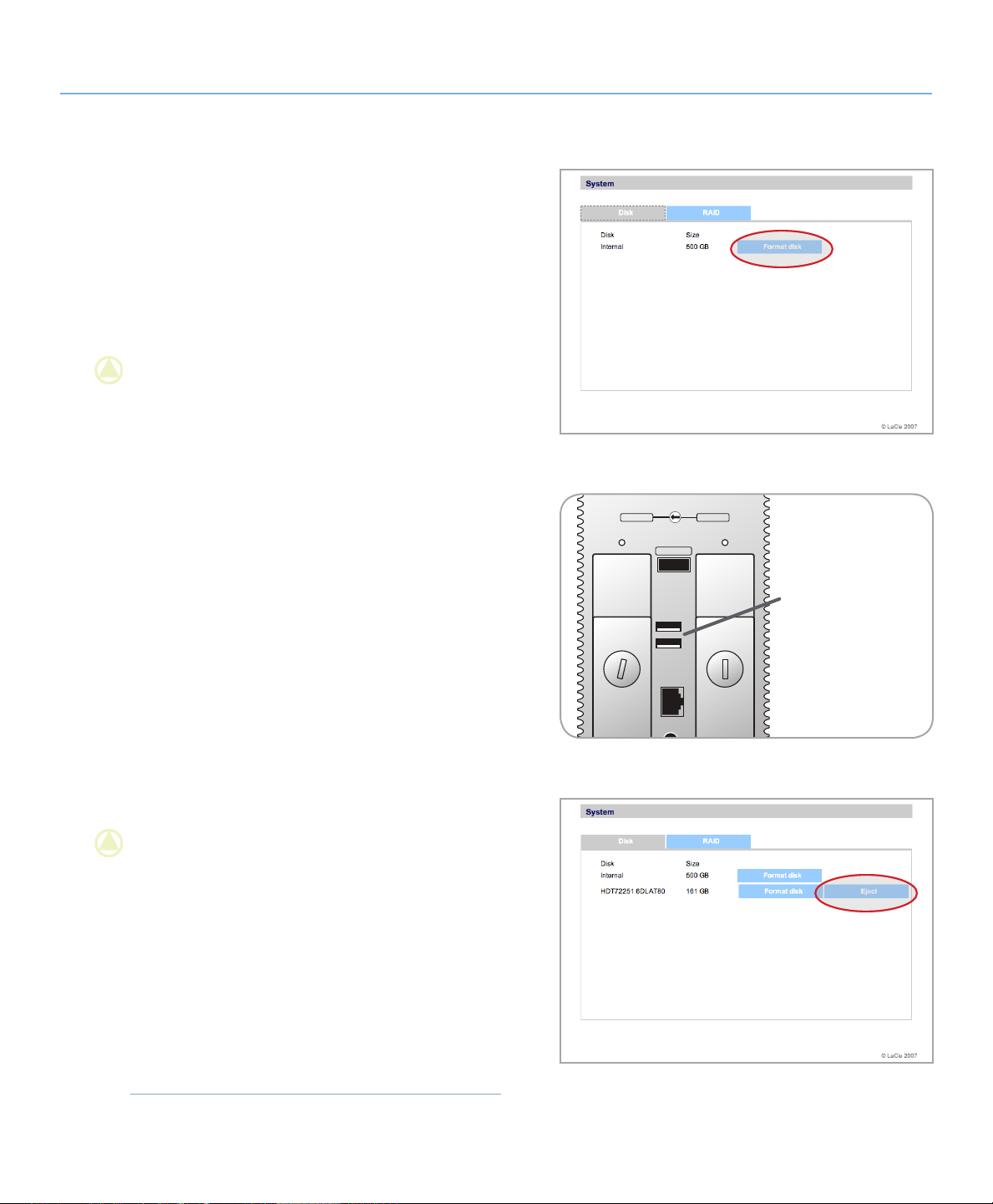

3.7.3.1. Formatting Disks
Click Format disk (Fig. 3.7.3.1) to format the 2big
disks and delete all data.
CAUTION: Formatting erases ALL data on the 2big
Network. Back up important files to another device before formatting.
Administration
page 39
3.7.3.2. Adding additional storage space
You can add additional storage space to your 2big
Network by connecting external hard drives to the USB
expansion ports.
Turn on the 2big Network.
1.
Turn on the external hard drive.
2.
Connect the hard drive to one of the 2big Network’s
3.
USB expansion ports with the included USB cable
(Fig. 3.7.3.2-A).
In the Web Administration Page, click on the Disk
4.
tab.
e external hard drive will be listed under the sys-
5.
tem disk.
To safely disconnect an external hard drive:
CAUTION: Unsafe removal of an external hard drive
can cause file corruption or data loss.
Click the Eject button for the drive you want to dis-
1.
connect (Fig. 3.7.3.2-B).
Figure 3.7.3.1
USB expansion ports
Figure 3.7.3.2-A
Click OK on the confirmation dialog.
2.
e 2big Network will eject the drive. e drive may
3.
appear to still be mounted to the 2big Network. If
the Eject button no longer appears, it is safe to disconnect the USB cable.
Figure 3.7.3.2-B
Page 41
LaCie 2big Network
User Manual
3.7.3.3. Accessing External Hard Drives
Attached external hard drives and their partitions
appears as shares on the Browse page. See section 4, Ac-
cessing the Shared Storage.
TeChNICAl NOTe: When shares are created from
partitioned external hard drive volumes, they are intitally named with a series of numbers and letters. You can
rename the shares on the Shares page.
Once the drive is recognized, users can be assigned
access just like other shares (by default, users will not
have access). See section 3.4, Users.
Partitions
If the external USB drive is partitioned, each volume will appear as one share in the 2big Network (Fig.
3.7.3.3). By default, all services (FTP, HTML, etc.) are
activated.
Administration
page 40
In Fig. 3.7.3.3, the volumes “LaCie1” and “LaCie2”
are volumes of a partitioned external hard drive that
is not connected to the 2big Network, as indicated by
the gray Status indicator. e volumes “Scranton” and
“Stamford” are volumes of an external drive that is currently connected, as indicated by the blue Status indicators.
ImpOrTANT INfO: e 2big Network supports
drives formatted with the following file systems: MSDOS/FAT 32, NTFS in read-only mode, HFS+ and
Linux file system formats (ext2/ext3/reiserfs).
Figure 3.7.3.3
Page 42
LaCie 2big Network
User Manual

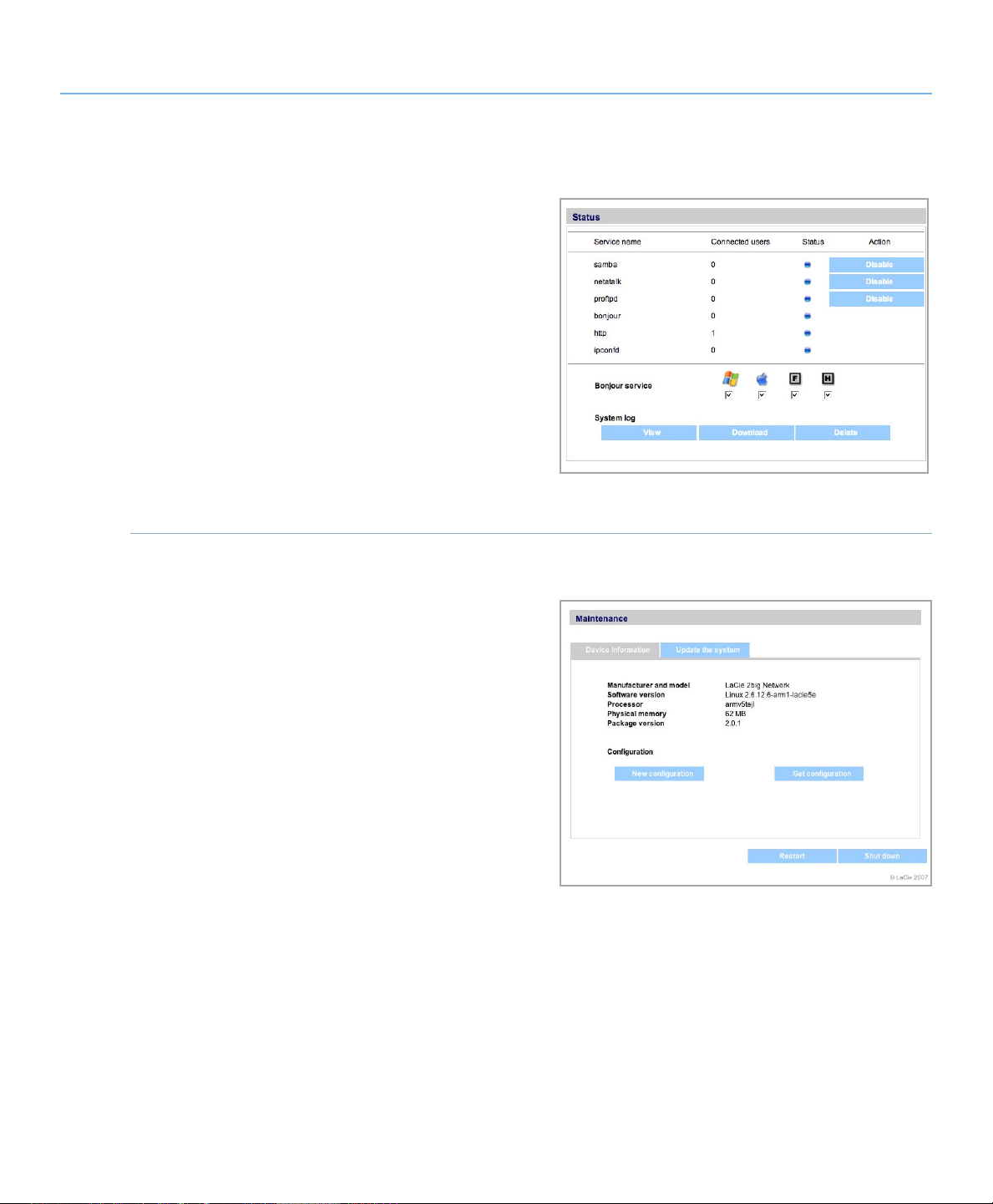

3.7.4. Status■
Click on Status under System in the navigation
bar to display the system Status page (Fig. 3.7.4).
On this page you can view the number of connected users, disable file server services (Windows, Apple,
HTTP, FTP) and view, download or delete the system
log. To disable a service, simply click the Disable button that corresponds to the service which you wish to
disable, or deselect it (Fig. 3.7.4).
Administration
page 41
Figure 3.7.4
3.7.5. Maintenance■
Click on Maintenance under System in the navigation bar to display the Maintenance page (Fig. 3.7.5).
On this page you can view basic system information, manage updates, restart or shutdown the system
and load new system configurations.
(continued on next page)■
Figure 3.7.5
Page 43
LaCie 2big Network
User Manual
3.7.5.1. Saving and Loading System Configurations
It’s a good idea to save your system configuration
in case the 2big needs to be reformatted or reset. You
can then reload the configuration so that your settings,
shares, groups and users are not lost.
ImpOrTANT INfO: Share content (files) is not saved
in a configuration file.
To save the current configuration:
Click on System > Maintenance.
1.
Click the Get Configuration button (Fig. 3.7.5.1-
2.
A). When the confirmation dialog opens, click Save
File.
Internet Explorer users: e XML defining the con-
❖
figuration will open in the browser window. To save
the configuration, select File > Save as… In the
Save as type menu in the Save As dialog, select
XML Files (*.xml) and choose a location to save the
file.
Administration
page 42
Figure 3.7.5.1-A
Firefox and Safari users: Your browser will save the
❖
file to the browser’s default download location. e
configuration file is an XML file.
ImpOrTANT INfO: Do not save configuration files
on the 2big Network alone. If data loss occurs, the configuration file may also be lost.
To load a saved configuration:
Click on System > Maintenance.
1.
Click the New Configuration button (Fig. 3.7.5.1-
2.
B).
Click Browse… and select a configuration file from
3.
your computer.
Click Apply.
4.
Figure 3.7.5.1-B
Page 44
LaCie 2big Network
User Manual
3.7.5.2. Updating the System
Firmware updates may become available for the 2big
Network.
To install firmware updates:
Download updates from www.lacie.com/support/
1.
downloads/.
Click the Update the system tab in Maintenance
2.
(Fig. 3.7.5.2).
Click New Update.
3.
Click Browse… and select an update file from your
4.
computer.
Click Apply.
5.
During the system update you will not have access
to the device and users will not be able to access shares.
When the update is complete, the login page will open.
Administration
page 43
Figure 3.7.5.2
3.7.5.3. Restart
To restart the 2big Network, click the Restart button (A in Fig. 3.7.5.3). e restart process takes a few
minutes. When the machine has restarted, the login
page will open.
3.7.5.4. Shut Down
To restart the 2big Network, click the Shut Down
button (B in Fig. 3.7.5.3). e NAS page will remain
open even after the device shuts down.
TeChNICAl NOTe: If the on/auto/off power switch
on the 2big is set to auto, the Shut Down button in
administration will restart the 2big, not shut it down.
A B
Figure 3.7.5.3
Page 45
LaCie 2big Network
User Manual
3.7.6. System Log■
e system log allows you to review the type, date,
time, source and event ID of activities on the LaCie
2big Network.
To view the system log, select System > Status >
View.
Click Download to download the log or Delete to
clear its contents.
Administration
page 44
Figure 3.7.6
Page 46
LaCie 2big Network
User Manual
4. Accessing the Shared Storage
4.1. Connect to a Share with Ethernet Agent (Windows)
e simplest way to connect to a share is to select it
from the Ethernet Agent menu.
Start LaCie Ethernet Agent.
1.
Click on the Ethernet Agent icon in the task bar and
2.
select the share name from the menu (ex. “Sales” in
Fig. 4.1-A).
e share opens in a Windows Explorer window
3.
(Fig. 4.1-B).
Accessing Shared Storage
page 45
Figure 4.1-A
Figure 4.1-B
Page 47
LaCie 2big Network
User Manual
4.2. Map a Drive with Ethernet Agent (Windows)
For faster time connections and usability, LaCie recommends that you map shares on your 2big Network as
drives on your computer. To map a drive:
Start LaCie Ethernet Agent
1.
2.
Click on the Ethernet Agent icon in the task bar and
select LaCie-2big > Map a drive (Fig. 4.2-A).
e Map a drive window opens (Fig. 4.2-B).
3.
Select a share to map from the menu.
4.
Click OK.
5.
e share appears under Network Drive in My computer (Fig. 4.2-C).
Accessing Shared Storage
page 46
Figure 4.2-A
Technical noTe: Windows Me Users
– To access your shares under Windows Me, the administrator will need to create a user with the same
username and password as your log in for Windows.
is is due to a limitation in Microsoft’s operating
system.
Technical noTe: Windows 95 and 98
Users – To access your shares under Windows 95
and 98, you will need to create a user on the LaCie
2big Network with the same user name and password as your log in for Windows. is is due to a
limitation in Microsoft’s operating system.
Figure 4.2-B
Figure 4.2-C
Page 48
LaCie 2big Network
User Manual
4.3. NAS Administration Page – Browse
To access files in NAS administration page, just log
in. Regular users will have direct access to the shares
on the 2big Network (Fig. 4.3), with no access to administrative features. e administrator must click on
Browse in the navigation bar to access files stored on
the 2big Network. e administrator will have access to
all files. Other users will only have access to the files to
which the administrator has given them access.
All shares are listed on the left side of the page. To
see the files in a share, click on the share name.
Administrators, to return to 2big Network administration, click the Administration button. is is not
available to non-administrators.
Accessing Shared Storage
page 47
4.3.1. Uploading Files
■
To upload a file to a share:
Click on the share (folder) you want to upload the
1.
file to.
Click Upload file.
2.
Click Browse…A file browser opens. Select the file
3.
to upload.
Click Apply.
4.
TeChNICAl NOTe: If the file does not appear in the
folder after the upload process is complete, just click on
the folder name again to refresh the view of the folder
contents.
Figure 4.3
Figure 4.3.1
Page 49
LaCie 2big Network
User Manual
■
4.3.2. Downloading Files
To download a file:
Click on the share (folder) you want to download the
1.
file from.
Download method depends on your browser:
2.
Internet Explorer: Right-click on the file name and
❖
select Save target as...
Firefox: Click on the filename and click OK in the
❖
download dialog.
4.3.3. Deleting Files
■
Accessing Shared Storage
page 48
Figure 4.3.2
To delete a file from a share:
Click on the share (folder) you want to delete the
1.
file from.
Select the file or files to delete.
2.
Click Delete files.
3.
Click OK on the confirmation dialog.
4.
4.3.4. Logging Out■
Log out at any time by clicking Log out in the upper right corner of the NAS Administration page.
Figure 4.3.3
Figure 4.3.4
Page 50
LaCie 2big Network
User Manual
4.4. My Network Places – Windows Vista/XP/2000 Users
ImpOrTANT INfO: If you have just turned
on the LaCie 2big Network, it may take a few mo-
ments for it to appear on the network.
To access the share in Windows, look in My
1.
Network Places, and select Microsoft Windows
Workgroup. By default, the 2big Network will be
named LaCie-2big Network (Lacie-2big) (Fig.
4.4-A).
Alternatively, you can access the share by typing the
following in a Windows explorer address field (Fig.
4.4-B.):
\\LaCie-2big\[share name]
\\[IP address]\[share name] Find the IP address
by running the LaCie Ethernet Agent (section 2.3).
For FTP access, type:
ftp://LaCie-2big or ftp://[IP address]
Accessing Shared Storage
page 49
Figure 4.4-A
In the logon window that opens, type:
2.
Login: admin
Password: admin
(is user name and password is the factory default;
if you have already created a user, input your user
name and password.)
e LaCie 2big Network will appear as a drive with
3.
one share folder on the network. For faster connections and usability, LaCie recommends you map the
network drive. For details, see chapter 4.2, Map a
Drive with Ethernet Agent (Windows Users Only).
(continued on next page)■
Figure 4.4-B
Page 51
LaCie 2big Network
User Manual
Windows 95/98/98SE
■
From the Start menu, select Find and then Com-
puter. Enter LaCie-2big as the server name and click
Find Now. Windows will search your system and after
a little while, the LaCie 2big Network should appear in
the result window. Click on the icon, and you will then
be asked to enter a login name and password.
Windows Me/2000
■
For Windows Me and Windows 2000 users, if you
cannot find the LaCie 2big Network from your workstation, try using the Windows search tool.
From the Start menu, select Search, and then click
on For Files or Folders. In the Search Results win-
dow, select Computers.
In the Search for Computers dialog box, enter
the server name and click the Search Now button. By
default, the LaCie 2big Network will be named “LaCieNetwork” , and the share “SHARE”.
Accessing Shared Storage
page 50
Page 52
LaCie 2big Network
User Manual
4.5. Mac Users
imporTanT info: If you have just turned
on the LaCie 2big Network, it may take a few moments for the LaCie 2big Network to appear on
the network.
Run the IP Configurator Wizard (see section 2.3).
1.
e Wizard will search for LaCie NAS drives on
2.
your network. Devices found are represented by an
IP address (Fig. 4.5-A). Write down this IP address
(for example, 10.1.4.109).
In Finder, select Connect to Server... from the Go
3.
menu.
In the Server Address field, type the IP address of
4.
your 2big Network and click Connect (Fig. 4.5-B).
Accessing Shared Storage
page 51
Figure 4.5-A
For SMB access type:
For FTP access, type:
For AFP access, type:
In the logon window that opens, type:
5.
Login: admin
Password: admin
(is login name and password is the factory default; if you have already created a user, input your
user name and password.)
In the Select Volumes to Mount window, select
6.
the share you want to mount and click OK (Fig.
4.5-C). e network drive will mount on your desktop (Fig. 4.5-D) and can be accessed for file transfer.
smb://LaCie-2big or
smb://IP address or
smb://Machine name
ftp://LaCie-2big or
ftp://IP Address
afp://LaCie-2big or
afp://IP Address
(continued on next page)■
Figure 4.5-B
Figure 4.5-C
Figure 4.5-D
Page 53
LaCie 2big Network
User Manual
Mac OS 9.x
■
From the Apple menu, select Network Browser,
Chooser or Connect to Server. In Chooser, click the
Appleshare icon. Your server should appear in the list
with the default name “LaCie-2big”. Select it and press
OK.
4.6. Linux Users
Under KDE, open konqueror and type in the IP address of the LaCie 2big Network into the address field:
For FTP access – ftp:// [IP address]
❖
For HTTP access – http:// [IP address]
❖
For SMB/CIFS access (in order for this to method
❖
to work, the services need to be properly configured)
– smb:// [IP address].
Accessing Shared Storage
page 52
Page 54
LaCie 2big Network
disk 1 disk 2
disk 1 disk 2 disk 1 disk 2
disk 1 disk 2 disk 1 disk 2
disk 1 disk 2
disk 1 disk 2
User Manual
5. RAID
RAID
page 53
5.1. 2big Network RAID Modes
e LaCie 2big Network supports two RAID
modes, Big (Concatenation) and Safe 100 (RAID 1).
is section will help you decide which mode is right
for your application.
Big (Concatenation)■ Safe 100 (RAID 1)■
In Big mode, the two physical disks are combined
(concatenation) so that one single yet larger logical volume mounts on the desktop, offering maximum possible
capacity (the available capacities of each disk are cumulated). If one physical disk fails, the data of both disks
become inaccessible.
TeChNICAl NOTe: Capacity varies depend-
ing upon RAID mode.
Big = total accessible capacity
❖
Safe 100 (RAID 1) = 50% capacity
❖
In Safe 100 mode, the two physical disks are
mirrored together (RAID 1) so that one single logical
volume mounts on the desktop.
All of the data (100%) are saved simultaneously
on each disk (the available capacity cannot exceed the
available capacity of the lowest-capacity single disk). If
one physical disk fails, the data are available immediately
on the second disk.
When a drive is replaced after a drive failure, a
rebuild begins automatically. All data are copied from
the existing drive to the new drive. See section 5.3,
Replacing Drives.
One Big volume
One Safe volume
Page 55
LaCie 2big Network
safe 100
big
off auto on
User Manual
5.2. Changing the RAID Mode
Changing the RAID mode involves two main steps,
changing a physical setting and confirming the setting
on the NAS administration page.
CAUTION: Changing the RAID mode destroys all
data stored on the LaCie 2big. If you have saved data on
the drives, back up data before following these steps.
To change the RAID mode:
Insert a small, flat-blade screwdriver into the groove
1.
on the rotary switch and turn the screwdriver to the
left or right to select a different mode (Fig. 5.2-A).
Sign in to the NAS administration page administra-
2.
tor account.
Click on System > Disk > RAID.
3.
RAID
page 54
Figure 5.2-A
Select the “Apply modifications” box (A in Fig. 5.2-
4.
B) and click the Apply button (B in Fig. 5.2-B).
e 2big will create a new RAID array and erase all
data from the disks. It may also reboot, in which case
you will need to log in again to continue administra-
A
tion.
B
Figure 5.2-B
RAID Status Indicators■
Home Page BIG Mode SAFE Mode
Blue Clean Active 2big is fully functional
Red Array not active Clean, degraded e disks are not recognized.
Select System > Disk > RAID
and check that disks are functional
Gray Formatting Active, resyncing Intermediate state – 2big is for-
matting or rebuilding data
Page 56
LaCie 2big Network
User Manual
5.3. Replacing Drives
RAID
page 55
In the event that an individual hard disk fails in
the LaCie 2big, please contact your LaCie reseller or
LaCie Customer Support. Please replace a defective hard drive only with a new drive provided by
LaCie. Replacing a drive involves two main steps, installing the new drive (section 5.3.1) and initializing
the new disk on the NAS administration page (section
5.3.2).
CAUTION: After continuous use of the LaCie 2big,
drives may be hot. Use caution when removing.
What happens when a new disk is inserted:
SAFE mode – Data are still available. When a new
❖
disk is inserted there is an automatic data rebuild to
the new disk.
BIG mode – If a drive fails, all data are lost. When a
❖
new disk is inserted, both disks are reformatted.

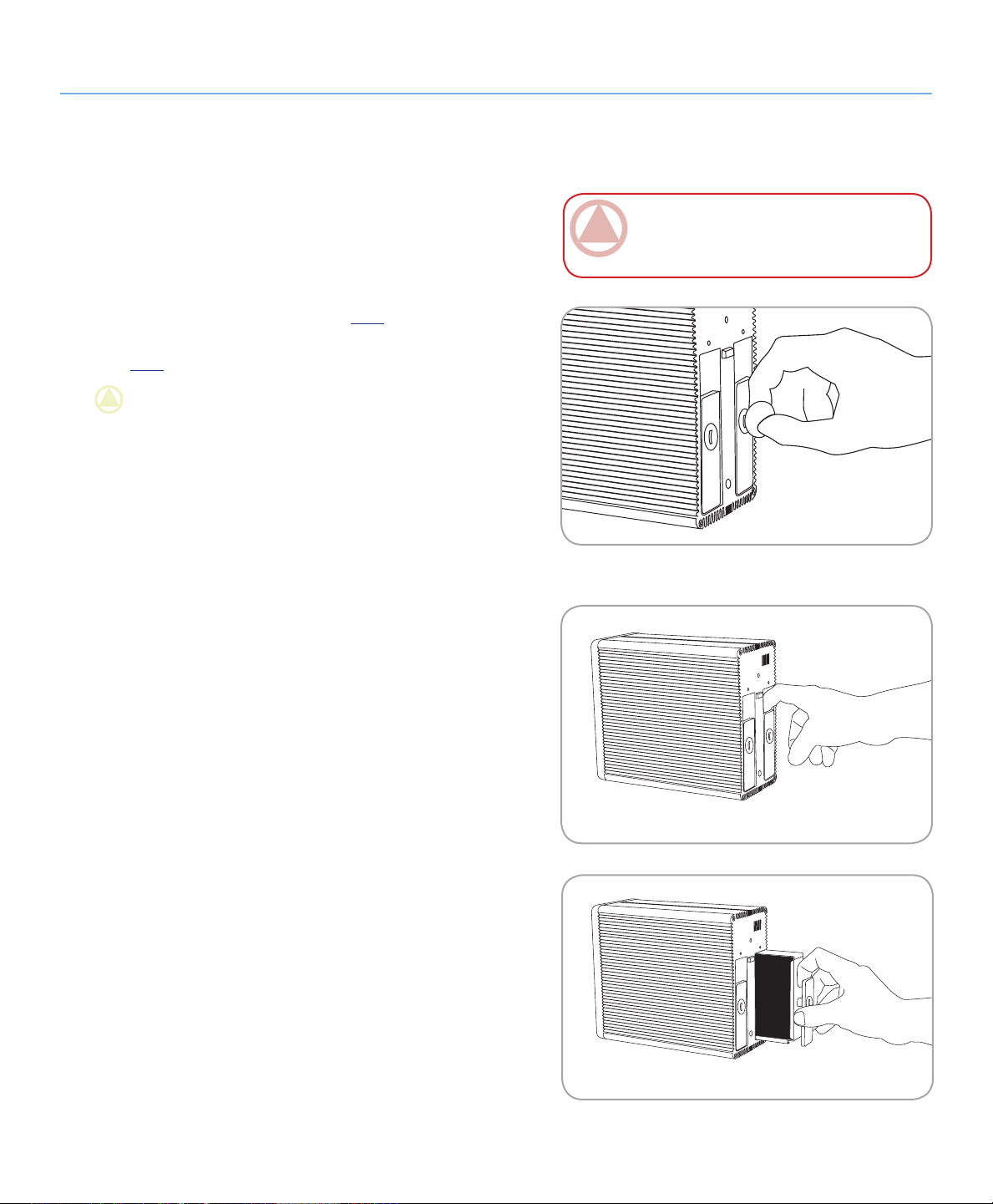

5.3.1. Installing a New Drive■
ImpOrTANT INfO: Drive warranty will be
void if you replace the defective drive with a drive
not provided by LaCie.
Fig. 5.3.1-A
To remove a drive:
Turn off and unplug the LaCie 2big.
1.
e drive tray may be locked. To unlock it, insert a
2.
coin into the slot on the drive lock and turn the lock
until the slot is vertical (Fig. 5.3.1-A).
Draw out the drive tray by inserting your finger into
3.
the space behind the drive tray handle and pulling to
disengage the drive (Fig. 5.3.1-B).
Grasp the drive tray handle and carefully extract the
4.
drive (Fig. 5.3.1-C).
To install a drive:
Turn off and unplug the LaCie 2big.
1.
Carefully insert the drive tray into an empty drive
2.
bay. When the drive tray is most of the way in and
you feel resistance, press the drive tray handle firmly
until you feel the drive snap into place and the drive
tray handle is flush with the back of the 2big.
Use a coin to lock the drive lock.
3.
Fig. 5.3.1-B
Fig. 5.3.1-C
Page 57
LaCie 2big Network
User Manual

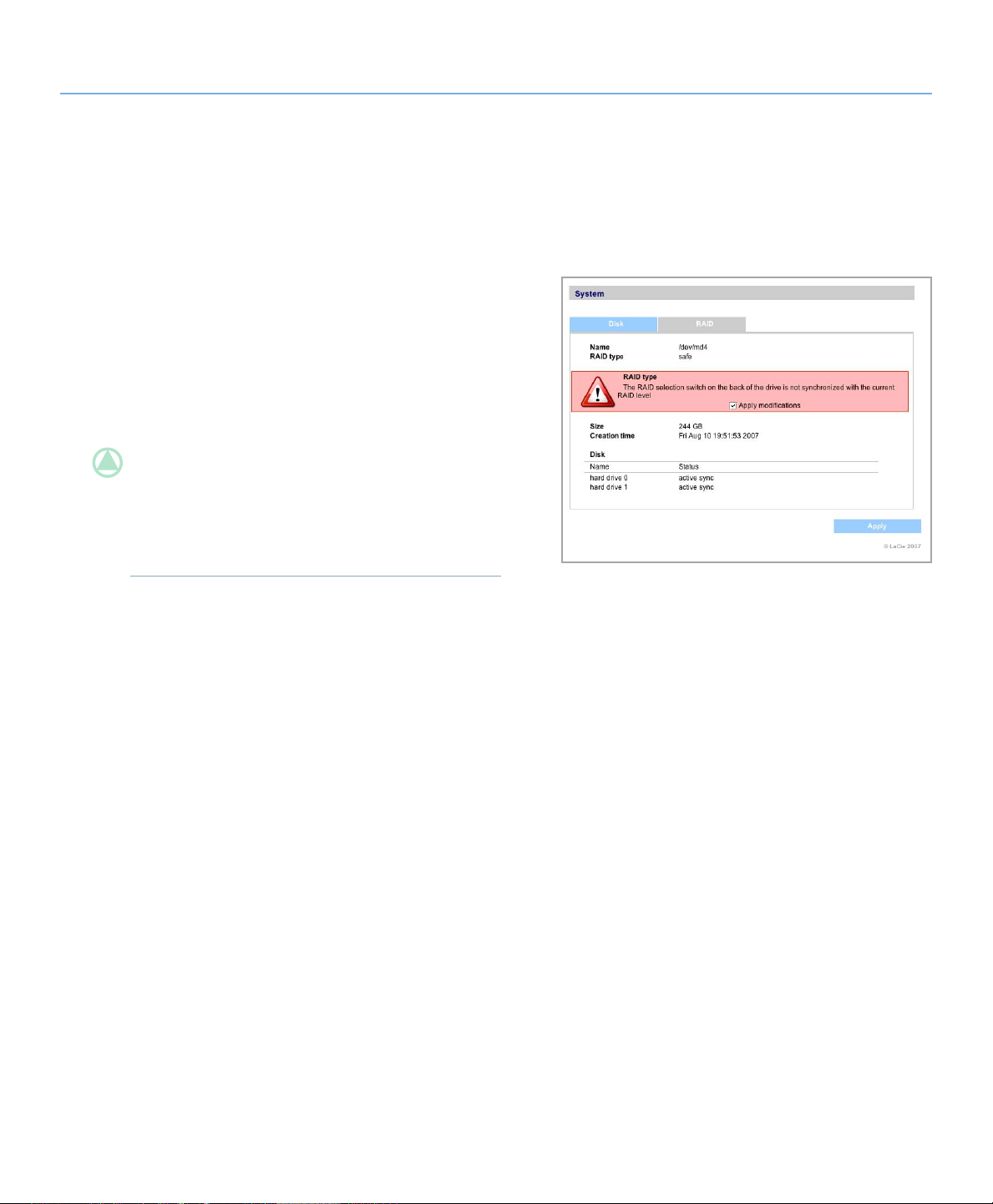

5.3.2. Initializing the New Drive■
When a new drive has been correctly installed into
the 2big you will need to initialize the drive before the
2big can use it.
To initialize a new drive:
Sign in to the NAS administration page administra-
1.
tor account.
Click on System > Disk > RAID.
2.
Select the “Apply modifications” box and click the
3.
Apply button (Fig. 5.3.2).
TeChNICAl NOTe: If the 2big is in SAFE mode, the
new disk has to be synchronized with the original one.
Depending on the capacity of the disk, synchronization
may take a few hours.
RAID
page 56
Figure 5.3.2
Page 58
LaCie 2big Network
User Manual
6. LED Indicators
e LED indicators above the drive bays and the
front LED indicate drive status and activity. iis section describes the behavior of the LED indicators.
During Startup
Front LED – blinks red/blue until both disks are
❖
powered on, then turns solid blue.
Rear LEDs – blinks red/blue until corresponding
❖
disk is powered on, then turns solid blue.
NOTe: If the device is not able to initiate the boot pro-
cess following disk startup, the front is solid red.
LED Indicators
page 57
During Bootup
Front LED – solid blue
❖
Rear LEDs – solid blue
❖
NOTe: If a disk is failing, both the disk’s corresponding
rear LED and the front LED will be solid red.
During RAID Synchronization
Front LED – solid red
❖
Rear LEDs – e LED corresponding to the original
❖
disk will be blinking blue and the one being synchronized is blinking red
Once both disks are synchronized, their correspond-
❖
ing rear LED and the front LED will be solid blue.
Page 59
LaCie 2big Network
User Manual
7. Troubleshooting
Troubleshooting
page 58
In the event that your LaCie 2big Network is not working correctly, please take a look at the Troubleshooting
section on the following pages and at the FAQs published on our web site – www.lacie.com. One of these
FAQs may provide an answer to your specific question.
You can also visit the drivers pages, where the most recent software updates will be available, at
www.lacie.com/support/drivers.
If you need further assistance, please contact your
LaCie reseller or LaCie Technical Support (see chapter
8. Contacting Customer Service for details).
System Log
■
e system log allows you to review the type, date,
time, source and event ID of activities on the LaCie
2big Network. For more information, refer to chapter
3.7.6, System Log.
Manual Updates
■
LaCie is constantly striving to give you the most
up-to-date, comprehensive User Manuals available on
the market. It is our goal to provide you with a friendly,
easy-to-use format that will help you quickly install and
utilize the many functions of your new device.
If your manual does not reflect the configurations of
the product that you purchased, please check our website for the most current version available.
Problem■ Question to Ask■ Solution■
e drive is not
recognized by
the computer.
Does your computer’s configuration meet the minimum
system requirements?
Is the drive’s power supply connected and is the blue light on
the front of the drive on?
Is the blue light on the front of
the drive flickering?
Check section 1.2. Minimum System Requirements for more
information.
Make sure that the power supply is properly connected (see
section 2.1, Turning the Drive On for details); that the drive has
been powered on by pressing the blue On/Off button on the
front of the drive; and that the outlet the power supply is connected to is powered on or has a sufficient supply of power.
If the blue light is flickering or will not turn on, the power
supply may be defective. Please contact your LaCie reseller or
LaCie Customer Support.
Page 60
LaCie 2big Network
User Manual
Problem■ Question to Ask■ Solution■
Troubleshooting
page 59
e drive is not
recognized by
the computer.
e drive doesn’t
appear on the
network.
Did you follow the correct installation steps for the specific
interface?
Are both ends of the interface
cable firmly connected?
By default the 2big Network is configured to retrieve its IP address from a DHCP server. If your
network is managed by a DHCP server and you cannot access your 2big Network, try checking your
DHCP server’s log. To get the IP address, run the LaCie IP configurator software tool, which is
located on the LaCie Storage Utilities CD-ROM. If your network is NOT managed by a DHCP
server, the 2big Network uses its default IP address, which is 19X.x6X.x.100. To change this IP address, use the LaCie IP Configurator software tool.
Review the installation steps (chapter 3). e two cables cannot
be connected at the same time.
Disconnect the interface cable, wait 10 seconds and then re-
❖
connect.
Ensure that the interface connectors are properly aligned. e
❖
interface cables can only be inserted one way. Make sure that
they are correctly oriented.
Check that the interface connectors are straight and fully seat-
❖
ed in the interface ports.
Only use certified interface cables, such as the cables provided
❖
with your LaCie drive. If you have followed all of these steps
and the drive is still not recognized, shut down your computer,
wait 3 to 5 minutes, restart your computer and try again. In
the event that the drive is still not recognized, take the drive
to another computer and attempt to connect the drive. If the
drive is not recognized on another computer, please contact
your LaCie reseller or LaCie Customer Support.
Is the IP address properly set? For more information, please see section 4. Accessing the Shared
Storage.
Is your network DHCP enabled?
Are you using AppleTalk under
Mac OS 9.x?
If your network is DHCP enabled, please refer to sections 2.3,
Connecting with LaCie Ethernet Agent or 2.4, Connecting with
the IP Configurator Wizard. If your network is not DHCP en-
abled, you will need to manually configure the address; please see
section 2.5, Configuring the 2big Network on a LAN Without a
DHCP Server.
If you are using AppleTalk under Mac OS 9.x, ensure that the
LaCie 2big Network and the other clients on the network are in
the same AppleTalk zone.
Page 61
LaCie 2big Network
User Manual
Problem■ Question to Ask■ Solution■
Troubleshooting
page 60
A user does not
have access to
the LaCie 2big
Network.
Has the administrator created
that specific user?
In order for a another user to access the LaCie 2big Network,
two conditions must be met: 1) the administrator must
create and register a user with the appropriate privileges; 2) the
LaCie 2big Network must be connected to the network via Ethernet for additional users to access the drive.
Page 62
LaCie 2big Network
User Manual
8. Contacting Customer Support
Before You Contact Technical Support■
Read the User Manual and review the Troubleshoot-
1.
ing section.
Try to isolate the problem. If possible, make the
2.
drive the only external device on the CPU, and make
sure that all of the cables are correctly and firmly attached.
If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can’t
get your LaCie drive to work properly, contact us via
the contacts on the following page. Before contacting
Contacting Customer Support
page 61
us, make sure that you are in front of your computer and
that you have the following information on hand:
Your LaCie drive’s serial number
❖
Computer brand and model
❖
Amount of memory installed
❖
Names of any other devices installed on your
❖
computer, including CD/DVD burners
Information to Include in Email Correspondence■
Information Where to Find Information
1. LaCie 2big Network serial number Located on a sticker at the back of drive or on the original packaging
2. LaCie 2big Network file format
3. Macintosh/PC model
4. Operating system version
5. Processor speed
6. Computer memory
7. e brands and models of other internal and
external peripherals installed on my computer
Mac users: Select the hard drive icon and press Command + I, or
press the Control key and choose Get Info.
Windows users: Right click the hard drive icon and select
Properties.
Mac users: Click on the Apple icon in the menu bar and select
About this Mac.
Windows users: Right click My Computer and select
Properties > General.
Mac users: Click on the Apple icon in the finder bar and
select About this Mac. Select More Info... e Apple System Profiler will launch and will list your internal and external
peripherals.
Windows users: Right click My Computer and select
Properties > Hardware.
Page 63
LaCie 2big Network
User Manual
8.1. LaCie Technical Support Contacts
Contacting Customer Support
page 62
LaCie Asia, Singapore, and Hong Kong
Contact us at:
http://www.lacie.com/asia/contact/
LaCie Belgium
Contact us at:
http://www.lacie.com/be/contact/ (Français)
LaCie Denmark
Contact us at:
http://www.lacie.com/dk/contact
LaCie France
Contact us at:
http://www.lacie.com/fr/contact/
LaCie Italy
Contact us at:
http://www.lacie.com/it/contact/
LaCie Netherlands
Contact us at:
http://www.lacie.com/nl/contact/
LaCie Australia
Contact us at:
http://www.lacie.com/au/contact/
LaCie Canada
Contact us at:
http://www.lacie.com/caen/contact/ (English)
LaCie Finland
Contact us at:
http://www.lacie.com/fi/contact/
LaCie Germany
Contact us at:
http://www.lacie.com/de/contact/
LaCie Japan
Contact us at:
http://www.lacie.com/jp/contact/
LaCie Norway
Contact us at:
http://www.lacie.com/no/contact/
LaCie Spain
Contact us at:
http://www.lacie.com/es/contact/
LaCie Switzerland
Contact us at:
http://www.lacie.com/chfr/contact/ (Français)
LaCie Ireland
Contact us at:
http://www.lacie.com/ie/contact/
LaCie International
Contact us at:
http://www.lacie.com/intl/contact/
LaCie Sweden
Contact us at:
http://www.lacie.com/se/contact
LaCie United Kingdom
Contact us at:
http://www.lacie.com/uk/contact/
LaCie USA
Contact us at:
http://www.lacie.com/contact/
Page 64
LaCie 2big Network
User Manual
9. Warranty Information
Warranty Information
page 63
LaCie warrants your drive against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event
this product is found to be defective within the warranty
period, LaCie will, at its option, repair or replace the
defective drive. is warranty is void if:
e drive was operated/stored in abnormal use or
❖
maintenance conditions;
e drive is repaired, modified or altered, unless such
❖
repair, modification or alteration is expressly authorized in writing by LaCie;
e drive was subjected to abuse, neglect, lightning
❖
strike, electrical fault, improper packaging or accident;
e drive was installed improperly;
❖
e serial number of the drive is defaced or missing;
❖
e broken part is a replacement part such as a pick-
❖
up tray, etc.
e tamper seal on the drive casing is broken.
❖
LaCie will not, under any circumstances, be liable
for direct, special or consequential damages such as, but
not limited to, damage or loss of property or equipment,
loss of profits or revenues, cost of replacement goods,
or expense or inconvenience caused by service interruptions.
Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user,
and under no circumstances will LaCie be held liable for
the recovery or restoration of this data.
Under no circumstances will any person be entitled
to any sum greater than the purchase price paid for the
drive.
To obtain warranty service, call LaCie Technical Support. You will be asked to provide your LaCie
product’s serial number, and you may be asked to furnish
proof of purchase to confirm that the drive is still under
warranty.
All drives returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.
LaCie and its suppliers accept no liability for any
loss of data during the use of this device, or for any of
the problems caused as a result.
imporTanT info: Register online for free
technical support: www.lacie.com/register
