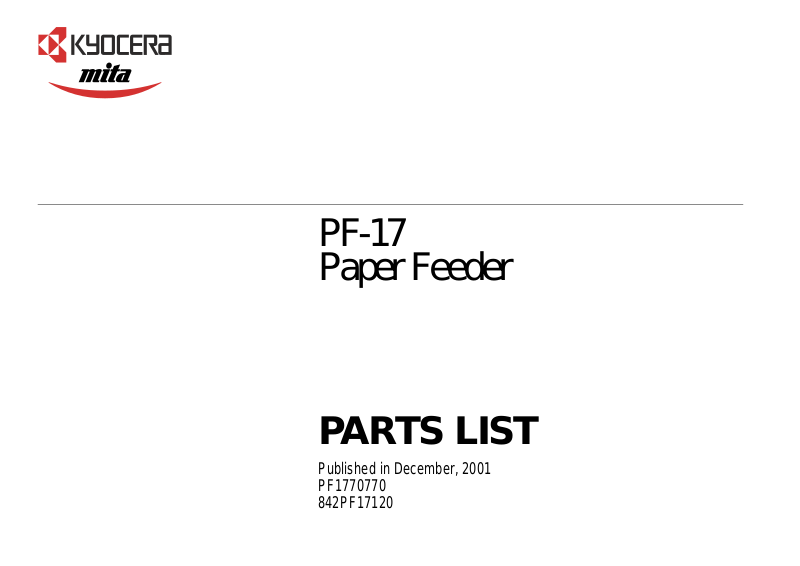

Page 1
PF-17
Paper Feeder
PARTS LIST
Published in December, 2001
PF1770770
842PF17120
Page 2
Legend
• ISP = Initial Service Parts
• Legend: DE=Germany, FR=France, IT=Italy, AUS=Australia, TH=Thailand, SG=Singapore, TW=Taiwan, BR=Brazil, PH=Philippines
PF-17
2
Page 3
1 - Paper feeder
PF-17
G001
0004
G001
0020
0021
0009
G008
0008
G002
0005
G008
0006
0025
G002
G007
G002
0024
002
2
0003
0015
0016
0013
G009
0014
0010
0011
0017
G002
0001
0007
0002
3
Page 4
Paper feeder
Ref. No. Part Number Description Q’ty DE UK FR IT AUS TH SG TW BR HK PH US
5PLPXV4APKX PC-40F CASSETTE ASSY A4 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes No See Paper cassette below.
5PLPXV5APKX PC-40F CASSETTE ASSY LTR 1 No No No No No No No No No No No Yes See Paper cassette below.
0001 5MVB886SH064 BASE FEEDER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0002 5MVS228RB019 FOOT 4 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0003 5MVB886SH066 BASE DRIVE 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0004 5MVX874SH003 LID FEEDER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0005 5MVX432DB011 ACTUATOR FEEDER PE 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0007 5MVG138DW002 GEAR Z24S 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0008 5AAVR0LER046 ROLLER FEED 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0009 5MVM176DN026 BUSH FEED 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0010 5MVB655BX001 BRACKET MOTOR 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0011 5MVG158DW001 GEAR Z50S-Z23S 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0013 5MVG138DW001 GEAR Z27S 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0014 5MVX322DW007 DRIVE MOVER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0015 5MMS766LD002 WASHER MOVER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0016 5MMW111LD002 SPRING MOVER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0017 5EZNT2400501+01 STEPPING MOTOR 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0020 5MVT611DW001 PIN FEEDER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0021 5MMW341LD005 SPRING PIN CASSETTE 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0022 5AACCNRM3GEA CONN.CORD ASSY PF CONN -PF DR.S02516 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0024 5AAPRIFR2012AH P.W.BOARD ASSY PF CONN KP-796 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
0025 5AAPRDVC1005AH P.W.BOARD ASSY PF DRIVE KP-794 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
P-001 5AAKPF200+01 PACKING ASSY 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
P-002 5KKSPF200+01 OUTER CARTON 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PF-17
4
Page 5
2 - Paper cassette
8009
8007
8A02
8019
8012
801
8015
8005
3
8011
8014
G802
G80
PF-17
8003
8A01
800
2
1
8004
8010
8017
8018
8020
800
800
8
8006
1
8018
8016
5
Page 6
Paper cassette
Ref. No. Part Number Alternative #1 Description Q’ty DE UK FR IT AUS TH SG TW BR HK PH US
8001 5MVB886SH063 BASE CASSETTE 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8004 5MMS856SL001 PLATE BOTTOM 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8005 5MMW552LD002 SPRING CASSETTE 2 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8006 5MVX765SH002 GUIDE SIDE R 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8007 5MVX765SH003 GUIDE SIDE L 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8008 5MVX664SH003 STOPPER PAPER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8009 5MVX541DG003 LEVER SIDE 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8010 5MVX541DG002 LEVER REAR 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8011 5MVG127DN071 GEAR CASSETTE 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8015 5MMW251LD047 SPRING SEPARATOR C 1 Yes Yes Yes Yes Yes Yes Yes Y es Yes Yes Yes Yes
8016 5MVX431DW001 LOCK CASSETTE R 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8017 5MVX431DW002 LOCK CASSETTE L 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8018 5MMW251LD045 SPRING LOCK 2 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8019 5MMP141LD003 PLATE STOPPER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8020 5MMP141LD002 PLATE SIDE GUIDE 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8021 5MMW171LD006 SPRING STOPPER 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
8A01 5AAVB0T0M009 5AAY3010E+49 BOTTOM CASSETTE KIT 1 Yes Yes Ye s Yes Yes Yes Yes Yes Yes Yes Yes Yes
8A02 5AAVSEPRT013 5AAY3010E+50 SEPARATOR KIT 1 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
PF-17
6
