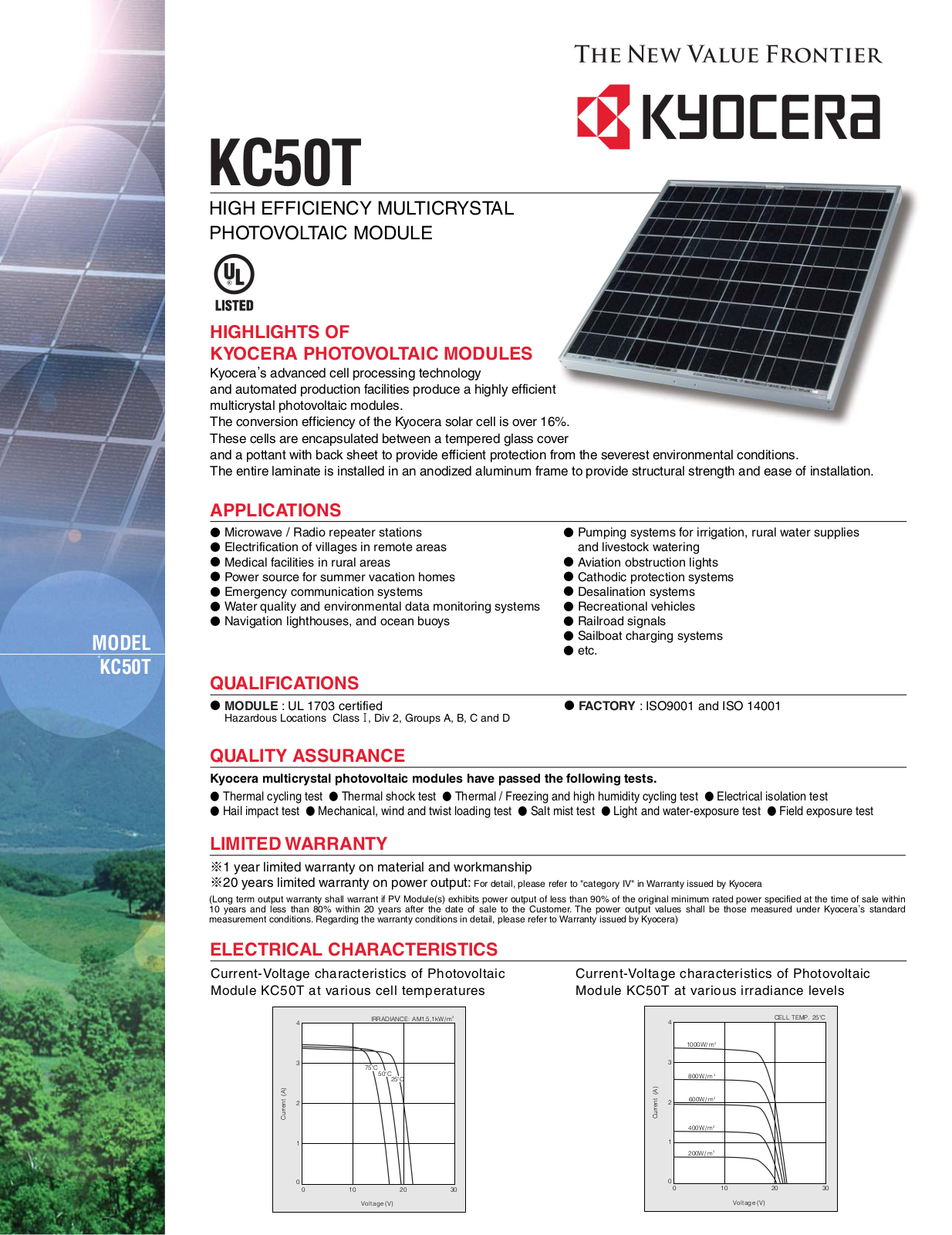

KC50T
HIGH EFFICIENCY MULTICRYSTAL
PHOTOVOLTAIC MODULE
HIGHLIGHTS OF
KYOCERA PHOTOVOLTAIC MODULES
Kyocera,s advanced cell processing technology
and automated production facilities produce a highly efficient multicrystal photovoltaic modules.
The conversion efficiency of the Kyocera solar cell is over 16%. These cells are encapsulated between a tempered glass cover
and a pottant with back sheet to provide efficient protection from the severest environmental conditions.
The entire laminate is installed in an anodized aluminum frame to provide structural strength and ease of installation.
MODEL
KC50T
APPLICATIONS
● Microwave / Radio repeater stations |
● Pumping systems for irrigation, rural water supplies |
● Electrification of villages in remote areas |
and livestock watering |
● Medical facilities in rural areas |
● Aviation obstruction lights |
● Power source for summer vacation homes |
● Cathodic protection systems |
● Emergency communication systems |
● Desalination systems |
● Water quality and environmental data monitoring systems |
● Recreational vehicles |
● Navigation lighthouses, and ocean buoys |
● Railroad signals |
|
● Sailboat charging systems |
|
● etc. |
QUALIFICATIONS
● MODULE : UL 1703 certified |
● FACTORY : ISO9001 and ISO 14001 |
Hazardous Locations Class1, Div 2, Groups A, B, C and D |
|
QUALITY ASSURANCE
Kyocera multicrystal photovoltaic modules have passed the following tests.
●Thermal cycling test ● Thermal shock test ● Thermal / Freezing and high humidity cycling test ● Electrical isolation test
●Hail impact test ● Mechanical, wind and twist loading test ● Salt mist test ● Light and water-exposure test ● Field exposure test
LIMITED WARRANTY
1 year limited warranty on material and workmanship
20 years limited warranty on power output: For detail, please refer to "category IV" in Warranty issued by Kyocera
(Long term output warranty shall warrant if PV Module(s) exhibits power output of less than 90% of the original minimum rated power specified at the time of, sale within 10 years and less than 80% within 20 years after the date of sale to the Customer. The power output values shall be those measured under Kyocera s standard measurement conditions. Regarding the warranty conditions in detail, please refer to Warranty issued by Kyocera)
ELECTRICAL CHARACTERISTICS
Current-Voltage characteristics of Photovoltaic |
Current-Voltage characteristics of Photovoltaic |
Module KC50T at various cell temperatures |
Module KC50T at various irradiance levels |
Current (A)
|
IRRADIANCE: AM1.5,1kW/ m |
2 |
|
|
|
|
|
|||
4 |
|
|
4 |
|
CELL TEMP. 25 C |
|||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
1000W/ m2 |
|
|
3 |
|
|
|
|
|
|
3 |
|
|
|
|
75 C |
|
|
|
|
|
|
800W/ m2 |
|
|
|
|
50 C |
|
|
|
|
|
|
|
|
|
|
25 C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(A) |
|
600W/ m2 |
|
|
2 |
|
|
|
|
|
Current |
2 |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
400W/ m2 |
|
|
1 |
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
200W/ m2 |
|
|
0 |
|
|
|
|
|
|
0 |
10 |
20 |
30 |
0 |
10 |
|
20 |
30 |
|
0 |
||||
|
Voltage (V) |
|
|
|
|
|
|
Voltage (V) |
|
|
