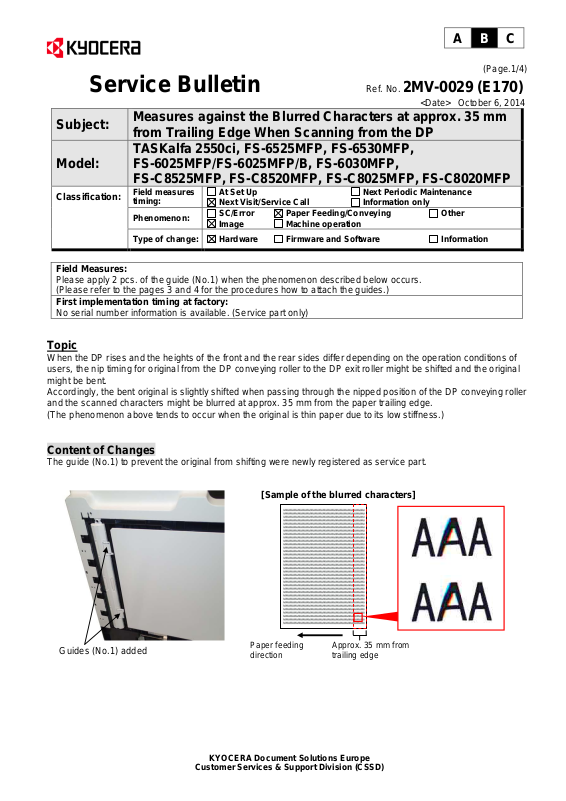

Kyocera TASKalfa 2550ci, FS-6525MFP, FS-6530MFP, FS-6025MFP, FS-6030MFP Service Bulletin
...Page 1
(Page.1/4)
A B C
Subject:
Measures against the Blurred Characters at approx. 35 mm
from Trailing Edge When Scanning from the DP
Model: l:
TASKalfa 2550ci, FS-6525MFP, FS-6530MFP,
FS-6025MFP/FS-6025MFP/B, FS-6030MFP,
FS-C8525MFP, FS-C8520MFP, FS-C8025MFP, FS-C8020MFP
Classification:
Field measures
timing:
At Set Up Next Periodic Maintenance
Next Visit/Service Call Information only
Phenomenon:
SC/Error Paper Feeding/Conveying Other
Image Machine operation
Type of change:
Hardware Firmware and Software Information
Field Measures:
Please apply 2 pcs. of the guide (No.1) when the phenomenon described below occurs.
(Please refer to the pages 3 and 4 for the procedures how to attach the guides.)
First implementation timing at factory:
No serial number information is available. (Service part only)
[Sample of the blurred characters]
Paper feeding
direction
Approx. 35 mm from
trailing edge
Guides (No.1) added
Service Bulletin Ref. No. 2MV-0029 (E170)
<Date> October 6, 2014
Topic
When the DP rises and the heights of the front and the rear sides differ depending on the operation conditions of
users, the nip timing for original from the DP conveying roller to the DP exit roller might be shifted and the original
might be bent.
Accordingly, the bent original is slightly shifted when passing through the nipped position of the DP conveying roller
and the scanned characters might be blurred at approx. 35 mm from the paper trailing edge.
(The phenomenon above tends to occur when the original is thin paper due to its low stiffness.)
Content of Changes
The guide (No.1) to prevent the original from shifting were newly registered as service part.
KYOCERA Document Solutions Europe
Customer Services & Support Division (CSSD)
Page 2
(Page.2/4)
A B C
Part Table
No.
Old Part
No.
New Part
No.
Description
Q
ty.
Com
bi
patility
Remarks
Old
New
Old
New
1
----------
303M824230
3M824230
GUIDE SUB READING SP
-
2
-
O
Service part
Original
DP conveying roller
DP exit roller
Guide (No.1)
DP slit glass
Cross section
Original scanning position
To prevent the shift of original trailing edge at the
original scanning position, the guides (No.1) were
added and so the original is properly conveyed
along the DP slit glass.
Service Bulletin Ref. No. 2MV-0029 (E170)
<Date> October 6, 2014
[Mechanism of the phenomenon]
Customer Services & Support Division (CSSD)
KYOCERA Document Solutions Europe
Page 3
(Page.3/4)
A B C
Procedures
No.
Procedure
Details
1
Release the hooks on the machine
front side by using a tool such as a
flathead screwdriver.
2
Remove the scanner guide.
[Note]
Make sure not to lose the spring (x2)
between the scanner guide and the
frame.
3
Remove the pulley (x2) on the DP exit
side.
[Note]
When removing the pulley, first
remove the one from the wide
aperture (circled in red).
Attach 2 pcs. of the guide (No.1) to the
scanner guide.
[Note]
When attaching the guide (No.1), first
attach the one to the narrow attaching
hole (circled in blue).
Scanner guide
Hook
Do not to lose these springs.
(Machine front side)
(Machine rear side)
Pulley
First remove this side.
First attach this side
Guide (No.1)
DP exit side
[Guide (No.1)]
Service Bulletin Ref. No. 2MV-0029 (E170)
<Date> October 6, 2014
KYOCERA Document Solutions Europe
Customer Services & Support Division (CSSD)
Page 4
(Page.4/4)
A B C
No.
Procedure
Details

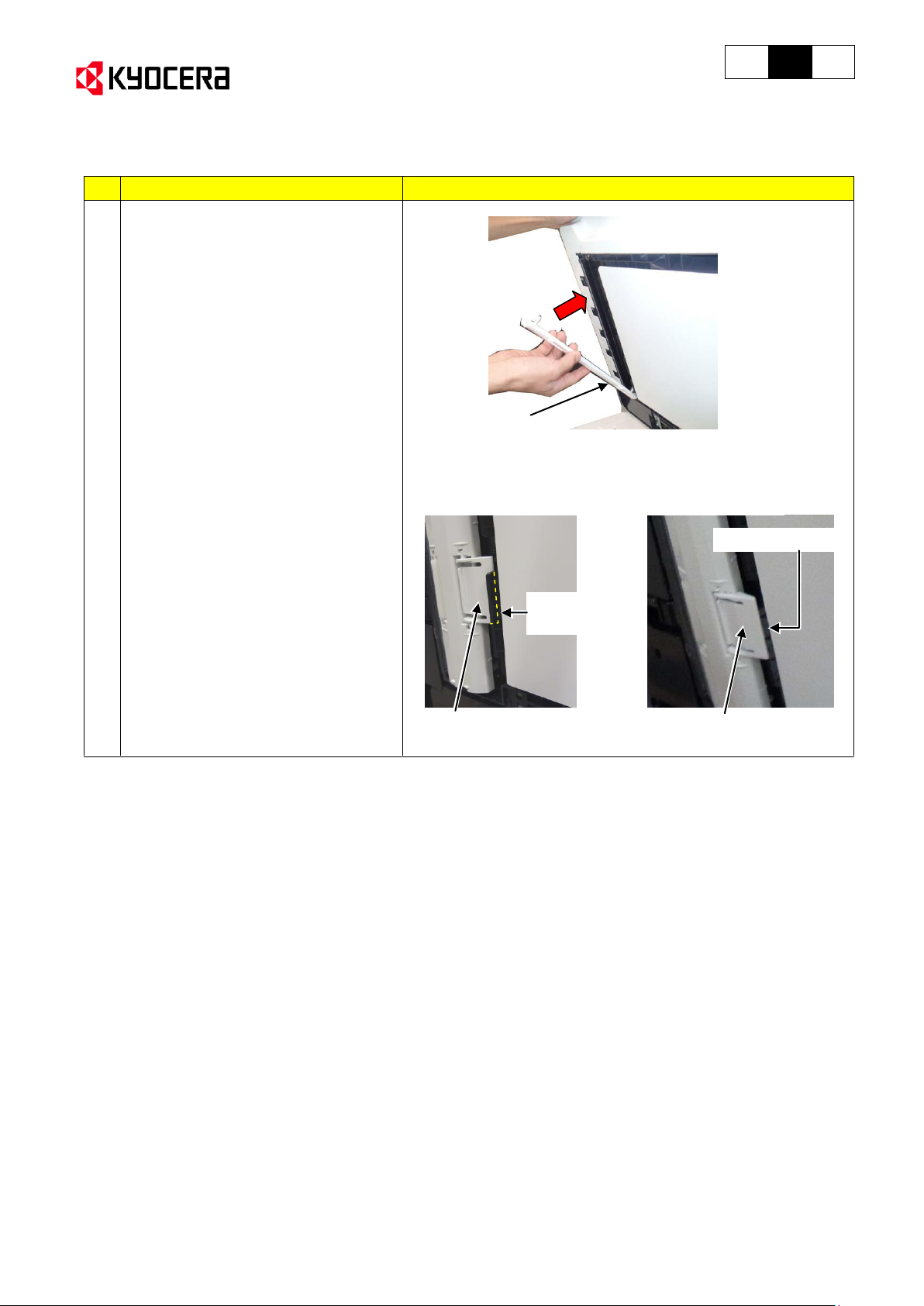

4
Reattach the scanner guide by first
attaching the machine rear side and
then the machine front side while
paying attention to the spring.
[Note]
At this time, reattach the scanner
guide so that the guide (No.1) will be
behind the black resin guide.
If the guide is in front of the guide, the
paper path is blocked, which causes
paper jam.
(Good)
(NG)
Black resin
guide
Black resin guide
Guide (No.1)
Guide (No.1)
Scanner guide
(Machine front side)
(Machine front side)
Black resin guide
Service Bulletin Ref. No. 2MV-0029 (E170)
<Date> October 6, 2014
KYOCERA Document Solutions Europe
Customer Services & Support Division (CSSD)
