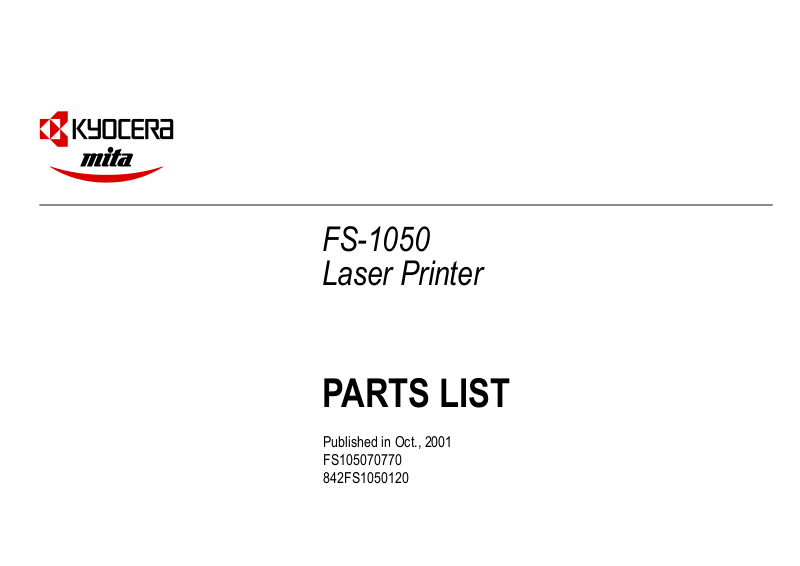

Kyocera FS-1050 Part List

FS-1050
Laser Printer

PARTS LIST

Published in Oct., 2001
FS105070770
842FS1050120

FS-1050

Ordering Information

1. ISP refers to Initially- supplied part; SP refers to Service part.

2. The Ref. No's correspond to those numbers in the exploded diagram.

3. Availability of ISP (Initially- Supplied Parts) varies depending on the destination of the product. For
details, refer to the ISP List supplied separately by Kyocera.

4. Those parts bearing numbers in the diagram but not listed in the parts list are not suppliable as a gen­eral supply part.

2

1 - Enclosure

FS-1050

0010

0003

0011

G002

0012

0002

G002

G101

0036

0031

0031

0032

0030

0022

0A02

Since April 2001
Until March 2001

0037

0035

0037

G003

0007

0004

0006

0038

0008

0026

0005

0024

0023

3

2 - Frame

FS-1050

G101

G101

2018

1053

1009

1075

2017

1011

G102

1006

1066

1003

1010

G203

1111

5034

1024

1067

1012

1011

G202

2019

1019

G101

1111

1014

G201

1007

1013

1A01

G101

1015

1052

1046

1068

1069

1061

1063

2003

1017

G105

G112

1118

G113

G112

1120

1023

1060

1059

1119

1043

1041

1077

G105

1063

1020

1078

G111

1044

1072

1062

G106

1001

1042

1071

1065
1064

1070

1079
1080

1038

1039

1032

1073

1049

1036

G101

1025

G101

1037

1035

1034

1033

1031

2002

1008

PWBA/D

2010

1050

2016

1048

2014

2015

2013

1002

G101

1005

G103

1040

G103

G103

2011

2012

2008

4

3 - Developer Unit

5019

G501

G602

6004

6039

6040

6038

G602

6002

6043

6030

6014

5016

G501

6013

6012

5018

5044

6015

G602

6029

6044

5A03

6011

6042

6033

G602

6045

5030

6028

6010

6043

6042

6019

5038

5036
5032

5033

6037

6001

6007

5009

5002

6026

5031

6018

6036

6035

6037

6022

5039

5040

6009

6017

6007

6034

6021

6003

6008

6025

5037

5035

G501

5007

G601

6005
6016

5044

5015

5004

6020

6027

5046

6023

6024

5003

5A01

5024

5010

5011

5030

5017

5025

5013

5029

5A02

G501

5005

5008

5007

5027

5022

5001

5008

6031

5026

5014

5023

5028

FS-1050

5021

5020

5003

5004

6032

G602

G501

5

4 - Drive Unit

FS-1050

3007

3010

3009

G303

G303

3006

3008

3003

3002

3005

G303

3004

G101

G101

G101

G101

3011

G301

G103

3013

G301

3014

3001

G301

2009

G301

3012

G302

6

5 - Upper Frame

FS-1050

1102

1026

1098

1099

1101

1A02

1090

1106

1029

1088

1090

1087

1108

1093

1054

1055

G109

1089

1090

1107

G102

1094
1091

1092

1030

G101

1095

4003

1090

4007

4006

1093

G101

4017

4016

G401
4012

4005

G402

4010

4002

G401

4014/4015

4013

4009

4001

G101

0028

0029

1047

0029
0028

1081

1085

G107

1086

1082

G110

1104

1096

1101

G101

1074

1112

1110

1109

1076

1051

1051

7

6 - Fuser Unit

7018

7016

7019

G701

FS-1050

G706

G705

7001

7005
7006

7013

G702

7012

7004

7005

7006

7017

7009

7027

7008

G704

7021

7030

G705

G706

7023

7026

7025

7029

G701

7015

7028

7024

7032

7031

G705

7010

7007

7011

8

7 - Paper Cassette

8009

8007

8A02

8012

FS-1050

8014

8013

8003

8A01

8002

8015

8005

8011

8017

G801

8010

8004

8018

8008

8006

8001

8016

8018

9

8 - Option Paper Feeder, Paper Cassette

8019

8009

8007

8A02

8012

8013

8015
8005

FS-1050

8014

8003

8A01

8002

G802

8011

8017

G801

8010

8004

8020

8018

8008

8006

8001

8018

8016

10

9 - Paper Feeder

FS-1050

G001

0004

G001

0020

0021

0009

G008

0008

G002

0005

G008

0006

0025

G002

G007

G002

0024

0022

0003

0015

0016

0013

G009

0014

0010

0011

0017

G002

0001

0007

0002

11

10 - Parts Lists

Tab le 1 - M o d u l e s

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

5PLPXU2AEKX PU-40 PROCESS UNIT 1 1 No No No No

5PLPXCDAKCN PU-41K PROCESS UNIT 1 1 Yes No No No

5PLPXKVAPKX PU-42 PROCESS UNIT 1 1 No Yes Yes Yes

5PLPXNRAK0E PU-42K PROCESS UNIT 1 1 Yes No No No

5PLPXU3AEKX FK-40 FUSER UNIT (E) 240V 1 1 No No No No

5PLPXU4AEKX FK-40 FUSER UNIT (U) 120V 1 1 No No No No

5PLPXCSAJKJ FK-40 FUSER UNIT (J) 100V 1 1 No No No No

5PLPXCWAPKX FK-41 FUSER UNIT (E) 240V 1 1 Yes No No No

5PLPXCXAAKM FK-41 FUSER UNIT (U) 120V 1 1 No No No No

5PLPXGCA0LE FK-41 FUSER UNIT (TWN) 110V 1 1 No No No No

5PLPXCYAJKJ FK-41 FUSER UNIT (J) 100V 1 1 No No No No

5PLPXKYAPKX FK-42 FUSER UNIT (E) 240V 1 1 Yes No Yes

5PLPXKZAPKX FK-42 FUSER UNIT (U) 120V 1 1 No Yes No

5PLPXLAAJKC FK-42 FUSER UNIT (J) 100V 1 1 No No No

5PLPXT9AEKX LK-40 SCANNER UNIT 1 1 No No No No

5PLPXDAAPKX LK-41 SCANNER UNIT 1 1 Yes No No No

5PLPXKWAPKX LK-42 SCANNER UNIT 1 1 Yes Yes Yes

5PLPXU0AEKX DR-40 DRIVE UNIT 1 1 No No No No

5PLPXCZAPKX DR-41 DRIVE UNIT 1 1 Yes No No No

5PLPXKXAPKX DR-42 DRIVE UNIT 1 1 Yes Yes Yes

5PLPXU5AEKX MC-40 MCH ASSY 1 1 Yes Yes Yes Yes

5PLPXU6AEKX PC-40 CASSETTE ASSY A4 1 1 Yes No No No

5PLPXU7AEKX PC-40 CASSETTE ASSY LTR 1 1 No No No No

5PLPXLBAPKX PC-42 CASSETTE ASSY A4 1 1 Yes No Yes

5PLPXMLAPKX PC-42 CASSETTE ASSY LTR 1 1 No Yes No

FS-1050

Table 2 - 1000—1999

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

1001 5MVB888CB002 FRAME BASE 1 Yes No No No

1002 5MVB874CH002 COVER PWB 1 Yes Yes Yes Yes

12

Table 2 - 1000—1999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

5MVB874CH004 COVER PWB PANEL 1 Yes No No No

1003 5MVX721DN001 LEVER INTERLOCK 1 Yes Yes Yes Yes

1006 5MMW351LD006 SPRING INTERLOCK 1 Yes Yes Yes Yes

1007 5MML622LD003 PLATE EARTH JOINT 1 Yes Yes Yes Yes

1008 5AAY3010E+31 EARTH GUIDE ASSY 1 Yes Yes Yes Yes

1009 5AAVR0LL*044 ROLLER FEED ASSY 1 1 No No No No B-8700

1009 5AAVR0LL+056 ROLLER FEED J ASSY 1 1 Yes Yes Yes Yes B-8700

1010 5MMT766SN007 SHAFT FEED 1 Yes Yes Yes Yes

1011 5MVM176DN026 BUSH FEED 2 Yes Yes Yes Yes

1012 5MVT676DB002 PULLY FEED 1 Yes Yes Yes Yes

1013 5MVX432DB009 ACTUATOR REGIST 1 Yes Yes Yes Yes

1014 5MVX542DB003 ACTUATOR PE 1 Yes Yes Yes Yes

1015 5MMW151LD005 SPRING ACTUATOR REG 1 Yes Yes Yes Yes

1017 5AAY3010E+17 ROLLER REGIST ASSY 1 Yes No No No

1017 5AAYA88E++12 ROLLER REGIST ASSY 1 Yes Yes Yes

1018 5MVS822KF013 SHEET REGIST 1 No No No No YC-6046

1118 5MVS722KF008 SHEET REGIST L 1 Yes Yes Yes Yes YC-6046

1119 5MVS622KF010 SHEET REGIST R 1 Yes Yes Yes Yes YC-6046

1120 5MVS441KF008 SHEET REGIST SW 1 Yes No No No YC-6046

1019 5MMX532LD005 CONTACT EARTH REG 1 Yes Yes Yes Yes

1020 5MMT876SN074 ROLLER TRANSFER 1 1 Yes Yes Yes Yes

1023 5MVG127DB048 GEAR TC Z18 1 Yes Yes Yes Yes

1024 5MMX432LD005 CONTACT TRANSFER 1 Yes Yes Yes Yes

1025 5MMX331LD003 PLATE EARTH BRUSH 1 Yes Yes Yes Yes

1026 5AAY3010E+39 MPF ASSY E 1 1 No No No No

1026 5AAY3010U+10 MPF ASSY U 1 1 No No No No

1026 5AAY1000J+09 MPF ASSY J 1 1 No No No No

1026 5AAYA87CH+04 MPF ASSY CHU 1 1 Yes Yes Yes Yes

1026 5AAYA88E++07 MPF ASSY E 1 1 No No No

1029 5AAY3010E+18 TE SENSOR ASSY 1 1 Yes Yes Yes Yes

1030 5MMW261LD036 SPRING TE SENSOR 1 Yes Yes Yes Yes

1031 5MMS775SL001 PLATE CONTROLLER 1 1 Yes Yes Yes Yes

1032 5MVG148DN045 GEAR Z38H 1 1 Yes Yes Yes Yes

1033 5MVG148DN046 GEAR FREE Z40H 1 1 Yes Yes Yes Yes

1034 5MVG138DN041 GEAR FREE Z25S 1 1 Yes Yes Yes Yes

1035 5MVG148DN047 GEAR Z34S 1 1 Yes Yes Yes Yes

1036 5MVG148DN048 GEAR Z40S 1 1 Yes Yes Yes Yes

1037 5MVG148DN049 GEAR Z37S 1 1 Yes Yes Yes Yes

FS-1050

13

Table 2 - 1000—1999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

1038 5MMW271LD010 SPRING FREE 1 1 Yes Yes Yes Yes

1039 5MMT364SN003 PIN DRIVE 1 3 Yes Yes Yes Yes

1040 5MVB663SB048 COVER CORD 1 Yes Yes Yes Yes

1041 5AAVCLTCH015 CLUTCH FEED 1 1 Yes Yes Yes Yes

1042 5AAVCLTCH016 CLUTCH REGIST 1 1 Yes Yes Yes Yes

1043 5AAVCLTCH017 CLUTCH MPF 1 1 Yes Yes Yes Yes

1044 5MVX111DN003 RING STOPPER 1 5 Yes Yes Yes Yes

1045 5MMX332LD013 PLATE EARTH MPF 1 Yes Yes Yes Yes

1046 5MVX322SB020 ACTUATOR FUSER B 1 Yes Yes Yes Yes

1047 5AAY3010E+35 COVER REAR ASSY 1 1 Yes No No No

1047 5AAY3010E+58 COVER REAR ASSY 1 1 Yes Yes Yes

1048 5AAY3010E+36 ROLLER EXIT UP ASSY 1 1 Yes Yes Yes Yes

1049 5MVG137DN030 GEAR EXIT Z23 UP 1 1 Yes Yes Yes Yes

1050 5MVM176DW001 BUSH EXIT 1 Yes Yes Yes Yes

1051 5MVS228RB019 FOOT 4 Yes Yes Yes Yes

1052 5EZNF2402403+01 FAN MOTOR 1 1 Yes Yes Yes Yes

1053 5AAXTR046VDA TRANS ASSY 1 1 No No No No

1053 5AAXTR049VDA TRANS ASSY 1 1 Yes No No No

1059 5MMT876SN073 ROLLER REGIST LOW 1 Yes Yes Yes Yes

1060 5MMT865SN010 ROLLER REGIST UP 1 Yes Yes Yes Yes

1061 5MVX221DB019 BUSH REGIST LEFT 1 Yes Yes Yes Yes

1062 5MVX221DW006 BUSH REGIST RIGHT 1 Yes Yes Yes Yes

1063 5MMW261LD023 SPRING REGIST R 2 Yes Yes Yes Yes

1064 5MVG127DB047 GEAR REGIST Z20 1 Yes Yes Yes Yes

1065 5MVG126DB025 GEAR REGIST Z13 1 Yes Yes Yes Yes

1066 5MVT653DW001 PIN CASSETTE 1 Yes Yes Yes Yes

1067 5MMW341LD005 SPRING PIN CASSETTE 1 Yes Yes Yes Yes

1068 5MMT365SN003 PIN CONTACT BIAS 1 Yes Yes Yes Yes

1069 5MMW361LD015 SPRING PIN BIAS 1 Yes Yes Yes Yes

1074 5MVX866SH012 GUIDE TURN 1 Yes Yes Yes Yes

1075 5AAY3010E+41 SEPARATOR MPF ASSY 1 1 Yes Yes Yes Yes

1076 5MMW261LD038 SPRING SEPA MPF 1 Yes Yes Yes Yes

1077 5MVX221DB023 BUSH TC L 1 1 Yes Yes Yes Yes

1078 5MMW251LD043 SPRING TC L 1 Yes Yes Yes Yes

1079 5MVX221DW008 BUSH TC R 1 1 Yes Yes Yes Yes

1080 5MMW261LD034 SPRING TC R 1 Yes Yes Yes Yes

1081 5MVB874SH018 COVER REAR 1 Yes Yes Yes Yes

1082 5MVB874SH019 TRAY EXIT FU 1 Yes Yes Yes Yes

FS-1050

14

Table 2 - 1000—1999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

1085 5MMX332LD021 BKT PULLEY FD 1 Yes Yes Yes Yes

1086 5MVM273DB005 PULLEY EXIT 1 Yes Yes Yes Yes

1087 5AAVR0LL*045 ROLLER MPF ASSY 1 1 Yes Yes Yes Yes

1088 5MVX854SH002 HOLDER MP FEED 1 Yes Yes Yes Yes

1089 5MMT766SN008 SHAFT MPF 1 Yes Yes Yes Yes

1090 5MVX111DN003 RING STOPPER 3 Yes Yes Yes Yes

1091 5MVX432DB010 ACTUATOR MPF 1 Yes Yes Yes Yes

1092 5MVX221DN014 CAM MPF R 1 Yes Yes Yes Yes

1093 5MVM176DN026 BUSH FEED 2 Yes Yes Yes Yes

1094 5ENXGP1A73A**01 PT SENSOR 1 1 Yes Yes Yes Yes

1095 5AACCNRM0GEA CONN.CORD ASSY 1 Yes Yes Yes Yes

1096 5MVB872SH018 COVER MPF E 1 No No No No

1096 5MVB872SH020 COVER MPF U 1 No No No No

1096 5MVB872SH029 COVER MPF IBM 1 No No No No

1096 5MVB872SH030 COVER MPF 1 No No No No

1096 5MVB872SH031 COVER MPF CHU 1 Yes No No No

1098 5MVX861SH004 TRAY MPF A 1 Yes Yes Yes Yes

1099 5MVX751SH001 TRAY MPF B 1 Yes Yes Yes Yes

1111 5MVM161DW001 BUSH PULLEY FEED 2 Yes Yes Yes Yes

1A01 5AAY3010E+45 REGIST KIT 1 1 Yes No No No

1A02 5AAY3010E+40 BOTTOM MPF ASSY 1 Yes Yes Yes Yes

FS-1050

Table 3 - 2000—2999

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

2002 5AAPRCZC2007AH P.W.BOARD ASSY ENGINE KP-781 1 1 No No No No

2002 5AAPRCZC2007BH P.W.BOARD ASSY ENGINE KP-781 1 1 No No No No

2002 5AAPRCZC2007CH P.W.BOARD ASSY ENGINE KP-781 1 1 No No No No

2002 5AAPRCZC2007DH P.W.BOARD ASSY ENGINE KP-781 1 1 No No No No

2002 5AAPRCZC2007EH P.W.BOARD ASSY ENGINE KP-781 1 1 No No No No

2002 5AAPRCZC2007FH P.W.BOARD ASSY ENGINE KP-781 1 1 Yes No No No

2002 5AAPRCZC2007GH P.W.BOARD ASSY ENGINE KP-781 1 1 No No No No

2002 5AAPRCZC2011AH P.W.BOARD ASSY ENGINE KP-882 1 1 Yes No Yes

2002 5AAPRCZC2011BH P.W.BOARD ASSY ENGINE KP-882 1 1 No No No

2002 5AAPRCZC2011CH P.W.BOARD ASSY ENGINE KP-882 1 1 No Yes No

15

Table 3 - 2000—2999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

2002 5AAPRCZC2011DH P.W.BOARD ASSY ENGINE KP-882 1 1 No No No

2002 5AAPRCZC2011EH P.W.BOARD ASSY ENGINE KP-882 1 1 No No No

2002 5AAPRCZC2011FH P.W.BOARD ASSY ENGINE KP-882 1 1 No No No

2003 5AAPRCZC1008AH P.W.BOARD ASSY BIAS KP-783 1 1 Yes No No No

2003 5AAPRCZC1009AH P.W.BOARD ASSY BIAS KP-884 1 1 Yes Yes Yes

2008 5AACCNRL7GEA CONN.CORD ASSY 1 Yes No No No

2009 5AACCNRM1GEA CONN.CORD ASSY 1 Yes Yes Yes Yes

2010 5AACCNRM2GEA CONN.CORD ASSY 1 Yes No No No

2011 5AACCNRL0GEA CONN.CORD ASSY 1 Yes No No No

2012 5AACCNRL1GEA CONN.CORD ASSY 1 Yes No No No

2013 5MMB775SL013 BOX CONTROLLER 1 Yes No No No

2015 5MMS636SD009 PLATE OPTION 1 Yes No No No

2016 5AAPRLGC2021AH P.W.BOARD ASSY MAIN KP-780 1 1 No No No No

2016 5AAPRLGC2021CH P.W.BOARD ASSY MAIN KP-780 1 1 No No No No

2016 5AAPRLGC2021DH P.W.BOARD ASSY MAIN KP-780 1 1 No No No No

2016 5AAPRLGC2022AH P.W.BOARD ASSY MAIN KP-881 1 1 Yes No No No

2016 5AAPRLGC2023AH P.W.BOARD ASSY MAIN KP-888 1 1 Yes Yes Yes

2016 5AAPRLGC2023BH P.W.BOARD ASSY MAIN KP-888 1 1 No No No

2017 5MMX773SL001 PLATE SW REG 1 Yes Yes Yes Yes

2018 5MVS765KF001 SHEET SW REG 1 Yes Yes Yes Yes

2019 5AAEZ3010E+1 5AAEZ3010E+2 SWITCHING REGULATOR(E) 240V 1 1 No No No No

2019 5AAEZ3010E+1 SWITCHING REGULATOR(E) 240V 1 1 Yes No No No

2019 5AAEZ3010U+1 SWITCHING REGULATOR(U) 120V 1 1 No No No No

2019 5AAEZA93E++1 SWITCHING REGULATOR(E) 240V 1 1 Yes No Yes

2019 5AAEZA93U++1 SWITCHING REGULATOR(U) 120V 1 1 No Yes No

FS-1050

Table 4 - 3000—3999

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

3001 5AAXMT047GEA MOTOR MAIN for 10PPM 1 1 No No No No

3001 5AAXMT056GEA MOTOR MAIN for 12PPM 1 1 Yes No No No

3001 5AAXMT061GEA MOTOR MAIN for 14PPM 1 1 Yes Yes Yes

3002 5MMX776SL005 PLATE DRIVE 1 Yes Yes Yes Yes

3003 5MVG168DN017 GEAR Z68H-Z21H 1 Yes Yes Yes Yes

16

Table 4 - 3000—3999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

3004 5MVG159DN012 GEAR Z48H-Z21H 1 Yes Yes Yes Yes

3005 5MVG148DN044 GEAR Z40H 1 Yes Yes Yes Yes

3006 5MVG169DN032 GEAR Z95H-Z21H 1 Yes Yes Yes Yes

3007 5MVG169DN033 GEAR Z53H 1 Yes Yes Yes Yes

3008 5MVG138DN042 GEAR Z24H 1 Yes Yes Yes Yes

3009 5MVG137DN029 GEAR Z21H 1 Yes Yes Yes Yes

3010 5MVG148DN050 GEAR Z36H-Z21H 1 Yes Yes Yes Yes

3011 5MMX521LD005 PLATE EARTH DRUM 1 Yes Yes Yes Yes

3012 5EZSA2402410301 SOLENOID FEED 1 1 Yes Yes Yes Yes

3013 5EZSA2402410401 SOLENOID REGIST 1 1 Yes Yes Yes Yes

3014 5EZSA2402410501 SOLENOID MPF 1 1 Yes Yes Yes Yes

Table 5 - 4000—4999

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

4001 5MVB876CB003 FRAME MIDDLE 1 Yes Yes Yes Yes

4002 5MMX875SL005 PLATE LSU 1 Yes Yes Yes Yes

4003 5MVQ711GX004 MIRROR EXIT 1 Yes Yes Yes Yes

4005 5MVX721SB004 SHUTTER LSU 1 Yes Yes Yes Yes

4006 5AAY3010E+26 FULL SENSOR ASSY 1 1 Yes Yes Yes Yes

4007 5MMX221LD024 SPRING MIRROR 2 Yes Yes Yes Yes

4009 5MMW341LD006 SPRING SHUTTER LSU 1 Yes Yes Yes Yes

4010 5MMW261LD040 SPRING FULL SENSOR 1 Yes Yes Yes Yes

4011 5MVVL661WN34 LABEL LASER CAUTION 1 Yes Yes Yes Yes

4013 5AAPRELR1001AH P.W.BOARD ASSY ERASE KP-790 1 1 Yes Yes Yes Yes 49539

4021 5MVS319RF004 SEAL LSU D 1 Yes Yes Yes Yes

FS-1050

Table 6 - 5000—5999

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

5019 5MVX331PH001 CAP MCH 1 Yes Yes Yes Yes

5034 5MMX632LD006 CONTACT MAIN 1 Yes No No No

17

Table 6 - 5000—5999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

5A01 5AAY3010E+52 BLADE KIT 1 Yes Yes Yes Yes

5A02 5AAY3010E+53 COVER DRUM R2 KIT 1 Yes Yes Yes Yes

5A03 5AAY3010E+54 COVER DRUM L2 KIT 1 Yes Yes Yes Yes

Table 7 - 7000-7999

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

7001 5MVX876KB004 FRAME FUSER LOW 1 Yes Yes Yes Yes

7004 5MMT876SN075 ROLLER PRESS 1 Yes Yes Yes Yes

7005 5MVX221XN003 BUSH PRESS 2 Yes Yes Yes Yes

7006 5MMW261LD037 SPRING PRESS 2 Yes Yes Yes Yes

7007 5MVG127DN070 GEAR IDLE Z18 1 Yes Yes Yes Yes

7008 5MVG137DN031 GEAR EXIT Z23 1 Yes Yes Yes Yes

7009 5MMX665LD004 PLATE EARTH FUSER 1 Yes Yes Yes Yes

7010 5MVX731CB002 ACTUATOR FUSER A 1 Yes Yes Yes Yes

7011 5MMW261LD017 SPRING ACTUATOR 1 Yes Yes Yes Yes

7012 5MMT774SN001 ROLLER EXIT LOW 1 Yes Yes Yes Yes

7013 5MVX211DB016 BUSH EXIT 1 Yes Yes Yes Yes

7014 5MVVL731WN14 LABEL FUSER CAUTION 1 Yes Yes Yes Yes

7015 5MVB863KB003 FRAME FUSER UP 1 Yes Yes Yes Yes

7016 5MMT876AX001 ROLLER HEAT 1 Yes Yes Yes Yes

7017 5MVM188XN015 BUSH HEAT R 1 Yes Yes Yes Yes

7018 5MVM188XN016 BUSH HEAT L 1 Yes Yes Yes Yes

7019 5EZPB2411920201 HEATER LAMP (E) 240V 1 1 No No No No

7019 5EZPB1213820201 HEATER LAMP (U) 120V 1 1 No No No No

7019 5EZPB1014520201 ISP1000J+001 HEATER LAMP (J) 100V 1 1 No No No No

7019 5EZPB2412120702 HEATER LAMP (E) 240V 1 1 Yes No No No

7019 5EZPB1214220701 HEATER LAMP (U) 120V 1 1 No No No No

7019 5EZPB1015020801 HEATER LAMP (J) 100V 1 1 No No No No

7019 5EZPB2413120101 HEATER LAMP (E) 240V 14PPM 1 1 Yes No Yes

7019 ISPA93U++002 HEATER LAMP (U) 120V 14PPM 1 1 No Yes No

7019 ISPA94J++001 HEATER LAMP (J) 100V 14PPM 1 1 No No No

7021 5AACCNRL4GEA CONN.CORD ASSY E 1 Yes No No No

7021 5AACCNRL5GEA CONN.CORD ASSY U 1 No No No No

7021 5AACCNSE1GEA CONN.CORD ASSY J 1 No No No No

FS-1050

18

Table 7 - 7000-7999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

7023 5AAXTM014GEA THERMISTOR ASSY 1 1 Yes Yes Yes Yes

7024 5EYFFQ16002Q+01 THERMO CUT OUT 1 1 Yes No No No

7024 5EYFFQ16001++01 THERMO CUT OUT 1 1 Yes Yes Yes

7025 5MVX222XN002 SEPARATOR 4 No No No No B-8652/YC-6067

7025 5AAVSEPRT015 SEPARATOR ASSY 4 Yes Yes Yes Yes B-8652/YC-6067

7026 5MMW261LD015 SPRING SEPARATOR 4 No No No No B-8652/YC-6067

7026 5MMW261LD055 SPRING SEPARATOR 4 Yes Yes Yes Yes B-8652/YC-6067

5MVS222KN006 SHEET REAR 2 Yes Yes Yes Yes B-8652

5MVS222KW001 SHEET REAR B 2 Yes Yes Yes Yes B-8664

7027 5MVG148XN008 GEAR HEAT Z33 1 Yes Yes Yes Yes

7028 5MVG148XN009 GEAR IDLE Z34 1 Yes Yes Yes Yes

7029 5MML531RD001 5MML531RD002 HOLDER LAMP A 1 Yes Yes Yes Yes

7030 5MML211RD002 HOLDER LAMP B 1 Yes Yes Yes Yes

7031 5MVM273DB005 PULLEY EXIT 2 Yes Yes Yes Yes

7032 5MMW601LD011 SPRING PULLEY 2 Yes Yes Yes Yes

Table 8 - 8000—8999

FS-1050

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

8001 5MVB886SH063 BASE CASSETTE 1 Yes Yes Yes Yes

8004 5MMS856SL001 PLATE BOTTOM 1 Yes Yes Yes Yes

8005 5MMW552LD002 SPRING CASSETTE 2 Yes Yes Yes Yes

8006 5MVX765SH002 GUIDE SIDE R 1 Yes Yes Yes Yes

8007 5MVX765SH003 GUIDE SIDE L 1 Yes Yes Yes Yes

8008 5MVX664SH003 STOPPER PAPER 1 Yes Yes Yes Yes

8009 5MVX541DG003 LEVER SIDE 1 Yes Yes Yes Yes

8010 5MVX541DG002 LEVER REAR 1 Yes Yes Yes Yes

8011 5MVG127DN071 GEAR CASSETTE 1 Yes Yes Yes Yes

8015 5MMW251LD047 SPRING SEPARATOR C 1 Yes Yes Yes Yes

8016 5MVX431DW001 LOCK CASSETTE R 1 Yes Yes Yes Yes

8017 5MVX431DW002 LOCK CASSETTE L 1 Yes Yes Yes Yes

8018 5MMW251LD045 SPRING LOCK 2 Yes Yes Yes Yes

8019 5MMP141LD003 PLATE STOPPER 1 Yes Yes Yes Yes

8020 5MMP141LD002 PLATE SIDE GUIDE 1 Yes Yes Yes Yes

8021 5MMW171LD006 SPRING STOPPER 1 Yes Yes Yes Yes

19

Table 8 - 8000—8999 (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

8A01 5AAVB0T0M009 5AAY3010E+49 BOTTOM CASSETTE KIT 1 Yes Yes Yes Yes

8A02 5AAVSEPRT013 5AAY3010E+50 SEPARATOR KIT 1 Yes Yes No Yes

Table 9 - Accessory and Packing Matters

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

A-002 5AACAC428EEA 5AACAC476EEA 5AACAC479EEA AC CORD ASSY 1 Yes Yes No No

A-002 5AACAC458BSA 5AACAC480BSA AC CORD ASSY KMUK,KMSG,KMHG ONLY 1 No No No Yes

A-002 5AACAC404ASA 5AACAC481ASA AC CORD ASSY KMAUS ONLY 1 No No No No

A-002 5AACAC393ULA 5AACAC482ULA AC CORD ASSY 1 No No Yes No

A-002 5AACAC444JAA 5AACAC483JAA AC CORD ASSY 1 No No No No

A-003 5AAMDK5P**01 CLEANING KIT C 1 Yes Yes Yes Yes

P-001 5AAK3010E+02 PACKING ASSY E 1 No No No No

P-001 5AAK3010U+01 PACKING ASSY U 1 No No No No

P-001 5AAK1000J+02 PACKING ASSY J 1 No No No No

P-001 5AAKA88E++02 PACKING ASSY E 1 No No No No

P-001 5AAKA88U++01 PACKING ASSY U 1 No No No No

P-001 5AAKA88J++01 5AAKA88J++02 PACKING ASSY J 1 No No No No

P-001 5AAKA88TW+01 PACKING ASSY TWN 1 No No No No

P-001 5AAKA87CH+02 PACKING ASSY CHU 1 Yes No No No

P-001 5AAKA94E++02 PACKING ASSY E 1 No No No

P-001 5AAKA94U++02 PACKING ASSY U 1 No No No

P-001 5AAKA94TW+01 PACKING ASSY TWN 1 No No No

P-001 5AAKA94J++02 PACKING ASSY J 1 No No No

P-001 5AAKA93E++02 PACKING ASSY E 1 Yes No Yes

P-001 5AAKA93U++02 PACKING ASSY U 1 No Yes No

FS-1050

Table 10 - Firmware DIMM

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

PWBA/D 5AAPRMEG2011BQ P.W.B. ASSY KP-854 MASK DIMM 1 1 No No No No

20

Table 10 - Firmware DIMM (Continued)

CHP-5012 FS-1050

Ref. No. Part No. Alt. #1 Alt. #2 Description ISP Q’ty KMDE KMA KMSG Remarks

PWBA/D 5AAPRMEG2011CQ P.W.B. ASSY KP-854 MASK DIMM 1 1 No No No No

PWBA/D 5AAPRMEG2011DQ P.W.B. ASSY KP-854 MASK DIMM 1 1 No No No No

PWBA/D 5AAPRMEG4022HQ P.W.B. ASSY KP-710 FRASH DIMM 1 1 No No No No

PWBA/D 5AAPRMEG4022PQ P.W.B. ASSY KP-710 FLASH DIMM 1 1 No No No No

PWBA/D 5AAPRMEG4022QQ P.W.B. ASSY KP-710 FLASH DIMM 1 1 No No No No

PWBA/D 5AAPRMEG4023AQ P.W.B. ASSY KP-893 FLASH DIMM 1 1 Yes No No No

PWBA/D 5AAPRMEG4023PQ P.W.B ASSY KP-893 FLASH DIMM 1 1 Yes Yes Yes

PWBA/D 5AAPRMEG4023KQ P.W.B ASSY KP-893 FLASH DIMM 1 1 No No No

YS02/M 5AAXAP037GEA 100PIN DIMM 16M 16M DIMM CHUNGHO ONLY 1 Yes No No No

FS-1050

21

KYOCERA MITA DANMARK A/S

Industrivej 11, DK-4632 Bjæverskov,

Denmark

Phone: [phone]

KYOCERA MITA PORTUGAL LDA.

CASCAISTOCK-Armazem nº8,

Rua das Fisgas, Alcoitão,

KYOCERA MITA EUROPE B.V.

Hoeksteen 40, 2132 MS Hoofddorp,

The Netherlands

Phone: [phone]

Home page: http://www.kyoceramita-europe.com

Email: [e-mail]

KYOCERA MITA SOUTH AFRICA

(PTY) LTD.

UNIT 3, "Kyalami Crescent,"

Kyalami Business Park,

1685 Midrand, South Africa

Phone: [phone]

2765 Estoril, Portugal

Phone: [phone]

KYOCERA MITA NEDERLAND B.V.

Hoeksteen 40, 2132 MS Hoofddorp,

The Netherlands

Phone: [phone]

KYOCERA MITA (UK) LIMITED

8 Beacontree Plaza

Gillette Way,

KYOCERA MITA

Reading RG2 0BS UK

Phone: [phone]

KYOCERA MITA ITALIA S.P.A.

AMERICA, INC.

Headquarters:

225 Sand Road, P.O. Box 40008,

Fairfield, New Jersey 07004-0008,

U.S.A.

Phone: [phone]

KYOCERA MITA AUSTRALIA PTY.

LTD.

Level 3, 6-10 Talavera Road, North Ryde,

N.S.W. 2113 Australia

Phone: [phone]

KYOCERA MITA NEW ZEALAND LTD.

1-3 Parkhead Place,

Albany, Auckland,

New Zealand

Phone: [phone]

Via Verdi 89/91 20063 Cernusco sul Naviglio

(Milano) Italy

Phone: [phone]

S.A. KYOCERA MITA BELGIUM N.V.

Hermesstraat 8A, 1930 Zaventem, Belgium

Phone: [phone]

KYOCERA MITA FRANCE S.A.

Parc les Algorithmes

SAINT AUBIN

91194 GIF-SUR-YVETTE

France

Phone: [phone]

KYOCERA MITA ESPAÑA S.A.

Edificio Mita, Avda. De Manacor Nº2,

Urb. Parque Rozas, Apartado de Correos 76,

28230 Las Rozas, Madrid, Spain

Phone: [phone]

KYOCERA MITA (THAILAND) CORP.,

LTD.

9/209 Ratchada-Prachachem Road,

Bang Sue, Bangkok 10800, Thailand

Phone: [phone]

KYOCERA MITA SINGAPORE

PTE LTD.

121 Genting Lane, 3rd Level,

Singapore 349572

Phone: [phone]

KYOCERA MITA HONG KONG

LIMITED

11/F., Mita Centre,

552-566, Castle Peak Road,

Tsuen Wan, New Territories,

Hong Kong

Phone: [phone]

KYOCERA MITA FINLAND OY

Kirvesmiehenkatu 4, 00810 Helsinki,

Finland

Phone: [phone]

KYOCERA MITA (SCHWEIZ) AG

Hölzliwisen, Industriestrasse 28,

KYOCERA MITA DEUTSCHLAND GMBH

Mollsfeld 12 40670 Meerbusch,

Germany

Phone: [phone]

KYOCERA MITA GMBH AUSTRIA

Eduard-Kittenberger-Gasse 95,

8604 Volketswil, Switzerland

Phone: [phone]

1230, Wien, Austria

KYOCERA MITA

CORPORATION

2-28, 1-chome, Tamatsukuri, Chuo-ku

Osaka 540-8585, Japan

Phone: [phone]

Phone: [phone]

KYOCERA MITA SVENSKA AB

Siktgatan 2,

162 50 Vällingby, Sweden

Phone: [phone]

Western Region:

14101 Alton Parkway,

Irvine, California 92618-7006

TEL : [phone]

FAX : [phone]

Southeastern Region:

1500 Oakbrook Drive,

Norcross, Georgia 30093

TEL : [phone]

FAX : [phone]

Southwestern Region:

2825 West Story Road,

Irving, Texas 75038-5299

TEL : [phone]

FAX : [phone]

Dallas Parts Distribution Center

KYOCERA MITA AMERICA, INC.

Headquarters:

225 Sand Road, P.O. Box 40008

Fairfield, New Jersey 07004-0008

TEL : [phone]

FAX : [phone]

New York Show Room:

149 West 51st street,

New York, NY 10019

TEL : [phone]

FAX : [phone]

Northeastern Region:

225 Sand Road, P.O. Box 40008

Fairfield, New Jersey 07004-0008

TEL : [phone]

FAX : [phone]

Midwestern Region:

& National Training Center:

2825 West Story Road,

Irving, Texas 75038-5299

TEL : [phone]

FAX : [phone]

201 Hansen Court Suite 119

Wood Dale, Illinois 60179

TEL : [phone]

FAX : [phone]

KYOCERA MITA CANADA, LTD.

6120 Kestrel Road, Mississauga,

Ontario L5T 1S8, Canada

TEL : [phone]

FAX : [phone]

KYOCERA MITA MEXICO, S.A. DE C.V.

Av. 16 de Septiembre #407

Col. Santa Inés,

02130 Azcapotzalco

México, D.F. Mexico

TEL : [phone]

FAX : [phone]

©2001 KYOCERA MITA CORPORATION

is a trademark of Kyocera Corporation

is a registered trademark of KYOCERA MITA CORPORATION
