Easy Start Guide

Precautions

Location

Using the unit in the following locations can result in a malfunction.

•In direct sunlight

•Locations of extreme temperature or humidity

•Excessively dusty or dirty locations

•Locations of excessive vibration

•Close to magnetic fields

Power supply

Please connect the designated AC adapter to an AC outlet of the correct voltage. Do not connect it to an AC outlet of voltage other than that for which your unit is intended.

Interference with other electrical devices

Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Handling

To avoid breakage, do not apply excessive force to the switches or controls.

Care

If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, or cleaning compounds or flammable polishes.

Keep this manual

After reading this manual, please keep it for later reference.

Keeping foreign matter out of your equipment

Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock.

Be careful not to let metal objects get into the equipment. If something does slip into the equipment, unplug the AC adapter from the wall outlet. Then contact your nearest Korg dealer or the store where the equipment was purchased.

THE FCC REGULATION WARNING (for USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Unauthorized changes or modification to this system can void the user’s authority to operate this equipment.

Notice regarding disposal (EU only)

When this “crossed out wheeled bin” symbol is displayed on the product, owner’s manual, battery, or battery package, it signifies that when you wish to

dispose of this product, manual, package or battery you must do so in an approved manner. Do not discard this product, manual, package or battery along with ordinary household waste. Disposing in

the correct manner will prevent harm to human health and potential damage to the environment. Since the correct method of disposal will depend on the applicable laws and regulations in your locality, please contact your local administrative body for details. If the battery contains heavy metals in excess of the regulated amount, a chemical symbol is displayed below the “crossed out wheeled bin” symbol on the battery or battery package.

Data handling

Incorrect operation or malfunction may cause the contents of memory to be lost, so we recommend that you save important data on media. Please be aware that Korg will accept no responsibility for any damages which may result from loss of data.

4

Table of Contents
About this manual ...................................................................................	6
Main features ...........................................................................................	7
Front and rear panels ..............................................................................	8
Front panel ...................................................................................................................	8
Rear panel .....................................................................................................................	9
Connections and power ........................................................................	10
Selecting modes ....................................................................................	11
Selecting and playing sounds ..............................................................	12
Selecting programs .................................................................................................	12
Selecting combinations .........................................................................................	13
Using controllers to modify the sound ................................................	14
Using the arpeggiator ...........................................................................	15
Saving (writing) a program or combination .......................................	16
Loading and playing the demo songs .................................................	17
Loading the demo songs ......................................................................................	17
Playing the demo songs ........................................................................................	18
Auto song setup ....................................................................................	18
Saving to SD card ..................................................................................	19
Specifications (abbreviated) ................................................................	20

5

Thank you for purchasing the Korg microSTATION Music Workstation. To help you get the most out of your new instrument, please read this manual carefully.

About this manual

About the documentation and how to use it

The microSTATION is shipped with the following documentation.

•microSTATION Easy Start Guide

•microSTATION Operation Guide (PDF)

•microSTATION Parameter Guide (PDF)

•microSTATION USB MIDI Setup Guide (PDF)

•microSTATION Editor/Plug In Editor User’s Guide (PDF)

•microSTATION Voice Name List (PDF)

The PDF files listed above are in the “MANUALS” folder of the included disc. The manual for the KORG USB MIDI driver is located in the same folder as the driver.

microSTATION Easy Start Guide

Read this first. It explains how to perform basic operations.

microSTATION Operation Guide

This explains what each part of the microSTATION does, how to connect the device and perform basic operations, as well as providing a summary of each mode, and explaining the basic knowledge you’ll need in each mode to edit sounds and record on the sequencer. This manual also explains the arpeggiator and effects.

In addition, it provides troubleshooting help, a list of error messages, and specifications.

microSTATION Parameter Guide

This provides a detailed explanation of the microSTATION’s parameters, organized by mode and page. Refer to this guide when you would like to learn more about an unfamiliar parameter.

microSTATION USB-MIDI Setup Guide

This explains how to install the Korg USB MIDI driver and set up the microSTATION.

microSTATION Editor/Plug-In Editor User’s Guide

This explains how to set up and use

the microSTATION Editor/Plug In Editor and the microSTATION Editor/Plug In Editor.

microSTATION Voice Name List

This lists the names of the multisamples, drum samples, and factory set combinations, programs, drum kits, user arpeggio patterns, and demo songs inside the microSTATION. Refer to this when you want to learn more about the preloaded content.

Conventions in this manual

Abbreviations for the manuals: OG, PG

In the documentation, references to the manuals are abbreviated as follows.

OG: Operation Guide

PG: Parameter Guide

Parameters in the LCD display screen “ “

Parameters displayed in the LCD screen are enclosed in double quotation marks “ “.

Symbols , , Note, Tips

These symbols respectively indicate a caution, a MIDI related explanation, a supplementary note, or a tip.

Example screen displays

The parameter values shown in the example screens of this manual are only for explanatory purposes, and may not necessary match the values that appear in the Display of your instrument.

MIDI-related explanations

CC# is an abbreviation for Control Change Number.

In explanations of MIDI messages, numbers in square brackets [ ] always indicate hexadecimal numbers.

6

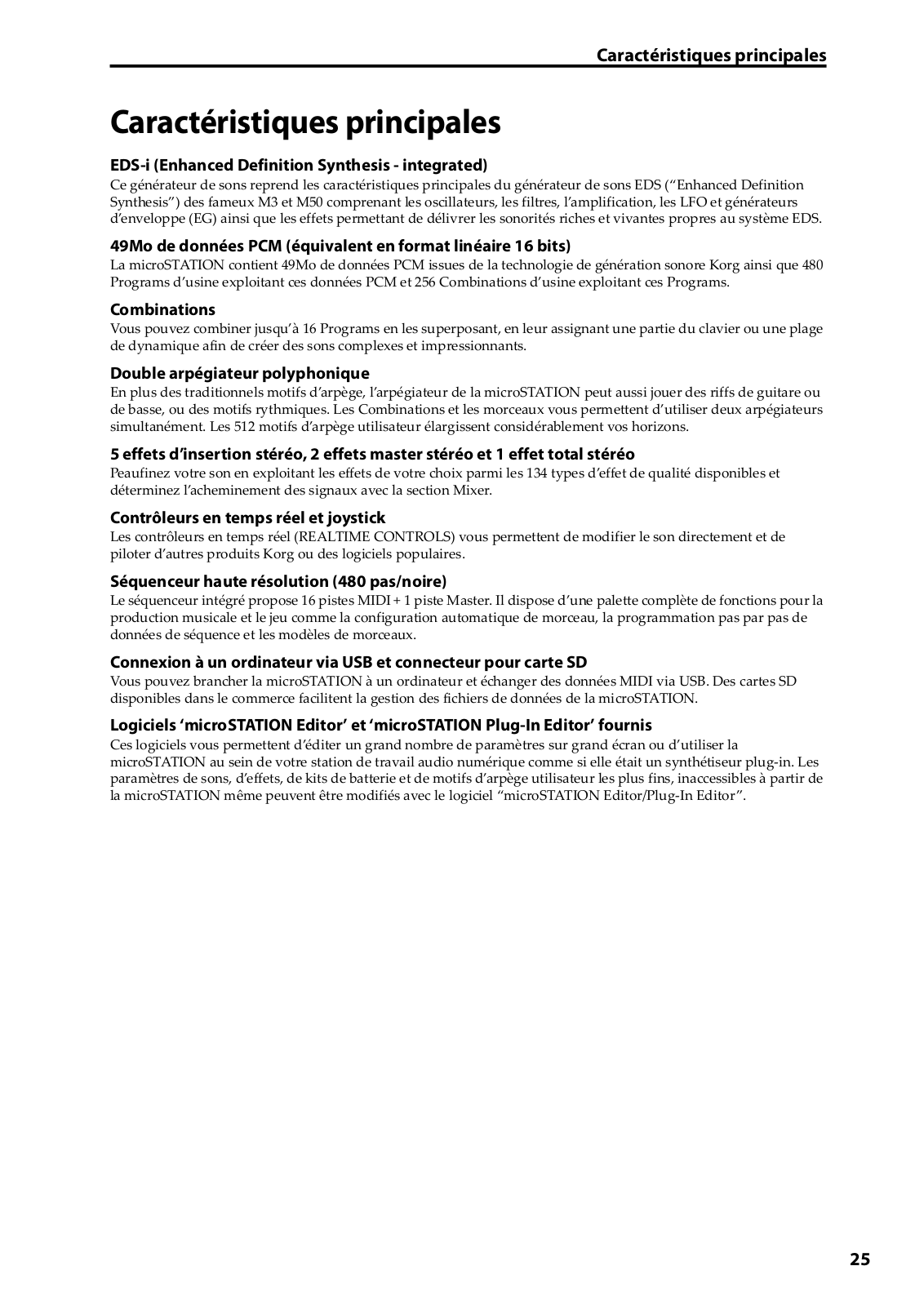

Main features

Main features

EDS-i (Enhanced Definition Synthesis - integrated)

This sound engine integrates the main functionality such as oscillator, filter, amp, LFO/EG, and effects from the “EDS” (Enhanced Definition Synthesis) sound engine of the M3 and M50, delivering the rich and vivid sound inherited from the EDS system.

49 MB (calculated as 16-bit linear) of PCM data

The microSTATION contains 49 MB of PCM data featuring Korg’s voicing technology, as well as 480 preload programs using this PCM data and 256 preload combinations using these programs.

Combinations

Up to 16 programs can be layered, split, or velocity switched to create complex and powerful sounds.

Dual polyphonic arpeggiator

In addition to the classic arpeggio patterns of the past, the microSTATION’s arpeggiator can also play guitar or bass riffs, or drum patterns. Combinations and songs allows you to use two arpeggiators simultaneously. The built in 512 user arpeggio patterns bring you a vast amount of performing potential.

Five stereo insert effects, two stereo master effects, and one stereo total effect

Add the finishing touches to your sound, using your choice of 134 types of high quality effect, and a mixer section that lets you control the effect routing.

Realtime controls and joystick

The realtime controls let you modify the sound in realtime, and can also be used to control other Korg products or popular software.

High-resolution (480 ppq) sequencer

The built in sequencer provides 16 MIDI tracks and 1 master track. A full range of functionality for music production and performance are provided, including Auto Song Setup, Grid Sequence, and Template Songs.

Computer connection via USB, as well as an SD slot

You can connect the microSTATION to your computer via USB for easy transfer of MIDI data. Commercially available SD cards can be used for convenient management of microSTATION data files.

microSTATION Editor and microSTATION Plug-In Editor are included

You can edit while viewing a large number of parameters on your computer screen, or use the microSTATION from within your DAW as if it were a plug in synthesizer. Detailed sound parameters, effect parameters, drum kits, and user arpeggio patterns that cannot be accessed from the panel of the microSTATION itself can be edited and created by using the microSTATION Editor / Plug In Editor.

7

8

Front panel

COMBI, PROG, SEQ, GLB/MEDIA buttons

REALTIME CONTROLS

CATEGORY SELECT buttons,

TIMBRE/TRACK LED, GRID SEQ LED

SELECT button, knobs 1–4,

CATEGORY indicators

Joystick

EXTERNAL button

Function 01–16 LEDs

Display

	VOLUME knob		ARP ON/OFF,
			ARP LATCH button
PHONES jack		AUDITION button

LOCATE, REC, KEY,

WA (Start/Stop), E (REW)/R (FF)

D (Pause), LOOP, WRITE, COMPARE, buttons

Function buttons 01–16

PLAY/MUTE, NUM LOCK, GRID SEQ buttons

Front	StartEasy
and	Guide
panels rear

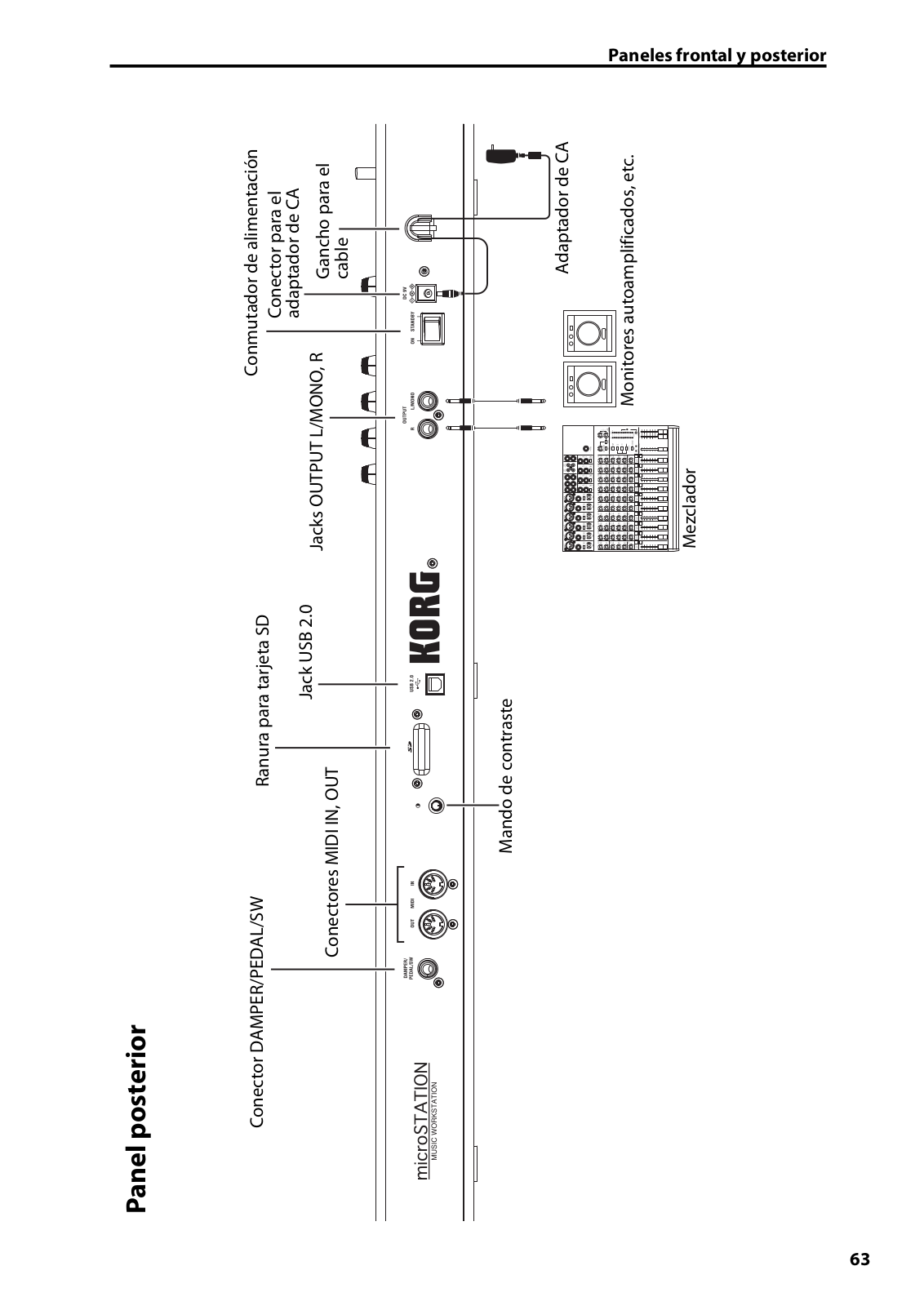

Rear panel

DMAPER/PEDAL/SW connector

SD card slot

Power switch

USB 2.0 jack

AC adapter connector

MIDI IN, OUT connector

OUTPUT L/MONO, R jack

Cable hook

Contrast knob

		AC adapter
		Powered monitors, etc.
	Mixer	Front
		panels rear and

9

Easy Start Guide

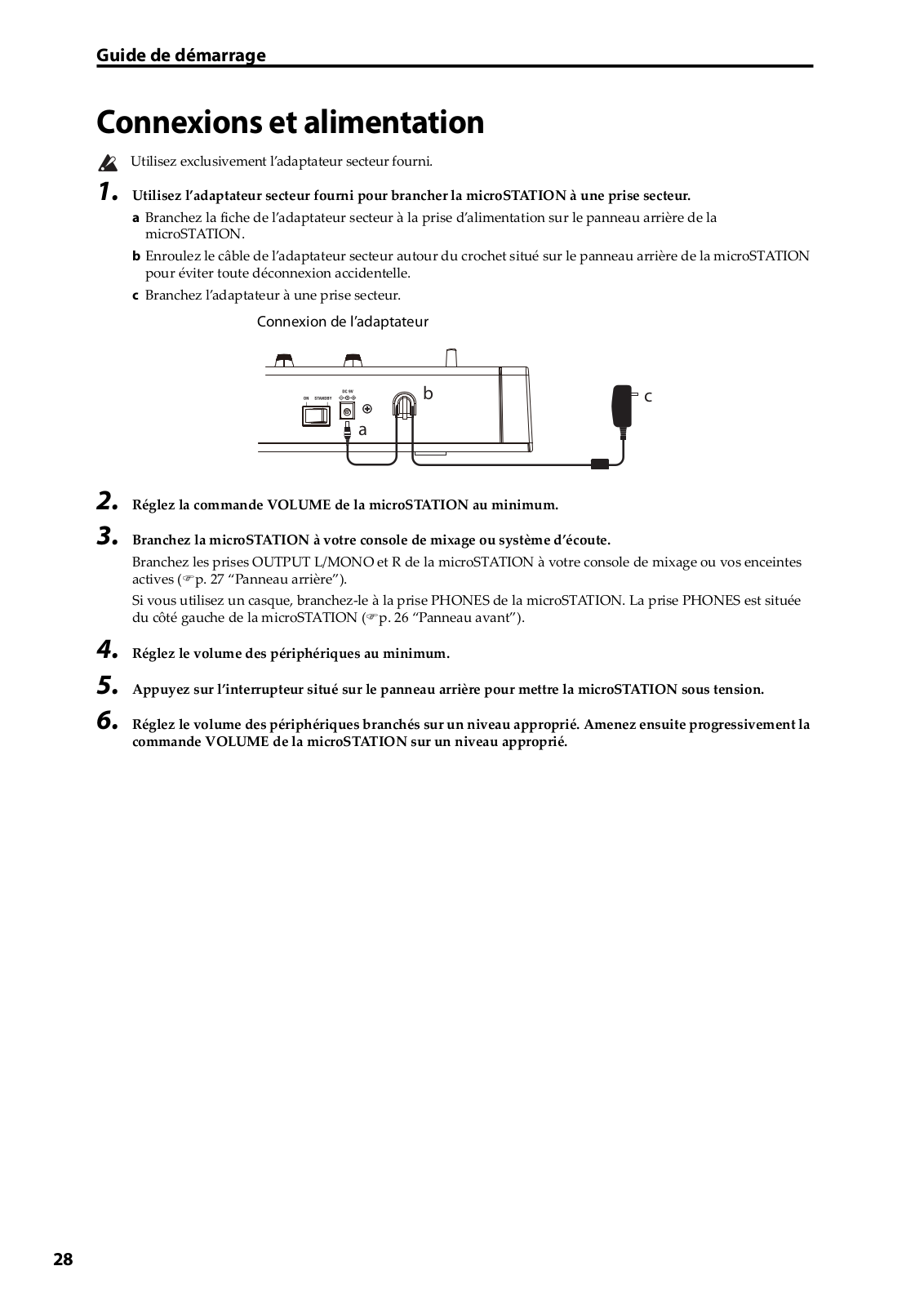

Connections and power

Use only the included AC adapter.

1. Using the included AC adapter, connect the microSTATION to an AC outlet.

aConnect the AC adapter’s plug to the microSTATION’s rear panel power connector.

bTo prevent the plug from being accidentally disconnected, wrap the AC adapter cable around the cable hook located on the microSTATION’s rear panel.

cConnect the AC adapter to an AC outlet.

Connecting the AC adapter

b	c
a

2.

3.

4.

5.

6.

Lower the microSTATION’s VOLUME knob.

Connect the microSTATION to your mixer or monitor system.

Connect the microSTATION’s OUTPUT L/MONO and R jacks to your mixer or amplified monitor speakers (p. 9 “Rear panel”).

If you’re using headphones, connect them to the microSTATION’s PHONES jack. The PHONES jacks is located on the left side of the microSTATION (p. 8 “Front panel”).

Lower the volume of the connected equipment.

On the microSTATION’s rear panel, press the power switch to turn on the power.

Raise the volume of the connected equipment to an appropriate level. Then gradually raise the microSTATION’s VOLUME to an appropriate level.

10

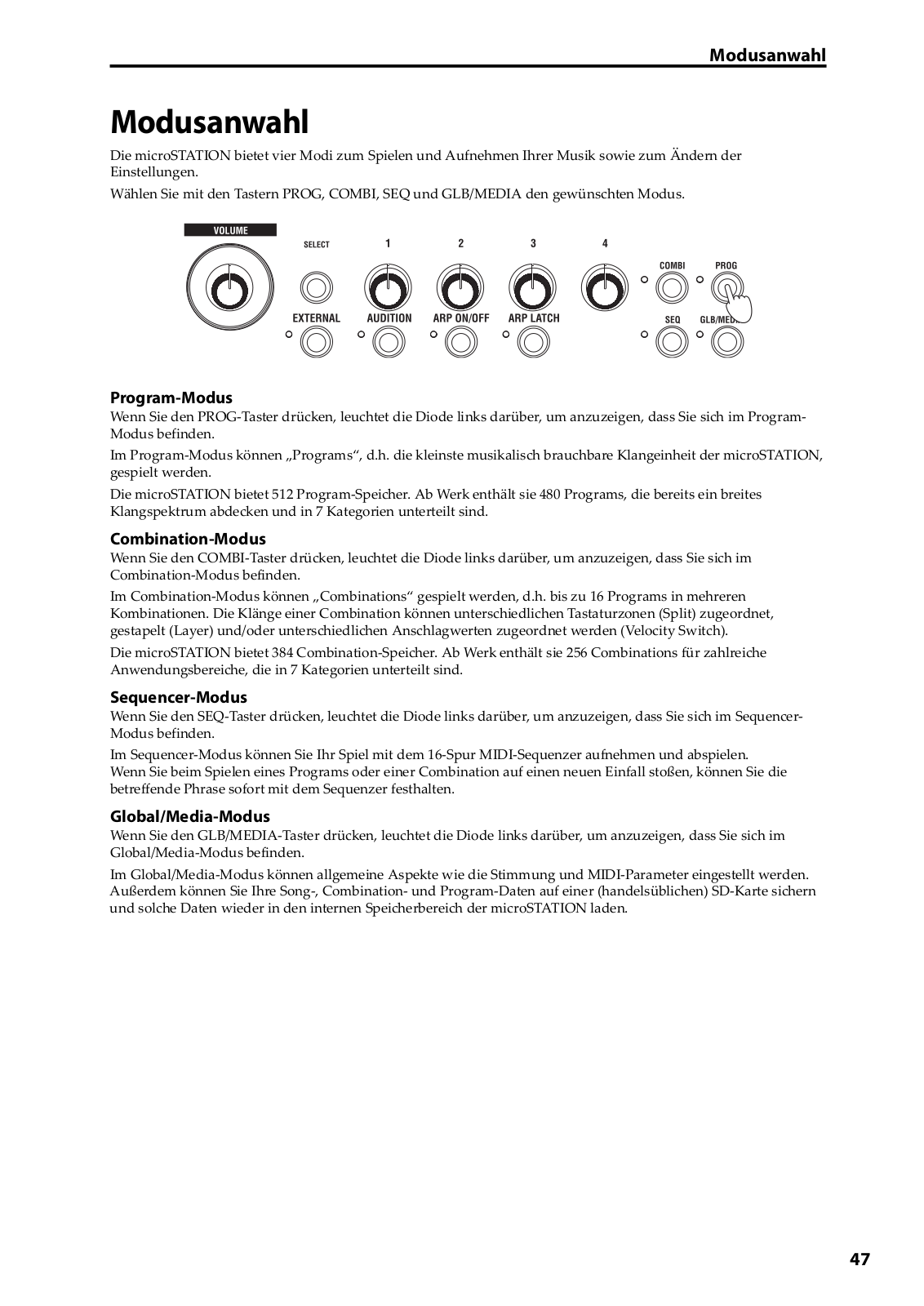

Selecting modes

Selecting modes

The microSTATION provides four modes that you’ll use to play, record, and adjust settings. Press one of the MODE buttons PROG, COMBI, SEQ, or GLB/MEDIA to select the desired mode.

Program mode

When you press the PROG button, the LED located to the upper left of the button will light up, and you’ll be in Program mode.

In Program mode you can play “programs,” which are the basic sounds of the microSTATION.

The microSTATION can hold 512 programs in its internal memory. When shipped from the factory, the internal memory contains 480 programs that cover a wide range of musical uses, organized into 7 sound categories.

Combination mode

When you press the COMBI button, the LED located to the upper left of the button will light up, and you’ll be in Combination mode.

In Combination mode you can play “combinations,” which combine up to 16 programs to create complex and powerful sounds. The sounds in a combination can be played in different regions of the keyboard (split or layer), or differentiated by your playing strength (velocity switch).

The microSTATION can hold 384 combinations in its internal memory. When shipped from the factory, the internal memory contains a versatile array of 256 combinations organized into 7 sound categories.

Sequencer mode

When you press the SEQ button, the LED located to the upper left of the button will light up, and you’ll be in Sequencer mode.

In Sequencer mode you can record and play back your performance using the 16 track MIDI sequencer.

If inspiration strikes while you’re playing a combination or program, you can use the sequencer to immediately record your idea or phase.

Global/Media mode

When you press the GLB/MEDIA button, the LED located to the upper left of the button will light up, and you’ll be in Global/Media mode.

In Global/Media mode you can adjust overall settings such as tuning and MIDI. You can also use an SD card (commercially available) to save your song, program, and combination data, or to load this data into the microSTATION.

11

Easy Start Guide

Selecting and playing sounds

Selecting programs

To begin, let’s enter Program mode and select a program.

When shipped from the factory, the microSTATION’s internal memory contains 480 programs organized into 7 categories. In this example, we’ll specify the SYNTH category and select a program from that category.

1. Press the PROG button to enter Program mode.

The display will show the PROG PLAY page. The PROG PLAY page will always appear when you press the PROG button.

The lower line of the display shows the index number and the program name.

2. Use the CATEGORY SELECT buttons to make the SYNTH indicator light up. (The category indicators are located to the left of the display.)

The category indicators show the category that’s currently selected.

3.

4.

Use the  buttons to select a program.

Play the keyboard and listen to the sound.

When selecting programs, you can use the Audition function to play a riff or phrase.

Press the AUDITION button located below the REALTIME CONTROLS knob 1; the LED at the left of the button will light up, and a riff (phrase) suitable for that program will be played automatically.

12

Selecting and playing sounds

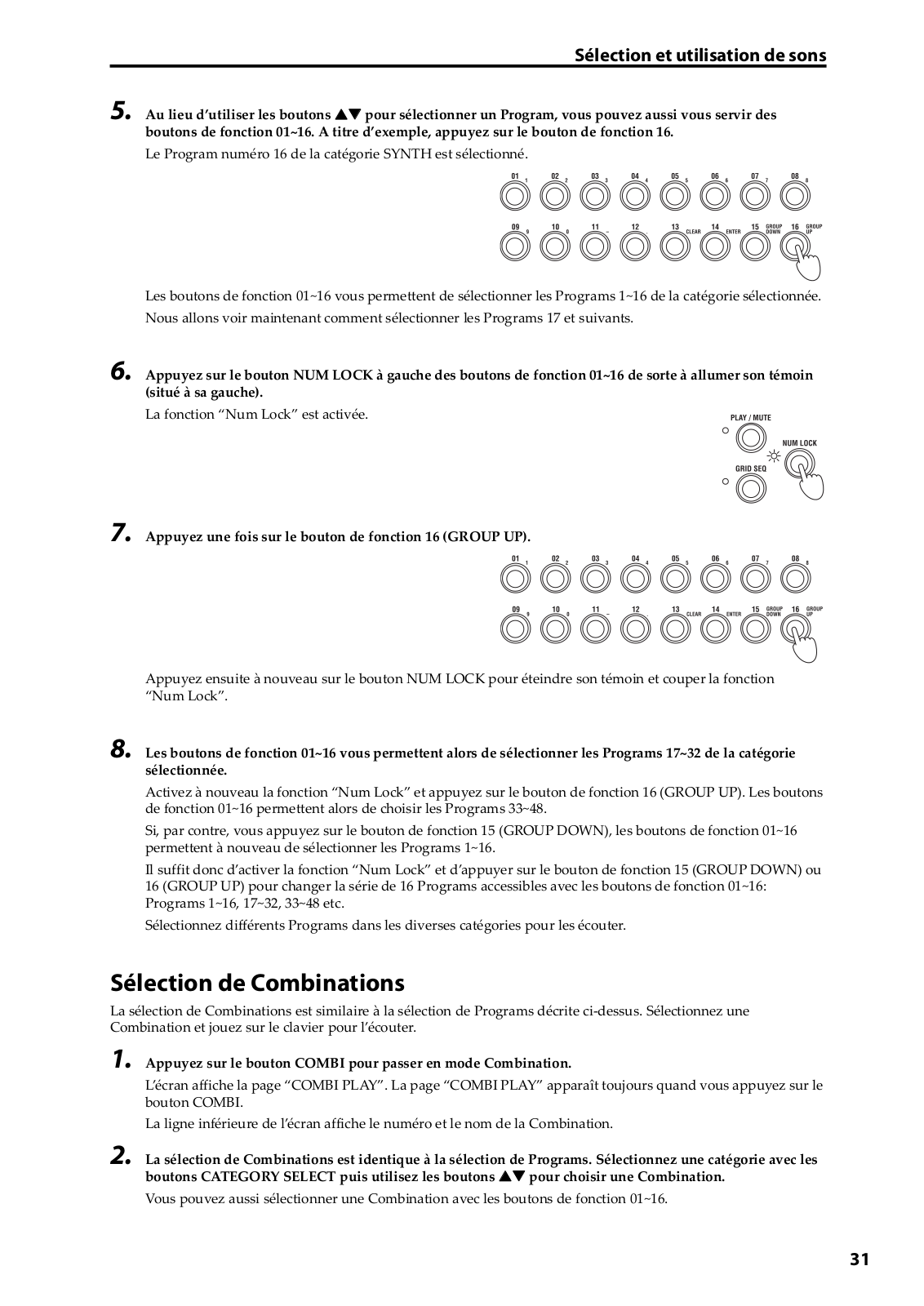

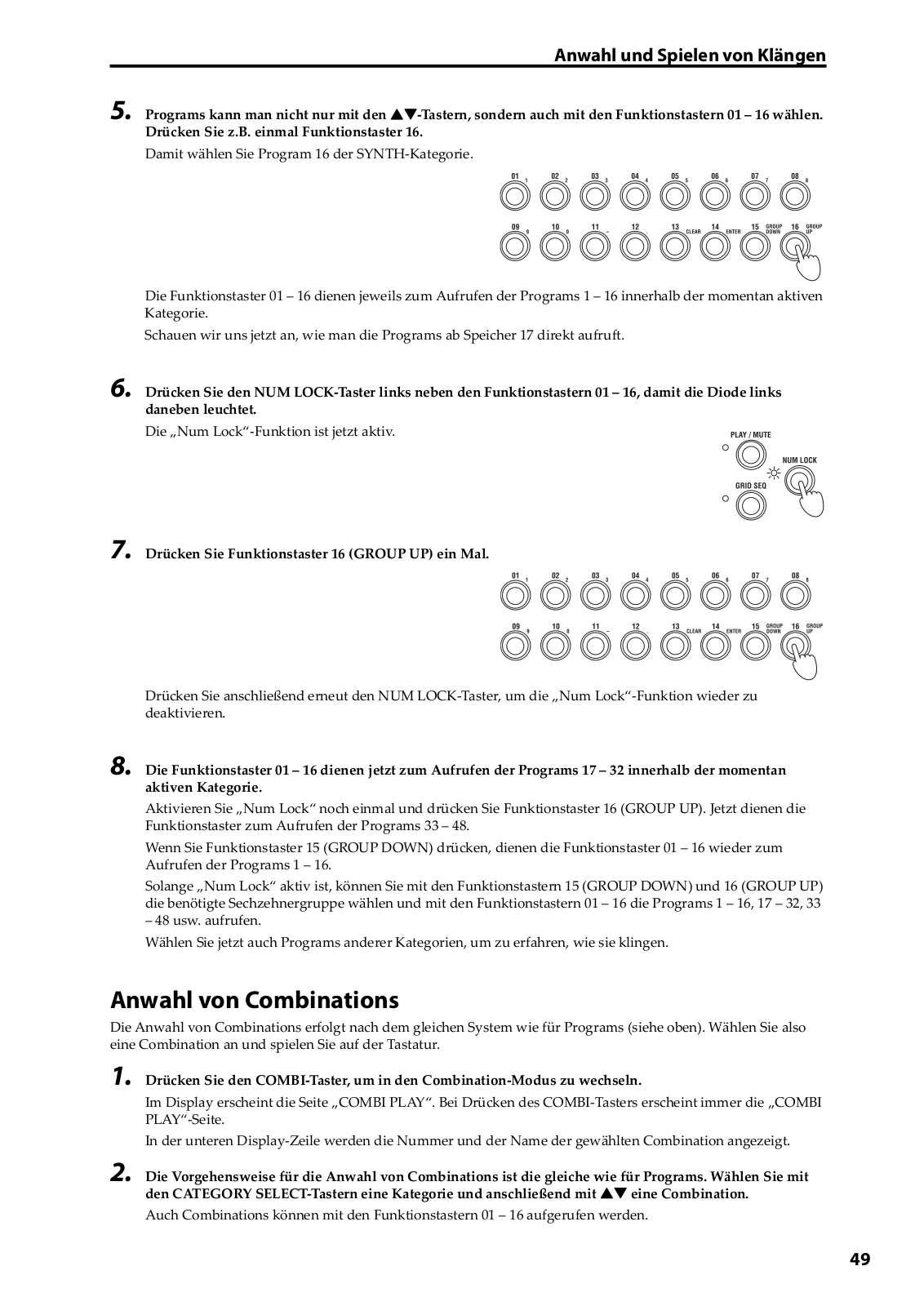

5. As an alternative to using the  buttons to select a program, you can also use the function 01–16 buttons.

For example, try pressing function button 16.

Program number 16 of the SYNTH category will be selected.

In this way, you can use the function 01–16 buttons to select program numbers 1–16 of the category that’s currently selected.

Next we’ll explain how to select program 17 and after.

6. Press the NUM LOCK button to the left of the function 01–16 buttons, so that the indicator to its left is lit up.

This is the “Num Lock on” state.

7. Press the function 16 button (GROUP UP) once.

Then press the NUM LOCK button once again to make its indicator go dark (“Num Lock off”).

8. Now you can press the function 01–16 buttons to select program numbers 17–32 of the category that’s currently selected.

Turn Num Lock on once again, and press the function 16 button (GROUP UP); now the function 01–16 buttons will select programs 33–48.

If you press the function 15 button (GROUP DOWN), then the function 01–16 buttons will once again select programs 1–16.

In this way, you can turn Num Lock on and press the function 15 button (GROUP DOWN) or 16 button (GROUP UP) to change the set of sixteen programs selected by the function 01–16 buttons; programs 1–16, 17– 32, 33–48, and so on.

Go ahead and select programs from a variety of categories to hear how they sound.

Selecting combinations

You’ll select combinations in essentially the same way as selecting programs (described above). Let’s select a combination, and play the keyboard to hear the sound.

1. Press the COMBI button to enter Combination mode.

The display will show the COMBI PLAY page. The COMBI PLAY page will always appear when you press the COMBI button.

The lower line of the display shows the combination number and the combination name.

2. The method for selecting combinations is the same as for selecting programs. Use the CATEGORY SELECT buttons to specify a category, and then use the  buttons to select a combination.

Alternatively, you can use the function 01–16 buttons to select a combination in the same way.

13

Easy Start Guide

Using controllers to modify the sound

The microSTATION lets you modify the sound using the joystick and the realtime control knobs 1–4 as well as the keyboard.

Different settings are assigned to these controllers as appropriate for each program or combination, allowing you to modify the tone, pitch, or volume in effective ways.

The force used to play the keyboard can affect the sound’s attack, volume, and brightness. In addition, some programs (such as wind instrument programs) will add breath noise when you play strongly.

You can move the joystick in four directions (up/down/left/right) to modify the sound. With the most common settings, the pitch will rise when you move the joystick to the right, and fall when you move it to the left. Moving the joystick up (away from yourself) will

apply vibrato, and moving it downward (toward yourself) will apply filter LFO (wah).

A wide variety of other effects can be applied as well as the settings described above.

The realtime controls let you use four knobs to control the sound or arpeggiator. These knobs operate in one of three modes: A mode and B mode control the sound, and C mode controls the arpeggiator. There’s also an External mode that lets you use the knobs to control an external MIDI device or software synthesizer.

In the explanation that follows, we’ll use these knobs in realtime control A, B, and C modes to control the sound and the arpeggiator.

1. Press the REALTIME CONTROLS SELECT button.

The A, B, or C LEDs located above the SELECT button will light up. There are three realtime control modes, A, B, and C, and you’ll cycle through these modes each time you press the button.

2.

3.

When A (A mode) is lit up, knobs 1–4 will respectively adjust the brightness (cutoff), resonance, EG depth, and EG release time.

Press the REALTIME CONTROLS SELECT button to make B (B mode) light up.

Turning the knobs will apply the effect that’s specified for each program or combination. Normally, B mode assigns knobs 3 and 4 to control the chorus and reverb depth.

4. Once again press the REALTIME CONTROLS SELECT button to make C (C mode) light up.

Turning the knobs will vary the arpeggio pattern and the pattern playback tempo (p. 15 “Using the arpeggiator”).

You can also use a foot controller, damper pedal, or pedal switch (sold separately) to control the sound; for example, you can control the filter or effects, or turn portamento on/off. For details, refer to “microSTATION Operation Guide” and “microSTATION Parameter Guide.”

14

Using the arpeggiator

Using the arpeggiator

Each program lets you use one polyphonic arpeggiator. In Combination mode or Sequencer mode, you can use two polyphonic arpeggiators.

1.

2.

Select the program or combination that you want to play.

Press the ARP ON/OFF button to make the LED located to the left of the button light up.

Depending on the combination or program, the arpeggiator might already been turned on. You can press the front panel ARP ON/OFF button to switch the arpeggiator on/off.

3. Press the ARP LATCH ON/OFF button to make the LED to the left of the button light up; this turns the Latch function on.

If Latch is on, the arpeggiator will continue playing even after you take your hand off the keyboard.

4. Press some keys.

The arpeggio pattern will start.

5.

6.

Press the REALTIME CONTROLS SELECT button to make the C mode LED light up.

Then turn knobs 1–3 (GATE, VELOCITY, SWING), and notice how the pattern changes.

Turning knob 4 (TEMPO) will adjust the tempo.

It’s also effective to switch to realtime control A or B mode and modify the sound while the arpeggiator is playing (p. 14 “Using controllers to modify the sound”).

Arpeggio patterns suitable for the sounds have been assigned to each of the factory set programs and combinations. Go ahead and select programs or combinations from various categories, and turn on the arpeggiator to hear the results.

15

Easy Start Guide

Saving (writing) a program or combination

In addition to the parameters mentioned in the preceding pages, such as the changes you make when using the realtime control knobs to modify the sound, arpeggio pattern, and tempo etc., the microSTATION has many more parameters, all of which can be saved. (However, some of the parameters adjusted in realtime control B mode are not saved. Nor are the realtime control A mode changes saved for a combination.)

Be aware that the changes you make by editing will be lost when you select another program or combination, or when you turn off the power. We recommend that you save your program or combination when you’ve come up with a sound that you like.

In the following example, we’ll explain how to save a program in Program mode.

1.

2.

3.

4.

5.

Use the realtime controls to modify (edit) a program.

(p. 14 “Using controllers to modify the sound”)

Press the  button to enter PROG EDIT.

The PROG EDIT screen OSC Common will appear first.

Use  buttons to select “Write Program.”

Press the  button.

The program name page will appear.

If you want to edit the program name, press the  button.

The program name edit page will appear.

6. Use the  buttons to move between character positions, and use the  buttons to specify the character at each position.

When you’ve finished editing the name, use the  button to return to the first program name page (the screen shown in step 4).

7. Press the  button.

A page allowing you to specify the category will appear. If you want to change the category, press the  button.

Use the  buttons to specify the desired category.

When you’ve changed the category, use the button to return to the first category page.

16

Loading and playing the demo songs

8. Press the  button.

A page allowing you to specify the writing destination will appear.

Press the  button, and then use the  buttons to specify the writing destination.

When you’ve specified the writing destination, press the  button to return to the first writing destination page.

When saving for the first time, we recommend that you save to one of the initialized programs (bank D096– D127). (Initialized combinations are stored in bank C096–C127.)

9. Press the  button.

The display will ask “OK?”

10.Press the  button to save the data.

When saving is completed, the screen will indicate “Completed.”

Loading and playing the demo songs

The microSTATION contains three built in demo songs.

Here’s how to load these demo songs into the microSTATION and play them.

Loading the demo songs

1.

2.

3, 4, 5

1

2

Press the GLB/MEDIA button to enter Global/Media mode.

Use the  buttons to select “Command.”

3. Press the  button.

The display will indicate “Load All Demo.”

4. Press the  button.

The display will ask “OK?”

5. Press the  button to load the demo songs.

When loading is completed, the screen will indicate “Completed.”

17

Easy Start Guide

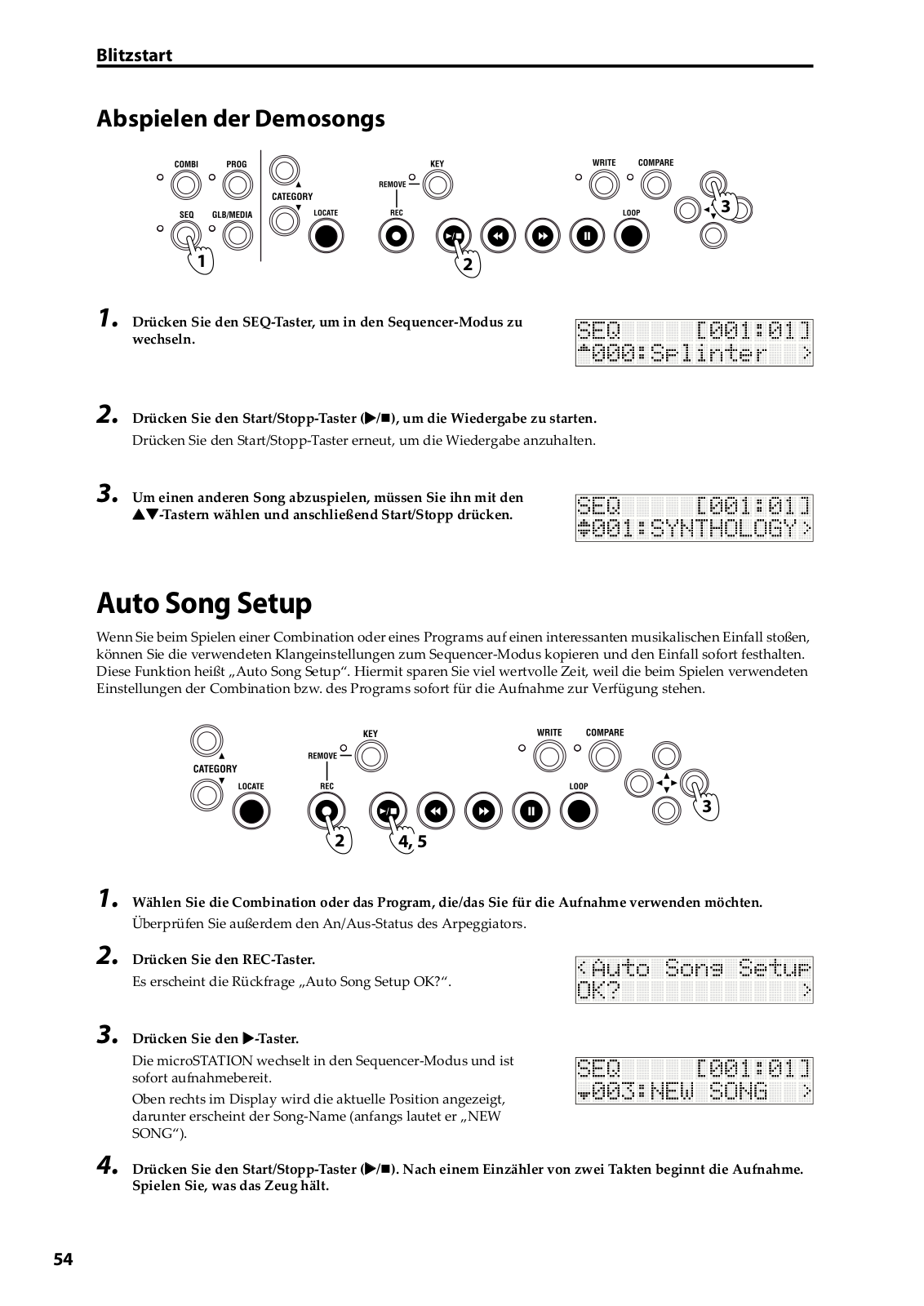

Playing the demo songs

3

1

2

1. Press the SEQ button to enter Sequencer mode.

2. Press the START/STOP (/) button to start playback.

To stop playback mid way through the song, press the START/STOP button once again.

3. To listen to another song, use the  buttons to select the song and then press the START/STOP button.

Auto song setup

When you’re playing a combination or program, you can copy its settings to Sequencer mode as song data, so that you’re ready to start recording. This function is called “Auto Song Setup.” You can use this function to immediately start recording the moment you have an idea or inspiration while playing a program or combination.

3

24, 5

1.Select the combination or program that you want to use for recording. Also check the arpeggiator’s on/off status.

2.Press the REC button.

The display will ask “Auto Song Setup OK?”

3.Press the  button.

The microSTATION will switch to Sequencer mode, and will automatically be in the record ready state.

The upper right side of the display shows the location, and the lower line shows the song name (initially this will be NEW SONG).

4.Press the START/STOP (/) button. After a two measure count, recording will begin. Go ahead and play.

18

Saving to an SD card

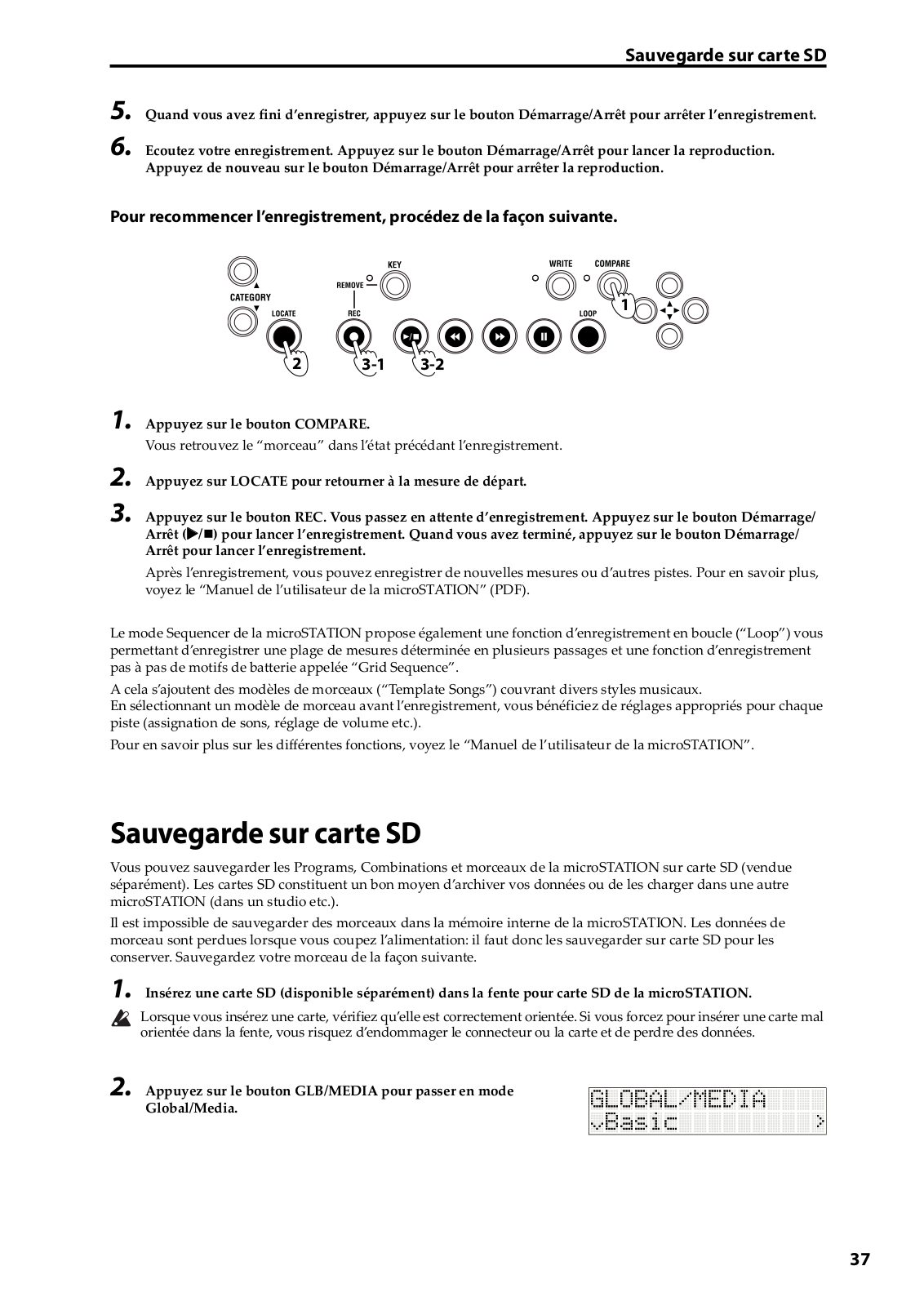

5. When you’ve finished recording, press the START/STOP button; recording will stop.

6. Play back the performance that you just recorded. Press the START/STOP button and playback will begin. Press the START/STOP button once again to stop playback.

If you want to re-record, proceed as follows

1

2

3-1

3-2

1. Press the COMPARE button.

You will return to the state prior to recording.

2. Press the LOCATE button to return to the starting measure.

3. Press the REC button. You’ll be in record ready mode. Press the START/STOP (/) button to record. When you’ve finished recording, press the START/STOP button to stop.

After recording, you can record additional measures or other tracks. For details, refer to “microSTATION Operation Guide” and “microSTATION Parameter Guide” (PDF).

The microSTATION’s Sequencer mode also provides a Loop Recording function that lets you repeatedly record a specified region of measures, and a Grid Sequence function that lets you easily create drum patterns.

There is also a wide range of other functionality, such as template songs suitable for various musical styles.

By selecting a template before you record, you can automatically make the appropriate preset settings for each track (instrument assignment, volume settings, etc.).

For details on this and other functions, refer to “microSTATION Operation Guide” and “microSTATION Parameter Guide.”

Saving to an SD card

You can save the microSTATION’s programs, combinations, and songs on an SD card (sold separately). SD cards are a good way to back up this data, or to load it into another microSTATION unit in a different location, such as in a studio.

Songs cannot be saved (written) to the microSTATION’s internal memory. Song data will be lost when you turn off the power, so you must save it to an SD card if you want to keep it. Here’s how to save your song.

1.

2.

Insert an SD card (sold separately) into the microSTATION’s rear panel SD card slot.

When inserting a card, make sure that it’s oriented correctly. Forcing a card into the slot the wrong way will damage the slot or the card, and may result in data loss.

Press the GLB/MEDIA button to enter Global/Media mode.

19

Easy Start Guide

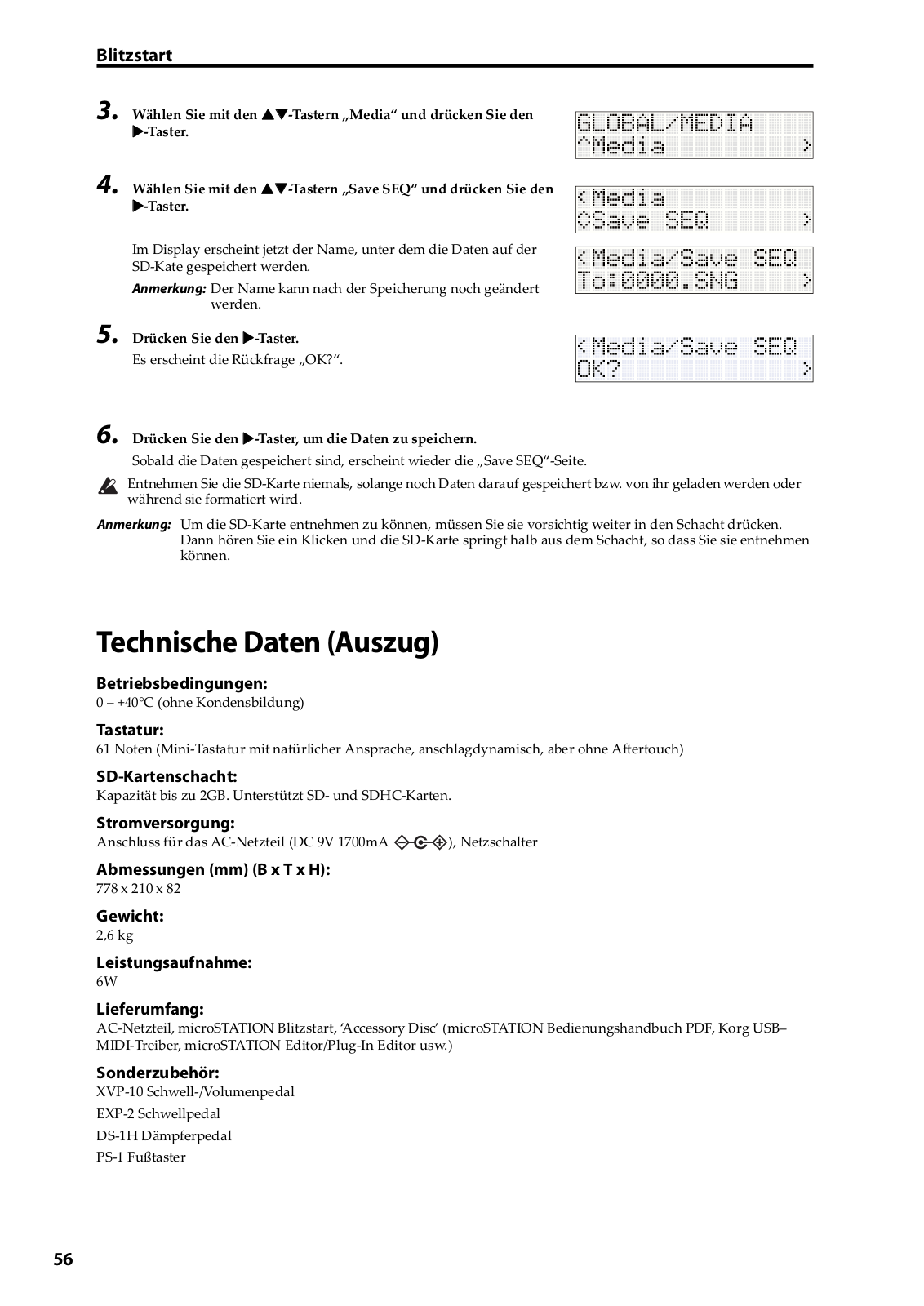

3. Use the  buttons to select “Media,” and then press the  button.

4. Use the  buttons to select “Save SEQ,” and then press the  button.

The screen shows the name that the data will be saved to on the SD card.

Note: You can change the name after saving.

5. Press the u button.

The display will ask “OK?”

6. Press the  button to save the data.

When saving is completed, you will return to the “Save SEQ” screen.

Never remove the SD card from the slot during a save, load, or format operation.

Note: To remove the SD card, gently press the card inward. You will hear a click, and the SD card will pop out part way, allowing you to remove it.

Specifications (abbreviated)

Operating conditions:

0 – +40 °C (non condensing)

Keyboard:

61 note (natural touch mini keyboard, velocity sensitive, aftertouch not supported)

SD card slot:

Supports up to 2 GB. SD and SDHC memory cards are supported.

Power supply:

AC adapter connector (DC 9V 1700 mA ), POWER switch

Dimensions (mm) (W x D x H):

778 x 210 x 82 (mm) / 30.63ʺ× 8.27ʺ × 3.23ʺ

Weight:

2.6 kg / 5.73 lbs

Power consumption:

6W

Included items:

AC adapter, microSTATION Easy Start Guide, Accessory disc (microSTATION Operation Guide PDF, microSTATION Parameter Guide PDF, USB MIDI Setup Guide PDF, microSTATION Editor/Plug In Editor User Guide, External Setups PDF, Korg USB MIDI driver, microSTATION Editor / Plug In Editor, etc.)

Options:

XVP 10 expression/volume pedal

EXP 2 foot controller

DS 1H damper pedal

PS 1 pedal switch

20

Guide de démarrage

Précautions

Emplacement

L’utilisation de cet instrument dans les endroits suivants peut en entraîner le mauvais fonctionnement.

•En plein soleil

•Endroits très chauds ou très humides

•Endroits sales ou fort poussiéreux

•Endroits soumis à de fortes vibrations

•A proximité de champs magnétiques

Alimentation

Branchez l’adaptateur secteur mentionné à une prise secteur de tension appropriée. Evitez de brancher l’adaptateur à une prise de courant dont la tension ne correspond pas à celle pour laquelle l’appareil est conçu.

Interférences avec d’autres appareils électriques

Les postes de radio et de télévision situés à proximité peuvent par conséquent souffrir d’interférences à la réception. Veuillez dès lors faire fonctionner cet appareil à une distance raisonnable de postes de radio et de télévision.

Maniement

Pour éviter de les endommager, manipulez les commandes et les boutons de cet instrument avec soin.

Entretien

Lorsque l’instrument se salit, nettoyez-le avec un chiffon propre et sec. Ne vous servez pas d’agents de nettoyage liquides tels que du benzène ou du diluant, voire des produits inflammables.

Conservez ce manuel

Après avoir lu ce manuel, veuillez le conserver soigneusement pour toute référence ultérieure.

Evitez toute intrusion d’objets ou de liquide

Ne placez jamais de récipient contenant du liquide près de l’instrument. Si le liquide se renverse ou coule, il risque de provoquer des dommages, un court-circuit ou une électrocution.

Veillez à ne pas laisser tomber des objets métalliques dans le boîtier (trombones, par ex.). Si cela se produit, débranchez l’alimentation de la prise de courant et contactez votre revendeur korg le plus proche ou la surface où vous avez acheté l’instrument.

Note concernant les dispositions (Seulement EU)

Quand un symbole avec une poubelle barrée d’une croix apparait sur le produit, le mode d’emploi, les piles ou le pack de piles, cela signifie que ce produit,

manuel ou piles doit être déposé chez un représentant compétent, et non pas dans une poubelle ou toute autre déchetterie conventionnelle.

Disposer de cette manière, de prévenir les dommages pour la santé humaine et les dommages potentiels pour l’environnement. La bonne méthode d’élimination dépendra des lois et règlements applicables dans votre localité, s’il vous plaît, contactez votre organisme administratif pour plus de détails. Si la pile contient des métaux lourds au delà du seuil réglementé, un symbole chimique est affiché en dessous du symbole de la poubelle barrée d’une croix sur la pile ou le pack de piles.

Gestion des données

Une procédure incorrecte ou un mauvais fonctionnement peut entraîner la perte du contenu de la mémoire, aussi nous vous recommandons d’archiver vos données importantes sur un support externe. Korg décline toute responsabilité pour tout dommage résultant de la perte de données.

22

Sommaire
A propos de ce manuel ..........................................................................	24
Caractéristiques principales .................................................................	25
Panneaux avant et arrière ....................................................................	26
Panneau avant ..........................................................................................................	26
Panneau arrière ........................................................................................................	27
Connexions et alimentation .................................................................	28
Sélection des modes .............................................................................	29
Sélection et utilisation de sons ............................................................	30
Sélectionner des Programs ..................................................................................	30
Sélection de Combinations ..................................................................................	31
Utilisation des contrôleurs pour modifier le son ................................	32
Utilisation de l’arpégiateur ..................................................................	33
Sauvegarder un Program ou une Combination (‘Write’) ...................	34
Charger et écouter les morceaux de démonstration ..........................	35
Charger les morceaux de démonstration .......................................................	35
Ecouter les morceaux de démonstration ........................................................	36
Configuration automatique de morceau ............................................	36
Sauvegarde sur carte SD .......................................................................	37
Fiche technique (abrégée) ....................................................................	38

23
