Konica Minolta IP-511 User Manual

IP-511

HOME

Print Controller

Printer

Read this manual before printing.

Keep readily available for reference.

Thank you very much for purchasing the IP-511.

HOME

This INSTRUCTION MANUAL includes instructions for making prints, correct handling of the machine, and precau
tions for safety. Please read this manual before printing.
In order to maintain a satisfactory printing performance, please keep this INSTRUCTION MANUAL readily available
for reference.

-

SOFTWARE LICENSE AGREEMENT

HOME

This package contains the following materials provided by Konica Corporation (Konica): software included as part
of the printing system, the digitally-encoded machine-readable outline data encoded in the special format and in the
encrypted form ("Font Programs"), other software which runs on a computer system for use in conjunction with the
Printing Software ("Host Software"), and related explanatory written materials ("Documentation").

The term "Software" shall be used to describe Printing Software, Font Programs and/or Host Software and also in
clude any upgrades, modified versions, additions, and copies of the Software.

The Software is being licensed to you under the terms of this Agreement.

Konica grants to you a non-exclusive sublicense to use the Software and Documentation, provided that you agree
to the following:

-

1. You may use the Printing Software and accompanying Font Programs for imaging to the licensed output de

vice(s), solely for your own internal business purposes.

2. In addition to the license for Font Programs set forth in Section 1 ("Printing Software") above, you may use Ro

man Font Programs to reproduce weights, styles, and versions of letters, numerals, characters and symbols
("Typefaces") on the display or monitor for your own internal business purposes.

3. You may make one backup copy of the Host Software, provided your backup copy is not installed or used on

any computer. Notwithstanding the above restrictions, you may install the on any number of computers solely
for use with one or more printing systems running the Printing Software.

4. You may assign its rights under this Agreement to an assignee of all of Licensee's right and interest to such

Software and Documentation ("Assignee") provided you transfer to Assignee all copies of such Software and
Documentation Assignee agrees to be bound by all of the terms and conditions of this Agreement.

5. You agree not to modify, adapt or translate the Software and Documentation.

6. You agree that you will not attempt to alter, disassemble, decrypt, reverse engineer or decompile the Software.

7. Title to and ownership of the Software and Documentation and any reproductions thereof shall remain with

Konica.

8. Trademarks shall be used in accordance with accepted trademark practice, including identification of the trade

mark owner's name. Trademarks can only be used to identify printed output produced by the Software. Such
use of any trademark does not give you any rights of ownership in that trademark.

9. You may not rent, lease, sublicense, lend or transfer versions or copies of the Software Licensee does not use,

or Software contained on any unused media, except as part of the permanent transfer of all Software and Doc
umentation as described above

10. In no event will Konica be liable to you for any consequential, incidental or special damages, including any lost

profits or lost saving, even if Konica has been advised of the possibility of such damages, or for any claim by
any third party. Some states or jurisdictions do not allow the exclusion or limitation of incidental, consequential
or special damages, so the above limitations may not apply to you.

11. Notice to Government End Users: The Software is a "commercial item," as that term is defined at 48 C.F.R.

2.101, consisting of "commercial computer software" and "commercial computer software documentation," as
such terms are used in 48 C.F.R. 12.212. Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through

227.7202-4, all U.S. Government End Users acquire the Software with only those rights set forth herein.

-

-

-

-

®

Macintosh

Windows® is a registered trademark of Microsoft Corporation.

is a registered trademark of Apple Computer, Inc.

CONTENTS

HOME

CONTENTS

■ Introduction ........................................................................................................................... iv

● Package Contents ...................................................................................................................................... v

● System Requirements ............................................................................................................................... v

● About this Manual ..................................................................................................................................... vi

● Conventions Used in this Manual .......................................................................................................... vii

● Folder structure on the CD-ROM ............................................................................................................. ix

Chapter 1 Overview

■ Overview of the Print Controller ........................................................................................ 1-2

● Print Controller and Main Body Printer ................................................................................................ 1-2

● Print Data Flow ........................................................................................................................................ 1-4

● Hardware Configuration ......................................................................................................................... 1-5

● Interface ...................................................................................................................................................1-5

● Printer Driver ........................................................................................................................................... 1-6

● Page Description Language ................................................................................................................... 1-6

● Memory ....................................................................................................................................................1-7

Chapter 2 Printer Driver Setup

■ Installation of the Printer Driver ........................................................................................ 2-2

● Before Installation ................................................................................................................................... 2-2

● Installing to Windows 95/98/Me ............................................................................................................. 2-3

● Installing to Windows NT4.0/2000 ......................................................................................................... 2-7

● Uninstalling the Printer Driver (Windows 95/98/Me) .......................................................................... 2-12

● Uninstalling the Printer Driver (Windows NT4.0) ...............................................................................2-13

● Uninstalling the Printer Driver (Windows 2000) .................................................................................2-15

■ Test Page Print .................................................................................................................. 2-17

Chapter 3 Printer Driver Functions

■ Printer Driver Functions ..................................................................................................... 3-2

● Compliant OS .......................................................................................................................................... 3-2

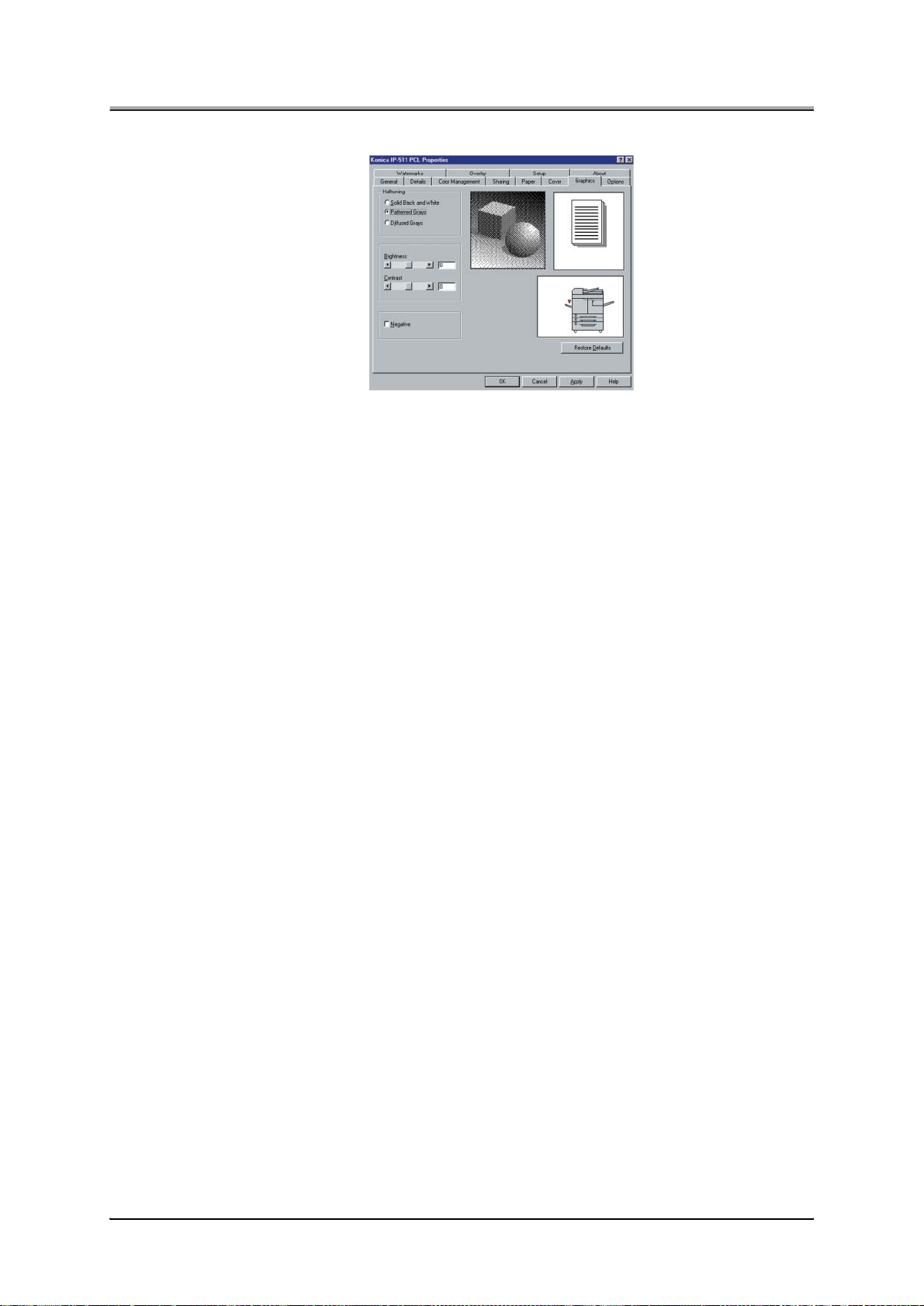

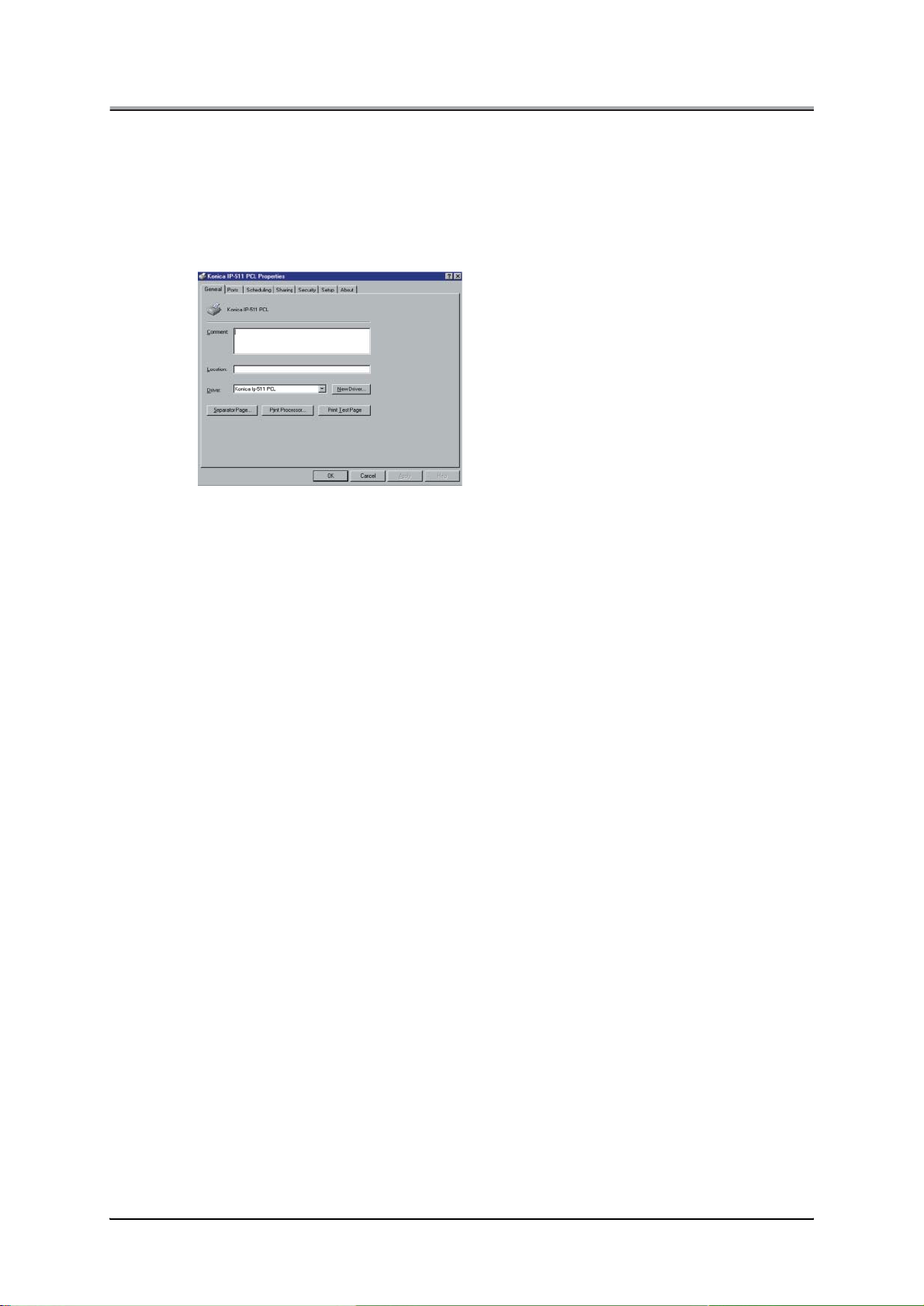

● Properties ................................................................................................................................................3-3

● Function List ...........................................................................................................................................3-7

● Description of Functions ...................................................................................................................... 3-13

Chapter 4 Control Panel Setup

■ Control Panel ...................................................................................................................... 4-2

● Names and Functions of the Control Panel ......................................................................................... 4-2

● LCD Touch Screen .................................................................................................................................. 4-4

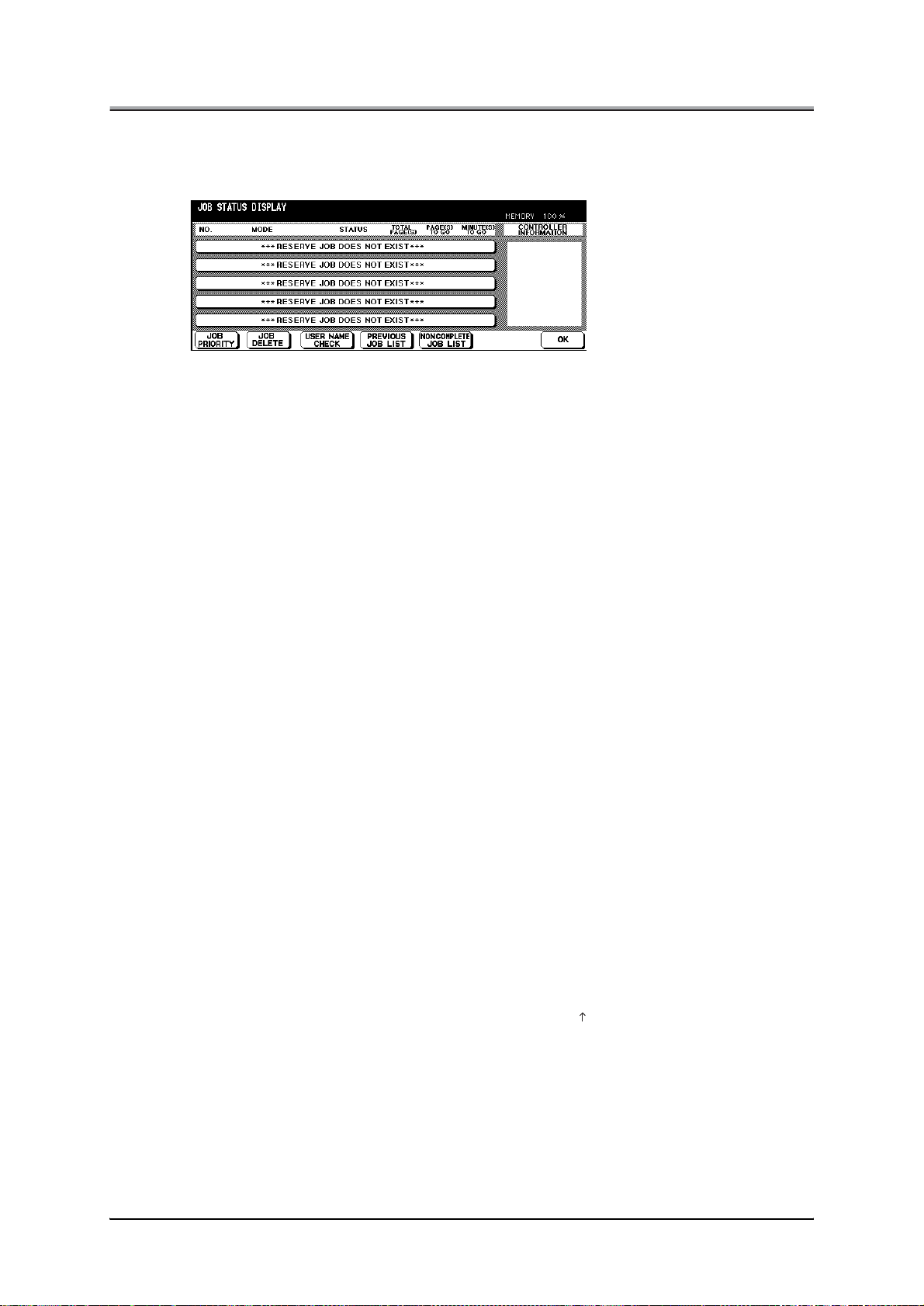

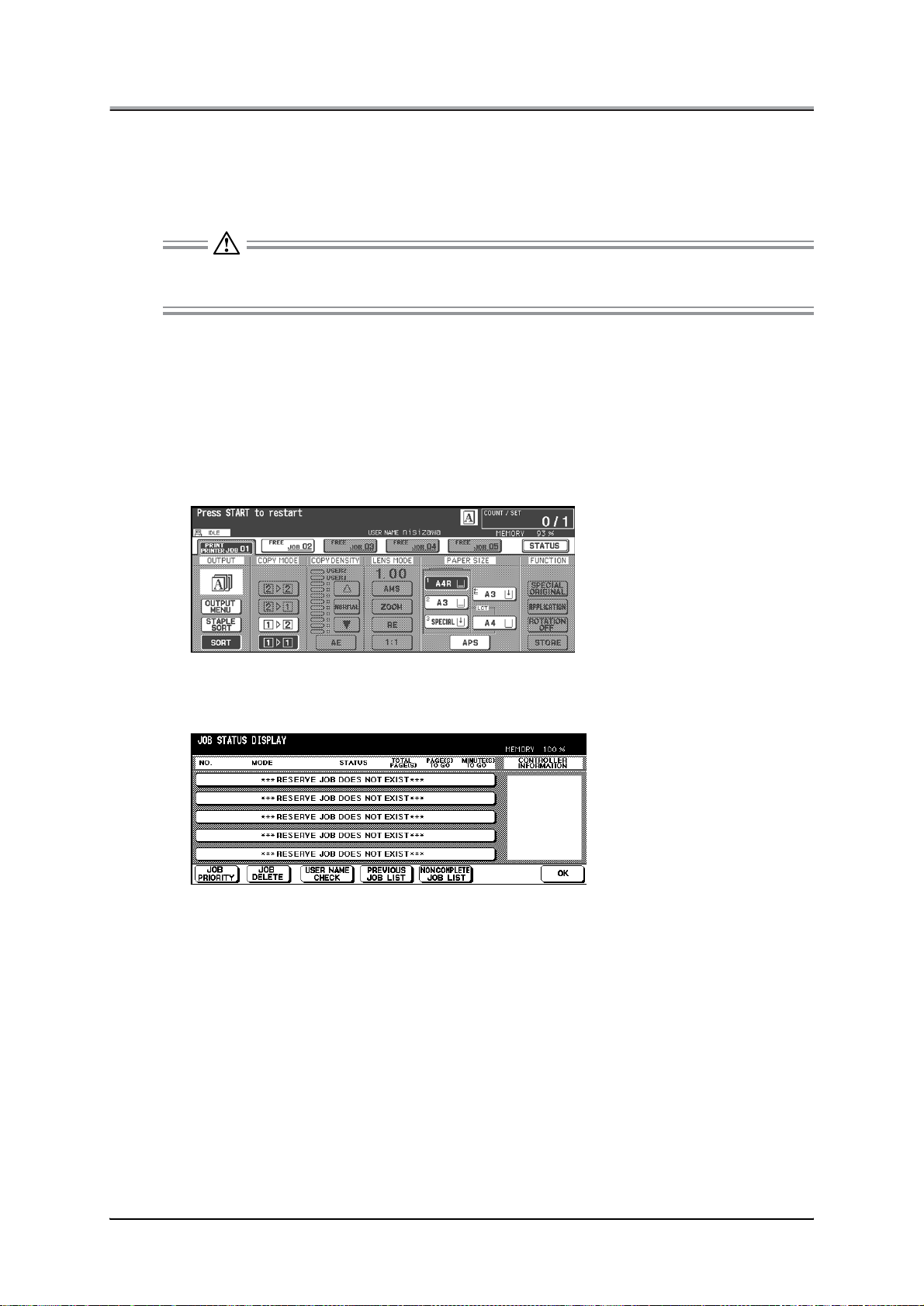

● Job Status Screen ...................................................................................................................................4-6

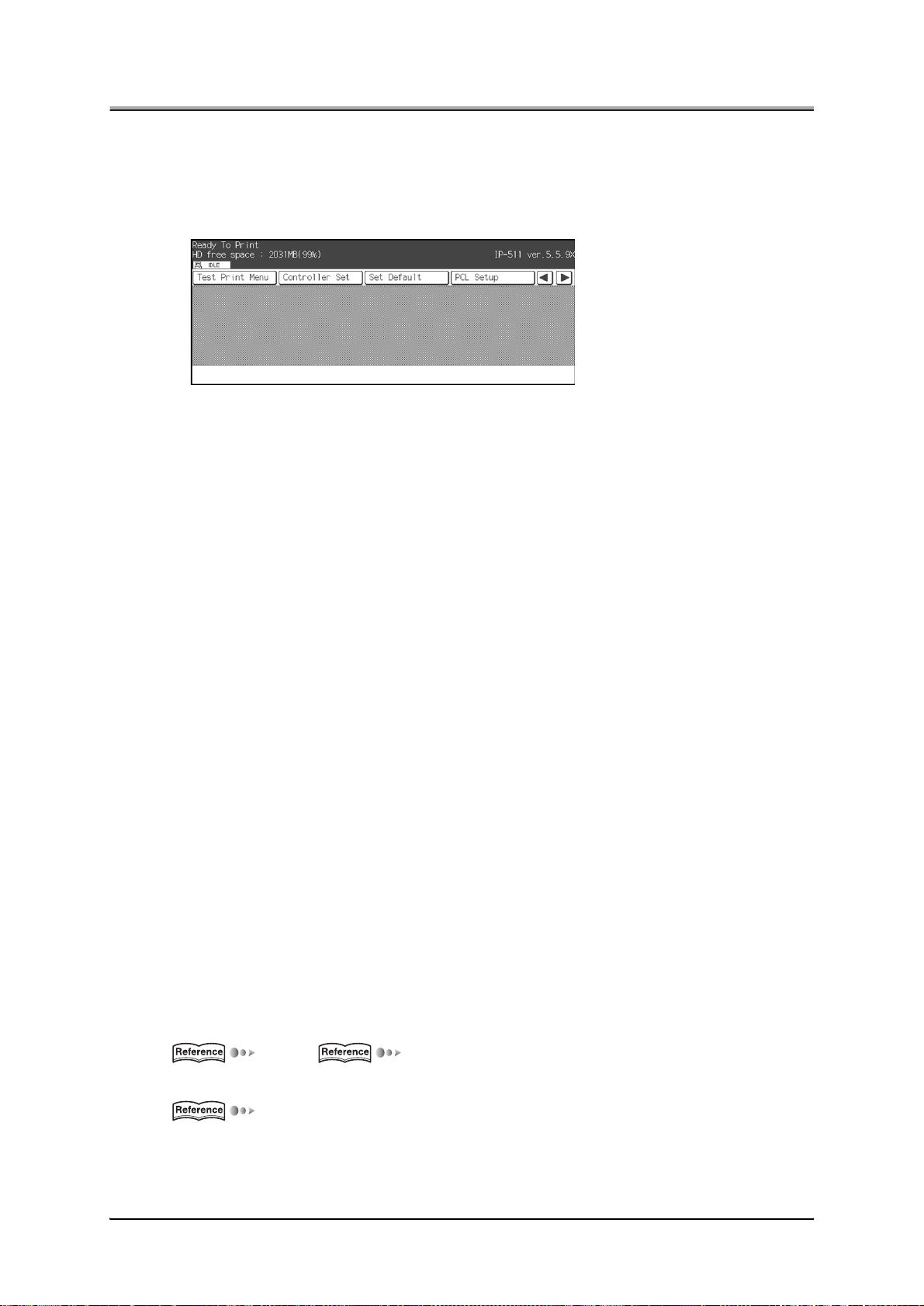

● Printer Mode Basic Screen .................................................................................................................... 4-8

■ Configuration of Printer Setting Menu ............................................................................ 4-10

■ Functions of the Printer Setting ...................................................................................... 4-11

ii

CONTENTS

HOME

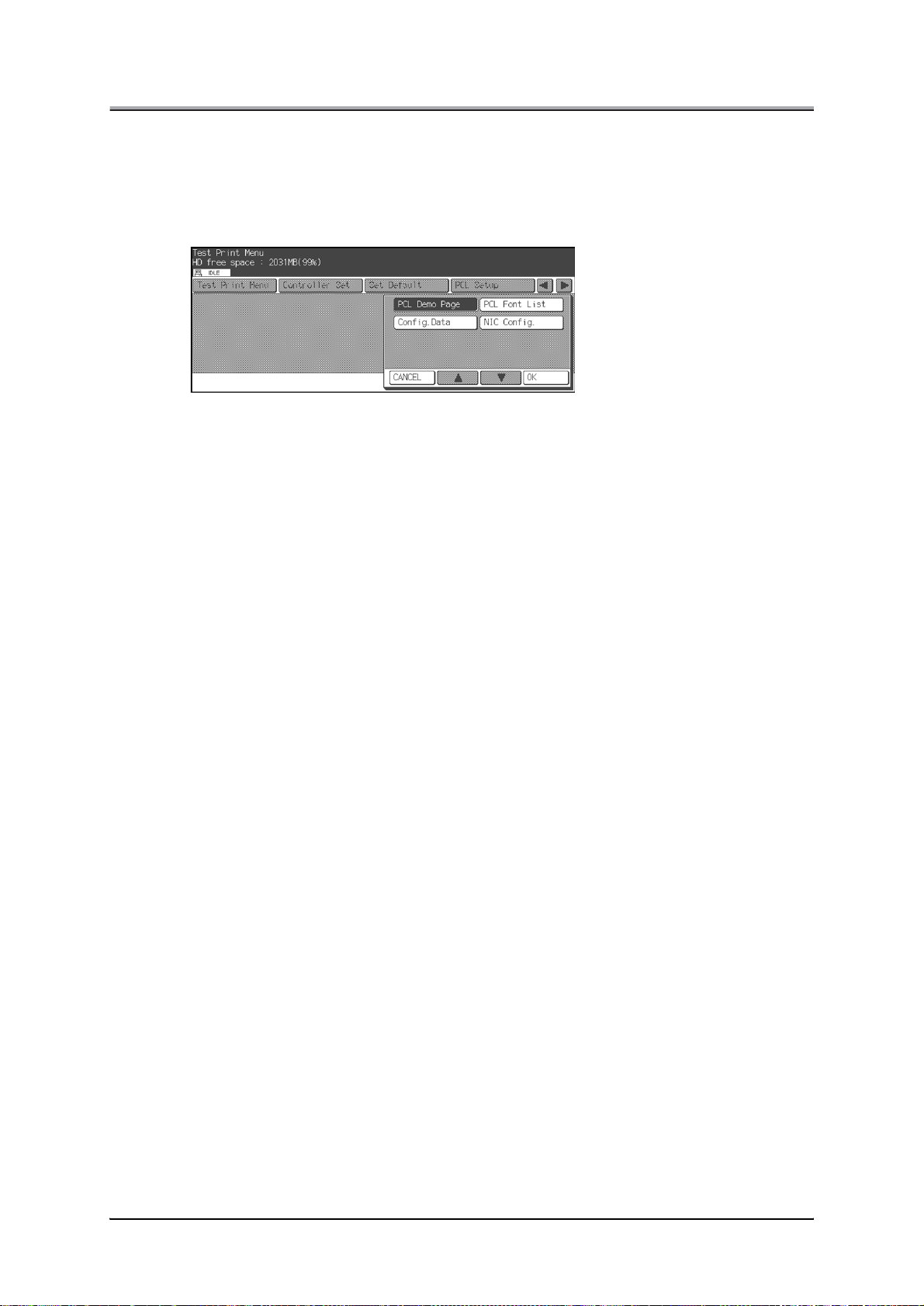

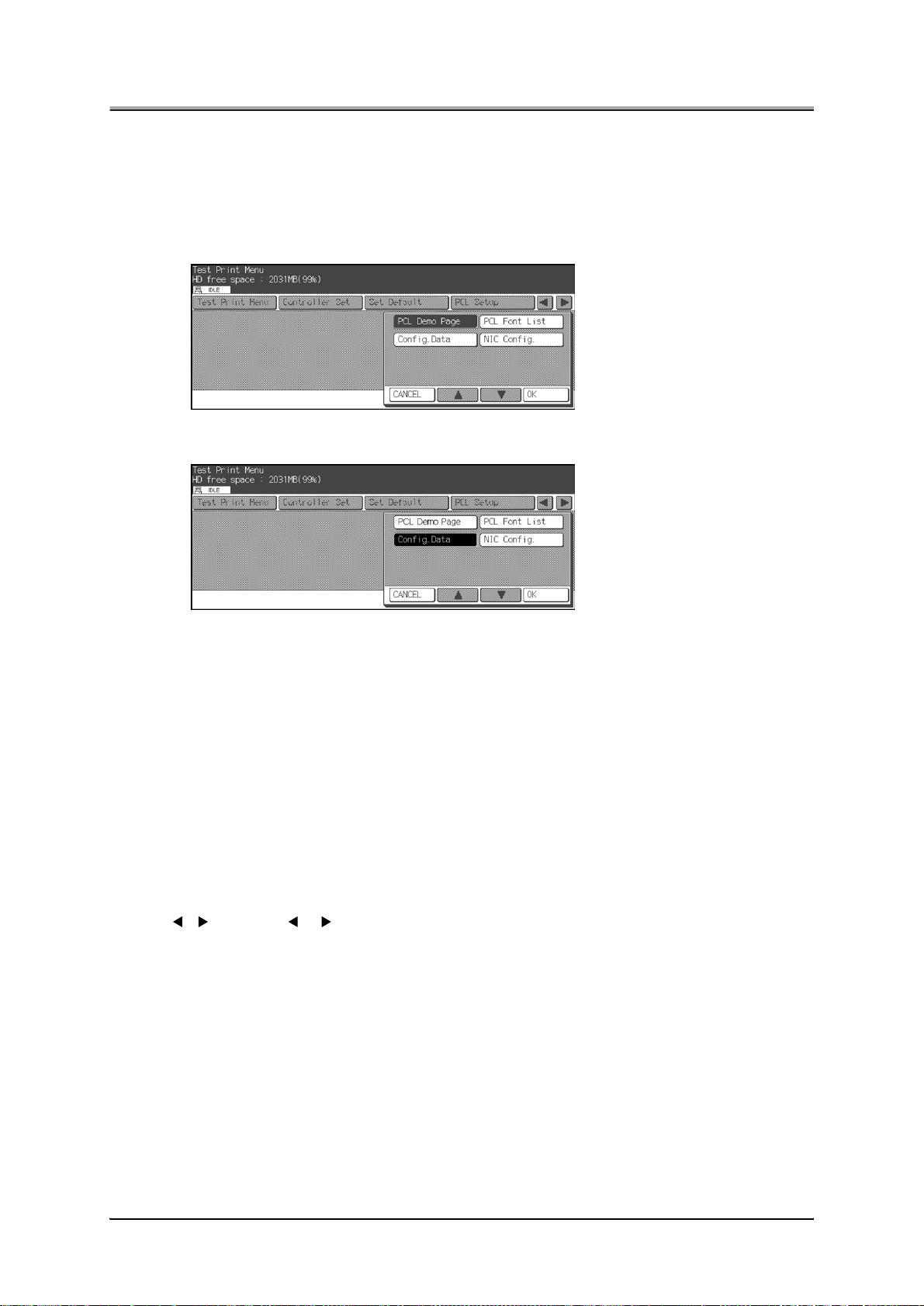

● Test Print Menu ..................................................................................................................................... 4-11

● Controller Set ........................................................................................................................................ 4-12

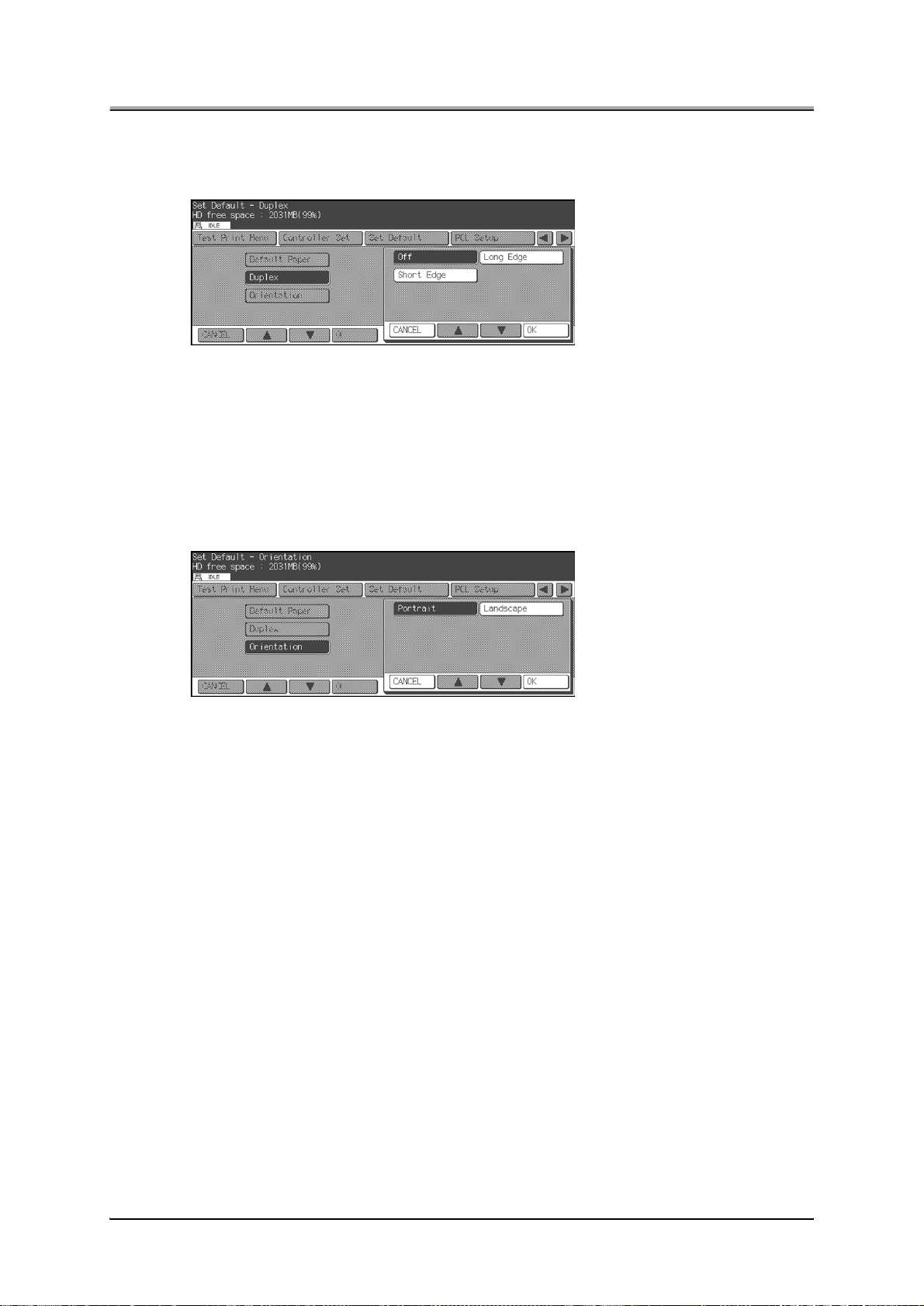

● Set Default .............................................................................................................................................4-14

● PCL Setup .............................................................................................................................................. 4-16

■ Print Job ............................................................................................................................ 4-17

● Cancel ....................................................................................................................................................4-17

● Check .....................................................................................................................................................4-18

● Interrupt / Reserve ................................................................................................................................ 4-20

● Forced Output .......................................................................................................................................4-21

● Password Print (Confidential Output) ................................................................................................. 4-22

● Job Combination ................................................................................................................................... 4-25

Chapter 5 Printer EKC

■ Overview of the Printer EKC .............................................................................................. 5-2

● Setting of Printer EKC ............................................................................................................................5-2

● Printing with Printer EKC ....................................................................................................................... 5-2

● EKC Limit .................................................................................................................................................5-3

Appendix A Troubleshooting

■ Basic Troubleshooting ..................................................................................... Appendix A-2

■ General Problems of Printing .......................................................................... Appendix A-3

● The Print Controller does not respond to the Print command. ........................................ Appendix A-3

● A message requesting a paper size you do not use is displayed. ...................................Appendix A-3

● You cannot print the test print. ............................................................................................ Appendix A-4

● The print setting of a job does not correspond to the result of printing. ........................ Appendix A-4

● Memory Overflow .................................................................................................................. Appendix A-4

● HD Full ................................................................................................................................... Appendix A-5

■ Troubles Concerning the Scanner .................................................................. Appendix A-6

● Cannot connect to the scanner ........................................................................................... Appendix A-6

■ Checking on Non complete job ....................................................................... Appendix A-7

Appendix B Product Specifications

■ Product Specifications ..................................................................................... Appendix B-2

Appendix C Font List

■ Internal Font List ............................................................................................... Appendix C-2

iii

Introduction

HOME

■Introduction

The Konica IP-511 is a print controller designed to be a built-in type server for the Konica 7155 / 7165 printer/
copier. It enables direct printing from Windows-compliant computers. It can also enable use of the copier as
a network printer when an internal network interface card is used.

For guidance in setting up the copier, configuring the settings for networks, and a description of the scanning
features available, refer to the corresponding separate manuals.

Registered Trademarks

Microsoft, MS and MS-DOS are registered trademarks of Microsoft Corporation in the United States.

IBM is a registered trademark of International Business Machines, Inc. in the United States.

WindowsTM is a trademark of Microsoft Corporation.

HP and PCL are registered trademarks of Hewlett-Packard Company.

Agfa Microtype font is a registered trademark of Agfa Corporation.

PEERLESS is a registered trademark of PEERLESS SYSTEMS CORPORATION.

Adobe, Adobe Logo, Acrobat, Acrobat Logo, PostScript and PostScript Logo are registered trademarks
or trademarks of Adobe Systems, Inc.

Other company names and product names used in this manual are the registered trademarks or trade
marks of their respective companies.

-

Copyright

COPYRIGHT © 2001 Konica corporation. All rights reserved.

Patent Notice

The product includes an implementation of LZW licensed under U.S.Patent 4,558,302.

Built-in Fonts

The print controller includes support for PCL5e Language (HP PCL clone) and includes the 80 built-in
Agfa Microtype fonts. For a complete list, see "Appendix C Font List"(p.Appendix C-1).

• A part or all of this INSTRUCTION MANUAL may not be used or copied without permission.

• Konica will have no liability for any influences caused by using the printing system and this manual.

• Information written in this INSTRUCTION MANUAL is subject to change without notice.

• Konica Corporation maintains the copyright of this printer driver.

iv

●Package Contents

HOME

The following items are supplied with the IP-511:

• Notice Sheet

• Interface Board

• Board Cover

• Board Protector Cover

• TP screw (M3 x 6)

• TP screw (M4 x 6)

• User Software CD

(Windows)

• Printer Driver

• Scanner Driver (compatible with TWAIN)

• Network Connection Utilities

• BOOTP

• IP-P2P

• MAP

• NW Setup

• UNIX

• Adobe Acrobat Reader

• INSTRUCTION MANUAL (this manual, Network Setup manual and Network Scanner manual)

• Release Note (describes the latest information as well as limits of the system and the

user software.)

• Screenfonts

Introduction

(Macintosh)

• Adobe Acrobat Reader

• INSTRUCTION MANUAL (this manual, Network Setup manual and Network Scanner manual)

●System Requirements

Windows

The following are required to print from Windows-compliant computers to the printing system:

• Computers on which Windows 95/98/Me/NT4.0/2000 can run

• CD-ROM drive (necessary to install the printer driver or the scanner driver)

Using Windows 95/98/Me

• Microsoft Windows 95/98/Me

• 32 MB RAM or more

Using Windows NT4.0/2000

• Microsoft Windows NT4.0/2000

• 32 MB RAM or more

Parallel Port

The following are required to print to the print controller by way of the parallel port:

• Windows-compliant computers

• IEEE 1284 parallel cable

One end of the cable is required to have a DB 36 pin male connector (connected to the print control
ler).

-

v

Introduction

HOME

●About this Manual

This manual is used only for the IP-511 Print Controller.

This manual describes how to operate the IP-511 Print Controller when the Konica 7155 / 7165 Copier is
used as a printer by connecting it to computers.

This manual assumes you are familiar with the basic operation of Windows and Copier.

For guidance in setting up the copier, configuring the settings for networks, and a description of the scan
ning features available, we suggest you refer to the corresponding separate manuals.

The main body printer (copier) and the internal network interface card are separately supplied with
instruction manuals. Refer to these manuals as needed.
For detailed operations of Windows 95/98/Me and Windows NT4.0/2000, refer to the operating
manuals for each operating system. For application operations, refer to the operating manuals pro
vided with each application.

This manual is composed of the following five chapters and appendices:

Chapter 1: Overview

Chapter 1 describes the print controller hardware and the overview of its functions, and briefly explains
how to connect the parallel ports of computers to the print controller and the main body printer (copier).

-

-

Chapter 2: Printer Driver Setup

Chapter 2 describes how to install the printer driver (user software included on the user software CD)
to Windows-compliant computers.

It enables printing from each application of Windows-compliant computers to the main body printer by
way of a parallel port/network.

Chapter 3: Printer Driver Functions

Chapter 3 describes various functions of the printer driver installed on Windows-compliant computers.

Chapter 4: Control Panel Setup

Chapter 4 describes the layout of the control panel of the main body printer and explains how to oper
ate and set functions on the control panel.

Chapter 5: Printer EKC

Chapter 5 describes how to set and use Printer EKC.

Appendices

• Appendix A describes troubleshooting tips for the print controller.

• Appendix B describes product specifications.

• Appendix C lists the built-in printer fonts included with the print controller.

-

vi

●Conventions Used in this Manual

HOME

Notation of each product

The following abbreviations are used in this manual:

(1) IP-511 Print Controller: print controller

(2) Konica 7155 / 7165 Printer/Copier: main body printer or copier

(3) Internal Network Interface Card: network interface card

(4) A printing system that combines the above

(1), (2) and (3) products: printing system

(5) Microsoft Windows 95: Windows 95

Microsoft Windows 98: Windows 98

Microsoft Windows Me: Windows Me

Microsoft Windows NT4.0: Windows NT4.0 or Windows NT

Microsoft Windows 2000: Windows 2000

Above OSs: Windows 95/98/Me

Introduction

Windows NT4.0/2000

Windows NT/2000

Windows 95/98/Me/NT/2000

Notation of cautions in this manual are shown with the caution symbol.

Each mark used in this manual has the following meaning.

Things important in operating hardware and software were described.

Precautions and limits at the time of operating hardware and software were written.

Limitations imposed by a combined use of features offered by hardware and software were
described.

Hints, advice, confirming items, etc. at the time of operating hardware and software were written.

vii

Introduction

HOME

Notation of names shown on the screen are written within square brackets
e.g.,

"click the [OK] button."

Notation of folders

Folders are referred to in upper-to-lower sequence.

For example:

Select the [Printer.inf] file in the "PCL\English\Win9X" folder of the User Software CD.

Notation of the reference in this manual is written within quotation marks
e.g., "Chapter 1 Overview."

Indicates where to be referred to for information concerned
e.g., " (p.1-1)."

When you click page number, move reference page.

viii

●Folder structure on the CD-ROM

HOME

User Software CD

Windows

English

Acroread (Acrobat Reader 5.0)
NetUtil

BOOTP (IP address assign program)
IP-P2P (IP base - Peer to Peer program)
IPX-P2P (IPX base - Peer to Peer program)
MAP (Management Access program)
NWSetup (NetWare Setup Program)
Unix (Utilities for Unix)

Printer

Win9x_Me (Printer Driver for Windows 95/98/Me)

WinNT_2000 (Printer Driver for Windows NT/2000)
Scanner (Scanner Driver (compatible with TWAIN)
Screenfonts
UserGuide

Others

ip511prn_int_vxxx.pdf (IP-511 Print Controller INSTRUCTION MANUAL
for non-USA)
ip511net_int_vxxx.pdf (IP-511 Network Setup
INSTRUCTION MANUAL for non-USA)
ip511scn_int_vxxx.pdf (IP-511 Network Scanner INSTRUCTION MANUAL
for non-USA)

USA

ip511prn_us_vxxx.pdf (IP-511 Print Controller User's Guide for USA)
ip511net_us_vxxx.pdf (IP-511 Network Setup User's Guide
for USA)

Japanese

French

Italian

German

Spanish

Macintosh

English

French

Italian

German

Spanish

Japanese

Printer

Scanner (Scanner Driver (compatible with TWAIN))

Printer

Scanner (Scanner Driver (compatible with TWAIN))

Printer

Scanner (Scanner Driver (compatible with TWAIN))

Printer

Scanner (Scanner Driver (compatible with TWAIN))

Acroread (Acrobat Reader 4.05)
Driver
Screen Fonts
UserGuide

Driver

Driver

Driver

Driver

ip511scn_us_vxxx.pdf (IP-511 Network Scanner User's Guide for USA)

Win9x_Me (Printer Driver for Windows 95/98/Me)

WinNT_2000 (Printer Driver for Windows NT/2000)

Win9x_Me (Printer Driver for Windows 95/98/Me)

WinNT_2000 (Printer Driver for Windows NT/2000)

Win9x_Me (Printer Driver for Windows 95/98/Me)

WinNT_2000 (Printer Driver for Windows NT/2000)

Win9x_Me (Printer Driver for Windows 95/98/Me)

WinNT_2000 (Printer Driver for Windows NT/2000)

Others

ip511prn_int_vxxx.pdf (IP-511 Print Controller INSTRUCTION MANUAL
for non-USA)
ip511net_int_vxxx.pdf (IP-511 Network Setup
INSTRUCTION MANUAL for non-USA)
ip511scn_int_vxxx.pdf (IP-511 Network Scanner INSTRUCTION MANUAL
for non-USA)

USA

ip511prn_us_vxxx.pdf (IP-511 Print Controller User's Guide for USA)
ip511net_us_vxxx.pdf (IP-511 Network Setup User's Guide
for USA)
ip511scn_us_vxxx.pdf (IP-511 Network Scanner User's Guide for USA)

Introduction

)

ix

Chapter 1 Overview

HOME

■ Overview of the Print Controller ................................. 1-2

1-1

Chapter 1 Overview

HOME

■Overview of the Print Controller

●Print Controller and Main Body Printer

The print controller is designed to be used as the built-in type server of the main body
printer/copier.

The print controller can be used to connect the main body printer to computers or to a
network on which the main body printer can function as a printer/network printer from
applications on Windows 95/98/Me/NT/2000. The internal network interface card is
required for connecting to a network.

Printing System

Copier

For use as a network printer

Print Controller

For use as a local printer

When the command for printing is executed from an application on Windows 95/98/Me/NT/2000, print
data is sent to the print controller by way of a parallel interface (IEEE 1284) or a network.

The interpreter inside the print controller rasterizes the print data to image data (bitmap extracting pro
cess), which is sent to the print engine in the main body printer via the VIC (video interface card) installed
in the main body printer to print.

The print engine in the main body printer receives image data through the PCI bus from the video inter
face card.

Even while the main body printer is printing the previous print job data or receiving the print data, the print
controller can receive the next command for printing from an application.

The printing system can continuously print Letter/A4-size paper at the maximum print speed of 65 ppm
(400 dpi/600 dpi).

In addition, this system supports the duplex function and the finisher function which enables the use of
five paper trays, stapling, folding and stitching, punching.

-

-

1-2

Chapter 1 Overview

HOME

Copy Mode, Printer Mode and Scanner Mode

The control panel of the main body printer can be used in any mode of the copy mode,
the printer mode or the scanner mode.

Even while the main body printer is printing or copying, the print controller can receive
the next job, and while the print controller is receiving (or transmitting) a print job or a
scan job, you can use the copy mode.

Printer EKC

Printer EKC is a feature to manage the number of prints on the copier.

Setting the Printer EKC feature means that, provided you enter a password previously
established on the printer to request a print job, the copier counts up printouts based
on the EKC counter to know when a preset limit is hit, and also rejects a print request
from a client having no valid password.

E-RDH (Electronic Recirculating Document Handler)

The E-RDH system temporarily stores in memory the print data you select from avail
able options. The main body printer E-RDH is used to print from the print controller.

The E-RDH memory is 64 MB (standard) and can be extended to 192 MB.

When using the E-RDH in the one-sided mode, printing will be performed simulta
neously while the print controller rasterizes the pages in the print job and sends them
to the E-RDH memory. While pages are being printed from the E-RDH memory, the
print controller continues to rasterize the next print job in the sequence.

-

-

1-3

Chapter 1 Overview

HOME

●Print Data Flow

Computer

Print Commands

Spooler

Interface

Print Controller

Application

Printer Driver

Parallel I/F

( IEEE 1284 )

Parallel I/F

Browser HTML

Ethernet I/F

( TCP/IP, IPX/SPX, AppleTalk )

Network Interface Card

ISA bus

Input Buffer

Hard Disk

Main body

printer

PDL Processing ( Rasterization ) / Interpreter

PDL command

Page Memory

PCI bus

E-RDH memory

Print Engine ( Print )

Rasterized image data

Printer status

1-4

●Hardware Configuration

HOME

Basic Configuration

Configuration of the print controller is as follows:

• Architecture: IBM Compatible PC System

• Processor: Intel Celeron 566 MHz

• Memory: 64 MB standard / 192 MB max. (Optional)

• Hard Drive: IDE compatible 2.0 GB min.

●Interface

Do not use the parallel port with the Ethernet interface. Otherwise, a system error may occur.

Parallel

Centronics (IEEE 1284)

Chapter 1 Overview

Ethernet

100BaseTX and 10BaseT

The network interface card is used to connect to the Ethernet. This card is the internal
network interface card which supports multiple protocols on the Ethernet. This card
includes a CPU and flash memory with an upgradable program.

The network interface card supports the following network protocols.

• IPX/SPX (NetWare, Peer to Peer)

• TCP/IP (LPD/LPR, Peer to Peer)

• AppleTalk (EtherTalk)

For guidance in configuring the settings for networks, refer to "Network Setup" in your INSTRUCTION
MANUAL.

Do not use the parallel port with the Ethernet interface. Otherwise, a system errors will occur.

1-5

Chapter 1 Overview

HOME

●Printer Driver

The print controller works according to the condition of the printer driver.

The printer driver can be used on the following OS:

• Windows 95

• Windows 98

• Windows Me

• Windows NT4.0

• Windows 2000

Refer to "Chapter 2 Printer Driver Setup" for instructions regarding printer set up.

(p.2-1)

Refer to "Chapter 3 Printer Driver Functions" for detailed functions of the printer driver.

(p.3-1)

●Page Description Language

PDL (Page Description Language) controls the transfer of information from the computer to the print con
troller.

"PCL5e" comes as the PDL with the print controller.

-

1-6

Chapter 1 Overview

HOME

●Memory

Most of the print controller memory is used for rasterizing images (bitmap extracting process), font cache,
form overlay or other functions. Only a small part of the memory is used for system operation.

The basic memory setting of the print controller is 64 MB. The memory of the print controller can be
expanded to 192 MB maximum.

The more memory in the print controller, the more pages that can be rasterized while waiting for the previ
ous job to print. When Letter/A4 size paper is used, approximately 4,345 KB memory is required to print 1
bit data in 600 dpi.

In addition, the E-RDH memory in the main body printer is used for the print process, which can be
expanded to 192 MB maximum.

For printouts using features such as multiple copies, booklet mode and wait mode, all data about the
entire set of pages rasterized by the print controller (one job) must be stored in the E-RDH memory first.

Therefore, there are occasions when attempting to produce a large number of pages using those features
will not procedure the correct printouts.

If this occurs, installing additional E-RDH memory in the main body printer (copier) is recommended.

Memory Overflow

Depending on the functions selected in the printer driver, occasional memory overflow may occur if the
volume of the print job is too large. In this case the print job is cancelled.

e.g., Booklet, Fold &Stitch, 2 in 1, etc.

-

In case of frequent memory overflow, extending the memory capacity of the main body printer (copier) is
recommended.

Upgrading Memory

To obtain optimum printer performance, memory expansion is recommended.

Contact the nearest Konica service representative for details.

1-7

Chapter 2 Printer Driver Setup

HOME

■ Installation of the Printer Driver ................................. 2-2

■ Test Page Print ........................................................... 2-17

2-1

Chapter 2 Printer Driver Setup

HOME

■Installation of the Printer Driver

To use the printing system, it is necessary to connect it to computers by way of the parallel interface or
Ethernet interface and install the printer driver.

The Printer driver is the program for the print controller which expands the OS functions to control the I/O
of the printing system.

●Before Installation

Models and Environment of Computers

The printing system can be used with Windows-compliant computers.

The print controller includes the printer driver for Windows 95/98/Me/NT/2000.

The printer driver can be installed to computer models as long as Windows 95/98/Me/NT/2000 has been
installed on them to use the printing system.

Please keep the "User Software CD" on hand since it is required to install the printer driver.

When installing the printer driver, a screen may appear that asks the user to select whether the
printer driver file (file to be copied) or a new file that exists in the computer is to be used. If this
screen appears, select use of a new file that already exists in the computer. If a new file is not
used, the OS may not start up properly the next time the OS is started up.

When an old printer driver is installed, make sure to uninstall the printer driver before installing the
new printer driver.
Refer to "Uninstalling the Printer Driver" for instruction regarding uninstalling the printer driver.

(p.2-12)

(p.2-13)

(p.2-15)

2-2

Chapter 2 Printer Driver Setup

HOME

●Installing to Windows 95/98/Me

To install the printer driver to Windows 95/98/Me, perform the following steps.

Please keep the "User Software CD" on hand since it is required to install the printer driver.

1. Turn on the computer and start Windows.

Exit from all active Windows applications, if required.

2. Click the [Start] button of the task bar. Then, select [Settings] from the Start menu to

click [Printers] from the sub-menu.

The [Printers] window will open.

Opening from [My Computer]

To open the [Printers] window, double-click the [Printers] folder after double-clicking the [My Com
puter] icon on the desktop.

3. Double-click the [Add Printer] icon of the [Printers] window.

The [Add Printer Wizard] window will appear for setting the printer.

4. Click the [Next] button.

[How is this printer attached to your computer ?] window will appear.

-

5. Select [Local] and click the [Next] button.

When the printing system is directly connected to a computer in which the printer driver will be
installed, select [Local].

The window to select the printer manufacturer and model will appear.

2-3

Chapter 2 Printer Driver Setup

HOME

When selecting [Network]

When personal computers are connected to a network and you want to print via the network, select
[Network]. In this case, it is necessary to complete the network settings on the network interface
card and on the personal computers. For details, see your network administrator.
For a [Network Printer], type the network path or queue name and click the [Next] button. If you
don't know its name, click the [Browse] button to view available network printers.
Follow the procedure through step 6 to 15.
When the server stores the printer driver as available driver, go to step 13.

6. Click the [Have Disk] button.

The [Install From Disk] window will appear.

7. Click the [Browse] button.

The [Open] window will appear.

8. Set the "User Software CD" on the CD-ROM drive.

9. Select the [oemsetup.inf] file in the "\English\Printer\Win9x_Me" folder of the "User

Software CD" and click the [OK] button.

The [Install From Disk] window will appear.

10. Click the [OK] button.

The next [Add Printer Wizard] window to select the printer manufacturer and model will appear.

2-4

Chapter 2 Printer Driver Setup

HOME

11. Be sure that in the list of [Printers], [Konica IP-511 PCL] is highlighted, then click the

[Next] button.

The next [Add Printer Wizard] window to assign a port will appear.

12. Select the port to which the printing system is connected and click the [Next] button.

Select LPT port when the printing system is used as a local printer.

The next [Add Printer Wizard] window to specify the printer name will appear.

2-5

Chapter 2 Printer Driver Setup

HOME

13. Specify the printer name and click the [Next] button.

Default: [Konica IP-511 PCL]

The next [Add Printer Wizard] window to print the test page will appear.

14. Select whether you will print the print test or not.

Select [Yes (recommended)] to print the test page, or select [No] not to perform it.

15. Click the [Finish] button.

Necessary files will be copied from the "User Software CD" to complete the installation.

The printer driver of the printing system becomes available without restarting your computer.

2-6

Chapter 2 Printer Driver Setup

HOME

●Installing to Windows NT4.0/2000

The installation of the printer driver in Windows 2000 or Windows NT4.0 should be performed by a qualified
system administrator or printer administrator.

The process of installing the printer driver necessitates the User Software CD. Get it ready in advance.

About Printer Administration under Windows 2000 or Windows NT4.0

Since Windows 2000 and Windows NT4.0 are operating systems intended for network operations, they
offer more enhanced security options that other Windows versions.

There are limitations to what you can operate or set up with internal printers depending on the selected
security level (access authorization).

The table following figure shows the permission of the Windows NT compliant printers and its operation
range.

Access Rights Operation Range

No Rights No operations of printers are allowed.

Printing Execution of document printing and the following print conditions of

each document are allowed to be set.

· Operations related to printing
(selection of a paper size and paper tray, etc.)

· Operations related to graphics
(processing of resolution and halftone, etc.)

· Printer functions
(selection of functions particular to the copier)

Document Management · Control of document settings

Full Control · All of "Printing" and "Document Management"

· Pause, restart, reprinting, and deletion of documents

· Pause and restart of the printer and deletion of all documents

· Settings and changes of printer information

· Deletion of the printer

· Settings and changes of printer access rights

After installing the printer driver, set up an appropriate access authorization for the person assigned to
operate the printer.

For guidance in setting up the printer access authorization, refer to "System Guide" for Windows 2000
and Windows NT4.0.

2-7

Chapter 2 Printer Driver Setup

HOME

Installation using [Add Printer]

1. Turn on the computer and start Windows.

Exit from all active Windows applications, if required.

2. Log on as an administrator (or a user entitled to install a printer).

3. Click the [Start] button of the task bar. Then, select [Settings] of the Start menu and

click [Printers] from the sub-menu.

The [Printers] window will open.

Opening from [My Computer]

To open the [Printers] window, double-click the [Printers] folder (or [Control Panel] - [Printers]) after
double-clicking the [My Computer] icon on the desktop.

4. Double-click the [Add Printer] icon of the [Printers] window.

The [Add Printer Wizard] window will appear for adding the printer.

5. In case of Windows 2000, click the [Next] button.

In case of Windows NT4.0, follow steps 6.

6. Select [Local printer] (Windows 2000)/ [My Computer] (Windows NT4.0) and click the

[Next] button.

Windows 2000

When using Windows 2000, the default setting of the [Automatically detect and install my Plug and
Play printer] is "on". For manual installation, turn it "off" by clicking.

When the printing system is directly connected to a computer in which the printer driver will be
installed, select [Local printer] (Windows 2000)/ [My Computer] (Windows NT4.0).

Windows NT4.0 Windows 2000

2-8

Chapter 2 Printer Driver Setup

HOME

Selecting [Network]

When personal computers or workstations are connected to the network and you want to print via
the network, select [Network printer] (Windows 2000) / [Network printer server] (Windows NT4.0).
In this case, it is necessary to complete the network settings on the network interface card and on
the personal computers.
For a [Network printer] (Windows 2000) / [Network printer server] (Windows NT4.0), type the net
work path or queue name and click the [Next] button. If you don't know its name, click the [Browse]
button to view available network printers then follow steps 7 to 20.

-

7. Select or create the Printer Port to install the printer controller and click the [Next]

button.

Windows NT4.0 Windows 2000

The next [Add Printer Wizard] window will appear.

8. Click the [Have Disk] button.

The [Install From Disk] window will appear.

9. Click the [Browse] button.

The [Open] window will appear.

10. Set the "User Software CD" on the CD-ROM drive.

11. Select the [oemsetup.inf] file in the "\English\Printer\WinNT_2000" folder of the "User

Software CD" and click the [OK] button.

The [Install From Disk] window will appear.

2-9

Chapter 2 Printer Driver Setup

HOME

12. Click the [OK] button.

The next [Add Printer Wizard] window to select the manufacturer and model of the printer will appear.

In the list of [Printers], [Konica IP-511PCL] will be highlighted.

Windows NT4.0 Windows 2000

13. Click the [Next] button.

The next [Add Printer Wizard] window to specify the printer name will appear.

Windows NT4.0 Windows 2000

14. Specify the printer name and click the [Next] button.

Default: [Konica IP-511 PCL]

The next [Add Printer Wizard] window will appear.

Windows NT4.0 Windows 2000

2-10

Chapter 2 Printer Driver Setup

HOME

15. Select [Do not share this printer] (Windows 2000) / [Not shared] (Windows NT4.0) or

[Share as] (Windows 2000) / [Shared] (Windows NT4.0) by clicking.

If you choose [Share as] (Windows 2000) / [Shared] (Windows NT4.0), specify the share name of the
printer.

Default: [Konica IP]

16. Click the [Next] button.

The next [Add Printer Wizard] window to perform the print test will appear.

Windows NT Windows 2000

17. Select whether you will perform the print test or not.

Select [Yes (recommended)] (Windows 2000) / [Yes] (Windows N4.0) to print the test page, or select
[No] not to print it.

18. Click the [Next] button.

The [Add Printer Wizard] completion window will appear.

19. Click the [Finish] button.

In case of Windows NT4.0, necessary files will be copied from the "User Software CD" to complete the
installation.

The printer driver of the printing system becomes available without restarting your computer.

If you are using Windows 2000, [Digital Signature Not Found] window will appear. Follow steps 20.

20. Click the [Yes] button.

Necessary files will be copied from the "User Software CD" to complete the installation. The printer
driver of the printing system becomes available without restarting your computer. If you click the [No]
button, the installation will not complete.

2-11

Chapter 2 Printer Driver Setup

HOME

●Uninstalling the Printer Driver (Windows 95/98/Me)

To uninstall the printer driver, perform the following steps.

1. Turn on the computer and start Windows.

Exit from all active Windows applications, if required.

2. Click the [Start] button of the task bar. Then, select [Settings] of the Start menu to

click [Printers] from the sub-menu.

The [Printers] window will open.

Opening from [My Computer]
To open the [Printers] window, double-click the [Printers] folder (or [Control Panel] - [Printers]) after
double-clicking the [My Computer] icon on the desktop.

3. Click the printer icon of the [Printers] window and press [Delete] key.

The [Printers] dialog box will open.

4. Click the [Yes] button.

5. Restart the computer.

The printer driver will delete/uninstall.

If problems or incompatibilities are uncovered when updating the driver, chances are older driver
files are not yet deleted. In this case you need to delete them. For instructions regarding deletion of
old driver files, refer to your Windows User's Manual.

2-12

Chapter 2 Printer Driver Setup

HOME

●Uninstalling the Printer Driver (Windows NT4.0)

To uninstall the printer driver, perform the following steps.

1. Turn on the computer and start Windows.

Exit from all active Windows applications, if required.

2. Click the [Start] button of the task bar. Then, select [Settings] of the Start menu to

click [Printers] from the sub-menu.

The [Printers] window will open.

3. Click the printer icon of the [Printers] window and press [Delete] key.

The [Printers] dialog box will open.

4. Click the [Yes] button.

5. Click the [Start] button of the task bar. Then, select [Settings] of the Start menu to

click [Control Panel] from the sub-menu.

The [Control Panel] window will open.

6. Double click the [Services] icon of the [Control Panel] window.

[Service] window will appear.

7. Select the [Spooler] in the list and click the [Stop] button.

2-13

Chapter 2 Printer Driver Setup

HOME

8. Search for file with [ip511] at the beginning of file name in the "\Winnt" folder and

delete them.

If you cannot delete file, log off once and log on again.

9. Select the [Spooler] in the list of [Services] window, and click the [Start] button.

10. Restart the computer.

The printer driver will delete/uninstall.

2-14

Chapter 2 Printer Driver Setup

HOME

●Uninstalling the Printer Driver (Windows 2000)

To uninstall the printer driver, perform the following steps.

1. Turn on the computer and start Windows.

Exit from all active Windows applications, if required.

2. Click the [Start] button of the task bar. Then, select [Settings] of the Start menu to

click [Printers] from the sub-menu.

The [Printers] window will open.

3. Click the printer icon of the [Printers] window and press [Delete] key.

The [Printers] dialog box will open.

4. Click the [Yes] button.

5. Click the [Start] button of the task bar. Then, select [Settings] of the Start menu to

click [Control Panel] from the sub-menu.

The [Control Panel] window will open.

6. Double click the [Services] icon of the [Control Panel]-[Administrative Tools] window.

[Service] window will appear.

7. Select the [Print Spooler] in the list and click the [Stop] button.

2-15

Chapter 2 Printer Driver Setup

HOME

8. Search for file with [ip511] at the beginning of file name in the "\Winnt" folder and

delete them.

If you cannot delete file, log off once and log on again.

9. Select the [Print Spooler] in the list of [Services] window, and click the [Start] button.

10. Restart the computer.

The printer driver will delete/uninstall.

2-16

Chapter 2 Printer Driver Setup

HOME

■Test Page Print

You can check whether the printer driver functions properly by performing a test page after the printer
driver has been installed.

To print the test page, perform the following steps.

1. Click the [Start] button of the task bar. Then, select [Settings] from the Start menu

and click [Printers] in the sub menu.

The [Printers] window will open.

Opening from [My Computer]

To open the [Printers] window, double-click the [Printers] folder (or [Control Panel] - [Printers]) after
double-clicking the [My Computer] icon on the desktop.

2. Right-click [Konica IP-511 PCL] icon and click [Properties].

[Konica IP-511PCL Properties] window will appear.

3. Select [General] of [Konica IP-511 PCL Properties] and click the [Print Test Page] but

ton.

A test page print will start and a screen to confirm print end will appear.

4. Click the [Yes] button.

A test page print will end.

Windows 95/98/Me

-

In case of Windows NT/2000, the [General] tabs is displayed differently, but you can find and click
the same [Print Test Page] button.

2-17

Chapter 2 Printer Driver Setup

HOME

Screen Fonts

The User Software CD includes [Screen Fonts], or TrueType fonts other than fonts which Windows comes
standard with. With these fonts installed in your system, you can go with a WYSIWYG approach with both
printer fonts and TrueType fonts. The use of screen fonts may also be conductive to increase in print per­formance.

To install the screen fonts (Windows 95/98/Me/NT/2000)

1. From the task bar, select [Start]-[Settings]-[Control Panel].

2. Double-click the [Fonts] icon.

3. Select [File]-[Install New Font].

[Add Fonts] window will appear.

4. Select the fonts you want to add from "\English\Screenfonts" in the User Software

CD.

5. Check the [Copy fonts to Fonts folder] check box.

6. Click the [OK] button.

2-18

Chapter 3 Printer Driver Functions

HOME

■ Printer Driver Functions .............................................3-2

3-1

Chapter 3 Printer Driver Functions

HOME

■Printer Driver Functions

Printer driver is the program which is installed in Windows-compliant computers for using and setting up
the printing system. It expands the OS functions to control the I/O of the printing system.

This chapter fully describes the various functions of the printer driver.

●Compliant OS

The printer driver can be used on the following OS:

• Windows 95

• Windows 98

• Windows Me

• Windows NT4.0

• Windows 2000

Refer to "Chapter 2 Printer Driver Setup" for installation of the Printer Driver.

(p.2-1)

3-2

Chapter 3 Printer Driver Functions

HOME

●Properties

You have two ways of selecting or changing settings through the printer driver.

1. The first way is by going through [Start] - [Settings] - [Printers] - [Konica IP- 511 PCL]

- [Properties].

Or, you can select [Control Panel] - [Printers].

If you are using Windows NT4.0, [Start] - [Settings] - [Printers] - [Konica IP- 511 PCL] - [Konica IP- 511
PCL Default] is also available excluding [Setup] and [Options].

In case of Windows 2000, [Start] - [Settings] - [Printers] - [Konica IP- 511 PCL] - [Konica IP- 511 PCL
Printing Preferences] is also available excluding [Setup] and [Options].

2. The second way is to use applications to make settings each time you need to pro

duce printouts.

In advance, check to make sure of [Printer Name] by selecting [File] - [Print] - [Print Dialog] on the
application in use.

Settings made in the first way are effective when getting printouts, whatever the application.

Settings made in the second way are effective only when the corresponding application is running. When
launching the application next time, settings made by going though [Start] - [Settings] - [Printers] are
applied.

Some of the interfaces to tabs and others are displayed differently by OSs.

Also, among the tabs there are some that are not shown depending on settings.

"Konica IP- 511 PCL" is the default printer name.

A different name may be given to the printer icon depending on the system configurations or settings.

Refer to "Chapter 4 Control Panel Setup" for how to perform printer settings from the control panel of the
main body printer.

(p.4-1)

-

3-3

Chapter 3 Printer Driver Functions

HOME

Windows 95/98/Me

1. Click [Start]-[Settings]-[Printers], right-click the [Konica IP-511 PCL] icon, and then

click [Properties].

The following tabs will appear:

[General], [Details], [Color Management], [Sharing], [Paper], [Cover], [Graphics], [Options], [Water
marks], [Overlay], [Setup] and [About].

-

[OK]

When the [OK] button is clicked, settings are saved and the properties screen closes.

[Cancel]

When the [Cancel] button is clicked, settings are canceled and the properties screen closes.

[Apply]

When the [Apply] button is clicked, the present tab settings are saved. This button is used when set
tings continue to be performed using other tabs, and the present tab settings are registered before
using other tabs.

[Help]

When the [Help] button is clicked, Help information will appear. As well, when you click [Help] button,
which appears when right-clicking a desired item, pop-up help for the item appears.

-

3-4

Chapter 3 Printer Driver Functions

HOME

Windows NT4.0/2000

1. Click [Start]-[Settings]-[Printers], right-click the [Konica IP-511 PCL] icon, and then

click [Properties].

The following tabs will appear, then settings of the printer ports and options should be made:

[General], [Advanced], [Ports], [Scheduling], [Sharing], [Security], [Setup] and [About].

2. Click [Start]-[Settings]-[Printers], right-click the [Konica IP-511 PCL] icon, and then

click [Document Defaults] or [Printing Preferences].

The following tabs will appear:

[Paper], [Cover], [Graphics], [Options], and [About].

[OK]

When the [OK] button is clicked, settings are saved and the properties screen closes.

[Cancel]

When the [Cancel] button is clicked, settings are canceled and the properties screen closes.

[Apply]

When the [Apply] button is clicked, the present tab settings are saved. This button is used when set
tings continue to be performed using other tabs, and the present tab settings are registered before
using other tabs.

[Help]

When the [Help] button is clicked, Help information will appear. As well, when you click [Help] button,
which appears when right-clicking a desired item, pop-up help for the item appears.

-

3-5

Chapter 3 Printer Driver Functions

HOME

Setting details of each tab

[General] tab

Enables printing a test page.

[Details] tab

Performs settings related to ports, drivers, time-out and spooling.

[Sharing] tab

Performs share settings of a printer.

[Paper] tab

Performs settings related to Copies, Collate, Orientation, Paper Size, Paper Source, Duplex, Output
Tray, Media Type, Password Print and Features to use the main body printer functions.

[Cover] tab

Performs settings related to front/back cover, intersheet and PI cover sheet.

[Graphics] tab

Performs settings related to Halftones, Brightness, Contrast and Negative.

[Options] tab

Performs settings related to Layout and TrueType options.

[Watermarks] tab

Performs settings related to definitions of Watermark.

[Overlay] tab

Performs settings related to Symbol, Shade, Size, and Position of Form Overlay.

[Setup] tab

Performs settings related to optional accessories and installed memory.

[About] tab

Shows some system information and the printer driver version.

3-6

Chapter 3 Printer Driver Functions

HOME

●Function List

The following list summarizes functions (Setting Items) which can be set by using the printer driver of the
printing system.

Some of the interfaces to tabs and others are displayed differently by OSs.

Also, among the tabs there are some that are not shown depending on settings.

Refer to "Description of Functions" for details of each function (Setting Items).

(p.3-13)

In addition, refer to "Chapter 4 Control Panel Setup" for how to perform printer settings from the LCD
touch screen.

(p.4-1)

Classification Setting Items Set Value Description 95/98/MeNT4.0/

Paper tab Copies 1 to 9999 This function is used to specify

Collate On / Off This function is used to specify

Orientation Por trait

Landscape

Paper size 5.5" x 8.5"

8.5" x 11"

8.5" x 14"
11" x 17"
A3 - 297 x 420 mm
A4 - 210 x 297 mm
A5 - 148 x 210 mm
A6 - 105 x 148 mm
B4 - 250 x 354 mm
B5 - 182 x 257 mm
B6 - 128 x 182 mm
F4 - 8.0 x 13 inches
8K - 267 x 390 mm
16K - 195 x 267 mm

5.5" x 8.5" W

8.5" x 11" W
11" x 17" W
A3W- 297 x 420 mm
A4W - 210 x 297 mm
A5W - 148 x 210 mm
B4W - 250 x 354 mm
B5W - 182 x 257 mm

Media Type Plain paper

Thin paper
Thick paper
Tab sheet
2nd Original
OHP [Transparency]
OHP-Interleave
[Blank]
OHP-Interleave [Print]
User defined type

Paper Source Auto Select

Bypass tray
Tray 1
Tray 2
Tray 3
Tray 4(LCT)

the number of copies to be
printed.

how to output multiple pages.

This function is used to specify
orientation.

The paper sizes you can set
differ depending on
specifications in the country and
trays. Refer to the operating
manual of the copier for details.

This function is used to specify
the paper type to be printed
from the Bypass tray.

This function is used to specify
the paper tray.

oo

oo

oo

oo

oo

oo

2000

3-7

Chapter 3 Printer Driver Functions

HOME

Classification Setting Items Set Value Description 95/98/Me NT4.0/

Paper tab

(Features)

Graphics tab Halftoning Solid Black and White

Duplex None

Output Tray Default

Password Pri nt Off/On This function is used to set the

Settings - Press this button to open

Restore
Defaults

Offset Off

Staple None

Combination None

Punch Off

Fold & Stitch None

Wait Mode None

Image Shift Off

Output Order FaceDown

Brightness -100 to 100 This function is used to make an

Contrast -100 to 100 This function is used to make an

Negative Off/On This function is used to print

Restore
Defaults

Flip on long edge
Flip on short edge

Sub Tray
Main Tray

- This function is used to return

On

Single Left
Double Top
Double Left
Single Right
Double Right

Booklet
Booklet-Right
2-in-1
2-in-1 Repeat

Left
To p
Right

Fold Only
Fold & Stitch
DM-Fold

Wait
Wait with Proof

On

FaceUp

Patterned Grays
Diffused Grays

- This function is used to return

This function is used to set the
mode of Duplex printing.

This function is used to specify
the output tray.

password print .

[Password Print Settings] dialog.
Enter your User ID and
password.

the settings to default settings.

This function is used to specify
offset mode.

This function is used select the
staple position.

This function is used to arrange
page layout.

This function is used to select
the punch position.

This function is used to arrange
the finishing method for printed
papers.

This function is used to confirm
setting or to proof a print out
before starting the entire print
job.

This function is used to create a
new binding margin on papers.

This function is used to select
the method of the image
processing for halftones.

adjustment on halftones.

adjustment on halftones.

image with reverse tone.

the settings to default settings.

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

2000

3-8

Chapter 3 Printer Driver Functions

HOME

Classification Setting Items Set Value Description 95/98/Me NT4.0/

Options tab Layout - Pages

per sheet

Layout - Scaling

Tr u eTy p e
options

Chapter Off/On This function is used to chapter. oo

Chapter ­Page s

HD-105 Image
Storage

HD-105 Image
Storage ­Settings

Restore
Defaults

Watermarks tab Watermark -

Te xt

1 / 2 / 4 / 6 / 9 / 16 This function is used to print

10 to 400 This function is used to specify

Outline soft fonts
Bitmap soft fonts
Rasters

- This function is used to specify

Off/On
Store
Store and Print

- Press this button to open [Job

- This function is used to return

None
CONFIDENTIAL
COPY
DRAFT
FILE COPY
FINAL
PROOF
TOP SECRET

more than one page of a
document on one sheet of
paper.

the enlargement or reduction
rate of image in percentage.

This function is used to specify
how to output TrueType fonts.

the page to be chaptered.

This function is used to storage
the image.

Combination Print Settings]
dialog. Enter your Job ID and
password.

the settings to default settings.

This function is used to specify
the watermark.

oo

oo

oo

oo

oo

oo

oo

oo

2000

Watermark ­Page

Watermark -
Top/Bottom

Watermark ­Count

Watermark -
Separation

All but first page
All pages
First page only
No watermark

To p
Bottom

- This function is used to specify

- This function is used to specify

This function is used to specify
the page on which a selected
watermark is printed.

This function is used to specify
whether to print watermarks in
the foreground or background.

how many copies of the
watermark on each page.

how far apart multiple
watermarks on the page.

oo

oo

oo

oo

3-9

Chapter 3 Printer Driver Functions

HOME

Classification Setting Items Set Value Description 95/98/Me NT4.0/

Watermarks tab Font - N ame Arial

Font - Color Black

Font - Darkness 0 to 100 This function is used to control

Font - Bold Off/On This function is used to apply

Font - Italic Off/On This function is used to apply

Font - Size 1 to 300 This function is used to specify

Position Automatically

Position - Angle 0 to 360 This function is used to specify

Adjustment Move

Show layout
Show single
page

Arial Black
Courier New
Symbol
Ta h om a
Times New Roman
Wingdings, etc.

Dark Grey
Light Grey
White

User defined
(X: 0 to 100)
(Y: 0 to 100)

Rotate

- This function is used to preview

This function is used to specify
the font of the selected
watermark.
(A list of the fonts installed in the
PC is displayed.)

This function is used to specify
the color of the selected
watermark.

the density of the watermark
text.

bold formatting to the watermark
text.

italic formatting to the
watermark text.

the font size of the selected
watermark.

This function is used to specify
the position of the selected
watermark.

the control the "lean" angle of
the selected watermark.

This function is used to specify
the type of adjustment.

your settings in layout with the
current watermark settings.

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

2000

3-10

New - This function is used to create

Delete - This function is used to delete

Restore
Defaults

Overlay tab Symbol - File None (default) This function is used to specify a

Symbol - Page All but first page

- This function is used to return

All pages
First page only
No overlay

the custom watermark.

the selected watermark.

the settings to default settings.

BMP file (Microsoft Windows
standard) as an overlay form
printed on paper.

This function is used to specify
the page on which a selected
overlay form is printed.

oo

oo

oo

oo

oo

Chapter 3 Printer Driver Functions

HOME

Classification Setting Items Set Value Description 95/98/Me NT4.0/

Overlay tab Symbol - Select

Bitmap

Shade - Color Black This function is used to specify

Shade ­Darkness

Size Automatically

Position Automatically

Show layout
Show single
page

Restore
Defaults

Setup tab Available

options

Installed
options

Add - Add the options to the list of

Remove - Remove the options from the list

Installed
memory

- This function is used to register

0 to 100 This function is used to specify

User defined
(10 to 100)

User defined
(X: 0 to 100)
(Y: 0 to 100)

- This function is used to preview

- This function is used to return

FS-110 Finisher
FS-210 Finisher
HD-105
LT-4 0 2
Large Capacity Tray
LT-4 1 2
Large Capacity Tray
PI-110 Sheet Feeder
PK-110 Punch Unit

- Display the selected/added

64 MB
128 MB
192 MB

Bitmap image for overlay.

color for a bitmap image. Only
Black is selectable.

Darkness of a bitmap image for
overlay.

This function is used to specify
the magnification rate of overlay
image in percentage.

This function is used to specify
the position of overlay image.

your settings in layout with the
current overlay settings.

the settings to default settings.

This function is used to specify
the optional device installed on
the main body printer (copier).

options from the list of available
options.

installed options.

of installed options.

This function is used to specify
the installed memory.

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

oo

2000

3-11

Chapter 3 Printer Driver Functions

HOME

Classification Setting Items Set Value Description 95/98/Me NT4.0/

Cover tab Front Cove r Off/On

Front Cover ­Tr ay

Back Cover Off/On

Back Cover ­Tr ay

Sheet Insertion Off

Sheet Insertion

- Pages

Sheet Insertion

- Tray

Sheet Insertion

- Advanced

Blank
Printed

Bypass tray
Tray 1
Tray 2
Tray 3
Tray 4 ( LC T )

Blank
Printed

Bypass tray
Tray 1
Tray 2
Tray 3
Tray 4 ( LC T )

On
Blank
Printed

- This function is used to specify

Bypass tray
Tray 1
Tray 2
Tray 3
Tray 4 ( LC T )

Off/On This function is used to perform

This function is used when front
covers are used.

This function is used to select a
paper source used for front
covers.

This function is used when back
covers are used.

This function is used to select a
paper source used for back
covers.

This function is used when
intersheets are used.

the page to be inserted.

This function is used to select a
paper source used for
intersheets.

advaced settings.

oo

oo

oo

oo

oo

oo

oo

oo

2000

Sheet Insertion

- Settings

PI Cover Sheet Off/On This function is used when PI

PI Front Cover None

PI Back Cover None

Restore
Defaults

About tab - - This function is used to show

- Press this button to open [Sheet

PI Tray1
PI Tray2

PI Tray1
PI Tray2

- This function is used to return

Insertion Advanced Settings]
dialog. Specify the page to be
inserted, per each tray.

cover sheets are used.

Specify the tray you intend to
use with PI Front Cover Sheet.

Specify the tray you intend to
use with PI Back Cover Sheet.

the settings to default settings.

version information of the printer
driver.

oo

oo

oo

oo

oo

oo

3-12

Chapter 3 Printer Driver Functions

HOME

●Description of Functions

Functions (setting items) that can be set with the Printer Driver are summarized in the tab order.

Refer to "Properties" for how to indicate each tab in the properties.

(p.3-3)

Some of the interfaces to tabs and others are displayed differently by OSs.

Also, there are some tabs that are not shown, depending on settings.

Refer to "Chapter 4 Control Panel Setup" for how to perform printer settings from the control panel of the
main body printer.

(p.4-1)

3-13

Chapter 3 Printer Driver Functions

HOME

[Paper] Tab

Copies

This function is used to specify the number of copies to be printed.

Click the [▲] or [▼] button or directly enter the number of copies from the keyboard (1-9999).

Default is 1.

Collate

This function is used to specify how the copier outputs multiple pages.

When [Collate] is checked (on, Default), after one copy of all pages has been printed, the second copy,

the third copy, ..... are printed.

When [Collate] is not checked (off), the required number of the first page are printed. Then, the required

pieces of the second page, the third page, .... are printed.

It is recommended that you select [Collate] on the [Paper] tab rather than select it for each application.

collate on collate off

2

1

2

1

Orientation

This function is used to specify orientation.

Select either [Portrait] or [Landscape].

Default is Portrait.

2

2

1

1

3-14

Chapter 3 Printer Driver Functions

HOME

Paper Size

You can select a paper size from the list shown by clicking the [▼] button.

Default is [A4].

Paper size to be selected

5.5" x 8.5"

8.5" x 11"

8.5" x 14"

11" x 17"

A3 - 297 x 420 mm

A4 - 210 x 297 mm

A5 - 148 x 210 mm

A6 - 105 x 148 mm

B4 - 250 x 354 mm

B5 - 182 x 257 mm

B6 - 128 x 182 mm

F4 - 8.0 x 13 inches

8K - 267 x 390 mm

16K - 195 x 267 mm

5.5" x 8.5" W

8.5" x 11" W

11" x 17" W

A3W- 297 x 420 mm

A4W - 210 x 297 mm

A5W - 148 x 210 mm

B4W - 250 x 354 mm

B5W - 182 x 257 mm

The paper sizes selected automatically according to the job settings:

5.5 x 8.5R / 8.5 x 11R / A4R / A5R / A6R / B5R / B6R / F4R /

5.5 x 8.5WR / 8.5 x 11WR / A4WR / A5WR / B5WR

3-15

Chapter 3 Printer Driver Functions

HOME

Media Type

Select the paper type from the list shown by clicking the [▼] button.

Default is [Plain paper].

The settings you can select are as follows:

[Plain paper], [Thin paper], [Thick paper], [Tab sheet], [2nd Original], [OHP (Transparency)], [OHP-Inter
leave (Blank)], [OHP-Interleave (Print)] or [User defined type].

The settings except [OHP-Interleave (Blank)] and [OHP-Interleave (Print)] are used for the paper type set
on [Bypass tray].

When [2nd Original] or [OHP (Transparency)] is selected, use [Bypass tray] in [Paper Source].

Paper Source

Select the paper source from the list shown by clicking the [▼] button.

The settings you can select are as follows:

[Auto Select], [Bypass tray], [Tray1], [Tray2], [Tray3] or [Tray4(LCT)]. Default is [Auto Select].

When [Auto Select] is chosen, a paper tray with paper which a user specified from their application by
using [Properties] of the printing system is automatically selected.

[Tray4(LCT)] can not be selected when [LT-402] (Large Capacity Tray) or [LT-412] (Large Capacity Tray)
is not available.

When [OHP-Interleave (Blank)] or [OHP-Interleave (Print)] is selected, specify the paper tray in which the
interleaf sheet is loaded from Tray 1, 2 or 3..

Available paper size in each paper tray is shown in the following table:

-

Paper Source / Duplex Available paper size

Tray 1
Tray 2
Tray 3

Tray 4 ( L CT )

(LT-402)

Tray 4 ( L CT )

(LT-412)

Bypass tray 8.5" x 11" / 5.5" x 8.5" / 8.5" x 14" / 11" x 17" / A3 / A4 / A5 /

Duplex 8.5" x 11" / 5.5" x 8.5" / 8.5" x 14" / 11" x 17" / A3 / A4 / A5 /

8.5" x 11" / 5.5" x 8.5" / 8.5" x 14" / 11" x 17" / A3 / A4 / A5 /
A6 / B4 / B5 / B6 / F4 / 8.5" x 11" W / 5.5" x 8.5" W / 11"x 17"
W / A3W / A4W / A5W / B4W / B5W / 16K / 8K

8.5" x 11" / A4 / B5 / F4 / 8.5" x 11" W / A4W / B5W / 16K / 8K

8.5" x 11" / 8.5" x 14" / 11" x 17" / A3 / A4 / B4 / B5 / F4 /

8.5" x 11" W / 11" x 17" W / A3W / A4W / 16K / 8K

A6 / B4 / B5 / B6 / F4 / 16K / 8K / 8.5" x 11" W / 11" x 17" W
/ A3W / A4W / A5W / B4W / B5W

B4 / B5 / F4 / 16K / 8K / 8.5" x 11" W / 5.5" x 8.5" W / 11" x
17" W / A3W / A4W / A5W / B4W / B5W

3-16

Chapter 3 Printer Driver Functions

HOME

Duplex

Select the Duplex setting from the list shown by clicking the [▼] button.

The settings you can select are as follows:

[None], [Flip on long edge] or [Flip on short edge]

Default is [None].

Flip on long edge

Prints paper so that heads of both sides become upward.

Flip on short edge

Prints paper so that the head of the front becomes the foot of the back.

Output Tray

[Default], [Sub Tray] or [Main Tray] can be selected from the list shown by clicking the [▼] button.

If you select [Default], the main body printer will use [Main Tray] automatically.

[Sub Tray] can not be selected in the following cases:

• When Finisher is not available

• When [On] is selected in [Features] - [Offset]

• When settings other than [None] are selected in [Features] - [Fold & Stitch]

• When settings other than [None] are selected in [Features] - [Staple]

• When settings other than [None] are selected in [Features] - [Punch]

• When [PI Cover Sheet] is selected in [Cover] tab

3-17

Chapter 3 Printer Driver Functions

HOME

Password Print

When [Password Print] is checked, you can use password print (confidential output) function to print the
confidential documentation.

In this method, both settings on computer and the operation from the LCD touch panel are used. Default
is [Off].

Refer to "Chapter 4 Password Print (Confidential Output)" for password print procedure.

(p.4-22)

Settings

Open the [Password Print Settings] dialog for password setting.

Enter your user ID in the [UserID] text box. You can select any 8-digit number for the User ID.

Enter your password in the [Password] text box. You can select any 8-digit number or character for the
Password.

When the Password is entered, the password of [Job Combination Print Settings] dialog for Password
Print is replaced with the password of [Password Print Settings] dialog.

You must enter the same password (8 digits or less) in the User ID text box that you set up on the
copier for Printer EKC.
If you do not enter the correct password or if you leave the User ID text box blank, the print job is
not performed and is registered as Unsuccessful Jobs. When in doubt about the password for
Printer EKC, ask your system administrator.

Features

Features use the special functions of the main body printer, with which you can set up various printing and
finishing methods.

When you select the function you would like to use from the upper list, the actual setting of the function
you selected will be shown on the lower box.

You can select the other setting of the function you selected from the list shown by clicking the [▼] button
of the lower box.

Features you can select are as follows:

3-18

Chapter 3 Printer Driver Functions

HOME

Offset Off / On

Staple None / Single Left / Double Top / Double Left / Single Right / Double

Right

Combination None / Booklet / Booklet-Right / 2-in-1 / 2-in-1 Repeat

Punch Off / Left / Top / Right

Fold & Stitch None / Fold Only / Fold & Stitch / DM-Fold

Wait Mode None / Wait / Wait with Proof

Image Shift Off / On

Output Order FaceDown / FaceUp

Features - Offset

[On] offsets each copied set upon exit.

If you are using printing page1, 2 and 3:

page 1 page 2 page 3

3 sets

Offset OFF

(Collate ON only)

3 sets
2 sets
1 set

Offset ON

(Collate ON)

2 sets

1 set

Offset ON

(Collate OFF)

[Offset] can not be performed in the following cases:

• When Finisher is not available

• When [A6] is selected in [Paper size]

• When settings other than [None] are selected in [Features] - [Fold & Stitch]

• When [Sub Tray] is selected in [Output Tray]

3 sets

2 sets

1 set

3-19

Chapter 3 Printer Driver Functions

HOME

Features - Staple

[Single-Left], [Double Top] or [Double Left] makes staple each set of copies and output to the tray of the
finisher.

Stapling is performed as shown for the following orientations:

Single Left (Portrait) Single Left (Landscape)

Double Top (Portrait) Double Top (Landscape)

Double Left (Portrait) Double Left (Landscape)

Single Right (Portrait) Single Right (Landscape)

Double Right (Portrait) Double Right (Landscape)

[Staple] cannot be performed in the following cases:

• When Finisher is not available

• When [A6] or [B6] is selected in [Paper size]

• When [Thick Paper], [OHP (Transparency)], [OHP-Interleave (Blank)], [OHP-Interleave (Print)]

is selected in [Media Type]

• When [Booklet] or [Booklet-Right] is selected in [Features] - [Combination]

• When settings other than [None] are selected in [Features] - [Fold & Stitch]

• When [Sub Tray] is selected in [Output Tray]

3-20

Chapter 3 Printer Driver Functions

HOME

Features - Combination

The settings you can select are as follows:

[None], [Booklet], [Booklet-Right], [2-in-1] or [2-in-1 Repeat]

Default is [None].

[Booklet] prints paper so that booklets are made when it is folded into two.

1 2 7 8

7

8

1

2

5

6

3

4

A4/B5/A5 A3/B4/A4 A3/B4/A4

[2-in-1] setting is, available which prints out two-page data on one sheet of paper. Two page data is
printed out on a sheet of paper twice as large as the selected size of paper.

2-in-1

1 212

e.g., 2 pages of A4-size paper

Prints 2 pages onto a A3-size paper

2-in-1
Repeat

1 112

e.g., 2 pages of A4-size paper

22

Prints a page twice onto a A3-size paper

[Combination] can not be selected in the following cases:

• When [Collate] is not selected in [Copies]

• When [8.5" x 14"], [11" x 17"], [A3], [A6], [B4], [B6], [F4], [8K], [16K], [11" x 17" W], [A3W], or

[B4W] is selected in [Paper size]

3-21

Chapter 3 Printer Driver Functions

HOME

[Booklet] or [Booklet-Right] can not be performed in the following cases:

• When settings other than [None] are selected in [Features] - [Staple]

• When [Back Cover] and/or [Sheet Insertion] are/is selected in [Cover] tab

• When [OHP (Transparency)], [OHP-Interleave (Blank)], [OHP-Interleave (Print)] or [Tab sheet] is

selected in [Media Type]

[2-in-1] or [2-in-1 Repeat] can not be performed in the following cases:

• When [Back Cover], [Front Cover] and/or [Sheet Insertion] are/is selected in [Cover] tab

• When [OHP-Interleave (Blank)] or [OHP-Interleave (Print)] is selected in [Media Type]

3-22

Chapter 3 Printer Driver Functions

HOME

Features - Punch

[Left], [Top] punches each set of copies and outputs to the tray of the finisher.

Punching is performed as shown for the following orientations:

Left (Portrait) Left (Landscape)

Top (Portrait) Top (Landscape)

Right (Portrait) Right (Landscape)

[Punch] can not be performed in the following cases:

• When Finisher is not available

• When [Thick Paper], [Tab Sheets], [OHP (Transparency)], [OHP-Interleave (Blank)], [OHP-Inter

leave (Print)] is selected in [Media Type]

• When [Fold Only] or [Fold&Stitch] are selected in [Features] - [Fold & Stitch]

• When [Sub Tray] is selected in [Output Tray]

• The following combination is selected

e.g., [Staple - Double Left] and [Double Right]

-

3-23

Chapter 3 Printer Driver Functions

HOME

With target papers set in multiple trays, the [Punch] feature can be set from the driver, but there are
occasions where papers are output without being punched depending on the settings of the copier.
Causative Setting Examples:

• [Front Cover], [Back Cover] or [Sheet Insertion] is selected from the [Cover] tab.

• [Booklet] or [Booklet-Right] is selected from [Combination] on the [Paper] tab.

• Multiple paper sizes are specified from within an application.

For the settings of the copier, contact the nearest Konica service representative.

Refer to the following diagram for the paper size, punching and punching & stapling combination.

Available paper size for punching / punching & stapling combination

output paper

size

5.5" x 8.5" O OXXXX

8.5" x 11" O O O O OX

8.5" x 14" O OXXXX

11" x 17" O O O O OX

A3 O O O O O O

A4 O O O O O O

A5 OXXXXX

A6 XXXXXX

B4 O O OXOX

B5 O O OXOX

B6 XXXXXX

F4 (8.0" x 13") O OXXXX

8K O O OXOX

16K O O OXOX

punching punching &

2 holes 3 holes 4 holes

stapling

punching punching &

stapling

punching punching &

stapling

3-24

indefinite /

wide paper

XXXXXX

Chapter 3 Printer Driver Functions

HOME

Features - Fold & Stitch

You can make the following finish settings:

[Fold Only] foldes each set of copies and outputs to the tray of the finisher.

[Fold & Stitch] foldes and stitches each set of copies and outputs to the tray of the finisher.

[DM-Fold] lets output sheets be folded into three equal, smaller folds and be output to the tray of the fin
isher.

Fold & Stitch Fold Only DM-Fold

-

[Fold & Stitch] cannot be performed in the following cases:

• When [FS-210 Finisher] is not available

• When [Collate] is not selected in [Copies]

• When [A6] is selected in [Paper size]

• When [Thick Paper], [Tab Sheets], [OHP (Transparency)], [OHP-Interleave (Blank)], [OHP-Inter

leave (Print)] is selected in [Media Type]

• When [On] is selected in [Features]-[Offset], [Features]-[Staple] and/or [Features]-[Punch]

Features - Wait Mode

[Wait] enables checking of the current job settings on the LCD touch screen of the main body printer

[Wait with Proof] enables checking of the current job settings on the LCD touch screen of the main body
printer and to see how the printed job will look before printing out multiple sets.

Refer to "Chapter 4 Print Job - Check".

(p.4-18)

Features - Image Shift

[On] creates a new binding margin on print papers.

You can set the value of new binding margin via the LCD touch screen of the main body printer.

Output Order

Determines whether to output sheets with their print surface facing up or down.

Restore Defaults

By clicking the [Restore Defaults] button, the [Paper] tab settings return to defaults.

-

3-25

Chapter 3 Printer Driver Functions

HOME

[Cover] Tab

Front Cover

You can select this setting when using a different paper for the front covers from that of the body of the
booklet (colored, for example). [Front Cover] inserts a sheet to the top of each set of copies as a Front
cover.

When [Front Cover] is checked, you can select [Printed] or [Blank].

[None], [Printed], [Blank]

Default is [None]

• When [Blank] is selected, nothing is printed on the front cover.

• When [Printed] is selected, the first page data is printed on the front cover.

None Printed Blank

[Front Cover] can not be performed in the following cases:

• When [Collate] is not selected in [Copies]

• When [2-in-1] or [2-in-1 Repeat] is selected in [Features] - [Combination]

• When [OHP-Interleave (Blank)] or [OHP-Interleave (Print)] is selected in [Media Type]

Front Cover - Tray

Specify the paper tray for the front cover.

The settings you can select are as follows:

[Bypass tray], [Tray 1], [Tray 2], [Tray 3], or [Tray 4(LCT)]

When [Front Cover] is not selected, [Tray] can not be performed.

3-26

Chapter 3 Printer Driver Functions

HOME

Back Cover

You can select this setting when using a different paper for the back covers from that of the body of the
booklet (colored, for example). [Back Cover] inserts a sheet to the top of each set of copies as a Back
cover.

When [Back Cover] is checked, you can select [Printed] or [Blank].

[None], [Printed] or [Blank]

Default is [None].

• When [Blank] is selected, nothing is printed on the back cover.

• When [Printed] is selected, the last page data is printed on the back cover.

None Printed Blank

[Back Cover] can not be performed in the following cases:

• When [Collate] is not selected in [Copies]

• When settings other than [None] are selected in [Features]-[Combination]

• When [OHP-Interleave (Blank)] or [OHP-Interleave (Print)] is selected in [Media Type]

Back Cover - Tray

Specify the paper tray for the back cover.

The settings you can select are as follows:

[Bypass tray], [Tray 1], [Tray 2], [Tray 3], or [Tray 4(LCT)]

When [Back Cover] is not selected, [Tray] can not be performed.

Sheet Insertion

[Sheet Insertion] inserts a sheet to the specified page as the inter-sheet.

When [Sheet Insertion] is checked, you can select [Printed] or [Blank].

• When [Blank] is selected, nothing is printed on the inter-sheet.

• When [Printed] is selected, the specified page data is printed on the inter-sheet.

3-27

Chapter 3 Printer Driver Functions

HOME

[Sheet Insertion] cannot be performed in the following cases:

• When [Collate] is not selected in [Copies]

• When settings other than [None] are selected in [Features]-[Combination]

• When [OHP-Interleave (Blank)], [OHP-Interleave (Print)] is selected in [Media Type]

Sheet Insertion - Pages

When [Sheet Insertion] is checked, you can enter the number of page in the [Pages] box.

When [Sheet Insertion] is not selected, [Pages] can not be performed.

[Sheet Insertion] inserts a inter-sheet at the specified page.

You can specify the numbers using comma "," as follows:

e.g. insert at page 3: 3

insert at pages 3, 5, and 12: 3, 5, 12

The maximum number of pages you can specify to insert is 28.

You cannot specify the duplicate numbers in the [Pages] box.

Sheet Insertion - Tray

Specify the paper tray for the inter-sheet.

The settings you can select are as follows:

[Bypass tray], [Tray 1], [Tray 2], [Tray 3], or [Tray 4(LCT)]

When [Sheet Insertion] is not selected, [Tray] cannot be performed.

Sheet Insertion - Advanced

Check the [Advanced] to use the different tray for each inter-sheet.

When [Advanced] is selected, [Settings] can be performed.

Sheet Insertion - Settings

Open the [Sheet Insertion Advanced Settings] dialog for advanced setting.

Enter the number of pages per tray.

When [Advanced] is not selected, [Settings] can not be performed.

3-28

Chapter 3 Printer Driver Functions

HOME

PI Cover Sheet

[PI Cover Sheet] inserts a sheet from PI tray as a Front cover and/or a Back cover.

The settings you can select are as follows:

[PI Front Cover]None / PI Tray 1 / PI Tray 2

[PI Back Cover]None / PI Tray 1 / PI Tray 2

[PI Cover Sheet] can not be performed in the following cases:

• When [FS-210 Finisher] or [FS-110 Finisher] is not available

• When [PI-110 Sheet Feeder] is not available

Restore Defaults

By clicking the [Restore Defaults] button, the [Cover] tab settings return to defaults.

3-29

Chapter 3 Printer Driver Functions

HOME

[Graphics] Tab

Halftoning

You can select [Patterned Grays], [Solid Black and White] or [Diffused Grays] by clicking the radio button.

[Patterned Grays] prints image by an ordered dither algorithm.

[Solid Black and White] prints without dithering and gray tone.

[Diffused Grays] prints image with error diffusion.

A sample image will be displayed according to your selection.

Brightness

Using the Brightness slider or entering the value from -100 to 100 into the text box beside the slider, you
can brighten or darken the graphic.

If the graphic appears too bright, slide the brightness slider to the left.

If the graphic appears too dark, slide the brightness slider to the right.

Contrast

Using the Contrast slider or entering the value from -100 to 100 into the text box beside the slider, you can
increase or decrease the range of contrast within the graphic.

To increase the luminance contrast, slide the contrast slider to the left.

To decrease the luminance contrast, slide the contrast slider to the right.

Negative

[Negative] prints image with reverse tone.

Restore Defaults

By clicking the [Restore Defaults] button, the [Graphics] tab settings return to defaults.

3-30

Chapter 3 Printer Driver Functions

HOME

[Options] Tab

Layout - Pages per sheet

You can select the number of document pages to be printed on one piece of paper.

Select [1], [2], [4], [6], [9] or [16] from the list shown by clicking the [▼] button.

Default for [Pages per sheet] is [1].

[1] [2] [4] [6]

[9] [16]

When the pages per sheet print is selected, an automatic reduction is activated so that all informa
tion is printed within the printable area on the page.

-

3-31

Chapter 3 Printer Driver Functions

HOME

Layout - Scaling

Select the enlargement or reduction rate of image in 1% increments by entering the value from 10 to 100
into the text box.

Default is [100]%.

TrueType options

Select [Outline soft fonts], [Bitmap soft fonts] or [Rasters] by clicking the radio button.

[Outline soft fonts] prints documents using a TrueType font which downloads from your computer using
Outline data format.

[Bitmap soft fonts] prints documents using a TrueType font which downloads from your computer using
bitmap data format.

[Rasters] converts all text and font data in the computer into raster graphics and downloads to the printer.

Chapter

When [Chapter] is selected, you can choose chapters by specifying the pages in the [Pages] box.

The specified page in the [Pages] box means the first page of a chapter.

When [Duplex] is selected, [Chapter] prints the specified page on the front of the paper is the page has an
even number which normally would be printed to the back of paper during duplex printing. (In case of that
an even number is specified, [Chapter] inserts a blank page before the specified page.)

[Chapter] is on;

[Duplex] - [Flip on short edge] [Duplex] - [Flip on long edge]

end of chapter

an inserted
blank page

1'st page of a chapter

3-32

Chapter 3 Printer Driver Functions

HOME

[Chapter] is off;

[Duplex] - [Flip on short edge] [Duplex] - [Flip on long edge]

end of chapter

1'st page of a chapter

The maximum number of pages you can specify to chapter is 30.

You can specify the numbers using comma ",".

The same number can not be specified.

You can specify 1 to 999 as follows;

e.g. chapter at page 4: 4

chapter at pages 4, 6, and 12: 4, 6, 12

[Chapter] can not be performed in the following cases:

• When [Collate] is not selected in [Copies]

• When [On] is not selected in [Duplex]

• When [Tab Sheets], [OHP (Transparency)], [OHP-Interleave (Blank)], [OHP-Interleave (Print)] is

selected in [Media Type]

• When settings other than [1] are selected in [Layout] - [Pages per sheet]

• When [2-in-1] or [2-in-1 Repeat] are selected in [Features]-[Combination]

3-33

Chapter 3 Printer Driver Functions

HOME

HD-105 Image Storage

When [HD-105 Image Storage] is checked, you can select [Store] or [Store and Print] to store the printing
image.

If [HD-105] is not available, [HD-105 Image Storage] can not be performed.

[Store] saves the printing image to the Hard Disk of the printer.

[Store and Print] prints the printing image and saves it to the Hard Disk of the printer.

Refer to "Chapter 4 Print Job-Job Combination" for printing of stored images.

(p.4-25)

HD-105 Image Storage - Settings

Open the [Job Combination Print Settings] dialog for password setting.

The [Job Combination Print Settings] dialog also appears on checking [HD-105 Image Storage] unless
password setting yet.

Enter your job ID in the [Job ID] text box. You can select any 8-digit number or character (upper/lower
case) for the Job ID.

Enter your password in the [Password] text box. You can select any 8-digit number or character (upper
case only) for the Password.

When the Password is entered, the password of [Password Print Settings] dialog for Password Print is
replaced with the password of [Job Combination Print Settings] dialog.

3-34

Chapter 3 Printer Driver Functions

HOME

Job Combination

You can combine and print the data held in the print controller's hard disk as a result of the [HD-105
Image Storage] settings on the printer driver and/or using the copier in store mode under the following
conditions:

Copier Printer note

[P-JOB] is not selected - [P-JOB] can not be

[Sheet/Cover Insertion] is
not selected

[Chapter] is not selected [Chapter] is not selected -

[Combination] is not
selected

[Repeat] is not selected [Repeat] is not selected -

[Booklet] is not selected [Booklet] is not selected -

[OHP-Interleave] is not
selected

[Image Insert] is not
selected

[Dual Page] is not selected - [Dual Page] can not be

[Mixed Original] is not
selected

Same size of output papers Same size of output papers -

Same resolution Same resolution -

Same graphic mode Same graphic mode Copier; [Normal]

-Single tray-

[Sheet Insertion] is not
selected

[Combination] is not
selected

[OHP-Interleave] is not
selected

- [Image Insert] can not be

Same size of original
papers

performed on printer

-

-

-

performed on printer

performed on printer

-

Refer to "Chapter 4 Print Job-Job Combination" for printing of stored images.

(p.4-25)

Restore Defaults

By clicking the [Restore Defaults] button, the [Options] tab settings return to defaults.

3-35

Chapter 3 Printer Driver Functions

HOME

[Watermarks] Tab

Watermark - Text

Select the text to be printed as a watermark from the list shown by clicking the [▼] button.

You can select a watermark from [CONFIDENTIAL], [COPY], [DRAFT], [FILE COPY], [FINAL],
[PROOF] and [TOP SECRET].

Default watermarks that are set up during driver installation can be modified and customized. If you
want to create new text, click the [New] button. To view the list of available default watermarks and oth
ers you've created, click the [▼] button.

-

Watermark - Page

Select the pages on which to print watermarks.

Select [All but first page], [All pages], [First page only] or [No watermark] from the list shown by clicking
the [▼] button.

Watermark - Top / Bottom

[Top] prints watermarks over the text or other material on the page.

[Bottom] prints watermarks under the text or other material on the page.

Watermark - Count

Define how many copies of the watermark you would like printed on each page.

Click the [▲] or [▼] button or directly enter the page number from the keyboard.

Default for the number of copies is 1.

Watermark - Separation

Define how far apart you want multiple watermarks to be on the page. If you have set the count to one,
this will be unavailable.

3-36

Chapter 3 Printer Driver Functions

HOME

Font - Name

You can select only one font per watermark from the list shown by clicking the [▼] button.

When you change the font, the preview window will refresh itself by showing the effect of the new font
on the existing text sample displayed there.

The default font name is [Arial].

Font - Color

Select the color of watermarks.

Select [Black], [Dark Gray], [Light Gray], or [White] from the color palette shown, by clicking the [▼]
button.

Font - Darkness

You can control the "density" of the watermark text with this slider. If you slide this to the right, the
"density" of the watermark text will be more dense. If you slide this to the left, it will be less dense.

Font - Bold & Italic

When [Bold] is selected, bold formatting will be applied to your selected watermark text.

When [Italic] is selected, italic formatting will be applied to your selected watermark text.

When both of these are selected, bold and italic formatting will be applied.

Font - Size

Select a point size for the font to be used in your watermark by clicking the [▲] or [▼] button or by
directly entering the size from the keyboard.

Position

Control the position of the watermark on the page manually or leave it at the automatic setting and let
the driver position it for you.

If you select [User defined], the controls below this option will be available and you can define X axis
position (left and right) and Y axis position (up and down) of the watermark on the page by clicking the
[▲] or [▼] button or by directly entering the values from the keyboard (0-100).

The value of [X] or [Y] represents the placement of origin (beginning) of the watermark in a percentage
of the total page width. For [X], a value of 20% means the watermark begins 20% of the way across the
page from left to right. For [Y], a value of 20% means the watermark begins 20% of the way down the
page from top to bottom.

Position - Angle

Control the lean angle of the watermark by sliding this control back and forth or by typing a number in
the text value box from 0 degrees to 360 degrees.

3-37

Chapter 3 Printer Driver Functions

HOME

Adjustment

Select [Move] or [Rotate] by clicking the radio button.

When [Move] is selected, you can move the watermark as you position it manually by clicking on the
page sample and "dragging" the mark around.

When [Rotate] is selected, you can rotate the watermark as you position it manually by clicking on the
page sample and "dragging" the mark around.

Adjustment - Show layout / Show single page

When [Show layout] button is clicked, you can preview how your [pages per sheet] options selected in
the [Options] tab will look with the current watermark settings. The [Show layout] button will change to
the [Show single page] button by clicking it.

When the [Show single page] button is clicked, you can preview how the single page will look with the
current watermark settings. The [Show single page] button will change to the [Show layout] button by
clicking it.

New

When the [New] button is clicked, [Custom watermark n] appears in the [Text] box. Create the new
watermark text, to replace the current text by typing the new text and pressing the [Enter] key. When
the [Enter] key is pressed, the [Text Change & Image Request] screen will appear. Click the [Yes] but
ton, [No] button, or [Cancel] button. When you click the [Yes] button, your newly created watermark text
will appear in the available-for-use list when you click the [▼] button beside the [Text] box.

-

Delete

Click this to delete the selected watermark.

You cannot undo this action, so be sure the currently-displayed watermark is the one you wish to
delete.

Restore Defaults

When the [Restore Defaults] button is clicked, the [Watermark - Restore Defaults Request] screen will
appear.

• Click the [Yes] button to reset all settings to factory defaults except [Custom watermark] you have
created by pressing the [New] button.

• Click the [No] button resets the setting to factory default.

3-38

Chapter 3 Printer Driver Functions

HOME

[Overlay] Tab

Symbol - File

You can select a bitmap file to use from the list shown by clicking the [▼] button. The bitmap files
selected before will appear in the list in order of using (the top of the list is a most recently used file). If
you've not selected any file, this will say [None].

Select a file from this list or click the [Select bitmap] button to navigate through your system's hard disk
to locate a bitmap file to use.

Symbol - Page

You can choose a page on which to place the overlay design.

Select [All but first page], [All pages], [First page only] or [No overlay] from the list shown by clicking the
[▼] button.

Symbol - Select bitmap

When you click the [Select bitmap] button, the [Open overlay file] dialog box will appear. Select a suit
able bitmap file for the overlay from your system's directories and click the [OK] button to load the bit
map file.

Shade - Color

This function is used only for black and white (monochrome) bitmaps.

Shade - Darkness

You can define with the slider or numerical entry box how "dark" or "solid" your overlay will be. A setting
of 100% is a completely solid overlay, a setting of 50% provides equal overlay to background cover
age, and lesser settings make the overlay more transparent.

Size

When [Automatically] is selected, a symbol you selected will be resized to 30% of the page size.

When [User defined] is selected, you can set the overlay size on the page.

Position

You can control the position of the overlay on the page manually or leave it at the automatic setting and
let the driver position it for you.

If you select [User defined], you can define the X axis position (left and right) and Y axis position (up
and down) of the overlay on the page by clicking the [▲] or [▼] button or by directly entering the values
from the keyboard (0-100).

-

-

-

3-39

Chapter 3 Printer Driver Functions

HOME

Show layout / Show single page

When the [Show layout] button is clicked, you can preview how your [pages per sheet] options
selected in [Options] tab will look with the current overlay settings. The [Show layout] button will
change to the [Show single page] button by clicking it.

When the [Show single page] button is clicked, you can preview how the single page will look with the
current overlay settings. The [Show single page] button will be changed to the [Show layout] button by
clicking it.

Restore Defaults

By clicking [Restore Defaults] button, settings of the [Overlay] tab return to defaults.

3-40

Chapter 3 Printer Driver Functions

HOME

[Setup] Tab

Available options

This list shows available printer options. If you purchase this optional accessory you can make the printer
driver aware of it by selecting it from this list and clicking the [Add] button. The selected option's label will
move into the list of [Installed options].

Installed options

This list displays the selected options from the list of [Available options].

Add

When you click the [Add] button after selecting an option from the list of [Available options] (such as Fin
isher, Hard Disk, Large Capacity Tray, Trimmer Unit, Punch Unit etc.), the driver software will make the
option available from that point on.

Remove

Clicking the [Remove] button after selecting an option from the list of [Installed options] will remove the
option from the list of [Installed options]. The option will move to the list of available options, ready to
install later.

Installed memory

You can select the amount of memory you have installed in your printer from the list shown by clicking the
[▼] button.

Your printer supports expansion up to 192 megabytes of RAM using standard DIMM modules. It comes
with 64 megabytes pre-installed on the print controller, which should be sufficient for general office use.

-

3-41

Chapter 3 Printer Driver Functions

HOME

[About] Tab

The [About] tab shows some system information and the printer driver version.

3-42

Chapter 4 Control Panel Setup

HOME

■ Control Panel ............................................................... 4-2

■ Configuration of Printer Setting Menu .................... 4-10

■ Functions of the Printer Setting ............................... 4-11

■ Print Job ..................................................................... 4-17

4-1

Chapter 4 Control Panel Setup

HOME

■Control Panel

You can set up the printing system from the control panel of the main body printer (copier).

This chapter describes the basic operation of the control panel and the setup menu as well as the func
tions of the printing system setup.

Refer to the operating manual of the copier for other functions and screens of the control panel.

●Names and Functions of the Control Panel

The control panel has the following names and functions.

-

1

14

2

CHECK HELP

13

COPY

SCANNER / SERVER

JOB MEMORY

AUTO RESET

PRINTER

3

COUNTER

12

11 10

4

PROOF COPY

CLEAR QTY.

5

INTERRUPT

START

6

STOP

9

1. LCD TOUCH SCREEN

Displays printing system status; various setting menus and setup items; help information; interactive
screens; and touch keys for selecting all functions.

2. CHECK

Displays a screen showing all settings that are selected for the current job when setting up the Wait
Mode on the printer driver screen.

3. MODE

Switches the machine operation mode to copier, printer, and scanner/server in turn.

4. KEYPAD

Enters numeric values.

7

TIMER

POWER SAVER

ON / OFF

8

5. INTERRUPT

Stops printing in progress to allow copying from the platen glass.

6. STOP

Stops the copying sequence, scanning or printing; deletes the stored memory.

7. TIMER

Lights when the timer function is set.

8. POWER SAVER ON/OFF

Activates power-saving mode for times when the copier is inactive, or activates timer interrupt mode
when weekly timer function is active.

9. START

Activates scanning or copying.

Restarts the printing after Wait Mode - Wait or Proof.

4-2

Chapter 4 Control Panel Setup

HOME

10. [C] (CLEAR QTY.)

Allows resetting of print quantity.

11. [P] (COUNTER)

Displays the Counter Screen or accesses programming modes for setting special functions.

12. HELP

Displays a screen with help for the currently selected function.

13. AUTO RESET

Restores copier to automatic mode settings or to key operator settings.

14. JOB MEMORY

Displays screens for selecting job store/job recall functions.

4-3

Chapter 4 Control Panel Setup

HOME

●LCD Touch Screen

The touch screen is an LCD (liquid crystal display) that displays interactive screens with touch sensitive
keys for making copy/print job selections. Selections are highlighted when touched.

The screens also work with the conventional control panel keys.

The touch screen of the control panel is covered with glass. Do not drop heavy items on the glass,
or put excess weight or pressure on it; otherwise the glass may break or become scratched.

After the power switch is turned on, the Konica name displays for approximately 10 seconds, until initial
machine settings are established. Then, the 7 levels of Warm-Up Screen displays for approximately 6
minutes, until the fixing temperature is reached.

When the [Basic Screen] (copy mode basic screen) is displayed, the touch screen becomes interactive.
The interactive condition enables you to communicate directly with the printing system/copier system/
scanner system simply by touching keys displayed on the screen; or by pressing conventional keys, as
required.

[Basic Screen] (copy mode basic screen)

When you touch the [STATUS] key on the Basic Screen, the Job Status Screen will be displayed.

[Job Status Screen]

These screens automatically display information regarding copying/printing status, print job status and
settings.

4-4

Chapter 4 Control Panel Setup

HOME

The printing system is ready to receive the print data from your computer.

PRINT

The print controller is currently printing.

The print data rasterized in the print controller is now being transferred to the E-RDH memory in the main
body printer.

ERROR

The print controller generated an error message.

WAIT

The main body printer is in warm-up mode.

INITIALIZING

The print controller is in initialization process.

4-5

Chapter 4 Control Panel Setup

HOME

●Job Status Screen

When you touch the [STATUS] key on the Basic Screen, the [Job Status Screen] will be displayed and
you can confirm the status of a print job.

Contents of the Job Status Screen are as follows:

NO.

Displays the No. (1-99) for each job (print/copy/scan) assigned to the machine.

MODE

Displays the current operation mode of the printing system:

COPIER

PRINTER

SCANNER

STATUS

Displays the current status of the machine for each job:

[Indication] [Meaning]

READY Ready to use in each mode

ERROR Error in each mode

PRINTING Output in each mode

RESERVE Ready to reserve

NO PAPER No paper in paper tray in copy/print mode

STOP Stop in each mode

JAM Jam in each mode

INTERRUPT Interrupting the previous job

TOTAL PAGE(s)

Displays the number of print originals for each job. (0 - 9999)

PAGE(s) TO GO

Displays the remaining print count of the job.

0 to 9999 (The number exceeding 9999 will be displayed as 9999 .)

4-6

Chapter 4 Control Panel Setup

HOME

MINUTE(s) TO GO

Displays the time (in minutes) required for completing the job.

1 to 999

Exceeding 999 minutes: 999

Shorter than 1 minute: <1

Other

The following message will be displayed on the bar when the reserved job does not exist.

RESERVED JOB DOES NOT EXIST

4-7

Chapter 4 Control Panel Setup

HOME

●Printer Mode Basic Screen

When the printing system starts properly, the Printer Mode Basic Screen (main menu screen) is displayed
on the LCD by pressing the [MODE] button.

When the [MODE] button is pressed again, the LCD is changed to the Copy Mode Basic Screen, and the
normal copy settings becomes available.

The following settings can be selected from the Printer Mode Basic Screen.

[Test Print Menu]

Display the Test Print Setup Screen. You can print the test print by selecting this item.

[Controller Set]

Display the Controller Set Screen. You can perform various settings related to the Print Controller.

[Set Default]

Display the Print Job Setup Screen. You can return various settings to the factory default by selecting
this item.

[PCL Setup]

Display the PCL Setup Screen. You can perform various settings related to PCL.

[Password Print]

Display the Password Print Screen. The password print job to be set up from the printer driver is
printed after entering the password from the LCD touch screen.

[Network Setup]

[Network Setup] screen will appear. For a detailed explanation of the setup procedure, refer to "Net
work Setup" in your INSTRUCTION MANUAL.

[Scan Error List]

[Scanner Error List] screen will appear. For a detailed explanation of the list, refer to "Network Scanner"
in your INSTRUCTION MANUAL.

See "Configuration of Printer Setting Menu" or "Functions of the Printer Setting" on printer setting.

(p.4-10), (p.4-11)

-

For details on the password print, refer to "Print Job-Password Print (Confidential Output)".

(p.4-22)

4-8

Chapter 4 Control Panel Setup

HOME

Procedures of the Printer Setting

You can select or change settings from the LCD by touching a key on the LCD touch screen.

Item Selection and Appearance of Selected Items

Various settings are performed by touching a icon of the item you would like to select on the LCD.
Currently selected items are displayed with reverse color.

As a result of selecting [PCL Demo Page] of [Test Print Menu]

As a result of selecting [Config. Data] of [Test Print Menu]

How to set the Banner Page On

1.Press the [MODE] key to show the [Printer Mode Basic Screen].
The [Copy Mode Basic Screen] is switched to the [Printer Mode Basic Screen].

2.Touch the [Controller Set] key.
The [Printer Mode Basic Screen] is switched to the [Controller Set Screen].

3.Touch the [Banner Page] key.

4.Touch the [OK] key.
The setting screen of the selected item is displayed.

5.Touch the [ON] icon.

6.Touch the [OK] icon.
[Controller Set] - [Banner Page] - [ON] is configured.

Key Operation

[ ] [ ] Touch the [ ] / [ ]key to display the main menu item.

[▲] [▼]Touch the [▲] / [▼] key to display the sub menu item or setting item.

[CANCEL] Touch the [CANCEL] key to cancel the current setting and to return to the upper menu screen.

A setting selected by pressing [OK] key becomes available.

4-9

Chapter 4 Control Panel Setup

HOME

■Configuration of Printer Setting Menu

Test Print Menu

Controller Set

Banner Page

Banner Page Tray

Spool

Job Time Out

Copier Time Out

ScanDataAutoDel.

Set Default

Default Paper

Off

default

Off

default

90

11 x 17R

8.5 x 14R

Tra y 3

Tra y 4

Bypass Tray

120

4 days

6 days

B5

B6R

8.5 x 11

PCL Font List

180

240

300

PCL Demo Page

Config. Data NIC Config.

On

Auto Tray

default

Tra y 1

Tra y 2

On

default

203060

5

10

15

15 60

30

default

24 hour

Off

default

2 days

12 hour

A3R

A4

default

A5

B4R

8 days

10 days

8.5 x 5.5

8K

16K

Duplex

Orientation

PCL Setup

CR/LF Mapping

Input Tray

Password Print

Network Setup

Scan Error List

Long Edge Short Edge

Off

default

Portrait
default

CR/LF

Auto Tray

default

Tra y 1

Tra y 2

Landscape

CR

default

Tra y 3

Tra y 4

Bypass Tray

4-10

■Functions of the Printer Setting

HOME

●Test Print Menu

Select [Test Print Menu] from the Printer Mode Basic Screen to display the Test Print Setup Screen.

Setting items are as follows:

[PCL Demo Page]

Select [PCL Demo Page] to print the PCL Demo Page immediately.

[PCL Font List]

Select [PCL Font List] to print the PCL Font List immediately.

Chapter 4 Control Panel Setup

[Config. Data]

Select [Config. Data] to print the System Configuration data immediately.

Items of the Config. Data are as follows:

• Version info

• Current Settings (Resolution / Print Quality / Copy mode timeout / Default Paper size / Language)

• Installed Paper (Manual / Tray1 / Tray2 / Tray3 / Tray4)

• Device Status (Total RAM installed / Hard disk free space)

• Miscellaneous (PCL pages printed)

[NIC Config.]

Outputs information about the network settings. For details on this, refer to "Network Setup" in your
INSTRUCTION MANUAL.

4-11

Chapter 4 Control Panel Setup

HOME

●Controller Set

To enable the settings, it is necessary to turn OFF/ON the main body printer.

Select [Controller Set] on the Printer Mode Basic Screen to display the Print Controller Setup Screen.

Setting items are as follows:

[Banner Page]

Select [Banner Page] to set the Banner Page.

Setting items are as follows:

• On : prints the Banner Page prior to the set of print jobs

• Off : (Default)

[Banner Page Tray]

Select [Banner Page Tray] to set the tray for Banner Page.

4-12

Chapter 4 Control Panel Setup

HOME

[Spool]

Select [Spool] to set the Spool condition.

Setting items are as follows:

• On : spool waiting print job queue within HDD

• Off : interpreter within the print controller processes the print job without spooling (Default)

[Job Time Out]

Select [Job Time Out] to set the Job Timeout value. When it reaches the job timeout value without receiv
ing print job data or without any communication between the printing system and your computer, the print
ing system ends the job.

Setting values are as follows:

-

-

• 5 / 10 / 15 / 20 / 30 / 60 (Default) / 120 / 180 / 240 / 300 (unit: seconds)

[Copier Time Out]

Select [Copier Time Out] to set the Copier Timeout value. When it reaches the Copier Timeout value after
operations for copy on the control panel of the main body printer, the print controller can receive print job
data.

Setting values are as follows:

• 15 / 30 (Default) / 60 / 90 (unit: seconds)

4-13

Chapter 4 Control Panel Setup

HOME

[ScanDataAutoDel.]

Select [Scan Data AutoDel.] to set the Scan Data AutoDel. condition.

Setting values are as follows:

• Off / 12 hour / 24 hour (Default) / 2 days / 4 days / 6 days / 8 days / 10 days

• Off: The scan data held in the print controller's hard disk is not deleted automatically

●Set Default

It is not necessary to turn OFF/ON the main body printer.

Select [Set Default] on the Printer Mode Basic Screen to display the Print Job Setup Screen.

Setting items are as follows:

[Default Paper]

Select [Default Paper] to set the default paper size.

Setting items are as follows:

• A3R / A4 (Default) / A5 / B4R / B5 / B6R / F4R / 11 x 17R / 8.5 x 14R / 8.5 x 11 / 8KR / 16K / 5.5 x

8.5 / A6R / 8K / 16K

4-14

[Duplex]

HOME

Select [Duplex] to set the default Duplex.

Setting items are as follows:

• Off : set the Duplex off (Default)

• Long Edge : set the Long Edge Duplex

• Short Edge : set the Short Edge Duplex

[Orientation]

Select [Orientation] to set the default Orientation.

Setting items are as follows:

Chapter 4 Control Panel Setup

• Portrait : set the Orientation to Portrait (Default)

• Landscape : set the Orientation to Landscape

4-15

Chapter 4 Control Panel Setup

HOME

●PCL Setup

It is not necessary to turn OFF/ON the main body printer.

Select [PCL Setup] from the Printer Mode Basic Screen to display the PCL Setup Screen.

Setting items are as follows:

[CR/LF Mapping]

Select [CR/LF Mapping] to set the CR/LF Mapping.

Setting items are as follows:

• CR/LF : replace line ending LF code to CR/LF

• CR : does not convert line ending code (Default)

[Input Tray]

Select [Input Tray] to set the Input Tray.

Setting items are as follows:

• Auto Tray (Default)

• Tray 1

• Tray 2

• Tray 3

• Tray 4

• Bypass Tray

4-16

Chapter 4 Control Panel Setup

HOME

■Print Job

●Cancel

You can stop the job reserved or the job in progress. If the job is still on your computer first, delete the job
from your computer and press the [STOP / CLEAR] key on the control panel. You cannot stop the
remaining job completely by only pressing the [STOP / CLEAR] key. The [STOP / CLEAR] key can clear
the memory of the print controller and E-RDH in the main body printer but will not clear the remaining jobs
on your computer.

How to cancel the job

1. While a job is currently printing, touch the [Stop] key to cancel the job.

The confirmation screen will appear.

2. Touch the [EXIT] to confirm the cancelation.

Touch the [CONTINUE] to continue printing without canceling the job.

NON COMPLETE JOB LIST

You may want to view a list of the print jobs that have not output because of cancellation or deletion from
the queue.

To do this, touch [NON COMPLETE JOB LIST] in the Job Status Screen.

The list is displayed with job names, user names, file names, status, etc.

4-17

Chapter 4 Control Panel Setup

HOME

●Check

You can check the current job settings and see how the printed job will look using the Wait Mode on the
printer driver screen to print out only one set of the print job before printing out multiple sets.

How to check the job - Wait Mode - Proof:

This method prints one set of the print job for checking after checking the settings on the control panel.

On your computer:

1. Right click the printer icon and then click the properties to display the printer proper

ties dialog.

2. Select [Wait Mode] from the upper list of [Features] in [Paper] tab of the printer prop

erties window and select [Proof] from the list by clicking the [▼] button of the lower
box of the [Features].

3. Print.

On the control panel:

4. The [Printer Check Mode Screen] will appear on the LCD touch screen and no print

ing is performed.

[HDD STORE] appears only when the optional HDD is installed in the main body printer.

-

-

-

5. Confirm the current settings.

6. Change setting values of [Print Quantity], [Duplex Mode] or [Image Shift], if neces

sary.

• How to change [Print Quantity]

Enter the value from the keypad on the control panel when the [Printer Check Mode Screen]
appears.

• How to change [Duplex Mode]

To show the [Basic Screen], touch the [Duplex Mode]. Set the [Duplex Mode] on the [Basic Screen].
To return to the [Printer Check Mode Screen], press the [CHECK] button on the control panel.

• How to change [Image Shift]

Available only when [On] is selected in [Image Shift] of printer driver.

To show the [Image Shift Screen], touch the [Image Shift]. Set the [Image Shift] on the [Image Shift
Screen]. To return to the [Printer Check Mode Screen], touch [EXIT] on the [Image Shift Screen].

4-18

-

Chapter 4 Control Panel Setup

HOME

7. Touch the [PROOF PRINT] to print one copied set for proofreading.

8. Touch the [Exit] to return to the print mode basic screen.

9. Press [START] to resume the rest of the print job.

When you change the settings, press [STOP] to cancel the print job, and change the settings on the
printer properties on your computer.

How to check the job - Wait Mode - Wait:

This method is used only for confirming the settings on the control panel without printing.

On your computer:

1. Right click the printer icon and then click the properties to display the printer proper

ties dialog.

2. Select [Wait Mode] from the upper list of [Features] in [Paper] tab of the printer prop

erties window and select [Wait] from the list by clicking the [▼] button of the lower
box of the [Features].

3. Start to print.

On the control panel:

4. The settings are displayed on the LCD.

The [Printer Check Mode Screen] will appear on the LCD touch screen and no printing is performed.

5. Confirm the current settings.

Change setting values of [Print Quantity], [Duplex Mode] or [Image Shift], if necessary.

(Refer to the above mentioned procedure : How to check the job - Wait Mode - Proof, 6.)

6. Press [START] button to resume the rest of the print job.

When you change the settings, press [STOP] to cancel the print job, and change the settings on the
printer properties on your computer.

-

-

4-19

Chapter 4 Control Panel Setup

HOME

●Interrupt / Reserve

The Interrupt mode can be used to interrupt the current printing operation to perform a copying job. The
Interrupt mode can be selected when the engine is receiving print data or when printing is already in
progress.

Under some conditions of printing or Finisher settings, the Interrupt mode cannot be used.

How to interrupt

1. Press the [INTERRUPT] key when the print job is in progress.

2. Place new original(s) on the platen glass or in the document feeder.

3. Press [START] key to start Interrupt Copying .

4. After copying is completed, press the [INTERRUPT] key again to enable the engine to

resume the interrupted print job.

If the [INTERRUPT] key is pressed while receiving the job data, Interrupt mode will become avail
able after the receiving is complete.
If the [INTERRUPT] key is pressed while printing is in progress, Interrupt mode will become avail
able after the current set of print job is completed.

Even without pressing the [INTERRUPT] key again, interrupted print job will resume automatically
on the following conditions:

• AUTORESET is activated and it reaches the set value.

• When the interrupt release timer which works 1 minute after INTERRUPT job is complete, is

activated.

The interrupt release timer works when AUTORESET is not activated

How to use Reserve function

1. Touch the [FREE] folder to set the conditions for a copying job.

2. This copying job will be performed after the print job in progress is completed.

-

-

4-20

Chapter 4 Control Panel Setup

HOME

●Forced Output

When the tray runs out of preset size papers, or when the tray does not contain papers whose size meets
the demand from the printer driver, the printing system displays a message prompting the user to load
additional papers.

The process by which the user selects, when the prompt appears, a different size of papers on the opera
tion panel and lets the print work continue on these papers, is referred to as "Forced Output."

Forced Output Procedure

1. Make sure that the LCD touch screen shows a message prompting the user to load

additional papers of proper size.

2. Touch and select the desired size displayed in the paper sizes area.

3. Press the [START] button.

4. The printout is made on the selected size papers.

When you choose not to use Forced Output, delete the print job, and change the setting concerned
on the application, or set the requested size of papers in the tray.

-

4-21

Chapter 4 Control Panel Setup

HOME

●Password Print (Confidential Output)

A Confidential Output feature enables you to password protect specific print jobs. The printing process
starts only when you enter a password on the control panel of the main body printer; a password you set
up when transferring a print job from your computer.

This feature allows you to manage confidential documents without worrying about someone else having
access to them.

With some application software, the setting for the printer driver also is saved. When you use [Set
tings] to print out a sharing file on a network or a file that is likely to be printed out by other people
as well, save those files after deleting the [UserID] and [Password].

Password Print (Confidential Output) Procedures

On your computer:

1. Display the Printer Properties dialog.

2. Put a check in [Password Print] on the [Paper] tab of the Printer Properties dialog.

[Password Print Settings] dialog appears.

If you have already set up the password on the [Password Print Settings] dialog, go to step 6.

3. Enter your user ID in the [UserID] text box.

You can select any eight-digit number for user ID.

-

Providing the Printer EKC feature has been set on the copier, [User ID] set up in the [Settings] dia
log is recognized as a password for Printer EKC.
Provided a Printer EKC feature has been set on the copier, you can enter the same number in the
[User ID] text box as that representing your password for Printer EKC.
For Printer EKC, refer to " Chapter 5 Printer EKC".

(p.5-1)

4. Enter your password in the [Password] text box.

You can select any eight-digit number or character for your Password.

5. Click the [OK] button.

If you click the [Cancel] button, [Password Print] check box will be [OFF] and Password Print (Confi
dential Output) will not be performed.

6. Set up the other functions if necessary, then print.

-

-

4-22
