Page 1
OPTIONAL EQUIPMENT
STANDARD EQUIPMENT
● Alternator, 35 Ampere, 24 V
● Anti-slip plates
● Auto-decel
● Automatic engine warm-up system
● Batteries, 110 Ah/2 x 12 V
● Boom holding valve
● Cab, OPG top guard level 2 capable with
optional bolt-on top guard
● Counterweight
● Dry type air cleaner, double element
● Electric horn
● EMMS monitoring system
● Engine, Komatsu SAA6D107E-1
● Engine overheat prevention system
● Fan guard structure
● Hydraulic track adjusters (each side)
● Multi-function color monitor
● Power maximizing system
● PPC hydraulic control system
● Radiator and oil cooler dust proof net
● Rear reflector
● Rearview mirrors (RH, LH, rear, sidewise)
● Starting motor, 4.5 kW/24 V x 1
● Suction fan
● Track guiding guard, center section
● Track roller
—PC220-8, 8 each side
—PC220LC-8, 10 each side
● Track shoe
—PC220-8, 600 mm 24" triple grouser
—PC220LC-8, 700 mm 28" triple grouser
● Travel alarm
● Working light, 2 (boom and RH)
● Working mode selection system
SPECIAL PURPOSE BUCKET
www.Komatsu.com
CEN00065-05 Materials and specifications are subject to change without notice.
is a trademark of Komatsu Ltd. Japan.
Printed in Japan 200807 IP.As(05)
FLYWHEEL HORSEPOWER
Gross: 134 kW 179 HP @ 2000 rpm
Net: 125 kW 168 HP @ 2000 rpm
OPERATING WEIGHT
PC220-8: 22900– 23420 kg
50,490– 51,630 lb
PC220LC-8: 24050– 24610 kg
53,020– 54,260 lb
Photo may include optional equipment.
PC220-8
PC220LC-8
PC
220
●
Additional filter system for poor-quality fuel
● Air conditioner with defroster
● Alternator, 60 ampere, 24 v
● Arms
—3045 mm 10'0" arm assembly
—2500 mm 8'2" arm assembly
—2000 mm 6'7" arm assembly
● Batteries, large capacity
● Bolt-on top guard, [Operator Protective
Guards level 2]
● Boom, 5850 mm 19'2"
● Cab accessories
—Rain visor
—Sun visor
● Cab front guard
—Full height guard
—Half height guard
● Heater with defroster
● Long lubricating intervals for work equip-
ment bushing (500 hours)
● Rear view monitoring system
● Seat belt, retractable
● Seat, suspension
● Service valve
● Shoes, triple grouser
—PC220-8:
700 mm 28", 800 mm 31.5"
—PC220LC-8: 600 mm 24",
800 mm 31.5", 900 mm 35.5"
● Track frame undercover
● Track roller guards (full length)
● Working lights
—2 on cab
—1 on counterweight
● Ditch cleaning bucket
—Capacity
SAE heaped 0.80 m
3
1.05 yd
3
CECE heaped 0.70 m30.92 yd
3
Width 1800 mm 70.9"
● Slope finishing bucket for scraping
slopes of banks
—Capacity
SAE heaped 0.4 m30.52 yd
3
CECE heaped 0.35 m30.46 yd
3
—Width 2000 mm 78.7"
● Trapezoidal bucket is ideal for digging
ditches and for drainage works
—Capacity
SAE heaped 0.7 m30.92 yd
3
CECE heaped 0.5 m30.65 yd
3
● Ripper bucket for hard and rocky ground
—Capacity
SAE heaped 0.62 m30.81 yd
3
CECE heaped 0.56 m30.73 yd
3
Width 990 mm 39.0"
● Single-shank ripper and three-shank
ripper are recommended for rock-digging
and crushing, hard soil digging,
pavement-removal works, etc.
HYDRAULIC EXCAVATOR
Page 2
HORSEPOWER
Gross: 134 kW 179 HP @ 2000 rpm
Net: 125 kW 168 HP @ 2000 rpm
OPERATING WEIGHT
PC220-8: 22900 – 23420 kg
50,490 – 51,630 lb
PC220LC-8: 24050 – 24610 kg
53,020 – 54,260 lb
BUCKET CAPACITY
0.72 – 1.26 m
3
0.94 – 1.65 yd
3
WALK-AROUND
H YDRAULIC E XCAVATOR
HYDRAULIC EXCAVATOR
PC220-8
PC220-8 0
32
Large TFT LCD monitor
• Easy-to-see and use 7" large
multi-function color monitor
• Can be displayed in 12 languages for global support.
TFT : Thin Film Transistor
LCD : Liquid Crystal Display
See page 8.
Large Comfortable Cab
• Low-noise cab, similar to passenger car
• Low vibration with cab damper mounting
• Highly pressurized cab with optional air conditioner
• Operator seat and console with armrest that enables operations in
the appropriate operational posture
See pages 6.
Ecology and Economy Features
● Low fuel consumption by total control
of the engine, hydraulic and electronic
system.
Reduces fuel consumption by approx. 10%.
(Compared with the PC220-7)
● Low emission engine
A powerful, turbocharged and air-to-air aftercooled Komatsu SAA6D107E-1 provides 125 kW
168 HP. This engine meets EPA Tier 3 and EU
Stage 3A emission regulations, without sacrificing
power or machine productivity.
• Economy mode improves fuel consumption.
• Eco-gauge for energy-saving operations
• Extended idling caution for fuel conservation
● Low operation noise
The dynamic noise is lowered by 2 dB compared with the PC220-7, realizing a low noise
operation.
See page 4 and 5.
Easy Maintenance
• Long replacement interval of engine oil, engine oil filter, and
hydraulic filter
• Remote mounted engine oil filter and fuel drain valve for easy
access
• Equipped with the fuel pre-filter as standard (with water separator)
• Side-by-side cooling concept enables individual cooling modules
to be serviced.
• Equipped with the EMMS monitoring system
See page 9.
Photo may include optional equipment.
Safety Design
• Cab dedicated to hydraulic excavator for protecting
the operator in the event of a roll over accident.
• Anti-slip plates for safe work on machine
• Safety enhancement with large side-view, sidewise,
and rear mirrors added.
• Rear view monitoring system for easy checking behind
the machine (optional)
• OPG top guard level 2 capable with optional bolt-on top guard
See page 7.
Page 3
Working Modes Selectable
Two established work modes are fur-
ther improved.
P mode – Power or work priority mode
has low fuel consumption, but fast
equipment speed and maximum pro-
duction and power are maintained.
E mode – Economy or fuel priority
mode further reduces fuel consumption,
but maintains the P-mode-like working
equipment speed for light duty work.
You can select Power or Economy
modes using a one-touch operation on
the monitor panel depending on work-
loads.
Eco-gauge that Assists Energysaving Operations
Equipped with the Eco-gauge that can
be recognized at a glance on the right of
the multi-function color monitor for envi-
ronment-friendly energy-saving opera-
tions. Allows focus on operation in the
green range with reduced CO
2
emis-
sions and efficient fuel consumption.
Komatsu Technology
Komatsu develops and produces all major
components, such as engines, electronics
and hydraulic components, in house.
With this “Komatsu Technology,” and adding
customer feedback, Komatsu is achieving
great advancements in technology.
To achieve both high levels of productivity and
economical performance, Komatsu has devel-
oped the main components with a total control
system. The result is a new generation of high
performance and environment-friendly exca-
vators.
4
ECOLOGY & ECONOMY FEATURES
HYDRAULIC EXCAVATOR
PC220-8 0
5
Fuel consumption 10% reduced
Compared with the PC220-7 at P mode and
100% working efficiency.
Fuel consumption varies depending on job
conditions.
Eco-gauge
Low Emission Engine
Komatsu SAA6D107E-1 meets EPA Tier 3 and EU Stage
3A emission regulations and reduced NOx emission by 29
% compared with the
PC220-7.
Low Operation Noise
Enables a low noise operation using the low-noise engine and methods to cut
noise at source.
Idling Caution
To prevent unnecessary fuel consumption, an
idling caution is displayed on the monitor, if the
engine idles for 5 minutes or more.
Low Fuel Consumption
The newly-developed Komatsu
SAA6D107E-1 [ecot3] engine enables
NOx emissions to be significantly
reduced with the accurate multi-staged
fuel injection by the engine controller. It
improves total engine durability using
the high-pressure fuel injection system
developed specifically for construction
machinery. This excavator significantly
reduces hourly fuel consumption using
the highly-efficient matching techniques
of the engine and hydraulic unit and
also provides features that promote
energy-saving operations such as the E
mode and Eco-gauge.
Reduced fan speed
Large capacity radiator
Electronically controlled
common rail type engine
• Multi-staged injection
• Highly rigid cylinder block
Dynamic noise
2 dB reduced
(Compared with the PC220-7)
Low-noise muffler
Optimal arrangement
of sound absorbing
materials
H YDRAULIC E XCAVATOR
PC220-8
Seven-inch TFT liquid crystal display
Hydraulic control valve
Flow divide/merge control
with EPC
Hydraulic system
controller
Electronic control
unit for engine
Engine
Heavy duty HPCR
Common Rail)
(High Pressure
system
Main pump
Two pump independent control
Fuel priority
E
E mode
Work priority
P
P mode
Page 4

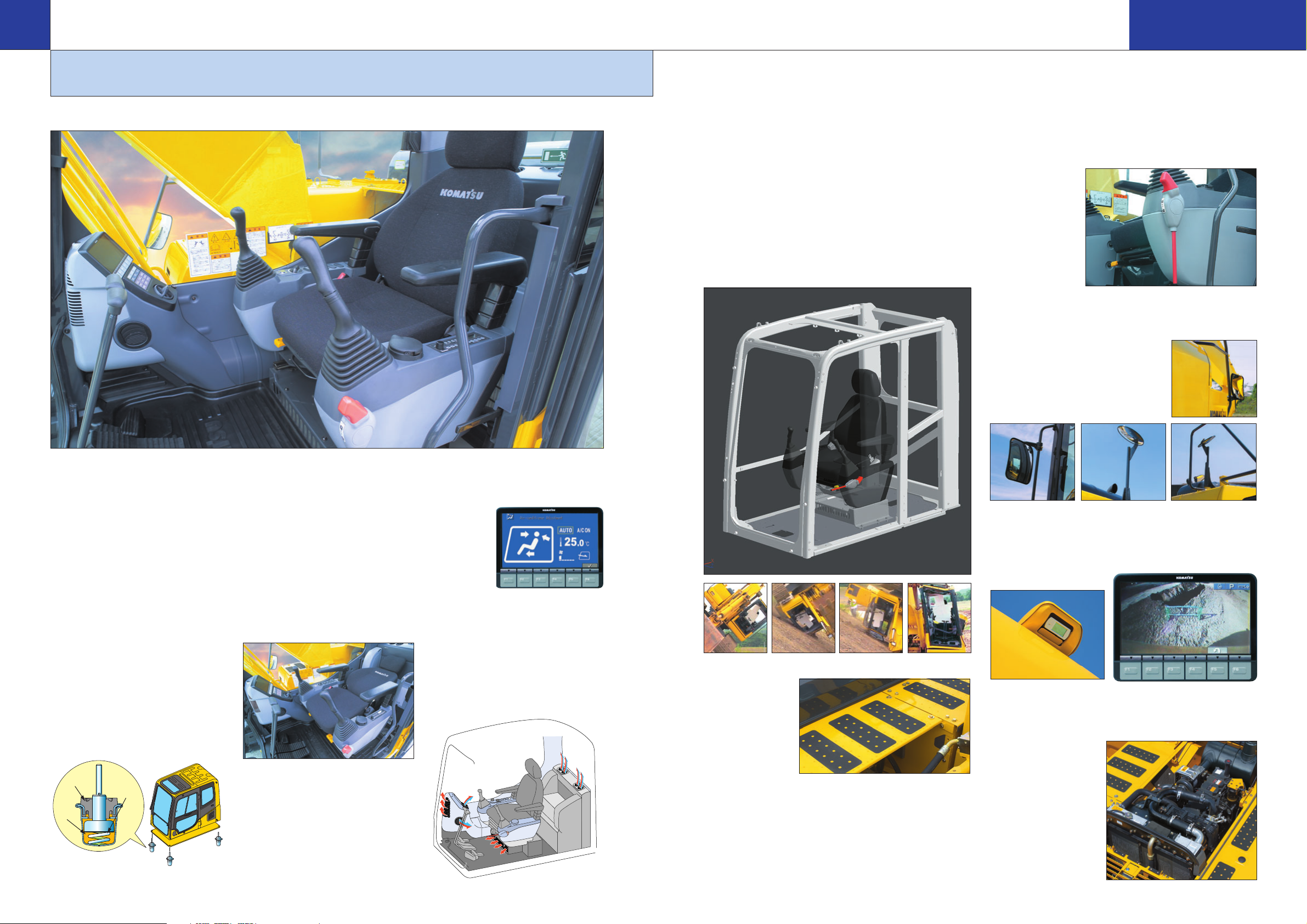

76
Low Cab Noise
The newly-designed cab is highly rigid
and has excellent sound absorption
ability. Thorough improvement of noise
source reduction and use of low noise
engine, hydraulic equipment, and air
conditioner allows this machine to gen-
erate a low level of noise similar to
that of a passenger car.
Low Vibration with Cab Damper
Mounting
PC220-8 uses viscous damper mount-
ing for cab that incorporates longer
stroke and the addition of a spring. The
new cab damper mounting combined
with high rigidity deck aids vibration
reduction at operator seat.
Wide Newly-designed Cab
Newly-designed wide spacious cab
includes seat with reclining backrest.
The seat height and longitudinal incli-
nation are easily adjusted using a pull-
up lever. You can set the appropriate
operational posture of armrest together
with the console.
Reclining the seat further enables you
to place it into the fully flat state with
the headrest attached.
Pressurized Cab
Optional air conditioner, air filter and a
higher internal air pressure (+6.0 mm
Aq +0.2"Aq) prevent external dust
from entering the cab.
Automatic Air Conditioner
(optional)
Enables you
to easily and
precisely set
cab atmos-
phere with
the instru-
ments on the large LCD.
The bi-level control function keeps the
operator's head and feet cool and
warm respectively. This improved air
flow function keeps the inside of the
cab comfortable throughout the year.
Defroster function keeps front glass
clear.
Cab Dedicated to Hydraulic Excavator
The cab is designed specifically for hydraulic excavators and
gains reinforced strength from the pipe-structured cab frame-
work. The cab framework provides the high durability and
impact resistance with very high impact absorbency. The
seat belt keeps the operator in the seat of the cab during a
roll over.
Anti-slip Plates
Highly durable anti-
slip plates maintain
superior traction
performance for the
long term.
Pump/engine Room Partition
Pump/engine room partition prevents oil from spraying onto
the engine if a hydraulic hose should burst.
Lock Lever
Locks the hydraulic
pressure to prevent
unintentional move-
ment. Neutral start
function allows
machine to be started
only in lock position.
Large Side-view, Rear, and
Sidewise Mirrors
Enlarged left-side mirror and addition of
rear and side mirror allow the PC220-8
to meet the new ISO visibility require-
ments.
Rear View Monitoring System (optional)
The operator can view the rear of the machine with a color
monitor screen.
Thermal and Fan Guards
Thermal and fan guards
are placed around high-
temperature parts of the
engine and fan drive.
WORKING ENVIRONMENT
HYDRAULIC EXCAVATOR
PC220-8 0
Safety Features
H YDRAULIC E XCAVATOR
PC220-8
Monitor for rear view camera
Rubber
Silicon
Oil
Spring
Page 5
98
Large LCD Color Monitor
Working Mode Application Advantage
Power mode
● Maximum production/power
P
● Fast cycle time
E Economy mode ● Excellent fuel economy
L Lifting mode
● Hydraulic pressure is
increased by 7%
B
Breaker
● Optimum engine rpm,
operation hydraulic flow
ATT
Attachment
● Optimum engine rpm,
mode hydraulic flow, 2 way
Side-by-side Cooling
Since radiator, aftercooler and oil cool-
er are arranged in parallel, it is easy to
clean, remove and install them.
Radiator, aftercooler, and oil cooler
made of aluminum have high cooling
efficiency and are easily recycled.
Equipped with the Fuel Pre-filter
(with Water Separator)
Removes water
and contaminants
in the fuel to pre-
vent fuel problems.
(With built-in prim-
ing pump)
Washable Cab Floormat
The PC220-8 's cab floormat is easy to
keep clean. The gently inclined
surface has a flanged floormat
and drainage holes
to facilitate
runoff.
Easy Access to Engine Oil Filter
and Fuel Drain Valve
Engine oil filter and fuel drain valve
are remote mounted to improve
accessibility.
Equipped with the Eco-drain
Valve as Standard.
Prevents clothes and the ground from
becoming contaminated due to oil
leakage when replacing the engine oil.
Large-capacity Fuel Tank and
Rustproof Treatment
400-liter (106 U.S. gal) high-capacity
fuel tank. Effective corrosion
resistance using rustproof
treatment.
Sloping Track Frame
Prevents dirt and sand from accumu-
lating and allows easy mud removal.
Gas Assisted Engine Hood
Damper Cylinders
The engine hood can be easily opened
and closed with the assistance of the
gas assisted
engine hood
damper cylin-
ders.
Long-life Oil, Filter
Uses high-performance
filtering materials and
long-life oil. Extends the
oil and filter replacement
interval.
Air Conditioner Filter (optional)
The air conditioner filter is removed
and installed without the use of tools
facilitating filter maintenance.
HYDRAULIC EXCAVATOR
PC220-8 0
Mode Selection
The multi-function color monitor has Power mode, Economy
mode, Lifting mode, Breaker mode and Attachment mode.
Lifting Mode
When the Lifting mode is selected, lifting capacity is
increased 7% by raising hydraulic pressure.
EMMS
(Equipment Management Monitoring System)
Monitor Function
Controller monitors engine oil
level, coolant temperature, bat-
tery charge and air clogging,
etc. If controller finds any
abnormality, it is displayed on
the LCD.
Maintenance Function
Monitor informs replacement
time of oil and filters on LCD
when the replacement interval
is reached.
Trouble Data Memory
Function
Monitor stores abnormalities for
effective troubleshooting.
MAINTENANCE FEATURES
Large Multi-lingual LCD Monitor
A large user-friendly color monitor
enables safe, accurate and smooth work.
Improved screen visibility is achieved by
the use of TFT liquid crystal display that
can easily be read at various angles and
lighting conditions. Simple and easy to
operate switches. Industry first function
keys facilitate multi-function operations.
Displays data in 12 languages to globally
support operators around the world.
Engine oil &
Engine oil filter every 500 hours
Hydraulic oil every 5000 hours
Hydraulic oil filter every 1000 hours
Hydraulic oil filter
(Eco-white element)
Internal air conditioner
filter
External air conditioner
filter
Long Work Equipment Greasing
Interval (optional)
High quality BMRC bushings and resin
shims are optionally available for work
equipment pins excluding bucket,
extending greasing interval to 500
hours.
H YDRAULIC E XCAVATOR
PC220-8
Basic
Indicators
1
Auto-decelerator
2
Working mode
3
Travel speed
4
Engine water
temperature gauge
Basic operation switches
Auto-decelerator
1
Working mode selector
2
Traveling selector
3
5
Hydraulic oil temperature gauge
6
Fuel gauge
7
Eco-gauge
8
Function switches menu
Buzzer cancel
4
Wiper
5
Windshield washer
6
operation
switches
1 2 3
7
6
4
1 2 3
4 5 6
5
8
Function
switches
Air conditioner
operation
switches
Page 6
10
ENGINE
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Komatsu SAA6D107E-1
Type . . . . . . . . . . . . . . . . . . . . Water-cooled, 4-cycle, direct injection
Aspiration. . . . . . . . . . . . . . . . . . . . . . . . . Turbocharged, aftercooled
Number of cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 mm 4.21"
Stroke. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 mm 4.88"
Piston displacement. . . . . . . . . . . . . . . . . . . . . . . . . . 6.69 ltr 408 in
3
Horsepower:
SAE J1995 . . . . . . . . . . . . . . . . . . . . . . . . Gross 134 kW 179 HP
ISO 9249 / SAE J1349 . . . . . . . . . . . . . . . . . Net 125 kW 168 HP
Rated rpm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 rpm
Fan drive method for radiator cooling . . . . . . . . . . . . . . . Mechanical
Governor . . . . . . . . . . . . . . . . . . . . . . . . All-speed control, electronic
EPA Tier 3 and EU Stage 3A certified
HYDRAULICS
Type . . HydrauMind (Hydraulic Mechanical Intelligence New Design)
system, closed-center system with load sensing valves and
pressure compensated valves
Number of selectable working modes . . . . . . . . . . . . . . . . . . . . . . . 5
Main pump:
Type . . . . . . . . . . . . . . . . . . . . . Variable displacement piston type
Pumps for . . . . . . . . Boom, arm, bucket, swing, and travel circuits
Maximum flow. . . . . . . . . . . . . . . . . . 439 ltr/min 116 U.S. gal/min
Supply for control circuit . . . . . . . . . . . . . . . . . Self-reducing valve
Hydraulic motors:
Travel. . . . . . . . . . . . . . . 2 x axial piston motor with parking brake
Swing . . . . . . . . . . 1 x axial piston motor with swing holding brake
Relief valve setting:
Implement circuits . . . . . . . . . . . . 37.3 MPa 380 kgf/cm25,400 psi
Travel circuit . . . . . . . . . . . . . . . . 37.3 MPa 380 kgf/cm25,400 psi
Swing circuit . . . . . . . . . . . . . . . . 28.9 MPa 295 kgf/cm24,190 psi
Pilot circuit . . . . . . . . . . . . . . . . . . . . . 3.2 MPa 33 kgf/cm2470 psi
Hydraulic cylinders:
(Number of cylinders – bore x stroke x rod diameter)
Boom . . . . . . 2 – 130 mm x 1335 mm x 90 mm 5.1" x 52.6" x 3.5"
Arm . . . . . . 1 – 140 mm x 1635 mm x 100 mm 5.5" x 64.4" x 3.9"
Bucket: . . . . . . . . . . . . . . . . . for 2.5 m 8'2" and 3.05 m 10'0" Arm
1 – 130 mm x 1020 mm x 90 mm 5.1" x 40.2" x 3.5"
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . for 2.0 m 6'7" Arm
1 – 140 mm x 1009 mm x 100 mm 5.5" x 39.7" x 3.9"
DRIVES AND BRAKES
Steering control . . . . . . . . . . . . . . . . . . . . . . . Two levers with pedals
Drive method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydrostatic
Maximum drawbar pull . . . . . . . . . . . . . . 202 kN 20570 kg 45,350 lb
Gradeability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70%, 35°
Maximum travel speed: High . . . . . . . . . . . . . . . . . 5.5 km/h 3.4 mph
(Auto-Shift) Mid. . . . . . . . . . . . . . . . . . 4.2 km/h 2.6 mph
(Auto-Shift) Low . . . . . . . . . . . . . . . . . 3.1 km/h 1.9 mph
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic lock
Parking brake. . . . . . . . . . . . . . . . . . . . . . . . . Mechanical disc brake
SWING SYSTEM
Drive method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydrostatic
Swing reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Planetary gear
Swing circle lubrication . . . . . . . . . . . . . . . . . . . . . . . Grease-bathed
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic lock
Holding brake/Swing lock . . . . . . . . . . . . . . . . Mechanical disc brake
Swing speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.7 rpm
UNDERCARRIAGE
Center frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X-frame
Track frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Box-section
Seal of track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sealed track
Track adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic
Number of shoes (each side):
PC220-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
PC220LC-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Number of carrier rollers . . . . . . . . . . . . . . . . . . . . . . . . . 2 each side
Number of track rollers (each side):
PC220-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PC220LC-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
COOLANT AND LUBRICANT
CAPACITY (REFILLING)
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 ltr 105.7 U.S. gal
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19.8 ltr 5.2 U.S. gal
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23.1 ltr 6.1 U.S. gal
Final drive, each side . . . . . . . . . . . . . . . . . . . . . . 3.3 ltr 0.9 U.S. gal
Swing drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6 ltr 1.7 U.S. gal
Hydraulic tank . . . . . . . . . . . . . . . . . . . . . . . . . . 135 ltr 35.7 U.S. gal
OPERATING WEIGHT (APPROXIMATE)
Operating weight including 5850 mm 19'2" one-piece boom,
3045 mm 10'0" arm, SAE heaped 1.0 m31.31 yd3backhoe bucket,
rated capacity of lubricants, coolant, full fuel tank, operator, and
standard equipment.
11
M
G
C
E
H,Q
A
D,L
K
I
N
F
O
J
B
P
345678910
5
6
7
8
9
10
11(m)
11
(m)
2
210
-7
-6
-5
-4
-3
-2
-1
0
1
3
4
-8
G.L.
H
F
G
2440(8')
A
B
C
E
D
WORKING RANGE
DIMENSIONS
BACKHOE BUCKET, ARM, AND BOOM COMBINATION
SPECIFICATIONS
HYDRAULIC EXCAVATOR
PC220-8 0
PC220-8 PC220LC-8
Operating Ground Operating Ground
Shoes Weight Pressure Weight Pressure
600 mm 22900 kg
50.0 kPa
24050 kg
48.1 kPa
0.51 kgf/cm
2
0.49 kgf/cm
2
24" 50,490 lb
7.25 psi
53,020 lb
6.97 psi
700 mm 23160 kg
44.1 kPa
24330 kg
41.2 kPa
0.45 kgf/cm
2
0.42 kgf/cm
2
28" 51,060 lb
6.40 psi
53,640 lb
5.97 psi
800 mm 23420 kg
38.2 kPa
24610 kg
36.3 kPa
0.39 kgf/cm
2
0.37 kgf/cm
2
31.5" 51,640 lb
5.55 psi
54,260 lb
5.26 psi
Arm Length 2000 mm 6'7" 2500 mm 8'2" 3045 mm 10'0"
A Overall length 9865 mm 32'4" 9960 mm 32'8" 9885 mm 32'5"
B Length on ground (transport): PC220-8 6470 mm 21'3" 5920 mm 19'5" 5190 mm 17'0"
PC220LC-8 6660 mm 21'10" 6115 mm 20'1" 5390 mm 17'8"
C Overall height (to top of boom) 3220 mm 10'7" 3295 mm 10'10" 3185 mm 10'5"
PC220-8 PC220LC-8
D Overall width 2980 mm 9'9" 3280 mm 10'9"
E Overall height (to top of cab) 3055 mm 10'0" 3055 mm 10'0"
F Ground clearance, counterweight 1100 mm 3'7" 1100 mm 3'7"
G Ground clearance (minimum) 440 mm 1'5" 440 mm 1'5"
H Tail swing radius 2940 mm 9'8" 2940 mm 9'8"
I Track length on ground 3460 mm 11'4" 3845 mm 12'7"
J Track length 4260 mm 14'0" 4640 mm 15'3"
K Track gauge 2380 mm 7'10" 2580 mm 8'6"
L Width of crawler 2980 mm 9'9" 3280 mm 10'9"
M Shoe width 600 mm 23.6" 700 mm 27.6"
N Grouser height 26 mm 1.0" 26 mm 1.0"
O Machine cab height 2110 mm 6'11" 2110 mm 6'11"
P Machine cab width 2710 mm 8'11" 2710 mm 8'11"
Q Distance, swing center to rear end 2905 mm 9'6" 2905 mm 9'6"
Arm 2000 mm 6'7" 2500 mm 8'2" 3045 mm 10'0"
A Max. digging height 9665 mm 31'9" 9790 mm 32'1" 10000 mm 32'10"
B Max. dumping height 6715 mm 22'0" 6860 mm 22'6" 7035 mm 23'1"
C Max. digging depth 5825 mm 19'1" 6320 mm 20'9" 6920 mm 22'8"
D Max. vertical wall
digging depth
4750 mm 15’7" 5130 mm 16'10" 6010 mm 19'9"
E Max. digging depth
of cut for 8' level
5585 mm 18'4" 6100 mm 20'0" 6700 mm 22'0"
F Max. digging reach 9270 mm 30'5" 9670 mm 31'9" 10180 mm 33'5"
G Max. digging reach
at ground level
9070 mm 29'9" 9480 mm 31'1" 10020 mm 32'10"
H Min. swing radius 3300 mm 10'10" 3320 mm 10'11" 3450 mm 11'4"
Bucket digging force 176 kN 152 kN 152 kN
at power max. 17900 kgf/39,460 lb 15500 kgf/34,170 lb 15500 kgf/ 34,170 lb
Arm crowd force 155 kN 142 kN 119 kN
at power max. 15800 kgf/34,830 lb 14500 kgf/31,970 lb 12100 kgf/ 26,680 lb
Bucket digging force 197 kN 172 kN 172 kN
at power max. 20100 kgf/44,310 lb 17500 kgf/38,580 lb 17500 kgf/ 38,580lb
Arm crowd force 161 kN 148 kN 129 kN
at power max. 16400 kgf/36,160 lb 15100 kgf/33,290 lb 13200 kgf/29,100 lb
ISO rating SAE rating
Bucket Capacity
Number
(heaped) Width Weight Arm Length
SAE, PCSA CECE Without Side Cutters With Side Cutters With Side Cutters
of Teeth
2.00 m 6'7" 2.50 m 8'2" 3.05 m10'0"
0.72 m3 0.94 yd30.65 m30.85 yd
3
900 mm 35.4" 1005 mm 39.6" 658 kg 1,450 lb 3
1.00 m31.31 yd30.90 m31.18 yd31155 mm 45.5" 1260 mm 49.6” 734 kg 1,620 lb 4
1.14 m31.49 yd31.00 m31.31 yd31300 mm 51.2" 1405 mm 55.3" 793 kg 1,750 lb 5 □□
1.26 m
3
1.65 yd31.10 m31.44 yd31400 mm 55.1" 1505 mm 59.3" 845 kg 1,860 lb 5 □
General purpose use, density up to 1.8 ton/m31.52 U.S. ton/yd
3
Light duty work, density up to 1.2 ton/m
3
1.01 U.S. ton/yd
3
□ General purpose use, density up to 1.5 ton/m31.26 U.S. ton/yd3X Not usable
H YDRAULIC E XCAVATOR
PC220-8
Page 7
LIFTING CAPACITY WITH LIFTING MODELIFTING CAPACITY
A
C
B
A
C
B
1312
A: Reach from swing center
B: Bucket hook height
C: Lifting capacity
Cf: Rating over front
Cs: Rating over side
: Rating at maximum reach
Conditions:
● 5850 mm 19'2" one-piece boom
PC220-8 Arm: 2000 mm 6'7" Bucket: 1.0 m31.31 yd
3
Shoe: 600 mm 24" triple grouser
A MAX 7.6 m 25' 6.1 m 20' 4.6 m 15' 3.0 m 10' 1.5 m 5'
B Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs
7.6 m *5150 kg *5150 kg
25' *11,400 lb *11,400 lb
6.1 m *4850 kg 4100 kg *5700 kg 5100 kg
20' *10,700 lb 9,100 lb *12,500 lb 11,300 lb
4.6 m 4900 kg 3300 kg *6350 kg 4950 kg *7450 kg *7450 kg *10600 kg *10600 kg
15' 10,800 lb 7,300 lb *14,000 lb 10,900 lb *16,500 lb *16,500 lb *23,400 lb *23,400 lb
3.0 m 4400 kg 2950 kg 4750 kg 3200 kg 6900 kg 4650 kg *9650 kg 7100 kg
10' 9,700 lb 6,500 lb 10,400 lb 7,000 lb 15,200 lb 10,300 lb *21,300 lb 15,700 lb
1.5 m 4250 kg 2800 kg 4600 kg 3050 kg 6600 kg 4400 kg 10500 kg 6700 kg
5' 9,400 lb 6,200 lb 10,200 lb 6,800 lb 14,600 lb 9,700 lb 23,100 lb 14,800 lb
O m 4400 kg 2900 kg 4550 kg 3000 kg 6400 kg 4200 kg 10200 kg 6450 kg
0' 9,700 lb 6,400 lb 10,000 lb 6,600 lb 14,200 lb 9,300 lb 22,500 lb 14,200 lb
–1.5 m 4900 kg 3250 kg 6350 kg 4150 kg 10200 kg 6450 kg *13950 kg 12900 kg
–5' 10,800 lb 7,100 lb 14,100 lb 9,200 lb 22,500 lb 14,200 lb *30,800 lb 28,400 lb
–3.0 m 6200 kg 4100 kg 6500 kg 4300 kg 10400 kg 6600 kg *16750 kg 13250 kg
–10' 13,700 lb 9,100 lb 14,300 lb 9,400 lb 22,900 lb 14,600 lb *36,900 lb 29,200 lb
–4.6 m *8900 kg 6800 kg *9100 kg 7000 kg
–15' *19,500 lb 15,000 lb *20,100 lb 15,500 lb
PC220-8 Arm: 2500 mm 8'2" Bucket: 1.0 m31.31 yd
3
Shoe: 600 mm 24" triple grouser
A MAX 7.6 m 25' 6.1 m 20' 4.6 m 15' 3.0 m 10' 1.5 m 5'
B Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs
7.6 m *4950 kg *4950 kg *5000 kg *5000 kg
25' *11,000 lb *11,000 lb *11,100 lb *11,100 lb
6.1 m *4750 kg 3750 kg *5100 kg *5100 kg
20' *10,500 lb 8,300 lb *11,300 lb *11,300 lb
4.6 m 4550 kg 3100 kg 4950 kg 3350 kg *5850 kg 5050 kg *6650 kg *6650 kg
15' 10,000 lb 6,800 lb 10,900 lb 7,400 lb *12,900 lb 11,100 lb *14,700 lb *14,700 lb
3.0 m 4100 kg 2750 kg 4800 kg 3250 kg *6950 kg 4750 kg *9000 kg 7500 kg
10' 9,100 lb 6,100 lb 10,600 lb 7,200 lb *15,300 lb 10,500 lb *19,900 lb 16,600 lb
1.5 m 3950 kg 2600 kg 4650 kg 3100 kg 6700 kg 4450 kg 10700 kg 6900 kg
5' 8,700 lb 5,800 lb 10,300 lb 6,900 lb 14,800 lb 9,900 lb 23,600 lb 15,200 lb
O m 4050 kg 2700 kg 4550 kg 3000 kg 6450 kg 4250 kg 10300 kg 6550 kg *7850 kg *7850 kg
0' 9,000 lb 5,900 lb 10,000 lb 6600 lb 14,300 lb 9,400 lb 22,800 lb 14,500 lb *17,300 lb *17,300 lb
–1.5 m 4500 kg 2950 kg 4500 kg 3000 kg 6400 kg 4200 kg 10200 kg 6450 kg *13400 kg 12850 kg *8650 kg *8650 kg
–5' 9,900 lb 6,500 lb 10,000 lb 6,600 lb 14,100 lb 9,200 lb 22,500 lb 14,300 lb *29,500 lb 28,300 lb *19,000 lb *19,000 lb
–3.0 m 5500 kg 3650 kg 6450 kg 4250 kg 10350 kg 6550 kg *17900 kg 13100 kg *14150 kg *14150 kg
–10' 12,100 lb 8,000 lb 14,200 lb 9,300 lb 22,800 lb 14,500 lb *39,500 lb 28,900 lb *31,200 lb *31,200 lb
–4.6 m 8350 kg 5500 kg *10250 kg 6650 kg *14950 kg 13650 kg
–15' 18,400 lb 12,100 lb *22,600 lb 14,700 lb *32,900 lb 30,100 lb
* Load is limited by hydraulic capacity rather than tipping. Ratings are based on SAE standard No. J1097. Rated loads do not exceed 87% of hydraulic lift capacity
or 75% of tipping load.
PC220-8 Arm: 3045 mm 10'0" Bucket: 1.0 m31.31 yd
3
Shoe: 600 mm 24" triple grouser
A MAX 7.6 m 25' 6.1 m 20' 4.6 m 15' 3.0 m 10' 1.5 m 5'
B Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs
7.6 m *3150 kg *3150 kg *4300 kg *4300 kg
25' *7,000 lb *7,000 lb *9,500 lb *9,500 lb
6.1 m *3050 kg *3050 kg *4050 kg 3500 kg *4500 kg *4500 kg
20' *6,700 lb *6,700 lb *8,900 lb 7,800 lb *9,900 lb *9,900 lb
4.6 m *3050 kg 2750 kg 5050 kg 3450 kg *5250 kg 5200 kg
15' *6,700 lb 6,000 lb 11,100 lb 7,600 lb *11,600 lb 11,400 lb
3.0 m *3250 kg 2450 kg 4900 kg 3350 kg *6450 kg 4900 kg *8150 kg 7800 kg *12850 kg *12850 kg
10' *7,100 lb 5,400 lb 10,800 lb 7,400 lb *14,200 lb 10,800 lb *17,900 lb 17,200 lb *28,300 lb *28,300 lb
1.5 m *3550 kg 2350 kg 4750 kg 3200 kg 6850 kg 4600 kg *10550 kg 7150 kg *7400 kg *7400 kg
5' *7,800 lb 5,200 lb 10,400 lb 7,000 lb 15,100 lb 10,100 lb *23,300 lb 15,700 lb *16,300 lb *16,300 lb
O m 3650 kg 2400 kg 4600 kg 3050 kg 6550 kg 4350 kg 10500 kg 6700 kg *8400 kg *8400 kg
0' 8,100 lb 5,300 lb 10,100 lb 6,700 lb 14,500 lb 9,600 lb 23,200 lb 14,800 lb *18,500 lb *18,500 lb
–1.5 m 4000 kg 2600 kg 4550 kg 3000 kg 6450 kg 4200 kg 10300 kg 6550 kg *12000 kg *12000 kg *7450 kg *7450 kg
–5' 8,800 lb 5,800 lb 10,000 lb 6,600 lb 14,200 lb 9,300 lb 22,700 lb 14,400 lb *26,400 lb *26,400 lb *16,400 lb *16,400 lb
–3.0 m 4700 kg 3100 kg 6400 kg 4200 kg 10350 kg 6550 kg *17300 kg 13100 kg *11150 kg *11150 kg
–10' 10,400 lb 6,900 lb 14,200 lb 9,300 lb 22,800 lb 14,400 lb *38,100 lb 28,900 lb *25500 lb *25,500 lb
–4.6 m 6500 kg 4300 kg 6600 kg 4350 kg 10550 kg 6750 kg *16550 kg 13500 kg
–15' 14,300 lb 9,500 lb 14,500 lb 9,600 lb 23,300 lb 14,900 lb *36,500 lb 29,800 lb
A: Reach from swing center
B: Bucket hook height
C: Lifting capacity
Cf: Rating over front
Cs: Rating over side
: Rating at maximum reach
Conditions:
● 5850 mm 19'2" one-piece boom
* Load is limited by hydraulic capacity rather than tipping. Ratings are based on SAE standard No. J1097. Rated loads do not exceed 87% of hydraulic lift capacity
or 75% of tipping load.
PC220LC-8 Arm: 3045 mm 10'0" Bucket: 1.0 m31.31 yd
3
Shoe: 700 mm 28" triple grouser
A MAX 7.6 m 25' 6.1 m 20' 4.6 m 15' 3.0 m 10' 1.5 m 5'
B Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs
7.6 m *3150 kg *3150 kg *4300 kg *4300 kg
25' *7,000 lb *7,000 lb *9,500 lb *9,500 lb
6.1 m *3050 kg *3050 kg *4050 kg *4050 kg *4500 kg *4500 kg
20' *6,700 lb *6,700 lb *8,900 lb *8,900 lb *9,900 lb 9,900 lb
4.6 m *3050 kg *3050 kg *5050 kg 4000 kg *5250 kg *5250 kg
15' *6,700 lb *6,700 lb *11,100 lb 8,800 lb *11,600 lb *11,600 lb
3.0 m *3250 kg 2900 kg *5650 kg 3850 kg *6450 kg 5650 kg *8150 kg *8150 kg *12850 kg *12850 kg
10' *7,100 lb 6,400 lb *12,500 lb 8,500 lb 14,200 lb 12,400 lb *17,900 lb *17,900 lb *28,300 lb *28,300 lb
1.5 m *3550 kg 2800 kg 5800 kg 3700 kg *7700 kg 5350 kg *10550 kg 8300 kg *7400 kg *7400 kg
5' *7,800 lb 6,200 lb 12,800 lb 8,200 lb *17,000 lb 11,700 lb *23,300 lb 18,300 lb *16,300 lb *16,300 lb
O m *4050 kg 2850 kg 5650 kg 3600 kg 8100 kg 5100 kg *12200 kg 7900 kg *8400 kg *8400 kg
0' *9,000 lb 6,300 lb 12,500 lb 7,900 lb 17,900 lb 11,200 lb *26,900 lb 17,400 lb *18,500 lb *18,500 lb
–1.5 m 4900 kg 3100 kg 5600 kg 3500 kg 7950 kg 4950 kg *12900 kg 7700 kg *12000 kg 12000 kg *7450 kg *7450 kg
–5' 10,800 lb 6,800 lb 12,300 lb 7,800 lb 17,500 lb 10,900 lb *28,400 lb 17,000 lb *26,400 lb 26,400 lb *16,400 lb *16,400 lb
–3.0 m 5800 kg 3650 kg 7950 kg 4950 kg *12700 kg 7750 kg *17300 kg 15700 kg *11500 kg *11500 kg
–10' 12,800 lb 8,100 lb 17,500 lb 10,900 lb *28,000 lb 17,000 lb *38,100 lb 34,600 lb *25,500 lb *25,500 lb
–4.6 m *7950 kg 5050 kg *8100 kg 5100 kg *11350 kg 7950 kg *16550 kg 16150 kg
–15' *17,600 lb 11,100 lb *17,800 lb 11,300 lb *25,100 lb 17,500 lb *36,500 lb 35,600 lb
PC220LC-8 Arm: 2000 mm 6'7" Bucket: 1.0 m31.31 yd
3
Shoe: 700 mm 28" triple grouser
A MAX 7.6 m 25' 6.1 m 20' 4.6 m 15' 3.0 m 10' 1.5 m 5'
B Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs
7.6 m *5150 kg *5150 kg
25' *11,400 lb *11,400 lb
6.1 m *4850 kg 4750 kg *5700 kg *5700 kg
20' *10,700 lb 10,500 lb *12,500 lb *12,500 lb
4.6 m *4900 kg 3850 kg *6350 kg 5700 kg *7450 kg *7450 kg *10600 kg *10600 kg
15' *10,800 lb 8,500 lb *14,000 lb 12,500 lb *16,500 lb *16,500 lb *23,400 lb *23,400 lb
3.0 m *5200 kg 3450 kg *5800 kg 3700 kg *7350 kg 5400 kg *9650 kg 8300 kg
10' *11,500 lb 7,600 lb *12,800 lb 8,200 lb *16,300 lb 11,900 lb *21,300 lb 18,300 lb
1.5 m 5200 kg 3300 kg 5650 kg 3600 kg 8150 kg 5100 kg *11750 kg 7850 kg
5' 11,500 lb 7,300 lb 12,500 lb 7,900 lb 18,000 lb 11,300 lb *25,900 lb 17,300 lb
O m 5400 kg 3400 kg 5600 kg 3500 kg 7950 kg 4950 kg *12700 kg 7600 kg
0' 11,900 lb 7,500 lb 12,300 lb 7,700 lb 17,500 lb 10,900 lb *28,000 lb 16,800 lb
–1.5 m 6050 kg 3800 kg 7900 kg 4900 kg *12700 kg 7600 kg *13950 kg *13950 kg
–5' 13,300 lb 8,400 lb 17,400 lb 10,800 lb *28,000 lb 16800 lb *30,800 lb *30,800 lb
–3.0 m 7650 kg 4800 kg 8050 kg 5000 kg *11800 kg 7750 kg *16750 kg 15850 kg
–10' 16,600 lb 10,600 lb 17,700 lb 11,100 lb *26,100 lb 17,100 lb *36,900 lb 34,900 lb
–4.6 m *8900 kg 7950 kg *9100 kg 8200 kg
–15' *19,600 lb 17,500 lb *20,100 lb 18,000 lb
PC220LC-8 Arm: 2500 mm 8'2" Bucket: 1.0 m31.31 yd
3
Shoe: 700 mm 28" triple grouser
A MAX 7.6 m 25' 6.1 m 20' 4.6 m 15' 3.0 m 10' 1.5 m 5'
B Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs Cf Cs
7.6 m *4950 kg *4950 kg *5000 kg *5000 kg
25' *11,000 lb *11,000 lb *11,100 lb *11,100 lb
6.1 m *4750 kg 4350 kg *5100 kg *5100 kg
20' *10,500 lb 9,600 lb *11,300 lb *11,300 lb
4.6 m *4850 kg 3600 kg *5500 kg 3900 kg *5850 kg 5800 kg *6650 kg *6650 kg
15' *10,700 lb 7,900 lb *12,200 lb 8,600 lb *12,900 lb 12,800 lb *14,700 lb *14,700 lb
3.0 m 5050 kg 3250 kg 5900 kg 3800 kg *6950 kg 5500 kg *9000 kg 8700 kg
10' 11,100 lb 7,100 lb 13,000 lb 8,400 lb *15,300 lb 12,100 lb *19,900 lb 19,200 lb
1.5 m 4850 kg 3100 kg 5700 kg 3650 kg *8100 kg 5200 kg *11200 kg 8050 kg
5' 10,800 lb 5,800 lb 12,600 lb 8,000 lb *17,900 lb 11,500 lb *24,800 lb 17,800 lb
O m 5000 kg 3150 kg 5600 kg 3550 kg 8000 kg 5000 kg *12500 kg 7700 kg *7850 kg *7850 kg
0' 11,100 lb 7,000 lb 12,400 lb 7,800 lb 17,600 lb 11,000 lb *27,600 lb 17,000 lb *17,300 lb *17,300 lb
–1.5 m 5550 kg 3500 kg 5550 kg 3500 kg 7900 kg 4900 kg *12850 kg 7650 kg *13400 kg *13400 kg *8650 kg *8650 kg
–5' 12,200 lb 7,700 lb 12,300 lb 7,700 lb 17,400 lb 10,800 lb *28,300 lb 16,800 lb *29,500 lb *29,500 lb *19,000 lb *19,000 lb
–3.0 m 6800 kg 4250 kg 7950 kg 4950 kg *12300 kg 7700 kg *17900 kg 15700 kg *14150 kg *14150 kg
–10' 14,900 lb 9,400 lb 17,600 lb 10,900 lb *27,100 lb 17,000 lb *39,500 lb 34,700 lb 31,200 lb *31,200 lb
–4.6 m *8750 kg 6400 kg *10250 kg 7800 kg *14950 kg *14950 kg
–15' *19,300 lb 14,100 lb *22,600 lb 17,200 lb *32,900 lb *32,900 lb
Loading...
