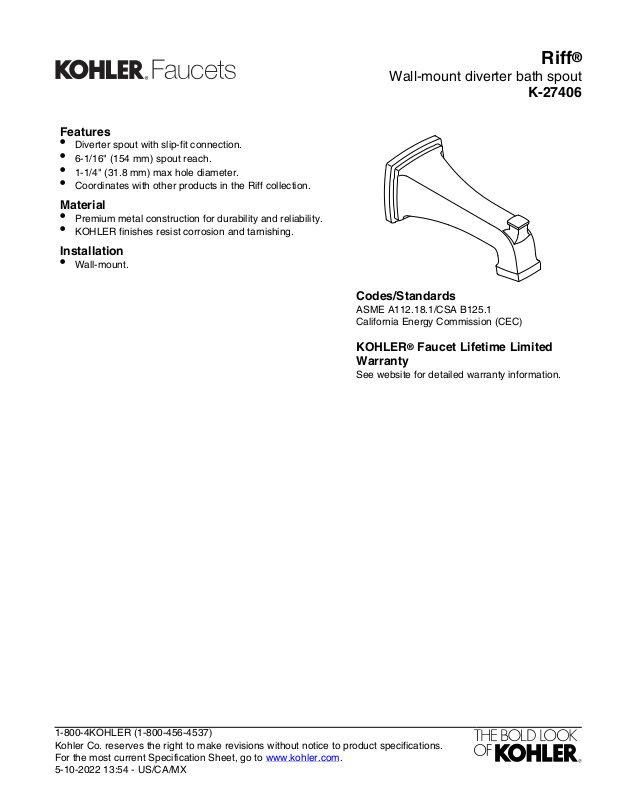

Features
•
Diverter spout with slip-fit connection.
•
6-1/16" (154 mm) spout reach.
•
1-1/4" (31.8 mm) max hole diameter.
•
Coordinates with other products in the Riff collection.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
Codes/Standards
ASME A112.18.1/CSA B125.1
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Riff
Wall-mount diverter bath spout
K-27406
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:54 - US/CA/MX
®
Ø 1-1/4" (32 mm)
Max Hole in Wall
3-1/8"
(79 mm)
6-1/16" (154 mm)
For Slip-Fit Spout:
Entend 5/8" OD tube
4" (102 mm) from finished wall.
Technical Information
All product dimensions are nominal.
Drain included: No
Spout:
Spout reach: 6-1/16" (154 mm)
Riff
Wall-mount diverter bath spout
K-27406
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:54 - US/CA/MX
