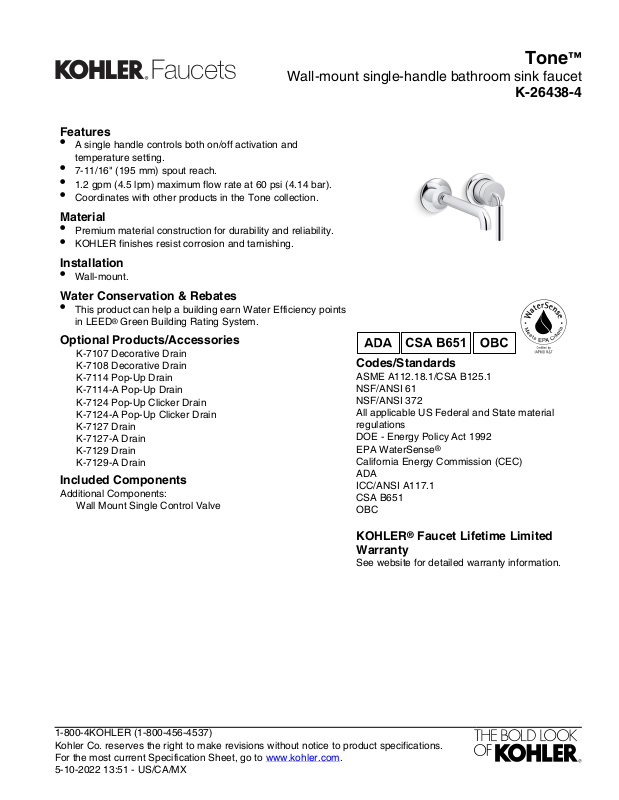

Page 1
Tone
Features
•
A single handle controls both on/off activation and
temperature setting.
•
7-11/16" (195 mm) spout reach.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
Coordinates with other products in the Tone collection.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Optional Products/Accessories
K-7107 Decorative Drain
K-7108 Decorative Drain
K-7114 Pop-Up Drain
K-7114-A Pop-Up Drain
K-7124 Pop-Up Clicker Drain
K-7124-A Pop-Up Clicker Drain
K-7127 Drain
K-7127-A Drain
K-7129 Drain
K-7129-A Drain
Included Components
Additional Components:
Wall Mount Single Control Valve
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Wall-mount single-handle bathroom sink faucet
K-26438-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:51 - US/CA/MX
Page 2
Tone
4" (102 mm)
Ø 2-5/8"
(67 mm)
3-7/16"
(87 mm)
1-1/16"
(27 mm)
3-3/16"
(81 mm)
7-11/16" (195 mm)
2-5/8" (67 mm) Min
3-1/8" (79 mm) Max
2-3/4"
(70 mm)
Ø 2-5/8"
(67 mm)
Ø 1-3/8"
(35 mm) Min
Ø 1-3/4"
(44 mm) Max
Ø 2-5/16"
(59 mm)
6-11/16"
(170 mm)
1/2" NPT
Cold Supply
1/2" NPT
Hot Supply
3-5/16"
(84 mm)
2"
(51 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Valve body: Plastic
Drain included: No
Spout:
Spout reach: 8-3/16" (208 mm)
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
™
Wall-mount single-handle bathroom sink faucet
K-26438-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 13:51 - US/CA/MX
