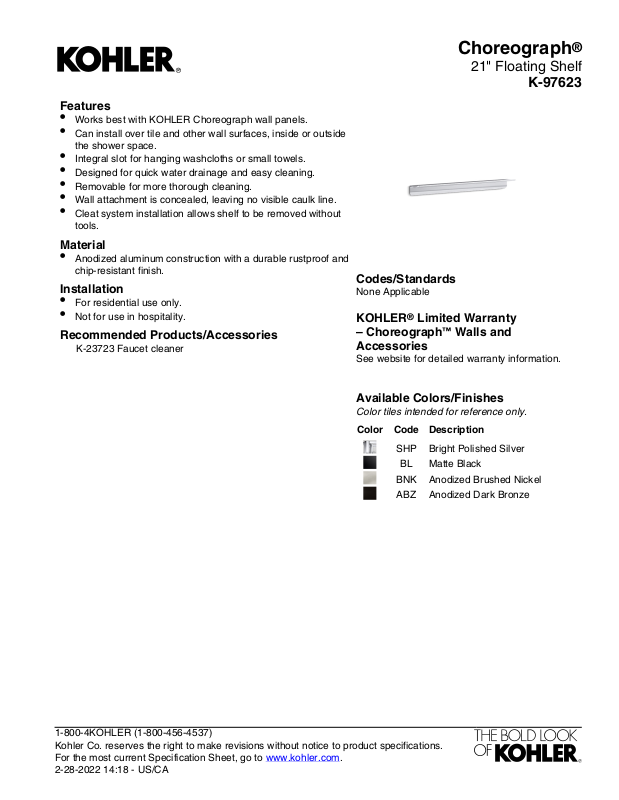

Page 1
Choreograph
Features
•
Works best with KOHLER Choreograph wall panels.
•
Can install over tile and other wall surfaces, inside or outside
the shower space.
•
Integral slot for hanging washcloths or small towels.
•
Designed for quick water drainage and easy cleaning.
•
Removable for more thorough cleaning.
•
Wall attachment is concealed, leaving no visible caulk line.
•
Cleat system installation allows shelf to be removed without
tools.
Material
•
Anodized aluminum construction with a durable rustproof and
chip-resistant finish.
Installation
•
For residential use only.
•
Not for use in hospitality.
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
None Applicable
KOHLER® Limited Warranty
– Choreograph™ Walls and
Accessories
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SHP Bright Polished Silver
BL Matte Black
BNK Anodized Brushed Nickel
ABZ Anodized Dark Bronze
21" Floating Shelf
K-97623
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-28-2022 14:18 - US/CA
Page 2
Choreograph
21"
(533 mm)
2" (51 mm)
3-3/8"
(86 mm)
Technical Information
All product dimensions are nominal.
Installation Type: Wall-mount
Material: Anodized Aluminum
Notes
Install this product according to the installation
guide.
Requires 2x4 backing to be installed.
21" Floating Shelf
K-97623
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-28-2022 14:18 - US/CA
