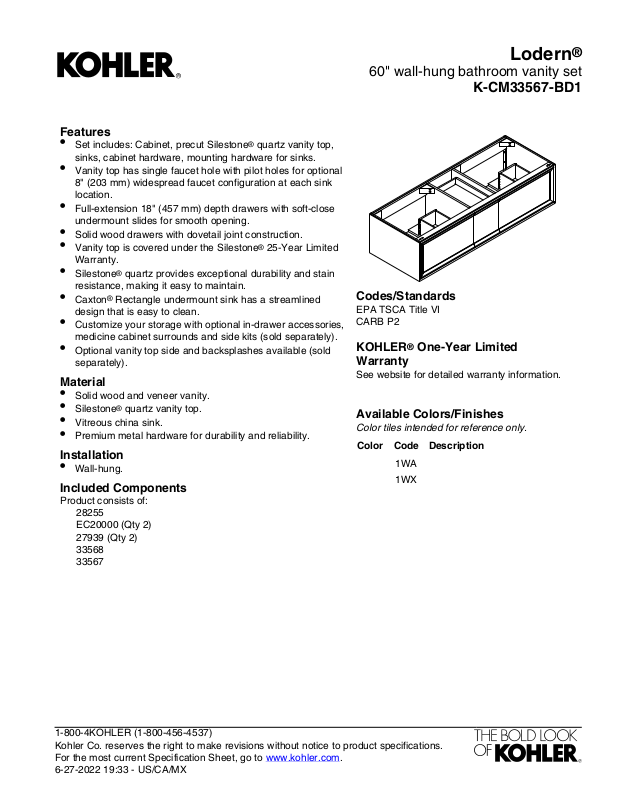

Page 1
Lodern
Features
•
Set includes: Cabinet, precut Silestone® quartz vanity top,
sinks, cabinet hardware, mounting hardware for sinks.
•
Vanity top has single faucet hole with pilot holes for optional
8" (203 mm) widespread faucet configuration at each sink
location.
•
Full-extension 18" (457 mm) depth drawers with soft-close
undermount slides for smooth opening.
•
Solid wood drawers with dovetail joint construction.
•
Vanity top is covered under the Silestone® 25-Year Limited
Warranty.
•
Silestone® quartz provides exceptional durability and stain
resistance, making it easy to maintain.
•
Caxton® Rectangle undermount sink has a streamlined
design that is easy to clean.
•
Customize your storage with optional in-drawer accessories,
medicine cabinet surrounds and side kits (sold separately).
•
Optional vanity top side and backsplashes available (sold
separately).
Material
•
Solid wood and veneer vanity.
•
Silestone® quartz vanity top.
•
Vitreous china sink.
•
Premium metal hardware for durability and reliability.
Installation
•
Wall-hung.
Included Components
Product consists of:
28255
EC20000 (Qty 2)
27939 (Qty 2)
33568
33567
Codes/Standards
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
1WA
1WX
®
60" wall-hung bathroom vanity set
K-CM33567-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-27-2022 19:33 - US/CA/MX
Page 2
Lodern
General
Roughing-In Area
8-1/4"
(210 mm)
8-9/16"
(217 mm)
39-1/8"
(994 mm)
61-1/16" (1551 mm)
15-1/8"
(384 mm)
22-3/8"
(568 mm)
20-3/8"
(518 mm)
35-1/2"
(902 mm)
Floor
16-3/4"
(425 mm)
27-1/4"
(692 mm)
8-9/16"
(217 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
®
60" wall-hung bathroom vanity set
K-CM33567-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-27-2022 19:33 - US/CA/MX
