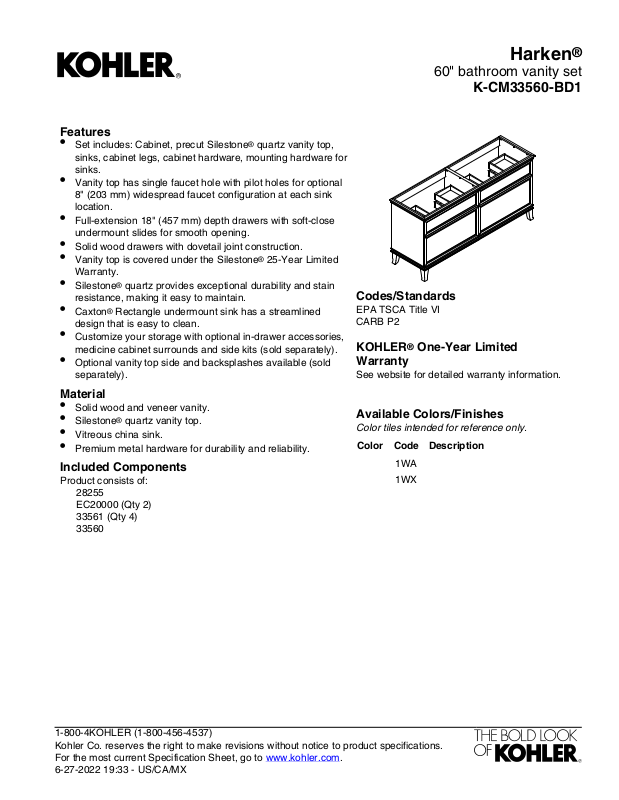

Page 1
Harken
Features
•
Set includes: Cabinet, precut Silestone® quartz vanity top,
sinks, cabinet legs, cabinet hardware, mounting hardware for
sinks.
•
Vanity top has single faucet hole with pilot holes for optional
8" (203 mm) widespread faucet configuration at each sink
location.
•
Full-extension 18" (457 mm) depth drawers with soft-close
undermount slides for smooth opening.
•
Solid wood drawers with dovetail joint construction.
•
Vanity top is covered under the Silestone® 25-Year Limited
Warranty.
•
Silestone® quartz provides exceptional durability and stain
resistance, making it easy to maintain.
•
Caxton® Rectangle undermount sink has a streamlined
design that is easy to clean.
•
Customize your storage with optional in-drawer accessories,
medicine cabinet surrounds and side kits (sold separately).
•
Optional vanity top side and backsplashes available (sold
separately).
Material
•
Solid wood and veneer vanity.
•
Silestone® quartz vanity top.
•
Vitreous china sink.
•
Premium metal hardware for durability and reliability.
Included Components
Product consists of:
28255
EC20000 (Qty 2)
33561 (Qty 4)
33560
Codes/Standards
EPA TSCA Title VI
CARB P2
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
1WA
1WX
®
60" bathroom vanity set
K-CM33560-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-27-2022 19:33 - US/CA/MX
Page 2
Harken
56-15/16" (1446 mm)
21-7/8"
(556 mm)
5-3/4"
(146 mm)
18-13/16"
(478 mm)
34-1/2"
(876 mm)
60" (1524 mm)
15-15/16"
(405 mm)
37-13/16"
(960 mm)
21-3/8"
(543 mm)
7-3/8"
(187 mm)
7-3/8"
(187 mm)
15-1/2"
(394 mm)
12-3/16"
(310 mm)
General
Roughing-In Area
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
®
60" bathroom vanity set
K-CM33560-BD1
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-27-2022 19:33 - US/CA/MX
