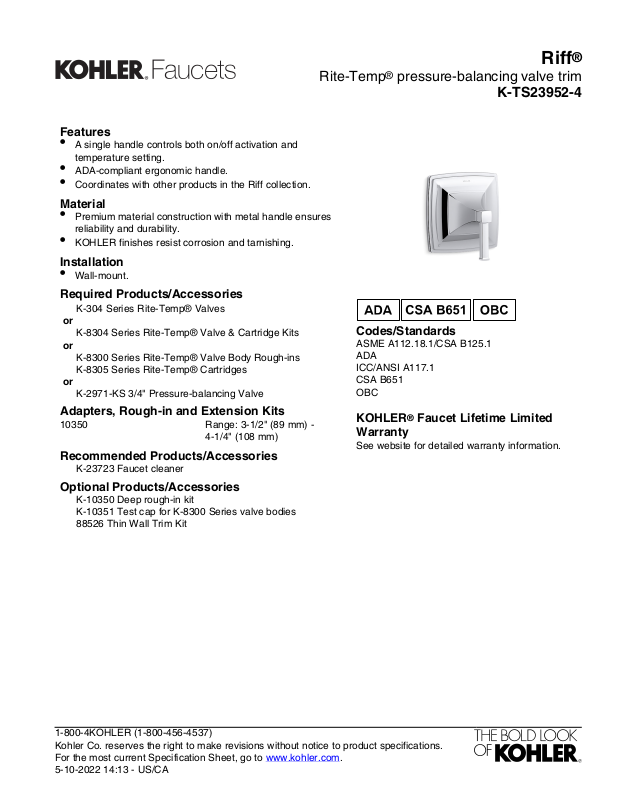

Page 1
®
Features
•
A single handle controls both on/off activation and
temperature setting.
•
ADA-compliant ergonomic handle.
•
Coordinates with other products in the Riff collection.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Wall-mount.
Required Products/Accessories
K-304 Series Rite-Temp® Valves
or
K-8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
K-8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Adapters, Rough-in and Extension Kits
10350 Range: 3-1/2" (89 mm) -
4-1/4" (108 mm)
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
88526 Thin Wall Trim Kit
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Riff
Rite-Temp® pressure-balancing valve trim
K-TS23952-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 14:13 - US/CA
Page 2
®
6-7/16"
(164 mm)
6-7/16"
(164 mm)
6-7/16"
(106 mm)
3-7/16"
(87 mm)
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Finished Wall
K-8300 Valve
Series
K-2971-KS,
K-304 Valves
Technical Information
All product dimensions are nominal.
Drain included: No
Notes
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
Riff
Rite-Temp® pressure-balancing valve trim
K-TS23952-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-10-2022 14:13 - US/CA
