Kodak P725 User Manual
KODAK EASYSHARE Digital Frame
Extended user guide
P725/P825
www.kodak.com
For help with your digital frame, www.kodak.com/go/digitalframesupport
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2009
All screen images are simulated.
Kodak and EasyShare are trademarks of Eastman Kodak Company.
P/N 4H6588_en
Top—buttons and controls
Next picture
OK/Play/Pause
Previous picture
Play orderPlay speed/transition
Copy to frame
Delete from frame
Shuffle
Slow w/Wipe
Navigation
By Date
Medium w/Pan Zoom
Fast w/Fade
Product features
www.kodak.com/go/support
i
Side—power and connectors
Stand
Power
USB connector
Memory card slot
DC-in*
Memory card slot
MS/MS Pro Duo
SD/SDHC/MMC/MS/XD
* See Attaching the power cable, page 1 and Attaching the stand, page 2.
ii www.kodak.com/go/support
Table of contents 1
1 Getting started ......................................................................................1
Attaching the power cable ............................................................................1
Attaching the stand.......................................................................................2
Turning your frame on and off.......................................................................2
Inserting a memory card................................................................................3
Connecting a USB device...............................................................................3
2 Viewing pictures ....................................................................................4
Viewing pictures from internal memory..........................................................4
Viewing pictures from a memory card............................................................4
Navigating through your pictures...................................................................5
Setting automatic shut-off time .....................................................................5
Changing play speed, transitions, and order .................................................. 6
3 Doing more with your frame .................................................................7
Deleting pictures from the frame ...................................................................7
Copying pictures to internal memory..............................................................8
Upgrading your firmware (recommended)......................................................9
Maintaining your frame...............................................................................10
4 Troubleshooting and support ..............................................................11
Learning more about your frame..................................................................11
Picture frame problems ...............................................................................11
Identifying graphic messages.......................................................................13
Identifying error messages...........................................................................14
5 Appendix .............................................................................................15
Digital frame specifications..........................................................................15
Important safety instructions .......................................................................16
Additional care and maintenance ................................................................17
Limited warranty .........................................................................................17

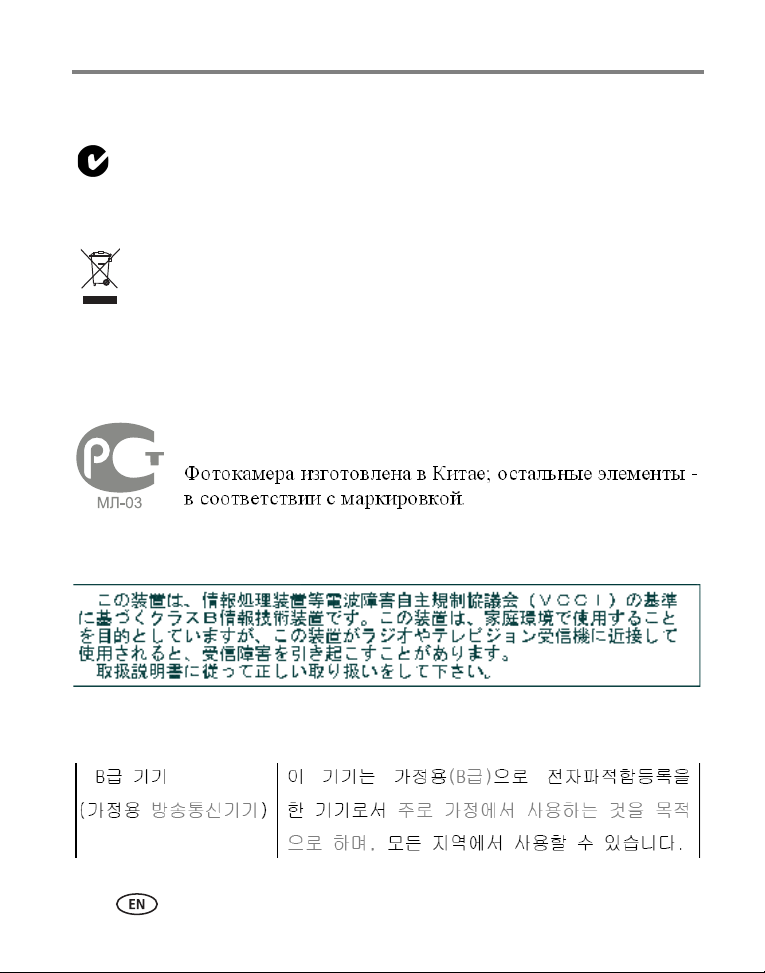

Regulatory compliance and advisory............................................................19
www.kodak.com/go/support iii
1 Getting started
CAUTION:
Your power cable may look
different from the one pictured.
Use the plug that accommodates
your type of power outlet.
Welcome to your KODAK EASYSHARE Digital Frame. Viewing your pictures couldn’t be
simpler!
Attaching the power cable
Do not use this power cable with other devices, including digital
cameras.
1 www.kodak.com/go/support
Attaching the stand
Snap the stand onto the frame.
1
Route the power cord through the
cutout in the stand.
2
1
2
Power button - press and hold (for about
2 seconds), then release
Turning your frame on and off
Getting started
NOTE: Your frame may contain pre-loaded sample pictures, which play only when there are no other
pictures loaded (from a memory card, USB device, or internal memory). Sample pictures may not be
deleted.
www.kodak.com/go/support
2
Getting started
MMC (MULTIMEDIA Card)
To insert a card, push it firmly into the slot until it clicks and stops.
To remove a card, pull it out of the slot.
*IMPORTANT: Do not insert an MS Pro
or MS Pro Duo card in the top slot. It may
be difficult to remove.
XD
SECURE DIGITAL/SECURE DIGITAL High Capacity
(SD/SDHC)
Bottom slot:
MS/MS Pro Duo (MEMORY STICK)
MS (MEMORY STICK)
Top slot*:
Supported USB devices include a flash drive,
card reader, hard drive*, etc.
USB devices and cables are sold separately.
* External hard drives must be self-powered
and formatted as FAT32.
Inserting a memory card
Connecting a USB device
3 www.kodak.com/go/support
2 Viewing pictures
Pictures play from the frame’s internal memory when no card or USB device is
inserted.
Pictures play from a memory card or USB device when one is inserted in the frame.
NOTE: Your frame may contain pre-loaded sample pictures, which play only when there are no other
pictures loaded (from a memory card, USB device, or internal memory). Sample pictures may not be
deleted.
Viewing pictures from internal memory
■ Turn on the frame.
The pictures in your frame’s internal memory play automatically.
NOTE: Make sure no memory card or USB device is inserted in the frame.
To copy pictures into the frame’s internal memory, see page 8 .
Viewing pictures from a memory card
■ Turn on the frame. Insert a memory card, USB flash drive, or other USB device (see
page 3).
Your pictures start playing automatically.
www.kodak.com/go/support 4
