User Guide • Guide d'utilisation
Guía del usuario • Guia do Usuário
Oce 2100 Series
All-in-One Printers • Imprimantes tout-en-un
Impresoras multifunción • Impressoras Multifuncionais
1KODAK ESP Office 2100 Series
All-in-One Printers
Your KODAK All-in-One Printer combines ease-of-use and affordable inks to provide
high-quality pictures and documents.
Resources
Support is available! Go to www.kodak.com/go/aiosupport for:
■ Answers to questions
■ Software or firmware upgrades
■ Extended User Guide
■ And more!
If you prefer, you can chat online, send us an e-mail, or call for technical support.
Go to www.kodak.com/go/contact.
www.kodak.com/go/aiosupport i
ENGLISH
Contents
1 Printer Overview .............................................................................. 1
Components .............................................................................................. 1
Control panel............................................................................................. 4
Home Center Software .............................................................................. 6
Paper......................................................................................................... 6
Paper types .......................................................................................... 7
Paper sizes ........................................................................................... 7
Loading paper ...................................................................................... 8
2 Basic Functions ..............................................................................11
Loading originals...................................................................................... 11
Using the scanner glass ...................................................................... 11
Using the Automatic Document Feeder (ADF)...................................... 12
Printing.................................................................................................... 14
Printing documents............................................................................. 14
Printing pictures ................................................................................. 14
Copying ................................................................................................... 15
Scanning.................................................................................................. 16
Faxing...................................................................................................... 17
Sending faxes..................................................................................... 17
Receiving faxes................................................................................... 17
Ordering supplies ..................................................................................... 18
ii www.kodak.com/go/aiosupport
Contents
3 Troubleshooting ............................................................................. 19
Basic troubleshooting............................................................................... 19
Getting help on the Web .......................................................................... 23
4 Safety and Warranty Information ................................................... 24
Safety Information.................................................................................... 24
LCD Screen Safety .................................................................................... 25
Ink Cartridge Safety.................................................................................. 25
Warranty Information............................................................................... 26
Declaration of Conformity......................................................................... 28
ENGLISH
www.kodak.com/go/aiosupport iii
iv www.kodak.com/go/aiosupport
1 Printer Overview
5
8
7
2
1
4
6
3
This printer lets you print, copy, scan, and fax pictures and documents.
Components
1 Control panel 5 Paper input tray
2 Automatic document feeder (ADF) 6 Right paper-edge guide
3 ADF paper-edge guides 7 Output tray
4 Left paper-edge guide 8 Output tray extender
www.kodak.com/go/aiosupport 1
Printer Overview
9
12
11
10
9 Front USB port (ESP Office 2170 only) 11 Scanner lid
10 Memory card slot 12 Scanner glass
2 www.kodak.com/go/aiosupport
Printer Overview
13
16
14
15
17
18
19
20
13 KODAK Service Number 17 Line in phone port
14 Access door 18 Ext out phone port
15 Carriage 19 USB port (for connecting to computer)
16 Printhead with ink cartridges installed 20 Power cord connection port
www.kodak.com/go/aiosupport 3
Printer Overview
43
65
7 8 9 101 112
121819 16 1517 131420
Control panel
Feature Description
1 LCD Displays pictures, messages, and menus
2 Copy button Displays the Copy Document menu
3 Fax button Lets you enter a phone number for sending a fax, or choose
the Fax Options menu
4 Navigation buttons Used to navigate menus and scroll through pictures
5 OK button Selects a menu item, accepts a setting, or continues with the
current operation
6 Attention light Blinks when an error occurs
7 Phonebook button Displays the phonebook of fax numbers; lets you enter or
edit phone numbers
4 www.kodak.com/go/aiosupport
Printer Overview
Feature Description
8 Numeric keypad Used to dial a phone number or a Quick Dial number for
faxing; to enter information and Quick Dial settings into the
fax phonebook; to specify a quantity for making copies; and
to enter information for accessing a network
9 Cancel button Stops the current operation and returns to the menu; clears
certain errors to allow scanning or sending a fax
10 Start Black button Starts the selected print, copy, scan, or fax in black and
white
11 Power button Turns the printer on or off
12 Wi-Fi connectivity LED When lit, signals that the printer is connected to a wireless
(Wi-Fi) network; blinks when searching for an available
Wi-Fi network or when the existing signal is too weak to
transmit or receive wireless signals
13 Start Color button Starts the selected print, copy, scan, or fax in color
14 Auto Answer button Turns the fax auto answer feature on or off; when on, the
fax answers all incoming calls automatically
15 Redial button Dials the last phone number dialed
16 Auto answer LED Lights when the fax auto answer feature is on
17 Home button Displays the main menu
18 Back button Displays the next higher screen in the menu structure
19 Photo button Displays the Print Photo Options menu
20 Scan button Displays the Scan Options menu
www.kodak.com/go/aiosupport 5
Printer Overview
Home Center Software
KODAK Home Center Software is installed with your KODAK All-in-One Printer Software,
unless you choose otherwise. The Home Center icon will appear on your desktop.
On a computer with WINDOWS Operating System (OS), you can use Home Center
Software to browse and edit pictures, print, copy, scan, order supplies, access the
Extended User Guide, and configure your all-in-one printer from your computer.
On a computer with MAC OS, you can use Home Center Software to scan, order supplies,
access the Extended User Guide, and configure your printer from your computer.
Paper
For the best photo printing results, use KODAK Photo Papers, which are optimized to
work with KODAK All-in-One Printers.
For the best document printing results, use KODAK Document Papers or a paper with
the COLORLOK Technology logo on the package. Use only paper that is designed for
inkjet printers.
6 www.kodak.com/go/aiosupport
Printer Overview
Paper types
You can print on:
■ Plain paper — 16 to 24 lb / 60 to 90 gsm
■ Photo paper — up to 12 mils / 290 gsm
■ Card stock — 110 lb / 200 gsm, max
■ Envelopes — most standard types
■ Labels — all commercially available inkjet varieties on 8.5 x 11-in. or A4 sheets
■ Iron-on transfers — all inkjet varieties on 8.5 x 11-in. or A4 sheets
■ Transparencies — inkjet variety with white stripe on short edge
Paper sizes
You can print on the following paper sizes:
Minimum size Maximum size
English units
Metric units
For more information about paper types and sizes, see the Extended User Guide at
www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals.
4 x 6 in. 8.5 x 14 in.
10 x 15 cm 22 x 36 cm
www.kodak.com/go/aiosupport 7
Printer Overview

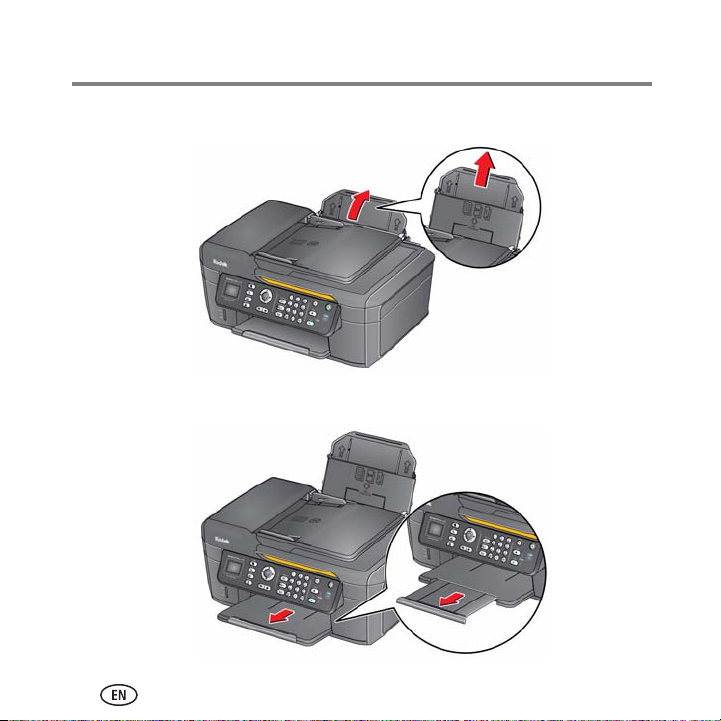

Loading paper
1 Open and lift the paper input tray.
2 Pull out the paper output tray and the extender until they are fully extended.
8 www.kodak.com/go/aiosupport
Printer Overview
Loading plain paper
The input paper tray capacity is 150 sheets of plain paper.
To load plain paper:
1 Fan and stack the paper.
2 Make sure the left and right paper-edge guides are to the far left and far right, then
insert the paper (short side first) into the input tray.
3 Move the paper-edge guides until they touch the paper.
www.kodak.com/go/aiosupport 9
Printer Overview
Loading photo paper
The input paper tray capacity is 20 sheets of photo paper.
To load photo paper:
1 Remove any paper from the input tray.
2 Insert the paper (short side first) into the input tray with the logo side facing
toward the tray and the glossy side toward you.
IMPORTANT:
If the photo paper is loaded the wrong way, the image quality
will be affected.
3 Move the paper-edge guides until they touch the paper.
10 www.kodak.com/go/aiosupport
2 Basic Functions
Loading originals
You can place originals for copying, scanning, or faxing on the scanner glass or in the
ADF (automatic document feeder). The ADF automatically feeds the originals into the
printer when you begin copying, scanning, or faxing.
Using the scanner glass
To place an original on the scanner glass:
1
Remove any originals from the automatic document feeder (ADF).
2 Lift the scanner lid, and place the document or picture face down in the right-front
corner.
3 Close the scanner lid.
www.kodak.com/go/aiosupport 11
Basic Functions

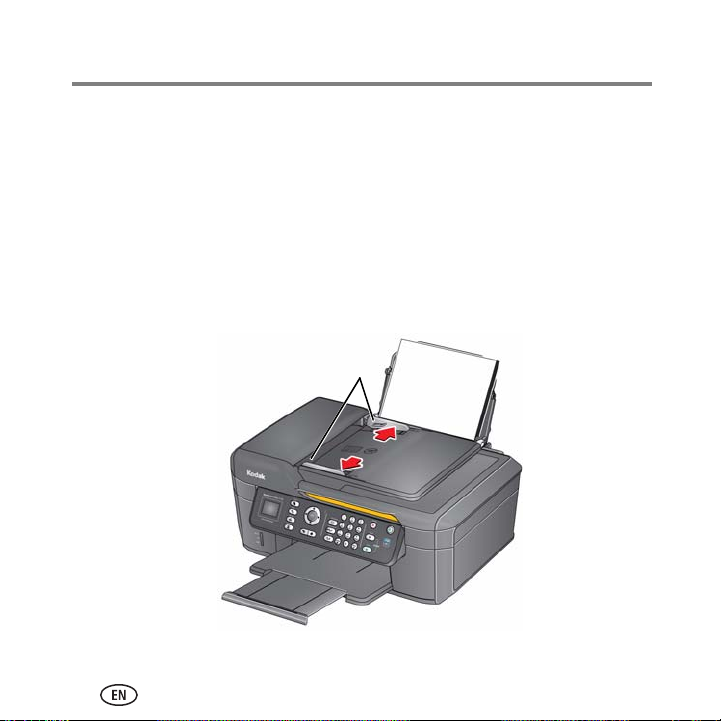

ADF paper-edge guides
Using the Automatic Document Feeder (ADF)
You can load up to 25 originals (16 to 24 lb / 60 to 90 gsm plain paper) in the automatic
document feeder (ADF).
The ADF accepts originals from B5 (
(
8.5 x 14 in. /
216 x 356 mm).
6.9 x 9.8 in. / 176 x 250 mm
) to legal size
IMPORTANT:
Do not load photographs, cards, or any paper stock heavier than
24 lb / 90 gsm in the ADF
.
1 Move the ADF paper-edge guides outward.
12 www.kodak.com/go/aiosupport
2 Fan and stack the originals, then insert them face up in the ADF.
3 Move the ADF paper-edge guides until they touch the paper.
Basic Functions
www.kodak.com/go/aiosupport 13
Basic Functions
Printing
Printing documents
To print a document from your computer:
1 Open the document.
2 Select File > Print.
3 In the Print window, select your KODAK Printer.
4 Choose the pages to print, number of copies, etc, then click OK (on a computer with
WINDOWS OS) or Print (on a computer with MAC OS).
Printing pictures
You can print pictures using Home Center Software from your computer with
WINDOWS OS. Home Center Software lets you edit and enhance your pictures quickly.
On a computer with either MAC OS or WINDOWS OS, you can print pictures from
KODAK EASYSHARE Software or any picture-editing or photo-management software.
For more information about printing, see the Extended User Guide at
www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals.
14 www.kodak.com/go/aiosupport
Basic Functions
Copying
To make a copy:
1 Place the original(s) on the scanner glass or in the automatic document feeder.
IMPORTANT:
Do not load photographs, cards, or any paper stock heavier than
24 lb / 90 gsm in the ADF
.
2 Press Home.
3 Press or to select Copy Document or Copy Photo.
4 Press Start Black to make a black-and-white copy, or press Start Color to make
a color copy.
For more information about copying, see the Extended User Guide at
www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals.
www.kodak.com/go/aiosupport 15
Basic Functions
Scanning
Before scanning, make sure that the printer is connected to your computer with a
USB 2.0 cable or through a wireless network.
To scan a document or picture:
1 Place the original(s) on the scanner glass or in the automatic document feeder.
IMPORTANT:
Do not load photographs, cards, or any paper stock heavier than
24 lb / 90 gsm in the ADF
.
2 Open Home Center Software.
3 Select Scan Pictures and Documents (on a computer with WINDOWS OS), or
select the Too ls tab, then click Scan Application (on a computer with MAC OS).
4 Follow the instructions on the computer screen.
For more information about scanning, see the Extended User Guide at
www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals
16 www.kodak.com/go/aiosupport
.
Basic Functions
Faxing
Before sending or receiving faxes, make sure that a wall phone line is plugged into the
Line in port on the back of the printer.
Sending faxes
To send a fax:
1 Press Fax.
2 Enter a fax number using the numeric keypad.
3 Place the original(s) on the scanner glass or in the automatic document feeder.
IMPORTANT:
Do not load photographs, cards, or any paper stock heavier than
24 lb in the ADF
.
4 Press Start Black to send a black-and-white fax, or press Start Color to send a
color fax.
Receiving faxes
To receive a fax:
1 Load plain paper into the printer.
2 Make sure the Auto Answer LED is on. (If not, press Auto Answer to turn it on.) The
printer will receive all incoming faxes automatically.
NOTE:
You can receive an incoming fax manually, even if Auto Answer is turned on. When
you hear the phone ring, press
For more information about faxing, see the Extended User Guide at
www.kodak.com/go/esp2150manuals or www.kodak.com/go/esp2170manuals.
www.kodak.com/go/aiosupport 17
Start Black
or
Start Color
.
Basic Functions
Ordering supplies
You can order ink cartridges, paper, and accessories online.
To order supplies, make sure that your computer is connected to the Internet, then:
1 Open Home Center Software.
2 Select Order Supplies (on a computer with WINDOWS OS) or select the Too ls tab,
then click Order Supplies (on a computer with MAC OS).
3 Select the item(s) you want to buy, then follow the on-screen instructions.
18 www.kodak.com/go/aiosupport
3 Troubleshooting
Basic troubleshooting
Some problems can be resolved quickly by power cycling the printer: Turn off your printer.
Wait five seconds. Turn on the printer.
Use the following information to help troubleshoot problems with your printer.
Problem Possible Solutions
Wireless
connectivity
Printer does not
power on
For wireless connectivity issues, go to
www.kodak.com/go/inkjetnetworking.
• Make sure you are using the power cord that came with your
printer.
• Make sure the power cord is connected to the AC adapter
and is plugged into an outlet or power strip.
www.kodak.com/go/aiosupport 19
Troubleshooting
Problem Possible Solutions
Printer not
detected
• Make sure that your printer is plugged in and turned on.
• If you are using a USB cable, make sure that:
– it is a USB 2.0 high-speed cable.
– it is connected to both your printer and your computer.
– you restart the computer if the USB cable was
disconnected from the printer then reconnected, or if
power to the printer was interrupted.
• If you are using a wireless connection, make sure that:
– the printer is connected to your wireless network.
To check:
a On the printer, press Home.
bPress to select Network Settings, then press
OK.
cPress to select View Network
Configuration, then press OK.
d Make sure that the Active Connection Type is Wi-Fi,
and that the IP Address is not 0.0.0.0.
– your router is transmitting data.
– the firewall (excluding WINDOWS Firewall) is allowing
the services needed for your printer.
For more information, go to
www.kodak.com/go/inkjetnetworking.
20 www.kodak.com/go/aiosupport
Troubleshooting
Problem Possible Solutions
Carriage jam • Open the access door and clear any obstructions.
• Do not move the carriage by force or pull any cables.
• Check that the printhead and ink cartridges are installed
correctly. (The printhead and ink cartridges are installed
correctly when you hear them click into place.)
Print quality • For best results, use KODAK Paper or a paper with the
COLORLOK Technology logo on the package.
• Make sure the paper is loaded correctly. See Loading plain
paper, page 9 and Loading photo paper, page 10.
• For more help, go to www.kodak.com/go/troubleshooting.
Ink cartridge errors • Check that KODAK Ink Cartridge(s) are installed. Do not use
non-Kodak brand or refilled ink cartridges.
• Remove, then install the cartridges again. Make sure the
cartridges click into place.
Paper jam • Open the printer access door and gently remove any paper
from inside the printer.
• Make sure the paper in the input tray is free of tears or
creases.
• Make sure you do not overload the paper input tray.
For more information, go to
www.kodak.com/go/troubleshooting.
www.kodak.com/go/aiosupport 21
Troubleshooting
Problem Possible Solutions
Cannot send or
receive a fax
Error
codes/messages
• Make sure that the wall phone line is plugged into the Line
in port.
• Verify that the wall jack works by plugging in a phone and
checking for a dial tone.
• Verify that Region is set to the correct country code.
1 Press Home.
2 Press or to select Printer Settings, then
press OK.
3 Press to select Country/Region, then press OK.
4 Press or to select your country, then press OK.
• If you are connected to a DSL phone line, make sure you
have a DSL filter connected to the phone jack.
For more information, go to
www.kodak.com/go/troubleshooting.
•Go to www.kodak.com/go/esp2150support or
www.kodak.com/go/esp2170support, then type your error
code or message.
22 www.kodak.com/go/aiosupport
Troubleshooting
Getting help on the Web
For more troubleshooting information:
Get help with wireless networking. www.kodak.com/go/inkjetnetworking
Search our knowledge base for
answers.
Download the latest firmware and
software for optimal printer
performance.
Check the Extended User Guide for
detailed instructions and
recommended system
requirements.
Get help with problems you cannot
resolve.
www.kodak.com/go/aiosupport 23
www.kodak.com/go/esp2150support or
www.kodak.com/go/esp2170support
www.kodak.com/go/esp2150downloads or
www.kodak.com/go/esp2170downloads
www.kodak.com/go/esp2150manuals or
www.kodak.com/go/esp2170manuals
Contact Kodak at www.kodak.com/go/contact
and have the following information available:
– KODAK Service Number (located inside the
printer when you open the access door)
– Printer model number (located on the
control panel above the LCD)
– Computer model, operating system, and
version of Home Center Software
4 Safety and Warranty Information
Safety Information
■ Always follow all warnings and instructions marked on the product.
■ Use only the power source indicated on the product regulatory label.
■ Use only the power cord that comes with the product. Using another power cord may
cause fires and or shock. Do not use the included power cord with any other
equipment.
■ If you do not use this product for a long period of time, unplug it from the electrical
outlet.
■ Always turn this product off by using the On/Off button. Wait until the On/Off button
stops flashing before removing the power plug from the outlet.
■ Do not allow the power cord to become damaged or frayed.
■ If you need to use an extension cord with this product, make sure that the ampere
rating of the product does not exceed the ampere rating of the extension cord.
■ Place the product on a flat, stable surface that extends beyond the product’s base in
all directions. This product will not operate properly if tilted or at an angle.
■ When storing or transporting this product, do not tilt or stand it on its side. Never turn
this product upside down (ink can leak out of the product).
■ Avoid placing this product in an environment that is subject to rapid changes in
temperature or humidity, mechanical shocks, vibration, or dust. Do not place near
radiators, heating vents, or in direct sunlight.
24 www.kodak.com/go/aiosupport
Safety and Warranty Information
■ Leave enough room around this product for sufficient ventilation.
■ Do not block this product’s covers or openings, or insert any objects through slots.
■ Do not use aerosol products inside or around this product.
■ Do not spill any liquid on this product.
■ Do not attempt to repair or service this product.
■ If the power cord or plug is damaged, if any liquid has been spilled onto the product,
if the product has been dropped or the case damaged, or if the product does not
operate normally or exhibits a major change in performance level, unplug this product
and contact Kodak at www.kodak.com/go/contact.
LCD Screen Safety
■ Use only a dry, soft cloth to clean the LCD screen. Do not use any liquid or chemical
cleaners.
■ If the LCD screen is damaged, contact Kodak immediately. If any of the solution from
the display gets on your hands, wash them thoroughly with soap and water.
Ink Cartridge Safety
■ Keep all ink cartridges out of the reach of children.
■ If ink gets on your skin, wash with soap and water. If ink gets into your eyes, flush
immediately with water. If any discomfort or change in vision persists after washing,
seek medical attention immediately.
■ For Material Safety Data Sheets on inks, go to www.kodak.com/go/MSDS.
www.kodak.com/go/aiosupport 25
Safety and Warranty Information
Warranty Information
Limited Warranty
Kodak warrants Kodak consumer electronic products and accessories (“Products”),
excluding batteries, to be free from malfunctions and defects in both materials and
workmanship for one year from the date of purchase. Retain the original dated sales
receipt. Proof of the date of purchase will be required with any request for warranty
repair.
Limited Warranty Coverage
Warranty service is only available from within the country where the Products were
originally purchased. You may be required to send Products, at your expense, to the
authorized service facility for the country where the Products were purchased. Kodak will
repair or replace Products if they fail to function properly during the warranty period,
subject to any conditions and/or limitations stated herein. Warranty service will include all
labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable
to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for
the Product provided the Product has been returned to Kodak together with proof of the
purchase price paid. Repair, replacement, or refund of the purchase price are the sole
remedies under this warranty. If replacement parts are used in making repairs, those parts
may be remanufactured or may contain remanufactured materials. If it is necessary to
replace the entire Product, it may be replaced with a remanufactured Product.
Remanufactured Products, parts and materials are warranted for the remaining warranty
term of the original Product, or 90 days after the date of repair or replacement, whichever
is longer.
26 www.kodak.com/go/aiosupport
Safety and Warranty Information
Limitations
This warranty does not cover circumstances beyond Kodak’s control. This warranty does
not apply when failure is due to shipping damage, accident, alteration, modification,
unauthorized service, misuse, abuse, use with incompatible accessories or attachments
(such as third party ink or ink tanks), failure to follow Kodak’s operation, maintenance or
repacking instructions, failure to use items supplied by Kodak (such as adapters and
cables), or claims made after the duration of this warranty. KODAK MAKES NO OTHER
EXPRESS OR IMPLIED WARRANTY FOR THIS PRODUCT, AND DISCLAIMS THE IMPLIED
WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. In the event that the exclusion of any implied warranty is
ineffective under the law, the duration of the implied warranty will be one year from the
purchase date or such longer period as required by law. The option of repair,
replacement, or refund is Kodak’s only obligation. Kodak will not be responsible for any
special, consequential or incidental damages resulting from the sale, purchase, or use of
this product regardless of the cause. Liability for any special consequential or incidental
damages (including but not limited to loss of revenue or profit, downtime costs, loss of
the use of the equipment, cost of substitute equipment, facilities or services or claims of
your customers for such damages resulting from the purchase, use or failure of the
Product), regardless of cause, or for breach of any written or implied warranty is expressly
disclaimed.
Your R ig ht s
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you. Some
states or jurisdictions do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you. This warranty gives you specific rights, and you
may have other rights which vary from state to state or by jurisdiction. Your statutory
rights are not affected.
www.kodak.com/go/aiosupport 27
Safety and Warranty Information
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of this
warranty may be different. Unless a specific Kodak warranty is communicated to the
purchaser in writing by a Kodak company, no warranty or liability exists beyond any
minimum requirements imposed by law, even though defect, damage, or loss may be by
negligence or other act.
Declaration of Conformity
See www.kodak.com/go/declarationofconformity
28 www.kodak.com/go/aiosupport
Eastman Kodak Company
Rochester, NY 14650 U.S.A.
© Eastman Kodak Company, 2010.
MC/MR/TM: Kodak, ESP, EasyShare.
Printed in China.
1K7637
Loading...
