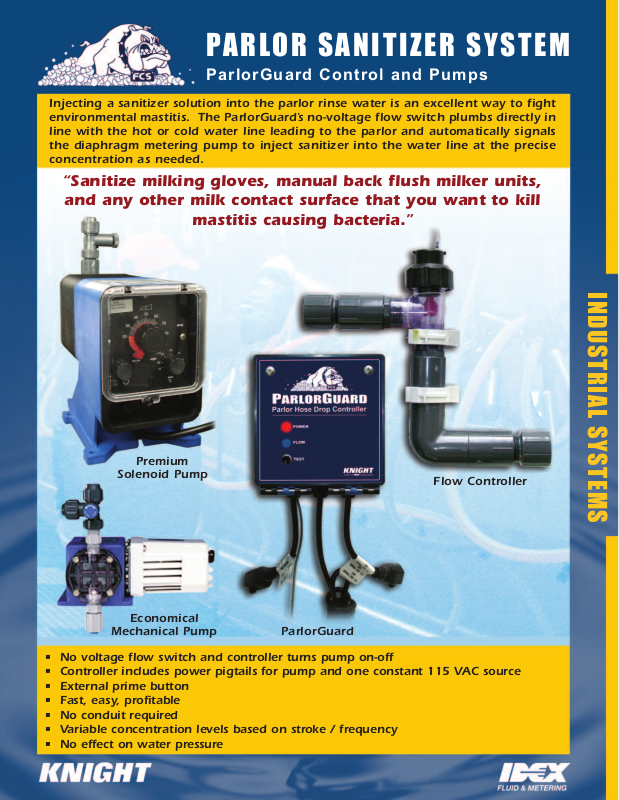

PARLOR SANI TIZE R SYSTE M

ParlorGuard Control and Pumps

Injecting a sanitizer solution into the parlor rinse water is an excellent way to fight
environmental mastitis. The ParlorGuard’s no-voltage flow switch plumbs directly in
line with the hot or cold water line leading to the parlor and automatically signals
the diaphragm metering pump to inject sanitizer into the water line at the precise
concentration as needed.

“Sanitize milking gloves, manual back flush milker units,

and any other milk contact surface that you want to kill

mastitis causing bacteria.”

INDUSTRIAL SYSTEMS

Premium

Solenoid Pump

Economical

Mechanical Pump

• No voltage flow switch and controller turns pump on-off

• Controller includes power pigtails for pump and one constant 115 VAC source

• External prime button

• Fast, easy, profitable

• No conduit required

• Variable concentration levels based on stroke / frequency

• No effect on water pressure

ParlorGuard

Flow Controller

Copyright

©

Parlor sanitizer System Typical Installation

Parlor sanitizer System Typical Installation

ParlorGuard

Knight Parlor Hose Drop Pump
Controller

Pulsatron E

ulsatron solenoid drive diaphragm

P
pump Series E, 5.0 GPH/120 GPD,
100 PSI (110 VAC)

Pump Mount Bracket

Pump mount bracket with
mounting hardware

Simple Power Connection

Sanitizer Injection Point

Flow Switch

Flow Switch connects to control wih
low voltage cable

ORDERING INFORMATION

Parlor Sanitizer System

CONTROLGUARD BASE CONTROL SYSTEM

Part Number Model Description

8000153 X100-XA-BBAAXXX ChemTech Series 100 Metering Pumps (115 VAC)

Low Cost Parlor Hose Drop Sanitizer Pump
with: 100 GPD, 60 PSI, PVC Pump Head, Viton O-Rings and Seals

8000103 LEH6SA-VTC3XXX Pulsatron Series E 5.0 GPH/120 GPD (18.9 LPH) 100 PSI (110 VAC)

Manual Stroke Length and Frequency Adjustment
with: PVC Head and Fittings, PTFE seats, PTFE Diaphragm, Ceramic check balls, 3/8” I.D. x 1/2” O.D. Tubing, Bleed Valve, Foot Valve,

and Injection Valve. Note: Replaces LMI-B131-460TI (Wash Pen Injection)

8000117 FC-20003 Flow Controller 3/4” Pulsatron for Hose Drop

with: Flow Switch, Pump Power Output Pigtail, Utility Power Pigtail, Check System Button

8000118 FC-20003C Flow Controller 1” Pulsatron for Hose Drop

with: Flow Switch, Pump Power Output Pigtail, Utility Power Pigtail, Check System Button

Mixing Chamber

Mixing Chamber for sanitizer/water
solution

Watts 9D Backflow Preventer

Parlor Hot Water Line

KNIGHT LIMITED WARRANTY

Knightcontrolsand pump systemsare warranted against defects in materialand workmanshipfor a period of ONE YEAR. All ElectronicControlBoardshave a TWO YEARwarranty.
Warranty applies onlyto thereplacement or repair of such parts whenreturnedto thefactory with a KRA number, freight prepaid and found to be defective upon factory inspection.
Rubberand synthetic rubber parts suchas "O" rings, diaphragms,squeezetubing and gaskets are consideredexpendable and are notcovered under warranty.Warranty doesnot
coverliabilityresulting fromperformance of this equipment nor the labor to replace this equipment. Product abuseor misuse voidswarranty. Knight products are not for use in
potentially explosive environments. Anyuse of our equipment in such an environment is at the risk of the user. Knight doesnot accept anyliabilityin such circumstances.

Knight Headquarters Knight Canada Knight Europe Knight Australia Knight N. Asia Knight S. Asia

Toll Free [phone] Tel [phone] Tel [phone] Tel [phone] Tel [phone] Tel [phone]
Tel [phone] Fax [phone] Fax [phone] Fax [phone] Fax [phone] Fax [phone]
Fax [phone]
www.knightequip.com

KNIGHT DISCLAIMER

The informationand specifications included in this publica­tion were in effect at the time of approval for printing. Knight,
LLC. reserves the right,however, to discontinue or change
specificationsor designat any time without notice andwithout
incurring anyobligationwhatsoever.

ENBR_PARLORGUARD_1003
