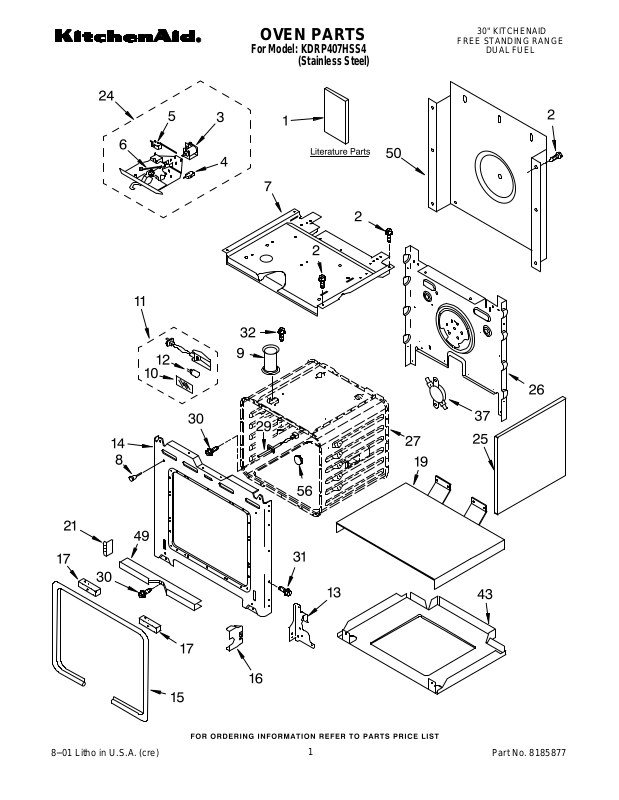

KDRP407HSS
OVEN PARTS
For Model: KDRP407HSS4
(Stainless Steel)
30" KITCHENAID
FREE STANDING RANGE
DUAL FUEL
8−01 Litho in U.S.A. (cre)
1
Part No. 8185877
OVEN PARTS
For Model: KDRP407HSS4
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Literature Parts
LIT4455927
LIT8300219
LIT4453057
LIT4453152
LIT3191638
2 4449809 Screw, 8−18 x 3/8
3 4452224 Solenoid
4 4452312 Switch, Micro
5 4451426 Switch, Micro
6 4451537 Spring, Latch
7 4455866 Top, Chassis
Installation
Instructions
Use & Care Guide
Tech Sheet
Conversion
Instructions
Safer Cooking Tips
Illus. Part
No. No. DESCRIPTION
8 4448520 Bumper, Door
9 4452158 Tube, Vent
10 4452163 Lens, Light
11 4448972 Oven Light Assy
4449748 Screw
12 4452164 Bulb, Light
13 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
14 4455612 Frame, Front
15 4455382 Gasket, Door
16 4452152 Bracket, Mounting
4449809 Screw
17 4452260 Spacer, Foam
19 4451478 Support, Insulation
21 4455510 Bracket, Support
24 4451896 Latch Assy
25 4455641 Side, Chassis
26 4452234 Back, Chassis
27 Liner, Oven
(Not serviceable)
Illus. Part
No. No. DESCRIPTION
29 4455636 Sensor
30 4449154 Screw, 8−32 x .440
31 4449040 Screw, 8−18 x 3/8
32 3196176 Screw, 8−18 x 1/2
37 4451442 Thermostat (TOD)
(Temp.) SPST
43 4455649 Base, Chassis
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
56 4448982 Button, Plug
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
4452337 Insulation,
Bottom Vent
2
8185877
OVEN DOOR PARTS
For Model: KDRP407HSS4
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 4455618 Door Liner
2 Hinge, Door
8300577 R.Side
8300578 L.Side
3 4449259 Glass, Inner
4 4451722 Insulation, Door
5 8300778 Retainer, Glass
8185877
Illus. Part
No. No. DESCRIPTION
7 4449263 Glass, Inner
8 4449743 Screw, 8−32 x 3/8
9 4451668 Retainer, Glass
12 4452316 Assy, Door Glass
13 4455851 Door Handle
14 Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
3
Illus. Part
No. No. DESCRIPTION
19 4450362 Shield, Heat
20 4449809 Screw, 8−18 x 3/8
21 4452326 Seal, Door Top
23 4451432 Retainer, Clip
3400832 Screw
24 3196184 Screw, 8−32 x .548
