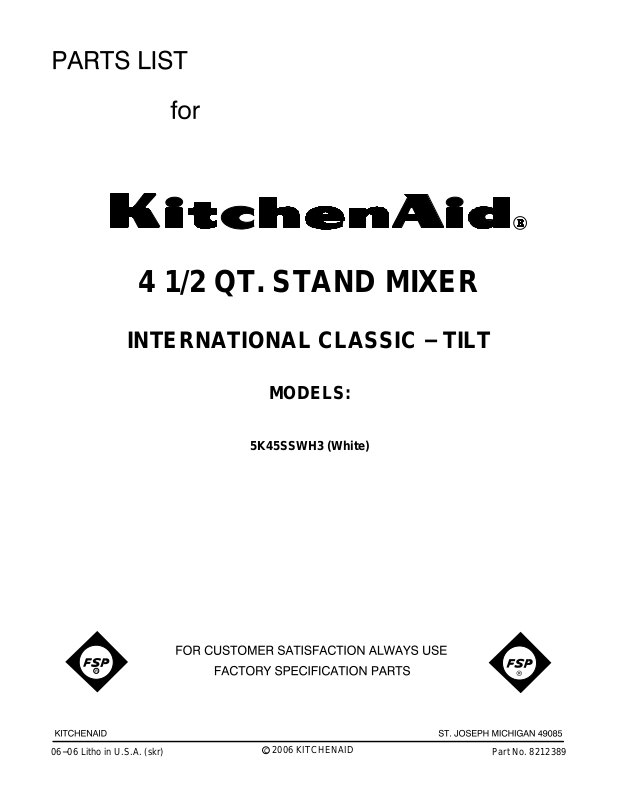

4 1/2 QT. STAND MIXER

INTERNATIONAL CLASSIC − TILT

MODELS:

5K45SSWH3 (White)

06−06 Litho in U.S.A. (skr)

c

2006 KITCHENAID

Part No. 8212389

COLOR VARIATION PARTS

For Variations of Model: 5K45SS_ _3

Illus. Part

No. No. DESCRIPTION

1 Motor Housing
2 Trim Band
3 Planetary
4 End Cover
5 Lower Gearcase
6 Pedestal & Foot

240291−1 White

9704635 Black
240286−1 White
240253−1 White
240350−4 White

3184273 White

8212389

2

BASE AND PEDESTAL UNIT

For Variations of Model: 5K45SS_ _3

Illus. Part

No. No. DESCRIPTION

1 Literature

2 4162529 Screw Cap Kit
3 9709267 Lever, Latch
4 24450 Link, Latch
5 115792 Foot
6
7 16910 Pin, Hinge
8 103993 Screw, Latch

9 3184200 Latch, Link &

10 9709055 Latch
11 8533912 Washer
12 110679 Screw
13 116241 Washer, Spring
14 3400020 Screw
15 9708470 Beater, Flat
16 4169926 Bowl And Base

17 9708471 Dough Hook
18 9706446 Wire Whip
19 Headlock

9709851 Use & Care Guide

8212389 Repair Parts List

Pedestal & Foot

Bearing
Lever Assembly

(4 1/2 Qt.)

3184262 White

3

8212389

CASE, GEARING AND PLANETARY UNIT

For Variations of Model: 5K45SS_ _3

8212389

4

CASE, GEARING AND PLANETARY UNIT

For Variations of Model: 5K45SS_ _3

Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

2 16897 Ring, Attachment

Hub

3 242765−2 Cap, Attachemnt

Hub
4 9709194 Thumb Screw
5
6 8533914 Lock Washer
7 3180161 Washer, Shim
8 4162897 Worm Gear
9 240308 Worm Gear Bracket

10 3400022 Screw
11 240210−2 Gear, Shaft

12 9705444 Pin (Worm Gear)
13 240026 Shaft, Vertical

14 9705130 Gear, Attachment

Band, Trim

And Bearing

and Pinion

Center

Hub Bevel

Illus. Part

No. No. DESCRIPTION

15 9709627 Bevel Pinion

& Center
Gear

16 240018−1 Pin (Vertical

Center Shaft)
17 3180163 Washer, Fiber
18 9705443 Pin, Groove
19 4162324 Gasket,

Transmission

Case
20
21 9704677 Pin, Groove
22 3180163 Washer, Fiber
23 9703904 Gear, Internal
24 103994 Screw, Special
25
26 3184052 Agitator Shaft

28 240285 Ring, Planetary

Lower Gear Case

Planetary

Assembly

Drip

Illus. Part

No. No. DESCRIPTION

29 9706090 Washer, Shim
30 9703903 Pinion, Gear
31 89411 Screw
32 3400203 Screw, Set
33 3400025 Screw
34 67500−55 "O" Ring
35 311932 Screw, Self

Tapping
36
37 4162914 Screw
38 240309−2 Worm & Pinion

39 4160474 Center Shaft
40 9703438 Ring

41 9705132 RFI Filter
42 9702311 Lead, Filter

Refer to Page 2

Color Variation Parts

Cover, End

Gears Assembly

& "O" Ring

(to Control Board)

5

8212389

MOTOR AND CONTROL PARTS

For Variations of Model: 5K45SS_ _3

8212389

6

MOTOR AND CONTROL PARTS

For Variations of Model: 5K45SS_ _3

Illus. Part

No. No. DESCRIPTION

1 110679 Screw, Pivot
2 116241 Washer, Spring
3 9709276 Switch Lever

And Stud
4 3183690 Spring, Lock Lever
5 3184176 Speed Link & Cam
6 240205 Spring, Flat
7 240769 Screw, Stator
8 9701670 Field Assembly
9 9704324 Washer, Ball

Bearing (Front)

W10068260

10
11 16998 Stud, Governor

12 3180162 Washer, Spacing

W10068270

13
14 3184356 Seal, End

Screw

Drive

Washer

Illus. Part

No. No. DESCRIPTION

15 3180526 Bracket, Bearing

Asm.
16 3180238 Washer
17 8533905 Nut, Machine
18 240680 Insert, Brush

Holder
19 9706416 Brush, Carbon
20 9707926 Screw, Set
21 116286 Cap, Spring

Seat
22 116287 Spring, Cap
23 Cap, Brush Holder

3184212 Black

24 17830 Governor Assembly

Illus. Part

No. No. DESCRIPTION

25 240904−2 Control Plate

Assembly

26 Cord, Power

9702318 White (European)

27 9706596 Board, Phase

Control

28 9708316 Armature &

Bearng Assy (240V)

29 4162634 Sleeve, Motor

Stud
30 3184086 Screw
31 3179908 Housing, Brush

Holder
32 4162546 Brush Holder

Assembly

7

8212389

ACCESSORY PARTS

For Variations of Model: 5K45SS_ _3

Illus. Part

No. No. DESCRIPTION

4164778 Mixer Attachment

Pak (Includes Food
Grinder (FGA),
Food Strainer

(FVSP), And

Vegetable Slicer,

(RVSA) (FPPA)

4164749 Food Grinder

(FGA)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker
Plates)

(SN/FGA)

4164775 Fruit/Vegetable

Strainer Parts (Use
With FGA Model
Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,
Coarse Shredder,
Thick Slicer, And
Thin Slicer (RVSA)

3177975 Pouring Shield

(KPS2CL)

4164824 Pasta Maker Plates

(SNPA)

4164774 Fruit/Vegetable

Strainer And Food
Grinder (FVS/FGA)

3180617 Cover, Decorative

(Cotton Polyester)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer

Kit (SSA)

3177924 Bowl Cover, Plastic

Non−Sealing

4163337 Bowl, Stainless

With Handle
3180262 Bowl, 3 Qt.
4162160 Bowl, Satin

Stainless
9707963 Ice Cream Maker

(KICA)

4176452 Pouring Shield

(International)

8212389
