Kicker OC12, OC10, TC10 User Manual

2

Introduction

Comp

Subwoofer Enclosure

Manual

Models:

DC12 / DC10 / TC10

Comp Subwoofer Enclosures

Attention:

Please record your purchase information in the area

below. We recommend attaching the original sales

receipt to this manual for future reference.

If you require service on this speaker during the

warranty period, you will need to provide this

information and a copy of the original sales receipt to

Kicker for validation of warranty repairs.

ALWAYS KEEP YOUR RECEIPT!

Congratulations!

You have purchased one of the most

versatile subwoofers systems in car

audio. The Comp Enclosure was

designed by the award-winning KICKER

speaker design team, tested in the

judging lanes of International Sound

Competitions, and proven on the Street to

deliver the ultimate in low bass output,

durability and outrageous SPL.

This is your “fuel for Livin’ Loud

™

”!

Authorized Kicker Dealer:
Purchase Date:
Speaker Model Number:

Speaker Serial Number:

_____________________________________________

_____________________________________________

_____________________________________________

_____________________________________________

3

Features

Features

Comp Subwoofer Enclosures

 Vacuum Formed Polymineral Cone with ISD

™

(Inverted Structural Dome) is a high performance

composite, which remains rigid, minimizes cone flex and lowers
harmonic distortion. The Comp’s cone consists of a unique
one-piece material that moves as a light weight piston,
exhibiting power and control.



Rear Cone Brace integrates into the Comp’s cone with a

continuous contact perimeter weld, which offers unmatched
strength and resistance to deformation under pressure.



Double Stitched Surround adds a mechanical fastener to

the chemical adhesives. This duo prevents the cone and
surround from separating in the harshest conditions.



Optimized Polyfoam Ribbed Surround Radius allows

extended cone excursion for additional bass output and higher
SPL, and couples the suspension into a conjoined
linear-motion body.



High-Temp Polyimide Film Voice Coil Former

improves sonic and conductive properties, and prevents
thermal-electrical meltdown.



Ultra-Length Voice Coil sustains enormous cone excursion

and provides extra heat dissipation.

 Sleeved High-Power Tinsel Lead Wires eliminate

broken leads and power loss, due to the common use of
“insufficient-gauge” lead wires.



Spring-Loaded Nickel Plated Terminals flawlessly

connect medium to heavy gauge speaker wire to the
high-power tinsel lead wires.



Two-Piece Vented Hyper-Extended Blackened Pole
Piece and Backplate

1. Optimizes heat transfer efficiency for cooler operation
and maximum power handling ability.

2. Eliminates erratic magnetic flux from the voice-coil gap.

3. Releases pressure under the suspension for uniform
cone movement and responsive low bass.

4. Prevents the voice-coil from bottoming out and
corresponding damage.



New Enhanced BAM (Basket and Motor) Assembly

utilizes a high strength steel basket, features a low-profile open
design, and provides a solid foundation for the
precision-aligned motor assembly.



Perimeter Venting in the BAM relieves pressure from

under the spider, supports a linear excursion, and helps
dissipate heat from the voice coil and motor structure.

4

Specifications

Performance

Model: DC10 DC12 TC10
Nominal Impedance [Zn], ohm [per enclosure]

Resonance Frequency [fb or fo], Hz
Sensitivity [SPLo], dB @ 1W, 1m
Effective Excursion [EXmax™], in (mm)
Power Handling Watts, Peak (RMS)
Enclosure Top Surface Depth, in (cm)
Enclosure Bottom Surface Depth, in (cm)
Enclosure Height, in (cm)
Enclosure Width, in (cm)

2 or 4
38

99.9
.38 (9.76)
600 (300)
13 15/16 (35.3)
17 5/16 (43.9)
16 (40.6)
31 15/16 (81.0)

2 or 4
40

98.4
.38 (9.76)
600 (300)
13 7/16 (34)
16 7/16 (41.7)
14 (35.5)
28 (71.1)

4
47

93.8
.38 (9.76)
300 (150)
5 (12.7)
8 5/8 (21.9)
15 (38.1)
21 1/2 (54.6)

Measurements are based on the 4 ohm enclosures. Note: The use of a subsonic filter will significantly increase the power handling.

The power handling specifications in this chart are calculated using a 25 Hz, 24 dB per octave subsonic filter.

Comp Subwoofer Enclosures

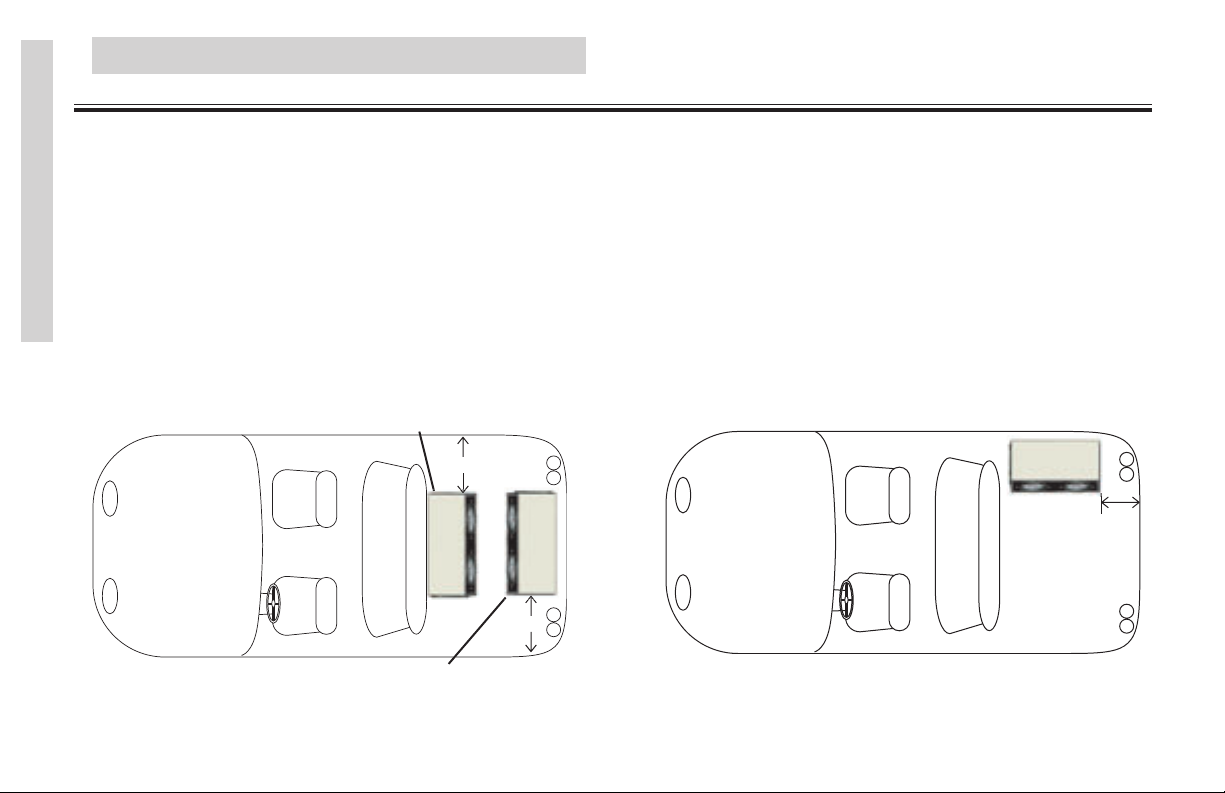

Front mounting, speaker faces rear of vehicle

Rear mounting, speaker faces front of vehicle

Figure A

Front of
Vehicle

At least 4”

At least 4”

Figure B

Front of
Vehicle

At least 4”

DC

DC

5

Installation

Vented Enclosures

DC Series vented enclosures combine KICKER’s award
winning Comp subwoofers with computer-modeled and human
fine-tuned enclosures to offer a level of bass performance never
before thought possible from a commercially available, ready-to­install subwoofer system. The DC Series enclosures are
available with pre-loaded 10 or 12 inch Comp subwoofers.

To get all the amazing performance potential from your new
enclosure, you need to follow some basic rules. Please read
these instructions carefully. Then, you will be ready to install the
subwoofer enclosure and be on the road and “Livin’ Loud™”.

The location and orientation of your DC enclosure will affect
the quality and quantity of the bass. Designed for use in SUVs
and sedan type vehicles, the DC enclosure offers you several
mounting options.

The vent opening in these enclosures can not be obstructed.
At some frequencies most of the bass will come out of the vent.
Therefore we recommend you leave at least four inches (10 cm)
of clear space around the vent.

If the enclosure is to be mounted all the way in the back of the
vehicle, it works best to point the woofer toward the front of the
vehicle. Conversely, if the enclosure is going to be mounted
closer to the back seat, pointing the woofer toward the rear of the
vehicle will give you the best results. These guidelines pertain to
enclosures mounted in the vehicle as outlined in Figure A.

Comp Subwoofer Enclosures

Note: To get the best performance from your Comp Subwoofer Enclosure, we recommend using genuine Kicker Accessories and Wiring.

When it is more convenient to mount the enclosure along a
side wall, put the enclosure on the right side of the vehicle as
outlined in Figure B. This orientation will make the vent point
toward the rear of the vehicle and will produce the most low bass
output. Remember to leave at least four inches of room between
the enclosure and the back of the vehicle.

After determining the best mounting position, carefully check
the areas where the mounting brackets will be placed. Make sure
the mounting screws will not puncture the gas tank, brake lines,
wiring, or interfere with any mechanical parts on the underside of
the mounting surface. Turn the enclosure upside-down, pre-drill
the holes using a 7/64” (2.5 mm) bit and attach the four mounting
brackets to the bottom of the enclosure using the supplied
smaller screws. Each bracket must be positioned so the rounded
end protrudes approximately 3/4" (2 cm) from under the cabinet
to allow a screw to easily pass through the bracket, securing the
enclosure to the vehicle.

Plug your subwoofer speaker wire into the terminals, using the
red connector as positive and the black connector as negative.
Hook the other end of the wire to your subwoofer amplifier in
accordance with its owner's manual.

With the enclosure right side up, securely attach it to the
vehicle with the supplied larger screws.

If the supplied hardware is not applicable to your installation,
some other means of securely attaching the enclosure to the
vehicle must be used.

6

Installation

Comp Subwoofer Enclosures

Truck Enclosures

The TC Series vented truck enclosure combines KICKER’s
award winning Comp subwoofer with a computer-modeled and
human fine-tuned enclosure to offer a level of bass performance
never before thought possible from a commercially available,
ready-to-install subwoofer system. The TS Series enclosure is
available with a pre-loaded 10 inch Comp subwoofer.

To get all the amazing performance potential from your new
enclosure, you need to follow some basic rules. Please read
these instructions carefully. Then, you will be ready to install the
subwoofer enclosure and be on the road and “Livin’ Loud™”.

Kicker TC Series enclosure is designed to fit behind the seat of
a pickup truck. It is engineered to provide the best bass response
when firing into the back of the truck seat.

Mount Brackets with supplied screws
on each side of the DC enclosure

Truck Seat

Door Frame

Floor Board

TC

CAUTION: These enclosures are internally wired for a 2 or 4

ohm load at the speaker-wire connection terminal. Please refer

to the terminal or the box packaging for your enclosure’s specific

impedance. Make sure your amplifier can drive this load.

Plug your subwoofer speaker wires into the terminals. The red
connectors are positive and the black connectors negative. Hook
the other end of these wires to your subwoofer amplifier in
accordance with the amplifier’s manual.

WARNING: To avoid potential injury, or possible death, from forward

movement of the enclosure during abrupt stops or accidents, the

enclosure must be properly installed and securely fastened to

your vehicle.

All specifications and performance figures are subject to change. Please visit kicker.com for the most current information.

DC

7

Comp Subwoofer Enclosures

Warranty

Acoustics LIMITED WARRANTY

WHAT IS NOT COVERED?

Kicker warrants this product to be free from defects in material and workmanship
under normal use for a period of THREE (3) MONTHS from date of original
purchase with receipt. When purchased from an Authorized KICKER Dealer it is
warranted for ONE (1) YEAR from date of original purchase with receipt. In all cases
you must have the original receipt! Should service be necessary under this
warranty for any reason due to manufacturing defect or malfunction during the
warranty period, Kicker will repair or replace (at its discretion) the defective
merchandise with equivalent merchandise at no charge. Warranty replacements may
have cosmetic scratches and blemishes. Discontinued products may be replaced
with more current equivalent products.

This warranty is valid only for the ORIGINAL PURCHASER and is not extended to
owners of the product subsequent to the original purchaser. Any applicable implied
warranties are limited in duration to a period of the express warranty as provided
herein beginning with the date of the original purchase at retail, and no warranties,
whether express or implied, shall apply to this product thereafter. Some states do
not allow limitations on implied warranties, therefore these exclusions may not apply
to you. This warranty gives you specific legal rights; however you may have other
rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE

Defective merchandise should be returned to your local Authorized Stillwater
Designs (Kicker) Dealer for warranty. Assistance in locating an Authorized Dealer
can be obtained by writing, calling, or by visiting kicker.com. You can confirm that a
dealer is authorized by asking to see a current authorized dealer window decal.

If it becomes necessary for you to return defective merchandise directly to
Stillwater Designs (Kicker), call the Kicker Customer Service Department at
[phone] for a Return Authorization (RMA) number. Package all defective
items in the original container or in a package that will prevent shipping damage,
and return to:

Stillwater Designs, 5021 North Perkins Road, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Please
return only defective components (subwoofer, speaker-wire connector, etc.).
Return of the entire enclosure cabinet increases your return freight charges. Non­defective items received will be returned freight collect.

Include a copy of the original receipt with the purchase date clearly visible, and a
“proof-of-purchase” statement listing the Customer’s name, Dealer’s name and
invoice number, and product purchased. Warranty expiration on items without proof­of-purchase will be determined from type of sale and the manufacturing date code.
Freight must be prepaid; items sent freight collect, or COD, will be refused.

Failure to follow these steps may void your warranty. Any questions can be
directed to the Kicker Customer Service Department at [phone].

This warranty is valid only if the product is used for the purpose for which it was

designed.

It does not cover:

Kicker strives to maintain a goal of 24-hour service for all acoustics (subwoofers,
midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack
of replacement inventory or parts is encountered.

Contact your International Kicker dealer or distributor concerning specific
procedures for your country’s warranty and service policies.

• Damage due to improper installation.

• Subsequent damage to other components.

• Damage caused by exposure to moisture, excessive heat, chemical cleaners,

and/or UV radiation.

• Damage through negligence, misuse, accident or abuse. Repeated returns for

the same damage may be considered abuse.

• Any cost or expense related to the removal or reinstallation of product.

• Speakers damaged due to amplifier clipping or distortion.

• Items previously repaired or modified by any unauthorized repair facility.

• Return shipping on non-defective items.

• Products with tampered or missing bar code labels.

• Products returned without a Return Authorization (RMA) number.

• Freight Damage.

• The cost of shipping product to Kicker.

• Service performed by anyone other than Kicker.

HOW LONG WILL IT TAKE?

INTERNATIONAL WARRANTY

P.O. Box 459 • Stillwater, Oklahoma 74076 • U.S.A. • [phone]

KICKER drivers are capable of producing sound levels
that can permanently damage your hearing! Turning up a
system to a level that has audible distortion is more
damaging to your ears than listening to an undistorted
system at the same volume level. The threshold of pain
is always an indicator that the sound level is too loud and
may permanently damage your hearing.

Please use common sense when controlling volume!

WARNING:

08102005+05DC/TC
