Keysight N2804A User Manual

Keysight N2804/5A Differential Probes
User’s Guide
Notices
CAUTION
WARNING
© Keysight Technologies, 2014, 2017
No part of this manual may be reproduced in any form or by any means (including elec­tronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from Keysight Technolo­gies, Inc. as governed by United States and international copyright laws.
Manual Part Number
N2804-97001
Second Edition, February 2017
Published in USA
Published by: Keysight Technologies, Inc. 1400 Fountaingrove Parkway Santa Rosa, CA, 95403
Warranty
The material contained in this document is provided “as is,” and is subject to being changed, without notice, in future editions. Further, to the maximum extent permitted by applicable law, Keysight disclaims all warranties, either express or implied, with regard to this manual and any information contained herein, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Key­sight shall not be liable for errors or for inci­dental or consequential damages in connection with the furnishing, use, or per­formance of this document or of any infor­mation contained herein. Should Keysight and the user have a separate written agree­ment with warranty terms covering the material in this document that conflict with these terms, the warranty terms in the sepa­rate agreement shall control.
Technology Licenses
The hardware and/or software described in this document are furnished under a license and may be used or copied only in accor­dance with the terms of such license.
U.S. Government Rights
The Software is "commercial computer software," as defined by Federal Acqui­sition Regulation ("FAR") 2.101. Pursu­ant to FAR 12.212 and 27.405-3 and Department of Defense FAR Supplement ("DFARS") 227.7202, the U.S. govern­ment acquires commercial computer software under the same terms by which the software is customarily provided to the public. Accordingly, Keysight pro­vides the Software to U.S. government customers under its standard commer­cial license, which is embodied in its End User License Agreement (EULA), a copy of which can be found at
http://www.key­sight.com/find/sweula. The license
set forth in the EULA represents the exclusive authority by which the U.S. government may use, modify, distribute, or disclose the Software. The EULA and the license set forth therein, does not require or permit, among other things, that Keysight: (1) Furnish technical information related to commercial com­puter software or commercial computer software documentation that is not cus­tomarily provided to the public; or (2) Relinquish to, or otherwise provide, the government rights in excess of these rights customarily provided to the public to use, modify, reproduce, release, per­form, display, or disclose commercial computer software or commercial com­puter software documentation. No addi­tional government requirements beyond those set forth in the EULA shall apply, except to the extent that those terms, rights, or licenses are explicitly required from all providers of commercial com­puter software pursuant to the FAR and
the DFARS and are set forth specifically in writing elsewhere in the EULA. Key­sight shall be under no obligation to update, revise or otherwise modify the Software. With respect to any technical data as defined by FAR 2.101, pursuant to FAR 12.211 and 27.404.2 and DFARS
227.7102, the U.S. government acquires no greater than Limited Rights as defined in FAR 27.401 or DFAR
227.7103-5 (c), as applicable in any technical data.
Safety Notices
A CAUTION notice denotes a hazard. It calls attention to an operating proce­dure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data. Do not proceed beyond a CAUTION notice until the indi­cated conditions are fully understood and met.
A WARNING notice denotes a hazard. It calls attention to an operating proce­dure, practice, or the like that, if not correctly performed or adhered to, could result in personal injury or death. Do not proceed beyond a WARNING notice until the indicated conditions are fully understood and met.
2 N2804/5A Differential Probes User’s Guide

Contents

Introduction / 5
Inspecting the Probe / 6 Handling the Probe / 7 Oscilloscope Compatibility / 8 Channel Identification Rings / 9 To Clean the Probe / 9
N2804A Probe and Accessories / 10
N2805A Probe and Accessories / 12
Attaching Probe Accessories / 14
Probe Offset Adjustment / 15
Safety Information / 17
Specifications and Characteristics / 20

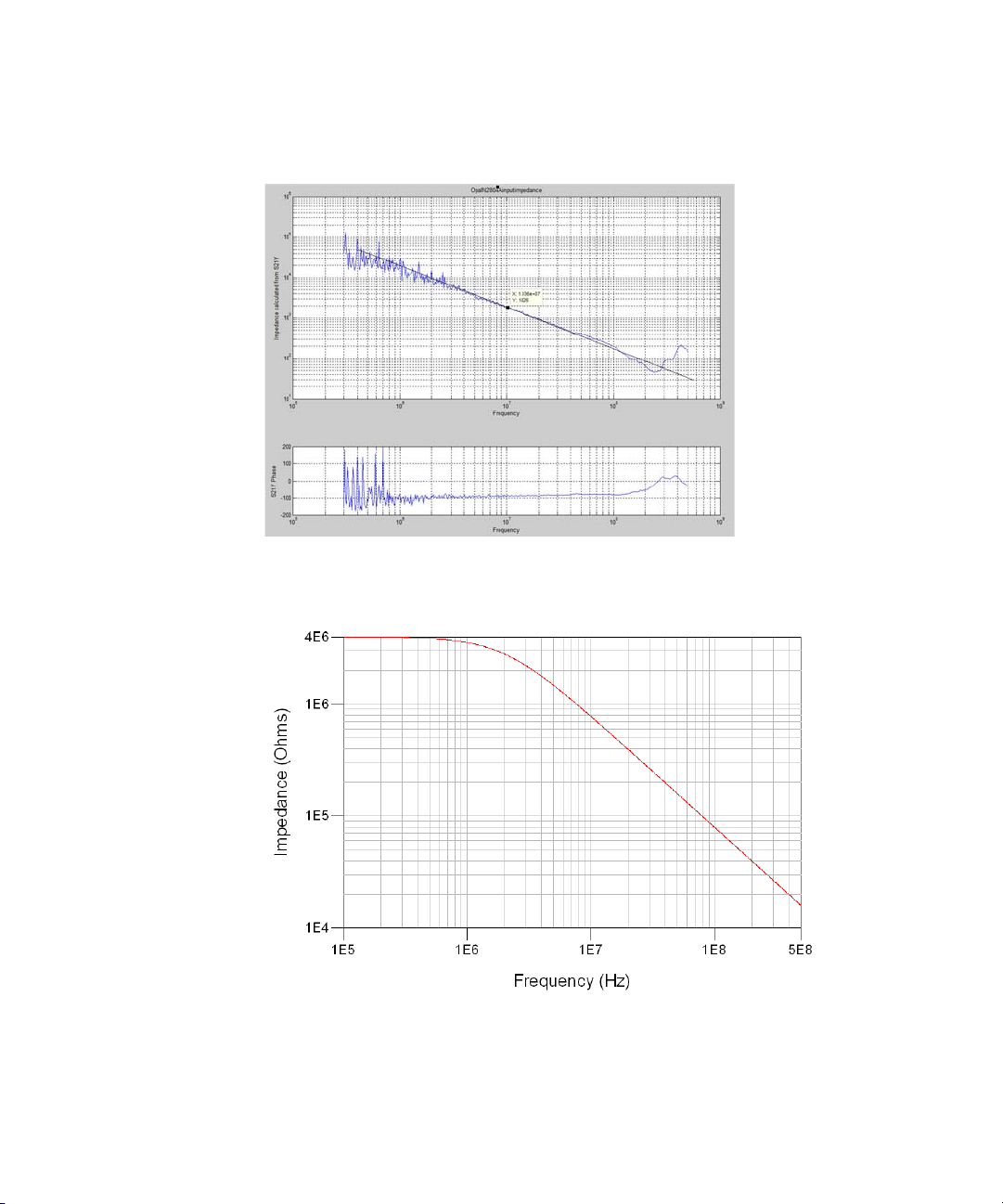

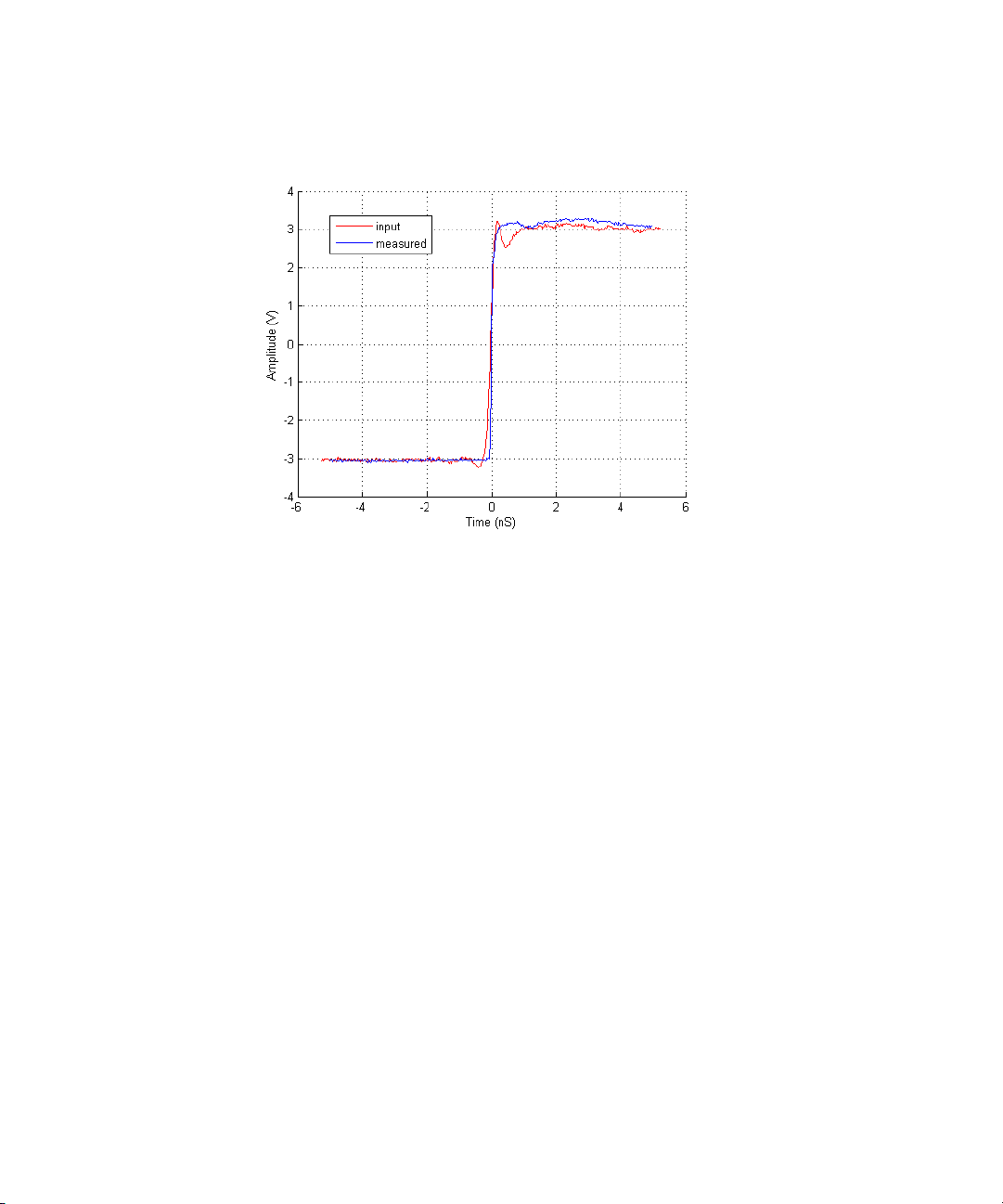

N2804A Performance Plots / 23

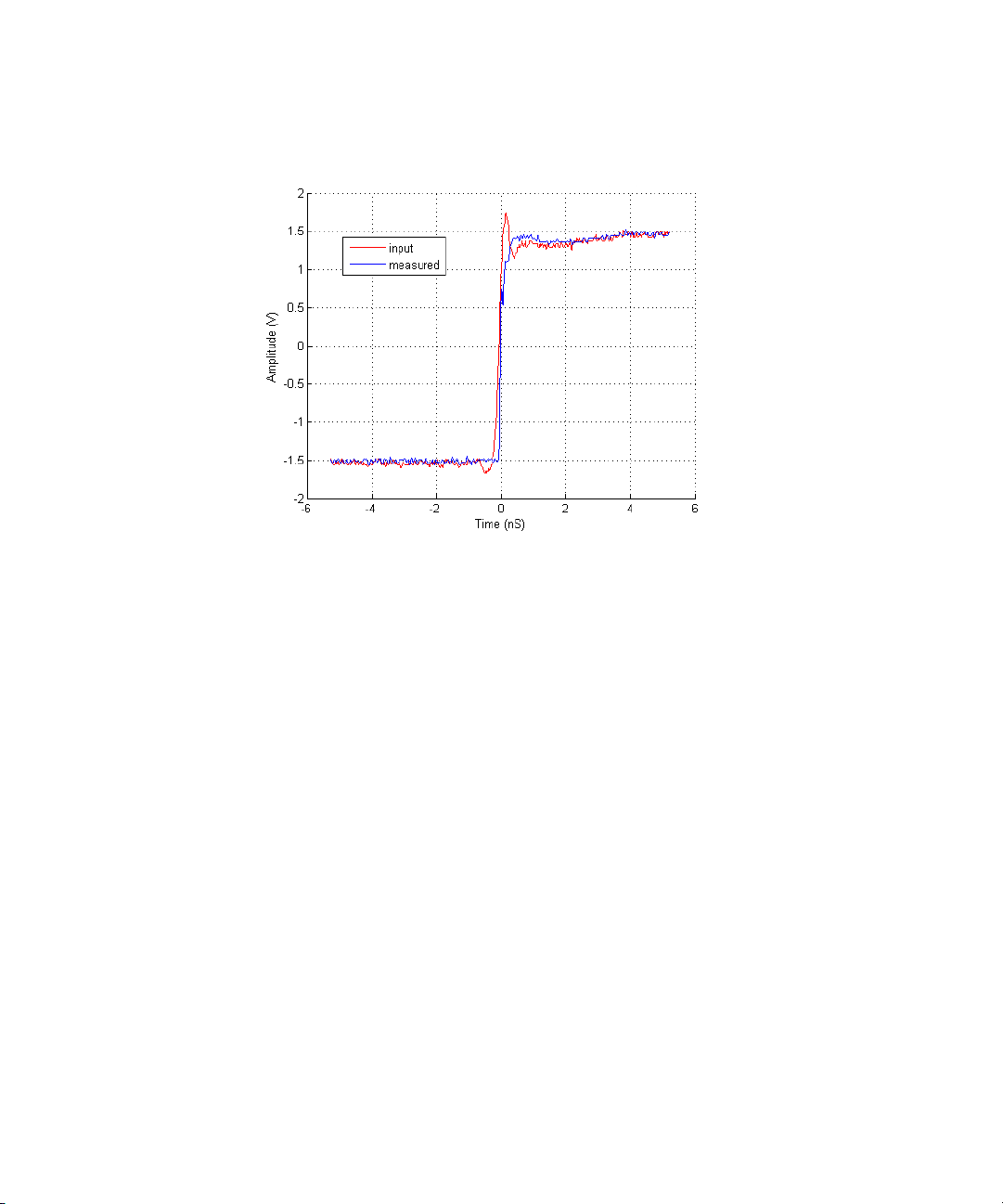

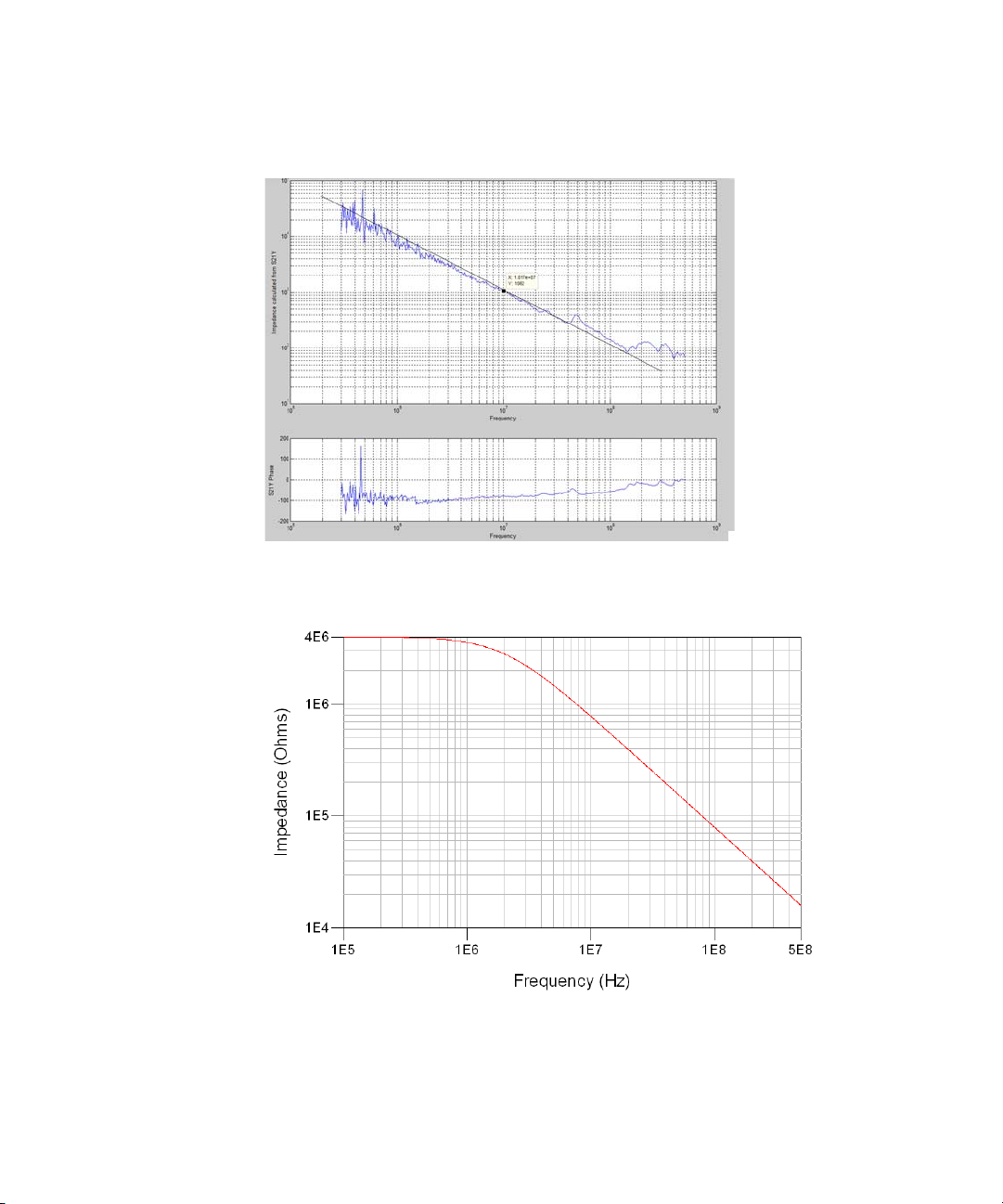

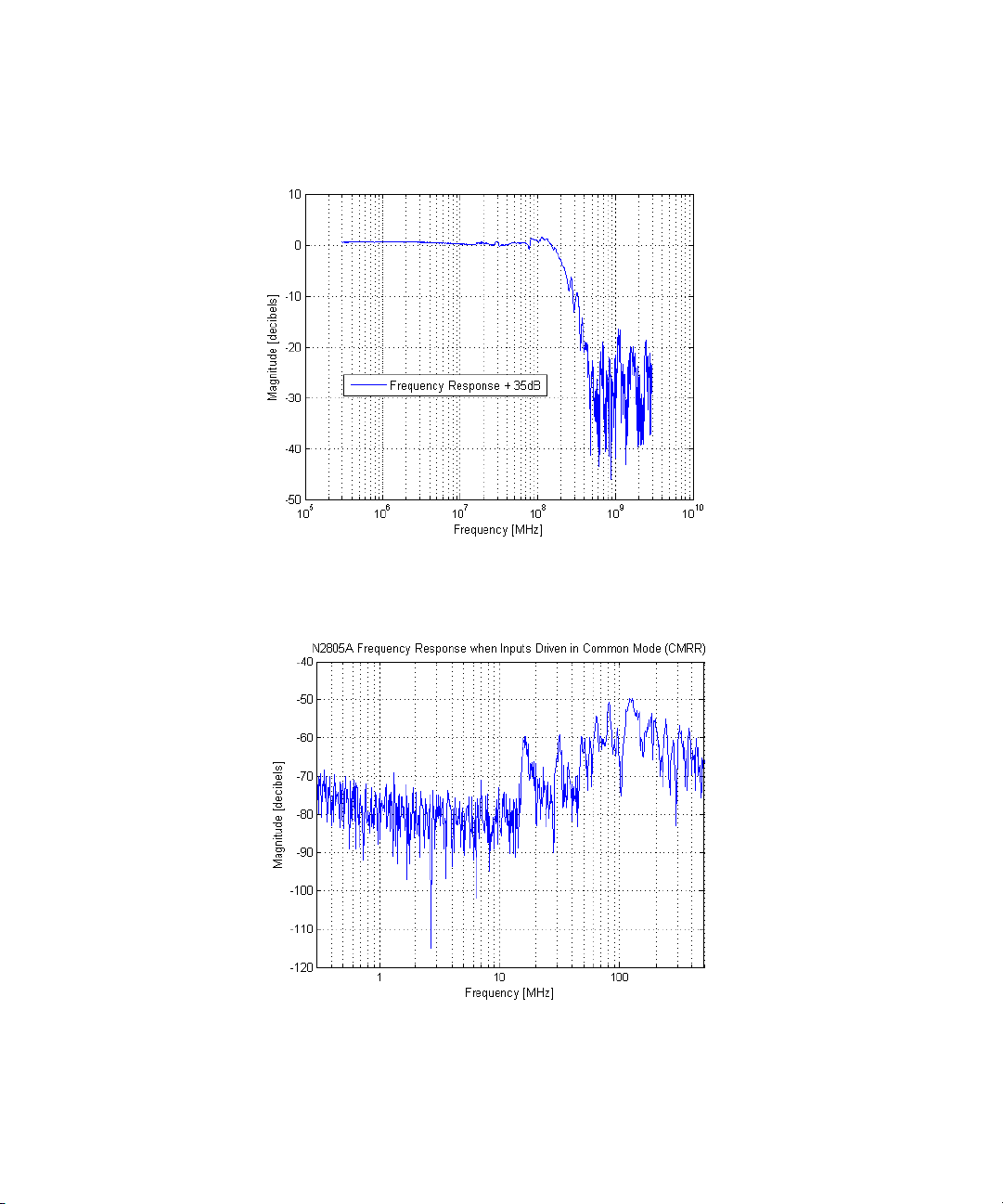

N2805A Performance Plots / 27
Performance Verification / 31
Performance Tests / 32 Performance Test Record / 34
IEC Measurement Category Definitions / 35
Measurement Category I (CAT I) / 35 Measurement Category II (CAT II) / 35 Measurement Category III (CAT III) / 35 Measurement Category IV (CAT IV) / 35
Returning the Probe for Service / 36
Contacting Keysight Technologies / 37
N2804/5A Differential Probes User’s Guide 3
Contents
Index
4 N2804/5A Differential Probes User’s Guide

Introduction

Keysight N2804/5A Differential Probes
User’s Guide
The N2804A and N2805A differential probes provide superior general-purpose differential signal measurements that are required for high-speed power measurements, vehicle bus measurements, and high-speed digital system designs. Both probes are powered by the oscilloscope’s AutoProbe interface. Both probes are designed for Measurement Category II (CAT II) as described in “IEC
Measurement Category Definitions" on page 35.
The N2804A 300 MHz differential probe offers 100:1 attenuation ratio, allowing it to be used for high voltage signal measurements. The differential probe has an differential input resistance of 4 MW and low input capacitance of 4 pF to minimize circuit loading. The probe comes with a pair of extension leads (30 cm long) with a damping resistor built in to damp out the in-band resonance and provide flat frequency response even with the extension leads and the probe tip accessories used.
The N2805A 200 MHz differential probe is designed to provide superior differential signal measurements especially in environments where extended cable length is required. This is due to the probe’s 5m long cable length.
Table 1 Quick Probe Comparison
Bandwidth 300 MHz 200 MHz
Attenuation Ratio 100:1 50:1
Differential Input Loading 4 M
Maximum Differential Input \300V (DC + peak AC) and ±200 V
Probe Cable Length 1.2 m 5 m
* Refer to “Specifications and Characteristics" on page 20 for the complete specifications.
*
N2804A N2805A
W ǁ 4 pF 4 MW ǁ 4 pF
rms
\100V (DC + peak AC) and ±100 V
rms
5
Introduction

Inspecting the Probe

Figure 1 Probes (Accessories Not Shown)
• Inspect the shipping container for damage. Keep the damaged shipping container or cushioning material until the contents of the shipment have been checked for completeness and the probe has been checked mechanically and electrically.
• Check the accessories.
• If the contents are incomplete or damaged, notify your Keysight Technologies Sales Office.
• Inspect the probe. If there is mechanical damage or defect, or if the probe does not operate properly or pass calibration tests, notify your Keysight Technologies Sales Office.
If the shipping container is damaged, or the cushioning materials show signs of stress, notify the carrier as well as your Keysight Technologies Sales Office. Keep the shipping materials for the carrier’s inspection. The Keysight Technologies office will arrange for repair or replacement at Keysight Technologies’ option without waiting for claim settlement.
6 N2804/5A Differential Probes User’s Guide

Handling the Probe

CAUTION
CAUTION
Handle the probe with care and refer to the safety notices in this manual. The probe cable is a sensitive part of the probe and, therefore, you should be careful not to damage it through excessive bending or pulling. You should also avoid any mechanical shocks to this product in order to guarantee accurate performance and protection.
Always wear an ESD wrist strap when working with active probes. Not doing so can result in the probe becoming permanently damaged.
Observe all of the product limits noted on the products labels and listed in “Safety
Information" on page 17 and “Specifications and Characteristics" on page 20.
Introduction
N2804/5A Differential Probes User’s Guide 7
Figure 2 N2805A Product Labels
Figure 3 N2804A Product Labels
Introduction
NOTE
NOTE

Oscilloscope Compatibility

The N2804A and N2805A probes are compatible with the Keysight oscilloscopes shown in Tab le 2. Up to four probes can be connected to the oscilloscope at the same time. The table also lists the minimum required firmware version for the oscilloscope.
Is Your Oscilloscope Software Up-to-Date? Keysight periodically releases software updates to support your probe, fix known defects, and incorporate product enhancements. To download the latest firmware, go to www.keysight.com, locate the Technical Support page, and search by your oscilloscope model number.
The N2804A and N2805A probes are designed for oscilloscopes with 50W AutoProbe-interface channel inputs. The AutoProbe interface provides the power to the probe.
Table 2 Compatible Oscilloscopes and Support
Required
Oscilloscope
Infiniium Oscilloscopes
Firmware Version Adapter Required
90000 Q-Series ¡ 5.20 N5442A
90000 X-Series ¡ 5.20 N5442A
90000A ¡ 5.20
9000A/H-Series ¡ 5.20
S-Series ¡ 5.20
InfiniiVision Oscilloscopes
4000 X-Series ¡ 4.00
3000 X-Series ¡ 2.38 —
8 N2804/5A Differential Probes User’s Guide

Channel Identification Rings

When multiple probes are connected to the oscilloscope, use the channel identification rings to associate the channel inputs with each probe. Place one colored ring near the probe’s channel connector and place an identical color ring near the probe head. The channel identifications rings are shown in “N2804A in
Case" on page 10 and “N2805A in Case" on page 12.

To Clean the Probe

Disconnect the probe from the oscilloscope and clean the probe with a soft cloth dampened with a mild soap and water solution. Make sure that the probe is completely dry before reconnecting it to an oscilloscope. Avoid using abrasive cleaners and chemicals containing benzene or similar solvents.
Introduction
N2804/5A Differential Probes User’s Guide 9

N2804A Probe and Accessories

WARNING
N2804A Probe and Accessories
Figure 4 shows the N2804A probe with accessories in the product case. A
description of each accessory is provided in Table 3 on page 11. These accessories are not compatible with N2805A probes. Replacements can be ordered with the N2816A replacement kit. The quantity for each accessory in the kit is the same as listed in the table and originally provided with the probe.
For IEC Category definitions, refer to “IEC Measurement Category Definitions" on page 35.
The measurement category of a combination of a PROBE ASSEMBLY and an accessory is the lower of the measurement categories of the PROBE ASSEMBLY and of the accessory.
10 N2804/5A Differential Probes User’s Guide
Figure 4 N2804A in Case
N2804A Probe and Accessories

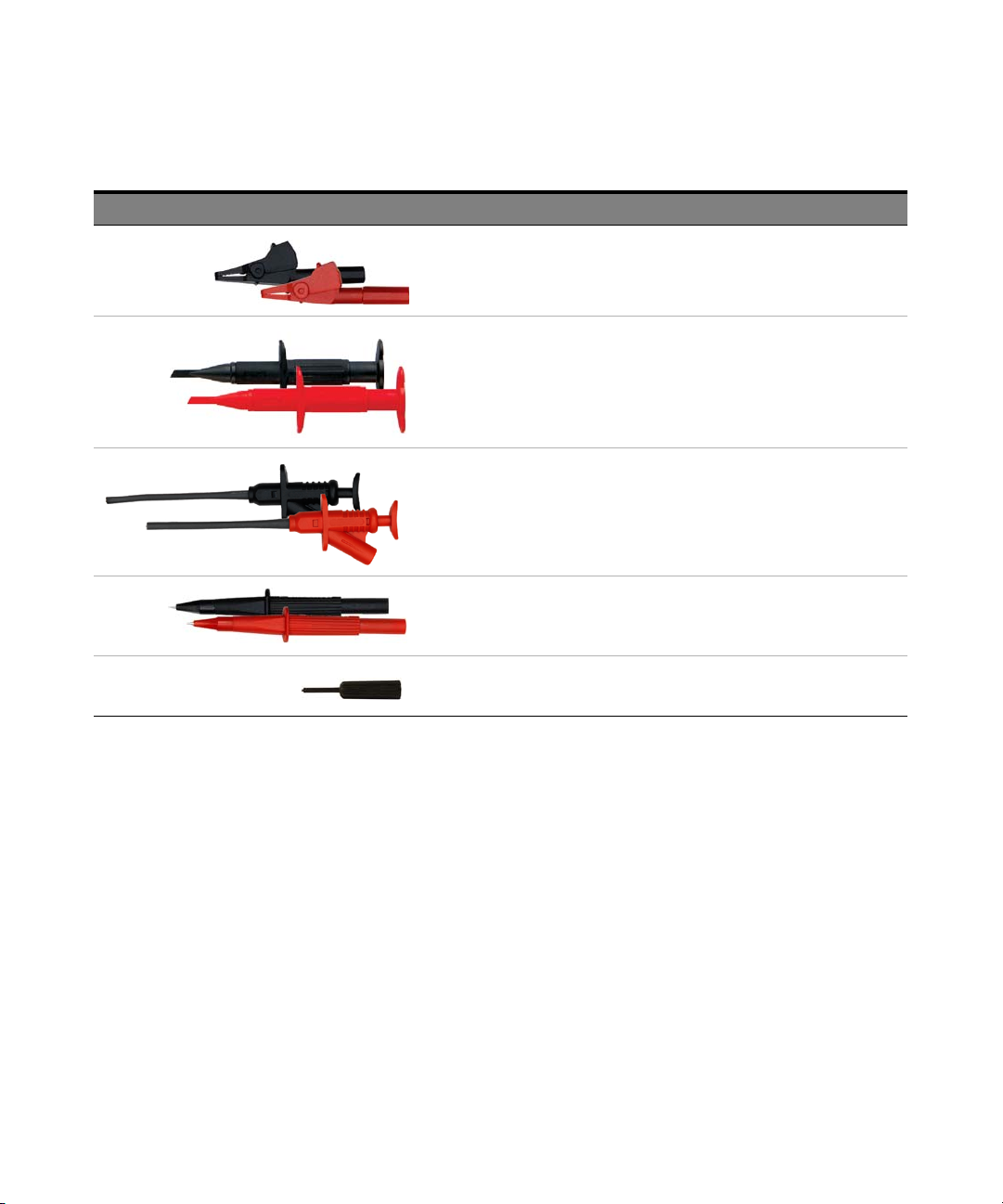

Table 3 N2804A Accessories Supplied With Probe (Order N2816A for Replacement Accessories)
Accessory Description
Alligator Clips (1 red and 1 black) Rating: 600V, 10A (CAT III) BW: 300 MHz
Pincer Clips (1 red and 1 black) Rating: 300V, 1A (CAT II) BW: 300 MHz
Extension Leads (1 red and 1 black) Approximately 30 cm length BW: 120 MHz
Probe Offset Adjustment Tool (Qty. 1)
N2804/5A Differential Probes User’s Guide 11

N2805A Probe and Accessories

WARNING
N2805A Probe and Accessories
Figure 5 shows the N2805A probe with accessories in the product case. A
description of each accessory is provided in Table 4 on page 13. These accessories are not compatible with N2804A probes. Replacements can be ordered with the N2817A replacement kit. The quantity for each accessory in the kit is the same as listed in the table and originally provided with the probe.
For IEC Category definitions, refer to “IEC Measurement Category Definitions" on page 35.
The measurement category of a combination of a PROBE ASSEMBLY and an accessory is the lower of the measurement categories of the PROBE ASSEMBLY and of the accessory.
12 N2804/5A Differential Probes User’s Guide
Figure 5 N2805A in Case
