2Rack Mount Kit for 4000 X-Series Oscilloscopes
Page 3
In This Guide…
This guide contains instructions for installing the Rack Mount Kit for
4000 X-Series Oscilloscopes. The Rack Mount Kit provides a support shelf and
hardware for mounting Keysight 4000 X-Series Oscilloscopes into Electronic
Industries Association (EIA) standard 19-inch (487-mm) rack cabinets.
The Rack Mount Kit includes the following parts:
QuantityPart NumberDescription
1N2763-68702Tray, Rack Assembly
1N2763-01201Clamp, Top
2N5470-03701Rail, Rack Mount
2N2763-24101Trim Plate, Side
1N2763-24103Trim Plate, Top
1N2763-68701Trim Plate, Bottom Assembly

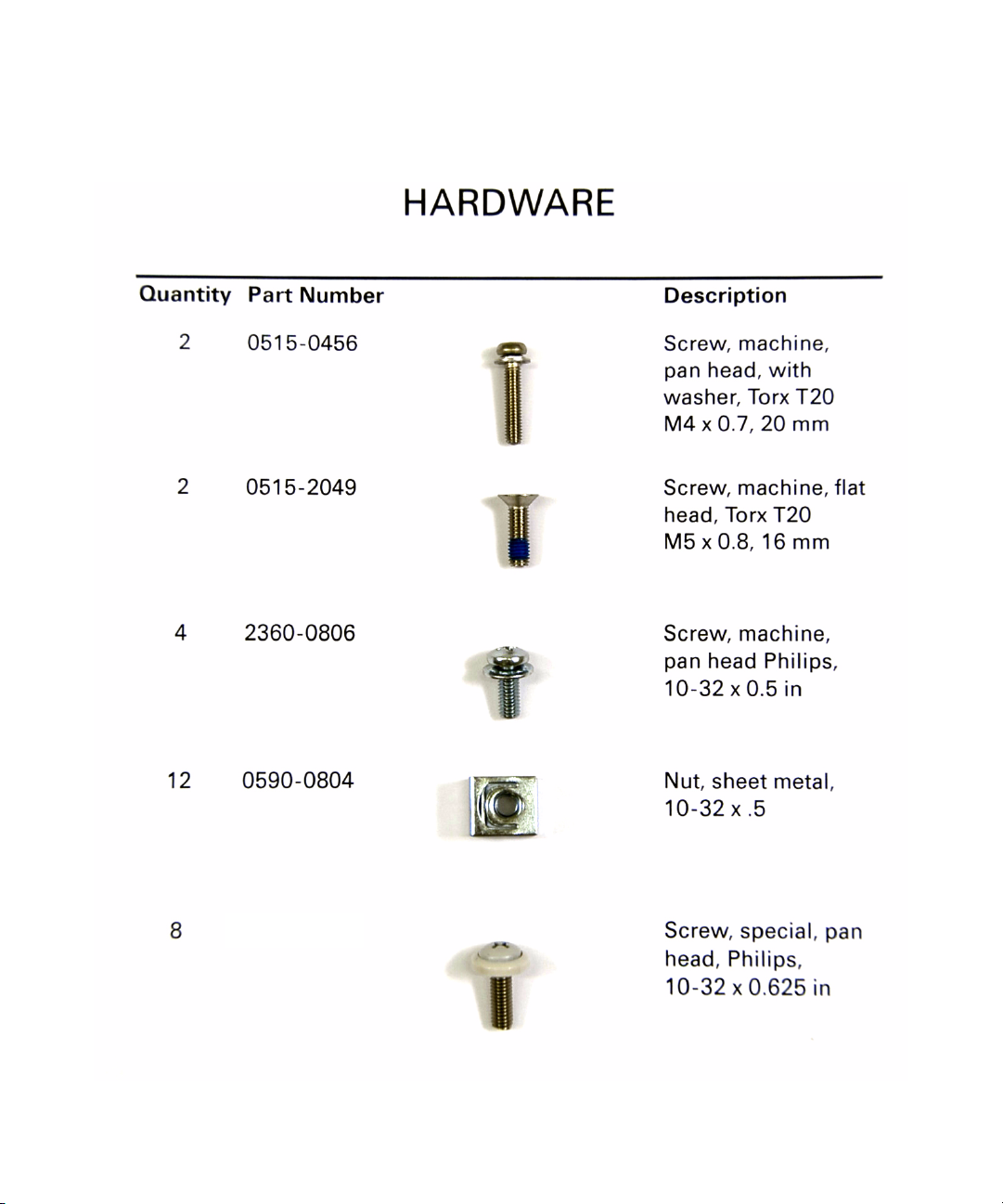

20515-0456Screw, machine, pan head, with washer, Torx T20
M4 x 0.7, 20 mm
20515-2049Screw, machine, flat head, Torx T20 M5 x 0.8,
16 mm
42360-0806Screw, machine, pan head Philips, 10-32 x 0.5 in
120590-0804Nut, sheet metal, 10-32 x 0.5
8E9900-06001Screw, special, pan head, Philips, 10-32 x 0.625 in
Rack Mount Kit for 4000 X-Series Oscilloscopes3
Page 4
N5470-03701 Rack Mount Rail, Qty. 2
N2763-68702 Rack Tray Assembly
N2763-01201 Top Clamp
4Rack Mount Kit for 4000 X-Series Oscilloscopes
Page 5
N2763-68701 Bottom Trim Plate Assembly
N2763-24101 Side Trim Plate, Qty. 2
N2763-24103 Top Trim Plate
Rack Mount Kit for 4000 X-Series Oscilloscopes5
Page 6
E9900-06001
6Rack Mount Kit for 4000 X-Series Oscilloscopes
Page 7
Installation
Installation
You will need the following tools to install the Rack Mount Kit:
• T20 Torx driver.
• #2 Phillips screwdriver.
To perform the installation:
1 Set the oscilloscope on its back. Remove the T20 screw from each leg.
T20 screw
2 Set the oscilloscope onto the N2763-68702 Rack Tray Assembly.
Rack Mount Kit for 4000 X-Series Oscilloscopes7
Page 8
Installation

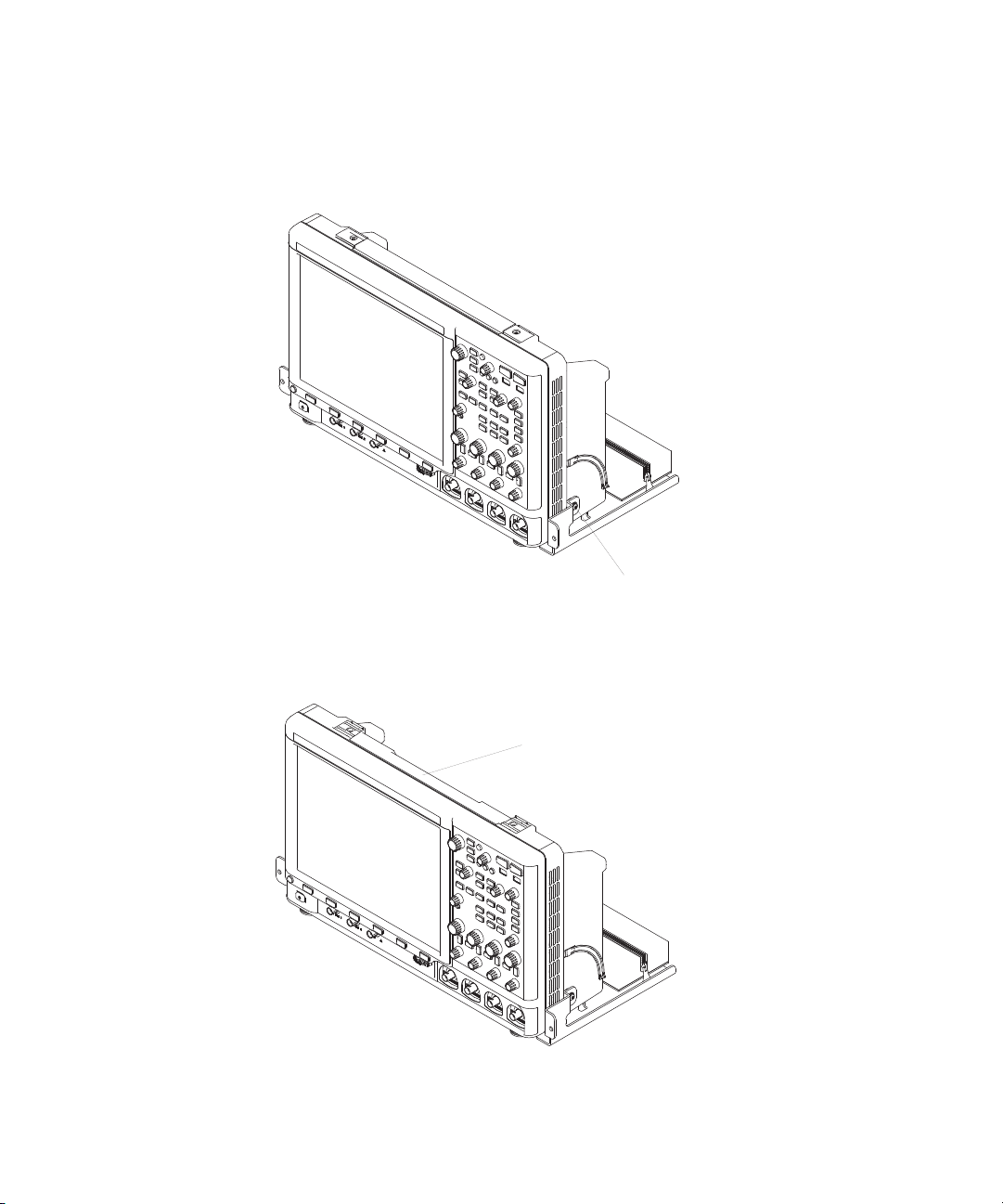

3 Secure the oscilloscope to the Rack Tray Assembly using (Qty. 2) 0515-0456
screws.
0515-0456 screw

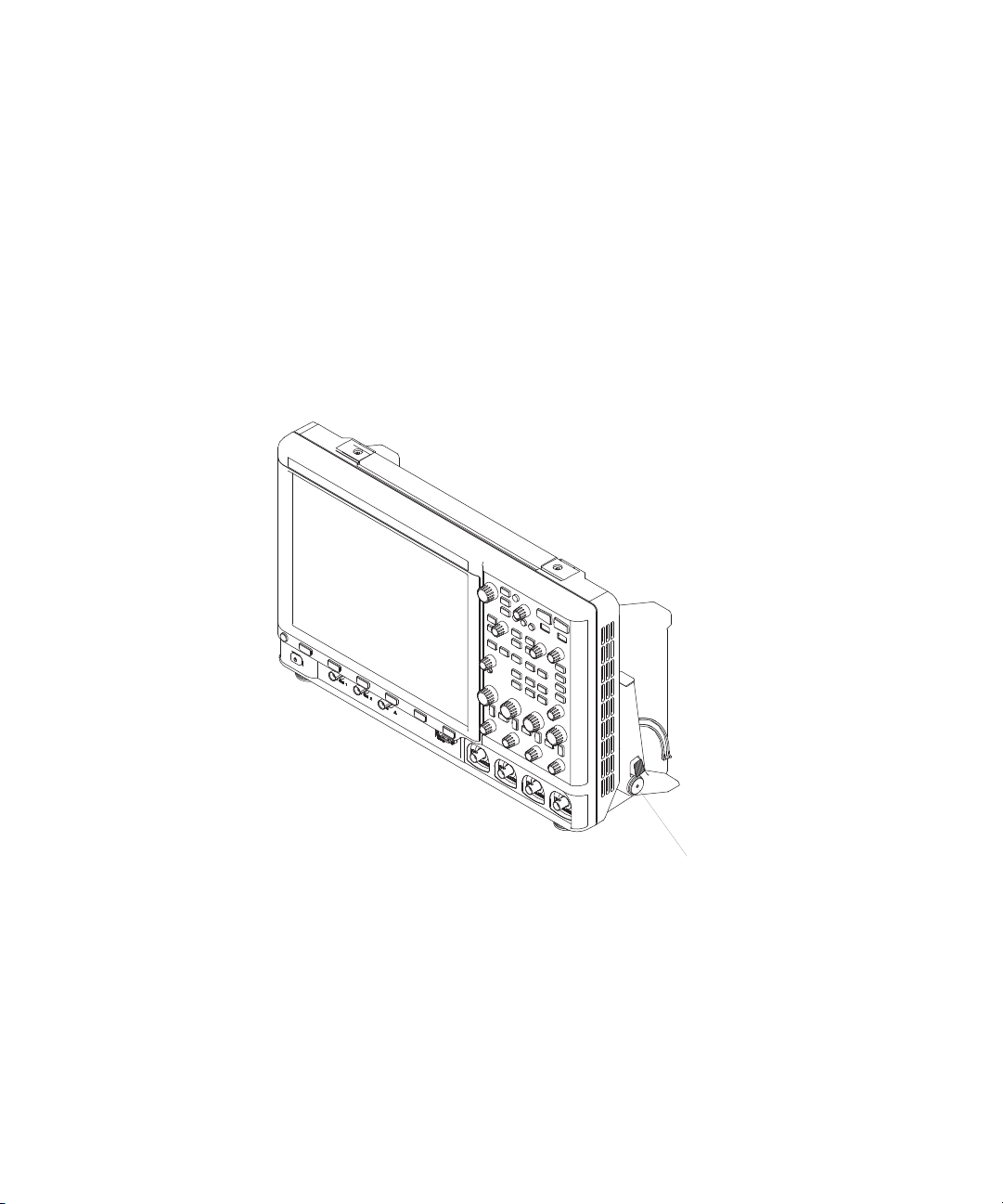

4 Remove the oscilloscope’s strap handle using a Torx T20 driver.
handle removed
8Rack Mount Kit for 4000 X-Series Oscilloscopes
Page 9
Installation

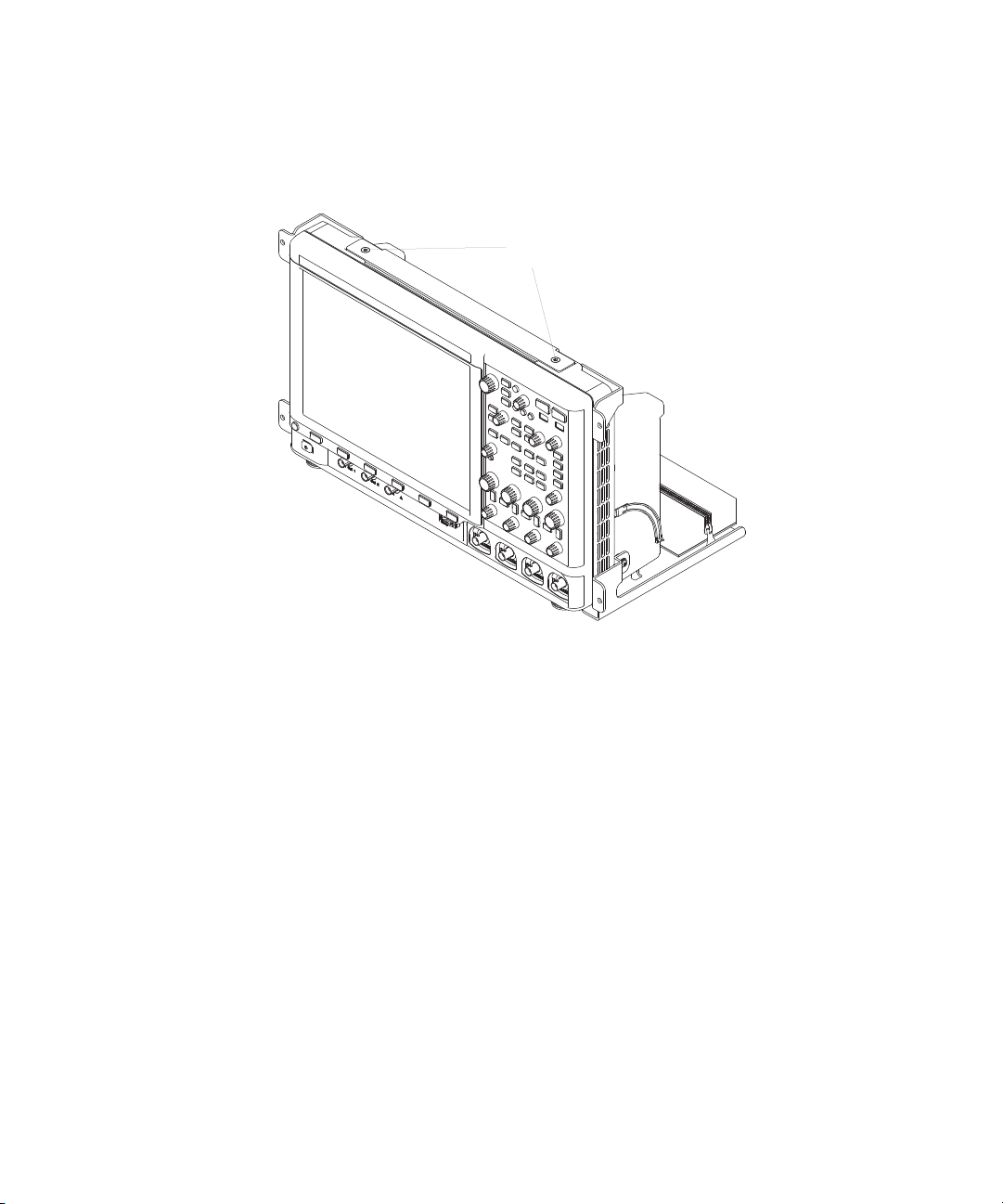

5 Attach the N2763-01201 Top Clamp to the top of the oscilloscope using (Qty 2)
0515-2049 screws.
0515-2049 screws
Rack Mount Kit for 4000 X-Series Oscilloscopes9
Page 10
Installation
Four
2360-0806 screws,
0590-0804 nuts

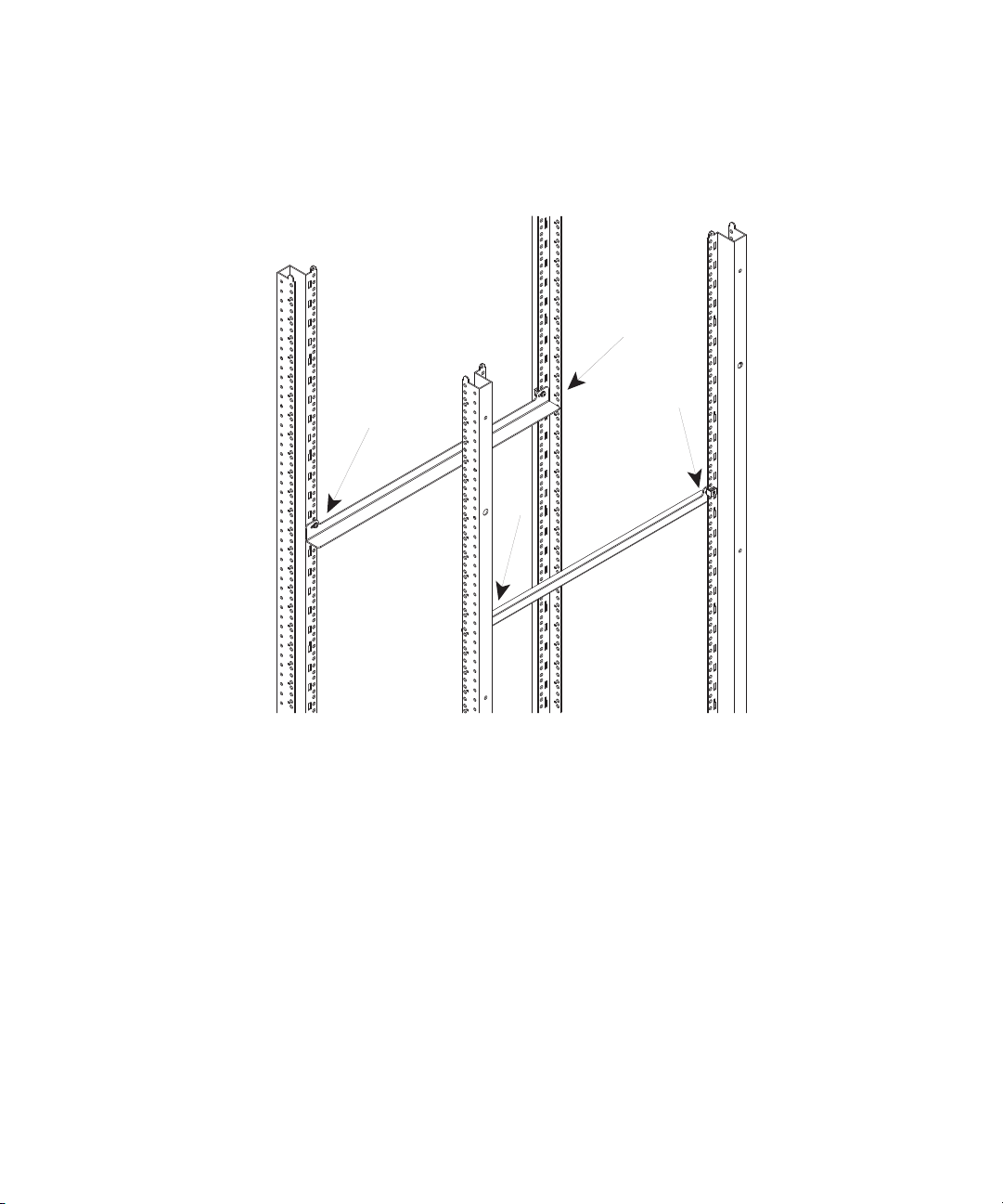

6 Attach the two N5470-03701 Rack Mount Rails to your rack using (Qty. 4)
2360-0806 screws and (Qty. 4) 0590-0804 nuts.
10Rack Mount Kit for 4000 X-Series Oscilloscopes
Page 11
Installation

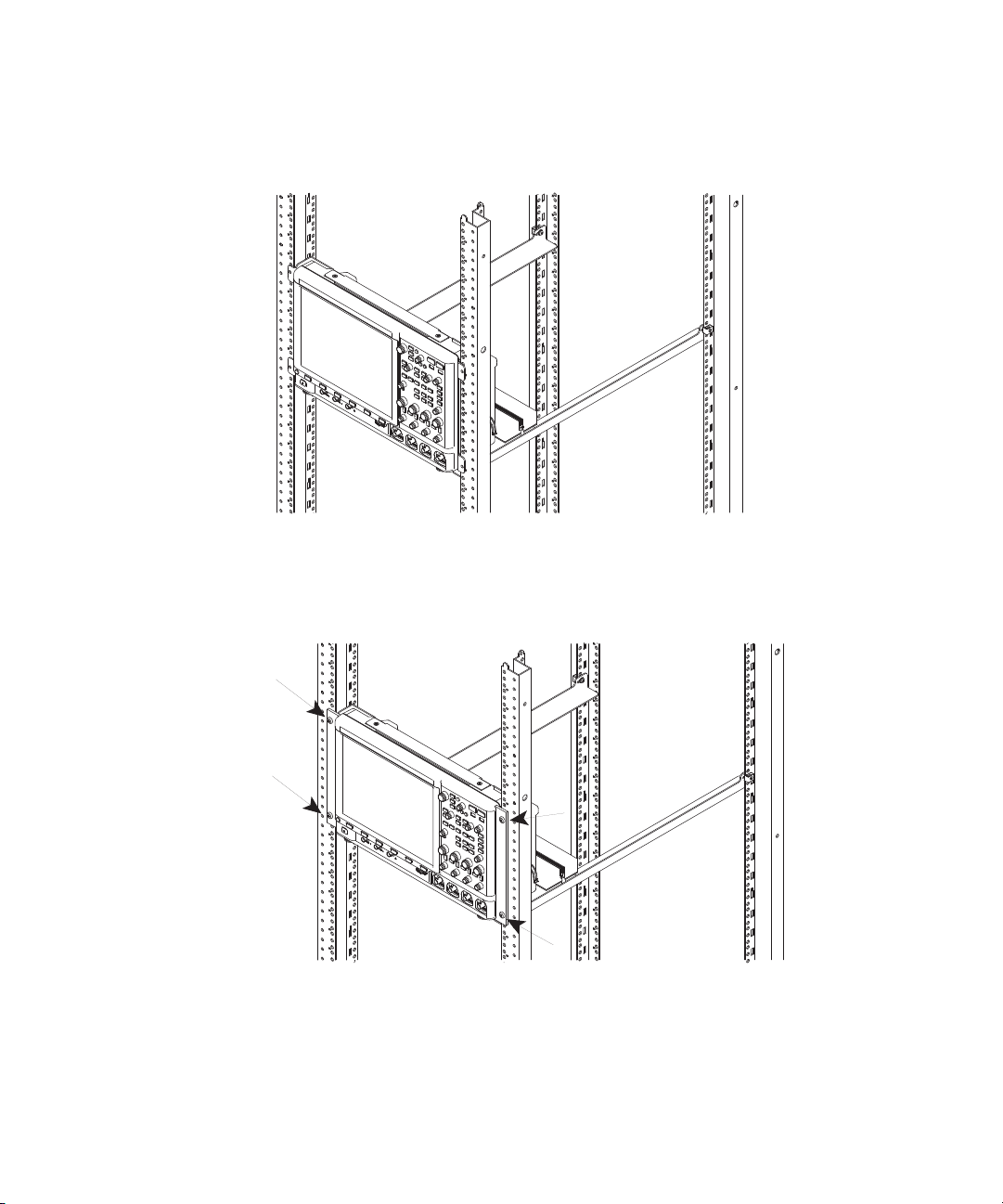

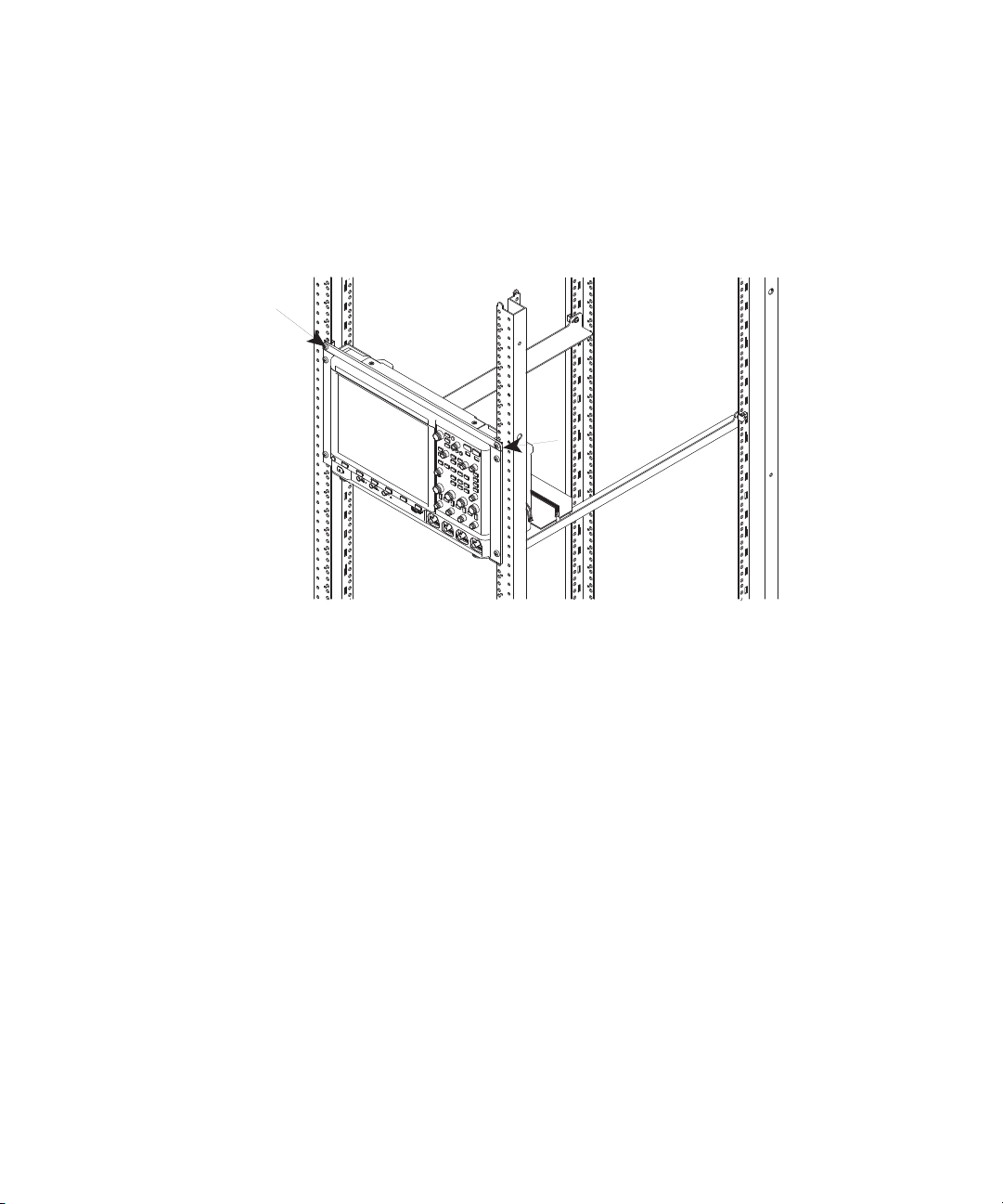

7 Slide the assembled oscilloscope and Rack Tray Assembly into the rack.
8 Secure the two Side Trim Plates to the rack using (Qty. 4) E9900-06001 screws
and (Qty. 4) 0590-0804 nuts. Assembly may be easier if you slightly lift the
oscilloscope to align the holes.
Four
E9900-06001 screws,
0590-0804 nuts
Rack Mount Kit for 4000 X-Series Oscilloscopes11
Page 12
Installation
9 Secure the N5470-24102 Top Trim Plate to the rack using (Qty. 2)
E9900-06001 screws and (Qty. 2) 0590-0804 nuts.
Two
E9900-06001 screws,
0590-0804 nuts
12Rack Mount Kit for 4000 X-Series Oscilloscopes
Page 13
Installation
10 Bottom Trim Plate:
a Optional: If you plan to connect cables from the oscilloscope to the BNC
feedthroughs, connect them now. It may be difficult to connect them after
securing the bottom trim plate.
b Optional: If you plan to route the MSO cable through the notch in the Bottom
Trim Plate, route it now.
c Secure the N2763-68701 Bottom Trim Plate to the rack using (Qty. 2)
E9900-06001 screws and (Qty. 2) 0590-0804 nuts.
Zipper
Pouch
Two
Route MSO
cable here

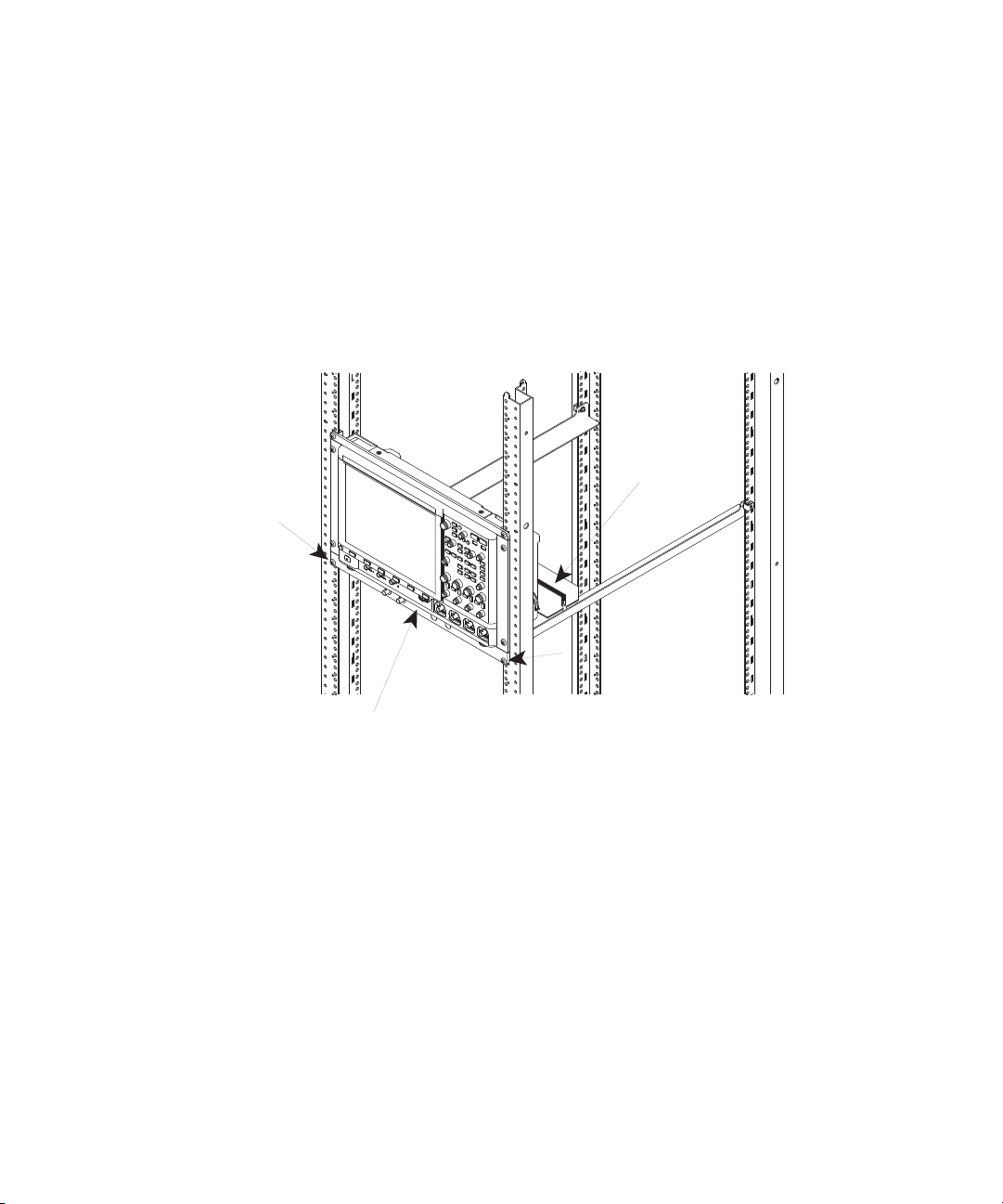

11 Store the oscilloscope’s legs, strap handle, and related hardware in the zipper
pouch on the rear of the Rack Tray.
You have completed installation of the Rack Mount Kit.
Rack Mount Kit for 4000 X-Series Oscilloscopes13
E9900-06001 screws,
0590-0804 nuts
Page 14
Installation
14Rack Mount Kit for 4000 X-Series Oscilloscopes
Page 15
Page 16
