Kenwood DNX571TR Instruction Manual

DNX571TR

Check the latest edition

GPS NAVIGATION SYSTEM

INSTRUCTION MANUAL

Before reading this manual, click the button below to check the latest edition and the modified pages. http://manual.kenwood.com/edition/im385/

Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new GPS Navigation System.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product. Model DNX571TR Serial number

US Residence Only

What Do You Want To Do?

Thank you for purchasing the KENWOOD GPS NAVIGATION SYSTEM.

In this manual, you will learn various convenient functions of the system.

Click the icon of the media you want to play.

With one-click, you can jump to the section of each media!

iPod

Disc Media

Pandora

USB

Music CD

iHeartRadio

VCD

DVD VIDEO

HD Radio

AUPEO! Apps

SiriusXM

BT Audio

Before Use 4

2 WARNING _______________________ 4

How to Read this Manual 5

Basic Operations 6

Functions of the Buttons on the Front Panel __________________ 6

Turning on the Unit _________________ 8

How to Play Media __________________ 11

Operating with the Top Menu Screen ___ 12

Common Operations ________________ 14

Navigation Operation ________________ 16

OEM Features Operation _____________ 18

DVD/Video CD (VCD) Operation 20

DVD/VCD Basic Operation ____________ 20

DVD Disc Menu Operation ____________ 23

Zoom Control For DVD And VCD _______ 24

DVD Setup ________________________ 26

CD/Audio and Visual Files/iPod/ App Operation 30

Music/Video/Picture Basic Operation ___ 30

Search Operation ___________________ 37

Movie Control ______________________ 42

Pandora® Operation _________________ 43

iHeartRadio Operation _______________ 46

AUPEO! Operation __________________ 49

Apps Operation ____________________ 51

USB/iPod Setup ____________________ 53

Radio and HD Radio™ Tuner Operation 58

Radio/HD Radio Tuner Basic Operation __ 58

Memory Operation __________________ 61

Selecting Operation _________________ 62

Traffic Information (HD Radio tuner only) ________________ 64

Receive Mode (HD Radio tuner only) ___ 64

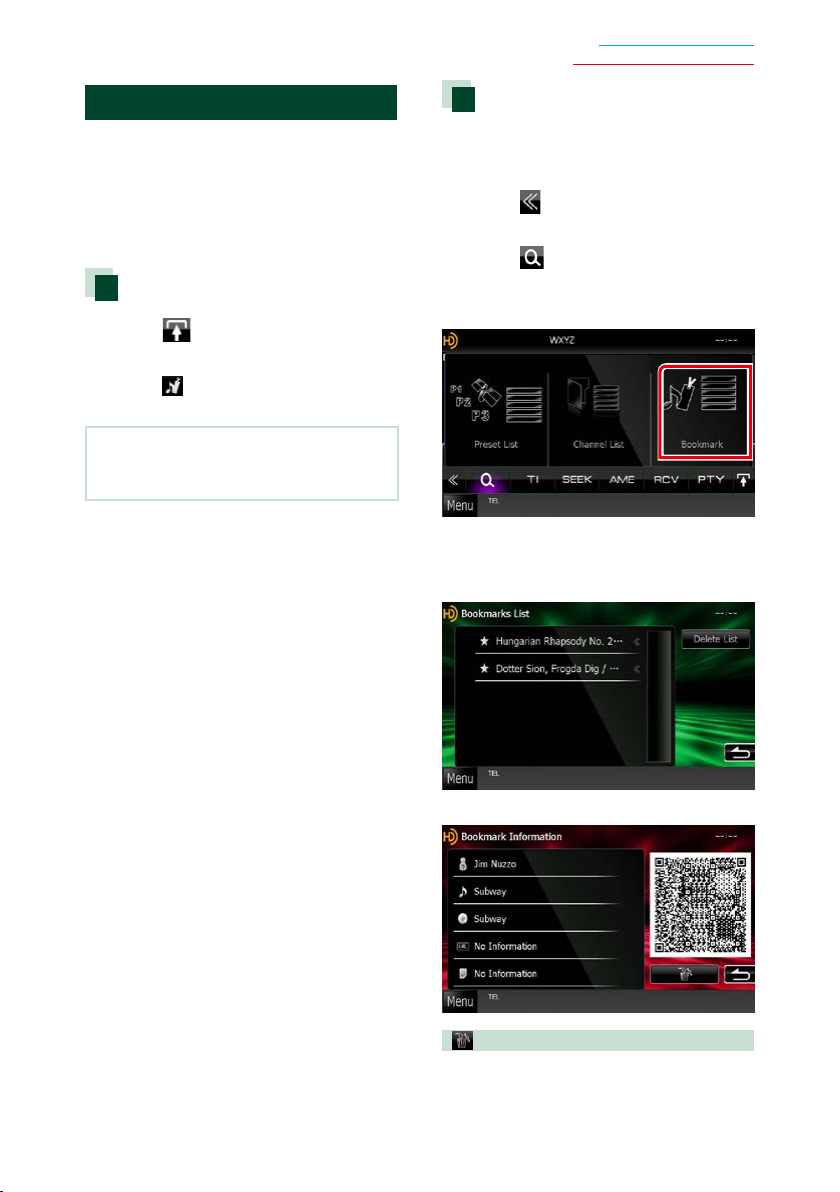

Bookmark (HD Radio tuner only) _______ 65

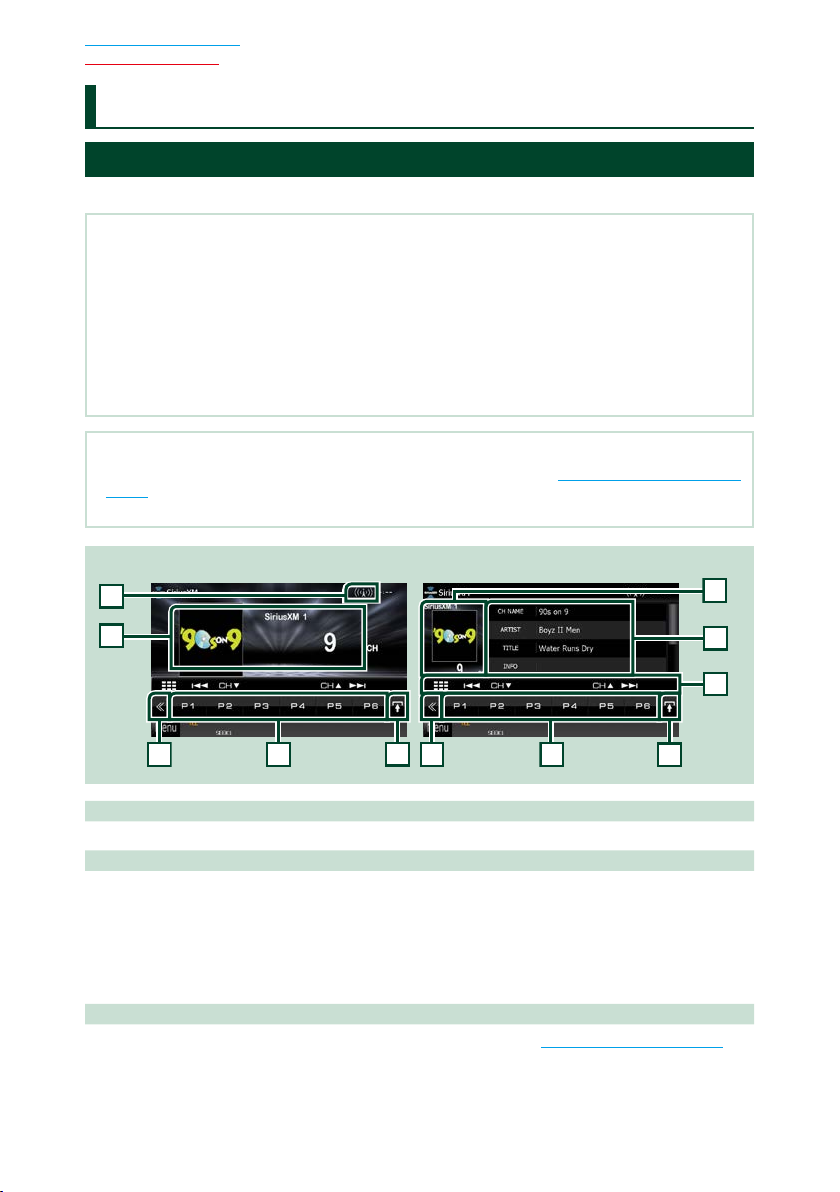

SiriusXM® Operation 68

SiriusXM® Basic Operation ____________ 68

Memory Operation __________________ 71

Selecting Operation _________________ 71

Content alert _______________________ 73

Replay ____________________________ 74

Smart Favorites, TuneStart™ ___________ 75

TuneScan™ ________________________ 75

SiriusXM Setup _____________________ 76

Bluetooth Control 82

Registering And Connecting Bluetooth Unit _____________________ 82

Playing Bluetooth Audio Device _______ 84

Using Hands-Free Unit _______________ 85

Smartphone Link ___________________ 88

Hands-Free Setup ___________________ 90

Setting Up 92

Monitor Screen Setup _______________ 92

System Setup ______________________ 93

Display Setup ______________________ 97

Navigation Setup ___________________ 100

Camera Setup ______________________ 100

AV Input Setup _____________________ 101

AV Output Interface Setup ____________ 101

Software Information ________________ 102

Controlling Audio 104

Setting Audio ______________________ 104

Controlling General Audio ____________ 108

Equalizer Control ___________________ 108

Zone Control _______________________ 110

Sound Effect _______________________ 111

Listening Position ___________________ 112

Remote control 114

Battery Installation __________________ 114

Functions of the Remote control Buttons 115

Troubleshooting 118

Problems and Solutions ______________ 118

Error Messages _____________________ 119

Resetting the Unit __________________ 121

Appendix 122

Playable Media and Files _____________ 122

Status Bar Indicator Items ____________ 126

Region Codes in the World ____________ 128

DVD Language Codes _______________ 129

Specifications ______________________ 130

About this Unit _____________________ 133

Return to the Top page

Before Use

2 WARNING

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your Kenwood dealer.

Precautions on using this unit

• When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.

• You can select language to display menus, audio file tags, etc. See Language setup

(P. 95).

• The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station.

Protecting the monitor

Lens fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer.

Precautions on handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use disc type accessories.

• Clean from the center of the disc and move outward.

• When removing discs from this unit, pull them out horizontally.

• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.

• Discs that are not round cannot be used.

To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip.

Cleaning the unit

If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

• 8-cm (3 inch) discs cannot be used.

• Discs with coloring on the recording surface or discs that are dirty cannot be used.

• This unit can only play the CDs with

. This unit may not correctly play discs which do not have the mark.

• You cannot play a disc that has not been finalized. (For the finalization process see your writing software, and your recorder instruction manual.)

How to Read this Manual

Return to the Top page

How To Read This Manual

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Search Operation

You can search music, video or picture files by the following operations.

NOTE

• If you use a remote control, you can jump directly to the desired track/file with entering the track/ folder/file number, play time, etc. For details, see

Direct search mode (P.115).

List search

You can search tracks, folders, and files according to hierarchy.

1 Touch [ ] in the control screen.

The search type screen appears.

2 Touch desired search way.

List Control screen appears.

3 Touch the desired folder.

Link header

You can refer each section or top page with one-click.

Operation title

Introduces the function.

NOTE

Introduces some tips, notes, etc.

Reference mark

Displayed in blue notes. With one-click, you can jump to the

article related to the current section.

Operation procedure

Explains necessary procedures to achieve the operation.

< >: Indicates the name of panel

buttons.

[ ]: Indicates the name of touch

keys.

4 Touch desired item from the content

list.

Playback starts.

Other search

When you want to narrow the list down, there are other search ways.

This function is not available when music CD is the current source.

3030

Screen shot

Shows some screen shots displayed during operation for reference. The area or keys to touch are surrounded with a red frame.

NOTE

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.

Return to the Top page

312

567

Basic Operations

Functions of the Buttons on the Front Panel

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

How to insert a microSD Card

1) Open the as the illustration in the right.

2) Hold the microSD card with the label facing up and the notched section right, and insert it into the slot until it clicks.

● To eject the card:

Push the card until it clicks and then remove your finger from the card.

The card pops up so that you can pull it out with your fingers.

microSD card slot cover

Number Name Motion

Disc insert slot

0 (Eject)

ﬁ (Reset)

MENU • Displays the Top Menu screen (P. 12).

NAV • Displays the navigation screen.

Volume Knob • Turning adjusts volume up or down.

TEL • Displays the Hands Free screen (P.85).

microSD card slot

• A slot to insert a disc media.

• Ejects the disc.

• Pressing for 1 second ejects the disc forcibly.

• If the unit or the connected unit fails to operate properly, the unit returns to factory settings when this button is pressed (P.121).

• This indicator flashes when the vehicle ignition is off ( P.96).

• Pressing for 1 second turns the power off.

• When the power off, turns the power on.

• Pressing for 1 second switches AV out sources.

• Pressing switches attenuation of the volume on/off.

• Pressing for 1 second displays Graphic Equalizer screen (P. 109).*

• Pressing for 1 second displays the Voice Recognition screen. (P. 88) *

• A microSD card slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system.

Return to the Top page

Basic Operations

*1 The display may not switch to the Graphic Equalizer screen in some conditions. *2 [TEL] button can also be used to switch to the rear view camera or turn off the display. See

User interface (P.94).

Return to the Top page

Basic Operations

Turning on the Unit

The method of turning on is different depending on the model.

Press the <MENU> button.

The unit is turned on.

● To turn off the unit:

Press the <MENU> button for 1 second.

If it is your first time turning the unit on after installation, it will be necessary to perform

Initial setup (P.9).

Return to the Top page

Basic Operations

Initial setup

Perform this setup when you use this unit first time or when you reset the unit (P. 121).

Set each item as follows.

Locale

Select the country for the navigation system. The language, the distance unit, and the gasoline unit are set. After setting, touch [Enter].

1 Touch [SET ]. 2 Select the desired country.

Language

Select the language used for the control screen and setting items. Default is “American English (en)”.

1 Touch [SET ]. 2 Touch [2] or [3] to select the desired language. 3 Touch [Enter].

For detailed operation, see Language setup (P.95).

AV-IN SETUP

Select the source connected to AV-IN.

1 Touch [SET ]. 2 For AV-IN Interface, touch [Rear Camera] or [AV-IN] to select the source. 3 For AV-IN Name, touch [2] or [3] to select the name.

For detailed operation, see AV Input Setup (P.101).

Color

Set the screen and button illumination color. You can select whether to allow color scan operation or select a fixed color for operation.

1 Touch [SET ]. 2 Touch [ON] or [OFF] of [Panel Color Scan]. 3 If you want to change color, touch [SET] of [Panel Color Coordinate]. 4 Touch your desired color and [6].

For detailed operation, see Panel color coordinate (P.98).

Camera

Set the parameters for the camera.

1 Touch [SET ]. 2 Set each item and touch [

For detailed operation, see Camera Setup (P.100).

Continued

Return to the Top page

Basic Operations

OEM SETUP

This function requires a commercial adaptor. Consult your Kenwood dealer for details.

Touch [Finish].

NOTE

• These settings can be set from the SETUP menu. See Setting Up (P.92).

1010

Return to the Top page

Basic Operations

How to Play Media

Music CD and disc media

Insert the disc into the slot.

The unit loads the disc and playback starts.

● To eject the disc:

Press the <0> button.

USB device

Connect the USB device with the

USB cable.

The unit reads the device and playback starts.

● To disconnect the device:

Touch [0] on the screen and disconnect the device from the cable.

iPod

Connect the iPod.

The unit reads the iPod and playback starts.

NOTE

• For the details of the necessary cable and adapter to connect with iPod/iPhone, refer to Music/

Video/Picture Basic Operation (P.30).

● To disconnect the iPod/iPhone connected with the cable:

Touch [ ] on the screen and then touch [0]. Disconnect the iPod from the cable.

Return to the Top page

Basic Operations

Operating with the Top Menu Screen

Most functions can be performed from the Top Menu screen.

Touch [Menu] on any screen.

Top Menu screen appears.

NOTE

• If [Menu] is not displayed during video/picture playback, press the <MENU> button.

(P. 6)

NOTE

• Top Menu screen can be changed by flicking left or right.

● Customizing Top Menu screen

You can arrange the position of the source icons as you like.

1. Touch and hold the icon which you want to move to go into the customizing mode.

2. Drag it where you want to move.

1212

Customizing mode screen

From this screen, you can perform the following functions.

Function Icon Operation

Switch the audio source

etc.

Switch the video source

etc.

Switch the application installed in the iPhone/ iPod or Android.

Switch the Apps source

etc.

Return to the Top page

Basic Operations

Touch the icon of the desired source.

Touch the icon of the desired video source.

Touch the icon of the desired application.

Touch the icon of the desired App source.

Enter setup mode

Display navigation screen

Turn off all audio function

Vehicle information display

Touch the icon of the desired setup function.

etc.

Touch [NAV] or navigation information.

Touch [STANDBY].

Touch [OEM Features].

Return to the Top page

Basic Operations

Common Operations

Introduces the common operations.

General

There are some functions which can be operated from most screens.

[Menu] (Screen control)

Returns to the Top Menu screen. Touching for at least 1 second displays the Screen Control screen. (Even when an image is displayed, touching for at least 1 second displays the Screen Control screen.)

(RETURN)

Returns to previous screen.

(common menu key)

Touch to display the common menu. The contents of the menu are as follows.

: Displays the SETUP Menu screen. : Displays the Audio Control Menu

screen.

: Displays the control screen of current

source. Icon feature differs depending on the source.

: Closes the menu.

List screen

There are some common function keys in the list screens of most sources.

(Scroll)

Scrolls the displayed text.

etc.

Touch keys with various functions are displayed here. Displayed keys differ depending on the current audio source, status, etc. For examples of functions of each key, refer to the table below.

Key Function

Lists all the music in the lower hierarchy.

1414

Moves to the upper hierarchy.

Displays current category folder.

Displays music/picture/movie file list.

Flick scrolling

You can scroll the list screen by flicking the screen up/down or right/left.

Return to the Top page

Basic Operations

Return to the Top page

Basic Operations

Navigation Operation

For details on the navigation function, please refer to the Navigation Instruction Manual.

Display the navigation screen

Press the <NAV> button.

The navigation screen appears.

Control audio from the navigation screen

You can control audio sources while the navigation screen is displayed. Also, you can view the navigation information while the source control screen is displayed.

Touch the information bar.

The navigation screen with audio information appears.

1616

Touch [ ] or [ ] in the navigation screen.

Touching this area displays the audio screen.

Return to the Top page

Basic Operations

: Displays the navigation and control

keys of the current source.

NOTE

• The screen switches between playback screen

• Touching the source icon in the bottom of the

● To return to the full navigation screen:

Touch [ ].

NOTE

• For details on control keys, refer to the instructions in each section.

: Displays the navigation and current

video/picture playback display.

and camera view each time the viewing area is touched.

screen displays the full audio screen.

Return to the Top page

Basic Operations

OEM Features Operation

By connecting this unit to the bus system of the vehicle using an iDataLink (commercially available), this unit can access the satellite radio source provided for the vehicle and vehicle information can be displayed on this unit.

Touch [Menu] on any screen.

Top Menu screen appears.

Touch [OEM Features] in the Top Menu screen.

OEM Features screen appears.

: Displays the control screen of the

satellite radio source provided for the vehicle.

: Displays the control screen of the

Bluetooth Hands Free function provided for the vehicle.

: Displays the control screen of the

media player source provided for the vehicle.

: Displays the control screen of the

Bluetooth streaming source provided for the vehicle.

1818

Return to the Top page

Basic Operations

: Displays information about the

instruments such as a speedometer.

: Displays information about the

Parking Distance Sensor of the vehicle.

: Displays information about the air

conditioner of the vehicle.

: Displays information about the tire

pressures of the vehicle.

NOTE

• Displayable screens, button names, and screen names vary depending on the type of the connected iDataLink and the model of the vehicle. For more details, access the following URL: www.idatalink.com/

Return to the Top page

234

667

DVD/Video CD Operation

DVD/Video CD (VCD) Operation

DVD/VCD Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote control mode switch to DVD mode before starting operation, see Switching the operation mode

(P. 115).

• The screen shot below is for DVD. It may be different from the one for VCD.

Video screenControl screen

1 Information display

Displays the following information.

• Title #, Chap #: DVD title and chapter number display

• Track #/Scene #: VCD track or scene number display Scene # is displayed only when Playback control (PBC) is on.

• 3, ¡, ¢, 7, etc.: Current play mode display The meanings of each icon are as follows; 3 (play), ¡ (fast forward), 1 (fast backward), ¢ (search up), 4 (search down), 7 (stop),

(slow reverse playback).

Touch this area to display the disc label name.

2 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.22).

3 Multi function menu

Various functions can be performed by using keys in this area. For details on the keys, see Multi

function menu (P.22).

4 Control switching key

Unavailable in DVD/VCD source.

(resume stop), 8 (pause), (slow playback),

2020

Return to the Top page

DVD/Video CD Operation

5 Sub function menu

The following functions can be performed by using keys in this area.

• Repeats the current content: Touch [

• Hides all keys: Touch [

• Fast forward or fast backward: Touch [1] or [¡]. Each time you touch the key, the speed

• Confirms play time: See #:##:##.

DVD: You can switch the time display between title play time, chapter play

VCD (PBC off): You can also confirm disc remaining time by touching time

• Confirms the current location: See the bar in center (DVD only). The bar does not appear when the

6 Searching area

Touch to search the next/previous content. Scrolling from center of display to left or right performs fast backward or fast forward. Each time you

touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch center of the display.

7 Menu display area

This area functions differently depending on the current status.

• During DVD playback: Displays the DVD menu. During the menu display, displays the highlight

• During VCD playback: Displays the Zoom Control screen (P.24).

8 Key display area

Touch to display the last control screen.

9 Screen setup display area

Touch and hold to display the screen control screen. See Monitor Screen Setup (P.92).

following sequence;

DVD: "title repeat" , "chapter repeat" , "function off" VCD (PBC On): Does not repeat VCD (PBC Off ): "track repeat" , "function off"

changes; standard, 2 times, 3 times.

time, and title remaining time. Each time you touch, the display switches between “T #:##:##” (title play time display), “C #:##:##” (chapter play time display), and “R #:##:##” (title remaining time display). As well as the time display, the bar indicating current location appears.

time display is remaining time display.

control screen (P. 23).

]. Each time you touch the key, repeat mode switches in the

display. Each time you touch, the display switches between “P ##:##” (play time display) and “R ##:##” (disc remaining time).

NOTE

• If you use a remote control, you can jump directly to the desired image with entering the chapter number, scene number, play time, etc (P. 115).

Return to the Top page

DVD/Video CD Operation

Multi function menu

DVD VCD

The functions of each key are as follows.

[4] [¢]

Searches the previous/next content.

[38]

Plays or pauses.

[

] or [ ] (DVD only)

Plays in slow motion forward or backward.

[7]

Stops playback. When touched twice, the disc is played from the beginning when you play it the next time.

[PBC] (VCD only)

Turn Playback control (PBC) on or off.

[

SETUP]

Touch to display the SETUP Menu screen. See Setting Up (P.92).

[

AUDIO]

Touch to display the Audio Control screen. See Controlling Audio (P.104).

[ REAR

Touch to mute the rear speaker.

]

2222

Return to the Top page

DVD/Video CD Operation

DVD Disc Menu Operation

You can set up some items in the DVD-VIDEO disc menu.

1 Touch illustrated area during playback.

Menu Control screen appears.

2 Perform desired operation as follows.

Displays the top menu

Touch [Top].*

Displays the menu

Touch [Menu].*

Displays the previous menu

Touch [Return].*

Enters selected item

Touch [Enter].

Enables direct operation

Touch [Highlight] to enter the highlight control mode (P. 23).

Moves the cursor

Touch [5], [∞], [2], [3].

Highlight control

Highlight control lets you control the DVD menu by touching the menu key directly on the screen.

1 Touch [Highlight] in the Menu Control

screen.

2 Touch desired item on the screen.

NOTE

• The highlight control is cleared automatically if you do not operate for a constant time.

* These keys may not function depending on

the disc.

Return to the Top page

DVD/Video CD Operation

DVD play mode setting

You can select DVD play mode.

1 Touch [Next] in the Menu Control

screen.

Menu Control 2 screen appears.

2 Touch the key which corresponds to

desired setting item.

Zoom Control For DVD And VCD

You can enlarge Playback screen for DVD and VCD.

1 For VCD, touch illustrated area during

playback.

Zoom Control screen appears.

NOTE

• For DVD, please refer to DVD play mode setting

(P. 24) to display the Zoom Control screen.

2 Perform desired operation as follows.

Switches the subtitle language

Touch [Subtitle]. Each time you touch this key, language is switched.

Switches the audio language

Touch [Audio]. Each time you touch this key, language is switched.

Controls zoom ratio

Touch [Zoom]. For details, see step2 in Zoom

Control For DVD And VCD (P.24).

Switches the picture angle

Touch [Angle]. Each time you touch this key, picture angle is switched.

Exits menu control

Touch [Exit].

Displays the Menu Control 1 screen

Touch [Previous].

2424

Switches zoom ratio

Touch [Zoom]. For DVD, changes the zoom ratio at 4 levels;

Off, 2 times, 3 times, 4 times. For VCD, changes the zoom ratio at 2 levels;

Off, 2 times.

Scrolls the screen

Touch [5], [∞], [2], or [3] to scroll the screen in the direction you touch.

Exits menu control

Touch [Exit].

Displays the previous menu*

Touch [Return].

* This function may not be performed

depending on the disc.

NOTE

• You cannot touch the menu keys directly on the screen when zooming.

Return to the Top page

DVD/Video CD Operation

Return to the Top page

DVD/Video CD Operation

DVD Setup

You can set up the DVD playback functions.

NOTE

• Each operation in this section can be started from the Top Menu screen. For details, see Operating

with the Top Menu Screen (P.12).

• Some setup items can only be set in standby mode.

1 Touch [ ] in the control screen.

Multi function menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Source].

Source SETUP Menu screen appears.

4 Touch [DVD SETUP] in the list.

DVD SETUP screen appears.

5 Set each item as follows.

Menu/Subtitle/Audio Language*

See Language setup (P.27).

Dynamic Range Control*

Sets the dynamic range.

Wide: The dynamic range is wide. Normal: The dynamic range is normal. Dialog (Default): Makes the total sound

volume larger than other modes. This is effective only when you are using Dolby Digital software.

Angle Mark

Sets an angle mark display.

ON (Default): An angle mark appears. OFF: An angle mark does not appear.

Screen Ratio*

Sets the screen display mode.

16:9 (Default): Displays wide pictures. 4:3 LB: Displays wide pictures in the Letter Box

format (having black stripes at the top and bottom of screen).

4:3 PS: Displays wide pictures in the Pan &

Scan format (showing pictures cut at the right and left ends).

Parental Level*

See Parental level (P.28).

DISC SETUP

See Disc setup (P.28).

2626

Return to the Top page

DVD/Video CD Operation

Stream Information

Displays the present source information. The stream (Dolby Digital, Linear PCM, MPEG,

WMA or AAC) appears.

* These items are disabled when a DVD is

inserted.

Language setup

This setting is for the language used in the menu, subtitle, and voice. You cannot setup these items during DVD playback.

1 Touch [SET] of the desired item;

[Menu Language], [Subtitle Language], [Audio Language].

Language Set screen appears.

2 Enter the desired language code and

touch [Enter].

For language code, refer to DVD Language

Codes (P.129).

Sets the entered language and returns to the DVD SETUP screen.

NOTE

• To cancel the setup and return to the previous screen, touch [Cancel].

• To clear the entered code, touch [Clear].

• To set the DVD’s original language for audio language, touch [Original].

Return to the Top page

DVD/Video CD Operation

Parental level

Sets a parental level. You cannot setup this item during DVD playback.

1 Touch [SET] of [Parental Level].

Parental Pass screen appears.

2 Enter the parental code and touch

[Enter].

Parental Level screen appears.

NOTE

• The parental code is set to “0000” as default.

• To cancel the setup and return to the previous screen, touch [Cancel].

• To clear the entered code, touch [Clear].

• Current parental level appears as [Level#].

3 Touch [2] or [3] to select a parental

level.

NOTE

• If a disc has higher parental lock level, you need to enter the code number.

• The parental lock level varies depending on a loaded disc.

• If a disc has no parental lock, anybody can play it back even when you have set the parental lock.

Disc setup

Performs setup when using disc media.

1 Touch [SET] of [DISC SETUP].

DISC SETUP screen appears.

2 Select an option as follows.

CD Read

Sets the motion of this unit when a music CD is played.

1 (Default): Automatically recognizes and plays

back an audio file disc, a DVD or a music CD.

2: Forcibly plays back a disc as a music CD.

Select [2] if you wish to play a music CD having a special format or if you cannot play a disc in [1] position.

On Screen DVD

Sets an on-screen display. Auto: When updated, information appears for

5 seconds.

OFF (Default): Information does not appear.

NOTE

• [CD Read] is not available when a disc is in the unit.

• You cannot play an audio file/VCD disc in the [2] position. Also, you may not play some music CDs in the [2] position.

2828

Return to the Top page

DVD/Video CD Operation

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Music/Video/Picture Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote controller mode switch to AUD mode before starting operation, see Switching the operation

mode (P.115).

• To connect the Android device with this unit, the cable (sold separately) and the profile which your Android device supports are necessary as follows:

• To listen to music and watch video of APPS source

−MHL device

−KCA-MH100

−Bluetooth profile: SPP

• To listen to music of APPS source

−Bluetooth profile: A2DP

−Bluetooth profile: SPP

• To listen to music of Bluetooth Audio source

−Bluetooth profile: A2DP

−Bluetooth profile: AVRCP

• To connect the iPod/iPhone with this unit, the cable, adapter (both sold separately), and the profile which your iPod/iPhone supports are necessary as follows:

• To listen music and watch video with Lightning connector device

−Lightning Digital AV Adapter

−KCA-HD100

−KCA-iP103

−Bluetooth profile: SPP

• To listen music with Lightning connector device

−KCA-iP103

• To listen music and watch video with 30-pin connector device

−KCA-iP202

• To listen music with 30-pin connector device

−KCA-iP102

• To listen to music via Bluetooth

−Bluetooth profile: A2DP

−Bluetooth profile: SPP When connecting with Lightning Digital AV Adapter or Apple 30-pin Digital AV Adapter some applications can be controlled from this unit. The operable functions depend on the application.

• Do not leave the cable or the adapter made by other makers inside the car. It might lead the malfunction caused by heat.

• Some settings are necessary to meet the connected iPod/iPhone or Android device. Refer to iPod/iPhone

connection setup (P.54) and Application link setup (P.56) .

See the following sections for each source operation.

• Music CD (P. 31)

• Disc media (P. 31)

• USB device (P. 33)

• iPod (P. 33)

• Pandora (P. 43)

• iHeartRadio (P.46)

• AUPEO! (P. 49)

3030

CD/Audio and Visual Files/iPod/App Operation

3344586

• Apps (P. 51)

Return to the Top page

Music CD and disc media

NOTE

• In this manual, “Music CD” will be referred to as the general CDs which include music tracks in. “Disc media” will be referred to as CD/DVD disc which includes audio, picture or video files.

• The screen shot below is for CD. It may be different from the one for disc media.

Simple Control screen List Control screen

1 Information display

Displays the following information.

• Track #: Each time you touch this area, display switches between current track number, text, etc.

• 3, ¡, ¢, 7, etc.: Current play mode display

2 Movie display area/Control switching area

Touch to switch between the Simple Control and List Control screen.

3 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.35).

4 Multi function menu

Various functions can be performed by using keys in this area. For details on the menu, see Multi

function menu (P.35).

5 Sub function key

Touch to display “Sub function menu” (7 in this table).

6 Track information

Displays the information of the current track. For music CD and disc media, you can switch the current track information and the current folder list by

touching the list switching key (8 in this table). However, only "No Information" is displayed for music CD.

7 Sub function menu

Various functions can be performed by using keys in this area. For details on the keys, see Sub function

menu (P.36).

The meanings of each icon are as follows; 3 (play), ¡ (fast forward), 1 (fast backward), ¢ (search up), 4 (search down), 7 (stop), (pause).

(resume stop), 8

Return to the Top page

9910

CD/Audio and Visual Files/iPod/App Operation

8 List switching key

Touch to switch between the track list and the CD-TEXT display (CD)/ID3 tag information (disc media only).

Video screen (disc media only)

9 Searching file area (disc media only)

Touch to search the next/previous file. Scrolling from center of display to left or right performs fast backward or fast forward. Each time you

touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch center of the display.

Menu display area (disc media only)

Touch to display the disc menu. For details, see Movie Control (P.42).

Key display area (disc media only)

Touch to display the last control screen.

2 Screen setup display area

Touch and hold to display the screen control screen. See Monitor Screen Setup (P.92).

3232

CD/Audio and Visual Files/iPod/App Operation

33445

Return to the Top page

USB device and iPod

NOTE

• The screen shot below is for USB device. It may be different from the one for iPod.

Simple Control screen List Control screen

1 Information display

Displays the following information.

• Current file name: Each time you touch this area, display switches between file number/folder

• 3, etc.: Current play mode display The meanings of each icon are as follows; 3 (play, searching), 8 (pause).

2 Artwork/Control switching area

The picture data is displayed if available from the current file. When the picture is not available, “No Photo” is displayed.

Touch to switch between the Simple Control and List Control screen.

3 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.35).

4 Multi function menu

Various functions can be performed by using keys in this area. For details on the keys, see Multi

function menu (P.35).

5 Sub function key

Touch to display “Sub function menu” (7 in this table).

6 Contents list

Displays the list and contents. The contents of the list differ depending on the playback status and source.

When you select the video source on the device connected with the Lightning connecter, the source is switched to Apps (P. 51) automatically.

7 Sub function menu

Various functions can be performed by using keys in this area. For details on the keys, see Sub function

menu (P.36).

8 List switching key

Touch to switch between the file list and the current file information.

number and file name.

Return to the Top page

9910

CD/Audio and Visual Files/iPod/App Operation

Picture/video screen

9 Searching file area (picture/video file only)

• Touch to search the next/previous file.

• During slide show in USB mode, touching each area searches the next/previous music file.

• Scrolling from center of display to left or right performs fast backward or fast forward. To stop fast

backward/forward, touch center of the display. This function is not available when there is no music file in the current folder.

Key display area (picture/video file only)

Touch to display the last control screen.

1 Screen setup display area

Touch and hold to display the screen control screen. See Monitor Screen Setup (P.92).

3434

Multi function menu

Music CD

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

Disc media

iPod

The following functions can be performed by using keys in this area.

[ ] (Disc media, iPod, USB device only)

Searches track/file. For details on search operation, see Search Operation (P.37).

[4] [¢]

Searches the previous/next track/file.

[3] [8] / [38]

Plays or pauses.

[7] (music CD and disc media only)

Stops playback.

[0] (USB device and iPod only)

Touch to disconnect the device. For details, see How to Play Media (P.11).

[

] [ ] (disc media and USB device only)

Searches previous/next folder.

[

] (picture files in USB device only)

During picture playback, switches to picture display.

[

SETUP]

Touch to display the SETUP Menu screen. See Setting Up (P.92).

[

AUDIO]

Touch to display the Audio Control screen. See Controlling Audio (P.104).

[ REAR

Touch to mute the rear speaker.

]

USB device

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Sub function menu

Music CD

Disc media

iPod

The following functions can be performed by using keys in this area.

[ ]

Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence;

CD: "track repeat" iPod: "song repeat" , "all songs repeat" , "repeat off" Disc media, USB device: "file repeat" , "folder repeat" , "repeat off"

[ ] (USB device and iPod only)

Searches track from the album artwork list. For details on search operation, see Search from album

artwork (P.40).

[

] (During video file playback only)

Hides all keys.

[1] [¡] (Music CD and disc media only)

Fast forward or fast backward.

[

] [ ] (USB device and iPod only)

Plays the previous or next album in Favorite list (P.41).

#:##:## or ##:##

Confirms play time. During music CD playback, you can also confirm disc remaining time by touching time display.

Each time you touch, the display switches between “P ##:##” (track play time display) and “R ##:##” (disc remaining time).

[

]

Randomly plays all tracks in current folder/disc or in current playlist in the connected iPod. Each time you touch the key, random mode switches in the following sequence;

CD: "track random" Disc media, USB device: "file random" iPod: "track random"

Status bar in center (USB device and iPod only)

Confirms the current location. During USB device and iPod playback, you can drag the circle left or right to change the playing position.

, "repeat off"

, "random off"

, "album random" , "random off"

USB device

3636

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

Search Operation

You can search music, video or picture files by the following operations.

NOTE

• If you use a remote control, you can jump directly to the desired track/file with entering the track/ folder/file number, play time, etc. For details, see

Direct search mode (P.115).

List search

You can search tracks, folders, and files according to hierarchy.

1 Touch illustrated area.

List Control screen appears.

2 Touch desired track/file.

Other search

When you want to narrow the list down, there are other search ways.

This function is not available when music CD is the current source.

1 Touch [ ] in the control screen.

The search type screen appears.

2 Touch desired search way.

USB device

iPod

Playback starts.

NOTE

• For disc media, you can switch the file list and folder list by touching [

• For disc media, you cannot display the list during random play and stop.

The list sorted in the way you selected appears.

See the following sections for each operation.

• [Category List]: You can search a file by selecting category ( P.38).

• [Link Search]: You can search a file of same artist/album/genre/composer as the current track (P. 38).

• [Folder List]: You can search a file according to hierarchy (P. 39).

• [Thumbnail Viewer]: You can search a picture file (P.39).

NOTE

• For disc media, you can display the folder list

directly by touching [

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Category search (USB device and iPod only)

1 Touch the desired category from the

left part of the screen.

2 The list is sorted by selected category. 3 Touch desired item.

Playback starts.

NOTE

• To narrow the search you can select a letter from the alphabet list in the center of the display.

• For operations in the list screen, see Common

Operations (P.14).

Link search (USB device and iPod only)

1 Touch the desired item from the left

part of the screen. You can select from artist, album, genre and composer.

The list corresponding to your selection appears.

NOTE

• The list is sorted by the way you selected.

• artist: Displays the album list of the artist.

• album: Displays all tunes of the current album.

• genre: Displays the artists list in which artists belong to the same genre.

• composer: Displays the album list of the

composer of the current file.

2 Touch to select desired item in the

list. Repeat this step until you find the desired file.

3838

NOTE

• To narrow the search you can select a letter from the alphabet list in the center of the display.

• For operations in the list screen, see Common

Operations (P.14).

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

Folder search (USB device and disc media only)

1 Touch the desired folder.

Folders in the selected source are displayed in the center.

When you touch a folder its contents are displayed.

The hierarchy till the current folder is displayed on the left.

2 Touch desired item from the content

list.

Playback starts.

NOTE

• For operations in the list screen, see Common

Operations (P.14).

Picture search (USB device only)

1 Touch the desired picture.

The selected picture appears in full screen. See number 9-10 in USB device and iPod

(P. 33) for operation of picture screen.

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Search from album artwork (USB device and iPod only)

You can search music files by selecting the album artwork.

1 Touch [ ].

Sub function menu appears.

2 Touch [ ].

Favorite screen appears.

3 Touch desired artwork in the lower line.

4 Touch [ 3 ] on the selected artwork.

The first song in the album is played. In addition, you can create your original

playlist from this screen. For details, see

Favorite list (P.41).

NOTE

• After all tracks in the album are played, the same album is played again from the first track.

• The albums with no photo are not displayed.

NOTE

• The key in the upper side of the screen functions differently depending on the status.

When [Load Albums] appears:

You have not yet loaded any artworks. Touch the key to start loading.

When [Load More Albums] appears:

Some artworks are not loaded. Touch the key to load all artworks. If you touch the key, the track being played may stop and another track may start playback.

When the key does not available:

All artworks are already loaded.

4040

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

Favorite list

You can create an original playlist of your favorite 10 albums by selecting album artworks.

1 Touch and drag the desired album

artwork in the lower line to the upper line.

Selected album is registered to the favorite list.

NOTE

• The added album is placed on the extreme right.

• You cannot register the same album already registered to the favorite list.

• Up to 10 albums can be registered to the list.

2 Touch the desired artwork in the

favorite list.

NOTE

• The favorite list is played to the right starting with the selected album.

• To delete the album from the favorite list, touch and drag it to the lower line.

• You can change the playing order of the favorite list by dragging the artwork in the list.

• The favorite list mode is canceled in the following situations.

• Playing another album from other list (folder list,

category list, etc.)

• Playing another album by touching the artwork

in the lower line in the artwork list screen.

• The favorite list mode resumes after disconnecting/connecting the device or turning on/off. File being played, playing time code, favorite list contents, favorite list order, etc. resumes if file configuration of the device is not changed.

Selected album is played and the control screen appears.

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Movie Control

You can adjust the movie playback from a disc media.

1 In the playback screen, touch

illustrated area.

Movie Control screen appears.

2 Perform desired operation as follows.

Changes subtitle language

Touch [Subtitle].

Changes audio language

Touch [Audio].

Exits the menu

Touch [Exit].

4242

CD/Audio and Visual Files/iPod/App Operation

33445

Return to the Top page

Pandora® Operation

You can listen to the Pandora® on this unit by controlling the application installed in the iPhone or Bluetooth device.

To enter Pandora mode, touch [Pandora] icon in the Top Menu screen.

NOTE

• Install the latest version of the Pandora® application on your iPhone, Android or BlackBerry.

iPhone: Search for "Pandora" in the Apple App Store to find and install the most current version. Android: Visit the Google play and search for Pandora to install. BlackBerry: Visit www.pandora.com from the built in browser to download the Pandora application.

• When you first select Pandora as a source, the setting screen for the connection with the device installed the apps will appear. For the details, refer to

Simple Control screen List Control screen

1 Information display

Displays text information of current contents that is being played.

2 Artwork/Control switching area

The picture data is displayed if available from current content. Touch to switch between the Simple Control and List Control screen.

3 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.44).

4 Multi function menu

Various functions can be performed by using the keys in this area. For details on the keys, see Multi

function menu (P.44).

5 Sub function key

Touch to display “Sub function menu” (7 in this table).

6 Content information

Displays the information of the current content being played.

7 Sub function menu

Various functions can be performed by using keys in this area. For details on the keys, see Sub function

menu (P.44).

8 List switching key

Touch to switch between the content list and the current content information.

Application link setup (P.56).

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Multi function menu

The following functions can be performed by using keys in this area.

[ ]

Searches for a station. For details on searching, see Station list screen (P.45).

[

] (Thumbs down)

Thumbs down to the current song and skip to the next song.

[ 38 ]

Plays or pauses the content of the current station.

[ ¢ ]

Skips the current song. (Note this function is disabled when the

Pandora skip limitation is exceeded.)

[

] (Thumbs up)

Registers the current contents as favorite content.

[

] (Bookmark Artist)

Bookmark an artist in the current contents.

[

] (Bookmark Song)

Bookmark a song in the current contents.

Sub function menu

The following functions can be performed by using keys in this area.

Status bar in center

Displays the elapsed time since when you select the station and status bar which shows current location.

[

]

Creates a new station based on an artist being played.

[

]

Creates a new station based on a song being played.

[

]

Displays the genre list screen. For details on searching, see Genre list screen (P.45).

NOTE

• [SETUP], [AUDIO], and [REAR] functions same as iPod.

4444

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

Station list screen

You can perform the following functions from this screen.

Selects the station

Touch the station name in the list.

Sort the list in alphabetical order

You can select the desired letter from the list which corresponds to the station name to help narrow the search.

Sort the list by registered date

Touch [ByDate]. The list is sorted to begin with the last registered station.

NOTE

• You can operate Pandora by using the remote control. However, only playing, pausing, and skipping are available.

• You cannot select iPod as rear source when you select Pandora as main source in dual zone function.

Genre list screen

You can perform the following functions from this screen.

The selected genre is created as a new station.

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

iHeartRadio Operation

You can listen to the iHeartRadio on this unit by controlling the application installed in the iPhone or Android.

To enter iHeartRadio mode, touch [iHeartRadio] icon in the Top Menu screen.

NOTE

• Install the latest version of the iHeartRadio application "iHeartAuto" on your iPhone or Android.

iPhone: Search for "iHeartAuto" in the Apple App Store to find and install the most current version. Android: Search for "iHeartAuto" in Google play to find and install the most current version.

• When you first select iHeartRadio as a source, the setting screen for the connection with the device installed the apps will appear. For the details, refer to

1 Artwork switching area

The picture data is displayed if available from current content. When the picture is not available, “No Photo” is displayed.

2 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.47).

3 Multi function menu

Various functions can be performed by using the keys in this area. For details on the keys, see Multi

function menu (P.47).

4 Sub function menu

The following functions can be performed by using keys in this area.

• Thumbs up to the current song: Touch [

• Thumbs down to the current song. : Touch [

5 Content information

Displays the information of the current content being played.

Application link setup (P.56).

4646

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

Multi function menu

The following functions can be performed by using keys in this area.

[ 37 ]

Stops or pauses. (Live station only)

[ 38 ]

Plays or pauses. (Custom station only)

[ ¢ ]

Skips the current song. (Custom station only)

[SCAN]

Scans for another station of the same genre. (Live station only)

[

]

Creates a custom station based on the current song.

[

]

Searches for a station. For details on searching, see Station search (P.47).

[

]

Saves currently playing station to My Stations. (Live station only)

[

]

Use the Discovery Tuner to set the variety level of a station. For details, see Discovery tuner

(P. 48). (Custom station only)

Station search

You can list and select station.

1 Touch [ ] in the control screen.

The Station Search screen appears.

Selects the category and station

Touch the category and station name in the list.

[

]

Returns to the first hierarchy of the category list.

[

]

Returns to the previous category list.

[

]

Deletes a saved station from My Stations. For details, see My stations edit (P.48).

NOTE

• [SETUP], [AUDIO], and [REAR] functions same as iPod.

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

My stations edit

1 Touch [ ] in the Station Search

screen.

Station Edit screen appears.

2 Select the station to delete from My

stations.

Selects the station

Touch to check the station name you want to delete.

You can uncheck if you touch it again.

[

]

Returns to the first hierarchy of the category list.

[

]

Returns to the previous category list.

Discovery tuner

You can set the variety level in a custom station.

1 Touch [ ] in the control screen.

The Discovery tuner select screen appears.

Selects the variety

Touch the variety you want to set.

3 Touch [ ].

Station Delete screen appears.

4 Touch [Yes].

My station selected is deleted.

4848

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

AUPEO!Operation

You can listen to the AUPEO!on this unit by controlling the application installed in the iPhone or Android.

To enter AUPEO!mode, touch [AUPEO!]icon in the Top Menu screen.

NOTE

• Install the latest version of the AUPEO! application "AUPEO!" on your iPhone or Android.

iPhone: Search for "AUPEO!" in the Apple App Store to find and install the most current version. Android: Search for "AUPEO!" in Google play to find and install the most current version.

• When you first select AUPEO! as a source, the setting screen for the connection with the device installed the apps will appear. For the details, refer to

1 Artwork switching area

The picture data is displayed if available from current content. When the picture is not available, “No Photo” is displayed.

2 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.50).

3 Multi function menu

Various functions can be performed by using the keys in this area. For details on the keys, see Multi

function menu (P.50).

4 Content information

Displays the information of the current content being played.

Application link setup (P.56).

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Multi function menu

The following functions can be performed by using keys in this area.

[ ]

Searches for a station. For details on searching, see Station search (P.50).

[

]

Touching the key “Love” current song.

[ 38 ]

Plays or pauses.

[ ¢ ]

Skips the current song.

[

]

Touching the key “Ban” current song.

NOTE

• [SETUP], [AUDIO], and [REAR] functions same as iPod.

Station search

You can list and select station.

1 Touch [ ] in the control screen.

The Station Search screen appears.

Selects the category and station

Touch the category and station name in the list.

[

]

Returns to the previous category list.

5050

CD/Audio and Visual Files/iPod/App Operation

231

Return to the Top page

Apps Operation

You can listen to music or watch video from the Apps operating on iPod touch/iPhone or Android. To enter Apps mode, touch [APPS] icon in the Top Menu screen.

NOTE

• When you turn on the power and select apps as the source, the caution for the operation, watching video and listening music appears. With your acceptance, you can control apps, listen to music and watch video from apps when you are driving.

• When you first select APPS as a source, the setting screen for the connection with the device installed the apps will appear. For the details, refer to

• If the conditions below are satisfied, the touch keys will not appear, but the touch operation from the screen of the unit to the Android device becomes possible.

−The unit and the Android device are connected with KCA-MH100 (sold separately) and over Bluetooth profile HID and SPP.

−“Kenwood Smartphone Control” is installed on the Android device. For details, see web site. http://www.

kenwood.com/products/car_audio/app/kenwood_smartphone_control/eng/index.html

• Depending on the app, the touch keys may not work or be displayed.

Application link setup (P.56).

When the touch keys appear When the touch operation is possible

1 Multi function key (iPod touch/iPhone only)

Touch to switch the multi function menu.

2 Multi function menu (iPod touch/iPhone only)

The following functions can be performed by using keys in this area.

• Plays or pauses: Touch [3], [8], or [38] (iPod only).

• Searches the previous/next track/file: Touch [4] or [¢]. [SETUP], [AUDIO], and [REAR] functions same as iPod.

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

3 Sub function menu (iPod touch/iPhone only)

The following functions can be performed by using keys in this area.

• Hides all keys (During video file playback only): Touch [

]

5252

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

USB/iPod/App Setup

You can perform setup when using USB/ iPod/ App.

NOTE

• Each operation in this section can be started from the Top Menu screen. For details, see Operating

with the Top Menu Screen (P.12).

• Some setup items can only be set in standby mode.

1 Touch [ ] in the control screen.

Multi function menu appears.

2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Source].

Source SETUP Menu screen appears.

4 Touch [USB SETUP], [iPod SETUP], or

[APP SETUP] in the list.

Each setup screen appears. See the following section for each setting.

• USB setup (P.53)

• iPod setup (P.54)

• Application link setup (P.56)

USB setup

1 Set each item as follows.

Picture Display Time

Selects length of time to display JPEG picture file in the screen. Select from [Short], [Middle], and [Long] (default).

On Screen USB

Sets how to display the information of the USB device.

Auto (Default): Information appears for 5

seconds when updated.

OFF: Does not display any information.

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

iPod setup

1 Set each item as follows.

AudioBook Speed

Sets the audio book playback speed. Select from [Slow], [Normal] (default), and [Fast].

Wide Screen*

Sets Wide Screen. Set [ON] (default) or [OFF].

On Screen iPod

Sets how to display the information of the iPod.

Auto (Default): Information appears for 5

seconds when updated.

OFF: Does not display any information.

iPod connection setup

Sets the way to connect the iPod/iPhone with this unit For details on searching, see iPod/

iPhone connection setup (P.54).

* This setting is not available when an iPod is

connected.

iPod/iPhone connection setup

1 Touch [iPod Connection Setup] in the

iPod Settings screen.

iPod connection setup screen appears.

2 Touch [CHANGE].

3 Select the way to connect the iPod/

iPhone with this unit.

USB + AV-IN

Select when connecting with KCA-iP202.

USB 1Wire

Select when connecting with KCA-iP103 or KCA-iP102.

HDMI + BT

Select when connecting with KCA-HD100 and Lightning Digital AV Adapter.

Bluetooth

Select when connecting via Bluetooth only.

5454

4 Touch [Next].

Confirmation screen appears.

5 Touch [Done].

NOTE

• For the details of the necessary cable and adapter to connect with iPod/iPhone, refer to Music/

Video/Picture Basic Operation (P.30).

• When you select “HDMI + BT” or “Bluetooth” in step 3, Bluetooth device selection screen will appear. Select the iPod/iPhone to be connected.

If a connectable Bluetooth device is not displayed, touch [Search] and do the pairing of the devices.

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

CD/Audio and Visual Files/iPod/App Operation

Application link setup

Sets the device an application is installed in and the app is selected as the source.

1 Touch [CHANGE].

2 Select the device installed the apps.

iPod / iPhone

Select when using iPod/iPhone.

Android / Other

Select when using Android or BlackBerry device.

4 Select the way to connect the device

with this unit.

When selecting [iPod / iPhone]

USB + AV-IN

Select when connecting with KCA-iP202.

USB 1Wire

Select when connecting with KCA-iP103 or KCA-iP102.

HDMI + BT

Select when connecting with KCA-HD100 and Lightning Digital AV Adapter.

Bluetooth

Select when connecting via Bluetooth only.

When selecting [Android / Other]

HDMI/MHL + BT

Select when connecting with KCA-MH100.

Bluetooth

Select when connecting via Bluetooth only.

3 Touch [Next].

Connection setup screen appears.

5656

5 Touch [Next].

Confirmation screen appears.

6 Touch [Done].

NOTE

• This setup can be set when in STANDBY source.

• To enable the touch operation on this unit, install "Kenwood Smartphone Control" and start it. Search for "Kenwood Smartphone Control" in Google play to find and install the most current version.

• When you select APPS source and APP Settings appears, touch [OK] after setting. The screen will return to APP after you agree the caution.

• For the details of the necessary cable and adapter to connect with iPod/iPhone and Android, refer to

Music/Video/Picture Basic Operation (P.30).

• When you select “HDMI + BT”, “HDMI/MHL + BT” or ”Bluetooth” in step 4, Bluetooth device selection screen will appear. Select the device to be connected.

CD/Audio and Visual Files/iPod/App Operation

Return to the Top page

If a connectable Bluetooth device is not displayed, touch [Search] and do the pairing of the devices.

• When you select “iPod/ iPhone” in Apps Setup, select “iPod” as the source, and select App on the iPod, the source of this unit is also changed to App automatically.

Return to the Top page

3344586

HD Radio Tuner Operation

HD Radio™ Tuner Operation

HD Radio Tuner Basic Operation

Most functions can be controlled from the source control screen.

NOTE

• Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode

(P. 115).

Simple Control screen List Control screen

1 PS/Station name display

Displays the PS name or station name.

2 Information display/Control switching area

Displays the following information.

• Picture: The picture data or station Logo data is displayed if available from current content.

• [FM1] etc.: Band display

• MHz/kHz: Frequency display

• Preset #: Preset number

• HD#: Channel display Touch to switch between the Simple Control and List Control screen.

3 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.59).

4 Preset key/Multi function menu

Recalls the memorized station or channel. When touched for 2 seconds, stores the current receiving station or channel in memory.

When switched, various functions can be performed by using keys in this area. For details on the menu, see Multi function menu (P.59).

5 Sub function key

Touch to display “Sub function menu” (7 in this table).

5858

Return to the Top page

HD Radio Tuner Operation

6 Preset list

Displays the list of preset stations or channels and the information.

7 Sub function menu

The following functions can be performed by using keys in this area.

• Switches the band: Touch [AM] or [FM].

• Tunes in a station: Touch [1] [¡]. The method of frequency switching can be changed. See Multi

• Selects a channel: Touch [CH∞] or [CH5].

• Stores the information about the song being received: Touch [

• Tunes in by entering direct number: Touch [

8 List switching key

Touch to switch between the preset list and the information list. Tuned program information will be displayed.

function menu (P.59).

]. See Bookmark (P.65).

] and enter the desired number. For details, see Direct search (P.63).

Multi function menu

The functions of each key are as follows.

[P1] - [P6]

Selects the preset station. Touch for 2 seconds to store the current station into the preset memory.

]

[

Selects the method of searching from preset stations selecting or channel searching. For details on search operation, see Selecting Operation (P.62).

[TI]

Sets the traffic information mode on. For details, see Traffic Information (P.64).

[SEEK]

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• AUTO1: Tunes in a station with good reception automatically.

• AUTO2: Tunes in stations in memory one after another.

• MANUAL: Switches to the next frequency manually.

[AME]

Selects the auto memory mode. For details, see Auto memory (P.61).

[PTY]

Searches a program by setting program type. For details, see Search by program type (P.62).

[RCV]

Switches the receive mode in the following sequence; [AUTO], [DIGITAL], [ANALOG]. For details, see

Receive Mode (P.64).

[

SETUP]

Touch to display the SETUP Menu screen. See Setting Up (P.92).

[

AUDIO]

Touch to display the Audio Control screen. See Controlling Audio (P.104).

Continued

Return to the Top page

HD Radio Tuner Operation

[ REAR ]

Touch to mute the rear speaker.

This HD Radio receiver enables:

• Program Service Data provides song name, artist, station ID, and other relevant data streams

• Adjacent to traditional main stations are HD2/HD3 Channels, providing new original formats on the FM dial

• Bookmark is a music & product discovery feature that enables users to store information about content on the radio and delivers interactive information via QR codes

• HD Radio broadcasts deliver crystal clear, CD-like digital audio quality to consumers

6060

• Visual images, such as album art of over-the-air broadcasts from HD Radio stations

Return to the Top page

HD Radio Tuner Operation

Memory Operation

Auto memory

You can store stations with good reception in memory automatically.

NOTE

• Auto memory terminates when 6 stations are stored or when all stations are tuned in.

• The operation ends automatically if you do not operate within 10 seconds.

1 Touch [ ].

Sub function menu appears.

2 Touch desired band key.

3 Touch [ ] in the control screen.

The multi function menu appears.

4 Touch [AME] in the multi function

menu.

5 Touch [1] or [¡] in the sub function

menu.

Auto memory starts.

Manual memory

You can store the current receiving station or channel in memory.

1 Select a station or channel you wish to

store in memory.

2 Touch [P#] (#:1-6) in which you want

to store the station or channel for 2 seconds until a beep sounds.

Return to the Top page

HD Radio Tuner Operation

Selecting Operation

Preset select

You can list and select memorized station or channel.

Selecting from the multi function menu

1 Touch the desired number from P1 to

P6.

The unit will tune to the selected station or channel.

Selecting from the preset list

1 Touch illustrated area.

List Control screen appears.

2 Select a station or channel from the list.

Search by program type

You can tune to a station with a specific program type when listening to FM.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [PTY] in the multi function menu.

TUNER PTY Mode screen appears.

3 Select a program type from the list. 4 Touch [Search].

You can search a station of the selected program type.

NOTE

• Touching [ ] and then [Preset List] displays the preset channel list. You can also select your desired channel from the list.

6262

Return to the Top page

HD Radio Tuner Operation

Direct search

You can tune in by entering the desired frequency or channel number.

1 Touch illustrated area.

List Control screen appears.

2 Touch [ ].

10Key Direct screen appears.

3 Enter the channel number and touch

[Enter].

Category/Channel search

You can specify the desired category and select a channel.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [ ] in the multi function menu.

List select screen appears.

3 Touch [Preset list] or [Category/

Channel list].

The previously used category or channel list appears.

4 Select the desired content from the list.

NOTE

• Each time you touch [Info Change] in the channel list, switches the sequence of the list.

Song title, artist name, album name

NOTE

• To cancel the direct search, touch [Cancel].

• To clear the number you entered, touch [Clear].

• You can search by frequency. Each time you touch [Mode] in the left part of the screen, it changes the mode between frequency entering mode and channel entering mode.

Return to the Top page

HD Radio Tuner Operation

Traffic Information

You can listen and watch the traffic information automatically when a traffic bulletin starts.

However, this feature requires a Radio Broadcast Data System that includes the TI information.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [TI] in the multi function menu.

Traffic information mode is set.

When the traffic bulletin starts

The Traffic Information screen appears automatically.

Receive Mode

You can set the radio broadcasts receive mode.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [RCV] in the multi function menu.

HD Radio tuner Mode screen appears.

3 Select the receive mode from [Auto],

[Digital], and [Analog] using [2] and [3].

NOTE

• If you select [Auto], tunes to analog broadcast automatically when there is no digital broadcast.

NOTE

• It is necessary to have Traffic Information function set to on in order to have the Traffic Information screen appear automatically.

• The volume setting during reception of traffic information is automatically stored. The next time the traffic information is received, this unit recalls the volume setting automatically.

6464

Return to the Top page

HD Radio Tuner Operation

Bookmark

Stores tag information (title, artist, album, URL, and description) about the song you are listening to now.

Detailed information and QR codes can be displayed according to the stored tag information.

Registering a bookmark

1 Touch [ ].

Sub function menu appears.

2 Touch [ ].

Registers a bookmark.

NOTE

• Up to 100 bookmarks can be registered to this unit.

Bookmark list

Displaying a list of registered bookmarks and detailed information and QR code of the song.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [ ] in the multi function menu.

List select screen appears.

3 Touch [Bookmark].

The Bookmark List appears.

4 Select the desired bookmark from the

list.

The bookmark information appears.

[ ]

Deletes the bookmarks being displayed.

Return to the Top page

HD Radio Tuner Operation

Bookmark delete

Deleting a bookmark.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [ ] in the multi function menu.

List select screen appears.

3 Touch [Bookmark].

The Bookmark List appears.

4 Touch [Delete List].

6 Touch [ ].

Deletes all the selected bookmark(s)

The Bookmark Delete List appears.

5 Select the bookmark to delete from

the list.

[All]

Select all bookmarks.

6666

Return to the Top page

HD Radio Tuner Operation

Return to the Top page

334

SiriusXM Operation

SiriusXM® Operation

SiriusXM® Basic Operation

Most functions can be controlled from the source control screen.

Before use

• SiriusXM® Satellite Radio operation requires the connection of the optional SiriusXM Connect Vehicle Tuner and service. To activate the SiriusXM Connect Vehicle Tuner, you will need the Radio ID.

• Make a note of your Radio ID: For each SiriusXM Connect Vehicle Tuner, peculiar Radio ID is assigned. To confirm your Radio ID, tune to channel 0. The letters I, O, S and F are not used in any Radio ID. The Radio ID is also located on the label of the SiriusXM Connect Vehicle Tuner.

• How to activate your SiriusXM Service: Go to www.siriusxm.com/activatenow or call 1-866-635-2349 to activate your SiriusXM Vehicle Connect Tuner. To activate SiriusXM Canada service go to www.xmradio.ca and click on “ACTIVATE RADIO” in the top right corner, or call 1-877-438-9677

NOTE

• Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode

(P. 115).

• To use SiriusXM® Satellite Radio, the optional accessory is necessary.

Simple Control screen List Control screen

1 Signal Strength indication

Displays the received signal strength of the SiriusXM tuner.

2 Information display/Control switching area

Displays the following information.

• [SXM1], etc.: Band display

• Preset #: Preset number

• #CH: Channel display

• Logo: Channel logo display Touch to switch between the Simple Control and List Control screen.

3 Multi function key

Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.69).

6868

Return to the Top page

SiriusXM Operation

4 Preset key/Multi function menu

Recalls the memorized channel. When touched for 2 seconds, store the current receiving channel in memory.

When switched, various functions can be performed by using keys in this area. For details on the menu, see Multi function menu (P.69).

5 Sub function key

Touch to display “Sub function menu” (7 in this table).

6 Music information

Displays the information of the current channel: Channel Name, Artist Name, Song Title, Content Info, Category Name, Channel Description, Similar Channels

7 Sub function menu

The following functions can be performed by using keys in this area.

• Tunes in a station: Touch [CHS] [CHR].

• Searches the previous/next track: Touch [4] [¢]. fast forward/fast backward when keep on

• Tunes in by entering direct number: Touch [

8 List switching key

Touch to switch between the preset list and the information list.

touching. See Replay (P.74).

] and enter the desired number. For details, see

Direct search (P.72).

Multi function menu

The functions of each key are as follows.

[P1] - [P6]

Selects the preset channel. Touch for 2 seconds to store the current station into the preset memory.

[

]

Selects the method of searching from preset channel selecting or category/channel searching. For details on search operation, see Selecting Operation (P.71).

[SEEK]

Switches the seek mode in the following sequence; [SEEK1], [SEEK2].

• SEEK1: Tunes channels one after the other.

• SEEK2: Selects channels in preset (memory) one after the other.

[BAND]

Switches the band.

[38]

Plays or pauses. See Replay (P.74).

[

]/[ ]

Touch for 2 seconds to register content as Alert content.

• [

]: Registers the artist of the song you are listening to now as an alert content.

• [

]: Registers the song you are listening to now as an alert content.

For details, see Content alert (P.73).

Continued

Return to the Top page

SiriusXM Operation

[ ]

Turns the Traffic & Weather Jump function on or off. For details, see City select for Traffic & Weather Jump (P.79).

[

]

Listen to live.

[TuneScan]

Hear a few seconds of the songs from each of the SmartFavorite music channels on the current preset band. See TuneScan™ (P.75).

[

SETUP]

Touch to display the SETUP Menu screen. See Setting Up (P.92).

[

AUDIO]

Touch to display the Audio Control screen. See Controlling Audio (P.104).

[ REAR

Touch to mute the rear speaker.

]

7070

Return to the Top page

SiriusXM Operation

Memory Operation

Manual memory

You can store the current receiving station or channel in memory.

1 Select a station or channel you wish to

store in memory.

2 Touch [P#] (#:1-6) in which you want

to store the station or channel for 2 seconds until a beep sounds.

Selecting Operation

Preset select

You can list and select memorized station or channel.

Selecting from the multi function menu

1 Touch the desired number from P1 to

P6.

The unit will tune to the selected station or channel.

Selecting from the preset list

1 Touch illustrated area.

List Control screen appears.

2 Select a station or channel from the list.

NOTE

• For SiriusXM tuner, touching [ ] and then [Preset List] displays the preset channel list. You can also select your desired channel from the list.

Return to the Top page

SiriusXM Operation

Direct search

You can tune in by entering the desired frequency or channel number.

1 Touch illustrated area.

List Control screen appears.

2 Touch [ ].

10Key Direct screen appears.

3 Enter the channel number and touch

[Enter].

NOTE

• To cancel the direct search, touch [Cancel].

• To clear the number you entered, touch [Clear].

Category/Channel search

You can specify the desired category and select a channel.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [ ] in the multi function menu.

List select screen appears.

3 Touch [Category/ Channel list].

The previously used category or channel list appears.

4 Select the desired content from the list.

NOTE

• All the channels in the selected category appear.

• Touching [All Channel] displays all the channels.

• Each time you touch [Info Change] in the channel list, switches the sequence of the list.

Channel name, artist name, song title, category

name, content info

7272

Content alert

When a broadcast program related to the registered artist, song or team starts, a message appears to allow you to switch the current channel to the relevant channel.

1 When the broadcast of the registered

content starts, an Alert screen appears.

Jump

Touch to display the Alert Content List screen.

Ignore

Touch to cancel the Content alert.

2 Select a content from the list.

Return to the Top page

SiriusXM Operation

NOTE

• Each time you touched [Type], switches the sequence of the Content alert list as follows; Artist Alert, Song Alert, GameAlert™

• For how to register artists and songs and turn on/ off the Team alert function, see Multi function

menu (P.69).

• For how to set up the Content alert function, see

SiriusXM Setup (P.76).

Return to the Top page

SiriusXM Operation

Replay

You can replay last 60 minutes of current channel.

1 Touch [SiriusXM] in the Top Menu.

[4] [¢]

Searches the previous/next track. Fast forward/ fast backward when keep on touching.

[38]

Plays or pauses.

[CHS] [CHR]

Tunes in a station.

Replay time bar

Display recorded capacity and playback position.

[

]

Listen to live.

[

]

Displays a list of recorded data on a program basis.

[BAND]

Switches the band.

Program list

Touching this plays back the displayed program.

[Info Change]

Touching this allows you to switch among the Artist name, Song title, Category name, and Content info cyclically.

2 Touch [ ] to display a program list.

7474

Return to the Top page

SiriusXM Operation

Smart Favorites, TuneStart™

Station memory number 1 though 6 of current band are Smart Favorite channels. SiriusXM Vehicle Tuner automatically buffered the broadcast audio content of the Smart Favorites channels in the background.

You can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content when you tune to a Smart Favorite channel. (see Replay (P.74))

When tuning Smart Favorites channels, songs will play from the beginning of each track (Tune Start). You can enable/disable Tune Start. (see TuneStart™ (P.80))

TuneScan™

TuneScan™ is a feature that plays samples from the starts of multiple buffered songs from each of the Smart Favorite channels that predominantly play music selections.

You have easy access to a large sampling of music content and can enjoy hearing a full song when stopping the scan on a song of interest.

1 Touch [ ] in the control screen.

The multi function menu appears.

2 Touch [TuneScan] in the multi function

menu.

The introductions of the songs will be played in recorded order.

3 Touch [TuneScan] while your favorite

song is being played.

Scan finishes and continues playing the song.

NOTE

• To cancel Tune Scan, Touch [TuneScan] for 2 seconds. After cancel, the channel before starting Tune Scan will be played.

Return to the Top page

SiriusXM Operation

SiriusXM Setup

NOTE

• Each operation in this section can be started from the Top Menu screen. For details, see Operating

with the Top Menu Screen (P.12).

1 Touch [ ] in the control screen.

Multi function menu appears.

2 Touch [SETUP] in the multi function

menu.

SETUP Menu screen appears.

3 Touch [Source].

Source SETUP Menu screen appears.

4 Touch [SiriusXM SETUP] in the list.

SiriusXM SETUP screen appears. See the following section for each setting.

• Set up the parental code (P. 76)

• Set up the parental control (P. 77)

• Set up the skip channel select (P.78)

• Set up the Content alerts (P. 78)

• Set up the content for Content alerts

(P. 79)

• Select the city for Content alerts (P. 79)

• Set up the TuneStart™ ( P.80)

• Reset to the default settings (P. 80)

Parental code

You can set a SiriusXM parental code.

1 Touch [Change] of [Parental Code] in

the SiriusXM SETUP screen.

Parental Pass Check screen appears.

NOTE

• The code number is set to “0000” as default.

2 Enter the current code number.

Parental Pass 1st entering screen appears.

3 Enter the new code number and touch

[Enter].

Parental Pass 2nd entering screen appears.

4 Enter the same code number as you

input in step 3 and touch [Enter].

The code number is confirmed and SiriusXM parental code is now set.

7676

Return to the Top page

SiriusXM Operation

Parental control

Parental control is a feature that provides the user with the ability to prevent unauthorized access to mature content and user selected channels.

1 Touch [ON] or [OFF] of [Parental Lock

Mature] in the SiriusXM SETUP screen.

2 Enter the same code number as you

originally input in Parental code (P.76) and touch [Enter].

Turns the Mature on or off. Default is “OFF”.

If you want to separately set the parental lock for each channel, select OFF and proceed to step 3 onward.

3 Touch [SET] of [Parental Lock Channel

Select] in the SiriusXM SETUP screen.

Parental Pass Check screen appears.

NOTE

• You need to complete Parental code (P.76) beforehand.

• To delete the parental lock channel setting, touch and hold [Unlock All] for 2 seconds, enter the Parental code number, then touch [Enter].

4 Enter the same code number as you

originally input in Parental code (P.76) and touch [Enter].

Parental Lock Category Select screen appears.

5 Touch the desired category from the

list.

NOTE

• Touch [All Channels] to display all the channels.

6 Touch each channel list and set on or

off.

NOTE

• Each time you touched [Info Change], switches the sequence of the channel list as follows; Channel name, Artist name, Song title, Category name, Content information.

• Touch [’] to return to Parental Lock Category Select screen.

• Touch [

] to return to SiriusXM SETUP screen.

Displays all the channels in the selected category.

Return to the Top page

SiriusXM Operation

Skip channel select

You can set the undesired channels to skip.

1 Touch [SET] of [Skip Channel Select].

Skip Category Select screen appears.

2 Touch the desired category from the

list.

Displays all the channels in the selected category.

3 Touch each channel list and set ON or

OFF.

NOTE

• Operations in each list screen are same as

Parental control (P.77).

• To delete the skip channel setting, touch and hold [Unskip All] for 2 seconds.

Content alerts setup

You can turn on or off the Content alerts function.

1 Touch [ON] or [OFF] of [Content alerts]

in the SiriusXM SETUP screen.

Turns the Content alerts on or off. Default is “ON”.

7878

Return to the Top page

SiriusXM Operation

Content alerts Contents Set

You can set a content for Content alerts.

1 Touch [SET] of [Content alerts Contents

Set] in the SiriusXM SETUP screen.

Artist list screen appears.

NOTE

• To set all the content alerts off, touch and hold [Disable All] for 2 seconds.

2 Touch [Type] to select the screen of the

content you want to set up.

Touching this allows you to switch among the Artist list, Song list, and Team list cyclically.

3 Touch each content list and set ON or

OFF.

City select for Traffic & Weather Jump

You can select a city for which traffic information or weather forecast is to be received with the Content alerts function.

1 Touch [2] and [3] of [Traffic Weather

Jump City Select] to select a city.

NOTE

• Touch “Delete” to delete the currently selected content from the Artist list and Song list.

• Available teams were pre-registered in the Team list. Team(s) cannot be registered or deleted manually.

Return to the Top page

SiriusXM Operation

TuneStart™

1 Touch [ON] or [OFF] of [Tune Start] in

the SiriusXM SETUP screen.

Turns the Tune start on or off. Default is “ON”.

Reset

1 Touch [Reset] of [SiriusXM Reset] for 2

seconds in the SiriusXM SETUP screen.

All SiriusXM setting returns to default.

8080

Return to the Top page

SiriusXM Operation

Return to the Top page

Bluetooth Control

Using the Bluetooth function, various functions can be used: listening to the audio file, making/receiving a call.

About the cell-phone and Bluetooth audio player

This unit conforms to the following Bluetooth specifications:

Version

Bluetooth Ver. 3.0+EDR Certified

Profile

Cell-phone:

HFP (V1.6) (Hands Free Profile) SPP (Serial Port Profile) SDP (Service Discovery Profile) PBAP (Phonebook Access Profile) GAP (Generic Access Profile)

Audio player:

A2DP (Advanced Audio Distribution Profile) AVRCP (V1.4) (Audio/Video Remote Control

Profile)

Sound codec

SBC, AAC, MP3

NOTE

• For the cell-phones verified for compatibility, access the following URL:

http://www.kenwood.com/cs/ce/bt/.

• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG. However, it may be impossible for such units to communicate with your cell-phone depending on its type.

Registering And Connecting Bluetooth Unit

It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function.

You can register up to 5 Bluetooth units.

1 Touch [Menu] on any screen. 2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Bluetooth].

Bluetooth SETUP screen appears. See the following section for each setting.

• Registering the Bluetooth Unit (P. 83)

• Connecting the Bluetooth unit (P. 83)

8282

Return to the Top page

Bluetooth Control

Registering the Bluetooth Unit

1 Touch [Search].

Searched Device List screen appears.

NOTE

• You cannot register the Bluetooth unit when you are using the following sources: iPod, Bluetooth Audio, APPS, iHeart, Pandora, AUPEO! If you want to register the Bluetooth unit while using one of the above mentioned sources, send the connection request from the Bluetooth unit and register it.

• A new device cannot be registered if there are 5 registered Bluetooth units. Delete unnecessary registration. See Connecting the Bluetooth unit

(P. 83).

• This unit is compatible with the Apple Easy Pairing function. When an iPod touch or iPhone is connected to this unit, an authentication dialog appears. Performing operation for authentication on this unit or iOS smartphone registers the smartphone as a Bluetooth device.

• If two Bluetooth units are connected, this unit will not start the search. In this case disconnect one of the Bluetooth units.

2 Select the Bluetooth unit to register

from the list.

Connecting the Bluetooth unit

1 Touch the device name you want to

connect.

Profile select screen appears.

NOTE

• If the icon is lighted, it means that the unit will use that device.

2 Set each profile as follows.

TEL (HFP)

Means that the device is a cell-phone.

Audio (A2DP)

Means that the device is an audio player or cell-phone with audio player.

NOTE

• If a device has been paired, the Bluetooth unit cannot be connected from the paired device.

• Touching [Remove] of [Device Remove Confirm] removes registration information. After you touch the key, a confirmation message appears. Follow the message and complete the operation.

NOTE

• If the unit cannot be searched in step 1, you can search the unit again by touching [Search] in above screen.

• Touch [Cancel] to cancel searching for the Bluetooth unit.

3 Enter PIN code form the cell-phone.

Profile select screen appears.

Return to the Top page

223

Bluetooth Control

Playing Bluetooth Audio Device

Bluetooth basic operation

Simple Control screen List Control screen

1 Information display

Displays the name of the track information. If the information is not available, device name is displayed.

2 Multi function key

Touch to switch the multi function menu.

3 Multi function menu

The functions of each key are as follows.

• [4] [¢]: Searches the previous/next content.*

• [3]: Plays.*

• [8]: Pauses.*

• [7]: Stops playback.*

• [

AUDIO]: Touch to display the Audio Control screen. See Registering the Bluetooth Unit

(P. 83).

• [

SETUP]: Touch to display the SETUP Menu screen. See Setting Up (P.92).

• [ REAR

4 Control switching area

Touch to switch between the Simple Control and List Control screen.

5 File information

Displays the information of the current file.

6 Status bar

Displays the current play location, play time, and play mode.

* These items appear only when the audio player which supports AVRCP profile is connected.

]: Touch to mute the rear speaker.

NOTE

• If the operation keys do not appear, operate from the player.

• Depending on your cell-phone or audio player, audio may be heard and controlled but text information may not appear.

• If the volume is too low, raise it on your cell-phone or audio player.

8484

Return to the Top page

Bluetooth Control

Using Hands-Free Unit

You can use telephone function by connecting the Bluetooth telephone to this unit.

Making a call

1 Press the <TEL> button.

Hands Free screen appears.

NOTE

• When registration of your cell-phone is completed, the phone book of the cell-phone is automatically downloaded to this unit.

• Up to 600 phone numbers can be registered for each registered cell-phone.

• Up to 30 digits can be registered for each phone number along with up to 50 characters representing a name. (50 is the number of alphabetical characters. Fewer characters can be input depending on the type of characters.)

• Depending on the type of your cell-phone, the following restrictions are placed;

• The phonebook data cannot be downloaded

normally.

• Characters in the phonebook are garbled.

• To cancel downloading the phonebook data, operate the cell-phone.

2 Select a dialing method.

See the following table for each method.

Select the cell-phone to use

1 Touch [

display).

Call by entering a phone number

1 Touch [ 2 Enter a phone number with number keys. 3 Touch [

Call using call records

1 Touch [ 2 Select the phone number from the list. 3 Touch [

Call using the phonebook

1 Touch [ 2 Select the name from the list.* 3 Select the number from the list. 4 Touch [

Call using the preset number

1 Touch [Preset #] to start calling the

corresponding phone number.

2 Touch [

Bluetooth SETUP

1 Touch [

Bluetooth SETUP screen appears.

] (cell-phone name

], [ ], or [ ].

1*2

When you connect two cell-phones

• Touch [ ] to select the phone you

want to use.

Continued

Return to the Top page

Bluetooth Control

*1 You can sort the list to begin with touched

character.

• Characters with no corresponding name will not appear.

• During search, a non-accent character such as “u” is searched for instead of an accent character such as “ü”.

*2 You can set the list to arrange in the order

of last name or first name. For details, see

Hands-Free Setup (P.90).

NOTE

• If you edited the phonebook in your cell-phone, touch “Download” on top of the phonebook list in this unit to download it from your cell-phone. The phonebook in this unit will be updated with the latest downloaded data.

• The status icons such as battery and antenna displayed may differ from those displayed on the cell-phone.

• Setting the cell-phone in the private mode can disable the hands-free function.

Receiving a call

1 Touch [ ] to answer a phone call or

[ ] to reject an incoming call.

NOTE

• While monitoring the camera view, this screen does not appear even if a call comes in. To display this screen, press the <TEL> button or return the shift knob of car to the driver position.

8686

Return to the Top page

Bluetooth Control

Operations during a call

Adjust the receiver volume

Turn the volume knob.

Output the dial tone

Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys

on the screen.

Switching the speaking voice output

Touching [ switches the speaking voice output between cell-phone and speaker.

Call-waiting

When you receive a call while talking on another call, you can answer the newly received call by touching [ is on hold.

Each time you touch [ change.

When you touch [ and switch to the call in hold.

]/ [ ] each time

]. The current call

], the caller will

], the current call will end

Phone number preset

You can register frequently used phone numbers to this unit.

1 Enter the number you want to register

in Hands Free screen.

2 Touch [Preset 1], [Preset 2], or [Preset 3]

for 2 seconds in the Hands Free screen.

Return to the Top page

Bluetooth Control

Voice Recognition

You can access the voice recognition function of the cell-phone connected to this unit. You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.)

1 Press the <TEL> button for 1second.

Press for 1 second

Voice Recognition screen appears.

2 Start speaking.

NOTE

• You can use voice recognition function by touching [ ] on the Hands Free screen.

Smartphone Link

When you install the Garmin Smartphone Link app into your Android smartphone and connect with the unit via Bluetooth SPP, you can use some information linked with the navigation such as parking lot, fuel price, live traffic camera, weather forecast and traffic condition.

Preparation

• Search for “Smartphone Link” in the Google play and install the latest version on your Android.

1 To enter STANDBY source, touch

[STANDBY] icon in the Top Menu screen.

2 Register the Android smartphone.

See Application link setup (P.56).

3 Press the <NAV> button.

8888

Navigation screen appears. Touch [Apps] on the Main Menu screen and

then touch an icon of your desired content. For details, see the Navigation system

manual.

Return to the Top page

Bluetooth Control

Return to the Top page

Bluetooth Control

Hands-Free Setup

You can perform various setup about handsfree function.

1 Touch [Menu] on any screen. 2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Bluetooth].

Bluetooth SETUP screen appears.

4 Touch [TEL SETUP] in the Bluetooth

SET-UP screen.

Hands-free SETUP screen appears.

5 Set each item as follows.

Bluetooth HF/Audio

Select the speakers to output the sound from cell-phone (such as phone call voice and ringing tone) and Bluetooth audio player.

Front Only: Outputs from the front speakers. All (Default): Outputs from all speakers.

Auto Response*

Sets an automatic response time to pick-up an incoming call.

OFF (Default): Automatic response is not

available.

0-99: Set calling ring time (second).

Auto Pairing

When set to “ON”, the Apple Auto Pairing function is turned on to automatically register the iPod touch or iPhone connected to this unit.

ON (Default): Uses Apple Auto Pairing

function.

OFF: Not uses Apple Auto Pairing function.

Phone Information Use

Sets whether to use phonebook, outgoing, incoming and missed calls list.

ON (Default): Yes. OFF: No.

9090

Sort Order

Sets how to arrange the cell-phone phonebook.

First: Arranges in the order of first name. Last (Default): Arranges in the order of last

name.

Echo Cancel Level

Adjusts the level of echo cancellation. Default is “0”.

Microphone Level

Adjusts the sensitivity of the telephone microphone. Default is “15”.

Noise Reduction Level

Reduces the noises generated by surrounding environment without changing the microphone volume. Use this setting when the voice of caller is not clear. Default is “-10”.

[Restore]

Resets the settings to the default settings.

* Either the time interval for automatic

answer set on this unit or the time interval set on the cell-phone, whichever is shorter takes effect.

Return to the Top page

Bluetooth Control

Return to the Top page

Setting Up

Monitor Screen Setup

You can adjust image quality in iPod video, picture file, menu screen, etc.

1 Touch the lower left area of any screen

for at least 1 second.

Screen Control screen appears.

2 Adjust each item as follows.

iPod/ AV-IN/ Camera

Bright / Tint* / Color* / Contrast / Black / Sharpness*

Adjusts each item.

Dimmer

Select dimmer mode.

ON: The display and buttons dim. OFF: The display and buttons do not dim. SYNC (Default): Turns the dimmer function on

or off when the vehicle light control switch is turned on or off.

NAV-SYNC: Turns the dimmer function on or

off according to the Navigation Day/Night display setting.

Mode* (except USB)

Select screen mode.

Full: Full picture mode

Just: Justify picture mode

Zoom: Zoom picture mode

DVD/ USB

9292

Normal: Normal picture mode

* Playback screen only

NOTE

• Adjusting items are different depending on the current source.

• You can perform this function only when you have applied the parking brake.

• The image quality can be set for each source.

System Setup

NOTE

• Each operation in this section can be started from the multi function menu.

1 Touch [Menu] on any screen.

TOP Menu screen appears.

2 Touch [SETUP]. 3 Touch [System].

System Menu screen appears. See the following section for each setting.

• Set up the user interface (P. 94)

• Adjust touch panel (P. 95)

• Set up securityl (P. 96)

• Set up memory (P.96)

Return to the Top page

Setting Up

Return to the Top page

Setting Up

User interface

You can setup user interface parameters.

1 Touch [User Interface] in the list.

User Interface screen appears.

2 Set each item as follows.

Beep

Turns the key touch tone on or off. Default is “ON”.

Language

Select the language used for the control screen and setting items. See Language setup

(P. 95).

Text Scroll

Allows scrolling of text display on the source control screen. Select from “Auto”/”Once”/”OFF”.

Auto (Default): Scrolls the text automatically. Once: Allows you to scroll the text only once

automatically when updated.

OFF: Does not scroll the text automatically.

Drawer Close

Sets whether to close the common menu

(P. 14) automatically. Default is “Auto”.

TEL Key Longer than 1 Second *

You can set the operation performed when the TEL key is pressed for 1 second. Select from “Voice”/”V.OFF”/”R-CAM”.

Voice (Default): Displays the Voice Recognition

V.OFF: Turn the display off. R-CAM:

Animation

Sets whether to display animation. Default is “ON”.

Secondary

Sets whether to display the navigation information in the audio screen or vice versa. Default is “ON”.

* No audio is outputted from the rear view

camera when selecting R-CAM by pressing TEL key for more than 1 second. The audio is outputted only when shifting a car into reverse. See Camera Setup (P.100).

screen. (P. 88).

Switches to the rear view camera video display

9494

Return to the Top page

Setting Up

Language setup

1 Touch [SET] of [Language] in the User

Interface screen.

Language Setting screen appears.

2 Set each item as follows.

Select Mode

Selects the mode to select a language.

Easy (Default): Selects a language easily. Advanced: Allows you to select languages for

respective items.*

Language Select

Selects a language.

* If you select [Advanced] for Select Mode,

the following screen appears.

Touch panel adjustment

1 Touch [Touch] in the System Menu

screen.

Touch Panel Adjustment screen appears.

2 Follow the instruction on the screen

and touch the center of each .

NOTE

• To cancel the touch panel adjustment, touch [Cancel].

• To reset to the initial status, touch [Reset].

GUI Language Select:

Selects the display language used for the control screen and so forth.

Navigation Language Select:

Selects the language used for navigation.

Text Language Select:

Selects the language used for tag text (song information).

3 Touch [Enter].

NOTE

• To cancel the language setup, touch [Cancel].

Return to the Top page

Setting Up

Security setup

A red indicator will blink on the unit after the ACC is set to OFF, warning potential thieves.

If turned to “ON” (default), the security indicator on the front panel flashes when the vehicle ignition is off.

1 Touch [Security] in the System Menu

screen.

Security screen appears.

2 Touch [ON] or [OFF] of [SI].

Setup memory

Audio Control, AV-IN SETUP, Camera, and Audio SETUP settings can be memorized. The memorized settings can be recalled at any time. For example, even when the settings are cleared due to replacement of the battery, the settings can be restored.

1 Touch [SETUP Memory] in the System

Menu screen.

SETUP Memory screen appears.

2 Follow the instruction on the screen.

[Lock]/[Unlock]*

Locks or unlocks the AV-IN SETUP, and Audio SETUP settings.

Yes

Memorizes or recalls the settings.

Cancels the function or memorization. The SETUP Menu screen appears again.

9696

* When [Lock] is selected, you cannot change

the AV-IN SETUP, and Audio SETUP settings. Also, the locked key mark is displayed under each setting icon in the setup menu.

Return to the Top page

Setting Up

3 Follow the instruction on the screen.

Recall

Recalls the memorized settings.

Memory

Memorizes the current settings.

Clear

Clears the currently memorized settings.

Cancel

Quits memorization/recalling of settings.

Display Setup

1 Touch [Menu] on any screen. 2 Touch [SETUP].

SETUP Menu screen appears.

3 Touch [Display].

Display Menu screen appears. See the following section for each setting.

• Adjust panel color (P. 98)

• Changing background image (P. 99)

Return to the Top page

Setting Up

Panel color coordinate

You can set the screen and button illumination color.

The selectable items differ depending on the unit.

1 Touch [Color] in the Display Menu

screen.

Color screen appears.

2 Touch [OFF] of [Panel Color Scan]. 3 Touch [SET] of [Panel Color Coordinate].

Panel Color Coordinate screen appears.

NOTE

• You can touch [SET] or [Initialize] when [Panel Color Scan] is set to off.

• Touch [Initialize] to reset the settings to the default settings.

Registering original color

You can register your original color.

1 Touch [Adjust] in the Panel Color

Coordinate screen.

Panel Color RGB Coordinate screen appears.

2 Use [2] and [3] to adjust each color

value.

3 Touch the desired preset key for 2

seconds.

Panel color scan

You can set the panel color to continuously scan through the color spectrum.

1 Touch [ON] of [Panel Color Scan] in the

Color screen.

Panel Color Scan is set to on.

4 Touch the desired color.

9898

Return to the Top page

Setting Up

Changing background image

You can load an image from the connected USB device and set it for the background image.

Before operating this procedure, it is necessary to connect the device which has the image to load.

1 Touch [Background] in the Display

Menu screen.

Background screen appears.

2 Touch [STANDBY].

3 Touch [Memory] of [User Background].

User Background File Select screen appears.

4 Select the image to load.

display returns to the Background screen.

NOTE

• Touching [ ] rotates counter clockwise.

• Touching [

] rotates clockwise.

6 Touch [Change] of [Background

Change] in the Background screen.

7 Select an image for background and

touch [Enter].

NOTE

• See Playable Media and Files (P.122) for readable image specifications.

• Touching [Delete] in the Background screen deletes the background image. After you touch [Delete], a confirmation message appears. Follow the message and complete the operation.

5 Touch [Enter].

The selected image is loaded and the

Kenwood DNX571TR Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

What Do You Want To Do?

Contents

Before Use

2 WARNING

How To Read This Manual

Basic Operations

Functions of the Buttons on the Front Panel

Turning on the Unit

How to Play Media

Operating with the Top Menu Screen

Common Operations

Navigation Operation

OEM Features Operation

DVD/Video CD (VCD) Operation

DVD/VCD Basic Operation

DVD Disc Menu Operation

Zoom Control For DVD And VCD

DVD Setup

CD/Audio and Visual Files/iPod/App Operation

Music/Video/Picture Basic Operation

Search Operation

Movie Control

Pandora® Operation

iHeartRadio Operation

Apps Operation

Memory Operation

Selecting Operation

SiriusXM® Operation

SiriusXM® Basic Operation

Memory Operation

Selecting Operation

Content alert

Replay

Smart Favorites, TuneStart™

TuneScan™

SiriusXM Setup

Bluetooth Control

Registering And Connecting Bluetooth Unit

Playing Bluetooth Audio Device

Using Hands-Free Unit

Smartphone Link

Hands-Free Setup

Setting Up

Monitor Screen Setup

System Setup

Display Setup
