Kenwood DNX5180DABS, DNX8180DABS, DNX518VDABS, DNX451RVS, DNX4180BTS User Manual

Page 1

DNX8180DABS DNX518VDABS DNX5180DABS DNX5180BTS DNX4180BTS DNX451RVS

GPS NAVIGATION SYSTEM

INSTRUCTION MANUAL

• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <http://www.kenwood.com/cs/ce/>.

• The Instruction manual is subject to change for modification of specifications and so forth. Be sure to download the latest edition of the Instruction manual for reference. <http://manual.kenwood.com/edition/im394/>

Page 2

Contents

Before Use 4

Precautions ................................................................... 4

Safety Precautions

and Important Information ............................... 5

How to read this manual ......................................... 6

Basic Operations 7

Functions of the Buttons on the Front Panel ... 7

Turning on the Unit .................................................11

Initial Settings ............................................................12

Adjusting the volume .............................................14

Monitor Angle Control ...........................................14

Detaching The Front Panel ....................................15

Touch screen operations .......................................16

HOME screen descriptions ....................................16

Source selection screen descriptions ................17

Source control screen descriptions ...................18

Popup menu ..............................................................19

List screen ...................................................................20

Navigation Operation .............................................20

Disc 24

Playing a disc .............................................................24

DVD/ VCD Basic Operation ....................................24

Music CD/ Disc media Basic Operation ............26

File search Operation ..............................................27

DVD Disc Menu Operation ....................................27

DVD Setup ...................................................................28

APPS—Android Auto™/ Apple CarPlay 29

Apple CarPlay Operation .......................................29

Android Auto™ Operation .....................................30

WebLink™ Operation ...............................................31

Spotify® Operation ...................................................32

USB/SD card 33

Connecting a USB device ......................................33

Inserting the SD card ..............................................33

USB/SD card Basic Operation ...............................34

Search Operation ......................................................35

iPod/iPhone 36

Preparation .................................................................36

iPod/iPhone Basic Operation ...............................37

Search Operation ......................................................38

Radio 39

Radio Basic Operation ............................................39

Memory Operation ..................................................40

Selecting Operation ................................................40

Traffic Information ...................................................41

Tuner Setup ................................................................41

DAB 42

DAB Basic Operation ...............................................42

Storing Service in Preset Memory ......................43

Selecting Operation ................................................43

Traffic Information ...................................................44

Replay ...........................................................................44

DAB Setup ...................................................................45

Page 3

Bluetooth Control 46

Information for using Bluetooth® devices .......46

Bluetooth Setup ........................................................48

Playing Bluetooth Audio Device .........................50

Using Hands-Free Unit ............................................52

Hands-Free Setup .....................................................56

Other External Components 57

View Camera ..............................................................57

Use Dashboard Camera..........................................59

External audio/video players—AV-IN ...............59

HDMI source ...............................................................59

TV tuner .......................................................................60

Setting Up 61

Monitor Screen Setup .............................................61

System Setup .............................................................61

User Interface Setup ................................................62

Special Setup .............................................................63

Display Setup .............................................................64

AV Setup ......................................................................66

Connection/Installation 78

Before Installation ....................................................78

Installing the unit .....................................................80

Troubleshooting 87

Problems and Solutions .........................................87

Error Messages ..........................................................87

Appendix 89

Playable Media and Files........................................89

Region Codes in the World ...................................91

DVD Language Codes .............................................92

Specifications .............................................................93

About this Unit ..........................................................96

Controlling Audio 67

3 way speaker system setup .................................67

Speaker/ X’over setup .............................................68

Controlling General Audio ....................................70

Equalizer Control ......................................................70

Volume Offset ............................................................71

Zone Control ..............................................................72

Sound Effect ...............................................................72

Listening Position/ DTA ..........................................73

Remote control 75

Battery Installation ...................................................75

Functions of the Remote control Buttons .......75

3English

Page 4

Before Use

Precautions

# WARNINGS

Ñ To prevent injury or fire, take

the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your KENWOOD dealer.

Ñ Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.

• You can select language to display menus, audio file tags, etc. See User Interface Setup (P. 62).

• The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station.

• The unit may not function properly if the connectors between the unit and front panel are dirty. Detach the front panel and clean the connector with a cotton swab gently, being careful not to damage the connector.

Ñ Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip.

Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

NOTE

• Applying spray cleaner directly to the unit may

affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

Ñ Lens fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your KENWOOD dealer.

Ñ Precautions on handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use disc type accessories.

• Clean from the center of the disc and move outward.

• When removing discs from this unit, pull them out horizontally.

• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.

• Discs that are not round cannot be used.

• 8-cm (3 inch) discs cannot be used.

• Discs with coloring on the recording surface or discs that are dirty cannot be used.

Page 5

Before Use

• This unit can only play the CDs with

• This unit may not correctly play discs which do not have the mark.

• You cannot play a disc that has not been finalized. (For the finalization process see your writing software, and your recorder instruction manual.)

Ñ Acquiring GPS signal

The first time you turn on this unit, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition.

After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.

Ñ About the front panel ( )

When removing the product from the box or installing it, the front panel may be positioned at the angle shown in (Fig. 1). This is due to the characteristics of mechanism the product is equipped with.

When the product is first powered on works properly, the front panel will automatically move into the position (initial setting angle) shown in (Fig. 2).

(Fig. 1)

(Fig. 2)

Safety Precautions and Important Information

Read this information carefully before starting to operate the KENWOOD Car Navigation System and follow the instructions in this manual. Neither KENWOOD nor Garmin shall be liable for problems or accidents resulting from failure to observe the instructions in this manual.

# WARNING

Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury.

When navigating, carefully compare information displayed on the navigation system to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation.

Always operate the vehicle in a safe manner. Do not become distracted by the navigation

system while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the screen of the navigation system while driving, and use voice prompts when possible.

Do not enter destinations, change settings, or access any functions requiring prolonged use of the navigation system controls while driving. Stop your vehicle in a safe and legal manner before attempting such operations.

Keep the system volume at a low enough level to be able to hear outside noises while driving. If you can no longer hear outside noises, you may be unable to react adequately to the traffic situation. This may cause accidents.

The navigation system will not display the correct current position of the vehicle the first time it is used after purchase, or if the vehicle battery is disconnected. GPS satellite signals will soon be received, however, and the correct position will be displayed.

Be careful of the ambient temperature. Using the navigation system at extreme temperatures can lead to malfunction or damage. Also note that the unit can be damaged by strong vibration, by metal objects, or by water getting inside the unit.

5English

Page 6

Before Use

# CAUTION

Failure to avoid the following potentially hazardous situations may result in injury or property damage.

The navigation system is designed to provide you with route suggestions. It does not reflect road closures or road conditions, weather conditions, or other factors that may affect safety or timing while driving.

Use the navigation system only as a navigational aid. Do not attempt to use the navigation system for any purpose requiring precise measurement of direction, distance, location, or topography.

The Global Positioning System (GPS) is operated by the United States government, which is solely responsible for its accuracy and maintenance. The government system is subject to changes that could affect the accuracy and performance of all GPS equipment, including the navigation system. Although the navigation system is a precision navigation device, any navigation device can be misused or misinterpreted and, therefore, become unsafe.

Ñ IMPORTANT INFORMATION

Vehicle Battery Preservation

This navigation system can be used when the ignition key is turned to ON or ACC. To preserve the battery, however, it should be used with the engine running whenever possible. Using the navigation system for a long time with the engine switched off can cause the battery to run down.

Map Data Information

One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive.

How to read this manual

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.

• In this manual, each model name is abbreviated as follows.

– DNX8180DABS: – DNX518VDABS: – DNX5180DABS: – DNX5180BTS: – DNX4180BTS: – DNX451R VS:

If above icons are showed, read the article applicable to the unit you use.

• Indication language: English indications are used

for the purpose of explanation. You can select the indication language from the [SETUP] menu. See User Interface Setup (P.62).

Page 7

Basic Operations

Functions of the Buttons on the Front Panel

DNX8180DABS

1 2 3 4 5 6 7

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

• In this manual, each model name is abbreviated as follows.

– DNX8180DABS:

If above icon is showed, read the article applicable to the unit you use.

Number Name Motion

Remote

Sensor

S, R

(Volume)

NAV • Displays the navigation screen.

HOME • Displays the HOME screen (P.16).

MENU • Displays the popup menu screen.

Disc insert

slot

• Receives the remote control signal.

• Adjusts volume.

The volume will go up until 15 when you keep pressing R.

• Pressing for 1 second turns the power off.

• When the power off turns the power on.

• Pressing for 1 second turns the screen off.

• Displays the APP (CarPlay/ Android Auto/ WebLink) screen.

• Pressing for 1 second displays the Voice Recognition screen (P. 53).

• Displays the Angle Adjust screen. – [DISC E JECT]: Ejects the disc. – [OPEN]: Fully opens the panel to the location of the SD card slot.

• When the panel is opened, pressing closes the panel.

• To forcibly eject the disc, press it for 2 seconds and touch [DISC EJECT] after the

message is displayed.

• A slot to insert a disc media.

7English

Page 8

Basic Operations

Number Name Motion

SD card slot • A slot to insert an SD card.

SI • This indicator flashes when the vehicle ignition is off ( P.12).

• You can play audio/visual files in the card. *

• An SD card slot for upgrading the map. For how to upgrade the map, refer to the

instruction manual of the navigation system. * If the map update file remains in the SD card, you cannot play audio/visual files. * Do not pull out the MAP SD while "Loading Maps" is being displayed.

DNX518VDABS

1 1423

4 5

13 12

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

• In this manual, each model name is abbreviated as follows.

– DNX518VDABS:

If above icon is showed, read the article applicable to the unit you use.

Number Name Motion

Disc insert

slot

HOME • Displays the HOME screen (P.16).

NAV • Displays the navigation screen.

MENU • Displays the popup menu screen.

• This indicator flashes when the vehicle ignition is off ( P.12).

• A slot to insert a disc media.

• Ejects the disc.

• To forcibly eject the disc, press it for 2 seconds and touch [Yes ] after the message is displayed.

• Pressing for 1 second turns the power off.

• When the power off turns the power on.

• Displays the APP (CarPlay/ Android Auto/ WebLink) screen. Pressing this switch each time Pressing for 1 second displays the Voice Recognition screen ( P.53).

• Pressing for 1 second turns the screen off.

Page 9

Number Name Motion

Volume

Knob

microSD

slot

TEL • Displays the Hands Free screen. (P.52)

USB • Plays files on a USB device. ( P.34)

DISC • Plays a disc. ( P.24)

DAB • Switches to the DAB broadcast. ( P.42)

Release key Detaches the part of front panel.

• Turn to adjust the volume.

• Press to display the pop-up menu.

• Pressing for 1 second switches attenuation of the volume on/off.

• A slot to insert a microSD.

• You can play audio/visual files in the card. *

• A microSD slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system.

* If the map update file remains in the microSD, you cannot play audio/visual files. * Do not pull out the MAP SD while "Loading Maps" is being displayed.

• When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

DNX5180DABS/ DNX5180BTS

23 1

Basic Operations

6 7 8

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

• In this manual, each model name is abbreviated as follows.

– DNX5180DABS: – DNX5180BTS:

If above icon is showed, read the article applicable to the unit you use.

Number Name Motion

Remote

Sensor

Disc insert

slot

• Receives the remote control signal.

• A slot to insert a disc media.

9English

Page 10

Basic Operations

Number Name Motion

microSD

slot

S, R

(Volume)

• A slot to insert a microSD.

• You can play audio/visual files in the card. *

• A microSD slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system.

* If the map update file remains in the microSD, you cannot play audio/visual files. * Do not pull out the MAP SD while "Loading Maps" is being displayed.

• Displays the HOME screen (P.16).

• Pressing for 1 second turns the power off.

• When the power off, turns the power on.

• Adjusts volume. The volume will go up until 15 when you keep pressing R.

• Displays the navigation screen. Pressing this switch each time toggles between current source screen and navigation screen.

• Displays the popup menu screen.

• Pressing for 1 second switches attenuation of the volume on/off.

• Displays the APP (CarPlay/ Android Auto/ WebLink) screen. Pressing this switch each time toggles between current source screen and APP screen.

• Pressing for 1 second displays the Voice Recognition screen (P. 53).

DNX4180BTS/ DNX451RVS

24 13

5 6

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

• In this manual, each model name is abbreviated as follows.

– DNX4180BTS: – DNX451RVS:

If above icon is showed, read the article applicable to the unit you use.

Number Name Motion

Disc insert

slot

• A slot to insert a disc media.

• Ejects the disc.

• To forcibly eject the disc, press it for 2 seconds and touch [Yes ] after the message is displayed.

Page 11

Number Name Motion

SI • This indicator flashes when the vehicle ignition is off ( P.12).

Remote

Sensor

HOME • Displays the HOME screen (P.16).

NAV • Displays the navigation screen.

Volume

Knob

microSD

slot

• Receives the remote control signal.

• Pressing for 1 second turns the power off.

• When the power off turns the power on.

• Displays the APP (CarPlay/ WebLink) screen.

• Pressing for 1 second displays the Voice Recognition screen (P. 53).

• Turn to adjust the volume.

• Press to display the pop-up menu.

• Pressing for 1 second switches attenuation of the volume on/off.

• A slot to insert a microSD.

• You can play audio/visual files in the card. *

• A microSD slot for upgrading the map. For how to upgrade the map, refer to the instruction manual of the navigation system.

* If the map update file remains in the microSD, you cannot play audio/visual files. * Do not pull out the MAP SD while "Loading Maps" is being displayed.

Turning on the Unit

The method of turning on is different depending on the model.

Press the [HOME] button.

Press the [

] button.

Basic Operations

 The unit is turned on.

● To turn off the unit:

Press the [HOME] button for 1 second.

Press the [

] button for 1 second.

NOTE

• If it is your first time turning the unit on after installation, it will be necessary to perform Initial setup (P. 12).

11English

Page 12

Basic Operations

Initial Settings

Initial setup

Perform this setup when you use this unit first time.

Set each item as follows.

■ [Locale]

Select the country for the navigation system. The language, the distance unit, and the

gasoline unit are set.

1Touch [Locale]. 2Select the desired country.

■ [Language]

Select the language used for the control screen and setting items. Default is “British English (en)”.

1Touch [Language]. 2Touch [Language Select]. 3Select the desired language. 4Touch [

For detailed operation, see User Interface Setup (P.62).

■ [Display]

Set the button illumination color. If it is hard to see the image on the screen

even, adjust the viewing angle.

1Touch [Display]. 2Touch [Key Colour]. 3Select the desired color. 4Touch [ 5Touch [Viewing Angle]. 6Select a viewing angle 7Touch [

For detailed operation, see Display Setup (P. 64).

■ [AV-IN SETUP] ( )

Set up the operating method of the AV-IN terminal.

1Touch [AV-IN SETUP]. 2Set each item and touch [

For detailed operation, see AV Setup (P. 66).

■ [Camera]

Set the parameters for the camera.

1Touch [Camera]. 2Set each item and touch [

For detailed operation, see Camera Setup (P. 57).

■ [DEMO]

Set the demonstration mode. Default is “ON”. 1Touch [DEMO] and set ON or OFF.

Touch [Finish].

NOTE

• These settings can be set from the SETUP menu. See Setting Up (P.61).

Security Code Setup

You can set up a security code to protect your receiver system against theft.

When the Security Code function is activated, the code cannot be changed and the function cannot be released. Note the Security Code can be set as the 4 to 8 digit number of your choice.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Page 13

Basic Operations

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Security].

 Security screen appears.

Touch [Security Code Set] on the Security

screen.

 Security Code Set screen appears.

Enter a security code with 4 to 8 digit

number and touch [Enter].

To clear the security code:

Touch [Security Code Cancellation] on

the Security screen, then repeat step 5.

To activate the security function (

)

Touch [SI] on the Security screen.

Each time you touch [SI], the function is activated ([ON]) or deactivated ([OFF]).

The security indicator on the monitor panel flashes when the vehicle ignition is off.

Calendar/clock settings

Press the [MENU] button.

Press the [

Press the volume knob.

 Popup menu appears.

] button.

Enter the same code again and touch

[Enter].

Now, your security code is registered.

NOTE

• Touch [BS] to delete the last entry.

• If you enter a different security code, the screen returns to step 5 (for the first code entry).

• if you have disconnected the Receiver from battery, enter the correct security code as that you have entered in step 5 and touch [Enter]. You can use your receiver.

To change the security code:

Touch [Security Code Change] on the

Security screen, then repeat step 5 and 6.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [User Interface].

 User Interface screen appears.

13English

Page 14

Basic Operations

Set each item as follows.

Scroll the page to show the item.

■ [Clock]

[NAV-SYNC ](Default): Synchronizes the clock time with navigation GPS data.

[Manual]: Sets the clock manually.

■ [Time Zone]

If you have selected [Manual] for Clock, select the time zone.

■ [Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually. (P. 63)

NOTE

• Please set the date and time. If it is not set, it may not work with some functions.

Adjusting the volume

Monitor Angle Control ( )

You can adjust the position of the monitor.

Press the [G] button.

 Angle Adjust screen appears.

Select a below number that represents

your desired angle setting.

Default is “0”.

■ [Off Position]

You can store the current monitor angle as the angle during power off. Touch [Memory] when the desired angle is selected.

■ [Auto Open]

The front panel can be set to open automatically when the ignition is turned off, so that it can be detached for antitheft purpose.

To adjust the volume (0 to 40),

Press [R] to increase, and press [S] to decrease. Holding [R] increases the volume continuously

to level 15.

Turn to the right to increase, and turn to the left to decrease.

Page 15

Basic Operations

Detaching The Front Panel ( )

You can detach the front panel to prevent theft.

Press the [G] button.

Touch [OPEN] to the panel fully opens.

NOTE

• You can set the front panel to open automatically when the ignition is turned off. See Monitor Angle Control (P.14).

Detach the panel as the diagrams below.

● Attaching the front panel:

Hold the panel securely so as not to drop it accidentally, and fit it onto the attaching plate until it is firmly locked.

Slide the Release key rightward to detach

the part of the front panel.

● Attaching the front panel:

Hold the panel securely so as not to drop it accidentally, and fit it onto the attaching plate until it is firmly locked.

NOTE

• The attaching plate closes automatically in about 10 seconds after the front panel is released. Remove the panel before this happens.

15English

Page 16

Basic Operations

Touch screen operations

To perform operations on the screen, you need to touch, touch and hold, flick or swipe to select an item, display setting menu screen or to change the page, etc.

● Touch

Touch the screen gently to select an item on the screen.

● Touch and hold

Touch the screen and keep your finger in place until the display changes or a message is displayed.

● Flick

Slide your finger quickly to the left or right on the screen to change the page.

You can scroll the list screen by flicking the screen up/ down.

● Swipe

Slide your finger up or down on the screen to scroll the screen.

HOME screen descriptions

Most functions can be performed from the HOME screen.

1 2 3

6 7

• Displays the control screen of current source.

• • The artwork is displayed if available from current content.

• Widget

– You can change the widget by touching

[

]/[ ] or flicking left or right on the

widget area.

– Touch the widget to display the detailed

screen.

• Page indication for widgets

• Current source information

• Displays the source selection screen. (P.17)

• Short-cut playback source icons (P. 18)

• Displays the Hands Free screen. ( P.52)

• When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

Display the HOME

Press the [HOME] button.

Press the [

 HOME screen appears.

] button.

Page 17

Basic Operations

Source selection screen descriptions

You can display all playback sources and options on the source selection screen.

3 5

• Changes the playback source.

For playback sources, see P.17.

• Changes the page. (Touch [ ]/[ ].) You can also change the page by flicking left or right on the screen.

• Returns to previous screen.

• Page indication

• Displays the SETUP Menu screen. (P. 61)

Select the playback source

Touch [ ] on the HOME screen.

From the screen, you can select the following sources and functions.

• Displays the navigation screen. ( P.20)

• Plays a disc. ( P.24)

• Plays an iPod/iPhone. ( P.36)

• Plays files on a USB device. ( P.34)

• Plays files on an SD card. ( P.34)

• Switches to the Spotify. ( P.32)

• Plays a device connected to the HDMI input terminal. (P. 59)

• Switches to an external component connected to the AV-IN input terminal. *3 (P. 59)

• Switches to the Mirroring screen from the connected Android device. (P. 29)

• Displays the WebLink screen. (P. 31)

• Displays the Audio screen. ( P.67)

• Puts the unit in standby. ( P.18)

*1 When iPhone compatible with CarPlay is

connected, [Apple CarPlay] is displayed. When an Android device compatible with Android Auto is connected, [Android Auto] is displayed.

Only for .

: Can be selected when the [AV-IN

Interface] is set to [AV-IN]. ( P.66)

• Switches to the Android Auto*2/ Apple CarPlay screen from the connected iPhone/Android device.*1 (P. 29)

• Switches to the Radio broadcast.

(P. 39)

• Switches to the DAB broadcast. *2

(P. 42)

• Plays a Bluetooth audio player. (P. 46)

17English

Page 18

Basic Operations

To select the playback source on the HOME screen

The 3 items displayed on the source selection screen as the large icons are shown on the HOME screen.

You can change items displayed on this area by customizing the source selection screen.

(P. 18)

To select the playback source on the source control screen

Display source selection buttons by touching [ ]/[ ] or flicking left or right on the source control screen, then select a playback source.

Put the unit in standby

Customize Short-cut buttons on HOME screen

You can arrange the position of the source icons as you like.

Touch [ ] on the HOME screen.

Touch and hold the icon which you want

to move to go into the customizing mode.

Drag it where you want to move.

Changes the page

Source control screen descriptions

There are some functions which can be operated from most screens.

Indicators

Touch [ ] on the HOME screen.

Touch [STANDBY].

2 3 4

Navigation information

Short-cut buttons

Page 19

Basic Operations

• Connected Bluetooth device information.

: Lights up when quick charging battery

• of the connected iPod/ iPhone/ Smartphone.

All sources icon

Displays all sources.

Secondary screen

• [

]/[ ] : The Secondary screen changes every

time you touch it. You can also change the Secondary screen by flicking left or right on the screen.

• Indicators: Displays the current source condition and so on.

– [AT T]: The attenuator is active. – [DUAL]: The dual zone function is on. – [MUTE]: The mute function is active. – [LOUD]: The loudness control function is on.

• Navigation information: Displays the current location and the direction. The screen changes to the navigation screen when you touch here.

• Short-cut buttons: The source changes to the one you have set as a short-cut. For the shortcut setting, refer to Customize Short-cut buttons on HOME screen (P.18).

[Û]

Touch to display the Hands Free screen. (P. 52) When connecting as Apple CarPlay or Android

Auto, it works as a phone provided in Apple CarPlay or Android Auto.

Popup menu

Press the [MENU] button.

Press the [

Press the volume knob.

 Popup menu appears.

] button.

Touch to display the popup menu.

The contents of the menu are as follows.

• Displays the Screen Adjustment screen.

(P. 61)

• Turns the display off. (P. 20)

• Displays the view camera. (P.57)

• Displays the SETUP Menu screen.

(P. 61)

• Displays the Audio screen. ( P.67)

• Displays the control screen of current source. Icon feature differs depending on the source.

• Close the popup menu.

• See HOME screen descriptions

(P. 16).

• See HOME screen descriptions

(P. 16).

• Touch to eject the disc.

• Touch for 2 seconds to forcibly eject the disc and then touch [Ye s] after the message is displayed.

19English

Page 20

Basic Operations

Turn off the screen

Select [Display OFF] on the pop-up

menu.

● To turn on the screen

Touch the display.

List screen

There are some common function keys in the list screens of most sources.

61 2

3 4 5

Displays list type selection window.

Displays music/movie file list.

Text scroll

Scrolls the displayed text.

etc.

Keys with various functions are displayed here.

•

: Plays all tracks in the folder containing

the current track.

•

: Jump to the letter you entered

(alphabet search).

•

: Moves to the upper hierarchy.

[ ] / [ ] / [ ] / [ ] Page scroll

You can change the page to display more items by pressing [

• [

]/[ ] : Displays the top or bottom page.

]/[ ].

Return

Returns to previous screen.

NOTE

• Buttons which cannot be activated from the list screen are not displayed.

Navigation Operation

For details on the navigation function, please refer to the Navigation Instruction Manual.

Display the navigation screen

Press the [NAV] button.

Press the [ ] button.

 The navigation screen appears.

Touch [ ].

 Main Menu screen appears.

How to Use the Navigation System

Operate the desired function from the

Main Menu screen.

GPS satellite strength.

Finds a destination.

Views the map.

Uses the Apps such as ecoRoute and Help.

Adjusts the settings.

Page 21

Basic Operations

NOTE

• You can get additional information about using the navigation system from Help. To display Help, touch [Apps] and then touch [Help].

NOTE

• For more information about your navigation system, download the latest version of the Owner’s Manual from http://manual.

kenwood.com/edition/im394/

Enter your destination and start the

guidance.

Finding points of interest

1Touch [Where To?]. 2Select a category and a subcategory. 3Select a destination. 4Touch [Go!].

NOTE

• To enter letters contained in the name, touch the Search bar and enter the letters.

Follow your route to the destination.

NOTE

• The speed limit icon feature is for information only and does not replace the driver’s responsibility to abide by all posted speed limit signs and to use safe driving judgment at all times. Garmin and JVC KENWOOD will not be responsible for any traffic fines or citations that you may receive for failing to follow all applicable traffic laws and signs.

6 7 8 9

Views the Next Turn page or the junction

view page, when available.

Views the Turn List page.

Views the Where Am I? page.

Stops the currents route.

Displays traffic information on the route.

Returns to the Main menu.

Displays a different data field.

Views the Trip Computer.

Displays more options.

NOTE

• Touch and drag the map to view a different area of the map.

• A speed limit icon could appear as you travel on major roadways.

● Adding a stop

1While navigating a route, touch [

then touch [Where To?].

2Search for the extra stop. 3Touch [Go!]. 4Touch [Add to Active Route] to add this

stop before your final destination.

● Taking a detour

1While navigating a route, touch [ 2Touch [

] and

Your route is marked with a magenta line. As you travel, your navigation system guides you to your destination with voice prompts, arrows on the map, and directions at the top of the map. If you depart from the original route, your navigation system recalculates the route.

■ Manually avoiding traffic on your route

1From the map, touch [ ]. 2Touch [Traffic On Route]. 3If necessary, touch the arrows to view

other traffic delays on your route.

4Touch [

] > [Avoid].

21English

Page 22

Basic Operations

■ Viewing the traffic map

1The traffic map shows color-coded traffic

flow and delays on nearby.

■ About traffic

• Traffic service is not available in some areas or countries.

• Garmin and JVC KENWOOD are not responsible for the accuracy or timeliness of the traffic information.

• You can receive INRIX traffic information and weather forecast by connecting your iPhone or Android smartphone in which the “KENWOOD Traffic Powered By INRIX” application is installed. For details, see “KENWOOD Traffic Powered By INRIX” application.

• With an FM traffic receiver, the navigation system can receive and use traffic information. The FM TMC subscription activates automatically after your navigation system acquires satellite signals while receiving traffic signals from the service provider. Go to www. garmin.com/kenwood for more information.

• While receiving INRIX traffic information, FM TMC information is not displayed.

■ Updating maps

You can purchase updated map data from Garmin.

1Go to www.garmin.com/kenwood. 2From the Map Updates section, select

Update

3Follow the on-screen instructions.

While playing the audio, touch [ ]/ [

]/ [ ] in the navigation screen.

Each time you touch the icon, the screen switches as follows.

Displays the navigation and control keys of the current source.

Displays the navigation and current video playback display.

Control audio from the navigation screen

You can control audio sources while the navigation screen is displayed.

Also, you can view the navigation information while the source control screen is displayed.

(P. 18)

NOTE

• The screen switches between playback screen and view camera each time the viewing area is touched.

Returns to the full navigation screen.

Page 23

Basic Operations

NOTE

• For details on control keys, refer to the instructions in each section.

] : It does not appear if the control keys like

• [ AV-IN, etc. are not exist.

• Touching the source icon in the bottom of the screen displays the full audio screen.

Navigation Setup

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Navigation].

voice guidance.

• [Front R]: Uses the front right side speaker for voice guidance.

• [Front All] (Default): Uses both front speakers for voice guidance.

■ [NAV Voice Volume]

Adjusts the volume for voice guidance of the navigation system. Default is “24”.

KENWOOD Traffic Powered By INRIX

You can receive INRIX traffic information and weather forecast by connecting your iPhone or Android smartphone in which the “KENWOOD Traffic Powered By INRIX” application is installed to this unit.

Preparation

• Install the latest version of the KENWOOD Traffic Powered By INRIX application on your iPhone or Android.

– iPhone: Search for "KENWOOD Traffic Powered

By INRIX" in the Apple App Store to find and install the most current version.

– Android: Search for "KENWOOD Traffic Powered

By INRIX" in Google play to find and install the most current version.

• For details, see “KENWOOD Traffic Powered By INRIX” application.

 Navigation SETUP screen appears.

Set each item as follows.

■ [NAV Mute]

Mutes the volume of rear speakers during voice guidance of the navigation system. Default is “ON”.

■ [NAV Interrupt Speaker]

Selects speakers used for voice guidance of the navigation system.

• [Front L]: Uses the front left side speaker for

To connect a smartphone via Bluetooth, register it as the Bluetooth device and do the App (SPP) profile setting of the connection beforehand. See Register the

Bluetooth device (P.47) and Connect the Bluetooth device (P.48).

Press the [NAV] button.

Press the [ ] button.

 Navigation screen appears.

Touch [Apps] on the Main Menu screen and then an icon of your desired content.

For details, see Navigation system manual.

23English

Page 24

Disc

Playing a disc

Ñ Insert a disc

Press the [G] button.

Touch [DISC EJECT].

 The panel opens.

Insert the disc into the slot.

 The panel closes automatically.

The unit loads the disc and playback starts.

Insert the disc into the slot.

Touch [G] .

When removing a disc, pull it horizontally.

NOTE

• This is not displayed on the popup menu screen of Apple CarPlay or Android Auto source. Change Apple CarPlay or Android Auto source to other one to display the popup menu screen.

DVD/ VCD Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote control mode switch to DVD mode before starting operation for DVD and VCD, see Switch the operation mode (P.75).

• The screen shot below is for DVD. It may be different from the one for VCD.

 The unit loads the disc and playback

starts.

Ñ Eject a disc

Press the [G] button.

Touch [DISC EJECT].

When removing a disc, pull it horizontally.

Press the [G] button.

When removing a disc, pull it horizontally.

Press the [ ] button.

 Popup menu appears.

When the operation buttons are not

displayed on the screen, touch the 7 area.

Control screen

DVD VCD

4 5

Page 25

Disc

Video screen

Information display

Displays the following information.

• Title #, Chapter #: DVD title and chapter number display

• Track #/Scene #: VCD track or scene number display. Scene # is displayed only when Playback control (PBC) is on.

• Linear PCM, etc.: Audio format

• [Hide]: Hides the control screen.

• [

] : Repeats the current content. Each time you touch the key, repeat mode switches in the following sequence; DVD: Title repeat ( ), Chapter repeat ( ), Repeat off ( )

VCD (PBC On): Does not repeat VCD (PBC Off ): Track repeat ( ), Repeat off

( )

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [I]: Stops playback. When touched twice, the

disc is played from the beginning when you play it the next time.

• [

] [ ]: Fast forward or fast backward. Each time you touch the key, the speed changes; 2 times, 8 times.

• [

] or [ ] (DVD only): Plays in slow motion forward or backward.

• [SETUP] (DVD only): Touch to display the DVD SETUP screen. See DVD Setup (P.28).

• [MENU CTRL] (DVD only): Touch to display the DVD-VIDEO disc menu control screen. See DVD Disc Menu Operation (P.27).

• [PBC] ( VCD only):Turn Playback control (PBC) on or off.

• [Audio] (VCD only): Change the audio output channel.

Play mode indicator/ Playing time

• D, B, I, etc.: Current play mode indicator The meanings of each icon are as follows; D

(play), B (fast forward), A (fast backward),

I (stop), R (resume stop), H (pause), (slow playback), (slow reverse playback).

Operation keys

• [E] [F] : Searches the previous/next

content. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Indicator Items

• [IN]: A disc is inserted. White: A Disc is inside the unit.

Orange: Error at the disc player

VCD

• [1chLL/2chLL]: Identifies the left audio output

of channel 1 or 2.

• [1chLR/2chLR]: Identifies the monaural audio

output of channel 1 or 2.

• [1chRR/2chRR]: Identifies the right audio

output of channel 1 or 2.

• [1chST/2chST]: Identifies the stereo audio

output of channel 1 or 2.

• [LL]: Identifies the left audio output.

• [LR]: Identifies the monaural audio output.

• [RR]: Identifies the right audio output.

• [ST]: Identifies the stereo audio output.

• [PBC]: The PBC function is on.

• [VER1]: The VCD version is 1.

• [VER2]: The VCD version is 2.

Searching area

Touch to search the next/previous content.

Key display area

Touch to display the control screen.

MENU CTRL] (DVD only)

[

Touch to display the DVD-VIDEO disc menu control screen. See DVD Disc Menu Operation (P. 27).

NOTE

• The control screen disappears when no operation is done for 5 seconds.

• If you use a remote control, you can jump directly to the desired image with entering the chapter number, scene number, play time, etc. ( P.76).

25English

Page 26

Disc

Music CD/ Disc media Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote controller mode switch to AUD mode before starting operation for Music CD and audio files, see Switch the operation mode (P. 75).

• In this manual, “Music CD” will be referred to as the general CDs which include music tracks in. “Disc media” will be referred to as CD/DVD disc which includes audio or video files.

• The screen shot below is for disc media. It may be different from the one for CD.

Control screen

7 4

Open the drawer

CODEC /[ ] / [ ]

• When a high-resolution source is played, its format information is displayed. (Disc media only)

• [

] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; Track/ File repeat ( ), Folder repeat ( ) (Disc media only), Repeat all ( )

• [

] : Randomly plays all tracks in current folder/disc. Each time you touch the key, random mode switches in the following sequence;

Track random ( ) (Music CD only), Folder random ( ) (Disc media only), Random off ( )

Track information

Displays the information of the current track/ file. Only a file name and a folder name are displayed

if there is no tag information. (Disc media only)

Operation keys

• [1] (Disc media only) : Searches file. For details

on search operation, see List screen (P.20).

• [E] [F] : Searches the previous/next

content. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Function panel (Disc media only)

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [

] [ ] : Searches previous/next folder.

Content list

• Touch on the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

Indicator Items

• [IN]: A disc is inserted.

White: A Disc is inside the unit. Orange: Error at the disc player

• [VIDEO]: Identifies the video file.

• [MUSIC]: Identifies the music file.

Artwork (Disc media only)

/Play mode indicator/ Playing time

• The jacket of the currently playing file is displayed.

• D, B, etc.: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause).

Page 27

Disc

Video screen

Searching file area (Video file only)

Touch to search the next/previous file.

Key display area (Video file only)

Touch to display the control screen.

File search Operation (Disc media only)

You can search a file according to hierarchy.

NOTE

• For operations in the list screen, see List screen (P. 20).

Touch [1].

 Folder List screen appears.

Touch the desired folder.

 When you touch a folder its contents are

displayed.

Touch desired item from the content list.

 Playback starts.

DVD Disc Menu Operation

You can set up some items in the DVD-VIDEO disc menu.

Touch illustrated area during playback.

 Menu Control screen appears.

Perform desired operation as follows.

■ Displays the top menu

Touch [TOP].*

■ Displays the menu

Touch [MENU].*

■ Displays the previous menu

Touch [Return].*

■ Enters selected item

Touch [Enter].

■ Enables direct operation

Touch [Highlight] to enter the highlight control mode (P. 28).

■ Moves the cursor

Touch [R], [S], [C], [D].

■ Switches the subtitle language

Touch [Subtitle]. Each time you touch this key, language is switched.

■ Switches the audio language

Touch [Audio]. Each time you touch this key, language is switched.

■ Switches the picture angle

Touch [Angle]. Each time you touch this key, picture angle is switched.

* These keys may not function depending on

the disc.

27English

Page 28

Disc

Ñ Highlight control

Highlight control lets you control the DVD menu by touching the menu key directly on the screen.

Touch [Highlight] in the Menu Control

screen.

Touch desired item on the screen.

NOTE

• The highlight control is cleared automatically if you do not operate for a constant time.

Set each item as follows.

Menu Language] / [Subtitle Language]

■ [

/ [Audio Language]

See Language setup (P.28).

■ [Dynamic Range Control]

Sets the dynamic range.

[Wide]: The dynamic range is wide. [Normal]: The dynamic range is normal. [Dialog] (Default): Makes the total sound

volume larger than other modes. This is effective only when you are using Dolby Digital software.

■ [Screen Ratio]

Sets the screen display mode.

[16:9 ](Default): Displays wide pictures. [4:3 LB]: Displays wide pictures in the Letter

Box format (having black stripes at the top and bottom of screen).

[4:3 PS]: Displays wide pictures in the Pan &

Scan format (showing pictures cut at the right and left ends).

DVD Setup

You can set up the DVD playback functions.

Touch illustrated area during playback.

Touch [ ] on the left side of the screen.

Touch [SETUP].

 DVD SETUP screen appears.

Ñ Language setup

This setting is for the language used in the menu, subtitle, and voice.

Touch the desired item;

[Menu Language], [Subtitle Language], [Audio Language].

 Language Set screen appears.

Select a language.

For language code, refer to DVD Language Codes (P.92).

Sets the entered language and returns to the DVD Setting screen.

NOTE

• To set the DVD’s original language for audio language, touch [Original].

Page 29

APPS—Android Auto™/Apple CarPlay

Apple CarPlay Operation

CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.

For details about CarPlay, visit https://ssl.

apple.com/ios/carplay/.

Compatible iPhone devices

You can use CarPlay with the following iPhone models.

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPhone 6 Plus

• iPhone 6

• iPhone 5s

• iPhone 5c

• iPhone 5

Ñ Preparation

Connect iPhone using KCA-iP103 via USB

(Black) terminal. (P. 85)

When iPhone compatible with CarPlay is connected to the USB (Black) terminal, the Bluetooth Hands-Free phone currently connected is disconnected.

Unlock your iPhone.

Ñ Operation buttons and

available Apps on the home screen of CarPlay

You can use the Apps of the connected iPhone. The items displayed and the language used

on the screen differ among the connected devices.

To enter CarPlay mode, touch [Apple CarPlay] icon in the source selection screen. (P. 17)

[ ]

• Displays the home screen of CarPlay.

• Touch and hold to activate Siri.

Application buttons

Starts the application.

[HOME]

Exits the CarPlay screen and displays the Home screen.

To exit the CarPlay screen

Press the [HOME] button.

Press the [

] button.

Ñ Use Siri

You can activate Siri.

Press the [ ] button for 1 second.

Press for 1 second

Talk to Siri.

To deactivate

Press the [ ] button.

29English

Page 30

APPS—Android Auto™/Apple CarPlay

Ñ Switch to the Apple CarPlay

screen while listening to another source

Press the [ ] button.

NOTE

• If sound is output using Apple CarPlay when the Apple CarPlay screen is displayed, the source is switched to Apple CarPlay.

Android Auto™ Operation ( )

Android Auto enables you to use functions of your Android device convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android device while driving.

For details about Android Auto, visit https://

www.android.com/auto/ and https://support. google.com/androidauto.

Compatible Android devices

You can use Android Auto with Android devices of Android version 5.0 (Lollipop) or later.

NOTE

• Android Auto may not be available on all devices and is not available in all countries or regions.

Ñ Operation buttons and

available Apps on the Android Auto screen

You can perform the operations of the Apps of the connected Android device.

The items displayed on the screen differ among the connected Android devices.

To enter Android Auto mode, touch [Android Auto] icon in the source selection screen.

(P. 17)

Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen

Press the [HOME] button.

Ñ Using voice control

Press the [ ] button for 1 second.

Press for 1 second

Ñ Preparation

Connect an Android device via USB

terminal. (P. 86)

To use the hands-free function, connect the Android device via Bluetooth.

When an Android device compatible with Android Auto is connected to the USB terminal, the device is connected via Bluetooth automatically, and the Bluetooth Hands-Free phone currently connected is disconnected.

Unlock your Android device.

To cancel

Press the [ ] button.

Ñ Switch to the Android Auto

screen while listening to another source

Press the [ ] button.

NOTE

• If sound is output using Android Auto when the Android Auto screen is displayed, the source is switched to Android Auto.

Page 31

APPS—Android Auto™/Apple CarPlay

WebLink™ Operation

You can display and control the App on the unit while your smartphone is connected to the USB terminal.

Ñ Available Apps

You can use the following Apps on this unit. Install the Apps on your smartphone beforehand.

WebLink™

WebLink™ enables you to use the following Apps with the unit.

• Media player

• Yelp

• YouTube

• OpenWeatherMap

Connecting a smartphone

• Connect an Android device via USB terminal. (P. 86)

• Connect iPhone using KCA-iP103 via USB (Black) terminal. (P. 85)

• When the smartphone is connected to the unit, a confirmation message to communicate each other appears on the smartphone. Touch [Allow] to establish connection, or [Ignore] to cancel the connection.

• You can check the connection status on the WebLink™ screen on your smartphone.

Ñ Operation buttons and

available Apps on the App screen

To enter WebLink™ mode, touch [WebLink] icon in the source selection screen. (P. 17)

WebLink source screen

[ ]

Displays the main menu of the “WebLink” source screen.

Returns to the previous screen.

Operate on your smartphone.

• When you are asked to communicate between your smartphone and the unit, touch [Allow] to proceed.

Ñ Switching to the App screen

while listening to the another source

Press the [ ] button.

NOTE

• If sound is output using WebLink when the App screen is displayed, the source is switched to WebLink.

31English

Page 32

APPS—Android Auto™/Apple CarPlay

Spotify® Operation

You can listen to the Spotify on this unit by controlling the application installed in the iPhone or Android.

To enter Spotify source, touch [Spotify] icon in the source selection screen. (P. 17)

Preparation

• Install the latest version of the Spotify application "Spotify" on your iPhone or Android. iPhone: Search for "Spotify" in the Apple App Store to find and install the most current version. Android: Search for "Spotify" in Google play to find and install the most current version.

• iPhones are connected on either USB or Bluetooth.

• Android devices are connected on Bluetooth.

• To connect a smartphone via Bluetooth, register it as the Bluetooth device and do the App (SPP) profile setting of the connection beforehand. See

Artwork/ Playing time

• The picture data is displayed if available from current content.

• For confirmation of play time.

Operation keys

] : Displays the Menu screen

• [

] : New radio station that relates to the artist of the currently playing song is selected and playback starts.

] , [ ] : Skips the current song.

• [

] , [ ] : Plays or pauses the content of the

current station.

• [

] : Saves currently playing song to My

Music.

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Content information

Displays the information of the current content being played.

[ ] / [ ] / [ ] / [ ]

• [

] : Thumbs down to the current contents

and skip to the next contents.

• [

] : Registers the current contents as favorite

content.

• [

] : Repeats the current song.

• [

] : Randomly plays all song in current

playlist.

Ñ Selecting a track

Touch [ ].

 Menu screen appears.

Select the list type, then select a desired

item.

■ Selects the category and station

Touch the category and station name in the list.

To p]

■ [

Returns to the first hierarchy of the list.

Up]

■ [

Returns to the previous list.

About Spotify® Note

• Ensure you are logged in to your smartphone application. If you do not have an Spotify account, you can create one for free from your smartphone or at www.spotify.com.

• Because Spotify is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some functions of Spotify cannot be operated from this unit.

• For issues using the application, contact Spotify at www.spotify.com.

• Establish an Internet connection.

Page 33

USB/SD card

Connecting a USB device

Connect the USB device with the USB

cable. (P. 85)

3 4

Press the [HOME] button.

Press the [

Touch .

Touch [USB]. (P.17)

] button.

Ñ Disconnect the USB device

2 3

Press the [HOME] button.

Press the [

Touch a source other than [USB].

Detach the USB device.

] button.

Ñ Usable USB device

You can use a mass-storage-class USB device on this unit.

The word “USB device” appearing in this manual indicates a flash memory device.

● About file system

The file system should be the one of the following.

• FAT16 • FAT32 • exFAT • NTFS

• You cannot connect a USB device via a USB hub and Multi Card Reader.

• Take backups of the audio files used with this unit. The files can be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising from any erased data.

Inserting the SD card

Press the [G] button.

Touch [OPEN] to the panel fully opens.

Insert the SD card into the slot until it

clicks.

Press the [G] button.

Press the [HOME] button.

Touch .

Touch [SD]. (P.17)

Insert the microSD card into the slot until

it clicks.

NOTE

• Install the USB device in the place where it will not affect safe driving.

33English

Page 34

USB/SD card

3 4

Press the [HOME] button.

Press the [

Touch .

Touch [SD]. (P.17)

] button.

Ñ Remove the SD card

Press the [G] button.

Touch [OPEN] to the panel fully opens.

Push the SD card until it clicks and then

remove your finger from the card. The card pops up so that you can pull it out with your fingers.

Press the [G] button.

Push the microSD card until it clicks and

then remove your finger from the card. The card pops up so that you can pull it out with your fingers.

Ñ Usable SD card.

The unit is capable of playback of SD/ SDHC/ SDXC memory cards complying with the SD, SDHC or SDXC standard.

A special adapter is required to use a miniSD card, miniSDHC card, microSD card, microSDHC, or microSDXC card.

The MultiMedia Card (MMC) cannot be used.

USB/SD card Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote controller mode switch to AUD mode before starting operation, see Switch the operation mode (P.75).

Control screen

7 4

Open the drawer

CODEC / [ ] / [ ]

• When a high-resolution source is played, its format information is displayed.

• [

] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; File repeat ( all ( )

• [

] : Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence; File random ( ), Random off ( )

Track information

Displays the information of the current file. Only a file name and a folder name are displayed

if there is no tag information.

Operation keys

• 1] : Searches track/file. For details on search

operation, see Search Operation (P.35).

• E] [F] : Searches the previous/next track/

file.

), Folder repeat ( ), Repeat

Page 35

USB/SD card

Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [

] [ ] : Searches previous/next folder.

• [USB DEVICE CHANGE] (Only for USB device of

) : Switches to another USB device when two USB devices are connected.

Content list

• Touch on the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

Indicator Items

• [VIDEO]: Identifies the video file.

• [MUSIC]: Identifies the music file.

Artwork/ Play mode indicator/ Playing

time

The jacket of the currently playing file is displayed.

• D, B, etc.: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause).

Video screen

Search Operation

You can search music or video files by the following operations.

Touch [1].

Touch [S].

Select the list type.

NOTE

• For operations in the list screen, see List screen (P. 20).

Ñ Category search

You can search a file by selecting category.

Touch [Category List].

Select whether you search by audio files

or video files .

Touch the desired category.

Searching file area (Video file only)

Touch to search the next/previous file.

Key display area (Video file only)

Touch to display the control screen.

 The list corresponding to your selection

appears.

Touch to select desired item in the list.

Repeat this step until you find the desired file.

35English

Page 36

USB/SD card

Ñ Link search

You can search a file of same artist/album/ genre as the current track.

Touch [Link Search].

Touch the desired tag type. You can select

from artists, albums and genres.

 The list corresponding to your selection

appears.

Touch desired item from the content list.

Ñ Folder search

You can search a file according to hierarchy.

Touch [Folder List].

Touch the desired folder.

iPod/iPhone

Preparation

Ñ Connectable iPod/iPhone

The following models can be connected to this unit.

Made for

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPhone 6 Plus

• iPhone 6

NOTE

• Latest compatible list of iPod/iPhone. For details, see www.kenwood.com/cs/ce/ipod/.

• By connecting your iPod/iPhone to this unit with an optional accessory iPod connection cable KCA-iP103, you can supply power to your iPod/ iPhone as well as charge it while playing music. However, the power of this unit must be on.

• If you start playback after connecting the iPod, the music that has been played by the iPod is played first.

• iPhone 5s

• iPhone 5c

• iPhone 5

• iPod touch (6th generation)

• iPod touch (5th generation)

When you touch a folder its contents are displayed.

Touch to select desired item in the list.

Repeat this step until you find the desired file.

Ñ Connect iPod/iPhone

Wired connection

Preparation

• Connect an iPod/iPhone with the KCA-iP103 (optional accessory) while CarPlay is not connected.

• With a CarPlay-capable iPhone, turn off CarPlay by operating the iPhone at functional setup before connecting iPhone. For details of the setup method, contact the manufacturer of the terminal.

•

: Plug the iPod/iPhone into the gray USB terminal with the KCA-iP103 (optional accessory).

• Only one iPod/iPhone can be connected.

Page 37

Connect the iPod/iPhone using KCA-

iP103. (P. 85)

3 4

● To disconnect the iPod/iPhone connected

Press the [HOME] button.

Press the [

Touch [ ].

Touch [iPod]. (P. 17)

with the cable:

Detach the iPod/iPhone.

] button.

Bluetooth connection

Preparation

• To connect an iPhone via Bluetooth, register it as the Bluetooth device and do the profile setting of the connection beforehand. See Register the

Bluetooth device (P.47) and Connect the Bluetooth device (P.48).

• Connect an iPhone on Bluetooth while CarPlay and an iPod/iPhone are not connected on USB.

Pair the iPhone through Bluetooth.

● Select the method of making connections

for outputting sound from the iPod source.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [AV].

 AV screen appears.

Touch [iPod Bluetooth Connection]. [Bluetooth] (Default): Output sound using a

Bluetooth device.

[Bluetooth+HDMI]: Output sound using an

HDMI device and perform music selection, etc. using a Bluetooth device.

iPod/iPhone

iPod/iPhone Basic Operation

NOTE

• Set the remote controller mode switch to AUD mode before starting operation, see Switch the operation mode (P.75).

Control screen

Open the drawer

[ ] / [ ]

• [

] : Repeats the current track/album. Each

time you touch the key, repeat mode switches in the following sequence; Song repeat (

• [

] : Randomly plays all tracks in current album. Each time you touch the key, random mode switches in the following sequence; Song random ( ), Random off ( )

Track information

• Displays the information of the current file.

• Touch to display the category list screen. See Category search (P.38).

), All songs repeat ( )

37English

Page 38

iPod/iPhone

Operation keys

• 1] : Searches track/file. For details on search

operation, see Search Operation (P.38).

• E] [F] : Searches the previous/next track/

file. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Content list

• Touch on the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

Indicator Items

• [MUSIC]: Identifies the music file.

Artwork/ Play mode indicator/ Playing

time

The jacket of the currently playing file is displayed.

• D, B, etc.: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause).

Search Operation

You can search music files by the following operations.

Touch [1].

Touch [S].

Ñ Category search

You can search a file by selecting category.

Touch [Category List].

Touch the desired category.

 The list corresponding to your selection

appears.

Touch to select desired item in the list.

Repeat this step until you find the desired file.

Ñ Link search

You can search a file of same artist/album/ genre/composer as the current track.

Touch [Link Search].

Touch the desired tag type. You can

select from artists, albums, genres and composers.

Select the list type.

NOTE

• For operations in the list screen, see List screen

(P. 20).

 The list corresponding to your selection

appears.

Touch desired item from the content list.

Page 39

Radio

Radio Basic Operation

Most functions can be controlled from the source control screen.

To enter Radio source, touch [Radio] icon in the source selection screen. (P. 17)

NOTE

• Set the remote control mode switch to AUD

mode before starting operation, see Switch the operation mode (P.75).

Control screen

1 2

5 6

Open the drawer

Information display

Displays the information of the current station: Frequency

Touching [ Content A and Content B.

Content A: PS name, Radio Text, Title & Artist Content B: PTY Genre, Radio Text plus Preset#: Preset number

Seek mode

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in stations in memory one after another.

] allows you to switch between

• [MANUAL]: Switches to the next frequency manually.

Operation keys

• [E] [F] : Tunes in a station. The method of frequency switching can be changed (see 2 in table).

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Preset list

• Recalls the memorized station.

• When touched for 2 seconds, stores the current receiving station in memory.

• Touch on the right side of the screen to display the Preset list. Touch again to close the list.

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [TI] (FM only): Sets the traffic information mode on. For details, see Traffic Information (P. 41).

• [SETUP] (FM only): Displays the TUNER SETUP screen. For details, see Tuner Setup (P.41).

• [AME]: Presets stations automatically. For details, see Auto memory (P.40).

• [PTY] (FM only): Searches a program by setting program type. For details, see Search by program type (P.40).

• [MONO] (FM only): Select the Monaural reception.

• [LO.S] (FM only): Turns the Local Seek function on or off.

Band button

Switches the band (FM, AM).

Indicator Items

• [ST]: A stereo broadcast is being received.

• [MONO]: The forced monaural function is on.

• [AF]: The AF search function is on.

• [EON]: The Radio Data System station is sending EON.

• [LOS]: The Local Seek function is on.

• [NEWS]: News bulletin interruption is in progress.

39English

Page 40

Radio

• [RDS]: Indicates the state of the Radio Data System station when the AF function is on.

White: Radio Data System is being received. Orange: Radio Data System is not being

received.

• [TI]: Indicates the reception state of traffic information.

White: TP is being received. Orange: TP is not being received.

Memory Operation

Ñ Auto memory

You can store stations with good reception in memory automatically.

Touch desired band key.

Touch [ ] on the left side of the screen.

Touch [AME].

Ñ Manual memory

You can store the current receiving station in memory.

Select a station you wish to store in

memory.

Touch [FM#] (#:1-15) or [AM#] (#:1-5) in

which you want to store the station for 2 seconds until a beep sounds.

Selecting Operation

Ñ Search by program type

(FM only)

You can tune to a station with a specific program type when listening to FM.

Touch [ ] on the left side of the screen.

Touch [PTY].

Touch [Yes ].

 Auto memory starts.

 PTY Search screen appears.

Select a program type from the list.

Touch [Search].

You can search a station of the selected program type.

Page 41

Radio

Traffic Information (FM only)

You can listen and watch the traffic information automatically when a traffic bulletin starts. However, this feature requires a Radio Data System that includes the TI information.

Touch [ ] on the left side of the screen.

Touch [TI].

 Traffic information mode is set.

Ñ When the traffic bulletin starts

The Traffic Information screen appears automatically.

NOTE

• It is necessary to have Traffic Information function

set to on in order to have the Traffic Information screen appear automatically.

• The volume setting during reception of traffic

information is automatically stored. The next time the traffic information is received, this unit recalls the volume setting automatically.

Tuner Setup

You can set tuner related parameters.

Touch [ ] on the left side of the screen.

Touch [SETUP].

 Radio SETUP screen appears.

Set each item as follows.

■ [NEWS]

Sets a news bulletin interrupt time. Default is “OFF”.

■ [AF]

When station reception is poor, automatically switches to the station that is broadcasting the same program over the same Radio Data System network. Default is “ON”.

■ [Regional]

Sets whether to switch to the station only in the specific region using the “AF” control. Default is “ON”.

■ [Auto TP Seek]

When traffic information station reception is poor, automatically searches for a station that can be received better. Default is “ON”.

■ [Language Select]

Selects a display language for the PTY function.

41English

Page 42

DAB

( )

DAB Basic Operation

Most functions can be controlled from the source control screen.

To enter DAB source, touch [DAB] icon in the source selection screen. (P. 17)

NOTE

• Set the remote control mode switch to AUD

mode before starting operation, see Switch the operation mode (P.75).

Control screen

2 3

6 7

Open the drawer

Indicator display

Displays the received signal strength.

Information display

Displays the information of the current station: Service Name

Touching [ Content A, Content B and Content C.

Content A: Ensemble name, PTY Genre Content B: Song Title, Artist Name, DLS Content C: Now Playing, Next Program, Audio

Quality

] allows you to switch between

Seek mode

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a ensemble with good reception automatically.

• [AUTO2]: Tunes in ensemble in memory one after another.

• [MANUAL]: Switches to the next ensemble manually.

Operation keys

• [1] : Displays the Service List screen. For details on search operation, see Service search (P. 43).

• [E] [F] : Tunes in a ensemble, service, and component. The seek mode switching can be

changed. (see 3 in table).

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Preset list

• Recalls the memorized service.

• When touched for 2 seconds, stores the current service in memory.

• Touching on the screen or flicking the screen to left will display the Preset list. Touching again or flicking to right will close the list.

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [TI]: Sets the traffic information mode on. For details, see Traffic Information (P.44).

• [SETUP]: Displays the DAB SETUP screen. For details, see DAB Setup (P.45).

• [Instant Replay] (Live mode only): Change the Replay mode. See Replay (P.44).

• [Live] (Replay mode only): Change the Live mode.

• [PTY] (Live mode only): Searches a program by setting program type. For details, see Search by program type (P.43).

• [DLS]: Display the Dynamic Label Segment screen.

Page 43

DAB

Artwork area

The picture data is displayed if available from current content.

Touch to switch between the Control and Information screen.

P#: Preset number CH#: Channel display

Indicator Items

• [DAB]: Digital Radio is being received.

• [RDS]: Radio Data System is being received.

• [MC]: Receiving service is displayed. White: Primary Component is received.

Orange: Secondary Component is received.

Storing Service in Preset Memory

You can store the current receiving service in memory.

Select a service you wish to store in

memory.

Touch [ ] on the right side of the screen.

Selecting Operation

Ñ Search by program type

You can tune to a station with a specific program type when listening to Digital Radio.

Touch [ ] on the left side of the screen.

Touch [PTY].

 PTY Search screen appears.

Select a program type from the list.

Touch [Search].

You can search a station of the selected program type.

Touch [P#] (#:1-15) in which you want to

store the station for 2 seconds until a beep sounds.

Ñ Service search

You can select a service from a list of all services received.

Touch [1].

43English

Page 44

DAB

Select the desired content from the list.

NOTE

• It is necessary to have Traffic Information function set to on in order to have the Traffic Information screen appear automatically.

• The volume setting during reception of traffic information is automatically stored. The next time the traffic information is received, this unit recalls the volume setting automatically.

■ [ ]

Touch and hold to find the latest service list.

■ [1A-Z]

Displays the keyboard screen. Jump to the letter you entered (alphabet

search).

Traffic Information

You can listen and watch the traffic information automatically when a traffic bulletin starts. However, this feature requires a Digital Radio that includes the TI information.

Touch [ ] on the left side of the screen.

Touch [TI].

 Traffic information mode is set.

Ñ When the traffic bulletin starts

The Traffic Information screen appears automatically.

Replay

You can replay last 30 minutes of current station.

Touch [ ] on the left side of the screen.

Touch [Instant Replay].

■ [E] [F]

Forward/backward 15 seconds when touch it.

■ [A] [B]

Fast forward/fast backward when keep on touching. (It will be cancelled automatically after about 50 seconds.)

■ [DH]

Plays or pauses.

■ Replay time bar

Display recorded capacity

Page 45

DAB

To return to live

Touch [ ] on the left side of the screen.

Touch [Live].

NOTE

• PTY Watch starts operating and Replay function cannot be used while receiving a program.

• While replaying the current station, you can not store the station by Storing Service in Preset Memory (P.43).

DAB Setup

You can set Digital Radio related parameters.

Touch [ ] on the left side of the screen.

Touch [SETUP].

 DAB SETUP screen appears.

Set each item as follows.

■ [Priority]

If the same service is provided by Digital Radio during Radio Data System reception, automatically switches to Digital Radio. If the same service is provided by Radio Data System when reception of the service being provided by Digital Radio becomes poor, automatically switches to Radio Data System.

■ [PTY Watch]

If the service of the set program type begins with the ensemble being received, switches from any source to Digital Radio for service reception.

■ [Announcement Select]

Switches to the set Announcement service. For details, see Announcement setup (P. 45).

■ [Seamless Blend]

Prevents audio break when switching from Digital Radio to Analog Radio. Default is “ON”.

■ [Antenna Power]

Sets power supply to the Digital Radio antenna. Set to “ON” when the Digital Radio antenna in use is equipped with a booster.

Default is “ON”.

■ [Related Service]

When you select ON, the unit switches to a related service (if exists) when a DAB service network is not available.

Default is “OFF”.

■ [Language Select]

Selects a display language for the PTY function.

Ñ Announcement setup

When the service for which ON is selected starts, switches from any source to Announcement to receive it.

Touch [Announcement Select] in the DAB

SETUP screen.

 The Announcement Select screen

appears.

Touch each Announcement list and set

on or off.

■ [Select All]

Turn on the all announcements.

■ [Deselect All]

Turn off the all announcements.

NOTE

• The volume setting during reception of Announcement service is automatically stored. The next time the Announcement service is received, this unit recalls the volume setting automatically.

45English

Page 46

Bluetooth Control

Using the Bluetooth function, various functions can be used: listening to the audio file, making/receiving a call.

Information for using Bluetooth® devices

Bluetooth is a short-range wireless radio communication technology for mobile devices such as mobile phones, portable PCs, and other devices.

Bluetooth devices can be connected without cables and communicate with each other.

NOTE

• While driving, do not perform complicated operations such as dialing numbers, using the phone book, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not connect to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting conditions may vary depending on your environment.

• For some Bluetooth devices, the device is disconnected when the unit is turned off.

Ñ About the cell-phone and

Bluetooth audio player

This unit conforms to the following Bluetooth specifications:

Version

Bluetooth Ver. 3.0

Profile

Cell-phone:

HFP (V1.6) (Hands Free Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile)

Audio player:

A2DP (Advanced Audio Distribution Profile) AVRCP (V1.5) (Audio/Video Remote Control Profile)

Sound codec

SBC, AAC

NOTE

• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG.

• However, it may be impossible for such units to communicate with your cell-phone depending on its type.

Page 47

Bluetooth Control

Register the Bluetooth device

It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function.

You can register up to 10 Bluetooth devices.

NOTE

• Up to 10 Bluetooth devices can be registered. If an attempt is made to register the 11th Bluetooth device, the Bluetooth device connected on the earliest date will be deleted to register the 11th one.

• This unit is compatible with the Apple Easy Pairing function. When an iPod touch or iPhone is connected to this unit, an authentication dialog appears. Performing operation for authentication on this unit or iOS smartphone registers the smartphone as a Bluetooth device.

Follow the step 1, 2 and 3 for registration.

Step 1: Registration the Bluetooth device

Search the unit (“DNX****”) from your

smartphone/cell-phone.

Input the PIN Code in your smartphone/

cell-phone.

PIN Code is set to “0000” as the default.

Step 2: Connection settings

• When the HFP profile is supported, Hands Free 1 or 2 is automatically selected for connection, proceeding to the next step.

• When the A2DP or SPP profile is supported, the cell-phone or audio player is automatically connected, proceeding to the next step.

If cell-phones and/or audio players have already been connected, a selection screen appears.

Select the hands-free number to connect.

Select if you want to use the audio player

app in your smartphone over A2DP, and the other apps in your smartphone over SPP.

This message appears if the device supports BT audio (A2DP) or smartphone link (SPP).

● SSP (Secure Simple Pairing of Bluetooth

2.1 or later)

Search the unit (“DNX****”) from your

smartphone/cell-phone.

Confirm the request both on the

smartphone/cell-phone and the unit.

47English

Page 48

Bluetooth Control

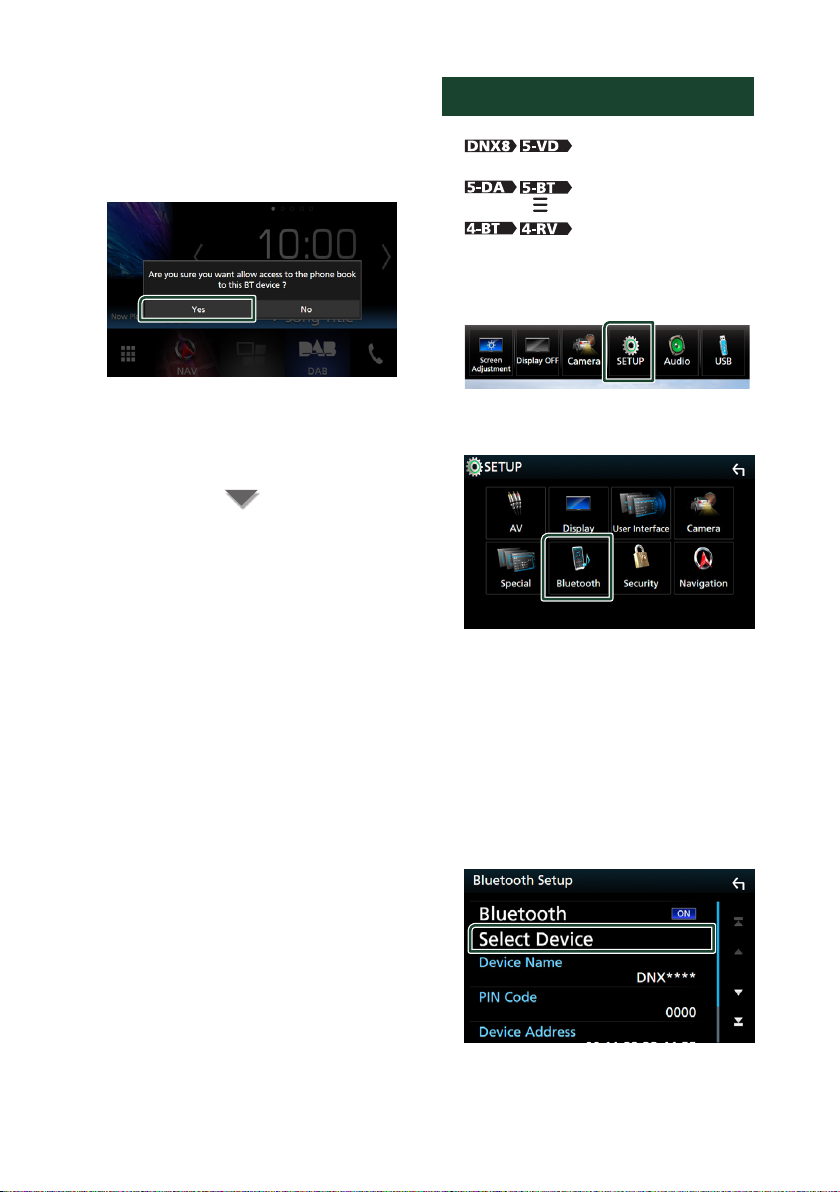

Step 3: Phonebook transfer

Select if you want to transfer your

phonebook data.

This message appears if the device supports PBAP.

The phonebook data transmission starts. Some smartphones may request

permission to access the data. The data transmission will start with your permission.

When the data transmission and connection have completed, the Bluetooth connection icon appears on the screen.

Bluetooth Setup

Press the [MENU] button.

Press the [

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Bluetooth].

 Bluetooth SETUP screen appears.

See the following section for each setting.

• Connect the Bluetooth device (P. 48)

• Change the PIN Code (P. 50)

• Change the device name (P. 50)

] button.

Ñ Connect the Bluetooth device

Touch [Select Device] in the Bluetooth

SETUP screen.

Page 49

Touch the device name you want to

connect.

 Profile select screen appears.

Bluetooth Control

To delete the registered Bluetooth device

Touch [Delete].

NOTE

• If the icon is lighted, it means that the unit will use that device.

Set each profile as follows.

■ [TEL (HFP) 1], [TEL (HFP) 2]

The device is connected with the unit as hands-free phone 1 or 2.

■ [Audio (A2DP)/App (SPP)]

Set to interwork with an application installed in a smartphone or to use as an audio player.

Touch [Close].

Touch the device name to check.

■ [þ All]

Select all Bluetooth device.

■ [¨ All]

Erases all check marks.

Touch [Delete].

 Confirmation message appears.

Touch [Yes ].

49English

Page 50

Bluetooth Control

Ñ Change the PIN Code

Touch [PIN Code] in the Bluetooth SETUP

screen.

 PIN Code Set screen appears.

Touch and hold [ ].

Input the PIN Code.

Touch [SET].

Ñ Change the device name

Touch [Device Name] in the Bluetooth

SETUP screen.

 Change Device Name screen appears.

Touch and hold [ ].

Input the device name.

Touch [Enter].

Playing Bluetooth Audio Device

Most function can be controlled from the source control screen.

To enter Bluetooth source, touch [Bluetooth] icon in the source selection screen. (P. 17)

Ñ Bluetooth basic operation

Control screen

1 5

Device name/ [ ] / [ ]

• Connected device name.

• [

] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; File repeat ( ), Folder repeat ( ), All songs repeat ( ), Repeat off ( )

• [

] : Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence; Folder random ( ), All random ( ), Random off ( )

Information display *

Displays the name of the track information.

Operation keys *

• [1]: Searches file. See File search (P.51).

• [E] [F]: Searches the previous/next

content. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [D]: Plays.

• [H]: Pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 70)

Page 51

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [BT DEVICE CHANGE] : Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP). See Connect the Bluetooth audio (P. 51).

Play mode indicator/ Playing time

D, H: Current play mode indicator The meanings of each icon are as follows;

D (play), B (fast forward), A (fast backward), H (pause), I (stop).

* These items appear only when the audio player

which supports AVRCP profile is connected.

NOTE

• The operation buttons, indications and

information displayed on the screen differ depending on the connected device.

• If the operation keys do not appear, operate from

the player.

• Depending on your cell-phone or audio player,

audio may be heard and controlled but text information may not appear.

• If the volume is too low, raise it on your cell-

phone or audio player.

Ñ Connect the Bluetooth audio

Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP).

Touch [ ] on the left side of the screen.

Touch [BT DEVICE CHANGE].

Bluetooth Control

Touch the device name you want to

connect.

Touch [Close].

Ñ File search

Touch [1].

Touch the desired file or folder.

When you touch a folder its contents are displayed.

Touch desired item from the content list.

 Playback starts.

NOTE

• For operations in the list screen, see List screen (P. 20).

51English

Page 52

Bluetooth Control

Using Hands-Free Unit

You can use telephone function by connecting the Bluetooth telephone to this unit.

NOTE

• While Apple CarPlay or Android Auto is being connected, Bluetooth Hands-Free function and two Bluetooth devices connections cannot be used. Only Apple CarPlay or Android Auto HandsFree function can be used.

Ñ Make a call

Touch [Û].

 Hands Free screen appears.

NOTE

• If your mobile phone supports PBAP, you can display the phone book and call lists on the touch panel screen when the mobile phone is connected.

– Phone book: up to 1000 entries – Up to 50 entries including dialed calls, received

calls, and missed calls

Select a dialing method.

● Select the cell-phone to use

When you connect two cell-phones

1) Touch [ you want to use.

● Bluetooth SETUP

1) Touch [ Bluetooth SETUP screen appears.

NOTE

• The status icons such as battery and antenna displayed may differ from those displayed on the cell-phone.

• Setting the cell-phone in the private mode can disable the hands-free function.

] to select the phone

Call using call records

Touch [ ].

Select the phone number from the list.

Call by entering a phone number

Touch [ ].

Enter a phone number with number keys.

• [ ]: Call using call records

• [

]: Call using the phonebook

• [

]: Call using the preset number

• [

]: Call by entering a phone number

• [

]: Voice Recognition ( P.53)

Touch [ ].

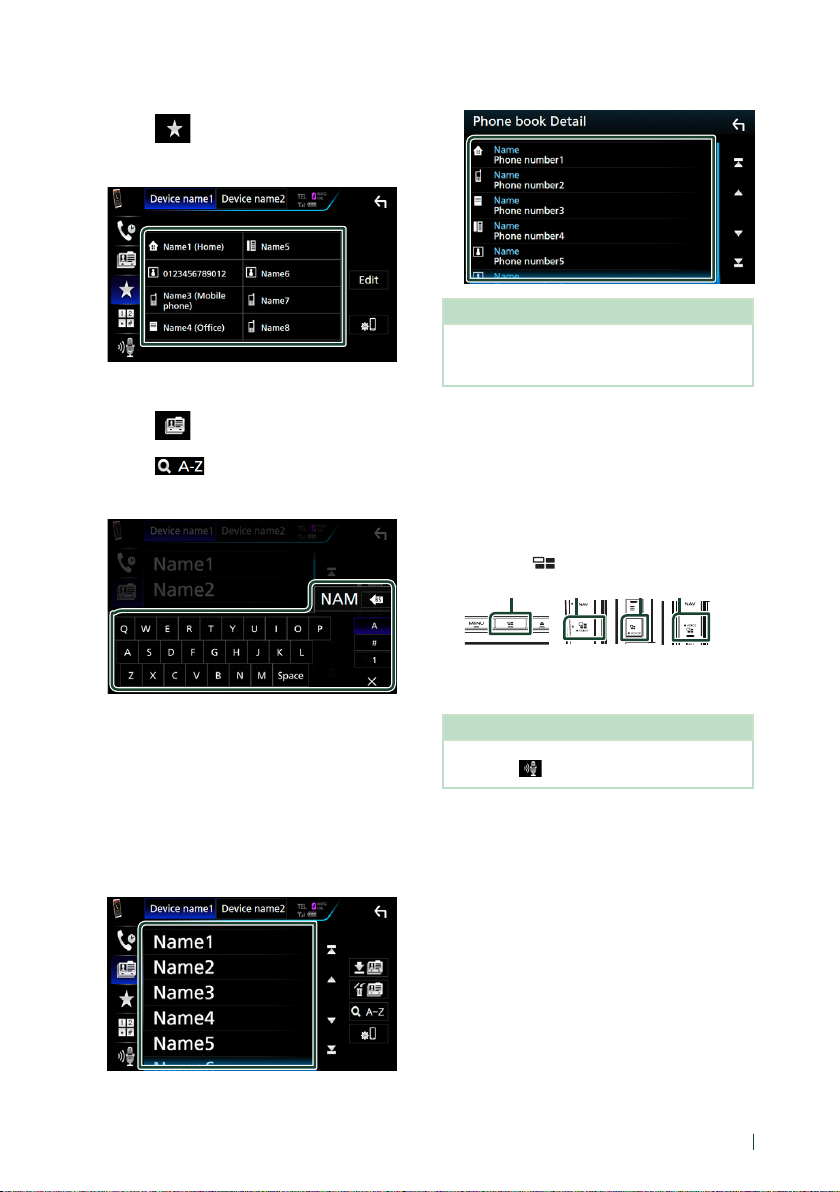

Page 53

Call using the preset number

Touch [ ].

Touch the Name or phone number.

Call using the phonebook

Bluetooth Control

Select the phone number from the list.

NOTE

• You can set the list to arrange in the order of last name or first name. For details, see Hands-Free Setup (P.56).

Touch [ ].

Select the initial.

• Characters with no corresponding name will not appear.

• A first character with an accent character such as “ü” can be searched for with a non-accent character “u” . A character with an accent character in a sentence cannot be searched.

Select the person you want to call from

the list.

Ñ Voice Recognition

You can access the voice recognition function of the cell-phone connected to this unit. You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.)

Press the [ ] button for 1 second.

Press for 1 second

 Voice Recognition screen appears.

Start speaking.

NOTE

• You can use voice recognition function by touching [ ] on the Hands Free screen.

53English

Page 54

Bluetooth Control

Ñ Receive a call

Touch [ ] to answer a phone call or

[

] to reject an incoming call.

NOTE

• While monitoring the view camera, this screen does not appear even if a call comes in.

To end call

While talking, touch [ ].

Ñ Operations during a call

● Adjust the volume of your voice

1) Touch [Speech Quality].

2) Touch [T] or [U] of [Microphone Level].

● Adjust the receiver volume

Press the [S] or [R] button.

Turn to the right to increase, and turn to the left to decrease.

● Mute your voice

Touch [

Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys

on the screen.

Touching [ the speaking voice output between cell-phone and speaker.

When you receive a call while talking on another call, you can answer the newly

received call by touching [ is on hold.

Each time you touch [ When you touch [

and switch to the call in hold.

Touching [×] closes the Hands-Free popup screen. To display it again, touch [

] to mute or not to mute your voice.

● Output the dial tone

● Switching the speaking voice output

]/ [ ] each time switches

● Call-waiting

]. The current call

], the caller will change.

], the current call will end

● To close the Hands-Free popup screen

Page 55

Bluetooth Control

Ñ Phone number preset

You can register frequently used phone numbers to this unit.

Touch [ ].

Touch [Edit].

Select where to preset.

■ [Delete all]

To delete all preset numbers, touch [Delete all] and then touch [OK] on the confirmation

screen.

Select how to preset.

■ [Delete]

To delete the preset number, touch [Delete] and then touch [OK] on the confirmation screen.

Ñ Phonebook transfer

You can transfer the phonebook in your Bluetooth smartphone via PBAP.

Touch [ ].

 The phonebook data transmission starts.

Phonebook deletion

Touch [ ].

Touch the name to check.

■ [Add number from phonebook]

Select the number to preset by referring to “Call using the phonebook”. See Call using the phonebook (P.53).

■ [Add number direct]

Enter the telephone number directly and touch [SET]. See Call by entering a phone number (P.52).

■ [þ All]

Checks all boxes.

■ [¨ All]

Erases all check marks.

Touch [Delete].

 Confirmation message appears.

Touch [OK].

55English

Page 56

Bluetooth Control

Hands-Free Setup

You can perform various setup about handsfree function.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Bluetooth].

 Bluetooth SETUP screen appears.

Touch [TEL SETUP].

 TEL SETUP screen appears.

Set each item as follows.

■ [Auto Response]*

Sets an automatic response time to pick-up an incoming call.

[OFF ](Default): Automatic response is not

available.

[1]/ [5]/ [10]/ [15]/ [20]/ [25]/ [30]: Set calling

ring time (second).

■ [Auto Pairing]

When set to “ON”, the Apple Auto Pairing function is turned on to automatically register the iPod touch or iPhone connected to this unit.

[ON ](Default): Uses Apple Auto Pairing

function.

[OFF]: Not uses Apple Auto Pairing function.

■ [Sort Order]

Sets how to arrange the cell-phone phonebook.

[First]: Arranges in the order of first name. [Last ](Default): Arranges in the order of last

name.

■ [Echo Cancel Level]

Adjusts the level of echo cancellation. Default is “0”.

■ [Noise Reduction Level]

Reduces the noises generated by surrounding environment without changing the microphone volume. Use this setting when the voice of caller is not clear. Default is “0”.

■ [Bluetooth HF/Audio]

Select the speakers to output the sound from cell-phone (such as phone call voice and ringing tone) and Bluetooth audio player.

[Front]: Outputs from the front speakers. [All ](Default): Outputs from all speakers.

* Either the time interval for automatic

answer set on this unit or the time interval set on the cell-phone, whichever is shorter takes effect.

Touch [OK].



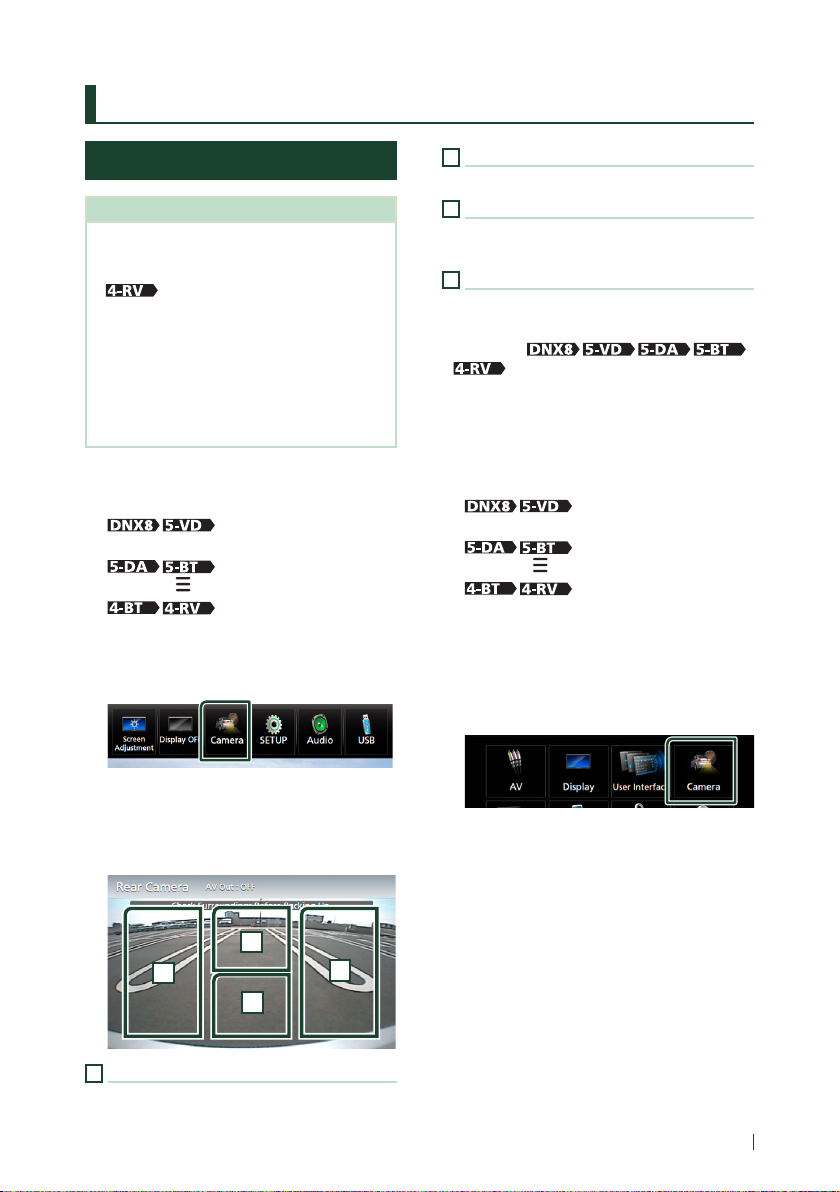

Page 57

Other External Components

View Camera

NOTE

• To connect a camera, see P. 84.

• To use a rear view camera, a REVERSE lead connection is required. (P. 83)

•

• The view of the front view camera or dashboard

• If [Rear Camera Interruption] is set to on, the

: To output the sound of the Rear Camera microphone, set the [AV-IN Interface] to [Rear Camera]. (P. 66)

camera varies depending on the setting of [Dashboard Camera /Front Camera].

camera screen is displayed when you shift the gear to the reverse (R) position.

• *1

• *2

Front Camera], [Rear Camera] is set to [CMOS 3-Series Camera].

Other External Components

Camera off

Touch to exit the camera screen.

Switching the Guideline *

Touching each time turns on or off the guideline.

Switching the Angle *

Touching each time changes camera angles:

Only for

Available when [Dashboard Camera /

Ñ Display the camera screen

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Camera].

 View camera screen appears.

Adjust each item as follows.

To erase the caution message, touch the screen.

Switching the View Camera

Touch to change the front view camera* dashboard camera*1 and rear view camera.

Ñ Camera Setup

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Camera].

 Camera screen appears.

Set each item as follows.

■ [Rear Camera] *

[CMOS 3-Series Camera]: Select this when

the CMOS-3xx series with ID 1 ("Rear Camera") set is connected. ([Rear Camera

Interruption] turns on.)

[Other ](Default): Select this when the other

camera is connected.

■ [Rear Camera Interruption]

[ON]: Displays the picture from the rear view

camera when you shift the gear to the reverse (R) position.

[OFF ](Default): Select this when no camera is

connected.

57English

Page 58

Other External Components

■ [Rear Camera for Car interface]

[ON]: Select when you connected an external

system unit. Neither buttons nor titles are displayed.

[OFF ](Default): Select when you connected a

rear camera.

■ [Rear Camera Settings] *

If you select [CMOS 3-Series Camera] for [Rear Camera], adjusts the CMOS-3xx series

with ID 1 ("Rear Camera") set. For details, see the instruction manual of your camera.

■ [Parking Guidelines]

You can display parking guidelines to enable easier parking when you shift the gear to the reverse (R) position.

Default is “ON”.

■ [Guidelines SETUP]

If you select [ON] for [Parking Guidelines], adjust the parking guidelines. See To adjust the parking guidelines (P.58).

■ [Dashboard Camera /Front Camera] *

[Dashboard Camera]: Select this when the

dashboard camera is connected.

[CMOS 3-Series Camera]: Select this when

the CMOS-3xx series with ID 2 ("Front Camera") set is connected.

[Other]: Select this when the other camera is

connected.

[OFF ](Default): Select this when no camera is

connected.

■ [Front Camera Settings] *

If you select [CMOS 3-Series Camera] for [Dashboard Camera /Front Camera],

adjusts the CMOS-3xx series with ID 2 ("Front Camera") set. For details, see the instruction manual of your camera.

■ [Front Camera Mirror Image] *

If you select [Other] for [Dashboard Camera /Front Camera].

[ON]: Displays the picture from the front view

camera horizontally reversed.

[OFF ](Default): Displays the picture from the

front view camera as it is.

To adjust the parking guidelines

NOTE

• Install the rear view camera in the appropriate position according to the instructions supplied with the rear view camera.

• When adjusting the parking guidelines, make sure to use the parking brake to prevent the car from moving.

Touch [ON] of [Parking Guidelines] in the

Camera screen. (P. 57)

Touch [Guidelines SETUP] in the Camera

screen.

Adjust the parking guidelines by

selecting the

Adjusting the position of the selected

mark.

Make sure that A and B are horizontally parallel, and that C and D are the same length.

NOTE

• Touch [Initialise] and after touch [Ye s] to set all

marks to the initial default position.

the

mark.

Only for

• *1 .

Page 59

Other External Components

Use Dashboard Camera ( )

A Dashboard Camera, DRV-N520 (optional accessory), connected to this unit lets you play video-recorded data and so on.

For details, see the instruction manual of the Dashboard Camera DRV-N520 (optional accessory).

NOTE

• To connect a dashboard camera, see P.86.

• Sets the dashboard camera/front camera as [Dashboard Camera]. (P. 58)

Ñ Display the dashboard camera

screen

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Camera].

External audio/video players— AV-IN

Connect an external component to the

AV-IN input terminal. ( P.84)

Select [AV-IN] as the source. ( P.17)

Turn on the connected component and

start playing the source.

HDMI source

Connect your smartphone to the HDMI

input terminal. (P. 84)

Use HDMI cable KCA-HD100 (optional accessory).

Select [HDMI] as the source. (P. 17)

Start an application or playback on your

smartphone.

Switching the View Camera

Touch to change the dashboard view camera and rear view camera.

Camera off

Touch to exit the camera screen.

Key display

Touch to display the dashboard camera control buttons.

59English

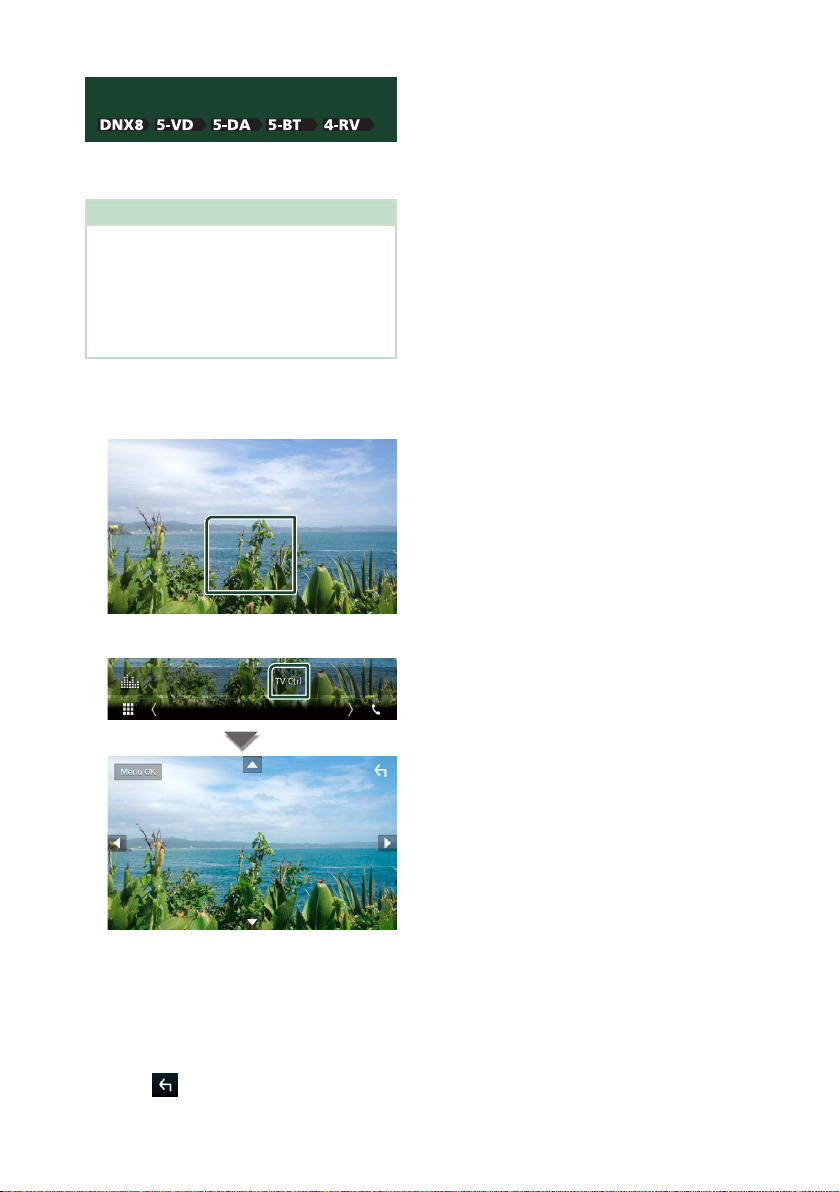

Page 60

Other External Components

TV tuner ( )

You can connect the TV tuner (commercially available) with this unit and watch TV.

Preparation

• When you use TV control function, connect the TV tuner (commercially available) and set 3rd Party TV Tuner Control in AV Setup (P.66) to ON.

• The TV tuner can be controlled with its supplied remote control through the remote sensor on the front panel of this unit.

Select [AV-IN] as the source. ( P.17)

Touch Key display area.

Touch [TV Ctrl].

■ Displays the menu/ Enters selected

item

Touch [MENU/OK].

■ Moves the cursor

Touch [R], [S], [C], [D].

■ Exits menu control

Touch [

Page 61

Setting Up

Monitor Screen Setup

You can adjust image quality in video, menu screen, etc.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Screen Adjustment].

 Screen Control screen appears.

Adjust each item as follows.

NOTE

• Adjusting items are different depending on the current source.

System Setup

NOTE

• Each operation in this section can be started from the multi function menu.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

■ [Backlight] / [Contrast] / [Black] /

[Brightness] / [Colour] / [Tint]

Adjusts each item.

■ [Aspect]

Select screen mode. [Full]: Changes the aspect ratio of video and

displays fully on the screen.

[Normal]: Displays with 4:3 ratio. [Auto]:

DVD, VCD and disc media: Video of 16:9 ratio is displayed in Full and video of 4:3 ratio is displayed in Regular. USB device and SD card: Displays video fully on vertical or horizontal with no ratio change.

See the following section for each setting.

• Set up AV (P. 66)

• Set up display (P.64)

• Set up the user interface ( P.62)

• Set up camera (P.57)

• Set up special (P.63)

• Set up Bluetooth (P.48)

• Set up security ( P.12)

• Set up navigation (P. 23)

61English

Page 62

Setting Up

User Interface Setup

You can setup user interface parameters.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [User Interface].

 User Interface screen appears.

Set each item as follows.

■ [Steering Remote Controller]

Sets the desired function in the steering remote controller. (Contact your KENWOOD dealer for details.)

■ [Beep]

Turns the key touch tone on or off. Default is “ON”.

■ [Vehicle Adaptor Information]*

(Except

Displays the vehicle information. This function requires a commercial adaptor.

Consult your KENWOOD dealer for details.

■ [Beep for Parking distance control]*

(Except )

Sets whether to generate a warning tone when the onboard proximity sensor detects a human or object.

Consult your KENWOOD dealer for details.

■ [Parking Distance Display]*

(Except )

You can display information about obstacles around the car.

[ON]: Always displays information. [Dyn.] (Default): Displays information when

the sensor detects obstacles.

[OFF]: Cancels. This function requires a commercial adaptor.

Consult your KENWOOD dealer for details.

)

■ [Parking Distance Position]*

(Except )

Select where information about obstacles is displayed on the screen (left or right).

“Left”/ “Right” (Default) This function requires a commercial adaptor.

Consult your KENWOOD dealer for details.

■ [Language Select Mode]

Selects the mode to select a language.

[Easy] (Default): Selects a language easily. [Advanced]: Allows you to select languages

for respective items.*

■ [Language Select]

Selects a language.

■ [Touch Panel Adjust] (Except

Adjust the sensing position of touch panel.

(P. 63)

■ [Clock]

[NAV-SYNC ](Default): Synchronizes the clock

time with navigation GPS data.

[Manual]: Sets the clock manually

■ [Time Zone]

If you have selected [Manual] for Clock, select the time zone.

■ [Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually. (P. 63)

• *1 This setting is available when a commercial adaptor is connected.

)

*2 If you select [Advanced] for Language

Select Mode, the following screen

appears.

■ [GUI Language Select]

Selects the display language used for the control screen and so forth.

■ [Navigation Language Select]

Selects the language used for navigation.

Page 63

Setting Up

Ñ Adjust the date and time

manually.

Touch [Clock] in the User Interface screen.

Select [Manual].

Touch [Time Zone] in the User Interface

screen.

Select the time zone.

Touch [Clock Adjust] in the User Interface

screen.

Adjust the date, then adjust the time.

Touch [Set].

Ñ Touch panel adjustment

(Except )

Touch [Touch Panel Adjust] on the User

Interface screen.

 Touch Panel Adjust screen appears.

Follow the instruction on the screen and

long touch the center of each [ ].

NOTE

• To cancel the touch panel adjustment, touch [Cancel].

• To reset to the initial status, touch [Reset].

Special Setup

You can setup Special parameters.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [Special].

 Special screen appears.

Set each item as follows.

■ [DEMO]

Set the demonstration mode. Default is “ON”.

■ [SETUP Memory]

Locks or unlocks the Audio SETUP Memory/ Recall/Clear.

■ [Audio SETUP Memory]

Memorizes the current audio setting.

• Fader/ Balance, Speaker / X’over, Equalizer (User Preset, SW Level), Position/DTA, Sound Effect (P.67)

■ [Audio SETUP Recall]

Recalls the memorized audio setting.

■ [Audio SETUP Clear]

Clears the AUDIO SETUP Memory and the currently memorized audio setting.

■ [Software Information]

Check the software version of this unit.

(P. 64)

■ [Open Source Licenses]

Displays the open source licenses.

■ [Initialise]

Touch [Initialise] and then touch [Yes ] to set all the settings to the initial default settings.

• Audio SETUP Memory is not initialized.

63English

Page 64

Setting Up

Ñ Software Information

Check the software version of this unit.

Touch [Software Information] in the

Special screen.

Confirm the software version.

NOTE

• For how to update the software, see the relevant update procedure manual which comes with the software.

Display Setup

Press the [MENU] button.

Press the [

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [Display].

 Display screen appears.

Set each item as follows.

■ [Dimmer]

Select dimmer mode.

[OFF]: The display and buttons do not dim. [ON]: The display and buttons dim. [SYNC ](Default): Turns the dimmer function

on or off when the vehicle light control switch is turned on or off.

[NAV-SYNC]: Turns the dimmer function on

or off according to the Navigation Day/ Night display setting.

■ [OSD Clock]

Select if you want to display the clock while watching DVD video, etc.

"ON" (Default)/ "OFF"

■ [Key Colour]

You can set the button illumination color.

(P. 65)

■ [Wallpaper Customize]

Changing wallpaper image or color. (P. 65)

■ [Viewing Angle]

If it is hard to see the image on the screen even, adjust the viewing angle. The smaller the (negative) value, the more whitish the image on the screen looks.

"0" (Default)/ "-1"/ "-2"/ "-3"

] button.

Page 65

Setting Up

Ñ Customizing the key color

You can set the button illumination color.

Touch [Key Colour] in the Display screen.

Touch the desired color.

■ [User]

The color you have set in the process of [Adjust] is registered.

■ [Scan]

You can set the key color to continuously scan through the color spectrum.

Touch [ ].

To register original color

You can register your original color.

Touch [User] in the Key Color screen.

Touch [Adjust].

Use [−] and [+] to adjust each color value.

Ñ Change wallpaper image or

color

Touch [Wallpaper Customize] in the

Display screen.

Select an image.

*1 Select a wallpaper color in advance.

Select an original image in advance.

To select wallpaper color

Touch [Wallpaper Colour] in the

Wallpaper Customize screen.

Select a wallpaper color.

Touch [ ].

*1 The color you have selected at [Key Colour] is added on the image. If you select

“Scan” at [Key Colour], you cannot select this image.

Touch [ ].

To register original image

You can load an image from the connected USB device and set it for the wallpaper image.

Before operating this procedure, it is necessary to connect the device which has the image to load.

Touch [User1 Select] or [User2 Select] in

the Wallpaper Customize screen.

65English

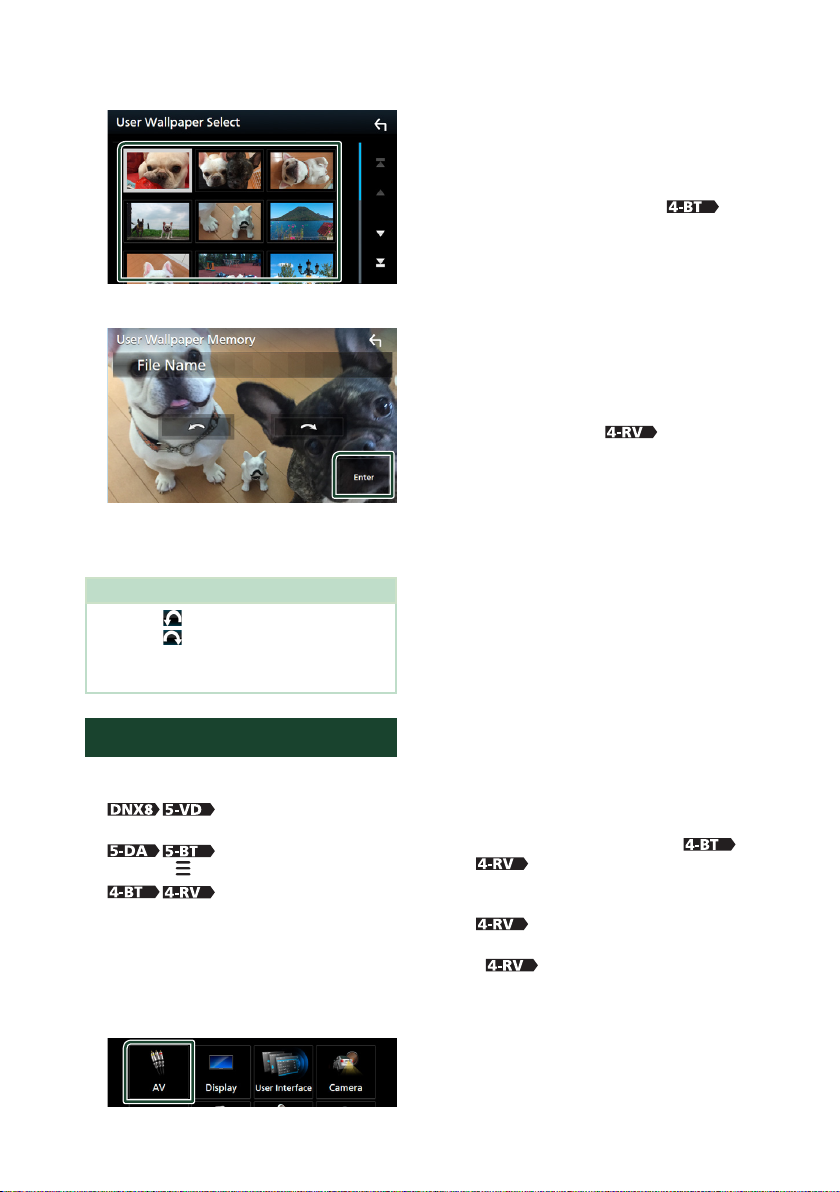

Page 66

Setting Up

Select the image to load.

Touch [Enter].

 The selected image is loaded and

the display returns to the Wallpaper Customize screen.

NOTE

• Touching [ ] rotates counter clockwise.

• Touching [

• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP (.bmp)

] rotates clockwise.

AV Setup

You can set AV parameters.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [AV].

Set each item as follows.

■ [iPod Bluetooth Connection]

See Select the method of making connections for outputting sound from the iPod source. (P.37).

■ [TV Tuner Control] (except

Sets when connecting the TV tuner to AV INPUT.

[ON]: Set to ON when connecting the 3rd

party TV tuner. AV-IN Name is set to TV. If you connect the TV tuner made by DOS and watch TV, you can perform some simple operations by touching the screen of this unit.

[OFF] (Default): Set to OFF when not

connecting the 3rd party TV tuner.

■ [AV-IN Interface] (

Set up the input device of the AV-IN terminal. [AV-IN] (Default): Select when AV device is

connected. Use as a AV-IN source.

[Rear Camera]: Select when the audio of

rear view camera is connected. Use as a rear view camera.

• Cannot be selected when using the AV-IN source. Switch the source selection.

■ [AV-OUT]

You can select an AV source to be output from the AV OUTPUT port.

OFF, AV-IN, DISC, USB, SD, iPod, or Navigation*

• You cannot select iPod if it is connected via Bluetooth.

• If you select USB, SD, iPod, Disc, Spotify or Bluetooth audio as the main source, you cannot select USB, SD or iPod as the AV output source.

• If you select Mirroring ( WebLink), Apple CarPlay or Android Auto (except

) as the main source, you cannot select DISC (Music CD/ Disc media), USB, SD or iPod as the AV output source.

•

• *

Select the driving position (left or right). “Left” (Default)/ “Right”

: AV-IN can be selected if the [AV- IN Interface] is set to [AV-IN].

only

■ [Driving Position]

)

 AV screen appears.

Page 67

Controlling Audio

NOTICE

• Each operation in this section can be started from the multi function menu.

You can adjust the various settings such as audio balance or subwoofer level.

Press the [MENU] button.

Press the [

Press the volume knob.

 Popup menu appears.

Touch [Audio].

See the following section for each setting.

• Set up speaker/ X’over ( P.68)

• Controlling equalizer (P. 70)

• Set listening position/ DTA ( P.73)

• Controlling general audio (Fader / Balance) (P. 70)

• Set volume offset (P. 71)

• Performing zone control (P. 72)

• Set sound effect (P.72)

] button.

3 way speaker system setup (Except )

Select the appropriate crossover network mode according to the speaker system (2-way speaker system or 3-way speaker system).

3 4

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 HOME screen appears.

Touch [ ].

 Source selection screen appears.

Touch [STANDBY].

Press the [G] (1) button and the [S] (2) button for 1 second at the same time.

Press the [G] (1) button and the [NAV] (2) button for 1 second at the same time.

Press the [S] (1) button and the [ button for 1 second at the same time.

 Speaker system select screen appears.

Select the crossover network mode.

] (2)

 A confirmation screen appears.

67English

Page 68

Controlling Audio

Touch [Yes ].

NOTE

• When the 3-way speaker system is selected, the following functions are disabled.

– Zone Control – Fader of Controlling General Audio – Front focus of Listening Position/ DTA – Select the speakers to output the sound from

cell-phone of Blutooth HF/Audio

– Beep of User Interface Setup

• Connecting 3-way speakers with the 2-way mode selected can break the speakers.

Speaker/ X’over setup

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Speaker/Xʼover].

Touch [Speaker].

Touch the speaker (1) you wish to adjust

and set each item (2) as follows.

■ [Speaker] (Except

You can select a speaker type and its size to get the best sound effects.

When the speaker type and size are set, the speaker crossover network is set automatically.

■ [Location] (Only for Front, Rear)

Select the speaker position you have fixed.

■ [Tweeter] (Only for Front)

(Except

You can set the tweeter when you are selecting front speakers.

None, Small, Medium, Large

■ [Xʼover ](Except

Displays the speaker crossover setup screen. You can adjust the crossover setup that was

set automatically when you selected the speaker type.

For details, see Crossover network setup

(P. 69)

)

Select a car type.

You can setup the car type and speaker network, etc.

If your car type is selected, the Delay Time Alignment is set automatically (for timing adjustment of sound output for each channel) to have the highest surround effects.

When Speaker network is set to 3 way (Except ):

NOTE

• For how to switch to the 3-way speaker system, see 3 way speaker system setup (P.67). Connecting 3-way speakers with the 2-way mode selected can break the speakers.

• Select “None” if you have no speakers.

Page 69

Ñ Crossover network setup

(Except )

You can set a crossover frequency of speakers.

Touch [Xʼover].

Touch the speaker to set.

Controlling Audio

Only when “Subwoofer” is set to a mode

other than “None” in [Speaker Setup].

When Speaker network is set to 3 way:

Set each item as follows.

■ [HPF FREQ]

High Pass Filter adjustment. (When front or rear speaker is selected on Speaker Select screen)

■ [LPF FREQ]

Low Pass Filter adjustment. (When subwoofer is selected on Speaker Select screen)

■ [Slope]*

Sets a crossover slope.

■ [Gain]

Adjusts the front speaker, rear speaker, or subwoofer level.

■ [TW Gain] *

Adjusts the tweeter level. (When front is selected on Speaker Select screen)

■ [Phase Inversion]*

Sets the phase of subwoofer output. Check [Phase Inversion] to shift the phase

180 degrees. (When subwoofer is selected on Speaker Select screen)

■ [FREQ] (High Pass)

High Pass Filter adjustment. (When tweeter is selected on Speaker Select screen)

■ [HPF FREQ], [LPF FREQ] (Band Pass)

Band Pass Filter adjustment. (When mid range speaker is selected on Speaker Select screen)

■ [FREQ] (Low Pass)

Low Pass Filter adjustment. (When woofer is selected on Speaker Select screen)

■ [Slope]*

Sets a crossover slope.

■ [Gain]

Sets gain of each speaker.

■ [Phase Inversion]*

Sets the phase of tweeter, mid range, and woofer output.

Check [Phase Inversion] to shift the phase 180 degrees.

Only when “LPF FREQ”/“HPF FREQ” is set to

a mode other than “Through” in [Xʼover].

Only when “Subwoofer” is set to a mode

other than “None” in [Speaker Setup].

NOTE

• For how to switch to the 3-way speaker system, see 3 way speaker system setup (P.67). Connecting 3-way speakers with the 2-way mode selected can break the speakers.

Only when “LPF FREQ”/“HPF FREQ” is set to

a mode other than “Through” in [Xʼover].

Only when “Tweeter” is set to “Small”,

“Medium”, “Large” in [Speaker Setup].

69English

Page 70

Controlling Audio

Controlling General Audio

Press the [MENU] button.

Press the [

Press the volume knob.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Fader / Balance].

Set each item as follows.

] button.

Equalizer Control

You can adjust equalizer by selecting the optimized setting for each category.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Equalizer].

Touch the screen and set the Graphic Equalizer as desired.

■ [Fader / Balance]

Adjust the volume balance around the touched area.

[C] and [D] adjust the right and left volume balance.

[R] and [S] adjust the front and rear volume balance.

■ [Center]

Clear the adjustment.

■ Gain level (dotted frame area)

Adjust the gain level by touching the each frequency bar.

You can select frequency bar and adjust its level by [R], [S].

■ [Preset Select]

Displays the screen to recall the preset equalizer curve.

■ [Memory]

Saves the adjusted equalizer curve from “User1” to “User4”.

■ [Initialise]

The current EQ curve returns to flat.

■ [ALL SRC]

Apply the adjusted equalizer to all sources. Touch [ALL SRC] and then touch [OK] on the confirmation screen.

Page 71

Controlling Audio

■ [Bass EXT] (Bass Extend Settings)

When turned on, the frequency lower than

62.5 Hz is set to the same gain level as 62.5 Hz.

■ [SW Level] (Except

Adjusts the subwoofer volume. This setting is not available when subwoofer is set to “None”. See Speaker/ X’over setup (P.68).

)

Ñ Recall the EQ curve

Touch [Preset Select].

Select EQ curve.

NOTE

• [iPod] is available only during iPod source.

Ñ Save the EQ curve

Volume Offset

Finely adjust the volume of the current source to minimize the difference in volume between different sources.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Volume Offset].

Touch [+] or [−] to adjust the level.

Adjust the EQ curve.

Touch [Memory].

Select where to save.

■ [Initialise]

Returns to the initial settings.

* If you have increased the volume first, then

reduced the volume using the “Volume Offset”, the sound generated if you suddenly switch to another source may be extremely loud.

71English

Page 72

Controlling Audio

Zone Control

You can select different sources for both front and rear positions in the vehicle.

4 5

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Zone Control].

 Zone Control screen appears.

Touch [Zone Select].

Touch [Dual Zone].

Set each source as follows.

NOTE

• When the rear speaker sound is switched, the audio source that is output at the AV OUTPUT terminal is also switched to the same source.

• When the dual zone function is set to on, the following functions are not available.

– Output from the subwoofer – Subwoofer Level/ Bass Boost ( P.72) – Equalizer Control/ Sound Effect/ Listening

Position (P. 70, 72, 73) – Speaker Setup (P. 68) – High-resolution Sound Source File Playback

• You cannot select iPod if it is connected via Bluetooth.

• If you select USB, SD, iPod, Disc, Spotify or Bluetooth audio as the Front Source, you cannot select USB, SD or iPod as the Rear Source.

• If you select Mirroring (WebLink), Apple CarPlay or Android Auto

Front Source, you cannot select DISC (Music CD/ Disc media), USB, SD or iPod as the Rear Source.

• Interface] is set to[ AV-IN]. ( P.66)

• Source is set to Navigation.

(except ) as the

: AV-IN can be selected if the [AV-IN

: [Rear VOL.] cannot be selected if Rear

Sound Effect

You can set sound effects.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Sound Effect].

■ [Zone Select]

Touch [Single Zone] to turn off the dual zone function.

■ [Front Source] [Rear Source]

Select the audio source for each.

■ [Rear VOL.]

Adjusts the rear source volume.

Page 73

Controlling Audio

Set each item as follows.

■ [Bass Boost]

Sets the amount of bass boost among “OFF”/ “1”/ “2”/ “3”.

■ [Loudness]

Sets the amounts of boost of low and high tones.

“OFF”, “Low”, “High”

■ [Drive Equalizer+]

The sound quality is automatically optimized to meet the current car speed by GPS.

“OFF”, “ON”

■ [Space Enhancer]

Select the feeling of sound space enhancement.

“OFF”/ “Small”/ “Medium”/ “Large”. This setting is not available during DAB,

Radio source.

■ [Supreme]

Turns ON/OFF the Supreme function. Technology to extrapolate and supplement

with proprietary algorithm, the highfrequency range that is cut off when encoding.

■ [Realizer]

Virtually makes the sound more realistic using the Digital Signal Processor (DSP) system.

Select the level from “OFF”/ “1”/ “2”/ “3”.

■ [Stage EQ]

You can adjust the height of speakers virtually to suit your listening position.

“OFF”/ “Low”/ “Middle”/ “High”.

Listening Position/ DTA

Listening Position/DTA allows you to improve the sound field depending on the position of the seat you sit.

Listening Position/DTA allows you to set “Listening Position” and “Front Focus”. You cannot set both at the same time.

Press the [MENU] button.

Press the [ ] button.

Press the volume knob.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Position/DTA].

• Set up Listening Position (P. 73)

• Set up Front Focus (P. 74)

Ñ Listening Position

Adjust the sound delay time as nearer speakers to the selected seat have more delay time, so that the sound from each speaker arrive a listener at the same time.

Touch [Listening Position] in the Position/

DTA screen.

Select listening position from [Front R]

(Right front), [Front L] (Left front), [Front All] (All front), and [All].

Position DTA control

You can fine-adjust your listening position.

Touch [Adjust].

Touch [Delay].

73English

Page 74

Controlling Audio

Touch [T] or [U] to adjust the delay time of

the selected speaker.

Touch [Level].

Touch [T] or [U] to adjust the sound level

of the selected speaker.

NOTE

• To return to the initial setting of Delay and Level, touch [Initialise] and [YES] in the confirmation screen.

•

: You cannot set the subwoofer and

tweeter.

Ñ Front Focus

This is the function to focus the imaginary sound image in front of the selected seat.

Touch [Front Focus] in the Position/DTA

screen.

Select a front focus position.

For [Front All] and [All], select Priority L or R depending on which side you want to put the imaginary sound image.

Ñ Front Focus fine adjustment

Touch [Adjust].

Touch [Delay].

Set each item as follows.

■ [Sound Image LR (Front)]

Adjust the sound image to focus on in front of front seats.

■ [Sound Image LR (Rear)]

Adjust the sound image to focus on in front of rear seats.

■ [Size of the Virtual Sound Field]

Adjust the size of sound image to meet your taste. If the sound image is shifted from the front, adjust it by [Sound Image LR (Front)] or [Sound Image LR (Rear)].

■ [Subwoofer Delay] (Except

Adjust the delay time of subwoofer.

Touch [Level].

Touch [T] or [U] to adjust the sound level

of the selected speaker.

NOTE

• To return to the initial setting of Delay and Level, touch [Initialise] and [YES] in the confirmation screen.

•

: You cannot set the subwoofer and

tweeter.

)

Page 75

Remote control

This unit can be operated using the remote control KNA-RCDV331 (optional accessory).

# CAUTION

• Put the remote control in a place where it will not move during braking or other operations. A dangerous situation could result, if the remote control falls down and gets wedged under the pedals while driving.

• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.

• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause the battery to leak fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.

• Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a physician.

Battery Installation

If the remote control operates only over shorter distances or does not operate at all, it is possible that the batteries are depleted.

In such instances, replace the both batteries with new ones.

Insert two “AAA”/“R03”-size batteries

with the and poles aligned properly, following the illustration inside the case.

Functions of the Remote control Buttons

Ñ Switch the operation mode

The functions operated from the remote control differ depending on the position of the mode switch.

AUD

•

DVD

•

T V

•

NAV

■ AUD mode

Switch to this mode when controlling a selected source or tuner source, etc.

■ DVD mode

Switch to this mode when playing a disc media including DVD, VCD, and CD.

■ NAV mode

Switch to this mode when controlling navigation function.

■ TV mode

Not used.

NOTE

• When controlling a player that is not integrated in the unit, select “AUD” mode.

75English

Page 76

Remote control

Ñ Direct search mode

Using the remote control, you can jump directly to the desired file, track chapter, etc. with entering the number corresponding to the content.

NOTE

• This operation cannot be performed for USB device and iPod.

Press the [#BS] button several times until

the desired content appears.

The available contents are different depending on the source.

■ DVD

Title number/Chapter number

■ VCD 1.X and 2.X (PBC OFF)

Track number

■ VCD 2.X (PBC ON)

Scene number/Track number

■ Music CD

Track number

■ Radio

Frequency value

Enter the number of the content you want

to play using the numeric keypad.

For DVD or VCD, music CD, press the

[ENTER] button.

For radio, press the [C] or [D] button.

 The content you entered is played.

Ñ Basic operations

Key

Name

SRC AUD, DVD Switches to the source to be played.

NAV − Switches the screen between the navigation, the current source and the App

MENU DVD Stops playing and memorizes the last point where the disc stopped. The last point

OUT, IN NAV Zooms in or out the navigation map.

POSITION AUD, DVD Pauses the track or file, and resumes playing by pressing twice.

Cursor Key DVD Moves the cursor in the DVD menu.

ENTER − Performs the selected function.

Mode

switch

In hands-free mode, hangs up the phone.

screen from the connected iPhone/Android.

is deleted by pressing twice.

NAV Displays Main menu.

During radio source in AUD mode, switches the seek mode.

NAV Displays the current position.

NAV Moves the cursor or scrolls the map.

Function

Page 77

Remote control

Key

Name

ROUTE M AUD Screen mode changes each time you press this key during video playback.

VOICE AUD Displays the control screen of current source. (USB, SD, iPod, DISC)

VIEW AUD, DVD Switches the AV source to be output.

MAP DIR AUD, DVD Switches the display angle each time it is pressed.

R/S

C/D

Numeric

Keypad

* + DVD During DVD/VCD source, deletes a character while in direct search mode.

# BS AUD, DVD Switches to the direct search mode.

AUDIO DVD Switches the voice language each time you press this key.

CANCEL DVD Displays previous screen.

SUBTITLE DVD Switches the subtitle language.

19 20

ANGLE DVD Switches the picture angle each time you press this key.

Vol RS

ZOOM DVD Switches the zoom ratio (2, 3, 4, Off) each time you press this key.

2 ZONE AUD, DVD Switches the Dual Zone function on and off.

R.VOL − Adjusts volume at rear when the Dual Zone function is on.

AT T − Lowers the volume by pressing the key once.

Mode

Function

switch

DVD Returns to the DVD top menu.

NAV Displays Route Option menu.

DVD Displays the DVD menu.

NAV Speaks the voice guidance.

NAV Switches between 2D and 3D map displays.

NAV Switches between the heading up navigation and north up navigation map

AUD, DVD Selects the folder to be played.

AUD, DVD Selects the track or file to be played.

AUD Specifies the number to search in direct search.

DVD

NAV Cancels the operations.

− When a call comes in, answers the call.

− Adjusts the volume.

Turns the playback control on or off while playing VCD.

displays.

During radio source in AUD mode, select FM/ AM band to be received. During DVD/VCD source in DVD mode, selects the title to be played.

During radio source in AUD mode, switches to broadcast stations received by the unit. During DVD/VCD source in DVD mode, selects the chapter/scene/track to be played.

For details on the direct search mode, see Direct search mode (P.76).

• Press [1] [2] to fast forward/backward.

• Press [4] [5] to slow forward/backward. Switches the slow playback speed each time you press this key.*

*DVD only

For details on the direct search mode, see Direct search mode (P.76).

Restores the previous volume by pressing the key twice.

77English

Page 78

Connection/Installation

Before Installation

Before installation of this unit, please note the following precautions.

# WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

# CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.

• If the power is not turned ON (“ There is an error in the speaker wiring. Please check the connections.” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the

ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the ¤ wires or ground them to any metal part in the car.

• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ¢ connector of the left speaker to a front output terminal, do not connect the ¤ connector to a rear output terminal.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Mount the unit so that the mounting angle is 30° or less.

• This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit is blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.

Cooling fan

Page 79

Connection/Installation

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• Reception may drop if there are metal objects near the Bluetooth antenna.

Bluetooth antenna unit

Ñ Supplied accessories for

installation

1 6

x1 x1

(Black 1 m)

x1 x1

[1]

(Gray 1 m)

x1 x1

[2]

[4]

(3.5 m)

/ (5 m)

[3]

Ñ Installation procedure

1) To prevent a short circuit, remove the key

from the ignition and disconnect the ¤ terminal of the battery.

2) Make the proper input and output wire connections for each unit.

3) Connect the wire on the wiring harness.

4) Take Connector B on the wiring harness and connect it to the speaker connector in your vehicle.

5) Take Connector A on the wiring harness and connect it to the external power connector on your vehicle.

6) Connect the wiring harness connector to the unit.

7) Install the unit in your car.

8) Reconnect the ¤ terminal of the battery.

9) Perform the Initial Setup. See Initial setup (P.12).

[5]

x1 x1

[1]

only

[2]

only

[3]

only

[4]

only

[5]

only

(3 m)

[2]

79English

Page 80

Connection/Installation

Installing the unit

Except

Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

Screws (included in genuine audio unit)

Ñ Trim plate

1) Attach accessory 6 to the unit.

Ñ GPS antenna

GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals.

To mount the GPS antenna inside your vehicle:

1) Clean your dashboard or other surface.

2) Remove the separator of the metal plate (accessory 8).

3) Press the metal plate (accessory 8) down firmly on your dashboard or other mounting surface. You can bend the metal plate (accessory 8) to conform to a curved surface, if necessary.

4) Remove the separator of the GPS antenna (accessory 7), and stick the antenna to the metal plate (accessory 8).

NOTE

• Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.

• Please install this GPS antenna in an area away from any antennas that are used with CB radios or satellite televisions.

• The GPS antenna should be installed at a position that is spaced at least 12 inch (30 cm) from cellular phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.

• Painting the GPS antenna with (metallic) paint may cause a drop in performance.

A : Wide

B : Narrow

Page 81

Connection/Installation

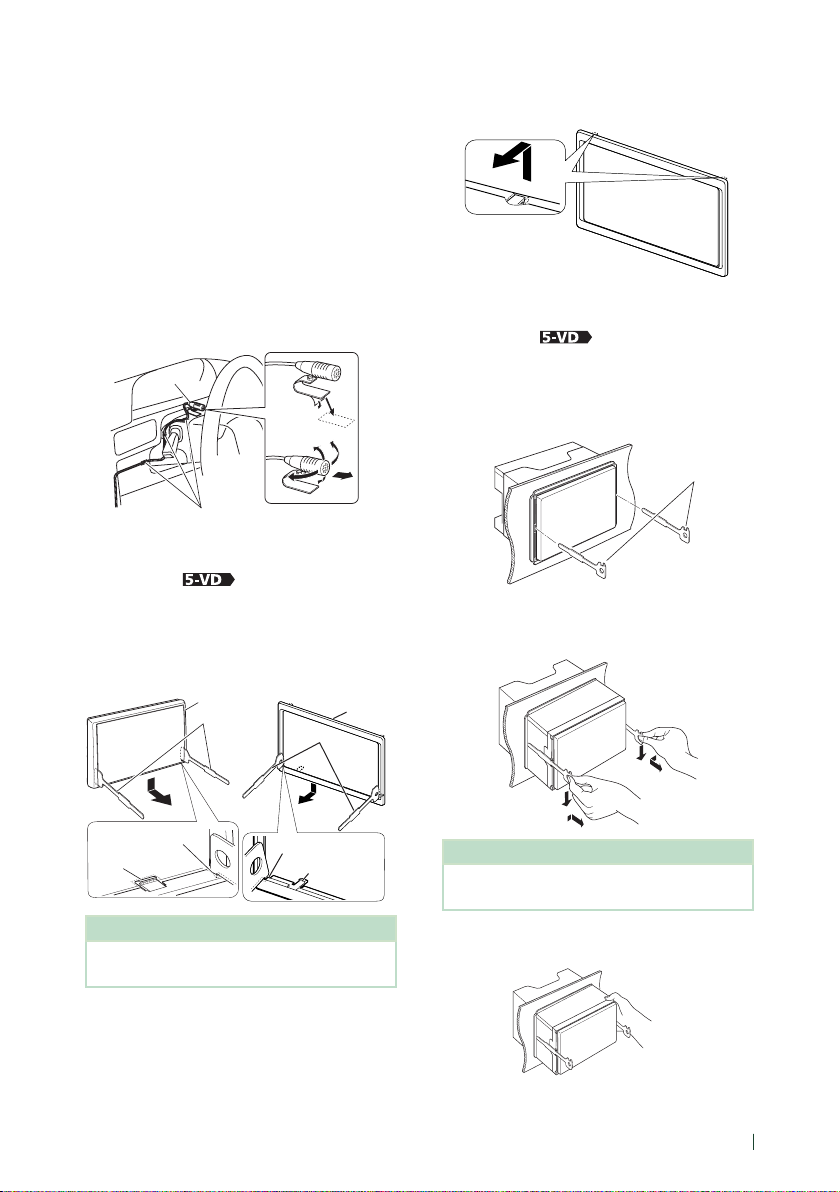

Ñ Microphone unit

1) Check the installation position of the

microphone (accessory 4).

2) Clean the installation surface.

3) Remove the separator of the microphone

(accessory 4), and stick the microphone to the place shown below.

4) Wire the microphone cable up to the unit with it secured at several positions using tape or other desired method.

5) Adjust the direction of the microphone (accessory 4) to the driver.

Fix a cable with a commercial item of tape.

Ñ Removing the trim plate

(Except )

1) Engage the catch pins on the extraction key (accessory 5) and remove the two locks on the lower level. Lower the trim plate (accessory 6) and pull it forward as shown in the figure.

6 5

2) When the lower level is removed, remove the upper two locations.

Ñ Removing the unit

(Except )

1) Remove the trim plate by referring to step 1 in "Removing the trim plate".

2) Insert the two extraction key (accessory 5) deeply into the slots on each side, as shown.

3) Lower the extraction key toward the bottom, and pull out the unit halfway while pressing towards the inside.

Catch

Lock

NOTE

• The trim plate can be removed from the top side in the same manner.

Catch

Lock

NOTE

• Be careful to avoid injury from the catch pins on the extraction key.

4) Pull the unit all the way out with your hands, being careful not to drop it.

81English

Page 82

Connection/Installation

Ñ 3 way speaker system setup

(Except )

NOTE

• For speaker system setup, see 3 way speaker system setup (P.67).

• For speaker setup and crossover setup, see Speaker/ X’over setup (P.68).

• For how to connect speaker wires to terminals other than speaker terminals and Preout terminals, see Connecting the system and

external components (P.84) and Connecting wires to terminals (P.83).

Subwoofer Preout

Mid Range Preout

Tweeter Preout

When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit.

Preout RCA Cable (Sold separately)

Power amplifier (optional accessory)

Input

White

White/Black

Gray

Gray/Black

Green

Green/Black

Purple

Purple/Black

Speaker impedance: 4-8 Ω

Speaker

To mid range left speaker

To mid range right speaker

To tweeter left speaker

To tweeter right speaker

Ñ Wiring harness (Accessory 1)

connector function guide

Pin Color and function

A-4 Yellow Battery

A-5 Blue/White

A-6 Orange/White Dimmer

A-7 Red Ignition (ACC)

A-8 Black Earth (Ground) Connection

B-1/ B-2 Purple (+) / Purple/Black (–) Rear Right

B-3/ B-4 Gray (+) / Gray/Black (–) Front Right

B-5/ B-6 White (+) / White/Black (–) Front Left

B-7/ B-8 Green (+) / Green/Black (–) Rear Left

*Speaker Impedance: 4-8 Ω [1] [2]: Blue/White wire is provided two wires, [1] and [2].

Blue/White wire total output ([1] + [2]): 12 V = 350 mA

#WARNING for Connecting the ISO Connector

The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. The default connection for the wiring harness is described in (1) below. If the ISO connector pins are set as described in (2), make the connection as illustrated. Please be sure to reconnect the cable as shown (2) below to install this unit to the Volkswagen vehicles etc.

(1): Default setting

The red (A-7 pin) of the vehicle’s ISO connector is linked with the ignition, and the yellow (A-4 pin) is connected to the constant power supply.

Red (Ignition cable)

Yellow (Battery cable) Yellow (A-4 pin)

(2)

The red (A-7 pin) of the vehicle’s ISO connector is connected to the constant power supply, and the yellow (A-4 pin) is linked to the ignition.

Red (Ignition cable)

Yellow (Battery cable) Yellow (A-4 pin)

[2]

Power Control

Red (A-7 pin)

Unit Vehicle

Red (A-7 pin)

Unit Vehicle

Page 83

Ñ Connecting wires to terminals

Fuse (15A)

A: Black (Ground wire) B: Yellow (Battery wire) C: Red (Ignition wire)

A B C

Connection/Installation

Connector A

Accessory 1

Light Blue/Yellow (Steering remote control wire)

REMOTE CONT

[1]

Blue/White (Power control/ Antenna control wire)

Brown (Mute control wire)

Green/White

Green/Red

Purple/White (Reverse sensor wire) (2 m)

P. CONT

STEERING WHEEL

REMOTE INPUT

ANT CONT

MUTE

CAM–

CAM+

REVERSE

1234567

Connector B

If no connections are made, do not let the cable come out from the tab.

To steering remote To use the steering wheel remote control feature, you need an exclusive remote adapter (not supplied) matched to your car.

Connect either to the power control terminal when using the optional power amplifier, or to the power terminal for the booster amplifier of the film-type or short pole type antenna.

Connect to the terminal that is grounded when either the telephone rings or during conversation.

To CMOS-3xx series (Optional Accessory) camera control terminal (

only)

Connect to vehicle’s reverse lamp harness when using the optional rear view camera.

Light Green (Parking sensor wire) (2 m)

PRK SW

Connect to the vehicle’s parking brake detection switch harness.

For best safety, be sure to connect the parking sensor.

[1] [2]: Blue/White wire is provided two wires, [1] and [2]. Blue/White wire total output ([1] + [2]): 12 V = 350 mA

83English

Page 84

Connection/Installation

Ñ Connecting the system and

external components

1112

5 6

HDMI input

When you connect the cable to HDMI terminal, remove the fixture. After connecting the cable, put the fixture again.

Fixture

HDMI connector

DAB antenna CX-DAB1 (Optional accessory)

( only)

Use of a CX-DAB1(optional accessory) as a DAB antenna is recommended. When using a commercially available DAB antenna, the diameter of the SMB connector must be Φ6.5 mm or less.

Φ 6.5 mm (maximum)

AV Audio output (ø3.5 mini jack)

FM/AM antenna input

When connecting to an external amplifier,

connect its ground wire to the car’s chassis to avoid damaging the unit. ( only)

Rear Audio Preout (Left; White, Right; Red)

Front Audio Preout (Left; White, Right; Red)

78910

External I/F

( only) Maximum power supply current : 12 V = 500 mA

TV tuner remote output

( only)

AV-IN (CA-C3AV; Optional Accessory) input

input (CA-C3AV: Optional Accessory) (Rear Camera/ AV-IN switchable)

Dashboard camera interface

Connect a Dashboard Camera DRV-N520 (optional accessory). ( P.86) ( only)

Accessory 7: GPS Antenna

Accessory 4: Bluetooth Microphone

Connect to vehicle’s steering remote harness.

Contact your KENWOOD dealer for details.

Rear view camera input (Yellow)

Front view camera/ Dashboard camera input

(Yellow) ( only)

Visual Output (Yellow)

Subwoofer Preout (Left; White, Right; Red)

: Rear View Camera Input (Audio)/ AV-IN

Page 85

Connection/Installation

Ñ Connecting a USB device

Accessory 3 (Gray) (1 m)

Accessory 2 (Black) (1 m)

USB device

[2]

USB (Gray) terminal

[1], [4]

USB (Black) terminal

[1]

USB maximum power supply current :

DC 5 V = 1.5 A

[2]

Sold separately / Use CA-U1EX to extend the

cable if necessary. (Max 500 mA, 5V)

[3]

See Securing the USB extension cable

(P. 85).

[4]

only

[3], [4]

[3]

[1]

Ñ Securing the USB extension

cable

Secure the USB extension cable with insulating tape or the like so that its connectors are not disconnected.

Ñ Connecting an iPod/iPhone

● Lightning connector

KCA-iP103 (0.8m)

KCA-HD100 (1.8 m)

KCA-iP103 (0.8m)

[3]

KCA-iP103 (0.8m)

Accessory 3 (Gray) (1 m)

Accessory 2 (Black) (1 m)

USB (Gray) terminal

USB (Black) terminal

iPhone (with CarPlay/ WebLink)

[3]

Lightning Digital AV

[2]

Adapter

iPod/iPhone

[3]

[4]

[1], [5]

[1]

[2]

[4], [5]

[2]

[1]

USB maximum power supply current :

DC 5 V = 1.5 A

[2]

Sold separately

[3]

Optional accessory

[4]

See Securing the USB extension cable

(P. 85).

[5]

only

85English

Page 86

Connection/Installation

Ñ Connecting an Android

smartphone

(with Android Auto/ WebLink)

Micro USB to USB cable

[2]

Accessory 3 (Gray) (1 m)

Accessory 2 (Black) (1 m)

USB (Gray) terminal

USB (Black) terminal

KCA-HD100 (1.8 m)

Android smartphone (with HDMI)

Micro USB to USB cable

[1]

USB maximum power supply current :

DC 5 V = 1.5 A

[2]

Sold separately

[3]

Optional accessory

[4]

See Securing the USB extension cable

(P. 85).

[5]

only

[6]

only

Android smartphone

[4]

[1], [5]

[1]

[3]

[2]

Micro HDMI to HDMI

[2]

adapter

[4], [5]

Ñ Connecting a Dashboard

[2][6]

camera (

Dashboard camera interface

[1]

Optional accessory

Except

DRV-N520

)

[1]

Front view camera/ Dashboard camera input (Yellow)

Ñ Connecting a Rear view camera

( )

• To output the sound of the Rear Camera microphone, set the [AV-IN Interface] to [Rear Camera]. ( P.66)

[2]

Rear view camera with microphone

[1]

Sold separately

[2]

Optional accessory

[1]

Audio Output

Video Output

(Yellow)

Audio Input (Red, White)

CA-C3AV (1.5m)

[2]

Page 87

Troubleshooting

Problems and Solutions

If any trouble occurs, first check the following table for possible problems.

NOTE

• Some functions of this unit may be disabled by some settings made on this unit.

• What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring.

Ñ About settings

• Cannot set up the subwoofer.

• Cannot set up subwoofer phase.

• No output from the subwoofer.

• Cannot set up the low pass filter.

• Cannot set up the high pass filter.

Subwoofer is not set to on.

 Set the subwoofer to on. See Speaker/ X’over

setup (P.68).

The dual zone function is enabled.

 Set the dual zone function to off. See Zone Control

(P. 72).

• Cannot select the output destination of the subsource in the dual zone.

• Cannot adjust the volume of the rear speakers.

The dual zone function is disabled.

 Set the dual zone function to on. See Zone Control

(P. 72).

• Cannot set up the equalizer.

• Cannot set up the crossover network.

The dual zone function is enabled.

 Set the dual zone function to off. See Zone Control

(P. 72).

Ñ About audio operations

Radio reception is poor.

The car antenna is not extended.

 Pull out the antenna all the way.

The antenna control wire is not connected.

 Connect the wire correctly. See Connecting the

system and external components (P.84).

Cannot select a folder.

The random play function is enabled.

 Turn off the random function.

Cannot perform repeat play during VCD playback.

The PBC function is enabled.

 Turn off the PBC function.

The specified disc does not play, but another one plays instead.

The disc is quite dirty.

 Clean the disc. See Precautions on handling discs

(P. 4).

The disc is severely scratched.

 Try another disc instead.

The sound skips when an audio file is being played.

The disc is scratched or dirty.

 Clean the disc. See Precautions on handling discs

(P. 4).

The recording condition is bad.

 Record the file again or use another disc.

Ñ Other

The Touch Sensor Tone doesn’t sound.

The preout jack is being used.

 The Touch Sensor Tone cannot be output from the

preout jack.

Error Messages

When you fail to operate the unit correctly, the cause of the failure appears as the message on the screen.

There is an error in the speaker wiring. Please check the connections.

Protective circuit has been activated because a speaker cord has shorted or it has come in contact with the car chassis.

 Wire or insulate the speaker cord as appropriate and

turn the power off and on again.

Hot Error

When the internal temperature of this unit rises to 60°C or more, the protection circuit is activated and you may not be able to operate the unit.

 Use the unit again after reducing the temperature

of the unit.

Mecha Error

The disc player is malfunctioning.

 Eject the disc and try inserting it again. Contact the

KENWOOD dealer if this indicator continues blinking or the disc cannot be ejected.

Disc Error

An unplayable disc is inserted.

 Change the disc. See Playable Media and Files

(P. 89).

87English

Page 88

Troubleshooting

Read Error

The disc is quite dirty.

 Clean the disc. See Precautions on handling discs

(P. 4).

Disc is upside down.

 Load the disc with the labeled side up.

Region Code Error

The disc you wanted to play has a region code that cannot be played with this unit.

 See Region Codes in the World (P.91) or try

another disc.

Error 07–67

The unit is not operating correctly due to some reason or other.

 Turn the power off and on again. If the “Error 07−67”

message does not disappear, see your nearest KENWOOD dealer.

No Device (USB device)

The USB device is selected as a source although no USB device is connected.

 Change the source to any source other than USB/

iPod. Connect a USB device, and change the source to USB again.

Disconnected (iPod, Bluetooth audio player)

The iPod/Bluetooth audio player is selected as a source although no iPod/Bluetooth audio player is connected.

 Change the source to any source other than iPod/

Bluetooth. Connect an iPod/Bluetooth audio player, and change the source to iPod/Bluetooth again.

No Media file

The connected USB device contains no playable audio file. Media was played that doesn’t have data recorded that the unit can play.

 See Playable Media and Files (P.89) and try

another USB device.

USB device over current status detected.

The connected USB device is rated a current capacity higher than the allowable limit.

 Check the USB device. Some trouble may have

occurred to the connected USB device.

 Change the source to any source other than USB.

Remove the USB device.

Navigation Error. Please turn on power again later.

The communication error has occurred due to severely cold temperature.

 Turn on power again after warming your car interior.

Page 89

Appendix

Playable Media and Files

You can play various kinds of media and files on this unit.

Ñ List of playable discs

Disc types / Standard Support Remark

DVD DVD Video

DVD Audio ×

DVD-VR ×

DVD-R*

DVD-RW

DVD+R

DVD+RW

DVD-R DL (Dual layer)

DVD+R DL (Double layer)

DVD-RAM ×

CD Music CD*

Others Dualdisc ×

v : Playback is possible. r : Playback is partly possible.

× : Playback is impossible.

CD-ROM

CD-R

CD-RW

DTS-CD ×

Video CD (VCD)

Super video CD ×

Photo CD ×

CD-EXTRA

HDCD

CCCD ×

Super audio CD

■ Use of DualDisc

When playing a “DualDisc” on this unit, the surface of the disc that is not played may be scratched while the disc is inserted or ejected. Since the music CD surface does not conform to the CD standard, playback may be impossible.

(A “DualDisc” is a disc with one surface containing DVD standard signals and the other surface containing music CD signals.)

• MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ MPEG1/ MPEG2/ MPEG4/ H.264/ WMV/ MKV playback

• Multi-border/Multisession playback (Playback depends on authoring conditions)

v v v v

Only video format

v v

• MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis playback

• Multisession is supported.

• Packet write is not supported.

Only music CD session can be played.

Normal music CD sound quality

Only CD layer can be played.

Incompatible with 8 cm (3 inch) discs.

■ About disc format

The disc format should be the one of the following.

• ISO 9660 Level 1/2

• Joliet

• Romeo

• Long file name

Appendix

89English

Page 90

Appendix

Ñ About files

The following audio and video files are supported.

■ Playable Audio files

Format Bit rate Sampling frequency Bit count

AAC-LC (.m4a) MPEG2/4 AAC LC

MP3 (.mp3) MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bit

WMA (.wma) Windows Media Audio Standard

Linear PCM (WAVE) (.wav)

FLAC (.flac)

Vorbis (.ogg) vorbis VBR 16 – 48 kHz 16 bit

DSD (.dsf, .dff) DSF, DSDIFF – 2.8 MHz, 5.6 MHz, 11.2 MHz 1 bit

• If music of normal CD and other playback systems are recorded in the same disc, only the playback system recorded at the first setout is played.

• WMA and AAC of which is covered with DRM cannot be played.

• DSD sound is converted to PCM sound before playback.

• The EmChinks tag of DSDIFF is not supported.

• Although the audio files are complied with the standards listed above, the play may be impossible depending on the types or conditions of media or device.

• This unit supports playback of High-Resolution Audio files. It is recommended that a car audio system should be configured with all High-Resolution Audio compatible products from player to speaker to enjoy its high quality sound.

HE-AAC(V1,V2)

L3 profile (Version 7,8,9)

RIFF waveform Audio Format –

flac –

8 – 320kbps, VBR 16 – 48 kHz 16 bit

8 – 320kbps 16 – 48 kHz 16 bit

16 – 48 kHz (Disc), 16 – 192 kHz (USB/ SD)

16/ 24 bit

■ Acceptable Video files

Profile Max. Picture size Max. bit rate Audio format

MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2

MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2

H.264/MPEG-4 AVC (.mp4, .m4v, .avi, .flv, .f4v)

MPEG-4 (.mp4, .avi) Advanced Simple

WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA

MKV (.mkv)

• This unit can only play back files which are less than 4 GB.

Baseline Profile, Main Profile

Profile

Video Format follows H.264/MPEG-4 AVC, MPEG-4, WMV

1920 × 1080 (30 fps) 8 Mbps MP3, AAC

MP3, AAC, WMA, Vorbis, FLAC

■ Limitation of structure for the file and the folder

Disc media USB device/ SD

Maximum number of folder layers 8 8

Maximum number of files (per folder) 999 999

Maximum number of folders (per folder) 5000 9999

Maximum number of folders (per device) 5000 Unlimited

• You can enter a folder name and file name with 255 or fewer single-byte characters.

• Files in the folder whose folder name begins with a dot (.) cannot be played.

Page 91

Appendix

Region Codes in the World

The DVD players are given a region code according to the country or area it is marketed, as shown in the following map.

■ DVD disc marks

ALL

Indicates a region number. The discs with this mark can be played with any DVD player.

Indicates the number of audio languages recorded. Up to 8 languages can be recorded in a movie. You can select a favorite language.

Indicates the number of subtitled languages recorded. Up to 32 languages can be recorded.

If a DVD disc has scenes shot from multiple angles, you can select a favorite angle.

16:9 LB

Indicates the type of screen for the image. The left mark indicates that a wide image picture (16:9) is displayed on a standard TV set screen (4:3) with a black band at both the top and bottom of the screen (letter box).

■ Operation regulatory marks

With this DVD, some functions of this unit such as the play function may be restricted depending on the location where the DVD is playing. In this case, the following marks will appear on the screen. For more information, refer to the disc manual.

Prohibition Mark

■ Discs with limited period of use

Do not leave discs with a limited period of use in this unit. If you load an already expired disc, you may not be able to remove it from this unit.

91English

Page 92

Appendix

DVD Language Codes

Code Language

aa Afar ab Abkhazian af Afrikaans am Amharic ar Arabic as Assamese ay Aymara az Azerbaijani ba Bashkir be Byelorussian bg Bulgarian bh Bihari bi Bislama bn Bengali, Bangla bo Tibetan br Breton ca Catalan co Corsican cs Czech cy Welsh da Danish de German dz Bhutani el Greek en English eo Esperanto es Spanish et Estonian eu Basque fa Persian fi Finnish fj Fiji fo Faroese fr French fy Frisian ga Irish gd Scots Gaelic gl Galician gn Guarani gu Gujarati ha Hausa he Hebrew hi Hindi hr Croatian hu Hungarian hy Armenian

Code Language

ia Interlingua ie Interlingue ik Inupiak id Indonesian is Icelandic it Italian ja Japanese jv Javanese ka Georgian kk Kazakh kl Greenlandic km Cambodian kn Kannada ko Korean ks Kashmiri ku Kurdish ky Kirghiz la Latin lb Luxembourgish ln Lingala lo Laotian lt Lithuanian lv Latvian, Lettish mg Malagasy mi Maori mk Macedonian ml Malayalam mn Mongolian mo Moldavian mr Marathi ms Malay mt Maltese my Burmese na Nauru ne Nepali nl Dutch no Norwegian oc Occitan om (Afan) Oromo or Oriya pa Punjabi pl Polish ps Pashto, Pushto pt Portuguese qu Quechua rm Rhaeto-Romance

Code Language

rn Kirundi ro Romanian ru Russian rw Kinyarwanda sa Sanskrit sd Sindhi sg Sangho sh Serbo-Croatian si Singhalese sk Slovak sl Slovenian sm Samoan sn Shona so Somali sq Albanian sr Serbian ss Siswati st Sesotho su Sundanese sv Swedish sw Swahili ta Tamil te Telugu tg Tajik th Thai ti Tigrinya tk Turkmen tl Tagalog tn Setswana to Tongan tr Turkish ts Tsonga tt Tatar tw Twi uk Ukrainian ur Urdu uz Uzbek vi Vietnamese vo Volapuk wo Wolof xh Xhosa yo Yoruba zh Chinese zu Zulu

Page 93

Appendix

Specifications

■ Monitor section

Picture Size

: 6.95 inches (diagonal) wide : 156.6 mm (W) × 81.6 mm (H)

: 6.75 inches (diagonal) wide : 151.8 mm (W) × 79.68 mm (H)

5-31/32 × 3-1/8 inch

: 6.2 inches (diagonal) wide : 137.5 mm (W) × 77.2 mm (H)

Display System

: TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 1,152,000 (800H x 480V x RGB)

Effective Pixels

: 99.99 %

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: LED

■ DVD player section

D/A Converter

: 24/ 32 bit

Audio Decoder

: Linear PCM/ Dolby Digital/ MP3/ WMA/ AAC/ WAV/

FLAC/ Vorbis

Video Decoder

: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV

Wow & Flutter

: Below Measurable Limit

Frequency Response

• 96 kHz : 20 – 44,000 Hz

• 48 kHz : 20 – 22,000 Hz

• 44.1 kHz : 20 – 20,000 Hz

Total Harmonic Distortion

: 0.010 % (1 kHz)

S/N Ratio (dB)

: 90.5 dB

Dynamic Range

: 89 dB

Disc Format

: DVD-Video/ VIDEO-CD/ CD-DA

Quantifying Bit Number

: 16/ 20/ 24 bit

■ USB interface section

USB Standard

: USB 2.0 High Speed

File System

: FAT 16/ 32, exFAT, NTFS

Maximum Power Supply Current

: DC 5 V 1.5 A × 2

: DC 5 V 1.5 A

D/A Converter

: 24/ 32 bit

Audio Decoder

: MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ DSD

Video Decoder

: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV

■ SD section

SD Standard

: SD / SDHC / SDXC

Compatible File System

: FAT 16/ 32, exFAT, NTFS

Capacity

: Maximum 2T Byte

Data Transfer Rate

: Maximum 25 Mbps

Audio Decoder

: MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ DSD

Video Decoder

: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV

■ HDMI section

HDMI

: Type-A

Input Resolution

• VGA (640x480p @59.94Hz/60Hz)

• 480p (720x480p @59.94Hz/60Hz)

• 720p (1280x720p @59.94Hz/60Hz)

Input Audio Type

: 32K/ 44.1K/ 48K/ 88.2K/ 96K/ 176.2K/ 192K Hz

16/20/24-bit Linerar PCM

93English

Page 94

Appendix

■ Bluetooth section

Technology

: Bluetooth Ver.3.0

Frequency

: 2.402 – 2.480 GHz

Output Power

: +1dBm (MAX), Power Class2

Maximum Communication range

: Line of sight approx. 10m (32.8 ft)

Audio Codec

: SBC/ AAC

Profile (Multi Profile support)

• HFP (V1.6) (Hands Free Profile)

• SPP (Serial Port Profile)

• A2DP (Advanced Audio Distribution Profile)

• AVRCP (V1.5) (Audio/Video Remote Control Profile)

• PBAP (Phonebook Access Profile)

■ DSP section

Graphics equalizer

Band: 13 Band Frequency (BAND1 – 13) : 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/

6.3k/ 10k/ 16k Hz

Gain

: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB

2Way X'Over (

High pass filter

Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/

Slope: -6/-12/-18/-24 dB/Oct.

Low pass filter

Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/

Slope: -6/-12/-18/-24 dB/Oct.

3Way X'Over (

High pass filter

Frequency: 1k/ 1.6k/ 2.5k/ 4k/ 5k/ 6.3k/ 8k/ 10k/

Slope: -6/-12 dB/Oct. Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Band pass filter

Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/

Slope: -6/-12 dB/Oct. Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Low pass filter

Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/

Slope: -6/-12 dB/Oct. Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

)

120/ 150/ 180/ 220/ 250 Hz

150/ 180/ 220/ 250 Hz, Through

)

12.5k Hz

120/ 150/ 180/ 220/ 250 Hz 1k/ 1.6k/ 2.5k/ 4k/ 5k/ 6.3k/ 8k/ 10k/

12.5k Hz , Through

150/ 180/ 220/ 250 Hz, Through

Position

Front / Rear /Subwoofer Delay

: 0 – 6.1 m (0.01 m Step)

Gain

: -8 – 0 dB

Subwoofer level

: -50 – +10 dB

■ DAB section ( )

Frequency Range

BAND III: 174.928 – 239.200 (MHz)

Sensitivity

: -100 dBm

S/N Ratio (dB)

: 90 dB

■ Digital Antenna Connector section ( )

Connector type

: SMB

Output Voltage (11 – 16V)

: 14.4 V

Maximum Current

: < 100 mA

■ FM tuner section

Frequency Range (step)

: 87.5 MHz – 108.0 MHz (50 kHz)

Usable Sensitivity (S/N : 26 dB)

: 9.3 dBf (0.8 μV/75 Ω)

Quieting Sensitivity (S/N : 46 dB)

: 15.2 dBf (1.6 μV/75 Ω)

Frequency Response

: 30 Hz – 15 kHz

S/N Ratio (dB)

: 75 dB (MONO)

Selectivity (± 400 kHz)

: Over 80 dB

Stereo Separation

: 45 dB (1 kHz)

■ AM tuner section

Frequency Range (step)

LW: 153 – 279 kHz (9 kHz) MW: 531 – 1611 kHz (9 kHz)

Usable Sensitivity

MW: 25μV LW: 45μV

Page 95

Appendix

■ Video section

Color System of External Video Input

: NTSC/PAL

External Video Input Level (mini jack)

: 1 Vp-p/ 75 Ω

External Audio Max Input Level (mini jack)

: 2 V/ 25 kΩ

Video Input Level (RCA jacks)

: 1 Vp-p/ 75 Ω

Video Output Level (RCA jacks)

: 1 Vp-p/ 75 Ω

Audio Output Level (mini jack)

: 1.2 V/ 10 kΩ

■ Audio section

Maximum Power (Front & Rear)

: 50 W × 4

Typical Power Output (Front & Rear)

Full Bandwidth Power (at less than 1% THD) : 22 W × 4

Output frequency band

: 20 – 88,000 Hz

Preout Level (V)

: 4 V/ 10 kΩ

Preout Impedance

: ≤ 600 Ω

Speaker Impedance

: 4 – 8 Ω

■ General

Operating Voltage

: 14.4 V (10.5 – 16 V allowable)

Maximum Current Consumption

: 15 A

Installation Dimensions (W × H × D)

: 178 × 100 × 160 mm

: 178 × 100 × 147 mm

: 178 × 100 × 155 mm With Sleeve

: 182 × 112 × 163 mm

: 182 × 112 × 153 mm

Operational Temperature R ange

: -10 °C – +60 °C

Weight

: 2.7 kg

: 2.4 kg

: 2.1 kg

NOTE

• Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light incorrectly.

■ Navigation section

Receiver

: High-sensitivity GPS receiver

Reception Frequency

: 1575.42 MHz (C/A code)

Acquisition Times

Cold : 29 seconds (typ) (All satellites at -130 dBm Without aiding)

Update Rate

: 1/second, continuous

Accuracy

Position: <2.5 meters, CEP, at -130 dBm Velocity: 0.1 meter/sec

Position Method

: GPS

Antenna

: External GPS antenna

Specifications subject to change without notice.

95English

Page 96

Appendix

About this Unit

■ Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

•

• This item incorporates copy protection technology

• Microsoft and Windows Media are either registered

• This software is based in part on the work of the

• The “AAC” logo is a trademark of Dolby Laboratories.

• “Made for iPod” and “Made for iPhone” mean that an

• iPhone, iPod, and iPod touch are trademarks of Apple

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are

• INRIX is a registered trademark of INRIX, Inc.

• SPOTIFY and the Spotify logo are among the

• Android, Android Auto, Google Play and other marks

• WebLink™ is a trademark of Abalta Technologies, Inc.

• This License does not grant permission to use the

• YouTube and the YouTube logo are registered

• SDXC and microSDXC Logos are trademarks of

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

independent JPEG Group.

electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance.

Inc., registered in the U.S. and other countries.

trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc.

registered trademarks of Spotify AB.

are trademarks of Google LLC.

trade names, trademarks, service marks, or product names of the Licensor (Abalta Technologies, Inc.), except as required for reasonable and customary use in describing the origin of the **WEBLINK Product**.

trademarks of Google LLC.

SD-3C LLC.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registed trademarks of HDMI Licensing LLC in the United States and other countries.

• This product includes FontAvenue® fonts licenced by NEC Corporation.FontAvenue is a registered trademark of NEC Corporation.

• This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp. All rights reserved.

• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

• THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (¡) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD (“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA. COM

Page 97

Appendix

• libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used to endorse or promote products derived from this

software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

– Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used to endorse or promote products derived from this

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

– Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation

nor the names of its contributors may be used to endorse or promote products derived from this

software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

97English

Page 98

Appendix

■ The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

■ Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

תונידמל יטנוולר( תוללוס ןכו ןשי ינורטקלאו

.)תדרפומ הפשא ףוסיא תכרעמב תושמתשמש

X םע הפשא חפ( ןומיסה םע תוללוסו םירצומ ךילשהל ןתינ אל

.הליגר תיתיב הפשאכ )וילע

ןקתמב תוללוס ןכו ןשי ינורטקלאו ילמשח דויצ רזחמל שי

.םהלש יאוולה ירצותבו הלאכ םיטירפב לפטל לגוסמה

ןקתמ תודוא םיטרפ תלבקל תימוקמה תושרה םע רשק ורצ

ורזעי םיתואנ הפשאל הכלשהו רוזחימ .םכילא בורקה רוזחימה

לעו ונתואירב לע תוילילש תועפשה עונמלו םיבאשמ רמשל

.הביבסה

ןייצמ תוללוס רובע ןומיסל תחתמש Pb ןומיסה :בל ומיש

.תרפוע הליכמ הללוסהש

Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer:

JVC KENWOOD Corporation 3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN

EU Representative:

JVCKENWOOD Europe B.V. Amsterdamseweg 37, 1422 AC UITHOORN, THE NETHERLANDS

English

Hereby, JVC KENWOOD declares that the radio equipment DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS is in compliance with Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address:

Français

Par la présente, JVC KENWOOD déclare que l’équipement radio DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS est conforme à la directive 2014/53/UE. L’intégralité de la déclaration de conformité UE est disponible à l’adresse Internet suivante :

Deutsch

Hiermit erklärt JVC KENWOOD, dass das Funkgerät DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS der Richtlinie 2014/53/EU entspricht. Der volle Text der EU-Konformitätserklärung steht unter der folgenden Internetadresse zur Verfügung:

Nederlands

Hierbij verklaart JVC KENWOOD dat de radioapparatuur DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS in overeenstemming is met Richtlijn 2014/53/EU. De

■ ילמשח דויצ לש הפשאל הכלשה רבדב עדימ

volledige tekst van de EU-verklaring van overeenstemming is te vinden op het volgende internetadres:

Italiano

Con la presente, JVC KENWOOD dichiara che l’apparecchio radio DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS è conforme alla Direttiva 2014/53/UE. Il testo integrale della dichiarazione di conformità UE è disponibile al seguente indirizzo internet:

Español

Por la presente, JVC KENWOOD declara que el equipo de radio DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS cumple la Directiva 2014/53/EU. El texto completo de la declaración de conformidad con la UE está disponible en la siguiente dirección de internet:

Português

Deste modo, a JVC KENWOOD declara que o equipamento de rádio DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade da UE está disponível no seguinte endereço de internet:

Page 99

Appendix

Polska

Niniejszym, JVC KENWOOD deklaruje, że sprzęt radiowy DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności EU jest dostępny pod adresem:

Český

Společnost JVC KENWOOD tímto prohlašuje, že rádiové zařízení DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS splňuje podmínky směrnice 2014/53/EU. Plný text EU prohlášení o shodě je dostupný na následující internetové adrese:

Magyar

JVC KENWOOD ezennel kijelenti, hogy a DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU konformitási nyilatkozat teljes szövege az alábbi weboldalon érhető el:

Hrvatski

JVC KENWOOD ovim izjavljuje da je radio oprema DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS u skladu s Direktivom 2014/53/EU. Cjeloviti tekst deklaracije Europske unije o usklađenosti dostupan je na sljedećoj internet adresi:

Svenska

Härmed försäkrar JVC KENWOOD att radioutrustningen DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS är i enlighet med direktiv 2014/53 / EU. Den fullständiga texten av EU-försäkran om överensstämmelse finns på följande Internetadress :

Suomi

JVC KENWOOD julistaa täten, että radiolaite DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS on direktiivin 2014/53/EU mukainen. EUvaatimustenmukaisuusvakuutus löytyy kokonaisuudessaan seuraavasta internet-osoitteesta:

Slovensko

S tem JVC KENWOOD izjavlja, da je radijska oprema DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS v skladu z Direktivo 2014/53/EU. Celotno besedilo direktive EU o skladnosti je dostopno na tem spletnem naslovu:

Slovensky

Spoločnosť JVC KENWOOD týmto vyhlasuje, že rádiové zariadenie DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS vyhovuje smernici 2014/53/EÚ. Celý text EÚ vyhlásenia o zhode nájdete na nasledovnej internetovej adrese:

Dansk

Herved erklærer JVC KENWOOD, at radioudstyret DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS er i overensstemmelse med Direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde ordlyd er tilgængelig på følgende internetadresse:

Norsk

JVC KENWOOD erklærer herved at radioutstyret DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS er i samsvar med Direktiv 2014/53/EU. Den fullstendige teksten til EU-konformitetserklæringen er tilgjengelig på følgende internettaddresse:

Ελληνικά

Με το παρόν, η JVC KENWOOD δηλώνει ότι ο ραδιοεξοπλισμός DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS συμμορφώνεται με την Οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης της ΕΕ είναι διαθέσιμο στην ακόλουθη διεύθυνση στο διαδίκτυο:

Eesti

Käesolevaga JVC KENWOOD kinnitab, et DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS raadiovarustus on vastavuses direktiiviga 2014/53/ EL. ELi vastavusdeklaratsiooni terviktekst on kättesaadav järgmisel internetiaadressil:

Latviešu

JVC KENWOOD ar šo deklarē, ka radio aparatūra DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS atbilst direktīvas 2014/53/ES prasībām. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā tīmekļa adresē:

Lietuviškai

Šiuo JVC KENWOOD pažymi, kad radijo įranga DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS atitinka 2014/53/EB direktyvos reikalavimus. Visą EB direktyvos atitikties deklaracijos tekstą galite rasti šiuo internetiniu adresu:

Malti

B’dan, JVC KENWOOD jiddikjara li t-tagħmir tar-radju DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta’ konformità huwa disponibbli fl-indirizz intranet li ġej:

Українська

Таким чином, компанія JVC KENWOOD заявляє, що радіообладнання DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS відповідає Директиві 2014/53/EU. Повний текст декларації про відповідність ЄС можна знайти в Інтернеті за такою адресою:

Türkçe

Burada, JVC KENWOOD DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS radyo ekipmanının 2014/53/AB Direktifine uygun olduğunu bildirir. AB uyumluluk deklarasyonunun tam metni aşağıdaki internet adresinde mevcuttur.

Русский

JVC KENWOOD настоящим заявляет, что радиооборудование DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS соответствует Директиве 2014/53/ EU. Полный текст декларации соответствия ЕС доступен по следующему адресу в сети Интернет:

Limba română

Prin prezenta, JVC KENWOOD declară că echipamentul radio DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS este în conformitate cu Directiva 2014/53/ UE. Textul integral al declarației de conformitate UE este disponibil la urmatoarea adresă de internet:

Български език

С настоящото JVC KENWOOD декларира, че радиооборудването на DNX8180DABS/ DNX518VDABS/ DNX5180DABS/ DNX5180BTS/ DNX451RVS/ DNX4180BTS е в съответствие с Директива 2014/53/ ЕС. Пълният текст на ЕС декларацията за съответствие е достъпен на следния интернет адрес:

URL: http://www.kenwood.com/cs/ce/eudoc/

99English

Page 100

Kenwood DNX5180DABS, DNX8180DABS, DNX518VDABS, DNX451RVS, DNX4180BTS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Use

Precautions

Safety Precautions and Important Information

How to read this manual

Basic Operations

Functions of the Buttons on the Front Panel

Turning on the Unit

Initial Settings

Adjusting the volume

Touch screen operations

HOME screen descriptions

Source selection screen descriptions

Source control screen descriptions

Popup menu

List screen

Navigation Operation

Disc

Playing a disc

DVD/ VCD Basic Operation

Music CD/ Disc media Basic Operation

File search Operation (Disc media only)

DVD Disc Menu Operation

DVD Setup

APPS—Android Auto™/Apple CarPlay

Apple CarPlay Operation

WebLink™ Operation

Spotify® Operation

USB/SD card

Connecting a USB device

Inserting the SD card

USB/SD card Basic Operation

Search Operation

iPod/iPhone

Preparation

iPod/iPhone Basic Operation

Search Operation

Radio

Radio Basic Operation

Memory Operation

Selecting Operation

Traffic Information (FM only)

Tuner Setup

DAB Basic Operation

Storing Service in Preset Memory

Selecting Operation

Traffic Information

Replay

DAB Setup

Bluetooth Control

Information for using Bluetooth® devices

Register the Bluetooth device

Bluetooth Setup

Playing Bluetooth Audio Device

Using Hands-Free Unit

Hands-Free Setup

Other External Components

View Camera

External audio/video players— AV-IN

HDMI source

Setting Up

Monitor Screen Setup

System Setup

User Interface Setup

Special Setup

Display Setup

AV Setup

Controlling Audio

Speaker/ X’over setup

Controlling General Audio

Equalizer Control

Volume Offset

Zone Control

Sound Effect

Listening Position/ DTA

Remote control

Battery Installation
