Kenwood DDX6053BT, DDX6023BT, DDX3023, DDX3053, DDX35 User Manual

DDX6023BT
DDX6053BT
DDX4023BT
DDX4053BT
DDX3023
DDX3053
DDX42BT
DDX35

MONITOR WITH DVD RECEIVER

INSTRUCTION MANUAL

© 2012 JVC KENWOOD Corporation

GET0909-001A (EN/QN)

Contents

Before use ..........................................3

How to reset your unit .............................................3

INTRODUCTIONS

Initial Settings ...................................5

Initial setup ......................................................................5

Updating the system .................................................6

Setting the security function ...............................7

Component names and functions ....8

Setting the clock ............................. 10

Common operations ...................... 11

Turning on the power ..........................................11

Turning off the power ..........................................11

Adjusting the panel angle ..................................11

Adjusting the volume ...........................................11

Putting the unit in standby ...............................12

Turning off the screen ..........................................12

Switching screens .......................... 13

AV SOURCE OPERATIONS

Selecting the playback source ...... 14

Displaying the source control screen ..........14

Displaying all sources and items .....................15

Customizing the <Top Menu> screen ........15

Disc operations ............................... 16

Playing a disc ..............................................................16

Playable disc types...................................................17

Playback operations ...............................................18

<DISC Mode> settings .........................................22

USB operations ............................... 23

Playing a USB device .............................................23

Listening to the iPod/iPhone

device ........................................ 25

iPod/iPhone playback operations from the

unit ....................................................................................26

Selecting an audio/video file from the

menu ................................................................................27

Controlling playback from the iPod/

iPhone .............................................................................27

Using the smartphone

— MirrorLink ............................ 28

Listening to the radio ..................... 30

Using other external

components.............................. 35

AV-IN .................................................................................35

Using the external navigation unit ...............36

Sound adjustment .......................... 37

Using the sound equalization .........................37

Adjusting the crossover frequency ...............38

Changing the display design ......... 39

Setting for video playback ............ 41

Picture adjustment .................................................41

Changing the aspect ratio .................................42

Zooming picture .......................................................42

Using a rear view camera ............... 43

Setting menu items ........................ 44

Memorizing/recalling the settings ................48

Locking the settings ...............................................48

Adjusting the touch position ............................48

BLUETOOTH OPERATIONS

(Only for DDX6023BT/DDX6053BT/
DDX4023BT/DDX4053BT/DDX42BT)

Information for using Bluetooth®

devices ...................................... 49

Bluetooth operations ..................... 49

Connecting Bluetooth devices .......................50

Setting up Bluetooth ..............................................52

Using the Bluetooth mobile phone ............53

Settings for Bluetooth mobile phone ..........58

Using the Bluetooth audio player .................59

USING THE REMOTE
CONTROLLER

Overview ......................................... 60

Operations from the remote

controller .................................. 61

REFERENCE

Maintenance ................................... 65

More about this unit ...................... 66

Troubleshooting ............................. 68

Accessories/Installation

Procedure ................................. 72

Connecting Wires to Terminals ...... 74

Connecting a USB device/iPod/

iPhone ....................................... 75

Connecting Other Products ........... 76

Installing/Removing the Unit ........ 77

Specifications ................................. 79

KS-UBT1 (USB Bluetooth

adapter) .................................... 82

2 English

Before use

WARNINGS:

(To prevent accidents and damage)

• DO NOT install any unit or wire any cable in
a location where;
– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety

devices such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while

driving, be sure to look around carefully.

• The driver must not watch the monitor
while driving.

Cautions on the monitor:

• The monitor built in this unit has been
produced with high precision, but it
may have some ineffective dots. This is
inevitable and is not considered defective.

• Do not expose the monitor to direct
sunlight.

• Do not operate the touch panel using a
ball-point pen or similar tool with the sharp
tip.

Press the buttons on the touch panel with

your finger directly (if you are wearing a
glove, take it off).

• When the temperature is very cold or very
hot...
– Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or

may move slowly. Pictures may not
be synchronized with the sound or
picture quality may decline in such
environments.

For safety...

• Do not raise the volume level too much,
as this will make driving dangerous by
blocking outside sounds, and may cause
hearing loss.

• Stop the car before performing any
complicated operations.

Temperature inside the car...

If you have parked the car for a long time
in hot or cold weather, wait until the
temperature in the car becomes normal
before operating the unit.

How to reset your unit

DDX6023BT/DDX6053BT

Reset button

DDX4023BT/DDX4053BT/DDX3023/DDX3053

Reset button

DDX42BT/DDX35

Reset button

If the unit fails to operate properly, press
the Reset button. The unit returns to factory
settings when the Reset button is pressed
(except the registered Bluetooth devices).

How to read this manual:

• Illustrations of DDX6023BT are mainly
used for explanation.

• This manual mainly explains operations
using the buttons on the monitor panel
and touch panel. For operations using the
remote controller (RC-DV340: supplied
only for DDX6023BT/DDX6053BT

60.

• < > indicates the variable screens/
menus/operations/settings that appear
on the touch panel.

• [ ] indicates the buttons on the touch
panel.

• Indication language: English
indications are used for the purpose
of explanation. You can select the
indication language from the <Setup>
menu. (☞ page 46

The displays and panels shown in this
manual are examples used to provide
clear explanations of the operations. For
this reason, they may be different from the
actual displays or panels.

)

), ☞ page

English 3

Information on Disposal of Old Electrical
and Electronic Equipment and Batteries
(applicable for EU countries that have
adopted separate waste collection
systems)

Products and batteries with the

symbol (crossed-out wheeled bin)
cannot be disposed as household
waste.
Old electrical and electronic
equipment and batteries should be
recycled at a facility capable of
handling these items and their
waste byproducts.
Contact your local authority for
details in locating a recycle facility
nearest to you.
Proper recycling and waste
disposal will help conserve
resources whilst preventing
detrimental effects on our health
and the environment.
Notice: The sign “Pb” below the

symbol for batteries
indicates that this battery
contains lead.

The marking of products using lasers

The label is attached to the chassis/case and
says that the component uses laser beams
that have been classified as Class 1. It means
that the unit is utilizing laser beams that
are of a weaker class. There is no danger of
hazardous radiation outside the unit.

Declaration of Conformity with regard to
the EMC Directive 2004/108/EC
Manufacturer:

JVC KENWOOD Corporation
3-12 Moriya-cho, Kanagawa-ku, Yokohama­shi, Kanagawa, 221-0022, Japan

EU Representative’s:

Kenwood Electronics Europe BV
Amsterdamseweg 37, 1422 AC UITHOORN,
The Netherlands

For Turkey
Bu ürün 28300 sayılı Resmi Gazete’de
yayımlanan Atik Elektrikli ve Elektronik
Eşyalarin Kontrolü Yönetmeliğe uygun olarak
üretilmiştir.

Eski Elektrik ve Elektronik Ekipmanların
İmha Edilmesi Hakkında Bilgi (ayrı atık
toplama sistemlerini kullanan ülkeleri için
uygulanabilir)

Sembollü (üzerinde çarpı
işareti olan çöp kutusu) ürünler
ev atıkları olarak atılamaz.
Eski elektrik ve elektronik
ekipmanlar, bu ürünleri
ve ürün atıklarını geri
dönüştürebilecek bir
tesiste değerlendirilmelidir.
Yaşadığınız bölgeye en
yakın geri dönüşüm tesisinin
yerini öğrenmek için yerel
makamlara müracaat edin.
Uygun geri dönüşüm ve atık
imha yöntemi sağlığımız ve
çevremiz üzerindeki zararlı
etkileri önlerken kaynakların
korunmasına da yardımcı
olacaktır.

4 English

INTRODUCTIONS

Initial Settings

Initial setup

When you power on the unit for the first time
or reset the unit, the initial setting screen
appears.

• You can also change the settings on the
<Setup> screen. (☞ page 44)

1 For DDX6023BT/DDX6053BT :

For DDX4023BT/DDX4053BT/

DDX3023/DDX3053/DDX42BT/

DDX35 :

1

*

Language Select the text language

Angle *

AV Input Select an external

NAV I/F
Input *

R-CAM
Interrupt

Panel
Color

used for on-screen
information. (☞ page 46)

• Set <GUI Language>

to display the operation
buttons and menu
items in the selected
language ([Local]:
initially selected) or
English ([English]).

2

Adjust the panel angle.
(☞page 11)

component to play —
[AV-IN2] or [iPod] (☞
page 46)

Select navigation or

1

Mirror Link to use. (☞
page 46)

Select [ON] when
connecting the rear view
camera. (☞ page 46)

Select the color of the
buttons on the monitor
panel. (☞ page 39)

2 Finish the procedure.

1

*

Only for DDX6023BT/DDX6053BT/DDX4023BT/
DDX4053BT/DDX3053/DDX42BT/DDX35 .

2

*

Only for DDX6023BT/DDX6053BT .

English 5

Updating the system

You can update the system by connecting a
USB device containing the update file.

1 Create an update file, copy it

to a USB device, and connect
it to the unit.

To connect a USB device, ☞ page 75 .

2 On <Top Menu>:

3

4

6 English

Application
Version

DVD Version Updates the DVD

It may take a while.
If the update has been complete
successfully, “Update Completed”
appears. Reset the unit.

• If the update has failed, turn the power off
and then on, and retry the update.

• Even if you have turned off the power
during update, you can restart the update
after the power is turned on. The update
will be performed from the beginning.

Updates the System
application.

System application.

Setting the security function

You can set a security code to protect your
receiver system against theft.

Registering the security code

1 Display the security code

setting screen.

On <Top Menu>:

2 Enter a four-digit number (1),

then confirm the entry (2).

Deletes the last entry

Cancels the setting

3 Repeat step 2 to confirm your

security code.

Now, your security code is registered.

• When the unit is being reset or
disconnected from battery, you are
required to enter the security code. Enter
the correct security code, then press
[Enter].

Activating the security
function

You can activate security function to protect
your receiver system against theft.

On <Setup>:

• To clear the registered security code,
perform step
<Security Code>.

1 and press [CLR] in

The security indicator on the monitor
panel flashes when the vehicle ignition
is off.

To cancel, select [OFF].

English 7

Component names and functions

DDX6023BT/DDX6053BT

Screen (Touch panel)Monitor panel

1 Reset button/Power indicator/Security

indicator

• Resets the unit. (☞ page 3)

• Lights up while the unit is turned on.

• Flashes when the security function is
activated. (☞ page 7 )

2 ATT button (Press)

• Attenuates the sound.

V.OFF button (Hold)

• Turns off/on the screen. (☞ page 12)

3 VOLUME

• Decreases the volume.

4 VOLUME (up) button (☞ page 11)

• Increases the volume.

5 AUD button (Press)

• Displays the <Tone> screen. (☞ page

37)

R-CAM button (Hold)

• Displays the picture from the rear view
camera.

(down) button (☞ page 11)

6 AV button (Press)

• Displays the current source screen.
AV OUT button (Hold)

• Selects the AV source for external
monitor or amplifier.

7

MENU button

• Turns off the power. (Hold)

• Turns on the power. (Press)

• Displays the <Top Menu> screen.
(Press) (☞ page 13)

8 TEL button (Press)

• Displays the <Handsfree> screen. (☞
page 54)

VOICE button (Hold)

• Activates voice dialing. (☞ page 54)

9 0 (Eject) button

• Ejects the disc (Tilts the monitor panel
fully).

• Opens/Closes the monitor panel.

p Remote sensor

Caution on the volume setting:

Digital devices produce very little noise
compared with other sources. Lower
the volume before playing these digital
sources to avoid damaging the speakers
by sudden increase of the output level.

8 English

You can change the color of the buttons
on the monitor panel. (☞ page 39)

DDX4023BT/DDX4053BT/
DDX3023/DDX3053

DDX42BT/DDX35

Screen (Touch panel) Monitor panel

1 Loading slot
2 0 (Eject) button

• Ejects the disc.

3 Reset button/Power indicator/Security

indicator

• Resets the unit. (☞ page 3)

• Lights up while the unit is turned on.

• Flashes when the security function is
activated. (☞ page 7)

4 Remote sensor
5

MENU button

• Turns off the power. (Hold)

• Turns on the power. (Press)

• Displays the <Top Menu> screen.
(Press) (☞ page 13)

6 AV/AV OUT button

• Displays the current source screen.
(Press)

• Selects the AV source for external
monitor or amplifier. (Hold)

7 For DDX4023BT/DDX4053BT :
VOL/ATT/AUD knob (☞ page 11)

• Attenuates the sound. (Press)

• Adjusts the audio volume. (Turn)

• Displays the <Tone> screen. (Hold) (☞
page 37)

Screen (Touch panel) Monitor panel

For DDX3023/DDX3053 :
VOL/ATT knob (☞ page 11)

• Attenuates the sound. (Press)

• Adjusts the audio volume. (Turn)

For DDX42BT/DDX35:
Volume % (up)/ fi (down) buttons (☞

page 11)

• Increases/decreases the volume.
(Press)

8 For DDX4023BT/DDX4053BT/

DDX42BT :

TEL/VOICE button

• Displays the <Handsfree> screen.
(Press) (☞ page 54)

• The function of the button when held
varies depending on the <TEL Key

Long Press> setting (☞ page 47 ).

For DDX3023/DDX3053/DDX35 :

AUD/V.OFF button

• Displays the <Tone> screen. (Press) (☞
page 37)

• The function of the button when held
varies depending on the <AUD Key
Long Press> setting (☞ page 47 ).

9 For DDX42BT/DDX35 only:
USB input terminal
p For DDX42BT/DDX35 only:
iPod/AV-IN2 input terminal

English 9

Setting the clock

1 Display the <Top Menu>

screen.

On the source control screen:

2 Display the <Setup> screen.

3 Display the <Clock> screen.

4 Set the clock time.

NAV *

Radio Data
System

OFF Sets the clock manually.

When selecting <OFF>:

Adjust the hour

1

Adjust the minute

2

[Reset]: Sets the minute to “00.”

Synchronizes the
clock time with the
connected navigation
unit.

Synchronizes the clock
time with FM Radio
Data System .

(☞ below)

Example:
3:00 – 3:29 = 3:00
3:30 – 3:59 = 4:00

10 English

5 Finish the procedure.

* Appears only when the navigation unit is

connected.

Common operations

Turning on the power

DDX6023BT/DDX6053BT

DDX4023BT/DDX4053BT/
DDX3023/DDX3053

DDX42BT/DDX35

Turning off the power

DDX6023BT/DDX6053BT

DDX4023BT/DDX4053BT/
DDX3023/DDX3053

DDX42BT/DDX35

Adjusting the panel angle

(Only for DDX6023BT/DDX6053BT)

You can change the panel angle.

1 Select an angle (0 – 6).

Adjusting the volume

To adjust the volume (00 to 35)

DDX6023BT/DDX6053BT

IncreaseDecrease

DDX4023BT/DDX4053BT/DDX3023/
DDX3053

IncreaseDecrease

DDX42BT/DDX35

Increase

(Hold)

Decrease

(Hold)

To attenuate the sound

Only for DDX6023BT/
DDX6053BT

(Hold)

Only for DDX4023BT/
DDX4053BT/DDX3023/
DDX3053

The ATT indicator lights up.

To cancel the attenuation, press the same
button again.

To set the current position as the power
off position, select [Memory].

English 11

Putting the unit in standby

1

Turning off the screen

DDX6023BT/DDX6053BT

DDX4023BT/
DDX4053BT

1

*

(Hold)

2

DDX3023/DDX3053

DDX42BT *

DDX35 *

1

2

2

*

(Hold)

(Hold)

(Hold)

(Hold)

The screen is turned off.

To turn on the screen, press

MENU.

• You can also turn on the screen by
touching the display.

1

*

This operation works only when <TEL Key Long
Press> is set to [V-OFF]. (

2

*

This operation works only when <AUD Key
Long Press> is set to [V-OFF]. (

☞ page 47 )

☞ page 47 )

12 English

Switching screens

Source control screen

• Pressing

MENU
on the monitor
panel also displays
<Top Menu>.

Displays the navigation screen. *1

☞ page 36)

(

<Top Menu>

• Changes the AV source.

• Displays the <Setup> screen.

☞ page 15

• You can arrange the items to display
on the <Top Menu> screen on
<Menu Customize> in <Display>
setting. (☞ page 45)

Touch screen operation

Displays the video control menu while playing a video.

1

*

Appears only when
a navigation unit is
connected.

<Setup>

Changes the detailed settings.

Changes the page

Press [ ] to return to the previous
screen.

Goes to the previous

chapter/track.*

Displays the source control screen while playing a video.

2

Goes to the next chapter/

2

track.*

• The operation buttons disappear by touching the screen or when no operation is done for
about 5 seconds.

2

*

Not available for video from an external component and rear view camera.

English 13

AV SOURCE OPERATIONS

Selecting the playback source

• To display all sources and items, ☞ page 15.

• You can change the items (other than
[SETUP]) to display on the <Top Menu>
screen. (☞ page 15)

NAV

*1*2 (☞ page 36)

Displays the navigation screen when a navigation unit is
connected.

Mirror Link

DISC

TUNER

iPod

USB

TEL

Bluetooth

AV-IN 1/AV-IN 2

*2 *3

(☞ page 28)

(☞ page 16)

(☞ page 30)

*4 (☞ page 25)

(☞ page 23)

*5 (☞ page 54)

*5 (☞ page 59)

*4

(☞ page 35)

1

*

When no navigation unit is connected, “No Navigation” appears.

2

*

Select an appropriate input setting on <NAV I/F Input>. (☞ page 46).

3

*

Only for DDX6023BT/DDX6053BT/DDX4023BT/DDX4053BT/DDX3053/DDX42BT/DDX35 .

4

*

Select an appropriate input setting on <AV Input>. (☞ page 46)

5

*

Only for DDX6023BT/DDX6053BT/DDX4023BT/DDX4053BT/DDX42BT .

Displays your smartphone screen on the touch panel.

Plays a disc.

Switches to the radio broadcast.

Plays an iPod/iPhone.

Plays files on a USB device.

Displays the phone control screen.

Plays a Bluetooth audio player.

Switches to an external component connected to AV-IN1 and
iPod/AV-IN2 input terminals.

Displaying the source control screen

On video playback screen

• The operation buttons disappear by
touching the screen or when no operation
is done for about 5 seconds.

14 English

Displaying all sources and
items

On <Top Menu>:

DDX6023BT/DDX6053BT/
DDX4023BT/DDX4053BT/DDX42BT

DDX3023/DDX3053/DDX35

Customizing the <Top
Menu> screen

You can arrange the items to display on the
<Top Menu> screen.

1 On <Top Menu>:

2

3 Select the position to place

the icon (1), then select the
item you want to display on
the selected position (2).

4 Repeat step 3 to place icons

for other items.

English 15

Disc operations

Playing a disc

• If a disc does not have a disc menu, all tracks on it will be played repeatedly until you change
the source or eject the disc.

Inserting a disc

DDX6023BT/DDX6053BT

Ejecting a disc

DDX6023BT/DDX6053BT

Label side

DDX4023BT/DDX4053BT/DDX3023/
DDX3053/DDX42BT/DDX35

Label side

The source changes to “
starts.

• The IN indicator lights up while a disc is
inserted.

• If “

” appears on the screen, the unit
cannot accept the operation you have
tried to do.
– In some cases, without showing “

operations will not be accepted.

• When playing back a multi-channel
encoded disc, the multi-channel signals
are downmixed to stereo.

DISC

” and playback

DDX4023BT/DDX4053BT/DDX3023/
DDX3053

DDX42BT/DDX35

• You can eject a disc when playing another
AV source.

• If the ejected disc is not removed within
15 seconds, the disc is automatically
inserted again into the loading slot to
protect it from dust.

When removing a disc, pull it horizontally.

Closing the monitor panel
(Only for DDX6023BT/DDX6053BT )

After removing the disc, press 0 (eject)
button again. The monitor panel closes.

,”

16 English

Playable disc types

Disc type Recording format, file type, etc. Playable

DVD DVD-Video *

Region Code:

• For DDX6023BT/DDX4023BT/DDX3023/
DDX42BT: 2

• For DDX6053BT/DDX4053BT/DDX3053/
DDX35: 5

DVD-Audio/DVD-ROM

DVD Recordable/
Rewritable
(DVD-R/-RW *

2

, +R/+RW *3)

• DVD Video: UDF bridge

• DVD-VR

• DivX

/MPEG1/MPEG2/
JPEG/MP3/WMA/WAV/
AAC: ISO 9660 level 1,
level 2, Romeo, Joliet

DVD-Video

DVD-VR *

DivX /MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC

MPEG4/DVD+VR/DVD-RAM

Dual Disc DVD side

Non-DVD side

CD/VCD DTS-CD/Audio CD/CD Text (CD-DA)

VCD (Video CD)

SVCD (Super Video CD)/CD-ROM/CD-I (CD-I
Ready)

CD Recordable/
Rewritable
(CD-R/-RW)

• ISO 9660 level 1, level 2,
Romeo, Joliet

CD-DA

VCD (Video CD)

DivX

JPEG

MP3/WMA/WAV/AAC

MPEG4

1

*

If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen.

2

*

DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer
discs are not playable.

3

*

It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type
when a +R/+RW disc is loaded. +RW double layer discs are not playable.

4

*

This unit cannot play back contents protected with CPRM (Content Protection for Recordable Media).

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio”
standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be
recommended.

1

4

/MPEG1/MPEG2

English 17

Playback operations

To display the source control screen, ☞ page 14.

For DVD/DVD-VR/VCD/DivX/MPEG1/MPEG2/JPEG

Media type Playing time

• DVD Video: Title no./Chapter no.

• DVD-VR: Program no. (or Playlist
no.)/Chapter no.*

• DivX/MPEG1/MPEG2: Folder no./
Track no.

• JPEG: Folder no./File no.

• VCD: Track no.

1

☞ page 36

[ ]

2

[

]*

File type (for DivX/MPEG1/MPEG2/JPEG)

Playback mode

Selects playback mode.
(☞ page 21)

[1] [¡] • Reverse/forward search

[3 8] Starts/pauses playback.

3

[7]*
[4] [¢] • Selects a chapter/track.

Stops playback.

(Press)

• Reverse/forward search.*

5

[MODE]*

4

[MENU] Displays the <Top Menu>

(Hold)

• For DivX/MPEG1/MPEG2/JPEG, the following buttons also appear:

[ ] [ ] Selects a folder.

1

*

To display the Original Program/Playlist screen, ☞ page 20.

2

*

Does not appear for DVD/DVD-VR/JPEG.

3

*

Appears only for DVD/DVD-VR/VCD.

4

*

Search speed varies depending on the type of disc or file.

5

*

Does not appear for VCD.

[ ]

during playback.*

4

• Plays back in slow­motion during pause.

Enters the <DISC Mode>
settings. (☞ page 22)

screen.

Displays the folder/track
list. (☞ page 19)

18 English

For CD/MP3/WMA/WAV/AAC

While playing, the jacket picture is shown if the
file has the tag data including the jacket picture.

Media type

• MP3/WMA/WAV/AAC: Folder no./Track no.

• CD: Track no.

Playback status (3: play / 8: pause )

Playing time

Track/file information

• Pressing [<] scrolls the
text if not all of the text
is shown.

File type

Playback mode

[ ] [ ]

☞ page 36

Selects playback mode.
(☞ page 21)

1

[

] *

Displays the folder/track list.
(☞ below)

[3 8] Starts/pauses playback.

] [ ]*1Selects a folder.

[

1

*

Does not appear for CD.

2

*

Search speed varies depending on the type of disc or file.

Selecting folder/track on the list

Returns to the

Returns to the root folder

Changes the page

upper layer

Plays tracks/files in

the folder

[4] [¢] Selects a track.
[1] [¡] Reverse/forward search.*

2

[MODE] *1Enters the <DISC Mode>

settings. (☞ page 22)

[MENU] Displays the <Top Menu>

screen.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000
files and 250 folders (a maximum of 999
files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session
discs; however, unclosed sessions will be
skipped while playing.

• Some discs or files may not be played
back due to their characteristics or
recording conditions.

English 19

Video menu operations

You can display the video menu screen
during video playback.

• Available items on the screen differ
depending on the types of the loaded disc
and playback files.

• The operation buttons disappear by
touching the screen or when no operation
is done for about 5 seconds.

• The screen for MPEG1/MPEG2 differs from
the above.

ZOOM Displays the picture size

Aspect

Adjust

Audio Selects the audio type.

Subtitle Selects the subtitle type.

Angle Selects view angle.

MENU Displays the disc menu

T MENU Displays the disc menu

Highlight Switches to the direct disc

CUR Displays the menu/playlist/

selecting screen. (☞ page 42)

Selects the aspect ratio. (☞
page 42)

Displays the picture
adjustment screen. (☞
page 41)

• For DVD-VR: Selects the
audio channel (ST: stereo,
L: left, R: right).

(DVD)/playlist (DVD-VR).

(DVD)/original program
(DVD-VR).

menu mode. Press the target
item to select.

• To restore the screen, press
AV on the monitor panel.

original program item
selecting screen.

• [5] [∞] [2] [3]: Selects an
item.
– For DivX only

[2] [3]: Skips back or
forward by about 5
minutes.

• [ENTER]: Confirms the
selection.

• [RETURN]: Returns to the
previous screen.

20 English

Only for VCD

1

• To deactivate the PBC function, press [7]

then the direct selecting buttons to select
a track number.

Selecting playback mode

For DVD/DVD-VR

Selects Repeat playback mode

2

Direct selecting buttons (☞ below)

ZOOM Displays the picture size

Aspect

Adjust

MENU Displays the disc menu.

Audio Selects the audio channel (ST:

Direct Displays/hides the direct

Return Displays the previous screen or

• To select a track directly

selecting screen. (☞ page 42)

Selects the aspect ratio. (☞
page 42)

Displays the picture adjustment
screen. (☞ page 41)

stereo, L: left, R: right).

selecting buttons. (☞ below)

the menu.

For VCD (without PBC)/CD/DivX/MPEG1/
MPEG2/MP3/WMA/WAV/AAC

Selects Repeat playback mode*

Selects Random playback

mode*

* You cannot activate the repeat mode and the

random mode at the same time.

• Each time you press the button,
the playback mode changes. (The
corresponding indicator lights up.)
– Available items differ depending on the

types of loaded disc and playback file.

Indicator Playback mode

C-REP Repeats current chapter.
T-REP Repeats current title/

program.

REP Repeats current track.
FO-REP Repeats all tracks of the

current folder.

RDM Randomly plays all tracks.
FO-RDM Randomly plays all tracks of

current folder, then tracks of
next folders.

To cancel, press the button repeatedly until
the indicator disappears.

– When you enter a wrong number, press

[Direct/CLR] to delete the last entry.

English 21

<DISC Mode> settings

Disc Setup items Selectable setting/item Initial: Underlined

Menu
Language

Subtitle
Language

Audio
Language

Down Mix When playing back a multi-channel disc, this setting affects the

For DVD/DVD-VR

Dynamic
Range Control

Screen Ratio Select the monitor type to watch a wide screen picture on the

For discs

except VCD/CD

File Type Select the playback file type when a disc contains different types of

For discs containing

audio/video/picture files

Select the initial disc menu language; Initial English (☞ page 67).

Select the initial subtitle language or erase the subtitle (OFF); Initial
English (☞ page 67).

Select the initial audio language; Initial English (☞ page 67).

signals reproduced through the front and/or rear speakers.

♦ Dolby

Surround

♦ Stereo

You can change the dynamic range while playing Dolby Digital
software.

♦ Wide

♦ Normal

♦ Dialog

external monitor.
♦ 16:9 ♦ 4:3 LB (Letterbox) ♦ 4:3 PS (PanScan)

files.

♦ Audio
♦ Still Image
♦ Video
♦ Audio&Video

• For playable file types, ☞ page 17.

• If the disc contains no files of the selected type, the existing files
are played in the following order: audio, video, then still image.

: Select this to enjoy multi-channel surround

audio with Dolby Surround.

: Normally select this.

: Select this to enjoy a powerful sound at a low

volume level with its full dynamic range.

: Select this to reduce the dynamic range a

little.

: Select this to reproduce the movie dialog

more clearly.

: Plays back audio files.
: Plays back JPEG files.
: Plays back DivX/MPEG1/MPEG2 files.
: Plays back audio files and DivX/MPEG1/MPEG2

files.

22 English

USB operations

Playing a USB device

• This unit can play JPEG/DivX /MPEG1/
MPEG2/MP3/WMA/WAV/AAC files stored in
a USB mass storage class device.

• This unit can recognize a total of 5 000 files
and 250 folders (a maximum of 999 files per
folder).

• Make sure all important data has been
backed up to avoid losing the data.

Connecting a USB device

You can connect a USB mass storage class
device such as a USB memory, Digital Audio
Player etc. to the unit.

• You cannot connect a computer or
portable HDD to the USB input terminal.

• To connect a USB device,

When a USB device is connected...

The source changes to “
starts.

• All tracks in the USB device will be played
repeatedly until you change the source.

To disconnect the USB device safely

Press [0], then disconnect the USB device
after “No Device” appears.

☞

page 75 .

USB

” and playback

Cautions:

• This unit may not play back files in a
USB device properly when using a USB
extension cable.

• USB devices equipped with special
functions such as data security functions
cannot be used with the unit.

• Do not use a USB device with 2 or more
partitions.

• Depending on the shape of the USB
devices and connection ports, some USB
devices may not be attached properly or
the connection might be loose.

• This unit may not recognize a memory card
inserted into the USB card reader.

• When connecting with a USB cable, use the
USB 2.0 cable.

• The maximum number of characters:

– Folder names : 50 characters
– File names : 50 characters

• Avoid using the USB device if it might
effect driving safety.

• Do not pull out and connect the USB
device repeatedly while “Reading...” is
shown on the screen.

• Electrostatic shock at connecting a USB
device may cause abnormal playback of
the device. In this case, disconnect the USB
device then reset this unit and the USB
device.

• Operation and power supply may not work
as intended for some USB devices.

• Do not leave a USB device in the car,
or expose to direct sunlight or high
temperature to avoid deformation or
damage to the device.

English 23

• To display the source control screen, ☞ page 14.

• To change settings for video playback, ☞ page 20.

• DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC: Folder no./Track no.

Only for MP3/WMA/

WAV/AAC: While
playing, the jacket
picture is shown if

the file has the tag

data including the

jacket picture.

☞ page 36

[ ]

Selects repeat playback mode.

Playback mode

• REP: Repeats the current track.

• FO-REP: Repeats all tracks in
the current folder.

Selects random playback mode.

[

]

• RDM: Randomly plays all tracks.

• FO-RDM: Randomly plays all
tracks in the folder.

[0] Press this button before

disconnecting. (☞ page 23)

• JPEG: Folder no./File no.

File type

2

*1*

[ ]

[3 8] Starts/pauses playback.
[4] [¢] Selects a track.

2

*1*

[1] [¡] Reverse/forward search.*

[ ] [ ] Selects a folder.

[MODE] Enters the <USB Mode>

[MENU] Displays the <Top Menu>

Playback status
(3: play / 8: pause )

Playing time

Track/file information
(for MP3/WMA/WAV/
AAC)

• Pressing [<] scrolls
the text if not all of
the text is shown.

Displays the folder/track list.
(☞ page 19)

settings. (☞ below)

screen.

• Available items differ depending on the types of playback file.

1

*

To cancel random or repeat mode, press the button repeatedly until the indicator disappears.

2

*

You cannot activate the repeat mode and the random mode at the same time.

3

*

Search speed varies depending on the type of disc or file.

3

<USB Mode> settings

Setting <Screen Ratio>

Select the monitor type to watch a wide
screen picture on the external monitor.

16:9 4:3 LB

(Letterbox)

Setting <Drive Select>

Press [Next]. Switches between internal and
external memory source of the connected
device (such as mobile phone).

24 English

4:3 PS

(PanScan)

Setting <File Type>

Audio Plays back audio files.
Still Image Plays back JPEG files.
Video Plays back DivX/MPEG1/

MPEG2 files.

Audio&Video Plays back audio files and

DivX/MPEG1/MPEG2 files.

• If the USB device contains no files of the
selected type, the existing files are played
in the following order: audio, video, then
still image.

Listening to the iPod/iPhone device

Preparation

• Connect iPod/iPhone. (☞ page 75 )
– When connecting iPhone/iPod touch,

turn off App beforehand; otherwise
the playback may not be started after
connection.

• Use the following cables:
–

To watch the video and to listen to the
music (analog): USB Audio and Video

cable for iPod/iPhone—KCA-iP22F/
iP202

(optional accessory)

– To listen to the music (digital): USB

Audio cable for iPod/iPhone—KCA-iP102
(optional accessory)

• Select appropriate input settings on <AV
Input> according to the connection
method (☞ the right column)

• Do not use extension cables.

iPod/iPhone that can be connected to this
unit:
Made for
– iPod with video
– iPod classic
– iPod nano (6th Generation)
– iPod nano (5th Generation)
– iPod nano (4th Generation)
– iPod nano (3rd Generation)
– iPod touch (4th Generation)
– iPod touch (3rd Generation)
– iPod touch (2nd Generation)
– iPod touch (1st Generation)
– iPhone 4S
– iPhone 4
– iPhone 3GS
– iPhone 3G
– iPhone

KCA-

Settings for iPod playback

When the source is “

iPod

”...

1

2

Audiobooks Selects the speed of

audio books.

Artwork Shows/hides the iPod

artwork.

Setting <AV Input> for iPod/iPhone
playback

You can change the setting only when
[STANDBY] is selected on <Top Menu>.
(☞ page 12)

1 On <Top Menu>:

2

AV-IN2 Select this when connecting

the iPod/iPhone using the
USB Audio cable for iPod/
iPhone.

iPod Select this when connecting

the iPod/iPhone using the
USB Audio and Video cable
for iPod/iPhone

English 25

iPod/iPhone playback operations from the unit

• To display the source control screen, ☞ page 14.

• To change settings for video playback, ☞ page 20.

While playing,

picture displayed

on the screen

of iPod/iPhone)

is shown if the

song contains the

[MODE] Enter the <iPod Mode>

Current track number/total track number

Artwork (the

1

Artwork.*

☞ page 36

settings. (☞ page 25)

[38] Starts/pauses playback.

] Selects Repeat playback

[

mode. *

2

• REP: Functions the same as
“Repeat One.”

[

Selects Random playback

]

mode. *

2

• RDM: Functions the same as
“Shuffle Songs.”

Playback mode

Playback status (3: play / 8: pause )

Playing time

Song/video
information

• Pressing [<] scrolls
the text if not all of
the text is shown.

[ ]

[4]

Displays the audio/video file
list. (☞ page 27)
Selects an audio/video file.*

[¢]
[1]

Reverse/forward search.

[¡]
[APP] Select to control playback from

the iPod/iPhone—iPod/iPhone
control mode.*

[MENU] Displays the <Top Menu>

screen.

• A-RDM: Functions the same
as “Shuffle Albums.”

1

For changing the Artwork display setting, ☞ page 25.

*

2

*

To cancel random or repeat mode, press the button repeatedly until the indicator disappears.
Not available in iPod control mode. (

3

*

Resume playback is unavailable for video files.

4

*

When using iPod with video, you can control playback only from the unit.

☞ page 27)

• When you turn on this unit, the iPod/iPhone is charged through the unit.

• The text information may not be displayed correctly.

4

(☞ page 27)

3

• For some iPod/iPhone models, the performance may be abnormal or unstable during
operation. In this case, disconnect the iPod/iPhone device, then check its condition.
If the performance is not improved or is slow, reset your iPod/iPhone.

• For the latest compatible list and software version of iPod/iPhone, see:

www.kenwood.com/cs/ce/ipod

26 English

Selecting an audio/video file
from the menu

1

2 Select the menu (audio or

video) (1), a category (2),
then a desired item (3).

• Select the item in the selected layer

until a desired file starts playing.

Audio menu:

Returns to the top layer

Switches between audio

) and video ( )

(

Returns to the
previous layer

Controlling playback from
the iPod/iPhone

You can play back the audio/video files or use
App by operating iPod/iPhone itself instead
of the unit.

• When you are using Garmin StreetPilot®
Onboard, the screen appears. For Garmin
StreetPilot® Onboard for iPhone, visit the
Garmin web site: www.garmin.com

Garmin App:

Changes the page

Video menu:

Switches between audio ( ) and video ( )

• Available categories differ depending on
the type of your iPod/iPhone.

Starts folder playback

• The current position of your vehicle
appears on the map. When the vehicle
runs, the map scrolls.

• The screens of the iPhone and unit are
not the same.

• To return to the normal mode, press [APP].

English 27

Using the smartphone — MirrorLink

(Only for DDX6023BT/DDX6053BT/
DDX4023BT/DDX4053BT/DDX3053/
DDX42BT/DDX35 )

You can connect the SMARTPHONE ADAPTER
unit (KCA-ML100: optional accessory) to the
NAV I/F input terminal, and a smartphone
(not supplied) to the SMARTPHONE ADAPTER
unit so that you can view the smartphone
screen. (☞ page 76)
This product offers the “MirrorLink” function
that virtually “mirrors” applications on your
smartphone screen directly on the touch
panel screen.

• Only MirrorLink-compatible smartphones
are available. For compatible smartphones,
visit the following website:
http://kenwood.com/cs/ce/

• To use MirrorLink, the specialized
application must be installed in the
compatible smartphone.

• After connecting to a smartphone that is
compatible with this unit, the application’s
home screen will appear on the touch
panel screen.

• MirrorLink will be unavailable if you start
another application on the smartphone
while the specialized application is
used. To use the specialized application
in MirrorLink again, remove and insert
the micro-USB cable connected to the
smartphone.

Preparation: Select <MirrorLink> for
<NAV IF Input> while the [STANDBY]
is selected on <Top Menu> so that
<MirrorLink> is selectable as the source
on <Top Menu> (☞ page 46).

Basic MirrorLink operations

1 Connect your smartphone to

the SMARTPHONE ADAPTER
unit (KCA-ML100).

2 On <Top Menu>:

A combination of your smartphone
screen and control buttons appears as
follows:

Displays the home screen of
your specialized application.

Displays the menu option of
your specialized application.

Displays the information on the
firmware (the version and GPS
status). (☞ page 29)

28 English

Returns to the previous screen.

• An unavailable button is disabled.

You can operate the applications on the
touch panel screen as well as on your
smartphone screen.

Updating the firmware

Check the firmware version, and if necessary,
update the firmware. (You do not need to
connect your smartphone.)

• Do not turn off the power during update.

1 Visit the website (http://

kenwood.com/cs/ce/),
download the update data,
and save it to the root folder
of an SD or SDHC card.

2 Use a ball-point pen or the like

to remove the SD cover. While
the power is on, insert the SD
or SDHC card containing the
update data.

LED

Reset button

SMARTPHONE ADAPTER unit

(KCA-ML100)

5 Place the SD cover over the

slot.

6 Press the reset button of the

SMARTPHONE ADAPTER unit.

7 Display the firmware

information screen to confirm
that it has been updated
successfully.

(☞ page 28)

3 Press the reset button of the

SMARTPHONE ADAPTER unit.

The update is completed successfully
when the green LED lights up. (It takes
approximately 30 seconds.) If the update
fails, the red LED lights up.

4 Remove the SD or SDHC card.

English 29

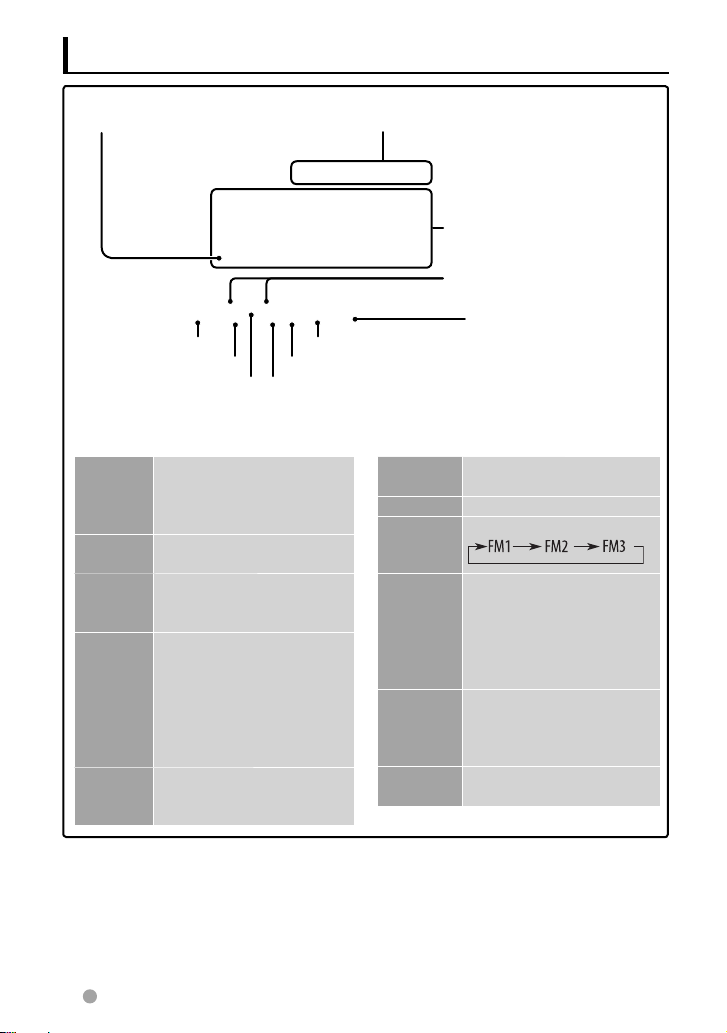

Listening to the radio

Press to switch the information between
Radio Text, Radio Text Plus, and PTY code.

☞ page 36

ST/MONO indicator

AF indicator (

☞ page 34)

RDS indicator

LO.S indicator (

Seek mode indicator

Band no./preset no./the station frequency
currently tuned in

Text information

• Pressing [<] scrolls the text if not
all of the text is shown.

Standby reception indicators

☞ page 33)

(

EON indicator:
Lights up when a Radio Data

☞ page 31)

System station is sending EON
signals.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal
strength.

[P1] –
[P6]

• Selects a stored station.
(Press)

• Stores the current station.
(Hold)

[PTY] *

Enters the PTY search mode.
(

☞ page 32)

[AM] Selects AM band.
[FM] Selects FM band.

[MODE] Enters the <Tuner Mode>

settings. (☞ page 31)

[TI]

Activates/deactivates TI
standby reception mode.
(

☞ page 33)

MONO

]* Activates/deactivates

[

monaural mode for better FM
reception. (Stereo effect will
be lost.)

• The MONO indicator lights
up while monaural mode is
activated.

[TEXT]

Displays/hides the
information of the current
station (

☞ page 31).

[SEEK] Changes the seek mode.

• AUTO1 : Auto Search

• AUTO2 : Tunes in stations
in memory one after
another.

• MANU: Manual Search

[4]
[¢]

Searches for a station.

• The search method differs
according to the selected
seek mode (☞ above)

[MENU] Displays the <Top Menu>

screen.

*

Appears only when FM is selected as the source.

30 English

Changing the display information

PS (station name) for FM Radio Data
System when PS signal is coming in

Preset list

Displays the text

information

Storing stations in memory

You can preset six stations for each band.

Automatic presetting — AME (Auto
Memory)

1

2

(Hold)

Tuning in FM stations only with strong
signals — Local Seek

1

2

ON Select this to tune in only to

stations with sufficient signal
strength. The LO.S indicator
lights up.

OFF Deactivate the function.

Local stations with the strongest signals are
searched and stored automatically.

Manual presetting

1 Tune in to a station you want

to preset. (☞ page 30)

2 Select a preset number.

(Hold)

The station selected in step

1 is stored.

English 31

Selecting a preset station

The following features are available only
for FM Radio Data System stations.

Searching for FM Radio
Data System program—PTY
Search

You can search for your favorite programs
being broadcast by selecting the PTY code.

1

2 Select a PTY code.

(Hold)

Changes the page

32 English

PTY Search starts.
If there is a station broadcasting a
program of the same PTY code as you
have selected, that station is tuned in.

• Only English/Spanish/French/German/

Dutch/Portuguese are available for
the text language here. If another
language has been selected in
<Language> (☞ page 46), the text
language is set to English.

Activating/deactivating TI/News Standby Reception

TI Standby Reception

News Standby Reception

1

TI indicator

NEWS indicator

TI indicator TI Standby Reception

Lights in
white

Lights in
orange

Goes off Deactivated.

The unit will temporarily
switch to Traffic Information
(TI) if available.

Not yet activated. Tune in to
another station providing the
Radio Data System signals.

2

• The volume adjustment for Traffic
Information is automatically memorized.
The next time the unit switches to Traffic
Information, the volume is set to the
previous level.

00min –
90min

OFF Deactivates News

• The volume adjustment while
receiving News is automatically
memorized. The next time the unit
switches to News, the volume is set to
the previous level.

Activates News Standby
Reception (the NEWS
indicator lights up).
Select the period of time
to disable interruption.

Standby Reception.

English 33

Tracing the same program—
Network-Tracking Reception

When driving in an area where FM
reception is not sufficient enough, this unit
automatically tunes in to another FM Radio
Data System station of the same network,
possibly broadcasting the same program
with stronger signals.

When shipped from the factory, Network­Tracking Reception is activated.

To change the Network-Tracking
Reception setting

1

2

Automatic TI station seek—
Auto TP Seek

When traffic information station reception
is poor, the unit automatically searches for
another station that can be received better.

To activate Auto TP Seek

1

2

To deactivate, select <OFF>.

AF Switches to another station.

AF Reg Switches to another station

OFF Cancels.

• The RDS indicator lights up when the
Network-Tracking Reception is activated
and an FM Radio Data System station is
found.

34 English

The program may differ from
the one currently received
(the AF indicator lights up).

broadcasting the same
program (the AF indicator
lights up).

Using other external components

AV-IN

To display the source control screen, ☞ page 14.

AV-IN name ( ☞ below)

[MODE] Changes the AV-IN name.

[MENU] Displays the <Top Menu> screen.

You can connects external components to the AV-IN1 and iPod/AV-IN2 input terminals.

Preparation:

If you want to use “

• No preparation is required for “

• Press [2] or [3] to select an AV-IN name.

• This setting does not affect the source name “
displayed on <Top Menu>.

AV-IN2

1 Connect external components

to AV-IN1 and iPod/AV-IN2
input terminals.

To connect external components,

☞ pages 75 and 76.

☞ page 36

AV-IN 1

”/ “

AV-IN 2

”, select [AV-IN2] for <AV Input> setting. (☞page 46)

AV-IN1

”.

3 Turn on the connected

component and start playing
the source.

”

2 Select “AV-IN 1” or “AV-IN 2” as

the source. (☞ page 14)

English 35

Using the external navigation unit

You can connect a navigation unit (KNA-G620T : optional accessory) to the navigation input
terminal so that you can view the navigation screen. (☞ page 76)
The navigation guidance comes out of the front speakers even when you listen to an audio
source.

Preparation: Select <NAV> for <NAV IF Input> while [STANDBY] is selected on <Top
Menu> so that <NAV> is selectable as the source on <Top Menu> (☞ page 46).

To view the navigation

2

screen

On <Top Menu>:

On any screen:

The navigation screen is activated.

• While the navigation screen is displayed,
the touch panel operations are available
only for using navigation function.

• The aspect ratio of the navigation screen
is fixed to <FULL> regardless of the
<Aspect> setting (☞ page 42).

o r

To cancel the navigation screen

DDX4023BT/

DDX4053BT/
DDX6023BT/
DDX6053BT

DDX3023/

DDX3053

DDX42BT/
DDX35

Settings for navigation unit

1 On <Top Menu>:

36 English

3

Guidance Select front speakers

used for the navigation
guidance.

Volume Adjust the volume of the

navigation guidance. (0
to 35)

NAV Mute Select [ON] to attenuate

the sound coming out
of speakers other than
the front speakers during
navigation guidance.

NAV Setup Press [Enter] to display

the setup screen for
the navigation unit.
See the instruction
manual supplied for the
navigation unit.

Sound adjustment

Using the sound equalization

• The adjustment is memorized for each source until you adjust the sound again. If the source
is a disc, the adjustment is stored for each of the following categories.
– DVD/DVD-VR/VCD
– CD
– DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC

• You cannot adjust the sound when the unit is in standby.

Selecting a preset sound
mode

1 On <Top Menu>:

2

3 Select a sound mode.

Changes the page

Storing your own
adjustment

Customizing preset sound mode

1 Select a sound mode. (☞

“Selecting a preset sound mode”)

2 Set <SystemQ- Ex> to [OFF]

(1), then press [Tone] (2).

3 Adjust the level of each band

(1), then select the subwoofer
level * (2).

Selects the band

The adjustments are stored and <User>
is activated.

• You can also display the <Tone> screen
by pressing AUD (only for DDX6023BT/
DDX6053BT/DDX3023/DDX3053/
DDX35 ) or VOL/ATT/AUD knob (only for
DDX4023BT/DDX4053BT) on the monitor
panel.

*

Adjustable only when the subwoofer is activated.

(

☞ page 44)

English 37

Adjusting the sound precisely

1 Perform steps 1 and 2 of

“Selecting a preset sound
mode,” then...

Adjusting the crossover
frequency

1 On <Top Menu>:

2

3 Adjust the sound of each

band.

Selects the band

Flat Changes level of Bass/

Frequency Selects frequency.

Level Adjusts level.

Q Factor Adjusts the width of the

Bass EXT Activates/deactivates

SW Level Adjusts subwoofer level.*

The adjustments are stored and <User>
is activated.

*

Adjustable only when the subwoofer is activated.

(

☞ page 44)

Middle/Treble to 0.

frequency.

bass.

2

3 Select the item to adjust, then

make adjustment.

Adjusts the crossover for front or rear
speakers (high pass filter).

Adjusts the crossover for subwoofer (low
pass filter).*

Adjusts the subwoofer level.

Selects the phase for the subwoofer. *

1

*

Adjustable only when the subwoofer is

activated. (

2

*

Not selectable when <Freq> is set to

<Through>.

1

Adjusts the cross over frequency.

2

☞ page 44)

38 English

Changing the display design

You can change the background and panel color.

1 On <Top Menu>:

2

3 Select an item to change

([Background] or [Panel
Color]).

4 Select a background/panel

color.

To select a background

To select a panel color

Variable color illumination

• Illumination color changes gradually.

For making your own color adjustment,

☞ below

Making your own color adjustment

• You can make your own color adjustment
only when <User> is selected.

1

2

3

User color adjuster: You can make your
own color adjustment stored in <

User>.

For setting your favorite scene as the
background,

☞ page 40

Dimmer setting: You can make the color
adjustment for each dimmer setting.

English 39

Using your favorite scene as the
background

While playing a video or JPEG, you can
capture an image and use the captured
image as a background.

• You cannot capture copyrighted content
and images from iPod/iPhone, or videos/
JPEG from smartphone.

• When using a JPEG file as the background,
make sure that the resolution is 800 x 600
pixels.

• The color of the captured image may look
different from that of the actual scene.

1 Play a video or JPEG.
2 Display the <User Customize>

screen. (☞ page 39)

3

4 Adjust the image.

[38]* Starts/Pauses playback.

3]* Advances scenes frame-by-

[

[

[5] [∞]
[2] [3]

• To cancel the capture screen, press

*

frame.

Magnifies the scene.

]

(<OFF>, <Zoom1> –
<Zoom3>)

Moves the zooming frame.

[Cancel].

Not displayed when playing an external
component connected to AV-IN1 or iPod/
AV-IN2 input terminal.

5 Capture the image displayed

on the screen.

40 English

A confirmation message appears. Press
[Ye s ] to store the newly captured image.
(The existing image is replaced with the
new one.)

• Press [No] to return to the previous
screen.

Setting for video playback

You can change the setting for video playback.

Picture adjustment

You can adjust the picture quality.

1 Display the adjustment menu.

2 Select [DIM ON] (dimmer on)

or [DIM OFF] (dimmer off).

3 Adjust the picture (–15 to

+15).

Adjusts the brightness

Adjusts the contrast

Adjusts the blackness

Adjusts the color

Adjusts the tint*

Adjusts the sharpness

* Adjustable only when the incoming signal is

NTSC.

English 41

Changing the aspect ratio

You can change the aspect ratio for video
playback.

1

2

4:3 signal 16:9 signal

FULL*:

For 16:9
original
pictures

JUST:

For 4:3LB
original
pictures

Normal*:

For 4:3 original
pictures

Auto: • For “

*

While DivX is played back with <Screen Ratio>

set to <16:9> (for disc:
page 24), the aspect ratio is not set correctly.

DISC

”/”

USB

The aspect ratio is
automatically selected
to match to the
incoming signals.

☞ page 22/ for USB: ☞

” only:

Zooming picture

You can zoom the picture (<Zoom1> to
<Zoom3>).

• When <Aspect> is set to <JUST> or
<Auto> (☞ the left column), the picture
is zoomed with the aspect ratio of the
<FULL> setting.

1

2

[5] [∞] [2] [3] : Moves the zooming
frame.

42 English

Using a rear view camera

• To use a rear view camera, the REVERSE lead connection is required. For connecting a rear
view camera, ☞ page 76 .

Activating the rear view
camera

1 On <Top Menu>:

2

To deactivate, select [OFF].

Displaying the picture from
the rear view camera

The rear view screen is displayed when you
shift the gear to the reverse (R) position.

To display the picture from the rear
view camera manually

DDX6023BT/DDX6053BT

DDX4023BT/
DDX4053BT*

(Hold) (Hold)

DDX42BT *

1

(Hold)

When displaying the picture from the rear
view camera manually, you can change the
setting of the picture. (

DDX3023/

1

DDX3053*

DDX35 *

2

2

(Hold)

☞ pages 41 and 42 )

(Hold)

• To erase the caution message, touch the
screen.

To erase the rear view screen, press and
hold the same button again.

1

*

This operation works only when <TEL Key Long
Press> is set to <R-CAM>. (

2

*

This operation works only when <AUD Key
Long Press> is set to <R-CAM>. (

☞ page 47 )

☞ page 47 )

English 43

Setting menu items

• You cannot change <Audio> settings when [STANDBY] is selected on <Top Menu>.

(☞ page 12)

Menu item Selectable setting/item Initial: Underlined

Fader/Balance Fader : Adjust the front and rear speaker output balance.

♦ F6 to R6; Initial 0

• When using a two-speaker system, set the fader to the
center (0).

Balance : Adjust the left and right speaker output balance.
♦ L6 to R6; Initial 0
Press [ 5/∞/2/3 ] or drag [

• To clear the adjustment, press [Center].

Equalizer

Loudness You can activate/deactivate the loudness function.

Audio

X’over

Volume Offset

Subwoofer

Speaker Select

Change the sound mode or adjust and store the equalization
for each source. (☞ page 37)

♦ Natural/Rock/Pops/Easy/Top40/Jazz/User

♦ ON

♦ OFF

Adjust the crossover frequency. (☞ page 38)

Adjust and store the auto-adjustment volume level for each
source. (For discs, the adjustment is stored for each of the
following categories: DVD/DVD-VR/VCD, CD, and DivX/
MPEG1/MPEG2/MP3/WMA/WAV/AAC.) The volume level will
automatically increase or decrease when you change the
source.

♦ –15 to +6; Initial 0

♦ ON
♦ OFF

Select the size of the connected speaker.
♦ Standard/Narrow/Middle/Wide

: Boost low and high frequencies to

produce a well-balanced sound at a low
volume level. The LOUD indicator lights up.

: Cancels.

: Activates the subwoofer.
: Cancels.

] to adjust.

44 English

Menu item Selectable setting/item Initial: Underlined

Dimmer

♦ Auto

: Dims the screen and button illumination

when you turn on the headlights.

♦ ON
♦ OFF
♦ NAV

: Activates dimmer.
: Cancels.
: Activates or deactivates dimmer

according to the day/night display
setting of the connected navigation unit.

User Customize

Change the display design (background and panel color). (☞
page 39)

OSD Clock

♦ ON

: Displays the clock while a video source is

played back.

: Cancels.

: Repeats scrolling.
: Scrolls the displayed information once.

: Cancels.

Scroll

Display

Menu Customize

♦ OFF

♦ ON
♦ Once

♦ OFF

• Pressing [<] scrolls the text regardless of the setting.

Change the items to display on the <Top Menu> screen. (☞
page 15)

Screen Adjust Adjust the brightness and blackness of the screen.

Select the dimmer mode (<DIM ON> or <DIM OFF>) for
adjustment, then change the following settings:
♦ Bright

: Adjusts brightness (–15 to +15; Initial 0

for <DIMON>/+15 for <DIMOFF>).

: Adjusts blackness (–15 to +15; Initial 0).

Video Output *

♦ Black

Select the color system of the external monitor.
♦ NTSC/PAL

Angle

Adjust the panel angle. (☞ page 11)
Only for DDX6023BT/
DDX6053BT

*

“Please power off ” appears when the setting is changed. Turn off the power, then turn on to enable the

change.

English 45

Menu item Selectable setting/item Initial: Underlined

AV Input

You can determine the use of the iPod/AV-IN2 input terminal.
♦ AV-IN2

: Select to play an AV component connected

to the iPod/AV-IN2 input terminal.

♦ iPod

: Select when connecting the iPod/iPhone

using the USB Audio and Video cable for
iPod/iPhone. (☞ page 75 )

R-CAM Interrupt

♦ ON

: Displays the picture from the rear view

camera when you shift the gear to the
reverse (R) position.

Input

NAV I/F Input *

Only for DDX6023BT/

1

♦ OFF

♦ NAV
♦ MirrorLink

: Select this when no camera is connected.

NAV

: Enables to select “
: Enables to select “

” as the source.

MirrorLink

” as the source.
DDX6053BT/
DDX4023BT/
DDX4053BT/DDX3053/
DDX42BT/DDX35

NAV Mute *

2

Attenuate the sound coming out of speakers other than the
front speakers during navigation guidance.

Navigation *
Language *

3

1

Change the navigation settings. (☞ page 36)

Select the text language used for on-screen information.

♦ English /Spanish/French/German/Italian/Dutch/

Russian/Portuguese/Chinese-Simplified/Chinese­Traditional/Thai/Turkish/Arabic/Persian/Hebrew/
Greek/Indonesia/Korean; Initial for DDX6023BT/

DDX4023BT/DDX3023/DDX42BT: English, for DDX6053BT/
DDX4053BT/DDX3053/DDX35: Russian

• For external monitors, only English/Spanish/French/German/

System

Italian/Dutch/Russian/Portuguese are available. If another
language has been selected, the text language for external
monitors will be set to English.

♦ GUI

Language

: Select a language (<English> or <Local>:

the language selected above) used for
displaying operation buttons and menu

1

*

“Please power off” appears when the setting is changed. Turn off the power, then turn on to enable the
change.

2

*

Appears when <NAV I/F Input> is set to [MirrorLink].

3

*

Appears when <NAV I/F Input> is set to [NAV].

items.

46 English

Menu item Selectable setting/item Initial: Underlined

Clock
Beep

Remote Sensor

Adjust the clock time. (☞ page 10)

♦ ON
♦ OFF

♦ ON
♦ OFF

: Activates the key-touch tone.
: Cancels.

: Activates the remote sensor.
: Cancels.

SETUP Memory You can memorize, recall, clear, or lock the settings you have

made. (☞ page 48)

Bluetooth Setup

Only for DDX6023BT/

Configures settings for using a Bluetooth device, such as

connection and other general operations. (☞ page 52)
DDX6053BT/
DDX4023BT/
DDX4053BT/DDX42BT

TEL Key Long Press

Only for DDX4023BT/
DDX4053BT/DDX42BT

System

AUD Key Long Press

Only for DDX3023/
DDX3053/DDX35

Assigns the function of the TEL button when held.

♦ V-OFF

♦ VOICE

♦ R-CAM

: Turns off the screen. (☞ page 12)
: Activates voice dialing. (☞ page 54)
: Displays the picture from the rear view

camera. (☞ page 43)

Assigns the function of the AUD button when held.

♦ V-OFF

♦ R-CAM

: Turns off the screen. (☞ page 12)
: Displays the picture from the rear view

camera. (☞ page 43)

DivX(R) VOD This unit has its own Registration Code. Once you have played

back a file with the Registration Code recorded, this unit’s

Registration Code is overwritten for copyright protection.

• Press [Enter] to display the information.

• To return to the previous screen, press [OK].

Security Code
SI

Register the security code for the unit. (☞ page 7)

Activate or deactivate the security function. (☞ page 7)

Serial Number Displays the serial number.
Touch Panel Adjust

Adjust the touch position of the buttons on screen. (☞ page 48)
System Information Displays the version information on the software. You can

update the software. (☞ page 6)

English 47

Memorizing/recalling the
settings

You can memorize the settings changed
in the <Setup> menu and recall the
memorized settings anytime.

• The memorized settings are kept even
when the unit is reset.

1 On <Setup>:

2

• To cancel, press [No].

3 Select an operation.

[Recall]: Recalls the memorized settings.
[Memory]: Memorizes the current
settings.
[Clear]: Clears the currently memorized
settings.

• To cancel, press [Cancel].

Locking the settings

You can lock the settings to prevent them
from being changed.

•

is shown beside the settings that can

be locked.

1 On <Setup>:

2

To unlock the setting, press [Unlock].

Adjusting the touch position

You can adjust the touch position on the
touch panel if the position touched and the
operation performed do not match.

1 On <Setup>:

2 Touch the center of the marks

at the lower left and at the
upper right as instructed.

Confirmation message appears. Press
[Ye s ].

48 English

• To reset the touch position, press
[Reset].

• To cancel the current operation, press
[Cancel].

BLUETOOTH OPERATIONS

(Only for DDX6023BT/DDX6053BT/DDX4023BT/DDX4053BT/DDX42BT )

Information for using Bluetooth® devices

• While driving, do not perform complicated operations such as dialing the numbers, using
phonebook, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth
version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on circumstances around you.

• When the unit is turned off, the device is disconnected.

Bluetooth operations

Preparation:

Bluetooth adapter KS-UBT1 has been

Bluetooth is a short-range wireless radio
communication technology for the mobile
device such as mobile phones, portable PCs,
and other devices. The Bluetooth devices
can be connected without cables and
communicate with each other.

attached. Connect the microphone
(supplied) beforehand. ( ☞ pages 74 and 78 )

DDX6023BT/DDX6053BT

Bluetooth adapter (KS-UBT1)

DDX4023BT/DDX4053BT/DDX42BT

Bluetooth adapter (KS-UBT1)

English 49

Connecting Bluetooth devices

Registering a new Bluetooth
device

When you connect a Bluetooth device to the
unit for the first time, make pairing between
the unit and the device for registration.
Pairing allows Bluetooth devices to
communicate each other.

• The pairing method differs depending on
the Bluetooth version of the device.
– For the device with Bluetooth 2.1: You

can pair the device and the unit using
SSP (Secure Simple Pairing) which only
requests confirmation.

– For the device with Bluetooth 2.0: You

need to enter a PIN code both on the
device and unit for pairing.

• Once the pairing is complete, it is
registered in the unit even if you reset the
unit. Up to 5 devices can be registered in
total.

• Only one device for Bluetooth phone and
one for Bluetooth audio can be connected
at a time.

• To use the Bluetooth function, you need to
turn on Bluetooth function of the device.

• To use the registered device, you need to
connect the device to the unit. (☞ page 51)

Pairing a Bluetooth device using SSP
(for Bluetooth 2.1)

When the Bluetooth device is compatible
with Bluetooth 2.1, pairing request is sent
from the available device. Confirm the
request both on the device and the unit.

Pairing a Bluetooth device using a PIN
code (for Bluetooth2.0)

• The maximum digit of the PIN code that
can be set is 16.

1 On <Top Menu>:

2 Display the <Bluetooth

Setup> screen.

3 Change the PIN code.

• If you skip changing the PIN code, go

to step 4.

50 English

PIN code (initial: 0000)

Rejects the request

Deletes last entry

4 Operate the Bluetooth device

to complete pairing.

When pairing is complete, the device is
listed on <Paired Device List>. To use
the paired device, connect the device on
<Paired Device List> (☞ below).

Connecting a registered
Bluetooth device

1 Display the <Bluetooth

Setup> screen. (☞ page 50)

2

Select the device you want to connect
(1), then select the usage of the device
([TEL (HFP)] for mobile phone and
[Audio (A2DP)] for Bluetooth audio
player ) (2).

• Selectable items depend on the device
you are operating.

• If you connect a device while another
device is connected, the device
previously connected is disconnected
and the connection for the recently
connected is established.

Deleting a registered
Bluetooth device

1 Display the <Bluetooth

Setup> screen. (☞ page 50)

2

3 Select a device to delete (1),

then delete the registration
(2).

Confirmation message appears. Press
[Ye s ].

English 51

Setting up Bluetooth

You can perform general operations such as connection and initialization through <Bluetooth
Setup> on the <Setup> menu.

Displaying the <Bluetooth Setup> screen

1 On <Top Menu>:

3

2

<Bluetooth Setup> menu items

Menu items Selectable setting/item Initial: Underlined

Paired Device
List

PIN Code Changes the PIN code of the unit.

Device Name Shows the device name to be shown on the Bluetooth device —

Device Address
Auto Connect

Bluetooth HF/
Audio

Auto Pairing

Initialize Hold [Enter] to initialize all settings you have made for using Bluetooth

Press [Enter] to show the list of the registered devices. You can connect the
device or delete the registration (☞ page 51).

• Enter a new PIN code, then press [Enter].

“KENWOOD BT MM-7U2.”

Shows the device address of the unit.

♦ ON

♦ OFF

Select the speakers used for Bluetooth (both phone and audio player).
♦

Front Only

♦ All

♦ ON

♦ OFF

mobile phone and Bluetooth audio player.

: The connection is automatically established with the last

connected Bluetooth device when the unit is turned on.

: Cancels.

: From front speakers only.
: From all speakers.

: Establishes the pairing automatically with the connected

iOS device (such as iPhone) even if the Bluetooth function
is deactivated on the device. (Auto pairing may not work
for some devices depending on the iOS version.)

: Cancels.

52 English

Using the Bluetooth mobile phone

Receiving a call

When a call comes in...

Call information

(if acquired)Rejects the call

• Phone operation is not available while
the picture from the rear view camera is
displayed. (☞ page 43)

When <Auto Response> is set to [On]

The unit answers the incoming call
automatically. (☞ page 58)

Ending a call

While talking...

Adjusting the volume of
microphone

While talking...

• This adjustment does not affect the volume
level of the other sources.

• To adjust the volume of calls/earpiece,
use VOLUME
DDX6053BT ) , VOL/ATT/AUD knob (for
DDX4023BT/DDX4053BT) ,or %/fi (for
DDX42BT ) on the monitor panel.

/ (for DDX6023BT/

Switching between
handsfree mode and phone
mode

While talking...

Each time you press the button, the talking
method is switched (
mode /

: phone mode).

: handsfree

Notifying SMS reception

If the mobile phone is compatible with SMS
(Short Message Service), the unit tells you a
message has been received. (☞ page 58)

To read a received message, operate the
mobile phone after stopping the car in a
safe place.

• You cannot read, edit, or send a message
through the unit.

English 53

Adjusting the echo cancel
level

While talking...

Making a call

1 On <Top Menu>:

Direct number entry

Deletes last entry

Hold: Adds “+”

Presets the entered phone number on the
preset list (

• You can enter up to 32 numbers.

☞ page 56)

Voice dialing

• Available only when the connected mobile
phone has the voice recognition system.

2 Select a method to make a

call.

Phonebook/Call lists (

Direct number entry (☞the right column)

Voice dialing (

54 English

☞ page 55)

Preset list (For presetting,

☞ page 56)

☞ the right column)

(Hold)

Or

(Hold)

(Hold)

☞ page 47 )

DDX6023BT/
DDX6053BT

DDX4023BT/
DDX4053BT* DDX42BT*

Speak the name you want to call.

To cancel, press [Cancel].

* This operation works only when <TEL Key Long

Press> is set to <VOICE>. (

Using the phonebook/call lists

1

2 Select the initial.

• If the initial is not a letter or number,
press [Others].

Outgoing

Incoming From received call list.
Missed From missed call list.
Phonebook From phonebook.

From dialled call list.

• For copying the
phonebook, ☞ page

56.

2

To use the A-Z search on the phonebook

When <Phonebook> is selected, you can
search by initial.

1

3 Select a phone number from

the list.

To display the details of an entry

When <Phonebook> is selected...

1 Display the details of the

desired entry.

2 Select a phone number to call.

English 55

Presetting the phone
numbers

You can preset up to 6 phone numbers.

1 On <Top Menu>:

Copying the phonebook

You can copy the phonebook memory of
a mobile phone into the unit (up to 400
entries).

1 On <Top Menu>:

2 Select an item from

phonebook/call lists.

3 Select a phone number.

(Hold)

4 Select a preset number to

store into.

• You can also preset the phone number
entered on <Direct Number> screen by
pressing [Preset]. (☞ page 54)

To delete the preset phone numbers,
initialize the settings from <Initialize> in
<Bluetooth Setup>. (☞ page 52)

2

3

PIN code (initial: 0000)

Numbers of the phonebook entries copied

4 Operate the target mobile

phone.

• Refer to the instruction manual
supplied with your mobile phone.

• To cancel the transfer, press [Finish].

5 Finish the procedure.

56 English

The phonebook memory is copied from
the mobile phone.

Deleting the phone number
entries in the unit

1 Display the phonebook/call

list you want to delete. (☞ page

55)

2

• You cannot delete data when [Phone]
is selected.

3 Select the item you want to

delete.

About mobile phones compatible
with Phone Book Access Profile
(PBAP)

If your mobile phone supports PBAP, you
can display the phonebook and call lists
on the touch panel screen when the
mobile phone is connected.

• Phonebook: up to 5 000 entries

• Dialed calls, received calls, and missed
calls: up to 50 entries each

To display the phonebook/call lists of
the mobile phone or the unit

Connected mobile phone

Unit

Deletes all the numbers/names in the

selected item

A confirmation message appears. Press
[Ye s ].

English 57

Settings for Bluetooth mobile phone

1 On <Top Menu>:

3

2

Menu items Selectable setting/item Initial: Underlined

Phone
Device

Auto
Response

SMS Notify

Ring Mode

Ring Tone
Change

Shows the connected phone device name.

♦ ON

♦ OFF

♦ ON

♦ OFF

♦ System
♦ Phone

When <Ring Mode> is set to <System>, press [Enter], then select the ring
tone for received calls and SMS from <Tone1>, <Tone2>, <Tone3>.

♦ Call Tone
♦ Message

Tone

: The unit answers the incoming calls automatically in 5

seconds.

: The unit does not answer the calls automatically. Answer

the calls manually.

: The unit informs you of the arrival of a message by ringing

and displaying “Receiving Message.”

: The unit does not inform you of the arrival of a message.

: The ring tone set on the unit is used.
: The ring tone set on the mobile phone is used. ( This

function may not work depending on the mobile phone.)

: Selects the ring tone for phone calls.
: Selects the ring tone for SMS.

58 English

Using the Bluetooth audio player

• To register a new device, ☞ page 50.

• To connect/disconnect a device, ☞ page 51.

Playback status * (3: play / 8: pause)

Playing time *

Tag data (current track title/
artist name/album title) *

• Pressing [<] scrolls the text if
not all of the text is shown.

☞ page 36

• The operation buttons, indications and information displayed on the screen differ
depending on the connected device.

[3] Starts playback.
[8] Pauses.
[4][¢] • Selects a track. (Press)

• Reverse/forward search* (Hold)

[MENU] Displays the <Top Menu> screen.

*

Available only for the devices compatible with AVRCP 1.3.

English 59

DVD

t

TV

t

AUD

t

USING THE REMOTE CONTROLLER

Overview

DDX6023BT/DDX6053BT :

This unit can be operated using the Remote Controller (RC-DV340) supplied with this unit.

DDX4023BT/DDX4053BT/DDX3023/DDX3053

Optional Remote Controller KNA-RCDV331 is designed for controlling this unit. Refer to the
instruction manual that comes with the remote controller.

/DDX42BT/DDX35

:

CAUTION

• Put the Remote Controller in a place where
it will not move during braking or other
operations. A dangerous situation could
result, if the Remote Controller falls down
and gets wedged under the pedals while
driving.

• Do not leave the battery near fire or
under direct sunlight. A fire, explosion or
excessive heat generation may result.

• Do not recharge, short, break up or heat
the battery or place it in an open fire. Such
actions may cause the battery to leak fluid.
If spilled fluid comes in contact with your
eyes or on clothing, immediately rinse with
water and consult a physician.

• Place the battery out of reach of children. In
the unlikely event that a child swallows the
battery, immediately consult a physician.

Battery installation

Use two “AAA”/”R03”-size batteries.
Insert the batteries with the + and – poles
aligned properly, following the illustration
inside the case.

• If the Remote Controller operates only
over shorter distances or does not operate
at all, it is possible that the batteries are
depleted. In such instances, replace the
both batteries with new ones.

Remote Controller mode switch

The functions operated from the remote
controller differ depending on the position of
the mode switch.

AUD mode: Switch to this mode when
controlling a selected source or tuner source,
etc.
DVD mode: Switch to this mode when
playing DVDs or CDs etc. with the player
integrated in this unit.
TV mode: Not used.

• The position of the remote control mode
switch is indicated in the title of each
mode, e.g., “(AUD mode)”.

• When controlling a player that is not
integrated in the unit, select “AUD” mode.

60 English

Operations from the remote controller

Common operations (AUD mode)

Source switching

Switches to the source to be played.
Hangs up the incoming/current call.

Volume control

Adjusts the volume.

Volume attenuating

Press the key once to lower the volume. Press
again to restore the previous volume.

NAV/V.SEL

Switches to the navigation screen.

Cursor key

Moves the cursor when displaying menu.

ENTER

Enters options.

Hands-free communication

When a call comes in, it answers the call.

Function

Switches the control screen.

MODE

Switches the aspect ratio.
Aspect ratio changes each time you press
this key.

OPEN

(Only for DDX6023BT/DDX6053BT )

Adjusts the panel angle.
The panel angle changes each time you press
this key.

English 61

DVD/VCD (DVD mode)

Track search and file search

Selects the track or file to be played.

Play/Pause

Pauses the track.
Press again to resume playing.

Stop

Memorizes the last point where the disc
stopped.

Direct search

Pressing this key switches the features that
can be searched directly.

DVD-VIDEO

Chapter number
Title number
Cancel

VCD 1.X, VCD 2.X (PBC OFF)

Track number

Cancel

VCD 2.X (PBC ON)

Track number

Cancel

Once you have switched to the direct search
feature, specify the search number from the
numeric keypad, and then press [ENTER] key.

Numeric keypad

• Specify the number to search in direct
search.

• Press

1

to fast forward/backward.

2

ABC

Switches the fast forward/backward speed
each time you press this key.

• Press

1

to slow forward/backward

2

ABC

during pause.

DVD Top Menu

Returns to the DVD top menu.

DVD Menu

Displays the DVD menu.

DVD-VR

Chapter number
Program/Playlist
Cancel

62 English

SUBTITLE

Switches the subtitle language.

Track search and file search

Selects the track or file to be played.

ZOOM

Switches the zoom ratio each time you press
this key.

Picture Angle

Switches the picture angle each time you
press this key.

AUDIO

Switches the voice language each time you
press this key.

Music Disc/Audio file/Video file/
Picture file (AUD mode)

Folder search

Selects the folder to be played.

Play/Pause

Pauses the track.
Press again to resume playing.

Direct search

Pressing this key switches the features that
can be searched directly.

Music Disc

Track number

Cancel

Audio files in DVD/CD disc

Folder number

File number

Cancel

Once you have switched to the direct search
feature, specify the search number from the
numeric keypad, and then press [ENTER] key.

Numeric keypad

• Specify the number to search in direct
search.

English 63

Radio (AUD mode)

Band switching

Switches to bands received by the unit.

Station selection

Switches to broadcast stations received by
the unit.

• To use preset tuning, press the number of
a programmed broadcast station. (

)

6

MNO

–

1

• Press the direct tuning key first, then
specify the frequency of the station to
receive.

iPod (AUD mode)

Music/Video search

Selects the music/video to be played.

Seek mode switching

Switches the Seek mode (AUTO1, AUTO2,
MANU).

Direct tuning

After pressing this key, use the keypad to
specify the broadcast station you wish to
receive.

Example: 92.1MHz (FM)

1

2

ABC

9

WXYZ

or

Example: 810kHz (AM)

TUV

1

or

0

8

Numeric keypad

Play/Pause

Pauses the music/video.
Press again to resume playing.

USB (AUD mode)

Folder search

Selects the folder to be played.

File search

Selects the file to be played.

Play/Pause

Pauses the file.
Press again to resume playing.

64 English

REFERENCE

Maintenance

Caution on cleaning the unit

Do not use
any solvent
(for example,
thinner, benzine,
etc.), detergent,
or insecticide. This may damage the monitor
or the unit.

Recommended cleaning method:

Gently wipe the panel with a soft, dry cloth.

Moisture condensation

Moisture may condense on the lens inside
the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.
Should this occur, the unit may malfunction.
In this case, eject the disc and leave the unit
turned on for a few hours until the moisture
evaporates.

How to handle discs

When removing a disc
from its case, press

down the center holder
of the case and lift the
disc out, holding it by the
edges.

• Always hold the disc by the edges. Do not
touch its recording surface.

When storing a disc in its case, gently
insert the disc around the center holder (with
the printed surface facing up).

• Make sure to store discs in their cases after
use.

Center holder

To keep discs clean

A dirty disc may not play correctly.
If a disc does become dirty, wipe
it with a soft cloth in a straight line
from center to edge.

• Do not use any solvents (for
example, conventional record cleaner,
spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some
rough spots around the inner
and outer edges. If such a disc
is used, this unit may reject the
disc.
To remove these rough spots, rub the
edges with a pencil or ball-point pen, etc.

Do not use the following discs:

8 cm CD Warped disc

Sticker and sticker

residue Stick-on label

Unusual shape

C-thru Disc (semi-

transparent disc)

Transparent or semi­transparent parts on

its recording area

English 65

More about this unit

File playback

Playing DivX files

• This unit can play back DivX files with the
extension code <.divx>, <.div>, or <.avi>
(regardless of the letter case—upper/
lower).

• Audio stream should conform to MP3 or
Dolby Digital.

• The file encoded in the interlaced scanning
mode may not be played back correctly.

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2
files with the extension code <.mpg>,
<.mpeg>, or <.mod>.

• The stream format should conform to
MPEG system/program stream.

The file format should be MP@ML (Main

Profile at Main Level)/SP@ML (Simple Profile
at Main Level)/MP@LL (Main Profile at Low
Level).

• Audio streams should conform to MPEG1
Audio Layer-2 or Dolby Digital.

Playing JPEG files

• This unit can play back JPEG files with the
extension code <.jpg> or <.jpeg>.

• This unit can play back JPEG files that are at
32 x 32 to 8 192 x 7 680 resolution.

It may take time to display the file

depending on its resolution.

• This unit can play back baseline JPEG files.
Progressive JPEG files or lossless JPEG files
cannot be played.

We bear no responsibility for any loss
of data in an iPod/iPhone and USB mass
storage class device while using this
unit.

Playing MP3/WMA/WAV/AAC files

• This unit can play back files with the
extension code <.mp3>, <.wma>, <.wav>,
or <.m4a> (regardless of the letter case—
upper/lower).

• This unit can play back the files meeting
the conditions below:
– Bit rate:
MP3: 8 kbps – 320 kbps
WMA: 5 kbps – 320 kbps
AAC: 16 kbps – 320 kbps
– Sampling frequency:
8 kHz – 48 kHz (for MP3/WMA)

44.1 kHz (for WAV)
32 kHz – 48 kHz (for AAC)

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3).

• This unit can also show WAV/WMA/AAC
Tag .

• This unit can play back files recorded in VBR
(variable bit rate).

• Files recorded in VBR have a discrepancy in
elapsed time indication.

• This unit cannot play back the following
files:
– MP3 files encoded with MP3i and MP3

PRO format.
– MP3 files encoded with Layer 1/2.
– WMA files encoded with lossless,

professional, and voice format.
– WMA files which are not based upon

Windows Media® Audio.
– WMA/AAC files copy-protected with

DRM.
– AAC files encoded by using any other

application than iTunes.
– AAC files copy-protected with FairPlay

(except those stored on an iPod).
– Files which have the data such as AIFF,

ATRAC3, etc.

66 English

Sound signals emitted through the rear terminals

Through the analog terminals (Speaker out/Front Preout/Rear Preout)

2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals
are downmixed.

Language codes (for DVD/DivX language selection)

Code Language Code Language Code Language Code Language

AA Afar GL Galician MI Maori SO Somali

AB Abkhazian GN Guarani MK Macedonian SQ Albanian

AF Afrikaans GU Gujarati ML Malayalam SR Serbian

AM Ameharic HA Hausa MN Mongolian SS Siswati

AR Arabic HI Hindi MO Moldavian ST Sesotho

AS Assamese HR Croatian MR Marathi SU Sundanese

AY Aymara HU Hungarian MS Malay (MAY) SW Swahili

AZ Azerbaijani HY Armenian MT Maltese TA Tamil

BA Bashkir IA Interlingua MY Burmese TE Telugu

BE Byelorussian IE Interlingue NA Nauru TG Tajik

BG Bulgarian IK Inupiak NE Nepali TH Thai

BH Bihari IN Indonesian NO Norwegian TI Tigrinya

BI Bislama IS Icelandic OC Occitan TK Turkmen

BN Bengali, Bangla IW Hebrew OM (Afan) Oromo TL Tagalog

BO Tibetan JA Japanese OR Oriya TN Setswana

BR Breton JI Yiddish PA Panjabi TO Tonga

CA Catalan JW Javanese PL Polish TR Turkish

CO Corsican KA Georgian PS Pashto, Pushto TS Tsonga

CS Czech KK Kazakh QU Quechua TT Tatar

CY Welsh KL Greenlandic RM Rhaeto-

Romance

DZ Bhutani KM Cambodian RN Kirundi UK Ukrainian

EL Greek KN Kannada RO Rumanian UR Urdu

EO Esperanto KO Korean (KOR) RW Kinyarwanda UZ Uzbek

ET Estonian KS Kashmiri SA Sanskrit VI Vietnamese

EU Basque KU Kurdish SD Sindhi VO Volapuk

FA Persian KY Kirghiz SG Sangho WO Wolof

FI Finnish LA Latin SH Serbo-Croatian XH Xhosa

FJ Fiji LN Lingala SI Singhalese YO Yoruba

FO Faroese LO Laothian SK Slovak ZU Zulu

FY Frisian LT Lithuanian SL Slovenian

GA Irish LV Latvian, Lettish SM Samoan

GD Scots Gaelic MG Malagasy SN Shona

TW Twi

English 67

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a
service center.

• For operations with the external components, refer also to the instructions supplied with
the adapters used for the connections (as well as the instructions supplied with the external
components).

If the following messages appear

General

Message Remedy/Cause

“No Signal” • Start the playback on the external component connected to AV-IN1

• “Miswiring DC
Offset Error”

• “Warning DC
Offset Error”

“Parking off”

“Authorization Error” Check whether the connected iPod/iPhone is compatible with this

“USB Device Error” • The USB power voltage is abnormal.

“Panel Mecha Error” The panel does not work properly. Reset the unit.

“No Navigation” No navigation unit is connected.

Bluetooth (Only for DDX6023BT/DDX6053BT/DDX4023BT/DDX4053BT/DDX42BT )

Message Remedy/Cause

“No BT Dongle” The Bluetooth adapter (KS-UBT1) is removed.

“Connection Error” The device is registered but the connection has failed. Connect the

“Please Wait...” The unit is preparing to use the Bluetooth function. If the message

“No Voice Device”

“No Data” No phonebook data is contained in the connected Bluetooth phone.

“Initialize Error” The unit has failed to initialize the Bluetooth module. Try the operation

“Dial Error” Dialing has failed. Try the operation again.

“Hung Up Error” The call has not ended yet. Park your car, and use the connected

“Pick Up Error” The unit has failed to receive a call.

or iPod/AV-IN2 input terminal.

• Check the cords and connections.

• Signal input is too weak.

A speaker cord has shorted or it has come in to contact with the car
chassis. Wire or insulate the speaker cord as appropriate, then reset the
unit (☞ pages 3 and 74 ).

No playback picture is shown when the parking brake is not engaged.

unit. (☞ page 25)

• Turn off and turn on the unit.

• Connect another USB device.

registered device. ( ☞ page 51)

does not disappear, turn off and turn on the unit, then connect the
device again (or reset the unit).

The connected mobile phone does not have the voice recognition system.

again.

mobile phone to end the call.

68 English

If there seems to be a problem

Symptom Remedy/Cause

No sound comes out of the
speakers.

No picture is displayed on the
screen.

General

The unit does not work at all.

The remote controller* does not
work.

AME automatic presetting does
not work.

Static noise while listening to

TUNER

the radio.

• Recordable/Rewritable discs
cannot be played back.

• Tracks on the Recordable/
Rewritable discs cannot be
skipped.

Playback does not start. The format of files is not supported by the unit.

Disc in general

No picture appears on the
external monitor.

Disc cannot be played back. • Record the tracks using a compliant application

• Adjust the volume to the optimum level.

• Check the cords and connections.

Turn on the screen. (☞ page 12)

Reset the unit. (☞ page 3)

Replace the battery.

Store stations manually. (☞ page 31)

Connect the aerial firmly.

• Insert a finalized disc.

• Finalize the discs with the component which you
used for recording.

• Connect the video cord correctly.

• Select the correct input on the external monitor.

on the appropriate discs. (☞ page 17)

• Add appropriate extension codes to the file
names.

Tracks are not played back as
you have intended them to play.

DivX/MPEG1/MPEG2/

JPEG/MP3/WMA/WAV/AAC

No picture appears on the
screen.

AV-IN2

AV-IN1/

* For DDX4023BT/DDX4053BT/DDX3023/DDX3053/DDX42BT/DDX35 , purchase KNA-RCDV331 separately.

Playback order may differ from the one played back
using other players.

• Turn on the video component if it is not on.

• Connect the video component correctly.

• When “

AV-IN2

Input> to [AV-IN].

” is selected as the source, set <AV

English 69

Symptom Remedy/Cause

No sound comes out of the
speakers.

The iPod/iPhone does not turn
on or does not work.

Sound is distorted. Deactivate the equalizer either on this unit or the

A lot of noise is generated. Turn off (uncheck) the “VoiceOver” feature of the

iPod/iPhone

No operations are available
when playing back a track
containing Artwork.

Sound does not synchronize
with the video.

• Videos cannot be played.

• No sound of videos comes
out.

“Reading...” keeps flashing on the
screen.

USB

While playing a track, sound is
sometimes interrupted.

• Disconnect the iPod/iPhone, then connect it
again.

• Select another source and then reselect “iPod”.

• Check the connecting cable and its connection.

• Update the firmware version.

• Charge the battery.

• Check whether the iPod/iPhone control mode is
correctly selected. (☞ page 27)

• Reset the iPod/iPhone.

iPod/iPhone.

iPod. For details, visit <http://www.apple.com>.

Operate the unit after the Artwork is loaded. (☞
page 25)

Select <iPod> for <AV Input>. (☞ page 46)

• Connect USB Audio and Video cable KCA-iP202/
KCA-iP22F. Other cables cannot be used.

• Select <iPod> for <AV Input>. (☞ page 46)

Turn off the power and on again.

The tracks are not properly copied into the USB
device. Copy tracks again, and try again.

70 English

Symptom Remedy/Cause

Phone sound quality is poor. • Reduce the distance between the unit and the

Bluetooth mobile phone.

• Move the car to place where you can get a better
signal reception.

The sound is interrupted or
skipped while using a Bluetooth
audio player.

• Reduce the distance between the unit and the
Bluetooth audio player.

• Disconnect the device connected for Bluetooth
phone.

• Turn off, then turn on the unit.

• (When the sound is not yet restored) connect the
player again.

The connected audio player
cannot be controlled.

Check whether the connected audio player
supports AVRCP (Audio Video Remote Control
Profile).

Bluetooth device does not
detect the unit.

• Check whether the Bluetooth adapter (KS-UBT1)
is inserted correctly.

• Search from the Bluetooth device again.

The unit does not make pairing
with the Bluetooth device.

DDX4023BT/DDX4053BT/DDX42BT )

Bluetooth (only for DDX6023BT/DDX6053BT/

• For the device compatible with Bluetooth2.1:
Register the device by using a PIN code.
(☞ page 50)

• For the device compatible with Bluetooth 2.0:
Enter the same PIN code for both the unit and
target device. If the PIN code of the device is not
indicated on its instructions, try “0000” or “1234.”

Echo or noise occurs. Adjust the microphone unit position.

The unit does not respond when
you try to copy the phonebook

You may have tried to copy the same entries (as
stored) to the unit.

to the unit.

English 71

Accessories/Installation Procedure

Accessories

1

2

3

4 *

5 *

..........1

..........1 (2m)

..........1

1

..........2

2

..........2

2

6 *

..........1

3

7 *

..........1 (3m)

*1 DDX4023BT/

DDX4053BT/
DDX3023/DDX3053/
DDX42BT/DDX35 only.

2

*

DDX6023BT/

DDX6053BT only.

3

*

DDX6023BT/

DDX6053BT/
DDX4023BT/
DDX4053BT/DDX42BT
only.

Installation Procedure

1 To prevent a short circuit, remove the key

from the ignition and disconnect the ·
battery.

2 Make the proper input and output wire

connections for each unit.

3 Connect the speaker wires of the wiring

harness.

4 Take Connector B on the wiring harness

and connect it to the speaker connector
in your vehicle.

5 Take Connector A on the wiring harness

and connect it to the external power
connector on your vehicle.

6 Connect the wiring harness connector to

the unit.

7 Install the unit in your car.
8 Reconnect the · battery.
9 Press the reset button.
10 Perform the Initial Setup.

WARNING

• If you connect the ignition wire (red) and the
battery wire (yellow) to the car chassis (ground),
you may cause a short circuit, that in turn may
start a fire. Always connect those wires to the
power source running through the fuse box.

• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via the
fuse.

¤

• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V
DC power supply.

• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid
places with too much dust or the possibility of
water splashing.

• Do not use your own screws. Use only the screws
provided. If you use the wrong screws, you could
damage the unit.

• If the power is not turned ON (“Miswiring
DC Offset Error”, “Warning DC Offset Error” is
displayed), the speaker wire may have a short­circuit or touched the chassis of the vehicle and
the protection function may have been activated.
Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire to
a power source with a constant voltage supply,
such as with battery wires, the battery may be
drained.

• Only for DDX6023BT/DDX6053BT: If the console
has a lid, make sure to install the unit so that the
faceplate will not hit the lid when closing and
opening.

72 English

• If the fuse blows, first make sure the wires are not
touching to cause a short circuit, then replace the
old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or
other similar material. To prevent a short circuit,
do not remove the caps on the ends of the
unconnected wires or the terminals.

• Connect the speaker wires correctly to the
terminals to which they correspond. The unit may
be damaged or fail to work if you share the ·
wires or ground them to any metal part in the car.

• When only two speakers are being connected
to the system, connect the connectors either to
both the front output terminals or to both the
rear output terminals (do not use one from each).
For example, if you connect the ª connector
of the left speaker to a front output terminal, do
not connect the · connector to a rear output
terminal.

• After the unit is installed, check whether the brake
lamps, blinkers, wipers, etc. on the car are working
properly.

• Mount the unit so that the mounting angle is 30°
or less.

• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise scars,
damage, or failure may result.

• This unit has the cooling fan to decrease the
internal temperature. Do not mount the unit
in a place where the cooling fan of the unit is
blocked. Blocking these openings will prevent the
cooling of the internal temperature and result in
malfunction.

Cooling fan

DDX6023BT/DDX6053BT only

1 Before installation, remove the screws.

⁄ Do not use the removed screws for

installation.

2 Detach the sleeve using the two

extraction keys
mounting sleeve.

5 then slide off the

Accessory 5

¤ CAUTION

Install this unit in the console of your
vehicle.
Do not touch the metal part of this unit
during and shortly after the use of the
unit. Metal part such as the heat sink and
enclosure become hot.

DDX4023BT/DDX4053BT/DDX42BT

• Install the Bluetooth adapter (KS-UBT1) besides
the place enclosed by the metal.

only

Bluetooth adapter (KS-UBT1)

English 73

Connecting Wires to Terminals

Bluetooth Microphone (Accessory 7)
DDX6023BT/DDX6053BT/DDX4023BT/
DDX4053BT/DDX42BT

Antenna Cord

FM/AM antenna input (JASO)

Accessory 1

Light blue/Yellow

(Steering remote control
wire)

only

FUSE ( 10A )

If no connections are made, do not let the cable come out from the tab.

Purple/White

(Reverse sensor wire)

Light Green

(Parking sensor wire)

For best safety, be sure to connect
the parking sensor.

Connect to the vehicle's parking

⁄

brake detection switch harness.

To use the steering wheel remote control feature, you need
an exclusive remote adapter (not supplied) matching your
car is required.

Subwoofer Preout (monaural)

Connect to vehicle's reverse lamp
harness when using the optional
rear view camera.

Extension cable (Accessory 2)

Blue/White

(Power control/antenna
control wire)

Brown

(Mute control wire)

Yellow (Battery wire)

Red (Ignition wire)

Red (A7)

Yellow (A4)

Connector A

Connector B

Pin Colour and functions

A4 Yellow Battery
A5 Blue/White Power Control
A6 Orange/White Dimmer
A7 Red Ignition (ACC)
A8 Black Earth (Ground) Connection

74 English

To the power control terminal when using the optional
power amplifier/optional smartphone adapter (KCA­ML100), or to the antenna control terminal in the vehicle.

☞ page 76)

(

To the terminal that is grounded when either the telephone
rings or during conversation. (To connect the Kenwood
navigation system, consult your navigation manual.)

Connecting the ISO connectors on some
VW/Audi or Opel (Vauxhall) automobiles

You may need to modify the wiring of the supplied
wiring harness as illustrated below.

Red
(Ignition wire)

Unit

Yellow
(Battery wire)

Default wiring

Pin Colour and functions

B1/B2 Purpleª / Purple/Black· Rear Speaker (Right)
B3/B4 Grayª / Gray/Black· Front Speaker (Right)
B5/B6 Whiteª / White/Black· Front Speaker (Left)
B7/B8 Greenª / Green/Black· Rear Speaker (Left)

Red (A7)

Vehicle

Yellow (A4)

Connecting a USB device/iPod/iPhone

For DDX6023BT/DDX6053BT

iPod (commercially available)

USB device
(commercially available)

CA-U1EX*
(Optional Accessory)

(0.8 m)
KCA-iP202

(Optional Accessory)
(1.8 m)

For DDX4023BT/DDX4053BT

iPod (commercially available)

USB device
(commercially available)

CA-U1EX*
(Optional Accessory)

(0.8 m)

KCA-iP202
(Optional Accessory)

(1.8 m)

For DDX42BT/DDX35

iPod (commercially available)

USB terminal

iPod/Audio Visual input 2 (iPod/AV-IN2)
(iPod/AV Input 2 switchable)

USB terminal

iPod/Audio Visual input 2 (iPod/AV-IN2)
(iPod/AV Input 2 switchable)

* Use CA-U1EX for extending

the cable if necessary. (Max
500 mA, 5V)

* Use CA-U1EX for extending

the cable if necessary. (Max
500 mA, 5V)

USB device
(commercially
available)

KCA-iP22F
(Optional Accessory)

CA-U1EX
(Optional
Accessory)

USB terminal

iPod/Audio Visual
input 2 (iPod/AV-IN2)
(iPod/AV Input 2
switchable)

English 75

Connecting Other Products

Navigation System (Optional Accessory)

Navigation units that can be connected to this unit (as of

⁄

December, 2012): KNA-G620T
For latest information, access the www.kenwood.com/cs/ce/.

Connection cable

(Included in the

Navigation System)

Navi I/F Input

SMARTPHONE
(commercially
available)

SMARTPHONE ADAPTER
(KCA-ML100 : Optional
Accessory)

Rear View Camera Input

• Visual input ( Yellow)

Audio/Visual Output

• Visual output ( Yellow)

• Audio output (3.5φ mini plug)
Resistance-free stereo type mini plug

Rear Preout

• Audio left output ( White)

• Audio right output (Red)

Front Preout

• Audio left output ( White)

• Audio right output (Red)

Audio Visual input 1 (AV-IN1)

• Visual input ( Yellow)

• Audio left input ( White)

• Audio right input (Red)

Connect to the vehicle's parking

⁄

brake detection switch harness.

GPS antenna
(CX-G100 : Optional Accessory)

76 English

Blue/White (Power control wire)
To Main unit (

Light Green (Parking sensor wire)

Yellow (Battery wire)

Black (Ground wire) · (To car chassis)

☞ page 74)

FUSE ( 5A )

Battery

Installing/Removing the Unit

Installing the Trim Plate

1 Attach accessory 3 to the unit.

Accessory 3

Installing the Unit

Bend the tabs of the mounting sleeve
with a screwdriver or similar utensil and
attach it in place.

Removing the Trim Plate
(DDX4023BT/DDX4053BT/
DDX3023/DDX3053/
DDX42BT/DDX35 only)

1 Engage the catch pins on the extraction

key 4 and remove the two locks on the
lower part. Lower the frame and pull it
forward as shown in the figure.

Accessory 4

Catch

Lock

⁄

• The frame can be removed from the top side in
the same manner.

2 When the lower part is removed, remove

the upper two locations.

For more stable attachment the unit (DDX6053BT/
DDX6023BT only)

Bracket

Accessory 6

⁄

• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).

English 77

Removing the Unit
(DDX4023BT/DDX4053BT/
DDX3023/DDX3053/
DDX42BT/DDX35 only)

• For removing DDX6023BT/DDX6053BT, ☞ page 73.

1 Remove the trim plate by referring to

the removal procedure in the section
“Removing the Trim Plate”.

2 Insert the two extraction keys 4 deeply

into the slots on each side, as shown.

Accessory 4

3 Lower the extraction keyl toward the

bottom, and pull out the unit halfway
while pressing towards the inside.

Installing the Microphone
Unit (DDX6023BT/
DDX6053BT/ DDX4023BT/
DDX4053BT/DDX42BT only)

1 Check the installation position of the

microphone (accessory 7).

2 Remove oil and other dirt from the

installation surface.

3 Install the microphone.
4 Wire the microphone cable up to the unit

with it secured at several positions using
tape or the like.

⁄

• Install the microphone as far as possible from the
mobile phone.

Accessory 7

Fix a cable with clamps (commercially
available).

⁄

• Be careful to avoid injury from the catch pins on
the removal tool.

4 Pull the unit all the way out with your

hands, being careful not to drop it.

78 English

Peel the release coated paper of double-face
adhesive tape to fix on the place shown above.

Adjust the direction of the microphone to the
driver.

Specifications

Monitor section

Picture Size

: 6.95 inches (diagonal) wide

156.6 mm (W ) × 81.6 mm (H)
( DDX6023BT/DDX6053BT)
: 6.1 inches (diagonal) wide

136.2 mm (W ) × 72 mm (H)
(

DDX4023BT/DDX4053BT/DDX3023/

DDX3053/DDX42BT/DDX35)

Display System

: Transparent TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 1,152,000 (800H × 480V × RGB)

Effective Pixels

: 99.99%

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: LED

DVD player section

D/A Converter

: 24 bit

Audio Decoder

: Linear PCM/Dolby Digital/dts/MP3/

WMA/AAC/WAV

Video Decoder

: MPEG1/MPEG2/ DivX

Wow & Flutter

: Below Measurable Limit

Frequency Response

: Sampling frequency;

96 kHz: 20 Hz – 22,000 Hz
48 kHz: 20 Hz – 22,000 Hz

44.1 kHz: 20 Hz – 20,000 Hz

Total Harmonic Distortion

: 0.010% (1 kHz)

S/N Ratio (dB)

: 99 dB (DVD-Video 96 kHz)

Dynamic Range

: 98 dB (DVD-Video 96 kHz)

Disc Format

: DVD-Video/DVD-VR/VIDEO-CD/CD-DA

Sampling frequency

: 44.1/48/96 kHz

Quantifying Bit Number

: 16/20/24 bit

USB interface section

USB Standard

: USB 2.0 Full Speed

File System

: FAT 16/32

Maximum Power Supply Current

: DC 5 V

D/A Converter

: 24 Bit

Video Decoder

: MPEG1/MPEG2/ DivX

Audio Decoder

: MP3/WMA/AAC/WAV (Linear PCM)

1 A

Bluetooth section
(DDX6023BT/DDX6053BT/
DDX4023BT/DDX4053BT/
DDX42BT)

Technology

: Bluetooth 2.1 + EDR

Frequency

: 2.402 GHz – 2.480 GHz

Output Power

: +4 dBm (MAX), 0 dBm (AVE), Power

Class 2

Maximum Communication range

: Line of sight approx. 10m

Profile

: HFP (Hands Free Profile),
OPP (Object Push Profile),
PBAP (Phonebook Access Profile),
A2DP (Advanced Audio Distribution

Profile),

AVRCP (Audio/Video Remote Control

Profile),
GAP (Generic Access Profile),
SDP (Service Discovery Profile),

English 79

FM tuner section

Frequency Range (50 kHz)

: 87.5 MHz – 108.0 MHz

Usable Sensitivity (S/N: 26 dB)

: 0.7 μV/75 Ω

Quieting Sensitivity (S/N: 46 dB)

: 1.6 μV/75 Ω

Frequency Response (± 3.0 dB)

: 30 Hz – 15 kHz

S/N Ratio (dB)

: 65 dB (MONO)

Selectivity (± 400 kHz)

: ≥ 65 dB

Stereo Separation

: 35 dB (1 kHz)

LW tuner section

Frequency Range (9 kHz)

: 153 kHz – 279 kHz

Usable Sensitivity

: 45 μV

MW tuner section

Frequency Range (9 kHz)

: 531 kHz – 1611 kHz

Usable Sensitivity

: 25 μV

Video section

Color System of External Video Input

: NTSC/PAL

External Video Input Level (RCA/mini jack)

: 1 Vp-p/75 Ω

External Audio Max Input Level (RCA/
mini jack)

: 2 V/25 kΩ

Video Output Level (RCA jack)

: 1 Vp-p/75 Ω

Audio Output Level (mini jack)

: 1.2 V/10 kΩ

Analog RGB input

: 0.7 Vp-p/75 Ω

Audio section

Maximum Power (Front & Rear)

: 50 W × 4

Full Bandwidth Power (Front & Rear)
(PWR DIN 45324, +B=14.4V)

: 30 W × 4

Preout Level (V)

: 4 V/10 kΩ

Preout Impedance

: ≤ 600 Ω

Speaker Impedance

: 4 Ω – 8 Ω

Tone

Bass: 100 Hz ± 8 dB
Middle: 1 kHz ± 8 dB
Treble: 12.5 kHz ± 8 dB

General

Operating Voltage

: 14.4 V (10.5 V – 16 V allowable)

Maximum Current Consumption

: 10 A

Dimensions (W × H × D)

: 182 × 111 × 160 mm
( DDX6023BT/DDX6053BT)
182 × 112 × 163 mm

( DDX4023BT/DDX4053BT/DDX3023/
DDX3053/DDX42BT/DDX35)

Operational Temperature Range

: –10°C – +60°C

Weight

: 2.5 kg
( DDX6023BT/DDX6053BT )

2.1 kg
( DDX4023BT/DDX4053BT)

2.0 kg

(DDX3023/DDX3053/DDX42BT/

DDX35 )

• Although the effective pixels for the
liquid crystal panel is given as 99.99% or
more, 0.01% of pixels may not light or
may light incorrectly.

• Specifications are subject to change
without notice.

80 English

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US,
Japan and other countries.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.

• Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed
to connect specifically to iPod, or iPhone, respectively, and has been certified by the
developer to meet Apple performance standards. Apple is not responsible for the operation
of this device or its compliance with safety and regulatory standards. Please note that the use
of this accessory with iPod or iPhone may affect wireless performance.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered

in the U.S. and other countries.

• iTunes is a trademark of Apple Inc.

• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi

Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for
more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order

to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code,
locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more
information on how to complete your registration.

• This item incorporates copy protection technology that is protected by U.S. patents and
other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly
are prohibited.

• MirrorLink Certified™, the Design Only™ Certification Logo, MirrorLink™ and the MirrorLink™
Logo are certification marks and trademarks of the Car Connectivity Consortium LLC.
Unauthorized use is strictly prohibited.

English 81

KS-UBT1 (USB Bluetooth adapter)

Instruction Manual

CAUTION

Changes or modifications not approved by us
could void the user’s authority to operate the
equipment.

• This adapter has been designed exclusively
for use with Kenwood car receivers. Do not
use this adapter with any other car receiver.

• The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
JVC KENWOOD Corporation is under
license. Other trademarks and trade names
are those of their respective owners.

Distributor name: JVC KENWOOD DO BRASIL COMERCIO

CNPJ of distributor: JVC KENWOOD DO BRASIL COMERCIO

Manufacturer: JVC KENWOOD Corporation
Model no.: KS-UBT1
Brand: JVC

DE ELETRONICOS LTDA

DE ELETRONICOS LTDA

Specifications

Bluetooth Version:
Power Class: Class2 Radio
Service Area: 10 m (10.9 yd)
USB Standards: USB V1.1 (Full Speed)
Power Consumption: 54.3 mA/5 V (max.)
Dimensions (L × W × H):
15 mm × 19 mm × 5.6 mm
(5/8 ” × 3/4 ” × 1/4 ”)

Keep the Bluetooth adapter inserted when
using the Bluetooth function.

When the adapter is removed, store it in a
safe place.

Bluetooth Ver. 2.1 +EDR

82 English

0168-12-5373

(01)07898929117502

“Este equipamento opera em caráter secundário, isto

é, não tem direito à proteção contra interferência

prejudicial, mesmo de estações do mesmo tipo, e não

pode causar interferência a sistemas operando em

caráter primário.”

Declaration of Conformity with regard to the R&TTE Directive
1999/5/EC
Manufacturer:

JVC KENWOOD Corporation
3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative’s:

Kenwood Electronics Europe BV
Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

English

Hereby, JVC KENWOOD declares that this unit KS-UBT1 is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.

Français

Par la présente JVC KENWOOD déclare que l’appareil KS-UBT1 est
conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Par la présente, JVC KENWOOD déclare que ce KS-UBT1 est
conforme aux exigences essentielles et aux autres dispositions de
la directive 1999/5/CE qui lui sont applicables.

Deutsch

Hiermit erklärt JVC KENWOOD, dass sich dieser KS-UBT1 in
Übereinstimmung mit den grundlegenden Anforderungen und
den anderen relevanten Vorschriften der Richtlinie 1999/5/EG
befindet. (BMWi)
Hiermit erklärt JVC KENWOOD die Übereinstimmung des Gerätes
KS-UBT1 mit den grundlegenden Anforderungen und den anderen
relevanten Festlegungen der Richitlinie 1999/5/EG. (Wien)

Nederlands

Hierbij verklaart JVC KENWOOD dat het toestel KS-UBT1 in
overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaat JVC KENWOOD dat deze KS-UBT1 voldoet aan
de essentiële eisen en aan de overige relevante bepalingen van
Richtlijn 1999/5/EC.

Italiano

Con la presente JVC KENWOOD dichiara che questo KS-UBT1 è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.

Español

Por medio de la presente JVC KENWOOD declara que el KS-UBT1
cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Português

JVC KENWOOD declara que este KS-UBT1 está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Polska

JVC KENWOOD niniejszym oświadcza, że KS-UBT1 spełnia
zasadnicze wymogi oraz inne istotne postanowienia dyrektywy
1999/5/EC.

Český

JVC KENWOOD tímto prohlašuje, že tento KS-UBT1 je ve shode
se základními požadavky a dalšími príslušnými ustanoveními
smernice 1999/5/ES.

Magyar

Alulírott, JVC KENWOOD, kijelenti, hogy a jelen KS-UBT1
megfelel az 1999/5/EC irányelvben meghatározott alapvető
követelményeknek és egyéb vonatkozó előírásoknak.

Svenska

Härmed intygar JVC KENWOOD att denna KS-UBT1 stär l
överensstämelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Suomi

JVC KENWOOD vakuuttaa täten että KS-UBT1 tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.

Slovensko

S tem JVC KENWOOD izjavlja, da je ta KS-UBT1 v skladu z
osnovnimi zahtevami in ostalimi ustreznimi predpisi Direktive
1999/5/EC.

Slovensky

Spoločnosť JVC KENWOOD týmto vyhlasuje, že KS-UBT1 spĺňa
zákldné požiadavky a ďalšie prislušné ustanovenia Direktĺvy
1999/5/EC.

Dansk

Undertegnede JVC KENWOOD erklærer harved, at følgende udstyr
KS-UBT1 overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.

Ελληνικά

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ JVC KENWOOD ΔΗΛΩΝΕΙ ΟΤΙ KS-UBT1
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK.

Eesti

Sellega kinnitab JVC KENWOOD, et see KS-UBT1 vastab direktiivi
1999/5/EC põhilistele nõudmistele ja muudele asjakohastele
määrustele.

Latviešu

Ar šo, JVC KENWOOD, apstiprina, ka KS-UBT1 atbilst Direktīvas
1999/5/EK galvenajām prasībām un citiem tās nosacījumiem.

Lietuviškai

Šiuo, JVC KENWOOD, pareiškia, kad šis KS-UBT1 atitinka
pagrindinius Direktyvos 1999/5/EB reikalavimus ir kitas svarbias
nuostatas.

Malti

Hawnhekk, JVC KENWOOD, jiddikjara li dan KS-UBT1 jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.

Українська

Компанія JVC KENWOOD заявляє, що цей виріб KS-UBT1
відповідає ключовим вимогам та іншим пов’язаним
положенням Директиви 1999/5/EC.

Türkçe

Bu vesileyle JVC KENWOOD, KS-UBT1 ünitesinin, 1999/5/EC
Direktifinin başlıca gereksinimleri ve diğer ilgili hükümleri ile
uyumlu olduğunu beyan eder.

English 83
