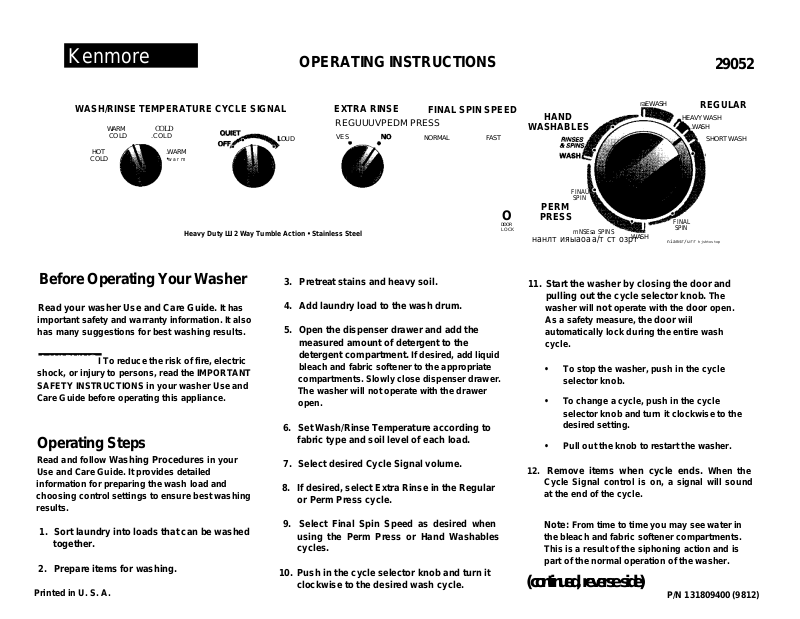

Kenmore
OPERATING INSTRUCTIONS
29052
WASH/RINSE TEMPERATURE CYCLE SIGNAL
COLD
.COLD
.WARM
•warm
Heavy Duty Ш 2 Way Tumble Action • Stainless Steel
HOT
COLD
WARM
COLD
Before Operating Your Washer
Read your washer Use and Care Guide. It has
important safety and warranty information. It also
has many suggestions for best washing results.
A WARNING
I To reduce the risk of fire, electric
shock, or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS in your washer Use and
Care Guide before operating this appliance.
Operating Steps
Read and follow Washing Procedures in your
Use and Care Guide. It provides detailed
information for preparing the wash load and
choosing control settings to ensure best washing
results.
1. Sort laundry into loads that can be washed
together.
2. Prepare items for washing.
Printed in U. S. A.
EXTRA RINSE
FINAL SPIN SPEED
REGUUUVPEDM PRESS
LOUD
VES
NORMAL FAST
3. Pretreat stains and heavy soil.
4. Add laundry load to the wash drum.
5. Open the dispenser drawer and add the
measured amount of detergent to the
detergent compartment. If desired, add liquid
bleach and fabric softener to the appropriate
compartments. Slowly close dispenser drawer.
The washer will not operate with the drawer
open.
6. Set Wash/Rinse Temperature according to
fabric type and soil level of each load.
7. Select desired Cycle Signal volume.
8. If desired, select Extra Rinse in the Regular
or Perm Press cycle.
9. Select Final Spin Speed as desired when
using the Perm Press or Hand Washables
cycles.
10. Push in the cycle selector knob and turn it
clockwise to the desired wash cycle.
raEWASH
HAND
WASHABLES
FINAÚ
SPIN
HEAVY WASH
.WASH
PERM
О
DOOR
LOCK
PRESS
нанлтияыаоаа/тстозрт
mNSEsa SPINS
WASH
FINAL
SPIN
ni am sr /u rr h js ht os to p
11. Start the washer by closing the door and
pulling out the cycle selector knob. The
washer will not operate with the door open.
As a safety measure, the door wiil
automatically lock during the entire wash
cycle.
• To stop the washer, push in the cycle
selector knob.
• To change a cycle, push in the cycle
selector knob and turn it clockwise to the
desired setting.
• Pull out the knob to restart the washer.
12. Remove items when cycle ends. When the
Cycle Signal control is on, a signal will sound
at the end of the cycle.
Note: From time to time you may see water in
the bleach and fabric softener compartments.
This is a result of the siphoning action and is
part of the normal operation of the washer.
(continued, reverse side)
P/N 131809400 (9812)
REGULAR
SHORT WASH
![](/html/89/89e4/89e4d1de8c042d537a57622fdbfe5e83a2afc4dc315883017a69cce4dd96f5db/bg2.png)
Cycle Selection
For best results, follow the fabric care label
directions on items to be washed.
Prewash Cycle
The Prewash Cycle can be used to help remove
protein-based stains such as milk, grass or blood
and to help loosen soils before washing. During
Prewash, the washer will tumble the load for 6
minutes, drain, spin and shut off. Use the amount of
detergent and other laundry products recommended
for a normal wash cycle.
• The Prewash water temperature is the same as
the wash water temperature selected. To avoid
setting protein stains, select cold water.
• This cycle should always be followed by a
complete wash cycle using the recommended
amount of detergent.
Regular Cycle
Up to 19 minutes of reversing tumble action for most
fabrics. Three rinses, a high-speed final spin, a
pause and a brief tumble complete the cycle.
• Heavy Wash provides up to 19 minutes of
reversing tumble action for heavily soiled
fabrics.
• Wash provides up to 13 minutes of reversing
tumble action for normally soiled fabrics.
• Short Wash provides up to 6 minutes of
reversing tumble action for lightly soiled fabrics.
Perm Press Cycle
Up to 13 minutes of reversing tumble action for
cottons and blends with a no-iron finish. Three
ririses, 2 spins, a pause and a brief tumble complete
the cycle. Select Normal or Fast Final Spin as
desired for this cycle.
Hand Washables Cycle
Up to 9 minutes of gentle tumble action for the
gentle care of knit, delicate and hand washable
items. Two rinses and 2 spins complete the cycle.
Select Normal or Fast Final Spin as desired for this
cycle.
Controls
Always follow instructions on fabric care labels.
Note: There is no need to select a water level
because the washer automatically adjusts
the water level to the type and size of wash
load.
WASH/RINSE TEMPERATURE - This determines
wafer temperatures for washing and rinsing. For
example, the Warm/Cold setting provides a warm
water wash and a cold water final rinse.
Note: Detergents are not as effective at wash water
temperatures below 65°F (18.3°C).
The following chart suggests wash/rinse
temperatures for basic fabric types.
Wash/Rinse
Fabric Type Temperature
Heavily soiled white/colorfast
cotton, perm press
Normally soiled white/colorfast
cotton, perm press
Lightly soiled/noncolorfast
fabrics, knits, delicates,
hand washables
Washable woolens
CYCLE SIGNAL - A signal will sound at the end of
the cycle. The Cycle Signal is adjustable and can
be set at OFF or from QUIET to LOUD.
Note: If the signal is turned to the OFF position, it
will not sound at the end of the cycle.
Hot/Cold
Warm/Cold
Cold/Cold
Warm/Cold
EXTRA RINSE - Use Extra Rinse when additional
rinsing is desired to remove excess dirt and
detergent from heavily soiled loads.
• Select Extra Rinse YES to automatically
include an extra rinse in the Regular or Perm
Press cycle.
• Select Extra Rinse NO to conserve water when
an extra rinse is not desired.
FiNAL SPIN - There are two spin speed options
available for the Perm Press and Hand Washables
cycles.
* Normal is recommended for most loads,
especially hand washables and items which
may wrinkle easily.
• Fast provides a faster spin speed to increase
water extraction and make items feel drier at
the end of the cycle.
The following chart shows the speed selections
available.
FINAL SPIN
Cycle
Regular*
Perm Press
Hand Washables Slow
*The Final Spin in the Regular cycle is
nonadjustabie. Final spin speed in the Regular
cycle is fast regardless of control setting.
DOOR LOCK INDICATOR LIGHT - The indicator
light is on when the cycle selector knob is pulled
out. The light turns off at the end of the cycle. See
your Use and Care Guide for detailed information.
Normal
Fast
Medium
P/N 131809400 (9812)
F3^
Fast
Fast
Medium
