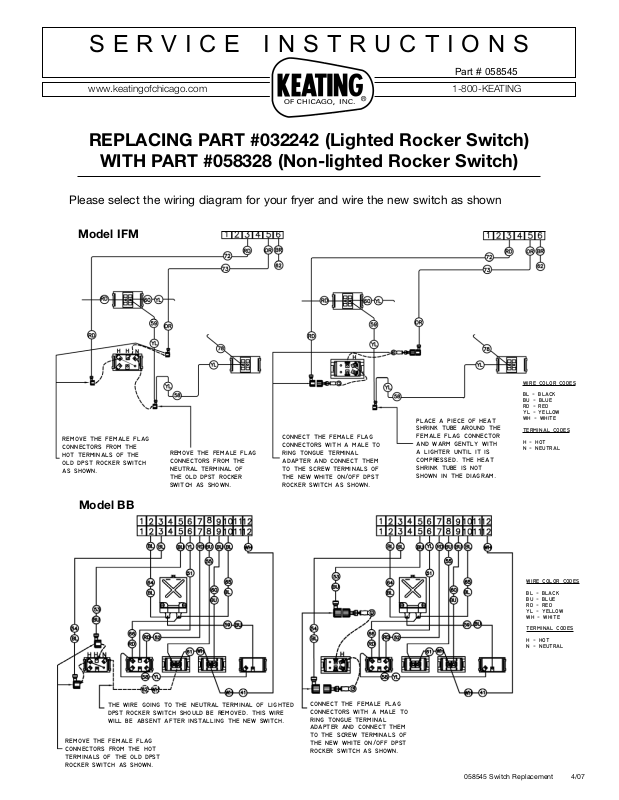

REPLACING PART #032242 (Lighted Rocker Switch)

WITH PART #058328 (Non-lighted Rocker Switch)

Please select the wiring diagram for your fryer and wire the new switch as shown

058545 Switch Replacement 4/07

Model IFM

Model BB

remove the female flag
connectors from the
hot terminals of the
old dpst rocker switch
as shown.

remove the female flag
connectors from the
neutral terminal of
the old dpst rocker
switch as shown.

connect the female flag
connectors with a male to
ring tongue terminal
adapter and connect them
to the screw terminals of
the new white on/off dpst
rocker switch as shown.

place a piece of heat
shrink tube around the
female flag connector
and warm gently with
a lighter until it is
compressed. the heat
shrink tube is not
shown in the diagram.

wire color codes

bl − black
bu − blue
rd − red
yl − yellow
wh − white

terminal codes

h − hot
n − neutral

wire color codes

bl − black
bu − blue
rd − red
yl − yellow
wh − white

terminal codes

h − hot
n − neutral

the wire going to the neutral terminal of lighted
dpst rocker switch should be removed. this wire
will be absent after installing the new switch.

remove the female flag
connectors from the hot
terminals of the old dpst
rocker switch as shown.

connect the female flag
connectors with a male to
ring tongue terminal
adapter and connect them
to the screw terminals of
the new white on/off dpst
rocker switch as shown.

SERVICE INSTRUCTIONS

www.keatingofchicago.com 1-800-KEATING

Part # 058545

Model TS

Model CPU

If the wiring version for your switch is not shown, please call 1-800- KEATING.
Have you model and serial numbers available.

wire color codes

bl − black
bu − blue
rd − red
yl − yellow
wh − white

terminal codes

h − hot
n − neutral

remove the female
flag connectors
from the hot ter−
minals of the old
dpst rocker
switch as shown.

remove the female flag
connectors from the
neutral terminal of
the old dpst rocker
switch as shown.

connect the female flag
connectors with a male to
ring tongue terminal
adapter and connect them
to the screw terminals of
the new white on/off dpst
rocker switch as shown.

place a piece of heat
shrink tube around the
female flag connector
and warm gently with
a lighter until it is
compressed. the heat
shrink tube is not
shown in the diagram.

058545 Switch Replacement 4/07

wire color codes

bl − black
bu − blue
rd − red
yl − yellow
wh − white

terminal codes

h − hot
n − neutral

place a piece of heat
shrink tube around the
female flag connector
and warm gently with
a lighter until it is
compressed. the heat
shrink tube is not

shown in the diagram.
connect the female flag
connectors with a male to
ring tongue terminal
adapter and connect them
to the screw terminals of
the new white on/off dpst
rocker switch as shown.

remove the female
flag connectors from
the hot terminals of
the old dpst rocker
switch as shown.

remove the female flag
connectors from the
neutral terminal of
the old dpst rocker
switch as shown.

com.

no

nc

input
