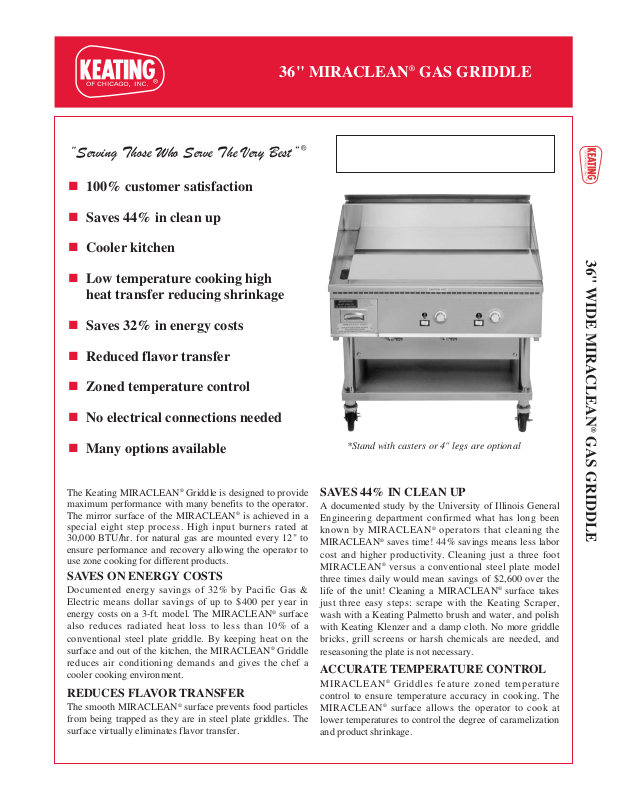

Keating Of Chicago 36 MIRACLEAN User Manual
36" MIRACLEAN®GAS GRIDDLE
The Keating MIRACLEAN®Griddle is designed to provide
maximum performance with many benefits to the operator.
The mirror surface of the MIRACLEAN®is achieved in a
special eight step process. High input burners rated at
30,000 BTU/hr. for natural gas are mounted every 12" to
ensure performance and recovery allowing the operator to
use zone cooking for different products.
SAVES ON ENERGY COSTS
Documented energy savings of 32% by Pacific Gas &
Electric means dollar savings of up to $400 per year in
energy costs on a 3-ft. model. The MIRACLEAN
®
surface
also reduces radiated heat loss to less than 10% of a
conventional steel plate griddle. By keeping heat on the
surface and out of the kitchen, the MIRACLEAN
®
Griddle
reduces air conditioning demands and gives the chef a
cooler cooking environment.
REDUCES FLAVOR TRANSFER
The smooth MIRACLEAN®surface prevents food particles
from being trapped as they are in steel plate griddles. The
surface virtually eliminates flavor transfer.
“Serving Those Who Serve The Very Best”
®
SAVES 44% IN CLEAN UP
A documented study by the University of Illinois General
Engineering department confirmed what has long been
known by MIRACLEAN
®
operators that cleaning the
MIRACLEAN®saves time! 44% savings means less labor
cost and higher productivity. Cleaning just a three foot
MIRACLEAN
®
versus a conventional steel plate model
three times daily would mean savings of $2,600 over the
life of the unit! Cleaning a MIRACLEAN
®
surface takes
just three easy steps: scrape with the Keating Scraper,
wash with a Keating Palmetto brush and water, and polish
with Keating Klenzer and a damp cloth. No more griddle
bricks, grill screens or harsh chemicals are needed, and
reseasoning the plate is not necessary.
ACCURATE TEMPERATURE CONTROL
MIRACLEAN®Griddles feature zoned temperature
control to ensure temperature accuracy in cooking. The
MIRACLEAN®surface allows the operator to cook at
lower temperatures to control the degree of caramelization
and product shrinkage.
36" WIDE MIRACLEAN
®
GAS GRIDDLE
100% customer satisfaction
Saves 44% in clean up
Cooler kitchen
Low temperature cooking high
heat transfer reducing shrinkage
Saves 32% in energy costs
Reduced flavor transfer
Zoned temperature control
No electrical connections needed
Many options available
*Stand with casters or 4" legs are optional
36" MIRACLEAN®GAS GRIDDLE
As continuous product improvement occurs, specifications may be changed without notice.
DESCRIPTION
The Keating MIRACLEAN®Griddle consists of a griddle
plate, having a drain trough and perimeter installed in a
cabinet equipped with gas burners. An automatic
temperature control mechanism and 100% safety shut off
are all arranged and designed for the proper cooking of
food on a griddle surface.
SPECIFICATIONS
Griddle Plate to be made of high carbon, 3/4" steel plate
upon which a trivalent chromium surface has been applied
in a special eight step process to ensure a mirror smooth
surface. The MIRACLEAN®plate has an emissivity rating
of .078.
Drain Trough 36×24 and 36×30 to be 3" on the left side
and 2" across the front with a 4" x 11/
2" drain in the left
front (36×30FT and 36×36FT have front trough only).
The drain is located above a large stainless steel grease
drawer with baffles and a rear handle. The perimeter and
grease trough are 14 gauge stainless steel. The perimeter
is 4
1
/
2" high across the back with sides angling from 4
1
/
2" in
the rear to
1
/2" at the front. Sides and rear perimeter have
an exterior trim of 22 gauge stainless steel.
Gas Burners to be “H” shaped cast iron construction,
atmospheric type with one burner for every 12" of linear plate
surface. Each pilot is manually ignited with a (piezo) igniter.
36" WIDE MIRACLEAN
®
GAS GRIDDLE
Printed in U.S.A. 36Mrcln2007 5/07
KEATING OF CHICAGO, INC.
Toll Free 1-800-KEATING
www.keatingofchicago.com
BTU/hr. BTU/hr. (A) (B) Working (C) Ship
Model NG LP Burners T-Stats Width Depth Height Height Plate Size Wt.
36×24 60,000 60,000 2 2 361/2"24
5
/8" 18" 12" 33"W×18"D 290 lbs.
36×30 60,000 60,000 2 2 361/2"30
5
/8" 18" 12" 33"W×24"D 350 lbs.
36×30 FT 90,000 90,000 3 2 361/
2"30
5
/
8" 18" 12" 36"
W×24"D 380 lbs.
36×36 FT 109,500 109,500 3 2 361/2"36
5
/8" 18" 12" 36"W×30"D 455 lbs.
Cabinet to have an inner liner of 20 gauge aluminized
steel. Outer cabinet 14 gauge stainless steel sides, 18
gauge stainless steel back and 16 gauge aluminized steel
bottom. A stainless steel flue deflector is shipped with
every unit.
Thermostat to be millivolt sealed contacts, close range,
hydraulic type, accurate to ± 5° from 250° to 550°F.
Application of this thermostat is patented by Keating.
100% Safety Shut Off to be millivolt, thermocouple type
with 100% safety shut off.
Standard Accessories to include Keating razor scraper
with a packet of 10 blades, 4" wide spatula, long-handle
palmetto brush, egg turner, can of Keating Klenzer.
Electrical Connections are not required.
Gas Requirements to install are 3/4" male NPT connection
and 4" and 10" water column pressures natural and LP
gas. Supply pressure must be 7” (natural gas) and 11” (LP)
water column.
Special Order Options may include 4" legs, stand, stand
with shelf and casters, cutting board: stainless, richlite,
plate shelf, thermostat knob guard, belly bar, extra
thermostats, streaked surface, custom griddle styles and
configurations, extra burner, security package.
O
T
2
50
2
7
5
L
A
C
F
I
S
H
L
A
A
R
T
I
B
E
D
T
I
40
0
3
7
5
300
3
2
5
3
5
0
3
2
5
NOT FOR OUTDOOR INSTALLATION
NOT FOR DOMESTIC INSTALLATION
C
GAS IN
4
B
GAS IN
18
12
16 5/8
4
A
3
2
5
3
5
300
0
5
3
7
7
2
5
0
40
5
2
0
3
2
5
3
5
300
0
5
3
7
7
2
5
0
400
5
2
T
O
L
A
C
I
A
L
D
I
T
B
R
F
I
H
A
T
S
E
(2) 550° THERMOSTATS
C
2
3 1/8
