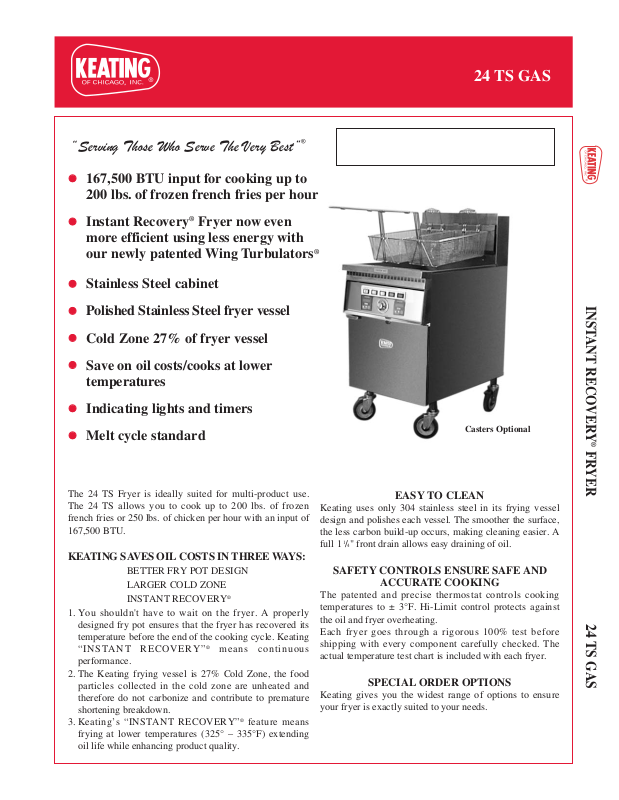

24 TS GAS
The 24 TS Fryer is ideally suited for multi-product use.
The 24 TS allows you to cook up to 200 lbs. of frozen
french fries or 250 lbs. of chicken per hour with an input of
167,500 BTU.
KEATING SAVES OIL COSTS IN THREE WAYS:
BETTER FRY POT DESIGN
LARGER COLD ZONE
INSTANT RECOVERY
®
1. You shouldn't have to wait on the fryer. A properly
designed fry pot ensures that the fryer has recovered its
temperature before the end of the cooking cycle. Keating
“INSTANT RECOVERY”®means continuous
performance.
2. The Keating frying vessel is 27% Cold Zone, the food
particles collected in the cold zone are unheated and
therefore do not carbonize and contribute to premature
shortening breakdown.
3. Keating’s “INSTANT RECOVERY”®feature means
frying at lower temperatures (325° – 335°F) extending
oil life while enhancing product quality.
“Serving Those Who Serve The Very Best”
®
EASY TO CLEAN
Keating uses only 304 stainless steel in its frying vessel
design and polishes each vessel. The smoother the surface,
the less carbon build-up occurs, making cleaning easier. A
full 11/4" front drain allows easy draining of oil.
SAFETY CONTROLS ENSURE SAFE AND
ACCURATE COOKING
The patented and precise thermostat controls cooking
temperatures to ± 3°F. Hi-Limit control protects against
the oil and fryer overheating.
Each fryer goes through a rigorous 100% test before
shipping with every component carefully checked. The
actual temperature test chart is included with each fryer.
SPECIAL ORDER OPTIONS
Keating gives you the widest range of options to ensure
your fryer is exactly suited to your needs.
INSTANT RECOVERY
®
FRYER
24 TS GAS
167,500 BTU input for cooking up to
200 lbs. of frozen french fries per hour
Instant Recovery®Fryer now even
more efficient using less energy with
our newly patented Wing Turbulators
®
Stainless Steel cabinet
Polished Stainless Steel fryer vessel
Cold Zone 27% of fryer vessel
Save on oil costs/cooks at lower
temperatures
Indicating lights and timers
Melt cycle standard
Casters Optional
24 TS GAS
KEATING OF CHICAGO, INC.
Toll Free 1-800-KEATING
www.keatingofchicago.com
As continuous product improvement occurs, specifications may be changed without notice.
INSTANT RECOVERY
®
FRYER
24 TS GAS
Printed in U.S.A. 24TS2007 7/07
Oil BTU Ship
Model No. and Description Capacity Input Height Depth Width Wt.
24 TS Nat Gas 130 lbs. 167,500 461/2"38
1
/2"25
3
/8" 350 lbs.
24 TS LP Gas 130 lbs. 165,000 461/2"38
1
/2"25
3
/8" 350 lbs.
24 Safe & Easy - - 461/2"42
5
/8"25
3
/8"-
Heat Transfer Tubes to be five, made of stainless steel
polished to a #7 mirror finish.
Thermostat shall be close range, hydraulic type and be accurate
to ±3°F from 300° to 350°F with stainless steel bulb. Application
of this thermostat is patented by Keating.
Hi-Limit Control shall be manually resettable type with
stainless steel bulb.
100% Safety Shut Off shall be flame switch type with
combination control gas valve.
Melt Cycle to be standard on "TS" fryers, allowing the safe
melting of solid shortening. Fryer is to be left in the Melt Cycle
mode until oil completely covers heat transfer tubes.
Indicating Lights & Switches. Power on switch, push to light
switch, fry off melt switch, ready to fry light, over max temp
light.
Standard Accessories to include
two timers (programmable
for three products each),
one pair 4 mesh baskets, grid screen
over heat transfer tubes, drain clean out rod, digital timers and a
sample of Keating Klenzer and Sea Powder.
Gas Requirements to install are
3
/4" male NPT connection and
4" water column pressures natural and 10" for LP gas at the fryer
burner manifold. Supply pressure to fryers must be 7” (natural
gas) and 11” (LP) water column.
Electrical Requirements: Supply Voltage 120V 60Hz. Control
Voltage 24V 60Hz. 120 VAC 9ft. (1.5 m) grounded cord set
provided.
Special Order Options may include battery, common
manifold, rear drain, casters, cover, thermostat seal, portable
filter, central filter (CF24SE or above), Safe & Easy
®
filter,
Instant-On
™
, security package, spark ignition, basket-lift, triple
size baskets, 2" drain valve (not available on SE), and computer.
DESCRIPTION
The Keating Instant Recovery®24 TS Fryer consists of a frying
vessel 24" sq., having a splash deck and a splash back installed in a
cabinet equipped with gas burners and an automatic temperature
control mechanism, all arranged and designed for the proper frying of
food.
SPECIFICATIONS
Frying Vessel: shall have be constructed from 18 gauge stainless
steel, shall have a shortening capacity of 130 pounds, shall be
equipped with five 18 gauge horizontal heat transfer tubes
spaced above the bottom of the vessel so that the bottom is
unheated and the food particles collecting in this bottom zone are
unheated and therefore do not carbonize. The frying vessel shall
be polished to inhibit carbon build-up and facilitate easy cleanup. The heat transfer tubes shall be 3" wide and 5" high. The bottom
of the vessel shall slope toward the front where it shall be equipped
with a 1
1
/
4" Teflon core
1
/
4 turn, drain valve, so arranged that the
shortening can be drained into a receiving vessel placed in front of
the fryer.
Splashdeck shall slope toward the shortening containing vessel. The
splash deck shall be made of 16 gauge 304 stainless steel.
Splashback shall be made of 18 gauge 304 stainless steel, shall
completely cover the sides of the flue.
Cabinet: shall be made of 18 gauge stainless steel. The cabinet
shall be rigid in construction and shall have four 8" adjustable
legs. A door made of 22 gauge 304 stainless steel shall cover the
front of the cabinet and shall extend from the bottom of the fryer to
the panel, and above the panel shall be a canopy. The door shall be
the full width of the cabinet. No additional space is required for the
door to open a full 90 degrees. A stainless steel flue deflector is
provided for installing onto the flue back.
