Karcher KMR 1550 B User Manual
KMR 1550 B
1.948-204
1.948-224
www.karcher.com
5.956-700 A2005741 (05/03)
Deutsch
Bedienungsanleitung Seite 1
Ersatzteilliste Seite 242
English
Français
Italiano
Nederlands
Español
ЕллзнйкЬ
Norsk
Operating Instructions Page 23
Spare Parts List Page 242
Notice d’instructions Page 45
Liste des pièces de rechange Page 242
Istruzioni per l’uso Pagina 67
Elenco pezzi di ricambio Pagina 242
Gebruiksaanwijzing Pagina 89
Lijst met vervangingsonderdelen Pagina 242
Instrucciones de servicio Página 111
Lista de repuestos Página 242
ПдзгЯет чейсйумпэ УелЯдб 133
КбфЬлпгпт бнфбллбкфйкюн УелЯдб 242
Bruksanvisning side 155
Reservedelsliste side 242
Svenska
Suomi
Hrvatski
Bruksanvisning sid 177
Reservdelslista sid 242
Käyttöohje Sivu 199
Varaosaluettelo Sivu 242
Uputstvo za upotrebu Strana 221
Popis rezervnih dijelova Strana 242
KMR 1550 B
Operating instructions for users
English
Contents
For your safety ................................................................. 24
On behalf of the environment ......................................... 25
Intended applications ...................................................... 25
Unit functions ................................................................... 25
Main features ...............................................................................................
Prior to initial start-up ..................................................... 26
Unloading procedure ...................................................................................
Moving the sweeper.....................................................................................
Operating the sweeper .................................................... 27
Operating controls .......................................................................................
Dashboard ...................................................................................................
Preparing the sweeper for use ....................................... 28
Adjusting the driver’s seat ...........................................................................
Filling the fuel tank .......................................................................................
Opening the fuel tap ....................................................................................
Starting the sweeper........................................................ 29
Driving the sweeper for the first time ...........................................................
Moving off ....................................................................................................
Braking .........................................................................................................
Bringing the sweeper to a halt and stopping the engine .............................
Cleaning the filter............................................................. 30
Automatic cleaning ......................................................................................
Manual cleaning...........................................................................................
Emptying the waste container ........................................ 30
Typical applications ......................................................... 31
Sweeping a dry floor surface .......................................................................
Sweeping a damp or wet floor surface ........................................................
Picking up large items (sticks, cans, etc.)....................................................
Overcoming obstacles .................................................................................
Long-term storage ........................................................... 32
Transporting the sweeper ............................................... 32
Cleaning and care ............................................................ 33
Maintenance ..................................................................... 33
First engine oil change.................................................................................
Initial inspection after 8 operating hours......................................................
Daily maintenance .......................................................................................
Maintenance intervals..................................................................................
Safety information applicable to maintenance tasks ...................................
Maintenance tasks ........................................................... 34
Tipping the seat forwards/backwards ..........................................................
Disconnecting the battery ............................................................................
Opening/closing the bonnet .........................................................................
Tool compartment and on-board tool kit ......................................................
Checking the tyre pressure..........................................................................
Checking the engine oil level .......................................................................
Topping up with engine oil ...........................................................................
Replacing the engine oil ..............................................................................
Replacing the engine oil filter ......................................................................
Cleaning the air filter....................................................................................
Replacing the fuel filter ................................................................................
Checking the hydraulic fluid level ................................................................
Checking the level of electrolyte in the battery ............................................
Charging the battery ....................................................................................
Replacing the sealing strips.........................................................................
Replacing the side brush .............................................................................
Replacing the brush roller............................................................................
Replacing fuses ...........................................................................................
Replacing the dust filter ...............................................................................
Adjusting the sweeping pattern ...................................................................
Troubleshooting ............................................................... 43
Technical specifications.................................................. 44
23
English
Operating instructions for users
KMR 1550 B
For your safety
Before you use this machine for the first time, please read the following:
– these operating instructions
– the enclosed leaflet Safety Information No. 5.956-250.
Make sure that all information contained therein is complied with.
Explosion hazard while refuelling!
n Do not fill up with fuel
– in an enclosed space
– while the engine is running.
n Do not smoke while refuelling the vehicle.
n Fuel expands as it becomes warmer.
Do not fill the tank right up to the top. Leave a gap of at least 1 cm under
the bottom edge of the filler neck.
n Wipe up any fuel they may have been spilt and ensure that the cap is
replaced firmly on the tank.
Fire hazard while sweeper is operating!
n Keep highly inflammable materials away from the engine and the exhaust
while the sweeper is operating.
Danger of toppling over on steep slopes!
The sweeper could topple over while it is being driven across or turning
round on a sleep slope.
n The maximum gradient up or down which the sweeper can be driven is
18%.
n Do not drive at right angles to a slope with a gradient steeper than 10%.
Danger of toppling over if bends are negotiated at high speed!
n The sweeper could topple over if it is driven round a bend at high speed.
Drive slowly round bends.
Caution when carrying out maintenance or repairs!
In order to prevent the engine from being started unintentionally, proceed as
follows:
n Remove the ignition key.
n Disconnect the battery at the negative terminal.

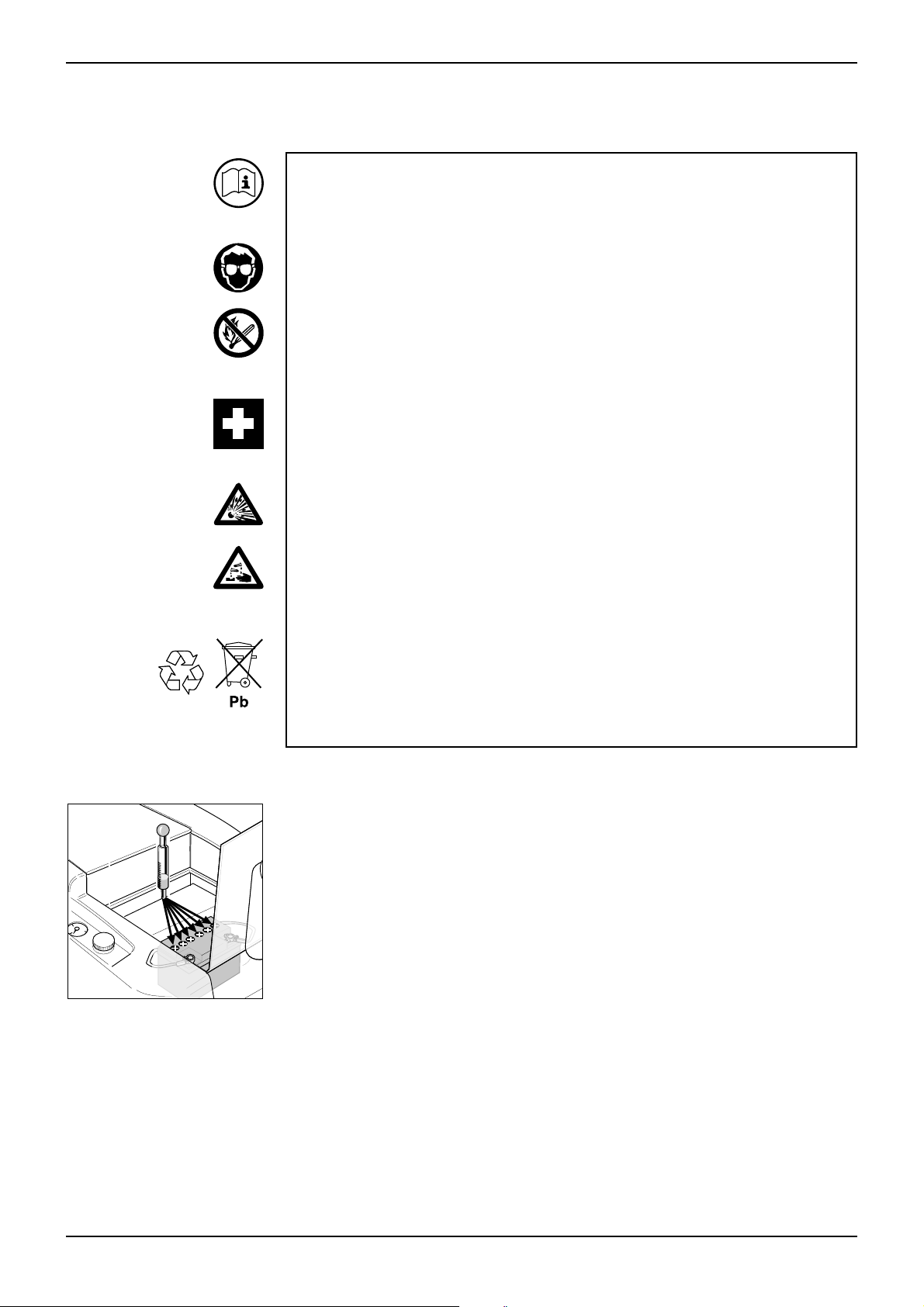

Caution while handling the battery!
Observe the safety information provided by the battery manufacturer.
Always use batteries and chargers recommended by KÄRCHER, otherwise
your warranty could be rendered invalid.
Caution while transporting the sweeper!
Make sure that the sweeper is secured properly if you are going to transport
it to a different location.
Do not use a forklift truck for loading purposes as it could damage the
sweeper.
n Apply the parking brake.
n Secure the sweeper as shown in the illustration, using
– web belts
or
– ropes
or
– chains.
24
KMR 1550 B
Operating instructions for users
English
On behalf of the
environment
Intended
applications
Caution, environmental hazard due to exhausted batteries!
Exhausted batteries should not be treated as domestic refuse. Make sure
that are disposed of in an environmentally appropriate manner.
Caution, environmental hazard due to engine oil or hydraulic
fluid!
After you have changed the engine oil or hydraulic fluid, take the waste
product to a recognised collection point or to a waste disposal company.
This sweeper
– has been designed for cleaning outdoor areas
– corresponds to Usage Category “U” for dust particles that do not constitu-
te a danger to health
– should not be used in enclosed spaces
– may not be used on public roads or paths unless it has first been inspec-
ted by an official testing authority (MOT).
Unit functions
Main components
Drive
– 2-cylinder petrol engine (11.8 kW according to DIN 70 020)
– continuously-variable hydraulic drive system acting on front wheel
– brush roller and side brush driven by hydraulic motor
– hydraulic system for emptying dirt container
– high-performance generator.
Sweeping unit
– brush roller with back-over-the-top action for particularly effective filling
of waste container
– floating brush roller arrangement automatically adjusts to uneven floor
surfaces
– Resettable to stationary main brush to significantly reduce wear of main
brush for dealing with only slight dirt accumulation
– rapid replacement mechanism for brush roller and side brush
– adjustable side brush can be raised, swings out automatically
– bulk waste flap for picking up larger objects (e.g. cigarette packets
or drinks cans).
Filter system
– integrated vacuum unit with radial turbine acting on the brush roller
– two-part filter with 2 x 6 m2 filter area
– preliminary dust filter
– electrical filter shaker with automatic control.
25
English
Operating instructions for users
KMR 1550 B
Prior to initial
start-up
Unloading procedure
Do not use a forklift truck for unloading as it could cause damage to the sweeper.
The sweeper has been lashed onto a pallet to ensure that it can be transported safely. The procedure for unpacking the sweeper is as follows:
1. Remove the wooden boards from the pallet and nail them onto the end of
the pallet (in front of the sweeper).
2. Detach the wires holding the sweeper in place at the ends of the pallet.
3. Knock away the blocks used for locking the wheels and use them for the
support of the wooden planks on the left and right.
4. Drive the sweeper off the pallet and down the ramp made from the boards.
5. The side brush has been tied to the chassis for transport. Undo the cord
holding it in place.
Moving the sweeper
If you want to move the sweeper without starting the engine,
n Pull the section of panelling upwards and unscrew the knob on the inside
of the bonnet.
n Raise the bonnet towards the front until it automatically locks in position.
n Take the open-jawed spanner (7 mm A/F) out of the tool kit.
n Turn the free-wheel arm (bypass) on the hydraulic pump either to the right
or left by 90°, using the open-jawed spanner (7 mm A/F).
Note:
Do not move the sweeper over long distances or at a speed faster than
10 km/h with the switched off (e.g. when it is being towed), as this will result
in damage to the hydraulic system.
After moving the sweeper without the engine running
n Turn the free-wheel arm back through 90°, otherwise it will not be possible
to drive the sweeper normally.
26
n Lift the rod up slightly and close the bonnet.
n Tighten the knob on the inside of the bonnet.
KMR 1550 B
Operating the sweeper
Operating instructions for users
Operating controls
1. Dashboard
(see next page for description of operating controls)
2. Lever on steering column (indicators, light, horn,
main beam flasher)
3. Bulk waste flap
4. Adjusting r.p.m. of side brush
5. Steering wheel
6a. Forward drive pedal
6b. Reverse drive pedal
7. Vacuum unit
8. Adjusting mechanism, driver’s seat
9. Fuel cap
10. Level indicator, fuel tank
11. Throttle lever
12. Parking brake
13. Raise/lower RH side brush
14. Raise/lower brush roller
15. Raise/lower LH side brush (optional)
16. Cold-start lever (choke)
English
Dashboard
1. Hazard warning lights
2. Indicator light (green), direction indicators
3. Rotating warning lamp (optional accessory)
4. Sidelights
5. Indicator light (green) for sidelights
6. Indicator light (red), oil pressure, diesel
engine
(extinguishes as soon as the engine oil pump
has built up sufficient pressure. If it lights up
while the sweeper is operating, check the oil
level or call Customer Service. See Chapter:
“Maintenance”).
7. Indicator light (red), battery charge state
(extinguishes as soon as the dynamo starts
up. If it lights up while the sweeper is operating, call Customer Service).
8. Indicator light, preheating engine
9. Ignition lock
10. Indicator light (clear), engine air-intake filter
(when illuminated, clean or replace air filter on
diesel engine. See Chapter: “Maintenance”).
11. Indicator light (red), coolant
(if light illuminates while the sweeper is operating, check amount of water in radiator. See
Chapter: “Maintenance”).
12. Button for filter shaker
13. Switch, lower waste container
14. Switch, tip waste container inwards
15. Switch, tip waste container outwards
16. Switch, raise waste container
17. Operating hours recorder
27
English
Operating instructions for users
KMR 1550 B
Preparing the
sweeper for use
All directions given (left/right, front/rear) are as seen from the driver’s seat.
n Check the oil level in the engine (see Chapter: “Maintenance”).
n Check the level of coolant in the radiator (see Chapter: “Maintenance”).
n Check the amount of fuel in the tank and fill up, if required (see below).
n Check the level of hydraulic fluid and top up, if required (see Chapter:
“Maintenance”).
n Check the air pressure in the tyres (see Chapter: “Maintenance”).
n Inspect the brush roller and remove any string, rope, etc., that may be
caught up in the brushes.
n Check the dust filter. If it is very dirty, operate the shaker to clean it off .
n Empty the waste container.
Adjusting the driver’s seat
The driver’s seat can be adjusted to fit people of different sizes.
n Pull the lever outwards.
n Adjust the seat position and release the lever.
n Move the seat back and forth to ensure that it has locked in position.
Filling the fuel tank
Explosion hazard while refuelling!
n Do not fill up with fuel
– in an enclosed space
– while the engine is running.
n Do not smoke while refuelling the vehicle.
n Fuel expands as it becomes warmer.
Do not fill the tank right up to the top. Leave a gap of at least 1 cm under
the bottom edge of the filler neck.
n Wipe up any fuel they may have been spilt and ensure that the cap is
replaced firmly on the tank.
Opening the fuel tap
n Open up the bonnet and make sure it locks in position.
n Open the fuel tap.
OPEN = Knob turned so that it is parallel to fuel pipe
n Close the bonnet.
Adjusting r.p.m. of side brush
n A clockwise turn reduces the r.p.m. of the side brush.
+-
n A counterclockwise turn increases the r.p.m. of the side brush.
28
KMR 1550 B
Operating instructions for users
English
Starting the
sweeper
Driving the sweeper for the first time
Select a location with plenty of space to drive the sweeper initially, until you
become familiar with the individual operating controls and their functions.
All directions given (left/right, front/rear) are as seen from the driver’s seat.
n Sit down on the driver’s seat.
The engine cannot be started unless the driver is sitting on the seat
(seat contact switch).
As soon as the driver gets up from the seat, the engine cuts out
(safety shutdown).
n Raise the brush roller 1.
– Press button
n Raise the side brush 2.
– Press button
n Apply the parking brake 3.
n If engine is cold
– pull cold-start lever 7 (choke).
n Set throttle lever 5 to approx. 1/3 max. speed.
n Start engine
– turn ignition key 4 clockwise until engine starts.
n When engine is running smoothly, push cold-start lever 7 back in.
Setting off
Note:
If the sweeper has not been used for longer than 2 months, run the engine for
a few minutes with the unit in neutral before commencing work.
n Set the throttle lever 5 to operating speed (maximum revs., lever pushed
towards the rear.)
n Release the parking brake 3.
– Press the release button and push the lever downwards.
n Depress drive pedal slowly
– 6a Machine drives forward
– 6b Machine reverses
The speed at which the sweeper travels forwards or backwards is infinitely
variable and is controlled by applying pressure to the drive pedal.
Avoid pressing the drive pedal with a jerky movement, otherwise the hydraulic
system could be damaged as a result.
Negotiate slopes with engine at full speed but sweeper travelling slowly (drive
pedal pressed only ½ way down).
Braking
n Lift your foot off the drive pedal 6a/6b and the sweeper brakes automatical-
ly.
Avoid braking the sweeper abruptly by pressing the pedal against the
direction of travel, as this could cause damage to the hydraulic system.
Bringing the sweeper to a halt and stopping the engine
n Lift your foot off the drive pedal 6a/6b. The sweeper brakes automatically
and comes to a halt.
n Set the throttle lever 5 to minimum revs. (push lever forwards).
n Apply the parking brake 3.
n It is very important that you raise the brush roller and side brush so that
the bristles do not become damaged.
n Stop the engine.
– Turn the ignition key 4 anticlockwise to position 0 and pull it out.
After the engine has been switched off, the filter is automatically cleaned for approx. 10 seconds.
29
Loading...
