Jvc RX-ES9-SL Service Manual
MB127200312
SERVICE MANUAL
HOME CINEMA CONTROL CENTER
RX-ES9SL
Area Suffix
B ------------------------ U.K.
E ---- Continental Europe
EN ----- Northern Europe
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED
No.MB127
2003/12
SPECIFICATION
Amplifier
Output Power
At stereo operation Front channels 100 W per channel, min. RMS, both channels driven into 8 Ω at 1 kHz with no more than 10%
At surround operation Front channels 100 W per channel, min. RMS, driven into 8 Ω at 1 kHz with no more than 0.8% total harmonic
Center channel 100 W, min. RMS, driven into 8 Ω at 1 kHz, with no more than 0.8% total harmonic distortion.
Surround
channels
Audio
Audio Input
Sensitivity/Impedance (1 kHz)
Audio Input (DIGITAL IN)* Coaxial DIGITAL 1 (VR) : 0.5 V(p-p)/75 Ω
* Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency -32 kHz, 44.1 kHz, 48 kHz).
Audio Output Level VR, TV : 250 mV
Signal-to-Noise Ratio
('66 IHF/DIN)
Frequency Response (8 Ω) DVD, STB, VR, TV : 20 Hz to 20 kHz (±1 dB)
Tone Control Bass (100 Hz) : ±10 dB ±2 dB
Bass Boost +4 dB ± 1 dB at 100 Hz
Video
Video Input
Sensitivity/Impedance (1 kHz)
Video Output Level/Impedance
(1 kHz)
Signal-to-Noise Ratio (S/N) 45 dB
Synchronize Negative
Tuning Range 87.50 MHz to 108.00 MHz
Usable Sensitivity Monaural : 17.0 dBf (1.95 µV/75 Ω)
50 dB Quieting Sensitivity Monaural : 21.3 dBf (3.2 µV/75 Ω)
Stereo Separation at REC OUT 35 dB at 1 kHz
Tuning Range MW : 522 kHz to 1 629 kHz
Power Requirements AC 230 V, 50 Hz
Power Consumption 105 W (at operation)
Dimensions (W × H × D) 435 mm × 69.5 mm
Mass 6.6 kg
DVD, DVD MULTI, STB, VR, TV : 260 mV/47 kΩ
Optical DIGITAL 2/3 (STB/DVD) : -21 dBm to -15 dBm (660 nm ±30 nm)
DVD MULTI : 87 dB/62 dB
Treble (10 kHz) : ±10 dB ±2 dB
Composite video : DVD, STB, VR, TV 1 V(p-p)/75 Ω
S-VIDEO : DVD, STB, VR (Y: luminance) : 1 V(p-p)/75 Ω
RGB : DVD, STB, VR 0.7 V(p-p)/75 Ω
Composite video : VR, TV 1 V(p-p)/75 Ω
S-VIDEO : TV (Y: luminance) : 1 V(p-p)/75 Ω
RGB : TV 0.7 V(p-p)/75 Ω
Stereo : 41.3 dBf (31.5 µV/75 Ω)
2 W (in standby mode)
Designs & specifications are subject to change without notice
total harmonic distortion. IEC268-3)
distortion.
100 W per channel, min. RMS, driven into 8 Ω at 1 kHz, with no more than 0.8% total harmonic
distortion.
(C: chrominance) : 0.286 V(p-p)/75 Ω
(C: chrominance) : 0.286 V(p-p)/75 Ω
FM tuner (IHF)
AM (MW) tuner
General
× 330.5 mm
1-2 (No.MB127)
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of th is product contains special hardware and
many circuits and components specially for safety purposes. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety characteristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line co rd directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ω per volt or more sensitivity
in the following manner. Connect a 1,500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5µ
mA AC (r.m.s.).
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
0.15 F AC TYPE
Place this
probe on
1500 10W
Good earth ground
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal resp onsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical compone nts are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of preforming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
each exposed
metal part.
(No.MB127)1-3
1.5 Safety Precautions (U.K only)
(1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For con-
tinued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.
(2) Any unauthorised design alterations or additions will void the manufacturer's guara ntee; furthermore the manu facturer cannot
accept responsibility for personal injury or property damage resulting therefrom.
(3) Essential safety critical components are identified by ( ) on the Parts List and by shading on the schematics, and must never
be replaced by parts other than those listed in the man ual. Please note however that many electrica l and mechanical parts in
the product have special safety related characteristics. These characteristics are often not evident from visual inspection. Parts
other than specified by the manufacturer may not have the same safety characteristics as the recommended replacement parts
shown in the Parts List of the Service Manual and may create shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts,
high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire ha zard. When servi ce is
required, the original lead routing and dress should be observed, and it should be confir med that they have been returned to
normal, after re-assembling.
1.5.1 Warning
(1) Service should be performed by qualified personnel only.
(2) This equipment has been designed and manufactured to meet international safety standards.
(3) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(4) Repairs must be made in accordance with the relevant safety standards.
(5) It is essential that safety critical components are replaced by approved parts.
(6) If mains voltage selector is provided, check setting for local voltage.
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
1-4 (No.MB127)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
(No.MB127)1-5
SECTION 3

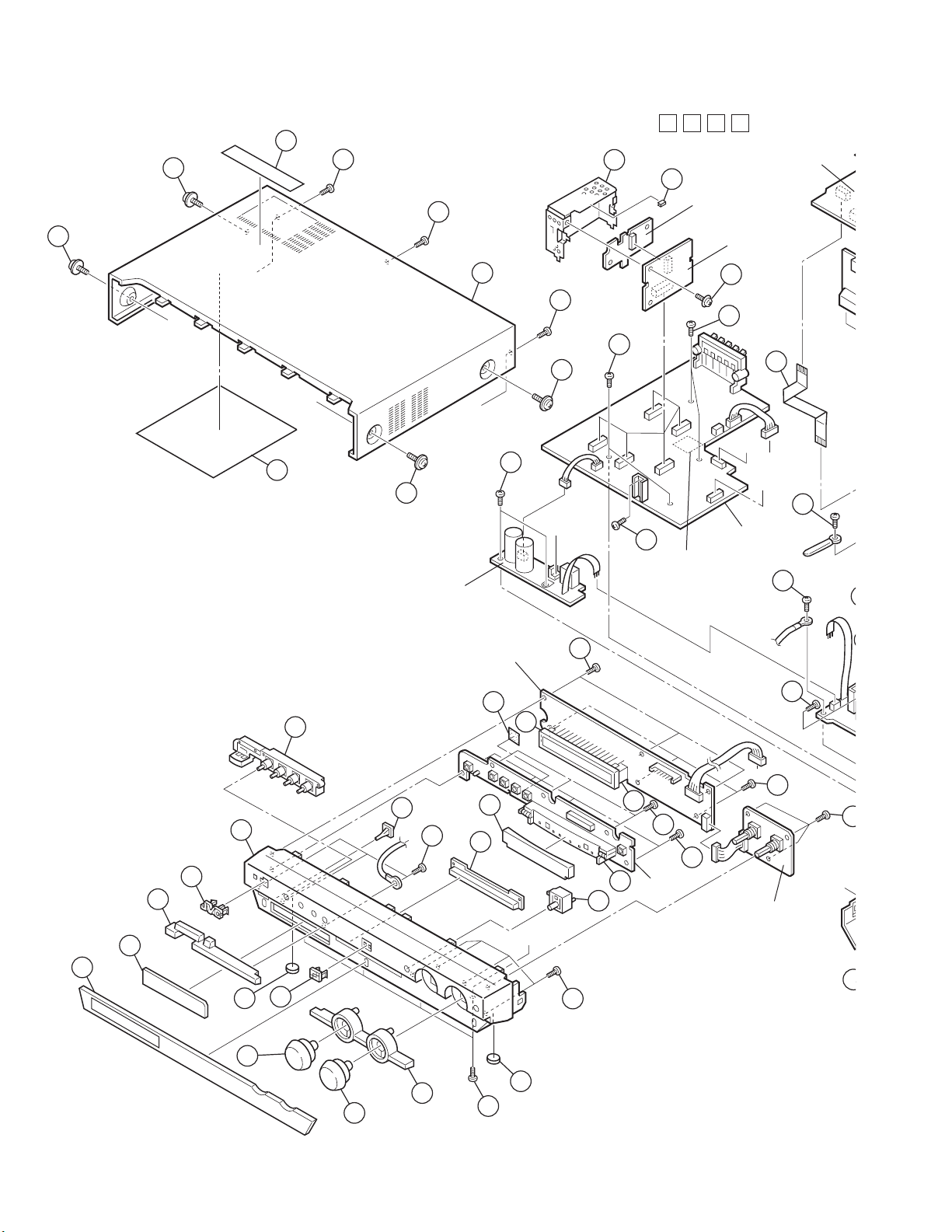

DISASSEMBLY
3.1 Main body section
3.1.1 Removing the top cover
(See Figs.1 and 2)
(1) From the back side of the main body, remove the three
screws A attaching the top cover. (See Fig.1)
(2) From the both sides of the main body, remove the four
screws B attaching the top cover. (See Fig.1)
(3) Remove the top cover by moving up the back part of the top
cover and release the six joints a using a longer driver from
the inside. (See Fig.2.)
Note:
•Do not damage any part and board inside the main body when
releasing the joints a using a longer driver.
3.1.2 Removing the front panel assembly
(See Figs.2 to 4.)
• Prior to perform the following procedures, remove the top cov-
er.
(1) From the top side of the main body, cut the tie bands and
disconnect the wire from the connector CN451
board. (See Fig.2.)
(2) From the bottom side of the main body, remove the four
screws C attaching the front panel assembly. (See Fig.3.)
(3) From the both sides of the main body, release the j oints b
and remove the front panel assembly in the direction of the
arrow. (See Fig.4.)
(4) From the top side of the main body, remove the screw D at-
taching the earth wire on the DC power board. (See Fig.2.)
References:
• After attaching the front panel assembly, bun dlin g the wires
using the new tie bands.
• When attaching the screw D, attach the earth wire with it.
on the main
A
Top cover
Fig.1
Joints a
B
x2
B
x2
Front panel assembly
Front panel assembly
1-6 (No.MB127)
Fig.3
C
Main board
CN451
Tie bands
Front panel assembly
Joint b
Earth wire
D
DC power
board
Fig.2
Fig.4
3.1.3 Removing the tuner
(See Figs.5 and 6.)
• Prior to perform the following procedures, remove the top cov-
er.
(1) From the top side of the main body, disconn ect the card
wire from the connector CN1
(2) From the back side of the main body, remove the two
screws E attaching the tuner to the rear panel. (See Fig.6.)
on the tuner. (See Fig.5.)
3.1.4 Removing the rear panel
(See Fig.7)
• Prior to perform the following procedures, remove the top cover.
(1) From the back side of the main body, remove strain relie f
from the rear panel in the direction of the arrow.
(2) Remove the twenty screws F attaching the rear panel.
3.1.5 Removing the digital input board
(See Fig.8)
• Prior to perform the following procedures, remove the top cov-
er, tuner and rear panel.
Reference:
• Remove the tu ner as required.
(1) From the top side of the main body, remove the connector
on the digital input board in an upward direction.
CN521
(2) From the reverse side of the digital input board, disconnect
the card wire from the connector CN522
board.
on the digital input
Tuner
Strain relief
Rear panel
E
CN1
Card wire
Fig.5
Rear panel
Fig.6
F
F
Fig.7
CN521
Digital input board
Fig.8
CN522
(No.MB127)1-7
3.1.6 Removing the digital output board
(See Fig.9)
• Prior to perform the following procedures, remove the top cov-
er, tuner, rear panel and digital input board.
Reference:
• Remove the tuner as required.
(1) Disconnect the card wires from the connectors CN513
on the digital output board.
CN514
(2) Remove the screw G attaching the digital output board.
and
Card wires
3.1.7 Removing the AC power supply board
(See Fig.10)
• Prior to perform the following procedures, remove the top cov-
er and tuner.
(1) From the top side of the main body, disconnect the power
cord from the connector CN203
board and remove it from the rear panel.
(2) Cut the tie bands and disconnect the wire from the connec-
tor CN218
(3) Remove the three screws H attaching the AC power supply
board.
(4) Disconnect the wire from the connector CN202
power supply board and remove the wire holders from the
reverse side of the AC power supply board.
Reference:
• When attaching the three screws H, attach the wire holder
with it.
on the DC power board.
on the AC power supply
on the AC
CN514
Digital output board
Wire
holder
Wire
holder
H
CN203
Wire holder
CN202
H
Power cord
G
Fig.9
Tie bands
AC power supply board
Fig.10
CN513
DC power board
CN218
Rear panel
1-8 (No.MB127)
3.1.8 2.1.8 Removing the power transformer
(See Fig.11)
• Prior to perform the following procedures, remove the top cov-
er and front panel assembly.
(1) From the top side o f main body, disconnect the w ire from
the connector CN202
(2) Remove the strain relief ho lding the power cord and re-
move the three screws H attaching the AC power supply
board.
(3) Lift the AC power supply board and remove the wire ho ld-
ers from the reverse side of the AC power board.
(4) Cut the tie band.
(5) Disconnect the wire from the connector CN201
power board.
(6) Disconnect the wire from the connector CN702
tifier board.
(7) Remove the four screws J attaching the power transform-
er.
Reference:
• After attaching the front panel assembly, bundling the wires
using the new tie bands.
3.1.9 Removing the fan motor
(See Figs.12 and 13)
• Prior to perform the following procedures, remove the top cov-
er.
(1) From the top side of the main body, cut the tie bands and
disconnect the wire from the connector CN207
power board. (See Fig.12.)
(2) Remove the screw K and screw K’ attaching the fan as-
sembly, then remove the fan assembly. (See Fig .1 2 .)
(3) Remove the two screws L attaching the fan motor to the fan
bracket. (See Fig.13.)
Reference:
• After attaching the screw K’, attach the wire holder with it.
Fan assembly
K
on the AC power supply board.
DC power board
Tie bands
on the DC
on the rec-
on the DC
CN207
Power transformer
H
Power cord
Strain relief
Wire holder
Fan bracket
Rectifier board
DC power board
JJ
Tie band
AC Power supply board
CN202
Fig.11
Fan moter
CN201
CN702
K'
Wire holder
L
Fig.13
Fig.12
(No.MB127)1-9
3.1.10 Removing the DC power board
(See Fig.14)
• Prior to perform the following procedures, remove the top cov-
er, front panel assembly, rear panel and digital input board.
(1) From the top side of the main body, disconnect the wires
from the connectors (CN201
, CN510, CN520 and CN711) on the DC power
CN218
board.
(2) Disconnect the parallel wire from the connecto r CN712
the amp. board.
(3) Remove the two screws M attaching the DC power board.
, CN206, CN207, CN211,
on
CN520
CN510
CN218
CN210
M
DC power board
CN711
CN206
3.1.11 Removing the main board
(See Fig.15)
• Prior to perform the following procedures, remove the top cov-
er, front panel assembly, rear panel, digital input board, digital
output board, AC power supply board and DC power board.
(1) From the top side of the main body, disconnect the wires
from the connector CN525
(2) Disconnect the wires from the connectors CN516 and
CN519 on the amp board.
(3) Remove the two screws N attaching the main board.
Reference:
• When attaching the two screws N, attach the wire holder
with it.
3.1.12 Removing the amp. board
(See Fig.15)
• Prior to perform the following procedures, remove the top cov-
er, front panel assembly, rear panel, digital input board, digital
output board, AC power supply board and DC power board.
(1) From the top side of the main body, disconnect the wires
from the connectors CN516
(2) Disconnect the wire from the connector CN525
board.
(3) Disconnect the wire from the connector CN703
tifier board.
(4) Remove the four screws P attaching the amp. board.
on the main board.
and CN519 on the amp. board.
on the main
on the rec-
Wire holder
Main board
CN207
CN516
Fig.14
N
Fig.15
M
CN519
P
CN211
Amp. board
Amp. board
Rectifier board
CN525
P
CN712
CN703
P
P
1-10 (No.MB127)
3.1.13 Removing the rectifier board
(See Fig.16)
• Prior to perform the following procedures, remove the top cov-
er and front panel assembly.
(1) From the top side of the ma in body, disconnect the wires
from the connectors CN702
board.
(2) Disconnect the parallel wi re from th e con nector CN711
the DC power board.
(3) Remove the two screws Q attaching the rectifier board.
3.1.14 Removing the headphone jack board
(See Fig.16)
• Prior to perform the following procedures, remove the top cov-
er and the front panel.
(1) From the top side of the main body, cut the tie bands.
(2) Disconnect the wire from the connector CN206
power board.
(3) Remove the screw R attaching the headphone jack board.
Reference:
• After attaching the front panel assembly, bundling the wires
using the new tie bands.
3.1.15 Removing the FL board
(See Fig.17)
• Prior to perform the following procedures, remove the top cov-
er and front panel assembly.
(1) From the inside of the front panel assembly, remove the six
screws S attaching the FL board.
(2) Disconnect the wire from the connector CN403
board.
(3) Disconnect the connector CN401
ward direction.
3.1.16 Removing the volume board
(See Fig.17)
• Prior to perform the following procedures, remove the top cov-
er and front panel assembly.
(1) From the inside of the front panel assemb ly, re move th ree
screws T attaching the volume board.
(2) Disconnect the wire from the connector CN403
board.
3.1.17 Removing the SW board
(See Fig.18)
• Prior to perform the following procedure, remove the top cover,
front panel assembly and FL board.
(1) From the inside of the front panel assembly, remove the
seven screws U attaching the SW board.
and CN703 on the rectifier
on
on the DC
on the FL
on the FL board in an up-
on the FL
Headphone jack board
R
DC power board
Tie band
CN206
Front panel assembly
TS
Volume board
Front panel assembly
U
CN403
CN711
Fig.16
CN401
Fig.17
Rectifier board
Q Q
CN703
CN702
FL board
SW board
Fig.18
(No.MB127)1-11
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.
1-12 (No.MB127)
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.
(No.MB127)1-13
VICTOR COMPANY OF JAPAN, LIMITED
AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.MB127)
Printed in Japan
WPC
SCHEMATIC DIAGRAMS
HOME CINEMA CONTROL CENTER
RX-ES9SL
CD-ROM No.SML200312
Area suffix
B ------------------------------- U.K.
E ----------- Continental Europe
EN ------------ Northern Europe
Contents

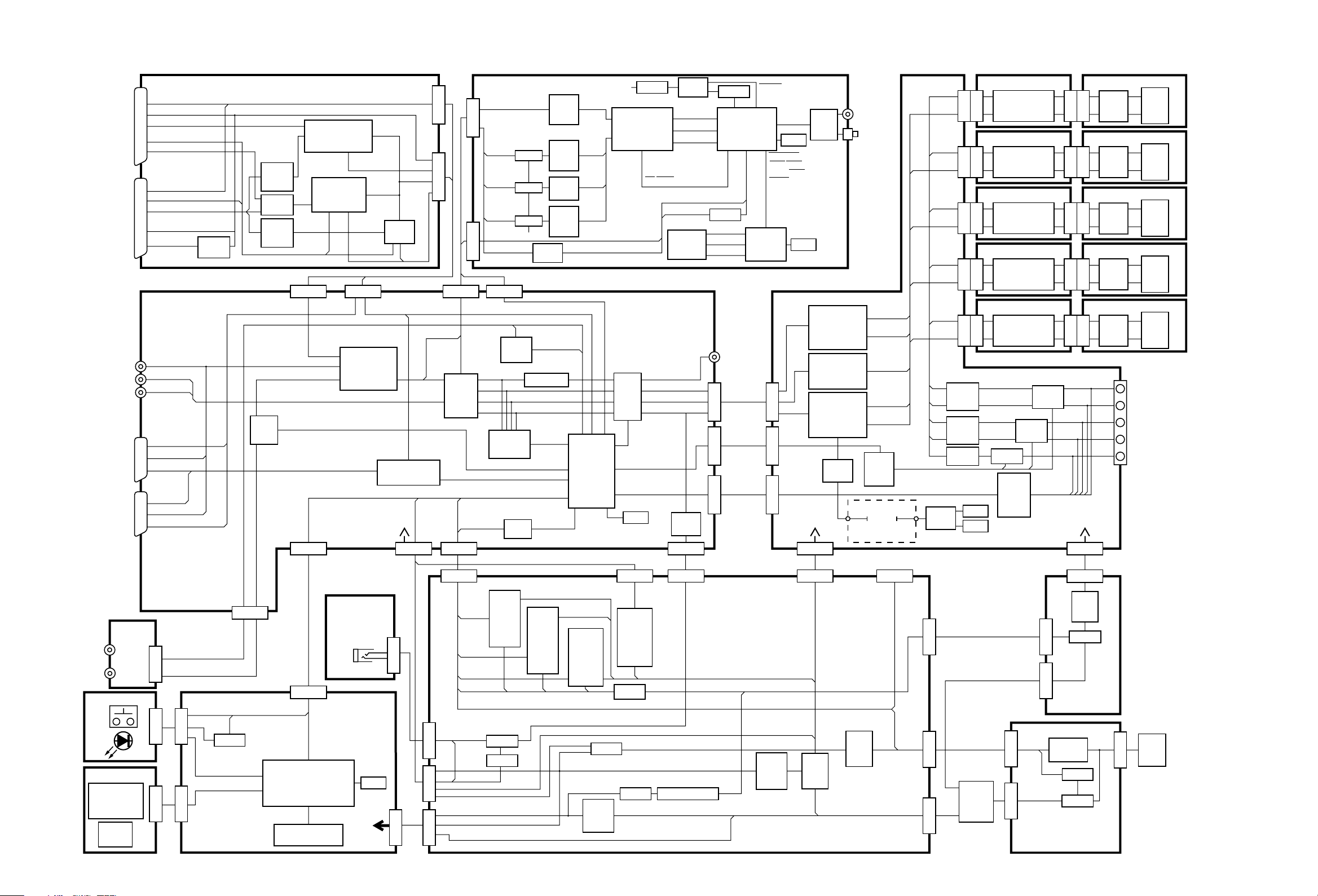

Block diagram

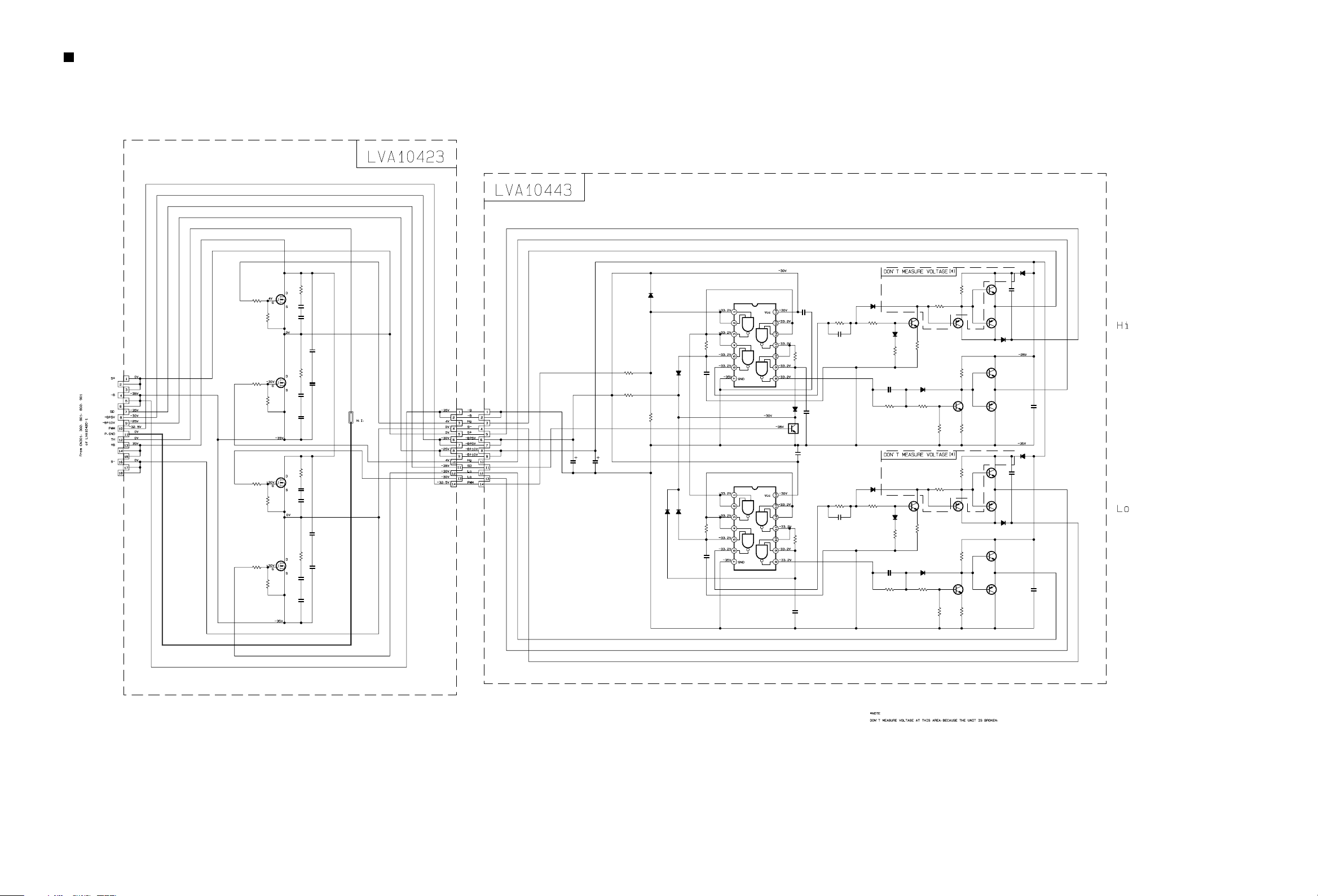

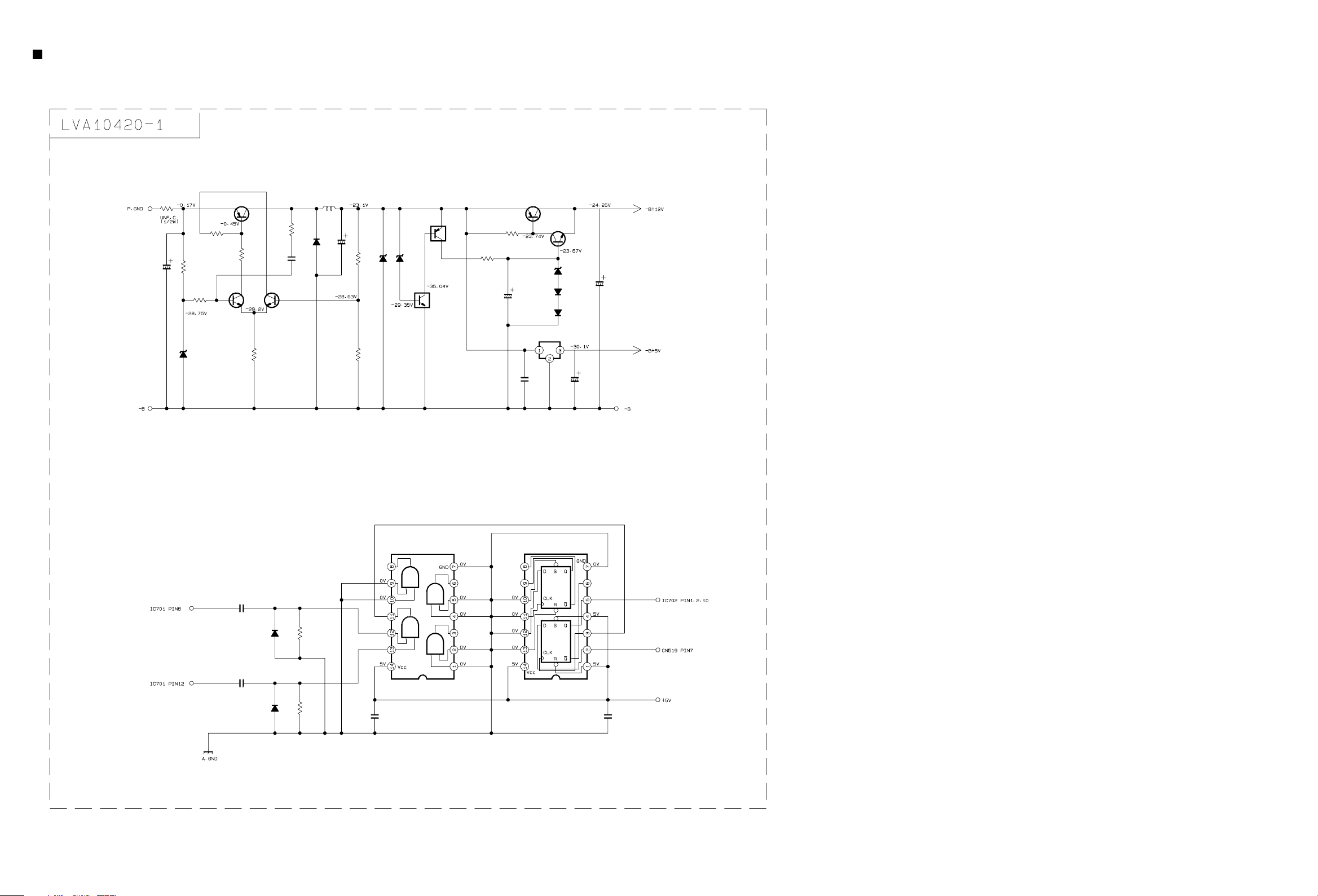

Standard schematic diagrams

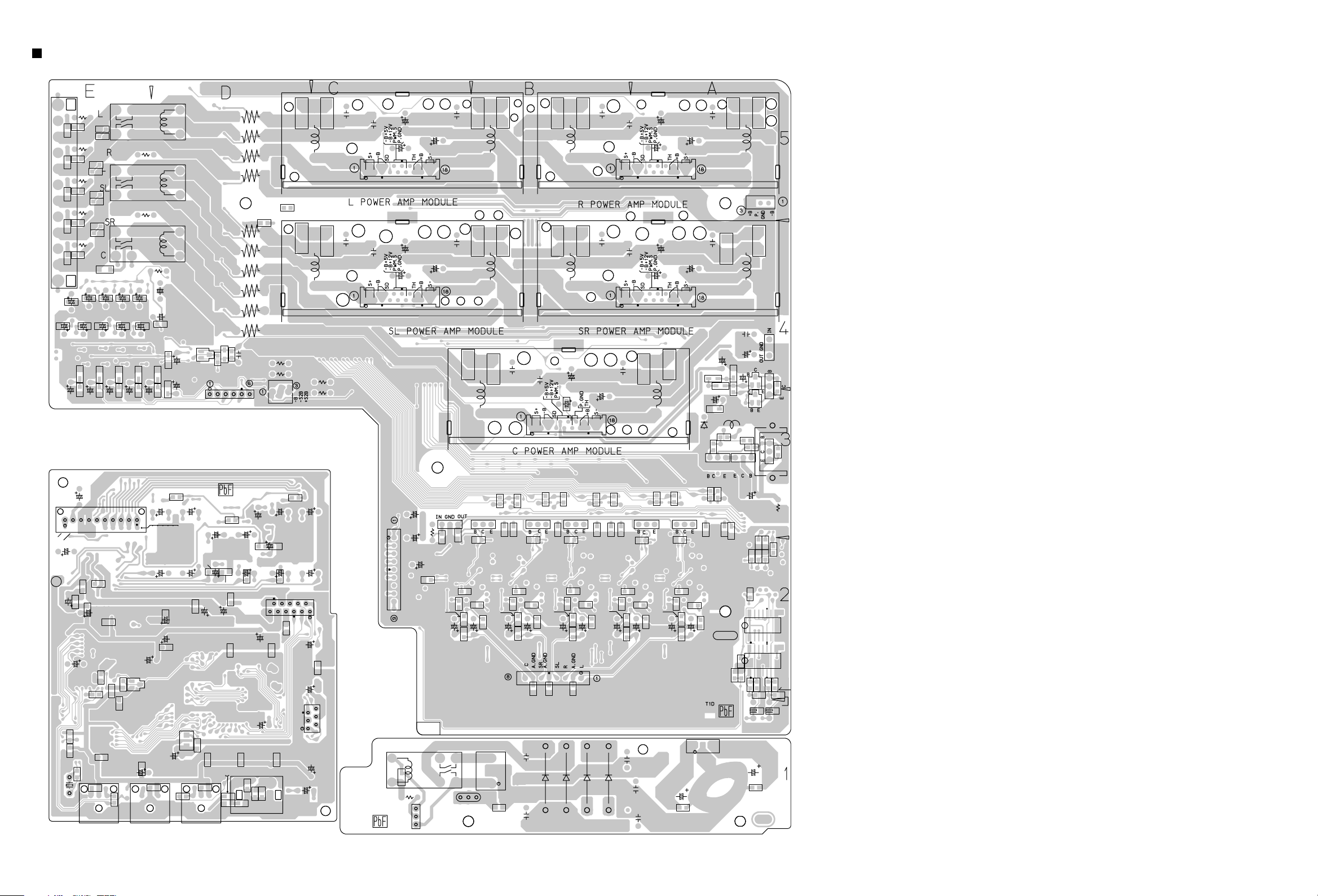

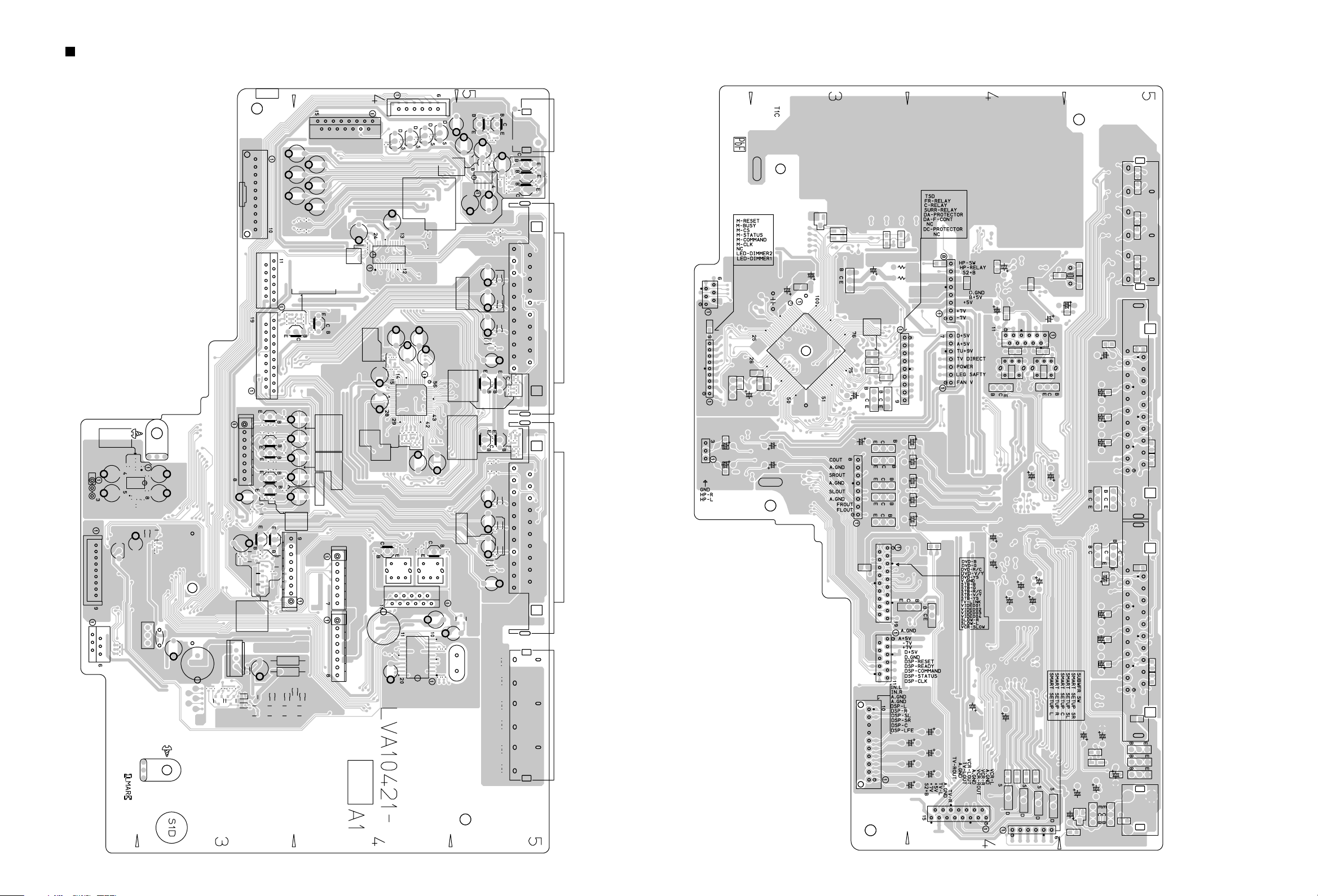

Printed circuit boards
COPYRIGHT 2003 VICTOR COMPANY OF JAPAN, LTD.
2-1
2-2
2-10 to 15
No.MB127SCH
2003/12
Loading...
