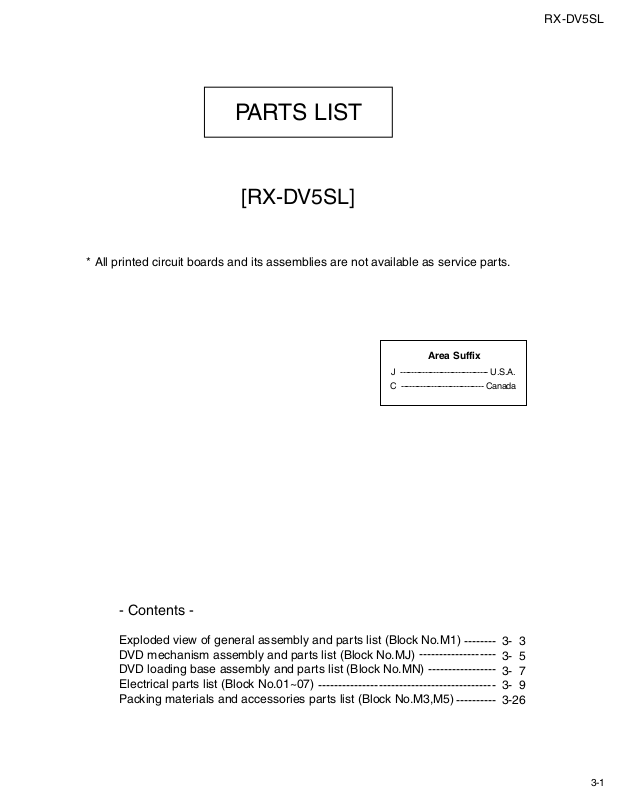

JVC RX-DV5SL Parts List

PARTS LIST

[RX-DV5SL]

* All printed circuit boards and its assemblies are not available as service parts.

RX-DV5SL

Area Suffix

J -------------------------------- U.S.A.

C ------------------------------ Canada

- Contents -

Exploded view of general assembly and parts list (Block No.M1)
DVD mechanism assembly and parts list (Block No.MJ)
DVD loading base assembly and parts list (Block No.MN)
Electrical parts list (Block No.01~07)
Packing materials and accessories parts list (Block No.M3,M5)

--------------------------------------------

-------------------

-----------------

----------

--------

3- 3
3- 5
3- 7
3- 9
3-26

3-1

RX-DV5SL

< MEMO >

3-2

Exploded view of general assembly and parts list

Block No.

81

91

M

RX-DV5SL

M

1

M

DSP board

73

78

75

76

77

74

21

83

93

25

84

48

47

46

49

8

G

FL board

50

89

27

22

Control board

71

D

DAC board

42

97

D

F

92

53

90

97

69

97

Amp.
sub

96

80

Amp.board

94

90

Video jack board

C

32

33

70

64

A

B

43

41

66

68

95

97

97

a

Main board

40

34

67

35

37

36

H.Sensor

65

33

32

Amp. sub

97

44

97

97

E

F

b

97

C

97

88

73

72

63

62

52

79

Power
board

B

A

5

84

82

4

48

46

61

55

56

3

2

60

17

1

2

18

E

59

10

58

Speaker
SW.board

9

26

54

57

19

16

15

87

86

56

11

13

12

6

45

46

14

98

23

24

20

5

1

Sub trans.
board

85 7 4

28

3

G

AB CD E F G

39

38

51

H.P. board

29

30

31

3-3

RX-DV5SL

Item

Area

A

Parts list (General assembly)

Q'ty

Description

Block No. M1MM

49 LV21222-002A

BARRIER

1

PC

50 FMYH4004-001 PLASTIC RIVET 2 BARRIER+MOTHER

51 QYSBSGG3008Z

TAP.SCREW

1

H.P PWB+CH.B

52 QYSBSG3006Z

T.SCREW

2

P.CODE PWB+CH.B

53 QYSBSG3006Z

T.SCREW

4

S.TRANS PWB+CH.

54 LV21220-001A

FAN BRACKET

1

55 LV30225-0F6A

SPACER

1

56 VKZ4001-111S

WIRE CLAMP

2

57 QYSBST3006Z T.SCREW 1

58 QAR0244-001

FAN MOTER

1

59 LV33801-001A

WIRE HOLDER

1

60 QYSBSG3030Z

T.SCREW

4

FAN+FAN BKT

61 QYSBST3006Z

T.SCREW

2

FAN BKT+CH.B

62 QQT0371-002

POWER TRANS

1

63 QYSDST4008Z

SPECIAL SCREW

4

TRANS+CH.B

64 LV21219-001A H.SINK BKT 1

65 LV21218-002A-NK

HEAT SINK

1

66 QYSBSG3008Z

T.SCREW

2

H.SINK+H.S.BKT

67 QYSBSG3008Z T.SCREW 1 H.SENSOR+H.S

68 LV33430-001A

IC BKT

1

69 QYSBSG3008Z

T.SCREW

5

IC BKT+H.S

70 QYSBST3006Z

T.SCREW

5

H.S.BKT+CH.B

71 LV30225-0F9A

SPACER

1

72 LV21221-029A

REAR PANEL

C

1

LV21221-028A

REAR PANEL

J

1

FOR J

73 QYSBSGY3008E SPECIAL SCREW 4 R.PANEL+CH.B

74 QYSBSGY3008E

SPECIAL SCREW

7

R.PANEL+MOTHER

75 QYSBSGY3008E

SPECIAL SCREW

4

R.PANEL+S.VIDEO

76 QYSBSGY3008E

SPECIAL SCREW

5

R.PANEL+AMP PWB

77 QYSBSGY3008E

SPECIAL SCREW

1

R.PANEL+H.S.BKT

78 QYSBSGY3008E

SPECIAL SCREW

4

R.PANEL+DSP PWB

79 QMPD220-200-JD

POWER CORD

1

80 QZW0033-001 STRAIN RELIEF

1

81 LV20962-003A-NK

TOP COVER

1

002A=B 003A=S

82 LV30225-0E5A

SPACER

3

83 QYSBSGY3008E

SPECIAL SCREW

3

TOP+P.PANEL

84 E406308-004

SPECIAL SCREW

4

TOP SIDE

85 LV33432-002A

VOL.KNOB

1

86 LV21217-002A

TRAY FITTING

1

87 LV42878-005A FITTING LENS 1 DVD AUDIO/VIDEO

88 QMF51U1-5R0-J8

FUSE

1

F 101

89 QMF51U1-2R0-J8

FUSE

2

F 131 F 132

90 LV42388-001A FUSE CAUTION 2 J,C

91 E409396-003

CAUTION LABEL

1

92 QUQ412-1015CJ

FFC WIRE

1

CHIBITORA TO MO

93 QUQ412-1327CJ

FFC WIRE

1

FL TO MOTHER

94 QUQ412-1406CJ

FFC WIRE

1

VIDEO TO MOTHER

95 QUQ412-1106CJ

FFC WIRE

1

TUNER TO MOTHER

96 QUQ412-1217CJ

FFC WIRE

1

DSP TO MOTHER

97 QYSBSG3006E T.SCREW 10

98 E3400-431

SPACER

2

FOR C

RX-DV5SL

Parts list (General assembly)

Item

A

1 LV10652-007A

2 VJD5429-002SS JVC MARK 1

3 E75896-003

4 LV21214-010A

5 LV33427-002A

6 QYSDSF2608Z

7 LV33428-002A

8 QYSDSF2608Z

9 LV33426-003A PUSH BUTTON(PO) 1

10 VJK4493-001SC

11 QYSDSF2608Z

12 LV42877-002A

13 LV33434-002A

14 QYSDSF2608Z

15 LV21216-002A

16 LV33425-001A PUSH BUTTON(PL) 1

17 LV33423-002A

18 QYSDSF2608Z

19 QYSDSF2608Z SCREW 2 DSP PWB+P.BTN

20 LV21215-002A

21 QYSDSF2608Z

22 QYSDSF2608Z

23 LV33433-002A

24 LV42880-001A

25 LV43217-001A

26 LV42851-005A FL SCREEN 1

27 QYSDSF2608Z

28 QYSBSG3008N

29 LV10653-002A

30 E47227-021

31 QYSBSG3008Z

32 LV41548-001A-NK

33 QYSBST3006Z T.SCREW 2 C.B.BKT+C.BASE

34 LV33431-001A

35 QYSBST3006Z

36 LV42879-002A

37 QYSBST3006Z

38 LV33429-001A

39 QYSBST3006Z

40 LV30225-0B6A SPACER 1

41 LV43238-001A

42 QYSBST3006E

43 QYSBSGY3008E SPECIAL SCREW 2 TUNER P +CH.BAS

44 QAU0279-002

45 --------------------

46 LV30225-090A

47 LE40874-002A

48 QYSBST3010Z

Parts number Parts name Area

FRONT PANEL

FELT SPACER

LENS

ORNAMENT(L)

SCREW

ORNAMENT(R)

SCREW

LENS(STANDBY)

SCREW

INDICATOR LENS

LENS HOLDER

SCREW

PUSH BUTTON(SO)

PUSH BUTTON(DS)

SCREW

PUSH BUTTON(CO)

SCREW

SCREW

VOL.RING

VOL.SHEET

VOL.SHIELD

SCREW

T.SCREW

CHASSIS BASE

FOOT ASS'Y

T.SCREW

C.B BKT

MECHA BKT(F)

T.SCREW

MECHA BKT(R)

T.SCREW

C.B BKT

T.SCREW

SPACER

T.SCREW

TUNER

DVD MECHA

SPACER

THRUST SPRING

T.SCREW

Q'ty

1

2

FRONT FOOT

1

1

3

(L)+F.PANEL

1

1

(R)+F.PANEL

1

2

P.B.PWB+F.P

1

1

2

LED PWB+F.P

1

1

4

P.BTN+F.P

1

3

P.BTN+F.P

3

CONT.PWB+BTN

1

1

1

8

FL PWB+F.P

5

F.P+CHA.BASE

1

2

2

FOOT+CHA.BASE

2

1

2

M.BKT(F)+C.BASE

1

1

M.BKT(R)+C.BASE

1

2

C.B.BKT+ C.BASE

1

5

MOTHER+CH.BASE

1

TUNER PACK

1

4

1

3

DVD MECHA+M.BKT

Block No. M1MM

Description

Parts number Parts name

3-4

DVD mechanism assembly and parts list

EXL-V72-1YPC

+

12.0mm 0.2mm

5

32

33 13

_

1110

12

6

8

9

7

Block No.

21

19

20

18

M

RX-DV5SL

J

M

M

22

4

23

+

65.2mm 0.2mm

_

3

16

28

24

27

2

26

17

25

14

29

15

Grease

CFD-4007ZYZ
JVG-31N
PG-641
1401C

1

3130

3-5

RX-DV5SL

Parts list (DVD mechanism)

Item

A

1 LE20520-002A

2 LE20516-001A SPINDLE BASE 1

3 QYSDST2605M

4 LE30909-001A

5 QAR0165-001

6 LV41510-001A

7 QYSPSPU2040M

8 LV41512-001A

9 LV41517-003A LEAD SCREW 1

10 LV41511-002A

11 LE40742-001A

12 QYSDSF2005Z

13 QYSDST2605M

14 LE20517-001A

15 LE40744-001A

16 LV41121-002A SHAFT 1

17 QYSDST2605M

18 QAL0342-001

19 LE20519-001A SW.ACTUATOR 1

20 LE30886-001A

21 QYSPSFU1740Z

22 LE30888-003A

23 QYSPSGU1430Z

24 LV41121-002A

25 LE40743-001A

26 LE40774-001A PLATE 1

27 QYSDST2606Z

28 QAL0284-001

29 QAR0241-001

30 QYSPSPU1760Z

31 QYYASPF2608N

32 QUB549-05A1A1

33 QUB544-05A1A1 SIN TWIST WIRE 1

Parts number Parts name Area

MECHA.BASE

SCREW

FEED HOLDER ASS

FEED MOTOR

FEED GEAR T

SCREW

FEED GEAR E

FEED GEAR M

THRUST SPRING

SCREW

SCREW

SHAFT HOLDER

BAR SPRING(1)

SCREW

PICK UP

LEAD SPRING

SCREW

P.U.SPRING

SCREW

SHAFT

T.SPRING(S)

SCREW

FPC

SPINDLE MOTOR

SCREW

HEX SCREW

SIN TWIST WIRE

Q'ty

Block No. MJMM

Description

1

3

1

1

1

2

1

1

1

1

2

1

1

1

1

1

2

1

1

1

1

1

1

1

3

3

1

3-6

DVD loading base assembly and parts list

18

22

20

21

BACK SIDE

FMU-DV5-1M

15

16

Block No.

16

23

M

RX-DV5SL

N

M

16

M

22

Grease

=JVG-31N
=JVS-1003

17

21

19

23

23

22

13

22

10

9

A

12

23

B

11

7

6

16

3

8

2

6.85mm 0.1mm

24

BACK SIDE

24

5

14

4

1

1

3

2

A

B

3-7

RX-DV5SL

Parts list (DVD loading base)

Item

A

1 LV10454-007A-CK

2 QAR0164-001 MOTOR 1 MABUCHI

3 LV42087-001A

4 QYSPSPU1730Z

5 VKZ4777-003

6 LV42209-001A

7 LV42084-002A

8 LV42085-002A

9 LV42086-001A IDLE GEAR 1

10 LV32514-002A

11 LV42348-001A

12 VKZ4777-003

13 LV20912-002A

14 QUQ110-0610AJ

15 --------------------

16 LV41424-001A SPECIAL SCREW 4

17 LV32417-001A

18 LV42089-002A

19 LV42930-003A MAGNET 1

20 LV41741-001A

21 LV20913-002A

22 QYSBSF2008Z

23 LV41659-001A

24 LV10455-002A-CK

Parts number Parts name Area

LOADING BASE

MOTOR PULLEY

SCREW

MINI SCREW

BELT

PULLEYGEAR

MIDDLE GEAR

SLIDE CAM

P GEAR BKT

MINI SCREW

ELEVATOR

FFC WIRE

DVD TRA-MECHA P

CLAMPER

YOKE

SPECIAL SCREW

CLAMPER BASE

SCREW

INSULATOR

TRAY

Q'ty

1

1

1

FOR MOTOR

1

1

1

1

1

1

1

FOR PULLEY GEAR

1

1

1

1

1

1

1

4

4

1

Block No. MNMM

Description

3-8

RX-DV5SL

K

Electrical parts list (Main board)

Item

A

C 131 QFLC2AJ-104Z M CAPACITOR .10MF 5% 100V

C 132 QFLC2AJ-104Z M CAPACITOR .10MF 5% 100V

C 133 QFLC2AJ-104Z M CAPACITOR .10MF 5% 100V

C 135 QETM1VM-338 E CAPACITOR 3300MF 20% 35V

C 136 QETM1VM-108 E CAPACITOR

C 141 QETN1EM-107Z E CAPACITOR

C 145 QETN1EM-107Z E CAPACITOR

C 151 QETN1EM-107Z E CAPACITOR

C 158 NCB31HK-103X C CAPACITOR

C 159 QETN1HM-106Z E CAPACITOR 10MF 20% 50V

C 161 QETN1EM-107Z E CAPACITOR 100MF 20% 25V

C 162 QEKC1EM-476Z E CAPACITOR 47MF 20% 25V

C 163 QEKC1EM-476Z E CAPACITOR 47MF 20% 25V

C 164 QEKC1EM-476Z E CAPACITOR 47MF 20% 25V

C 171 QETN1EM-107Z E CAPACITOR

C 181 QETN1CM-477Z E CAPACITOR

C 182 QEKC1EM-476Z E CAPACITOR

C 183 NCB31HK-122X C CAPACITOR

C 184 NCB31HK-122X C CAPACITOR

C 191 QETN1HM-227Z E CAPACITOR 220MF 20% 50V

C 192 QETN1EM-477Z E CAPACITOR 470MF 20% 25V

C 193 QETN1HM-227Z E CAPACITOR 220MF 20% 50V

C 194 QETN1EM-477Z E CAPACITOR 470MF 20% 25V

C 195 QETN1HM-227Z E CAPACITOR

C 196 QETN1EM-477Z E CAPACITOR

C 197 QEKC1EM-476Z E CAPACITOR

C 301 NCB31HK-331X C CAPACITOR

C 302 NCB31HK-331X C CAPACITOR

C 303 NCB31HK-331X C CAPACITOR

C 304 NCB31HK-331X C CAPACITOR

C 305 NCB31HK-331X C CAPACITOR

C 306 NCB31HK-331X C CAPACITOR

C 307 NCB31HK-331X C CAPACITOR

C 308 NCB31HK-331X C CAPACITOR

C 321 NCB31HK-331X C CAPACITOR

C 322 NCB31HK-331X C CAPACITOR

C 323 NCB31HK-221X C CAPACITOR

C 324 NCB31HK-221X C CAPACITOR

C 325 NCB31HK-331X C CAPACITOR

C 326 NCB31HK-331X C CAPACITOR

C 327 NCB31HK-221X C CAPACITOR

C 328 NCB31HK-221X C CAPACITOR

C 341 NCS31HJ-101X C CAPACITOR

C 343 NCB31HK-562X C CAPACITOR

C 344 NCB31HK-562X C CAPACITOR

C 361 NCB31AK-154X C CAPACITOR

C 362 NCB31AK-154X C CAPACITOR

C 363 NCB31AK-154X C CAPACITOR

C 364 NCB31AK-154X C CAPACITOR

C 365 NCB31HK-272X C CAPACITOR

C 366 NCB31HK-272X C CAPACITOR

C 367 QEKC1HM-106Z E CAPACITOR 10MF 20% 50V

C 368 QEKC1HM-106Z E CAPACITOR

C 369 QEKC1EM-476Z E CAPACITOR

C 370 QEKC1EM-476Z E CAPACITOR

C 371 NCB31HK-223X C CAPACITOR

C 372 NCB31HK-223X C CAPACITOR

C 373 QEKC1EM-476Z E CAPACITOR 47MF 20% 25V

C 374 NCB31HK-223X C CAPACITOR

C 375 NCB31HK-102X C CAPACITOR

C 376 NCS31HJ-101X C CAPACITOR

C 381 QTE1H28-475Z E CAPACITOR

C 382 QTE1H28-475Z E CAPACITOR

C 383 QEKC1HM-475Z E CAPACITOR

C 384 QEKC1HM-475Z E CAPACITOR

C 385 QEKC1HM-475Z E CAPACITOR

Parts number Parts name Area

Block No. 01

1000MF 20% 35V

100MF 20% 25V

100MF 20% 25V

100MF 20% 25V

100MF 20% 25V

470MF 20% 16V

47MF 20% 25V

220MF 20% 50V

470MF 20% 25V

47MF 20% 25V

10MF 20% 50V

47MF 20% 25V

47MF 20% 25V

4.7MF 20% 50V

4.7MF 20% 50V

4.7MF 20% 50V

Remarks

Item

A

C 386 QEKC1HM-106Z E CAPACITOR 10MF 20% 50V

C 401 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C 402 NCF31CZ-104X C CAPACITOR

C 404 QFVF1HJ-104Z MF CAPACITOR .10MF 5% 50V

C 405 QFVF1HJ-104Z MF CAPACITOR

C 406 QFVF1HJ-104Z MF CAPACITOR

C 407 QFVF1HJ-104Z MF CAPACITOR

C 408 QFVF1HJ-104Z MF CAPACITOR

C 409 QETN0JM-477Z E CAPACITOR

C 410 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C 411 NCF31CZ-104X C CAPACITOR

C 412 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C 413 NCF31CZ-104X C CAPACITOR

C 421 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C 422 QETN0JM-477Z E CAPACITOR

C 423 QETN0JM-108Z E CAPACITOR

C 760 QETN0JM-228Z E CAPACITOR

C 765 NCB31HK-223X C CAPACITOR

C 766 QEKC1HM-225Z E CAPACITOR

C 767 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 768 QCZ0202-155Z ML C CAPACITOR 1.5MF

C 791 NCB31HK-221X C CAPACITOR

C 792 QCZ0202-155Z ML C CAPACITOR 1.5MF

CN114 QGF1205C1-13 CONNECTOR

CN121 QGA3901C1-08 CONNECTOR

CN122 QGA2501C3-02Z 2P CONNECTOR

CN125 QGF1205C1-10 CONNECTOR

CN212 QGB2510J1-10 CONNECTOR

CN231 QGA2501C1-08 8P CONNECTOR

CN241 QGD2501C1-04Z SOCKET FOR POSISTOR

CN291 QGD2501C1-03Z SOCKET FOR H.P

CN301 QGF1205C1-11 CONNECTOR FOR TUNER

CN402 QGF1205F1-14 CONNECTOR

CN412 QGF1205C1-14 CONNECTOR

CN512 QGB2027M9-26 B TO B CONNE

CN513 QGB2027M9-26 B TO B CONNE

CN612 QGB2510J1-13 CONNECTOR

CN614 QGF1205C1-12 CONNECTOR

CN911 QGB2016K1-15 CONNECTOR FOR DVD A. DAC

CN912 QGB2016K1-13 CONNECTOR FOR DVD A. DAC

C1101 NCS31HJ-101X C CAPACITOR

C1102 NCS31HJ-101X C CAPACITOR

C1103 NCS31HJ-101X C CAPACITOR

C1104 NCS31HJ-101X C CAPACITOR

C1105 NCF31CZ-104X C CAPACITOR

C1191 QEKC0JM-107Z E CAPACITOR

C1192 QEKC0JM-107Z E CAPACITOR

C1193 QEKC0JM-107Z E CAPACITOR

C1194 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V

C1195 QETN1CM-477Z E CAPACITOR 470MF 20% 16V

C1196 QETN0JM-228Z E CAPACITOR 2200MF 20% 6.3V

C1381 QEKC1HM-475Z E CAPACITOR 4.7MF 20% 50V

C1382 QEKC1HM-475Z E CAPACITOR

C1383 NCF31CZ-104X C CAPACITOR

C1384 NCF31CZ-104X C CAPACITOR

C1385 QEKC1HM-225Z E CAPACITOR

C1387 QETN1HM-106Z E CAPACITOR

C1388 QETN1HM-106Z E CAPACITOR 10MF 20% 50V

C1391 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V

C1401 NCS31HJ-470X C CAPACITOR

C1402 QETN1AM-477Z E CAPACITOR 470MF 20% 10V

C1403 QETN0JM-477Z E CAPACITOR

C1405 QETN0JM-477Z E CAPACITOR

C1406 QETN0JM-477Z E CAPACITOR

C1407 QETN0JM-477Z E CAPACITOR

C1408 QETN0JM-477Z E CAPACITOR

Parts number Parts name Area

Remarks

.10MF 5% 50V

.10MF 5% 50V

.10MF 5% 50V

.10MF 5% 50V

470MF 20% 6.3V

470MF 20% 6.3V

1000MF 20% 6.3V

2200MF 20% 6.3V

2.2MF 20% 50V

FOR PANECOM

FROM S2

FOR FAN

FROM PRIMARY

FOR POWER AMP

FOR PRI AMP

FOR C/S JAC

FROM DVD UNIT

FROM DVD UNIT

FOR DSP

FOR DSP

100MF 20% 6.3V

100MF 20% 6.3V

100MF 20% 6.3V

4.7MF 20% 50V

2.2MF 20% 50V

10MF 20% 50V

470MF 20% 6.3V

470MF 20% 6.3V

470MF 20% 6.3V

470MF 20% 6.3V

470MF 20% 6.3V

3-9

RX-DV5SL

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (Main board)

Item

A

C1409 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C1410 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C1411 NCS31HJ-470X C CAPACITOR

C1412 QETN1AM-477Z E CAPACITOR 470MF 20% 10V

C1421 QEKC1HM-475Z E CAPACITOR

C1431 QEKC1HM-475Z E CAPACITOR

C1441 QFLC1HJ-473Z M CAPACITOR

C1442 QETN1AM-477Z E CAPACITOR

C1443 NCS31HJ-470X C CAPACITOR

C1444 NCS31HJ-470X C CAPACITOR

C1445 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C1446 QETN0JM-477Z E CAPACITOR 470MF 20% 6.3V

C1451 QFLC1HJ-473Z M CAPACITOR .047MF 5% 50V

C1452 QETN1AM-477Z E CAPACITOR 470MF 20% 10V

C1453 NCS31HJ-470X C CAPACITOR

C1454 NCS31HJ-470X C CAPACITOR

C1461 QFLC1HJ-473Z M CAPACITOR

C1462 QEKC1HM-475Z E CAPACITOR

C1471 QFLC1HJ-473Z M CAPACITOR

C1472 QEKC1HM-475Z E CAPACITOR 4.7MF 20% 50V

C1491 QETN1CM-477Z E CAPACITOR 470MF 20% 16V

C1492 NCF31CZ-104X C CAPACITOR

D 125 11ES2-T4 DIODE

D 126 11ES2-T4 DIODE

D 127 11ES2-T4 DIODE

D 128 MA111-X DIODE

D 131 10E2-FD DIODE

A

D 132 10E2-FD DIODE

A

D 133 11ES2-T4 DIODE

A

D 134 11ES2-T4 DIODE

A

D 141 MTZJ5.6C-T2 ZENER DIODE

D 145 MTZJ6.2C-T2 Z DIODE

D 151 MTZJ5.6C-T2 ZENER DIODE

D 155 MA111-X DIODE

D 156 MTZJ16C-T2 Z.DIODE

D 157 MTZJ13C-T2 ZENER DIODE

D 158 MTZJ10C-T2 Z.DIODE

D 159 MTZJ7.5C-T2 ZENER DIODE

D 161 MTZJ13C-T2 ZENER DIODE

D 162 MTZJ13C-T2 ZENER DIODE

D 163 MTZJ7.5C-T2 ZENER DIODE

D 164 MTZJ7.5C-T2 ZENER DIODE

D 171 MTZJ11C-T2 Z.DIODE

D 172 MA111-X DIODE

D 181 MTZJ13C-T2 ZENER DIODE

D 182 MTZJ5.6C-T2 ZENER DIODE

D 187 MTZJ3.9B-T2 ZENER DIODE

D 188 MTZJ5.6C-T2 ZENER DIODE

D 189 MTZJ10C-T2 Z.DIODE

D 191 SFPB-54-W DIODE

A

D 192 SFPB-54-W DIODE

A

D 193 SFPB-54-W DIODE

A

D 194 MTZJ5.6C-T2 ZENER DIODE

D 195 MA111-X DIODE

D 196 MA111-X DIODE

D 197 MA111-X DIODE

D 291 MA111-X DIODE

D 761 MA111-X DIODE

D 762 MA111-X DIODE

D 791 MTZJ6.2C-T2 Z DIODE

D1391 MA111-X DIODE

D1392 MTZJ4.7C-T2 Z.DIODE

D1401 MA111-X DIODE

D1402 MA111-X DIODE

EP101 QNZ0136-001Z EARTH PLATE

EP191 QNZ0136-001Z EARTH PLATE

Parts number Parts name Area

4.7MF 20% 50V

4.7MF 20% 50V

.047MF 5% 50V

470MF 20% 10V

.047MF 5% 50V

4.7MF 20% 50V

.047MF 5% 50V

Block No. 01

Remarks

Item

A

FC130 QNG0020-001Z FUSE CLIP FOR F131

FC131 QNG0020-001Z FUSE CLIP FOR F131

FC132 QNG0020-001Z FUSE CLIP FOR F132

FC133 QNG0020-001Z FUSE CLIP FOR F132

HS141 E70306-001 HEAT SINK

HS145 E70306-001 HEAT SINK

HS151 E70306-001 HEAT SINK

HS152 E70306-001 HEAT SINK

HS154 E70306-001 HEAT SINK

HS161 E70306-001 HEAT SINK

HS162 E70306-001 HEAT SINK

HS165 E70306-001 HEAT SINK

HS181 E70306-001 HEAT SINK

HS182 E70306-001 HEAT SINK

IC191 SI-8033JF IC

A

IC192 SI-8050JF-F1 IC

A

IC193 SI-8090JF IC

A

IC301 M61516FP IC

IC303 BA15218F-XE IC

IC401 LA73054-X IC VIDEO DRIVER

IC402 NJM2246M-X IC

IC403 NJM2246M-X IC

IC404 NJM2246M-X IC

IC761 MN101C49GKH IC

IC763 IC-PST9139-T IC

J 301 QNN0478-001 PIN JACK

J 302 QNN0478-001 PIN JACK

J 401 QNN0479-001 PIN JACK

J 402 QNN0482-001 PIN JACK

J 403 QNN0482-001 PIN JACK VCR IN/OUT

J 404 QND0091-001 S JACK MONITOR OUT/DBS

J 405 QND0091-001 S JACK VCR IN/OUT

J 791 QNS0089-001 3.5 JACK

K 401 NRSA63J-0R0X MG RESISTOR

K 402 NRSA63J-0R0X MG RESISTOR

K 403 NRSA63J-0R0X MG RESISTOR

K 404 NRSA63J-0R0X MG RESISTOR

K 405 NRSA63J-0R0X MG RESISTOR

K 406 NRSA63J-0R0X MG RESISTOR

L 191 QQL28AK-101 CHOKE COIL

L 192 QQL28AK-101 CHOKE COIL

L 193 QQL28AK-101 CHOKE COIL

L 197 QQL244K-100Z INDUCTOR

L 198 QQL244K-100Z INDUCTOR

L 341 QQR0590-001 FILTER

L 342 QQR0590-001 FILTER

A

Q 143 KRC102S-X DIGITAL.TR TV DIRECT

A
A
A

A

Q 158 KRC102S-X DIGITAL.TR

A
A
A
A
A
A

Parts number Parts name Area

141 2SD2395/EF/ TRANSISTOR

142 KRA102S-X DIGITAL.TR

145 2SD2395/EF/ TRANSISTOR

151 2SD2395/EF/ TRANSISTOR

152 2SD2395/EF/ TRANSISTOR

153 KRA102S-X DIGITAL.TR

154 2SD2395/EF/ TRANSISTOR

155 KRA102S-X DIGITAL.TR

156 KRC102S-X DIGITAL.TR

157 KRC102S-X DIGITAL.TR

159 KRC102S-X DIGITAL.TR

161 2SD2395/EF/ TRANSISTOR

162 KTA1046/Y/ TRANSISTOR

163 KTC3203/OY/-T TRANSISTOR

164 KTA1271/OY/-T TRANSISTOR

165 2SD2395/EF/ TRANSISTOR

171 KTC3203/OY/-T TRANSISTOR

172 KRA102S-X DIGITAL.TR

Remarks

ANALOG SW/VOLUM

SYSTEM MICOM

VCR IN/OUT,STB

TAPE I/O,TV/DBS

COMPONENT

MONITOR OUT/DBS

TV DIRECT

TV DIRECT

TV DIRECT

3-10

RX-DV5SL

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

W

W

W

W

W

W

W

W

W

W

W

W

Electrical parts list (Main board)

Item

A

Q 173 KRC102S-X DIGITAL.TR TV DIRECT

A
A
A

A

Q 382 2SC3576-JVC-T TRANSISTOR

Q 383 2SC3576-JVC-T TRANSISTOR

Q 769 KRC105S-X CHIP D.TR.

Q1412 KRC107M-T D.TRANSISTOR

R 141 QRZ9005-120X F RESISTOR

A

R 142 QRJ146J-682X UNF C RESISTORA6.8K 5% 1/4

R 145 QRZ9005-120X F RESISTOR

A

R 146 QRJ146J-272X UNF C RESISTORA2.7K 5% 1/4

R 151 QRZ9006-4R7X F RESISTOR

A

R 152 QRZ9006-4R7X F RESISTOR

A

R 153 QRJ146J-332X UNF C RESISTOR

A

R 154 QRJ146J-2R2X UNF C RESISTOR

A

R 155 QRJ146J-2R2X UNF C RESISTOR

A

R 158 QRZ9005-100X F RESISTOR

A

R 159 QRJ146J-182X UNF C RESISTOR

A

R 160 QRJ146J-182X UNF C RESISTOR 1.8K 5% 1/4

A

R 161 QRZ9006-4R7X F RESISTOR

A

R 162 QRZ9005-100X F RESISTOR

A

R 163 QRZ9006-4R7X F RESISTOR

A

R 164 QRJ146J-182X UNF C RESISTOR

A

R 165 QRZ9005-100X F RESISTOR

A

R 166 QRZ9005-100X F RESISTOR

A

R 167 QRJ146J-222X UNF C RESISTOR

A

R 168 QRJ146J-222X UNF C RESISTORA2.2K 5% 1/4

R 169 QRJ146J-2R2X UNF C RESISTOR 2.2 5% 1/4W

R 170 QRJ146J-2R2X UNF C RESISTOR 2.2 5% 1/4W

R 171 QRZ9005-100X F RESISTOR

A

R 172 QRJ146J-182X UNF C RESISTOR

A

R 181 QRZ9006-4R7X F RESISTOR

A

R 182 QRZ9006-4R7X F RESISTOR

A

R 183 QRJ146J-182X UNF C RESISTOR

A

R 184 QRJ146J-2R2X UNF C RESISTOR

A

Parts number Parts name Area

181 2SD2395/EF/ TRANSISTOR

182 2SD2395/EF/ TRANSISTOR

183 2SD2395/EF/ TRANSISTOR

191 KRC102S-X DIGITAL.TR

192 KRC102S-X DIGITAL.TR

193 KRC102S-X DIGITAL.TR

194 KTC3203/OY/-T TRANSISTOR

381 2SC3576-JVC-T TRANSISTOR

384 2SC3576-JVC-T TRANSISTOR

385 2SC3576-JVC-T TRANSISTOR

386 KRA104S-X DIGITAL.TR

434 KRA107S-X TRANSISTOR

765 KRC102S-X DIGITAL.TR

766 KRC105S-X CHIP D.TR.

767 KRC105S-X CHIP D.TR.

768 KRC105S-X CHIP D.TR.

771 KRC107S-X DIGITAL.TR

799 KRC102S-X DIGITAL.TR

1381 2SC3576-JVC-T TRANSISTOR

1382 2SC3576-JVC-T TRANSISTOR

1383 KRA104S-X DIGITAL.TR

1401 KTC3199/GL/-T TRANSISTOR

1402 2SK301/QR/-T FET

1403 KRC104M-T D.TRANSISTOR

1411 KTC3199/GL/-T TRANSISTOR

1441 KTC3199/GL/-T TRANSISTOR

1442 KTC3199/GL/-T TRANSISTOR

1443 2SK301/QR/-T FET

1444 2SK301/QR/-T FET

1451 KTC3199/GL/-T TRANSISTOR

1452 KTC3199/GL/-T TRANSISTOR

1453 KRC107M-T D.TRANSISTOR

1454 KRC107M-T D.TRANSISTOR

12 1/4W

12 1/4W

4.7 1/4W

4.7 1/4W

3.3K 5% 1/4

2.2 5% 1/4W

2.2 5% 1/4W

10 1/4W

1.8K 5% 1/4

4.7 1/4W

10 1/4W

4.7 1/4W

1.8K 5% 1/4

10 1/4W

10 1/4W

2.2K 5% 1/4

10 1/4W

1.8K 5% 1/4

4.7 1/4W

4.7 1/4W

1.8K 5% 1/4

2.2 5% 1/4W

Block No. 01

Remarks

Item

A

R 185 QRJ146J-2R2X UNF C RESISTORA2.2 5% 1/4W

R 186 QRZ9005-100X F RESISTOR

A

R 187 QRJ146J-222X UNF C RESISTORA2.2K 5% 1/4

R 191 QRK126J-100X C RESISTOR

A

R 192 QRJ146J-222X UNF C RESISTOR

A

R 195 NRSA63J-0R0X MG RESISTOR

R 196 NRSA63J-0R0X MG RESISTOR

R 290 QRJ146J-181X UNF C RESISTOR

A

R 301 NRSA63J-471X MG RESISTOR

R 302 NRSA63J-471X MG RESISTOR

R 303 NRSA63J-473X MG RESISTOR

R 304 NRSA63J-473X MG RESISTOR

R 305 NRSA63J-471X MG RESISTOR

R 306 NRSA63J-471X MG RESISTOR

R 307 NRSA63J-473X MG RESISTOR

R 308 NRSA63J-473X MG RESISTOR

R 309 NRSA63J-471X MG RESISTOR

R 310 NRSA63J-471X MG RESISTOR

R 311 NRSA63J-473X MG RESISTOR

R 312 NRSA63J-473X MG RESISTOR

R 313 NRSA63J-471X MG RESISTOR

R 314 NRSA63J-471X MG RESISTOR

R 315 NRSA63J-473X MG RESISTOR

R 316 NRSA63J-473X MG RESISTOR

R 321 NRSA63J-471X MG RESISTOR

R 322 NRSA63J-471X MG RESISTOR

R 323 NRSA63J-471X MG RESISTOR

R 324 NRSA63J-471X MG RESISTOR

R 341 NRSA63J-102X MG RESISTOR

R 342 NRSA63J-102X MG RESISTOR

R 343 NRSA63J-682X MG RESISTOR

R 344 NRSA63J-682X MG RESISTOR

R 345 NRSA63J-473X MG RESISTOR

R 346 NRSA63J-473X MG RESISTOR

R 361 NRSA63J-752X MG RESISTOR

R 362 NRSA63J-752X MG RESISTOR

R 381 NRSA63J-104X MG RESISTOR

R 382 NRSA63J-104X MG RESISTOR

R 383 NRSA63J-102X MG RESISTOR

R 384 NRSA63J-102X MG RESISTOR

R 385 NRSA63J-103X MG RESISTOR

R 386 NRSA63J-103X MG RESISTOR

R 387 NRSA63J-104X MG RESISTOR

R 388 NRSA63J-104X MG RESISTOR

R 389 NRSA63J-102X MG RESISTOR

R 390 NRSA63J-102X MG RESISTOR

R 391 NRSA63J-103X MG RESISTOR

R 392 NRSA63J-103X MG RESISTOR

R 393 NRSA63J-104X MG RESISTOR

R 394 NRSA63J-102X MG RESISTOR

R 395 NRSA63J-103X MG RESISTOR

R 396 NRSA63J-102X MG RESISTOR

R 400 NRSA63J-0R0X MG RESISTOR

R 401 NRSA63J-0R0X MG RESISTOR

R 402 NRSA63J-360X C RESISTOR

R 403 NRSA63J-103X MG RESISTOR

R 404 NRSA63J-103X MG RESISTOR

R 405 NRSA63J-0R0X MG RESISTOR

R 406 NRSA63J-330X MG RESISTOR

R 407 NRSA63J-0R0X MG RESISTOR

R 408 NRSA63J-360X C RESISTOR

R 409 NRSA63J-0R0X MG RESISTOR

R 410 NRSA63J-360X C RESISTOR

R 411 NRSA63J-103X MG RESISTOR

R 413 NRSA63J-103X MG RESISTOR

R 415 NRSA63J-103X MG RESISTOR

Parts number Parts name Area

10 1/4W

10 5% 1/2W

2.2K 5% 1/4

180 5% 1/4W

Remarks

3-11

RX-DV5SL

Electrical parts list (Main board)

Item

A

R 421 NRSA63J-473X MG RESISTOR

R 422 NRSA63J-750X MG RESISTOR

R 423 NRSA63J-473X MG RESISTOR

R 424 NRSA63J-750X MG RESISTOR

R 425 NRSA63J-473X MG RESISTOR

R 426 NRSA63J-750X MG RESISTOR

R 760 NRSA63J-331X MG RESISTOR

R 776 NRSA63J-221X MG RESISTOR

R 777 NRSA63J-103X MG RESISTOR

R 778 NRSA63J-223X MG RESISTOR

R 779 NRSA63J-472X MG RESISTOR

R 780 NRSA63J-103X MG RESISTOR

R 781 NRSA63J-103X MG RESISTOR

R 782 NRSA63J-103X MG RESISTOR

R 783 NRSA63J-103X MG RESISTOR

R 784 NRSA63J-103X MG RESISTOR

R 791 NRSA63J-221X MG RESISTOR

R 792 NRSA63J-103X MG RESISTOR

R 793 NRSA63J-103X MG RESISTOR

R 794 NRSA63J-103X MG RESISTOR

R 798 NRSA63J-153X MG RESISTOR

R 799 NRSA63J-333X MG RESISTOR

RY291 QSK0109-001 RELAY

A

R1101 NRSA63J-0R0X MG RESISTOR

R1102 NRSA63J-0R0X MG RESISTOR

R1103 NRSA63J-0R0X MG RESISTOR

R1104 NRSA63J-0R0X MG RESISTOR

R1106 NRSA63J-0R0X MG RESISTOR

R1107 NRSA63J-0R0X MG RESISTOR

R1108 NRSA63J-0R0X MG RESISTOR

R1110 NRSA63J-221X MG RESISTOR

R1111 NRSA63J-221X MG RESISTOR

R1112 NRSA63J-221X MG RESISTOR

R1113 NRSA63J-221X MG RESISTOR

R1114 NRSA63J-0R0X MG RESISTOR

R1115 NRSA63J-221X MG RESISTOR

R1116 NRSA63J-0R0X MG RESISTOR

R1117 NRSA63J-221X MG RESISTOR

R1118 NRSA63J-0R0X MG RESISTOR

R1119 NRSA63J-221X MG RESISTOR

R1120 NRSA63J-0R0X MG RESISTOR

R1122 NRSA63J-0R0X MG RESISTOR

R1123 NRSA63J-0R0X MG RESISTOR

R1124 NRSA63J-221X MG RESISTOR

R1125 NRSA63J-221X MG RESISTOR

R1126 NRSA63J-221X MG RESISTOR

R1127 NRSA63J-0R0X MG RESISTOR

R1128 NRSA63J-221X MG RESISTOR

R1129 NRSA63J-0R0X MG RESISTOR

R1130 NRSA63J-221X MG RESISTOR

R1131 NRSA63J-0R0X MG RESISTOR

R1132 NRSA63J-0R0X MG RESISTOR

R1133 NRSA63J-221X MG RESISTOR

R1134 NRSA63J-0R0X MG RESISTOR

R1135 NRSA63J-0R0X MG RESISTOR

R1136 NRSA63J-0R0X MG RESISTOR

R1137 NRSA63J-0R0X MG RESISTOR

R1138 NRSA63J-0R0X MG RESISTOR

R1381 NRSA63J-104X MG RESISTOR

R1382 NRSA63J-273X MG RESISTOR

R1383 NRSA63J-102X MG RESISTOR

R1384 NRSA63J-104X MG RESISTOR

R1385 NRSA63J-102X MG RESISTOR

R1386 NRSA63J-102X MG RESISTOR

R1387 NRSA63J-103X MG RESISTOR

R1388 NRSA63J-103X MG RESISTOR

Parts number Parts name Area

Block No. 01

Remarks

Item

A

R1389 NRSA63J-102X MG RESISTOR

R1391 NRSA63J-822X MG RESISTOR

R1392 NRSA63J-822X MG RESISTOR

R1393 NRSA63J-822X MG RESISTOR

R1394 NRSA63J-822X MG RESISTOR

R1395 NRSA63J-822X MG RESISTOR

R1397 NRSA63J-124X MG RESISTOR

R1398 NRSA63J-103X MG RESISTOR

R1399 NRSA63J-103X MG RESISTOR

R1401 NRSA63J-750X MG RESISTOR

R1402 NRSA63J-473X MG RESISTOR

R1403 NRSA63J-241X MG RESISTOR

R1405 NRSA63J-750X MG RESISTOR

R1406 NRSA63J-750X MG RESISTOR

R1407 NRSA63J-750X MG RESISTOR

R1408 NRSA63J-750X MG RESISTOR

R1409 NRSA63J-750X MG RESISTOR

R1410 NRSA63J-750X MG RESISTOR

R1411 NRSA63J-750X MG RESISTOR

R1412 NRSA63J-473X MG RESISTOR

R1413 NRSA63J-241X MG RESISTOR

R1414 NRSA63J-751X MG RESISTOR

R1419 NRSA63J-221X MG RESISTOR

R1420 NRSA63J-221X MG RESISTOR

R1421 NRSA63J-750X MG RESISTOR

R1422 NRSA63J-331X MG RESISTOR

R1431 NRSA63J-750X MG RESISTOR

R1432 NRSA63J-331X MG RESISTOR

R1441 NRSA63J-750X MG RESISTOR

R1442 NRSA63J-750X MG RESISTOR

R1443 NRSA63J-473X MG RESISTOR

R1444 NRSA63J-473X MG RESISTOR

R1445 NRSA63J-431X MG RESISTOR

R1446 NRSA63J-241X MG RESISTOR

R1447 NRSA63J-102X MG RESISTOR

R1448 NRSA63J-102X MG RESISTOR

R1451 NRSA63J-750X MG RESISTOR

R1452 NRSA63J-750X MG RESISTOR

R1453 NRSA63J-473X MG RESISTOR

R1454 NRSA63J-473X MG RESISTOR

R1455 NRSA63J-431X MG RESISTOR

R1456 NRSA63J-241X MG RESISTOR

R1457 NRSA63J-751X MG RESISTOR

R1458 NRSA63J-751X MG RESISTOR

R1461 NRSA63J-750X MG RESISTOR

R1462 NRSA63J-750X MG RESISTOR

R1471 NRSA63J-750X MG RESISTOR

R1472 NRSA63J-750X MG RESISTOR

R1481 NRSA63J-103X MG RESISTOR

R1482 NRSA63J-103X MG RESISTOR

R1483 NRSA63J-103X MG RESISTOR

R1484 NRSA63J-822X MG RESISTOR

R1485 NRSA63J-104X MG RESISTOR

R1491 QRJ146J-2R2X UNF C RESISTOR

A

R1731 NRSA63J-562X MG RESISTOR

R1732 NRSA63J-562X MG RESISTOR

R1733 NRSA63J-103X MG RESISTOR

R1734 NRSA63J-103X MG RESISTOR

X 761 QAX0246-001Z C RESONATOR

Parts number Parts name Area

Remarks

2.2 5% 1/4W

3-12

RX-DV5SL

(

)

)

)

)

)

)

Q

Q

Q

Electrical parts list (Amp. board)

Item

A

C 101 QFLC2AJ-472Z M CAPACITOR 4700PF 5% 100V

C 102 QETN1EM-477Z E CAPACITOR

C 103 QCZ9104-472 C.CAPACITOR

A

C 104 QETN1CM-477Z E CAPACITOR 470MF 20% 16V

C 111 QFZ9076-104Z MM CAPACITOR

C 112 QCE22HP-103 C CAPACITOR

C 113 QCE22HP-103 C CAPACITOR

C 115 QFZ9076-104Z MM CAPACITOR

C 116 QCE22HP-103 C CAPACITOR

C 117 QCE22HP-103 C CAPACITOR .010MF +100:-0%

C 119 QFLC1HJ-473Z M CAPACITOR .047MF 5% 50V

C 120 QFLC1HJ-473Z M CAPACITOR .047MF 5% 50V

C 121 QETN2AM-107Z E CAPACITOR 100MF 20% 100V

C 122 QETN1HM-476Z E CAPACITOR 47MF 20% 50V

C 123 QEKC1HM-105Z E CAPACITOR

C 200 QCZ0202-155Z ML C CAPACITOR

C 201 QFLC1HJ-471Z M CAPACITOR

C 202 QFLC1HJ-471Z M CAPACITOR

C 203 QTE1H28-225Z E CAPACITOR

C 204 QTE1H28-225Z E CAPACITOR

C 205 QEKC1AM-107Z E CAPACITOR 100MF 20% 10V

C 206 QEKC1AM-107Z E CAPACITOR 100MF 20% 10V

C 207 QCS31HJ-3R0Z C CAPACITOR 3.0PF 5% 50V

C 208 QCS31HJ-3R0Z C CAPACITOR

C 211 QEZ0588-688 E CAPACITOR

C 212 QEZ0588-688 E CAPACITOR

C 213 QEZ0589-478 E CAPACITER

C 214 QEZ0589-478 E CAPACITER

C 221 QETN2AM-107Z E CAPACITOR

C 222 QETN2AM-107Z E CAPACITOR 100MF 20% 100V

C 223 QCS31HJ-101Z C CAPACITOR 100PF 5% 50V

C 224 QCS31HJ-101Z C CAPACITOR 100PF 5% 50V

C 231 QCBB1HK-222Y C CAPACITOR 2200PF 10% 50V

C 232 QCBB1HK-222Y C CAPACITOR

C 241 QFLC1HJ-473Z M CAPACITOR

C 242 QFLC1HJ-473Z M CAPACITOR

C 243 QFLC1HJ-473Z M CAPACITOR

C 244 QFLC1HJ-473Z M CAPACITOR

C 251 QCS31HJ-331Z C CAPACITOR (U

C 252 QCS31HJ-331Z C CAPACITOR (U

C 271 QEKC1EM-106Z E CAPACITOR 10MF 20% 25V

C 272 QEKC1CM-476Z E CAPACITOR 47MF 20% 16V

C 285 QETN2AM-106Z E.CAPACITOR

C 291 QEKC1EM-106Z E CAPACITOR

C 292 QEKC1CM-476Z E CAPACITOR

CN101 QGA7901C1-02 CONNECTOR

CN111 QGA3901C1-05 CONNECTOR

CN113 QJK012-051600 SIN CR C-B WIRE

CN115 QGF1205C1-10 CONNECTOR

CN201 QGA3901F2-05 5P CONNECTOR

CN202 QGB2510J1-10 CONNECTOR

CN203 QGB2510J1-05 CONNECTOR

CN204 QGB2510J1-07 CONNECTOR

CN213 QGB2510K1-05 CONNECTOR

CN214 QGB2510K1-07 CONNECTOR

CN222 WJP0040-001A E-SH C WIRE C-B

C1201 QFLC1HJ-471Z M CAPACITOR

C1202 QFLC1HJ-471Z M CAPACITOR 470PF 5% 50V

C1203 QEKC1HM-225Z E CAPACITOR 2.2MF 20% 50V

C1204 QEKC1HM-225Z E CAPACITOR 2.2MF 20% 50V

C1205 QEKC1AM-107Z E CAPACITOR 100MF 20% 10V

C1206 QEKC1AM-107Z E CAPACITOR

C1207 QCS31HJ-3R0Z C CAPACITOR

C1208 QCS31HJ-3R0Z C CAPACITOR

C1221 QETN2AM-107Z E CAPACITOR

C1222 QETN2AM-107Z E CAPACITOR

Parts number Parts name Area

Block No. 02

OTHER

4700PF

.10MF

.010MF +100:-0%

.010MF +100:-0%

.10MF

.010MF +100:-0%

1.0MF 20% 50V

1.5MF

470PF 5% 50V

470PF 5% 50V

3.0PF 5% 50V

6800MF

6800MF

4700MF

4700MF

100MF 20% 100V

2200PF 10% 50V

.047MF 5% 50V

.047MF 5% 50V

.047MF 5% 50V

.047MF 5% 50V

10MF 20% 100V

10MF 20% 25V

47MF 20% 16V

470PF 5% 50V

100MF 20% 10V

3.0PF 5% 50V

3.0PF 5% 50V

100MF 20% 100V

100MF 20% 100V

Remarks

Item

A

C1223 QCS31HJ-101Z C CAPACITOR 100PF 5% 50V

C1224 QCS31HJ-101Z C CAPACITOR 100PF 5% 50V

C1241 QFLC1HJ-473Z M CAPACITOR .047MF 5% 50V

C1242 QFLC1HJ-473Z M CAPACITOR .047MF 5% 50V

C1243 QFLC1HJ-473Z M CAPACITOR

C1244 QFLC1HJ-473Z M CAPACITOR

C1251 QCS31HJ-331Z C CAPACITOR

C1252 QCS31HJ-331Z C CAPACITOR

C2201 QFLC1HJ-471Z M CAPACITOR

C2203 QEKC1HM-225Z E CAPACITOR 2.2MF 20% 50V

C2205 QEKC1AM-107Z E CAPACITOR 100MF 20% 10V

C2207 QCS31HJ-3R0Z C CAPACITOR 3.0PF 5% 50V

C2223 QCS31HJ-101Z C CAPACITOR 100PF 5% 50V

C2241 QFLC1HJ-473Z M CAPACITOR .047MF 5% 50V

C2243 QFLC1HJ-473Z M CAPACITOR

C2251 QCS31HJ-331Z C CAPACITOR

D 101 11ES2-T4 DIODE

A

D 102 11ES2-T4 DIODE

A

D 103 11ES2-T4 DIODE

A

D 104 11ES2-T4 DIODE

A

D 105 1SS119-041-T2 SI DIODE

D 108 1SS119-041-T2 SI DIODE

D 109 MTZJ6.8C-T2 Z DIODE

D 111 30DF2-FC DIODE

A

D 112 30DF2-FC DIODE

A

D 113 30DF2-FC DIODE

A

D 114 30DF2-FC DIODE

A

D 115 30DF2-FC DIODE

A

D 116 30DF2-FC DIODE

A

D 117 30DF2-FC DIODE

A

D 118 30DF2-FC DIODE

A

D 121 MTZJ30C-T2 ZENER DIODE

D 122 MTZJ6.2C-T2 Z DIODE

D 221 MTZJ15C-T2 Z DIODE

D 222 MTZJ15C-T2 Z DIODE

D 229 1SS119-041-T2 SI DIODE

D 230 1SS119-041-T2 SI DIODE

D 261 1SS119-041-T2 SI DIODE

D 271 1SS119-041-T2 SI DIODE

D 293 1SS119-041-T2 SI DIODE

D1221 MTZJ15C-T2 Z DIODE

D1222 MTZJ15C-T2 Z DIODE

D1229 1SS119-041-T2 SI DIODE

D1230 1SS119-041-T2 SI DIODE

D1261 1SS119-041-T2 SI DIODE

D2229 1SS119-041-T2 SI DIODE

D2261 1SS119-041-T2 SI DIODE

EP102 QNZ0136-001Z EARTH PLATE

EP103 QNZ0136-001Z EARTH PLATE FOR VER.J,C

FC100 QNG0020-001Z FUSE CLIP FOR F101

FC101 QNG0020-001Z FUSE CLIP FOR F101

IC201 JCV8007 I C

A

IC202 JCV8008 I C

A

J 201 QNN0480-001 PIN JACK

L 241 QQLZ005-R45 INDUCTOR

L 242 QQLZ005-R45 INDUCTOR

L1241 QQLZ005-R45 INDUCTOR

L1242 QQLZ005-R45 INDUCTOR

L2241 QQLZ005-R45 INDUCTOR

PW101 QUB112-30PPPP SIN TWIST WIRE

A

PW102 QUB111-32PPPP SIN TWIST WIRE

A

PW103 QUB116-28PPPP SIN TWIST WIRE

A

PW201 QUB110-24DMPP SIN TWIST WIRE

A
A

Parts number Parts name

.047MF 5% 50V

.047MF 5% 50V

(U

(U

470PF 5% 50V

.047MF 5% 50V

(U

POWER AMP L/R

POWER AMP CNT/S

WITH PW151 U

WITH PW152 U

WITH PW153 U

101 KRC105M-T D.TRANSISTOR

103 KTC3203/OY/-T TRANSISTOR

121 KTA1046/Y/ TRANSISTOR

Remarks

3-13

RX-DV5SL

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

W

W

W

W

W

W

W

W

W

W

W

W

W

W

W

Electrical parts list (Amp. board)

Item

A

Q 122 KTC3200/GL/-T TRANSISTOR

Q 293 KTC3199/GL/-T TRANSISTOR

Q1231 KTC3200/GL/-T TRANSISTOR

R 101 QRZ9037-335 F RESISTOR

A

R 102 QRJ146J-100X UNF C RESISTOR

A

R 105 QRJ146J-821X UNF C RESISTOR

A

R 106 QRJ146J-100X UNF C RESISTOR

A

R 111 QRJ146J-2R2X UNF C RESISTOR

A

R 121 QRZ9005-100X F RESISTOR

A

R 122 QRJ146J-682X UNF C RESISTORA6.8K 5% 1/4

R 123 QRJ146J-100X UNF C RESISTORA10 5% 1/4W

R 124 QRE141J-104Y C RESISTOR

A

R 201 QRE141J-102Y C RESISTOR 1.0K 5% 1/4

R 202 QRE141J-102Y C RESISTOR

R 203 QRE141J-563Y C RESISTOR

R 204 QRE141J-563Y C RESISTOR

R 205 QRJ146J-471X UNF C RESISTOR

A

R 206 QRJ146J-471X UNF C RESISTOR

A

R 207 QRE141J-563Y C RESISTOR

R 208 QRE141J-563Y C RESISTOR 56K 5% 1/4W

R 209 QRE141J-333Y C RESISTOR 33K 5% 1/4W

R 221 QRJ146J-101X UNF C RESISTORA100 5% 1/4W

R 222 QRJ146J-101X UNF C RESISTORA100 5% 1/4W

R 223 QRL017J-152 000.OMF.RES.

A

R 224 QRL017J-152 000.OMF.RES.

A

R 225 QRZ0224-R22 EMIT.RESISTOR

A

R 226 QRZ0224-R22 EMIT.RESISTOR

A

R 227 QRE141J-102Y C RESISTOR

R 228 QRE141J-102Y C RESISTOR 1.0K 5% 1/4

R 229 QRE141J-183Y C RESISTOR 18K 5% 1/4W

R 230 QRE141J-183Y C RESISTOR 18K 5% 1/4W

R 231 QRE141J-473Y C RESISTOR 47K 5% 1/4W

R 232 QRE141J-473Y C RESISTOR

R 233 QRJ146J-101X UNF C RESISTOR

A

R 234 QRJ146J-2R2X UNF C RESISTOR

A

R 235 QRJ146J-2R2X UNF C RESISTOR

A

R 236 QRJ146J-2R2X UNF C RESISTOR

A

R 237 QRJ146J-2R2X UNF C RESISTOR

A

R 241 QRJ146J-330X UNF C RESISTOR 33 5% 1/4W

R 242 QRJ146J-330X UNF C RESISTOR 33 5% 1/4W

R 243 QRL027J-100 UNF.OMF.RES.

A

R 244 QRL027J-100 UNF.OMF.RES.

A

R 261 QRJ146J-181X UNF C RESISTOR

A

R 271 QRE141J-104Y C RESISTOR

R 272 QRE141J-823Y C RESISTOR

R 273 QRE141J-104Y C RESISTOR

R 274 QRE141J-104Y C RESISTOR

R 275 QRE141J-104Y C RESISTOR 100K 5% 1/4W

R 276 QRE141J-104Y C RESISTOR 100K 5% 1/4W

R 277 QRE141J-104Y C RESISTOR 100K 5% 1/4W

R 278 QRE141J-103Y C RESISTOR 10K 5% 1/4W

R 279 QRE141J-103Y C RESISTOR

R 281 QRL027J-471 UNF OMF.RES.

A

R 282 QRL027J-471 UNF OMF.RES.

A

R 285 QRE141J-103Y C RESISTOR

R 286 QRE141J-104Y C RESISTOR

Parts number Parts name Area

231 KTC3200/GL/-T TRANSISTOR

232 KTC3200/GL/-T TRANSISTOR

271 KTC3200/GL/-T TRANSISTOR

272 KTA1268/GL/-T TRANSISTOR

273 KTC3199/GL/-T TRANSISTOR

285 KTA1268/GL/-T TRANSISTOR

291 KTC3200/GL/-T TRANSISTOR

292 KTA1268/GL/-T TRANSISTOR

1232 KTC3200/GL/-T TRANSISTOR

2231 KTC3200/GL/-T TRANSISTOR

FOR VER.J,C

FOR VER.ALL

820 5% 1/4W

FOR VER.J,C,E

2.2 5% 1/4W

10 1/4W

100K 5% 1/4W

1.0K 5% 1/4

56K 5% 1/4W

56K 5% 1/4W

470 5% 1/4W

470 5% 1/4W

56K 5% 1/4W

1.5K 5% 1/1

1.5K 5% 1/1

1/2W

1/2W

1.0K 5% 1/4

47K 5% 1/4W

100 5% 1/4W

2.2 5% 1/4W

2.2 5% 1/4W

2.2 5% 1/4W

2.2 5% 1/4W

10 5% 1/2W

10 5% 1/2W

180 5% 1/4W

100K 5% 1/4W

82K 5% 1/4W

100K 5% 1/4W

100K 5% 1/4W

10K 5% 1/4W

470 5% 1/2W

470 5% 1/2W

10K 5% 1/4W

100K 5% 1/4W

Block No. 02

Remarks

Item

A

R 291 QRE141J-104Y C RESISTOR 100K 5% 1/4W

R 292 QRE141J-104Y C RESISTOR 100K 5% 1/4W

R 293 QRE141J-103Y C RESISTOR 10K 5% 1/4W

R 294 QRE141J-103Y C RESISTOR 10K 5% 1/4W

R 295 QRE141J-104Y C RESISTOR

R 296 QRE141J-104Y C RESISTOR

RY101 QSK0142-001 RELAY

A

RY261 QSK0109-001 RELAY

A

RY262 QSK0109-001 RELAY

A

RY263 QSK0109-001 RELAY

A

R1201 QRE141J-102Y C RESISTOR 1.0K 5% 1/4

R1202 QRE141J-102Y C RESISTOR 1.0K 5% 1/4

R1203 QRE141J-563Y C RESISTOR 56K 5% 1/4W

R1204 QRE141J-563Y C RESISTOR 56K 5% 1/4W

R1205 QRJ146J-391X UNF C RESISTOR

A

R1206 QRJ146J-391X UNF C RESISTOR

A

R1207 QRE141J-563Y C RESISTOR

R1208 QRE141J-563Y C RESISTOR

R1209 QRE141J-333Y C RESISTOR

R1221 QRJ146J-101X UNF C RESISTORA100 5% 1/4W

R1222 QRJ146J-101X UNF C RESISTORA100 5% 1/4W

R1223 QRL017J-152 000.OMF.RES.

A

R1224 QRL017J-152 000.OMF.RES.

A

R1225 QRZ0224-R22 EMIT.RESISTOR

A

R1226 QRZ0224-R22 EMIT.RESISTOR

A

R1227 QRE141J-102Y C RESISTOR

R1228 QRE141J-102Y C RESISTOR

R1229 QRE141J-183Y C RESISTOR

R1230 QRE141J-183Y C RESISTOR

R1231 QRE141J-473Y C RESISTOR 47K 5% 1/4W

R1232 QRE141J-473Y C RESISTOR 47K 5% 1/4W

R1233 QRJ146J-101X UNF C RESISTOR 100 5% 1/4W

A

R1234 QRJ146J-2R2X UNF C RESISTOR 2.2 5% 1/4W

A

R1235 QRJ146J-2R2X UNF C RESISTOR

A

R1236 QRJ146J-2R2X UNF C RESISTOR

A

R1237 QRJ146J-2R2X UNF C RESISTOR

A

R1241 QRJ146J-330X UNF C RESISTOR

R1242 QRJ146J-330X UNF C RESISTOR

R1243 QRL027J-100 UNF.OMF.RES.

A

R1244 QRL027J-100 UNF.OMF.RES.

A

R1261 QRJ146J-181X UNF C RESISTORA180 5% 1/4W

R2201 QRE141J-102Y C RESISTOR 1.0K 5% 1/4

R2203 QRE141J-563Y C RESISTOR

R2205 QRJ146J-391X UNF C RESISTOR

A

R2207 QRE141J-563Y C RESISTOR

R2225 QRZ0224-R22 EMIT.RESISTOR

A

R2227 QRE141J-102Y C RESISTOR

R2229 QRE141J-183Y C RESISTOR

R2231 QRE141J-473Y C RESISTOR 47K 5% 1/4W

R2241 QRJ146J-330X UNF C RESISTOR 33 5% 1/4W

R2243 QRL027J-100 UNF.OMF.RES.

A

R2261 QRJ146J-181X UNF C RESISTORA180 5% 1/4W

ST201 QNB0141-001 SPK TERMINAL

ST202 QNB0142-001 SPK TERMINAL

T 102 QQT0317-001 POWER TRANSF

A

TA101 QNZ0079-001Z TAB

TA102 QNZ0079-001Z TAB

Parts number Parts name Area

100K 5% 1/4W

100K 5% 1/4W

390 5% 1/4W

390 5% 1/4W

56K 5% 1/4W

56K 5% 1/4W

33K 5% 1/4W

1.5K 5% 1/1

1.5K 5% 1/1

1/2W

1/2W

1.0K 5% 1/4

1.0K 5% 1/4

18K 5% 1/4W

18K 5% 1/4W

2.2 5% 1/4W

2.2 5% 1/4W

2.2 5% 1/4W

33 5% 1/4W

33 5% 1/4W

10 5% 1/2W

10 5% 1/2W

56K 5% 1/4W

390 5% 1/4W

56K 5% 1/4W

1/2W

1.0K 5% 1/4

18K 5% 1/4W

10 5% 1/2W

FOR VER.J,C

Remarks

3-14

RX-DV5SL

Q

Q

Q

Q

Q

Q

A

A

Electrical parts list (Front board)

Item

A

BK701 LV42882-001A PUSH SWITCH

BK702 LV42881-001A PUSH SWITCH

C 281 NCB31HK-331X C CAPACITOR

C 282 NCB31HK-331X C CAPACITOR

C 283 NCF31CZ-104X C CAPACITOR

C 700 NCB31HK-102X C CAPACITOR

C 701 NCB31HK-471X C CAPACITOR

C 702 NCB31HK-471X C CAPACITOR

C 703 NCB31HK-471X C CAPACITOR

C 704 NCB31HK-471X C CAPACITOR

C 705 NCB31HK-471X C CAPACITOR

C 706 NCB31HK-471X C CAPACITOR

C 708 NCB31HK-223X C CAPACITOR

C 709 NCF31CZ-104X C CAPACITOR

C 710 NCF31CZ-104X C CAPACITOR

C 711 QEKC0JM-107Z E CAPACITOR

C 712 QCZ0202-155Z ML C CAPACITOR

C 713 QEKC1HM-475Z E CAPACITOR

C 714 QEKC1HM-475Z E CAPACITOR

C 715 QEKC1HM-475Z E CAPACITOR 4.7MF 20% 50V

C 717 NCF31CZ-104X C CAPACITOR

C 718 NCF31CZ-104X C CAPACITOR

C 720 NCB31EK-223X C CAPACITOR

CN242 QGB2510K1-10 CONNECTOR

CN252 QGB2510K1-10 CONNECTOR

CN604 QGB2510K1-13 CONNECTOR

CN611 QGB2510K1-13 CONNECTOR

CN701 QGF1205F1-13 CONNECTOR

CN703 QGA2001F1-03 CONNECTOR

CN713 QJK021-030603 SIN CR C-B WIRE

D 701 LO561MBL3-60QNP LED

D 703 SLR-342VC-T LED

D 704 QLMP-KB49 LED DVD A

D 710 MA3082/H/-X ZENER DIODE

D 711 MA3082/H/-X ZENER DIODE

DI701 QLF0101-001 FL TUBE

EP281 QNZ0136-001Z EARTH PLATE

FW241 QUM214-15DGZ4

FW281 QUM133-18DGZ4 PARA RIBON WIRE

FW701 QUM214-05Z4Z4 WITH FW701

FW702 QUM133-08Z4Z4 PARA RIBON WIRE WITH FW702

FW703 QUM312-05Z4Z4 RIBON WIRE

IC701 MN101C35DKF PANEL MICOM

IC702 GP1UM281XK IR DETECT UNIT

J 281 QNS0188-001 JACK

JS701 QSW0898-001 JOG VOLUME

PW701 QUB220-08HPDM SIN TWIST WIRE

Q 701 KRC107S-X DIGITAL.TR

R 667 NRSA63J-0R0X MG RESISTOR

R 668 NRSA63J-0R0X MG RESISTOR

R 669 NRSA63J-0R0X MG RESISTOR

R 701 NRSA63J-103X MG RESISTOR

R 702 NRSA63J-102X MG RESISTOR

R 703 NRSA63J-103X MG RESISTOR

R 704 NRSA63J-102X MG RESISTOR

R 705 NRSA63J-102X MG RESISTOR

R 706 NRSA63J-122X MG RESISTOR

R 707 NRSA63J-103X MG RESISTOR

R 708 NRSA63J-102X MG RESISTOR

R 709 NRSA63J-102X MG RESISTOR

Parts number Parts name Area

100MF 20% 6.3V

1.5MF

4.7MF 20% 50V

4.7MF 20% 50V

DVD A

PANEL MICOM

700 KRC107S-X DIGITAL.TR

702 KRA107S-X TRANSISTOR

703 KRA114S-X TRANSISTOR

704 KRA107S-X TRANSISTOR DVD A

705 KRA114S-X TRANSISTOR

710 KRA107S-X TRANSISTOR

DVD A

Block No. 03

Remarks

Item

A

R 710 NRSA63J-122X MG RESISTOR

R 711 NRSA63J-152X MG RESISTOR

R 712 NRSA63J-222X MG RESISTOR

R 713 NRSA63J-272X MG RESISTOR

R 714 NRSA63J-103X MG RESISTOR

R 715 NRSA63J-102X MG RESISTOR

R 716 NRSA63J-102X MG RESISTOR

R 717 NRSA63J-122X MG RESISTOR

R 718 NRSA63J-152X MG RESISTOR

R 719 NRSA63J-222X MG RESISTOR

R 720 NRSA63J-272X MG RESISTOR

R 721 NRSA63J-392X MG RESISTOR

R 722 NRSA63J-103X MG RESISTOR

R 723 NRSA63J-102X MG RESISTOR

R 724 NRSA63J-102X MG RESISTOR

R 725 NRSA63J-122X MG RESISTOR

R 726 NRSA63J-152X MG RESISTOR

R 727 NRSA63J-222X MG RESISTOR

R 728 NRSA63J-272X MG RESISTOR

R 729 NRSA63J-392X MG RESISTOR

R 731 NRSA63J-103X MG RESISTOR FOR DV5

R 733 NRSA63J-103X MG RESISTOR

R 734 NRSA63J-102X MG RESISTOR ALL

R 741 NRSA63J-103X MG RESISTOR

R 743 NRSA63J-221X MG RESISTOR

R 744 NRSA63J-222X MG RESISTOR

R 745 NRSA63J-221X MG RESISTOR

R 746 NRSA63J-751X MG RESISTOR

R 750 NRSA63J-0R0X MG RESISTOR

R 751 NRSA63J-221X MG RESISTOR

R 752 NRSA63J-103X MG RESISTOR

R 753 NRSA63J-103X MG RESISTOR

R 754 NRSA63J-103X MG RESISTOR

R1291 NRSA63J-471X MG RESISTOR

R1292 NRSA63J-471X MG RESISTOR

R1701 NRSA63J-221X MG RESISTOR

R1702 NRSA63J-221X MG RESISTOR

R1703 NRSA63J-221X MG RESISTOR

R1704 NRSA63J-221X MG RESISTOR

R1705 NRSA63J-221X MG RESISTOR

R1706 NRSA63J-221X MG RESISTOR

R1710 NRSA63J-0R0X MG RESISTOR

R1711 NRSA63J-0R0X MG RESISTOR

S 700 QSW0683-001Z PUSH SWITCH

S 701 QSW0683-001Z PUSH SWITCH

S 702 QSW0683-001Z PUSH SWITCH

S 703 QSW0683-001Z PUSH SWITCH

S 704 QSW0683-001Z PUSH SWITCH

S 705 QSW0683-001Z PUSH SWITCH

S 706 QSW0683-001Z PUSH SWITCH

S 707 QSW0683-001Z PUSH SWITCH

S 708 QSW0683-001Z PUSH SWITCH

S 709 QSW0683-001Z PUSH SWITCH

S 710 QSW0683-001Z PUSH SWITCH

S 711 QSW0683-001Z PUSH SWITCH

S 712 QSW0683-001Z PUSH SWITCH

S 713 QSW0683-001Z PUSH SWITCH

S 714 QSW0683-001Z PUSH SWITCH

S 715 QSW0683-001Z PUSH SWITCH

S 716 QSW0683-001Z PUSH SWITCH

S 717 QSW0683-001Z PUSH SWITCH

S 718 QSW0683-001Z PUSH SWITCH

S 719 QSW0683-001Z PUSH SWITCH

S 720 QSW0683-001Z PUSH SWITCH

S 721 QSW0683-001Z PUSH SWITCH

S 722 QSW0683-001Z PUSH SWITCH

S 723 QSW0683-001Z PUSH SWITCH

TH291 QAD0125-471 P THERMISTOR

A

X 701 QAX0246-001Z C RESONATOR

Parts number Parts name Area

Remarks

RX

DVD

DVD

FOR J/C

3-15

RX-DV5SL

Electrical parts list (DSP board)

Item

A

C 601 QETN0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 602 NCF31CZ-104X C CAPACITOR

C 605 NCB31HK-102X C CAPACITOR

C 606 NCB31HK-102X C CAPACITOR

C 607 QETN0JM-107Z E CAPACITOR

C 608 NCF31CZ-104X C CAPACITOR

C 609 QETN0JM-107Z E CAPACITOR

C 610 NCF31CZ-104X C CAPACITOR

C 611 NCF31CZ-104X C CAPACITOR

C 612 QETN0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 613 NCB31CK-103X C CAPACITOR

C 615 NCB31CK-103X C CAPACITOR

C 616 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 617 QETN0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 618 NCB31CK-103X C CAPACITOR

C 619 NCF31CZ-104X C CAPACITOR

C 620 QETN1CM-107Z E CAPACITOR

C 621 NCS31HJ-101X C CAPACITOR

C 622 QETN1HM-105Z E CAPACITOR

C 623 NCB31CK-103X C CAPACITOR

C 624 NCF31AZ-105X C CAPACITOR

C 625 NCF31AZ-105X C CAPACITOR

C 626 NCF31AZ-105X C CAPACITOR

C 627 NCS31HJ-471X C CAPACITOR

C 628 NCF31AZ-105X C CAPACITOR

C 629 NCS31HJ-101X C CAPACITOR

C 631 QETN0JM-107Z E CAPACITOR

C 632 NCB31CK-103X C CAPACITOR

C 633 QETN0JM-107Z E CAPACITOR

C 634 NCB31CK-103X C CAPACITOR

C 635 NCB31AK-474X C CAPACITOR

C 636 NCB31CK-103X C CAPACITOR

C 637 NCS31HJ-101X C CAPACITOR

C 638 NCS31HJ-121X C CAPACITOR

C 639 NCF31CZ-104X C CAPACITOR

C 640 NCF31CZ-104X C CAPACITOR

C 641 NCF31CZ-104X C CAPACITOR

C 642 NCB31CK-473X C CAPACITOR

C 643 NCS31HJ-180X C CAPACITOR

C 644 NCS31HJ-220X C CAPACITOR

C 645 NCB31CK-103X C CAPACITOR

C 646 NCF31CZ-104X C CAPACITOR

C 647 QETN0JM-107Z E CAPACITOR

C 648 NCB31CK-104X C CAPACITOR

C 680 NCF31AZ-105X C CAPACITOR

C 681 QETN0JM-107Z E CAPACITOR

C 682 NCB31CK-103X C CAPACITOR

C 683 NCS31HJ-101X C CAPACITOR

C 684 NCS31HJ-101X C CAPACITOR

C 685 NCB31CK-103X C CAPACITOR

C 686 NCB31CK-103X C CAPACITOR

C 687 NCB31CK-103X C CAPACITOR

C 688 NCF31CZ-104X C CAPACITOR

C 689 NCF31AZ-105X C CAPACITOR

C 690 NCB31CK-103X C CAPACITOR

C 691 NCB31CK-103X C CAPACITOR

C 692 QTE1C06-476Z E CAP. SILMIC

C 693 NCB31CK-103X C CAPACITOR

C 694 QTE1C06-336Z E CAPACITOR

C 695 NCB31CK-103X C CAPACITOR

C 696 QTE1C06-336Z E CAPACITOR

CN601 QGB2510J1-13 CONNECTOR

CN602 QGF1205C1-12 CONNECTOR

C2500 QETN1CM-226Z E CAPACITOR

C2503 QETN1HM-475Z E CAPACITOR

C2504 QETN1HM-475Z E CAPACITOR

Parts number Parts name Area

100MF 20% 6.3V

100MF 20% 6.3V

100MF 20% 16V

1.0MF 20% 50V

100MF 20% 6.3V

100MF 20% 6.3V

100MF 20% 6.3V

100MF 20% 6.3V

22MF 20% 16V

4.7MF 20% 50V

4.7MF 20% 50V

Block No. 04

Remarks

Item

A

C2507 NCS31HJ-330X C CAPACITOR

C2508 NCS31HJ-330X C CAPACITOR

C2512 NCF31CZ-104X C CAPACITOR

C2513 NCB31HK-122X C CAPACITOR

C2514 NCB31HK-122X C CAPACITOR

C2515 NCS31HJ-121X C CAPACITOR

C2516 NCS31HJ-121X C CAPACITOR

C2525 NCB31HK-102X C CAPACITOR

C2526 NCB31HK-102X C CAPACITOR

C2527 QETN1HM-106Z E CAPACITOR 10MF 20% 50V

C2528 QETN1HM-106Z E CAPACITOR 10MF 20% 50V

C2531 NCS31HJ-560X C CAPACITOR

C2532 NCS31HJ-560X C CAPACITOR

C2533 QETN1HM-475Z E CAPACITOR 4.7MF 20% 50V

C2534 QETN1HM-475Z E CAPACITOR

C2539 NCF31CZ-104X C CAPACITOR

C2540 NCF31CZ-104X C CAPACITOR

C2551 NCS31HJ-560X C CAPACITOR

C2552 NCS31HJ-560X C CAPACITOR

C2555 NCF31CZ-104X C CAPACITOR

C2556 NCF31CZ-104X C CAPACITOR

C2561 QETN1HM-105Z E CAPACITOR 1.0MF 20% 50V

C2562 QETN1HM-105Z E CAPACITOR 1.0MF 20% 50V

C2563 NCS31HJ-560X C CAPACITOR

C2564 NCS31HJ-560X C CAPACITOR

C2569 NCF31CZ-104X C CAPACITOR

C2570 NCF31CZ-104X C CAPACITOR

C2575 NCB31HK-272X C CAPACITOR

C2576 NCB31HK-272X C CAPACITOR

C2577 QETN1HM-106Z E CAPACITOR 10MF 20% 50V

C2578 QETN1HM-106Z E CAPACITOR 10MF 20% 50V

C2581 QETN1HM-105Z E CAPACITOR 1.0MF 20% 50V

C2582 QETN1CM-106Z E CAPACITOR 10MF 20% 16V

C2583 NCS31HJ-560X C CAPACITOR

C2584 NCS31HJ-560X C CAPACITOR

C2585 NCF31CZ-104X C CAPACITOR

C2586 NCF31CZ-104X C CAPACITOR

C2587 NCS31HJ-560X C CAPACITOR

C2588 QETN1HM-475Z E CAPACITOR 4.7MF 20% 50V

C2589 NCF31CZ-104X C CAPACITOR

C2590 NCF31CZ-104X C CAPACITOR

C2592 NCB31HK-103X C CAPACITOR

C2594 NCF31CZ-473X C CAPACITOR

C2595 NCB31HK-272X C CAPACITOR

C2597 QETN1HM-106Z E CAPACITOR

C2598 QETN1HM-475Z E CAPACITOR

D 621 MA111-X DIODE

D 622 MA111-X DIODE

D 631 MA111-X DIODE

D 632 MA111-X DIODE

EP601 E409182-001SM GRAND TERMINAL

IC601 AK4527BVQP IC

IC602 BA15218F-XE IC

IC603 BA15218F-XE IC

IC611 TC74HC4072AF-X IC

IC612 TC74HC08AF-X IC

IC615 MM1563DF-X IC

A

IC621 TC74HCU04AF-W IC

IC631 TC9446F-025 IC

IC641 LP61L1024S-12-X IC

IC651 BA15218F-XE IC

IC652 BA15218F-XE IC

IC661 BA15218F-XE IC

IC671 BA15218F-XE IC

IC672 BA15218F-XE IC

IC681 UPD784215AGC167 IC(MICRO C ROM)

Parts number Parts name Area

4.7MF 20% 50V

10MF 20% 50V

4.7MF 20% 50V

Remarks

3-16

RX-DV5SL

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (DSP board)

Item

A

IC682 MM1613DN-X IC

A

IC683 TC7SET32FU-X IC

J 601 QNN0481-001 PIN JACK

K 601 NQR0269-004X FERRITE BEADS

Q 681 DTC114YE-X TRANSISTOR

Q2501 KRA104S-X DIGITAL.TR

R 601 NRSA63J-473X MG RESISTOR

R 602 NRSA63J-473X MG RESISTOR

R 603 NRSA63J-221X MG RESISTOR

R 604 NRSA63J-473X MG RESISTOR

R 605 NRSA63J-221X MG RESISTOR

R 606 NRSA63J-221X MG RESISTOR

R 607 NRSA63J-103X MG RESISTOR

R 608 NRSA63J-103X MG RESISTOR

R 611 NRSA63J-101X MG RESISTOR

R 613 NRSA63J-0R0X MG RESISTOR

R 615 NRSA63J-103X MG RESISTOR

R 619 NRSA63J-103X MG RESISTOR

R 620 NRSA63J-103X MG RESISTOR

R 621 NRSA63J-750X MG RESISTOR

R 622 NRSA63J-221X MG RESISTOR

R 623 NRSA63J-472X MG RESISTOR

R 624 NRSA63J-333X MG RESISTOR

R 631 NRSA63J-221X MG RESISTOR

R 632 NRSA63J-472X MG RESISTOR

R 633 NRSA63J-221X MG RESISTOR

R 634 NRSA63J-221X MG RESISTOR

R 635 NRSA63J-221X MG RESISTOR

R 636 NRSA63J-221X MG RESISTOR

R 637 NRSA63J-221X MG RESISTOR

R 638 NRSA63J-103X MG RESISTOR

R 639 NRSA63F-102X MG RESISTOR

R 640 NRSA63J-101X MG RESISTOR

R 641 NRSA63J-102X MG RESISTOR

R 642 NRSA63J-563X MG RESISTOR

R 643 NRSA63F-103X MG RESISTOR

R 644 NRSA63J-472X MG RESISTOR

R 645 NRSA63J-103X MG RESISTOR

R 646 NRSA63J-225X MG RESISTOR

R 651 NRSA63J-0R0X MG RESISTOR

R 653 NRSA63J-0R0X MG RESISTOR

R 661 NRSA63J-0R0X MG RESISTOR

R 662 NRSA63J-0R0X MG RESISTOR

R 663 NRSA63J-0R0X MG RESISTOR

R 671 NRSA63J-103X MG RESISTOR

R 672 NRSA63J-105X MG RESISTOR

R 676 NRSA63J-103X MG RESISTOR

R 679 NRSA63J-103X MG RESISTOR

R 680 NRSA63J-103X MG RESISTOR

R 681 NRSA63J-0R0X MG RESISTOR

R 682 NRSA63J-0R0X MG RESISTOR

R 683 NRSA63J-822X MG RESISTOR

R 684 NRSA63J-432X MG RESISTOR

R 685 NRSA63J-103X MG RESISTOR

R 686 NRSA63J-822X MG RESISTOR

Parts number Parts name Area

631 DTC114YE-X TRANSISTOR

632 KRA104S-X DIGITAL.TR

671 2SD1048/6-7/-X TRANSISTOR

672 DTC114YE-X TRANSISTOR

673 KRA104S-X DIGITAL.TR

2521 2SC3576-JVC-T TRANSISTOR

2522 2SC3576-JVC-T TRANSISTOR

2561 2SC3576-JVC-T TRANSISTOR

2562 2SC3576-JVC-T TRANSISTOR

2581 2SC3576-JVC-T TRANSISTOR

2582 2SC3576-JVC-T TRANSISTOR

Block No. 04

Remarks

Item

A

R 687 NRSA63J-432X MG RESISTOR

R 688 NRSA63J-822X MG RESISTOR

R 689 NRSA63J-432X MG RESISTOR

R 690 NRSA63J-822X MG RESISTOR

R 691 NRSA63J-432X MG RESISTOR

R 692 NRSA63J-221X MG RESISTOR

R 693 NRSA63J-221X MG RESISTOR

R 694 NRSA63J-221X MG RESISTOR

R 695 NRSA63J-221X MG RESISTOR

R 696 NRSA63J-221X MG RESISTOR

R 697 NRSA63J-221X MG RESISTOR

R 698 NRSA63J-221X MG RESISTOR

R 699 NRSA63J-221X MG RESISTOR

R2500 NRSA63J-102X MG RESISTOR

R2501 NRSA63J-104X MG RESISTOR

R2502 NRSA63J-104X MG RESISTOR

R2507 NRSA63J-223X MG RESISTOR

R2508 NRSA63J-223X MG RESISTOR

R2509 NRSA63J-223X MG RESISTOR

R2510 NRSA63J-223X MG RESISTOR

R2511 NRSA63J-103X MG RESISTOR

R2512 NRSA63J-103X MG RESISTOR

R2513 NRSA63J-103X MG RESISTOR

R2514 NRSA63J-103X MG RESISTOR

R2515 NRSA63J-103X MG RESISTOR

R2516 NRSA63J-103X MG RESISTOR

R2517 NRSA63J-0R0X MG RESISTOR

R2518 NRSA63J-0R0X MG RESISTOR

R2519 NRSA63J-331X MG RESISTOR

R2520 NRSA63J-331X MG RESISTOR

R2521 NRSA63J-331X MG RESISTOR

R2522 NRSA63J-331X MG RESISTOR

R2525 NRSA63J-102X MG RESISTOR

R2526 NRSA63J-102X MG RESISTOR

R2527 NRSA63J-104X MG RESISTOR

R2528 NRSA63J-104X MG RESISTOR

R2529 NRSA63J-103X MG RESISTOR

R2530 NRSA63J-103X MG RESISTOR

R2531 NRSA63J-752X MG RESISTOR

R2532 NRSA63J-752X MG RESISTOR

R2533 NRSA63J-103X MG RESISTOR

R2534 NRSA63J-103X MG RESISTOR

R2535 NRSA63J-103X MG RESISTOR

R2536 NRSA63J-103X MG RESISTOR

R2537 NRSA63J-104X MG RESISTOR

R2538 NRSA63J-104X MG RESISTOR

R2550 NRSA63J-272X MG RESISTOR

R2551 NRSA63J-103X MG RESISTOR

R2552 NRSA63J-103X MG RESISTOR

R2553 NRSA63J-153X MG RESISTOR

R2554 NRSA63J-153X MG RESISTOR

R2555 NRSA63J-752X MG RESISTOR

R2556 NRSA63J-752X MG RESISTOR

R2557 NRSA63J-103X MG RESISTOR

R2558 NRSA63J-273X MG RESISTOR

R2560 NRSA63J-105X MG RESISTOR

R2561 NRSA63J-104X MG RESISTOR

R2562 NRSA63J-104X MG RESISTOR

R2563 NRSA63J-103X MG RESISTOR

R2564 NRSA63J-103X MG RESISTOR

R2565 NRSA63J-202X MG RESISTOR

R2566 NRSA63J-202X MG RESISTOR

R2567 NRSA63J-103X MG RESISTOR

R2568 NRSA63J-103X MG RESISTOR

R2575 NRSA63J-102X MG RESISTOR

R2576 NRSA63J-102X MG RESISTOR

Parts number Parts name Area

Remarks

3-17

RX-DV5SL

Electrical parts list (DSP board)

Item

A

R2577 NRSA63J-104X MG RESISTOR

R2578 NRSA63J-104X MG RESISTOR

R2581 NRSA63J-104X MG RESISTOR

R2582 NRSA63J-104X MG RESISTOR

R2583 NRSA63J-123X MG RESISTOR

R2584 NRSA63J-223X MG RESISTOR

R2585 NRSA63J-302X MG RESISTOR

R2586 NRSA63J-332X MG RESISTOR

R2587 NRSA63J-103X MG RESISTOR

R2588 NRSA63J-103X MG RESISTOR

R2589 NRSA63J-104X MG RESISTOR

R2590 NRSA63J-333X MG RESISTOR

R2592 NRSA63J-333X MG RESISTOR

R2594 NRSA63J-333X MG RESISTOR

R2595 NRSA63J-102X MG RESISTOR

R2596 NRSA63J-102X MG RESISTOR

R2597 NRSA63J-104X MG RESISTOR

R2598 NRSA63J-104X MG RESISTOR

UN661 GP1FA351RZ OPT RECEIVER

UN662 GP1FA351TZ OPT TRANSMITTER

X 631 QAX0722-001Z CRYSTAL

X 681 QAX0719-001Z 1COSCIALLATOR

Parts number Parts name Area

Block No. 04

Remarks

3-18

RX-DV5SL

Electrical parts list (DAC board)

Item

A

C 900 NCF31CZ-104X C CAPACITOR

C 901 NEA71CM-106X E.CAPACITOR

C 902 NCF31AZ-105X C CAPACITOR

C 903 NEA70JM-107X E.CAPACITOR

C 904 NCF31AZ-105X C CAPACITOR

C 905 NCF31AZ-105X C CAPACITOR

C 906 NCB31HK-103X C CAPACITOR

C 907 NCB31AK-224X C CAPACITOR

C 908 NCF31AZ-105X C CAPACITOR

C 909 NEA70JM-107X E.CAPACITOR

C 910 NEA71CM-106X E.CAPACITOR

C 911 NCS31HJ-561X C CAPACITOR

C 912 NCS31HJ-561X C CAPACITOR

C 913 NCS31HJ-121X C CAPACITOR

C 914 NCS31HJ-121X C CAPACITOR

C 915 NCB31CK-333X C CAPACITOR

C 916 NCB31CK-333X C CAPACITOR

C 917 NEA71EM-475X E.CAPACITOR.

C 918 NEA71EM-475X E.CAPACITOR.

C 919 NCB31CK-103X C CAPACITOR

C 920 NCB31CK-103X C CAPACITOR

C 921 NCB31HK-272X C CAPACITOR

C 922 NCB31HK-272X C CAPACITOR

C 923 NCS31HJ-561X C CAPACITOR

C 924 NCS31HJ-561X C CAPACITOR

C 925 NEA71EM-475X E.CAPACITOR.

C 926 NEA71EM-475X E.CAPACITOR.

C 927 NEA71EM-475X E.CAPACITOR.

C 928 NEA71EM-475X E.CAPACITOR.

C 929 NCS31HJ-561X C CAPACITOR

C 930 NCS31HJ-561X C CAPACITOR

C 931 NCB31HK-152X C CAPACITOR

C 932 NCB31HK-152X C CAPACITOR

C 934 NCB31HK-102X C CAPACITOR

C 941 NEA71EM-475X E.CAPACITOR.

C 942 NEA71EM-475X E.CAPACITOR.

C 951 NCS31HJ-560X C CAPACITOR

C 952 NCS31HJ-560X C CAPACITOR

C 953 NCF31CZ-104X C CAPACITOR

C 954 NCF31CZ-104X C CAPACITOR

C 961 NEA71CM-476X E CAPACITOR

C 962 NEA71CM-476X E CAPACITOR

CN901 QGB2016J1-15 CONNECTOR

CN902 QGB2016J1-13 CONNECTOR

C1900 NCF31CZ-104X C CAPACITOR

C1901 NEA71CM-106X E.CAPACITOR

C1902 NCF31AZ-105X C CAPACITOR

C1903 NEA70JM-107X E.CAPACITOR

C1904 NCF31AZ-105X C CAPACITOR

C1905 NCF31AZ-105X C CAPACITOR

C1906 NCB31HK-103X C CAPACITOR

C1907 NCB31AK-224X C CAPACITOR

C1908 NCF31AZ-105X C CAPACITOR

C1909 NEA70JM-107X E.CAPACITOR

C1910 NEA71CM-106X E.CAPACITOR

C1911 NCS31HJ-102X C CAPACITOR

C1912 NCS31HJ-102X C CAPACITOR

C1913 NCS31HJ-101X C CAPACITOR

C1914 NCS31HJ-101X C CAPACITOR

C1915 NCB31CK-333X C CAPACITOR

C1916 NCB31CK-333X C CAPACITOR

C1917 NEA71EM-475X E.CAPACITOR.

C1918 NEA71EM-475X E.CAPACITOR.

C1919 NCB31HK-123X C CAPACITOR

C1920 NCB31HK-123X C CAPACITOR

C1923 NCB31HK-152X C CAPACITOR

Parts number Parts name Area

Block No. 05

Remarks

Item

A

C1924 NCB31HK-152X C CAPACITOR

C1925 NEA71EM-475X E.CAPACITOR.

C1926 NEA71EM-475X E.CAPACITOR.

C1927 NEA71EM-475X E.CAPACITOR.

C1928 NEA71EM-475X E.CAPACITOR.

C1929 NCS31HJ-561X C CAPACITOR

C1930 NCS31HJ-561X C CAPACITOR

C1934 NCB31HK-102X C CAPACITOR

C1941 NEA71EM-475X E.CAPACITOR.

C1942 NEA71EM-475X E.CAPACITOR.

C1951 NCS31HJ-560X C CAPACITOR

C1952 NCS31HJ-560X C CAPACITOR

C1953 NCF31CZ-104X C CAPACITOR

C1954 NCF31CZ-104X C CAPACITOR

C2900 NCF31CZ-104X C CAPACITOR

C2901 NEA71CM-106X E.CAPACITOR

C2902 NCF31AZ-105X C CAPACITOR

C2903 NEA70JM-107X E.CAPACITOR

C2904 NCF31AZ-105X C CAPACITOR

C2905 NCF31AZ-105X C CAPACITOR

C2906 NCB31HK-103X C CAPACITOR

C2907 NCB31AK-224X C CAPACITOR

C2908 NCF31AZ-105X C CAPACITOR

C2909 NEA70JM-107X E.CAPACITOR

C2910 NEA71CM-106X E.CAPACITOR

C2911 NCS31HJ-102X C CAPACITOR

C2912 NCS31HJ-102X C CAPACITOR

C2913 NCS31HJ-101X C CAPACITOR

C2914 NCS31HJ-101X C CAPACITOR

C2915 NCB31CK-333X C CAPACITOR

C2916 NCB31CK-333X C CAPACITOR

C2917 NEA71EM-475X E.CAPACITOR.

C2918 NEA71EM-475X E.CAPACITOR.

C2919 NCB31HK-123X C CAPACITOR

C2920 NCB31HK-123X C CAPACITOR

C2923 NCB31HK-152X C CAPACITOR

C2924 NCB31HK-152X C CAPACITOR

C2925 NEA71EM-475X E.CAPACITOR.

C2926 NEA71EM-475X E.CAPACITOR.

C2927 NEA71EM-475X E.CAPACITOR.

C2928 NEA71EM-475X E.CAPACITOR.

C2929 NCS31HJ-561X C CAPACITOR

C2930 NCS31HJ-561X C CAPACITOR

C2932 NCB31HK-152X C CAPACITOR

C2934 NCB31HK-102X C CAPACITOR

C2941 NEA71EM-475X E.CAPACITOR.

C2942 NEA71EM-475X E.CAPACITOR.

C2951 NCS31HJ-560X C CAPACITOR

C2952 NCS31HJ-560X C CAPACITOR

C2953 NCF31CZ-104X C CAPACITOR

C2954 NCF31CZ-104X C CAPACITOR

C2971 NCS31HJ-560X C CAPACITOR

C2972 NEA71EM-475X E.CAPACITOR.

C2973 NCF31CZ-104X C CAPACITOR

C2974 NCF31CZ-104X C CAPACITOR

IC901 MN35505-X IC C M

IC911 NJM4580E-W IC

IC921 NJM4580E-W IC

IC931 MN35505-X IC

IC941 NJM4580E-W IC

IC951 NJM4580E-W IC

IC961 MN35505-X IC

IC971 NJM4580E-W IC

IC981 NJM4580E-W IC

IC991 NJM4580E-W IC

IC992 NJM4580E-W IC

Parts number Parts name Area

Remarks

3-19

RX-DV5SL

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (DAC board)

Item

A

IC993 NJM4580E-W IC

IC994 NJM4580E-W IC

K 901 NQR0007-003X FERRITE BEADS

K 902 NQR0007-003X FERRITE BEADS

K 903 NQR0007-003X FERRITE BEADS

K 904 NQR0007-003X FERRITE BEADS

K1901 NQR0007-003X FERRITE BEADS

K1902 NQR0007-003X FERRITE BEADS

K1903 NQR0007-003X FERRITE BEADS

K1904 NQR0007-003X FERRITE BEADS

K2901 NQR0007-003X FERRITE BEADS

K2902 NQR0007-003X FERRITE BEADS

K2903 NQR0007-003X FERRITE BEADS

K2904 NQR0007-003X FERRITE BEADS

Q 911 DTA144EKA-X TRANSISTOR

R 900 NRSA63J-101X MG RESISTOR

R 901 NRSA63J-0R0X MG RESISTOR

R 902 NRSA63J-0R0X MG RESISTOR

R 903 NRSA63J-0R0X MG RESISTOR

R 904 NRSA63J-0R0X MG RESISTOR

R 905 NRSA63J-332X MG RESISTOR

R 906 NRSA63J-0R0X MG RESISTOR

R 907 NRSA63J-0R0X MG RESISTOR

R 908 NRSA63J-101X MG RESISTOR

R 909 NRSA63J-101X MG RESISTOR

R 910 NRSA63J-101X MG RESISTOR

R 911 NRSA63J-273X MG RESISTOR

R 912 NRSA63J-273X MG RESISTOR

R 913 NRSA63J-273X MG RESISTOR

R 914 NRSA63J-273X MG RESISTOR

R 915 NRSA63F-183X MG RESISTOR

R 916 NRSA63F-183X MG RESISTOR

R 917 NRSA63F-183X MG RESISTOR

R 918 NRSA63F-183X MG RESISTOR

R 919 NRSA63J-362X MG RESISTOR

R 920 NRSA63J-362X MG RESISTOR

R 921 NRSA63J-362X MG RESISTOR

R 922 NRSA63J-362X MG RESISTOR

R 923 NRSA63F-183X MG RESISTOR

R 924 NRSA63F-183X MG RESISTOR

R 925 NRSA63F-332X MG RESISTOR

R 926 NRSA63F-332X MG RESISTOR

R 927 NRSA63J-362X MG RESISTOR

R 928 NRSA63J-362X MG RESISTOR

R 929 NRSA63F-681X MG RESISTOR

R 930 NRSA63F-681X MG RESISTOR

R 931 NRSA63F-821X MG RESISTOR

R 932 NRSA63F-821X MG RESISTOR

R 933 NRSA63J-103X MG RESISTOR

R 934 NRSA63J-103X MG RESISTOR

R 935 NRSA63J-105X MG RESISTOR

R 936 NRSA63J-105X MG RESISTOR

R 937 NRSA63J-821X MG RESISTOR

Parts number Parts name Area

901 2SD1328/ST/-X TRANSISTOR

902 2SD1328/ST/-X TRANSISTOR

903 2SD1328/ST/-X TRANSISTOR

904 2SD1328/ST/-X TRANSISTOR

910 DTA144EKA-X TRANSISTOR

912 DTA144EKA-X TRANSISTOR

1903 2SD1328/ST/-X TRANSISTOR

1904 2SD1328/ST/-X TRANSISTOR

2903 2SD1328/ST/-X TRANSISTOR

2904 2SD1328/ST/-X TRANSISTOR

2971 DTC144EKA-X TRANSISTOR

2972 2SD1328/ST/-X TRANSISTOR

2993 DTA144EKA-X TRANSISTOR

Block No. 05

Remarks

Item

A

R 938 NRSA63J-821X MG RESISTOR

R 939 NRSA63J-183X MG RESISTOR

R 940 NRSA63J-183X MG RESISTOR

R 941 NRSA63J-273X MG RESISTOR

R 942 NRSA63J-273X MG RESISTOR

R 943 NRSA63J-561X MG RESISTOR

R 944 NRSA63J-561X MG RESISTOR

R 947 NRSA63J-103X MG RESISTOR

R 948 NRSA63J-103X MG RESISTOR

R 949 NRSA63J-473X MG RESISTOR

R 950 NRSA63J-473X MG RESISTOR

R 951 NRSA63J-103X MG RESISTOR

R 952 NRSA63J-103X MG RESISTOR

R 953 NRSA63J-103X MG RESISTOR

R 954 NRSA63J-103X MG RESISTOR

R 955 NRSA63J-103X MG RESISTOR

R 956 NRSA63J-103X MG RESISTOR

R 959 NRSA63J-104X MG RESISTOR

R 960 NRSA63J-104X MG RESISTOR

R1900 NRSA63J-101X MG RESISTOR

R1901 NRSA63J-0R0X MG RESISTOR

R1902 NRSA63J-0R0X MG RESISTOR

R1903 NRSA63J-0R0X MG RESISTOR

R1904 NRSA63J-0R0X MG RESISTOR

R1905 NRSA63J-332X MG RESISTOR

R1906 NRSA63J-0R0X MG RESISTOR

R1907 NRSA63J-0R0X MG RESISTOR

R1908 NRSA63J-101X MG RESISTOR

R1909 NRSA63J-101X MG RESISTOR

R1910 NRSA63J-101X MG RESISTOR

R1911 NRSA63J-303X MG RESISTOR

R1912 NRSA63J-303X MG RESISTOR

R1913 NRSA63J-303X MG RESISTOR

R1914 NRSA63J-303X MG RESISTOR

R1915 NRSA63F-183X MG RESISTOR

R1916 NRSA63F-183X MG RESISTOR

R1917 NRSA63F-183X MG RESISTOR

R1918 NRSA63F-183X MG RESISTOR

R1919 NRSA63J-272X MG RESISTOR

R1920 NRSA63J-272X MG RESISTOR

R1921 NRSA63J-272X MG RESISTOR

R1922 NRSA63J-272X MG RESISTOR

R1923 NRSA63F-183X MG RESISTOR

R1924 NRSA63F-183X MG RESISTOR

R1925 NRSA63F-102X MG RESISTOR

R1926 NRSA63F-102X MG RESISTOR

R1927 NRSA63J-362X MG RESISTOR

R1928 NRSA63J-362X MG RESISTOR

R1929 NRSA63F-681X MG RESISTOR

R1930 NRSA63F-681X MG RESISTOR

R1931 NRSA63F-511X MG RESISTOR

R1932 NRSA63F-511X MG RESISTOR

R1937 NRSA63J-821X MG RESISTOR

R1938 NRSA63J-821X MG RESISTOR

R1939 NRSA63J-183X MG RESISTOR

R1940 NRSA63J-183X MG RESISTOR

R1941 NRSA63J-273X MG RESISTOR

R1942 NRSA63J-273X MG RESISTOR

R1943 NRSA63J-561X MG RESISTOR

R1944 NRSA63J-561X MG RESISTOR

R1947 NRSA63J-103X MG RESISTOR

R1948 NRSA63J-103X MG RESISTOR

R1951 NRSA63J-682X MG RESISTOR

R1952 NRSA63J-682X MG RESISTOR

R1953 NRSA63J-153X MG RESISTOR

R1954 NRSA63J-153X MG RESISTOR

Parts number Parts name Area

Remarks

3-20

RX-DV5SL

Electrical parts list (DAC board)

Item

A

R1959 NRSA63J-104X MG RESISTOR

R1960 NRSA63J-104X MG RESISTOR

R2900 NRSA63J-101X MG RESISTOR

R2901 NRSA63J-0R0X MG RESISTOR

R2902 NRSA63J-0R0X MG RESISTOR

R2903 NRSA63J-0R0X MG RESISTOR

R2904 NRSA63J-0R0X MG RESISTOR

R2905 NRSA63J-332X MG RESISTOR

R2906 NRSA63J-0R0X MG RESISTOR

R2907 NRSA63J-0R0X MG RESISTOR

R2908 NRSA63J-101X MG RESISTOR

R2909 NRSA63J-101X MG RESISTOR

R2910 NRSA63J-101X MG RESISTOR

R2911 NRSA63J-303X MG RESISTOR

R2912 NRSA63J-303X MG RESISTOR

R2913 NRSA63J-303X MG RESISTOR

R2914 NRSA63J-303X MG RESISTOR

R2915 NRSA63F-183X MG RESISTOR

R2916 NRSA63F-183X MG RESISTOR

R2917 NRSA63F-183X MG RESISTOR

R2918 NRSA63F-183X MG RESISTOR

R2919 NRSA63J-272X MG RESISTOR

R2920 NRSA63J-272X MG RESISTOR

R2921 NRSA63J-272X MG RESISTOR

R2922 NRSA63J-272X MG RESISTOR

R2923 NRSA63F-183X MG RESISTOR

R2924 NRSA63F-183X MG RESISTOR

R2925 NRSA63F-102X MG RESISTOR

R2926 NRSA63F-102X MG RESISTOR

R2927 NRSA63J-362X MG RESISTOR

R2928 NRSA63J-362X MG RESISTOR

R2929 NRSA63F-681X MG RESISTOR

R2930 NRSA63F-681X MG RESISTOR

R2931 NRSA63F-511X MG RESISTOR

R2932 NRSA63F-511X MG RESISTOR

R2937 NRSA63J-821X MG RESISTOR

R2938 NRSA63J-821X MG RESISTOR

R2939 NRSA63J-183X MG RESISTOR

R2940 NRSA63J-183X MG RESISTOR

R2941 NRSA63J-273X MG RESISTOR

R2942 NRSA63J-273X MG RESISTOR

R2943 NRSA63J-561X MG RESISTOR

R2944 NRSA63J-561X MG RESISTOR

R2947 NRSA63J-103X MG RESISTOR

R2948 NRSA63J-103X MG RESISTOR

R2949 NRSA63J-473X MG RESISTOR

R2951 NRSA63J-123X MG RESISTOR

R2952 NRSA63J-682X MG RESISTOR

R2953 NRSA63J-153X MG RESISTOR

R2954 NRSA63J-153X MG RESISTOR

R2959 NRSA63J-104X MG RESISTOR

R2960 NRSA63J-104X MG RESISTOR

R2971 NRSA63J-562X MG RESISTOR

R2972 NRSA63J-103X MG RESISTOR

R2973 NRSA63J-104X MG RESISTOR

R2974 NRSA63J-102X MG RESISTOR

R2977 NRSA63J-103X MG RESISTOR

R2978 NRSA63J-105X MG RESISTOR

R2979 NRSA63J-103X MG RESISTOR

Parts number Parts name Area

Block No. 05

Remarks

3-21

RX-DV5SL

Electrical parts list (DVD loading main board)

Item

A

C 105 NEA70JM-476X E.CAPACITOR

C 106 NEA70JM-476X E.CAPACITOR

C 109 NCB31CK-104X C CAPACITOR

C 110 NCS31HJ-221X C CAPACITOR

C 111 NCB31CK-104X C CAPACITOR

C 112 NCB31CK-104X C CAPACITOR

C 113 NEA70JM-226X E CAPACITOR

C 115 NCB31CK-104X C CAPACITOR

C 116 NCB31CK-104X C CAPACITOR

C 117 NCB31CK-473X C CAPACITOR

C 118 NCB31CK-273X C CAPACITOR

C 119 NCB31HK-561X C CAPACITOR

C 120 NCB31HK-561X C CAPACITOR

C 121 NCB31CK-104X C CAPACITOR

C 122 NCS31HJ-120X C CAPACITOR

C 123 NCB31CK-104X C CAPACITOR

C 124 NCS31HJ-470X C CAPACITOR

C 125 NCB31HK-271X C CAPACITOR

C 126 NCB31CK-104X C CAPACITOR

C 127 NCB31CK-104X C CAPACITOR

C 128 NCB31CK-104X C CAPACITOR

C 129 NCB31HK-472X C CAPACITOR

C 135 NEA70JM-476X E.CAPACITOR

C 137 NEA70GM-476X E.CAPACITOR.

C 138 NCB31CK-104X C CAPACITOR

C 139 NCB31CK-104X C CAPACITOR

C 141 NCB31CK-104X C CAPACITOR

C 142 NCB31CK-104X C CAPACITOR

C 143 NCB31CK-104X C CAPACITOR

C 144 NCB31CK-103X C CAPACITOR

C 146 NCB31CK-104X C CAPACITOR

C 201 NEA70JM-226X E CAPACITOR

C 203 NCB31CK-104X C CAPACITOR

C 204 NCB31CK-104X C CAPACITOR

C 205 NCS31HJ-121X C CAPACITOR

C 207 NCB31HK-391X C CAPACITOR

C 208 NCB31HK-391X C CAPACITOR

C 211 NCB31HK-223X C CAPACITOR

C 212 NCB31CK-103X C CAPACITOR

C 215 NCB31CK-104X C CAPACITOR

C 216 NCB30JK-105X C CAPACITOR

C 217 NCB31CK-104X C CAPACITOR

C 218 NCB30JK-105X C CAPACITOR

C 251 NCB31CK-104X C CAPACITOR

C 252 NEA71AM-336X E CAPACITOR

C 253 NCB31CK-104X C CAPACITOR

C 255 NCB31CK-153X C CAPACITOR

C 256 NCB31CK-104X C CAPACITOR

C 257 NCB31CK-104X C CAPACITOR

C 258 NCB31CK-104X C CAPACITOR

C 259 NCB31CK-104X C CAPACITOR

C 260 NCB31CK-104X C CAPACITOR

C 261 NCB31CK-104X C CAPACITOR

C 262 NCB31CK-104X C CAPACITOR

C 263 NCB31CK-104X C CAPACITOR

C 264 NCB31CK-103X C CAPACITOR

C 301 NCB31CK-104X C CAPACITOR

C 302 NCB31CK-104X C CAPACITOR

C 303 NCB31CK-104X C CAPACITOR

C 304 NEA70GM-107X E CAPACITOR

C 306 NEA70GM-107X E CAPACITOR

C 308 NEA70GM-107X E CAPACITOR

C 310 NCB31CK-104X C CAPACITOR

C 311 NCB31HK-561X C CAPACITOR

C 312 NCB31HK-561X C CAPACITOR

C 313 NCB31HK-561X C CAPACITOR

Parts number Parts name Area

Block No. 06

Remarks

Item

A

C 314 NCB31HK-331X C CAPACITOR

C 315 NCB31HK-471X C CAPACITOR

C 316 NCB31HK-271X C CAPACITOR

C 317 NCS31HJ-121X C CAPACITOR

C 318 NCB31CK-104X C CAPACITOR

C 319 NCB31HK-102X C CAPACITOR

C 320 NCB31HK-102X C CAPACITOR

C 321 NCB31HK-102X C CAPACITOR

C 322 NCB31HK-562X C CAPACITOR

C 323 NCB31HK-102X C CAPACITOR

C 324 NCB31CK-104X C CAPACITOR

C 325 NCS31HJ-470X C CAPACITOR

C 326 NCB31CK-183X C CAPACITOR

C 327 NCB31HK-102X C CAPACITOR

C 328 NCB31CK-104X C CAPACITOR

C 329 NCB31CK-103X C CAPACITOR

C 330 NCB31CK-104X C CAPACITOR

C 331 NCB31CK-103X C CAPACITOR

C 332 NCB21CK-105X C CAPACITOR

C 333 NCB31CK-104X C CAPACITOR

C 334 NCB31CK-104X C CAPACITOR

C 337 NCB31CK-104X C CAPACITOR

C 338 NCB31CK-104X C CAPACITOR

C 339 NCB31CK-104X C CAPACITOR

C 340 NCB31CK-104X C CAPACITOR

C 341 NCB31CK-104X C CAPACITOR

C 342 NCB31CK-104X C CAPACITOR

C 343 NCB31CK-104X C CAPACITOR

C 344 NCB31CK-104X C CAPACITOR

C 345 NCB31CK-104X C CAPACITOR

C 346 NCB31CK-104X C CAPACITOR

C 347 NCB31CK-104X C CAPACITOR

C 348 NCB31CK-104X C CAPACITOR

C 349 NCB31CK-104X C CAPACITOR

C 350 NCB31CK-104X C CAPACITOR

C 401 NEA70GM-476X E.CAPACITOR

C 402 NCB31CK-104X C CAPACITOR

C 403 NCB31CK-104X C CAPACITOR

C 404 NCB31CK-104X C CAPACITOR

C 405 NCB31CK-104X C CAPACITOR

C 406 NCB31CK-104X C CAPACITOR

C 407 NCB31CK-104X C CAPACITOR

C 450 NCB31CK-104X C CAPACITOR

C 501 NCB31CK-104X C CAPACITOR

C 506 NCS31HJ-150X C CAPACITOR

C 507 NCS31HJ-180X C CAPACITOR

C 511 NEA70GM-476X E.CAPACITOR

C 512 NCB31CK-104X C CAPACITOR

C 514 NCB31CK-104X C CAPACITOR

C 515 NCB31CK-104X C CAPACITOR

C 516 NCB31CK-104X C CAPACITOR

C 517 NCB31CK-104X C CAPACITOR

C 518 NCB31CK-104X C CAPACITOR

C 519 NCB31CK-104X C CAPACITOR

C 520 NCB31CK-104X C CAPACITOR

C 523 NCB31CK-104X C CAPACITOR

C 524 NEA70GM-476X E.CAPACITOR

C 527 NEA70GM-476X E.CAPACITOR

C 528 NCB31CK-104X C CAPACITOR

C 529 NCB31CK-104X C CAPACITOR

C 531 NCB31CK-104X C CAPACITOR

C 532 NCB31CK-104X C CAPACITOR

C 533 NCB31CK-104X C CAPACITOR

C 534 NCB31CK-104X C CAPACITOR

C 535 NCB31CK-104X C CAPACITOR

C 536 NCB31CK-104X C CAPACITOR

Parts number Parts name Area

Remarks

3-22

RX-DV5SL

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (DVD loading main board)

Item

A

C 539 NCB31CK-104X C CAPACITOR

C 540 NCB31CK-104X C CAPACITOR

C 541 NCB31CK-104X C CAPACITOR

C 542 NCB31CK-104X C CAPACITOR

C 543 NCB31CK-104X C CAPACITOR

C 544 NCB31CK-104X C CAPACITOR

C 545 NCB31CK-104X C CAPACITOR

C 547 NCB31CK-104X C CAPACITOR

C 548 NCB31CK-104X C CAPACITOR

C 549 NEA70GM-476X E.CAPACITOR

C 550 NCB31CK-104X C CAPACITOR

C 554 NCB31CK-104X C CAPACITOR

C 555 NCB31CK-104X C CAPACITOR

C 557 NCB31CK-104X C CAPACITOR

C 558 NCB11CK-105X C CAPACITOR

C 569 NCB31CK-104X C CAPACITOR

C 571 NEA70GM-476X E.CAPACITOR

C 572 NCB31CK-104X C CAPACITOR

C 573 NEA70GM-227X E.CAPACITOR

C 578 NCB31CK-104X C CAPACITOR

C 580 NEA70GM-476X E.CAPACITOR

C 581 NEA70GM-227X E.CAPACITOR

C 582 NEA70GM-476X E.CAPACITOR

C 601 NEA70GM-476X E.CAPACITOR

C 602 NEA70GM-476X E.CAPACITOR

C 618 NCB31CK-104X C CAPACITOR

C 619 NCB31CK-104X C CAPACITOR

C 801 NCS31HJ-680X C CAPACITOR

C 802 NCS31HJ-680X C CAPACITOR

C 803 NCS31HJ-120X C CAPACITOR

C 804 NCS31HJ-102X C CAPACITOR

C 805 NCS31HJ-820X C CAPACITOR

C 806 NCS31HJ-221X C CAPACITOR

C 807 NCS31HJ-180X C CAPACITOR

C 808 NCS31HJ-181X C CAPACITOR

C 809 NCB31HK-392X C CAPACITOR

C 810 NCB31CK-183X C CAPACITOR

C 902 NCB31CK-104X C CAPACITOR

C 904 NCB31CK-104X C CAPACITOR

C 906 NCB31CK-104X C CAPACITOR

C 908 NCB31CK-104X C CAPACITOR

C 992 NCB31CK-104X C CAPACITOR

C 993 NCB31CK-104X C CAPACITOR

C 994 NCB31CK-104X C CAPACITOR

C 995 NCB31CK-104X C CAPACITOR

C 996 NCB31CK-104X C CAPACITOR

C 997 NCB31CK-104X C CAPACITOR

C 998 NCB31CK-104X C CAPACITOR

CN101 QGF0522F1-30W FFC/FPC CONNE PU

CN201 QGF1016F2-15W CONNECTOR SP&STP

CN202 QGF1016F2-06W CONNECTOR LOADER

CN502 QGB2027L1-26X B TO B CONNE SYSTEM

CN503 QGB2027L1-26X B TO B CONNE

D 101 RB521S-30-X SB DIODE

D 202 1SS355-X DIODE

IC101 AN8703FH-V IC

IC201 BA5983FM-X IC

IC251 BA6664FM-X LSI

IC301 MN103S26EGA IC

IC401 MN102L62GLF3 IC

IC451 S-93C66AFJ-X IC

IC501 NDV8611VWA IC

IC505 K4S643232E-TC60 IC

IC509 SST39VF160-7CEK IC (FLASH)

IC510 AK93C65AF-X IC

IC511 LM1117MP1.8-X IC

Parts number Parts name Area

Block No. 06

Remarks

VIDEO

Item

A

IC512 74LCX373MTC-X IC(DIGITAL)

IC513 74LCX373MTC-X IC(DIGITAL)

IC521 MM74HCT32MTC-X IC

IC522 74LCX32MTC-X IC(DIGITAL)

IC523 NC7SZ125P5-X IC(DIGITAL)

K 101 NQR0007-002X FERRITE BEADS

K 301 NQR0007-002X FERRITE BEADS

K 302 NQR0007-002X FERRITE BEADS

K 303 NQR0007-002X FERRITE BEADS

K 304 NQR0007-002X FERRITE BEADS

K 401 NQR0007-002X FERRITE BEADS

K 501 NQR0007-002X FERRITE BEADS

K 504 NQR0007-002X FERRITE BEADS

K 505 NQR0007-002X FERRITE BEADS

K 507 NQR0007-002X FERRITE BEADS

K 508 NQR0007-002X FERRITE BEADS

K 509 NQR0007-002X FERRITE BEADS

K 510 NQR0007-002X FERRITE BEADS

K 513 NQR0007-002X FERRITE BEADS

K 515 NRSA02J-0R0X MG RESISTOR

K 518 NRSA02J-0R0X MG RESISTOR

K 519 NQR0007-002X FERRITE BEADS

K 520 NQR0007-002X FERRITE BEADS

K 556 NQR0129-002X FERRITE BEADS

K 557 NQR0129-002X FERRITE BEADS

K 558 NQR0129-002X FERRITE BEADS

K 559 NQR0129-002X FERRITE BEADS

K 560 NRSA02J-0R0X MG RESISTOR

K 561 NRSA02J-0R0X MG RESISTOR

K 562 NRSA02J-0R0X MG RESISTOR

K 563 NRSA02J-0R0X MG RESISTOR

K 564 NRSA02J-0R0X MG RESISTOR

K 565 NRSA02J-0R0X MG RESISTOR

K 566 NRSA02J-0R0X MG RESISTOR

K 567 NQR0007-002X FERRITE BEADS

K 568 NRSA02J-0R0X MG RESISTOR

K 569 NQR0007-002X FERRITE BEADS

K 570 NRSA02J-0R0X MG RESISTOR

K 571 NQR0007-002X FERRITE BEADS

K 572 NRSA02J-0R0X MG RESISTOR

K 573 NQR0007-002X FERRITE BEADS

K 574 NRSA02J-0R0X MG RESISTOR

K 575 NRSA02J-0R0X MG RESISTOR

K 576 NRSA02J-0R0X MG RESISTOR

K 577 NQR0007-002X FERRITE BEADS

K 578 NRSA02J-0R0X MG RESISTOR

K 579 NRSA02J-0R0X MG RESISTOR

K 582 NRSA02J-0R0X MG RESISTOR

K 586 NRSA02J-0R0X MG RESISTOR

L 501 NQL044K-100X INDUCTOR

Q 803 2SC4617/R/-X TRANSISTOR

R 101 NRSA63J-333X MG RESISTOR

R 102 NRSA63J-223X MG RESISTOR

R 103 NRSA63J-223X MG RESISTOR

Parts number Parts name Area

101 KTA1001/Y/-X TRANSISTOR

102 KTA1001/Y/-X TRANSISTOR

103 DTA144EE-X DIGI TRANSISTOR

501 2SB1424/QR/-W TRANSISTOR

502 2SC2412K/RS/-X CHIP TRANSISTOR

801 2SC4617/R/-X TRANSISTOR

802 2SA1774/R/-X TRANSISTOR

804 2SC4617/R/-X TRANSISTOR

805 2SC4617/R/-X TRANSISTOR

806 2SC4617/R/-X TRANSISTOR

807 DTC114EE-X TRANSISTOR

808 2SC4617/R/-X TRANSISTOR

Remarks

3-23

RX-DV5SL

Electrical parts list (DVD loading main board)

Item

A

R 104 NRS125J-270X MG RESISTOR

R 105 NRS125J-270X MG RESISTOR

R 106 NRSA63J-273X MG RESISTOR

R 107 NRSA63J-273X MG RESISTOR

R 108 NRSA63J-222X MG RESISTOR

R 109 NRSA63J-182X MG RESISTOR

R 110 NRSA63J-333X MG RESISTOR

R 111 NRVA63D-243X RESISTOR

R 112 NRSA63J-822X MG RESISTOR

R 113 NRSA63J-103X MG RESISTOR

R 114 NRSA63J-0R0X MG RESISTOR

R 115 NRSA63J-0R0X MG RESISTOR

R 116 NRSA63J-0R0X MG RESISTOR

R 117 NRSA63J-0R0X MG RESISTOR

R 119 NRSA63J-2R2X MG RESISTOR

R 120 NRSA63J-2R2X MG RESISTOR

R 125 NRSA63J-105X MG RESISTOR

R 126 NRSA63J-105X MG RESISTOR

R 127 NRSA63J-222X MG RESISTOR

R 128 NRS125J-1R0X MG RESISTOR

R 129 NRS125J-1R0X MG RESISTOR

R 130 NRSA63J-182X MG RESISTOR

R 201 NRSA63J-470X MG RESISTOR

R 202 NRS125J-1R0X MG RESISTOR

R 203 NRSA63J-0R0X MG RESISTOR

R 204 NRSA63J-273X MG RESISTOR

R 205 NRSA63J-273X MG RESISTOR

R 206 NRSA63J-303X MG RESISTOR

R 207 NRSA63J-473X MG RESISTOR

R 208 NRSA63J-223X MG RESISTOR

R 209 NRSA63J-223X MG RESISTOR

R 210 NRSA63J-242X MG RESISTOR

R 211 NRSA63J-242X MG RESISTOR

R 212 NRSA63J-103X MG RESISTOR

R 213 NRSA63J-103X MG RESISTOR

R 214 NRSA63J-103X MG RESISTOR

R 215 NRSA63J-103X MG RESISTOR

R 216 NRSA63J-912X MG RESISTOR

R 217 NRSA63J-201X MG RESISTOR

R 218 NRSA63J-221X MG RESISTOR

R 219 NRSA63J-183X MG RESISTOR

R 220 NRSA63J-243X MG RESISTOR

R 221 NRSA63J-682X MG RESISTOR

R 222 NRSA63J-103X MG RESISTOR

R 223 NRSA63J-912X MG RESISTOR

R 224 NRSA63J-103X MG RESISTOR

R 251 NRS125J-R47X MG RESISTOR

R 252 NRSA63J-2R2X MG RESISTOR

R 253 NRSA63J-0R0X MG RESISTOR

R 254 NRSA63J-203X MG RESISTOR

R 255 NRSA63J-103X MG RESISTOR

R 256 NRSA63J-470X MG RESISTOR

R 258 NRSA63J-0R0X MG RESISTOR

R 259 NRSA63J-103X MG RESISTOR

R 301 NRSA63J-473X MG RESISTOR

R 302 NRSA63J-473X MG RESISTOR

R 303 NRSA63J-473X MG RESISTOR

R 304 NRSA63J-473X MG RESISTOR

R 305 NRSA63J-473X MG RESISTOR

R 306 NRSA63J-473X MG RESISTOR

R 307 NRSA63J-473X MG RESISTOR

R 308 NRSA63J-0R0X MG RESISTOR

R 309 NRSA63J-473X MG RESISTOR

R 313 NRSA63J-473X MG RESISTOR

R 317 NRSA63J-473X MG RESISTOR

R 319 NRSA63J-473X MG RESISTOR

Parts number Parts name Area

Block No. 06

Remarks

Item

A

R 320 NRSA63J-105X MG RESISTOR

R 321 NRSA63J-473X MG RESISTOR

R 323 NRSA63J-473X MG RESISTOR

R 324 NRSA63J-473X MG RESISTOR

R 325 NRSA63J-123X MG RESISTOR

R 326 NRSA63J-473X MG RESISTOR

R 327 NRSA63J-105X MG RESISTOR

R 328 NRSA63J-183X MG RESISTOR

R 329 NRSA63J-473X MG RESISTOR

R 332 NRSA63J-102X MG RESISTOR

R 333 NRSA63J-183X MG RESISTOR

R 334 NRSA63J-102X MG RESISTOR

R 336 NRSA63J-273X MG RESISTOR

R 337 NRSA63J-273X MG RESISTOR

R 338 NRSA63J-472X MG RESISTOR

R 339 NRSA63J-472X MG RESISTOR

R 340 NRSA63J-103X MG RESISTOR

R 341 NRSA63J-562X MG RESISTOR

R 402 NRSA63J-472X MG RESISTOR

R 403 NRSA63J-0R0X MG RESISTOR

R 405 NRSA63J-0R0X MG RESISTOR

R 411 NRSA63J-472X MG RESISTOR

R 413 NRSA63J-472X MG RESISTOR

R 414 NRSA63J-472X MG RESISTOR

R 421 NRSA63J-0R0X MG RESISTOR

R 422 NRSA63J-472X MG RESISTOR

R 423 NRSA63J-472X MG RESISTOR

R 424 NRSA63J-472X MG RESISTOR

R 427 NRSA63J-0R0X MG RESISTOR

R 428 NRSA63J-472X MG RESISTOR

R 501 NRSA63J-470X MG RESISTOR

R 512 NRSA63J-332X MG RESISTOR

R 521 NRSA63J-103X MG RESISTOR

R 531 NRSA63J-562X MG RESISTOR

R 532 NRSA63J-392X MG RESISTOR

R 533 NRSA63J-102X MG RESISTOR

R 534 NRSA63J-561X MG RESISTOR

R 535 NRSA63J-333X MG RESISTOR

R 536 NRSA63J-102X MG RESISTOR

R 541 NRSA63J-0R0X MG RESISTOR

R 542 NRSA63J-0R0X MG RESISTOR

R 543 NRSA63J-0R0X MG RESISTOR

R 544 NRSA63J-471X MG RESISTOR

R 547 NRSA63J-0R0X MG RESISTOR

R 548 NRSA63J-471X MG RESISTOR

R 549 NRSA63J-471X MG RESISTOR

R 550 NRSA63J-471X MG RESISTOR

R 551 NRSA63J-0R0X MG RESISTOR

R 552 NRSA63J-0R0X MG RESISTOR

R 553 NRSA63J-0R0X MG RESISTOR

R 565 NRVA63D-622X CMF RESISTOR

R 566 NRVA63D-132X MG RESISTOR

R 570 NRSA63J-100X MG RESISTOR

R 573 NRSA63J-162X MG RESISTOR

R 574 NRSA63J-162X MG RESISTOR

R 575 NRSA63J-471X MG RESISTOR

R 576 NRSA63J-471X MG RESISTOR

R 578 NRSA63J-471X MG RESISTOR

R 579 NRSA63J-471X MG RESISTOR

R 580 NRSA63J-471X MG RESISTOR

R 583 NRSA63J-471X MG RESISTOR

R 584 NRSA63J-332X MG RESISTOR

R 608 NRSA63J-103X MG RESISTOR

R 655 NRSA63J-0R0X MG RESISTOR

R 738 NRSA63J-152X MG RESISTOR

R 739 NRSA63J-0R0X MG RESISTOR

Parts number Parts name Area

Remarks

3-24

RX-DV5SL

Electrical parts list (DVD loading main board)

Item

A

R 740 NRSA63J-0R0X MG RESISTOR

R 801 NRSA63J-123X MG RESISTOR

R 802 NRSA63J-223X MG RESISTOR

R 803 NRSA63J-122X MG RESISTOR

R 804 NRSA63J-821X MG RESISTOR

R 805 NRSA63J-242X MG RESISTOR

R 806 NRSA63J-821X MG RESISTOR

R 807 NRSA63J-222X MG RESISTOR

R 808 NRSA63J-102X MG RESISTOR

R 809 NRSA63J-223X MG RESISTOR

R 810 NRSA63J-222X MG RESISTOR

R 811 NRSA63J-103X MG RESISTOR

R 812 NRSA63J-103X MG RESISTOR

R 813 NRSA63J-103X MG RESISTOR

R 814 NRSA63J-103X MG RESISTOR

R 815 NRSA63J-821X MG RESISTOR

R 816 NRSA63J-820X MG RESISTOR

R 817 NRSA63J-103X MG RESISTOR

R 818 NRSA63J-102X MG RESISTOR

R 991 NRSA63J-220X MG RESISTOR

X 301 NAX0542-001X C RESONATOR

X 401 NAX0543-001X C RESONATOR

X 571 NAX0513-001X CRYSTAL

Parts number Parts name Area

Block No. 06

Remarks

Electrical parts list (DVD loading switch board) Block No. 07

Item

A

CN 1 QGF1016F3-06 CONNECTOR

S 1 QSW0910-002 SWITCH DW DET SW

S 2 QSW0910-002 SWITCH OC DET SW

Parts number Parts name Area

Remarks

3-25

RX-DV5SL

Packing materials and accessories parts list

Block No.

Block No.

M

M

3

M

M

5

M

M

P3

2/2

A8

P4

P2

P6

2/2

A1~A7
A9,A10

P4

P3

1/2

P2

1/2

P5

3-26

P1

RX-DV5SL

Parts list (Packing)

Item

A

P 1 LV33697-017A

P 2 LV21223-002A CUSHION(F) 1

P 3 LV21224-002A

P 4 LV32034-005A

P 5 QPC06507015P

P 6 QPA02503505P

Parts number Parts name Area

CARTON

CUSHION(R)

SHEET

POLY BAG

POLY BAG

Parts list (Accessories)

Item

A

A 1 LVT0876-001A

A 2 QAL0432-001

A 3 QAL0014-001

A 4 BT-51028-2

A 5 YU20333

A 6 QAM0236-001

A 7 ------------------- BATTERY 2

A 8 RM-SRXDV5J

A 9 BT-52006-1

A 10 BT-20071B

Parts number Parts name Area

INST.BOOK

LVT0876-002A INST.BOOK C1 ENG,FRE

ANT.WIRE

QAL0457-001

ANT.WIRE

AM LOOP ANT

J=REGIST CARD

SAFETY INST.

VIDEO CABLE

REMOCON

WARRANTY CARD

SVC CENTER LIST

Q'ty

Q'ty

1

1

2

1

FOR SET

1

FOR INST

1

ENG

1

1

1

1

1

1

1

1

1

Block No. M3MM

Description

Block No. M5MM

Description

J

J

C

J

J

C

C

3-27
