JVC RX-DV5RSL Instruction Manual

HOME CINEMA DVD-AUDIO/VIDEO CONTROL CENTER

TV DIRECT

MASTER VOLUME

DVD/SUPER VCD/VCD/CD

DVD AUDIO

INPUT ATT. REC MODE

INPUT

ANALOG/DIGITAL

COMPACT

SUPER VIDEO

SETTING ADJUST MEMORY

RX-DV5R HOME CINEMA DVD-AUDIO/VIDEO CONTROL CENTER

ON/OFF

SURROUND

MODE

FM/AMTAPE/CDR

SOURCE NAME

TVVCRSTBDVD

CONTROL

STANDBY

STANDBY/ON

+–+

–

231

564

897

VFP

10/0 +10

100+ TV RETURN

REMOTE CONTROL RM-SRXDV5R

VCRSTB DVD

TV/VIDEO

TV DIRECT

REW/(

TUNING/GROUP

9/FF

REPEAT SLEEP

VCRSTB TV AUDIO

TAPETV CDR FM/AM

FM MODE STROBE

EFFECT

TV/STB CH

ANALOG /DIGITAL

TEST

AUDIO

INPUT

SUBTITLE

CHOICE

ENTER

ON SCREEN

ANGLE

ZOOM

DIGEST

TOP MENU

RETURN

DISPLAY

SURR ON/OFF

SURR MODE

DIMMER

MUTING

PAGE

TV VOL

TA/NEWS/INFO

PTY SEARCH

VOLUME

– SUBWOOFER +

HOME CINEMA

DVD-AUDIO/VIDEO CONTROL CENTER

CONTROL

PROGRESSIVE

STANDBY/ON

CENTER

REAR·L

REAR·R

PTYPTY

(

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

RX-DV5RSL

INSTRUCTIONS

LVT0876-003A

[B]

Warnings, Cautions and Others

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT

DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT—CONSULT A COMPETENT ELECTRICIAN.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids such as vases, shall be placed on the apparatus.

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides:No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Spacing 15 cm or more

Wall or obstructions

RX-DV5RSL

Front

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution— STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The

STANDBY/ON button in any position does not disconnect the

mains line. The power can be remote controlled.

IMPORTANT FOR LASER PRODUCTS

REPRODUCTION OF LABELS

1 CLASSIFICATION LABEL ON EXTERIOR SURFACE 2 WARNING LABEL INSIDE THE UNIT

Stand height 15 cm or more

Floor

G-1

1. CLASS 1 LASER PRODUCT

2. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way–switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case -this could result in a fatal

electrical shock.;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

G-2

Parts Identification ...................................... 2

Front Panel ................................................................................. 2

Remote Control .......................................................................... 3

Getting Started........................................... 4

Before Installation ...................................................................... 4

Checking the Supplied Accessories ........................................... 4

Putting Batteries in the Remote Control .................................... 4

Connecting the FM and AM Antennas ....................................... 5

Connecting the Speakers ............................................................ 6

Connecting Audio/Video Components ....................................... 7

7 About connecting cables/cords ........................................... 7

7 Cassette deck/CD recoder connection ................................ 8

7 Digital connection ............................................................... 8

7 SCART connection ............................................................. 9

Basic Operations ....................................... 11

1 Turn On the Power ............................................................... 11

2 Select the Source to Play ..................................................... 11

3 Adjust the Volume................................................................ 11

Turning Off the Sounds Temporarily ....................................... 12

Turning Off the Power with the Sleep Timer ........................... 12

Changing the Display Brightness ............................................. 12

Activating TV Direct ................................................................ 12

Selecting the Analog or Digital Input Mode ............................ 13

Changing the Digital Input Mode Manually ............................ 13

Attenuating the Input Signal .................................................... 14

Changing the Source Name ...................................................... 14

Activating the Recording Mode ............................................... 14

Basic DVD Player Operations ...................... 15

1 Open the Disc Tray .............................................................. 15

2 Load a Disc .......................................................................... 15

3 Start Playback ...................................................................... 15

4 Adjust the Volume................................................................ 16

5 Activate Realistic Sound Field............................................. 16

6 Select Surround Mode ......................................................... 16

7 Stop Playback ...................................................................... 16

8 Turn Off the Power (into Standby) ...................................... 16

Tuner Operations ....................................... 17

Tuning into Stations Manually ................................................. 17

Using Preset Tuning ................................................................. 17

Selecting the FM Reception Mode ........................................... 18

Using the RDS (Radio Data System)

to Receive FM Stations ...................................................... 19

Searching for a Program by PTY Codes .................................. 20

Switching to Broadcast Program of

Your Choice Temporarily ................................................... 21

7 How the Enhanced Other Network function

actually works ................................................................... 21

7 Description of the PTY codes ........................................... 22

Basic Settings........................................... 23

Operation Buttons .................................................................... 23

Operating Procedure ................................................................. 23

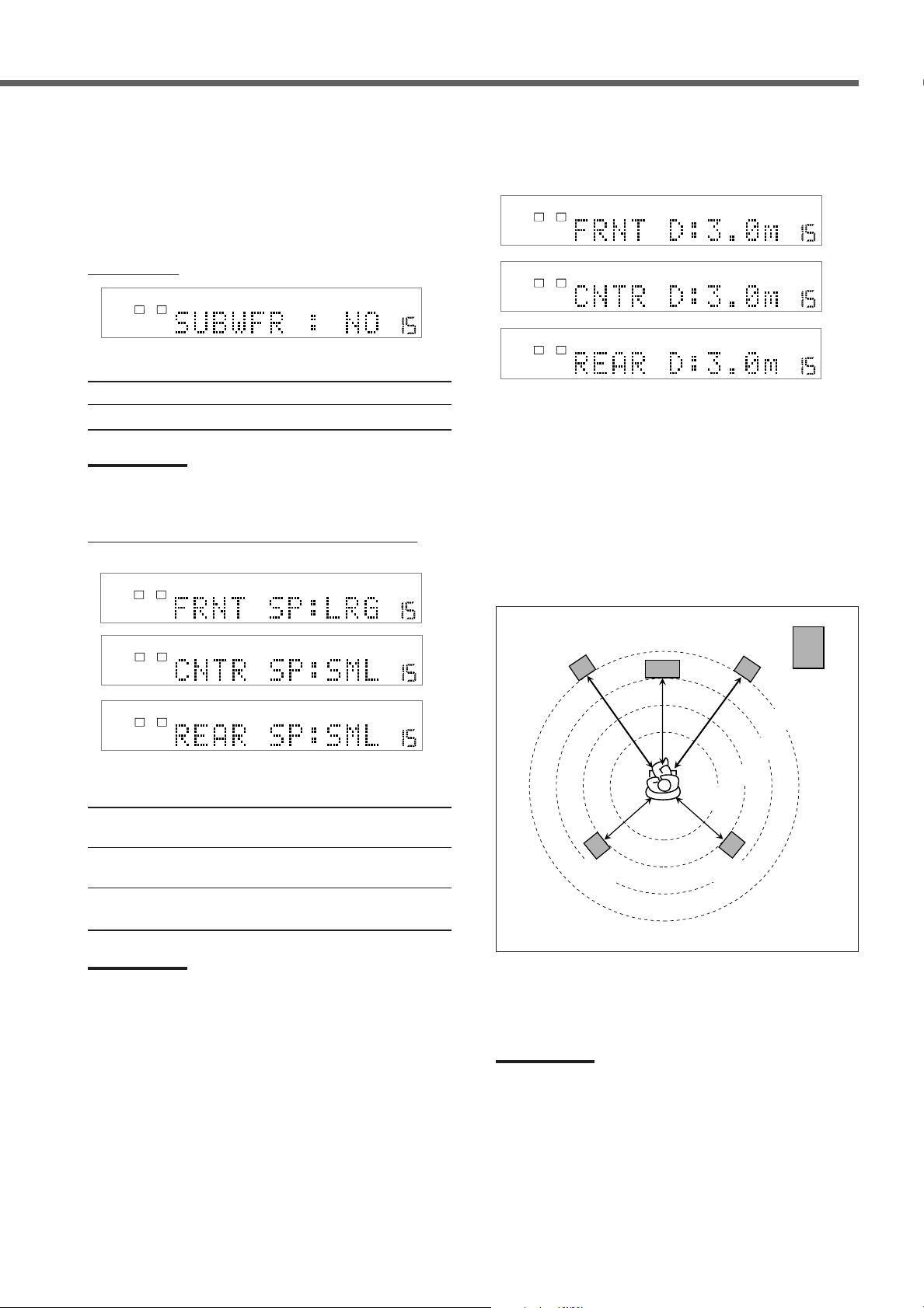

7 Speaker information—“SUBWFR,” “FRNT SP,”

“CNTR SP,” and “REAR SP” ........................................... 24

7 Speaker distance

—“FRNT D,” “CNTR D,” and “REAR D” ...................... 24

7 Crossover frequency—“CROSS” ..................................... 25

7 Low frequency effect attenuator—“LFE” ........................ 25

7 Dynamic range compression—“D.COMP” ...................... 25

7 Digital input (DIGITAL IN) terminals—“DGT” ............. 25

7 Auto surround—“AUTO SR” ........................................... 26

7 Auto mode—“MODE” ..................................................... 26

Sound Adjustments.................................... 27

Operation Buttons .................................................................... 27

Operating Procedure ................................................................. 27

7 Front speaker output balance—“BAL”............................. 28

7 Tone—“BASS” and “TREBLE” ...................................... 28

7 Speaker output levels—“SUBWFR,” “CENTER,”

“REAR L,” and “REAR R” .............................................. 28

7 DAP effect level—“EFFECT” .......................................... 28

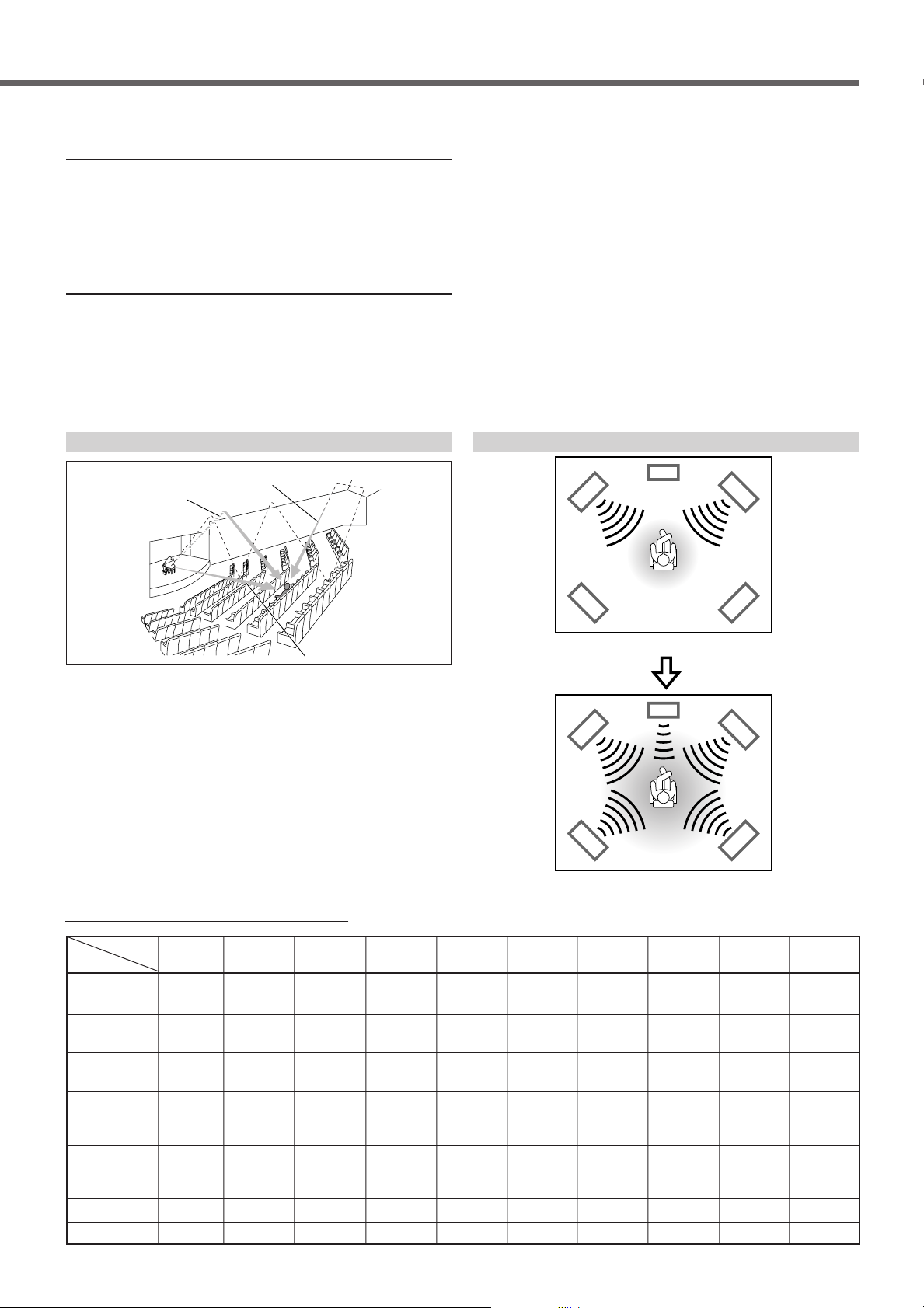

Creating Realistic Sound Fields ................... 29

Activating Surround Mode ........................................................ 31

Selecting Surround Modes ........................................................ 31

Adjusting Surround Mode Using Remote Control................... 32

DVD Player Operations .............................. 33

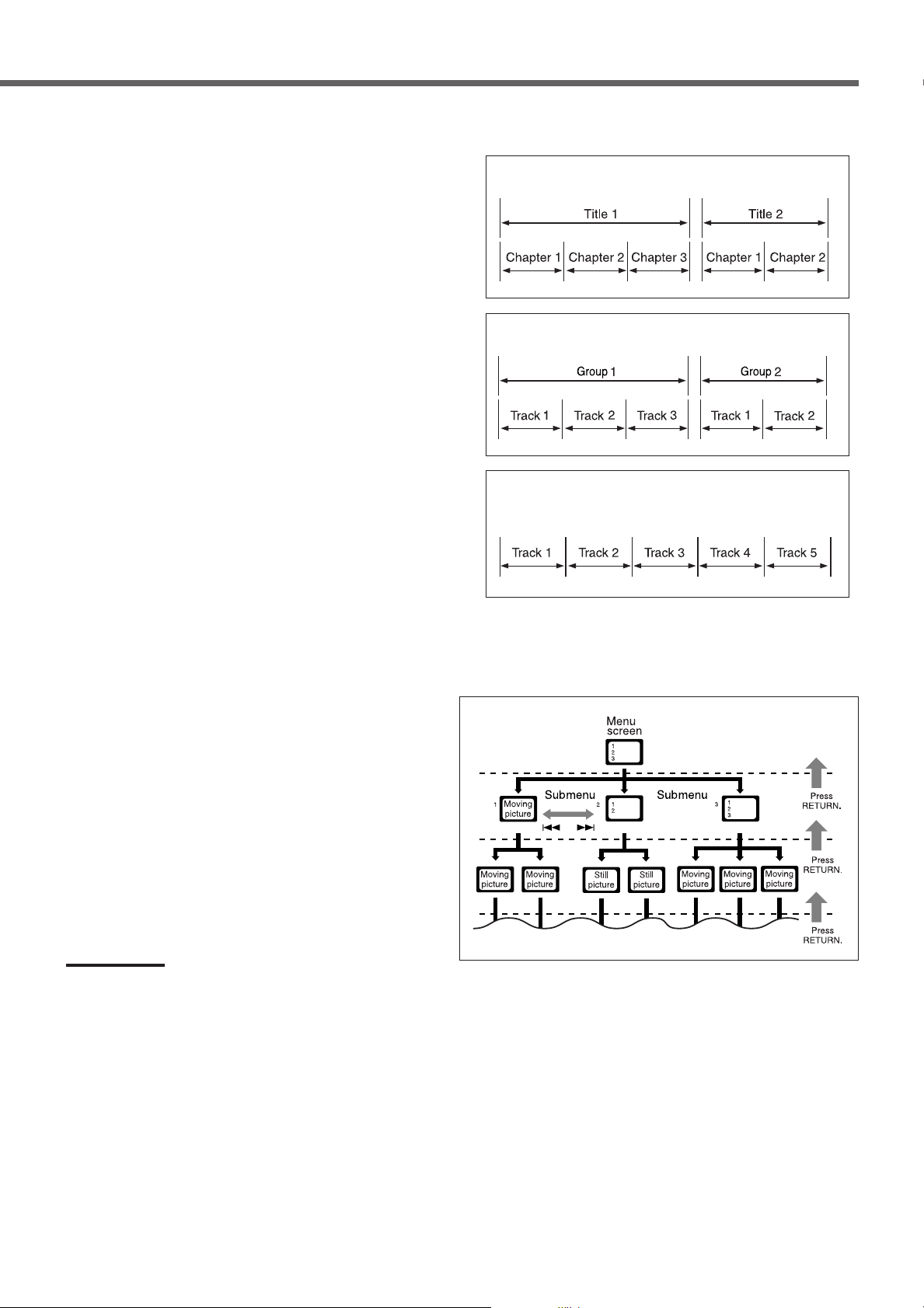

Disc Information ....................................................................... 33

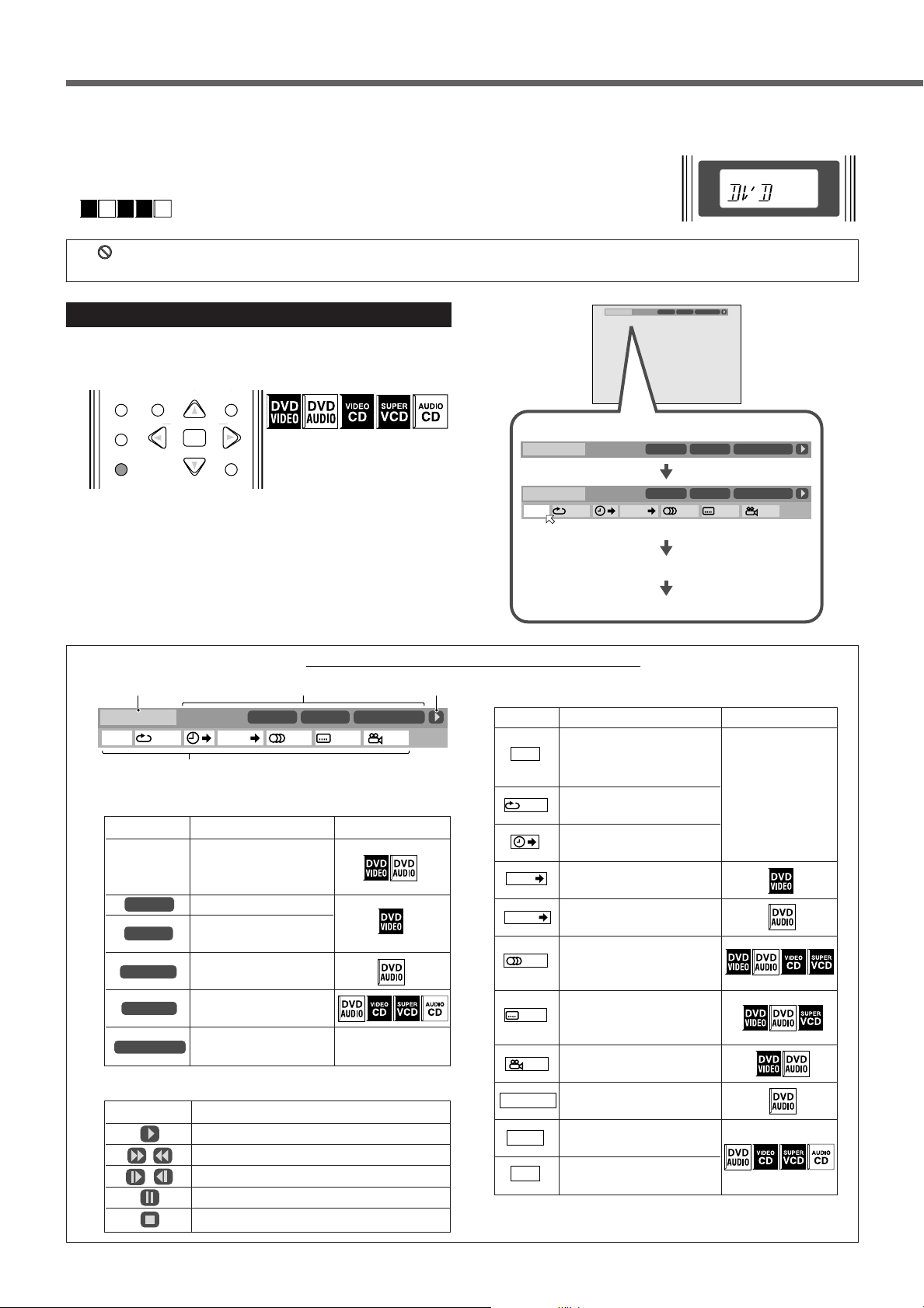

Using the On-screen Bar .......................................................... 35

Basic Operation through the On-screen Bar ............................ 36

Changing the Time Indication .................................................. 36

Locating a Desired Scene from the Disc Menu ....................... 37

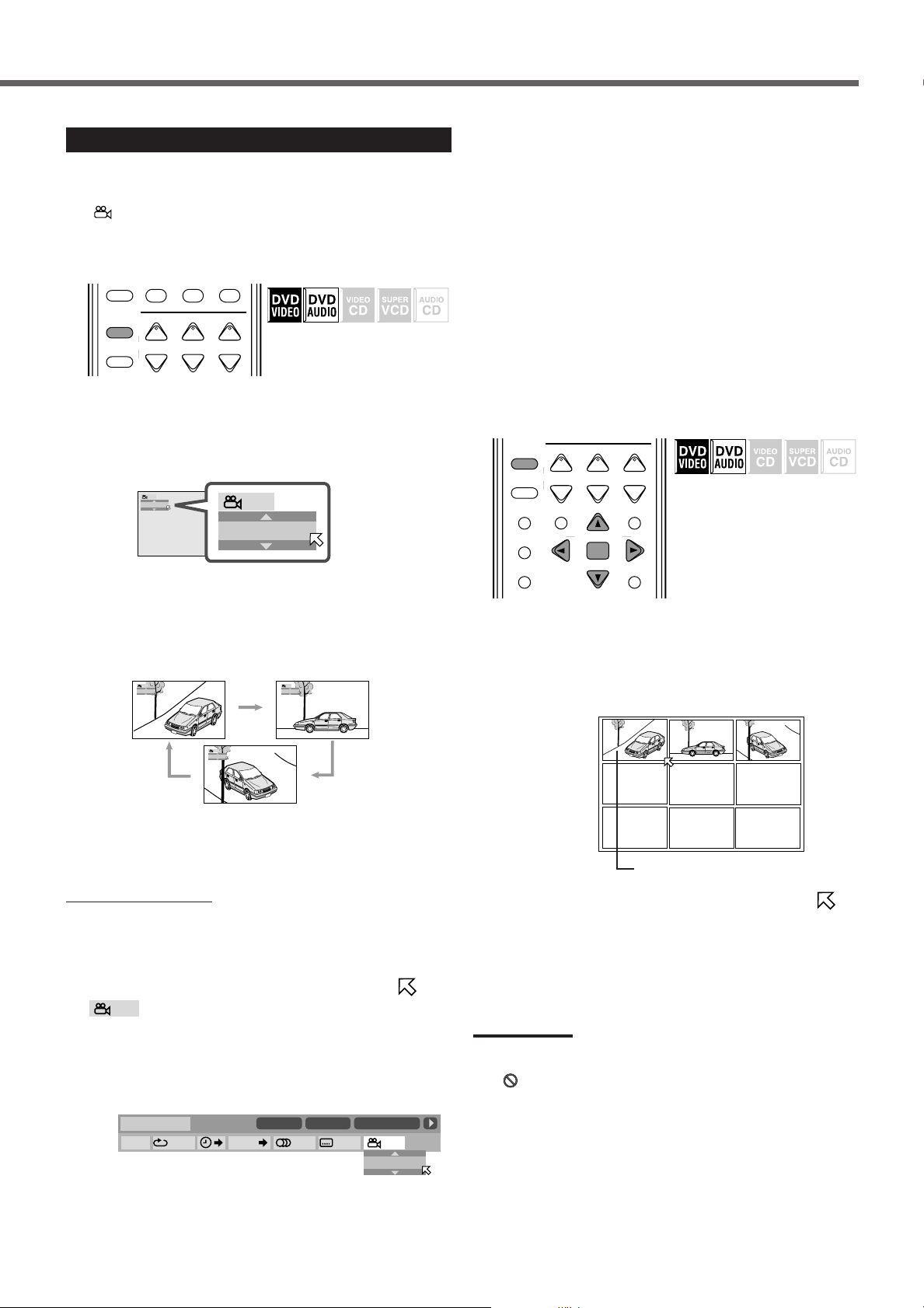

Selecting a View Angle—ANGLE ........................................... 38

Changing the Languages—SUBTITLE and AUDIO ............... 39

Playing from a Specified Position on a Disc ............................ 41

7 Locating a desired chapter/track—

Chapter/Track Search ....................................................... 41

7 Locating a desired position—Time Search ....................... 41

7 Locating a desired scene—DIGEST ................................. 42

Special Picture Playback .......................................................... 43

7 Frame-by-frame playback ................................................. 43

7 Showing continuous still pictures—STROBE .................. 43

7 Playing back in slow-motion ............................................ 43

7 Zooming in—ZOOM ........................................................ 43

7 Changing the VFP setting—VFP ...................................... 44

Program Playback and Random Playback ............................... 45

Repeat Playback ....................................................................... 46

Additional Information for DVD AUDIO ................................ 47

Special Playback for DVD AUDIO .......................................... 47

MP3 Disc Playback .................................... 49

Basic Operations ...................................................................... 49

Operations through the MP3 CONTROL Screen .................... 50

Repeat Playback ....................................................................... 50

JPEG Disc Playback ................................... 51

Slide-show Playback ................................................................ 51

Operations through the JPEG CONTROL Screen ................... 52

Repeat Playback ....................................................................... 52

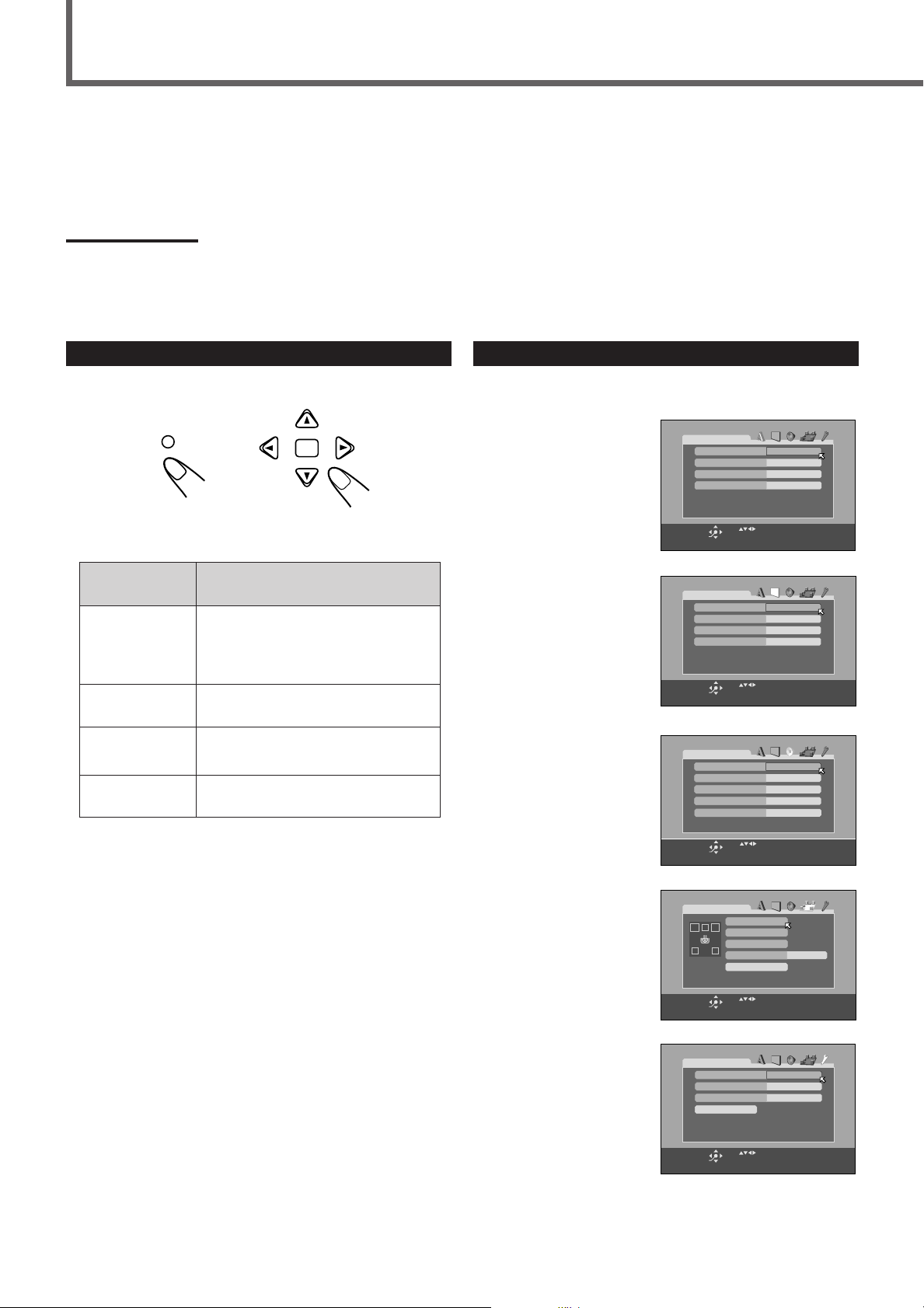

Choice Menu Operations............................. 53

Operation Buttons .................................................................... 53

Configuration of Choice Menu ................................................ 53

Operating Procedure................................................................. 54

7 LANGUAGE menu .......................................................... 55

7 PICTURE menu ................................................................ 55

7 AUDIO menu .................................................................... 56

• Language code list ......................................................... 56

7 SPK. SETTING menu ...................................................... 57

7 OTHERS menu ................................................................. 58

Restricting Playback by Parental Lock .................................... 59

7 Setting Parental Lock ........................................................ 59

7 Changing the setting of Parental Lock ............................. 60

7 Releasing Parental Lock temporarily ................................ 60

• Country/Area codes list for Parental Lock ..................... 61

Glossary for DVD Player............................. 62

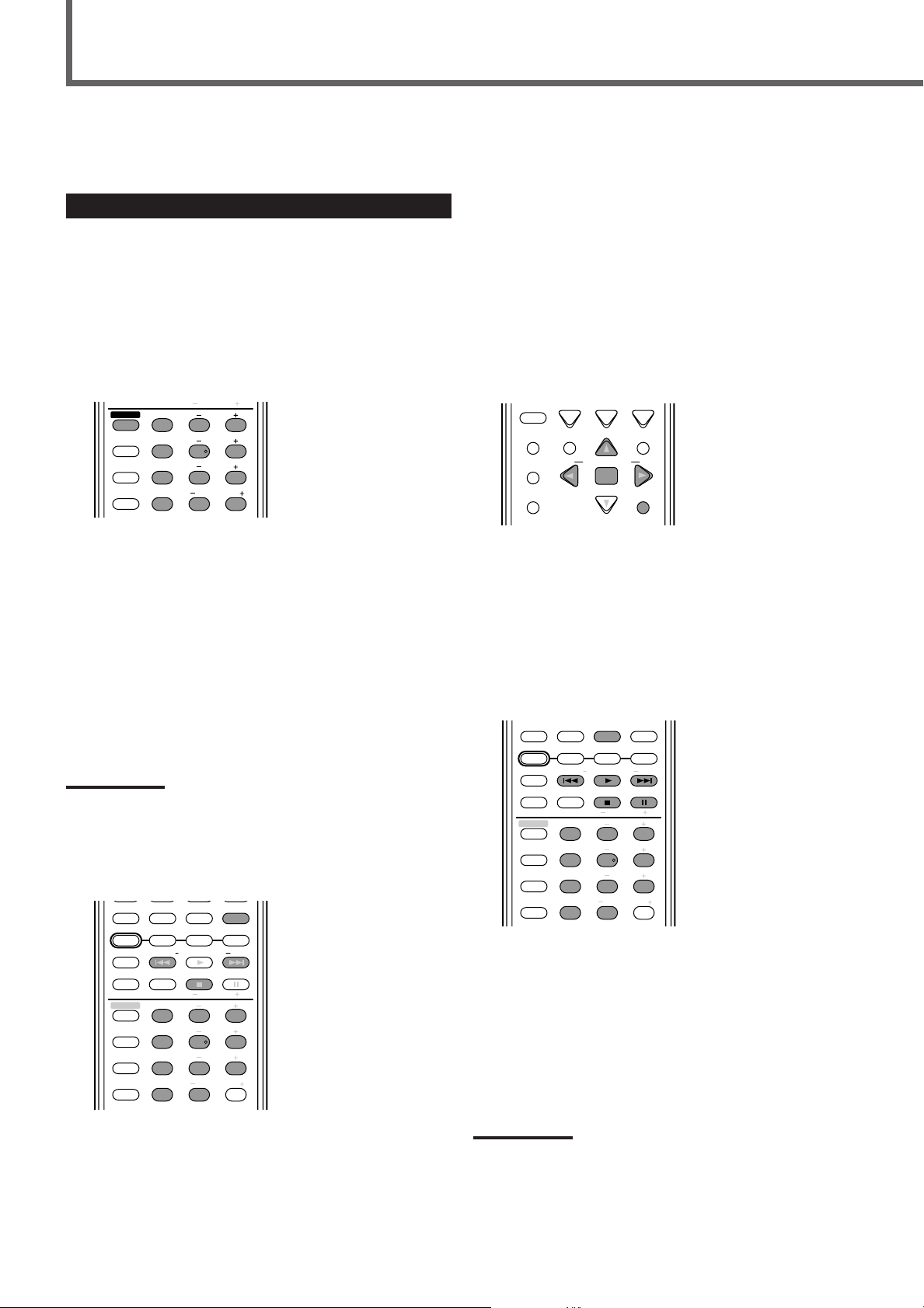

Operating JVC’s Audio/Video Components ........ 63

Operating Audio Components .................................................. 63

Operating Video Components .................................................. 64

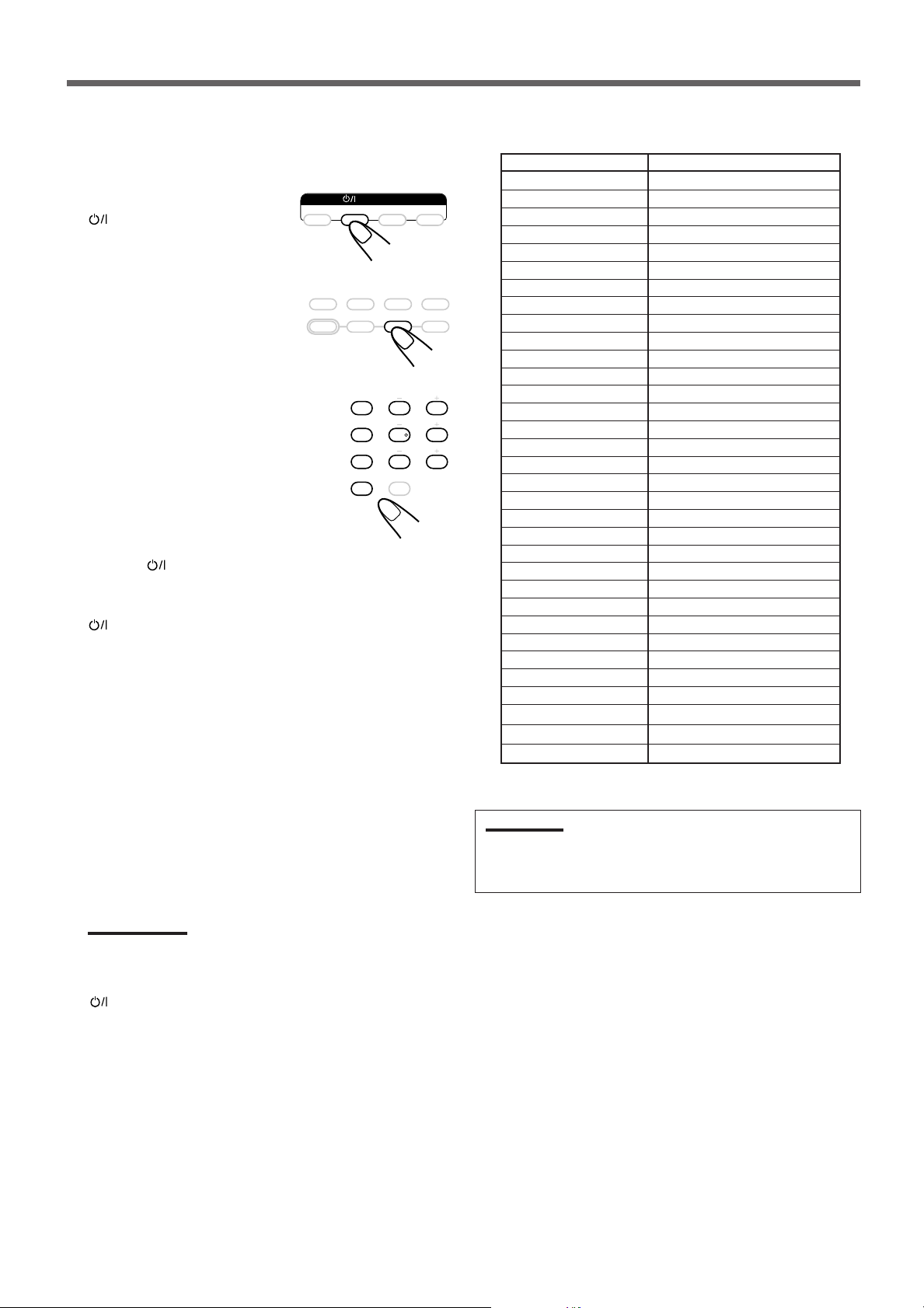

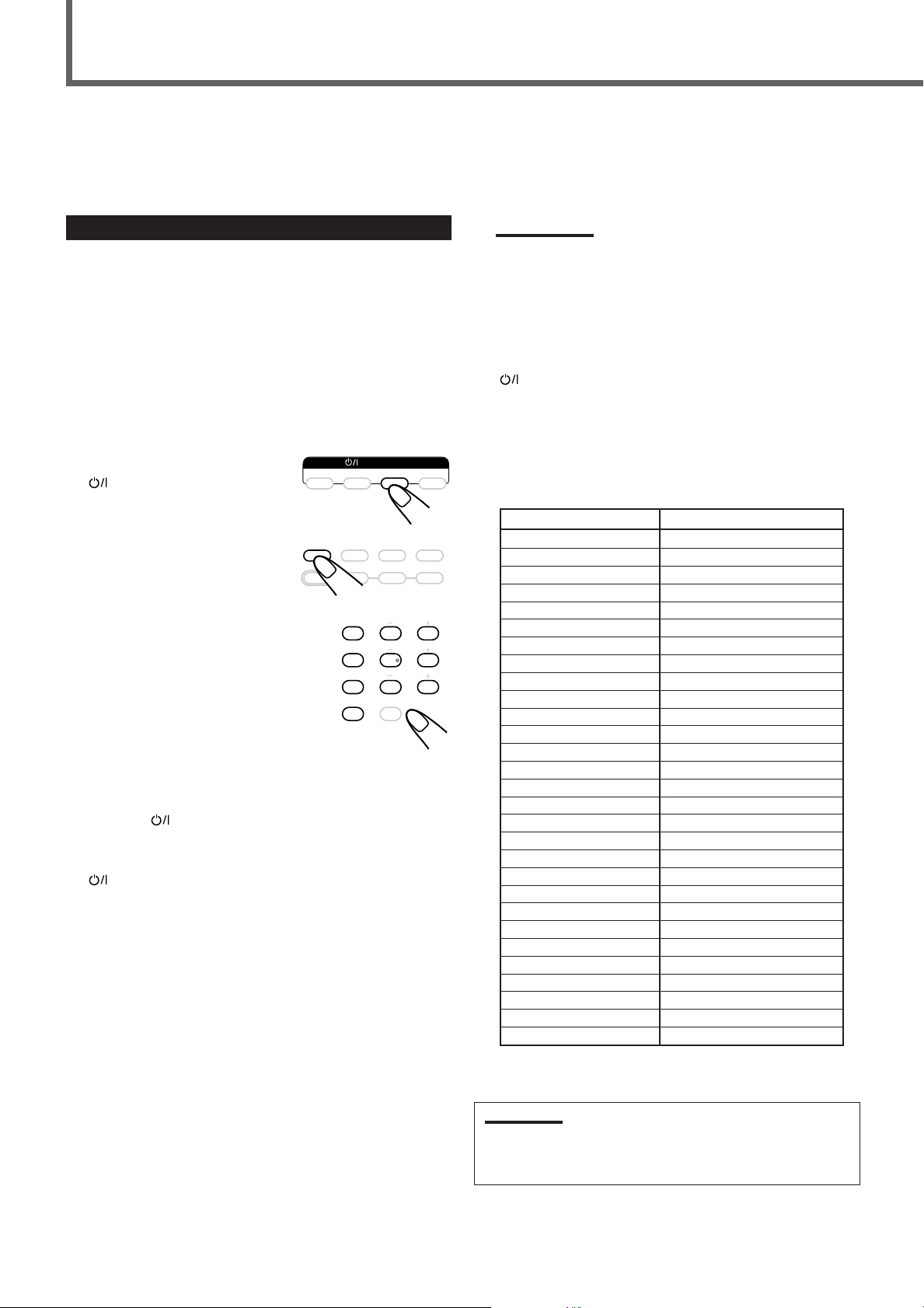

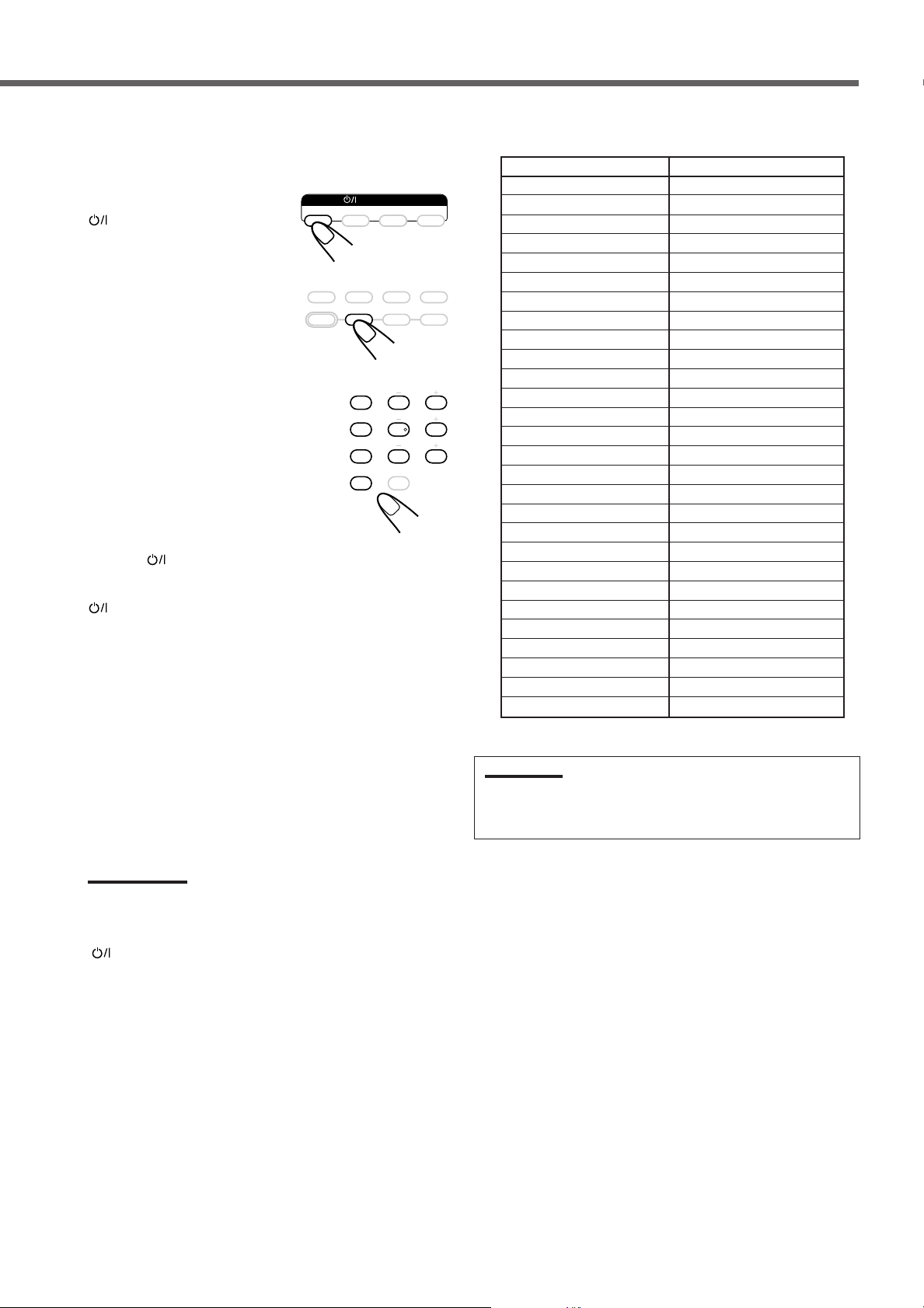

Operating Other Manufacturers’ Equipment ..... 65

Changing the Preset Signal Codes ........................................... 65

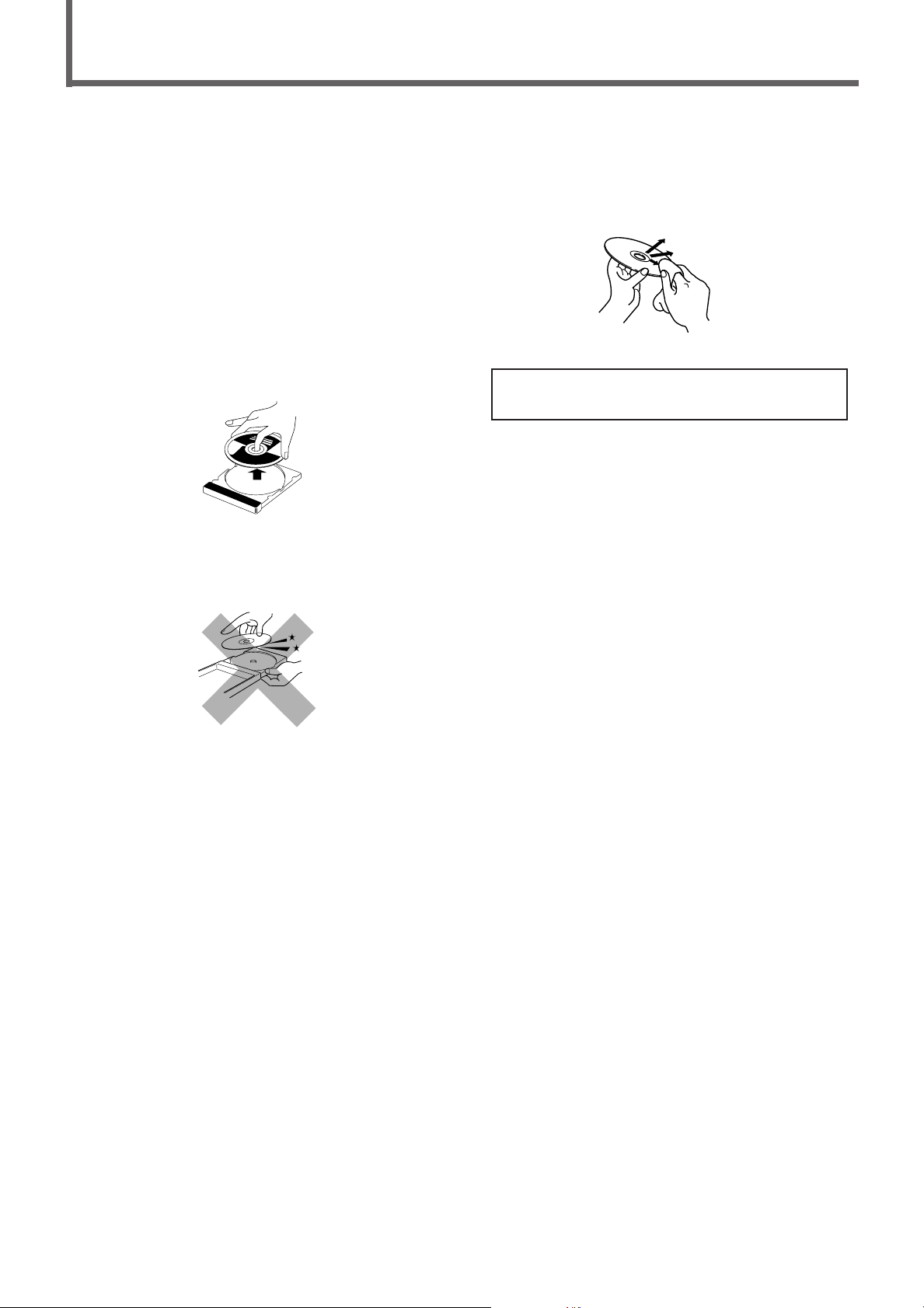

Maintenance ............................................. 68

Troubleshooting ......................................... 69

Specifications ............................................ 72

Parts Identification

PRO LOGIC

DIGITAL

TV DIRECT

MASTER VOLUME

DVD/SUPER VCD/VCD/CD

DVD AUDIO

INPUT ATT.

INPUT

ANALOG/DIGITAL

COMPACT

SUPER VIDEO

SETTING ADJUST MEMORY

RX-DV5R HOME CINEMA DVD-AUDIO/VIDEO CONTROL CENTER

ON/OFF

SURROUND

MODE

FM/AMTAPE/CDR

SOURCE NAME

TVVCRSTBDVD

CONTROL

STANDBY

STANDBY/ON

124 7

98wrtyuie

REC MODE

p q

5 6

AUTO

SURROUND

12 3 5

ANALOG DIGITAL AUTO

PRO LOGIC

DSP PROGRAM REPEAT RANDOM1A-B INPUT ATT

LS RSS

LFE

LCR

SUBWFR

VOLUME

RESUME SPK. B.S.P BONUS

kHz MHz

TUNED STEREO AU TO MUTING SLEEP

687-=0~!@

DIGITAL

RDS TA NEWS INFO

Front Panel

See pages in the parentheses for details.

STANDBY/ON button and STANDBY lamp (11)

2 Disc tray and illumination lamp (15) 3 DVD player operation buttons

0 (open/close), 4 (reverse skip), ¢ (forward skip), 7 (stop), 3 (play), 8 (pause)

4 Source selecting buttons and lamps (11, 12)

• DVD, STB, VCR, TV, TAPE/CDR, FM/AM

5 SOURCE NAME button (14) 6 TV DIRECT button (12) 7 MASTER VOLUME control (11, 16) 8 DVD AUDIO lamp (47) 9 INPUT ANALOG/DIGITAL button (13)

INPUT ATT. (attenuator) button (14)

p SURROUND ON/OFF button (16, 31) q SURROUND MODE button (16, 31)

REC MODE button (14)

w Display

• For details, see “Display” below.

e SETTING button (23 – 26) r ADJUST button (27, 28) t MEMORY button (17) y CONTROL 5 / ∞ / 2 / 3 buttons (17, 18, 23 – 28) u

(phones) jack (11)

i Remote sensor

Display

1 Input mode indicators (13)

• ANALOG, DIGITAL AUTO

2 Surround mode indicators (29, 30)

•

, DSP

3 Play mode indicators (45, 46, 50, 52)

• PROGRAM, REPEAT 1A-B, RANDOM

4 RDS indicators (19)

• RDS, TA, NEWS, INFO

5 INPUT ATT indicator (14) 6 Sound signal indicators (13)

•

7 Signal and speaker indicators (31)

• L, C, R, SUBWFR (Subwoofer), LFE (Low Frequency Effect), LS, S, RS

(Dolby Digital), (DTS Digital Surround)

8 Surround indicators (31)

• AUTO SURROUND, SURROUND

9 RESUME indicator (16) 0 SPK. (speaker) indicator (11)

- DVD AUDIO indicators (47)

• B.S.P (Browsable Still Pictures), BONUS

= Main display ~ Tuner mode indicators (17, 18)

• TUNED, STEREO, AUTO MUTING

! SLEEP indicator (12) @ Frequency unit indicators

• MHz (for FM station), kHz (for AM station)

# VOLUME indication

–

231

564

VFP

10/0 +10

100+ TV RETURN

REMOTE CONTROL RM-SRXDV5R

VCRSTB DVD

TV DIRECT

TV/VIDEO REW/( TUNING/GROUP

9/FF

REPEAT SLEEP

VCRSTB TV AUDIO

TAPETV CDR FM/AM

FM MODE STROBE

EFFECT

– TV/STB CH +

ANALOG /DIGITAL

TEST

AUDIO

INPUT

SUBTITLE

CHOICE

ENTER

TA/NEWS/INFO

PTY SEARCH

ON SCREEN

ANGLE

ZOOM

PAGE

DIGEST TOP MENU MENU

RETURN

SURR ON/OFF

SURR MODE

DIMMER

MUTING

TV VOL VOLUME

–

SUBWOOFER

(PTY

PTY9

DISPLAY

CONTROL

STANDBY/ON

CENTER

REAR·L

REAR·R

q w e

r t y

;

HOME CINEMA

DVD-AUDIO/VIDEO CONTROL CENTER

Parts Identification

Remote Control

See pages in the parentheses for details.

1 Operation mode display 2

STANDBY/ON buttons (11, 64 – 67)

• STB, VCR, TV, AUDIO

3 Source selecting buttons (11, 13, 63 – 67)

• TV, TAPE, CDR, FM/AM, STB, VCR, DVD

4 TV DIRECT button (12) 5 TV/VIDEO button (15, 64, 65) 6 REPEAT button (50, 52) 7 SLEEP button (12) 8 CONTROL button (28, 31, 32, 47, 48) 9 ANALOG/DIGITAL INPUT button (13) p AUDIO button (39, 40) q SUBTITLE button (39) w DIMMER button (12) e ANGLE button (38)

• PAGE + button (48)

r ZOOM button (43)

• PAGE – button (48)

t MUTING button (12) y DIGEST button (42) u CHOICE button (53, 54) i ON SCREEN button (35, 36, 38 – 42, 45, 46) o Multi operation buttons

• 4, 3, ¢, 7, 8, REW, FF

• TUNING 9 and ( buttons (17)

Ex.: When you press FM/AM

When you press one of the following buttons, the remote control operation mode appears on the operation mode display for about two hours.

Button Operation mode

TV TV

This mark appears while the remote control is transmitting the signal to the unit.

TAPE TAPE

CDR CDR

FM/AM TUNER

STB STB VCR VCR DVD DVD

• GROUP 9 and ( buttons (47)

• FM MODE button (18)

• STROBE button (43)

• TV/STB CH (channel) + and – buttons (64, 65)

; Number buttons

• For selecting preset channels (18)

• For adjusting sound (28, 32, 63)

• For operating audio/video components (63 – 67)

• SURR (surround) ON/OFF button (16, 31)

• SURR (surround) MODE button (16, 31)

• VFP button (44)

• TV RETURN button (64)

a TV VOL (volume) + and – buttons (64, 65) s VOLUME + and – buttons (11, 16) d Menu operation buttons

• TOP MENU button (37) • MENU button (37)

• RETURN button (37) • ENTER button

• Cursor 5/∞/3/2 buttons

RDS operation buttons

• TA/NEWS/INFO button (21) • PTY SEARCH button (20)

• PTY 9 and ( buttons (20) • DISPLAY button (19)

Button

Operation mode

Each time you press the button, the operation mode changes as follows:

CONTROL

Getting Started

Before Installation

General Precautions

• DO NOT insert any metal object into the unit.

• DO NOT disassemble the unit or remove screws, covers, or

cabinet.

• DO NOT expose the unit to rain or moisture.

Locations

• Install the unit in a location that is level and protected from moisture.

• The temperature around the unit must be between 5˚C and 35˚C.

• Make sure there is good ventilation around the unit. Poor

ventilation could cause overheating and damage the unit.

Handling the unit

• DO NOT touch the power cord with wet hands.

• DO NOT pull on the power cord to unplug it. When unplugging

the cord, always grasp the plug so as not to damage the cord.

• Keep the power cord away from the connecting cords and the antenna. The power cord may cause noise or screen interference. It is recommended to use a coaxial cable for antenna connection, since it is well-shielded against interference.

• When a power failure occurs, or when you unplug the power cord, the preset settings such as preset FM or AM channels and sound adjustments may be erased in a few days.

Putting Batteries in the Remote Control

Before using the remote control, put two supplied batteries first.

• When using the remote control, aim the remote control directly at the remote sensor on the unit.

On the back of the remote control, remove the battery cover.

Insert batteries. Make sure to match the polarity: (+) to (+) and (–) to (–).

Checking the Supplied Accessories

Check to be sure you have all of the following supplied accessories. The number in the parentheses indicates the quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Replace the cover.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity:

(+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Getting Started

AM LOOP

FM 75 COAXIAL

AM EXT

SUBWOOFER OUT

DIGITAL 1

(STB)

DIGITAL 2

(TV)

PCM/STREAM

FRONT

SPEAKERS

REAR SPEAKERS

CENTER

SPEAKER

DIGITAL IN

ANTENNA

TAPE / CDR

AUDIO

AV IN/OUT

CAUTION: SPEAKER IMPEDANCE 816

AV COMPU LINK-

RIGHT

LEFT

(PLAY)

OUT (REC)

DIGITAL OUT

RGB YC

STB

VCR

AV IN

RIGHT RIGHT LEFTLEFT

FM 75

COAXIAL

ANTENNA

AM LOOP

FM 75

COAXIAL

EXT

FM 75

COAXIAL

Connecting the FM and AM Antennas

If AM reception is poor,

AM loop antenna (supplied)

connect an outdoor single vinyl-covered wire (not supplied).

If FM reception is poor, connect outdoor FM antenna (not supplied).

FM antenna (supplied)

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

AM antenna connection

Connect the AM loop antenna supplied to the AM LOOP terminals.

Remove the insulation if the AM loop antenna wire is covered with vinyl.

Press and hold the clamp of the terminal (1), then insert the wire (2).

Rear panel of the unit

FM antenna connection

Connect the FM antenna supplied to the FM 75 Ω COAXIAL terminal as temporary measure. Extend the supplied FM antenna horizontally.

• If the reception is poor, connect an outdoor FM antenna (not supplied). Before attaching a 75 Ω antenna with a coaxial type connector (IEC or DIN 45325), disconnect the supplied FM antenna.

Release the clamp.

Turn the loop until you have the best reception.

• If the reception is poor, connect an outdoor single vinylcovered wire (not supplied) to the AM EXT terminal. Keep the AM loop antenna connected.

Note:

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

AM LOOP

FM 75 COAXIAL

AM EXT

SUBWOOFER OUT

DIGITAL 1

(STB)

DIGITAL 2

(TV)

PCM/STREAM

FRONT

SPEAKERS

REAR SPEAKERS

CENTER

SPEAKER

DIGITAL IN

ANTENNA

TAPE / CDR

AUDIO

AV IN/OUT

CAUTION: SPEAKER IMPEDANCE 816

AV COMPU LINK-

RIGHT

LEFT

(PLAY)

OUT

(REC)

DIGITAL OUT

RGB YC

STB

VCR

AV IN

FRONT

SPEAKERS

REAR SPEAKERS

CENTER

SPEAKER

CAUTION: SPEAKER IMPEDANCE 816

SUBWOOFER OUT

RIGHT LEFT RIGHT LEFT

Connecting the Speakers

SUBWOOFER OUT

FRONT

SPEAKERS

REAR SPEAKERS

CENTER

SPEAKER

CAUTION: SPEAKER IMPEDANCE 816

RIGHT LEFT RIGHT LEFT

After connecting the front, center and rear speakers, and/or a subwoofer, set the speaker setting information properly to obtain the best possible Surround effect. For details, see page 24.

CAUTIONS:

• Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals (8 – 16 Ω).

• DO NOT connect more than one speaker to one speaker terminal.

Connecting the front, center, and rear speakers

Connecting the subwoofer speaker

By connecting a subwoofer, you can enhance the bass or reproduce the original LFE signals recorded in the digital software.

Powered subwoofer (example)

Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cable with RCA pin plugs (not supplied).

• Refer also to the manual supplied with your subwoofer.

For each speaker, connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers respectively.

Cut, twist and remove the insulation at the end of each speaker cord (not supplied).

Press and hold the clamp of the speaker terminal (1), then insert the speaker cord (2).

Release the clamp.

To left rear

To right front speaker

To left front speaker

To center speaker

speaker

To right rear speaker

Note:

• You can place a subwoofer wherever you like since bass sound is non-directional. Normally place it in front of you.

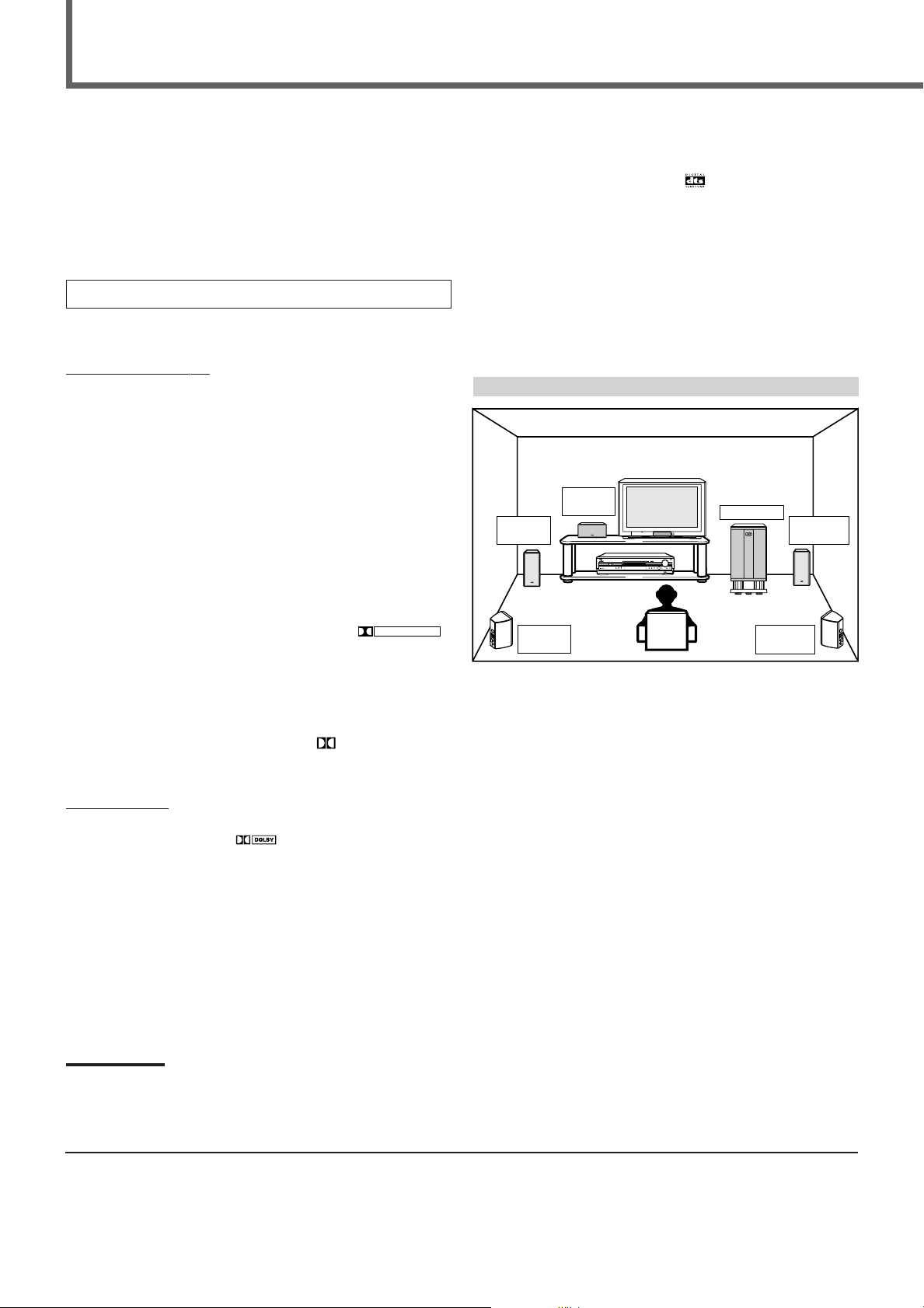

Speaker Layout Diagram

Subwoofer

Left front speaker

Left rear speaker

Center speaker

Right front speaker

Right rear speaker

To obtain the best possible sound from this system, place all the speakers except the subwoofer at the same distance from the listening position with each speaker’s front faced toward the listener. Then, change the subwoofer and speaker settings to fit your listening conditions (see page 24).

Getting Started

Connecting Audio/Video Components

Turn off all the components and the unit before connection.

■ About connecting cables/cords

For SCART connections

The SCART cable is not supplied with this unit. Use the cables supplied with the other components or purchase them at your dealer.

SCART cable (not supplied)

TV connection

For an analogue decoder

To watch or record a scrambled program on your VCR, connect the analogue decoder to your VCR and select the scrambled channel on your VCR. If there is not an appropriate terminal for the decoder on your VCR, connect the decoder to your TV. Refer also to the manuals supplied with these equipments.

For recording pictures from STB

When you connect an STB and a VCR directly with a SCART cable, you can enjoy recording the pictures from the STB onto VCR without using menu screens of STB. For details, refer also to the manuals supplied with the STB.

For digital sounds

To enjoy the digital sounds, use both the SCART cable connection and the digital connection (see page 8).

For audio connections

Connect the external components to this unit with the audio cords. Use the cord supplied with the other components or purchase them at your dealer.

Digital coaxial cord (not supplied)

Optical digital cord (not supplied)

Audio cord (not supplied)

White

Red

• When the unit is shipped from the factory, the DIGITAL IN terminals are set for use with the following components:

– DIGITAL 1 (coaxial): For STB – DIGITAL 2 (optical): For TV

• If you connect CDR, change the digital input (DIGITAL IN)

terminal setting (see “Digital input (DIGITAL IN) terminals” on page 25) and the source name (see “Changing the Source Name” on page 14) correctly.

• Select the digital input mode correctly (see “Selecting the Analog or Digital Input Mode” on page 13).

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this unit, the sound output through this unit may be distorted.

AM LOOP

FM 75 COAXIAL

AM EXT

SUBWOOFER OUT

DIGITAL 1

(STB)

DIGITAL 2

(TV)

PCM/STREAM

REAR SPEAKERS

DIGITAL IN

ANTENNA

AUDIO

AV IN/OUT

DIGITAL OUT

RGB YC

STB

VCR

AV IN

LEFT

DIGITAL 1

(STB)

DIGITAL 2

(TV)

DIGITAL IN

DIGITAL

OUT

DIGITAL

OUT

DIGITAL

PCM/STREAM

DIGITAL OUT

AM LOOP

FM 75 COAXIAL

AM EXT

SUBWOOFER OUT

DIGITAL 1

(STB)

DIGITAL 2

(TV)

PCM/STREAM

FRONT

SPEAKERS

REAR SPEAKERS

CENTER

SPEAKER

DIGITAL IN

ANTENNA

TAPE / CDR

AUDIO

AV IN/OUT

CAUTION: SPEAKER IMPEDANCE 816

AV COMPU LINK-

RIGHT

LEFT

(PLAY)

OUT

(REC)

DIGITAL OUT

RGB YC

STB

VCR

AV IN

RIGHT LEFTRIGHT LEFT

LEFT

RIGHT

AUDIO

OUT IN

TAPE / CDR

RIGHT

LEFT

(PLAY)

OUT

(REC)

Turn off all the components and the unit before connection.

■ Cassette deck/CD recorder connection

Illustrations of the input/output terminals are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear vary among the components.

Cassette deck

■ Digital connection

White

Red

White

Red

White

CD recorder

Before connecting an optical digital cord, unplug the protective plug.

CD recorder

STB (Set Top Box)

Getting Started

RGB YC

AM LOOP

FM 75 COAXIAL

AM EXT

SUBWOOFER OUT

DIGITAL 1

(STB)

DIGITAL 2

(TV)

PCM/STREAM

FRONT

SPEAKERS

REAR SPEAKERS

CENTER

SPEAKER

DIGITAL IN

ANTENNA

TAPE / CDR

AUDIO

AV IN/OUT

CAUTION: SPEAKER IMPEDANCE 816

AV COMPU LINK-

RIGHT

LEFT

(PLAY)

OUT (REC)

DIGITAL OUT

RGB YC

STB

VCR

AV IN

RIGHT LEFTRIGHT LEFT

RGB

AV IN/OUT

STB

VCR

AV IN

RGB/YC selector

Turn off all the components and the unit before connection.

■ SCART connection

DO NOT connect a TV through a VCR or a TV with a built-in VCR; otherwise, the picture may be distorted.

Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear vary among the components.

Setting the RGB/YC selector

Set the RGB/YC selector as follows while the unit is turned off:

• When the TV is compatible with RGB signal, set to “RGB.”

• When the TV is compatible with S-video signal, set to “YC.”

• When the TV is compatible with composite video signal only, set to “RGB.”

SCART Terminal Specifications

AUDIO L/R 䡬䡬䡬

Composite

VIDEO S-video − 䡬䡬

RGB − 䡬䡬

AUDIO L/R 䡬*1 䡬*1

OUT

VIDEO S-video 䡬*2 −

Composite

RGB 䡬*2 −

T-V LINK 䡬*3 䡬*3 䡬*3

TV VCR STB

䡬䡬䡬

䡬*1*2 䡬*1*2

Note:

• If you change the RGB/YC selector setting while the unit is turned on, this setting will not take effect until the unit is turned off.

*1 The signals input from a SCART terminal cannot be output

through the same SCART terminal.

*2 The video format of the output video signals are consistent

with that of the input video signals. For example, if S-video signals are input to this unit, no signals other than S-video signals can be output from this unit. Refer to the manuals supplied with the video components to check the setting of the input/output video signals.

*3 The signals for T-V LINK function are always going through

the unit.

VCR

STB (Set Top Box)

For TV and video format

When the TV is equipped with the plural SCART terminals, refer to the manual supplied with the TV to check the available video signals for each terminal, then connect SCART cable correctly.

This unit cannot convert the video signals (S-video or Composite). When the video signal of one video component is different from that of the other (for example, one is S-video, the other is Composite), you may not see the pictures appropriately. In this case, unify the video signals of all the video components into S-video or Composite, or you need to switch the video signal of TV each time you change the source.

For T-V LINK

• You can use T-V LINK function if you connect the T-V LINK compatible TV and VCR to this unit with a fully wired SCART cables. For details on T-V LINK, refer also to the manuals supplied with the TV and the VCR.

• Connect SCART cable to EXT-2 terminal on your JVC's T-V LINK compatible TV for T-V LINK function.

• Some TV, VCR, and STB support this type of data communication. For complete details, refer also to the manuals supplied with these equipments.

Now, you can plug the power cord of the unit into the AC outlet.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging

the cord, always grasp the plug so as not to damage the cord.

Notes:

• Keep the power cord away from the connecting cords and the antenna cables. The power cord may cause noise or screen interference.

• The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

STANDBY

STANDBY/ON

VCRSTB TV AUDIO

STANDBY/ON

Basic Operations

STANDBY

STANDBY/ON

FM/AMTAPE/CDR

SOURCE NAME

TVVCRSTBDVD

VCRSTB DVD

TV DIRECT

TAPETV CDR FM/AM

DVD AUDIO/VIDEO RECEIVER

MASTER VOLUME

–

VOLUME

Turn On the Power

On the front panel From the remote control

Press

STANDBY/ON on the front panel or

STANDBY/ON AUDIO on the remote control.

The STANDBY lamp goes off and the illumination lamp lights up. The current source name appears on the display.

• If the built-in DVD player is the current source, “READING” appears while the unit is detecting the type of the loaded disc (see page 33). – Playback starts automatically when you load some DVD

VIDEO.

–“NO DISC” appears on the display when no disc is loaded.

To turn off the power (into standby)

Press

The illumination lamp goes off and the STANDBY lamp lights up.

Note:

• A small amount of the power is consumed even in standby mode.

STANDBY/ON on the front panel or

STANDBY/ON AUDIO on the remote control again.

To turn off the power completely, unplug the AC power cord.

Notes:

Register the digital input terminal setting (see “Digital input (DIGITAL IN) terminals” on page 25) and digital input mode setting correctly (see “Selecting the Analog or Digital Input Mode” on page

13). Source name and “DIGITAL” will be shown on the display when you select the source.

When the source name is not assigned correctly, these buttons cannot work (see “Changing the Source Name” on page 14).

Adjust the Volume

On the front panel: To increase the volume,

turn MASTER VOLUME clockwise.

To decrease the volume,

turn MASTER VOLUME counterclockwise.

From the remote control: To increase the volume,

press and hold VOLUME +.

To decrease the volume,

press and hold VOLUME –.

CAUTION:

Always set the volume to the minimum before starting any sources. If the volume is set at a high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

Press one of the source selecting buttons.

DVD : Select the built-in DVD player. STB* : Select the STB. VCR : Select the VCR. TV* :Select the TV tuner. TAPE/CDR* : Select the cassette deck or the CD recorder (front

TAPE : Select the cassette deck (remote control ONLY**). CDR* : Select the CD recorder (remote control ONLY**). FM/AM : Select an FM or AM broadcast.

When you press one of the buttons listed above, the remote control operation mode appears on the operation mode display for about 2 hours.

Select the Source to Play

On the front panel

From the remote control

panel ONLY).

Ex. : When you press DVD

Notes:

• The volume level can be adjusted within the range of “0” (minimum) to “50” (maximum).

• When DVD is selected as the source with your TV turned on, the volume level indication appears on the TV.

Listening with headphones

Connect a pair of headphones to the (phones) jack on the front panel. This cancels the Surround mode currently selected, deactivates speakers, and activates the HEADPHONE mode. The SPK. indicator goes off from the display.

• Disconnecting a pair of headphones from the

cancels the HEADPHONE mode and activates speakers.

HEADPHONE mode

When using the headphones, the following signals are output regardless of your speaker setting: — For 2-channel sources, the front left and right channel signals

are output directly from the left and right headphones.

— For multichannel sources, the front left and right, center and

rear channel signals are down-mixed and then output from the headphones without missing bass element.

— For DVD AUDIO ONLY: When the multichannel track

cannot be down-mixed, only signals of the front left and right channel are output.

CAUTION:

Be sure to turn down the volume:

• Before connecting or putting on headphones, as high volume can

damage both the headphones and your hearing.

• Before removing headphones, as high volume may output from the

speakers.

(phones) jack

Turning Off the Sounds Temporarily

DIMMER

DIGITAL AUTO

SPK.

L R

SLEEP

DIGITAL AUTO

VOLUME

SPK. SLEEP

10 20 30 60

120 901500 (off)

TV DIRECT

VCRSTB DVD

TV DIRECT

MUTING

VCRSTBDVD

Changing the Display Brightness

From the remote control ONLYFrom the remote control ONLY

Press MUTING to mute the sound.

“MUTING” appears on the display and the volume turns off (the VOLUME indication goes off).

• When DVD is selected as the source with your TV turned on, “VOLUME –” appears on the TV.

To restore the sound

Press MUTING again.

• Pressing VOLUME + or – on the remote control (or turn MASTER VOLUME on the front panel) also restores the sound.

Turning Off the Power with the Sleep Timer

From the remote control ONLY

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display.

• Each time you press the button, the shut-off time changes as follows:

SLEEP indicator

Press DIMMER to dim the display.

• Each time you press the button, the display and illumination lamp dim and brighten alternately.

Activating TV Direct

On the front panel From the remote control

You can use this unit as a DVD player and an AV selector while the unit is not turned on. When this function is activated, the pictures and sounds go from the video components to the TV through this unit. In this case, you can use the video components and the TV as if they were connected directly—TV Direct.

• This function takes effect only when the video components and TV are connected to this unit with SCART cables.

• This function takes effect for the following sources—DVD, STB, and VCR.

• This unit can be automatically turned on or off, and/or select the source automatically when you set the Auto Function mode to “AUTO1” or “AUTO2.” For details, see “Auto mode” on page 26.

To activate (or deactivate) TV Direct, follow the procedure below:

Press TV DIRECT.

All the indications disappear (except when DVD is selected as the source), then the source lamp currently selected lights up.

When the shut-off time comes

The unit is turned off automatically.

To check or change the remaining time until the shut-off time

Press SLEEP once. The remaining time (in minutes) until the shut-off time appears.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer

Press SLEEP repeatedly until “SLEEP 0” appears on the display. (The SLEEP indicator goes off.)

• Turning off the unit also cancels the Sleep Timer.

Note:

• If Sleep Timer and Auto Standby (see page 58) are used at a time, one with the early shut-off time will turn off the unit.

Turn on the video component and TV.

Press one of the source selecting buttons—DVD, STB, or VCR.

The lamp corresponding to the selected source lights up.

To cancel TV Direct and turn off the unit, press

STANDBY/ON (or STANDBY/ON AUDIO on the remote control). The unit is turned off and the STANDBY lamp lights up.

To cancel TV Direct and turn on the unit, press TV DIRECT.

Notes:

• When TV Direct is activated, you cannot enjoy any of the sound

effects this unit produces, and cannot use the speakers connected to this unit.

• You can use T-V LINK function between TV and VCR while the TV

Direct is activated.

Ex. : When DVD is selected.

DIGITAL

Basic Operations

DIGITAL

FM/AMTAPE/CDR

SOURCE NAME

TVVCRSTBDVD

CONTROL

DIGITAL AUTO

VOLUME

DGTL AUTO DGTL D.D.

DGTL DTS

INPUT ATT.

INPUT

ANALOG/DIGITAL

ANALOG DIGITAL AUTO

VOLUME

SPK.

DGTL AUTO ANALOG

VCRSTB DVD

TV DIRECT

TAPETV CDR FM/AM

ANALOG /DIGITAL

INPUT

ANALOG /DIGITAL

INPUT

Selecting the Analog or Digital Input Mode

When you have connected digital source components using both the analog connection and the digital connection methods (see pages 7 to

10), you can select the input mode.

• Before selecting the digital input mode, register the digital input terminal setting correctly (see “Digital input (DIGITAL IN) terminals” on page 25).

Press one of the source selecting buttons (STB, TV, or CDR) for which you want to change the input mode.

On the front panel

From the remote control

Note:

•

You cannot change the input mode when selecting DVD as the source. Digital input is always used for the built-in DVD player.

Changing the Digital Input Mode Manually

If the following symptoms occur while Dolby Digital or DTS Digital Surround software is played back, you can change the digital input mode:

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or

tracks.

On the front panel

Press CONTROL 3 (or 2) to select “DGTL D.D.” or “DGTL DTS” while “DGTL AUTO” still remains on the display.

• Each time you press the button, the digital input mode changes as follows:

Press INPUT ANALOG/DIGITAL (INPUT ATT.) on the front panel or ANALOG/DIGITAL INPUT on the remote control.

On the front panel From the remote control

The current input mode appears on the display.

• Each time you press the button, the input mode alternates between the analog input (“ANALOG”*) and the digital input (“DGTL AUTO”).

ANALOG/DIGITAL AUTO indicator

* “ANALOG” is the initial setting except for the built-in DVD

player.

DGTL AUTO : Select this for the digital input mode.

ANALOG : Select this for the analog input mode.

The DIGITAL AUTO indicator lights up. The unit automatically detects the incoming signal format, then the sound signal indicator for the detected signal—

or lights up; otherwise, no sound signal indicators light up.

The ANALOG indicator lights up.

DGTL AUTO : Normally select this.

The DIGITAL AUTO indicator lights up. The unit automatically detects the incoming signal format, then the sound signal indicator for the detected signal lights up.

DGTL D.D. : Select this for playing back software encoded

with Dolby Digital. The

indicator lights up*.

DGTL DTS : Select this for playing back software encoded

with DTS Digital Surround. The indicator lights up*.

* These indicators flash when no signal or the signal without the

proper format is played back.

When DVD is selected as the source, you can also change the digital input mode by pressing ANALOG/DIGITAL INPUT repeatedly on the remote control.

Notes:

• When “DGTL AUTO” cannot recognize the incoming signals, no sound signal indicators light up on the display.

• When you turn off the unit or select another source, “DGTL DTS” and “DGTL D.D.” are canceled. The digital input mode is automatically reset to “DGTL AUTO.”

Attenuating the Input Signal

INPUT ATT.

INPUT

ANALOG/DIGITAL

TAPE/CDR

SOURCE NAME

ANALOG INPUT ATT

VOLUME

ATT NORMAL ATT ON

L R

ANALOG

VOLUME

ASSGN. TAPE ASSGN. CDR

ON/OFF

SURROUND

MODE

REC MODE

When the input level of the analog source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

• You have to make this adjustment for each analog source.

On the front panel ONLY

Note:

• Without changing the source name, you can still use the connected components. However, there may be some inconveniences: – The unexpected source name will appear on the display when

you press TAPE/CDR (SOURCE NAME) on the front panel.

– The CDR or TAPE button on the remote control cannot work for

selecting the source.

– You cannot use the digital input (see page 8) for the CD recorder.

Press and hold INPUT ATT. (INPUT ANALOG/ DIGITAL) until the INPUT ATT indicator lights up on the display.

• Each time you press and hold the button, the Input Attenuator turns on (“ATT ON”) or off (“ATT NORMAL”*).

INPUT ATT indicator

* “ATT NORMAL” is the initial setting.

ATT NORMAL : Normally select this. The analog sound is not

attenuated.

ATT ON : Select this when the analog sound is

distorted.

Changing the Source Name

When you connect an CD recorder to the TAPE/CDR jacks on the rear panel, change the source name which will be shown on the display.

On the front panel ONLY

Ex. : When changing the source name from “TAPE” to “CDR”

Activating the Recording Mode

When you play back the multichannel sources, Recording mode enables you to record the sounds without missing surround elements by down-mixing the center and rear channel signals into the front channel signals.

• For DVD AUDIO ONLY: When the multichannel track cannot be down-mixed, this function does not take effect.

• When the multichannel software is played back with Recording mode activated, the sounds are down-mixed and come out through the front speakers only.

On the front panel ONLY

Press and hold REC MODE (SURROUND MODE) until “RECMODE ON” appears on the display.

• Each time you press and hold the button, Recording mode is activated (“RECMODE ON”) and deactivated (“RECMODE OFF*”) alternately.

* “RECMODE OFF” is the initial setting.

RECMODE OFF : Normally select this. The down-mixing is

canceled.

RECMODE ON : Select this for recording the down-mixed

sounds.

When recording with VCR:

You can record the picture on your video tape without the volume level indication when Recording mode is activated.

• When you do not want to record the on-screen guide icons, see page 58.

• The choice menu and on-screen bar are always recorded when they appear on the TV.

Press TAPE/CDR (SOURCE NAME) to select as the source.

Press and hold SOURCE NAME (TAPE/CDR) until “ASSGN. CDR” appears on the display.

To change the source name to “TAPE”

Press and hold SOURCE NAME (TAPE/CDR) until “ASSGN. TAPE” appears on the display in step

CAUTION:

When the front speakers are small, the output sound may be distorted by Recording mode. In this case, decrease the volume until the sound distortion diminishes.

Notes:

• When you turn off the unit or select another source, Recording mode is canceled (“RECMODE OFF”).

• Sound adjustments (see pages 27 and 28) and Surround modes (see pages 29 to 32) do not affect the recording.

• The following buttons do not work while Recording mode is activated (“RECMODE ON”):

– SETTING and ADJUST on the front panel. – SURROUND ON/OFF and SURROUND MODE on the front

panel.

– Number buttons for adjusting sound on the remote control.

Basic DVD Player Operations

SPK.

DIGITAL AUTO

VOLUME

PRO LOGIC

SUBWFR

231

564

10/0 +10

100+

EFFECT

TEST

SURR ON/OFF

SURR MODE

–

SUBWOOFER

CENTER

REAR·L

REAR·R

DIGITAL AUTO

VOLUME

DIGITAL

AUTO

SURROUND

SPK.

LFE

LS RS

LCR

SUBWFR

DVD AUDIO/VIDEO RECEIVER

TUNING/GROUP

REW/( TUNING/GROUP

9/FF

FM MODE STROBE

– TV/STB CH +

RX-DV5R HOME CINEMA DVD-AUDIO/VIDEO CONTROL CENT

TAP

E/C

NAM

STB

STANDBY/ON

DVD AUDIO

INPUT ATT.

INPUT

ANALOG/DIGITAL

IGITA

ON/OFF

SURROUN

MODE

For details about DVD player operations, see pages 33 to 48.

• You can also play back MP3 and JPEG files. See pages 49 to

52.

• When using the remote

control, press DVD to change the remote control operation mode to the DVD player operation.

Open the Disc Tray

Before turning on the unit, turn on your TV and select the correct video input (see the manual supplied with your TV).

• When you use a JVC’s TV, you can turn on your TV by pressing STANDBY/ON TV on the remote control and select the

video input by pressing TV/VIDEO. (If your TV is not a JVC’s, see “Operating Other Manufacturers’ Equipment” on page 65.)

• For changing the OSD messages—the information on the TV

—into the desired language, see pages 53 and 55.

On the front panel ONLY

Press 0.

The unit is turned on and the disc tray opens. The STANDBY lamp goes off and the illumination lamp lights up.

• When a disc is already loaded, pressing 3 turns on the unit and

starts playing back the loaded disc.

By pressing the following buttons, you can pause, advance, or reverse playback, and locate the beginning of the title, chapter, or track.

On the front panel

From the remote control

To stop playback temporarily

Press 8.

• Pressing 3 starts playback again.

To move back the playback position by 10 seconds (for DVD VIDEO only)

Press 3 during DVD VIDEO playback. The unit moves the playback position about 10 seconds before the current position, then resumes playback.

To advance or reverse playback rapidly

Press and hold ¢ or 4. While you are pressing and holding ¢ (or 4), the unit advances (or reverses: for DVD VIDEO and audio CD) playback 5 times as fast as the normal speed. When you press and hold ¢ (or 4) further, the playback speed changes up to 20 times as fast as the normal speed.

• Releasing the button resumes the normal playback.

To locate the beginning of the chapter or track

Press ¢ or 4. Press ¢ (or 4) to locate the beginning of the next (current or previous) chapter or track.

Place a disc correctly with its label side up.

Press 3.

The disc tray closes and the unit starts playing back the loaded disc.

• You can also close the disc tray by pressing 0 on the front panel.

Load a Disc

CORRECT

INCORRECT

Start Playback

On the front panel From the remote control

To locate the chapter or track using the number buttons

Press the number buttons (1–10, +10) to select the number of the desired chapter or track.

Ex. : To select 3, press 3.

To select 11, press +10, then 1. To select 20, press +10, then 10.

From the remote control ONLY

About indication on the display while playing back a disc

While you are playing back a disc, the playback information appears on the display as follows:

Ex. : When DVD VIDEO is loaded

Chapter number Elapsed playing time

Ex. : When audio CD is loaded

Track number Elapsed playing time

MASTER VOLUME

–

VOLUME

ON/OFF

SURROUND

MODE

REC MODE

ON/OFF

SURROUND

MODE

REC MODE

STANDBY

STANDBY/ON

VCRSTB TV AUDIO

STANDBY/ON

SURR ON/OFF

10/0

SURR MODE

FM MODE

CONTROL

Adjust the Volume

On the front panel From the remote control

For details, see “Basic Operations” on page 11.

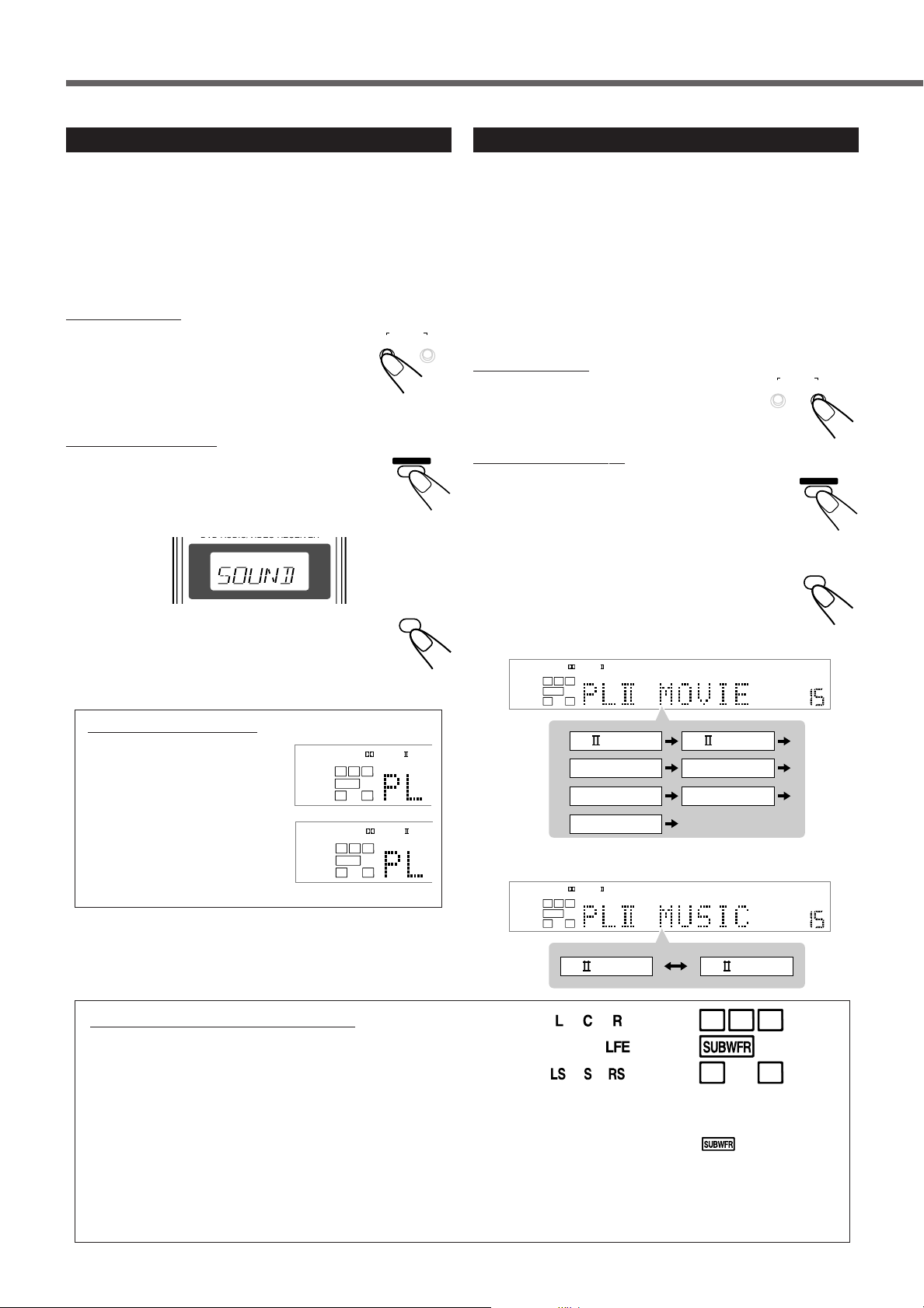

Activate Realistic Sound Field

You can activate Surround mode for creating realistic sound fields.

• You can activate Surround mode automatically when the digital

multichannel source (Dolby Digital or DTS Digital Surround software) or 2-channel matrix source (Dolby Surround software) is played back—Auto Surround (see page 26).

When you activate or deactivate Surround mode manually, do the following procedures:

On the front panel:

Press SURROUND ON/OFF.

From the remote control:

1) Press CONTROL repeatedly so that

“SOUND” appears on the operation mode display.

2) Press SURR ON/OFF.

• Each time you press SURROUND ON/OFF on the front panel or

SURR ON/OFF on the remote control, Surround mode is activated and deactivated alternately.

Stop Playback

On the front panel From the remote control

Press 7.

Playback stops. The unit memorizes the point where you stop playback and the RESUME indicator lights up on the display (except when an audio CD is loaded).

While the RESUME indicator is lit on the display, you can start playback from the memorized point by pressing 3—Resume play.

About Resume play

This unit can memorize the point when you operate the following procedures:

• Pressing 7 during playback—Pressing 3 starts Resume play

• Changing the source—Pressing DVD or 3 starts Resume play

• Turning off the unit (including Sleep Timer)

—Pressing 3 starts Resume play

Once you start Resume play, the RESUME indicator goes off (the unit clears the memorized point).

The unit also clears the memorized point when you operate the following procedures:

• Starting Resume play

• Pressing 7 (while the RESUME indicator is lit on the display)

• Selecting a track by pressing ¢ or 4 for video CD and

super VCD when playback stops

• Selecting program or random playback

• Pressing TOP MENU

• Ejecting the loaded disc

• Turning on the unit by pressing

front panel or control.

You can cancel Resume play (see “OTHERS menu” on page 58).

To remove the loaded disc

Press 0. The disc tray opens.

STANDBY/ON AUDIO on the remote

STANDBY/ON on the

Select Surround Mode

When the PRO LOGIC II or DSP indicator is lit, you can select various Surround modes (see page 31).

On the front panel From the remote control

Press SURROUND MODE (REC MODE) on the front panel or SURR MODE on the remote control.

•

When you enjoy digital multichannel source such as Dolby Digital or DTS Digital Surround software, you cannot change Surround mode. When you enjoy Dolby Digital or DTS Digital Surround 2channel including 2-channel matrix source such as Dolby Surround software, you can select Surround mode from between PRO LOGIC II MOVIE and PRO LOGIC II MUSIC (see page 31).

To close the disc tray

Press 0 again.

Turn Off the Power (into Standby)

On the front panel From the remote control

Press

STANDBY/ON on the front panel or

STANDBY/ON AUDIO on the remote control.

The unit is turned off and the STANDBY lamp lights up on the front panel.

• If you press the button while the disc tray is open, the disc tray closes automatically, then the unit is turned off.

• A small amount of power is consumed even in standby mode. To turn off the power completely, unplug the AC power cord.

Tuner Operations

FM/AM

CONTROL

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

ANALOG

VOLUME

SPK.

MHz

AUTO MUTING

ANALOG

VOLUME

SPK. AUTO MUTING

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

MEMORY

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

CONTROL

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

MEMORY

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

Tuning into Stations Manually

On the front panel:

Press FM/AM to select the band.

The last received station of the selected band is tuned in. The CONTROL buttons now work for tuner operations.

• Each time you press the button, the band alternates between FM and AM.

Ex.: When selecting the FM band

Press CONTROL ∞ (or 5) repeatedly until “< TUNING >” appears on the display.

While “< TUNING >” still remains on the display, press repeatedly or hold CONTROL 3 (or 2) until you find the frequency you want.

Using Preset Tuning

Once a station is assigned to a channel number, the station can be quickly tuned. You can preset up to 30 FM and 15 AM stations.

7 To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

On the front panel ONLY:

Tune into the station you want to preset (see “Tuning into Stations Manually”).

• If you want to store the FM reception mode for this station, select the FM reception mode you want. See “Selecting the FM Reception Mode” on page 18.

Ex.: When selecting the FM band

Press MEMORY.

The channel number position starts flashing on the display for about 5 seconds.

again.

• Pressing (or holding) CONTROL 3 increases the frequencies.

• Pressing (or holding) CONTROL 2 decreases the frequencies.

From the remote control:

Press FM/AM. “TUNER” appears on the operation mode display.

Press repeatedly or hold TUNING 9 or ( until you find the frequency you want.

• Pressing (or holding) TUNING 9 increases the frequencies.

• Pressing (or holding) TUNING ( decreases the frequencies.

Notes:

• When you hold and release CONTROL 3 (or TUNING 9 on the remote control) or CONTROL 2 (or TUNING ( on the remote control), the frequency keeps changing until a certain station is tuned in.

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.

• When an FM stereo program is received, the STEREO indicator also lights up.

Press CONTROL 3 (or 2) to select a channel number while the channel number position is flashing.

Press MEMORY again while the selected channel number is flashing on the display.

The station is assigned to the selected channel number.

• The selected channel number stops flashing and then the frequency starts flashing.

Press CONTROL 3 (or 2) to select another frequency you want to store while the frequency is flashing on the display.

Repeat steps 2 to 5 until you store all the stations you want.

To erase a stored preset station

Storing a new station on a used channel number erases the previously stored one.

7 To tune in a preset station

FM/AM

CONTROL

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

AUTO MUTING MONO

ANALOG

VOLUME

SPK.

MHz

AUTO MUTING

CONTROL

ANALOG

VOLUME

SPK. TUNED STEREO AUTO MUTING

CONTROL

ANALOG

VOLUME

SPK.

MHz

TUNED STEREO AUTO MUTING

On the front panel:

Press FM/AM to select the band.

The last received station of the selected band is tuned in. The CONTROL buttons now work for tuner operations.

Ex. : When selecting the FM band

Press CONTROL ∞ (or 5) repeatedly until “< PRESET >” appears on the display.

While “< PRESET >” still remains on the display, press CONTROL 3 (or 2) to select a preset channel number you want.

Selecting the FM Reception Mode

When an FM stereo broadcast is hard to receive or noisy, you can change the FM reception mode while receiving an FM broadcast.

• You can store the FM reception mode for each preset station.

Before you start, remember...

There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

again.

On the front panel:

While listening to an FM station, press CONTROL ∞ (or 5) repeatedly until “< FM MODE >” appears on the display.

While “< FM MODE >” still remains on the display, press CONTROL 3 (or 2) to select “MONO.”

• Each time you press the button, the FM reception mode alternates between “AUTO MUTING”* and “MONO.”

• Pressing (or holding) CONTROL 3 increases the preset

channel numbers.

• Pressing (or holding) CONTROL 2 decreases the preset

channel numbers.

From the remote control:

Press FM/AM. “TUNER” appears on the operation mode display.

The last received station of the selected band is tuned in. The number buttons now work for tuner operations.

Press the number buttons to select a preset channel number.

• For channel number 5, press 5.

• For channel number 15, press +10 then 5.

• For channel number 30, press +10, +10, then 10.

* “AUTO MUTING” is the initial setting. If you have already

changed the setting, “MONO” will be shown.

AUTO MUTING: Normally select this.

When a program is broadcasted in stereo, you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display.

MONO : Select this to improve the reception (but

stereo effect will be lost). In this mode, you will hear noise while tuning into the stations. The AUTO MUTING indicator goes off from the display. (The STEREO indicator also goes off.)

To restore the stereo effect

Repeat step

, then select “AUTO MUTING” in step 2.

From the remote control:

Press FM/AM to select an FM station. Number buttons now work for tuner operations.

Press FM MODE.

• Each time you press the button, the FM reception mode alternates between “AUTO MUTING” and “MONO.”

Tuner Operations

ANALOG RDS

VOLUME

SPK.

MHz

AUTO MUTING

RETURN

DISPLAY

PS PTY

Frequency

(Normal indication)

+–+

–

REMOTE CONTROL RM-SRXDV5R

CHOICE

ENTER

ON SCREEN

ANGLE

ZOOM

DIGEST

TOP MENU

RETURN

DISPLAY

DIMMER

TV VOL

TA/NEWS/INFO

PTY SEARCH

VOLUME

PROGRESSIVE

PTYPTY

(

–

PAGE

MUTING

Using the RDS (Radio Data System) to Receive FM Stations

RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

When tuned in to an FM station which provides the RDS service, the RDS indicator lights up on the display.

RDS indicator

With the unit, you can receive the following types of RDS signals:

PS (Program Service) : Shows commonly known station

names.

PTY (Program Type) : Shows types of broadcast programs.

RT (Radio Text) : Shows text messages the station

sends.

Enhanced Other Networks : See page 21.

What information can RDS signals provide?

You can see the RDS signals the station sends on the display.

Press DISPLAY while listening to an FM station to show the RDS signals.

• Each time you press the button, the display changes to show you the following information:

PS (Program Service):

While searching, “PS” appears and then the station names will be displayed. “NO PS” appears if no signal is sent.

PTY (Program Type):

While searching, “PTY” appears and then the type of the broadcast program will be displayed. “NO PTY” appears if no signal is sent.

RT (Radio Text):

While searching, “RT” appears and then text messages the station sends will be displayed. “NO RT” appears if no signal is sent.

Frequency:

Station frequency (non-RDS service).

Notes:

• RDS is not available for AM broadcasts.

• RDS may not operate correctly if the station tuned is not

transmitting RDS signal properly or if the signal strength is weak.

Operation Buttons

You can use the following buttons for RDS operations:

• When using the remote

control, press FM/AM to change the remote control operation mode to the tuner.

About characters shown on the display

When PS, PTY, or RT signals appear on the display window, some special characters and marks may not be displayed correctly.

Note:

• If searching finishes at once, “PS,” “PTY,” and “RT” will not appear

on the display.

Travel

Affairs

Rock M (Music)

Religion

Easy M (Music)

Children

Classics

Finance

Weather

Other M (Music)

Social

Phone In

Light M (Music)

Info (Information)

Sport

Educate (Education)

Folk M (Music)

Oldies

Drama

Nation M (Music)

Culture

Jazz

Varied

Pop M (Music)

Country

Science

Leisure

Alarm !

TEST

Document

None

News

Searching for a Program

ENTER

PTY SEARCH

PTYPTY

(

ENTER

PTY SEARCH

PTYPTY

(

ENTER

PTY SEARCH

PTYPTY

(

by PTY Codes

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels (see page 17) by specifying the PTY codes.

To search for a program using the PTY codes

Before you start, remember...

• The PTY Search is only applicable to preset stations.

• To stop searching any time during the process, press

PTY SEARCH while searching.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step

Press PTY SEARCH while

again.

listening to an FM station.

“PTY SELECT” flashes on the display.

Press PTY 9 or PTY ( until the PTY code you want appears on the display, while “PTY SELECT” is flashing.

• For details, see “Description of the PTY codes” on page 22.

PTY codes

Press PTY SEARCH again, while the PTY code selected in the previous step is still on the display.

While searching, “SEARCH” and the selected PTY code alternate on the display. The unit searches 30 preset FM stations, stops when it finds the one you have selected, and tunes in that station.

To continue searching after the first stop

Press PTY SEARCH again while the indications on the display are flashing.

If no program is found, “NOT FOUND” appears on the display.
