JVC RX-DV31SL Parts List

PARTS LIST

[ RX-DV31SL ]

* All printed circuit boards and its assemblies are not available as service parts.

Area suffix
B ------------------------------- U.K.

E ----------- Continental Europe
EN ------------ Northern Europe

- Contents -

Exploded view of general assembly and parts list (Block No.M1)
DVD mechanism assembly and parts list (Block No.MJ)
DVD loading base assembly and parts list (Block No.MN)
Electrical parts list (Block No.01~08)

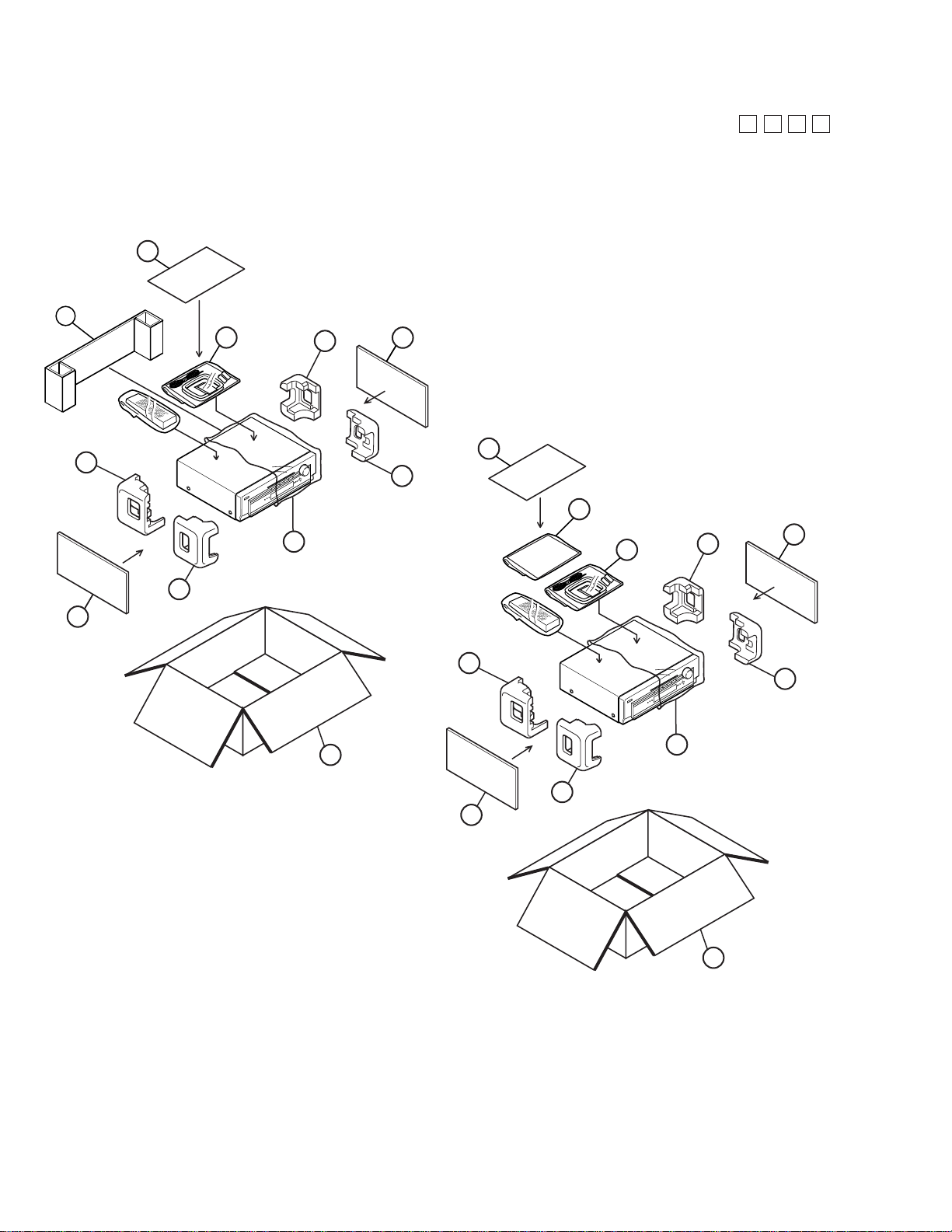

Packing materials and accessories parts list (Block No.M3)

No. MB058 3-1

--------------------------------------------------

-------------------------

-----------------------

--------------

--------------------

3- 2
3- 5
3- 7
3- 9
3-24

Exploded view of general assembly and parts list

d

6

81

93

Block No.

M

M

1

M

16

60

84

20

21

56

82

55

18

19

E

59

58

Speaker
SW.board

61

54

Power switch

22

board

57

86

87

11

56

14

48

83

49

84

48

46
47

Amp.

connector
board

50

71

D

DAC

board

43

3-2

9

Indicator
board

1

2

5

10

29

85 7 4

17

15

31

13

12

101

26

27

6

23

3

24

28

95

FL board

6

8

89

30

G

25

Control board

100

94

F

53

D

Sub
boar

M

M

DSP board

73

78

75

76

77

74

ctor

50

71

D

DAC

board

43

100

94

69

Amp.
sub

100

b

100

Amp.board

100

F

C

100

99

68

Amp. sub

45

98

100

E

a

Main board

91

37

97

67

38

96
SCART board

66

H.sensor
board

40
39

65

36

35

35

80
73

72

70

64

63

92

62

52

88

36

C

A

79

B

44

Power
board

ard

F

D

53

Sub trans.
board

B

90

A

G

42
41

51

H.P. board

32

33
34

3-3

General assembly

Block No. [M][1][M][M]



Symbol No.

1 LV10652-011A FRONT PANEL
2 LV43338-002A JVC MARK
3 E75896-003 FELT SPACER (x2)
4 LV21470-004A LENS
5 LV33427-002A ORNAMENT(L)
6 QYSDSF2608Z SCREW 2.6mm x 8mm(x3)
7 LV33428-002A ORNAMENT(R)
8 QYSDSF2608Z SCREW 2.6mm x 8mm
9 LV33426-003A PUSH BUTTON(PO)
10 VJK4493-001SC LENS(STANDBY)
11 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
12 LV42877-002A INDICATOR LENS
13 LV33434-002A LENS HOLDER
14 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
15 LV21216-003A PUSH BUTTON(SO)
16 LV42889-001A INDICATAR
17 LV33425-001A PUSH BUTTON(PL)
18 LV33423-003A PUSH BUTTON(DS)
19 QYSDSF2608Z SCREW 2.6mm x 8mm(x4)
20 LV34195-001A PUSH BUTTON(SPK
21 QYSDSF2608Z SCREW 2.6mm x 8mm(x2)
22 QYSDSF2608Z SCREW 2.6mm x 8mm(x3)
23 LV21215-003A PUSH BUTTON(CO)
24 QYSDSF2608Z SCREW 2.6mm x 8mm(x3)
25 QYSDSF2608Z SCREW 2.6mm x 8mm(x3)
26 LV33433-002A VOL.RING
27 LV42880-001A VOL.SHEET
28 LV43217-002A VOL.SHIELD
29 LV42851-005A FL SCREEN
30 QYSDSF2608Z SCREW 2.6mm x 8mm(x8)
31 QYSBSG3008N TAP SCREW 3.0mm x 8mm(x5)
32 LV10653-003A CHASSIS BASE
33 E47227-021 FOOT ASSY (x2)
34 QYSBSG3008Z TAPPING SCREW 3mm x 8mm(x2)
35 LV41548-001A-NK C.B BKT (x2)
36 QYSBST3006Z TAPPING SCREW 3mm x 6mm(x2)
37 LV33431-002A MECHA BKT(F)
38 QYSBST3006Z TAPPING SCREW 3mm x 6mm(x2)
39 LV42879-002A MECHA BKT(R)
40 QYSBST3006Z TAPPING SCREW 3mm x 6mm
41 LV33429-001A C.B BKT
42 QYSBST3006Z TAPPING SCREW 3mm x 6mm(x2)
43 QYSBSG3006E TAPPING SCREW 3mm x 6mm(x5)
44 QYSBSGY3008E SPECIAL SCREW 3mm x 8mm(x2)
45 QAU0278-003 TUNER
46 LE40874-002A THRUST SPRING
47 LV30226-037A SPACER
48 QYSBST3010Z TAPPING SCREW 3mm x 10mm(x3)
49 LV21222-002A BARRIER
50 FMYH4004-001 PLASTIC RIVET (x2)
51 QYSBSGG3008Z TAP SCREW 3mm x 8mm
52 QYSBSG3006Z TAPPING SCREW 3mm x 6mm(x2)
53 QYSBSG3006Z TAPPING SCREW 3mm x 6mm(x4)
54 LV21220-001A FAN BRACKET
55 LV30225-0F6A SPACER
56 VKZ4001-111S WIRE CLAMP (x2)
57 QYSBST3006Z TAPPING SCREW 3mm x 6mm
58 QAR0244-001 FAN MOTER
59 LV33801-001A WIRE HOLDER
60 QYSBSG3030Z TAP SCREW M3 x 30mm(x4)
61 QYSBST3006Z TAPPING SCREW 3mm x 6mm(x2)



62 QQT0371-004 POWER TRANSF
63 QYSDST4008Z TAP SCREW M4 x 8mm(x4)
64 LV21219-001A H.SINK BKT
65 LV21218-002A-NK HEAT SINK
66 QYSBSG3008Z TAPPING SCREW 3mm x 8mm(x2)
67 QYSBSG3008Z TAPPING SCREW 3mm x 8mm
68 LV33430-001A IC BKT
69 QYSBSG3008Z TAPPING SCREW 3mm x 8mm(x5)
70 QYSBST3006Z TAPPING SCREW 3mm x 6mm(x5)
71 LV30225-0F9A SPACER
72 LV21472-032A REAR PANEL
73 QYSBSGY3008E SPECIAL SCREW 3mm x 8mm(x4)
74 QYSBSGY3008E SPECIAL SCREW 3mm x 8mm(x4)

Part No. Part Name Description Local



Symbol No.

75 QYSBSGY3008E SPECIAL SCREW 3mm x 8mm(x4)
76 QYSBSGY3008E SPECIAL SCREW 3mm x 8mm(x5)
77 QYSBSGY3008E SPECIAL SCREW 3mm x 8mm
78 QYSBSGY3008E SPECIAL SCREW 3mm x 8mm(x4)



79 QMPN100-200-JD POWER CORD(EU) 2m BLACK



79 QMPK150-200-JD POWER CORD(EU) 2m BLACK



80 QZW0033-001 STRAIN RELIEF
81 LV20962-005A/S/ TOP COVER
82 LV30225-0E5A SPACER (x3)
83 QYSDST3004M TAP SCREW M3 x 4mm(x3)
84 E406308-004 SPECIAL SCREW (x4)
85 LV43536-001A VOL.KNOB ASSY
86 LV21217-002A TRAY FITTING
87 LV42878-005A FITTING LENS



88 QMF51W2-2R0-J8 FUSE F101 2A AC250V



89 QMF51W2-2R0-J8 FUSE



90 QMF51E2-R10-J1 FUSE F102 0.1A AC250V
91 LV41843-002A LASER CAUTION
92 E307572-001 FASTENER
93 E409396-003 CAUTION LABEL
94 QUQ412-1015CJ FFC WIRE
95 QUQ412-1328CJ FFC WIRE
96 QUQ412-1706CJ FFC WIRE
97 QUQ412-1606CJ FFC WIRE
98 QUQ412-1106CJ FFC WIRE
99 QUQ412-1217CJ FFC WIRE
100 QYSBSG3006E TAPPING SCREW 3mm x 6mm(x10)
101 VYSH101-034 SPACER (x2)

Part No. Part Name Description Local

F131 F132 2A
AC250V(x2)

DV31
SLB
DV31
SLE,D
V31S
LEN

DV31
SLE

3-4

DVD mechanism assembly and parts list

EXL-V73-1YPC

+

12.0mm 0.2mm

5

32

33 13

4

_

1110

12

6

8

9

7

Block No.

21
19
20
18

22
23

M

J

M

M

Grease

CFD-4007ZYZ
JVG-31N
PG-641
1401C

29

+

65.2mm 0.2mm

_

3

2

28

16

24

27
26

17

25
14
15

1

3130

3-5

DVD mechanism

Block No. [M][J][M][M]



Symbol No.

1 LE20520-002A MECHA BASE
2 LE20516-002A SPINDLE BASE
3 QYSDST2605M TAP SCREW M2.6 x 5mm(x3)
4 LE30909-001A FEED HOLDER ASSY
5 QAR0165-001 FEED MOTOR
6 LV41510-001A FEED GEAR T
7 QYSPSPU2040M SCREW M2 x 4mm(x2)
8 LV41512-002A FEED GEAR E
9 LV41517-003A LEAD SCREW
10 LV41511-003A FEED GEAR M
11 LE40742-001A THRUST SPRING
12 QYSDSF2005Z SCREW 2mm x 5mm
13 QYSDST2605M TAP SCREW M2.6 x 5mm(x2)
14 LE20517-001A SHAFT HOLDER
15 LE40744-001A BAR SPRING(1)
16 LV41121-002A SHAFT
17 QYSDST2605M TAP SCREW M2.6 x 5mm
18 QAL0452-001 PICK UP
19 LE20519-001A SW ACTUATOR
20 LE30886-001A LEAD SPRING
21 QYSPSFU1740Z TAP SCREW M1.7 x 4mm(x2)
22 LE30888-003A P.U.SPRING
23 QYSPSGU1430Z TAP SCREW M1.4 x 3mm
24 LV41121-002A SHAFT
25 LE40743-001A T.SPRING(S)
26 LE40774-001A PLATE
27 QYSDST2606Z SCREW 2.6mm x 6mm
28 QAL0284-001 FPC
29 QAR0268-001 SPINDLE MOTOR
30 QYSPSPU1760Z SCREW M1.7 x 6mm(x3)
31 QYYASPF2608N HEX SCREW M2.6 x 8mm(x3)
32 QUB549-05A1A1 SIN TWIST WIRE
33 QUB544-05A1A1 SIN TWIST WIRE

Part No. Part Name Description Local

3-6

DVD loading base assembly and parts list

22

22

Grease

=JVG-31N
=JVS-1003

17

21

18

19

20

21

BACK SIDE

N

M

M

Block No.

FMU-DV5-1M

16

23

22

13

22

10

9

A

12

23

23

B

11

7

6

16

16

M

16

23

3

8

2

6.85mm 0.1mm

24

24

5

14

BACK SIDE

4

1

1

3

2

A

B

3-7

DVD loading base

Block No. [M][N][M][M]



Symbol No.

1 LV10454-007A-CK LOADING BASE
2 QAR0164-001 MOTOR
3 LV42087-002A MOTOR PULLEY
4 QYSPSPU1730Z SCREW M1.7 x 3mm
5 VKZ4777-003 MINI SCREW
6 LV42209-001A BELT
7 LV42084-002A PULLEY GEAR
8 LV42085-002A MIDDLE GEAR
9 LV42086-001A IDLE GEAR
10 LV32514-002A SLIDE CAM
11 LV42348-001A P GEAR BRACKET
12 VKZ4777-003 MINI SCREW
13 LV20912-002A ELEVATOR
14 QUQ410-0610CJ FFC WIRE
16 LV43245-001A SPECIAL SCREW (x4)
17 LV32417-001A CLAMPER
18 LV42089-002A YOKE
19 LV42930-003A P.C.MAGNET
20 LV41741-001A SPECIAL SCREW
21 LV20913-002A CLAMPER BASE
22 QYSBSF2008Z SCREW 2mm x 8mm(x4)
23 LV41659-001A INSULATOR (x4)
24 LV10455-002A-CK TRAY

Part No. Part Name Description Local

3-8

Electrical parts list

Amp. board

Block No. [0][1][0][0]



Symbol No.



PW101 QUB112-30PPPP SIN TWIST WIRE



PW102 QUB111-32PPPP SIN TWIST WIRE



PW103 QUB116-28PPPP SIN TWIST WIRE
PW201 QUB110-24PPDM SIN TWIST WIRE



IC201 JCV8007 IC



IC202 JCV8008 IC
Q101 KRC105M-T DIGI TRANSISTOR



Q103 KTC3203/OY/-T TRANSISTOR



Q121 KTA1046/Y/ TRANSISTOR
Q122 KTC3200/GL/-T TRANSISTOR
Q231 KTC3200/GL/-T TRANSISTOR
Q232 KTC3200/GL/-T TRANSISTOR
Q271 KTC3200/GL/-T TRANSISTOR
Q272 KTA1268/GL/-T TRANSISTOR
Q273 KTC3199/GL/-T TRANSISTOR
Q285 KTA1268/GL/-T TRANSISTOR
Q291 KTC3200/GL/-T TRANSISTOR
Q292 KTA1268/GL/-T TRANSISTOR
Q293 KTC3199/GL/-T TRANSISTOR
Q1231 K TC3200/GL/-T TRANSISTOR
Q1232 K TC3200/GL/-T TRANSISTOR
Q2231 K TC3200/GL/-T TRANSISTOR



D101 11ES2-T4 DIODE



D102 11ES2-T4 DIODE



D103 11ES2-T4 DIODE



D104 11ES2-T4 DIODE
D105 1SS119-041-T2 DIODE
D108 1SS119-041-T2 DIODE
D109 MTZJ6.8C-T2 Z DIODE



D111 30DF2-FC DIODE



D112 30DF2-FC DIODE



D113 30DF2-FC DIODE



D114 30DF2-FC DIODE



D115 30DF2-FC DIODE



D116 30DF2-FC DIODE



D117 30DF2-FC DIODE



D118 30DF2-FC DIODE



D119 11ES2-T4 DIODE



D120 11ES2-T4 DIODE
D121 MTZJ30C-T2 Z DIODE
D122 MTZJ6.2C-T2 Z DIODE
D123 1SS119-041-T2 DIODE
D124 1SS119-041-T2 DIODE
D221 MTZJ15C-T2 Z DIODE
D222 MTZJ15C-T2 Z DIODE
D229 1SS119-041-T2 DIODE
D230 1SS119-041-T2 DIODE
D261 1SS119-041-T2 DIODE
D262 1SS119-041-T2 DIODE
D271 1SS119-041-T2 DIODE
D293 1SS119-041-T2 DIODE
D1221 MTZJ15C-T2 Z DIODE
D1222 MTZJ15C-T2 Z DIODE
D1229 1SS119-041-T2 DIODE
D1230 1SS119-041-T2 DIODE
D1261 1SS119-041-T2 DIODE
D2229 1SS119-041-T2 DIODE
D2261 1SS119-041-T2 DIODE

C101 QFLC2AJ-472Z M CAPACITOR 4700pF 100V J
C102 QETN1EM-477Z E CAPACITOR 470uF 25V M



C103 QCZ9104-472 C CAPACITOR 4700pF
C104 QETN1CM-477Z E CAPACITOR 470uF 16V M
C109 QFZ9076-104Z MM CAPACITOR 0.1uF
C110 QCE22HP-103 C CAPACITOR 0.01uF 500V P
C111 QFZ9076-104Z MM CAPACITOR 0.1uF
C112 QCE22HP-103 C CAPACITOR 0.01uF 500V P
C113 QCE22HP-103 C CAPACITOR 0.01uF 500V P
C115 QFZ9076-104Z MM CAPACITOR 0.1uF

Part No. Part Name Description Local



Symbol No.

C116 QCE22HP-103 C CAPACITOR 0.01uF 500V P
C117 QCE22HP-103 C CAPACITOR 0.01uF 500V P
C119 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C120 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C121 QETN2AM-107Z E CAPACITOR 100uF 100V M
C122 QETN1HM-476Z E CAPACITOR 47uF 50V M
C123 QEKC1HM-105Z E CAPACITOR 1uF 50V M
C200 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C201 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C202 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C203 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C204 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C205 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C206 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C207 QCS31HJ-3R0Z C CAPACITOR 3pF 50V J
C208 QCS31HJ-3R0Z C CAPACITOR 3pF 50V J
C209 QDVB1EZ-103Y C CAPACITOR 0.01uF 25V Z
C210 QDVB1EZ-103Y C CAPACITOR 0.01uF 25V Z
C211 QEZ0588-688 E CAPACITOR 6800uF
C212 QEZ0588-688 E CAPACITOR 6800uF
C213 QEZ0589-478 E CAPACITER 4700uF
C214 QEZ0589-478 E CAPACITER 4700uF
C221 QETN2AM-107Z E CAPACITOR 100uF 100V M
C222 QETN2AM-107Z E CAPACITOR 100uF 100V M
C223 QCS31HJ-221Z C CAPACITOR 220pF 50V J
C224 QCS31HJ-221Z C CAPACITOR 220pF 50V J
C231 QCBB1HK-222Y C CAPACITOR 2200pF 50V K
C232 QCBB1HK-222Y C CAPACITOR 2200pF 50V K
C241 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C242 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C243 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C244 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C245 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C246 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C247 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C248 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C249 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C250 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C251 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C252 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C253 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C254 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C261 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C262 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C263 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C264 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C265 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C266 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C267 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C268 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C269 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C270 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C271 QEKC1EM-106Z E CAPACITOR 10uF 25V M
C272 QEKC1CM-476Z E CAPACITOR 47uF 16V M
C285 QETN2AM-106Z E CAPACITOR 10uF 100V M
C291 QEKC1EM-106Z E CAPACITOR 10uF 25V M
C292 QEKC1CM-476Z E CAPACITOR 47uF 16V M
C1201 QFLC1HJ-471Z M CAP ACITOR 470pF 50V J
C1202 QFLC1HJ-471Z M CAP ACITOR 470pF 50V J
C1203 QTE1H06-475Z E CAPA CITOR 4.7uF 50V
C1204 QTE1H06-475Z E CAPA CITOR 4.7uF 50V
C1205 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C1206 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C1207 QCS31HJ-3R0Z C CAPACITOR 3pF 50V J
C1208 QCS31HJ-3R0Z C CAPACITOR 3pF 50V J
C1221 QETN2AM-107Z E CAPACITOR 100uF 100V M
C1222 QETN2AM-107Z E CAPACITOR 100uF 100V M
C1223 QCS31HJ-221Z C CAPACITOR 220pF 50V J
C1224 QCS31HJ-221Z C CAPACITOR 220pF 50V J
C1241 QFLC1HJ-473Z M CAP ACITOR 0.047uF 50V J
C1242 QFLC1HJ-473Z M CAP ACITOR 0.047uF 50V J
C1243 QFLC1HJ-473Z M CAP ACITOR 0.047uF 50V J
C1244 QFLC1HJ-473Z M CAP ACITOR 0.047uF 50V J
C1245 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J

Part No. Part Name Description Local

3-9



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C1246 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C1247 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C1248 QCS32HJ-221Z C CAPACITOR 220pF 500V J

C1249 QCS32HJ-221Z C CAPACITOR 220pF 500V J

C1250 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C1250 QCS32HJ-470Z C CAPACITOR 47pF 500V J

C1251 QCS32HJ-221Z C CAPACITOR 220pF 500V J

C1252 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C1252 QCS32HJ-470Z C CAPACITOR 47pF 500V J
C1253 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C1254 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2201 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C2203 QTE1H06-475Z E CAPA CITOR 4.7uF 50V
C2205 QEKC1AM-107Z E CAPACITOR 100uF 10V M
C2207 QCS31HJ-3R0Z C CAPACITOR 3pF 50V J
C2223 QCS31HJ-221Z C CAPACITOR 220pF 50V J
C2241 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C2243 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C2245 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C2247 QCS32HJ-221Z C CAPACITOR 220pF 500V J
C2249 QCS31HJ-331Z C CAPACITOR 330pF 50V J
C2251 QCS31HJ-331Z C CAPACITOR 330pF 50V J
C2253 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J



R102 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R105 QRJ146J-821X UNF C RESISTOR 820Ω 1/4W J



R106 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R111 QRJ146J-2R7X UNF C RESISTOR 2.7Ω 1/4W J



R121 QRZ9005-100X FUSI RESIST OR 10



R122 QRJ146J-682X UNF C RESISTOR 6.8kΩ 1/4W J



R123 QRJ146J-100X UNF C RESISTOR 10Ω 1/4W J



R124 QRE141J-104Y C RESIST OR 100kΩ 1/4W J



R125 QRJ146J-680X UNF C RESISTOR 68Ω 1/4W J



R126 QRJ146J-680X UNF C RESISTOR 68Ω 1/4W J
R201 QRE141J-102Y C RESIST OR 1k
R202 QRE141J-102Y C RESIST OR 1k
R203 QRE141J-563Y C RESIST OR 56k

Ω

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

R204 QRE141J-563Y C RESIST OR 56kΩ 1/4W J



R205 QRJ146J-471X UNF C RESISTOR 470Ω 1/4W J



R206 QRJ146J-471X UNF C RESISTOR 470Ω 1/4W J
R207 QRE141J-563Y C RESIST OR 56kΩ 1/4W J
R208 QRE141J-563Y C RESIST OR 56k

Ω

1/4W J

R209 QRE141J-333Y C RESIST OR 33kΩ 1/4W J



R221 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J



R222 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J



R223 QRL017J-152 OMF RESISTOR 1.5kΩ 1W J



R224 QRL017J-152 OMF RESISTOR 1.5kΩ 1W J



R225 QRZ0224-R22 EMIT RESISTOR 0.22



R226 QRZ0224-R22 EMIT RESISTOR 0.22

Ω
Ω

R227 QRE141J-102Y C RESIST OR 1kΩ 1/4W J
R228 QRE141J-102Y C RESIST OR 1k

Ω

1/4W J

R229 QRE141J-183Y C RESIST OR 18kΩ 1/4W J

Ω

R230 QRE141J-183Y C RESIST OR 18k
R231 QRE141J-473Y C RESIST OR 47k
R232 QRE141J-473Y C RESIST OR 47k



R233 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J



R234 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R235 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R236 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R237 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J
R241 QRJ146J-330X UNF C RESISTOR 33
R242 QRJ146J-330X UNF C RESISTOR 33



R243 QRL027J-100 OMF RESISTOR 10Ω 2W J



R244 QRL027J-100 OMF RESISTOR 10Ω 2W J



R245 QRJ146J-3R9X UNF C RESISTOR 3.9Ω 1/4W J

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

Ω

1/4W J

DV31S
LB,DV
31SLB,
DV31S
LE,DV
31SLE,
DV31S
LEN,D
V31SL
EN

DV31S
LB,DV
31SLB,
DV31S
LE,DV
31SLE,
DV31S
LEN,D
V31SL
EN



R246 QRJ146J-3R9X UNF C RESIST OR 3.9Ω 1/4W J



R261 QRJ146J-181X UNF C RESISTOR 180Ω 1/4W J



R262 QRJ146J-181X UNF C RESISTOR 180Ω 1/4W J



R263 QRJ146J-3R9X UNF C RESIST OR 3.9Ω 1/4W J



R264 QRJ146J-3R9X UNF C RESIST OR 3.9Ω 1/4W J
R271 QRE141J-104Y C RESISTOR 100k
R272 QRE141J-823Y C RESISTOR 82k

Ω

Ω

1/4W J
R273 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R274 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R275 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R276 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R277 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R278 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R279 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R280 QRE141J-101Y C RESISTOR 100Ω 1/4W J



R281 QRL027J-471 OMF RESISTOR 470Ω 2W J



R282 QRL027J-471 OMF RESISTOR 470Ω 2W J
R285 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R286 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R291 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R292 QRE141J-104Y C RESISTOR 100k
R293 QRE141J-103Y C RESISTOR 10k

Ω

Ω

1/4W J
R294 QRE141J-103Y C RESISTOR 10kΩ 1/4W J
R295 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R296 QRE141J-104Y C RESISTOR 100kΩ 1/4W J
R1201 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R1202 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R1203 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R1204 QRE141J-563Y C RESISTOR 56kΩ 1/4W J



R1205 QRJ146J-391X UNF C RESISTOR 390Ω 1/4W J



R1206 QRJ146J-391X UNF C RESISTOR 390Ω 1/4W J
R1207 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R1208 QRE141J-563Y C RESISTOR 56kΩ 1/4W J
R1209 QRE141J-333Y C RESISTOR 33kΩ 1/4W J



R1221 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J



R1222 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J



R1223 QRL017J-152 OMF RESISTOR 1.5kΩ 1W J



R1224 QRL017J-152 OMF RESISTOR 1.5kΩ 1W J



R1225 QRZ0224-R22 EMIT RESISTOR 0.22



R1226 QRZ0224-R22 EMIT RESISTOR 0.22

Ω
Ω

R1227 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R1228 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R1229 QRE141J-183Y C RESISTOR 18kΩ 1/4W J
R1230 QRE141J-183Y C RESISTOR 18kΩ 1/4W J
R1231 QRE141J-473Y C RESISTOR 47kΩ 1/4W J
R1232 QRE141J-473Y C RESISTOR 47kΩ 1/4W J



R1233 QRJ146J-101X UNF C RESISTOR 100Ω 1/4W J



R1234 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R1235 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R1236 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R1237 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J
R1241 QRJ146J-330X UNF C RESISTOR 33
R1242 QRJ146J-330X UNF C RESISTOR 33



R1243 QRL027J-100 OMF RESISTOR 10Ω 2W J



R1244 QRL027J-100 OMF RESISTOR 10Ω 2W J



R1245 QRJ146J-3R9X UNF C RESISTOR 3.9Ω 1/4W J



R1246 QRJ146J-3R9X UNF C RESISTOR 3.9Ω 1/4W J



R1261 QRJ146J-181X UNF C RESISTOR 180Ω 1/4W J

Ω

1/4W J

Ω

1/4W J

R2201 QRE141J-102Y C RESISTOR 1kΩ 1/4W J

Ω

R2203 QRE141J-563Y C RESISTOR 56k



R2205 QRJ146J-391X UNF C RESISTOR 390Ω 1/4W J

1/4W J
R2207 QRE141J-563Y C RESISTOR 56kΩ 1/4W J



R2225 QRZ0224-R22 EMIT RESISTOR 0.22

Ω

R2227 QRE141J-102Y C RESISTOR 1kΩ 1/4W J
R2229 QRE141J-183Y C RESISTOR 18kΩ 1/4W J

Ω

R2231 QRE141J-473Y C RESISTOR 47k
R2241 QRJ146J-330X UNF C RESISTOR 33



R2243 QRL027J-100 OMF RESISTOR 10Ω 2W J



R2245 QRJ146J-3R9X UNF C RESISTOR 3.9Ω 1/4W J



R2261 QRJ146J-181X UNF C RESISTOR 180Ω 1/4W J

1/4W J

Ω

1/4W J

L241 QQLZ005-R45 COIL 0.45uH
L242 QQLZ005-R45 COIL 0.45uH
L243 QQLZ005-R45 COIL 0.45uH
L244 QQLZ005-R45 COIL 0.45uH
L1241 QQLZ005-R45 COIL 0.45uH
L1242 QQLZ005-R45 COIL 0.45uH
L1243 QQLZ005-R45 COIL 0.45uH

1/4W J

1/4W J

3-10



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

L1244 QQLZ005-R45 COIL 0.45uH
L2241 QQLZ005-R45 COIL 0.45uH
L2243 QQLZ005-R45 COIL 0.45uH



T102 QQT0281-002 POWER TRANSF
CN101 QGA7901C1-02 CONNECTOR W-B (1-2)

CN111 QGA3901C1-05 CONNECTOR W-B (1-5)
CN113 QJK012-051700 SIN CR C-B WIRE
CN115 QGF1205C1-10 CONNECTOR FFC/FPC (1-10)
CN201 QGA3901F2-05 CONNECTOR W-B (1-5)
CN202 QGB2510J1-11 CONNECTOR B-B (1-11)
CN203 QGB2510J1-05 CONNECTOR B-B (1-5)
CN204 QGB2510J1-07 CONNECTOR B-B (1-7)
CN213 QGB2510K1-05 CONNECTOR B-B (1-5)
CN214 QGB2510K1-07 CONNECTOR B-B (1-7)
CN222 WJP0040-001A E-SH C WIRE C-B
EP102 QNZ0136-001Z EARTH PLATE
FC100 QNG0020-001Z FUSE CLIP
FC101 QNG0020-001Z FUSE CLIP
FC102 QNG0020-001Z FUSE CLIP
FC103 QNG0020-001Z FUSE CLIP
J201 QNN0545-002 SURROUND JACK



RY101 QSK0142-001 RELAY



RY125 QSK0082-001 RELAY



RY126 QSK0082-001 RELAY



RY261 QSK0109-001 RELAY



RY262 QSK0109-001 RELAY



RY263 QSK0109-001 RELAY



RY264 QSK0109-001 RELAY
ST201 QNB0159-001 SPK TERMINAL
ST202 QNB0142-001 SPK TERMINAL
TA101 QNZ0079-001Z TAB
TA102 QNZ0079-001Z TAB



OT1 QRJ146J-3R9X UNF C RESISTOR 3.9Ω 1/4W J(x2)

Front board

Block No. [0][2][0][0]



Symbol No.

PW701 QUB220-08HPDM SIN TWIST WIRE
IC701 MN101C35DKF PANEL MICOM
Q700 KRC107S-X DIGI TRANSISTOR

Q701 KRC107S-X DIGI TRANSISTOR
Q702 KRA107S-X DIGI TRANSISTOR
Q703 KRA114S-X TRANSISTOR
Q704 KRA107S-X DIGI TRANSISTOR
Q705 KRA114S-X TRANSISTOR
Q706 KRA107S-X DIGI TRANSISTOR
Q708 KRA107S-X DIGI TRANSISTOR
Q710 KRA107S-X DIGI TRANSISTOR
Q711 KRA107S-X DIGI TRANSISTOR

D701 LO561MBL3-60QNP LED
D703 SLR-342VC-T LED
D704 QLMP-KB49 LED
D705 SLR-342DC-T LED
D706 SLR-342DC-T LED
D708 SLR-342DC-T LED
D710 MA3082/H/-X Z DIODE
D711 MA3082/H/-X Z DIODE

C281 NCB31HK-331X C CAPACITOR 330pF 50V K
C282 NCB31HK-331X C CAPACITOR 330pF 50V K
C283 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C700 QFLC1HJ-124Z M CAPACITOR 0.12uF 50V J
C701 NCB31HK-471X C CAPACITOR 470pF 50V K
C702 NCB31HK-471X C CAPACITOR 470pF 50V K
C703 NCB31HK-471X C CAPACITOR 470pF 50V K
C704 NCB31HK-471X C CAPACITOR 470pF 50V K
C705 NCB31HK-471X C CAPACITOR 470pF 50V K

Part No. Part Name Description Local

DV31
SLB

C706 NCB31HK-471X C CAPACITOR 470pF 50V K
C708 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C709 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C710 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C711 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C712 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C713 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C714 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C715 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C717 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C718 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C720 NCB31EK-223X C CAPACITOR 0.022uF 25V K

R287 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R288 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R289 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R667 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R668 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R669 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R701 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R702 NRSA63J-102X MG RESISTOR 1k
R703 NRSA63J-103X MG RESISTOR 10k
R704 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R705 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R706 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R707 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R708 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R709 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R710 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R711 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R712 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R713 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R714 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R715 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R716 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R717 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R718 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R719 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R720 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R721 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R722 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R723 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R724 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R725 NRSA63J-122X MG RESISTOR 1.2kΩ 1/16W J
R726 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R727 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R728 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R729 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R730 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R731 NRSA63J-103X MG RESISTOR 10k
R733 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R734 NRSA63J-102X MG RESISTOR 1k
R735 NRSA63J-102X MG RESISTOR 1k
R740 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R741 NRSA63J-103X MG RESISTOR 10k
R743 NRSA63J-221X MG RESISTOR 220
R744 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R745 NRSA63J-221X MG RESISTOR 220
R746 NRSA63J-751X MG RESISTOR 750Ω 1/16W J
R747 NRSA63J-221X MG RESISTOR 220
R749 NRSA63J-221X MG RESISTOR 220
R750 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R751 NRSA63J-221X MG RESISTOR 220
R752 NRSA63J-103X MG RESISTOR 10k
R753 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R754 NRSA63J-103X MG RESISTOR 10k
R758 NRSA63J-221X MG RESISTOR 220
R759 NRSA63J-0R0X MG RESISTOR 0
R1291 NRSA63J-471X MG RESISTOR 470
R1292 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R1701 NRSA63J-221X MG RESISTOR 220
R1702 NRSA63J-221X MG RESISTOR 220
R1703 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R1704 NRSA63J-221X MG RESISTOR 220
R1705 NRSA63J-221X MG RESISTOR 220
R1706 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1710 NRSA63J-0R0X MG RESISTOR 0
R1712 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-11



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R1755 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R1756 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R1757 NRSA63J-101X MG RESISTOR 100Ω 1/16W J

L751 NQL114K-470X COIL 47uH K
L752 NQL114K-470X COIL 47uH K

BK701 LV42882-001A FL HOLDER
BK702 LV42881-001A FL HOLDER
CN242 QGB2510K1-11 CONNECTOR B-B (1-11)
CN252 QGB2510K1-11 CONNECTOR B-B (1-11)
CN604 QGB2510K1-13 CONNECTOR B-B (1-13)
CN611 QGB2510K1-13 CONNECTOR B-B (1-13)
CN701 QGF1205F1-13 CONNECTOR FFC/FPC (1-13)
CN703 QGA2001F1-03 CONNECTOR W-B (1-3)
CN713 QJK021-030603 SIN CR C-B WIRE
DI701 QLF0115-001 FL TUBE
EP281 QN Z0136-001Z EARTH PLATE
FS700 E3400-431 SPACER
FW241 QUM214-15DGZ4 PARA RIBON WIRE
FW281 QUM213-18DGZ4 PARA RIBON WIRE
FW701 QUM214-05Z4Z4 PARA RIBON WIRE
FW702 QUM213-08Z4Z4 PARA RIBON WIRE
FW703 QUM212-05Z4Z4 RIBON WIRE
J281 QNS0188-001 JACK
JS701 QSW1017-001 JOG VOLUME
K285 NQR0389-003X FERRITE BEADS
S700 QSW0683-001Z PUSH SW
S701 QSW0683-001Z PUSH SW
S702 QSW0683-001Z PUSH SW
S703 QSW0683-001Z PUSH SW
S704 QSW0683-001Z PUSH SW
S705 QSW0683-001Z PUSH SW
S706 QSW0683-001Z PUSH SW
S707 QSW0683-001Z PUSH SW
S708 QSW0683-001Z PUSH SW
S709 QSW0683-001Z PUSH SW
S710 QSW0683-001Z PUSH SW
S711 QSW0683-001Z PUSH SW
S712 QSW0683-001Z PUSH SW
S713 QSW0683-001Z PUSH SW
S714 QSW0683-001Z PUSH SW
S715 QSW0683-001Z PUSH SW
S716 QSW0683-001Z PUSH SW
S717 QSW0683-001Z PUSH SW
S718 QSW0683-001Z PUSH SW
S719 QSW0683-001Z PUSH SW
S720 QSW0683-001Z PUSH SW
S721 QSW0683-001Z PUSH SW
S722 QSW0683-001Z PUSH SW
S723 QSW0683-001Z PUSH SW
S724 QSW0683-001Z PUSH SW
S725 QSW0683-001Z PUSH SW



TH291 QA D0125-471 P THERMISTOR 110Åé 470Ω 16V
X701 QAX0246-001Z C RESONATOR 8.00MHz

Main board

Block No. [0][3][0][0]



Symbol No.



IC191 SI-8033JF IC



IC192 SI-8050JF-F1 IC



IC193 SI-8090JF IC
IC301 M61516FP IC
IC302 SAA6588 IC(RDS)
IC303 HA17558AF-X IC
IC401 LA73054-X IC
IC761 MN101CF49K IC(MCU)106
IC761 MN101C49GMM1 IC
IC763 IC-PST9139-T IC



Q141 2SD2395/EF/ TRANTRANSISTOR
Q142 KRA102S-X DIGI TRANSISTOR

Part No. Part Name Description Local

Q143 KRC102S-X DIGI TRANSISTOR



Q145 2SD2395/EF/ TRANTRANSISTOR



Q151 2SD2395/EF/ TRANTRANSISTOR



Q152 2SD2395/EF/ TRANTRANSISTOR
Q153 KRA102S-X DIGI TRANSISTOR



Q154 2SD2395/EF/ TRANTRANSISTOR
Q155 KRA102S-X DIGI TRANSISTOR
Q156 KRC102S-X DIGI TRANSISTOR
Q157 KRC102S-X DIGI TRANSISTOR
Q158 KRC102S-X DIGI TRANSISTOR
Q159 KRC102S-X DIGI TRANSISTOR



Q161 2SD2395/EF/ TRANTRANSISTOR



Q162 KTA1046/Y/ TRANSISTOR



Q163 KTC3203/OY/-T TRANSISTOR



Q164 KTA1271/OY/-T TRANSISTOR



Q165 2SD2395/EF/ TRANTRANSISTOR



Q171 KTC3203/OY/-T TRANSISTOR
Q172 KRA102S-X DIGI TRANSISTOR
Q173 KRC102S-X DIGI TRANSISTOR



Q181 2SD2395/EF/ TRANTRANSISTOR



Q182 2SD2395/EF/ TRANTRANSISTOR



Q183 2SD2395/EF/ TRANTRANSISTOR
Q191 KRC102S-X DIGI TRANSISTOR
Q192 KRC102S-X DIGI TRANSISTOR
Q193 KRC102S-X DIGI TRANSISTOR



Q194 KTC3203/OY/-T TRANSISTOR
Q381 2SC3576-JVC-T TRANSISTOR
Q382 2SC3576-JVC-T TRANSISTOR
Q383 2SC3576-JVC-T TRANSISTOR
Q384 2SC3576-JVC-T TRANSISTOR
Q385 2SC3576-JVC-T TRANSISTOR
Q386 KRA104S-X DIGI TRANSISTOR
Q433 KRC107S-X DIGI TRANSISTOR
Q434 KRC102S-X DIGI TRANSISTOR
Q435 KRC102S-X DIGI TRANSISTOR
Q760 KRC105S-X CHIP D.TRANSISTOR
Q761 KTC3199/GL/-T TRANSISTOR
Q762 KTC3199/GL/-T TRANSISTOR
Q763 KTC3199/GL/-T TRANSISTOR
Q764 KTC3199/GL/-T TRANSISTOR
Q765 KRC102S-X DIGI TRANSISTOR
Q766 KRC105S-X CHIP D.TRANSISTOR
Q767 KRC105S-X CHIP D.TRANSISTOR
Q768 KRC105S-X CHIP D.TRANSISTOR
Q769 KRC105S-X CHIP D.TRANSISTOR
Q770 2SD1328/ST/-X TRANSISTOR
Q771 KRC107S-X DIGI TRANSISTOR
Q799 KRC102S-X DIGI TRANSISTOR
Q1381 2SC3576-JVC-T TRANSISTOR
Q1382 2SC3576-JVC-T TRANSISTOR
Q1383 KRA104S-X DIGI TRANSISTOR

D125 11ES2-T4 DIODE
D126 11ES2-T4 DIODE
D127 11ES2-T4 DIODE
D128 MA111-X SI DIODE



D131 10E2-FD DIODE



D132 10E2-FD DIODE



D133 11ES2-T4 DIODE



D134 11ES2-T4 DIODE
D141 MTZJ5.6C-T2 Z DIODE
D145 MTZJ6.2C-T2 Z DIODE
D151 MTZJ5.6C-T2 Z DIODE
D155 MA111-X SI DIODE
D156 MTZJ16C-T2 Z DIODE
D157 MTZJ13C-T2 Z DIODE
D158 MTZJ10C-T2 Z DIODE
D159 MTZJ7.5C-T2 Z DIODE
D161 MTZJ13C-T2 Z DIODE
D162 MTZJ13C-T2 Z DIODE
D163 MTZJ7.5C-T2 Z DIODE
D164 MTZJ7.5C-T2 Z DIODE
D171 MTZJ11C-T2 Z DIODE
D172 MA111-X SI DIODE
D181 MTZJ13C-T2 Z DIODE
D182 MTZJ5.6C-T2 Z DIODE
D187 MTZJ3.9B-T2 Z DIODE
D188 MTZJ5.6C-T2 Z DIODE

3-12



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

D189 MTZJ10C-T2 Z DIODE



D191 SFPB-54-W DIODE



D192 SFPB-54-W DIODE



D193 SFPB-54-W DIODE
D194 MTZJ5.6C-T2 Z DIODE
D195 MA111-X SI DIODE
D196 MA111-X SI DIODE
D197 MA111-X SI DIODE
D291 MA111-X SI DIODE
D761 MA111-X SI DIODE
D762 MA111-X SI DIODE
D791 MTZJ6.2C-T2 Z DIODE
D1391 MA111-X SI DIODE
D1392 MTZJ4.7C-T2 Z DIODE

C131 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C132 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C133 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C135 QETM1VM-338 E CAPACITOR 3300uF 35V M
C136 QETM1VM-108 E CAPACITOR 1000uF 35V M
C141 QETN1EM-107Z E CAPACITOR 100uF 25V M
C145 QETN1EM-107Z E CAPACITOR 100uF 25V M
C151 QETN1EM-107Z E CAPACITOR 100uF 25V M
C158 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C159 QETN1HM-106Z E CAPACITOR 10uF 50V M
C161 QETN1EM-107Z E CAPACITOR 100uF 25V M
C162 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C163 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C164 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C171 QETN1EM-107Z E CAPACITOR 100uF 25V M
C181 QETN1CM-477Z E CAPACITOR 470uF 16V M
C182 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C183 NCB31HK-122X C CAPACITOR 1200pF 50V K
C184 NCB31HK-122X C CAPACITOR 1200pF 50V K
C191 QETN1HM-227Z E CAPACITOR 220uF 50V M
C192 QETN1EM-477Z E CAPACITOR 470uF 25V M
C193 QETN1HM-227Z E CAPACITOR 220uF 50V M
C194 QETN1EM-477Z E CAPACITOR 470uF 25V M
C195 QETN1HM-227Z E CAPACITOR 220uF 50V M
C196 QETN1EM-477Z E CAPACITOR 470uF 25V M
C197 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C301 NCB31HK-331X C CAPACITOR 330pF 50V K
C302 NCB31HK-331X C CAPACITOR 330pF 50V K
C305 NCB31HK-331X C CAPACITOR 330pF 50V K
C306 NCB31HK-331X C CAPACITOR 330pF 50V K
C323 NCB31HK-391X C CAPACITOR 390pF 50V K
C324 NCB31HK-391X C CAPACITOR 390pF 50V K
C329 NCB31HK-331X C CAPACITOR 330pF 50V K
C330 NCB31HK-331X C CAPACITOR 330pF 50V K
C341 NCS31HJ-101X C CAPACITOR 100pF 50V J
C343 NCB31HK-562X C CAPACITOR 5600pF 50V K
C344 NCB31HK-562X C CAPACITOR 5600pF 50V K
C351 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C352 NCS31HJ-820X C CAPACITOR 82pF 50V J
C353 NCS31HJ-470X C CAPACITOR 47pF 50V J
C354 QEKC1CM-106Z E CAPACITOR 10uF 16V M
C355 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C356 NCS31HJ-331X C CAPACITOR 330pF 50V J
C357 QEKC1HM-225Z E CAPACITOR 2.2uF 50V M
C358 NCB31HK-561X C CAPACITOR 560pF 50V K
C361 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C362 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C363 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C364 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C365 NCB31HK-272X C CAPACITOR 2700pF 50V K
C366 NCB31HK-272X C CAPACITOR 2700pF 50V K
C367 QEKC1HM-106Z E CAPACITOR 10uF 50V M
C368 QEKC1HM-106Z E CAPACITOR 10uF 50V M
C369 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C370 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C371 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C372 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C373 QEKC1EM-476Z E CAPACITOR 47uF 25V M
C374 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C375 NCB31HK-102X C CAPACITOR 1000pF 50V K
C376 NCS31HJ-101X C CAPACITOR 100pF 50V J
C381 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C382 QTE1H06-475Z E CAPACITOR 4.7uF 50V

C383 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C384 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C385 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C386 QEKC1HM-106Z E CAPACITOR 10uF 50V M
C387 QCBB1HK-101Y C CAPACITOR 100pF 50V K
C400 NCS31HJ-101X C CAPACITOR 100pF 50V J
C401 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C402 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C403 QETN1CM-476Z E CAPACITOR 47uF 16V M
C404 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C405 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C406 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C407 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C408 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C409 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C410 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C411 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C412 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C413 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C421 NCS31HJ-470X C CAPACITOR 47pF 50V J
C422 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C423 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C424 NCS31HJ-470X C CAPACITOR 47pF 50V J
C425 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C426 NCS31HJ-470X C CAPACITOR 47pF 50V J
C427 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C428 NCS31HJ-470X C CAPACITOR 47pF 50V J
C429 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C760 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M
C761 NCS31HJ-101X C CAPACITOR 100pF 50V J
C762 NCS31HJ-101X C CAPACITOR 100pF 50V J
C765 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C766 QEKC1HM-225Z E CAPACITOR 2.2uF 50V M
C767 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C768 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C791 NCB31HK-221X C CAPACITOR 220pF 50V K
C792 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C1101 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1102 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1103 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1104 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1105 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z
C1191 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C1192 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C1193 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C1194 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C1195 QETN1CM-477Z E CAPACITOR 470uF 16V M
C1196 QETN0JM-228Z E CAPACITOR 2200uF 6.3V M
C1381 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1382 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1383 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1384 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1385 QEKC1HM-225Z E CAPACITOR 2.2uF 50V M
C1387 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1388 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1391 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C1411 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1412 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1413 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1414 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1415 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1416 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1417 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1418 QETN0JM-477Z E CAPACITOR 470uF 6.3V M



R141 QRZ9005-120X FUSI RESISTOR 12



R142 QRJ146J-682X UNF C RESISTOR 6.8kΩ 1/4W J



R145 QRZ9005-120X FUSI RESISTOR 12



R146 QRJ146J-332X UNF C RESISTOR 3.3kΩ 1/4W J



R151 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R152 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R153 QRJ146J-332X UNF C RESISTOR 3.3kΩ 1/4W J



R154 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R155 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R158 QRZ9005-100X FUSI RESISTOR 10



R159 QRJ146J-182X UNF C RESISTOR 1.8kΩ 1/4W J



R160 QRJ146J-182X UNF C RESISTOR 1.8kΩ 1/4W J



R161 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J

Ω

Ω

Ω

3-13



Symbol No.



R162 QRZ9005-100X FUSI RESIST OR 10



R163 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R164 QRJ146J-222X UNF C RESISTOR 2.2kΩ 1/4W J



R165 QRZ9005-100X FUSI RESIST OR 10



R166 QRZ9005-100X FUSI RESIST OR 10



R167 QRJ146J-222X UNF C RESISTOR 2.2kΩ 1/4W J



R168 QRJ146J-222X UNF C RESISTOR 2.2kΩ 1/4W J



R169 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R170 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R171 QRZ9005-100X FUSI RESIST OR 10



R172 QRJ146J-182X UNF C RESISTOR 1.8kΩ 1/4W J



R181 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R182 QRZ9006-4R7X F.RESISTOR 4.7Ω 1/4W J



R183 QRJ146J-182X UNF C RESISTOR 1.8kΩ 1/4W J



R184 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R185 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J



R186 QRZ9005-100X FUSI RESIST OR 10



R187 QRJ146J-222X UNF C RESISTOR 2.2kΩ 1/4W J



R191 QRK126J-100X UNF C RESISTOR 10Ω 1/2W J



R192 QRJ146J-222X UNF C RESISTOR 2.2kΩ 1/4W J



R290 QRJ146J-181X UNF C RESISTOR 180Ω 1/4W J
R301 NRSA63J-471X MG RESISTOR 470
R302 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R303 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R304 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R307 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R308 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R309 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R310 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R311 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R312 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R315 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R316 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R321 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R322 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R325 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R326 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R341 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R342 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R343 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R344 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R345 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R346 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R351 NRSA63J-474X MG RESISTOR 470kΩ 1/16W J
R352 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R353 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R354 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R361 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R362 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R371 NRSA63J-102X MG RESISTOR 1k
R372 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R373 NRSA63J-102X MG RESISTOR 1k
R381 NRSA63J-104X MG RESISTOR 100k
R382 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R383 NRSA63J-102X MG RESISTOR 1k
R384 NRSA63J-102X MG RESISTOR 1k
R385 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R386 NRSA63J-103X MG RESISTOR 10k
R387 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R388 NRSA63J-104X MG RESISTOR 100k
R389 NRSA63J-102X MG RESISTOR 1k
R390 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R391 NRSA63J-103X MG RESISTOR 10k
R392 NRSA63J-103X MG RESISTOR 10k
R393 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R394 NRSA63J-102X MG RESISTOR 1k
R395 NRSA63J-103X MG RESISTOR 10k
R396 NRSA63J-102X MG RESISTOR 1k
R401 NRSA63J-0R0X MG RESISTOR 0
R402 NRSA63J-360X MG RESISTOR 36Ω 1/16W J
R403 NRSA63J-103X MG RESISTOR 10k
R404 NRSA63J-103X MG RESISTOR 10k
R405 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R406 NRSA63J-750X MG RESISTOR 75
R407 NRSA63J-0R0X MG RESISTOR 0
R408 NRSA63J-360X MG RESISTOR 36Ω 1/16W J
R409 NRSA63J-0R0X MG RESISTOR 0
R410 NRSA63J-360X MG RESISTOR 36

Part No. Part Name Description Local

Ω

Ω
Ω

Ω

Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J



Symbol No.

R411 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R414 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R415 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R416 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R417 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R418 NRSA63J-104X MG RESISTOR 100k
R421 NRSA63J-750X MG RESISTOR 75
R422 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R423 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R424 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R425 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R426 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R427 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R428 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R429 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R430 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R431 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R452 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R760 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R761 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R762 NRSA63J-473X MG RESISTOR 47k
R763 NRSA63J-683X MG RESISTOR 68k
R764 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R765 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R766 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R767 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R768 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R769 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R770 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R771 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J
R772 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R773 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R774 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R775 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R776 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R777 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R778 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R779 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R780 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R783 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R784 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R785 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R786 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R787 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R788 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R789 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R791 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R792 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R793 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R794 NRSA63J-103X MG RESISTOR 10k
R798 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R799 NRSA63J-333X MG RESISTOR 33k
R1101 NRSA63J-0R0X MG RESISTOR 0
R1102 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1103 NRSA63J-0R0X MG RESISTOR 0
R1104 NRSA63J-0R0X MG RESISTOR 0
R1105 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1106 NRSA63J-0R0X MG RESISTOR 0
R1107 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1108 NRSA63J-0R0X MG RESISTOR 0
R1110 NRSA63J-102X MG RESISTOR 1k
R1111 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1112 NRSA63J-102X MG RESISTOR 1k
R1113 NRSA63J-0R0X MG RESISTOR 0
R1114 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1115 NRSA63J-471X MG RESISTOR 470
R1116 NRSA63J-102X MG RESISTOR 1k
R1117 NRSA63J-471X MG RESISTOR 470
R1118 NRSA63J-102X MG RESISTOR 1k
R1119 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R1120 NRSA63J-102X MG RESISTOR 1k
R1122 NRSA63J-221X MG RESISTOR 220
R1123 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1124 NRSA63J-102X MG RESISTOR 1k
R1125 NRSA63J-102X MG RESISTOR 1k
R1126 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1127 NRSA63J-0R0X MG RESISTOR 0
R1128 NRSA63J-102X MG RESISTOR 1k

Part No. Part Name Description Local

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-14



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R1129 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1130 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1131 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1132 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1134 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1135 NRSA63J-0R0X MG RESISTOR 0
R1136 NRSA63J-0R0X MG RESISTOR 0
R1137 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1138 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1381 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1382 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R1383 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1384 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1385 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1386 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1387 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1388 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1389 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1391 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R1392 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R1393 NRSA63J-822X MG RESISTOR 8.2k
R1394 NRSA63J-822X MG RESISTOR 8.2k
R1395 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R1397 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J
R1398 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1399 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1413 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1414 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1415 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1416 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1417 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1418 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1419 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1420 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1731 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R1732 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R1733 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1734 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

L191 QQL28AK-101 CHOKE COIL 100uH K
L192 QQL28AK-101 CHOKE COIL 100uH K
L193 QQL28AK-101 CHOKE COIL 100uH K
L197 QQL244K-100Z COIL 10uH K
L198 QQL244K-100Z COIL 10uH K
L341 QQR0590-001 FILTER
L342 QQR0590-001 FILTER

CN114 QGF1205C1-13 CONNECTOR FFC/FPC (1-13)
CN121 QGA3901C1-08 CONNECTOR W-B (1-8)
CN122 QGA2501C1-02 CONNECTOR W-B (1-2)
CN125 QGF1205C1-10 CONNECTOR FFC/FPC (1-10)
CN212 QGB2510J1-11 CONNECTOR B-B (1-11)
CN231 QGA2501C1-08 CONNECTOR W-B (1-8)
CN241 QGD2501C1-04Z CONNECTOR (1-4)
CN291 QGD2501C1-03Z CONNECTOR (1-3)
CN301 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)
CN411 QGF1205C1-17 CONNECTOR FFC/FPC (1-17)
CN412 QGF1205C1-16 CONNECTOR FFC/FPC (1-16)
CN512 QGB2027M9-26 CONNECTOR B-B (1-26)
CN513 QGB2027M9-26 CONNECTOR B-B (1-26)
CN612 QGB2510J1-13 CONNECTOR B-B (1-13)
CN614 QGF1205C1-12 CONNECTOR FFC/FPC (1-12)
CN761 QGF1205C1-06 CONNECTOR FFC/FPC (1-6)
CN911 QGB2016K1-15 CONNECTOR B-B (1-15)
CN912 QGB2016K1-13 CONNECTOR B-B (1-13)
EP101 QNZ0136-001Z EARTH PLATE
EP191 QNZ0136-001Z EARTH PLATE
FC130 QNG0020-001Z FUSE CLIP
FC131 QNG0020-001Z FUSE CLIP
FC132 QNG0020-001Z FUSE CLIP
FC133 QNG0020-001Z FUSE CLIP
FS387 E3400-431 SPACE R
HS141 E70306-001 HEAT SINK
HS145 E70306-001 HEAT SINK
HS151 E70306-001 HEAT SINK
HS152 E70306-001 HEAT SINK
HS154 E70306-001 HEAT SINK
HS161 E70306-001 HEAT SINK

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

HS162 E70306-001 HEAT SINK
HS165 E70306-001 HEAT SINK
HS181 E70306-001 HEAT SINK
HS182 E70306-001 HEAT SINK
J301 QNN0476-001 PIN JACK
J401 QNZ0516-001 RGB CONNECTOR
K401 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K402 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K403 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
K404 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J



RY291 QSK0109-001 RELAY
S401 QSW0454-001 SW
X301 QAX0263-001Z CRYSTAL 4.332MHz
X761 QAX0246-001Z C RESONATOR 8.00MHz

DSP board

Block No. [0][4][0][0]



Symbol No.

IC601 AK4527BVQP IC
IC602 BA15218F-XE IC
IC603 BA15218F-XE IC
IC611 TC74HC4072AF-X IC
IC612 MM74HC08SJ-X IC



IC615 MM1563DF-X IC 3.3V Regulator
IC621 MM74HCU04SJ-X IC
IC631 TC9446F-025 IC
IC641 LP61L1024S-12-X IC
IC651 BA15218F-XE IC
IC652 BA15218F-XE IC
IC661 BA15218F-XE IC
IC671 BA15218F-XE IC
IC672 BA15218F-XE IC
IC681 UPD784215AGC167 IC(MICRO C ROM)



IC682 MM1613DN-X IC
IC683 NC7ST32P5-X IC(DIGITAL)

Q631 UN9214J-X TRANSISTOR
Q632 KRA104S-X DIGI TRANSISTOR
Q671 2SD1048/6-7/-X TRANSISTOR
Q672 UN9214J-X TRANSISTOR
Q673 KRA104S-X DIGI TRANSISTOR
Q681 UN9214J-X TRANSISTOR
Q2501 KRA104S-X DIGI TRANSISTOR
Q2521 2SC3576-JVC-T TRANSISTOR
Q2522 2SC3576-JVC-T TRANSISTOR
Q2561 2SC3576-JVC-T TRANSISTOR
Q2562 2SC3576-JVC-T TRANSISTOR
Q2581 2SC3576-JVC-T TRANSISTOR
Q2582 2SC3576-JVC-T TRANSISTOR

D621 MA111-X SI DIODE
D622 MA111-X SI DIODE
D631 MA111-X SI DIODE
D632 MA111-X SI DIODE

C601 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C602 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C605 NCB31HK-102X C CAPACITOR 1000pF 50V K
C606 NCB31HK-102X C CAPACITOR 1000pF 50V K
C607 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C608 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C609 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C610 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C611 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C612 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C613 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C615 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C616 QEKC0JM-107Z E CAPACITOR 100uF 6.3V M
C617 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C618 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C619 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C620 QETN1CM-107Z E CAPACITOR 100uF 16V M

Part No. Part Name Description Local

3-15



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C621 NCS31HJ-101X C CAPACITOR 100pF 50V J
C622 QETN1HM-105Z E CAPACITOR 1uF 50V M
C623 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C624 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C625 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C626 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C627 NCS31HJ-471X C CAPACITOR 470pF 50V J
C628 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C629 NCS31HJ-101X C CAPACITOR 100pF 50V J
C631 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C632 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C633 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C634 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C635 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C636 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C637 NCS31HJ-101X C CAPACITOR 100pF 50V J
C638 NCS31HJ-121X C CAPACITOR 120pF 50V J
C639 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C640 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C641 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C642 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C643 NCS31HJ-180X C CAPACITOR 18pF 50V J
C644 NCS31HJ-220X C CAPACITOR 22pF 50V J
C645 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C646 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C647 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C648 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C680 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C681 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C682 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C683 NCS31HJ-101X C CAPACITOR 100pF 50V J
C684 NCS31HJ-101X C CAPACITOR 100pF 50V J
C685 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C686 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C687 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C688 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C689 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C690 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C691 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C692 QTE1C06-476Z E CAPACITOR 47uF 16V
C693 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C694 QTE1C06-336Z E CAPACITOR 33uF 16V
C695 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C696 QTE1C06-336Z E CAPACITOR 33uF 16V
C2500 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2503 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2504 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2507 NCS31HJ-330X C CAPACITOR 33pF 50V J
C2508 NCS31HJ-330X C CAPACITOR 33pF 50V J
C2512 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2513 NCB31HK-122X C CAPACITOR 1200pF 50V K
C2514 NCB31HK-122X C CAPACITOR 1200pF 50V K
C2515 NCS31HJ-121X C CAPACITOR 120pF 50V J
C2516 NCS31HJ-121X C CAPACITOR 120pF 50V J
C2525 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2526 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2527 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2528 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2531 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2532 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2533 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2534 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C2539 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2540 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2551 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2552 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2555 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2556 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2561 QETN1HM-105Z E CAPACITOR 1uF 50V M
C2562 QETN1HM-105Z E CAPACITOR 1uF 50V M
C2563 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2564 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2569 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2570 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2575 NCB31HK-272X C CAPACITOR 2700pF 50V K
C2576 NCB31HK-272X C CAPACITOR 2700pF 50V K
C2577 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2578 QETN1HM-106Z E CAPACITOR 10uF 50V M

C2581 QETN1HM-105Z E CAPACITOR 1uF 50V M
C2582 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2583 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2584 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2585 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2586 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2587 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2588 QETN1HM-475Z E CAPAC ITOR 4.7uF 50V M
C2589 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2590 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2592 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C2594 NCF31CZ-473X C CAPACITOR 0.047uF 16V Z
C2595 NCB31HK-272X C CAPACITOR 2700pF 50V K
C2597 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2598 QETN1HM-475Z E CAPAC ITOR 4.7uF 50V M

R601 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R602 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R603 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R604 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R605 NRSA63J-331X MG RESISTOR 330
R606 NRSA63J-221X MG RESISTOR 220
R607 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R608 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R611 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R613 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R615 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R619 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R620 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R621 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R622 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R623 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R624 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R631 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R632 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R633 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R634 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R635 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R636 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R637 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R638 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R639 NRSA63F-102X MG RESISTOR 1kΩ 1/16W F
R640 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R641 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R642 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J
R643 NRSA63F-103X MG RESISTOR 10kΩ 1/16W F
R644 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R645 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R646 NRSA63J-225X MG RESISTOR 2.2MΩ 1/16W J
R651 NRSA63J-0R0X MG RESISTOR 0
R653 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R661 NRSA63J-0R0X MG RESISTOR 0
R662 NRSA63J-0R0X MG RESISTOR 0
R663 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R671 NRSA63J-103X MG RESISTOR 10k
R672 NRSA63J-105X MG RESISTOR 1M
R676 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R679 NRSA63J-103X MG RESISTOR 10k
R680 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R681 NRSA63J-0R0X MG RESISTOR 0
R682 NRSA63J-0R0X MG RESISTOR 0
R683 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R684 NRSA63J-432X MG RESISTOR 4.3k
R685 NRSA63J-103X MG RESISTOR 10k
R686 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R687 NRSA63J-432X MG RESISTOR 4.3k
R688 NRSA63J-822X MG RESISTOR 8.2k
R689 NRSA63J-432X MG RESISTOR 4.3k
R690 NRSA63J-822X MG RESISTOR 8.2k
R691 NRSA63J-432X MG RESISTOR 4.3kΩ 1/16W J
R692 NRSA63J-221X MG RESISTOR 220
R693 NRSA63J-221X MG RESISTOR 220
R694 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R695 NRSA63J-221X MG RESISTOR 220
R696 NRSA63J-221X MG RESISTOR 220
R697 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R698 NRSA63J-221X MG RESISTOR 220
R699 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-16



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R2500 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2501 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2502 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2507 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R2508 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R2509 NRSA63J-223X MG RESISTOR 22k
R2510 NRSA63J-223X MG RESISTOR 22k
R2511 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2512 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2513 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2514 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2515 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2516 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2517 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2518 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2519 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R2520 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R2521 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R2522 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R2525 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2526 NRSA63J-102X MG RESISTOR 1k
R2527 NRSA63J-104X MG RESISTOR 100k
R2528 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2529 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2530 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2531 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R2532 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R2533 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2534 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2535 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2536 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2537 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2538 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2550 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R2551 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2552 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2553 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2554 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2555 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R2556 NRSA63J-752X MG RESISTOR 7.5kΩ 1/16W J
R2557 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2558 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R2560 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R2561 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2562 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2563 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2564 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2565 NRSA63J-202X MG RESISTOR 2kΩ 1/16W J
R2566 NRSA63J-202X MG RESISTOR 2kΩ 1/16W J
R2567 NRSA63J-103X MG RESISTOR 10k
R2568 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2575 NRSA63J-102X MG RESISTOR 1k
R2576 NRSA63J-102X MG RESISTOR 1k
R2577 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2578 NRSA63J-104X MG RESISTOR 100k
R2581 NRSA63J-104X MG RESISTOR 100k
R2582 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2583 NRSA63J-123X MG RESISTOR 12k
R2584 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R2585 NRSA63J-302X MG RESISTOR 3k
R2586 NRSA63J-332X MG RESISTOR 3.3k
R2587 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2588 NRSA63J-103X MG RESISTOR 10k
R2589 NRSA63J-104X MG RESISTOR 100k
R2590 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R2592 NRSA63J-333X MG RESISTOR 33k
R2594 NRSA63J-333X MG RESISTOR 33k
R2595 NRSA63J-102X MG RESISTOR 1k
R2596 NRSA63J-102X MG RESISTOR 1k
R2597 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2598 NRSA63J-104X MG RESISTOR 100k

CN601 QGB2510J1-13 CONNECTOR B-B (1-13)
CN602 QGF1205C1-12 CONNECTOR FFC/FPC (1-12)
EP601 E 409182-00 1SM GRAND TERMINAL
J601 QNN0481-001 SURROUND JACK
K601 NQR0269-004X FERRITE BEADS
UN661 GP1FA352RZ OPT RECEIVER

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

UN662 GP1FA352TZ OPT TRANSMITTER
X631 QAX0722-001Z CRYSTAL 24.576MHz
X681 QAX0719-001Z C RESONATOR 6.144MHz

DAC board

Block No. [0][5][0][0]



Symbol No.

IC901 MN35505-X IC
IC911 NJM4580E-W IC
IC921 NJM4580E-W IC
IC931 MN35505-X IC
IC941 NJM4580E-W IC
IC951 NJM4580E-W IC
IC961 MN35505-X IC
IC971 NJM4580E-W IC
IC981 NJM4580E-W IC
IC991 NJM4580E-W IC
IC992 NJM4580E-W IC
IC993 NJM4580E-W IC
IC994 NJM4580E-W IC

Q901 2SD1328/ST/-X TRANSISTOR
Q902 2SD1328/ST/-X TRANSISTOR
Q903 2SD1328/ST/-X TRANSISTOR
Q904 2SD1328/ST/-X TRANSISTOR
Q910 UN2113-X TRANSISTOR
Q911 UN2113-X TRANSISTOR
Q912 UN2113-X TRANSISTOR
Q1903 2SD1328/ST/-X TRANSISTOR
Q1904 2SD1328/ST/-X TRANSISTOR
Q2903 2SD1328/ST/-X TRANSISTOR
Q2904 2SD1328/ST/-X TRANSISTOR
Q2971 UN2213-X DIGI TRANSISTOR
Q2972 2SD1328/ST/-X TRANSISTOR
Q2993 UN2113-X TRANSISTOR

C900 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C901 NEA71CM-106X E CAPACITOR 10uF 16V M
C902 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C903 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C904 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C905 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C906 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C907 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C908 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C909 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C910 NEA71CM-106X E CAPACITOR 10uF 16V M
C911 NCS31HJ-561X C CAPACITOR 560pF 50V J
C912 NCS31HJ-561X C CAPACITOR 560pF 50V J
C913 NCS31HJ-121X C CAPACITOR 120pF 50V J
C914 NCS31HJ-121X C CAPACITOR 120pF 50V J
C915 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C916 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C917 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C918 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C919 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C920 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C921 NCB31HK-272X C CAPACITOR 2700pF 50V K
C922 NCB31HK-272X C CAPACITOR 2700pF 50V K
C923 NCS31HJ-561X C CAPACITOR 560pF 50V J
C924 NCS31HJ-561X C CAPACITOR 560pF 50V J
C925 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C926 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C927 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C928 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C929 NCS31HJ-561X C CAPACITOR 560pF 50V J
C930 NCS31HJ-561X C CAPACITOR 560pF 50V J
C931 NCB31HK-152X C CAPACITOR 1500pF 50V K
C932 NCB31HK-152X C CAPACITOR 1500pF 50V K
C934 NCB31HK-102X C CAPACITOR 1000pF 50V K
C941 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C942 NEA71EM-475X E CAPACITOR 4.7uF 25V M

Part No. Part Name Description Local

3-17



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C951 NCS31HJ-560X C CAPACITOR 56pF 50V J
C952 NCS31HJ-560X C CAPACITOR 56pF 50V J
C953 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C954 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C961 NEA71CM-476X E CAPACITOR 47uF 16V M
C962 NEA71CM-476X E CAPACITOR 47uF 16V M
C1900 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1901 NEA71CM-106X E CAPACITOR 10uF 16V M
C1902 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C1903 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C1904 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C1905 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C1906 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C1907 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C1908 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C1909 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C1910 NEA71CM-106X E CAPACITOR 10uF 16V M
C1911 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C1912 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C1913 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1914 NCS31HJ-101X C CAPACITOR 100pF 50V J
C1915 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C1916 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C1917 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1918 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1919 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C1920 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C1923 NCB31HK-152X C CAPACITOR 1500pF 50V K
C1924 NCB31HK-152X C CAPACITOR 1500pF 50V K
C1925 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1926 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1927 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1928 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1929 NCS31HJ-561X C CAPACITOR 560pF 50V J
C1930 NCS31HJ-561X C CAPACITOR 560pF 50V J
C1934 NCB31HK-102X C CAPACITOR 1000pF 50V K
C1941 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1942 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C1951 NCS31HJ-560X C CAPACITOR 56pF 50V J
C1952 NCS31HJ-560X C CAPACITOR 56pF 50V J
C1953 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1954 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2900 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2901 NEA71CM-106X E CAPACITOR 10uF 16V M
C2902 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C2903 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C2904 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C2905 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C2906 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C2907 NCB31AK-224X C CAPACITOR 0.22uF 10V K
C2908 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C2909 NEA70JM-107X E CAPACITOR 100uF 6.3V M
C2910 NEA71CM-106X E CAPACITOR 10uF 16V M
C2911 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C2912 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C2913 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2914 NCS31HJ-101X C CAPACITOR 100pF 50V J
C2915 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C2916 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C2917 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2918 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2919 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C2920 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C2923 NCB31HK-152X C CAPACITOR 1500pF 50V K
C2924 NCB31HK-152X C CAPACITOR 1500pF 50V K
C2925 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2926 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2927 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2928 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2929 NCS31HJ-561X C CAPACITOR 560pF 50V J
C2930 NCS31HJ-561X C CAPACITOR 560pF 50V J
C2932 NCB31HK-152X C CAPACITOR 1500pF 50V K
C2934 NCB31HK-102X C CAPACITOR 1000pF 50V K
C2941 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2942 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2951 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2952 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2953 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C2954 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2971 NCS31HJ-560X C CAPACITOR 56pF 50V J
C2972 NEA71EM-475X E CAPACITOR 4.7uF 25V M
C2973 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C2974 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

R900 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R901 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R902 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R903 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R904 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R905 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R906 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R907 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R908 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R909 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R910 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R911 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R912 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R913 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R914 NRSA63J-273X MG RESISTOR 27k
R915 NRSA63F-183X MG RESISTOR 18k
R916 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R917 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R918 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R919 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R920 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R921 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R922 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R923 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R924 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R925 NRSA63F-332X MG RESISTOR 3.3kΩ 1/16W F
R926 NRSA63F-332X MG RESISTOR 3.3kΩ 1/16W F
R927 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R928 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R929 NRSA63F-681X MG RESISTOR 680Ω 1/16W F
R930 NRSA63F-681X MG RESISTOR 680Ω 1/16W F
R931 NRSA63F-821X MG RESISTOR 820Ω 1/16W F
R932 NRSA63F-821X MG RESISTOR 820Ω 1/16W F
R933 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R934 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R935 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R936 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R937 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R938 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R939 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R940 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R941 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R942 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R943 NRSA63J-561X MG RESISTOR 560
R944 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R947 NRSA63J-103X MG RESISTOR 10k
R948 NRSA63J-103X MG RESISTOR 10k
R949 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R950 NRSA63J-473X MG RESISTOR 47k
R951 NRSA63J-103X MG RESISTOR 10k
R952 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R953 NRSA63J-103X MG RESISTOR 10k
R954 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R955 NRSA63J-103X MG RESISTOR 10k
R956 NRSA63J-103X MG RESISTOR 10k
R959 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R960 NRSA63J-104X MG RESISTOR 100k
R1900 NRSA63J-101X MG RESISTOR 100
R1901 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1902 NRSA63J-0R0X MG RESISTOR 0
R1903 NRSA63J-471X MG RESISTOR 470
R1904 NRSA63J-471X MG RESISTOR 470
R1905 NRSA63J-332X MG RESISTOR 3.3k
R1906 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R1907 NRSA63J-0R0X MG RESISTOR 0
R1908 NRSA63J-101X MG RESISTOR 100
R1909 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R1910 NRSA63J-101X MG RESISTOR 100
R1911 NRSA63J-303X MG RESISTOR 30k
R1912 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R1913 NRSA63J-303X MG RESISTOR 30k
R1914 NRSA63J-303X MG RESISTOR 30k

Ω

1/16W J

Ω

1/16W F

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

1/16W J

3-18



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R1915 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R1916 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R1917 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R1918 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R1919 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R1920 NRSA63J-272X MG RESISTOR 2.7k
R1921 NRSA63J-272X MG RESISTOR 2.7k
R1922 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R1923 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R1924 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R1925 NRSA63F-102X MG RESISTOR 1kΩ 1/16W F
R1926 NRSA63F-102X MG RESISTOR 1kΩ 1/16W F
R1927 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R1928 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R1929 NRSA63F-681X MG RESISTOR 680Ω 1/16W F
R1930 NRSA63F-681X MG RESISTOR 680Ω 1/16W F
R1931 NRSA63F-511X MG RESISTOR 510Ω 1/16W F
R1932 NRSA63F-511X MG RESISTOR 510Ω 1/16W F
R1937 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R1938 NRSA63J-821X MG RESISTOR 820Ω 1/16W J
R1939 NRSA63J-183X MG RESISTOR 18k
R1940 NRSA63J-183X MG RESISTOR 18k
R1941 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R1942 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R1943 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R1944 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R1947 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1948 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1951 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R1952 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R1953 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R1954 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R1959 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R1960 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2900 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R2901 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2902 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2903 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R2904 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R2905 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R2906 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2907 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R2908 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R2909 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R2910 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R2911 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R2912 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R2913 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R2914 NRSA63J-303X MG RESISTOR 30kΩ 1/16W J
R2915 NRSA63F-183X MG RESISTOR 18k
R2916 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R2917 NRSA63F-183X MG RESISTOR 18k
R2918 NRSA63F-183X MG RESISTOR 18k
R2919 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R2920 NRSA63J-272X MG RESISTOR 2.7k
R2921 NRSA63J-272X MG RESISTOR 2.7k
R2922 NRSA63J-272X MG RESISTOR 2.7kΩ 1/16W J
R2923 NRSA63F-183X MG RESISTOR 18k
R2924 NRSA63F-183X MG RESISTOR 18kΩ 1/16W F
R2925 NRSA63F-102X MG RESISTOR 1k
R2926 NRSA63F-102X MG RESISTOR 1k
R2927 NRSA63J-362X MG RESISTOR 3.6kΩ 1/16W J
R2928 NRSA63J-362X MG RESISTOR 3.6k
R2929 NRSA63F-681X MG RESISTOR 680
R2930 NRSA63F-681X MG RESISTOR 680Ω 1/16W F
R2931 NRSA63F-511X MG RESISTOR 510
R2932 NRSA63F-511X MG RESISTOR 510
R2937 NRSA63J-821X MG RESISTOR 820
R2938 NRSA63J-821X MG RESISTOR 820
R2939 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R2940 NRSA63J-183X MG RESISTOR 18k
R2941 NRSA63J-273X MG RESISTOR 27k
R2942 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R2943 NRSA63J-561X MG RESISTOR 560
R2944 NRSA63J-561X MG RESISTOR 560
R2947 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2948 NRSA63J-103X MG RESISTOR 10k
R2949 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W F

Ω

1/16W F

Ω

1/16W F

Ω

1/16W J

Ω

1/16W J

Ω

1/16W F

Ω

1/16W F

Ω

1/16W F

Ω

1/16W J

Ω

1/16W F

Ω

1/16W F

Ω

1/16W F

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R2951 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R2952 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R2953 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2954 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J
R2959 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2960 NRSA63J-104X MG RESISTOR 100k
R2971 NRSA63J-562X MG RESISTOR 5.6k
R2972 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2973 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J
R2974 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R2977 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R2978 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R2979 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J

CN901 QGB2016J1-15 CONNECTOR B-B (1-15)
CN902 QGB2016J1-13 CONNECTOR B-B (1-13)
K901 NQR0007-003X FERRITE BEADS
K902 NQR0007-003X FERRITE BEADS
K903 NQR0007-003X FERRITE BEADS
K904 NQR0007-003X FERRITE BEADS
K1901 NQR0007-003X FERRITE BEADS
K1902 NQR0007-003X FERRITE BEADS
K1903 NQR0007-003X FERRITE BEADS
K1904 NQR0007-003X FERRITE BEADS
K2901 NQR0007-003X FERRITE BEADS
K2902 NQR0007-003X FERRITE BEADS
K2903 NQR0007-003X FERRITE BEADS
K2904 NQR0007-003X FERRITE BEADS

Ω

1/16W J

Ω

1/16W J

Scart board

Block No. [0][6][0][0]



Symbol No.

IC402 NJM2246M-X IC
IC403 NJM2246M-X IC
IC404 NJM2246M-X IC
IC405 BA7625 IC
IC406 MM74HC4053SJ-X IC

Q1441 KTC3199/GL/-T TRANSISTOR
Q1442 KRC111S-X TRANSISTOR
Q1443 KTC3199/GL/-T TRANSISTOR
Q1444 KRC111S-X TRANSISTOR
Q1445 KTC3199/GL/-T TRANSISTOR
Q1446 KRC111S-X TRANSISTOR
Q1447 KTA1267/YG/-T TRANSISTOR
Q1448 KTA1267/YG/-T TRANSISTOR
Q1481 KTC3199/GL/-T TRANSISTOR
Q1482 KTC3199/GL/-T TRANSISTOR
Q1483 KTC3199/GL/-T TRANSISTOR

D1401 MTZJ13C-T2 Z DIODE
D1402 MTZJ13C-T2 Z DIODE
D1403 MTZJ13C-T2 Z DIODE
D1404 MTZJ13C-T2 Z DIODE
D1421 MTZJ13C-T2 Z DIODE
D1422 MTZJ13C-T2 Z DIODE
D1423 MTZJ13C-T2 Z DIODE
D1424 MTZJ13C-T2 Z DIODE

C303 NCS31HJ-331X C CAPACITOR 330pF 50V J
C304 NCS31HJ-331X C CAPACITOR 330pF 50V J
C307 NCS31HJ-331X C CAPACITOR 330pF 50V J
C308 NCS31HJ-331X C CAPACITOR 330pF 50V J
C325 NCS31HJ-331X C CAPACITOR 330pF 50V J
C326 NCS31HJ-331X C CAPACITOR 330pF 50V J
C327 NCS31HJ-331X C CAPACITOR 330pF 50V J
C328 NCS31HJ-331X C CAPACITOR 330pF 50V J
C1401 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1402 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1403 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1404 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C1405 NCS31HJ-470X C CAPACITOR 47pF 50V J

Part No. Part Name Description Local

3-19



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C1406 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1421 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1422 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1423 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1424 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M
C1461 QETN1CM-477Z E CAPACITOR 470uF 16V M
C1462 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1463 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1464 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1481 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1493 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1494 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C1495 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

R305 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R306 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R313 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R314 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R323 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R324 NRSA63J-101X MG RESISTOR 100Ω 1/16W J
R1401 NRSA63J-331X MG RESISTOR 330
R1402 NRSA63J-750X MG RESISTOR 75
R1403 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R1404 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1405 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1406 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R1407 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1408 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R1409 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1410 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R1411 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1421 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R1422 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1423 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R1424 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1425 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1426 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R1427 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1428 NRSA63J-331X MG RESISTOR 330Ω 1/16W J
R1429 NRSA63J-750X MG RESISTOR 75Ω 1/16W J
R1441 NRSA63J-301X MG RESISTOR 300Ω 1/16W J
R1442 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R1443 NRSA63J-301X MG RESISTOR 300Ω 1/16W J
R1444 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R1445 NRSA63J-301X MG RESISTOR 300Ω 1/16W J
R1446 NRSA63J-391X MG RESISTOR 390Ω 1/16W J
R1447 NRSA63J-301X MG RESISTOR 300Ω 1/16W J
R1448 QRE141J-681Y C RESISTOR 680Ω 1/4W J
R1449 NRSA63J-301X MG RESISTOR 300Ω 1/16W J
R1450 QRE141J-681Y C RESISTOR 680



R1461 QRJ146J-2R2X UNF C RESISTOR 2.2Ω 1/4W J
R1481 NRSA63J-391X MG RESISTOR 390
R1482 NRSA63J-301X MG RESISTOR 300
R1483 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R1484 NRSA63J-103X MG RESISTOR 10k
R1485 NRSA63J-103X MG RESISTOR 10k
R1486 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R1487 NRSA63J-473X MG RESISTOR 47k
R1488 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R1495 NRSA63J-222X MG RESISTOR 2.2k
R1496 NRSA63J-222X MG RESISTOR 2.2k
R1497 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R1498 NRSA63J-222X MG RESISTOR 2.2k

CN401 QGF1205F1-17 CONNECTOR FFC/FPC (1-17)
CN402 QGF1205F1-16 CONNECTOR FFC/FPC (1-16)
J403 QNZ0516-001 RGB CONNECTOR

Ω

1/16W J

Ω

1/16W J

Ω

1/4W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

DVD loading main board

Block No. [0][7][0][0]



Symbol No.

IC101 AN8703FH-V IC

Part No. Part Name Description Local

IC201 BA5983FM-X IC
IC251 BA6664FM-X IC
IC301 MN103S26EGA IC
IC401 MN102L62GLF3 IC
IC451 S-93C66AFJ-X IC
IC501 NDV8611VWA IC
IC505 W986432DH-7 IC
IC509 SST39VF160-7CEK IC (FLASH)
IC510 AK93C65AF-X IC
IC511 LM1117MP1.8-X IC
IC512 74LCX373MTC-X IC(DIGITAL)
IC513 74LCX373MTC-X IC(DIGITAL)
IC521 MM74HCT32MTC-X IC
IC522 74LCX32MTC-X IC(DIGITAL)
IC523 NC7SZ125P5-X IC(DIGITAL)

Q101 KTA1001/Y/-X TRANSISTOR
Q102 KTA1001/Y/-X TRANSISTOR
Q103 DTA144EE-X DIGI TRANSISTOR
Q501 2SB1424/QR/-W TRANSISTOR
Q502 2SC2412K/RS/-X TRANSISTOR
Q801 2SC4617/R/-X TRANSISTOR
Q802 2SA1774/R/-X TRANSISTOR
Q803 2SC4617/R/-X TRANSISTOR
Q804 2SC4617/R/-X TRANSISTOR
Q805 2SC4617/R/-X TRANSISTOR
Q806 2SC4617/R/-X TRANSISTOR
Q807 DTC114EE-X DIGI TRANSISTOR
Q808 2SC4617/R/-X TRANSISTOR

D101 RB521S-30-X SB DIODE
D202 1SS355-X SI DIODE

C105 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C106 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C109 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C110 NCS31HJ-221X C CAPACITOR 220pF 50V J
C111 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C112 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C113 NEA70JM-226X E CAPACITOR 22uF 6.3V M
C115 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C116 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C117 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C118 NCB31CK-273X C CAPACITOR 0.027uF 16V K
C119 NCB31HK-561X C CAPACITOR 560pF 50V K
C120 NCB31HK-561X C CAPACITOR 560pF 50V K
C121 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C122 NCS31HJ-120X C CAPACITOR 12pF 50V J
C123 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C124 NCS31HJ-470X C CAPACITOR 47pF 50V J
C125 NCB31HK-271X C CAPACITOR 270pF 50V K
C126 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C127 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C128 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C129 NCB31HK-472X C CAPACITOR 4700pF 50V K
C135 NEA70JM-476X E CAPACITOR 47uF 6.3V M
C137 NEA70GM-476X E CAPACITOR 47uF 4V M
C138 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C139 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C141 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C142 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C143 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C144 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C146 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C201 NEA70JM-226X E CAPACITOR 22uF 6.3V M
C203 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C205 NCS31HJ-121X C CAPACITOR 120pF 50V J
C207 NCB31HK-391X C CAPACITOR 390pF 50V K
C208 NCB31HK-391X C CAPACITOR 390pF 50V K
C211 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C212 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C215 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C216 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C217 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C218 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C251 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C252 NEA71AM-336X E CAPACITOR 33uF 10V M

3-20



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

C253 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C255 NCB31CK-153X C CAPACITOR 0.015uF 16V K
C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C257 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C258 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C259 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C260 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C261 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C262 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C263 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C264 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C301 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C302 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C303 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C304 NEA70GM-107X E CAPACITOR 100uF 4V M
C306 NEA70GM-107X E CAPACITOR 100uF 4V M
C308 NEA70GM-107X E CAPACITOR 100uF 4V M
C310 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C311 NCB31HK-561X C CAPACITOR 560pF 50V K
C312 NCB31HK-561X C CAPACITOR 560pF 50V K
C313 NCB31HK-561X C CAPACITOR 560pF 50V K
C314 NCB31HK-331X C CAPACITOR 330pF 50V K
C315 NCB31HK-471X C CAPACITOR 470pF 50V K
C316 NCB31HK-271X C CAPACITOR 270pF 50V K
C317 NCS31HJ-121X C CAPACITOR 120pF 50V J
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31HK-102X C CAPACITOR 1000pF 50V K
C320 NCB31HK-102X C CAPACITOR 1000pF 50V K
C321 NCB31HK-102X C CAPACITOR 1000pF 50V K
C322 NCB31HK-562X C CAPACITOR 5600pF 50V K
C323 NCB31HK-102X C CAPACITOR 1000pF 50V K
C324 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C325 NCS31HJ-470X C CAPACITOR 47pF 50V J
C326 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C327 NCB31HK-102X C CAPACITOR 1000pF 50V K
C328 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C329 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C332 NCB21CK-105X C CAPACITOR 1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C338 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C340 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C341 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C342 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C343 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C344 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C345 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C346 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C401 NEA70GM-476X E CAPACITOR 47uF 4V M
C402 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C403 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C404 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C405 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C406 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C407 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C450 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C501 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C502 NCS31HJ-471X C CAPACITOR 470pF 50V J
C503 NCS31HJ-471X C CAPACITOR 470pF 50V J
C506 NCS31HJ-150X C CAPACITOR 15pF 50V J
C507 NCS31HJ-180X C CAPACITOR 18pF 50V J
C509 NCS31HJ-471X C CAPACITOR 470pF 50V J
C510 NCS31HJ-471X C CAPACITOR 470pF 50V J
C511 NEA70GM-476X E CAPACITOR 47uF 4V M
C512 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C513 NCS31HJ-471X C CAPACITOR 470pF 50V J
C514 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C515 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C516 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C517 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C518 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C519 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C520 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C523 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C524 NEA70GM-476X E CAPACITOR 47uF 4V M
C527 NEA70GM-476X E CAPACITOR 47uF 4V M
C528 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C529 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C531 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C532 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C533 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C534 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C535 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C536 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C539 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C540 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C541 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C542 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C543 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C544 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C545 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C547 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C548 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C549 NEA70GM-476X E CAPACITOR 47uF 4V M
C550 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C554 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C555 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C557 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C558 NCB11CK-105X C CAPACITOR 1uF 16V K
C569 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C571 NEA70GM-476X E CAPACITOR 47uF 4V M
C572 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C573 NEA70GM-227X E CAPACITOR 220uF 4V M
C578 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C580 NEA70GM-476X E CAPACITOR 47uF 4V M
C581 NEA70GM-227X E CAPACITOR 220uF 4V M
C582 NEA70GM-476X E CAPACITOR 47uF 4V M
C601 NEA70GM-476X E CAPACITOR 47uF 4V M
C602 NEA70GM-476X E CAPACITOR 47uF 4V M
C618 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C619 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C801 NCS31HJ-680X C CAPACITOR 68pF 50V J
C802 NCS31HJ-680X C CAPACITOR 68pF 50V J
C803 NCS31HJ-120X C CAPACITOR 12pF 50V J
C804 NCS31HJ-102X C CAPACITOR 1000pF 50V J
C805 NCS31HJ-820X C CAPACITOR 82pF 50V J
C806 NCS31HJ-221X C CAPACITOR 220pF 50V J
C807 NCS31HJ-180X C CAPACITOR 18pF 50V J
C808 NCS31HJ-181X C CAPACITOR 180pF 50V J
C809 NCB31HK-392X C CAPACITOR 3900pF 50V K
C810 NCB31CK-183X C CAPACITOR 0.018uF 16V K
C902 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C904 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C906 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C908 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C992 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C993 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C994 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C995 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C996 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C997 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C998 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C1000 NCS31HJ-471X C CAPACITOR 470pF 50V J
C1001 NCS31HJ-471X C CAPACITOR 470pF 50V J
C1002 NCS31HJ-471X C CAPACITOR 470pF 50V J
C1003 NCS31HJ-471X C CAPACITOR 470pF 50V J
C1004 NCS31HJ-471X C CAPACITOR 470pF 50V J
C1005 NCS31HJ-471X C CAPACITOR 470pF 50V J

R101 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R102 NRSA63J-223X MG RESISTOR 22k
R103 NRSA63J-223X MG RESISTOR 22k
R104 NRS125J-270X MG RESISTOR 27Ω 1/2W J
R105 NRS125J-270X MG RESISTOR 27
R106 NRSA63J-273X MG RESISTOR 27k
R107 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R108 NRSA63J-222X MG RESISTOR 2.2k
R109 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

Ω

1/16W J

Ω

1/2W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-21



Symbol No.

Part No. Part Name Description Local



Symbol No.

Part No. Part Name Description Local

R110 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R111 NRVA63D-243X CMF RESISTOR 24kΩ 1/16W D
R112 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R113 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R114 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R115 NRSA63J-0R0X MG RESISTOR 0
R116 NRSA63J-0R0X MG RESISTOR 0
R117 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R119 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R120 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R125 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R126 NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R127 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R128 NRS125J-1R0X MG RESISTOR 1Ω 1/2W J
R129 NRS125J-1R0X MG RESISTOR 1Ω 1/2W J
R130 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J
R201 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R202 NRS125J-1R0X MG RESISTOR 1Ω 1/2W J
R203 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R204 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R205 NRSA63J-273X MG RESISTOR 27k
R206 NRSA63J-303X MG RESISTOR 30k
R207 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R208 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R209 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R210 NRSA63J-242X MG RESISTOR 2.4kΩ 1/16W J
R211 NRSA63J-242X MG RESISTOR 2.4kΩ 1/16W J
R212 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R213 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R214 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R215 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R216 NRSA63J-912X MG RESISTOR 9.1kΩ 1/16W J
R217 NRSA63J-201X MG RESISTOR 200Ω 1/16W J
R218 NRSA63J-221X MG RESISTOR 220Ω 1/16W J
R219 NRSA63J-183X MG RESISTOR 18kΩ 1/16W J
R220 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J
R221 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J
R222 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R223 NRSA63J-912X MG RESISTOR 9.1kΩ 1/16W J
R224 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R251 NRS125J-R47X MG RESISTOR 0.47Ω 1/2W J
R252 NRSA63J-2R2X MG RESISTOR 2.2Ω 1/16W J
R253 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R254 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J
R255 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R256 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R258 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R259 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R301 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R302 NRSA63J-473X MG RESISTOR 47k
R303 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R304 NRSA63J-473X MG RESISTOR 47k
R305 NRSA63J-473X MG RESISTOR 47k
R306 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R307 NRSA63J-473X MG RESISTOR 47k
R308 NRSA63J-0R0X MG RESISTOR 0
R309 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R313 NRSA63J-473X MG RESISTOR 47k
R317 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R319 NRSA63J-473X MG RESISTOR 47k
R320 NRSA63J-105X MG RESISTOR 1M
R321 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R323 NRSA63J-473X MG RESISTOR 47k
R324 NRSA63J-473X MG RESISTOR 47k
R325 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J
R326 NRSA63J-473X MG RESISTOR 47k
R327 NRSA63J-105X MG RESISTOR 1M
R328 NRSA63J-183X MG RESISTOR 18k
R329 NRSA63J-473X MG RESISTOR 47k
R332 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R333 NRSA63J-183X MG RESISTOR 18k
R334 NRSA63J-102X MG RESISTOR 1k
R336 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J
R337 NRSA63J-273X MG RESISTOR 27k
R338 NRSA63J-472X MG RESISTOR 4.7k
R339 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R340 NRSA63J-103X MG RESISTOR 10k
R341 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

R402 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R403 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R405 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R411 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R413 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R414 NRSA63J-472X MG RESISTOR 4.7k
R421 NRSA63J-0R0X MG RESISTOR 0
R422 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R423 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R424 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R427 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R428 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R501 NRSA63J-470X MG RESISTOR 47Ω 1/16W J
R512 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R521 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R531 NRSA63J-562X MG RESISTOR 5.6kΩ 1/16W J
R532 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R533 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R534 NRSA63J-561X MG RESISTOR 560Ω 1/16W J
R535 NRSA63J-333X MG RESISTOR 33kΩ 1/16W J
R536 NRSA63J-102X MG RESISTOR 1k
R541 NRSA63J-0R0X MG RESISTOR 0
R542 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R543 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R544 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R547 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R548 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R549 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R550 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R551 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R552 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R553 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R565 NRVA63D-622X CMF RESISTOR 6.2kΩ 1/16W D
R566 NRVA63D-132X CMF RESISTOR 1.3kΩ 1/16W D
R570 NRSA63J-100X MG RESISTOR 10Ω 1/16W J
R573 NRSA63J-162X MG RESISTOR 1.6kΩ 1/16W J
R574 NRSA63J-162X MG RESISTOR 1.6kΩ 1/16W J
R575 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R576 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R578 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R579 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R580 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R583 NRSA63J-471X MG RESISTOR 470Ω 1/16W J
R584 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J
R608 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R655 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R738 NRSA63J-152X MG RESISTOR 1.5kΩ 1/16W J
R739 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R740 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R801 NRSA63J-123X MG RESISTOR 12k
R802 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J
R803 NRSA63J-122X MG RESISTOR 1.2k
R804 NRSA63J-821X MG RESISTOR 820
R805 NRSA63J-242X MG RESISTOR 2.4kΩ 1/16W J
R806 NRSA63J-821X MG RESISTOR 820
R807 NRSA63J-222X MG RESISTOR 2.2k
R808 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J
R809 NRSA63J-223X MG RESISTOR 22k
R810 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J
R811 NRSA63J-103X MG RESISTOR 10k
R812 NRSA63J-103X MG RESISTOR 10k
R813 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
R814 NRSA63J-103X MG RESISTOR 10k
R815 NRSA63J-821X MG RESISTOR 820
R816 NRSA63J-820X MG RESISTOR 82Ω 1/16W J
R817 NRSA63J-103X MG RESISTOR 10k
R818 NRSA63J-102X MG RESISTOR 1k
R991 NRSA63J-220X MG RESISTOR 22

L501 NQL044K-100X COIL 10uH K
CN101 QGF0522F1-30W CONNECTOR FFC/FPC (1-30)

CN201 QGF1016F2-15W CONNECTOR FFC/FPC (1-15)
CN202 QGF1016F2-06W CONNECTOR FFC/FPC (1-6)
CN502 QGB2027L1-26X CONNECTOR B-B (1-26)
CN503 QGB2027L1-26X CONNECTOR B-B (1-26)
K101 NQR0007-002X FERRITE BEADS
K301 NQR0007-002X FERRITE BEADS

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

Ω

1/16W J

3-22



Symbol No.

K302 NQR0007-002X FERRITE BEADS
K303 NQR0007-002X FERRITE BEADS
K304 NQR0007-002X FERRITE BEADS
K401 NQR0007-002X FERRITE BEADS
K501 NQR0007-002X FERRITE BEADS
K504 NQR0007-002X FERRITE BEADS
K505 NQR0007-002X FERRITE BEADS
K507 NQR0007-002X FERRITE BEADS
K508 NQR0007-002X FERRITE BEADS
K509 NQR0007-002X FERRITE BEADS
K510 NQR0007-002X FERRITE BEADS
K513 NQR0007-002X FERRITE BEADS
K515 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K518 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K519 NQR0007-002X FERRITE BEADS
K520 NQR0007-002X FERRITE BEADS
K556 NQR0129-002X FERRITE BEADS
K557 NQR0129-002X FERRITE BEADS
K558 NQR0129-002X FERRITE BEADS
K559 NQR0129-002X FERRITE BEADS
K560 NRSA02J-0R0X MG RESISTOR 0
K561 NRSA02J-0R0X MG RESISTOR 0
K562 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K563 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K564 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K565 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K566 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K567 NQR0007-002X FERRITE BEADS
K568 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K569 NQR0007-002X FERRITE BEADS
K570 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K571 NQR0007-002X FERRITE BEADS
K572 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K573 NQR0007-002X FERRITE BEADS
K574 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K575 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K576 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K577 NQR0007-002X FERRITE BEADS
K578 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K579 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K582 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
K586 NRSA02J-0R0X MG RESISTOR 0Ω 1/10W J
X301 NAX0542-001X C RESONATOR 16.93MHz
X401 NAX0543-001X C RESONATOR 13.50MHz
X571 NAX0513-001X CRYSTAL 27.000MHz

Part No. Part Name Description Local

Ω

1/10W J

Ω

1/10W J

DVD loading switch board

Block No. [0][8][0][0]



Symbol No.

CN1 QGF1016F3-06 CONNECTOR FFC/FPC (1-6)
S1 QSW0910-002 SWITCH
S2 QSW0910-002 SWITCH

Part No. Part Name Description Local

3-23

Packing materials and accessories parts list

(B,E version)

P7

P8

A1,

A2,A3,

P6

A4,A5,A7

P3

1/2

P4

Block No.

M

3

M

M

P4

P3

A6

2/2

P2

2/2

P5

P1

P2

1/2

P3

P4

P7

A6

2/2

(EN version)

A1

P6

A2,A3,A4,A5

P9

P2

2/2

P5

P3

P4

1/2

P2

1/2

3-24

P1

Packing and accessories

Block No. [M][3][M][M]



Symbol No.

Part No. Part Name Description Local

A 1 LVT1001-003A INST BOOK ENG
A 1 LVT1001-004A INST BOOK GER FRE DUT
A 1 LVT1001-005A INST BOOK

A 2 ------------------ BATTERY (x2)
A 3 QAL0457-001 ANT.WIRE
A 4 QAL0014-001 AM LOOP ANT
A 5 BT-54013-6 WARRANTY CARD
A 6 RM-SRXDV31R REMOCON

A 7 VNA3000-204 REGISTER CARD
P 1 LV33697-033A CARTON

P 1 LV33697-032A CARTON

P 2 LV21223-002A CUSHION(F)
P 3 LV21224-002A CUSHION(R)

P 4 LV32034-005A SHEET (x2)

P 5 QPC06507015P POLY BAG 65cm x 70cm

P 6 QPA02503505P POLY BAG 25cm x 35cm

P 6 QPA02704003P POLY BAG 27cm x 40cm
P 7 LV34501-001A CARTON SPACER
P 8 LV32804-001A PACKING SHEET

P 9 QPA01702503P POLY BAG 17cm x 25cm

GER FRE SPA I TA
DAN FIN SWE

DV31
SLB

DV31
SLE

DV31
SLEN

DV31
SLB
DV31
SLB

DV31
SLE,D
V31S
LEN

DV31
SLE,D
V31S
LEN

DV31
SLB,D
V31S
LE
DV31
SLEN

DV31
SLB
DV31
SLEN

3-25
