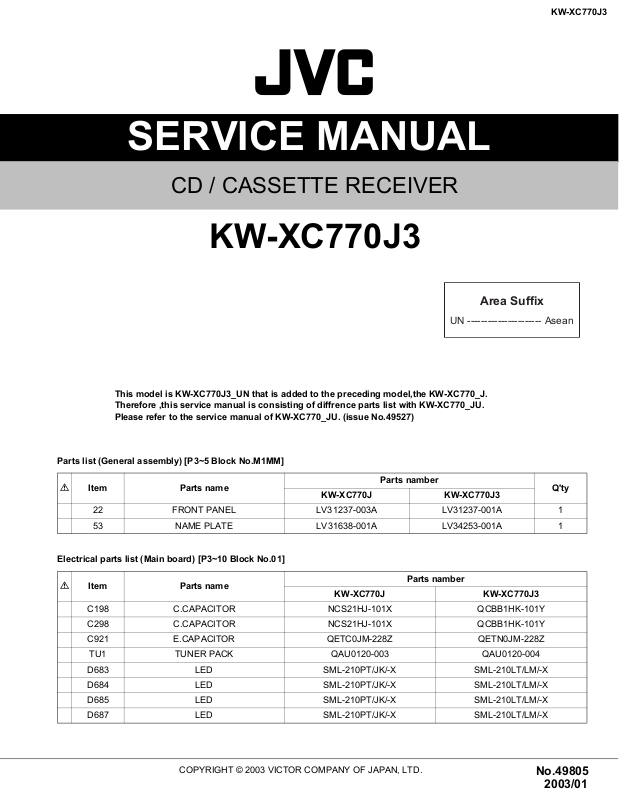

JVC KW-XC770J3 Service Manual
49805200301
KW-XC770J3
SERVICE MANUAL
CD / CASSETTE RECEIVER
KW-XC770J3
Area Suffix
UN ---------------------- Asean
This model is KW-XC770J3_UN that is added to the preceding model,the KW-XC770_J.
Therefore ,this service manual is consisting of diffrence parts list with KW-XC770_JU.
Please refer to the service manual of KW-XC770_JU. (issue No.49527)
Parts list (General assembly) [P3~5 Block No.M1MM]
Item Parts name
22 FRONT PANEL LV31237-003A LV31237-001A 1
53 NAME PLATE LV31638-001A LV34253-001A 1
Electrical parts list (Main board) [P3~10 Block No.01]
Item Parts name
C198 C.CAPACITOR NCS21HJ-101X QCBB1HK-101Y
C298 C.CAPACITOR NCS21HJ-101X QCBB1HK-101Y
C921 E.CAPACITOR QETC0JM-228Z QETN0JM-228Z
TU1 TUNER PACK QAU0120-003 QAU0120-004
D683 LED SML-210PT/JK/-X SML-210LT/LM/-X
D684 LED SML-210PT/JK/-X SML-210LT/LM/-X
D685 LED SML-210PT/JK/-X SML-210LT/LM/-X
D687 LED SML-210PT/JK/-X SML-210LT/LM/-X
KW-XC770J KW-XC770J3
KW-XC770J KW-XC770J3
Parts namber
Parts namber
Q'ty
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.
No.49805
2003/01
KW-XC770J3
Parts list (Accessories) [P3~19 Block No.M5MM]
Item Parts name
A3
WARRANTY CARD BT-51018-2 --------------
WARRANTY CARD BT-52001-4 --------------
A4 REGIST CARD BT-51020-2 -------------- 1
A5 SVC CENTER LIST BT-20071B -------------- 1
A6
A7
TROUBLE SHOOTING LVT0328-001B --------------
TROUBLE SHOOTING LVT0326-001C --------------
INFO. SHEET LV41155-001A --------------
INFO. SHEET LV41679-001A --------------
A8 CAUTION SHEET LV0430-001A -------------- 1
Manufactured under license from
Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks
of Dolby Laboratories.
MOD
CD/CASSETTE RECEIVER
DC 12 V NEGATIVE GROUND
SERIAL NO.
VICTOR COMPANY OF JAPAN, LIMITED
DESTINATION
EL NO.
KW-XC770
MADE IN INDONESIA
Parts namber
KW-XC770J KW-XC770J3
ORANGE WITH
WHITE LINE
YELLOW
BLACK
GRAY
GRAY WITH
BLACK LINE
PURPLE
(Ð)
ILLUMINATION
BATTERY
GROUND
LEADS
LV34253-001A
J3
BLUE WITH
WHITE LINE
REMOTE
(MAX. 200mA)
ACCESSORY
FRONT
SP.Lch
REAR
SP.Lch
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
RED
WHITE
+
WHITE WITH
BLACK LINE
_
GREEN
+
GREEN WITH
BLACK LINE
_
DO NOT CONNECT SPEAKER NEGATIVE
TOGETHER OR TO CHASSIS GROUND
PURPLE WITH
BLACK LINE
Q'ty
1
1
1
+
FRONT
SP.Rch
_
+
REAR
SP.Rch
_
VICTOR COMPANY OF JAPAN, LIMITED
AV & MULTIMEDIA COMPANY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
(No.49805)
Printed in Japan
200301WPC
