KW-M560BT

MONITOR WITH RECEIVER

INSTRUCTION MANUAL

• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <https ://ww w.jvc. net/c s/car/>.

Contents

Before Use 4

Precautions ................................................................... 4

How to read this manual ......................................... 4

Basic Operations 5

Functions of the Buttons on the Front Panel ... 5

Turning on the Unit ................................................... 5

Getting Started............................................................ 6

Adjusting the volume ............................................... 7

Touch screen operations ......................................... 7

HOME screen descriptions ...................................... 8

Source selection screen descriptions .................. 8

Source control screen descriptions ...................10

FUNCTION screen .....................................................11

List screen ...................................................................11

APPS 12

Apple CarPlay Operation .......................................12

Android Auto Operation ........................................13

USB Mirroring Operation .......................................14

USB 15

Connecting a USB device ......................................15

USB Basic Operation ................................................15

Search Operation ......................................................17

Tuner 18

Tuner Basic Operation ............................................18

Memory Operation ..................................................19

Selecting Operation ................................................19

Traffic Information ...................................................20

Tuner Setup ................................................................20

Bluetooth Control 21

Information for using Bluetooth® devices .......21

Bluetooth Setup ........................................................22

Playing Bluetooth Audio Device .........................23

Using Hands-Free Unit ............................................25

Other External Components 29

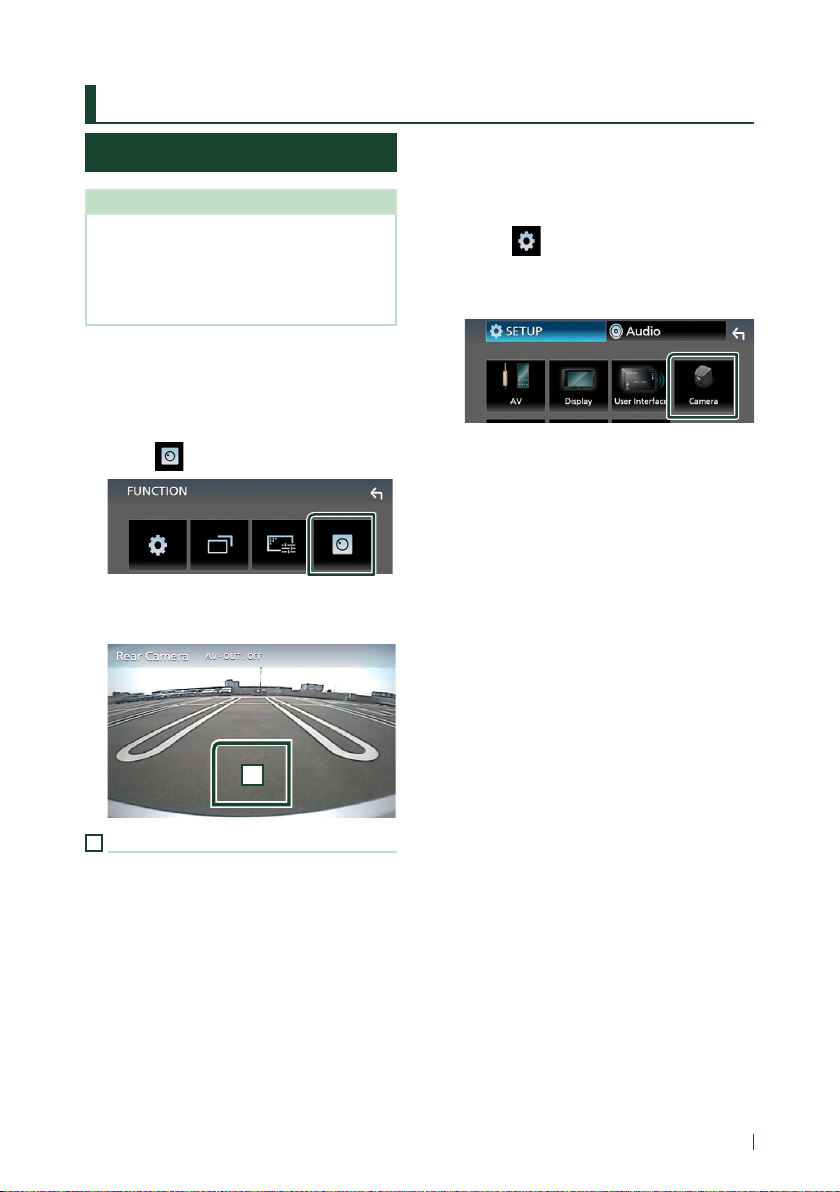

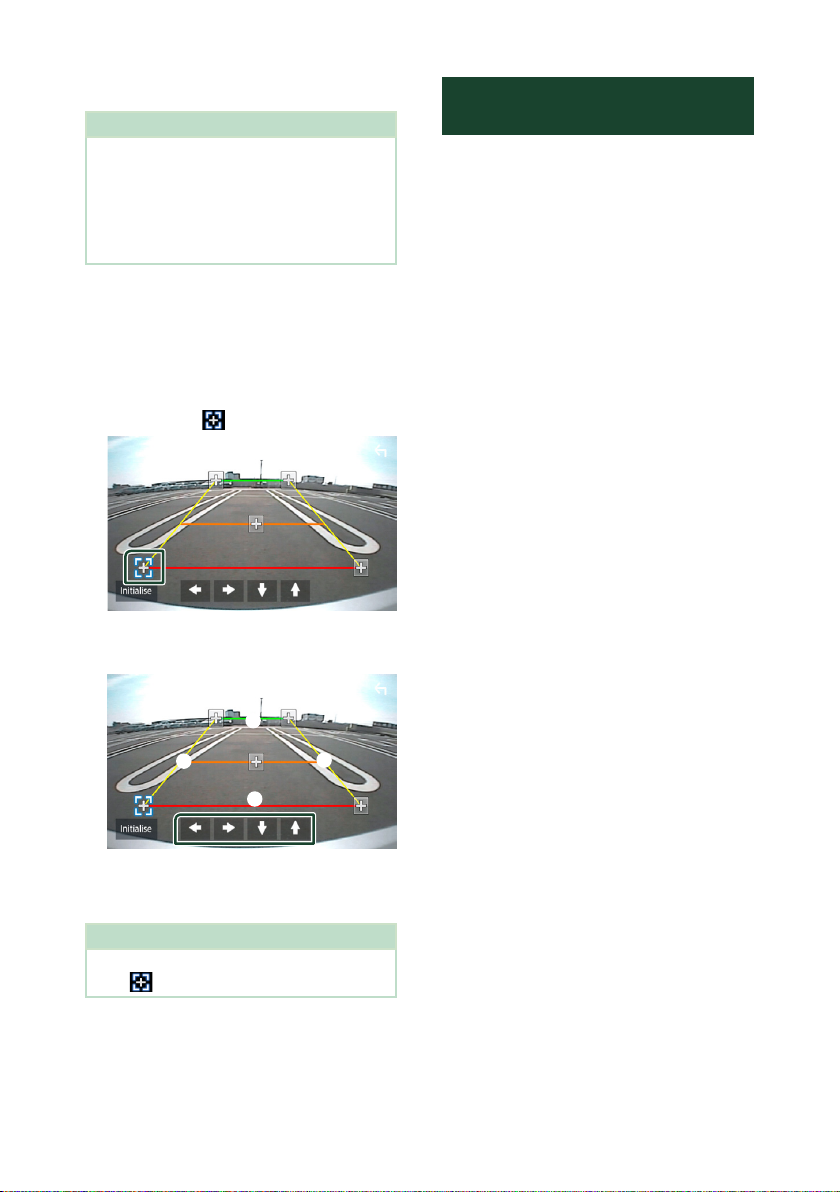

View Camera ..............................................................29

External audio/video players—AV-IN ...............30

Setting Up 31

Monitor Screen Setup .............................................31

System Setup .............................................................31

User Interface Setup ................................................32

Special Setup .............................................................33

Display Setup .............................................................33

AV Setup ......................................................................34

Controlling Audio 35

Speaker/ X’over setup .............................................35

Controlling General Audio ....................................36

Equalizer Control ......................................................37

Volume Offset ............................................................38

Sound Effect ...............................................................38

Listening Position/ DTA ..........................................39

Remote control 40

Functions of the Remote control Buttons .......40

Connection/Installation 41

Before Installation ....................................................41

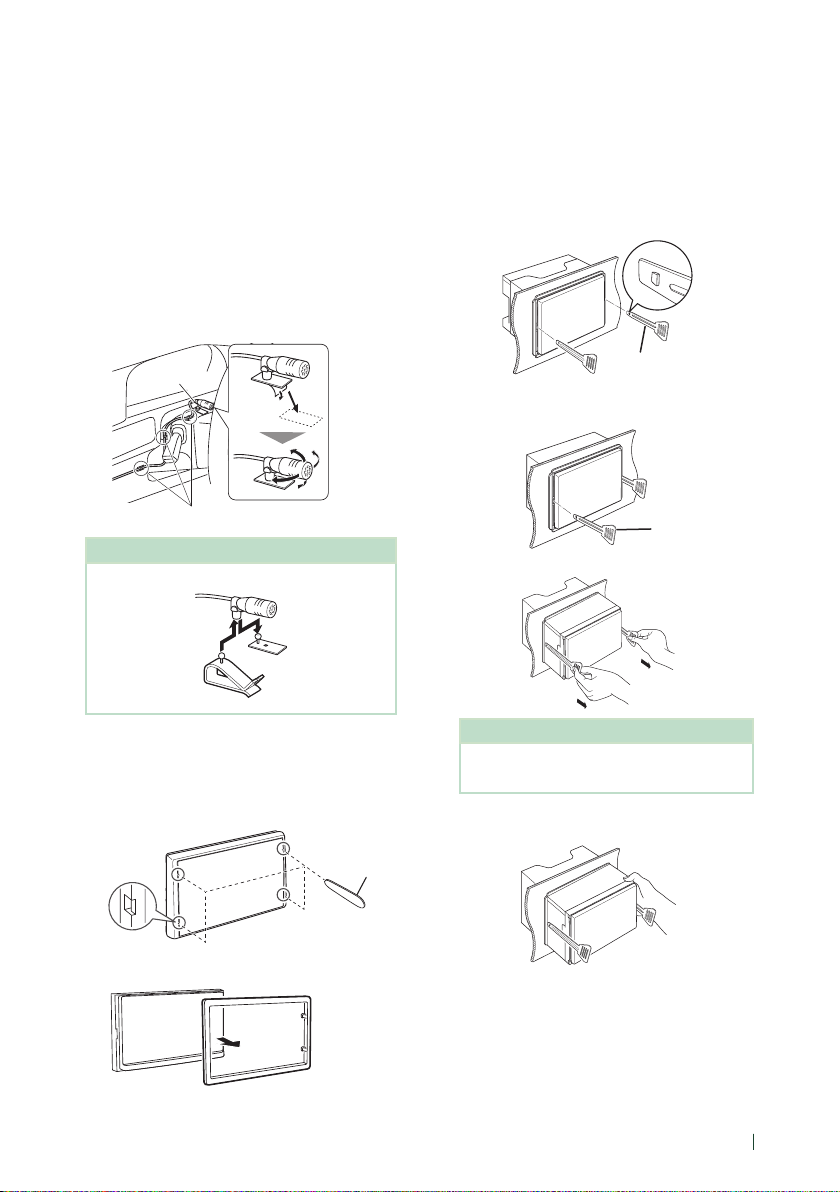

Installing the unit .....................................................42

Troubleshooting 46

Problems and Solutions .........................................46

Error Messages ..........................................................46

Appendix 47

Playable Media and Files........................................47

Specifications .............................................................48

About this Unit ..........................................................50

3English

Before Use

Precautions

# WARNINGS

Ñ To prevent injury or re, take

the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or ﬁx your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your JVC dealer.

Ñ Precautions on using this unit

• When you purchase optional accessories, check with your JVC dealer to make sure that they work with your model and in your area.

• You can select language to display menus, audio ﬁle tags, etc. See User Interface Setup (P.32).

• The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station.

Ñ Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip.

Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain oﬀ with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

NOTE

• Applying spray cleaner directly to the unit may

aﬀect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

Ñ How To Reset Your Unit

• If the unit or the connected unit fails to operate properly, reset the unit. Press the <Reset> button.The unit returns to factory settings.

Reset button

NOTE

• Disconnect the USB device before pressing the

<Reset> button. Pressing the <Reset> button with the USB device connected can damage the data stored in the USB device. For how to disconnect the USB device, see Disconnect the USB device (P.15).

• When the unit is turned on after reset ting, the

Initial SETUP screen appears. See Initial setup (P.6).

How to read this manual

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be diﬀerent from the actual screens or panels used, or some display patterns may be diﬀerent.

• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the [SETUP] menu. See User Int erface Setu p (P.32).

Basic Operations

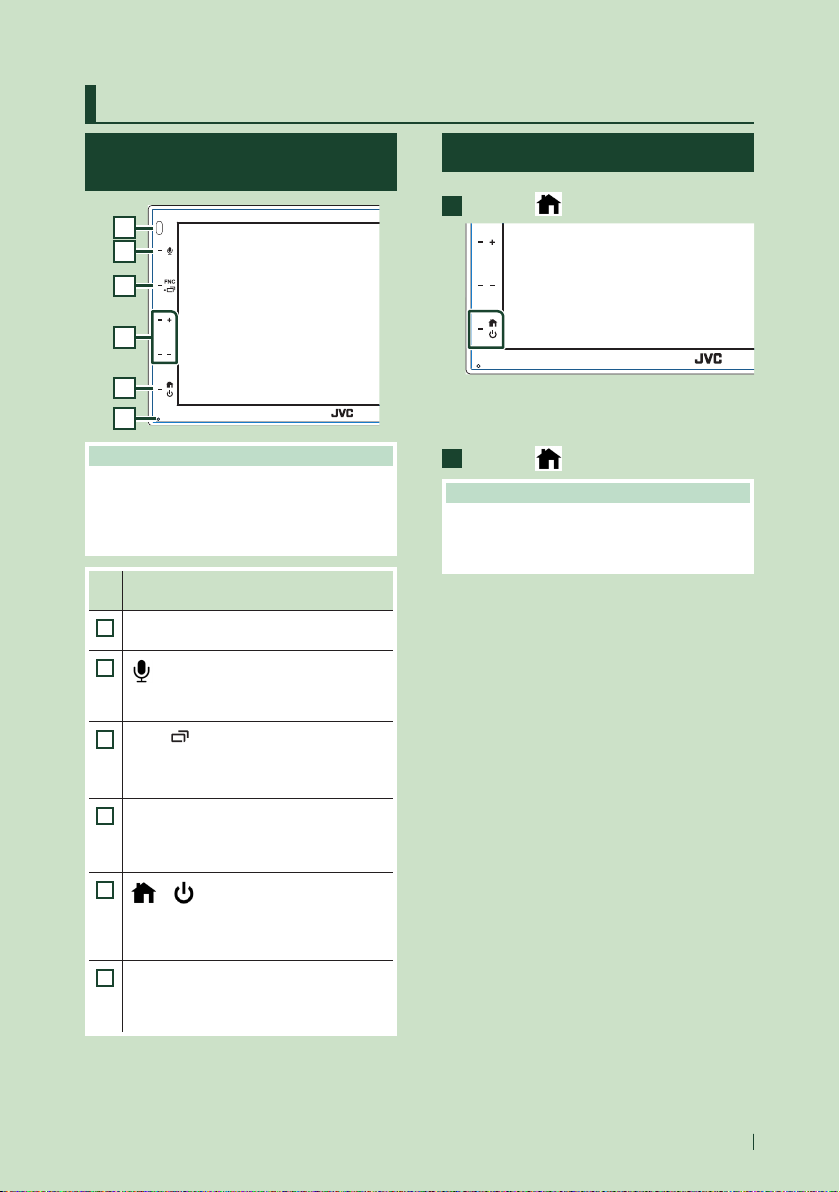

Functions of the Buttons on the Front Panel

1 2

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be diﬀerent from the actual panels.

Name

• Motion

Remote Sensor

• Receives the remote control signal.

[ ]

• Displays the Voice Recognition screen (P. 26).

[FNC] / [ ]

• Displays the FUNCTION screen.

• Pressing for 1 second displays the APP (Apple CarPlay/ Android Auto) screen.

[＋], [−] (Volume)

• Adjusts volume. The volume will go up until 15 when you keep pressing ＋.

[ ] / [ ]

• Displays the HOME screen (P.8).

• Pressing for 1 second turns the power off.

• When the power off, turns the power on.

Reset

• If the unit or the connected unit fails to operate properly, the unit returns to initial settings when this button is pressed.

Turning on the Unit

Press the [ ] button.

 The unit is turned on.

● To turn off the unit:

Press the [ ] button for 1 second.

NOTE

• If it is your ﬁrst time turning the unit on af ter installation, it will be necessary to perform Initial setup (P. 6).

5English

Basic Operations

Getting Started

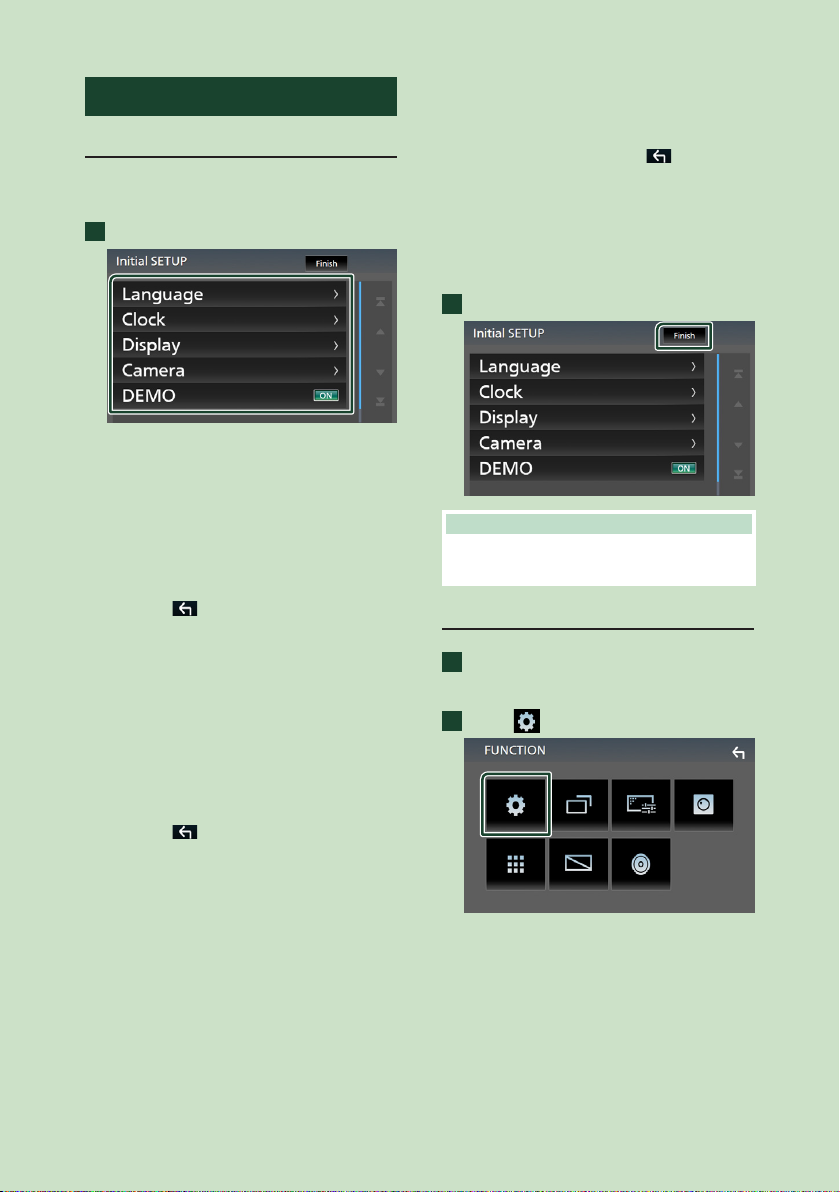

Initial setup

Perform this setup when you use this unit ﬁrst time.

Set each item as follows.

■ [Language]

Select the language used for the control screen and setting items. Default is “[British English(en)]”.

1Touch [Language]. 2Touch [Language]. 3Select the desired language. 4Touch [

■ [Clock]

Adjusts clock. For detailed operation, see Calendar/clock

settings (P.6).

■ [Display]

Set the image on the screen.

1Touch [Display]. 2Touch [Background]. 3Select the image. 4Touch [

For detailed operation, see Display Setup (P. 33).

■ [Camera]

Set the parameters for the camera.

1Touch [Camera]. 2Set each item and touch [

For detailed operation, see Camera Setup (P. 29).

■ [DEMO]

Set the demonstration mode. Default is “ON”.

1Touch [DEMO] and set [ON] or [OFF].

Touch [Finish].

NOTE

• These settings can be set from the SETUP menu. See Set ting Up (P.31).

Calendar/clock settings

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP Menu screen appears.

Basic Operations

Touch [User Interface].

 User Interface screen appears.

Touch [Clock Adjust].

Adjust the date, then adjust the time.

Touch [Set].

NOTE

• Deactivate [RDS C T] before adjusting the clock. See Tuner Se tup (P.20).

Adjusting the volume

To adjust the volume (0 to 40), Press [＋] to increase, and press [−] to decrease. Holding [＋] increases the volume continuously

to level 15.

Touch screen operations

To perform operations on the screen, you need to touch, touch and hold, ﬂick or swipe to select an item, display setting menu screen or to change the page, etc.

● Touch

Touch the screen gently to select an item on the screen.

● Touch and hold

Touch the screen and keep your ﬁnger in place until the display changes or a message is displayed.

● Flick

Slide your ﬁnger quickly to the left or right on the screen to change the page.

You can scroll the list screen by ﬂicking the screen up/ down.

● Swipe

Slide your ﬁnger up or down on the screen to scroll the screen.

7English

Basic Operations

Gesture Touch Control:

You can also control playback by moving your ﬁnger on the touch panel as follows (for some sources, the gesture control is not available).

• Sliding the ﬁnger towards up/down:

- Functions same as pressing [

] / [ ]

(Media) in the USB Control screen.

- For the Tuner, tuner preset broadcast stations are switched.

• Sliding the ﬁnger towards left/right: Functions

same as pressing [E] / [F].

• Moving your ﬁnger clockwise or counterclockwise: increases/decreases the volume.

HOME screen descriptions

Most functions can be performed from the HOME screen.

1 2 3 1

Display the HOME screen

Press the [ ] button.

 HOME screen appears.

Source selection screen descriptions

You can display all playback sources and options on the source selection screen.

2 3

• Changes the playback source.

For playback sources, see Select the playback source (P.9).

• Returns to previous screen.

• Displays the SETUP Menu screen. (P. 31)

41 5 6

• Short-cut playback source icons. (P. 9)

• Current source information.

• Touch to display the control screen of current source.

• Widget

• Displays the source selection screen. (P.9)

• Displays the SETUP Menu screen. (P. 31)

• Displays the Hands Free screen. ( P.25)

• When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

Basic Operations

Select the playback source

Touch [ ] on the HOME screen.

From the screen, you can select the following sources and functions.

• Switches to the Apple CarPlay screen from the connected iPhone. (P. 12)

• Switches to the USB Mirroring screen from the connected Android smartphone.

(P. 14)

It is necessary to connect Android smartphone with “Mirroring OA for JVC” application installed and to set [Mode] to [Mirroring for Android™]. (P. 14)

• Switches to the Radio broadcast. (P.18)

• Displays the Hands Free screen. ( P.25) When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, displays "[Disconnected]" message in the TEL screen. When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

• Switches to the Android Auto screen from the connected Android smartphone.

(P. 13)

It is necessary to connect Android smartphone compatible with Android Auto and to set [Mode] to [Android Auto]. (P. 14)

• Plays a Bluetooth audio player. (P. 21)

To select the playback source on the HOME screen

The 3 items displayed on the source selection screen as the large icons are shown on the HOME screen.

You can change items displayed on this area by customizing the source selection screen.

(P.10)

To turn o the AV source

Touch [ ] on the HOME screen.

Touch [AV Off].

• Plays files on a USB device. ( P.15)

• Switches to an external component connected to the AV-IN input terminal.

(P. 30)

• Turns off the AV source. (P. 9)

9English

Basic Operations

Customize Short-cut buttons on HOME screen

You can arrange the position of the source icons as you like.

Touch [ ] on the HOME screen.

Touch and hold the icon which you want

to move to go into the customizing mode.

Drag it where you want to move.

Source control screen descriptions

There are some functions which can be operated from most screens.

Indicators

Secondary screen

]/[ ] : The Secondary screen changes every

• [ time you touch it. You can also change the Secondary screen by ﬂicking lef t or right on the screen.

• Indicators: Displays the current source condition and so on.

– [MUTE]: The mute function is ac tive. – [LOUD]: The loudness control function is on.

• Sub menu

– [ ]: Operation when the icon is touched:

The ﬁrst touch darkens the screen, the second touch darkens the screen fur ther, and the third touch restores the screen to its original brightness.

– [

]: Displays the Graphic Equalizer screen.

(P. 37)

– [

]: Displays the APP (Apple CarPlay/ Android

Auto) screen (P.12 ).

[Û]

Touch to display the Hands Free screen.

(P. 25)

When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

Sub menu

[ ]/[ ]

Connected Bluetooth device information.

All sources icon

Displays all sources.

Basic Operations

FUNCTION screen

Press the [FNC] button.

 FUNCTION screen appears.

Touch to display the FUNCTION screen.

The contents of the menu are as follows.

• Displays the SETUP Menu screen. (P. 31)

• Displays the APP (Apple CarPlay/ Android Auto) screen. (P. 12)

• Displays the Screen Adjust screen.

(P. 31)

• Displays the view camera. (P.29)

• Displays the source selection screen.

(P. 9)

• Turns the display off. (P. 11)

• Displays the Audio screen. ( P.35)

• Close the FUNCTION screen.

List screen

There are some common function keys in the list screens of most sources.

61 2

3 4 5

Displays list type selection window.

Displays music/movie ﬁle list.

Text scroll

Scrolls the displayed text.

etc.

Keys with various functions are displayed here.

] : Plays all tracks in the folder containing

• [ the current track.

• [

] [ ] : Moves to the upper hierarchy.

[ ] / [ ] / [ ] / [ ] Page scroll

You can change the page to display more items by pressing [

]/[ ] : Displays the top or bottom page.

• [

]/[ ].

Turn o the screen

Select [ ] on the FUNCTION screen.

● To turn on the screen

Touch the display.

Return

Returns to previous screen.

NOTE

• Buttons which cannot be activated from the list screen are not displayed.

11English

APPS

Apple CarPlay Operation

Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.

For details about Apple CarPlay, visit

https://www.apple.com/ios/carplay/.

Compatible iPhone devices

You can use Apple CarPlay with the following iPhone models.

• iPhone 11 Pro Max

• iPhone 11 Pro

• iPhone 11

• iPhone XR

• iPhone XS Max

• iPhone XS

• iPhone X

• iPhone 8 Plus

• iPhone 8

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPhone 6 Plus

• iPhone 6

• iPhone 5s

• iPhone 5c

• iPhone 5

Ñ Preparation

[ ]

• Displays the home screen of Apple CarPlay.

• Touch and hold to activates Siri.

Application buttons

Starts the application.

[HOME]

Exits the Apple CarPlay screen and displays the Home screen.

To exit the Apple CarPlay screen

Press the [ ] button.

Ñ Use Siri

You can activate Siri.

Press the [ ] button.

Connect iPhone using KS-U62 via USB

terminal. (P. 45)

When iPhone compatible with Apple CarPlay is connected to the USB terminal, the Bluetooth smartphone currently connected is disconnected.

Unlock your iPhone.

Ñ Operation buttons and

available Apps on the home screen of Apple CarPlay

You can use the Apps of the connected iPhone. The items displayed and the language used on

the screen diﬀer among the connected devices. To enter Apple CarPlay mode, touch

[Apple CarPlay] icon in the source selection screen. (P.9)

Talk to Siri.

Ñ Switch to the Apple CarPlay

screen while listening to another source

Press the [FNC] / [ ] button for 1 second.

Press for 1 second

NOTE

• If sound is output using Apple CarPlay when the Apple CarPlay screen is displayed, the source is switched to Apple CarPlay.

APPS

Android Auto™ Operation

Android Auto enables you to use functions of your Android smartphone convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android smartphone while driving.

For details about Android Auto, visit

https://www.android.com/auto/ and https://support.google.com/androidauto.

Compatible Android smartphone

You can use Android Auto with Android smartphone of Android version 5.0 or later.

NOTE

• Android Auto may not be available on all devices and is not available in all countries or regions.

Ñ Preparation

Connect an Android smartphone via USB

terminal. (P. 45)

To use the hands-free function, connect the Android smartphone via Bluetooth.

When an Android smartphone compatible with Android Auto is connected to the USB terminal, the device is connected via Bluetooth automatically, and the Bluetooth smartphone currently connected is disconnected.

Unlock your Android smartphone.

NOTE

• To use the Android Auto, It is necessary to set [Mode] to [Android Auto]. (P.14)

To enter Android Auto mode, touch [Android Auto] icon in the source selection screen. (P.9)

Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen

Press the [ ] button.

Ñ Using voice control

Press the [ ] button.

To cancel

Press the [ ] button.

Ñ Switch to the Android Auto

screen while listening to another source

Press the [FNC] / [ ] button for 1 second.

Press for 1 second

Ñ Operation buttons and

available Apps on the Android Auto screen

You can perform the operations of the Apps of the connected Android smartphone.

The items displayed on the screen diﬀer among the connected Android smartphone.

NOTE

• If sound is output using Android Auto when the Android Auto screen is displayed, the source is switched to Android Auto.

13English

APPS

USB Mirroring Operation (Android only)

You can display and control the App on the unit while your smartphone is connected to the USB terminal.

Ñ Preparation

Download Mirroring App from the Google

Play.

Install the latest version of the Mirroring application “Mirroring OA for JVC” on your Android.

Pair your smartphone with the unit via

Bluetooth.

See Register from the Bluetooth device (P. 22) and Connect the Bluetooth device (P. 23).

Ñ Select a Device Mode

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP screen appears.

Touch [Device].

Ñ Compatible Android

smartphone

• Android version 7.0 or later

• Linux Kernel version 3.5 or later

• Bluetooth support

NOTE

• This unit may not work for some Android smartphone's.

Ñ Connecting an Android

smartphone

Connect an Android smartphone via the

USB terminal.

Launch Mirroring App on your Android

Smartphone.

Touch [OK] to start Mirroring App. Touch [Start now] to start capturing your

Android screen.

Start to enjoy Mirroring.

Ñ Mirroring OA Operation

Operate your smartphone to activate

Mirroring App, then connect to this unit.

Press the [ ] button.

Touch [USB Mirroring].

Touch [Mode].

Touch [Mirroring for Android™].

• You can display the same screen of the Android smartphone on the monitor of the unit.

USB

Connecting a USB device

Connect the USB device with the USB

cable. (P. 44)

Press the [ ] button.

Touch [ ].

Touch [USB]. (P.9)

Ñ Disconnect the USB device

Press the [ ] button.

Touch [ ].

Touch a source other than [USB].

Detach the USB device.

Ñ Usable USB device

You can use a mass-storage-class USB device on this unit.

The word “USB device” appearing in this manual indicates a ﬂash memory device.

● About file system

The ﬁle system should be the one of the following.

• FAT16 • FAT32 • e xFAT

NOTE

• Install the USB device in the place where it will not aﬀect safe driving.

• You cannot connect a USB device via a USB hub and Multi Card Reader.

• Take backups of the audio ﬁles used with this unit. The ﬁles can be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising from any erased data.

USB Basic Operation

Most functions can be controlled from the source control screen and playback screen.

Control screen

536

Open the drawer

Artwork/ Play mode indicator/ Playing

time

The jacket of the currently playing ﬁle is displayed.

• [D], [B], etc.: Current play mode indicator

The meanings of each icon are as follows; [D] (play), [B] (fast forward), [A] (fast backward), [H] (pause).

15English

USB

[ ] / [ ]

] : Repeats the current track/folder. Each

• [ time you touch the key, repeat mode switches in the following sequence; File repeat ([ all ([

] : Randomly plays all tracks in current

• [

]), Folder repeat ([ ]), Repeat

])

folder. Each time you touch the key, random mode switches in the following sequence; File random ([

Track information

]), Random oﬀ ([ ])

Displays the information of the current ﬁle. Only a ﬁle name and a folder name are

displayed if there is no tag information.

Content list

Touch on the right side of the screen to display the Content list. Touch again to close the list.

Displays the playing list. When you touch a track/ﬁle name on the list, playback will start.

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [

] [ ] : Searches previous/next folder.

• [ASPECT](Only during video playback): Select screen mode. [Full]: Changes the aspect ratio of video and

displays fully on the screen.

[Normal]: Display with 4:3 ratio. [Auto]: Displays video fully on vertical or

horizontal with no ratio change.

Operation keys

• [1] : Searches track/ﬁle. For details on search operation, see Search Operation (P.17).

• [E] [F] : Searches the previous/next track/ ﬁle. Touch and hold to fast forward or fast backward.

• [D/H] : Plays or pauses.

• [

] : Touch to mute or not to mute.

Indicator Items

• [VIDEO]: Identiﬁes the video ﬁle.

• [MUSIC]: Identiﬁes the music ﬁle.

Video screen

Searching file area (Video file only)

Touch to search the next/previous ﬁle.

Key display area (Video file only)

Touch to display the control screen.

USB

Search Operation

You can search music or video ﬁles by the following operations.

Touch [1].

Touch [S].

Select the list type.

NOTE

• For operations in the list screen, see L ist screen

(P.11).

Ñ Category search

You can search a ﬁle by selecting category.

Touch [Category List].

Select whether you search by audio files

]

[

Touch the desired category.

Ñ Link search

You can search a ﬁle of same artist /album/genre as the current track.

Touch [Link Search].

Touch the desired tag type. You can select

from artist, album and genre.

 The list corresponding to your selection

appears.

Touch desired item from the content list.

Ñ Folder search

You can search a ﬁle according to hierarchy.

Touch [Folder List].

 The list corresponding to your selection

appears.

Touch to select desired item in the list.

Repeat this step until you find the desired file.

Touch the desired folder.

When you touch a folder its contents are displayed.

Touch to select desired item in the list.

Repeat this step until you find the desired file.

17English

Tuner

Tuner Basic Operation

Most functions can be controlled from the source control screen.

To enter Tuner source, touch [Tune r] icon in the source selection screen. (P. 9)

Control screen

6 3

Open the drawer

Information display

Displays the information of the current station: Frequency

Touching [ ] allows you to switch between Content A and Content B.

– Content A: PS name, Radio Text, PTY Genre – Content B: Radio Text plus, Title Artist

[Preset#]: Preset number

Seek mode

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in stations in memory one after another.

• [MANUAL]: Switches to the next frequency manually.

Operation keys

• [E] [F] : Tunes in a station. The method of

frequency switching can be changed (see 2 in table).

• [

] : Touch to mute or not to mute.

Preset list

• Touch on the right side of the screen to display the Preset list. Touch again to close the list.

• Recalls the memorized station.

• When touched for 2 seconds, stores the current receiving station in memory.

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [TI] (FM only): Sets the traﬃc information mode on. For details, see Trac Information (P. 20).

• [SETUP] (FM only): Displays the Tuner SETUP

screen. For details, see Tuner Setup (P.20).

• [AME]: Presets stations automatically. For details, see Auto memory (P.19).

• [PTY] (FM only): Searches a program by setting program type. For details, see Search by program type (P.19).

• [MONO] (FM only): Select the Monaural reception.

• [LO.S] (FM only): Turns the Local Seek function on or oﬀ.

[FM] [AM]

Switches the band.

Indicator Items

• [ST]: A stereo broadcast is being received.

• [MONO]: The forced monaural function is on.

• [AF]: The AF search function is on.

• [LOS]: The Local Seek function is on.

• [RDS]: Indicates the state of the Radio Data System station when the AF function is on.

White: Radio Data System is being received. Orange: Radio Data System is not being

received.

Tuner

• [TI]: Indicates the reception state of traﬃc information.

White: TP is being received. Orange: TP is not being received.

Memory Operation

Ñ Auto memory

You can store stations with good reception in memory automatically.

Touch desired band key.

Touch [ ] on the left side of the screen.

Touch [AME].

Selecting Operation

Ñ Preset select

You can list and select memorized station.

Touch [ ] on the right side of the screen.

Select a station from the list.

Ñ Search by program type

(FM only)

You can tune to a station with a speciﬁc program type when listening to FM.

Touch [ ] on the left side of the screen.

Touch [PTY].

 A confirmation screen appears.

Touch [Yes ].

 Auto memory starts.

Ñ Manual memory

You can store the current receiving station in memory.

Select a station you wish to store in

memory.

Touch [FM#] (#: 1-24) or [AM#] (#: 1-12) in

which you want to store the station for 2 seconds.

 PTY Search screen appears.

Select a program type from the list.

Touch [Search].

You can search a station of the selected program type.

19English

Tuner

Trac Information (FM only)

You can listen and watch the traﬃc information automatically when a traﬃc bulletin starts. However, this feature requires a Radio Broadcast Data System that includes the TI information.

Touch [ ] on the left side of the screen.

Touch [TI].

 Traffic information mode is set.

Ñ When the trac bulletin starts

The Traﬃc Information screen appears automatically.

Tuner Setup (FM only)

You can set tuner related parameters.

Touch [ ] on the left side of the screen.

Touch [SETUP].

 Tuner SETUP screen appears.

Set each item as follows.

■ [AF]

When station reception is poor, automatically switches to the station that is broadcasting the same program over the same Radio Data System network. Default is “ON”.

■ [Regional]

Sets whether to switch to the station only in the specific region using the “AF” control.

Default is “ON”.

■ [RDS CT]

Synchronizing the Radio Data System station time data and this unit’s clock.

“ON” (Default), “OFF”

Bluetooth Control

Using the Bluetooth function, various functions can be used: listening to the audio ﬁle, making/ receiving a call.

Information for using Bluetooth® devices

Bluetooth is a short-range wireless radio communication technology for mobile devices such as mobile phones, portable PCs, and other devices.

Bluetooth devices can be connected without cables and communicate with each other.

NOTE

• While driving, do not perform complicated

operations such as dialing numbers, using the phone book, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not connect to

this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth

devices.

• Connecting conditions may vary depending on

your environment.

• For some Bluetooth devices, the device is

disconnected when the unit is turned oﬀ.

Ñ About the cell-phone and

Bluetooth audio player

This unit conforms to the following Bluetooth speciﬁcations:

Version

Bluetooth Ver. 4.1

Proﬁle

Cell-phone:

HFP (Hands Free Proﬁle) SPP (Serial Port Proﬁle) PBAP (Phonebook Access Proﬁle)

Audio player:

A2DP (Advanced Audio Distribution Proﬁle) AVRCP (Audio/Video Remote Control Proﬁle)

Sound codec

SBC, AAC

NOTE

• The units supporting the Bluetooth function have been certiﬁed for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG .

• However, it may be impossible for such units to communicate with your cell-phone depending on its type.

21English

Bluetooth Control

Register from the Bluetooth device

It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function.

You can register up to 7 Bluetooth devices.

NOTE

• Up to 7 Bluetooth devices can be registered. If an attempt is made to register the 8th Bluetooth device, the Bluetooth device connected on the earliest date will be deleted to register the 8th one.

Turn on the Bluetooth function on your

smartphone/cell-phone.

Search the unit (“KW-M*****”) from your

smartphone/cell-phone.

Operate your smartphone/cell-phone

according to the displayed messages.

■ Confirm the request on the

smartphone/cell-phone.

Bluetooth Setup

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP Menu screen appears.

Touch [Bluetooth].

 Bluetooth SETUP screen appears.

See the following section for each setting.

• Connect the Bluetooth device (P. 23)

■ If a PIN code is required, enter the PIN

code (“0000”).

Touch [Yes ].

When data transmission and connection have completed, the Bluetooth connection icon appears on the screen.

Bluetooth Control

Ñ Connect the Bluetooth device

Touch [Select Device] in the Bluetooth

SETUP screen.

Touch [ ] you want to connect.

NOTE

• If the icon is lighted, it means that the unit will use that device.

To delete the registered Bluetooth device

Touch [ ].

 Confirmation message appears.

Touch [Yes ].

Playing Bluetooth Audio Device

Most function can be controlled from the source control screen.

To enter Bluetooth source, touch [BT Audio] icon in the source selection screen. ( P.9)

Ñ Bluetooth basic operation

Control screen

Device name/ [ ] / [ ]

• Connected device name. ] : Repeats the current track/folder. Each

• [

time you touch the key, repeat mode switches in the following sequence; File repeat ([ Folder repeat ([ Repeat oﬀ ([

] : Randomly plays all tracks in current

• [

folder. Each time you touch the key, random mode switches in the following sequence; All random ([

• Operations and display indications may

diﬀer according to their availability on the connected device.

Information display *

Displays the name of the track information.

Operation keys *

• [1]: Searches ﬁle. See File sea rch (P.24).

• [E] [F]: Searches the previous/next

content. Touch and hold to fast forward or fast backward.

• [D]: Plays.

• [H]: Pauses. ] : Touch to mute or not to mute.

• [

]), All songs repeat ([ ]),

])

]), Random oﬀ ([ ])

]),

23English

Bluetooth Control

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [BT DEVICE CHANGE] : Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP). See Connect the Bluetooth audio (P. 24).

Play mode indicator/ Playing time

[D], [H]: Current play mode indicator The meanings of each icon are as follows;

[D] (play), [B] (fast forward), [A] (fast backward), [H] (pause).

* These items appear only when the audio

player which supports AVRCP proﬁle is connected.

NOTE

• If the operation keys do not appear, operate

from the player.

• Depending on your cell-phone or audio player,

audio may be heard and controlled but text information may not appear.

• If the volume is too low, raise it on your cell-

phone or audio player.

Ñ Connect the Bluetooth audio

Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP).

Touch on the left side of the screen.

Touch [BT DEVICE CHANGE].

Touch the device name you want to

connect.

Ñ File search

Touch [1].

Touch the desired file or folder.

When you touch a folder its contents are displayed.

Touch desired item from the content list.

 Playback starts.

NOTE

• For operations in the list screen, see L ist screen (P.11).

Bluetooth Control

Using Hands-Free Unit

You can use telephone function by connecting the Bluetooth telephone to this unit.

NOTE

• While Apple CarPlay or Android Auto is being connected, Bluetooth Hands-Free function cannot be used. Only Apple CarPlay or Android Auto Hands-Free function can be used.

Ñ Make a call

Touch [Phone]/[Û].

 Hands Free screen appears.

NOTE

• If your mobile phone supports PBAP, you can display the phone book and call lists on the touch panel screen when the mobile phone is connected.

– Phone book: up to 1000 entries – Up to 20 entries including dialed calls,

received calls, and missed calls

Select a dialing method.

● Bluetooth SETUP

1) Touch [ Bluetooth SETUP screen appears.

NOTE

• The status icons such as bat tery and antenna

• Setting the cell-phone in the private mode can

displayed may diﬀer from those displayed on the cell-phone.

disable the hands-free function.

Call using call records

Touch [ ].

Select the phone number from the list.

Call by entering a phone number

Touch [ ].

Enter a phone number with number keys.

• [ ]: Call using call records

• [

]: Call using the phonebook

• [

]: Call using the preset number

• [

]: Call by entering a phone number

• [

]: Voice Recognition ( P.26)

• [

]: Bluetooth SETUP

Touch [ ].

25English

Bluetooth Control

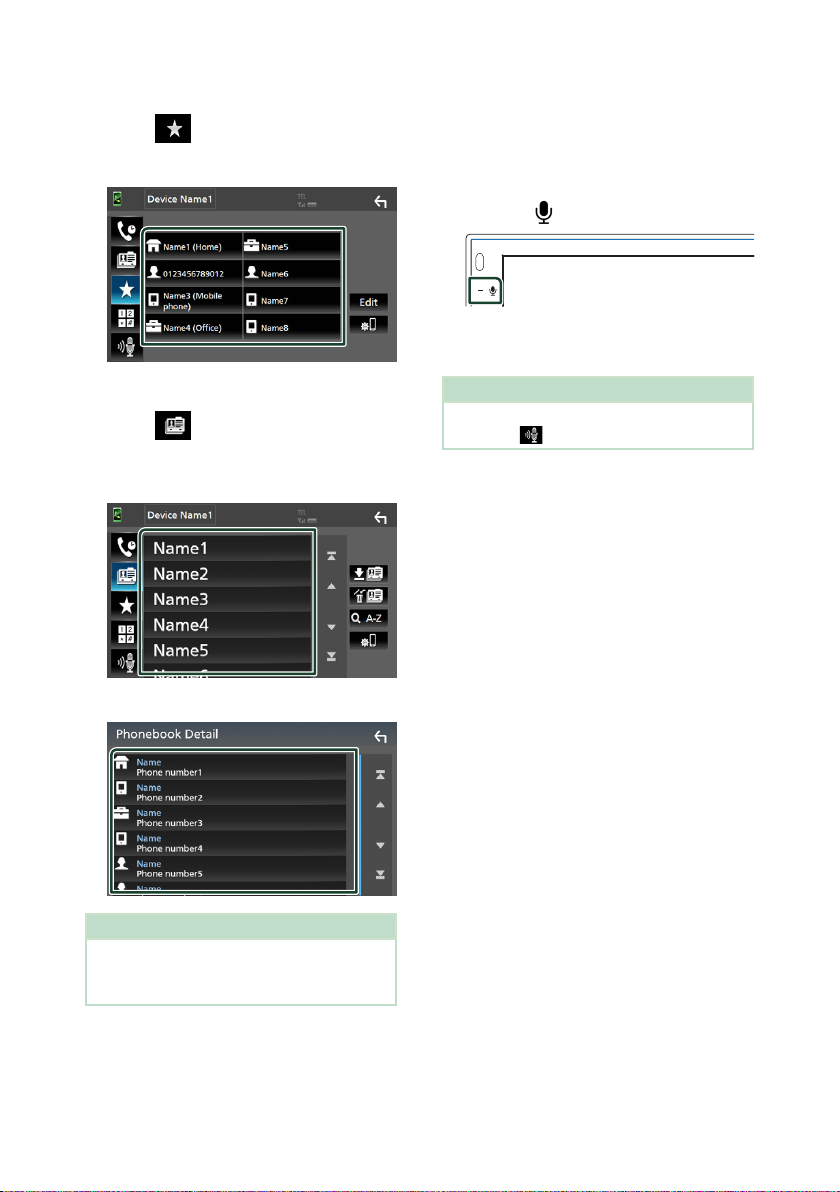

Call using the preset number

Touch [ ].

Touch the Name or phone number.

Call using the phonebook

Touch [ ].

Select the person you want to call from

the list.

Ñ Voice Recognition

You can access the voice recognition function of the cell-phone connected to this unit. You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.)

Press the [ ] button.

 Voice Recognition screen appears.

Start speaking.

NOTE

• You can use voice recognition function by touching [

] on the Hands Free screen.

Select the phone number from the list.

NOTE

• If no Phonebook has been downloaded, touching [Download Phonebook Now] will start downloading the Phonebook.

Bluetooth Control

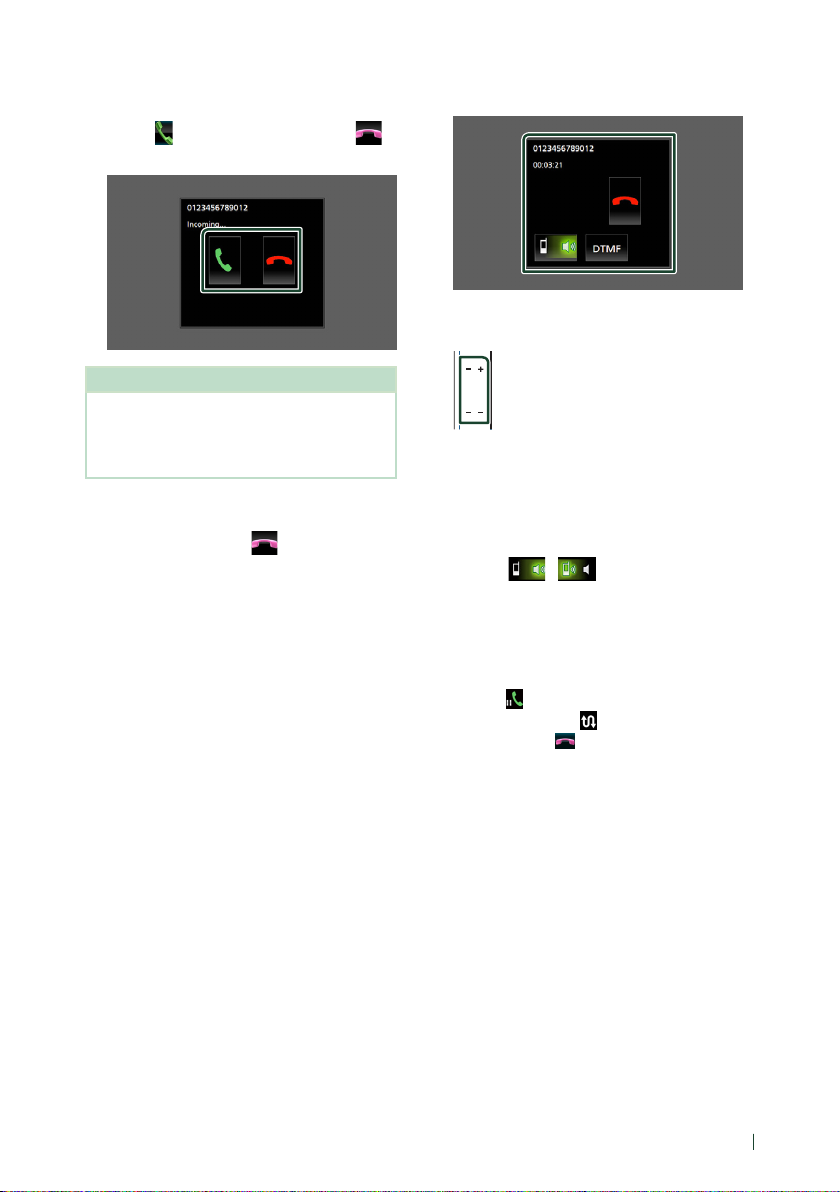

Ñ Receive a call

Touch [ ] to answer a phone call or [ ]

to reject an incoming call.

NOTE

• While monitoring the view camera, this screen does not appear even if a call comes in. To display this screen, return the shift knob of car to the driver position.

To end call

While talking, touch [ ].

Ñ Operations during a call

● Adjust the receiver volume

Press the [−] or [＋] button.

● Output the dial tone

Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys on

the screen.

● Switching the speaking voice output

Touching [ speaking voice output between cell-phone and speaker.

● Call-waiting

When you receive a call while talking on another call, you can answer the newly received call by touching

Each time you touch When you touch

and switch to the call in hold.

]/ [ ] each time switches the

. The current call is on hold.

[

]

, the caller will change.

]

[

, the current call will end

]

[

27English

Bluetooth Control

Ñ Phone number preset

You can register frequently used phone numbers to this unit.

Touch [ ].

Touch [Edit].

Select where to preset.

■ [Delete all]

To delete all preset numbers, touch [Delete all] and then touch [Yes ] on the confirmation screen.

Select how to preset.

■ [Delete]

To delete a preset number, touch [Delete] and then touch [Ye s] on the confirmation screen.

Ñ Phonebook transfer

You can transfer the phonebook in your Bluetooth smartphone via PBAP.

Touch [ ].

 The phonebook data transmission starts.

NOTE

• If the Phonebook contains more than 1000 entries, Phonebook data cannot be transferred.

Phonebook deletion

Touch [ ].

 Confirmation message appears.

Touch [Yes ].

■ [Add number from phonebook]

Select the number to preset from the phonebook. See Call using the phonebook (P. 26).

■ [Add number direct]

Enter the telephone number directly and touch [SET]. See Call by entering a phone number (P.25).

Other External Components

View Camera

NOTE

• To connect a camera, see P.44.

• To use a rear view camera, a REVERSE lead connection is required. (P.44)

• The rear view screen is displayed when you shift the gear to the reverse (R) position.

Ñ Display the camera screen

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 View camera screen appears.

Adjust each item as follows.

Ñ Camera Setup

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP Menu screen appears.

Touch [Camera].

 Camera screen appears.

Set each item as follows.

■ [Parking Guidelines]

You can display parking guidelines to enable easier parking when you shift the gear to the reverse (R) position.

Default is “ON”.

■ [Guidelines SETUP]

If you select [ON] for [Parking Guidelines], adjust the parking guidelines. See To adjust the parking guidelines (P.30).

Camera off

Touch to exit the camera screen.

29English

Other External Components

To adjust the parking guidelines

NOTE

• Install the rear view camera in the appropriate position according to the instructions supplied with the rear view camera.

• When adjusting the parking guidelines, make sure to use the parking brake to prevent the car from moving.

Touch [ON] of [Parking Guidelines] in the

Camera screen. (P. 29)

Touch [Guidelines SETUP] in the Camera

screen.

Adjust the parking guidelines by

selecting the [

Adjusting the position of the selected

mark.

] mark.

External audio/video players— AV-IN

Connect an external component to the

AV-IN input terminal. ( P.44)

Select [AV-IN] as the source. ( P.9)

Turn on the connected component and

start playing the source.

Make sure that A and B are horizontally parallel, and that C and D are the same length.

NOTE

• Touch [Initialize] and after touch [Yes] to set all the [

] marks to the initial default position.

Setting Up

Monitor Screen Setup

You can adjust image quality in video screen.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 Screen Control screen appears.

Adjust each item as follows.

■ [Contrast] / [Brightness] / [Color] / [Tint]

Adjusts each item.

NOTE

• Adjusting items are diﬀerent depending on the current source.

System Setup

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 See the following section for each

setting.

• Set up AV (P. 34)

• Set up display (P.33)

• Set up the user interface ( P.32)

• Set up camera (P.29)

• Set up special (P.33)

• Set up Bluetooth (P.22)

• Set up Device (P.14)

31English

Setting Up

User Interface Setup

You can setup user interface parameters.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP screen appears.

Touch [User Interface].

 User Interface screen appears.

Set each item as follows.

■ [Beep]

Turns the key touch tone on or off. Default is “[OFF]”.

■ [Language]

Selects a language.

■ [Steering Remote Controller]

Sets the desired function in the steering remote controller. See Learning function of steering remote (P.32).

■ [Time Format]

Select the time display format. "[12-Hour]"/ "[24-Hour]" (Default)

■ [Clock Adjust]

Adjust the date and time manually. (P. 6)

Ñ Learning function of steering

remote

This function is available only when your vehicle is equipped with the electrical steering remote controller.

If your steering remote controller is not compliant, learning may not be completed and error message may appear.

Touch [Steering Remote Controller] in

the User Interface screen.

 Steering Remote Controller screen

appears.

Touch the function you want to set.

Press and hold the steering remote

controller button.

Repeat steps 2 and 3 as necessary.

Touch [ ].

NOTE

• When changing the function already learned, select the function from the function list in step 2 and then press and hold the button you want to change.

• Conﬁrm the contents of the set table function on the function list. You cannot edit the func tion list.

Setting Up

Special Setup

You can setup Special parameters.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP screen appears.

Touch [Special].

 Special screen appears.

Set each item as follows.

■ [DEMO]

Set the demonstration mode. Default is “[ON]”.

■ [Software Information]

Check the software version of this unit.

■ [Open Source Licenses]

Displays the open source licenses.

■ [Initialize]

Touch [Initialize] and then touch [Yes ] to set all the settings to the initial default settings.

Ñ Software Information

Check the software version of this unit.

Touch [Software Information] in the

Special screen.

Confirm the software version.

(P. 33)

Display Setup

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP screen appears.

Touch [Display].

 Display screen appears.

Set each item as follows.

■ [Dimmer]

Select dimmer mode.

[OFF]: The display and buttons do not dim. [ON]: The display and buttons dim. [SYNC] (Default): Turns the dimmer function

on or off when the vehicle light control switch is turned on or off.

■ [OSD Clock]

Select if you want to display the clock while the screen is off, or while watching video files on USB, etc.

"[ON]" (Default)/"[OFF]"

■ [Screen Adjust

Displays the Screen Adjust screen. (P. 31)

■ [Background]

Changing background image. (P. 33)

Ñ Change background image

Touch [Background] in the Display screen.

Select an image.

*1 Select an original image in advance.

33English

Setting Up

To register original image

You can load an image from the connected USB device and set it for the background image.

Before operating this procedure, it is necessary to connect the device which has the image to load.

Touch [User1 Select] or [User2 Select] in

the Background screen.

Select the image to load.

Touch [Enter].

AV Setup

You can set AV parameters.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 SETUP screen appears.

Touch [AV].

 AV screen appears.

Set each item as follows.

■ [AV-OUT]

Specify whether to output the current source signal from the VIDEO OUT terminal.

“[ON]”/ “[OFF]” (Default)

NOTE

• Images can be output only from the AV IN and USB (video ﬁle) source.

• If display of the rear view camera image is selected when the AV-IN source is being played, no image is output from the VIDEO OUT terminal.

 The selected image is loaded and the

display returns to the Background screen.

NOTE

• Touching [ ] rotates counter clockwise.

• Touching [

• Picture ﬁles: JPEG (.jpg, .jpeg), PNG (.png), BMP (.bmp)

] rotates clockwise.

■ [CarPlay Sidebar]

Select the position of the control bar (left or right) shown on the touch panel.

“[Left]” (Default)/ “[Right]”

NOTE

• The setting is available when an iPhone is disconnected.

■ [AV Color Adjust]

You can adjust image quality in video screen.

(P. 31)

NOTE

• Adjusting items are diﬀerent depending on the current source.

Controlling Audio

You can adjust the various settings such as audio balance or subwoofer level.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

Controlling Audio

Speaker/ X’over setup

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 Audio screen appears.

Touch [Speaker/Xʼover].

Select a car type.

You can setup the car type and speaker network, etc.

If your car type is selected, the Delay Time Alignment is set automatically (for timing adjustment of sound output for each channel) to have the highest surround effects.

 See the following section for each

setting.

• Set up speaker/ X’over ( P.35)

• Controlling equalizer (P. 37)

• Set listening position/ DTA ( P.39)

• Controlling general audio (Fader / Balance) (P. 36)

• Set volume offset (P. 38)

• Set sound effect (P.38)

Touch the speaker (1) you wish to adjust

and set each item (2) as follows.

■ [Speaker]

You can select a speaker type and its size to get the best sound effects.

When the speaker type and size are set, the speaker crossover network is set automatically.

■ [Location] (Only for Front, Rear)

Select the speaker position you have fixed.

35English

Controlling Audio

■ [Tweeter] (Only for Front)

You can set the tweeter when you are selecting front speakers.

[None], [Small], [Medium], [Large]

■ [Xʼover]

Displays the speaker crossover setup screen. You can adjust the crossover setup that was

set automatically when you selected the speaker type.

For details, see Crossover network setup

(P. 36)

Ñ Crossover network setup

You can set a crossover frequency of speakers.

Touch [Xʼover].

Touch the speaker to set.

Set each item as follows.

■ [TW] (Tweeter) [Gain]*

Adjusts the tweeter level. (When front is selected on Speaker Select screen)

■ [Phase Inversion]*

Sets the phase of subwoofer output. Check [Phase Inversion] to shift the phase

180 degrees. (When subwoofer is selected on Speaker Select screen)

Only when “[LPF FREQ]”/“[HPF FREQ]” is

set to a mode other than “[Through]” in [Xʼover].

Only when “[Tweeter]” is set to “[Small]”,

“[Medium]”, “ [Large]” in [Speaker Setup].

Only when “[Subwoofer]” is set to a mode

other than “[None]” in [Speaker Setup].

Controlling General Audio

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 Audio screen appears.

Touch [Fader / Balance].

■ [HPF FREQ]

High Pass Filter adjustment. (When front or rear speaker is selected on Speaker Select screen)

■ [LPF FREQ]

Low Pass Filter adjustment. (When subwoofer is selected on Speaker Select screen)

■ [Slope]*

Sets a crossover slope.

■ [Gain]

Adjusts the front speaker, rear speaker, or subwoofer level.

Set each item as follows.

■ [Fader] / [Balance]

Adjust the volume balance around the touched area.

[C] and [D] adjust the right and left volume balance.

[R] and [S] adjust the front and rear volume balance.

■ [Center]

Clear the adjustment.

Controlling Audio

Equalizer Control

You can adjust equalizer by selecting the optimized setting for each category.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 Audio screen appears.

Touch [Equalizer].

Touch the screen and set the Graphic

Equalizer as desired.

■ [ALL SRC]

Apply the adjusted equalizer to all sources. Touch [ALL SRC] and then touch [OK] on the confirmation screen.

■ Gain level (dotted frame area)

Adjust the gain level by touching the each frequency bar.

You can select frequency bar and adjust its level by [R], [S].

■ [Preset Select]

Displays the screen to recall the preset equalizer curve.

■ [Initialize]

The current EQ curve returns to flat.

■ [Memory]

Saves the adjusted equalizer curve from “[User1]” t o “ [User3]”.

■ [Bass EXT] (Bass Extend Settings)

When turned on, the frequency lower than

62.5 Hz is set to the same gain level as 62.5

Hz.

■ [SW Level]

Adjusts the subwoofer volume.

Ñ Recall the EQ curve

Touch [Preset Select].

Select EQ curve.

Ñ Save the EQ curve

Adjust the EQ curve.

Touch [Memory].

Select where to save.

37English

Controlling Audio

Volume Oset

Finely adjust the volume of the current source to minimize the diﬀerence in volume between diﬀerent sources.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 Audio screen appears.

Touch [Volume Offset].

Touch [＋] or [−] to adjust the level.

■ [Initialize]

Returns to the initial settings.

* If you have increased the volume ﬁrst, then

reduced the volume using the “Volume Oﬀset”, the sound generated if you suddenly switch to another source may be extremely loud.

Sound Eect

You can set sound eﬀects.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 Audio screen appears.

Touch [Sound Effect].

Set each item as follows.

■ [Bass Boost]

Sets the amount of bass boost among “[OFF]”/ “[1]”/ “[2]”/ “[3]”.

■ [Loudness]

Sets the amounts of boost of low and high tones.

“[OFF]”, “ [Low]”, “ [High]”

Controlling Audio

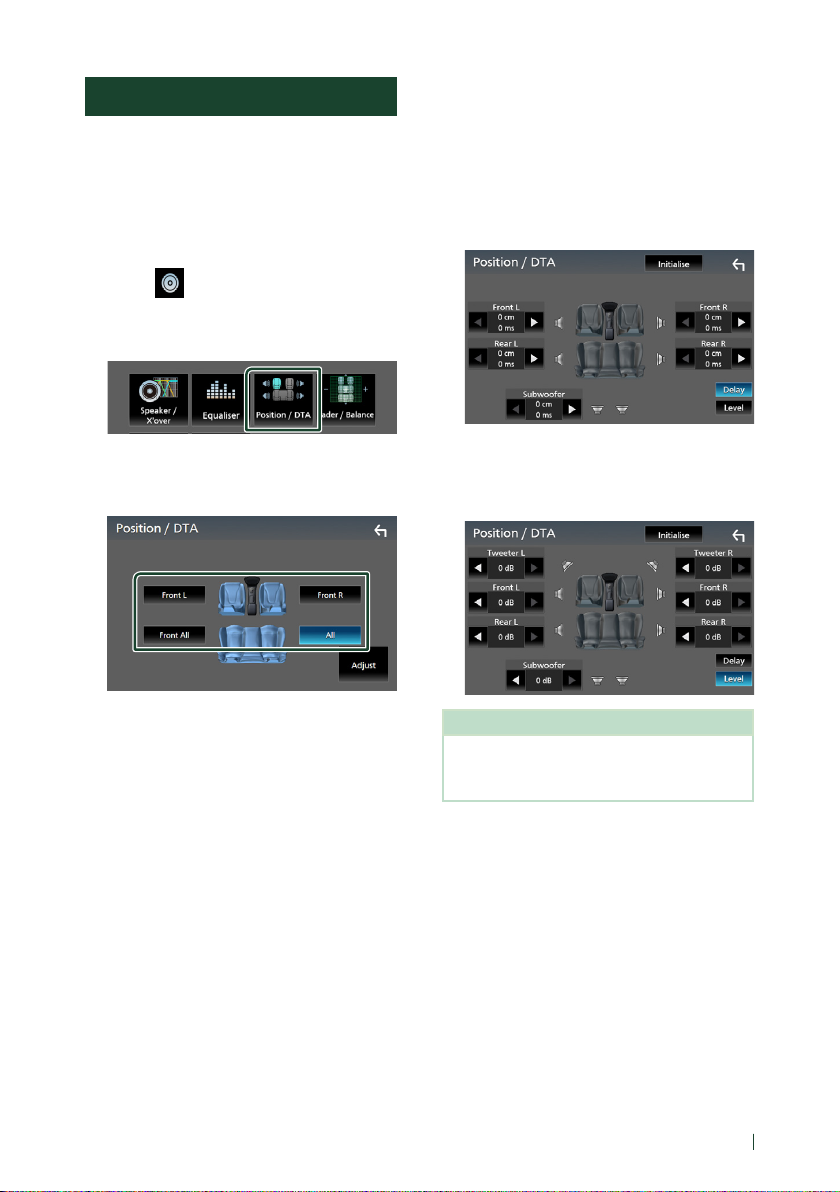

Listening Position/ DTA

Adjust the sound delay time as nearer speakers to the selected seat have more delay time, so that the sound from each speaker arrive a listener at the same time.

Press the [FNC] button.

 FUNCTION screen appears.

Touch [ ].

 Audio screen appears.

Touch [Position/DTA].

Select listening position from [Front R]

(Right front), [Front L] (Left front), [Front All] (All front), and [All].

Position DTA control

You can ﬁne-adjust your listening position.

Touch [Adjust].

Touch [Delay].

Touch [T] or [U] to adjust the delay time of

the selected speaker.

Touch [Level].

Touch [T] or [U] to adjust the sound level

of the selected speaker.

NOTE

• To return to the initial setting of Delay and Level, touch [Initialize] and [Ye s] in the conﬁrmation screen.

39English

Remote control

This unit can be operated using the remote control RM-RK258 (optional accessory).

Functions of the Remote control Buttons

Key

Name

[SRC]

[VOL] [+] [–]

[ATT]

[DISP]

[FM/][R] [AM/][S]

[E] [2] [F] [3]

[D/H]

[ANGLE]

]

[

[DIRECT]

[ASPECT]

Switches to the source to be played. In hands-free mode, hangs up the phone.

Adjusts the volume.

Mutes/restores the sound.

Switches the screen between the current source and the App screen from the connected iPhone/Android.

During tuner source, select FM/ AM band to be received.

Selects the track or file to be played. For the tuner sources, switches to broadcast stations received by the unit.

For the tuner, switches the seek mode. For the USB, BT audio, Plays or pauses.

Not used.

When a call comes in, answers the call.

Switches to the direct search mode. For details on the direct search mode, see Direct search mode (P.40).

Changes the aspect ratio.

Function

Key

Function

Name

Numeric Keypad

[CLR]

[ENT]

Specifies the number to search in direct search. For details on the direct search mode, see Direct search mode (P.40).

Deletes a character while in direct search mode.

Performs the selected function.

Ñ Direct search mode

Using the remote control, you can jump directly to the tuner frequency.

NOTE

• This operation cannot be performed for USB device.

Press the [SRC] button several times until

the desired content appears.

The available contents are different depending on the source type.

■ Tuner

Frequency value

Press the [DIRECT] button.

Press number buttons to enter a

frequency.

Press the [ENT] button to confirm the

entry.

Connection/Installation

Before Installation

Before installation of this unit, please note the following precautions.

# WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a ﬁre. Always connect those wires to the power source running through the fuse box.

• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

# CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• If the power is not turned ON (“ There is an error in the speaker wiring. Please check the connections.” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and oﬀ with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.

• If the fuse blows, ﬁrst make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the ¤ wires or ground them to any metal part in the car.

• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ¢ connector of the left speaker to a front output terminal, do not connect the ¤ connector to a rear output terminal.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• Reception may drop if there are metal objects near the Bluetooth antenna.

Bluetooth antenna unit

41English

Connection/Installation

Ñ Supplied accessories for

installation

(3 m)

(2 m)

Ñ Installation procedure

1) To prevent a short circuit, remove the key

from the ignition and disconnect the ¤ terminal of the battery.

2) Make the proper input and output wire connections for each unit.

3) Connect the ISO connector to the unit.

4) Install the unit in your car.

5) Reconnect the ¤ terminal of the battery.

6) Press the reset button.

Installing the unit

Bend the tabs of the mounting sleeve with a screwdriver or similar

NOTE

• Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip).

utensil and attach it in place.

Ñ Trim plate

1) Attach accessory 2 to the unit.

Connection/Installation

Ñ Microphone unit

1) Check the installation position of the

microphone (accessory 1).

2) Clean the installation surface.

3) Remove the separator of the microphone

(accessory 1), and stick the microphone to the place shown below.

4) Wire the microphone cable up to the unit with it secured at several positions using tape or other desired method.

5) Adjust the direction of the microphone (accessory 1) to the driver.

Fix a cable with a commercial item of tape.

NOTE

• Swap the clips if necessary.

Ñ Removing the unit

1) Remove the trim plate by referring to step 1 in “Removing the trim plate”.

2) Insert the extraction key (accessory 5) deeply into the slot as shown. (The protrusion at the tip of the extraction key must face toward the unit.)

3) With the inserted extraction key secured, insert the other extraction key into the slot.

4) Pull out the unit halfway.

Ñ Removing the trim plate

1) Use the extraction key (accessory 4) to lever

out the four tabs (two on the left part, two on the right part).

2) Pull the trim plate forward.

NOTE

• Be careful to avoid injury from the catch pins on the extraction key.

5) Pull the unit all the way out with your hands, being careful not to drop it.

43English

Connection/Installation

Ñ Connecting wires to terminals

Light Blue/ Yellow (Steering remote control wire)

To steering remote To use the steering wheel remote control feature,

STEERING

WHEEL

REMOTE

INPUT

you need an exclusive remote adapter (not supplied) matched to your car.

Light Green (Parking sensor wire) Accessor y 3: Parking Extention cable

For best safety, be sure

Connect to the vehicle’s parking brake detection switch harness.

PRK SW

to connect the parking sensor.

Purple/ White (Reverse sensor wire)

REVERSE

Connect to vehicle’s reverse lamp harness when using the optional rear view camera.

1 3 5 7 2 4 6 8

Connect to vehicle’s steering remote harness. Contact your JVC dealer for details.

ST REMOTE INPUT 1

Bright Green/Red

ST REMOTE

Purple/Red

INPUT 2

ST REMOTE GND

Gray/Red

USB terminal

[1]

(1.0 m)

5V=1.5A

USB device

Cap

Subwoofer Preout

SUB WOOFER

Accessor y 1: Bluetooth Microphone

FM/AM antenna

[2]

Cap

Connec tor A

Connec tor B

ISO Connector

[1]

USB maximum power supply current :

DC 5 V = 1.5 A

[2]

Sold separately

Fuse (15A)

1 2 34

[2]

(1; Left audio, 2; Composite

AV-I N video, 3; Ground, 4; Right audio).

Rear Audio Preout

FRONTOUTREAROUT

(Left; White, Right; Red)

Front Audio Preout (Left; White, Right; Red)

VIDEOOUTCAMIN

Visual Output (Yellow)

Rear view camera input (Yellow)

Connection/Installation

Ñ ISO Connector function guide

Pin Color and function

A-4 Yellow Battery

A-5 Blue Power Antenna A-6 Orange/White Illumination

A-7 Red Ignition (ACC)

A-8 Black Earth (Ground)

B-1/ B-2 Purple (+) /

Purple/Black (–)

B-3/ B-4 Gray (+) /

Gray/Black (–)

B-5/ B-6 White (+) /

White/Black (–)

B-7/ B-8 Green (+) /

[1]

Green/Black (–)

Max. 150 mA, 12V

Connection

Rear Right

Front Right

Front Left

Rear Left

• Speaker Impedance: 4-8 Ω

! CAUTION

Before you connect the commercially available ISO connectors to the unit, check the following condition:

• Make sure that the pin assignment of the connector matches with the JVC unit.

• Take extra notice of the power wire.

• In case battery wire and ignition wire are not corresponding then change them accordingly.

• In case the car does not have an ignition wire, use a commercially available interface.

[1]

Ñ Connecting an iPhone/Android

Android smartphone

[2]

USB cable

[2]

iPhone Lightning connector

Cap

[3]

USB terminal

5V=1.5A

[1]

(1.0 m)

KS-U62 (0.8m)

[1]

USB maximum power supply current :

DC 5 V = 1.5 A

[2]

Sold separately

[3]

Optional accessory

[2]

45English

Troubleshooting

Problems and Solutions

If any trouble occurs, ﬁrst check the following table for possible problems.

NOTE

• Some functions of this unit may be disabled by some settings made on this unit.

• What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring.

Ñ About settings

• Cannot set up the subwoofer.

• Cannot set up subwoof er phase.

• No output from the subwoofer.

• Cannot set up the low pass lter.

• Cannot set up the high p ass lter.

Subwoofer is not set to on.

 Set the subwoofer to on. See Speake r/ X’over

set up (P. 35).

Ñ About audio operations

Radio reception is poor.

The car antenna is not extended.

 Pull out the antenna all the way.

The antenna control wire is not connec ted.

 Connect the wire correctly. See Con necting wire s

to termi nals (P.44).

Cannot select a folder.

The random play function is enabled.

 Turn oﬀ the random func tion.

The sound skips when an aud io le is being played.

The recording condition is bad.

 Record the ﬁle again or use another USB memory.

Error Messages

When you fail to operate the unit correctly, the cause of the failure appears as the message on the screen.

[No Device] (USB device)

The USB device is selected as a source although no USB device is connected.

 Change the source to any source other than USB.

Connect a USB device, and change the source to USB again.

[Disconnected] (Bluetooth audio player)

The Bluetooth audio player is selected as a source although no Bluetooth audio player is connected.

 Change the source to any source other than

Bluetooth. Connect an Bluetooth audio player, and change the source to Bluetooth again.

[No Media le]

The connec ted USB device contains no playable audio ﬁle. Media was played that doesn’t have data recorded that the unit can play.

 See Playable Media and Files (P.47) and try

another USB device.

Ñ Other

The Touch Sensor Tone doesn’t sound.

The preout jack is being used.

 The Touch Sensor Tone cannot be output from the

preout jack.

Appendix

Playable Media and Files

You can play various kinds of media and ﬁles on this unit.

Ñ About les

The following audio and video ﬁles are supported.

■ Playable Audio files

Format Bit rate Sampling frequency Bit count

AAC-LC (.m4a) MPEG2/4 AAC LC

MP3 (.mp3) MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bit

WMA (.wma) Windows Media Audio Standard

Linear PCM (WAVE) (.wav)

FLAC (.flac) flac – 16 – 192 kHz 16/ 24 bit

Vorbis (.ogg) vorbis VBR 16 – 48 kHz 16 bit

HE-AAC(V1,V2)

L3 profile (Version 7,8,9)

RIFF waveform Audio Format –

NOTE

• WMA and AAC of which is covered with DRM cannot be played.

• Although the audio ﬁles are complied with the standards listed above, the play may be impossible depending on the types or conditions of media or device.

8 – 320kbps, VBR 16 – 48 kHz 16 bit

8 – 320kbps 16 – 48 kHz 16 bit

16 – 192 kHz 16/ 24 bit

■ Acceptable Video files

Profile Max. Picture size Max. bit rate Audio format

MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2

MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2

H.264/MPEG-4 AVC (.mp4, .m4v, .avi, .flv)

MPEG-4 (.mp4, .avi) Advanced Simple Profile 1920 × 1080 (30 fps) 8 Mbps MP3, AAC

WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA

MKV (.mkv) Video Format follows H.264/MPEG-4 AVC, MPEG-4 MP3, AAC

Baseline Profile, Main Profile

1920 × 1080 (30 fps) 8 Mbps MP3, AAC

■ Limitation of structure for the file and the folder

USB device

Maximum number of folder layers 8

Maximum number of files (per folder) 999

Maximum number of folders (per folder) 9999

Maximum number of folders (per device) –

NOTE

• You can enter a folder name and ﬁle name with 255 or fewer single-by te characters.

• Files in the folder whose folder name begins with a dot (.) cannot be played.

47English

Appendix

Specications

■ Monitor section

Picture Size

: 6.75 inches (diagonal) wide : 151.8 mm (W) × 79.7 mm (H)

Display System

: Transparent TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 1,152,000 (800H × 480V × RGB)

Eﬀective Pixels

: 99.99%

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: LED

■ USB interface section

USB Standard

: USB 2.0 High Speed

File System

: FAT 16/ 32, exFAT

Maximum Power Supply Current

: DC 5 V

D/A Converter

: 24 bit

Audio Decoder

: MP3/ WMA/ AAC/ WAV/ FLAC

Video Decoder

: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV

Frequency Response

• 192 kHz : 20 – 20,000 Hz

• 96 kHz : 20 – 20,000 Hz

• 48 kHz : 20 – 20,000 Hz

• 44.1 kHz : 20 – 20,000 Hz

Total Harmonic Distortion

: 0.2% (1 kHz)

Signal to Noise Ratio

: 75 dB

Dynamic Range

: 75 dB

1.5 A

■ Bluetooth section

Technology

: Bluetooth Ver. 4.1

Frequency

: 2.402 – 2.480 GHz

RF Output Power (E.I.R.P.)

: +8 dBm (Avg.), Power Class 1

Maximum Communication range

: Line of sight approx. 10 m (32.8 ft)

Audio Codec

: SBC/ AAC

Proﬁle (Multi Proﬁle support)

• HFP (Hands Free Proﬁle)

• SPP (Serial Port Proﬁle)

• A2DP (Advanced Audio Distribution Proﬁle)

• AVRCP (Audio/ Video Remote Control Proﬁle)

• PBAP (Phonebook Access Proﬁle)

■ DSP section

Graphics equalizer

Band: 13 Band Frequency (BAND1 – 13) : 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k /

6.3k/ 10k / 16k Hz

Gain

: -9/ -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0/

+1/ +2/ +3/ +4/ +5/ +6/ +7/ +8/ +9 dB

2Way X'Over

High pass lter

Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/

100/ 120/ 150/ 180/ 220/ 250 Hz Slope: -6/ -12/ -18/ -24 dB/ Oct. Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Low pass lter

Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/

150/ 180/ 220/ 250 Hz, Through Slope: -6/ -12/ -18/ -24 dB/ Oct. Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB

Position

Front / Rear /Subwoofer Delay

: 0 – 6.1 m (0.01 m Step)

Gain

: -8 – 0 dB

Subwoofer level

: -40 – +6 dB

Appendix

■ FM tuner section

Frequency Range (step)

: 87.5 MHz – 108.0 MHz (50 kHz)

Usable Sensitivity (S/N: 30 dB)

: 16.2 dBf (1.8 μV/75 Ω)

Frequency Response (± 3.0 dB)

: 30 Hz – 14 kHz

S/N (dB)

: 50 dB (MONO)

Stereo Separation

: 35 dB (1 kHz)

■ AM tuner section

Frequency Range (step)

: 531 – 1611 kHz (9 kHz)

Usable Sensitivity

: 99 μV (40 dBμ)

■ Video section

Color System of External Video Input

: NTSC/ PAL

External Video Input Level (Mini jack)

: 1 Vp-p/ 75 Ω

External Audio Max Input Level (RCA jack)

: 1.5 V/ 25 kΩ

Video Output Level (RCA jacks)

: 1 Vp-p/ 75 Ω

■ Audio section

Maximum Power Output (Front & Rear)

: 45 W × 4

Full Bandwidth Power (at less than 1% THD)

: 21 W × 4

Output Frequency Band

: 20 – 20,000 Hz

Preout Level (V)

: 2 V/ 10 kΩ

Preout Impedance

: 1.4 kΩ

Speaker Impedance

: 4 – 8 Ω

■ General

Operating Voltage

: 12V DC Car Battery

Installation Dimensions (W × H × D)

: 182 × 112 × 75 mm

Main Unit Installation size (W × H × D)

: 178 × 100 × 75 mm (w/o sleeve)

Weight

: 1.3 kg

(Including Sleeve and Trim plate)

NOTE

• Although the eﬀective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light incorrectly.

Specications subject to change without notice.

49English

Appendix

About this Unit

■ Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

• This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.

• App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

• Google, Android, Google Play and Android Auto are trademarks of Google LLC.

• To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.

• Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.

• THIS PRODUC T IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

• THIS PRODUC T IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (¡) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/ OR (¡¡) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND

NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

• THIS PRODUC T IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD (“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

• libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007 ,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the above

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation nor the

names of its contributors may be used to endorse or promote products derived from this software without

specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

– Redistributions of source code must retain the above

Appendix

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation nor the

names of its contributors may be used to endorse or promote products derived from this software without

specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

– Redistributions of source code must retain the above

– Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation nor the

names of its contributors may be used to endorse or promote products derived from this software without

■ Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

■ ילמשח דויצ לש הפשאל הכלשה רבדב עדימ

תונידמל יטנוולר( תוללוס ןכו ןשי ינורטקלאו

.)תדרפומ הפשא ףוסיא תכרעמב תושמתשמש

X םע הפשא חפ( ןומיסה םע תוללוסו םירצומ ךילשהל ןתינ אל

.הליגר תיתיב הפשאכ )וילע

ןקתמב תוללוס ןכו ןשי ינורטקלאו ילמשח דויצ רזחמל שי

.םהלש יאוולה ירצותבו הלאכ םיטירפב לפטל לגוסמה

ןקתמ תודוא םיטרפ תלבקל תימוקמה תושרה םע רשק ורצ

ורזעי םיתואנ הפשאל הכלשהו רוזחימ .םכילא בורקה רוזחימה

לעו ונתואירב לע תוילילש תועפשה עונמלו םיבאשמ רמשל

.הביבסה

ןייצמ תוללוס רובע ןומיסל תחתמש Pb ןומיסה :בל ומיש

.תרפוע הליכמ הללוסהש

51English

Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer:

JVCKENWOOD Corporation 3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN

EU Representative:

JVCKENWOOD Europe B.V. Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

English

Hereby, JVCKEN WOOD declares th at the radio equipm ent KW-M56 0BT is in compliance wi th Directive 2014/53/EU. T he full text of t he EU declaration o f conformity i s available at the foll owing internet address:

Français

Par la prése nte, JVCKENWOOD déc lare que l’équipement r adio KW-M56 0BT est confor me à la directive 2014/53/UE . L’inté gralité de la déclar ation de conform ité UE est disponi ble à l’adresse Inter net suivante :

Deutsch

Hiermit er klärt JVCKENW OOD, dass das Funkgerät K W-M560BT der Richtl inie 2014/53/EU entsprich t. Der volle Text der EU Konformitätserk lärung steht unter der folgenden Internetadresse zur Verf ügung:

Nederlands

Hierbij ver klaart JVCKEN WOOD dat de radioap paratuur KW-M 560BT in overeens temming is met Ric htlijn 2014/53/EU. De volledig e tekst van de EU-verklaring van overeenstemming is te vinden op het volgende internetadres:

Italiano

Con la prese nte, JVCKENWOOD dic hiara che l’apparecc hio radio KW-M56 0BT è conforme alla Di rettiva 2014/53/UE. Il t esto integrale della dichia razione di confo rmità UE è disponib ile al seguente indirizzo internet:

Español

Por la prese nte, JVCKENWOOD de clara que el equipo d e radio KW-M56 0BT cumple la Direc tiva 2014/53/EU. El tex to completo de la declarac ión de conformid ad con la UE está disp onible en la siguiente dirección de internet:

Português

Deste mo do, a JVCKENWOOD de clara que o equipame nto de rádio KW-M56 0BT está em confo rmidade com a Diret iva 2014/53/UE. O texto in tegral da declar ação de conformi dade da UE está disp onível no seguint e endereço de inter net:

Polska

Niniejsz ym, JVCKENWOOD de klaruje, że sprzę t radiowy KW-M 560BT jest zgo dny z dyrekty wą 2014/53/UE. Pełny tek st deklaracji zgodnoś ci EU jest dostę pny pod adresem:

Český

Společn ost JVCKENWOOD t ímto prohlašuje, že r ádiové zařízení KW-M56 0BT splňuje podmín ky směrnice 2014/53/EU. Plný te xt EU prohláše ní o shodě je dostu pný na následující in ternetové adres e:

Magyar

JVCKENWOO D ezennel kijelent i, hogy a KW-M56 0BT rádióbe rendezés megf elel a 2014/53/EU irányelvnek . Az EU konformi tási nyilatkozat te ljes szövege az alá bbi weboldalon érh ető el:

Hrvatski

JVCKENWOO D ovim izjavljuje da je r adio oprema KW-M 560BT u skladu s Dire ktivom 2014/53/EU. Cjelovi ti tekst dekla racije Europske unije o uskla đenosti dost upan je na sljedeć oj internet adres i:

Svenska

Härmed f örsäkrar JVCK ENWOOD att radi outrustnin gen KW-M560BT är i enlighet m ed direktiv 2014/53 / EU. Den f ullständiga te xten av EU-försäkran om överenss tämmelse ﬁnns på följande Internetadress:

Suomi

JVCKENWOO D julistaa täten, e ttä radiolait e KW-M560BT on direktii vin 2014/53/EU mukainen. EUvaatimustenmukaisuusvaku utus löytyy kokonaisuudessaan seuraavasta internet-osoitteesta:

Slovensko

S tem JVCKENWO OD izjavlja, da je rad ijska oprema KW-M 560BT v skladu z Dire ktivo 2014/53/EU. Celotno b esedilo direk tive EU o skladnos ti je dostopno n a tem spletnem naslo vu:

Slovensky

Spoločn osť JVCKENWOOD t ýmto vyhlasuj e, že rádiové zariad enie KW-M56 0BT vyhovuje sm ernici 2014/53/EÚ. Celý tex t EÚ vyhlásenia o zhode nájd ete na nasledovne j internetovej adre se:

Dansk

Herve d erklærer JVCKENWO OD, at radioudst yret KW-M56 0BT er i overenss temmelse med Dir ektiv 2014/53/EU. EUoverensstemmelseserklæringens fulde ordlyd er tilgængelig på følgende internetadresse:

Norsk

JVCKENWOO D erklærer herv ed at radiouts tyret KW-M 560BT er i samsvar m ed Direktiv 2014/53/EU. De n fullstendige t eksten til EU-konformitetserklæringen er tilgjengelig på følgende internettaddresse:

Ελληνικά

Με το παρόν, η JVCK ENWOOD δηλώνει ό τι ο ραδιοεξοπλι σμός KW-M56 0BT συμμορφώ νεται με την Οδη γία 2014/53/ΕΕ. Το πλήρες κείμεν ο της δήλωσης σ υμμόρφωσης τ ης ΕΕ είναι διαθ έσιμο στην ακόλουθ η διεύθυνση σ το διαδίκτυ ο:

Eesti

Käesolevaga JVCKENWOOD kinnitab, et KW-M560BT raadiovarustus on vastav uses direkti iviga 2014/53/EL. ELi vas tavusdeklara tsiooni terviktek st on kättesaadav järgmisel internetiaadressil:

Latviešu

JVCKENWOO D ar šo deklarē, ka rad io aparatūra KW- M560BT atbils t direkt īvas 2014/53/ES prasīb ām. Pilns ES atbils tības deklar ācijas tekst s ir pieejams šādā t īmekļa adresē:

Lietuviškai

Šiuo JVCKENWOOD pažymi, kad radijo įranga KW-M560BT atitinka 2014/53/EB direkt yvos reikalav imus. Visą EB direk tyvos ati tikties deklarac ijos tekstą gal ite rasti šiuo inte rnetiniu adres u:

Malti

B’dan, JVCKENWOO D jiddikjara li t-tag ħmir tar-radju KW-M 560BT huwa konfo rmi mad-Diret tiva 2014/53/UE. It-tes t kollu taddikjarazzjoni ta’ konformità huwa dispo nibbli ﬂ-indirizz intranet li ġej:

Українська

Таким чином, ко мпанія JVCKENWOO D заявляє, що радіообладнання KW-M56 0BT відповідає Директиві 2014/53/EU. Повний текст декларації про ві дповідність ЄС можна знайти в Інтерне ті за такою адре сою:

Türkçe

Burada, JVC KENWOOD KW-M56 0BT radyo ekipma nının 2014/53/AB Direktiﬁne uygun olduğunu bildirir. AB uyumluluk deklarasyonunun tam metni a şağıdaki inter net adresinde me vcuttur.

Русский

JVCKENWOOD настоящим заявляет, что радиооборудование KW-M560BT соответствует Директиве 2014/53/EU. Полный текст деклар ации соответс твия ЕС дос тупен по сле дующему адре су в сети Интернет:

Limba română

Prin prez enta, JVCKENWOOD de clară că echip amentul radio KW-M560BT este în confor mitate cu Direc tiva 2014/53/UE. Textul int egral al declaraț iei de conformi tate UE este dispo nibil la urmatoarea adresă de internet:

Български език

С настоящото JVCKENWOOD декларира, че радиооб орудването на KW-M560BT е в съотве тствие с Дирек тива 2014/53/ЕС. Пълния т текст на ЕС дек ларацията за с ъответс твие е достъ пен на следния интернет адр ес:

URL: https://www.jvc.net/cs/car/e udoc/

Important Notice on Software

Ñ Software License on This Product

The software embedded in this product comprises a number of independent software components, each of which is copyrighted by JVCKENWOOD Corporation or by a third party.

This produc t uses sof tware components that are based on an End-User License Agreement (hereinafter called “EULA”) stipulated by JVCKENWOOD Corporation and by third par ties.

The EULA dic tates the availability of the source codes of free-software components as a prerequisite to distributing them in executable form under the terms of the GNU General Public License or the Lesser General Public License (hereinafter called “GPL/LGPL”). To get information about the sof tware components that are subject to the terms of the GPL/LGPL, please visit the following Website:

Website URL https://www3.jvckenwood.com/english/download/gpl/

Queries concerning the contents of the source code or the like will not be accepted.

Please note that software components based on a EULA that is not subject to the terms of the GPL/LGPL or those that have been developed or created by JVCKENWOOD Corporation will be excluded from the scope of source code disclosure.

Because licenses to use software components distributed under the GPL /LGPL are oﬀered to the customers for free of charge, no warranty is granted to the customers, whether explicitly or implicitly, to the extent of the applicable laws.

Unless other wise stipulated by the applicable laws or agreed upon in writing, the copyright holders or those who are entitled to modify and redistribute the software components are not held responsible for any and all damages resulting from their use or from inability to use them. For more information about the terms of use of the software components, required items of compliance and so on, please refer to the GPL/LGPL.

Customers wishing themselves to use a software component that is subject to the GPL/LGPL embedded in this product are encouraged to read the terms of the corresponding license before use. Because each individual license is prescribed by a third par ty other than JVCKENWOOD Corporation, the original (English) of the license is presented.

EULA

Ñ Software License Agreement

JVCKENWOOD Corporation (hereinafter called “Licensor”) holds either the copyright to the embedded soft ware or the right to sublicense it. This agreement establishes the conditions under which the customer uses this “Licensed Software.”

The customer shall agree to the terms of this license agreement before proceeding to use Licensed Software.

This agreement is deemed to have taken eﬀect when the customer (hereinafter called “User”) has used a product implementation of Licensed Software.

The Licensed Software may contain software Licensor has been licensed to use by third par ties directly or indirectly. Some third par ties may have terms of use prescribed for their customers, apart from this Software License Agreement. This agreement does not apply to such software. Be sure to consult “Important Notice on Sof tware” as presented separately.

Article 1 (General)

Licensor grants to User a non-exclusive, nonassignable right of use Licensed Software within the country where the User purchases the Product (hereinafter the "Countr y") (except for the exception provided for in Paragraph 1, Article 3).

Article 2 (Right of Use)

1. The rise of use granted under this agreement is the right to use Licensed Soft ware in this product.

2. User may not duplicate, copy, modify, add to, translate or otherwise alter, or loan licensed Sof tware and the associated literature in whole or in par t.

3. Use of Licensed Soft ware is limited to a private extent , and Licensed Sof tware may not be distributed, licensed or sublicensed for any purposes whatsoever, including commercial use.

4. User shall use Licensed Sof tware as per the instruction manual or instructions given in the help ﬁle and may not use or duplicate data in violations of the regulations of the Copyright Law or other governing laws by using Licensed Software in whole or in part.

Article 3 (Terms of License)

1. In assigning this product, User may not retain the original copy of the embedded Licensed Software (including associated literature, updates and upgrades) and any duplicates and associated literature with regard to the license to use Licensed Software. User may transfer Licensed Software only to the condition of binding the assignee to abide by the terms of this Software License Agreement.

2. User may not reverse-engineer, disassemble, decompile or otherwise analyze the source code of Licensed Software.

Article 4 (Rights to Licensed Software)

All rights to Licensed Software and the associated literature, including copyrights, shall reside with Licensor or the original right holder who has granted the Right of Use and right to sublicense to Licensor (hereinafter referred to as “Original Right Holder” ), and User does not have any rights other than Right of Use granted hereunder with regard to Licensed Software and the associated literature.

Article 5 (Exemption Granted to Licensor)

1. Licensor and Original Right Holder do not assume any responsibility for damages caused to User or third parties resulting from the exercise by User of the license granted hereunder, unless otherwise provided by any law to the contrary.

2. Licensor does not warrant Licensed Software to be merchantable, compatible and ﬁt for speciﬁc purposes.

Article 6 (Responsibility for Third Parties)

If disputes over the infringement of third parties’ intellectual property rights, such as copyrights and patent rights, arise out of the use of Licensed Software by User, User shall resolve these disputes at User’s own expenses while keep Licensor and Original Right Holder harmless.

Article 7 (Secrecy Obligation)

User shall keep conﬁdential Licensed Software provided hereunder, information contained in the associated literature or the like and those provisions of this agreement not yet in public knowledge and may not disclose or leak these to third parties without prior written consent from Licensor.

Article 8 (Cancellation of the Agreement)

Licensor reser ves the right to cancel this agreement forthwith and claim compensation from User for the damages caused by such cancellation when User:

(1) Breaches any of the provisions of this agreement, or

(2) Has received a petition for seizure, provisional

seizure, provisional disposition or any other kind of compulsory execution.

Article 9 (Destruction of Licensed Software)

If this agreement is terminated under the provision of the foregoing paragraph, User shall destroy Licensed Software, along with all associated literature and it s duplicates, within two (2) week s from the date of termination.

Article 10 (Copyright Protection)

1. Copyrights and all other intellectual property rights relating to Licensed Sof tware shall reside with Licensor and Original Right Holder and in no circumstances with User.

2. User shall abide by the laws relating to copyrights and intellectual proper ty rights in using Licensed Software.

Article 11 (Export Control)

1. Licensed Software and the associated literature or the like may not be exported to places outside the Country (including transmission outside the Country over the Internet or the like).

2. User agrees that Licensed Software is subject to export controls imposed by the Countr y and the United States of America.

3. User agrees to comply with all the international and domestic laws that apply to this soft ware (U.S. Expor t Administration Regulations and regulations established by the U.S., the Country and their governmental agencies regarding usage by end users and export destinations).

Article 12 (Miscellaneous)

1. Even if this agreement is invalidated in part by law, all other provisions shall remain in eﬀect.

2. Licensor and User shall consult each other in good faith to resolve any matters not provided for in this agreement or questions arising from the interpretation of this agreement.

3. Licensor and User agree that this agreement is governed by the law of Japan and that all disputes involving claims and obligations that may arise out of this agreement will be settled by arbitration at the Tokyo Distric t Cour t as the court of ﬁrst instance.

JVC KW-M560BT Bluetooth Media Reciever t/Bil - 6,8tm (Apple CarPlay/Android Auto/Spotify) Manual [EN]

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Use

Precautions

How to read this manual

Basic Operations

Functions of the Buttons on the Front Panel

Turning on the Unit

Getting Started

Adjusting the volume

Touch screen operations

HOME screen descriptions

Source selection screen descriptions

Source control screen descriptions

FUNCTION screen

List screen

APPS

Apple CarPlay Operation

USB Mirroring Operation (Android only)

Connecting a USB device

USB Basic Operation

Search Operation

Tuner

Tuner Basic Operation

Memory Operation

Selecting Operation

Tuner Setup (FM only)

Bluetooth Control

Information for using Bluetooth® devices

Register from the Bluetooth device

Bluetooth Setup

Playing Bluetooth Audio Device

Using Hands-Free Unit

Other External Components

View Camera

External audio/video players— AV-IN

Setting Up

Monitor Screen Setup

System Setup

User Interface Setup

Special Setup

Display Setup

AV Setup

Controlling Audio

Speaker/ X’over setup

Controlling General Audio

Equalizer Control

Touch [Volume Offset].

Touch [Sound Effect].

Listening Position/ DTA

Remote control

Functions of the Remote control Buttons

Connection/Installation

Before Installation

Installing the unit

Troubleshooting

Problems and Solutions

Error Messages

Appendix

Playable Media and Files

About this Unit
