JVC KW-AVX810, KW-AVX810J User Manual

Page 1

DVD RECEIVER WITH MONITOR KW-AVX810

RECEPTOR DVD CON MONITOR KW-AVX810

ENGLISHESPAÑOL

RÉCEPTEUR DVD ET MONITEUR KW-AVX810

For canceling the display demonstration, see page 10. Para cancelar la demonstración en pantalla, consulte la página 10. Pour annuler la démonstration des affichages, référez-vous à la page 10.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

FRANÇAIS

LVT1791-001A

[J]

Page 2

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

Thank you for purchasing a JVC product.

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

ENGLISH

qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

Caution

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

[European Union only]

WARNINGS: To prevent accidents and damage

• DO NOT install any unit or wire any cable in a location where;

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be

sure to look around carefully.

• The driver must not watch the monitor while driving.

CAUTION

This product has a fluorescent lamp that contains mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org.

Page 3

How to reset your unit

Contents

• Your preset adjustments will also be erased.

How to forcibly eject a disc

at the same time

[Hold] [Hold]

• If this does not work, reset the unit.

Cautions on the monitor:

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip.

Touch the buttons on the touch panel with your

finger directly (if you are wearing a glove, take it off).

• When the temperature is very cold or very hot...

– Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

INTRODUCTION

Playable disc types .......................... 4

Before operations ........................... 5

Basic operations—

Monitor panel/touch panel ............ 7

Basic operations—

Remote controller (RM-RK252) ...... 8

OPERATIONS

Preparing for operations ................. 10

Common operations ........................ 11

Listening to the radio ...................... 13

Disc operations ................................ 16

SD operations .................................. 30

USB operations ................................ 32

EXTERNAL DEVICES

Bluetooth® operations—

Cellular phone/audio player .......... 34

Listening to the CD changer .............. 41

Listening to the satellite radio ......... 43

Listening to the HD Radio™ Broadcast .....

Listening to the iPod ....................... 48

Using other external components ..... 52

SETTINGS

Sound equalization .......................... 55

Assigning titles to the sources .......... 56

Menu operations ............................. 57

REFERENCES

Maintenance ................................... 66

More about this unit ........................ 67

Troubleshooting .............................. 75

Specifications .................................. 80

INTRODUCTION

ENGLISH

Page 4

Playable disc types

Disc type Recording format, file type, etc. Playable DVD DVD Video (Region Code: 1)*

ENGLISH

DVD Audio

DVD-ROM

DVD Recordable/Rewritable (DVD-R/-RW*

, +R/+RW*3)

• DVD Video: UDF bridge

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/MP3/ WMA/WAV/AAC: ISO 9660 level 1, level 2, Romeo, Joliet

DVD Video

DVD-VR

DivX/MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC*

MPEG4

DVD+VR

DVD-RAM

Dual Disc DVD side

Non-DVD side

CD/VCD Audio CD/CD Text (CD-DA)

VCD (Video CD)

DTS-CD*

SVCD (Super Video CD)

CD-ROM

CD-I (CD-I Ready)

CD Recordable/Rewritable (CD-R/-RW)

• ISO 9660 level 1, level 2, Romeo, Joliet

CD-DA

MP3/WMA/WAV/AAC*

JPEG

DivX/MPEG1/MPEG2

MPEG4

*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs).

DVD-RW dual layer discs are not playable.

*3 It is possible to play back finalized +R/+RW (Video format only) discs.

+RW double layer discs are not playable.

This unit can play back AAC files encoded using iTunes.

*5 To reproduce DTS sound, use the digital connection. (☞ Installation/Connection Manual)

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Page 5

Before operations

Touch panel

Monitor panel

Buttons on the touch panel In the explanation, they are indicated inside [ ].

For details on the touch panel operations, see each source operation section.

Features of the illumination

Monitor panel buttons

The lights of the monitor panel buttons are turned off when no operation is done for about 10 seconds.

They are turned on again in the following cases: – When you touch the touch panel or move your hand

nearby* – When you use the remote controller – When a call/Text Message comes in (for Bluetooth

cellular phone)

* Depending on the <Illumination> setting. (☞ page

62)

The lights of the monitor panel buttons are always

turned on in the following cases:

– While AV menu screen is displayed.

– While <Source Menu> screen is displayed.

– While <Open/Tilt> menu is displayed.

– When <Illumination> is set to <Normal>.

(☞ page 62)

ENGLISH

When you slide your finger on the touch panel, it functions in the same way as touching [5 / ∞ / 4 / ¢].

Screen

While the unit is turned on, you can also turn off the screen by holding DISP on the monitor panel.

[Hold]

The screen is turned on again in the following cases: – When you touch the touch panel – When you press MENU, DISP, DETACH, or OPEN on the

monitor panel

– When a call/Text Message comes in (for Bluetooth

cellular phone)

– When the signal from the rear view camera comes in

INTRODUCTION

Page 6

Detaching/attaching the monitor panel

Detaching

1 While the unit is turned on:

ENGLISH

Detach?Yes No

* You can also use OPEN on the monitor panel.

Then press [ Detach ].

The monitor panel opens by about 50°.

• It closes automatically when no operation is done for about a minute.

Attaching plate

The monitor panel is released. • The attaching plate closes automatically about

10 seconds after the monitor panel is released. Remove the monitor panel before this happens.

Soft case (supplied)

Attaching

Caution:

• Hold the monitor panel securely so as not to drop it accidentally.

• Fit the monitor panel onto the attaching plate until it is firmly locked.

Page 7

Basic operations — Monitor panel/touch panel

Displays <AV Menu> screen. ☞ page 57

Displays <Source Menu> screen. ☞ page 11

Displays and erases Short Cut icons. ☞ page 12

Changes the sources. ☞ page 11

Adjusts the volume.*

• Turns on the power.

• Turns off the power. [Hold]

• Attenuates the sound (if the power is on).

Resets the unit.

• Use only when the internal system malfunctions.

* You can also adjust

VOL

the volume by moving your finger

on the touch panel as illustrated.

Remote sensor

To detach the monitor panel.

Changes the display information.

• Displays and erases <AV Menu> screen. ☞ page 57

• Displays <Open/Tilt> menu. ☞ below

• Ejects the disc and displays <Open/Tilt> menu.

[Hold]

• Closes the monitor panel.

ENGLISH

<Open/Tilt> menu

Open/Tilt

Open

Eject

Detach

• Shaded items cannot be used.

Tilt +

Tilt –

Exit

[Open] Opens the monitor panel. [Eject] Ejects the disc. [Close] Closes the monitor panel. [Tilt +/–] Tilts the monitor panel. [Detach] To detach the monitor panel. [Exit] Erases this screen.

INTRODUCTION

Page 8

Basic operations — Remote controller (RM-RK252)

Installing the battery

ENGLISH

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly.

R03/LR03/AAA

Caution:

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

• If the range or effectiveness of the remote controller decreases, replace both batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Main elements and features

1 • Turns on the power.

• Attenuates the sound if the power is on.

• Turns off the power if pressed and held (while the power is on).

2 “DISC/SD/USB/USB iPod“: Reverse search

3 Adjusts the volume level.

• Does not function as “2nd VOL.”

4 • Displays <Dial Menu> screen.

• Displays <Redial> menu if pressed and held.

• Answers incoming calls.

5 • DVD/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback.

• DVD-VR: Shows the Original Program screen.

6 Shows the on-screen bar.

• Does not function as “ “.

7 Functions with other buttons (see i and o).

8 Changes the display information.

Page 9

9 For disc/SD/USB operations:

• 5 / ∞: DVD: Selects the title. DVD-VR: Selects the program/Playlist. SD/USB/other discs (except VCD/CD): Selects

the folders.

• 4 / ¢: – Press briefly: reverse skip/forward skip – Press and hold: reverse search/forward

For FM/AM and HD Radio operations:

• 5 / ∞: FM/AM: Selects the preset stations. HD Radio: Selects a multicast channel.

• 4 / ¢: Functions to search for stations. – Press briefly: Auto Search – Press and hold: Manual Search

For satellite tuner operations:

• 5 / ∞: Selects the categories.

• 4 / ¢: – Press briefly: Selects a channel. – Press and hold: Selects a channel rapidly.

For Apple iPod operations:

“USB iPod“:

• 5 / ∞: Selects previous/next item

• 4 / ¢: – Press briefly: reverse skip/forward skip – Press and hold: reverse search/forward

“iPod“:

• ∞: Starts playback/pauses.

• 5: Enters the main menu (then 5 / ∞

/ 4 / ¢ work as menu selecting buttons).

• 4 / ¢: – Press briefly: reverse skip/forward skip

Press and hold: reverse search/forward

–

– In menu selecting mode:

• ∞: Confirms the selection.

• 5: Returns to the previous menu.

• 4 / ¢:

– Press briefly: Selects an item. – Press and hold: Skips ten items at a time.

For Bluetooth operations:

• 4 / ¢: reverse skip/forward skip (for audio player operation)

p “DISC/SD/USB/USB iPod”:

Forward search

q Selects the source.

w “DISC/SD/USB/USB iPod”:

Starts playback/pauses.

“Bluetooth PHONE”: Answers incoming calls. “Bluetooth AUDIO”: Starts playback.

e Changes the aspect ratio of the playback

pictures.

r “TUNER/HD Radio/SAT”: Selects the bands.

“DISC/SD/USB“: Stops playback. “USB iPod“: Enters <Search Mode> menu. “Bluetooth PHONE”: Ends the call. “Bluetooth AUDIO”: Pauses.

t VCD: Returns to the PBC menu.

y • DVD Video/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback.

• DVD-VR: Shows the Playlist screen.

u • Makes selection/settings.

• @ / #: Skips back or forward by 5 minutes for DivX/MPEG1/MPEG2.

• % / ﬁ: Changes discs for “CD-CH.”

• “DISC/SD/USB“: Switches number entry mode.

• Erases the misentry after entering a wrong number.

• Does not function as “SURROUND.”

o*3 Number buttons

• Enters numbers.

• “TUNER/HD Radio/SAT”: Selects the preset station directly.

*1 Functions as a number button only (see o ). *2 Not used for this unit.

Functions when pressed with SHIFT.

ENGLISH

INTRODUCTION

Page 10

Preparing for operations

You can cancel the demonstration on the screen and set the clock.

• Non-available items will be shaded on the AV Menu

ENGLISH

screens.

Indication language:

In this manual, English indications are used for purpose of explanation. You can select the indication language. (☞ page 59)

~ Turn on the power.

• You can also use MENU on the monitor panel.

@ Set the clock.

Moves to the preceding menu page

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Moves to the succeeding menu page

Setup

Time Set Time Format OSD Clock Clock Adjust Time Zone DST

Back Exit

Setup

Time Set Time Format OSD Clock Clock Adjust Time Zone DST

Back Exit

12Hours 24Hours

Off

Metal

Blue Once Auto

1 : 00

Eastern

3 : 45

Auto

AutoOff

Indicates the remaining time before the current screen is erased automatically.

⁄ Cancel the demonstration.

Select <Off>.

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Returns to the previous screen.

Metal

Once

Blue

Auto

Exit

¤ Finish the procedure.

Setup

Time Set Time Format OSD Clock Clock Adjust Time Zone DST

Back Exit

3 : 45

12Hours 24Hours

Off

Eastern

AutoOff

Page 11

Common operations

Selecting the playback source

• Available sources depend on the external components you have connected, media you have attached, and the <Input> settings you have made (☞ pages 61 and 62).

On the touch panel:

ABC Radio

Exit

Current source

On the monitor panel:

Exit

Changing the display information

• Available display information varies among the playback sources.

On the monitor panel only:

• Each time you press DISP, the display changes to show the various information.

Ex.: When the playback source is a DVD video disc.

Playback picture screen (only for video sources)

Source information screen

Playback picture and clock time in large numbers

ENGLISH

“TUNER” or “HD Radio“ = “SAT” = “DISC”(DVD/ VCD/CD) = “SD“ = “USB“ or “USB iPod“ = ”CD-CH”, “iPod”, or “EXT-IN” = “Bluetooth PHONE” = “Bluetooth AUDIO” = “AV-IN” =

(back to the beginning)

• You cannot select these sources if they are not ready.

Navigation screen*

Back to the beginning

* When <Navigation> is selected for <AV Input>

(☞ page 61)

OPERATIONS

Page 12

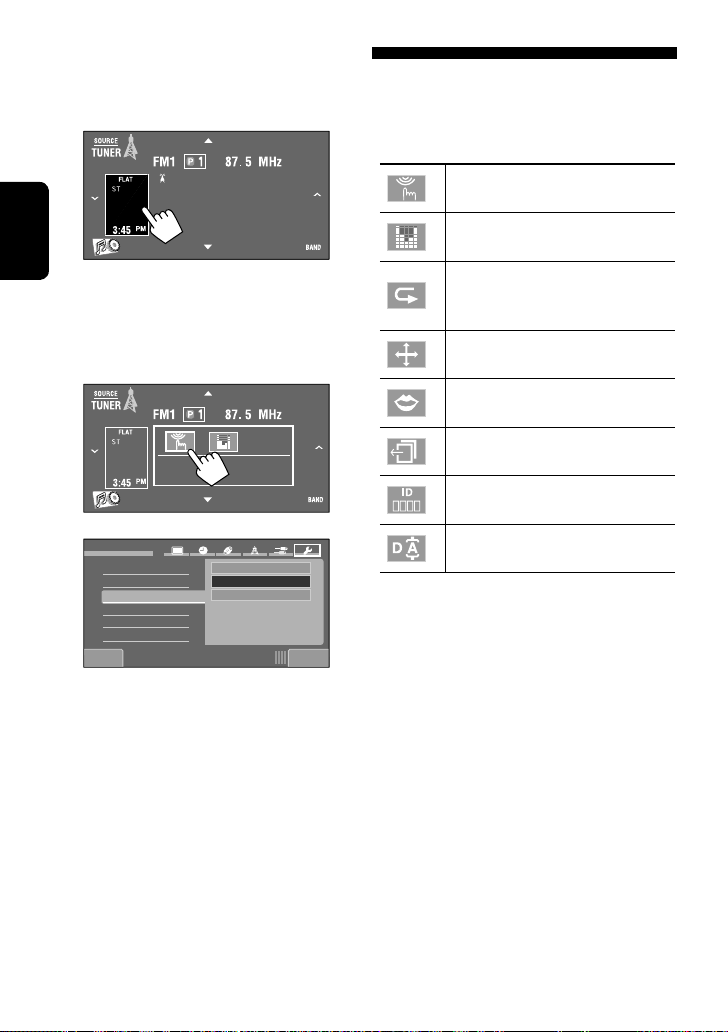

Using Short Cut Icons

You can easily access some frequently used functions by using Short Cut icons.

ENGLISH

Short Cut window appears.

• To erase the window, press the button again.

ABC Radio

2 Press a Short Cut icon.

Setup

Beep Telephone Muting

Illumination Motion Sensitiv. Initialize

Back Exit

Proximity/Motion

Normal

Touch Panel

Short Cut icons:

Available icons vary among the sources.

Displays <Illumination> menu. ☞ page 62

Changes the sound mode. ☞ page 55

Turns on or off Track/Chapter Repeat. ☞ pages 21, 31, 33, 42, and 50

Displays <Aspect> menu. ☞ page 59

Activates <Voice Dialing> function. ☞ page 37

Displays <Redial> menu. ☞ page 38

Displays <Sirius ID> screen. ☞ page 61

Displays <Blend Hold> menu. ☞ page 47

The corresponding screen is displayed.

Page 13

Listening to the radio

Preset no.

Band

Sound mode

(☞ page 55)

Tuner indicator

ABC Radio

~ Press [SOURCE], then press [TUNER]. (☞ page 11)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [BAND].

! Press [ ] or [ ] to search for a station—Auto Search.

• Manual Search: Hold either [ ]or [ ] until “Manual Search” appears on the screen, then press it repeatedly.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

ENGLISH

Assigned station name (☞ page 56). If no name is assigned, “No Name” appears.

OPERATIONS

Page 14

When an FM stereo broadcast is hard to receive

ENGLISH

• You can also use MENU on the monitor panel.

FM station automatic presetting —SSM (Strong-station Sequential Memory)

This function works only for FM bands. You can preset six stations for each band.

• You can also use MENU on the monitor panel.

Exit

Mode

Mono SSM Title Entry

Back Exit

Start Enter

Reception improves, but stereo effect will be lost.

• The MONO indicator lights up.

To restore stereo effect, select <Off>.

Mode

Mono SSM Title Entry

Back Exit

Start

Enter

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Exit

[Hold]

Page 15

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset number

4 of the FM1 band.

1 Tune in to a station you want to preset.

92.5 MHz

No Name

• You can also display the Preset List by pressing [

2 Display the Preset List.

• You can also use MENU on the monitor panel.

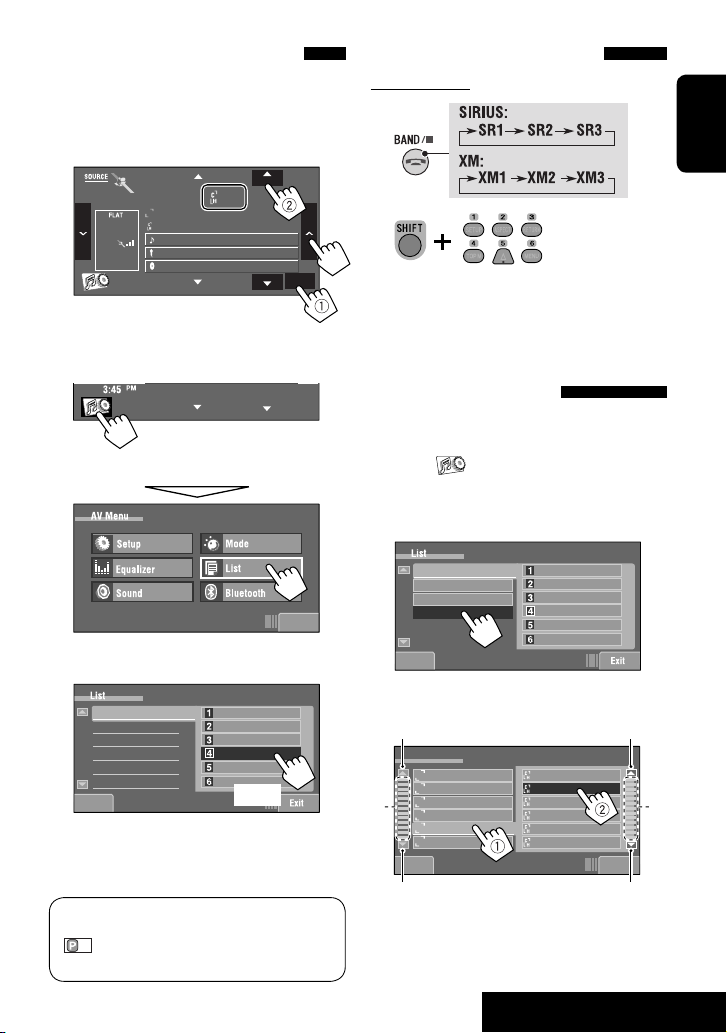

Selecting a preset station

On the remote:

[Hold]

On the unit:

• To select directly on the touch panel

ABC Radio

• To select from the Preset List

• You can also use MENU on the monitor panel.

ENGLISH

3 Select a preset number.

Back

The station selected in step 1 is now stored in preset number 4.

You can also display the Preset List by pressing [ 1 ] or holding [5 / ∞].

[Hold]

Exit

Back

OPERATIONS

Page 16

Disc operations

The disc type is automatically detected, then playback starts (for some discs, the top menu of the disc appears).

If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject

ENGLISH

the disc.

” appears on the screen, the unit cannot accept the operation you have tried to do.

If “

• In some cases, without showing “ ,” operations will not be accepted.

~ Open the monitor panel.

<Open/Tilt> menu is displayed.

• By pressing and holding the button, you can open the monitor panel and eject the disc.

! Insert a disc.

Label side

Monitor panel closes automatically. If not, press [Close].

Caution:

Do not place your finger behind the monitor panel.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

When playing back a multi-channel encoded disc, the multi-channel signals are downmixed.

• You can fully enjoy multi-channel sound by connecting an amplifier or a decoder compatible with these multi-

channel sources. (☞ also page 72)

Page 17

While playing the following discs, press .

• Each time you press the button, the display changes to show the different information. (☞ page 11)

DVD Video: Title no./Chapter no./Playing time DVD-VR: Program no. (or Playlist no.)/Chapter no./Playing time

Disc type

Audio format

Sound mode

(☞ page 55)

Playback mode

[

3 / 8] Starts playback/pauses

[

7] Stops playback

[

4 ¢] Press: Selects chapter

Hold: Reverse/forward search*

[5 ∞] Selects title/program/playlist

DVD-VR also indicates either VR-PRG (program) or VR-PLAY (playlist) playback.

*2 Indicates the button pressed. *3 Search speed: x2 ] x10

: Buttons on the touch panel. In the explanation, they are indicated inside [ ]. These buttons also work when they are not shown on the touch panel (while watching the playback pictures

on the screen).

Sampling frequency/Bit rate/Recorded signal channel no.

ENGLISH

OPERATIONS

Page 18

While playing the following discs, press .

• Each time you press the button, the display changes to show the different information (☞ page 11).

ENGLISH

Disc type

Sound mode

(☞ page 55)

3 / 8] Starts playback/pauses

[ [

7] Stops playback

[

4 ¢] Press: Selects track

Sound mode

(☞ page 55)

Video format

Folder Name File Name.divx

Hold: Reverse/forward search for DivX/ MPEG1/MPEG2 *

The PBC indicator lights when PBC is in use.

PBC

For DivX/MPEG1/MPEG2: Folder no./Track no./Playing time For JPEG: Folder no./Track no.

[5 ∞] Press: Selects folder

Hold: Displays Folder/Track Lists

[

Displays Folder/Track Lists

Track no./Playing time

[

3 / 8] Starts playback/pauses

[

7] Stops playback

[

4 ¢] Press: Selects track

*1 Search speed: ¡1 ] ¡2 *2 Indicates the button pressed. *3 Search speed: x2 ] x10

Hold: Reverse/forward search*

Page 19

Track no./Playing time

Sound mode

(☞ page 55)

Audio format

(MP3/WMA/WAV/AAC)

Sound mode

(☞ page 55)

Current Track Title Artist Name Album Title

[

3 / 8] Starts playback/pauses

[

7] Stops playback

[

4 ¢] Press: Selects track

Hold: Reverse/forward search*

Folder no./Track no./Playing time

Current Folder Name Current File Name.mp3 Current Track Title Artist Name Album Title

Only for CD

5*6

Text *

ENGLISH

Tag data appears only when it is

5*6

recorded.*

[3 / 8] Starts playback/pauses [

7] Stops playback

[

4 ¢] Press: Selects track

Hold: Reverse/forward search*

[5 ∞] Press: Selects folder

[

Displays Folder/Track Lists

*4 Indicates the button pressed. *5 “No Name” appears for conventional CDs or if not recorded. *6 Touching an information bar scrolls the text if all the text is not shown. *7 Search speed: x2 ] x10

Hold: Displays Folder/Track Lists

OPERATIONS

Page 20

Operation buttons on the screen

You can display the following operation buttons while watching the playback pictures on the screen.

• If no operation is done for about 5 seconds, the operation buttons disappear (except when a disc menu is displayed).

ENGLISH

☞ pages 23 to 27 on how the operation buttons particularly work for a variety of the discs

[SOURCE] Displays <Source Menu> screen

Touch the screen (center portion).

Touch [KEY].

[

5 ∞] Selects folders

[

3 / 8] Starts playback/pause

[

4 ¢] Press: Selects tracks

Hold: Reverse/forward search [ ] (*2) Displays Short Cut icons. [

] Displays <AV Menu> screen

[

7] Stops playback

• The above buttons also work when they are not shown on the screen (while watching the playback picture).

While a disc menu is played back for DVD, [KEY] is

automatically displayed. On the disc menu, you can select a menu item directly by touching it on the screen

For DVD/VCD/DivX menu operation playback [

5 ∞ 2 3] Selects the menu items

[

ENTER] Confirms the selection

[

TOP MENU] Displays the disc menu

[

MENU] Displays the disc menu

[

RETURN] Returns to the previous menu or displays

the menu (only for VCD with PBC)

For entering the numbers [

0]–[9]=[ENTER]

Enters numbers [

Direct/CLR] • Switches between chapter/track entry

• Erases the last entry when you enter a

Ex.: To enter “105,” press [

and title/folder entry

wrong number

1], [0], [5], then [ENTER]

To erase the operations, touch the screen again.

Page 21

Selecting playback modes

You can use the following playback modes—Repeat or Random. Ex.: To select Track Repeat

• You can also use MENU on the monitor panel.

ENGLISH

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

Exit

Disc type Repeat Random

Chapter: Repeats current chapter* Title: Repeats current title

Chapter: Repeats current chapter* Program: Repeats current program (not

available for Playlist playback)

Track: Repeats current track* Folder: Repeats all tracks of the current

folder

Folder: Repeats all tracks of the current

folder

Track: Repeats current track* (PBC not in

use)

Track: Repeats current track* Disc (All): Randomly plays all tracks

Track: Repeats current track* Folder: Repeats all tracks of the current

folder

* By pressing

Short Cut icon, you can also turn on or off Track/Chapter Repeat.

To cancel, select <Off>.

Folder: Randomly plays all tracks of current

folder, then tracks of next folders

Disc (All): Randomly plays all tracks

Disc (All): Randomly plays all tracks (PBC not

in use)

Folder: Randomly plays all tracks of current

folder, then tracks of next folders

Disc (All): Randomly plays all tracks

—

OPERATIONS

Page 22

Selecting tracks on the list

If a disc includes folders, you can display the Folder/ Track (File) Lists, then start playback.

ENGLISH

• You can also use MENU on the monitor panel.

3 Select a folder (1), then a track (2).

List

Folder 01 Folder 02 Folder 03

Folder 04 Folder 05 Folder 06

Back Exit

Selected track starts playing.

0003/00990005/0035

Track001.mp3 Track002.mp3 Track003.mp3 Track004.mp3 Track005.mp3 Track006.mp3

You can browse Folder/Track Lists by using the bar as illustrated. – Press : Skips the List up or down. – Drag : Scrolls the List up or down.

List

Folder 01 Folder 02 Folder 03 Folder 04 Folder 05 Folder 06

Back Exit

Browses Folder List.

Exit

0003/00990005/0035

Track061.mp3 Track062.mp3 Track063.mp3 Track064.mp3 Track065.mp3 Track066.mp3

Browses Track List.

You can also display the Folder/Track Lists by

pressing [

Prohibiting disc ejection

/01 ] or holding [5 / ∞].

You can lock a disc in the loading slot.

1 Current folder list number/total folder list

number

2 Current track list number/total track list

number of the current folder

*1 Press to move to the previous/next pages of the

lists

*2 See the following.

at the same time

[Hold][Hold]

To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.

Page 23

Operations using the remote controller—RM-RK252

Stop playback.

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Start playback/pause (if pressed during playback).

Reverse/forward search* Slow motion during pause*

Press: Select chapter (during playback or pause). Hold: Reverse/forward search*

(No sound can be heard.)

Select title (during playback or pause).

Select aspect ratio.

Select chapter. Select title (when not playing).

twice

Select title (during playback or pause).

Using menu driven features

2 Select an item you want to start playback. 3

Search speed: x2 ] x5 ] x10 ] x20 ] x60 *2 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4 ] 1/2 *3 Search speed: x2 ] x10

ENGLISH

You can change the following items using the on-screen bar—audio language, subtitle language, view angle, etc. (☞ pages 28 and 29)

OPERATIONS

Page 24

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

(No sound can be heard.)

Forward slow motion during pause*2 (No sound can be heard.)

• Reverse slow motion does not work

Press: Select chapter (during playback or pause). Hold: Reverse/forward search*

Select program. Select playlist (during playback or pause).

Select aspect ratio.

Select chapter. Select program (when not playing).

twice

Select program/playlist (during playback or pause).

Using Original Program/Playlist screens ( ☞ page 28)

For Original Program

For Playlist

2 Select an item you want to start playback. 3

To erase the screen.

Search speed: x2 ] x5 ] x10 ] x20 ] x60

* *2 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4 ] 1/2 *3 Search speed: x2 ] x10

You can change audio stream and subtitle (on/off) using the on-screen bar.

Page 25

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

Press: Select track Hold: Reverse/forward search*

(No sound can be heard.)

Select folder.

Select aspect ratio.

Select track (within the same folder).

ENGLISH

twice

While playing...

Reverse/advance the scenes by 5 minutes.

Select folder.

Current playback position

2nd press 2nd press1st press 1st press 3rd press

For DivX6: Using menu driven features

2 Select an item you want to start playback.

Search speed: ¡1 ] ¡2 ] ¡3

*5 Search speed: ¡1 ] ¡2

You can change audio stream and subtitle (on/off) using the on-screen bar. (DivX only)

OPERATIONS

Page 26

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search* can be heard.) Forward slow motion during pause*2 (No sound can be heard.)

• Reverse slow motion does not work.

Press: Select track. Hold: Reverse/forward search*

sound can be heard.)

Select aspect ratio.

Stop playback.

Start playback. (Slide show: each file is shown for a few seconds.) Shows the current file until you change it if pressed during Slide show.

Select file.

Select folder.

Select aspect ratio.

Select file (within the same folder).

twice

Select folder.

During PBC playback...

(No sound

Select an item on the menu. To return to the previous menu, press

To cancel PBC playback

(No

1 2 Select the desired track.

Select track.

Search speed: x2 ] x5 ] x10 ] x20 ] x60

Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4 ] 1/2

*3 Search speed: x2 ] x10

• To resume PBC, press

Page 27

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

Press: Select track. Hold: Reverse/forward search*

Search speed: x2 ] x5 ] x10 ] x20 ] x60

*5 Search speed: x2 ] x10

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

Press: Select track. Hold: Reverse/forward search*

Select folder.

twice

ENGLISH

Select track.

Select track (within the same folder).

Select folder.

Search speed: x2 ] x5 ] x10 ] x20 ] x60

* *7 Search speed: x2 ] x10

OPERATIONS

Page 28

Using the list screens

You can use Original Program or Playlist screen anytime while playing DVD-VR with its data recorded.

ENGLISH

1 Display the Original Program/Playlist screen.

2 Select an item you want.

Operations using the on-screen bar

These operations are possible on the screen using the remote controller, while playing the following discs—DVD/VCD/DivX/MPEG1/MPEG2/JPEG.

1 Display the on-screen bar. (☞page 29)

To erase the screen

1 Original Program/Playlist number 2 Recording date 3 Recording source (TV station, the input terminal of

the recording equipment, etc.)

4 Start time of recording 5 Title of the program/playlist* 6 Highlight bar (current selection) 7 Creating date of playlist 8 Total number of chapters included in the playlist 9 Playback time

* The title of the original program or playlist may not be

displayed depending on the recording equipment.

Ex.: For DVD Video

2 Select an item.

3 Make a selection.

If a pop-up menu appears...

• For entering time/numbers...

: Move the entry position

Select a number

To remove the on-screen bar

Page 29

On-screen bar

Information

Operation

Above example is of DVD Video. Items shown on the bar vary due to the disc type.

ENGLISH

1 Disc type 2 • DVD: Audio signal format

• VCD: PBC

3 Playback mode *

DVD Video: C. RPT: Chapter repeat T. RPT: Title repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG1/MPEG2: T. RPT: Track repeat F. RPT: Folder repeat F. RND: Folder random A. RND: All (Disc) random JPEG: F. RPT: Folder repeat VCD: T. RPT: Track repeat A. RND: All (Disc) random

4 Playback information

Current title/chapter

Current program/chapter

Current Playlist/chapter

Current track

Current folder/track Current folder/file

5 Time indication

Elapsed playing time of the disc Remaining title time (for DVD)

Remaining disc time (for others)

Elapsed playing time of the current

chapter/track *

Remaining time of the current

chapter/track *

6 Playback status

Play

Reverse/forward search

Reverse/forward slow-motion Pause Stop

7 Operation icons

Change time indication (see 5)

Time Search (Specify a certain

scene by entering time.) Title Search (by its number) Chapter Search (by its number)

Track Search (by its number) Repeat play * Random play *

Change the audio language, audio

stream, or audio channel

Change or erase the subtitle

language

Change the view angle

*1 ☞ page 21 *2 Not applicable for DVD-VR

OPERATIONS

Page 30

SD operations

This unit can play the JPEG/MP3/WMA/WAV/AAC* files stored in SD card.

• You can operate the SD card in the same way you

ENGLISH

operate the files on discs. (☞ pages 18 to 27)

• All tracks in the SD card will be played repeatedly until you change the source.

• Make sure all important data has been backed up.

~ Open the monitor panel.

<Open/Tilt> menu is displayed.

* This unit can play back AAC files encoded using

iTunes. This unit cannot play back FairPlay-encrypted files.

! Insert an SD card.

Push in the SD card until you hear a clicking sound. The source changes to “SD” and playback starts.

⁄ Close the monitor panel.

• If <Open/Tilt> menu is still displayed:

You can also press [Close] on <Open/Tilt> menu.

• If <Open/Tilt> menu is not displayed:

[Twice]

To eject the SD card

Push in the SD card lightly.

• You can also eject the SD card by holding OPEN (when the monitor panel is closed).

Caution:

Do not place your finger behind the monitor panel.

Caution:

• Do not release your finger quickly; otherwise, the SD card may pop up out from the loading slot.

Page 31

Selecting playback modes

You can use the following playback modes—Repeat or Random. Ex.: To select Track Repeat

ENGLISH

• You can also use MENU on the monitor panel.

Exit

File type Repeat Random

Track: Repeats current track * Folder: Repeats all tracks of the current

folder

Folder: Repeats all files of the current folder

* By pressing

Short Cut icon, you can also turn on or off Track Repeat.

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off>.

Folder: Randomly plays all tracks of current

folder, then tracks of next folders

SD (All): Randomly plays all tracks

—

OPERATIONS

Page 32

USB operations

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to the unit.

• You can also connect the iPod to the USB terminal of the unit. For details of the operations, ☞ pages 48 to 50.

ENGLISH

~ Connect a USB device.

USB cable from the rear of the unit

• You cannot connect a computer to the USB ( terminal of the unit.

The source changes to “USB” and playback starts.

This unit can play JPEG/MPEG1/MPEG2* WAV/AAC*2 files stored in USB mass storage class device.

• You can operate the USB device in the same way you

operate the files on discs. (☞ pages 18 to 27)

• All tracks in the USB device will be played repeatedly until you change the source.

• Make sure all important data has been backed up.

*1 Except for MPEG2 files recorded by JVC Everio

camcorder (extension code <.mod>).

*2 This unit can play back AAC files encoded using

iTunes. This unit cannot play back FairPlay-encrypted files.

/MP3/WMA/

)

Caution:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “Now Reading...” is flashing on the monitor screen.

• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• For more details about USB operations, ☞ page

69.

Page 33

Selecting playback modes

You can use the following playback modes—Repeat or Random. Ex.: To select Track Repeat

• You can also use MENU on the monitor panel.

Exit

File type Repeat Random

Track: Repeats current track * Folder: Repeats all tracks of the current

folder

Track: Repeats current track * Folder: Repeats all tracks of the current

folder

Folder: Repeats all files of the current folder

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off>.

Folder: Randomly plays all tracks of current

folder, then tracks of next folders

USB (All): Randomly plays all tracks Folder: Randomly plays all tracks of current

folder, then tracks of next folders

USB (All): Randomly plays all tracks

ENGLISH

—

* By pressing

Short Cut icon, you can also turn on or off Track Repeat.

OPERATIONS

Page 34

Bluetooth® operations — Cellular phone/audio player

For Bluetooth operations, it is required to connect the Bluetooth Adapter (KS-BTA200) to the CD changer jack on the rear.

ENGLISH

• Refer also to the instructions supplied with the Bluetooth Adapter and the Bluetooth device.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

To use a Bluetooth device through the unit (“Bluetooth PHONE” and “Bluetooth AUDIO”) for the first time, you need to establish Bluetooth wireless connection between the unit and the device.

• Once the connection is established, it is registered in the unit even if you reset your unit. Up to five devices can be registered in total.

• Only one device can be connected at a time for each source (“Bluetooth PHONE” and “Bluetooth AUDIO”).

Connecting a new Bluetooth device

Registration (Pairing) methods

Use either of the following items in <Bluetooth> menu to register and establish the connection with a device.

• Select “Bluetooth PHONE” or “Bluetooth AUDIO” as the source to operate <Bluetooth> menu.

Open Make the unit ready to establish

a new Bluetooth connection. The connection is established by operating the Bluetooth device.

Search Make the unit ready to establish

a new Bluetooth connection. The connection is established by operating this unit.

To register using <Open>

Preparation:

• Operate the Bluetooth device to turn on its Bluetooth function.

• Make sure “NEW DEVICE” is selected. If not, press [5] or [∞] to select it.

• You can also use MENU on the monitor panel.

Exit

Go to other menu items

Device Name

ExitBack

4 Enter a PIN (Personal Identification

Number)* code to the unit.

• You can enter any number you like (1-digit to 16-digit number).

* Some devices have their own PIN code. Enter the

specified PIN code to the unit.

Page 35

You can enter [0] – [9] only.

• [BS]: Erases the character before the cursor.

• [Del]: Erases the character on the cursor.

• [Enter]: Confirms the entry.

5 Operate the Bluetooth device to connect

while “Open...” is displayed on the screen.

Enter the same PIN code (as entered in the above step) on the device to be connected.

Now connection is established and you can use the device through the unit.

The device remains registered even after you disconnect the device. Use <Connect> (or activate <Auto Connect>) to connect the same device from next time (☞ page 65).

To register using <Search>

• Make sure “NEW DEVICE” is selected. If not, press [5] or [∞] to select it.

1 Press [ ] on the touch panel or MENU on

the monitor panel.

2 Press [Bluetooth]. 3 Press [Search].

The unit searches for available devices and displays the list of them. (If no available device is detected, “Device Unfound” appears.)

4 Select a device you want to connect. 5 Enter the specific PIN code of the device to

the unit.

• Refer to the instructions supplied with the device to check the PIN code.

6 Operate the Bluetooth device to connect

while “Connecting...” is displayed on the screen.

Now connection is established and you can use the device through the unit.

To connect a special device <Special Device>

1 Press [ ] on the touch panel or MENU on

the monitor panel.

2 Press [Bluetooth]. 3 Press [Special Device].

The unit displays the list of the preset devices.

4 Select a device you want to connect. 5 Use <Open> (or <Search>) to connect.

To connect/disconnect a registered device

1 Select “Bluetooth PHONE” or “Bluetooth

AUDIO,” then select a registered device you want to connect/disconnect.

2 Press [ ] on the touch panel or MENU on

the monitor panel.

3 Press [Bluetooth]. 4 Press [Connect] or [Disconnect].

• Select <Connect> to connect the selected

device.

• Select <Disconnect> to disconnect the selected

device.

To delete a registered device

1 Select “Bluetooth PHONE” or “Bluetooth

AUDIO,” then select a registered device you want to delete.

2 Press [ ] on the touch panel or MENU on

the monitor panel.

3 Press [Bluetooth]. 4 Press [Delete Pairing].

Confirmation screen appears. Press [Yes].

ENGLISH

EXTERNAL DEVICES

Page 36

Using the Bluetooth cellular phone

☞ page 38

ENGLISH

* *2 This button appears when the Bluetooth Adapter is connected. *3 This adjustment does not affect the volume level of the other sources.

Sound mode

(☞ page 55)

Status of the device

Signal strength/Battery

remainder (only when

the information comes

from the device)

[5 ∞] Selects the registered device

[ ] Hold: Activates <Voice Dialing> function [ ] Displays <

When a cellular phone with audio function is connected, appears.

Connected Device Name

Adjusts the volume of the incoming calls.*

(“NEW DEVICE” appears when a new device can be registered.)

Dial Menu

> screen.

Bluetooth icon lights up when the adapter is connected.

~ Press [SOURCE], then press [Bluetooth PHONE]. (☞ page 11)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [ ].

• You can also use MENU on the monitor panel.

! Press [Bluetooth]. ⁄ Establish the connection with a device, then make a call (or settings using <Bluetooth>

menu).

(☞ pages 64 and 65)

When a call comes in...

The source is changed to “Bluetooth PHONE” automatically.

When <Auto Answer> is deactivated... To answer the incoming call

• Press the message displayed on the touch panel.

• Press any button on the monitor panel (except /ATT or VOL +/–).

Name and phone number (if acquired)

When <Auto Answer> is activated...

The unit answers the incoming call automatically. (☞ page 65)

To end the call

• Hold the message displayed on the touch panel.

• Hold any button on the monitor panel (except /ATT or VOL +/–).

• You can adjust the microphone volume. (☞ page 65)

Page 37

When a Text Message comes in...

If the cellular phone is compatible with Text Message, you can read the messages on the screen.

• You cannot edit or send a message through the unit.

When <Message Info> is set to <Auto>...

The unit rings and the following screen is displayed to inform you of a message arrival. (☞ page 65)

Device Name

Receiving Message

Read ?

Yes No

Jack

To read the message, press [Yes]. The source is changed to “Bluetooth PHONE.”

To read the message later, press [No].

• The message is stored into <Message> = <Unread>. (☞ page 64)

When <Message Info> is set to <Manual>...

Access the message list to read messages. (☞ pages 64 and 65)

To make a call

• You can also use MENU on the monitor panel.

Exit

Select a calling method, then call.

Back

Back Exit

Cancels.

Device Name

Redial Shows the list of the phone

numbers you have dialed.

Received Calls Shows the list of the received

calls.

Phonebook Shows the phone book of the

connected cellular phone.

Missed Calls Shows the list of the missed

calls.

Phone Number

Shows the phone number entry screen = “Entering a phone number” (☞ page 38).

Voice Dialing (Only when the connected

cellular phone has the voice recognition system): = Speak the name you want to call.

ExitBack

Exit

ENGLISH

EXTERNAL DEVICES

Page 38

To stop ringing (canceling the outgoing call)

Hold any button on the monitor panel (except /ATT or VOL +/–).

Entering a phone number

ENGLISH

• You cannot use the remote controller to enter phone numbers.

You can enter [0] – [9], [*], [#] (up to 32 numbers)

• [BS]: Erases the character before the cursor.

• [Del]: Erases the character on the cursor.

• [Preset]: Goes to Preset List. You can preset the

entered number by selecting a preset number. (☞ page 39)

• [Dial]: Calls the entered number.

To redial previously dialed numbers

• You can also display <Dial Menu> screen by

holding SOURCE on the monitor panel.

• By pressing

activate <Voice Dialing> function.

• You can also activate it by holding [ ].

Short Cut icon, you can easily

Back Exit

When using the remote controller, you can display <Redial> menu anytime .

[Hold]

Page 39

Presetting the phone numbers

You can preset up to six phone numbers.

1 Select the phone number you want to preset

from <Phonebook>, <Redial>, <Received Calls>, or <Missed Calls>.

1 Press [

on the monitor panel.

2 Press [Bluetooth]. 3 Press [Dial Menu], then...

Ex.: Selecting <Received Calls>

2 Select a telephone number to store.

] on the touch panel or MENU

To call a preset number

• You can also use MENU on the monitor panel.

List

ENGLISH

Exit

Back Back

3 Select a preset number.

Now “Tom” is stored into preset no. 1.

[Hold]

You can use the following buttons on the remote controller for the Bluetooth phone operations.

• Displays <Dial Menu> screen/

Answers the incoming call.

• Displays the <Redial> list if pressed

and held (regardless of the current source).

Ends the call.

Adjusts the volume of the incoming calls.

[Hold]

Makes a call to the preset numbers.

EXTERNAL DEVICES

Page 40

Using the Bluetooth audio player

ENGLISH

Sound mode

(☞ page 55)

Connected Device Name

Status of the device

Signal strength/Battery

remainder (only when

the information comes

from the device)

[3 / 8] [7] Starts playback/pauses [

4 ¢] Reverse/forward search

[

5 ∞] Selects the registered device

(“NEW DEVICE” appears when a new device can be registered.* [ ] Displays <

Dial Menu

> screen.

*1 Indicates the button pressed. It may be different from the operation status. *2 This button appears when the Bluetooth Adapter is connected. *3 You cannot select “NEW DEVICE” when a Bluetooth audio player is connected.

~ Press [SOURCE], then press [Bluetooth

AUDIO].

(☞ page 11)

You can use the following buttons on the remote controller for the Bluetooth audio operations.

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Start playback.

• See page 34 for connecting a new device.

• See page 35 for connecting/disconnecting a registered device.

• See page 35 for deleting a registered device.

The Bluetooth icon lights up when the adapter is connected.

Starts playback/pauses.

Reverse/forward skip

Adjusts the volume.

)

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www. jvc-victor.co.jp/english/car/>

Page 41

Listening to the CD changer

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs.

Ex.: While playing an MP3 disc

DISC 1

Folder no./Track no./Playing time

ENGLISH

MP3 indicator

Sound mode

(☞ page 55)

Current Folder Name Current File Name.mp3 Current Track Title Artist Name Album Title

[4 ¢] Press: Selects track Hold: Reverse/forward search [

5 ∞] Press: Selects folder (only for MP3)

Hold: Displays Disc List

Preparation: Make sure <Changer> is selected for <External Input>. (☞ page 62)

~ Press [SOURCE], then press [CD-CH]. (☞

page 11)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [ ].

• You can also use MENU on the monitor panel.

! Press [List].

⁄ Select a disc to start playing.

Disc List

Disc 01

Disc 02

Disc 03

Back Exit

To go to the other list

Disc 04

MP3 Disc

Disc 06

Tag data appears only when it is recorded.

You can also display the Disc List by holding [5 / ∞].

• If you select an MP3 disc, the Track list of the current folder appears. You can select a track and start playing.

DISC 5

List

Folder 05 Folder 06 Folder 07

Folder 08 Folder 09 Folder 10

Back Exit

0003/00990005/0035

Track001.mp3 Track002.mp3 Track003.mp3 Track004.mp3 Track005.mp3 Track006.mp3

• If you select a folder on the list, you can start playing the first track of the folder.

1 Current disc number 2 Current folder number/total folder number 3 Current track number/total track number of

the current folder

*1 Press to move to the previous/next pages of the

lists.

*2 You can also select folders/tracks by using the

bar (☞ page 22).

EXTERNAL DEVICES

Page 42

Selecting playback modes

You can use following playback modes—Repeat or Random. Ex.: To select Track Repeat for an MP3 disc (for CDs, ☞ page 21)

ENGLISH

• You can also use MENU on the monitor panel.

ExitBack

Exit

Disc type Repeat Random

Track: Repeats current track * Disc: Repeats all tracks of the current disc

Track: Repeats current track * Folder: Repeats all tracks of the current

folder

Disc: Repeats all tracks of the current disc

* By pressing

You can use the following buttons on the remote controller to operate the CD changer.

Short Cut icon, you can also turn on or off Track Repeat.

Selects disc.

Selects folder (MP3 only).

• Press: Selects track.

• Hold: Reverse/forward search

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off>.

Disc: Randomly plays all tracks of the

current disc

All: Randomly plays all tracks of all loaded

discs

Folder: Randomly plays all tracks of current

folder, then tracks of next folders

Disc: Randomly plays all tracks of the

current disc

All: Randomly plays all tracks of all loaded

discs

Page 43

Listening to the satellite radio

Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• JVC SIRIUS Satellite radio interface, KS-SRA100, for listening to SIRIUS Satellite radio.

• JVC Smart Digital Adapter, XMDJVC100, for listening to XM Satellite radio.

ENGLISH

For SIRIUS Radio

Activate your subscription after connection:

~ Turn on the power.

on the monitor panel:

Ÿ Select “SAT” for the source.

on the monitor panel:

• ☞ also page 11

The SIRIUS Satellite radio starts updating all the SIRIUS channels. (☞ “GCI update” column below.)

• Once completed, SIRIUS Satellite radio tunes in to the preset channel, CH184.

! Check your SIRIUS ID. (☞ page 61)

⁄ Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539SIRIUS (7474).

“Subscription Updated Press Any Key to Continue” appears on the monitor once subscription has been completed.

For XM Radio

Activate your subscription after connection:

•

Only Channel 0, 1, and 247 are available before activation.

~ Turn on the power.

on the monitor panel:

Ÿ Select “SAT” for the source.

on the monitor panel:

• ☞ also page 11

The XMDirectTM Universal Tuner Box starts updating all the XM channels. “Channel 1” is tuned in automatically. (☞ “GCI update” column below.)

! Check your XM Satellite radio

ID labelled on the casing of the XMDirectTM Universal Tuner Box, or tune in to “Channel 0.”

⁄

Contact XM Satellite radio on the internet at <http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XM-RADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the available channels (Channel 4 or higher).

(☞ page 44)

GCI (Global Control Information) update:

• If channels are updated after subscription, updating starts automatically, and no sound can be heard. For SIRIUS : “Channel is Updating XX% completed” appears. For XM : “UPDATING” appears.

• Updating takes a few minutes to complete.

• Do not press any buttons or perform any operations until updating is completed.

EXTERNAL DEVICES

Page 44

Tuning in to a channel you want

ENGLISH

Sound mode

(☞ page 55)

Signal Reception

indicator

LEVEL

3:45

Preset no.

Band

SR1

C A

Category Name

Channel Name

Song Title

Artist Name Composer Name

Channel no.

Listening to the HD Radio™ Broadcast

Before operating, connect HD Radio tuner box, KT-HD300 (separately purchased) to the CD changer jack on the rear of the unit.

ENGLISH

What is HD Radio Technology?

HD Radio Technology can deliver high-quality digital sound—AM digital will have FM-like quality (in stereo) and FM digital will have CD-like quality—with static-free and clear reception. Furthermore, stations can offer text and data, such as artist names and song titles.

• When the HD Radio tuner box is connected, it can also receive conventional analog broadcasts.

• Many HD Radio stations also offer more than one channel of programming. This service is called multicasting.

• To find HD Radio stations in your area, visit www.hdradio.com <http://www.hdradio.com/>.

Flashes first then lights

☞ below

Band Preset no. up when a digital audio broadcast is tuned in.

☞ page 47

Signal strength

HDRADIO

HD SEARCH

ST HD LEVEL

3:45

AUTO

FM1

WXYZ-HD1 Genre

Song

Artist Album Title

Name

87. 5 MHz

CHANNEL

BAND

HD Radio reception mode

Refer to page 10 for basic radio operations.

When receiving HD Radio Multicast channels...

~ Press [5 CHANNEL] or [CHANNEL ∞] to select a desired channel.

• “LINKING” appears while linking to a multicast channel.

Searching for HD Radio stations only

~ Press [HD SEARCH].

• The HD SEARCH indicator appears.

Ÿ Press [ ] or [ ] to search for a station—Auto Search.

Station Call Sign and channel number

Page 47

Changing HD Radio reception mode

While receiving an HD Radio broadcast, the unit tunes to digital or analog audio automatically due to the receiving condition.

CHANNEL

Tuning in to stations with sufficient signal strength

This function works only for FM bands. Once you have activated this function (selected <Local>), it always works when searching for FM stations.

CHANNEL

ENGLISH

• You can also use MENU on the monitor panel.

Exit

Mode

Mono Local / DX

SSM Blend Hold

Back Exit

Analog Tuning to analog audio only Digital Tuning to digital audio only Auto Switch between digital and

• If no sound can be heard from the selected setting,

change the setting to <Analog> or <Digital>.

• The setting automatically changes to <Auto> if you

tuned in to or change to another station, or if you turned off the power.

• This setting cannot take effect for the conventional FM/AM stations.

• If the radio station forces the reception mode to digital, the DIGITAL indicator flashes.

Local DX

Start

Analog Digital Auto

analog audio automatically

• You can also use MENU on the monitor panel.

Mode

Mono Local / DX

SSM Blend Hold

Back Exit

Only stations with sufficient signal strength will be detected.

• The DX indicator goes off, then the LO indicator lights up.

Local DX

Start

Analog Digital Auto

Exit

EXTERNAL DEVICES

Page 48

Listening to the iPod

You can connect the iPod using the following cable or adapter:

ENGLISH

To listen to the music USB 2.0 cable (supplied for the iPod)

To watch the video USB Audio and Video cable for

When connected with the USB cable

Sound mode

(☞ page 55)

Playback mode

(☞ page 50)

Cable/adapter To operate

Interface Adapter for iPod—KS-PD100 (not supplied)

iPod—KS-U20K (not supplied)

Current Track Title Artist Name Album Title

☞ “When connected with the USB cable” below.

☞ “When connected with the interface adapter” on page 51.

☞ “When connected with the USB cable” below.

• Make sure <iPod (Off)> is selected for <AV Input>. (☞ page 61)

Track no./Playing time

[5 / ∞] Press: Moves to the previous/next item of a category (ex.: another album,

Hold: Enters <Search Mode> menu [

4 / ¢] Press: Selects a track/video

Hold: Reverse/forward search [

3 / 8] Starts playback/pause

*1 [5 / ∞] may not function depending on how you select the current track/video.

artist, playlist, etc.)*

~ Press [SOURCE], then press [USB iPod]. (☞ page 11)

Playback starts automatically.

• When you connect the iPod to the USB terminal, “USB iPod” is selected as the source and playback starts automatically.

Ÿ Press [4] or [¢] to select a track/video*

*2 You cannot resume playback for video sources.

Page 49

Selecting a track/video from <Search Mode>

Press to move to the previous/next pages of the

list

*2 You can also select Search Mode and tracks/

videos by using the bar. (☞page 22)

• You can also use MENU on the monitor panel.

Exit

3 Select <Music> or <Videos>.

Search Mode

Music Videos Shuffle Songs

Back Exit

Playlists Artists Albums Songs Podcasts Genres

• Selecting <Shuffle Songs> starts playback.

4 Select a search mode (1), then desired item

(2).

List

Playlists Artists Albums

Songs Podcasts Genres

Back Exit

0003/0099

Track 01 Track 02 Track 03 Track 04 Track 05 Track 06

• Repeat step 2 until a desired track/video is

started playback.

Search modes:

– For <Music>:

Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers, Audiobooks

– For <Videos>:

Video Playlists, Movies, Music Videos, TV shows, Video Podcasts

• Available search modes depend on the type of your iPod.

You can also display the Search Mode and track/ video Lists by holding [5

/ ∞].

ENGLISH

1 Current track (video) number/total track

(video) number

EXTERNAL DEVICES

Page 50

Selecting playback modes

ENGLISH

• You can also use MENU on the monitor panel.

Changing the play speed of the audio books

You can select the playback speed of the “Audiobook” sound file in your iPod.

• You can also use MENU on the monitor panel.

Exit

Audiobooks

Repeat One: Functions the same as

Random Album: Functions the same as

• When the playback modes are selected, the corresponding indicators light up alternately on the screen.

*1 By pressing Short Cut icon, you can also

turn on or off Track Repeat.

*2 You can also activate <Shuffle Songs> in

<Search Mode> menu (☞ page 49).

To cancel, select <Off>.

Normal Faster Slower

“Repeat One.” *

All: Functions the same as

“Repeat All.”

“Shuffle Albums.”

Song: Functions the same as

“Shuffle Songs.” *

Exit

Audiobooks

Normal Plays at normal speed. Faster Plays faster.

Slower Plays slower.

You can display iPod Artwork on the screen. (☞ pages 60 and 71)

Normal Faster Slower

Page 51

When connected with the interface adapter

Track no./Playing time

Sound mode

(☞ page 55)

Playback mode

(☞ page 50)

[4 ¢] Press: Selects tracks Hold: Reverse/forward search [SEARCH] Enters player’s menu [

3 / 8] Starts playback/pauses

Preparation: Make sure <iPod> is selected for <External Input>. (☞ page 62)

~ Press [SOURCE], then press [iPod]. (☞ page 11)

Playback starts automatically.

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [4] or [¢] to select a track.

Selecting a track from the player’s menu

1 Press [SEARCH] to enter the player’s menu.

“SEARCH” flashes on the screen during menu operations.

• This mode will be canceled if no operations are done for about 5 seconds.

2 Press [4] or [¢] to select the desired

item.

Press: Selects an item. Hold: Skips 10 items at a time if there are more

than ten items.

3 Press [3 / 8] to confirm the selection. 4 Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.

• To return to the previous menu, press [SEARCH].

Selecting playback modes

Operations are exactly the same as explained on page 50 for “USB iPod.”

• <Audiobooks> is not displayed in step 3.

ENGLISH

Playlists Ô Artists Ô Albums Ô Songs Ô Genres Ô Composers Ô (back to the beginning)

EXTERNAL DEVICES

Page 52

Using other external components

AV-INPUT

You can connect an external component to the LINE IN/VIDEO IN jacks.

ENGLISH

Sound mode (☞ page 55) Assigned title (☞ page 56)

~ Press [SOURCE], then press [AV-IN]. (☞ page 11)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Turn on the connected component and start playing the source.

To display the operation buttons (☞ page 20) while watching the playback picture

Touch the screen (center portion). Touch the screen (center portion).

• If no operations are done for about 5 seconds, the operation buttons disappear.

Page 53

Navigation screen

You can also connect a Navigation System to the VIDEO IN jack so that you can watch the navigation screen.

Preparation: Make sure <Navigation> is selected for <AV Input>. (☞ page 61)

To view the navigation screen

Press DISP on the monitor panel repeatedly. (☞ page 11)

• The aspect ratio of the navigation screen is fixed to

<Full> regardless of the <Aspect> setting. (☞ page

59)

To display the operation buttons (☞ page 20) while viewing the navigation screen

• The operation buttons displayed on the screen vary among the playback sources.

ENGLISH

Touch the screen (center portion). Touch the screen (center portion).

• If no operations are done for about 5 seconds, the operation buttons disappear.

• The above buttons except [KEY] also work when they are not shown on the screen (while viewing the navigation

screen).

When <Navigation> is selected for <AV Input> (☞ page 61)

• You can use the source “AV-IN” for listening to an audio source connected to the LINE IN jacks.

EXTERNAL DEVICES

Page 54

EXT-INPUT

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied).

ENGLISH

Sound mode

(☞ page 55)

Preparation: Make sure <External> is selected for <External Input>. (☞ page 62)

~ Press [SOURCE], then press [EXT-IN]. (☞ page 11)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Turn on the connected component and start playing the source.

Assigned title (☞ page 56)

Page 55

Sound equalization

• You can also use MENU on the monitor panel.

! Select a sound mode.

By pressing can easily change the sound mode.

• For preset values of each sound mode,

☞ page 73.

Storing your own adjustments

You can store your adjustments into <User1>, <User2>, and <User3>.

Short Cut icon, you

ENGLISH

1 Repeat steps ~ and Ÿ, then in step !...

Exit

2 Adjust (1), then store (2).

Move to other six sound modes

Ex.: When storing into <User2>.

* You can also make adjustments by moving each

bar directly.

SETTINGS

Page 56

Assigning titles to the sources

ENGLISH

;

You can assign titles as follows.

FM/AM stations* Up to 16 characters—up to 30

stations.

AV-IN

Up to 16 characters

EXT-IN

* You cannot assign titles to the HD Radio stations.

~ Select the source. (☞ page 11)

• For FM/AM stations: Select the band, then tune into a station.

Ÿ Display <Title Entry> screen.

• You can also use MENU on the monitor panel.

Exit

Setup

Title Entry

Enter

! Assign a title.

;

You can enter up to 16 characters (for available characters, ☞ page 74).

• [Store]: Confirm the entry.

• [2/3]: Move the cursor.

• [BS]: Erase the character before the

cursor.

• [Del]: Erase the character on the cursor.

• [Cap]: Change the letter case (upper/

lower).

• [A 0 Ä]: Change the character set.

• [Space]: Enter a space.

⁄ Finish the procedure.

;

Back Exit

Page 57

Menu operations

ENGLISH

Exit

The following steps are one of the fundamental procedures. Some of the settings do not open the sub-setting window, but just selecting an option will change the setting.

• The display indications may change according to change of the specifications.

Ex.: Changing the <AV Input> setting

• You can also use MENU on the monitor panel.

Exit

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Metal

Blue

Once

Auto

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Setup

AV Input Camera Input External Input

Back Exit

Setup

AV Input Camera Input External Input

Back Exit

Setup

AV Input Camera Input External Input

Metal

Blue Once Auto

Audio&Video

Off

iPod External

Off

iPod (Off)

Audio&video

Audio

Navigation

Off

iPod External

Auto

Non-available items will be shaded.

Back Exit

SETTINGS

Page 58

Setup

Menu items Selectable settings, [reference page]

Demonstration Off: Cancels.

ENGLISH

Wall Paper You can select the background picture of the screen.

Color You can select the color of the background picture.

Scroll Off: Cancels.

Dimmer Off: Cancels.

Display

Dimmer Time Set Sets the Dimmer On/Off times. Dimmer Level You can select the brightness for dimmer.

Bright You can adjust brightness of the screen.

Picture Adjust *

The ILLUMINATION CONTROL lead connection is required. (☞ Installation/Connection Manual)

Adjustable only when the source is “DISC/SD/USB” (the media must contain pictures or movies) or “AV-IN.”

On: Activates the demonstration on the screen. To stop it temporarily,

touch the screen.

Metal, Sky, Bright, Plain

Blue, Light-Blue, Red, Orange, Yellow, Green, Purple, Dark-Blue, Dark-Green, Brown, Light-Brown, Black

Once: Scrolls the disc information once. Auto: Repeats scrolling (5-second intervals).

• Touching an information bar scrolls the text regardless of this setting.

☞ [19]

On: Activates dimmer. Auto: Dims the monitor when you turn on the headlights.* Dimmer Time Set : Activates the Dimmer Time setting below.

01 (bright), 02 (middle), 03(dark)

–15 (darkest) to +15 (brightest); Initial 00

You can adjust the following to make the screen clear and legible for watching the playback picture. The setting will be stored—one for “DISC/SD/USB” (common) and the other for “AV-IN.”

–15 to +15; Initial 00 Bright: Adjust if the picture is too bright or too dark. Contrast: Adjust the contrast. Color: Adjust the color of the picture—lighter or darker. Tint: Adjust the tint if the human skin color is unnatural.

• Press [5] or [∞] to adjust.

Initial: Underlined

Page 59

The procedure for setting an item is shown on page 57.

Menu items Selectable settings, [reference page]

Aspect *

You can change the aspect ratio of the picture.

Aspect ratio of incoming signal

4:3 16:9

Regular:

For 4:3 original pictures

Full:

For 16:9 original pictures

Panorama:

For viewing 4:3 pictures naturally on the wide

Display

screen Auto: • For “DISC”: Aspect ratio is automatically

selected to match to the incoming signals.

• For the other video sources: Aspect ratio is

fixed to <Regular>.

Language *

Select the indication language shown on the screen.

English, Español, Français, Deutsch, Italiano, Nederlands, Svenska, Dansk, Руccĸий, Português

• The characters you can enter for assigning the titles also change

according to the language selected, ☞ [74].

Time Set

Initial 1:00AM ☞ [10]

Time Format Select either 12-hour system or 24-hour system.

12 Hours, 24 Hours ☞ [10]

OSD Clock When <On> is selected, the clock time is displayed on the playback

picture. ☞ [10]

Off, On

Clock Adjust *

Off : Cancels. Auto : The built-in clock is automatically adjusted using the clock time

Clock

Time Zone *

5 *6

data provided via the satellite radio channel.

Select your residential area from one of the following time zones for clock adjustment.

Alaska, Pacific, Mountain, Central, Eastern, Atlantic, Newfoundland

DST (Daylight Saving Time) *

Activates this if your residential area is subject to DST.

5 *6

Off : Cancels. On : Activates daylight saving time.

Not adjustable when no picture is shown. *4 After you change the indication language setting, turn off then on the power so that your setting takes effect. *5 Appears only when SIRIUS Satellite Radio or XM Satellite Radio is connected. *6 Appears only when <Clock Adjust> is set to <Auto>.

ENGLISH

SETTINGS

Page 60

Menu items Selectable settings, [reference page]

Menu Language * Audio Language *

ENGLISH

Subtitle*

Select the initial disc menu language; Initial Select the initial audio language; Initial English (☞ also page 73). Select the initial subtitle language or erase the subtitle (Off); Initial Off

(☞ also page 73).

Monitor Type *

16:9 4:3LB

Select the monitor type to watch a wide screen picture on the external monitor.

16:9 : Select when the aspect ratio of the external monitor is 16:9. 4:3LB (Letterbox)/4:3PS (Pan Scan): Select when the aspect ratio of

4:3PS

the external monitor is 4:3.

• Refer to the illustrations on the left to see how the pictures are shown on the screen.

OSD Position *

Position 1 Position 2

Select the position of the on-screen bar. ☞ [29]

1: Higher position 2: Lower position

English (☞

Initial: Underlined

also page 73).

File Type *

Select playback file type when a disc/SD/USB contains different types of files. You can store this setting separately for each source —“DISC/SD/USB.”

Audio: Plays back audio files.

Disc

Still Picture: Plays back JPEG files. Video: Plays back DivX/MPEG1/MPEG2 files. (Not applicable to “SD”) Audio&Video: Plays back audio files and DivX/MPEG1/MPEG2 files.

(Not applicable to “SD”)

DivX Regist. (Registration) *

This unit has its own Registration Code. Once you have played back a file with which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.

iPod Artwork Off: Cancels.

On: Activates Artwork display. To display artwork, press DISP

repeatedly. ☞ [11]

• Refer also to page 71.

D. Audio Output *

Select the signal format emitted through the DIGITAL OUT (optical) terminal. (☞ also page 72) PCM : Select this when connecting an amplifier or a decoder

incompatible with Dolby Digital, DTS, or MPEG Audio, or when connecting to a recording device.

Dolby D : Select this when connecting an amplifier or a decoder

compatible with Dolby Digital.

Stream : Select this when connecting an amplifier or a decoder

compatible with Dolby Digital, DTS, or MPEG Audio.

Selectable only for “DISC”, “SD“, and “USB.“ (Playback stops when you change the setting.)

Page 61

The procedure for setting an item is shown on page 57.

Menu items Selectable settings, [reference page]

Down Mix *

When playing back a multi-channel disc, this setting affects the signals reproduced through the LINE OUT terminals. Dolby Surr. : Select this to enjoy multi-channel surround audio by

connecting an amplifier compatible with Dolby Surround.

Disc

D. (Dynamic) Range Compres. (Compression) *

Stereo : Normally select this.

You can enjoy a powerful sound at a low volume level while playing

Dolby Digital software.

Auto: Select to apply the effect to multi-channel encoded software. On: Select to always use this function.

IF Band Width *

Auto: Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.)

Wide: Subject to the interference from adjacent stations, but sound

quality will not be degraded and the stereo effect will remain.

Area Setting US : When using in North/Central/South America. FM/AM intervals are

Tuner

set to 200 kHz/10 kHz.

Europe : When using in any other areas. FM/AM intervals are set to 50

kHz (100 kHz during auto search)/9 kHz.

SA : When using in South American countries where FM interval is 100

kHz. AM interval is set to 10 kHz.

Sirius ID *

AV Input *

Your SIRIUS identification number appears on the monitor.

You can determine the use of LINE IN and VIDEO IN terminals. ☞ [52] Off: Select when no component is connected (“AV-IN” is skipped while

selecting the source).

iPod (Off): Select when connecting the iPod using the USB Audio and

Input

Video cable for iPod. ☞ [48]

Audio&Video:

Select when connecting an AV component such as a VCR.

Audio: Select when connecting an audio component such as a portable

audio player.

Navigation : Select when connecting a Navigation System.

Selectable only for “DISC”, “SD“, and “USB.“ (Playback stops when you change the setting.)

* *3 Appears only when an HD Radio tuner box is connected. *4 Appears only when a SIRIUS Satellite Radio is connected. *5 Not selectable when “AV-IN” is selected as the source.

ENGLISH

SETTINGS

Page 62

Initial:

Underlined

Menu items Selectable settings, [reference page] Camera Input *

Off:

Select when no rear view camera is connected to the CAMERA IN plug.

On: Select when connecting the rear view camera to the CAMERA IN plug.

ENGLISH

The picture from the camera is displayed as it is taken.

• While the pictures through the camera are shown on the monitor, no message will be displayed.

External Input *

Input

For connecting an external component to the CD changer jack on the rear.

Changer/iPod *3: CD changer or iPod. ☞ [41, 51] External: Any other than the above. ☞ [54]

• For connecting the Bluetooth adapter, Satellite radio interface, and Smart Digital Adapter, this setting is not required. They are automatically detected.

Beep Off: Cancels.

On: Activates the key-touch tone.

Telephone Muting *

Off: Cancels. Muting1, Muting2: Select either one which mutes the sounds while

using the cellular phone.

Illumination You can turn off the lights of the monitor panel buttons while turning on

the unit. ☞ [5]

Normal: Always lights.

Others

Proximity/Motion: Lights up when your finger moves closer to the

touch panel.

Touch Panel: Lights up when your finger touches the touch panel.

Motion Sensitiv. Change the sensitivity of the sensor for Illumination Off mode.

Low, Mid, High

Initialize Initialize all settings you have made in <AV Menu>. Press and hold

[Enter] to initialize the settings, then reset the unit. ☞ [3]

The REVERSE GEAR SIGNAL lead connection is required. See Installation/Connection Manual. The rear view through

the camera appears on the screen in <Full> aspect ratio (regardless of the aspect ratio setting) when you shift the gear to the reverse (R) position. When you press DISP on the monitor panel, or when you shift the gear to another

position other than the reverse (R) position, the rear view screen is cleared. *2 Not selectable when the component connected to the CD changer jack is selected as the source. *3 The name of the component detected through the CD changer jack is shown. *4 The TEL MUTING lead connection is required. See Installation/Connection Manual.

Page 63

Equalizer

The procedure for setting an item is shown on page 57.

Flat/Hard Rock/R&B/Pop/Jazz/Dance/Country/Reggae/Classic/User1/User2/User3 ☞ [55]

Sound

Menu items Selectable settings, [reference page] Fader/Balance Adjust fader—speaker output balance between the front and rear speakers.

Fader/Balance

Back Exit

Volume Adjust *

Subwoofer Level Adjust the subwoofer output level. Level: –06 to +08; Initial 00 High Pass Filter Through: Select when the subwoofer is not connected.

Crossover Adjust the crossover frequency between the front/rear speakers and the

Amplifier Gain You can change the maximum volume level of this unit.

For digital sources: you can make the adjustments separately depending on the audio format—Dolby Digital/DTS

and the others.

• Upmost—front only (F6)

Reset

• Downmost—rear only (R6)

Fader 0 Balance 0

When using a two-speaker system, set the fader to the center (0). Adjust balance—speaker output balance between the left and right speakers.

• Leftmost—left only (L6)

• Rightmost—right only (R6) Initial 0 Adjust and store auto-adjustment volume level for each source, comparing to

the FM volume level. The volume level will automatically increase or decrease when you change the source.

–12 to +12; Initial 00

On: Select when the subwoofer is connected.

subwoofer.

80Hz, 120Hz, 150Hz

Off: Deactivates the built-in amplifier. Low: VOL 00 to 30 (Select this if the maximum power of the speakers is less

than 50 W.)

High: VOL 00 to 50

ENGLISH

SETTINGS

Page 64

Mode *

Menu items Selectable settings, [reference page] Mono Local / DX

ENGLISH

SSM * Title Entry * Blend Hold * Repeat Random Audiobooks

Only for FM. (Off, On) ☞ [14] Only for FM of HD Radio. (Local, DX) ☞ [47] Only for FM. Press and hold to start SSM. ☞ [14] Only for FM/AM stations, “AV-IN,” and “EXT-IN.” ☞ [56] Only for HD Radio broadcast. ☞ [47]

☞ [21, 31, 33, 42, 50] ☞ [21, 31, 33, 42, 50] Only for “USB iPod.” ☞ [50]

Normal, Faster, Slower

Items listed under <Mode> vary among the playback sources.

*2 Also available for AM when an HD Radio tuner box is connected. *3 Unavailable for AM/FM stations when an HD Radio tuner box is connected. *4 Appears only when an HD Radio tuner box is connected.

List

For “DISC”: Folder List and Track List (☞ page 22) For “CD-CH”: Disc List, Folder List, and Track List (☞ page 41)

Initial:

Underlined

Bluetooth *

Menu items Selectable settings, [reference page] Dial Menu * Message *

Select the method to make a call. ☞ [37] You can read a message from the following message histories.

Unread: Messages you have not read. Read: Messages you have read. Unsent: Messages you have not sent. Sent: Messages you have sent.

• The number of messages in each history is also shown.

Selectable only for “Bluetooth PHONE” or “Bluetooth AUDIO.” Select a device (or “NEW DEVICE”) before operating the

menu. *6 Only for the device connected for “Bluetooth PHONE.” *7 Selectable only when the source is “Bluetooth PHONE” and the connected cellular phone is compatible with Text

Massage.

Page 65

The procedure for setting an item is shown on page 57.

Menu items Selectable settings, [reference page] Open Search

☞ [34] ☞ [35]

Special Device Only for “NEW DEVICE.”

Shows the list of Bluetooth devices which require some special procedure to establish Bluetooth connection. Select a device you want to connect.

• After selecting the device, use <Open> or <Search> (☞ page 34 or

35) for connection.

• Once the connection is established, it is registered in the unit. You can

connect the unit and the device by using <Connect> (☞ below) from the next time.

Connect Only for the registered devices.

After selecting a device from among the registered devices (☞ pages 34 and 35), establish the connection with it.

Disconnect Only for the device being connected.

Disconnect the current device before connecting another device.

Delete Pairing Only for the registered devices.

Delete the registered devices.

Auto Connect *

When the unit is turned on, the connection is established automatically with...

Off: No Bluetooth device. Last: The last connected Bluetooth device. Order: The available registered Bluetooth device found first.

Auto Answer *

Off: The unit does not answer the calls automatically. Answer the calls

manually.

On: The unit answers the incoming calls automatically.

Settings

Message Info *

Reject: The unit rejects all incoming calls. Auto: The unit informs you of the arrival of a message by ringing and

displaying “Receiving Message.” To read the message, ☞ page 37.

Manual: The unit does not inform you of the arrival of a message.

MIC Setting *

Adjust microphone volume connected to the Bluetooth adapter. 01/02/03

Version *

Selectable only for “Bluetooth PHONE.”

The Bluetooth software and hardware versions are shown.

*9 Only for the cellular phone connected for “Bluetooth PHONE.” Not selectable when “NEW DEVICE” is selected. *10 If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc-victor.

co.jp/english/car/>

ENGLISH

When operating the Bluetooth device, refer also to the instructions supplied with the device.

SETTINGS

Page 66

Maintenance

How to clean the connector

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the

ENGLISH

connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the

center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

disc

Unusual shape

Warped discSingleCD—8 cm (3-3/16”)

Stick-on labelSticker and sticker residue

C-thru Disc (semi-transparent disc)

Transparent or semi-transparent on its recording area

Page 67

More about this unit

General

Turning on the power

• By pressing SOURCE on the monitor panel, you can also turn on the power. If the source is ready, playback starts.

Tuner (FM only)

Storing stations in memory

• When SSM is over, received stations are preset in no. 1 (lowest frequency) to no. 6 (highest frequency).

Disc

General

• In this manual, words “track” and “file” are interchangeably used.

• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV/AAC) are recorded on the same disc.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

Inserting a disc

• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the screen. Eject the disc.

Ejecting a disc

• If “No Disc“ appears after removing a disc, insert a disc or select another playback source.

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• This unit can recognize a total of 25 characters for file/folder names.

• Some discs or files may not be played back due to their characteristics or recording conditions.

Playing DVD-VR

• For details about DVD-VR format and Playlist, refer to the instructions supplied with the recording equipment.

File playback

Playing DivX files

• This unit can play back DivX files with the extension code <.divx>, <.div>, or <.avi> (regardless of the letter case—upper/lower).

• Audio stream should conform to MP3 or Dolby Digital.

• The file encoded in the interlaced scanning mode may not be played back correctly.

• The maximum bit rate for video signals (average) is 4 Mbps.

ENGLISH

REFERENCES

Page 68

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*. * <.mod> is an extension code used for the MPEG2

files recorded by JVC Everio camcorders. The MPEG2 files with the <.mod> extension code cannot be

ENGLISH

played back when stored on a USB mass storage class device.

• The stream format should conform to MPEG system/ program stream.

The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.

• The maximum bit rate for video signals (average) is 4 Mbps.

Playing JPEG files

• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.

• It is recommended that you record a file at 640 x 480 resolution.

• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played.

Playing MP3/WMA/WAV/AAC files

• This unit can play back files with the extension code <.mp3>, <.wma>, <.wav>, or <.m4a> (regardless of the letter case—upper/lower).

• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps AAC: 16 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)

44.1 kHz (for WAV) 48 kHz, 44.1 kHz (for AAC)

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3).

• This unit can also show WAV/WMA Tag.

• This unit can play back files recorded in VBR (variable bit rate).

• Files recorded in VBR have a discrepancy in elapsed time indication.

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO

format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional,

and voice format. – WMA files which are not based upon Windows

Media® Audio. – WMA/AAC files copy-protected with DRM. – AAC files encoded by using any other application

than iTunes. – AAC files copy-protected with FairPlay (except

those stored on an iPod). – Files which have the data such as AIFF, ATRAC3,

etc.

• If “No SD Card“ appears after removing an SD card, reattach an SD card or select another playback source.

• When the SD card has no playable files, or has not been formatted correctly, “Cannot play this SD card Check the SD card” appears on the monitor. Replace the SD card. Do not pull out or attach the SD card while “Now Reading...” is shown on the screen.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total of 25 characters for file/folder names.

Page 69

USB

• If “No USB Device“ appears after removing a device, reattach a device or select another playback source.

• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device Check the device” appears on the screen.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• When connecting a USB device, refer also to its instructions.

• Connect only one USB device to the unit at a time. Do not use a USB hub.

• This unit may not recognize a USB device connected through a USB card reader.

• When connecting with a USB cable, use the USB 2.0 cable.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot assure proper functions or supply power to all types of the devices.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total of 25 characters for file/folder names.

• For MPEG1/2 files: The maximum bit rate for video signals (average) is 2 Mbps.

Disc/file information shown on the

external monitor

The following screens appear only on the external monitor.

• CD

T. RPT

Track Information

Album Four seasons Artist Robert M. Smith Title Rain

1 Selected playback mode 2 Elapsed playing time of the current track 3 Operation status 4 Current track number/total number of tracks

on the disc

5 Track information 6 Track list 7 Current track (highlighted bar)

TIME 00:14

Track : 6 / 14

Cloudy Fair Fog Hail Indian summer

Rain

Shower Snow Thunder Typhoon Wind Winter sky

ENGLISH

REFERENCES

Page 70

• DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/AAC

ENGLISH

1 Current folder (highlighted bar) 2 Current folder number/total folder number 3 Folder list 4 Selected playback mode 5 Elapsed playing time of the current track (not

displayed for JPEG)

6 Operation status 7 Current track number/total number of tracks

in the current folder (total number of tracks on the disc)

8 Track information (only for MP3/WMA/WAV/

AAC)

9 Track list p Current track (highlighted)

If tag data includes “Jacket Picture” (baseline

JPEG), it will be displayed.

Bluetooth operations

General

• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on circumstances around you.

• When the unit is turned off, the device is disconnected.

Warning messages for Bluetooth operations

• Connection Error: The device is registered but the connection has failed. Use <Connect> to connect the device again. (☞ page 35)

• Error: Try the operation again. If “Error” appears again, check if the device supports the function you have tried.

• Device Unfound: No available Bluetooth device is detected by <Search>.

• Loading: The unit is updating the phone book and/ or Text Message.

• Please Wait...: The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

• Reset08: Check the connection between the adapter and this unit.

Icons for phone types

• These icons indicate the phone type set on the device.

Cellular phone

Household phone

Office

General

Other than above

Page 71

CD changer

• If you select a folder, which does not include any

music files, on the list (☞ page 41), you will hear a beep. Select another folder including music files.

Satellite radio operations

• You can also connect the JVC SIRIUS radio PnP (Plug and Play), using the JVC SIRIUS radio adapter, KSU100K (not supplied) to the CD changer jack on the rear. (Select “EXT-IN” as the source.)

By turning on/off the power of the unit, you can turn

on/off the JVC PnP. However, you cannot control it from this unit.

• To know more about SIRIUS Satellite radio or to sign up, visit <http://www.sirius.com>.

• For the latest channel listings and programming information, or to sign up for XM Satellite radio, visit <http://www.xmradio.com>.

HD Radio reception

• During SSM search, All stations including conventional FM/AM stations are searched and stored for the selected band.

iPod operations

• You can control the following types of iPods:

– Through the USB 2.0 cable:

• iPod video (5th Generation)

• iPod nano

• iPod nano (2nd Generation)

– Through the interface adapter:

• iPod with dock connector (3rd Generation)

• iPod with Click Wheel (4th Generation)

• iPod mini

• iPod photo

• iPod nano

• iPod video (5th Generation) To watch the video with its audio, connect the

iPod using USB Audio and Video cable (not supplied).

• If the iPod does not play correctly, update your iPod software to the latest version. For details about updating your iPod, visit <http://www.apple.com>.

• When you turn on this unit, the iPod is charged through the unit.

• While the iPod is connected, all operations from the iPod are disable. Perform all operations from this unit.

• The text information may not be displayed correctly.

• The text information scrolls on the monitor. This unit can display up to 40 characters when using the interface adapter and up to 128 characters when using the USB 2.0 cable or USB Audio and Video cable.

Notice:

When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: – For the USB connection: <http://www.jvc-victor.

co.jp/english/car/>

– For the inferface adapter connection: <http://

www.jvc.co.jp/english/car/support/ks-pd100/ index.html>

For the USB connection:

When <iPod Artwork> is set to <On>: Do not press any keys during the first 30 seconds or more of playing back any track containing artwork*. It takes 30 seconds or more to display artwork and no operations are available while loading it. * The picture displayed on the iPod’s screen while

playing back a track.

Menu settings

• If you change the <Amplifier Gain> setting from <High> to <Low> while the volume level is set higher than “30,” the unit automatically changes the volume level to “VOL 30.”

• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.

• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if <4:3PS> is selected, the screen size may become <4:3LB> for some discs.

ENGLISH

REFERENCES

Page 72

Sound signals emitted through the rear terminals

Through the analog terminals (Speaker out/LINE OUT)

2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed.

• DTS sound cannot be reproduced.

ENGLISH

Through the DIGITAL OUT terminal

Digital signals (Linear PCM, Dolby Digital, DTS, MPEG Audio) are emitted.

• To reproduce the multi-channel sounds such as Dolby Digital, DTS, and MPEG Audio, connect an amplifier or a

decoder compatible with these multi-channel sources to this terminal, and set <D. Audio Output> correctly. (☞ page 60)

Playback disc

DVD 48 kHz, 16/20/24 bits Linear PCM 48 kHz, 16 bits stereo Linear PCM*

96 kHz, Linear PCM 48 kHz, 16 bits stereo Linear PCM

with Dolby Digital Dolby Digital bitstream

with DTS DTS bitstream with MPEG Audio MPEG bitstream 48 kHz, 16 bits stereo Linear PCM

Audio CD, Video CD

Audio CD with DTS DTS bitstream

with Dolby Digital Dolby Digital bitstream

DivX/ MPEG

with MPEG Audio 32/44.1/48 kHz, 16 bits Linear PCM MP3/WMA 32/44.1/48 kHz, 16 bits Linear PCM WAV 44.1 kHz, 16 bits Linear PCM AAC 44.1 / 48 kHz, 16 bits Linear PCM

* Digital signals may be emitted at 20 or 24 bits (at their original bit rate) through the DIGITAL OUT terminal if the

discs are not copy-protected.

<D. Audio Output>

Output signals

48 kHz, 16 bits stereo

Linear PCM

44.1 kHz, 16 bits stereo Linear PCM / 48 kHz, 16 bits stereo Linear PCM

48 kHz, 16 bits stereo

Linear PCM

Page 73

Preset equalizing values

Sound mode

Frequency

Flat 00 00 00 00 00 00 00 Hard Rock +03 +03 +01 00 00 +02 +01 R&B +03 +02 +02 00 +01 +01 +03 Pop 00 +02 00 00 +01 +01 +02 Jazz +03 +02 +01 +01 +01 +03 +02 Dance +04 +02 00 –02 –01 +01 +01 Country +02 +01 00 00 00 +01 +02 Reggae +03 00 00 +01 +02 +02 +03 Classic +02 +03 +01 00 00 +02 00 User1/2/3 00 00 00 00 00 00 00

60 Hz 150 Hz 400 Hz 1 kHz 2.5 kHz 6.3 kHz 15 kHz

Language codes (for DVD/DivX language selection)

Code

Language

AA Afar FA Persian KK Kazakh NO Norwegian ST Sesotho AB Abkhazian FI Finnish KL Greenlandic OC Occitan SU Sundanese AF Afrikaans FJ Fiji KM Cambodian OM (Afan) Oromo SW Swahili AM Ameharic FO Faroese KN Kannada OR Oriya TA Tamil AR Arabic FY Frisian KO Korean (KOR) PA Panjabi TE Telugu AS Assamese GA Irish KS Kashmiri PL Polish TG Tajik AY Aymara GD Scots Gaelic KU Kurdish PS Pashto, Pushto TH Thai AZ Azerbaijani GL Galician KY Kirghiz QU Quechua TI Tigrinya BA Bashkir GN Guarani LA Latin RM BE Byelorussian GU Gujarati LN Lingala RN Kirundi TL Tagalog BG Bulgarian HA Hausa LO Laothian RO Rumanian TN Setswana BH Bihari HI Hindi LT Lithuanian RW Kinyarwanda TO Tonga BI Bislama HR Croatian LV Latvian, Lettish SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MG Malagasy SD Sindhi TS Tsonga BO Tibetan HY Armenian MI Maori SG Sangho TT Tatar BR Breton IA Interlingua MK Macedonian SH Serbo-Croatian TW Twi CA Catalan IE Interlingue ML Malayalam SI Singhalese UK Ukrainian CO Corsican IK Inupiak MN Mongolian SK Slovak UR Urdu CS Czech IN Indonesian MO Moldavian SL Slovenian UZ Uzbek CY Welsh IS Icelandic MR Marathi SM Samoan VI Vietnamese DZ Bhutani IW Hebrew MS Malay (MAY) SN Shona VO Volapuk EL Greek JA Japanese MT Maltese SO Somali WO Wolof EO Esperanto JI Yiddish MY Burmese SQ Albanian XH Xhosa ET Estonian JW Javanese NA Nauru SR Serbian YO Yoruba EU Basque KA Georgian NE Nepali SS Siswati ZU Zulu

Code

Language

Code

Language

Code

Language

Rhaeto-Romance

Code

Language

TK Turkmen

ENGLISH

REFERENCES

Page 74

Characters you can enter for titles

In addition to the roman alphabet (A – Z, a – z), you can use the following characters to assign titles. (☞ page 56)

• When <Руccĸий> is selected for <Language>.

ENGLISH

(☞ page 59)

Upper and lower cases

Numbers and symbols

• When any language other than <Руccĸий> is selected for <Language>. (☞ page 59)

Upper and lower cases

Numbers and symbols

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc.

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

• Official DivX® Ultra Certified product

• Plays all versions of DivX® video (including DivX®

6) with enhanced playback of DivX® media files and the DivX® Media Format

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• HD Radio™ and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corp.

• “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.

• XM and its corresponding logos are registered trademarks of XM Satellite Radio Inc.

• “SAT Radio,” the SAT Radio logo and all related marks are trademarks of SIRIUS Satellite Radio Inc., and XM Satellite Radio, Inc.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

• iPod and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Page 75

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).

Symptoms Remedies/Causes

• No sound comes out of the speakers. • Adjust the volume to the optimum level.

• The screen is not clear and legible. Sunshine from the windshield may cause this symptom.

• “Position Error Push Open Key” appears on the screen.

• “Mecha Error Push Reset” appears on the screen, and the panel does not move.

• “SD Loading Error” appears on the monitor. SD is not inserted fully. Fully insert it into the slot to close

• “No Signal” appears. • Change the source.

General

• The buttons on the monitor panel do not work.

• The unit does not work at all.

• The touch panel does not respond properly.

• <Illumination> function does not work properly.

• SSM automatic presetting does not work.

• Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

• Check the cords and connections.

• DTS sound cannot be reproduced through the analog terminals (Speaker out/LINE OUT).

Adjust <Bright>. (☞ page 58) The monitor panel angle has been forcibly adjusted, or its

adjustment has been interrupted while opening or closing. Press OPEN/TILT.

Reset the unit. (☞ page 3)

the monitor panel.

• Start the playback on the external component connected to VIDEO IN plug.

• Check the cords and connections.

• Signal input is too weak.

When the monitor panel is open, only VOL +/– and OPEN/ TILT work. The other buttons do not function.

Reset the unit. (☞ page 3)

• Keep your hands and the touch panel clean and dry.

• Eliminate static electricity and do not place magnetic items near the unit.

• Leave the unit until the temperature becomes stable in the car.

• A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat.

Store stations manually. (☞ page 15)

ENGLISH

REFERENCES

Page 76

Symptoms Remedies/Causes

• Disc can be neither recognized nor played back.

• Disc cannot be ejected.

• Recordable/Rewritable discs cannot be

ENGLISH

played back.

• Tracks on the Recordable/Rewritable discs cannot be skipped.

• Playback does not start. • Insert the disc correctly again.

• The playback picture is not clear and legible.

• Sound and pictures are sometimes interrupted or distorted.

Disc in general

• No playback picture is shown and “Parking Brake” appears on the screen, even when the parking brake is engaged.

• No picture appears on the external monitor. • Connect the video cord correctly.

• “Eject Error” or “Loading Error” appears on the screen.

• “Region code error” appears on the screen when you insert a DVD Video.

• Disc cannot be played back. • Change the disc.

• Noise is generated. The track played back is not a playable file format. Skip to

• Tracks are not played back as you have intended them to play.

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

• “Not Support” appears on the screen and track skips.

DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC

Eject the disc forcibly. (☞ page 3)

Unlock the disc. (☞ page 22)

• Insert a finalized disc.

• Finalize the discs with the component which you used for recording.

• The format of files is not supported by the unit.

Adjust items in <Picture Adjust> menu. (☞ page 58)

• Stop playback while driving on rough roads.

• Change the disc.

Parking brake lead is not connected properly. (☞ Installation/Connection Manual)

• Select the correct input on the external monitor.

Change the source by pressing SOURCE.

Region code is not correct. (☞ page 4)

• Record the tracks using a compliant application on the appropriate discs. (☞ page 4)

• Add appropriate extension codes to the file names.

another file. Playback order may differ from the one played back using

other players.

how the tracks are recorded. The track is unplayable.

Page 77

Symptoms Remedies/Causes

• Noise is generated. The track played back is not a playable file format. Skip to

• Tracks cannot play back as you have intended them to play.

• “Now Reading...” keeps flashing on the screen.

SD/USB

• Correct characters are not displayed (e.g. album name).

• While playing a track, sound is sometimes interrupted.

• Bluetooth device does not detect the unit. This unit can be connected with one Bluetooth cellular

• The unit does not detect the Bluetooth device.

• The unit does not make pairing with the Bluetooth device.

• Echo or noise occurs. Adjust the microphone unit position.

• Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth

Bluetooth

• The sound is interrupted or skipped while using a Bluetooth audio player.

• “NEW DEVICE” cannot be selected for “Bluetooth AUDIO.”

• The connected audio player cannot be controlled.

• “Reset08” appears on the screen. Check the connection between the adapter and this unit.

another file. Playback order may differ from the one played back using

other players.

• Readout time varies depending on the SD card/USB device.

• Do not use too many hierarchy and folders.

• Turn off the power then on again.

For available characters. (☞ page 74)

The tracks are not properly copied into the SD card/USB device. Copy tracks again, and try again.

phone and one Bluetooth audio player at a time. While connected to a device, this unit cannot be detected from another device. Disconnect currently connected device and search again.

• Check the Bluetooth setting of the device.

• Search from the Bluetooth device.

• Enter the same PIN code for both the unit and target device. If the PIN code of the device is not indicated on its instructions, try “0000” or “1234.”

• Select the device name from <Special Device>, then try to connect again. (☞ pages 35, 65)

cellular phone.

• Move the car to place where you can get a better signal reception.

• Reduce the distance between the unit and the Bluetooth audio player.

• Disconnect the device connected for “Bluetooth PHONE.”

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the player again.

Bluetooth audio player is already connected. To select “NEW DEVICE,” disconnect it. (☞ page 35)

Check whether the connected audio player supports AVRCP (Audio Video Remote Control Profile).

ENGLISH

REFERENCES

Page 78

Symptoms Remedies/Causes

• “No Disc” appears on the screen. Insert a disc into the magazine.

• “No Magazine” appears on the screen. Insert the magazine.

• “Cannot play this disc Check the disc”

ENGLISH

appears on the screen.

• “Reset08” appears on the screen. Connect this unit and the CD changer correctly and press

CD changer

• “Reset01” – “Reset07” appears on the screen. Press the reset button of the CD changer.

• The CD changer does not work at all.

• “CALL 1-888-539-SIRIUS TO SUBSCRIBE” appears on the screen.

• “No Signal” or “NO SIGNAL” appears on the screen.

• “No Antenna” or “ANTENNA” appears on the screen.

• “No CH” appears on the screen for about 5 seconds, then returns to the previous display when listening to the SIRIUS Satellite radio.

• “CH–––” appears on the screen for about 2 seconds, then returns to the previous channel while listening to the XM Satellite radio.

• “NO NAME” appears on the screen. No text information for the selected channel.

Satellite radio

• “UPDATING” appears on the screen and no sound can be heard.

• “OFF AIR” appears on the screen while listening to the XM Satellite radio.

• “LOADING” appears on the screen while listening to the XM Satellite radio.

• “Reset08” appears on the screen. Reconnect this unit and the Satellite radio correctly and

• Satellite radio does not work at all. Reconnect the Satellite radio after a few seconds.

Current disc does not include playable files. Replace the disc with one including playable files.

the reset button of the CD changer.

Reset the unit. (☞ page 3)

Starts subscribing SIRIUS Satellite radio. (☞ page 43)

Move to an area with stronger signals.

Connect the antenna firmly.

No broadcast on the selected channel. Select another channel or continue listening to the previous channel.

Selected channel is no longer available or is unauthorized. Select another channel or continue listening to the previous channel.

The receiver is updating the channel information and it takes a few minutes to complete.

Selected channel is not broadcasting at this time. Select another channel or continue listening to the previous channel.

The unit is loading the channel information and audio. Text information is temporarily unavailable.

reset the unit.

Page 79

Symptoms Remedies/Causes

• Sound quality changes when receiving HD Radio stations.

• No sound can be heard. • “Analog” is selected when receiving all digital broadcast

HD Radio reception

• “Reset08” appears on the screen. Reconnect this unit and the HD Radio tuner box correctly,

• The iPod does not turn on or does not work. • Check the connection.

• Sound is distorted. Deactivate the equalizer either on this unit or the iPod.

• “Disconnect” appears on the screen. Check the connection.

• Playback stops. The headphones are disconnected during playback. Restart

• “No Files” appears on the screen. No tracks are stored. Import tracks to the iPod.

• “Reset01” – “Reset07” appears on the

iPod

screen.

• “Reset08” appears on the screen. Check the connection between the adapter and this unit.

• The iPod’s controls do not work after disconnecting from this unit.

• “Restricted Device” appears on the screen. Check whether the connected iPod is compatible with this

• No operations are available when playing back a track containing artwork.

• No picture appears on the screen. • Turn on the video component if it is not on.

AV-IN

• Playback picture is not clear and legible.

Fix the reception mode either to <Digital> or <Analog>. (☞ page 47)

of HD Radio station. Select <Digital> or <Auto>. (☞ page 47)

• <Digital> is selected when receiving weak digital

signals or receiving conventional radio broadcast. Select <Analog> or <Auto>. (☞ page 47)

then reset the unit.

• Charge the battery.

playback.

Disconnect the adapter from both this unit and iPod. Then, connect them again.

Reset the iPod.

unit. (☞ page 71) Operate the unit after the artwork is loaded. (☞ page 71)

• Connect the video component correctly. Adjust items in <Picture Adjust> menu. (☞ page 58)

ENGLISH

REFERENCES

Page 80

Specifications

Power Output: 20 W RMS × 4 Channels at 4 Ω and ≤

Signal-to-Noise Ratio: 80 dBA (reference: 1 W into 4 Ω)

ENGLISH

Load Impedance: 4  (4  to 8  allowance) Equalizer Control Range: Frequencies: 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.5 kHz,

Audio Output Level LINE OUT (FRONT REAR), SUBWOOFER:

AMPLIFIER

Color System: NTSC Video Output (composite): 1 Vp-p/75 Ω Other Terminals: Input: LINE IN, VIDEO IN, CAMERA IN, USB input

Frequency Range: FM (with channel interval set to 100 kHz or

FM Tuner Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

FM/AM TUNER

AM Tuner Sensitivity/Selectivity: 20 μV/35 dB Signal Detection System: Non-contact optical pickup (semiconductor laser)

Frequency Response: DVD, fs=48 kHz/96 kHz: 16 Hz to 22 000 Hz

Dynamic Range: 93 dB

DVD/CD

Signal-to-Noise Ratio: 95 dB

Wow and Flutter: Less than measurable limit

1% THD+N

6.3 kHz, 15 kHz Level: ±10 dB Line-Out Level/Impedance: 5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

Antenna input

Output: VIDEO OUT

Others: CD changer, OE REMOTE, DIGITAL OUT

(optical)

87.5 MHz to 107.9 MHz 200 kHz):

FM (with channel interval set to 50 kHz): 87.5 MHz to 108.0 MHz AM (with channel interval set to 10 kHz): 530 kHz to 1 710 kHz AM (with channel interval set to 9 kHz): 531 kHz to 1 602 kHz

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB

VCD/CD: 16 Hz to 20 000 Hz

Page 81

Compatible File System: FAT 32/16/12

Capacity 8 Mbytes to 2 Gbytes

Data Transfer Rate Maximum 10 Mbps

USB Standards: USB 2.0 Full Speed

Data Transfer Rate Full Speed: Maximum 12 Mbytes

USB

Compatible Device: Mass storage class

Compatible File System: FAT 32/16/12

Max. Current: Less than 500 mA/5V

Screen Size: 7 inch wide liquid crystal display

Number of Pixel: 336 960 pixels: 480 × 3 (horizontal) × 234 (vertical)

Drive Method: TFT (Thin Film Transistor) active matrix format

MONITOR

Color System: NTSC/PAL

Aspect Ratio: 16:9 (wide)

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Storage Temperature: –10°C to +60°C (14°F to 140°F)

Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D):

GENERAL

• With trim plate and sleeve attached

Mass (approx.): 3.3 kg (7.3 lbs) (including trims and sleeve)

Low Speed: Maximum 1.5 Mbytes

Installation Size (approx.): 182 mm × 111 mm × 160 mm

(7-3/16” × 4-3/8” × 6-5/16”)

Panel Size (approx.): 188 mm × 117 mm × 10 mm

(7-7/16” × 4-5/8” × 7/16”)

ENGLISH

Required space for installation and the monitor ejection

20 (13/16)

4 (3/16)

160 (6-5/16) 91.3 (3-5/8)

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

Dashboard

CAUTION: When ejecting the monitor, leave an open space for the monitor to come out. If you do not, the monitor may obstruct the steering wheel and gearshift lever operations, and this may result in a traffic accident.

100 (3-15/16)

Unit: mm (inch)

REFERENCES

Page 82

Como primer paso, por favor lea detenidamente este manual para comprender a fondo todas las instrucciones y

Muchas gracias por la compra de un producto JVC.

obtener un máximo disfrute de esta unidad.

IMPORTANTE PARA PRODUCTOS LÁSER

1. PRODUCTO LÁSER CLASE 1

2. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el usuario;

encargue el servicio a personal técnico cualificado.

3. PRECAUCIÓN: (EE.UU.) Radiación láser de clase II visible y/o invisible, cuando está abierto. No mire

fijamente el haz.

(Para Canadá) Radiación láser de clase 1M visible y/o invisible cuando ésta abierto. No mirar

4. REPRODUCCIÓN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL EXTERIOR DE LA UNIDAD.

directamente con instrumental óptico.

ESPAÑOL

IMPORTANTE (EE.UU.)

Este equipo se ha sometido a todo tipo de pruebas y cumple con las normas establecidas para dispositivos de Clase B, de conformidad con la Parte 15 de las reglas de la FCC (Comisión Federal de Comunicaciones). Estas reglas están diseñadas para asegurar una protección razonable contra este tipo de interferencias en las instalaciones residenciales. Este equipo genera y utiliza energía de radiofrecuencia. Si no se instala y utiliza debidamente, es decir, conforme a las instrucciones, podrían producirse interferencias en radiocomunicaciones. Sin embargo, no se garantiza que estas interferencias no se produzcan en una instalación determinada. Si este equipo ocasiona interferencias en la recepción de radio o televisión, lo cual puede comprobarse mediante la conexión o desconexión del equipo, el problema podrá corregirse mediante una o una combinación de las siguientes medidas: –

Reoriente la antena receptora o cámbiela de lugar.

– Aumente la separación entre el equipo y el

aparato receptor.

– Enchufe el equipo a una toma de corriente situada

en un circuito distinto del aparato receptor.

– Consulte a su distribuidor o a un técnico experto

en radio/televisión.

Precaución

Los cambios o modificaciones no aprobados por JVC pueden anular la autoridad del usuario para operar el equipo.

[Sólo Unión Europea]

ADVERTENCIAS: Para evitar daños y accidentes

• NO instale ningún receptor o tienda ningún cable en una ubicación donde;

– puede obstaculizar las maniobras del volante

de dirección y de la palanca de cambios.

– puede obstaculizar la operación de los

dispositivos de seguridad, como por ejemplo, bolsas de aire.

– Donde pueda obstruir la visibilidad.

• NO opere la unidad mientras maneja.

Si es necesario operar la unidad mientras maneja,

asegúrese de mirar atentamente en todas las direcciones.

• El conductor no debe mirar el monitor mientras conduce.

PRECAUCIÓN

Este producto tiene una lámpara fluorescente que contiene mercurio. La eliminación de estos materiales puede estar regulado en su comunidad debido a cuestiones medioambientales. Para obtener información sobre la eliminación o el reciclaje, póngase en contacto con las autoridades locales o, en los EE.UU., con la Electronic Industries Alliance:http://www. eiae.org.

Page 83

Cómo reposicionar su unidad

Contenido

• También se borrarán los ajustes preestablecidos por usted.

Cómo expulsar el disco por la fuerza

simultáneamente

[Sostener] [Sostener]

• Si esto no funciona, reinicialice la unidad.

Precauciones sobre el monitor:

• El monitor incorporado a esta unidad ha sido fabricado con tecnología de alta precisión, pero puede contener algunos puntos inefectivos. Estos es inevitable y no es ningún signo de anomalía.

• No exponga el monitor a la luz directa del sol.

• No opere el panel táctil utilizando un bolígrafo o una herramienta similar puntiaguda.

Toque los botones del panel táctil directamente

con su dedo (sáquese el guante, si lo tiene puesto).

• Cuando la temperatura sea muy baja o muy alta...

– Ocurren cambios químicos en el interior,

produciendo un mal funcionamiento.

– Puede suceder que las imágenes no aparezcan

claramente o que se muevan con lentitud. En tales entornos, puede suceder que las imágenes no estén sincronizadas con el sonido, o que la calidad del sonido se deteriore.

Para fines de seguridad...

• No aumente demasiado el nivel de volumen pues es muy peligroso conducir si no se escuchan los sonidos exteriores.

• Detenga el automóvil antes de efectuar cualquier operación complicada.

Temperatura dentro del automóvil...

Si ha dejado el automóvil estacionado durante largo tiempo en un sitio cálido o frío, no opere la unidad hasta que se normalice la temperatura del habitáculo.

INTRODUCCIÓN

Tipos de disco reproducibles ............. 4

Antes de las operaciones ................. 5

Operaciones básicas—

Panel del monitor/panel táctil ....... 7

Operaciones básicas—

Control remoto (RM-RK252) ........... 8

OPERACIONES

Preparativos iniciales ...................... 10

Operaciones comunes ...................... 11

Para escuchar la radio ...................... 13

Operaciones de los discos ................. 16

Operaciones de SD ........................... 30

Operaciones de USB ......................... 32

DISPOSITIVOS EXTERNOS

Operaciones Bluetooth®—teléfono

celular/reproductor de audio ......... 34

Escuchando el cambiador de CD ........ 41

Para escuchar la radio satelital ......... 43

Para escuchar la transmisión HD Radio™

Para escuchar el iPod ....................... 48

Uso de otros componentes externos

AJUSTES

Ecualización de sonido ..................... 55

Asignación de títulos a la fuente ....... 56

Operaciones de los menús ................ 57

REFERENCIAS

Mantenimiento ............................... 66

Más sobre este receptor ................... 67

Localización de averías ..................... 75

Especificaciones ............................... 80

INTRODUCCIÓN

.....

.... 52

ESPAÑOL

Page 84

Tipos de disco reproducibles

Tipo de disco Formato de grabación, tipo de archivo, etc. Reproducible

DVD

DVD Grabable/reescribible (DVD-R/-RW*

ESPAÑOL

• DVD Vídeo: Puente UDF

, +R/+RW*3)

• DVD-VR

•

DivX/MPEG1/MPEG2/JPEG/MP3/ WMA/WAV/AAC: ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

Dual Disc Lado DVD

CD/VCD Audio CD/CD Text (CD-DA)

CD Grabable/reescribible (CD-R/-RW)

• ISO 9660 Nivel 1, Nivel 2,

Romeo, Joliet

*1 Si inserta un disco DVD Vídeo con un código de región incorrecto aparecerá “Region code error” en la pantalla. *2 También es posible reproducir un DVD-R grabado en formato “multi-border” (excepto discos de doble capa).

Los discos DVD-RW de doble capa no se pueden reproducir.

*3 Es posible reproducir discos finalizados +R/+RW (sólo formato de vídeo).

Los discos +RW de doble capa no se pueden reproducir.

*4 Esta unidad puede reproducir archivos AAC codificados con iTunes. *5 Utilice la conexión digitalpara reproducirsonido DTS. (☞ Manual de Instalación/Conexión)

DVD Vídeo (Códigos regionales:

1)* DVD Audio DVD-ROM DVD Vídeo DVD-VR DivX/MPEG1/MPEG2 JPEG MP3/WMA/WAV/AAC*

MPEG4 DVD+VR DVD-RAM

Lado no-DVD

VCD (Vídeo CD)

DTS-CD* SVCD (Súper Vídeo CD) CD-ROM CD-I (CD-I Ready) CD-DA MP3/WMA/WAV/AAC*

JPEG DivX/MPEG1/MPEG2 MPEG4

Precaución sobre la reproducción de DualDisc

El lado no DVD de un “DualDisc” no es compatible con la norma “Compact Disc Digital Audio”. Por consiguiente, no se recomienda usar el lado no DVD de un DualDisc en este producto.

Page 85

Antes de las operaciones

Panil táctil

Panel del monitor

Botones en el panel táctil En las explicaciones, se indican dentro de [ ].

Para los detalles sobre las operaciones del panel táctil, consulte la sección de funcionamiento de cada fuente.

Características de la iluminación

Botones del panel del monitor

Las luces de los botones del panel del monitor se apagan si no se efectúa ninguna operación durante aproximadamente 10 segundos.

Las luces se vuelven a encender en los casos siguientes: – Cuando usted toca el panel táctil o mueve su mano

cerca del mismo* – Cuando se utiliza el control remoto – Cuando entra una llamada/mensaje de texto.(sólo

para teléfono celular) * Dependiendo del ajuste <Illumination>. (☞ página

62)

Las luces de los botones del panel del monitor siempre se encienden en los casos siguientes: – Mientras se visualiza la pantalla AV Menu. – Mientras se visualiza la pantalla <Source

Menu>. – Mientras se visualiza el menú <Open/Tilt>. – Cuando <Illumination> está ajustado a

<Normal>. (☞ página 62)

ESPAÑOL

Cuando desliza su dedo sobre el panel táctil, funcionará de la misma manera que cuando toca [5 / ∞ / 4 / ¢].

Pantalla

También puede apagar la pantalla mientras la unidad está encendida sosteniendo DISP en el panel del monitor.

[Sostener]

La pantalla se vuelve a encender en los casos siguientes: – Cuando se toca el panel táctil – Cuando se pulsa MENU, DISP, DETACH, o OPEN en el

panel del monitor

– Cuando entra una llamada/mensaje de texto (sólo

para teléfono celular)

– Cuando se recibe una señal de la cámara de

retrovisión

INTRODUCCIÓN

Page 86

Desmontaje/fijación del panel del monitor

Desmontando

1 Mientras la unidad está encendida:

Detach?Yes No

* También puede usar OPEN en el panel del

ESPAÑOL

monitor. A continuación, pulse [ Detach ].

El panel del monitor se apaga aproximadamente 50º.

• Se cierra automáticamente si no se efectúa ninguna operación durante aproximadamente un minuto.

Placa de fijación

El panel del monitor se desengancha. • La placa de fijación se cierra automáticamente

Estuche blando (suministrado)

unos 10 segundos después de desengancharse el panel del monitor. Retire el panel del monitor antes de ello.

Montando

Precaución:

• Sostenga firmemente el panel del monitor para no dejarlo caer accidentalmente.

• Ajuste el panel del monitor en la placa de fijación hasta que quede bloqueado firmemente.

Page 87

Operaciones básicas —Panel del monitor/panel táctil

Visualiza la pantalla <AV Menu>. ☞ página 57

Visualiza la pantalla <Source Menu>. ☞ página 11

Visualiza y borra los iconos de Atajo (Short Cut). ☞ página 12

Cambia las fuentes. ☞ página 11

Ajusta el volumen.*

• Encienda la unidad.

• Desconecta la alimentación. [Sostener]

• Atenúa el sonido (si el sistema está encendido).

Reinicialice la unidad.

• Se utiliza sólo debido a un malfuncionamiento interno del sistema.

El volumen también

VOL

se puede ajustar moviendo el dedo

sobre el panel táctil, tal y como se muestra en la ilustración.

Sensor remoto

Para desenganchar el panel del monitor.

Cambia la información en pantalla.

• Visualiza y borra la pantalla <AV Menu>. ☞ página 57

• Visualiza el menú <Open/Tilt>. ☞ abajo

• Expulsa el disco y visualiza el menú <Open/Tilt>.

[Sostener]

• Cierra el panel del monitor.

ESPAÑOL

Menú <Open/Tilt>

Open/Tilt

Detach

Tilt +

Tilt –

Exit

Open

Eject

• Las opciones sombreadas no se pueden usar.

[Open] Abre el panel del monitor. [Eject] Expulsa el disco. [Close] Cierra el panel del monitor. [Tilt +/–] Inclina el panel del monitor. [Detach] Para desenganchar el panel del

monitor.

[Exit] Borra esta pantalla.

INTRODUCCIÓN

Page 88

Operaciones básicas — Control remoto (RM-RK252)

Instalación de la pila

R03/LR03/AAA

ESPAÑOL

Instale las pilas en el control remoto haciendo coincidir correctamente las polaridades (+ y –).

Precaución:

No deje las pilas expuestas a altas temperaturas, como, por ejemplo, a la luz del sol, al fuego u otras condiciones similares.

• Si disminuye la efectividad o el radio de acción del control remoto, cambie ambas pilas.

Antes de utilizar el control remoto:

• Apunte el control remoto directamente hacia el sensor remoto del receptor.

• NO exponga el sensor remoto a una luz brillante (luz solar directa o iluminación artificial).

El receptor está equipado con la función de control remoto en el volante de dirección.

• Para la conexión, consulte el Manual de instalación/conexión (volumen separado).

Elementos principales y funciones

1 • Encienda la unidad.

• Atenúa el sonido si el sistema está encendido.

• Desconecta la alimentación si lo pulsa y mantiene pulsado (mientras la alimentación está conectada).

2 “DISC/ SD/ USB/ USB iPod”: Búsqueda regresiva 3 Ajusta el nivel de volumen.

• No funciona como “2nd VOL.”

4 • Visualiza la pantalla <Dial Menu>.

• Visualiza el menú <Redial> si lo pulsa y mantiene pulsado.

• Contesta las llamadas entrantes.

5 • DVD/DivX 6: Muestra el número de disco.

• VCD: Reanuda la reproducción de PBC.

• DVD-VR: Muestra la pantalla Original Program (programa original)

6 Muestra la barra en pantalla.

• No funciona como “

7 Funciona con otros botones (consulte i y o). 8 Cambia la información en pantalla.

”.

Page 89

9 Para operaciones de disco/SD/USB:

• 5 / ∞: DVD: Selecciona el título. DVD-VR: Selecciona los programas/Playlist. SD/USB/otros discos (excepto VCD/CD):

Selecciona las carpetas.

• 4 / ¢: – Pulse brevemente: salto hacia atrás/salto

hacia adelante

– Pulse y mantenga pulsado: búsqueda hacia

atrás/búsqueda hacia adelante

Para las operaciones FM/AM y HD Radio:

• 5 / ∞: FM/AM: Selecciona las emisoras preajustadas. HD Radio Selecciona un canal multidifusión.

• 4 / ¢: Funciona para la búsqueda de emisoras.

– Pulse brevemente: Búsqueda automática –

Pulse y mantenga pulsado: Búsqueda manual

Para las operaciones del sintonizador

satelital:

• 5 / ∞: Selecciona las categorías.

• 4 / ¢: – Pulse brevemente: Selecciona un canal. – Pulse y mantenga pulsado: Selecciona un

canal rápidamente.

Operaciones para Apple iPod:

“USB iPod”:

• 5 / ∞: Selecciona el elemento anterior/ siguiente

• 4 / ¢:

– Pulse brevemente: salto hacia atrás/salto

hacia adelante

– Pulse y mantenga pulsado: búsqueda hacia

atrás/búsqueda hacia adelante

“iPod”:

• ∞: Comienza la reproducción/pausa.

• 5: Entra al menú principal (seguidamente 5 / ∞ / 4 / ¢ funcionan como botones selectores de menú).

• 4 / ¢:

– Pulse brevemente: salto hacia atrás/salto

hacia adelante

– Pulse y mantenga pulsado: búsqueda hacia

atrás/búsqueda hacia adelante

– En el modo de selección de menú:

• ∞: Confirma la selección.

• 5: Vuelve al menú anterior.

• 4 / ¢:

– Pulse brevemente: Seleccione una opción. – Pulse y mantenga pulsado: Salta 10

elementos a la vez.

Para operaciones Bluetooth:

• 4 / ¢: salto hacia atrás/salto hacia adelante (para operación del reproductor de audio)

p “DISC/SD/USB/USB iPod”:

Búsqueda progresiva

q Selecciona la fuente. w “DISC/SD/USB/USB iPod”:

Comienza la reproducción/pausa. “Bluetooth PHONE”: Contesta las llamadas entrantes. “Bluetooth AUDIO”: Inicia la reproducción.

e Cambia la relación de aspecto de las imágenes

reproducidas.

r “TUNER/HD Radio/SAT”: Selecciona las bandas.

“DISC/SD/USB”: Detiene la reproducción. “USB iPod”: Ingresa en el menú <Search

Mode>.

“Bluetooth PHONE”: Finaliza la llamada. “Bluetooth AUDIO”: Pone en pausa.

t VCD: Vuelve al menú PBC. y • DVD Vídeo/DivX 6: Muestra el número de

disco.

• VCD: Reanuda la reproducción de PBC.

• DVD-VR: Muestra la pantalla Play List (lista de reproducción).

u • Efectúa la selección/los ajustes.

• @ / #: Salta 5 minutos hacia atrás o adelante para DivX/MPEG1/MPEG2.

• % / ﬁ: Cambia los discos para “CD-CH”.

• “DISC/SD/USB”: Cambia el modo de entrada de

número.

• Borra la entrada errónea luego de ingresar un número incorrecto.

• No funciona como “SURROUND”.

Botones numéricos

• Introduce números.

• “TUNER/HD Radio/SAT”: Selecciona directamente la emisora preajustada.

*1 Funciona solamente como botón numérico (consulte

o ).

*2 No utilizado para esta unidad. *3 Funciona cuando se pulsa junto con SHIFT.

INTRODUCCIÓN

ESPAÑOL

Page 90

Preparativos iniciales

Puede cancelar la demostración en pantalla y efectuar la puesta en hora del reloj.

• Las opciones no disponibles aparecerán sombreadas en las pantallas AV Menu.

Idioma para las indicaciones:

En este manual, se utilizan indicaciones en inglés para las explicaciones. Puede seleccionar el idioma

ESPAÑOL

de indicación. (☞ página 59)

~ Encienda la unidad.

• También puede usar MENU en el panel del monitor.

@ Ponga el reloj en hora.

Se desplaza a la página del menú anterior.

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Se desplaza a la página del menú siguiente.

Setup

Time Set Time Format OSD Clock Clock Adjust Time Zone DST

Back Exit

Setup

Time Set Time Format OSD Clock Clock Adjust Time Zone DST

Back Exit

12Hours 24Hours

Off

Metal

Blue Once Auto

1 : 00

Eastern

3 : 45

Auto

AutoOff

Indica el tiempo restante antes de que la pantalla actual se apague automáticamente.

⁄ Cancele la demostración.

Seleccione <Off>.

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Vuelve a la pantalla anterior.

Metal

Blue

Once

Auto

Exit

¤ Finalice el procedimiento.

Setup

Time Set Time Format OSD Clock Clock Adjust Time Zone DST

Back Exit

3 : 45

12Hours 24Hours

Off

Eastern

Off

AutoOff

Page 91

Operaciones comunes

Selección de la fuente de reproducción

• La disponibilidad de las fuente depende de los componentes externos que ha conectado, del medio conectado y de los ajustes <Entrada> realizados por usted (☞ páginas 61 y 62).

En el panel táctil:

ABC Radio

Exit

Fuente actual

En el panel del monitor:

Exit

Cambio de la información en pantalla

• La información en pantalla disponible varía según las fuentes de reproducción.

En el panel del monitor solamente:

ESPAÑOL

• Cada vez que pulsa el botón DISP, la pantalla cambia para mostrarle diversas informaciones.

Ej.: Cuando la fuente de reproducción es un disco DVD video.

Pantalla de la imagen de reproducción (sólo para fuentes de vídeo)

Pantalla de información de fuente

Imagen reproducida y hora del reloj en números grandes

“TUNER” o “HD Radio” = “SAT” = “DISC”(DVD/ VCD/CD) = “SD” = “USB” o “USB iPod” = ”CD-CH”, “iPod”, o “EXT-IN” = “Bluetooth PHONE” = “Bluetooth AUDIO” = “AV-IN” =

(vuelta al comienzo)

• Podrá seleccionar algunas fuentes si no están preparadas.

Pantalla de navegación*

Vuelta al comienzo

* Cuando se ha seleccionado <Navigation> para

<AV Input>) (☞ página 61)

OPERACIONES

Page 92

Usando los iconos Short Cut (atajo)

Puede acceder fácilmente a algunas de las funciones utilizadas frecuentemente mediante los iconos de Atajo (Short Cut).

ABC Radio

ESPAÑOL

Aparece la ventana de Atajos (Short Cut).

• Para borrar la ventana, pulse el botón nuevamente.

2 Pulse un icono de Atajo.

Setup

Beep Telephone Muting

Illumination Motion Sensitiv. Initialize

Normal

Proximity/Motion

Touch Panel

Iconos de Atajo:

Los iconos disponibles varían según las fuentes.

Visualiza el menú <Illumination> . ☞ página 62

Cambia el modo de sonido. ☞ página 55

Activa o desactiva la repetición de pista/capítulo ☞ páginas 21, 31, 33, 42 y 50

Visualiza el menú <Aspect>. ☞ página 59

Activa la función <Voice Dialing> . ☞ página 37

Visualiza el menú <Redial> . ☞ página 38

Visualiza la pantalla <Sirius ID>. ☞ página 61

Visualiza el menú <Blend Hold>. ☞ página 47

Back Exit

Se visualiza la pantalla correspondiente.

Page 93

Para escuchar la radio

N° de preajuste

Banda

Modo de sonido

(☞ página 55)

Indicador de sintonizador

Pulse [SOURCE], luego pulse [TUNER]. (☞ página 11)

• También puede usar SOURCE en el panel del monitor. Púlselo repetidamente.

ABC Radio

Nombre asignado a la emisora (☞ página 56). Si no hay ningún nombre asignado, aparecerá “No Name”.

Ÿ Pulse [BAND].

! Pulse [ ] o [ ] para efectuar la búsqueda de una emisora—Búsqueda automática

• Búsqueda manual: Mantenga pulsado [ ]o [ ] hasta que “Manual Search” aparezca en la pantalla y, a continuación, púlselo repetidamente.

• El indicador ST se enciende al recibir una radiodifusión FM estéreo con una intensidad de señal suficientemente potente.

ESPAÑOL

OPERACIONES

Page 94

Cuando una radiodifusión en FM estéreo sea difícil de recibir

• También puede usar MENU en el panel del monitor.

ESPAÑOL

Preajuste automático de emisoras FM—SSM (Memoria secuencial de las emisoras más fuertes)

Esta función funciona sólo para las bandas FM. Se pueden preajustar seis emisoras para cada banda.

• También puede usar MENU en el panel del monitor.

Exit

Mode

Mono SSM Title Entry

Back Exit

Start Enter

Se consigue mejorar la recepción, pero se pierde el efecto estereofónico.

• El indicador MONO se enciende.

Para restablecer el efecto estéreo, seleccione <Off>.

Mode

Mono SSM Title Entry

Back Exit

Las emisoras FM locales con las señales más intensas serán exploradas y almacenadas automáticamente en la banda FM.

Start

Enter

[Sostener]

Exit

Page 95

Preajuste manual

Ej.: Almacenando una emisora FM de 92,5 MHz en el

número de preajuste 4 de la banda FM1.

1 Sintonice la emisora que desea preajustar.

92.5 MHz

No Name

• También puede visualizar la lista de preajustes pulsando [

Seleccione una emisora preajustada

En el control remoto:

[Sostener]

ESPAÑOL

En la unidad:

• Para seleccionar directamente sobre el panel táctil

2 Visualice la lista de preajustes.

•

También puede usar MENU en el panel del monitor.

3 Seleccione un número de preajuste.

Back

La emisora seleccionada en el paso 1 ha sido almacenada en el número de preajuste 4.

También puede visualizar la lista de preajustes pulsando [1] o sosteniendo [5 / ∞].

[Sostener]

ABC Radio

• Para seleccionar de la lista de preajustes

•

Exit

También puede usar MENU en el panel del monitor.

Exit

Back

OPERACIONES

Page 96

Operaciones de los discos

El tipo de disco se detecta automáticamente y, a continuación, se inicia la reproducción (con algunos discos, aparece el menú superior del disco).

Si el disco no dispone de ningún menú de disco, todas las pistas del mismo serán reproducidas repetidamente hasta que usted cambie la fuente o expulse el disco.

Si aparece “

• En algunos casos, puede suceder que no se acepte la operación aunque no se visualice “ ”.

” en la pantalla, significa que la unidad no puede aceptar la operación intentada.

ESPAÑOL

~ Abra el panel del monitor.

Aparece el menú <Open/Tilt>.

• Si pulsa y mantiene pulsado el botón, podrá abrir el panel del monitor y expulsar el disco.

! Inserte un disco.

Lado de la etiqueta

El panel del monitor se cierra automáticamente. Si no lo hace, pulse [Close].

Precaución:

No introduzca el dedo detrás del panel del monitor.

Precaución sobre el ajuste de volumen:

Los discos producen muy poco ruido al compararse con otras fuentes. Antes de reproducir un disco, baje el volumen para evitar daños a los altavoces debido a un repentino aumento del nivel de salida.

Cuando se reproduce un disco codificado multicanal, se mezclan las señales multicanal.

• Puede disfrutar plenamente del sonido multicanal conectando un amplificador o decodificador compatible con estas fuentes multicanal. (☞ también página 72)

Page 97

Mientras se reproducen los siguientes discos, pulse .

• Cada vez que pulsa el botón, la pantalla cambia para mostrarle una información diferente. (☞ página 11)

DVD Vídeo: Nº de título/Nº de capítulo/tiempo de reproducción DVD-VR: Nº de programa (o Nº de lista de reproducción)/Nº de capítulo/ Tiempo de reproducción

Tipo de disco

Formato de audio

Modo de sonido

(☞ página 55)

Modo de

reproducción

[

3 / 8] Comienza la reproducción/pausa

[

7] Detiene la reproducción

[

4 ¢] Pulse: Selecciona un capítulo

Sostener: Búsqueda hacia atrás/adelante*

[5 ∞] Selecciona el título/programa/lista de reproducción

DVD-VR también indica reproducción VR-PRG (programa) o VR-PLAY (lista de reproducción).

*2 Indica el botón pulsado. *3 Velocidad de búsqueda: x2 ] x10

: Botones en el panel táctil: En las explicaciones, se indican dentro de [ ]. Estos botones también funcionan cuando no se muestran en el panel táctil (mientras mira las imágenes

reproducidas en la pantalla).

Frecuencia de muestreo/ velocidad de bits/Nº de canal de la señal grabada

ESPAÑOL

OPERACIONES

Page 98

Mientras se reproducen los siguientes discos, pulse .

• Cada vez que pulsa el botón, la pantalla cambia para mostrarle una información diferente (☞ página 11).

Para DivX/MPEG1/MPEG2: Nº de carpeta/Nº de pista/tiempo de

Formato de vídeo

reproducción Para JPEG: Nº de carpeta/Nº de pista

Tipo de disco

Modo de sonido

ESPAÑOL

(☞ página 55)

[

3 / 8] Comienza la reproducción/pausa

[

7] Detiene la reproducción

[

4 ¢] Pulse: Selecciona la pista

Sostener: Búsqueda hacia atrás/

adelante para DivX/MPEG1/MPEG2 *

El indicador PBC se enciende mientras se está usando PBC.

Modo de sonido

(☞ página 55)

PBC

Folder Name File Name.divx

[5 ∞] Pulse: Selecciona la carpeta

Sostener: Visualiza la lista de carpetas/ pistas

[

01]:

Visualiza la lista de carpetas/pistas

Nº de pista/tiempo de reproducción

3 / 8] Comienza la reproducción/pausa

[ [

7] Detiene la reproducción

[

4 ¢] Pulse: Selecciona la pista

*1 Velocidad de búsqueda: ¡1 ] ¡2 *2 Indica el botón pulsado. *3 Velocidad de búsqueda: x2 ] x10

Sostener: Búsqueda hacia atrás/adelante*

Page 99

Modo de sonido

(☞ página 55)

Nº de pista/tiempo de reproducción

Current Track Title Artist Name Album Title

3 / 8] Comienza la reproducción/pausa

[ [

7] Detiene la reproducción

[

4 ¢] Pulse: Selecciona la pista

Sostener: Búsqueda hacia atrás/adelante*

Nº de carpeta/Nº de pista/tiempo de reproducción

Sólo para CD-Text *5*

ESPAÑOL

Formato de audio

(MP3/WMA/WAV/AAC)

Modo de sonido

(☞ página 55)

[3 / 8] Comienza la reproducción/pausa [

7] Detiene la reproducción

[

4 ¢] Pulse: Selecciona la pista

Sostener: Búsqueda hacia atrás/

*4 Indica el botón pulsado.

Aparece “No Name” para los CDs convencionales, o en caso de que no esté grabado.

Al tocar una barra de información, el texto se desplaza si no se muestra por completo.

adelante*

Current Folder Name Current File Name.mp3 Current Track Title Artist Name Album Title

[5 ∞] Pulse: Selecciona la carpeta

[

Visualiza la lista de carpetas/pistas

Sostener: Visualiza la lista de carpetas/ pistas

01]:

*7 Velocidad de búsqueda: x2 ] x10

Los datos de etiqueta aparecen solamente cuando están

5*6

grabados.*

OPERACIONES

Page 100

Botones de operación en la pantalla

Pude visualizar los siguientes botones de operación mientras mira las imágenes reproducidas en la pantalla.

• Si no realiza ninguna operación en el lapso de unos 5 segundos, los botones de operación desaparecen (salvo que se esté visualizando un menú de disco).

☞ páginas 23 a 27 para saber cómo funcionan específicamente los botones de operación para los diversos discos

ESPAÑOL

Toque la pantalla (parte central).

Toque [KEY].

Para borrar las operaciones, toque la pantalla otra vez.

[SOURCE] Visualiza la pantalla <Source Menu> [

5 ∞] Selecciona carpetas

[

3 / 8] Inicia la reproducción/pausa.

[

4 ¢] Pulse: Selecciona pistas

Sostener: Búsqueda hacia atrás/adelante [ ] (*2) Visualiza los iconos de Atajo. [

] Visualiza la pantalla <AV Menu>

[

7] Detiene la reproducción

• Los botones anteriores también funcionan cuando no se muestran en la pantalla (mientras mira la imagen reproducida).

Mientras se reproduce un menú de disco, [KEY] se visualiza

automáticamente. En el menú de disco, podrá seleccionar directamente una opción del menú tocándola sobre la pantalla

Para la operación del menú de reproducción de DVD/VCD/DivX [

5 ∞ 2 3] Selecciona las opciones del menú

[

ENTER] Confirma la selección

[

TOP MENU] Visualiza el menú de disco

[

MENU] Visualiza el menú de disco

[

RETURN] Vuelve al menú anterior o visualiza el menú

(sólo para VCD con PBC)

Para introducir los números [

0]–[9]=[ENTER]

Introduce números [

Direct/CLR] • Cambia entre entrada de capítulo/pista y

• Borra la última entrada cuando usted

Ej.: Para ingresar “105”, pulse [ [

ENTER]

entrada de título/carpeta

introduce un número incorrecto

1], [0], [5] y, a continuación,

JVC KW-AVX810, KW-AVX810J User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Playable disc types

Before operations

Basic operations — Monitor panel/touch panel

Basic operations — Remote controller (RM-RK252)

Preparing for operations

Common operations

Listening to the radio

Disc operations

SD operations

USB operations

Bluetooth® operations — Cellular phone/audio player

Listening to the CD changer

Listening to the satellite radio

Listening to the HD Radio™ Broadcast

Listening to the iPod

Using other external components

Sound equalization

SETTINGS

Assigning titles to the sources

Menu operations

Maintenance

More about this unit

Troubleshooting

Specifications
