JVC KW-AVX810 User Manual [en, es, fr]

DVD RECEIVER WITH MONITOR

RECEPTOR DVD CON MONITOR RÉCEPTEUR DVD ET MONITEUR

KW-AVX810

For canceling the display demonstration, see page 10. Para cancelar la demostración en pantalla, consulte la página 10. Pour annuler la démonstration des affichages, référez-vous à la page 10.

ENGLISHESPAÑOL

FRANÇAIS

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

LVT1792-004A

[EU]

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

Thank you for purchasing a JVC product.

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

ENGLISH

qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical

instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Cautions on the monitor:

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip.

Touch the buttons on the touch panel with your

finger directly (if you are wearing a glove, take it off).

• When the temperature is very cold or very hot...

– Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

[European Union only]

WARNINGS: To prevent accidents and damage

• DO NOT install any unit or wire any cable in a location where;

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be

sure to look around carefully.

• The driver must not watch the monitor while driving.

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

at the same time

[Hold] [Hold]

Contents

INTRODUCTION

Playable disc types .......................... 4

Before operations ........................... 5

Basic operations—

Monitor panel/touch panel ............ 7

Basic operations—

Remote controller (RM-RK252) ...... 8

OPERATIONS

Preparing for operations ................. 10

Common operations ........................ 11

Listening to the radio ...................... 13

Disc operations ................................ 16

SD operations .................................. 30

USB operations ................................ 32

ENGLISH

• If this does not work, reset the unit.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

EXTERNAL DEVICES

Bluetooth® operations—

Cellular phone/audio player .......... 34

Listening to the CD changer .............. 41

Listening to the iPod ....................... 43

Using other external components ..... 47

SETTINGS

Sound equalization .......................... 50

Assigning titles to the sources .......... 51

Menu operations ............................. 52

REFERENCES

Maintenance ................................... 61

More about this unit ........................ 62

Troubleshooting .............................. 70

Specifications .................................. 74

INTRODUCTION

Playable disc types

Disc type Recording format, file type, etc. Playable DVD DVD Video (Region Code: 2)*

ENGLISH

DVD Audio

DVD-ROM

DVD Recordable/Rewritable (DVD-R/-RW*

, +R/+RW*3)

• DVD Video: UDF bridge

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/MP3/ WMA/WAV/AAC: ISO 9660 level 1, level 2, Romeo, Joliet

DVD Video

DVD-VR

DivX/MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC*

MPEG4

DVD+VR

DVD-RAM

Dual Disc DVD side

Non-DVD side

CD/VCD Audio CD/CD Text (CD-DA)

VCD (Video CD)

DTS-CD*

SVCD (Super Video CD)

CD-ROM

CD-I (CD-I Ready)

CD Recordable/Rewritable (CD-R/-RW)

• ISO 9660 level 1, level 2, Romeo, Joliet

CD-DA

MP3/WMA/WAV/AAC*

JPEG

DivX/MPEG1/MPEG2

MPEG4

*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs).

DVD-RW dual layer discs are not playable.

*3 It is possible to play back finalized +R/+RW (Video format only) discs.

+RW double layer discs are not playable.

This unit can play back AAC files encoded using iTunes.

*5 To reproduce DTS sound, use the digital connection. (☞ Installation/Connection Manual).

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Before operations

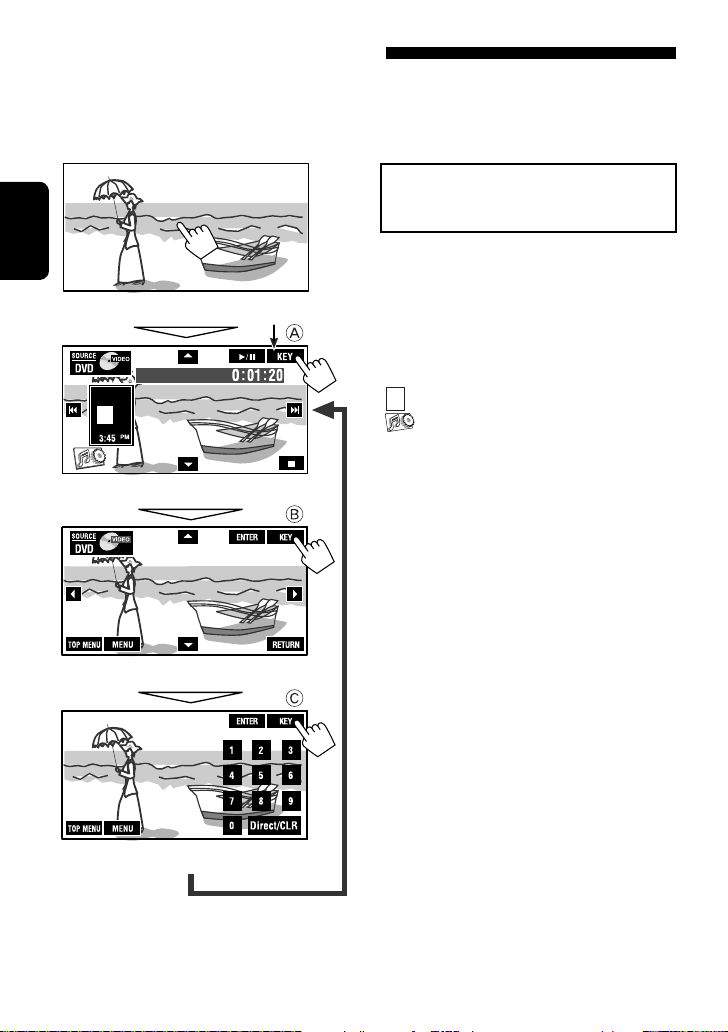

Touch panel

Monitor panel

Buttons on the touch panel In the explanation, they are indicated inside [ ].

For details on the touch panel operations, see each source operation section.

Features of the illumination

Monitor panel buttons

The lights of the monitor panel buttons are turned off when no operation is done for about 10 seconds.

They are turned on again in the following cases: – When you touch the touch panel or move your hand

nearby* – When you use the remote controller – When a call/SMS comes in (for Bluetooth cellular

phone)

* Depending on the <Illumination> setting. (☞ page

57)

The lights of the monitor panel buttons are always

turned on in the following cases:

– While AV menu screen is displayed.

– While <Source Menu> screen is displayed.

– While <Open/Tilt> menu is displayed.

– When <Illumination> is set to <Normal>.

(☞ page 57)

ENGLISH

When you slide your finger on the touch panel, it functions in the same way as touching [5 / ∞ / 4 / ¢].

Screen

While the unit is turned on, you can also turn off the screen by holding DISP on the monitor panel.

[Hold]

The screen is turned on again in the following cases: – When you touch the touch panel – When you press MENU, DISP, DETACH, or OPEN on the

monitor panel

– When a call/SMS comes in (for Bluetooth cellular

phone)

– When the signal from the rear view camera comes in

INTRODUCTION

Detaching/attaching the monitor panel

Detaching

1 While the unit is turned on:

ENGLISH

Detach?Yes No

* You can also use OPEN on the monitor panel.

Then press [ Detach ].

The monitor panel opens by about 50°.

• It closes automatically when no operation is done for about a minute.

Attaching plate

The monitor panel is released. • The attaching plate closes automatically about

10 seconds after the monitor panel is released. Remove the monitor panel before this happens.

Soft case (supplied)

Attaching

Caution:

• Hold the monitor panel securely so as not to drop it accidentally.

• Fit the monitor panel onto the attaching plate until it is firmly locked.

Basic operations — Monitor panel/touch panel

Displays <AV Menu> screen. ☞ page 52

Displays <Source Menu> screen. ☞ page 11

Displays and erases Short Cut icons. ☞ page 12

Changes the sources. ☞ page 11

Adjusts the volume.*

• Turns on the power.

• Turns off the power. [Hold]

• Attenuates the sound (if the power is on).

Resets the unit.

• Use only when the internal system malfunctions.

* You can also adjust

VOL

the volume by moving your finger

on the touch panel as illustrated.

Remote sensor

To detach the monitor panel.

Changes the display information.

• Displays and erases <AV Menu> screen. ☞ page 52

• Displays <Open/Tilt> menu. ☞ below

• Ejects the disc and displays <Open/Tilt> menu.

[Hold]

• Closes the monitor panel.

ENGLISH

<Open/Tilt> menu

Open/Tilt

Open

Eject

Detach

• Shaded items cannot be used.

Tilt +

Tilt –

Exit

[Open] Opens the monitor panel. [Eject] Ejects the disc. [Close] Closes the monitor panel. [Tilt +/–] Tilts the monitor panel. [Detach] To detach the monitor panel. [Exit] Erases this screen.

INTRODUCTION

Basic operations — Remote controller (RM-RK252)

Installing the battery

ENGLISH

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly.

R03/LR03/AAA

Caution:

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

• If the range or effectiveness of the remote controller decreases, replace both batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

Main elements and features

1 • Turns on the power.

• Attenuates the sound if the power is on.

• Turns off the power if pressed and held (while the power is on).

2 “DISC/SD/USB/USB iPod“: Reverse search

3 Adjusts the volume level.

• Does not function as “2nd VOL.”

4 • Displays <Dial Menu> screen.

• Displays <Redial> menu if pressed and held.

• Answers incoming calls.

5 • DVD/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback.

• DVD-VR: Shows the Original Program screen.

6 Shows the on-screen bar.

• Does not function as “ “.

7 Functions with other buttons (see i and o).

8 Changes the display information.

9 For disc/SD/USB operations:

• 5 / ∞: DVD: Selects the title. DVD-VR: Selects the program/Playlist. SD/USB/other discs (except VCD/CD): Selects

the folders.

• 4 / ¢: – Press briefly: reverse skip/forward skip – Press and hold: reverse search/forward

For FM/AM operations:

• 5 / ∞: Selects the preset stations.

• 4 / ¢: Functions to search for stations. – Press briefly: Auto Search – Press and hold: Manual Search

For Apple iPod operations:

“USB iPod“:

• 5 / ∞: Selects previous/next item

• 4 / ¢: – Press briefly: reverse skip/forward skip – Press and hold: reverse search/forward

“iPod“:

• ∞: Starts playback/pauses.

• 5: Enters the main menu (then 5 / ∞ / 4 / ¢ work as menu selecting buttons).

• 4 / ¢:

– Press briefly: reverse skip/forward skip – Press and hold: reverse search/forward

– In menu selecting mode:

• ∞: Confirms the selection.

• 5: Returns to the previous menu.

• 4 / ¢:

– Press briefly: Selects an item. – Press and hold: Skips ten items at a time.

For Bluetooth operations:

• 4 / ¢: reverse skip/forward skip (for

audio player operation)

p “DISC/SD/USB/USB iPod”:

Forward search

q Selects the source.

w “DISC/SD/USB/USB iPod”:

Starts playback/pauses. “Bluetooth PHONE”: Answers incoming calls. “Bluetooth AUDIO”: Starts playback.

e Changes the aspect ratio of the playback

pictures.

r “TUNER”: Selects the bands.

“DISC/SD/USB“: Stops playback. “USB iPod“: Enters <Search Mode> menu. “Bluetooth PHONE”: Ends the call. “Bluetooth AUDIO”: Pauses.

t VCD: Returns to the PBC menu.

y • DVD Video/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback.

• DVD-VR: Shows the Playlist screen.

u • Makes selection/settings.

• @ / #: Skips back or forward by 5 minutes for DivX/MPEG1/MPEG2.

• % / ﬁ: Changes discs for “CD-CH.”

• “DISC/SD/USB“: Switches number entry mode.

• Erases the misentry after entering a wrong number.

• Does not function as “SURROUND.”

o*3 Number buttons

• Enters numbers.

• “TUNER”: Selects the preset station directly.

*1 Functions as a number button only (see o ). *2 Not used for this unit. *3 Functions when pressed with SHIFT.

ENGLISH

INTRODUCTION

Preparing for operations

You can cancel the demonstration on the screen and set the clock.

• Non-available items will be shaded on the AV Menu

ENGLISH

screens.

Indication language:

In this manual, English indications are used for purpose of explanation. You can select the indication language. (☞ page 54)

~ Turn on the power.

• You can also use MENU on the monitor panel.

@ Set the clock.

Moves to the preceding menu page

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Moves to the succeeding menu page

Setup

Time Set Time Format OSD Clock

Back Exit

Setup

Time Set Time Format OSD Clock

Back Exit

12Hours 24Hours

Off

Metal

Blue Once Auto

1 : 00

3 : 45

Auto

Indicates the remaining time before the current screen is erased automatically.

⁄ Cancel the demonstration.

Select <Off>.

Setup

Demonstration Wall Paper Color Scroll Dimmer

Dimmer Time Set

Back Exit

Returns to the previous screen.

Metal

Once

Blue

Auto

Exit

¤ Finish the procedure.

Setup

Time Set Time Format OSD Clock

Back Exit

3 : 45

12Hours 24Hours

Off

Common operations

Selecting the playback source

• Available sources depend on the external components you have connected, media you have attached, and the <Input> settings you have made (☞ page 56).

On the touch panel:

ABC Radio

Exit

Current source

On the monitor panel:

Exit

Changing the display information

• Available display information varies among the playback sources.

On the monitor panel only:

• Each time you press DISP, the display changes to show the various information.

Ex.: When the playback source is a DVD video disc.

Playback picture screen (only for video sources)

Source information screen

Playback picture and clock time in large numbers

ENGLISH

“TUNER” = “DISC”(DVD/VCD/CD) = “SD“ = “USB“ or “USB iPod“ = ”CD-CH”, “iPod”, or “EXT-IN” = “Bluetooth PHONE” = “Bluetooth AUDIO” = “AV-IN” = (back to the beginning)

• You cannot select these sources if they are not ready.

Navigation screen*

Back to the beginning

* When <Navigation> is selected for <AV Input>

(☞ page 56)

OPERATIONS

Using Short Cut Icons

You can easily access some frequently used functions by using Short Cut icons.

ENGLISH

Short Cut window appears.

• To erase the window, press the button again.

ABC Radio

2 Press a Short Cut icon.

Setup

Beep Telephone Muting

Illumination Motion Sensitiv. Initialize

Back Exit

Proximity/Motion

Normal

Touch Panel

Short Cut icons:

Available icons vary among the sources.

Displays <Illumination> menu. ☞ page 57

Changes the sound mode. ☞ page 50

Turns on or off Track/Chapter Repeat. ☞ page 21, 31, 33, 42, and 45

Displays <Aspect> menu. ☞ page 54

Activates <Voice Dialing> function. ☞ page 37

Displays <Redial> menu. ☞ page 38

The corresponding screen is displayed.

Listening to the radio

Preset no.

Band

Sound mode

(☞ page 50)

Tuner indicator

ABC Radio

~ Press [SOURCE], then press [TUNER]. (☞ page 11)

• You can also use SOURCE on the monitor panel. Press it repeatedly.

Ÿ Press [BAND].

! Press [ ] or [ ] to search for a station—Auto Search.

• Manual Search: Hold either [ ]or [ ] until “Manual Search” appears on the screen, then press it repeatedly.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

ENGLISH

Assigned station name (☞ page 51). If no name is assigned, “No Name” appears.

OPERATIONS

When an FM stereo broadcast is hard to receive

ENGLISH

• You can also use MENU on the monitor panel.

FM station automatic presetting —SSM (Strong-station Sequential Memory)

This function works only for FM bands. You can preset six stations for each band.

• You can also use MENU on the monitor panel.

Exit

Mode

Mono SSM Title Entry

Back Exit

Start Enter

Reception improves, but stereo effect will be lost.

• The MONO indicator lights up.

To restore stereo effect, select <Off>.

Mode

Mono SSM Title Entry

Back Exit

Start Enter

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Exit

[Hold]

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset number

4 of the FM1 band.

1 Tune in to a station you want to preset.

92.5 MHz

No Name

• You can also display the Preset List by pressing [

2 Display the Preset List.

• You can also use MENU on the monitor panel.

Selecting a preset station

On the remote:

[Hold]

On the unit:

• To select directly on the touch panel

ABC Radio

• To select from the Preset List

• You can also use MENU on the monitor panel.

ENGLISH

3 Select a preset number.

Back

The station selected in step 1 is now stored in preset number 4.

You can also display the Preset List by pressing [ 1 ] or holding [5 / ∞].

[Hold]

Exit

Back

OPERATIONS

Disc operations

The disc type is automatically detected, then playback starts (for some discs, the top menu of the disc appears).

If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject

ENGLISH

the disc.

” appears on the screen, the unit cannot accept the operation you have tried to do.

If “

• In some cases, without showing “ ,” operations will not be accepted.

~ Open the monitor panel.

<Open/Tilt> menu is displayed.

• By pressing and holding the button, you can open the monitor panel and eject the disc.

! Insert a disc.

Label side

Monitor panel closes automatically. If not, press [Close].

Caution:

Do not place your finger behind the monitor panel.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

When playing back a multi-channel encoded disc, the multi-channel signals are downmixed.

• You can fully enjoy multi-channel sound by connecting an amplifier or a decoder compatible with these multi-

channel sources. (☞ also page 67)

While playing the following discs, press .

• Each time you press the button, the display changes to show the different information. (☞ page 11)

DVD Video: Title no./Chapter no./Playing time DVD-VR: Program no. (or Playlist no.)/Chapter no./Playing time

Disc type

Audio format

Sound mode

(☞ page 50)

Playback mode

[

3 / 8] Starts playback/pauses

[

7] Stops playback

[

4 ¢] Press: Selects chapter

Hold: Reverse/forward search*

[5 ∞] Selects title/program/playlist

DVD-VR also indicates either VR-PRG (program) or VR-PLAY (playlist) playback.

*2 Indicates the button pressed. *3 Search speed: x2 ] x10

: Buttons on the touch panel. In the explanation, they are indicated inside [ ]. These buttons also work when they are not shown on the touch panel (while watching the playback pictures

on the screen).

Sampling frequency/Bit rate/Recorded signal channel no.

ENGLISH

OPERATIONS

While playing the following discs, press .

• Each time you press the button, the display changes to show the different information (☞ page 11).

ENGLISH

Disc type

Sound mode

(☞ page 50)

3 / 8] Starts playback/pauses

[ [

7] Stops playback

[

4 ¢] Press: Selects track

Sound mode

(☞ page 50)

Video format

Folder Name File Name.divx

Hold: Reverse/forward search for DivX/ MPEG1/MPEG2 *

The PBC indicator lights when PBC is in use.

PBC

For DivX/MPEG1/MPEG2: Folder no./Track no./Playing time For JPEG: Folder no./Track no.

[5 ∞] Press: Selects folder

Hold: Displays Folder/Track Lists

[

Displays Folder/Track Lists

Track no./Playing time

[

3 / 8] Starts playback/pauses

[

7] Stops playback

[

4 ¢] Press: Selects track

*1 Search speed: ¡1 ] ¡2 *2 Indicates the button pressed. *3 Search speed: x2 ] x10

Hold: Reverse/forward search*

Track no./Playing time

Sound mode

(☞ page 50)

Audio format

(MP3/WMA/WAV/AAC)

Sound mode

(☞ page 50)

Current Track Title Artist Name Album Title

[

3 / 8] Starts playback/pauses

[

7] Stops playback

[

4 ¢] Press: Selects track

Hold: Reverse/forward search*

Folder no./Track no./Playing time

Current Folder Name Current File Name.mp3 Current Track Title Artist Name Album Title

Only for CD

5*6

Text *

ENGLISH

Tag data appears only when it is

5*6

recorded.*

[3 / 8] Starts playback/pauses [

7] Stops playback

[

4 ¢] Press: Selects track

Hold: Reverse/forward search*

[5 ∞] Press: Selects folder

[

Displays Folder/Track Lists

*4 Indicates the button pressed. *5 “No Name” appears for conventional CDs or if not recorded. *6 Touching an information bar scrolls the text if all the text is not shown. *7 Search speed: x2 ] x10

Hold: Displays Folder/Track Lists

OPERATIONS

Operation buttons on the screen

You can display the following operation buttons while watching the playback pictures on the screen.

• If no operation is done for about 5 seconds, the operation buttons disappear (except when a disc menu is displayed).

ENGLISH

☞ pages 23 to 27 on how the operation buttons particularly work for a variety of the discs

[SOURCE] Displays <Source Menu> screen

Touch the screen (center portion).

Touch [KEY].

[

5 ∞] Selects folders

[

3 / 8] Starts playback/pause

[

4 ¢] Press: Selects tracks

Hold: Reverse/forward search [ ] (*2) Displays Short Cut icons. [

] Displays <AV Menu> screen

[

7] Stops playback

• The above buttons also work when they are not shown on the screen (while watching the playback picture).

While a disc menu is played back for DVD, [KEY] is

automatically displayed. On the disc menu, you can select a menu item directly by touching it on the screen

For DVD/VCD/DivX menu operation playback [

5 ∞ 2 3] Selects the menu items

[

ENTER] Confirms the selection

[

TOP MENU] Displays the disc menu

[

MENU] Displays the disc menu

[

RETURN] Returns to the previous menu or displays

the menu (only for VCD with PBC)

For entering the numbers [

0]–[9]=[ENTER]

Enters numbers [

Direct/CLR] • Switches between chapter/track entry

• Erases the last entry when you enter a

Ex.: To enter “105,” press [

and title/folder entry

wrong number

1], [0], [5], then [ENTER]

To erase the operations, touch the screen again.

Selecting playback modes

You can use the following playback modes—Repeat or Random. Ex.: To select Track Repeat

• You can also use MENU on the monitor panel.

ENGLISH

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

Exit

Disc type Repeat Random

Chapter: Repeats current chapter* Title: Repeats current title

Chapter: Repeats current chapter* Program: Repeats current program (not

available for Playlist playback)

Track: Repeats current track* Folder: Repeats all tracks of the current

folder

Folder: Repeats all tracks of the current

folder

Track: Repeats current track* (PBC not in

use)

Track: Repeats current track* Disc (All): Randomly plays all tracks

Track: Repeats current track* Folder: Repeats all tracks of the current

folder

* By pressing

Short Cut icon, you can also turn on or off Track/Chapter Repeat.

To cancel, select <Off>.

Folder: Randomly plays all tracks of current

folder, then tracks of next folders

Disc (All): Randomly plays all tracks

Disc (All): Randomly plays all tracks (PBC not

in use)

Folder: Randomly plays all tracks of current

folder, then tracks of next folders

Disc (All): Randomly plays all tracks

—

OPERATIONS

Selecting tracks on the list

If a disc includes folders, you can display the Folder/ Track (File) Lists, then start playback.

ENGLISH

• You can also use MENU on the monitor panel.

3 Select a folder (1), then a track (2).

List

Folder 01 Folder 02 Folder 03

Folder 04 Folder 05 Folder 06

Back Exit

Selected track starts playing.

0003/00990005/0035

Track001.mp3 Track002.mp3 Track003.mp3 Track004.mp3 Track005.mp3 Track006.mp3

You can browse Folder/Track Lists by using the bar as illustrated. – Press : Skips the List up or down. – Drag : Scrolls the List up or down.

List

Folder 01 Folder 02 Folder 03 Folder 04 Folder 05 Folder 06

Back Exit

Browse Folder List.

Exit

0003/00990005/0035

Track061.mp3 Track062.mp3 Track063.mp3 Track064.mp3 Track065.mp3 Track066.mp3

Browse Track List.

You can also display the Folder/Track Lists by

pressing [

Prohibiting disc ejection

/01 ] or holding [5 / ∞].

You can lock a disc in the loading slot.

1 Current folder list number/total folder list

number

2 Current track list number/total track list

number of the current folder

*1 Press to move to the previous/next pages of the

lists

*2 See the following.

at the same time

[Hold][Hold]

To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.

Operations using the remote controller—RM-RK252

Stop playback.

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Start playback/pause (if pressed during playback).

Reverse/forward search* Slow motion during pause*

Press: Select chapter (during playback or pause). Hold: Reverse/forward search*

(No sound can be heard.)

Select title (during playback or pause).

Select aspect ratio.

Select chapter. Select title (when not playing).

twice

Select title (during playback or pause).

Using menu driven features

2 Select an item you want to start playback. 3

Search speed: x2 ] x5 ] x10 ] x20 ] x60 *2 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4 ] 1/2 *3 Search speed: x2 ] x10

ENGLISH

You can change the following items using the on-screen bar—audio language, subtitle language, view angle, etc. (☞ pages 28 and 29)

OPERATIONS

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

(No sound can be heard.)

Forward slow motion during pause*2 (No sound can be heard.)

• Reverse slow motion does not work

Press: Select chapter (during playback or pause). Hold: Reverse/forward search*

Select program. Select playlist (during playback or pause).

Select aspect ratio.

Select chapter. Select program (when not playing).

twice

Select program/playlist (during playback or pause).

Using Original Program/Playlist screens ( ☞ page 28)

For Original Program

For Playlist

2 Select an item you want to start playback. 3

To erase the screen.

Search speed: x2 ] x5 ] x10 ] x20 ] x60

* *2 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4 ] 1/2 *3 Search speed: x2 ] x10

You can change audio stream and subtitle (on/off) using the on-screen bar.

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

Press: Select track Hold: Reverse/forward search*

(No sound can be heard.)

Select folder.

Select aspect ratio.

Select track (within the same folder).

ENGLISH

twice

While playing...

Reverse/advance the scenes by 5 minutes.

Select folder.

Current playback position

2nd press 2nd press1st press 1st press 3rd press

For DivX6: Using menu driven features

2 Select an item you want to start playback.

Search speed: ¡1 ] ¡2 ] ¡3

*5 Search speed: ¡1 ] ¡2

You can change audio stream and subtitle (on/off) using the on-screen bar. (DivX only)

OPERATIONS

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search* can be heard.) Forward slow motion during pause*2 (No sound can be heard.)

• Reverse slow motion does not work.

Press: Select track. Hold: Reverse/forward search*

sound can be heard.)

Select aspect ratio.

Stop playback.

Start playback. (Slide show: each file is shown for a few seconds.) Shows the current file until you change it if pressed during Slide show.

Select file.

Select folder.

Select aspect ratio.

Select file (within the same folder).

twice

Select folder.

During PBC playback...

(No sound

Select an item on the menu. To return to the previous menu, press

To cancel PBC playback

(No

1 2 Select the desired track.

Select track.

Search speed: x2 ] x5 ] x10 ] x20 ] x60

Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4 ] 1/2

*3 Search speed: x2 ] x10

• To resume PBC, press

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

Press: Select track. Hold: Reverse/forward search*

Search speed: x2 ] x5 ] x10 ] x20 ] x60

*5 Search speed: x2 ] x10

Stop playback.

Start playback/pause (if pressed during playback).

Reverse/forward search*

Press: Select track. Hold: Reverse/forward search*

Select folder.

twice

ENGLISH

Select track.

Select track (within the same folder).

Select folder.

Search speed: x2 ] x5 ] x10 ] x20 ] x60

* *7 Search speed: x2 ] x10

OPERATIONS

Using the list screens

You can use Original Program or Playlist screen anytime while playing DVD-VR with its data recorded.

ENGLISH

1 Display the Original Program/Playlist screen.

2 Select an item you want.

Operations using the on-screen bar

These operations are possible on the screen using the remote controller, while playing the following discs—DVD/VCD/DivX/MPEG1/MPEG2/JPEG.

1 Display the on-screen bar. (☞page 29)

To erase the screen

1 Original Program/Playlist number 2 Recording date 3 Recording source (TV station, the input terminal of

the recording equipment, etc.)

4 Start time of recording 5 Title of the program/playlist* 6 Highlight bar (current selection) 7 Creating date of playlist 8 Total number of chapters included in the playlist 9 Playback time

* The title of the original program or playlist may not be

displayed depending on the recording equipment.

Ex.: For DVD Video

2 Select an item.

3 Make a selection.

If a pop-up menu appears...

• For entering time/numbers...

: Move the entry position

Select a number

To remove the on-screen bar

On-screen bar

Information

Operation

Above example is of DVD Video. Items shown on the bar vary due to the disc type.

ENGLISH

1 Disc type 2 • DVD: Audio signal format

• VCD: PBC

3 Playback mode *

DVD Video: C. RPT: Chapter repeat T. RPT: Title repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG1/MPEG2: T. RPT: Track repeat F. RPT: Folder repeat F. RND: Folder random A. RND: All (Disc) random JPEG: F. RPT: Folder repeat VCD: T. RPT: Track repeat A. RND: All (Disc) random

4 Playback information

Current title/chapter

Current program/chapter

Current Playlist/chapter

Current track

Current folder/track Current folder/file

5 Time indication

Elapsed playing time of the disc Remaining title time (for DVD)

Remaining disc time (for others)

Elapsed playing time of the current

chapter/track *

Remaining time of the current

chapter/track *

6 Playback status

Play

Reverse/forward search

Reverse/forward slow-motion Pause Stop

7 Operation icons

Change time indication (see 5)

Time Search (Specify a certain

scene by entering time.) Title Search (by its number) Chapter Search (by its number)

Track Search (by its number) Repeat play * Random play *

Change the audio language, audio

stream, or audio channel

Change or erase the subtitle

language

Change the view angle

*1 ☞ page 21 *2 Not applicable for DVD-VR

OPERATIONS

SD operations

This unit can play the JPEG/MP3/WMA/WAV/AAC* files stored in SD card.

• You can operate the SD card in the same way you

ENGLISH

operate the files on discs. (☞ pages 18 to 27)

• All tracks in the SD card will be played repeatedly until you change the source.

• Make sure all important data has been backed up.

~ Open the monitor panel.

<Open/Tilt> menu is displayed.

* This unit can play back AAC files encoded using

iTunes. This unit cannot play back FairPlay-encrypted files.

! Insert an SD card.

Push in the SD card until you hear a clicking sound. The source changes to “SD” and playback starts.

⁄ Close the monitor panel.

• If <Open/Tilt> menu is still displayed:

You can also press [Close] on <Open/Tilt> menu.

• If <Open/Tilt> menu is not displayed:

[Twice]

Caution:

Do not place your finger behind the monitor panel.

To eject the SD card

Push in the SD card lightly.

• You can also eject the SD card by holding OPEN (when the monitor panel is closed).

Caution:

• Do not release your finger quickly; otherwise, the SD card may pop up out from the loading slot.

+ 195 hidden pages

JVC KW-AVX810 User Manual [en, es, fr]

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Playable disc types

Before operations

Basic operations — Monitor panel/touch panel

Basic operations — Remote controller (RM-RK252)

Preparing for operations

Common operations

Listening to the radio

Disc operations

SD operations
