CD RECEIVER

CD-RECEIVER RECEPTEUR CD CD-RECEIVER

KD-SC900R

ENGLISH

DEUTSCH

KD-SC900R

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

FRANÇAIS

NEDERLANDS

GET0145-001A

[E/EX]

Position And Reproduction Of Labels

Bottom panel of the main unit

CAUTION: Invisible laser radiation when open and

ENGLISH

Name/Rating plate

Caution:

This product contains a laser component of higher laser class than Class 1.

interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL: Usynlig laser stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgåudsættelse for stråling. (d)

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

IMPORTANT FOR LASER PRODUCTS

Precautions:

1.CLASS 1 LASER PRODUCT

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ballpoint pen or a similar tool. This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit ............................... 2

How to use the M (MODE) button ............. 3

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

Remote controller ...................................... 5

Preparing the remote controller ................ 6

BASIC OPERATIONS ....................... 7

Turning on the power ................................ 7

Setting the clock ........................................ 8

RADIO OPERATIONS ...................... 9

Listening to the radio ................................. 9

Storing stations in memory ....................... 10

Tuning in to a preset station ...................... 11

RDS OPERATIONS ......................... 12

What you can do with RDS ....................... 12

Other convenient RDS functions and

adjustments ............................................ 16

CD OPERATIONS ........................... 19

Playing a CD ............................................. 19

Locating a track or a particular portion

on a CD .................................................. 20

Selecting CD playback modes .................. 21

Playing a CD Text ...................................... 22

Prohibiting disc ejection ............................ 22

ENGLISH

MP3 INTRODUCTION ...................... 23

What is MP3? ............................................ 23

How are MP3 files recorded and

played back? .......................................... 23

MP3 OPERATIONS ......................... 25

Playing an MP3 disc ................................. 25

Locating a file or a particular portion on

an MP3 disc ............................................ 26

Selecting MP3 playback modes ................ 28

SOUND ADJUSTMENTS ................... 29

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 29

Adjusting the sound .................................. 30

OTHER MAIN FUNCTIONS ................ 31

Changing the general settings (PSM) ....... 31

Changing the standard plate ..................... 33

Detaching the control panel ...................... 35

TROUBLESHOOTING ...................... 36

MAINTENANCE ............................. 38

Handling discs ........................................... 38

SPECIFICATIONS........................... 39

How to use the M (MODE) button

If you press M (MODE), the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

Time countdown indicator

To use these buttons for original functions again after pressing M (MODE), wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing M (MODE) again also clears the functions mode.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

KD-SC900R

1 Remote sensor 2 Control dial 3 (standby/on/attenuator) button 4 SEL (select) button 5 Screws (M2 × 5 mm) 6 Plate cover and standard plate 7 FM/AM button 8 5 (up) button

+10 button

9 0 (eject) button p 4 /¢ buttons q (control panel release) button w DISP (display) button

• Also functions as SSM buttons when pressed together with M (MODE) button.

e M (MODE) button

• Also functions as SSM buttons when pressed together with DISP (display) button.

r Display window t EQ (equalizer) button y MO (monaural) button u RPT (repeat) button i RND (random) button o Number buttons ; T (TP/PTY: traffic programme/programme

type) button

a CD button s ∞ (down) button

–10 button

Display window

d LOUD (loudness) indicator f EQ (equalizer) indicator g CD–in indicator h CD indicator j FM band indicators (FM1, FM2, FM3) k AM band indicator l Tuner reception indicators

MO (monaural), ST (stereo)

/ RDS indicators

AF, REG, TP, PTY

z MP3 indicator x (disc) indicator c Volume (or audio) level indicator v Disc information indicators

TAG (ID3 tag), (folder), (track/file)

b Main display n (folder) indicator m RND (random) indicator , RPT (repeat) indicator

Remote controller

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if pressed briefly. Press again to resume the volume.

2 • Searches for stations while listening to the

radio.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

3 • Selects the preset stations while listening to

the radio. Each time you press the button, the preset station number increases, and the selected station is tuned in.

• Skips to the first file of the next folder while listening to an MP3 disc. Each time you press the button, you can move to the next folder and start playing the first file.

4 Selects the sound mode (C-EQ: custom

equalizer). Each time you press the button, the sound mode (C-EQ) changes.

5 • Selects the band while listening to the radio.

Each time you press the button, the band changes.

• Skips to the first file of the previous folder while listening to an MP3 disc. Each time you press the button, you can move to the previous folder and start playing the first file.

6 Selects the source.

Each time you press the button, the source changes.

7 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode adjustment.

ENGLISH

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

KD-SC900R is equipped with the steering wheel remote control function. If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller.

• See the Installation/Connection Manual (separate volume) for connection to utilize this function.

BASIC OPERATIONS

231

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 9 – 18.

To play a CD,

see pages 19 – 22.

To play an MP3 disc,

see pages 23 – 28.

Adjust the volume.

To increase the volume

To decrease the volume

Volume (or audio) level indicator

(see page 32)

Adjust the sound as you want. (See pages 29 and 30.)

To drop the volume in a moment

Press briefly while listening to any source. “AT T ” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

Volume level appears.

ENGLISH

Frequency

Clock

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

Set the hour.

1 Select “CLOCK H” (hour) if not shown on

the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M” (minute). 2 Adjust the minute.

Set the clock system.

1 Select “24H/12H.” 2 Select “24H” or “12H.”

Finish the setting.

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display mode changes as follows:

• During tuner operation:

Note:

For the indication change during RDS operation, see page 17.

• During disc operation:

Elapsed

playing time

Track title

Notes:

• While playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

• For indication change while playing a CD Text or an MP3 disc, see also pages 22 and 26.

• During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

Clock

Disc title / performer

RADIO OPERATIONS

ENGLISH

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM 1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Selected band appears.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

To stop searching before a station is received,

press the same button you have pressed for searching.

Searching a station manually: Manual search

Select the band (FM 1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

Start searching a station.

To search stations of higher frequencies

To search stations of lower frequencies

When a station is received, searching stops.

CONTINUED ON THE NEXT PAGE

Tune in to a station you want while “M” (manual) is flashing.

To tune in to stations of

ENGLISH

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz for AM—MW/LW) until you release the button.

higher frequencies

To tune in to stations of lower frequencies

When an FM stereo broadcast is hard to receive:

1 Press M (MODE) to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while still

in the functions mode, so that the MO indicator lights up on the display. Each time you press the button, the MO indicator lights up and goes off alternately.

MO (monaural) indicator

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Press and hold both buttons for more than 2 seconds.

“- -SSM- -” appears, then disappears when automatic preset is over.

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 88.3 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Tune in to a station (in this example, of 88.3 MHz).

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 10 and 11.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Select the number (1 – 6) for the preset station you want.

ENGLISH

Press and hold the number button (in this example, 1) for more than 2 seconds.

“P1” flashes for a few seconds.

Repeat the above procedure to store other stations into other preset numbers.

Note:

You can also use the 5 (up) or ∞ (down) button on the unit to select the next or previous preset stations. Each time you press the 5 (up) or ∞ (down) button, the next or previous preset station is tuned in.

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations

ENGLISH

send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page 18.) Two types of the RDS data are used to make Network-Tracking Reception work correctly —PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF” is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the receiving signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF REG: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

REG indicator

AF indicator

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display.

Select the desired mode—“AF,” “AF REG,” or “OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station or CD).

• TA Standby Reception will not work if you are listening to an AM station.

Press T (TP/PTY) to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 17) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby

Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “TRAFFIC” appears on the display, and this unit automatically changes the source and tunes in to the station.

ENGLISH

To deactivate the TA Standby Reception,

press T (TP/PTY) again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source

ENGLISH

(another FM station or CD).

Finish the setting.

• PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“OFF” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 31 and 32.)

Select “PTY STBY” (standby) if not shown on the display.

Select one of the twenty-nine PTY codes. (See page 18.)

Selected code name appears on the display and is stored into memory.

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than

FM, the PTY indicator lights up.

If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

Select one of the twenty-nine PTY codes. (See page 18.)

Selected code name appears on the display.

ENGLISH

To store your favorite programme types, see

below. To search your favorite programme type, see page 16.

POP M

CLASSICS

ROCK M EASY M

AFFAIRS

VARIED

To store your favorite programme types

Press and hold T (TP/PTY) for more than 2 seconds while listening to an FM station.

The last selected PTY code appears.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

“MEMORY” and the selected code name will flash alternately.

Press and hold T (TP/PTY) for more than 2 seconds to exit from this mode.

To search your favorite programme type

Press and hold T (TP/PTY) for more than 2 seconds while listening to an

ENGLISH

FM station.

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

The last selected PTY code appears.

To select one of your favorite programme type

To select any one of the twenty-nine PTY codes

Ex.: When “ROCK M” is selected

Press ¢ or 4 to start PTY search for your favorite programme.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 31.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3 Turn the control dial clockwise to select “ON.”

Now programme search is activated.

4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same procedure and select “OFF” in step 3 by turning the control dial counterclockwise.

Changing the display mode while listening to an FM station

You can change the initial indication on the display to station name (PS NAME), station frequency (FREQ), or clock time (CLOCK) while listening to an FM RDS station.

• See also “Changing the general settings (PSM)” on page 31.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TU DISP”

(tuner display).

3 Turn the control dial to set to the desired

indication (“PS NAME,” “FREQ,” or “CLOCK”).

4 Press SEL (select) to finish the setting.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on page 31.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “TA VOL”

(volume).

3 Turn the control dial to set to the desired

volume. You can set it from “VOL 00” to “VOL 50.”

4 Press SEL (select) to finish the setting.

ENGLISH

Note:

By pressing DISP (display), you can change the display while listening to an FM RDS station only. Each time you press the button, the following information appears on the display:

Station name

(PS NAME)

Station frequency

(FREQ)

Programme type

(PTY)

Clock

(CLOCK)

• Then, the display goes back to the original indication in several seconds.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 31.

1 Press and hold SEL (select) for more than

2 seconds so that one of the PSM items appears on the display.

2 Press ¢ or 4 to select “AUTO

ADJ” (adjustment).

3 Turn the control dial counterclockwise to select

“OFF.” Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the

same procedure and select “ON” in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting “AUTO ADJ” to “ON.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News AFFAIRS: Topical programmes expanding

ENGLISH

INFO: Programmes which impart

SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or

SCIENCE: Programmes on natural science

VARIED: Other programmes like comedies

POP M: Pop music ROCK M: Rock music EASY M: Easy-listening music LIGHT M: Light music CLASSICS: Classical music OTHER M: Other music WEATHER: Weather information FINANCE: Reports on commerce, trading,

CHILDREN: Entertainment programmes for

on current news or affairs

advice on a wide variety of topics

regional culture

and technology

or ceremonies

the Stock Market, etc.

children

SOCIAL: Programmes on social

activities

RELIGION: Programmes dealing with any

aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can

express their views either by phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as gardening, cooking, fishing,

etc. JAZZ: Jazz music COUNTRY: Country music NATION M: Current popular music from

another nation or region, in that

country’s language OLDIES: Classic pop music FOLK M: Folk music DOCUMENT: Programmes dealing with

factual matters, presented in an

investigative style

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency D

CD OPERATIONS

ENGLISH

Refer to “MP3 OPERATIONS” on pages 25 to 28 for operating MP3 discs.

Playing a CD

Open the control panel.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

Insert a CD into the loading slot.

The unit turns on, draws the CD and starts playback automatically.

Close the control panel by hand.

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

The CD–in indicator lights up.

Total playing time of the inserted disc

Elapsed playing time Current track

Notes:

• When a CD is inserted upside down, the CD automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the tuner, “PLEASE” and “EJECT” appear alternately on the display.

• When you open the control panel by pressing 0, the CD automatically ejects.

• If there is no CD in the loading slot, you cannot select CD as the source. “NO DISC” appears on the display.

• If a disc is a CD Text, disc title/performer and then track title will automatically appear.

Total track number of the inserted disc

To stop play and eject the CD

Press 0. CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the tuner (you will

ENGLISH

hear the last received station).

• If you change the source, the CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a CD, to fast-forward the track.

Press and hold 4 , while playing a CD, to reverse the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and –10 buttons)

1 Press M (MODE) to enter the functions mode

while playing a CD.

2 Press +10 or –10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* The first time you press +10 or –10 button,

the track skips to the nearest higher or lower track with a track number of multiple

ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and –10 buttons” below).

• After the last track, the first track will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

(Three times)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

(disc) indicator

ENGLISH

RND indicator

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press M (MODE) to enter the

functions mode while playing a CD.

2 Press RPT (repeat), while still in

the functions mode, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press M (MODE) to enter the

functions mode while playing a CD.

2 Press RND (random), while still

in the functions mode, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown

ENGLISH

automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Each time you press the button, the display changes as follows:

Disc title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Clock and

Current track number

Notes:

• The display shows up to 8 characters at one time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 33. Some characters or symbols will not be shown (and will be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (display) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD, press and hold

for more than 2 seconds.

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD, press and hold again for more than 2 seconds. “EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

MP3 INTRODUCTION

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps (1024 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs.

Compatible with ID3v1 (Version 1)

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 (Version 1) tags (album name, performer name, and song title) on the display. (See page 26.)

• Some characters cannot be shown correctly.

• This unit is not compatible with ID3v2 (Version 2).

Other main features in this unit:

• Maximum number of folders/files: 289 (Total)

• Available characters for folder/file names: A–Z, 0–9, _ (underscore)

• Maximum number of characters for file name (ISO 9660 Level 1): 12 (inclusive of

separation mark—“.” and extension code —“mp3”)

(ISO 9660 Level 2): 31 (inclusive of

separation mark—“.” and extension code —“mp3”)

(Joliet): 64 (inclusive of

separation mark —“.” and extension code —“mp3”)

• Maximum number of characters for folder name: 64

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2, or Joliet.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “folders” —in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

Playback order, file search order, and folder search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the folders and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• The unit cannot read or play an MP3 file without the extension code—mp3.

• This player is not compatible with the data encoded with Layer 1 and Layer 2 formats.

• The unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

ENGLISH

MP3 folder/file configuration

ENGLISH

Hierarchy

ROOT

Level 1

Level 2

Level 3

1 2

Level 4

Level 5

Level 6

: Root

3 4

5 6

ROOT

05 09

1110 2120

06 07

1312

15 1614

2322 24

: Folders

: MP3 files

Note:

There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations.

MP3 playback/search order

• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the MP3 files. Normally, this unit plays back MP3 files in the recorded order.

• The numbers inside the folders indicate the playback order and search order of the folders on an MP3 disc. Normally, this unit plays back MP3 files in the folders in the recorded order.

MP3 OPERATIONS

ENGLISH

Refer also to “CD OPERATIONS” on pages 19 to

22.

Playing an MP3 disc

Open the control panel.

Note on One-Touch Operation:

When a disc is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

Insert an MP3 disc into the loading slot.

The unit turns on, draws the disc and starts playback automatically.

Close the control panel by hand.

All files will be played repeatedly until you stop playback.

The display changes to show the following:

The CD–in indicator lights up.

MP3 indicator lights up.

Total file numberTotal folder number

Ex.: When the disc contains 19 folders and

144 MP3 files

Notes:

• MP3 discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appears. (See also page 26.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the control panel flips down. The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3 file, you can change the MP3 disc information shown on the display.

Each time you press DISP

ENGLISH

• When “TAG DISP” is set to “TAG ON” (initial setting: see page 33)

(display), the display changes to show the following:

Locating a file or a particular portion on an MP3 disc

For “MP3 playback/search order” see page 24.

To fast-forward or reverse the file

Press and hold ¢ while playing an MP3 disc, to fast-forward the file.

Album name / performer

(folder name*)

(TAG lights up on the display)

Track title (file name*)

(TAG lights up on the display)

Elapsed playing time and

Current file number

Clock and

Current file number

* If an MP3 file does not have ID3 tags, folder

name and file name appear. In this case, the TAG indicator will not lights up on the display.

• When “TAG DISP” is set to “TAG OFF”

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Clock and

Current file number

Press and hold 4 while playing an MP3 disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Press 4 briefly while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press M (MODE) to enter the functions mode

while playing an MP3 disc.

Note:

The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 33.

2 Press +10 or –10.

To skip 10 files* forwards to the last file

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

To skip 10 files* backwards to the first file

* The first time you press +10 or –10 button,

the file skips to the nearest higher or lower file with a file number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 : To select file number 8 while playing file number 36

(Three times) (Twice)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

ENGLISH

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If “MP3” flashes on the display after you have selected a folder, it means that the folder does not contain any MP3 files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

¢ or 4 after selecting the folder.

To skip to the next or previous folder

Press 5 (up) while playing an MP3 disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1 does not work.

If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

Press ∞ (down) while playing an MP3 disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3 files, it is skipped.

Selecting MP3 playback modes

To play back files at random (Folder Random/Disc Random Play)

ENGLISH

You can play back all files of the current folder or all files on the MP3 disc at random.

1 Press M (MODE) to enter the

functions mode while playing an MP3 disc.

2 Press RND (random), while still

in functions mode, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

(folder) and RND indicators

Ex.: When you select “FLDR RND”

Mode

FLDR RND and RND All files of the

DISC RND and RND All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

1 Press M (MODE) to enter the

functions mode while playing an MP3 disc.

2 Press RPT (repeat), while still in

functions mode, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

RPT indicator

Ex.: When you select “TRK RPT”

Mode

TRK RPT RPT indicator The current (or

FLDR RPT and RPT All files of the

Active

indicator

lights up. specified) file.

indicators current (or specified) light up. folder.

Plays repeatedly

SOUND ADJUSTMENTS

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press M (MODE) to enter the functions mode.

Press EQ (equalizer), while still in the functions mode.

The last selected sound mode is recalled and applied to the current source.

Ex.: If you have selected “USER” previously

Indication For: Preset values

BAS TRE LOUD

USER (Flat sound) 00 00 OFF

ROCK Rock or +03 +01 ON

disco music

CLASSIC Classical +01 –02 OFF

music

POPS Light music +04 +01 OFF

HIP HOP Funk or rap +02 00 ON

music

JAZZ Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See “Adjusting the sound” on page 30.

ENGLISH

Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

USER

The EQ indicator lights up when any sound mode other than “USER” is selected.

Ex.: When you select “ROCK”

ROCK

CLASSIC

POPSHIP HOPJAZZ

Adjusting the sound

Adjust the setting.

You can adjust the sound characteristics to your preference.

ENGLISH

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

BAS

(bass)

VOL

(volume)

Indication To do: Range

BAS*

TRE*

FAD*

BAL Adjust the left L06 (Left only)

LOUD*1Boost low and high

VOL*

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

frequencies to produce a wellbalanced sound at low volume level.

Adjust the volume. 00 (min.)

TRE

(treble)

LOUD

(loudness)

(balance)

| +06 (max.)

LOUD ON | LOUD OFF

| 50 (max.)

FAD

(fader)

BAL

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Equalization pattern changes as you adjust the bass or treble.

Ex. 1: When you adjust “TRE” (treble)

Ex. 2: When you turn on the loudness

Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and

reassign the preset values listed in the table on page 29.

*1When you adjust the bass, treble, or loudness, the

adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

*2If you are using a two-speaker system, set the fader

level to “00.”

*3Normally the control dial work as the volume

control. So you do not have to select “VOL” to adjust the volume level.

OTHER MAIN FUNCTIONS

Changing the general settings

Adjust the PSM item selected.

(PSM)

You can change the items listed in the table below and on page 32 by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See pages 31 and 32.)

Select the PSM item you want to adjust. (See pages 31 and 32.)

Preferred Setting Mode (PSM) items

• For detailed operations of each PSM items, refer to the pages listed in the table.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

ENGLISH

Indications Selectable values/items

CLOCK H Hour adjustment

CLOCK M Minute adjustment

24H/12H 24/12-hour time display

AUTO ADJ Automatic clock setting

TU DISP Tuner display

AF-REG Alternative frequency/

Regionalization reception

Back

12H

OFF

PS NAME FREQ

AF AF REG

Advance

24H

CLOCK

OFF

CONTINUED ON THE NEXT PAGE

Factory-preset See

settings page

0:00 8

24H

PS NAME

12, 13

Indications Selectable values/items

PTY STBY PTY standby

ENGLISH

OFF

29 programme types

(see page 18)

Factory-preset See

settings page

OFF

TA VOL Traffic announcement

volume

P-SEARCH Programme search

LEVEL Level display

DIMMER Dimmer mode

TEL Telephone muting

SCROLL Scroll mode

TAG DISP Tag display

To select the level meter—LEVEL

You can select the level display according to your preference. When shipped from the factory, “AUDIO 2” is selected.

• AUDIO 1: Shows the audio level indicator.

• AUDIO 2: Alternates “AUDIO 1” setting and illumination display.

• OFF: Erases the audio level indicator.

To select the dimmer mode—DIMMER

When you turn on the car headlights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated.

• AUTO: Activates Auto Dimmer.

• OFF: Cancels Auto Dimmer.

• ON: Always dims the display.

VOL 00 – VOL 50

OFF ON OFF

AUDIO 1 AUDIO 2

OFF

AUTO OFF

MUTING 1 MUTING 2

OFF

ONCE AUTO

OFF

TAG OFF TAG ON TAG ON

VOL 20

AUDIO 2

AUTO 32

OFF

ONCE 33

Note:

Auto Dimmer equipped with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, set the dimmer mode to “ON” or “OFF.”

To select the telephone muting—TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “MUTING 1” or “MUTING 2” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select this if this setting can mute

• MUTING 2: Select this if this setting can mute

• OFF: Cancels the telephone muting.

the sounds while using the cellular phone.

To select the scroll mode—SCROLL

You can select the scroll mode for the disc information (when the entire text cannot be shown all at once). When shipped from the factory, scroll mode is set to “ONCE.”

• ONCE: Scrolls only once.

• AUTO: Repeats the scroll (5-second intervals in between).

• OFF: Cancels scroll mode.

Note:

Even if the scroll mode is set to “OFF,” you can scroll the display by pressing DISP (display) for more than one second.

To turn the tag display on or off—TAG DISP

An MP3 file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version

1) and ID3v2 (ID3 Tag version 2). This unit is

compatible only with ID3v1. When shipped from the factory, “TAG ON” is selected.

• TAG ON: Turns on the ID3 tag display while playing MP3 files.

• If an MP3 file does not have ID3

tags, folder name and file name appear.

Note:

If you change the setting from “TAG OFF” to “TAG ON” while playing an MP3 file, the tag display will be activated when the next file starts playing.

• TAG OFF: Turns off the ID3 tag display while playing MP3 files. (Only the folder name and file name can be shown.)

Changing the standard plate

You can change the standard plate with another plate supplied with your unit. You can also download them by visiting <http://www.jvc.co.jp/jvccar>.

• When changing the plate, be careful not to leave your fingerprints on the plate or cover.

Loosen the screws with the supplied hex screwdriver.

Remove the plate cover and the standard plate.

Standard plate

Plate cover

ENGLISH

CONTINUED ON THE NEXT PAGE

Replace with another plate (a standard, cutout, or downloaded plate) of your preference.

ENGLISH

• When attaching a standard plate

Standard plate

• When attaching a cutout or downloaded

Cutout or downloaded plate

Plate cover

plate

Add the transparent plate (supplied) between the cutout or downloaded plate and the plate cover in order to attach the plate cover in place.

How to use the cutout plates

1 Unfold the supplied cutout plates.

2 Cut the plates out using a scissors.

3 Trim out the window and two knobs using a

knife on a rubber mat.

Transparent plate (supplied)

Notes:

• Be sure to keep the hex screwdriver for future use.

• Four spare screws for the plate cover attachment are provided with the unit. (See the Installation/ Connection Manual.)

• When you attach the plate cover, do not tighten the screws too hard; otherwise, the plate cover might be cracked.

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Pull the control panel out of the unit.

Attaching the control panel

Insert the right side of the control panel into the groove on the panel holder.

Press the left side of the control panel to fix it to the panel holder.

ENGLISH

Put the detached control panel into the provided case.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

• This unit does not work at

General

• SSM (Strong-station

FM/AM

• Static noise while listening

• Disc cannot be played back.

• CD-R/CD-RW cannot be

• Tracks on the CD-R/CD-RW

• Disc cannot be ejected.

Symptoms

from the speakers.

all.

Sequential Memory) automatic preset does not work.

to the radio.

played back.

cannot be skipped.

Causes

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak.

The aerial is not connected firmly.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked.

Remedies

Adjust it to the optimum level.

Check the cords and connections.

Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

Store stations manually.

Connect the aerial firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Unlock the disc. (See page 22.)

• Disc sound is sometimes interrupted.

Disc Playback

• “NO DISC” appears on the display.

You are driving on rough roads.

Disc is scratched.

Connections are incorrect.

No disc is in the loading slot.

Disc is inserted incorrectly.

Stop playback while driving on rough roads.

Change the disc.

Check the cords and connections.

Insert a disc into the loading slot.

Insert the disc correctly.

Symptoms

Causes

Remedies

• Disc cannot be played back.

• Noise is generated.

• A longer readout time is required (“CHECK” keeps flashing on the display).

• Files cannot be played back as you have intended them to play.

• Elapsed playing time is not correct.

• “MP3” flashes on the display.

No MP3 files are recorded on the disc.

MP3 files do not have the extension code—mp3 in their file names.

MP3 files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, or Joliet.

The file played back is not an MP3 file (although it has the extension code—mp3).

Readout time varies due to the complexity of the folder/file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

The current folder does not contain any MP3 file.

Change the disc.

Add the extension code —mp3 to their file names.

Change the disc. (Record MP3 files using a compliant application.)

Skip to another file or change the disc. (Do not add the extension code—mp3 to nonMP3 files.)

Do not use too many hierarchies and folders. Also, do not record any other types of audio tracks together with MP3 files.

Select another folder.

ENGLISH

MP3 Playback

• “NO FILES” appears on the display for a while, then “PLEASE” and “EJECT” appear alternately.

• Correct characters are not displayed (e.g. album name).

The current disc does not contain any MP3 file.

This unit can only display alphabets (capital: A–Z), numbers, and a limited number of symbols.

Insert a disc that contains MP3 files.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads.

MAINTENANCE

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Text.

ENGLISH

• This unit is also compatible with MP3 discs.

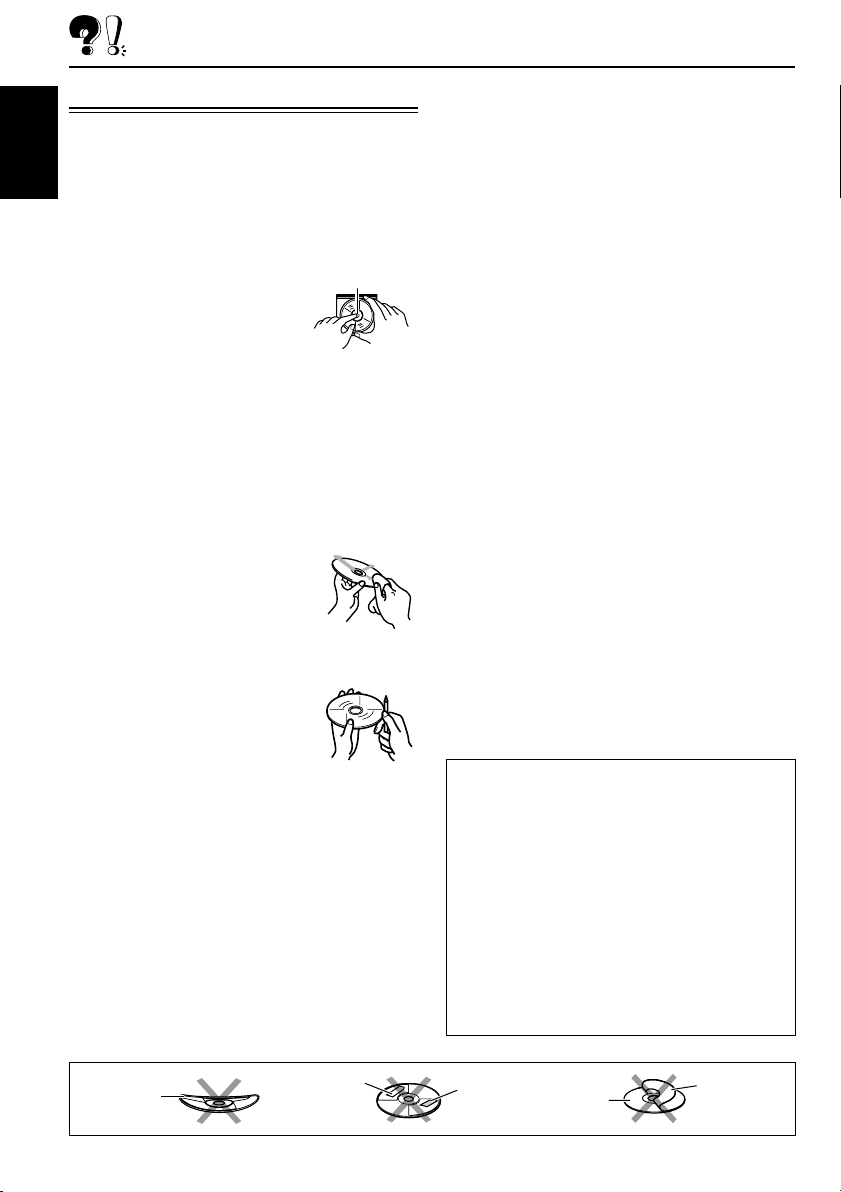

How to handle discs

When removing a disc from its case, press down

the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only “finalized” CD-Rs or CD-RWs.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, and for the following reasons: – Discs are dirty or scratched. – Moisture condensation on the lens inside the

unit.

– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example, – Stickers or labels may shrink and warp a

disc. – Stickers or labels may peel off so discs

cannot be ejected. – Print on discs may get sticky. Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 45 W per channel Rear: 45 W per channel

Continuous Power Output (RMS):

Front: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 decoding format:

MPEG 1/2 Audio Layer 3

Max. Bit Rate: 320 Kbps

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 12 mm

Mass (approx.):

1.4 kg (excluding accessories)

ENGLISH

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 µV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

Design and specifications are subject to change without notice.

If you want some additional downloaded plates, you can download them by visiting <http://www.jvc.co.jp/jvccar>.

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

Hebt u PROBLEMEN met de bediening?

Stel het apparaat terug

Zie de pagina met de paragraaf Het apparaat terugstellen

EN, GE, FR, NL

JVC

0203KKSMDTJEIN

KD-SC900R

Installation/Connection Manual Einbau/Anschlußanleitung Manuel d’installation/raccordement Handleiding voor installatie/aansluiting

GET0145-004A

[E/EX]

0203KKSMDTJEIN

JVC

EN, GE, FR, NL

ENGLISH

• This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems.

INSTALLATION (IN-DASH MOUNTING)

• The following illustration shows a typical installation. However, you should make adjustments corresponding to your specific car. If you have any questions or require information regarding installation kits, consult your JVC IN-CAR ENTERTAINMENT dealer or a company supplying kits.

Before mounting: Press (control panel release button) to detach the control panel if already attached.

* When shipped from the factory, the control

panel is packed in the hard case.

Remove the trim plate.

Remove the sleeve after disengaging the sleeve locks.

1 Stand the unit.

Note: When you stand the unit, be careful not to damage the fuse on the rear.

2 Insert the 2 handles between the unit and

the sleeve, as illustrated, to disengage the sleeve locks.

3 Remove the sleeve.

Note: Be sure to keep the handles for future use after installing the unit.

Install the sleeve into the dashboard. * After the sleeve is correctly installed into the

dashboard, bend the appropriate tabs to hold the sleeve firmly in place, as illustrated.

Fix the mounting bolt to the rear of the unit’s body and place the rubber cushion over the end of the bolt.

Do the required electrical connections.

Slide the unit into the sleeve until it is locked.

Attach the trim plate. Note: Ensure the recessed part is at the bottom.

If not, the control panel will not open completely.

Attach the control panel.

DEUTSCH

• Dieses Gerät ist für einen Betrieb in elektrischen Anlagen mit 12 V Gleichstrom und (–) Erdung ausgelegt.

EINBAU (IM ARMATURENBRETT)

• Die folgende Abbildung zeigt einen typischen Einbau. Dennoch müssen Sie entsprechend Ihrem jeweiligen Auto Anpassungen vornehmen. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt.

Vor dem Einbau: Drücken Sie (Freigabe der Schalttafel), um die Arretierung der Schalttafel zu lösen, sofern diese bereits angebracht ist.

* Bei der Auslieferung ab Werk ist die Schalttafel

im Etui verpackt.

Den Frontrahmen herausnehmen.

Die Halterung nach dem Entriegeln der Halterungensperren abnehmen.

1 Das Gerät aufstellen.

Hinweis: Beim Aufstellen des Geräts darauf achten, daß die Sicherung auf der Rückseite nicht beschädigt wird.

2 Die 2 Griffe zwischen dem Gerät und der

Halterung wie abgebildet einstecken und die Halterungensperren entriegeln.

3 Die Halterung entfernen.

Hinweis: Sicherstellen, daß die Griffe für künftigen Gebrauch nach dem Einbau des Geräts aufbewahrt werden.

Die Halterung im Armaturenbrett einbauen. * Nach dem korrekten Einbau der Halterung im

Armaturenbrett, die entsprechenden Riegel umknicken, um die Halterung an ihrem Platz zu sichern, siehe Abbildung.

Die Befestigungsschraube an der Rückseite des Gerätekörpers befestigen und das Ende der Schraube mit einem Gummipuffer abdecken.

Nehmen Sie die erforderlichen elektrischen Anschlüsse vor.

Das Gerät in die Halterung schieben, bis es einrastet.

Befestigen Sie den Frontrahmen. Hinweis: Vergewissern Sie sich, dass sich die

Aussparung an der Unterseite befindet. Ist dies nicht der Fall, lässt sich die Bedienungsblende nicht vollständig öffnen.

Die Schalttafel anbringen.

FRANÇAIS

• Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE.

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

• L’illustration suivante est un exemple d’installation typique. Cependant, vous devez faire les ajustements correspondant à votre voiture particulière. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

Avant le montage:

du panneau de commande) pour éventeullement détacher le panneau de commande.

* Lorsque ce panneau de commande sort d’usine,

il est rangé dans un étui de transport.

Retirer la plaque d’assemblage.

Libérer les verrous du manchon et retirer le manchon.

Poser l’appareil à la verticale.

Remarque:

verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

Insérer les 2 poignées entre l’appareil et le manchon comme indiqué pour désengagé les verrous de manchon.

Retirer le manchon.

Remarque:

pour une utilisation ultérieur, après l’installation de l’appareil.

Installer le manchon dans le tableau de bord. * Après installation correcte du manchon dans le

tableau de bord, plier les bonnes pattes pour maintenir fermement le manchon en place, comme montré.

Monter le boulon de montage sur l’arrière du corps de l’appareil puis passer l’amortisseur en caoutchouc sur l’extrémité du boulon.

Réalisez les connexions électriques.

Faire glisser l’appareil dans le manchon jusqu’à ce qu’il soit verrouillé.

Attachez la plaque d’assemblage.

Remarque:

est en bas. Sinon, le panneau de commande ne pourra pas être ouvert complètement.

Remonter le panneau de commande.

Appuyer sur (déblocage

Lorsque vous mettez l’appareil à la

S’assurer de garder les poignées

Assurez-vous que la partie encastrée

NEDERLANDS

• Dit apparaat mag worden gebruikt bij elektrische systemen die werken op 12 V gelijkstroom met negatieve aarding.

INSTALLATIE (INBOUW IN HET DASHBOARD)

• Op de volgende afbeelding kunt u zien hoe de installatie, normaal gesproken, in zijn werk gaat. U moet echter bij de installatie rekening houden met de bijzonderheden van uw eigen auto. Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert.

Voordat u aan de montage van het apparaat begint: Druk op

vrijgeven) als u het bedieningspaneel wilt loskoppelen indien dit aan de eenheid is vastgekoppeld.

* Standaard wordt het bedieningspaneel bij het

verlaten van de fabriek los verpackt meegeleverd.

Verwijder de sierplaat.

Verwijder het huis nadat u de klemmen hebt losgemaakt.

1 Zet het apparaat rechtop.

Opmerking: Wanneer u het apparaat rechtop zet, moet u erop letten dat u de zekering aan de achterkant niet beschadigt.

2 Plaats de 2 hendels, zoals afgebeeld, tussen het

apparaat en het huis, om de klemmen los te maken.

3 Verwijder het huis.

Opmerking: Bewaar de hendels nadat u het apparaat hebt geïnstalleerd, zodat u ze ook in de toekomst kunt gebruiken.

Installeer het huis in het dashboard. * Nadat het huis op de juiste wijze in het dashboard

is geplaatst, moet u de palletjes, zoals afgebeeld, stevig op hun plaats duwen.

Maak de bevestigingsbout aan de achterkant van het apparaat vast en plaats de rubberdop over het uiteinde van de bout.

Breng de vereiste elektrische verbindingen tot stand.

Schuif het apparaat in het huis totdat het vergrendeld is.

Bevestig een sierplaat. Opmerking: Zorg dat het ingedeukte gedeelte onder

is. Het bedieningspaneel kan anders namelijk niet geheel worden geopend.

Bevestig het bedieningspaneel.

(het bedieningspaneel

Control panel

Schalttafel

Panneau de commande

Bedieningspaneel

Handle

Griff

Poignée

Hendel

Slot

Schlitz

Fente

Sleuf

Fuse

Sicherung

Fusible

Zekering

Lock Plate

Arretierplättchen

Plaque de verrouillage

Vergrendelingsplaat

Sleeve

Halterung

Manchon

Huis

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

Control panel

Schalttafel

Panneau de commande

Bedieningspaneel

Rubber cushion

Gummipuffer

Amortisseur en caoutchouc

Rubberdop

Sleeve

Halterung

Manchon

Huis

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

Dashboard

Armaturenbrett

Tableau de bord

Dashboard

184 mm

53 mm

Mounting bolt

Befestigungsschraube

Boulon de montage

Bevestigingsbout

See “ELECTRICAL CONNECTIONS.”

Siehe „ELEKTRISCHE ANSCHLÜSSE“.

Référez-vous “RACCORDEMENTS ELECTRIQUES” .

Zie “ELEKTRISCHE VERBINDINGEN”.

TROUBLESHOOTING

• The fuse blows.

* Are the red and black leads connected correctly?

• Power cannot be turned on.

* Is the yellow lead connected?

• No sound from the speakers.

* Is the speaker output lead short-circuited?

• Sound is distorted.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded

in common?

• Unit becomes hot.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded

in common?

FEHLERSUCHE

• Die Sicherung brennt durch.

* Sind die roten und schwarzen Leitungen richtig

angeschlossen?

• Stromversorgung kann nicht eingeschaltet werden.

* Ist die gelbe Leitung angeschlossen?

• Kein Ton aus den Lautsprechern.

Ist die Lautsprecherausgangsleitung kurzgeschlossen?

• Ton verzerrt.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

• Gerät wird heiß.

* Ist die Lautsprecherausgangsleitung geerdet? * Sind die (–) Anschlußklemmen der linken und

rechten Lautsprecher zusammen geerdet?

EN CAS DE DIFFICULTES

• Le fusible saute.

* Les fils rouge et noir sont-ils racordés

correctement?

• L’appareil ne peut pas être mise sous tension.

Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

* Le fil de sortie d’enceinte est-il court-circuité?

• Le son est déformé.

* Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-

elles mises ensemble à la masse?

• L’appareil devient chaud.

* Le fil de sortie d’enceinte est-il à la masse? * Les bornes “–” des enceintes gauche et droit sont-

elles mises ensemble à la masse?

PROBLEMEN OPLOSSEN

• De zekering slaat door. * Zijn de rode en de zwarte draden op de juiste manier

aangesloten?

• De stroom kan niet worden ingeschakeld. * Is de gele draad aangesloten?

• Er komt geen geluid uit de speakers. * Is de uitgaande speakerdraad kortgesloten?

• Het geluid wordt vervormd.

* Is de uitgaande speakerdraad geaard? * Zijn de “–” polen van de linker- en de rechterspeakers

gemeenschappelijk geaard?

• Het apparaat raakt verhit.

* Is de uitgaande speakerdraad geaard? * Zijn de “–” polen van de linker- en de rechterspeakers

gemeenschappelijk geaard?

• When using the optional stay

• Beim Verwenden der Anker-Option

• Lors de l’utilisation du hauban en option

• Wanneer u de steun gebruikt (facultatief)

Fire wall

Feuerwand

Washer

Unterlegscheibe

Rondelle

Sluitring

Dashboard

Armaturenbrett

Tableau de bord

Dashboard

Cloison

Brandscherm

Sleeve

Halterung

Manchon

Huis

Lock nut

Sicherungsmutter

Ecrou d’arrêt

Contra-moer

Screw (option)

Schraube (Option)

Vis (en option)

Schroef (facultatief)

Mounting bolt

Befestigungsschraube

Boulon de montage

Bevestigingsbout

Stay (option)

Anker (Option)

Hauban (en option)

Steun (facultatief)

• When installing the unit without using the sleeve

• Beim Einbau des Geräts ohne Halterung

• Lors de l’installation de l’appareil scans utiliser de manchon

• Wanneer u het apparaat zonder huis installeert

In a Toyota for example, first remove the car radio and install the unit in its place.

Zum Beispiel in einem Toyota zuerst das Autoradio ausbauen und dann das Gerät an seinem Platz einbauen.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

Voorbeeld: Bij een Toyota moet u eerst de autoradio verwijderen en daarna het apparaat installeren.

Flat type screws (M5 x 6 mm)*

Senkkopfschrauben (M5 x 6 mm)*

Vis à tête plate (M5 x 6 mm)*

Platkopschroeven (M5 x 6 mm)*

Pocket

Taschen

Poche

Zak

Bracket*

Konsole*

Support*

Console*

Bracket*

Konsole*

Support*

Console*

* Not included with this unit. * Nicht Teil dieses Geräts. *

Non fourni avec cet appareil.

* Niet meegeleverd.

Flat type screws (M5 x 6 mm)*

Senkkopfschrauben (M5 x 6 mm)*

Vis à tête plate (M5 x 6 mm)*

Platkopschroeven (M5 x 6 mm)*

Less than 30˚

Weniger als 30˚

Moins de 30˚

Kleiner dan 30˚

Removing the unit

• Before removing the unit, release the rear section.

Remove the control panel.

Remove the trim plate.

Insert the 2 handles into the slots, as shown. Then, while gently pulling the handles away from each other, slide out the unit. (Be sure to keep

the handles after installing it.)

Control panel

Schalttafel

Panneau de commande

Bedieningspaneel

Install the unit at an angle of less than 30˚.

Stellen Sie das Gerät mit einem Winkel von weniger als 30˚ auf.

Installez l’appareil avec un angle de moins de 30˚.

Installeer het toestel met een hoek kleiner dan 30˚.

Note : When installing the unit on the mounting bracket, make sure to use the 6 mm-long screws. If longer screws are used,

Hinweis : Beim Anbringen des Gerät an der Konsole sicherstellen, daß 6 mm lange Schrauben verwendet werden. Werden

Remarque :

Opmerking : Wanneer u het apparaat aan de bevestigingsklem vastmaakt, moet u de 6 mm lange schroeven gebruiken. Als u langere schroeven

Ausbau des Geräts

• Vor dem Ausbau des Geräts den hinteren Teil freigeben.

Den Schalttafel abnehmen.

Den Frontrahmen herausnehmen.

Die 2 Griffe in die Schlitze wie gezeigt stecken. Dann die Griffe behutsam auseinander ziehen und das Gerät herausziehen. (Die Griffe nach

dem Einbau auf jeden Fall aufbewahren.)

Trim plate

Frontrahmen

Plaque d’assemblage

Sierplaat

they could damage the unit.

längere Schrauben verwendet, können sie das Gerät beschädigen.

Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une longueur de 6 mm. Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

gebruikt, kan het apparaat worden beschadigd.

Retrait de l’appareil

•

Avant de retirer l’appareil, libérer la section arrière.

Retirer le panneau de commande.

Retirer la plaque d’assemblage.

Introduire les 2 poignées dans les fentes, comme montré. Puis, tout en tirant doucement les poignées écartées, faire glisser l’appareil pour le sortir.

(S’assurer de conserver les poignées

après l’installation de l’appareil.)

Verwijderen van het apparaat

• Voordat u het apparaat verwijdert, moet u het

achtergedeelte losmaken.

Verwijder het bedieningspaneel.

Verwijder de sierplaat.

Plaats de 2 hendels, zoals afgebeeld, in de sleuven. Daarna duwt u de hendels zachtjes uit elkaar en kunt u het apparaat naar buiten schuiven. (Bewaar de

hendels nadat u het apparaat hebt geïnstalleerd!)

321

Handle

Griff

Poignée

Hendel

Parts list for installation and connection

The following parts are provided with this unit.The number in parentheses indicates the quantity of the pieces supplied. After checking them, please set them correctly.

Hard case/Control panel (1)

Etui/Schalttafel (1)

Etui de transport/Panneau de commande (1)

Behuizing/Bedieningspaneel (1)

Power cord (1)

Stromkable (1)

Cordon d’alimentation (1)

Stroomkabel (1)

Mounting bolt—M5 x 20 mm (1)

Befestigungsschraube—M5 x 20 mm (1)

Boulon de montage—M5 x 20 mm (1)

Bevestigingsbout—M5 x 20 mm (1)

See pages 33 and 34 of the Instructions for the usage of the following parts. Witere Informationen finden Sie auf den Seiten 33 und 34 der Bedienungsanleitung der folgenden Teile. Référez-vous à la pages 33 et 34 du mode d’emploi pour savoir comment utiliser les pièces suivantes. Zie bladzijden 33 en 34 van de Aanwijzingen voor gebruik van deze onderdelen.

Teileliste für den Einbau und Anschluß

Die folgenden Teile werden zusammen mit diesem Gerät geliefert. Die Zahl in Klammern gibt die Menge der zum Lieferumfang gehörigen Teile an. Nach ihrer Überprüfung, die Teile richtig einsetzen.

Sleeve (1)

Halterung (1)

Manchon (1)

Huis (1)

Handles (2)

Griffe (2)

Poignées (2)

Hendels (2)

Rubber cushion (1)

Gummipuffer (1)

Amortisseur en caoutchouc (1)

Rubberdop (1)

Washer—ø5 (1)

Unterlegscheibe—ø5 (1)

Rondelle—ø5 (1)

Sluitring—ø5 (1)

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Le nombre entre parenthèses indique la quantité de pièces fournies. Après vérification, veuillez les placer correctement.

Trim plate (1)

Frontrahmen (1)

Plaque d’assemblage (1)

Sierplaat (1)

Lock nut—M5 (1)

Sicherungsmutter—M5 (1)

Ecrou d’arrêt—M5 (1)

Contra-moer—M5 (1)

Battery

Batterie

Pile

Batterij

CR2025

Lijst van onderdelen die u bij installatie en aansluiting nodig hebt

De volgende onderdelen worden bij het apparaat geleverd. Het tussen haakjes aangegeven cijfer toont het aantal van het bijgeleverde onderdeel. Installeer ze op de juiste wijze, nadat u ze hebt gecontroleerd.

Remote controller

Fernbedienung

Télécommande

Afstandsbediening

Additional standard plates (3) and transparent plate (1)

Zusätzliche Standardplatten (3) und transparente Platte (1)

Plaques standards additionnelles (3) et plaque transparente (1)

Extra standaardplaten (3) en transparant-plaat (1)

Hex screwdriver (1)

Sechskantschraubendreher (1)

Clef hexagonale (1)

Zeshoekige sleutel (1)

Cutout plates (printed on the sheet) (4)

Schablonen (auf das Blatt aufgedruckt) (4)

Plaques découpées (imprimées sur une feuille) (4)

Platen voor uitsnijding (gedrukt op het blad) (4)

Spare screws for the plate cover attachment —M2 x 5 mm (4)

Ersatzschrauben für die Plattenabdeckung —M2 x 5 mm (4)

Vis de rechange pour la fixation du couvercle de la plaque—M2 x 5 mm (4)

Extra schroeven voor bevestiging van plaatafdekking —M2 x 5 mm (4)

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit. If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Note: This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have

this system, a voltage inverter is required, which can be purchased at JVC IN-CAR ENTERTAINMENT dealers.

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC IN-CAR ENTERTAINMENT dealer.

• If noise is a problem... This unit incorporates a noise filter in the power circuit. However, with some vehicles, clicking or other unwanted noise may occur. If this happens, connect the unit’s rear ground terminal (see connection diagram) to the car’s chassis using shorter and thicker cords, such as copper braiding or gauge wire. If noise still persists, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Maximum input of the speakers should be more than 45 W at the rear and 45 W at the front, with an impedance of 4 Ω to 8 Ω.

• Be sure to ground this unit to the car’s chassis.

• The heat sink becomes very hot after use. Be careful

not to touch it when removing this unit.

Heat sink

Abstrahlblech

Dissipateur de chaleur

Warmte-opnemer

ELEKTRISCHE ANSCHLÜSSE

Zur Vermeidung von Kurzschlüssen empfehlen wir, daß Sie den negativen Batterieanschluß abtrennen und alle elektrischen Anschlüsse herstellen, bevor das Gerät eingebaut wird. Sind Sie sich über den richtigen Einbau des Geräts nicht sicher, lassen Sie es von einem qualifizierten Techniker einbauen.

Hinweis: Dieses Gerät ist für einen Betrieb in elektrischen Anlagen mit 12 V Gleichstrom und (–) Erdung ausgelegt. Verfügt Ihr Fahrzeug nicht über diese

Anlage, ist ein Spannungsinverter erforderlich, der bei JVC Autoradiohändler erworben werden kann.

•

Die Sicherung mit einer der entsprechenden Nennleistung ersetzen. Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC Autoradiohändler.

• Sind Störgeräusche ein Problem... Dieses Gerät enthält ein Störfilter im Stromkreis. Bei manchen Fahrzeugen kann jedoch ein Klicken oder andere unerwünschte Störgeräusche auftreten. Sollte das der Fall sein, die hintere Erdungscanschlußklemme (siehe Schaltplan) des Geräts am Fahrwerk des Fahrzeugs anschließen, dabei kürzere und dickere Kabel wie beispielsweise Kupfergeflechtdraht oder Stahldraht verwenden. Bleibt Störgeräusch bestehen, wenden Sie sich an Ihren JVC Autoradiohändler.

• Die maximale Eingangsleistung der Lautsprecher sollte mehr als 45 W hinten und 45 W vorn bei einer Impedanz von 4 Ω bis 8 Ω betragen.

•

Sicherstellen, daß das Gerät am Fahrwerk geerdet wird.

• Das Abstrahlblech wird nach dem Gebrauch sehr heiß. Beim Ausbau des Geräts darauf achten, das Abstrahlblech nicht zu berühren.

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil. Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

Remarque:

Cet appareil est conçu pour fonctionner sur des sources de courant continu de votre véhicule n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

•

Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

•

Si le bruit est un problème...

Cet appareil incorpore un filtre de bruit dans le circuit d’alimentation. Cependant, avec certains véhicules, quelques claquements ou autres bruits non désirés risquent de se produire. Si cela arrive, raccorder la

arrière de masse

(voir le diagramme de raccordement) en utiliscant des cordons les plus gros et les plus courts possibles telle qu’une barre de cuivre ou une tresse. Si le bruit persiste, consulter votre revendeur d’autoradios JVC.

•

La puisscance admissible des enceintes devrait supérieure à 45 W à l’arrière et à 45 W l’avant, avec une impédance de

• S’assurer de raccorder la mise à la masse de cet appareil au châssis de la voiture.

Le dissipateur de chaleur devient très chaud après

•

usage. Faire attention de ne pas le toucher en retirant cet appareil.

12 V à masse NEGATIVE

de l’appareil au châssis de la voiture

4 Ω à 8 Ω

. Si

borne

ELEKTRISCHE VERBINDINGEN

Om kortsluiting te voorkomen adviseren wij u om de minpool van de accu los te maken en alle elektrische verbindingen tot stand te brengen voordat u het apparaat in de auto installeert. Als u niet zeker weet hoe u dit apparaat moet installeren, kunt u dit beter door een daartoe gekwalificeerde technicus laten doen.

Opmerking:

Dit apparaat mag worden gebruikt bij elektrische systemen die werken op 12 V gelijkstroom met negatieve aarding. Als uw auto niet is uitgerust met een dergelijk systeem, is een spanningsomzetter vereist. Dit instrument kan worden aangeschaft bij JVC car audio dealers.

• Vervang de zekering door een exemplaar met het aangegeven vermogen. Als de zekering vaak doorslaat, moet u uw JVC car audio dealer raadplegen.

• Als u geluidsproblemen hebt… De krachtschakeling van dit apparaat heeft een ingebouwd geluidsfilter. In sommige voertuigen zijn tikgeluiden of andere ongewenste geluiden te horen. Als dit gebeurt, moet u de massaklem aan de achterkant (zie aansluitingsschema) aan het chassis van de auto vastmaken met behulp van een kortere en dikkere kabel, zoals kopermanteldraad of tellerkabel. Als het geluid niet verdwijnt, moet u contact opnemen met uw JVC car audio dealer.

• Het maximum ingangsvermogen van de speakers moet achterin meer dan 45 W zijn en voorin 45 W, met een impedantie van 4 Ω tot 8 Ω.

• Zorg ervoor dat dit apparaat door middel van een

aardkabel is verbonden met het chassis van de auto.

• De warmte-opnemer kan na gebruik erg heet worden. Raak de warmte-opnemer niet aan wanneer u dit apparaat van zijn plaats haalt.

Typical Connections / Typische Anschlüsse / Raccordements typiques / Normale verbindingen

Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Connect the colored leads of the power cord to the car battery, speakers and power aerial (if any) in the following sequence.

1 Black: ground 2 Yellow: to car battery (constant 12 V) 3 Red: to an accessory terminal 4 Blue with white stripe: to remote lead of other

equipment or power aerial if any (200 mA max.)

5 Orange with white stripe: to car light control

switch

6 Brown: to cellular phone system (For details,

refer to the instructions of the cellular phone.)

7 Others: to speakers

Connect the aerial cord.

Finally connect the wiring harness to the unit.

Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+) battery terminal.

• The yellow lead (A4) is not used in this case.

To steering wheel remote controller (see diagram )

An Lenkradfernbedienung (siehe Schaltplan )

Pour la télécommande de volant (voir le diagramme )

Naar stuurwiel-afstandsbediening (zie schema )

Aerial terminal

Antennenanschlußklemme

Borne de l’antenne

Rear ground terminal

Hintere Erdungscanschlußklemme

Borne arrière de masse

Massaklem aan de achterkant

Line out (see diagram )

Schutz kappen Signalausgang (siehe Schaltplan )

Sortie de ligne (voir le diagramme )

Uitgang (zie schema )

*1 : Before checking the operation of this unit prior to

installation, this lead must be connected, otherwise power cannot be turned on.

*1 : Vor der Überprüfung der Funktionsfähigkeit des Geräts

vor dem Einbau, muß diese Leitung angeschlossen werden, da sonst die Stromversorgung nicht eingeschaltet werden kann.

*1 : Pour vérifier le fonctionnement de cet appareil avant

installation, ce fil doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

*1 : Voordat u controleert of het apparaat werkt (alvorens het te

installeren), moet deze draad aangesloten zijn. Als dit niet het geval is, kan de stroom niet worden ingeschakeld.

Aansluitpunt antenne

To aerial

Zur Antenne

A l’antenne

Naar de antenne

Vor dem Anschließen: Die Verdrahtung im Fahrzeug sorgfältig überprüfen. Falsche Anschlüsse können ernsthafte Schäden am Gerät hervorrufen. Die Leiter des Stromkabels und die Leiter des Anschlusses im Fahrzeug können sich farblich unterscheiden.

Die farbigen Leitungen des Spannunsgversorgungskabels an der Autobatterie, ontstekingsschakelaarden Lautsprechern und dem Motorantenne (sofern vorhanden) in folgender Reihenfolge anschließen.

1 Schwarz: Erdung 2 Gelb: an Autobatterie (konstant 12 V) 3 Rot: zur einer Zubehöranschlußklemme 4 Blau mit weißem Streifen: zum Zusatzkabel

des anderen Geräts oder der Motorantenne, sofern vorhanden (max. 200 mA) Orange mit weißem Streifen: zum Autolichtschalter

5 6 Braun: an Mobiltelefon (Weitere informationen

entnehmen Sie bitte der Bedienungscanleitung des Mobiltelefons.)

7 Andere: zur Lautsprecher

Das Antennenkabel anschließen.

Die Kabelbäume am Gerät anschließen.

Hinweis: Verfügt Ihr Fahrzeug nicht über eine Zubehöranschlußklemme, die Sicherung von der 1. Sicherungsposition (Erstposition) in die 2. Sicherungsposition versetzen, die rote Leitung (A7) an der (+) Batterieanschlußklemme anschließen.

•

Die gelbe Leitung (A4) wird in diesem Fall nicht verwendet.

B1 B3 B5 B7

B2 B4 B6 B8

A2 A4

A5 A7

15 A fuse / 15 A Sicherung /

Fusible 15 A /

Black

Schwarz

Noir

Zwart

Zekering 15 A

Yellow*

Gelb*

Jaune*

Geel *

Red

Rot

Rouge

Rood

To metallic body or chassis of the car

Zur metallenen Karosserie oder zum Fahrwerk des Autos

Vers corps métallique ou châssis de la voiture

Naar metalen ondergrond of chassis van de auto

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch)

Zur einer stromführenden Anschlußklemme im Sicherungsblock zum Anschließen an die Autobatterie (Umgehen des Zündschalters)

A une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage)

Naar een onder spanning staande aansluitklem in het zekeringblok die is aangesloten op de accu van de auto (u passeert de ontstekingsschakelaar)

Blue with white stripe

Blau mit weißem Streifen

Bleu avec bande blanche

Blauw met witte streep

Orange with white stripe

Orange mit weißem Streifen

Orange avec bande blanche

Oranje met witte streep

Brown

Braun

Marron

Bruin

Avant de commencer la connexion:

attentivement le câblage du véhicule. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

Connectez les fils de couleur du cordon d’alimentation à la batterie de la voiture, aux enceintes et à l’antenne automatique (s’il y en a une) dans l’ordre suivant.

Noir: à la masse

Jaune: à la batterie de la voiture (12 V constant)

Rouge: à une borne accessoire

Bleu avec bande blanche: au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

Orange avec bande blanche: à l’interrupteur d’éclairage de la voiture

Marron: à un système de téléphone cellulaire (Pour les détails, se référer aux instructions du téléphone cellulaire.)

Autres: aux enceintes

Connectez le cordon d’antenne.

Finalement, connectez le faisceau de fils à l’appareil.

Remarque:

accessoire, déplacez le fusible de la position de fusible 1 (position originale) à la position de fusible 2 et connectez le fil rouge (A7) à la borne positive (+) de la batterie.

• Le fil jaune (A4) n’est pas utilisé dans ce cas.

To an accessory terminal in the fuse block

Zur einer Zubehöranschlußklemme im Sicherungsblock

Vers borne accessoire du porte-fusible

Naar een aansluitklem in het zekeringblok

Si votre véhicule ne possède pas de borne

B1 B3 B5 B7

B2 B4 B6 B8

A5 A7

A2 A4

(ILLUMINATION)

To remote lead of other equipment or power aerial if any

Zum Zusatzkabel des anderen Geräts oder der Motorantenne, sofern vorhanden

Au fil de télécommande de l’autre appareil ou à l’antenne automatique s’il y en a une

Naar afstandsdraad van andere apparatuur of antenne met circuit indien aanwezig

Vérifiez

Fuse position 1 / 1. Sicherungsposition /

Position de fusible 1 /

Not included with this unit.

Wird nicht mit Gerät mitgeliefert.

Non fourni avec cet appareil.

Niet bij het apparaat inbegrepen.

To car light control switch

Zum Autolichtschalter

A l’interrupteur d’éclairage de la voiture

Naar de schakelaar voor de autoverlichting

Alvorens de verbindingen tot stand te brengen:

Moet u de bedrading in de auto zorgvuldig. Het apparaat kan door verkeerde verbindingen ernstige schade oplopen. De draden van het stroomsnoer verschillen mogelijk van kleur metde aansluitingen op het chassis van de auto.

Sluit de gekleurde snoerdraden van de stroomkable in de hierna genoemde volgorde aan op de accu van de auto, de luidsprekers en de antenne (indien aanwezig).

1 Zwart: aarde 2 Geel: naar de accu van de auto (constant 12 V) 3 Rood: naar de aansluitklem van de accessoire 4 Blauw met witte streep: naar afstandsdraad van

andere apparatuur of antenne met circuit indien aanwezig (200 mA max.)

5 Oranje met witte streep: naar de schakelaar voor de

autoverlichting

6 Bruin: naar het mobiele-telefoonsysteem (Lees voor

meer informatie de instructies die bij de mobiele telefoon worden geleverd.)

7 Andere: naar de speakers

Sluit de antenne aan.

Verbind de draadbundel daarna met het apparaat.

Opmerking: Als uw voertuig niet beschikt over een aansluitklem, moet u de zekering verplaatsen van stand 1 (beginstand) naar stand 2 en moet u de rode draad (A7) met de pluspool (+) van de accu verbinden.

• In dit geval wordt de gele draad (A4) niet gebruikt.

Fuse position 2 / 2. Sicherungsposition /

Zekering, stand 1

Position de fusible 2

Fuse block

Sicherungsblock

Porte-fusible

Zekeringblok

To cellular phone system

Zur Moblitelephon

A un système de téléphone cellulaire

Naar het mobiele-telefoonsysteem

/ Zekering, stand 2

Ignition switch

Zündschalter

Interrupteur d’allumage

Ontstekingsschakelaar

White with black stripe

Weiß mit schwarzem Streifen

Blanc avec bande noire

Wit met zwarte streep

White

B5B6

Weiß

Blanc

Wit

Left speaker (front)

Linker Lautsprecher (vorne)

Enceinte gauche (avant)

Linkerspeaker (voorin)

Gray with black stripe

Grau mit schwarzem Streifen

Gris avec bande noire

Grijs met zwarte streep

Grau

Gris

Grijs

Right speaker (front)

Rechter Lautsprecher (vorne)

Enceinte droit (avant)

Rechterspeaker (voorin)

Gray

B3 B8 B7 B2 B1

Green with black stripe

Grün mit schwarzem Streifen

Vert avec bande noire

Groen met zwarte streep

Green

Grün

Vert

Groen

Left speaker (rear)

Linker Lautsprecher (hinten)

Enceinte gauche (arrière)

Linkerspeaker (achterin)

Purple with black stripe

Lila mit schwarzem Streifen

Violet avec bande noire

Paars met zwarte streep

Purple

Lila

Violet

Paars

Right speaker (rear)

Rechter Lautsprecher (hinten)

Enceinte droit (arrière)

Rechterspeaker (achterin)

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power

cord to the car battery; otherwise, the unit will be seriously damaged.

• Connect the black lead (ground), yellow lead (to car battery, constant 12 V), and red lead (to an accessory terminal) correctly.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

– If the speaker wiring in your car is as

illustrated in Fig. 1 and Fig. 2 below, DO NOT

connect the unit using that original speaker wiring. If you do, the unit will be seriously damaged. Redo the speaker wiring so that you can connect the unit to the speakers as illustrated in Fig. 3.

– If the speaker wiring in your car is as

illustrated in Fig. 3, you can connect the unit

using the original speaker wiring in your car.

– If you are not sure of the speaker wiring of your

car, consult your car dealer.

Fig. 2 Fig. 3Fig. 1

VORSICHTSMASSREGELN beim Anschließen der Stromversorgung und Lautsprecher:

• Die Lautsprecherleitungen des Netzkabels

NICHT an der Autobatterie anschließen, da sonst das Gerät schwer beschädigt wird.

• Die schwarze Leitung (Erdung), die gelbe Leitung (zur Autobatterie, konstant 12 V) und die rote Leitung (zur Zubehöranschlußklemme) richtig anschließen.

• VOR dem Anschließen der Lautsprecherleitungen des Spannunsgversorgungskabels an die Lautsprecher, die Lautsprecherverdrahtung in Ihrem Auto überprüfen. – Ist die Lautsprecherverdrahtung wie unten in

„Fig. 1“ und „Fig. 2“ abgebildet, das Gerät NICHT mit der Originalverdrahtung der Lautsprecher anschließen, da sonst das Gerät schwer beschädigt wird. Die Lautsprecherverdrahtung erneuern, so daß Sie das Gerät an den Lautsprechern wie in „Fig. 3“ abgebildet anschließen können.

– Ist die Lautsprecherverdrahtung in Ihrem Auto

wie in „Fig. 3“ abgebildet, können Sie das Gerät

mit der Originalverdrahtung der Lautsprecher in Ihrem Auto anschließen.

– Sind Sie sich über die Lautsprecherverdrahtung

in Ihrem Auto nicht sicher, wenden Sie sich an Ihren Autohändler.

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du

cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

•

Connectez correctement le fil noir (a la masse), le fil jaune (a la batterie de la voiture,12 V constant) et le fil rouge (à la prise accessoire).

•

AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

–

Si le câblage des enceintes de votre voiture est comme montré sur la Fig. 1 ou Fig. 2 ci-dessous,

utiliscant ce câblage original des enceintes. Si vous le faites, l’appareil sera sérieusement endommagé. Recommencez le câblage des enceintes de façon que vous puissiez connecter l’appareil aux enceintes comme montré sur la Fig. 3.

Si le câblage des enceintes de votre voiture

–

est comme montré sur la Fig. 3,

connecter l’appareil en utiliscant ce câblage original d’enceintes pour votre voiture.

– Si vous n’êtes pas sûrs du câblage d’enceintes de

votre voiture, consulter le concessionnaire de votre voiture.

NE CONNECTEZ PAS l’appareil en

vous pouvez

Connecting the leads / Anschließen der Leitungen / Raccordement des fils / Aansluiting van de gekleurde draden

VOORZORGSMAATREGELEN bij het verbinden van de stroomkabeldraad met de speakers:

• Verbind de speakerdraden van de stroomkabel NIET met de accu van de auto; als u dit wel doet, zal het apparaat ernstige schade oplopen.

• Sluit de zwarte draad (aarde), de gele draad (naar de accu van de auto, constant 12 V) en de rode draad (naar de aansluitklem van de accessoire) op de juiste wijze aan.

• VOORDAT u de speakerdraden van de stroomkabel met de speakers verbindt, moet u de bedrading van de speakers in uw auto controleren. – Als de bedrading van de speakers eruitziet

zoals hieronder staat afgebeeld in Fig. 1 en Fig. 2, mag het apparaat NIET worden aangesloten

met behulp van deze oorspronkelijke speakerbedrading. Als u dat wel doet, zal het apparaat ernstige schade oplopen. Pas de bedrading van de speakers aan, zodat u het apparaat met de speakers kunt verbinden, zoals staat afgebeeld in Fig. 3.

– Als de bedrading van de speakers eruitziet

zoals staat afgebeeld in Fig. 3, kunt u het apparaat aansluiten met behulp van de oorspronkelijke speakerbedrading in uw auto.

– Als u twijfels hebt over de speakerbedrading in uw

auto, moet u contact opnemen met uw autodealer.

CAUTION / VORSICHT / PRECAUTION / LET OP!:

Twist the core wires when connecting.

Die Kerndrähte beim Anschließen verdrehen.

Torsader les âmes des fils en les raccordant.

Draai de kerndraden om elkaar heen wanneer u ze wilt aansluiten.

Solder the core wires to connect them securely.

Die Kerndrähte anlöten, um sie fest anzuschließen.

Souder les âmes des fils pour les raccorder entre

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• Zur Vermeidung eines Kurzschlusses die Anschlußklemmen der NICHT VERWENDETEN Leitungen mit Isolierklebeband umwickeln.

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS UTILISÉS avec de la bande isolante.

• Om kortsluiting te voorkomen, moet u de aansluitklemmen van ONGEBRUIKTE gekleurde draden met isolatieband bedekken.

eux de façon sûre.

Soldeer de kerndraden zodat ze stevig vast zitten.

Connections Adding Other Equipment / Anschlüsse zum Hinzufügen von anderer Ausrüstung / Raccordement pour ajouter d’autres appareils / Aansluitingen voor het toevoegen van andere apparatuur

You can connect an amplifier and other equipment to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• Connect this unit’s line-out terminals to the amplifier’s line-in terminals.

• Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this unit unused. (Cover the terminals of these unused leads with insulating tape, as illustrated above.)

Sie können einen Verstärker oder ein anderes Gerät anschließen, um Ihre Autostereoanlage zu erweitern.

• Schließen Sie das Fernbedienungskabel (blau mit weißem Streifen) an das Fernbedienungskabel des anderen Geräts an, so daß es über dieses Gerät gesteuert werden kann.

• Die Anschlußklemmen am Ausgang dieses Gerät an den Anschlußklemmen des Eingangs des Verstärkers anschließen.

• Die Lautsprecher von diesem Gerät abtrennen

und am Verstärker anschließen. Die Lautsprecherleitungen dieses Geräts unbenutzt lassen. (Die Anschlußklemmen dieser nicht verwendeten Leitungen mit Isolierklebeband umwickeln, siehe Abbidung oben.)

Vous pouvez connecter un amplificateur ou autre appareil pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse

être commandé via cet appareil.

• Raccorder les bornes de sortie ligne de cet appareil aux bornes d’entrée ligne de l’amplificateur.

•

Déconnectez les enceintes de cet appareil et connectez-les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés. (Recouvrir les extrémités de ces fils inutilisés avec de la bande isolante comme montré ci-dessus.)

Het is mogelijk om uw autostereosysteem uit te breiden met een versterker of andere apparatuur.

• Verbind de externe kabel (blauw met witte streep) met de externe kabel van het andere apparatuur zodat deze op afstand vanaf deze apparaat kan worden bediend.

• Verbind de uitgang van het apparaat met de ingang van de versterker.

• Koppel de speakers van dit apparaat los en

verbind ze aan de versterker. Gebruik de speakerdraden van dit apparaat niet. (Plak de aansluitklemmen van deze speakerdraden met isolatieband af zoals hierboven is afgebeeld.)

Amplifier / Verstärker / Amplificateur / Versterker

Rear speakers

Hintere Lautsprecher

Enceintes arrière

Achterspeakers

INPUT

Signal cord

(not supplied with this unit)

Einzelleitung (nicht mit diesem Gerät mitgeliefert)

Cordon de signal (non fourni avec cet appareil)

Signaalkabel (wordt niet bij dit apparaat geleverd)

LRL

Front speakers

Vordere Lautsprecher

Enceintes avant

Voorspeakers

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC Versterker

OUT

LINE

FRONT

REAR

KD-SC900R

Remote lead

Fernbedienungsleitung

Fil d’alimentation à distance

Externe kabel

Blue with white stripe

Blau mit weißem Streifen

Bleu avec bande blanche

Blauw met witte streep

Y-connector (not supplied with this unit)

Y-Anschluß (nicht mit diesem Gerät mitgeliefert)

Connecteur Y (non fourni avec cet appareil)

Y-connector (wordt niet bij dit apparaat geleverd)

To power aerial if any

Zur Motorantenne, sofern vorhanden

Vers l’antenne automatique, s’il y en a une

Naar de antenne (indien aanwezig)

INPUT

JVC Amplifier

JVC Verstärker

JVC Amplificateur

JVC Versterker

Front speakers

Vordere Lautsprecher

Enceintes avant

Voorspeakers

You can connect another power amplifier for front speakers.

Sie können einen anderen Leistungsverstärker für die vorderen Lautsprecher anschließen.

Vous pouvez connecter un autre amplificateur de puissance pour les enceintes avant.

U kunt nog een eindversterker voor de voorspeakers aansluiten.

*2 : Firmly attach the ground wire to the metallic

body or to the chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.

*2 : Verbinden Sie den Erdungsleiter mit der

Karosserie oder dem Rahmen des Fahrzeugs. Die Kntaktstelle darf nicht lackiert sein (sollte die Kontaktstelle lackiert sein, entfernen Sie den Lack der Kontaktstelle, bevor Sie den Leiter befestigen). Wenn der Erdungsleiter nicht ordnungsgemäß angeschlossen wird, kann dieses Gerät beschädigt werden.

*2 : Attachez solidement le fil de mise à la masse

au châssis métallique de la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

*2 : Bevestig de aardedraad goed met een metalen

onderdeel of het chassis van de auto—bevestig op een niet-gelakt gedeelte (indien gelakt, schuur dan af alvorens de draad te bevestigen). Het toestel kan worden beschadigd indien de aardedraad niet goed is aangesloten.

Connecting to the steering wheel remote controller / Anschluß an die Lenkradfernbedienung / Connexion de la télécommande de volant / Verbinden met de stuurwiel-afstandsbediening

If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.

Wenn Ihr Fahrzeug mit einer Lenkradferndienung ausgestattet ist, können Sie damit diesen Receiver steuern. Hierfür ist ein für Ihr Fahrzeug passender Radio-Lenkrad-Fernbedienungsadaption von JVC (nicht im Lieferumfang enthalten) erforderlich. Für weitere Einzelheiten wenden Sie sich an Ihren JVC Autoradiohändler.

Si votre voiture est munie d’une télécommande de volant, vous pouvez commander cet autoradio en utilisant la télécommande. Pour le faire, un adaptateur pour télécommande au volant (non fourni) correspondant à votre voiture est nécessaire. Consultez votre revendeur d’autoradio JVC pour les détails.

Indien uw auto een stuurwiel-afstandsbediening (niet bijgeleverd) heeft, kunt u deze receiver met die afstandsbediening bedienen. Hiervoor heeft u echter een JVC adapter nodig die geschikt is voor de stuurwiel-afstandsbediening in uw auto. Raadpleeg uw JVC car audio dealer voor details.

Steering wheel remote input

Eingang für Lenkradfernbedienung

Entrée de la télécommande de volant

Ingang stuurwiel-afstandsbediening

Steering wheel remote controller (equipped in the car)

KD-SC900R

Lenkradfernbedienung (im Fahrzeug installiert)

Télécommande de volant (installée dans la voiture)

Stuurwiel-afstandsbediening (in de auto)

OE remote adapter (not supplied)

Radio-Lenkrad-Fernbedienungsadaption (nicht im Lieferumfang enthalten)

Adaptateur pour télécommande au volant (non fourni)

Adapter voor stuurwiel-afstandsbediening (niet bijgeleverd)

JVC KD-SC900R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

Position And Reproduction Of Labels

How to reset your unit

CONTENTS

How to use the M (MODE) button

LOCATION OF THE BUTTONS

BASIC OPERATIONS

RADIO OPERATIONS

RDS OPERATIONS

CD OPERATIONS

MP3 INTRODUCTION

MP3 OPERATIONS

SOUND ADJUSTMENTS

OTHER MAIN FUNCTIONS

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS

TROUBLESHOOTING

ELECTRICAL CONNECTIONS
