CD RECEIVER

RECEPTOR CON CD RECEPTEUR CD

ENGLISH

KD-AR600/KD-SC500

KD-AR600

KD-SC500

• This unit is equipped with the display demonstration. To cancel it, see page 8.

• Esta unidad está equipada con demostración en la pantalla. Para cancelarla, consulte la página 8.

• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler, référez-vous à la page 8.

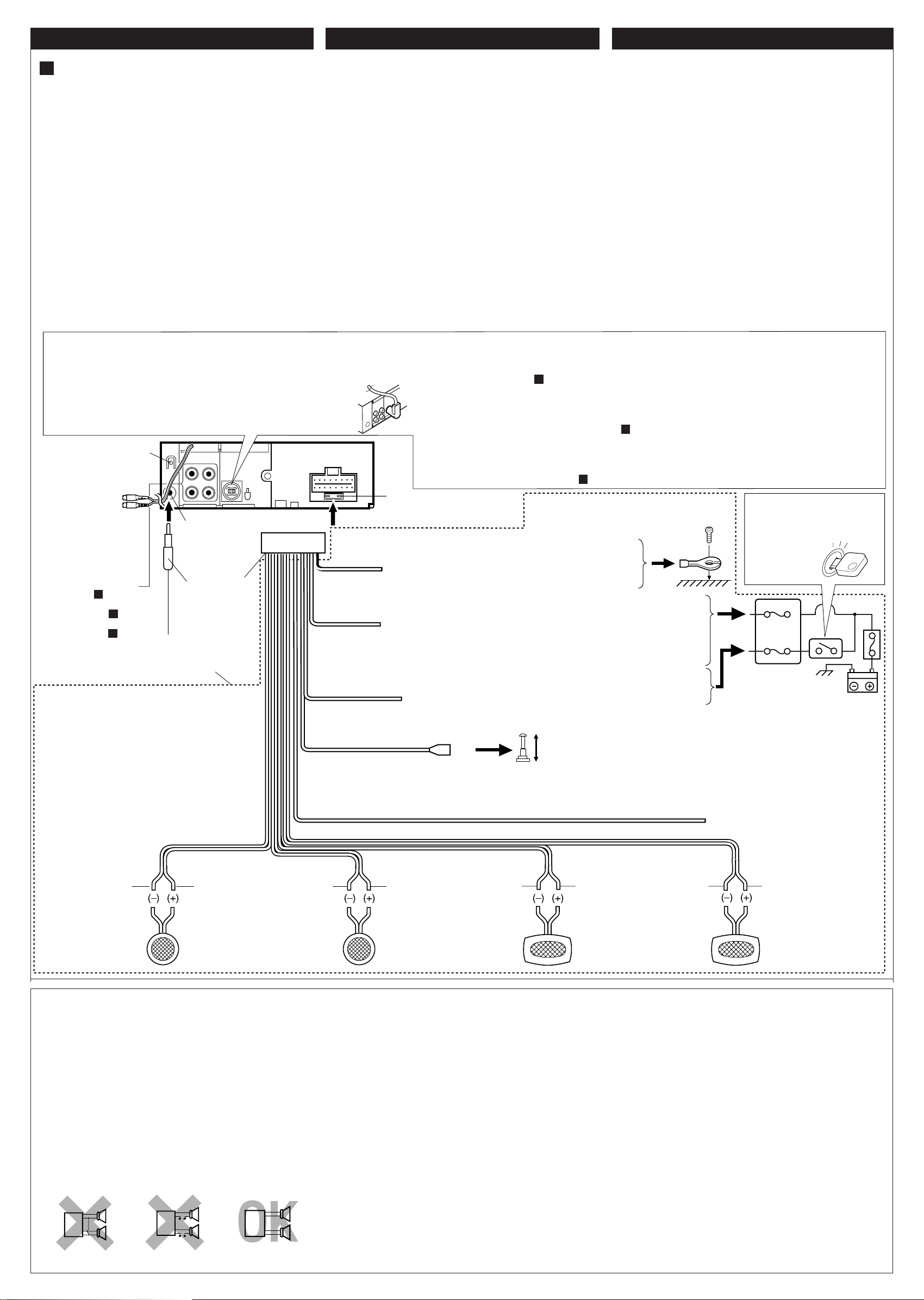

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No.

ESPAÑOL

FRANÇAIS

Serial No.

GET0175-001A

[J]

INFORMATION (For USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with

ENGLISH

the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or a similar tool. This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit ............................... 2

How to use the M MODE button ............... 3

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

Remote controller ...................................... 5

Preparing the remote controller ................ 6

BASIC OPERATIONS ....................... 7

Turning on the power ................................ 7

Canceling the display demonstration ........ 8

Setting the clock ........................................ 9

RADIO OPERATIONS ...................... 10

Listening to the radio ................................. 10

Storing stations in memory ....................... 11

Tuning in to a preset station ...................... 12

CD OPERATIONS ........................... 13

Playing a CD ............................................. 13

Locating a track or a particular portion

on a CD .................................................. 14

Selecting CD playback modes .................. 15

Playing a CD Text ..................................... 16

Prohibiting disc ejection ............................ 16

MP3/WMA INTRODUCTION .............. 17

What are MP3/WMA? ............................... 17

How are MP3/WMA files recorded and

played back? .......................................... 17

MP3/WMA OPERATIONS.................. 18

Playing a disc ............................................ 18

Locating a file or particular portion

on a disc ................................................. 19

Selecting playback modes ........................ 21

SOUND ADJUSTMENTS ................... 23

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 23

Adjusting the sound .................................. 24

OTHER MAIN FUNCTIONS ................ 25

Changing the general settings (PSM) ....... 25

Assigning names to the sources ............... 29

Changing the standard plate ..................... 30

Detaching the control panel ...................... 32

CD CHANGER OPERATIONS .............. 33

(Only for KD-AR600)

Playing discs ............................................. 33

Selecting the playback modes .................. 36

EXTERNAL COMPONENT OPERATIONS ... 37

(Only for KD-AR600)

Playing an external component ................. 37

TROUBLESHOOTING ...................... 38

MAINTENANCE ............................. 41

Handling discs ........................................... 41

SPECIFICATIONS........................... 42

ENGLISH

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

Time countdown indicator

To use these buttons for original functions again after pressing M MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing M MODE again also clears the functions mode.

LOCATION OF THE BUTTONS

Control panel

Display window

ENGLISH

d f

gh j kl

zxcv

12 34 5 678 9 p

qw er uio;a sty

1 Remote sensor 2 Control dial 3 SEL (select) button 4 5 Screw - M2 x 5 mm (M2 x 1/4") 6 Plate cover and standard plate 7 FM/AM button 8 5 (up) button

+10 button

9 0 (eject) button p 4

q w DISP (display) button e M MODE button r Display window t MO (monaural) button y SSM (strong-station sequential memory) button u RPT (repeat) button i RND (random) button o Number buttons ; E EQ (equalizer) button a CD CD-CH (CD changer) button (KD-AR600)

a CD button (KD-SC500)

s ∞ (down) button

–10 button

(standby/on/attenuator) button

/¢ buttons

(control panel release) button

Display window

d Tuner reception indicators—MO (monaural),

ST (stereo)

f Disc type indicators—WMA, MP3 g CH (CD changer) indicator

(only for KD-AR600)

h CD indicator j Playback mode/item indicators—RND (random),

(disc), (folder), RPT (repeat)

k LOUD (loudness) indicator l EQ (equalizer) indicator / Sound mode (C-EQ: custom equalizer)

indicators—ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

•

also works as level meter during play if the

level meter is activated (see page 27).

z Disc information indicators—TAG (ID3 Tag),

(folder), (track/file)

x Main display c Source display

Volume level indicator

v Tr (track) indicator

Remote controller

3 • Selects the preset stations while listening to

the radio. Each time you press the button, the preset station number increases, and the selected station is tuned in.

• Skips to the first file of the previous folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the previous folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer (only for KD-AR600); – Skips to the previous disc if pressed

briefly.

– Skips to the previous folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the previous disc.

4 Selects the sound mode (C-EQ: custom

equalizer). Each time you press the button, the sound mode (C-EQ) changes.

ENGLISH

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held until “SEE YOU” appears on the display.

• Drops the volume level in a moment if pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio.

Each time you press the button, the band changes.

• Skips to the first file of the next folder while listening to an MP3 or a WMA disc. Each time you press the button, you can move to the next folder and start playing the first file.

• While playing an MP3 disc on an MP3compatible CD changer (only for KD-AR600); – Skips to the next disc if pressed briefly. – Skips to the next folder if pressed and

held.

Note:

While playing a CD on a CD changer, this always skips to the next disc.

5 Selects the source.

Each time you press the button, the source changes.

6 • Searches for stations while listening to the

radio.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

7 Functions the same as the control dial on the

main unit.

Note:

These buttons do not function for the preferred setting mode adjustment.

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

BASIC OPERATIONS

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

(For KD-AR600) (For KD-SC500)

To operate the tuner (FM or AM),

see pages 10 – 12.

To play a CD,

see pages 13 – 16.

To play an MP3/WMA disc,

see pages 18 – 22.

To operate the CD changer (only for KD-AR600),

see pages 33 – 36. To operate the external component (only for KD-AR600) (LINE IN or SIRIUS),

see page 37.

Adjust the volume.

To increase the volume

To decrease the volume

ENGLISH

Volume level indicator

Volume level appears.

Adjust the sound as you want. (See pages 23 and 24.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT ” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

ENGLISH

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

• It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 25 and 26.)

Select “DEMO OFF.”

Finish the setting.

Select “DEMO” if not shown on the display.

To activate the display demonstration, repeat the same procedure and select “DEMO ON” in step 3.

Setting the clock

LINE IN Clock

SIRIUS Clock

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 25 and 26.)

Set the hour.

1 Select “CLOCK H” (hour) if not shown on

the display.

Finish the setting.

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

• During tuner operation:

ENGLISH

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M” (minute).

2 Adjust the minute.

• During disc operation:

Notes:

• If a name has been assigned to a station, it will be shown instead of “NO NAME”

• While playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

• For indication change while playing a CD Text or an MP3/WMA disc, see also pages 16 and 19.

• During external component operation:

• (only for KD-AR600)

• During SIRIUS operation:

• (only for KD-AR600)

• During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

RADIO OPERATIONS

ENGLISH

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1 FM 2 FM 3 A M

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

To stop searching before a station is received, press the same button you have

pressed for searching.

Searching a station manually: Manual search

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM 1 FM 2 FM 3 A M

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Start searching for a station.

To search stations of higher frequencies

To search stations of lower frequencies

When a station is received, searching stops.

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

Tune in to a station you want while “M” (manual) is flashing.

To tune in to stations of higher frequencies

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-

station Sequential Memory)

• Manual preset of both FM and AM stations

ENGLISH

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing (in 200 kHz intervals for FM and 10 kHz for AM) until you release the button.

When an FM stereo broadcast is hard to receive:

1 Press M MODE to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while

“MODE” is still flashing on the display, so that the "MONO" appears on the display. Each time you press the button, monaural mode turns on and off alternately.

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM 1 FM 2 FM 3 A M

Press M MODE to enter the functions mode.

Press and hold SSM for about 2 seconds.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

SSM flashes, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons— No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing an FM station of 92.5 MHz into the

ENGLISH

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM 1 FM 2 FM 3 A M

Tune in to a station (in this example, of 92.5 MHz).

To tune in to stations of higher frequencies

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 11 and 12.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

To tune in to stations of lower frequencies

Press and hold the number button (in this example, 1) for more than 2 seconds.

Preset number flashes for a few seconds

FM 1 FM 2 FM 3 A M

Select the number (1 – 6) for the preset station you want.

Note:

You can also use the 5 (up) or ∞ (down) button on the unit to select the next or previous preset stations. Each time you press the 5 (up) or ∞ (down) button, the next or previous preset station is tuned in.

CD OPERATIONS

Refer “MP3/WMA OPERATIONS” on pages 18 to 22 for operating MP3/WMA discs.

Playing a CD

Open the control panel.

Note:

When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

Insert a CD into the loading slot.

The unit turns on, draws the CD and starts playback automatically.

The display changes to show the following:

CD indicator

Total playing time of the inserted disc

Elapsed playing time

Current source

indication

Total track number of the inserted disc

Current track

ENGLISH

Close the control panel by hand.

All tracks will be played repeatedly until you stop playback.

Notes:

• When a CD is inserted upside down, the CD automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the tuner, “PLEASE” and “EJECT” appear alternately on the display.

• If there is no CD in the loading slot, you cannot select CD as the source. “NO DISC” appears on the display.

• If the disc is a CD Text, disc title/performer and then track title will automatically appear.

To stop play and eject the CD

Press 0. CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously

ENGLISH

selected source.

• If you change the source, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

Locating a track or a particular portion on a CD

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and –10 buttons)

1 Press M MODE to enter the functions mode

while playing a CD.

To fast-forward or reverse the track

Press and hold ¢ while playing a CD, to fast-forward the track.

Press and hold 4 reverse the track.

, while playing a CD, to

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

briefly, while playing a CD, to go

2 Press +10 or –10.

* The first time you press +10 or –10 button,

the track skips to the nearest higher or lower track with a track number of multiple

ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and

–10 buttons” on page 15).

• After the last track, the first track will be

selected, and vice versa.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press M MODE to enter the

functions mode while playing a CD.

ENGLISH

(Three times) (Twice)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

1 Press M MODE to enter the

functions mode while playing a CD.

2 Press RND (random), while

“MODE” is still flashing on the display, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

2 Press RPT (repeat), while “MODE”

is still flashing on the display, so that the “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

RND and (disc) indicators

When disc random play is turned on, the RND and

indicators light up on the display. A track

randomly selected starts playing.

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown

ENGLISH

automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Disc title/performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Clock and

Current track number

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 28. Some characters or symbols will not be shown (and be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (display) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

• When track title is shown, the current track number also appear on the right side of the display.

indicator and

You can prohibit disc ejection and can lock a disc in the loading slot.

While pressing CD, press and hold

for more than 2 seconds.

“NO EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD, press and hold again for more than 2 seconds. “EJECT OK” flashes on the display for about 5 seconds, and the disc is unlocked.

MP3/WMA INTRODUCTION

What are MP3/WMA?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*).

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps. To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

WMA (Windows Media audio compression format developed by Microsoft Corporation.

• For details information about the MP3/WMA discs, refer to “A Guide to MP3/WMA” (separate volume).

Compatible with ID3 Tag

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3/WMA file.

This unit can show both ID3v1 (Version 1) and ID3v2 (Version 2) tags on the display. (See page

19.)

• Some characters cannot be shown correctly.

• If both ID3v1 and ID3v2 are recorded on a

disc, ID3v2 information will be shown.

Audio) is the digital

How are MP3/WMA files recorded and played back?

MP3/WMA “files (tracks)” can be recorded in “folders” —in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

The illustration below shows an example of how MP3/WMA files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• This unit cannot read or play an MP3 file without the extension code <.mp3> and a WMA track without the extension code <.wma>.

• This unit is not compatible with MP3 files encoded with Layer 1 and Layer 2 formats.

• This unit is not compatible with WMA files which are not based upon Windows Media

• This unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

Audio.

ENGLISH

Hierarchy

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

02 03

: Folder and their playback

order

: MP3/WMA files and their

playback order

MP3/WMA OPERATIONS

ENGLISH

Refer also to “CD OPERATIONS” on pages 13 to 16.

Playing a disc

Open the control panel.

Note on One-Touch Operation:

When a disc is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

Insert a disc into the loading slot.

The unit turns on, draws the disc and starts playback automatically.

The display changes to show the following:

Current source

CD indicator

WMA or MP3 indicator*

Total folder number

Ex.: When the disc contains 19 folders and

144 MP3/WMA files

indication

Total file number

Close the control panel by hand.

All files will be played repeatedly until you stop playback.

* WMA or MP3 indicator lights up depending on the

first detected file.

Notes:

• MP3/WMA discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appears. (See also page 19.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc play starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the control panel flips down. The disc automatically ejects from the loading slot.

To change the display information

While playing back an MP3/WMA file, you can change the disc information shown on the display. Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following:

• When “TAG DISP” is set to “TAG ON” (initial setting: see page 28)

Album name / performer

(folder name*)

(TAG lights up on the display)

Track title (file name*)

(TAG lights up on the display)

Elapsed playing time and

Current file number

Clock and current

file number

* If ID3 tags are not recorded, folder name and

file name appear. In this case, the TAG indicator will not lights up on the display.

• When “TAG DISP” is set to “TAG OFF”

Note:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 28.

• When folder or file name is shown, current folder number or the also appear on the right side of the display.

indicator and current file number

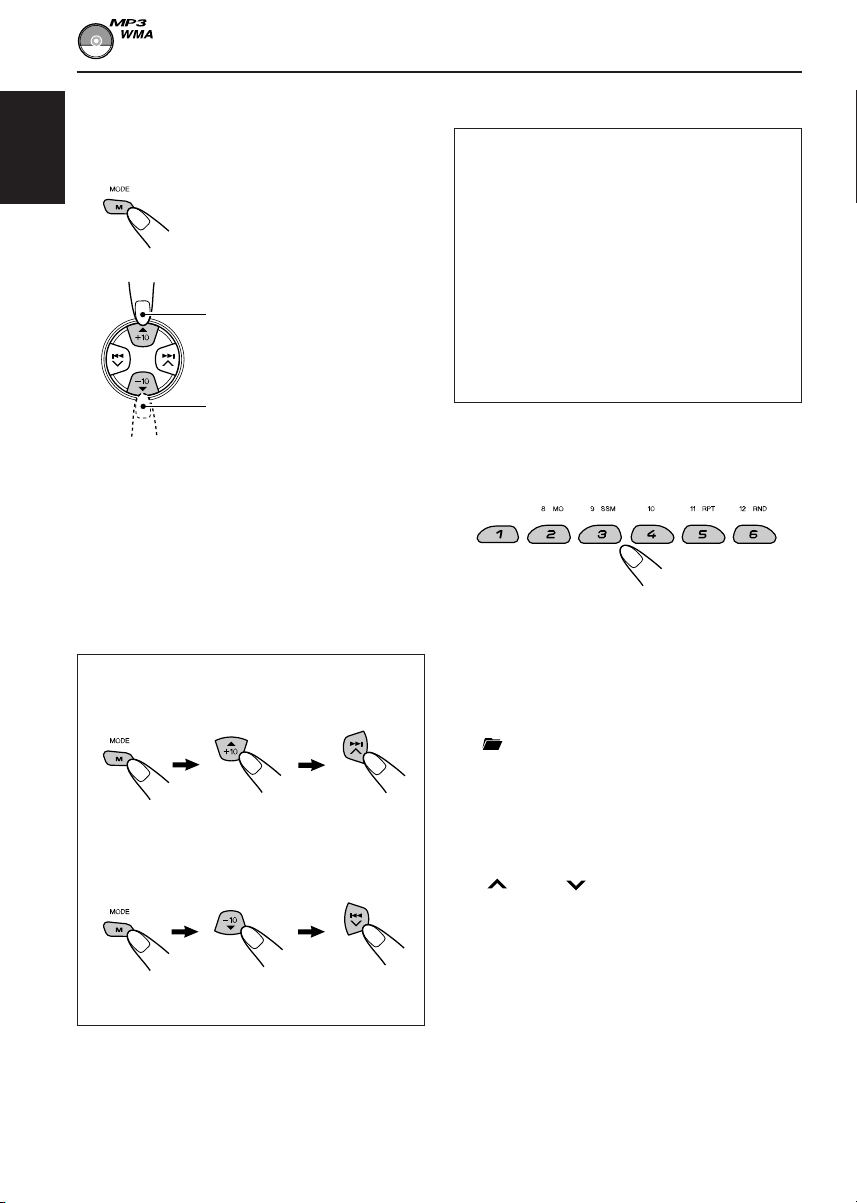

Locating a file or particular portion on a disc

To fast-forward or reverse the file

Press and hold ¢ while playing a disc, to fast-forward the file.

Press and hold 4 reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

while playing a disc, to

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

ENGLISH

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Clock and current

file number

Press 4 briefly, while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press M MODE to enter the functions mode

while playing a disc.

ENGLISH

2 Press +10 or –10.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

* The first time you press +10 or –10 button,

the file skips to the nearest higher or lower file with a file number of multiple ten (ex.

10th, 20th, 30th). Then, each time you press the button, you can skip 10 files (see “How to use the +10 and –10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select file number 8 while playing file number 36

To go to a particular folder directly

IMPORTANT:

To directly select the folders using the number button(s), it is required that folders are assigned 2 digit numbers at the beginning of their folder names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If folder name is “01 ABC”

= Press 1 to go to Folder 01 ABC.

If folder name is “1 ABC,” pressing 1

does not work. If folder name is “12 ABC” = Press and hold 6 (12) to go to Folder

12 ABC.

Press the number button corresponding to the folder number to start playing the first file in the selected folder.

• To select a folder number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a folder number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Notes:

• If indicator flashes on the display after you have selected a folder, it means that the folder does not contain any MP3/WMA files.

• You cannot directly select a folder with a number greater than 12.

To select a particular file in a folder, press

or 4 after selecting the folder.

(Three times) (Twice)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

To skip to the next or previous folder

Selecting playback modes

Press 5 (up) while playing a disc to skip to the next folder. Each time you press the button consecutively, the next folder is located (and the first file in the folder starts playing, if recorded).

Press ∞ (down) while playing a disc to skip back to the previous folder. Each time you press the button consecutively, the previous folder is located (and the first file in the folder starts playing, if recorded).

Note:

If the folder does not contain any MP3/WMA files, it is skipped.

To play back files at random (Folder Random/Disc Random Play)

You can play back all files of the current folder or all files on the disc at random.

1 Press M MODE to enter the

functions mode while playing a disc.

2 Press RND (random), while

“MODE” is still flashing on the display, so that “FLDR RND” or “DISC RND” appears on the display. Each time you press the button, the random play mode changes as follows:

DISC RNDFLDR RND

Canceled

RND and (folder) indicators

Ex.: When you select “FLDR RND”

while listening to an MP3 file

ENGLISH

Mode

FLDR RND RND and All files of the

DISC RND RND and All files on the disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators light up.

Plays at random

folder and so on.

To play back files repeatedly (Track Repeat/Folder Repeat Play)

You can play back the current file or all the files in the current folder repeatedly.

ENGLISH

1 Press M MODE to enter the

functions mode while playing a disc.

RPT indicator

Ex.: When you select “TRK RPT”

while listening to an MP3 file

2 Press RPT (repeat), while “MODE”

is still flashing on the display, so that “TRK RPT” or “FLDR RPT” appears on the display. Each time you press the button, the repeat play mode changes as follows:

TRK RPT FLDR RPT

Canceled

Mode

TRK RPT RPT indicator The current (or

FLDR RPT RPT and All files of the

Active

indicator

lights up. specified) file.

indicators current (or light up. specified) folder.

Plays repeatedly

SOUND ADJUSTMENTS

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre.

Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

CLASSICROCKUSER

JAZZ

Indication pattern changes for each sound mode except for “USER”

HIP HOP

POPS

Indication For: Preset values

BAS TRE LOUD USER (Flat sound) 00 00 OFF ROCK Rock or +03 +01 ON

disco music

CLASSIC Classical +01 –02 OFF

music POPS Light music +04 +01 OFF HIP HOP Funk or rap +02 00 ON

music JAZZ Jazz music +02 +03 OFF

Note:

You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See “Adjusting the sound” on page 24.

ENGLISH

Ex.: When you select “ROCK”

Adjusting the sound

You can adjust the sound characteristics to your preference.

ENGLISH

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

For KD-AR600:

BAS

(bass)

VOL

(volume)

For KD-SC500:

(bass)

(volume)

Indication To do: Range

BAS*

TRE*

FAD*

BAL Adjust the left L06 (Left only)

LOUD*

SUB.W*3Adjust the 00 (min.) (only for subwoofer | KD-AR600) output level. 08 (max.)

VOL*

TRE

(treble)

BAS

VOL

Adjust the bass. –06 (min.)

Adjust the treble. –06 (min.)

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

Boost low and high frequencies to produce a wellbalanced sound at low volume level.

Adjust the volume. 00 (min.)

FAD

(fader)

SUB.W

(subwoofer)

TRE

(treble)

LOUD

(loudness)

(balance)

LOUD

(loudness)

FAD

(fader)

BAL

(balance)

| +06 (max.)

LOUD ON | LOUD OFF

| 30 or 50 (max.)*5

BAL

When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

If you are using a two-speaker system, set the fader level to “00.”

Only for KD-AR600: This takes effect only when a subwoofer is connected.

Normally the control dial work as the volume control. So you do not have to select “VOL” to adjust the volume level.

Depending on the amplifier gain control. (See

page 28 for details.)

Adjust the setting.

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Indication pattern changes as you adjust the bass or treble.

Ex. 1: When you adjust “TRE” (treble)

Ex. 2: When you turn on the loudness

Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and

reassign the preset values listed in the table on page 23.

OTHER MAIN FUNCTIONS

Changing the general settings (PSM)

You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 26.)

Select the PSM item you want to adjust. (See page 26.)

Adjust the PSM item selected.

Repeat steps 2 and 3 to adjust the other PSM items if necessary.

Finish the setting.

ENGLISH

Preferred Setting Mode (PSM) items

• For detailed operations of each PSM items, refer to the pages listed in the table.

ENGLISH

DEMO Display demonstration

CLOCK H Hour adjustment

CLOCK M Minute adjustment

COLOR Color adjustment

LEVEL Level display

DIMMER Dimmer mode

BEEP Key-touch tone

(only for KD-AR600)

SCROLL Scroll mode

EXT IN* External component

(only for KD-AR600)

Set...

Counter-

Select...Hold...

clockwise

Back Advance

(See page 27)

OFF

AUTO OFF

OFF

ONCE AUTO

CHANGER LINE IN

Clockwise

DEMO ONDEMO OFF

OFF

SIRIUS

Factory-preset

DEMO ON 8

00 (1:00)

ALL DEMO

CHANGER 28

See

settings

1 (1:00) 9

AUTO

ONCE

page

TAG DISP Tag display

AMP GAIN Amplifier gain control

• Press SEL (select) to finish the setting. * Displayed only when one of the following sources is selected—FM, AM, and CD.

TAG OFF TAG ON

LOW PWR HIGH PWR HIGH PWR

TAG ON

To select the display color—COLOR

You can select the color of the display according to your preference.

When shipped from the factory, “ALL DEMO” is selected.

The selectable colors are as follows:

ALL DEMO “ SOURCE “ BLUE “ OCEAN “ PURPLE “ PINK “ ROSE “ RED “ (back to the beginning)

• ALL DEMO: The display color changes every 6

• SOURCE: The display color is fixed to red

seconds (rose = pink = ocean = red = purple = blue = back to the beginning).

while listening to FM or AM, blue while listening to CD, and purple while listening to external component (only for KD-AR600).

To select the level meter—LEVEL

You can activate or deactivate the level meter according to your preference. When shipped from the factory, level meter is activated.

• ON: Shows the audio level indicator.

• OFF: Cancels the audio level indicator; sound mode indicator is shown.

To select the dimmer mode—DIMMER

When you turn on the car head lights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated.

• AUTO: Activates Auto Dimmer.

• OFF: Cancels Auto Dimmer.

• ON: Always dims the display.

Note:

Auto Dimmer equipped with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, set the dimmer mode to “ON” or “OFF.”

To turn on/off the key-touch tone—BEEP (only for KD-AR600)

You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated.

• ON: Activates the key-touch tone.

• OFF: Deactivates the key-touch tone.

ENGLISH

To select the scroll mode—SCROLL

You can select the scroll mode for the disc information (when the entire text cannot be shown all at once). When shipped from the factory, scroll mode is set

ENGLISH

to “ONCE.”

• ONCE: Scrolls only once.

• AUTO: Repeats the scroll (5-second

• OFF: Cancels Auto Scroll.

Note:

Even if the scroll mode is set to “OFF,” you can scroll the display by pressing DISP (display) for more than one second.

intervals in between).

To select the external component to use —EXT IN (only for KD-AR600)

You can connect the external component to the CD changer jack on the rear using an adapter specially designed for the external component. To use the external component as the playback source through this unit, you need to select which component—CD changer or external component—to use. When shipped from the factory, CD changer is selected as the external component.

• CHANGER: To use the CD changer.

• LINE IN: To use the external component

• SIRIUS: To use the JVC SIRIUS Radio.

Notes:

• For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

• For connecting the JVC SIRIUS Radio, refer to the SIRIUS Radio Setup Manual (separate volume).

other than CD changer.

To turn the tag display on or off —TAG DISP

An MP3/WMA file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version

1) and ID3v2 (ID3 Tag version 2). If both ID3v1 and ID3v2 are recorded on a disc, ID3v2 information will be shown. When shipped from the factory, “TAG ON” is selected.

• TAG ON: Turns on the ID3 tag display while playing MP3/WMA files.

• If an MP3/WMA file does not

have ID3 tags, folder name and file name appear.

Note:

If you change the setting from “TAG OFF” to “TAG ON” while playing an MP3/WMA file, the tag display will be activated when the next file starts playing. (only for KDAR600)

• TAG OFF: Turns off the ID3 tag display while playing MP3/WMA files. (Only the folder name and file name can be shown.)

To select the amplifier gain control —AMP GAIN

You can change the maximum volume level of this unit. When the maximum power of the speakers is less than 50 W, select “LOW PWR” to prevent them from being damaged. When shipped from the factory, “HIGH PWR” is selected.

• LOW PWR: You can adjust the volume level from “VOL 00” to “VOL 30.”

Note:

If you change the initial setting from “HIGH PWR” to “LOW PWR” while listening at a volume level more than 30, the unit automatically changes the volume level to “VOL 30.”

• HIGH PWR: You can adjust the volume level from “VOL 00” to “VOL 50.”

Assigning names to the sources

You can assign names to station frequencies and CDs (both in this unit and in the CD changer only for KD-AR600). After assigning a name, it will appear on the display when you select the source.

Select a character.

• See below for available characters.

ENGLISH

Sources

Station frequencies Up to 8 characters (up to

CDs* Up to 32 characters (up to

* You cannot assign a name to a CD Text or an MP3/

WMA disc.

Select a source you want to assign a

Maximum number of characters

30 station frequencies including both FM and AM)

40 discs)

name to.

(For KD-AR600) (For KD-SC500)

When you select a source, the power automatically comes on.

While pressing DISP (display), press and hold SEL (select) for more than 2 seconds.

Move the cursor to the next (or previous) character position.

Repeat steps 3 and 4 until you finish entering the name.

Finish the procedure while the last selected character is flashing.

To erase the input characters

To erase all the characters at a time, press and hold DISP (display) for more than 1 second as described in the procedure above.

Available characters

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z

4 5 6 7 8 9

space

0 1 2 3

–

Ex.: When you select CD as the source

Notes:

• When you try to assign a name to the 41st disc, “NAME FULL” appears on the display. (In this case, delete unwanted names before assignment.)

• When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit (only for KD-AR600).

Changing the standard plate

You can change the standard plate with another plate supplied with your unit. You can also download them by visiting

ENGLISH

<http://www.jvc.co.jp/jvccar>.

• When changing the plate, be careful not to leave your fingerprints on the plate or cover.

Loosen the screws with the supplied hex screwdriver.

Replace with another plate (a standard, cutout, or downloaded plate) of your preference.

• When attaching a standard plate

Standard plate

Plate cover

Remove the plate cover and the standard plate.

Standard plate

Plate cover

• When attaching a cutout or downloaded plate

Add the transparent plate (supplied) between the cutout or downloaded plate and the plate cover in order to attach the plate cover in place.

Cutout or downloaded plate

Plate cover

Transparent plate (supplied)

When attaching the plate cover

Openings

How to use the cutout plates

1 Unfold the supplied cutout plates.

ENGLISH

Protruding parts

Ensure the two protruding parts at the bottom of the plate cover are inserted into the two openings on the control panel, as illustrated.

Notes:

• Be sure to keep the hex screwdriver for future use.

• Two spare screws for the plate cover attachment are provided with the unit. See the Installation/ Connection Manual (separate volume).

• When you attach the plate cover, do not tighten the screws too hard; otherwise, the plate cover might be cracked.

2 Cut the plates out using a scissors.

3 Trim out the window and two knobs using

a knife on a rubber mat.

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel,

ENGLISH

be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Pull the control panel out of the unit.

Put the detached control panel into the provided case.

Attaching the control panel

Insert the right side of the control panel into the groove on the panel holder.

Press the left side of the control panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

CD CHANGER OPERATIONS (0nly for KD-AR600)

ENGLISH

We recommend that you use the JVC MP3compatible CD changer with your unit.

By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

• You can also connect other CH-X series

CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

• You cannot use the KD-MK series CD

changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied with

your CD changer.

• If no discs are in the magazine of the CD

changer or the discs are inserted upside down, “NO DISC” will appear on the display. If this happens, remove the magazine and set the discs correctly.

• If no magazine is loaded in the CD changer,

“NO MAG” appears on the display. If this happens, insert the magazine in the CD changer.

• If “RESET 1” – “RESET 8” appears on the

display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Note:

You cannot control and play any WMA disc on the CD changer.

Playing discs

Select the CD changer (CD-CH).

* If you have changed “EXT IN” setting to “LINE IN”

(see page 28), you cannot select the CD changer.

• When the current disc is an MP3 disc:

Playback starts from the first folder of the current disc once file check is completed.

MP3 indicator

(folder) indicator

Note:

Folder name appears on the display instead of “ROOT,” if an MP3 disc contains a folder.

CD-CH*

Selected disc number

• When the current disc is a CD:

Playback starts from the first track of the current disc.

ENGLISH

Selected disc number

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To fast-forward or reverse the track/file

Elapsed playing time

Current track number

Notes:

• When you press CD CD-CH, the power automatically comes on. You do not have to press

• If you change the source, CD changer play also stops. Next time you select the CD changer as the source, CD changer play starts from where playback has been stopped previously.

• When you start playing back a CD Text or MP3 disc, disc information will automatically appear on the display. (See pages 16 and 19.)

to turn on the power.

Press and hold ¢ during play, to fast-forward the track/file.

Press and hold 4 the track/file.

, during play, to reverse

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To go to the next or previous tracks/files

Press ¢ briefly during play, to skip ahead to the beginning of the next track/file. Each time you press the button consecutively, the beginning of the next tracks/files is located and played back.

Press 4 the beginning of the current track/file. Each time you press the button consecutively, the beginning of the previous tracks/files is located and played back.

briefly during play, to skip back to

This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500).

To go to a track/file quickly (+10 and –10 buttons)

1 Press M MODE to enter the functions mode

while playing a disc.

2 Press +10 or –10.

To skip 10 tracks/files* forwards to the last track/file

To skip 10 tracks/files* backwards to the first track/file

* The first time you press +10 or –10 button,

the track/file skips to the nearest higher or lower track/file with a track/file number of multiple ten (ex. 10th, 20th, 30th).

Then, each time you press the button, you can skip 10 tracks/files (see “How to use the +10 and –10 buttons” below).

• After the last track/file, the first track/file will be selected, and vice versa.

To skip to the next or previous folder (only for MP3 discs)

Press 5 (up) while playing an MP3 disc, to go to the next folder. Each time you press the button consecutively, the next folder is located, and the first file in the folder starts playback.

Press ∞ (down) while playing an MP3 disc, to go to the previous folder. Each time you press the button consecutively, the previous folder is located, and the first file in the folder starts playback.

To show the disc information for CD Text and MP3 discs

This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability.

Select text display mode while playing a CD Text or an MP3 disc.

ENGLISH

Note:

If the current playing disc is an MP3 disc, files are skipped within the same folder.

How to use the +10 and –10 buttons

• Ex. 1: To select track/file number 32 while playing track/file number 6

(Three times)

Track/File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track/file number 8 while playing track/file number 36

(Three times)

Track/File 36 \ 30 \ 20 \ 10 \ 9 \ 8

(Twice)

• For details, see page 16 about CD Text disc information and page 19 about MP3 disc information.

Selecting the playback modes

To play back tracks/files at random (Folder Random/Disc Random/Magazine

ENGLISH

Random Play)

1 Press M MODE to enter the

functions mode during play.

2 Press RND (random), while

“MODE” is still flashing on the display. Each time you press the button, the random play mode changes as follows:

For MP3 discs:

DISC RNDFLDR RND

Canceled

For CDs:

MAG RND

MAG RNDDISC RND

Canceled

RND indicator

To play back tracks/files repeatedly (Track Repeat/Folder Repeat/Disc Repeat Play)

1 Press M MODE to enter the

functions mode during play.

2 Press RPT (repeat), while “MODE”

is still flashing on the display. Each time you press the button, the repeat play mode changes as follows:

For MP3 discs:

TRK RPT

Canceled

For CDs:

RPT and (disc) indicators

FLDR RPT

DISC RPT

DISC RPTTRK RPT

Canceled

Ex.: When you select “MAG RND”

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

FLDR RND* RND and All files of the

DISC RND RND and All tracks/files of the

MAG RND RND indicator All tracks/files of the

* “FLDR RND” is only applicable for MP3 disc.

Active

indicator

indicators current folder, then light up. files of the next

indicators current (or specified) light up. disc.

lights up. inserted discs.

Plays at random

folder and so on.

Ex.: When you select “DISC RPT”

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode

TRK RPT RPT indicator The current (or

FLDR RPT* RPT and All files of the

DISC RPT RPT and All tracks/files of the

* “FLDR RPT” is only applicable for MP3 disc.

Active

indicator

lights up. specified) track/file.

indicators current (or specified) light up. folder of the current

indicators current (or specified) light up. disc.

Plays repeatedly

disc.

EXTERNAL COMPONENT OPERATIONS

(0nly for KD-AR600)

ENGLISH

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

• Before operating the external component using the following procedure, select the external input correctly. See “To select the external component to use—EXT IN” on page 28.

Select the external component (LINE IN).

• If “LINE IN”* does not appear on the display, see page 28 and select the external input (“LINE IN”).

* Displayed only when one of the following

sources is selected—FM, AM, and CD.

LINE IN*

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound characteristics you want. (See pages 23 and 24.)

To use the JVC SIRIUS Radio, refer to the SIRIUS Radio Setup Manual (separate volume).

Note on One-Touch Operation:

When you press CD CD-CH, the power automatically comes on. You do not have to press on the power.

to turn

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound cannot be heard

• This unit does not work

General

• SSM (Strong-station

FM/AM

• Static noise while

• Disc cannot be played

• CD-R/CD-RW cannot be

• Tracks on the CD-R/

• Disc cannot be ejected.

Symptoms

from the speakers.

at all.

Sequential Memory) automatic preset does not work.

listening to the radio.

back.

played back.

CD-RW cannot be skipped.

Causes

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak.

The antenna is not connected firmly.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

Disc is locked.

Remedies

Adjust it to the optimum level.

Check the cords and connections.

Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

Store stations manually.

Connect the antenna firmly.

Insert the disc correctly.

• Insert a finalized CD-R/ CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

Unlock the disc. (See page 16.)

• Disc sound is sometimes interrupted.

Disc Playback

• “NO DISC” appears on the display.

You are driving on rough roads.

Disc is scratched.

Connections are incorrect.

No disc in the loading slot.

Disc is inserted incorrectly.

Stop playback while driving on rough roads.

Change the disc.

Check the cords and connections.

Insert a disc into the loading slot.

Insert the disc correctly.

Symptoms

Causes

Remedies

• Disc cannot be played back.

• Noise is generated.

• A longer readout time is required (“CHECK” keeps flashing on the display).

• Files cannot be played back as you have intended them to play.

• Elapsed playing time is not correct.

•

indicator flashes on the

display.

No MP3/WMA files are recorded on the disc.

MP3/WMA files do not have the extension code—<.mp3> or <.wma> in their file names.

MP3/WMA files are not recorded in the format compliant with ISO 9660 Level 1, Level 2, or Joliet.

The file played back is not an MP3/WMA file (although it has the extension code—<.mp3> or <.wma>).

Readout time varies due to the complexity of the folder/file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

The current folder does not contain any MP3/WMA file.

Change the disc.

Add the extension code —<.mp3> or <.wma> to their file names.

Change the disc. (Record MP3/WMA files using a compliant application.)

Skip to another file or change the disc. (Do not add the extension code—<.mp3> or <.wma> to non-MP3 or non-WMA files.)

Do not use too many hierarchies and folders.

Select another folder.

ENGLISH

MP3/WMA Playback

• “NO FILES” appears on the display.

• Correct characters are not displayed (e.g. album name).

The current disc does not contain any MP3/WMA file.

This unit can only display alphabets (capital: A–Z), numbers, and a limited number of symbols.

Insert a disc that contains MP3/ WMA files.

(only for KD-AR600)

Remedies

ENGLISH

• “NO DISC” appears on the

• “NO MAG” appears on the

• “RESET 8” appears on the

CD Changer

• “RESET 1” – “RESET 7”

• The CD changer does not

Symptoms

display.

appears on the display.

work at all.

Causes

No disc is in the magazine.

Discs are inserted upside down.

No magazine is loaded in the CD changer.

This unit is not connected to the CD changer correctly.

The built-in microcomputer may function incorrectly due to noise, etc.

Insert discs into the magazine.

Insert discs correctly.

Insert the magazine.

Connect this unit and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc play while driving on such rough roads.

MAINTENANCE

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts.

• This unit is also compatible with MP3 and WMA discs.

How to handle discs

When removing a disc from its case, press down

the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not be played correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only “finalized” CD-Rs or CD-RWs.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, and for the following reasons: – Discs are dirty or scratched. – Moisture condensation on the lens inside the

unit.

– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.

• Do not use following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal

stuck to the surface.

– Discs on which labels can be directly printed

by an ink jet printer. Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example, – Stickers or labels may shrink and warp a

disc. – Stickers or labels may be peeled off so discs

cannot be ejected. – Print on discs may get sticky. Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm (3-3/16") discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

ENGLISH

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

ENGLISH

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance:

KD-AR600: 4.0 V/20 kΩ load (full scale)

KD-SC500: 2.5 V/20 kΩ load (full scale) Output Impedance: 1 kΩ Only for KD-AR600:

Subwoofer-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Cut off frequency: 120 Hz (fixed)

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 107.9 MHz

AM: 530 kHz to 1 710 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB Capture Ratio: 1.5 dB

[AM Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 decoding format:

MPEG 1/2 Audio Layer 3.

Max. Bit Rate: 320 Kbps WMA (Windows Media

Max. Bit Rate: 192 Kbps

Audio) decoding format:

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature:

0°C to +40°C (32°F to 104°F) Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

(7-3/16" × 2-1/16" × 5-15/16")

Panel Size (approx.):

188 mm × 58 mm × 12 mm

(7-7/16" × 2-5/16" × 1/2")

Mass (approx.):

1.4 kg (3.1 lbs) (excluding accessories)

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone folder for the nearest car audio speciality shop.

http://www.jvcmobile.c

Visit us on-line for

Technical Support & Customer Satisfaction Survey.

US RESIDENTS ONLY

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to Reset

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

EN, SP, FR 1003KKSFLEJEIN

KD-AR600/KD-SC500

Installation/Connection Manual Manual de instalación/conexión Manuel d’installation/raccordement

GET0175-002A

[J]

ENGLISH

• This unit is designed to operate on 12 V DC, NEGATIVE ground

electrical systems.

INSTALLATION (IN-DASH MOUNTING)

• The following illustration shows a typical installation. However, you should make adjustments corresponding to your specific car. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.

Before mounting: Press (Control Panel Release button) to detach the control panel if already attached. * When shipped from the factory, the control panel is packed

in the hard case.

Remove the trim plate.

Remove the sleeve after disengaging the sleeve locks. 1 Stand the unit.

Note: When you stand the unit, be careful not to damage the fuse on the rear.

2 Insert the 2 handles between the unit and the sleeve, as

illustrated, to disengage the sleeve locks.

3 Remove the sleeve.

Note: Be sure to keep the handles for future use after installing the unit.

Install the sleeve into the dashboard. * After the sleeve is correctly installed in the dashboard, bend

the appropriate tabs to hold the sleeve firmly in place, as illustrated.

Fix the mounting bolt to the rear of the unit’s body and place the rubber cushion over the end of the bolt.

Do the required electrical connections.

Slide the unit into the sleeve until it is locked.

Attach the trim plate. Note: Ensure the recessed part is at the bottom. If not, the control panel will not open completely.

Attach the control panel.

ESPAÑOL

• Esta unidad está diseñada para funcionar con 12 V de CC, con

sistemas eléctricos de masa NEGATIVA.

INSTALACION (MONTAJE EN EL TABLERO DE INSTRUMENTOS)

• La siguiente ilustración muestra una instalación típica. Sin

embargo usted deberá efectuar los ajustes correspondientes a su automóvil. Si tiene alguna pregunta o necesita información acerca de las herramientas para instalación, consulte con su concesionario de JVC de equipos de audio para automóviles o a una compañía que suministra tales herramientas.

Antes de instalar: Pulse (botón de liberación del panel de control) para desenganchar el panel de control, si ya está fijado. * El panel de control se expide de fábrica dentro del

estuche duro.

Retire la placa de guarnición.

Retire la cubierta después de desenganchar los retenes de la cubierta.

1 Ponga la unidad vertical.

Nota: Al poner la unidad vertical, tenga cuidado de no dañar el fusible provisto en la parte posterior.

2 Inserte las dos manijas entre la unidad y la cubierta tal

como en la ilustración y desenganche los retenes de la cubierta.

3 Retire la cubierta.

Nota: Después de instalar la unidad, asegúrese de guardar las manijas para uso futuro.

Instale la cubierta en el tablero de instrumentos.

* Después de que la cubierta esté correctamente instalada

en el tablero de instrumentos, doble las lengüetas correspondientes para sostener la cubierta firmemente en su lugar, tal como se muestra.

Fije el perno de montaje en la parte trasera del cuerpo de la unidad y coloque el cojín de goma sobre el extremo del perno.

Realice las conexiones eléctricas requeridas.

Deslice la unidad dentro de la cubierta hasta que quede trabada.

Coloque la placa de guarnición. Nota: Asegúrese de que lo parte ahuecada quede en la parte inferior. De lo contrario, el panel de control no se podrá abrir por completo.

Coloque el panel de control.

1003KKSFLEJEIN EN, SP, FR

FRANÇAIS

•

Cet appareil est conçu pour fonctionner sur des sources de courant continu de 12 V à masse NEGATIVE.

INSTALLATION (MONTAGE DANS LE TABLEAU DE BORD)

•

L’illustration suivante est un exemple d’installation typique. Cependant, vous devez faire les ajustements correspondant à votre voiture particulière. Si vous avez des questions ou avez besoin d’information sur des kits d’installation, consulter votre revendeur d’autoradios JVC ou une compagnie d’approvisionnement.

Avant le montage:

panneau de commande) pour èventeullement détacher le panneau de commande. * Lorsque ce panneau de commande sort d’usine, il est

rangé dans un étui de transport.

Retirer la plaque d’assemblage.

Libérer les verrous du manchon et retirer le manchon.

Poser l’appareil à la verticale.

Remarque:

verticale, faire attention de ne pas endommager le fusible situé sur l’arrière.

Insérer les 2 poignées entre l’appareil et le manchon comme indiqué pour désengagé les verrous de manchon.

Retirer le manchon.

Remarque:

utilisation ultérieur, après l’’installation de l’appareil.

Installer le manchon dans le tableau de bord. * Après installation correcte du manchon dans le tableau

de bord, plier les bonnes pattes pour maintenir fermement le manchon en place, comme montré.

Monter le boulon de montage sur l’arrière du corps de l’appareil puis passer l’amortisseur en caoutchouc sur l’extrémité du boulon.

Réalisez les connexions électriques.

Faites glisser l’appareil dans le manchon jusqu’à ce qu’il soit verrouillé.

Attachez la plaque d’ajustage.

Remarque:

bas. Sinon, le panneau de commande ne pourra pas être ouvert complètement.

Remonter le panneau de commande.

Assurez-vous que la partie encastrée est en

Appuyer sur (dèblocage du

Lorsque vous mettez l’appareil à la

S’assurer de garder les poignées pour une

Control panel

Panel de control

Panneau de commande

Handle

Manija

Poignée

Slot

Ranura

Fente

Fuse

Fusible

Sleeve

Cubierta

Manchon

Lock Plate

Placa de bloqueo

Plaque de verrouillage

Control panel

Panel de control

Panneau de commande

Trim plate

Placa de guarnición

Plaque d’assemblage

Rubber cushion

Cojín de goma

Amortisseur en caoutchouc

Sleeve

Cubierta

Manchon

Trim plate

Placa de guarnición

Plaque d’assemblage

Dashboard

Tablero de instrumentos

Tableau de bord

(7 - 1/4")

(2 - 1/8")

Mounting bolt

Perno de montaje

Boulon de montage

See “ELECTRICAL CONNECTIONS.”

Véase “CONEXIONES ELECTRICAS”.

Référez-vous “RACCORDEMENTS ELECTRIQUES” .

• When using the optional stay

• Cuando emplea un soporte opcional

• Lors de l’utilisation du hauban en option

Fire wall

Tabique a prueba de incendios

Washer

Arandela

Rondelle

Dashboard

Tablero de instrumentos

Tableau de bord

Less than 30°

Menos de 30˚

Moins de 30˚

Cloison

Sleeve

Cubierta

Manchon

Install the unit at an angle of less than 30°

Instale la unidad a un ángulo de menos de 30˚

Installez l’appareil avec un angle de moins de 30˚

Stay (option)

Soporte (opción)

Hauban (en option)

Lock nut

Tuerca de seguridad

Ecrou d’arrêt

Screw (option)

Tornillo (opción)

Vis (en option)

Mounting bolt

Perno de montaje

Boulon de montage

• When installing the unit without using the sleeve

• Instalación de la unidad sin utilizar la cubierta

• Lors de l’installation de l’appareil sans utiliser de manchon

In a Toyota for example, first remove the car radio and install the unit in its place.

En un Toyota por ejemplo, primero extraiga la radio del automóvil y luego instale la unidad en su lugar.

Par exemple dans une Toyota, retirer d’abord l’autoradio et installer l’appareil à la place.

Flat type screws M5 x 8 mm (M5 x 3/8")*

Tornillos tipo plano M5 x 8 mm (M5 x 3/8 pulgada)*

Vis à tête plate M5 x 8 m (M5 x 3/8 pouces)*

Bracket*

Ménsula*

Support*

Pocket

Compartimiento

Poche

Bracket*

Ménsula*

Support*

Note: When installing the unit on the mounting bracket, make sure to use the 8 mm (3/8")-long screws. If longer screws are used, they could damage the unit.

Nota: Cuando instala la unidad en la ménsula de montaje, asegúrese de utilizar los tornillos de 8 mm (3/8 pulgada) de longitud. Si se utilizan tornillos más largos, éstos pueden dañar la unidad.

Remarque:

Lors de l’installation de l’appareil sur le support de montage, s’assurer d’utiliser des vis d’une

longueur de 8 mm (3/8 pouces). Si des vis plus longues sont utilisées, elles peuvent endommager l’appareil.

* Not included with this unit.

* No suministrado con esta unidad.

Non fourni avec cet appareil.

Flat type screws M5 x 8 mm (M5 x 3/8")*

Tornillos tipo plano M5 x 8 mm ((M5 x 3/8 pulgada)*

Vis à tête plate M5 x 8 mm (M5 x 3/8 pouces)*

Removing the unit

• Before removing the unit, release the rear section.

Remove the control panel.

Remove the trim plate.

Insert the 2 handles into the slots, as shown. Then, while gently pulling the handles away from each other, slide out the unit.

(Be sure to keep the handles after installing it.)

Control panel

Panel de control

Panneau de commande

Parts list for installation and connection

The following parts are provided with this unit. After checking them, please set them correctly.

Hard case/Control panel

Estuche duro/Panel de control

Etui de transport/Panneau de commande

Extracción de la unidad

• Antes de extraer la unidad, libere la sección trasera.

Extraiga el panel de control.

Retire la placa de guarnición.

Inserte las 2 manijas entre las ranuras, como se muestra. Luego, separe shavemente las manijas y extraiga la unidad.

(Asegúrese de conservar las manijas después de instalarlo.)

Trim plate

Placa de guarnición

Plaque d’assemblage

Lista de piezas para instalación y conexión

Con esta unidad se suministran las siguientes piezas. Después de inspeccionarlas, colóquelas correctamente.

Sleeve

Cubierta

Manchon

Trim plate

Placa de guarnición

Plaque d’assemblage

Retrait de l’appareil

•

Avant de retirer l’appareil, libérer la section arrière.

Retirer le panneau de commande.

Retirer la plaque d’assemblage.

Introduire les deux poignées dans les fentes, comme montré. Puis, tout en tirant doucement les poignées écartées, faire glisser l’appareil pour le sortir.

(S’assurer de conserver les

poignées après l’installation de l’appareil.)

Handle

Manija

Poignée

Liste des pièces pour l’installation et raccordement

Les pièces suivantes sont fournies avec cet appareil. Après vérification, veuillez les placer correctement.

Remote controller

Control remoto

Télécommande

Battery

Pila

Pile

CR2025

Power cord

Cordón de alimentación

Cordon d’alimentation

See page 30 - 31 of the Instructions for the usage of the following parts. Con respecto al uso de las siguientes piezas, consulte la página 30 - 31 de las instrucciones. Référez-vous à la page 30 - 31 du mode d’emploi pour savoir comment utiliser les pièces suivantes.

Additional standard plates (3) and transparent plate (1)

Placas estándar adicionales (3) y placa transparente (1) Plaques standards

additionnelles (3) et plaque transparente (1)

Handles

Manijas

Poignées

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all electrical connections before installing the unit. If you are not sure how to install this unit correctly, have it installed by a qualified technician.

Note: This unit is designed to operate only on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does not have this system, a

voltage inverter is required, which can be purchased at JVC car audio dealers.

• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio dealer.

• If noise is a problem... This unit incorporates a noise filter in the power circuit. However, with some vehicles, clicking or other unwanted noise may occur. If this happens, connect the unit’s rear ground terminal (see connection diagram) to the car’s chassis using shorter and thicker cords, such as copper braiding or gauge wire. If noise still persists, consult your JVC car audio dealer.

• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear and at the front, with an impedance of 4 change “AMP GAIN” setting to prevent the speakers from being damaged (see page 28 of the INSTRUCTIONS).

• Be sure to ground this unit to the car’s chassis.

• The heat sink becomes very hot after use. Be careful not to touch it

when removing this unit.

Ω

to 8 Ω). If the maximum power is less than 50 W,

Washer (ø5)

Arandela (ø5)

Rondelle (ø5)

Hex screwdriver (1)

Destornillador hexagonal (1)

Clef hexagonale (1)

CONEXIONES ELECTRICAS

Para evitar cortocircuitos, recomendamos que desconecte el terminal negativo de la batería y que efectúe todas las conexiones eléctricas antes de instalar la unidad. Si usted no está seguro de cómo instalar correctamente la unidad, hágala instalar por un técnico cualificado.

Nota: Esta unidad está diseñada para funcionar con 12 V de CC, con sistemas eléctricos de masa NEGATIVA solamente. Si su vehículo

no posee este sistema, será necesario un inversor de tensión, que puede ser adquirido en los concesionarios de JVC de equipos de audio para automóviles.

• Reemplace el fusible por uno con la corriente especificada. Si el fusible se quemase frecuentemente consulte con su concesionario de JVC de equipos de audio para automóviles.

• Si el ruido fuese un problema... Esta unidad tiene un filtro de ruido en el circuito de alimentación. Sin embargo, en algunos vehículos, pueden producirse chasquidos u otros ruidos indeseados. En tal caso conecte el terminal de tierra posterior (véase diagrama de conexión) del receptor al chasis del automóvil, utilizando cordones más gruesos y cortos tales como alambre de cobre trenzado o de grueso calibre. Si el ruido persiste, consulte a su concesionario de JVC de equipos de audio para automóvil.

• Se recomienda conectar los altavoces con una potencia máxima de más de 50 W (tanto atrás como adelante, con una impedancia de 4 Ω a 8 Ω). Si la potencia máxima es de menos de 50 W, cambie “AMP GAIN” para evitar daños en los altavoces (consulte la página 28 del MANUAL DE INSTRUCCIONES).

Heat sink

Sumidero térmico

Dissipateur de chaleur

• Asegúrese de conectar esta unidad a tierra en el chasis del automóvil.

• El sumidero térmico estará muy caliente después del uso. Asegúrese de no tocarlo al desmontar esta unidad.

Lock nut (M5)

Tuerca de seguridad (M5)

Ecrou d’arrêt (M5)

Spare screws for the plate cover attachment —M2 x 5 mm (M2 x 1/4") (2)

Tornillos de repuesto para fijación de la placa de cubierta —M2 x 5 mm (M2 x 1/4 pulgada) (2)

Vis de rechange pour la fixation du couvercle de la plaque —M2 x 5 mm (M2 x 1/4 pouces) (2)

Mounting bolt M5 x 20 mm (M5 x 13/16")

Perno de montaje M5 x 20 mm (M5 x 13/16 pulgada)

Boulon de montage M5 x 20 mm (M5 x 13/16 pouces)

Cutout plates (printed on the sheet) (4)

Placas recortadas (impresas en la hoja) (4)

Plaques découpées (imprimées sur une feuille) (4)

RACCORDEMENTS ELECTRIQUES

Pour éviter tout court-circuit, nous vous recommandons de débrancher la borne négative de la batterie et d’effectuer tous les raccordements électriques avant d’installer l’appareil. Si l’on n’est pas sûr de pouvoir installer correctement cet appareil, le faire installer par un technicien qualifié.

Remarque:

Cet appareil est conçu pour fonctionner sur des sources de courant continu de n’offre pas ce type d’alimentation, il vous faut un convertisseur de tension, que vous pouvez acheter chez un revendeur d’autoradios JVC.

•

Remplacer le fusible par un de la valeur précisée. Si le fusible saute souvent, consulter votre revendeur d’autoradios JVC.

•

Si le bruit est un problème... Cet appareil incorpore un filtre de bruit dans le circuit d’alimentation. Cependant, avec certains véhicules, quelques claquements ou autres bruits non désirés risquent de se produire. Si cela arrive, raccorder la la voiture (voir le schéma de raccordement) en utilisant des cordons les plus gros et les plus courts possibles telle qu’une barre de cuivre ou une tresse. Si le bruit persiste, consulter votre revendeur d’autoradios JVC.

•

Il est recommandé de connecter des enceintes avec une puissance de plus de 50 W (les enceintes arrière et les enceintes avant, avec une impédance comprise entre est inférieure à 50 W, changez “AMP GAIN” pour éviter d’endommager vos enceintes (voir page 28 du MANUEL D’INSTRUCTIONS).

• S’assurer de raccorder la mise à la masse de cet appareil au châssis de la voiture.

•

Le dissipateur de chaleur devient très chaud après usage. Faire attention de ne pas le toucher en retirant cet appareil.

12 V à masse NEGATIVE

borne arrière de masse

Rubber cushion

Cojín de goma

Amortisseur en caoutchouc

seulement. Si votre véhicule

de l’appareil au châssis de

4 Ω

et 8 Ω). Si la puissance maximum

ENGLISH

ESPAÑOL FRANÇAIS

A Typical Connections / Conexiones típicas / Raccordements typiques

Before connecting: Check the wiring in the vehicle carefully not to fail in connecting this unit. Incorrect connection may cause a serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color.

Connect the colored leads of the power cord to the car battery, speakers and automatic antenna (if any) in the following sequence.

1 Black: ground 2 Yellow: to car battery (constant 12 V) 3 Red: to an accessory terminal 4 Blue with white stripe: to remote lead of other

equipment or automatic antenna if any (200 mA max.)

5 Orange with white stripe: to car light control switch 6 Others: to speakers

Connect the antenna cord.

Finally connect the wiring harness to the unit.

CAUTION/PRECAUTION/ATTENTION:

• Before connecting the CD changer, make sure that the unit is turned off. (only for KD-AR600)

• Antes de conectar el cambiador de CD, asegúrese de que la unidad está apagada. Sólo para KD-AR600

• Avant de connecter le changeur CD, assurez-vous que mettre l’appareil hors tension. Seulement pour le KD-AR600

JVC CD changer or another external component Cambiador de CD u otro componente exterior

Changeur CD JVC ou autre appareil extérieur

Rear ground terminal

Terminal de tierra posterior

Borne arrière de masse

Subwoofer out (Only for KD-AR600

Salida de Subwoofer (Sólo para KD-AR600)

Sortie de caisson de grave(Seulement pour le KD-AR600)

LINE OUT (see diagram

Salida de linea (véase diagrama

Sortie de ligne (voir le diagramme

B )

)

Antenna terminal

Terminal de la antena

Borne de l’antenne

)

To antenna

A la antena

A l’antenne

*1: Before checking the operation of this unit prior to

installation, this lead must be connected, otherwise power cannot be turned on.

*1: Antes de comprobar el funcionamiento de esta unidad

previa a la instalación, es necesario conectar este cable, de lo contrario no se podrá conectar la alimentación.

*1: Pour vérifier le fonctionnement de cet appareil avant

installation, ce fil doit être raccordé, sinon l’appareil ne peut pas être mis sous tension.

Antes de la conexión: Verifique atentamente el conexionado del vehículo para no cometer errores al conectar esta unidad. Una conexión incorrecta podría producir daños graves en la unidad. Los cordones del cable de alimentación y los del conector procedentes de la carrocería del automóvil podrían ser de diferentes en color.

Conecte los conductores de color del cable de alimentación a la batería del automóvil, altavoces y antena automática (si la hubiere) en la secuencia siguiente.

1 Negro: a tierra 2 Amarillo: a la batería del automóvil (12 V constantes) 3 Rojo: a un terminal de accesorio 4 Azul con rayas blancas: al conductor remoto de

otro equipo o de la antena automática, si hubiere (máx. 200 mA)

5 Naranja con rayas blancas: al interruptor de control de

las luces del automóvil

6 Otros: a los altavoces

Conecte el cable de antena.

Por último, conecte a la unidad el cableado preformado.

We recommend you to connect the JVC MP3-compatible CD changer. You can also connect other CH-X series CD changers (except CH-X99 and CH-X100).

• You cannot use the KD-MK series CD changers with this unit. You can also use an external component such as a portable MD player by connecting the Line Input Adapter KS-U57 (not supplied). (See diagram

Se recomienda conectar el cambiador de CD de JVC compatible con MP3. También se pueden conectar otros cambiadores de CD de la serie CH-X (excepto CH-X99 y CH-X100).

• Con esta unidad no se podrán utilizar cambiadores de CD de la serie KD-MK. Conectando el adaptador de entrada de línea KS-U57 (no suministrado), también podrá usar un componente exterior, tal como un reproductor de MD . (Véase diagrama

Nous vous recommandons de connecter le changeur de CD compatible MP3 JVC. Vous pouvez aussi connecter d’autres changeurs de CD de la série CH-X (sauf le CH-X99 et le CH-X100).

• Vous ne pouvez pas utiliser les changeurs de CD de la série KD-MK avec cet appareil. Vous pouvez aussi utiliser un appareil extérieur tel qu’un lecteur de MD en connectant l’adaptateur d’entrée de ligne KS-U57 (non fourni). (voir le diagramme

Black

Negro

Noir

Yellow*

Amarillo*

Jaune*

Red

Rojo

Rouge

15 A fuse

Fusible de 15 A

Fusible 15 A

To metallic body or chassis of the car

A un cuerpo metálico o chasis del automóvil

Au corps métallique ou châssis de la voiture

To a live terminal in the fuse block connecting to the car battery (bypassing the ignition switch)

A un terminal activo del bloque de fusibles conectado a la batería del automóvil (desviando el interruptor de encendido)

À une borne sous tension du porte-fusible connectée à la batterie de la voiture (en dérivant l’interrupteur d’allumage)

Blue with white stripe

Azul con rayas blancas

Bleu avec bande blanche

Orange with white stripe/ Naranja con rayas blancas/

Avant de commencer la connexion:

câblage du véhicule pour ne pas connecter incorrectement cet appareil. Une connexion incorrecte peut endommager sérieusement l’appareil. Le fil du cordon d’alimentation et ceux des connecteurs du châssis de la voiture peuvent être différents en couleur.

2 3

B .)

Not supplied with this unit.

No suministrado con esta unidad.

Non fourni avec cet appareil.

To an accessory terminal in the fuse block

A un terminal accesorio del bloque de fusibles

À la prise accessoire du porte-fusible

To remote lead of other equipment or automatic antenna if any

Orange avec bande blanche

Al conductor remoto de otro equipo o de la antena automática, si hubiere

Au fil de télécommande de l’ autre appareil ou à l’antenne automatique s’il y en a une

vérifiez attentivement le

Connectez les fils de couleur du cordon d’alimentation à la batterie de la voiture, aux enceintes et à l’antenne automatique (s’il y en a une) dans l’ordre suivant.

Noir: a la masse

Jaune: a la batterie de la voiture (12 Vconstant)

Rouge: à la prise accessoire

Bleu avec bande blanche: au fil de télécommande de l’ autre appareil ou à l’antenne automatique s’il y en a une (200 mA max.)

Orange avec bande blanche: à l’interrupteur d’éclairage de la voiture

Autres fils: aux enceintes Connectez le cordon d’antenne. Finalement, connectez le faisceau de fils à l’appareil.

B .)

Ignition switch

Interruptor de encendido

Interrupteur d’allumage

Fuse block

Bloque de fusibles

Porte-fusible

To car light control switch

(ILLUMINATION)

Al interruptor de control de las luces del automóvil

À l’interrupteur d’éclairage de la voiture

White with black stripe

Blanco con rayas negras

Blanc avec bande noire

PRECAUTIONS on power supply and speaker connections:

• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit will be seriously damaged.

• Connect the black lead (ground), yellow lead (to car battery, constant 12 V), and red lead (to an accessory terminal) correctly.

• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in your car.

– If the speaker wiring in your car is as illustrated in Fig. 1

and Fig. 2 below, DO NOT connect the unit using that original

speaker wiring. If you do, the unit will be seriously damaged. Redo the speaker wiring so that you can connect the unit to the speakers as illustrated in Fig. 3.

– If the speaker wiring in your car is as illustrated in Fig. 3, you

can connect the unit using the original speaker wiring in your car.

– If you are not sure of the speaker wiring of your car, consult

your car dealer.

Fig. 1

Fig. 2 Fig. 3

White

Blanco

Blanc

Left speaker (front)

Altavoz izquierdo (frontal)

Enceinte gauche (avant)

Gray with black stripe

Gris con rayas negras

Gris avec bande noire

Gray

Gris

Right speaker (front)

Altavoz derecho (frontal)

Enceinte droit (avant)

Green with black stripe

Verde con rayas negras

Vert avec bande noire

Green

Verde

Vert

Left speaker (rear)

Altavoz izquierdo (trasero)

Enceinte gauche (arrière)

PRECAUCIONES sobre las conexiones de la fuente de alimentación y de los altavoces:

• NO conecte los conductores de altavoz del cable de alimentación a la batería de automóvil, pues podrían producirse graves daños en la unidad.

• Conecte correctamente el conductor negro (a tierra), el conductor amarillo (a la batería del automóvil, 12 V constantes), y el conductor rojo (a un terminal de accesorio).

• ANTES de conectar a los altavoces los conductores de altavoz del cable de alimentación, verifique el conexionado de altavoz de su automóvil.

– Si el conexionado de altavoz de su automóvil es como

se indica en las Fig. 1 y Fig. 2 de abajo, NO conecte la unidad utilizando ese conexionado de altavoz original. Si lo hace, se producirán daños graves en la unidad. Vuelva a efectuar el conexionado de altavoz de manera que pueda conectar la unidad a los altavoces de la manera indicada en la Fig.3.

– Si el conexionado de altavoz de su automóvil es como

se indica en la Fig. 3, podrá conectar la unidad utilizando el conexionado de altavoz original de su automóvil.

– Si tiene dudas sobre el conexionado de altavoz de su

automóvil, consulte con su concesionario.

Purple with black stripe

Púrpura con rayas negras

Violet avec bande noire

Purple

Púrpura

Violet

Right speaker (rear)

Altavoz derecho (trasero)

Enceinte droit (arrière)

PRECAUTIONS sur l’alimentation et la connexion des enceintes:

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la batterie; sinon, l’appareil serait sérieusement endommagé.

• Connectez correctement le fil noir (a la masse), le fil jaune (a la batterie de la voiture,12 V constant) et le fil rouge (à la prise accessoire).

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux enceintes, vérifiez le câblage des enceintes de votre voiture.

Si le câblage des enceintes de votre voiture est réalisé

–

comme montré sur la Fig. 1 ou Fig. 2 ci-dessous,

CONNECTEZ PAS l’appareil en utilisant ce câblage original d’enceintes. Si vous le faites, l’appareil sera sérieusement endommagé. Recommencez le câblage des enceintes de façon que vous puissiez connecter l’appareil aux enceintes comme montré sur la Fig. 3.

Si le câblage des enceintes de votre voiture est comme

–

montré sur la Fig. 3,

vous pouvez connecter l’appareil en

utilisant ce câblage original d’enceintes pour votre voiture.

– Si vous n’êtes pas sûrs du câblage d’enceintes de votre

voiture, consulter le concessionnaire de votre voiture.

Connecting the leads / Conexión de los conductores / Raccordement des fils

LINE OUT

REAR

FRONT

Twist the core wires when connecting.

Retuerza los alambres de alma para conectarlos.

Torsader les âmes des fils en les raccordant.

Solder the core wires to connect them securely.

Suelde los alambres de alma para conectarlos con firmeza.

Souder les âmes desfils pour les raccorder entre eux de façon sûre.

B Connections Adding Other Equipment / Conexiones para añadir otros equipos / Raccordement pour ajouter d’autres appareils

CAUTION / PRECAUCION / PRECAUTION:

• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.

• Para evitar cortocircuitos, cubra los cables NO UTILIZADOS con cinta aislante.

• Pour éviter les court-circuits, couvrir les bornes des fils qui ne sont PAS utilisés avec de

la bande isolante.

Amplifier / Amplificador / Amplificateur

You can connect an amplifier and other equipment to upgrade your car stereo system.

• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.

• Connect this unit’s line-out terminals to the amplifier’s line-in terminals.

• Disconnect the speakers from this unit, connect them to the

amplifier. Leave the speaker leads of this unit unused. (Cover the terminals of these unused leads with insulating tape, as illustrated above.)

• Only for KD-AR600: The line output level of this unit is kept high to maintain the hi-fi sounds reproduced from this unit. When connecting an external amplifier to this unit, turn down the gain control on the external amplifier to obtain the best performance from this unit.

Rear speakers

Altavoces traseros

Enceintes arrière

INPUT

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

Signal cord (not supplied with this unit)

Cable de señal (no suministrado con esta unidad)

Cordon de signal (non fourni avec cet appareil)

Usted podrá conectar un amplificador y otros equipos para mejorar el sistema estéreo de su automóvil.

• Conecte el conductor remoto (azul con rayas blancas) al conductor remoto del otro equipo para poderlo controlar a través de esta unidad.

• Conecte los terminales de salida de línea de esta unidad a los terminales de entrada de línea del amplificador.

• Desconecte los altavoces de esta unidad y conéctelos al amplificador. Deje los conductores de los altavoces de esta unidad sin usar. (Recouvrir les extrémités de ces fils inutilisés avec de la bande isolante comme montré ci-dessus.)

• Sólo para KD-AR600: Le niveau de sortie de ligne de cet appareil est maintenu à un niveau élevé pour maintenir une qualité Hi-Fi pour les sons reproduits par cet appareil.

Lors de la connexion d’un amplificateur extérieur à cet appareil,

diminuez le réglage du gain sur l’amplificateur extérieur pour obtenir les meilleures performances de cet appareil.

Remote lead

Cable remoto

Fil d’alimentation à distance

Blue with white stripe

Azul con rayas blancas

Bleu avec bande blanche

Y-connector (not supplied with this unit)

Conector en Y (no suministrado con esta unidad)

Connecteur Y (non fourni avec cet appareil)

Vous pouvez connecter un amplificateur ou autre appareil pour améliorer votre système autoradio.

• Connectez le fil de commande à distance (bleu avec bande blanche) au fil de commande à distance de l’autre appareil de façon qu’il puisse être commandé via cet appareil.

• Raccorder les fiches de sortie ligne de cet appareil aux fiches d’entrée ligne de l’amplificateur.

•

Déconnectez les enceintes de cet appareil et connectez-les à l’amplificateur. Laissez les fils d’enceintes de cet appareil inutilisés. (Cubra los terminales de estos cables sin usar con cinta aislante, tal comose indica en la figura de arriba.)

• Seulement pour le KD-AR600: El nivel de salida de línea de esta unidad permanece alto para que corresponda con los sonidos de alta fidelidad reproducidos por esta unidad. Cuando conecte un amplificador externo a esta unidad, disminuya el control de ganancia del amplificador externo para obtener un óptimo rendimiento de esta unidad.

To automatic antenna if any

A la antena automática, si la hubiere

Vers l’antenne automatique, s’il y en a une

*2 Firmly attach the ground wire to the metallic

body or to the chassis of the car—to the place not coated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to this unit.

*2 Fije firmemente el cable de tierra a la

carrocería metálica o al chasis—a un lugar no cubierto con pintura (si está cubierto con pintura, quítela antes de fijar el cable). De lo contrario, se podrían producir daños en la unidad.

*2 Attachez solidement le fil de mise à la masse

au châssis métallique de la voiture—à un endroit qui n’est pas recouvert de peinture (s’il est recouvert de peinture, enlevez d’abord la peinture avant d’attacher le fil). L’appareil peut être endommagé si cela n’est pas fait correctement.

LINE OUT

REAR

FRONT

KD-AR600 KD-SC500

Salida de

Front speakers

Altavoces delanteros

Enceintes avant

Subwoofer (Subwoofer out) / Subwoofer (

Only for KD-AR600:

You can connect a subwoofer through an amplifier to reinforce the bass.

• For their connections, refer to the instructions supplied with your subwoofer.

KD-AR600

SUBWOOFER OUT

Salida de Subwoofer

Sortie de caisson de grave

INPUT

You can connect another power amplifier for front speakers.

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

Podrá conectar otro amplificador de potencia para los altavoces delanteros.

Subwoofer ) / Caisson de grave (Sortie de caisson de grave)

Sólo para KD-AR600:

Usted podrá conectar un subwoofer a través de un amplificador para reforzar los graves.

• Con respecto a sus conexiones, refiérase a las

instrucciones suministradas con sus subwoofer.

Signal cord (not supplied with this unit)

Cable de señal (no suministrado con esta unidad)

Cordon de signal (non fourni avec cet appareil)

JVC Amplifier

Amplificador de JVC

Amplificateur JVC

Caisson de grave

Seulement pour le KD-AR600:

Vous pouvez connecter un caisson de grave par un amplificateur pour renforcer les graves.

•

Pour la connexion, référez-vous aux instructions fournies avec le caisson de grave.

Subwoofer

Front speakers

Altavoces delanteros

Enceintes avant

Vous pouvez connecter un autre amplificateur de puissance pour les enceintes avant.

External component / Componente exterior / Appareil extérieur

For connecting the JVC SIRIUS Radio, refer to the SIRIUS Radio Setup Manual (separate volume).

Para la conexión de la radio JVC SIRIUS, consulte el Manual de configuración de la radio SIRIUS (volumen separado).

Pour brancher la radio JVC SIRIUS, référez-vous au Manuel d’installation de la radio SIRIUS (volume séparé).

Only for KD-AR600

TROUBLESHOOTING

• The fuse blows.

* Are the red and black leads connected correctly?

• Power cannot be turned on.

* Is the yellow lead connected?

• No sound from the speakers.

* Is the speaker output lead short-circuited?

• Sound is distorted.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in

common?

• Unit becomes hot.

* Is the speaker output lead grounded? * Are the “–” terminals of L and R speakers grounded in

common?

KD-AR600

Line Input Adaptor KS-U57 (not supplied with this unit)

Adaptador de entrada de línea KS-U57 (no suministrado con esta unidad)

Adaptateur d’entrée de ligne KS-U57 (non fourni avec cet appareil)

Signal cord (not supplied with this unit)

Cable de señal (no suministrado con esta unidad)

Cordon de signal (non fourni avec cet appareil)

LOCALIZACION DE AVERIAS

• El fusible se quema.

* ¿Están los conductores rojo y negro correctamente conectados?

• No es posible conectar la alimentación.

* ¿Está el cable amarillo conectado?

• No sale sonido de los altavoces.

* ¿Está el cable de salida del altavoz cortocircuitado?

• El sonido presenta distorsión.

* ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a

una masa común?

• La unidad se calienta.

* ¿Está el cable de salida del altavoz conectado a masa? * ¿Están los terminales “–” de los altavoces L y R conectados a

una masa común?

External component

Componente exterior

Appareil extérieur

EN CAS DE DIFFICULTES

• Le fusible saute.

Les fils rouge et noir sont-ils racordés correctement?

• L’appareil ne peut pas être mise sous tension.

Le fil jaune est-elle raccordée?

• Pas de son des enceintes.

Le fil de sortie de d’enceinte est-il court-circuité?

• Le son est déformé.

Le fil de sortie de d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• L’appareil devient chaud.

Le fil de sortie de d’enceinte est-il à la masse?

Les bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

JVC KD-SC500, KD-AR600 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INSTRUCTIONS

IMPORTANT FOR LASER PRODUCTS

CONTENTS

LOCATION OF THE BUTTONS

BASIC OPERATIONS

RADIO OPERATIONS

CD OPERATIONS

MP3/WMA INTRODUCTION

MP3/WMA OPERATIONS

SOUND ADJUSTMENTS

OTHER MAIN FUNCTIONS

CD CHANGER OPERATIONS (0nly for KD-AR600)

EXTERNAL COMPONENT OPERATIONS

TROUBLESHOOTING

MAINTENANCE

SPECIFICATIONS

ELECTRICAL CONNECTIONS

TROUBLESHOOTING
