Jvc KD-S890 Service Manual

49799200303

KD-S890

SERVICE MANUAL

CD RECEIVER

KD-S890

Area suffix

J ------------ Northern America

SOUN D

ATT

U

SOURCE

F

R

D

VOL

VOL

TABLE OF CONTENTS

1 Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

2 Disassembly method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

3 Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23

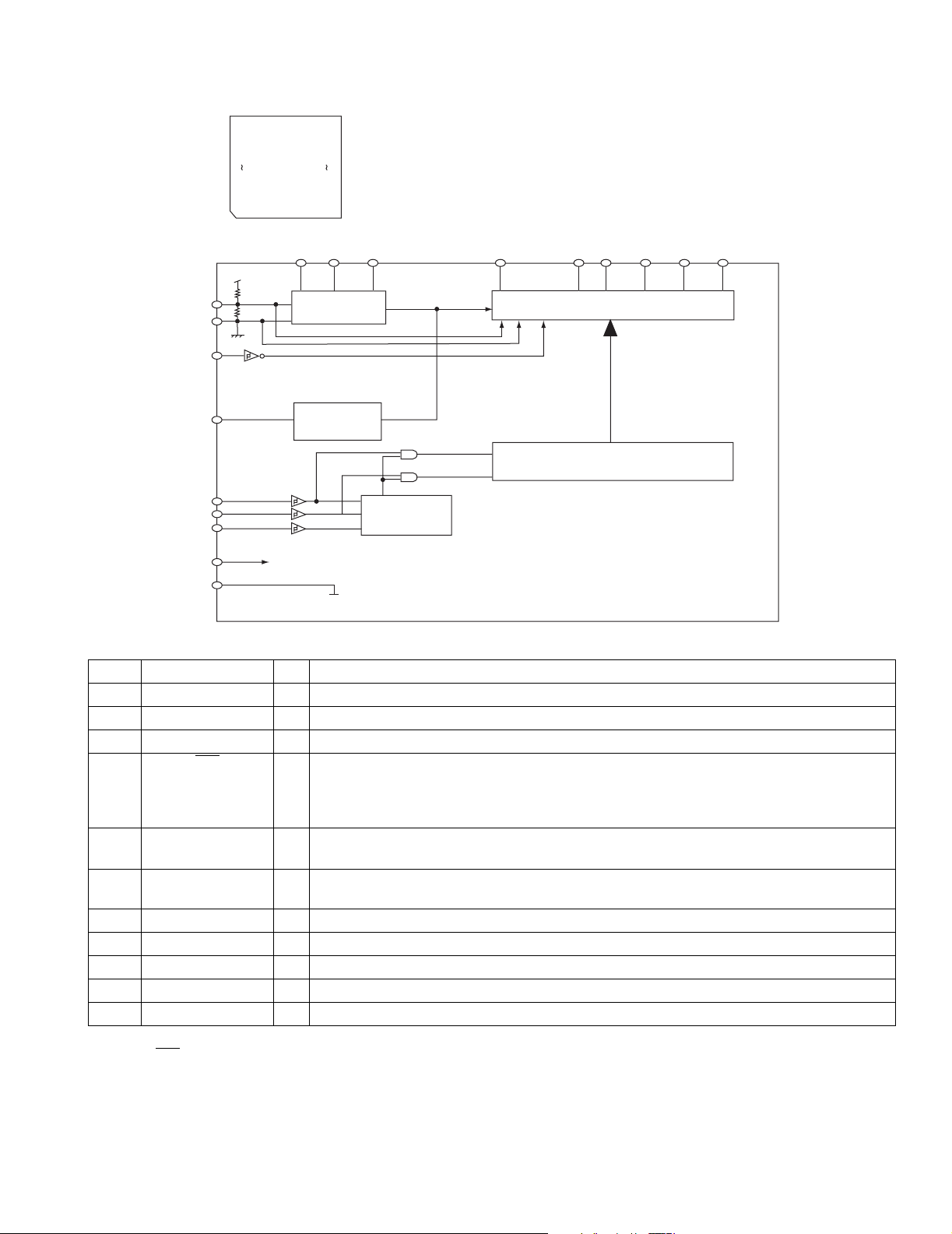

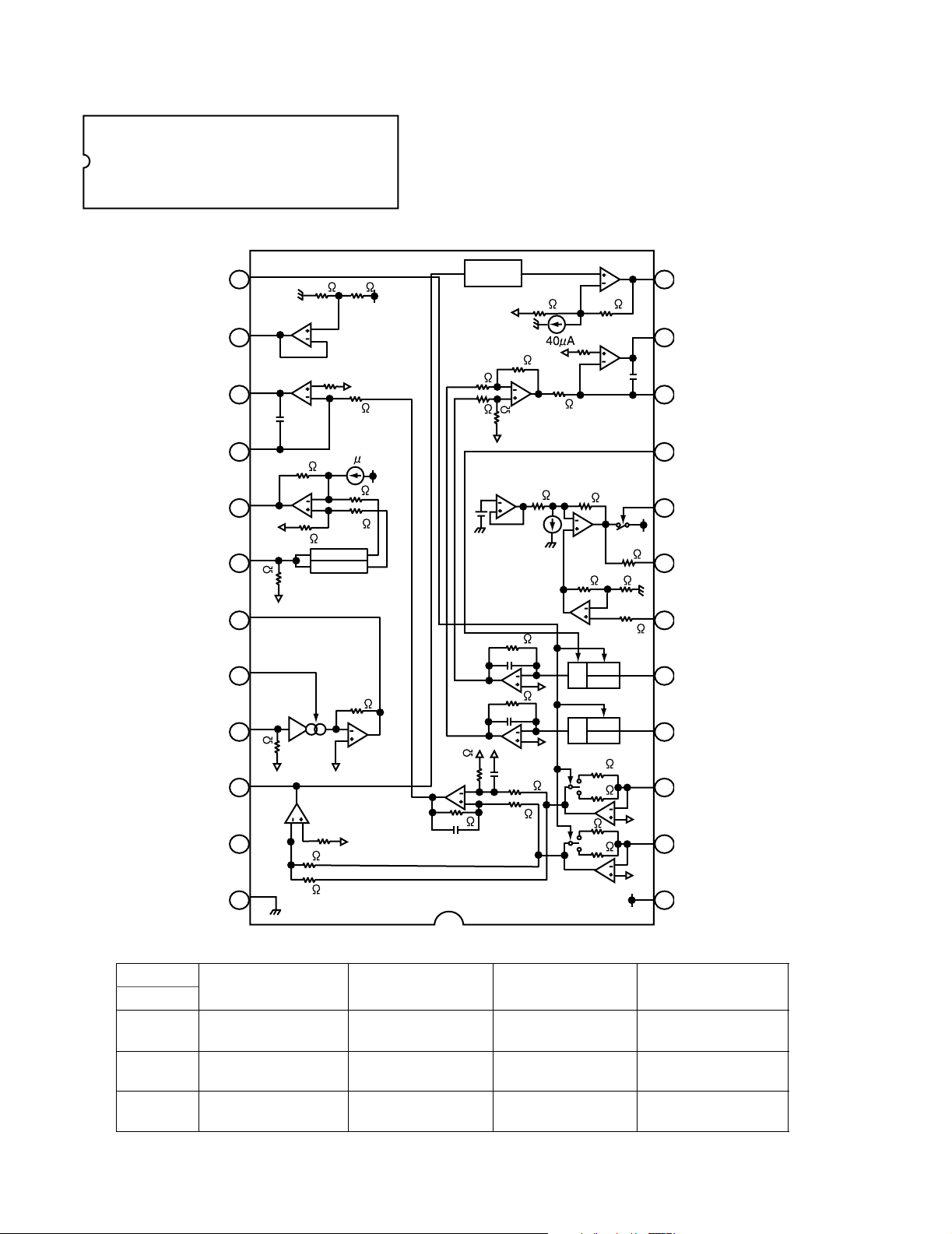

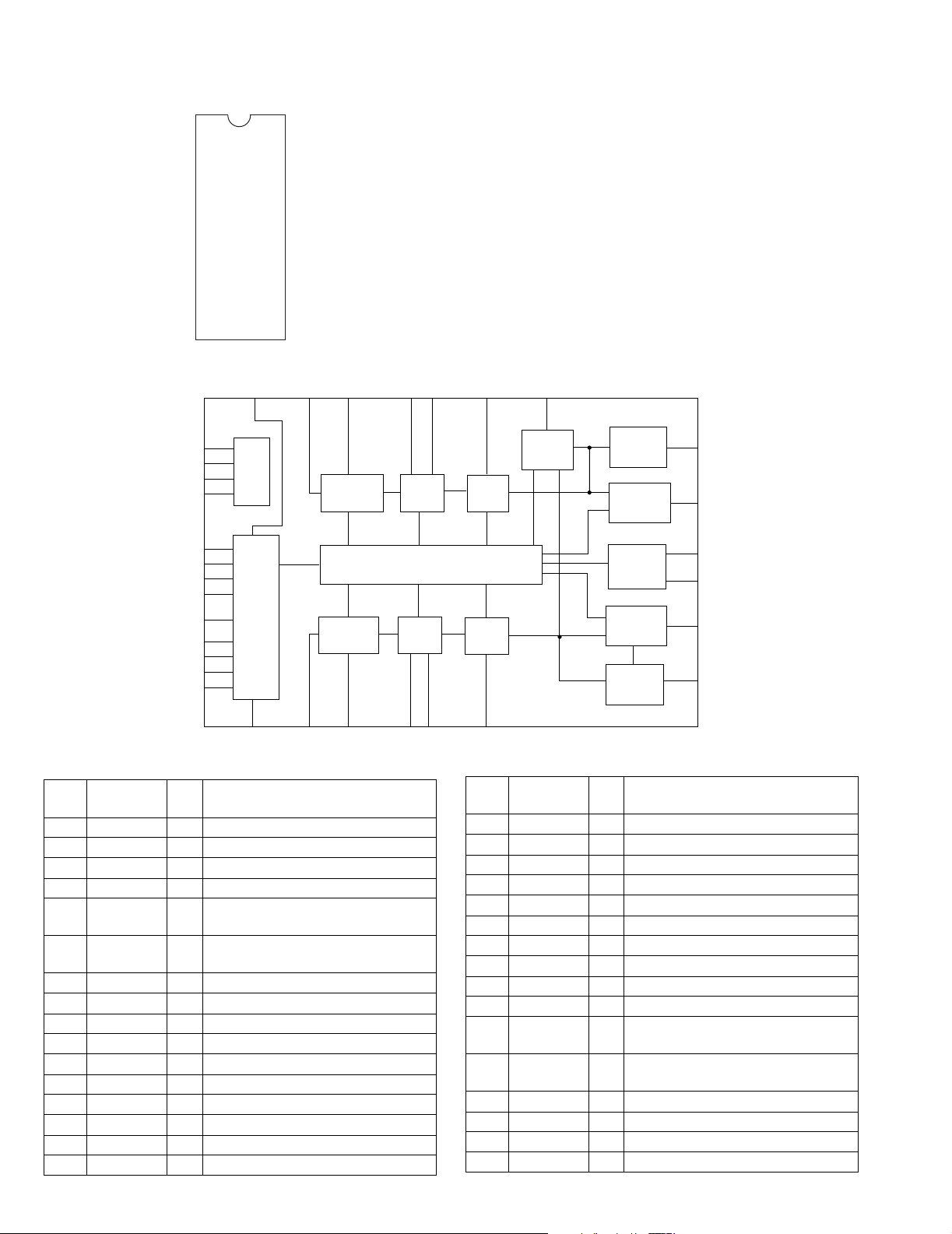

4 Description of major ICs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27

COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.

No.49799

2003/03

KD-S890

1.1 Safety Precautions

SECTION 1

Important Safety Precautions

!

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.

1-2 (No.49799)

1.2 Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

1.2.1 Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.

(1) Ground the workbench

Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.

(2) Ground yourself

Use an anti-static wrist strap to release any static electricity built up in your body.

(caption)
Anti-static wrist strap

KD-S890

1M

Conductive material
(conductive sheet) or iron plate

(3) Handling the optical pickup

• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)

• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.

1.3 Handling the traverse unit (optical pickup)

(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the

replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long

a time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

1.4 Attention when traverse unit is decomposed

*Please refer to "Disassembly method" in the text for the CD pickup unit.

• Apply solder to the short land before the flexible wire is disconnected from the connector on the CD pickup unit.
(If the flexible wire is disconnected without applying solder, the CDpickup may be destroyed by static electricity.)

• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.

Short-circuit point

(Soldering)

Flexible wire

Short-circuit point

Pickup

Pickup

(No.49799)1-3

KD-S890

Disassembly method

2.1 Main body

2.1.1 Removing the front panel assembly (See Fig.1)

(1) Push the detach button in the lower right part of the front

panel assembly and remove the front panel assembly in
the direction of the arrow.

2.1.2 Removing the front chassis assembly (See Figs.2 to 4)

• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the two screws A on the both sides of the main

body.

(2) Release the two joints a and two joints b on both sides

of the main body.

(3) Release the two joints c on the bottom side of the main

body and remove the front chassis assembly in the direc­tion of the arrow.

SECTION 2

Front panel assembly

Fig.1

Detach button

a

Joint

A

Joint b

A

Joint b

Front chassis assembly

Joint c Joint c

Joint a

Front chassis assembly

Fig.2

Fig.3

Front chassis assembly

1-4 (No.49799)

Fig.4

2.1.3 Removing the heat sink (See Fig.5)

(1) Remove the two screws B and two screws C on the left

side of the main body.

KD-S890

B

2.1.4 Removing the bottom cover (See Figs.6 and 7)

• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly and heat sink.
(1) Turn over the main body, and release the two joints d, two

joints e and joint f.

CAUTION:

Do not damage the main board when releasing the joint f using
a screwdriver. (See Figs.6 and 7)

Joint

Joint f

C

Heat sink

Fig.5

d

Bottom cover

Joint e

Fig.6

Joint e

Bottom cover

2.1.5 Removing the rear bracket (See Fig.8)

• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, heat sink and bottom
cover.
(1) Remove the three screws D, three screws E and two

screws F on the back side of the main body.

(2) Remove the rear bracket.

Joint f

Joint d

EF

Rear bracket

DD

Fig.7

E

Fig.8

(No.49799)1-5

KD-S890

2.1.6 Removing the main board (See Fig.9)

• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, heat sink, bottom
cover and rear bracket.
(1) Remove the two screws G attaching the main board.
(2) Disconnect the connector CN501 and remove the main

board.

2.1.7 Removing the CD mechanism assembly (See Fig.10)

• Prior to performing the following procedure, remove the front
panel assembly, front chassis assembly, heat sink, bottom
cover, rear bracket and main board.
(1) Remove the three screws H.

G

CN501

Main board assembly

G

Fig.9

H

CD mechanism assembly

Top chassis

H

Fig.10

1-6 (No.49799)

2.1.8 Removing the front board (See Figs.11 to 13)

• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws J on the back side of the front pan-

el assembly.
(2) Release the fourteen joints g.
(3) Release the joint h and take out the front board.

KD-S890

J

J

Front panel

Joint g

Front board

J

Fig.11

Joint g

Joint g

Joint g

Joint g

Rear cover

Fig.12

Joint h

Front panel

Fig.13

(No.49799)1-7

KD-S890

A

2.2 CD Mechanism Assembly

2.2.1 Removing the top cover
(See Figs.1 and 2)

(1) Remove the two screws A on the both side of the body.
(2) Lift the front side of the top cover and move the top cover

backward to release the two joints a.

Top cover

Joints a

A

Joints a

A

Fig.1

Fig.2

Top cover

1-8 (No.49799)

KD-S890

2.2.2 Removing the connector board

(See Figs.3 to 5)

CAUTION:

Before disconnecting the flexible wire from the pickup, solder
the short-circuit point on the pickup. No observance of this in­struction may cause damage of the pickup.
(1) Remove the screw B fixing the connector board.
(2) Solder the short-circuit point on the connector board.
(3) Disconnect the flexible wire from the pickup.
(4) Move the connector board in the direction of the arrow to

release the two joints b.

(5) Unsolder the wire on the connector board if necessary.

CAUTION:

Unsolder the short-circuit point after reassembling.

B

Connector board

Flexible wire

Wires

Joints b

Short-circuit point

Fig.3

Short-circuit point

(Soldering)

Pickup

Flexible wire

Frame

Pickup

Fig.4

B

Connector board

Fig.5

(No.49799)1-9

KD-S890

2.2.3 Removing the DET switch
(See Figs.6 and 7)

(1) Extend the two tabs c of the feed sw. holder and pull out

the switch.

(2) Unsolder the DET switch wire if necessary.

DET switch

Connector
board

DET switch

Tab c

Fig.6

Pickup

Tab c

DET switch wire

Feed sw. holder

Fig.7

1-10 (No.49799)

2.2.4 Removing the chassis unit

r

(See Figs.8 and 9)

• Prior to performing the following procedure, remove the top

cover and connector board.
(1) Remove the two suspension springs (L) and (R) attaching

the chassis unit to the frame.

CAUTION:

• The shape of the suspension spring (L) and (R) are dif­ferent. Handle them with care.

• When reassembling, make sure that the three shafts
on the underside of the chassis unit are inserted to the
dampers certainly.

Suspension spring (R)

KD-S890

Chassis unit

Suspension spring (L)

Frame

Suspension spring (R)

Chassis unit

Shafts

Damper

Damper

Fig.8

Suspension spring (L)

Shaft

Dampe

Frame

Fig.9

(No.49799)1-11

KD-S890

2.2.5 Removing the clamper assembly
(See Figs.10 and 11)

• Prior to performing the following procedure, remove the top

cover.
(1) Remove the clamper arm spring.
(2) Move the clamper assembly in the direction of the arrow to

release the two joints d.

Clamper arm
spring

Joint d

Clamper assembly

Fig.10

Clamper arm spring

Chassis rivet
assembly

Joint d

Joint d

Chassis rivet assembly

Clamper
assembly

Joint d

Fig.11

1-12 (No.49799)

2.2.6 Removing the loading / feed motor assembly

(See Figs.12 and 13)

• Prior to performing the following procedure, remove the top

cover, connector board and chassis unit.
(1) Remove the screw C and move the loading / feed motor

assembly in the direction of the arrow to remove it from the
chassis rivet assembly.

(2) Disconnect the wire from the loading / feed motor assembly

if necessary.

CAUTION:

When reassembling, connect the wire from the loading /
feed motor assembly to the flame as shown in Fig.12.

KD-S890

Loading / feed motor assembly

Fig.12

Loading / feed motor assembly

C

Fig.13

(No.49799)1-13

KD-S890

2.2.7 Removing the pickup unit
(See Figs.14 to 18)

• Prior to performing the following procedure, remove the top

cover, connector board and chassis unit.
(1) Remove the screw D and pull out the pu. shaft holder from

the pu. shaft.
(2) Remove the screw E attaching the feed sw. holder.
(3) Move the part e of the pickup unit upward with the pu. shaft

and the feed sw. holder, then release the joint f of the feed

sw. holder in the direction of the arrow. The joint g of the

pickup unit and the feed rack is released, and the feed sw.

holder comes off.
(4) Remove the pu. shaft from the pickup unit.
(5) Remove the screw F attaching the feed rack to the pickup

unit.

2.2.8 Reattaching the pickup unit
(See Figs.14 to 17)

(1) Reattach the feed rack to the pickup unit using the screw F.
(2) Reattach the feed sw. holder to the feed rack while setting

the joint g to the slot of the feed rack and setting the part f
of the feed rack to the switch of the feed sw. holder correct­ly.

(3) As the feed sw. holder is temporarily attached to the pickup

unit, set to the gear of the joint g and to the bending part of
the chassis (joint h) at a time.

CAUTION:

Make sure that the part i on the underside of the feed
rack is certainly inserted to the slot j of the change lock

lever.
(4) Reattach the feed sw. holder using the screw E.
(5) Reattach the pu. shaft to the pickup unit. Reattach the pu.

shaft holder to the pu. shaft using the screw D.

Joint g

Feed sw.
holder

Part e

Feed rack

Part i

E

F

Pickup unit

Slot j

Fig.15

Joint f

Fig.16

Feed rack

Pickup unit

Feed sw. holder

Pu. shaft

Joint h

D

Pu. shaft
holder

Joint f

Pu. shaft

D

Pu. shaft holder

Feed sw. holder

Pickup unit

Fig.14

Part e

E

Joint g

Pickup unit

Feed rack

Fig.17

Pickup unit

Joint g

Joint f

Feed sw. holder

Fig.18

1-14 (No.49799)

KD-S890

r

2.2.9 Removing the trigger arm
(See Figs.19 and 20)

• Prior to performing the following procedure, remove the top

cover, connector board and clamper unit.
(1) Turn the trigger arm in the direction of the arrow to release

the joint k and pull out upward.

CAUTION:

When reassembling, insert the part m and n of the trigger
arm into the part p and q at the slot of the chassis rivet
assembly respectively and join the joint k at a time.

Chassis rivet assembly

Trigger arm

Chassis rivet
assembly

Joint k

Trigger arm

Fig.19

Part p

Part q

Part m

Part n

2.2.10 Removing the top plate assembly
(See Fig.21)

• Prior to performing the following procedure, remove the top

cover, connector board, chassis unit, and clamper assembly.
(1) Remove the screw H.
(2) Move the top plate assembly in the direction of the arrow to

release the two joints r.

(3) Unsolder the wire marked s if necessary.

H

Fig.20

Top plate assembly

Joints

s

Fig.21

(No.49799)1-15

KD-S890

2.2.11 Removing the mode sw. / select lock arm
(See Figs.22 and 23)

• Prior to performing the following procedure, remove the top

plate assembly.
(1) Bring up the mode sw. to release from the link plate (joint t)

and turn in the direction of the arrow to release the joint u.
(2) Unsolder the wire of the mode sw. marked s if necessary.
(3) Turn the select lock arm in the direction of the arrow to re-

lease the two joints v.
(4) The select lock arm spring comes off the select lock arm at

the same time.

Top plate

Link plate

Joint u

Joint t

s

Fig.22

Select lock arm

Select lock arm

Mode sw.

Select lock arm

Top plate

Hook w

Select lock
arm spring

Link plate

Joints v

Fig.23

1-16 (No.49799)

KD-S890

2.2.12 Reassembling the mode sw. / select lock arm
(See Figs.24 to 26)

REFERENCE:

Reverse the above removing procedure.
(1) Reattach the select lock arm spring to the top plate and set

the shorter end of the select lock arm spring to the hook w
on the top plate.

(2) Set the other longer end of the select lock arm spring to the

boss x on the underside of the select lock arm, and join the
select lock arm to the slots (joint v). Turn the select lock
arm as shown in the figure.

(3) Reattach the mode sw. while setting the part t to the first

peak of the link plate gear, and join the joint u.

CAUTION:

When reattaching the mode sw., check if the points y and
z are correctly fitted and if each part operates properly.

Select lock arm spring

Hook w

Joint v

Joint v

Select lock arm

Boss x

Fig.24

Joint t

Point y

Link plate

Point z

Link plate

Fig.25

Mode sw.

Select
lock arm

Joint t

Joint u

Fig.26

(No.49799)1-17

KD-S890

2.2.13 Removing the select arm R / link plate
(See Figs.27 and 28)

• Prior to performing the following procedure, remove the top

plate assembly.
(1) Bring up the select arm R to release from the link plate

(joint a') and turn as shown in the figure to release the two
joints b' and joint c'.

(2) Move the link plate in the direction of the arrow to release

the joint d'. Remove the link plate spring at the same time.

REFERENCE:

Before removing the link plate, remove the mode sw..

Select arm R

Joint b'

Link plate spring

Top plate

Joint c'

Joint a'

Link plate

Link plate

Joint b'

Fig.27

Joint d'

Fig.28

Joint r

2.2.14 Reattaching the Select arm R / link plate
(See Figs.29 and 30)

REFERENCE:

Reverse the above removing procedure.
(1) Reattach the link plate spring.
(2) Reattach the link plate to the link plate spring while joining

them at joint d'.

(3) Reattach the joint a' of the select arm R to the first peak of

the link plate while joining the two joints b' with the slots.
Then turn the select arm R as shown in the figure. The top
plate is joined to the joint c'.

CAUTION:

When reattaching the select arm R, check if the points e'
and f' are correctly fitted and if each part operates prop­erly.

Select arm R

Joint b'

Joint a'

Link plate spring

Joint c'

Joint d'

Joint b'

Joint a'

Fig.29

Link plate

1-18 (No.49799)

Point e'

Point f'

Fig.30

KD-S890

2.2.15 Removing the loading roller assembly

(See Figs.31 to 33)

• Prior to performing the following procedure, remove the

clamper assembly and top plate assembly.
(1) Push inward the loading roller assembly on the gear side

and detach it upward from the slot of the joint g' of the lock
arm rivet assembly.

(2) Detach the loading roller assembly from the slot of the joint

h' of the lock arm rivet assembly.

The roller guide comes off the gear section of the loading
roller assembly.

Remove the roller guide and the HL washer from the shaft

of the loading roller assembly.
(3) Remove the screw J attaching the lock arm rivet assembly.
(4) Push the shaft at the joint i' of the lock arm rivet assembly

inward to release the lock arm rivet assembly from the slot

of the L side plate.
(5) Extend the lock arm rivet assembly outward and release

the joint j' from the boss of the chassis rivet assembly. The

roller guide springs on both sides come off at the same

time.

CAUTION:

When reassembling, reattach the left and right roller
guide springs to the lock arm rivet assembly before reat­taching the lock arm rivet assembly to the chassis rivet
assembly. Make sure to fit the part k' of the roller guide
spring inside of the roller guide. (Refer to Fig.34.)

Roller guide
spring

Part k'

Chassis rivet assembly

Loading roller assembly

Loading roller assembly

Roller guide
spring

Fig.32

Boss

Roller guide

Joint h'

Roller guide spring

Loading roller assembly

HL washer

Loading roller assembly

Joint g'

Lock arm rivet assembly

Fig.31

Roller guide

Roller guide spring

Roller guide spring

J

Lock arm rivet assembly

Lock arm rivet assembly

L side plate

Roller guide spring

Joint i'

Part j'

Fig.33

Roller guide

HL washer

Roller shaft assembly

Loading roller

Roller guide spring

Fig.34

(No.49799)1-19

KD-S890

2.2.16 Removing the loading gear 5, 6 and 7
(See Figs.35 and 36)

• Prior to performing the following procedure, remove the top

cover, chassis unit, pickup unit and top plate assembly.
(1) Remove the screw K attaching the loading gear bracket.

The loading gear 6 and 7 come off the loading gear brack­et.

(2) Pull out the loading gear 5.

K

Loading gear 5

Loading gear bracket

K

Loading gear 6

Loading gear 5

Loading gear 3

Fig.35

Loading gear bracket

Loading gear 6

Loading gear 7

Fig.36

1-20 (No.49799)

KD-S890

2.2.17 Removing the gears

(See Figs.37 to 40)

• Prior to performing the following procedure, remove the top

cover, chassis unit, top plate assembly and pickup unit.

• Pull out the loading gear 3. (See Fig.35.)

(1) Pull out the feed gear.
(2) Move the loading plate assembly in the direction of the ar-

row to release the L side plate from the two slots m' of the
chassis rivet assembly. (See Fig.37.)

(3) Detach the loading plate assembly upward from the chas-

sis rivet assembly while releasing the joint n'. Remove the
slide hook and loading plate spring from the loading plate
assembly.

(4) Pull out the loading gear 2 and remove the change lock le-

ver.

(5) Remove the E ring and washer attaching the changer gear

2.

(6) The changer gear 2, change gear spring and adjusting

washer come off.
(7) Remove the loading gear 1.
(8) Move the change plate rivet assembly in the direction of the

arrow to release from the three shafts of the chassis rivet

assembly upward. (See Fig.38.)
(9) Detach the loading gear plate rivet assembly from the shaft

of the chassis rivet assembly upward while releasing the

joint p'. (See Figs.38 and 40.)

(10) Pull out the loading gear 4.

Change plate
rivet assembly

Shafts

E ring

Loading plate assembly

Loading plate spring

Joint p'

Loading gear 4

Loading gear plate
rivet assembly

Shaft

Loading gear 2

Loading gear 1

Chassis rivet assembly

Change gear 2

Fig.38

Joint n'

Slide hook

Feed gear

Fig.37

Slot m'

L side plate

Loading plate assembly

Joint n'

Slot m'

Chassis rivet assembly

Chassis rivet assembly

E ring

Washer

Change gear 2

Change gear spring

Adjusting washer

Change plate

rivet assembly

Chassis rivet assembly

L side plate

Slot m'

Slot m'

Fig.39

Loading gear 1

Loading gear 2

Change lock lever

Loading gear 4

Loading gear plate rivet assembly

Fig.40

(No.49799)1-21

KD-S890

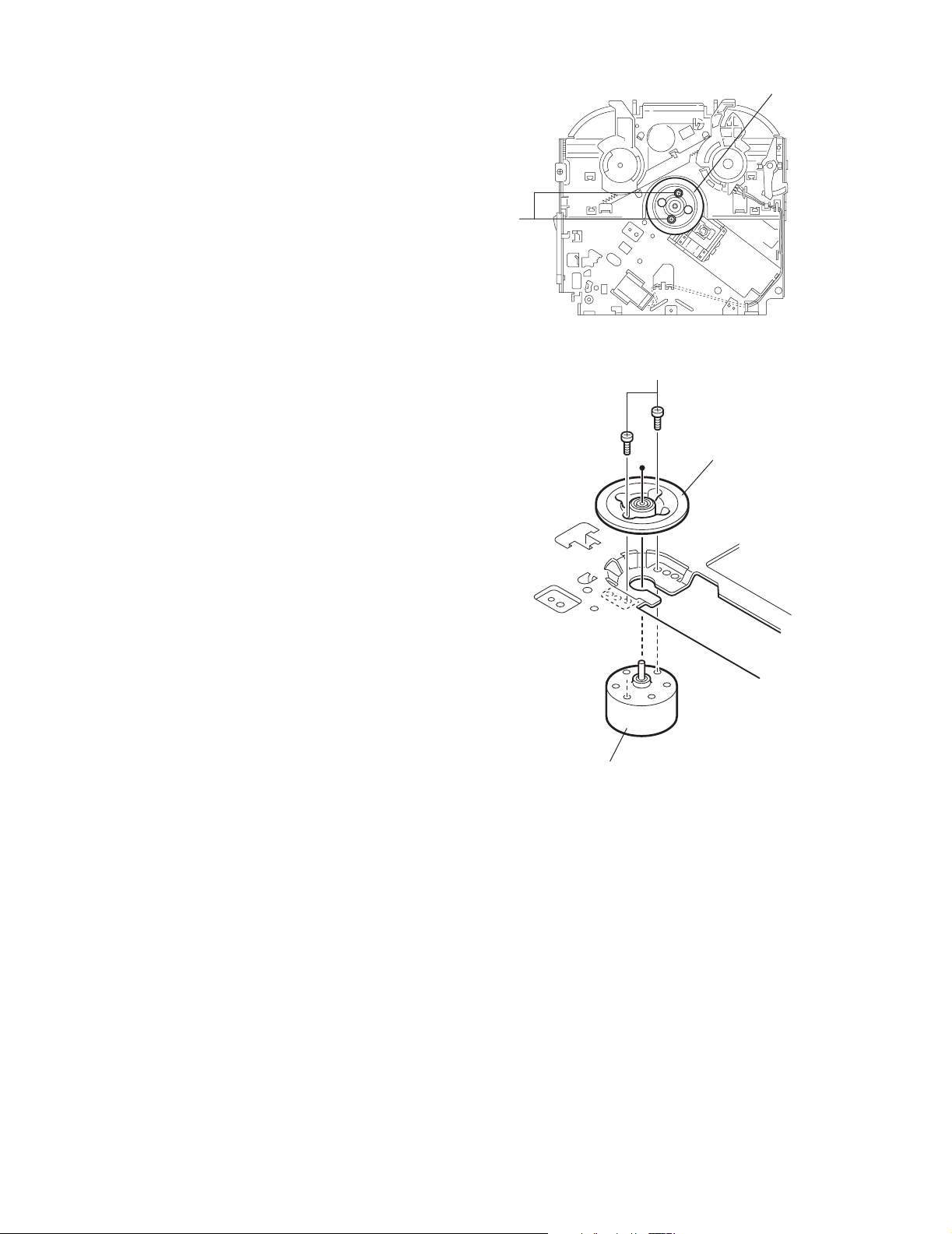

2.2.18 Removing the turn table / spindle motor
(See Figs.41 and 42)

• Prior to performing the following procedure, remove the top

cover, connector board, chassis unit and clamper assembly.
(1) Remove the two screws L attaching the spindle motor as-

sembly through the slot of the turn table on top of the body.

(2) Unsolder the wire on the connector board if necessary.

Turn table

L

Fig.41

L

Turn table

1-22 (No.49799)

Spindle motor

Fig.42

3.1 Adjustment method

KD-S890

SECTION 3

Adjustment

Test instruments required for adjustment

1. Digital oscilloscope (100MHz)

2. AM Standard signal generator

3. FM Standard signal generator

4. Stereo modulator

5. Electric voltmeter

6. Digital tester

7. Tracking offset meter

8. Test Disc JVC :CTS-1000

9. Extension cable for check

EXTSH002-22P 1

Standard measuring conditions
Power supply voltage DC14.4V(10.5~16V)
Load impedance 20Kohm(2 Speakers connection)
Output Level Line out 2.0V (Vol. MAX)

How to connect the extension cable for adjusting

Standard volume position
Balance and Bass &Treble volume : lndication"0"
Loudness : OFF

Frequency Band
FM 87.5MHz ~ 107.9MHz
AM 530kHz ~ 1710 kHz

Dummy load
Exclusive dummy load should be used for AM,and FM. For
FM dummy load,there is a loss of 6dB between SSG output
and antenna input.The loss of 6dB need not be considered
since direct reading of figures are applied in this working
standard.

The cardboard is cut in a suitable size.
uses for the insulation stand of mechanism.

Caution:
Be sure to attach the heat sink and rear
bracket onto the power amplifier IC301
and regulator IC901 respectively,
before supply the power.
If voltage is applied without attaching
these parts, the power amplifier IC
and regulator IC will be destroyed
by heat.

Heat sink

Extension cable

EXTSH002-22P

Rear bracket

(No.49799)1-23

KD-S890

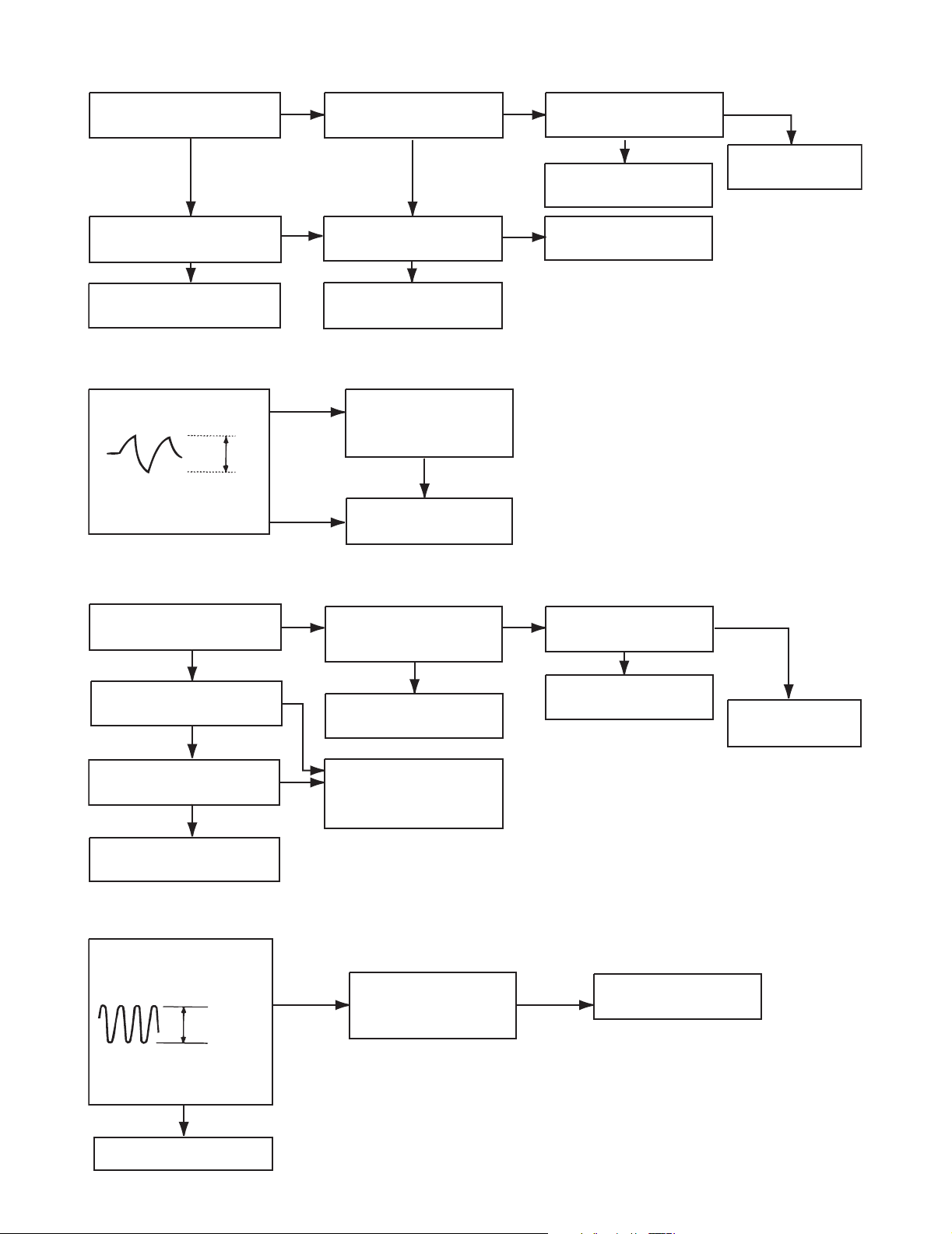

3.2 Flow of functional operation unit TOC read

When the pickup correctly moves
to the inner area of the disc

Power ON

v

Set Function CD

When the laser diode correctly

emits

Microprocessor
commands

FMO
TC94A14FA "40"

FEED MOTOR
+TERMINAL
IC501 "4"

REST SW

When correctly focused

FEO
TA2157 "15"

Focus Servo Loop ON

$83

$82

$81

3.3V
Hi-Z
0V

6V
4V
2V

OFF

ON

Pickup feed to the inner area

2.2V

RF signal eye-pattern
remains closed

Disc inserted

YES

Laser emitted

Focus search

Disc rotates

Tracking loop closed

YES

Microprocessor
commands

SEL
TC94A14FA"38"

LD
CN501"15"

"No disc"

display

When the disc correctly rotates

Microprocessor
commands

DMO
TC94A14FA "41"

$84 $86 $ A200

$84

3.3V
0V

4V

0V

3.3V

2.2V
0V

RF signal eye-pattern
opens

TOC read out

Jump to the first track

Play

Spindle
motor(-)
IC501 "7"

Acceleration Servo CLV

Tracking Servo Loop ON

RF signal

6V

3.2
2V

Rough
Servo

0.5 Sec 0.5 Sec

Rough Servo Mode

CLV Servo Mode
(Program Area)

CLV Servo Mode
(Lead-In Area;
Digital :0)

1-24 (No.49799)

3.2.1 Feed section

KD-S890

Is the voltage output at
IC541 pin "40" 5V or 0V?

YES

Is 4V present at both
sides of the feed motor?

YES

Check the feed motor.

3.2.2 Focus section

When the lens is
moving:

4V

Does the S-search
waveform appear at
IC501 pins "8" and "9"?

NO YES NO

Is the wiring for IC501
pin 27?

NO

Is 3.3V present at IC501
pin "20"?

YES

Check the vicinity of

Check CD 8V
and 5V.

IC541.

NO

Is 6V or 2V present at
IC501 "4" and "5"?

YES

Check the feed motor
connection wiring.

NO

Check IC501.

NO

Check the circuits in
the vicinity of IC501
pins "8","9"and"15".

YES

YES

Check the pickup and
its connections

3.2.3 Spindle section

Is the disk rotated?

YES

Does the RF signal
appear at RF test point?

YES

Is the RF waveform at RF
test point distorted?

YES

Proceed to the Tracking
section

3.2.4 Tracking section

When the disc is rotated
at first:

Approx. 1.2V

NO

NO

Is 4V present at IC501
pins "6" and "7"?

YES

Check the spindle motor
and its wiring

NO

Check the circuits in the
vicinity of IC501 "19"~

NO

"24" or the pickup

YES YES

Check the circuit in the
vicinity of IC501 pins
"2"~"12".

Is 4V present at IC541
pins "41" ?

YES

Check the vicinity of
IC501.

Check the pickup and
its connections

NO

Check IC541 and
IC501.

Is the tracking error signal
output at IC501 "11"?

YES

Check IC541.

(No.49799)1-25

KD-S890

3.3 Maintenance of laser pickup

(1) Cleaning the pick up lens

Before you replace the pick up, please try to clean the lens
with a alcohol soaked cotton swab.

(2) Life of the laser diode

When the life of the laser diode has expired, the following
symptoms will appear.

• The level of RF output (EFM output:ampli tude of eye
pattern) will be low.

Is RF output

1.0

±

0.35Vp-p?

NO

Replace it.

YES

O.K

(3) Semi-fixed resistor on the APC PC board

The semi-fixed resistor on the APC printed circuit board
which is attached to the pickup is used to adjust the laser
power.Since this adjustment should be performed to match
the characteristics of the whole optical block, do not touch
the semi-fixed resistor. If the laser power is lower than the
specified value,the laser diode is almost worn out, and the
laser pickup should be replaced. If the semi-fixed resistor
is adjusted while the pickup is functioning normally,the la­ser pickup may be damaged due to excessive current.

3.4 Replacement of laser pickup

Turn off the power switch and,disconnect the power cord

from the ac outlet.

Replace the pickup with a normal one.(Refer to

"Pickup Removal" on the previous page)

Plug the power cord in,and turn the power on.

At this time,check that the laser emits for about 3seconds

and the objective lens moves up and down.

Note: Do not observe the laser beam directly.

Play a disc.

Check the eye-pattern at RF test point.

Finish.

1-26 (No.49799)

4.1 AK4381VT-X (IC481) : D/A converter

•Pin layout

KD-S890

SECTION 4

Description of major ICs

MCLK

• Block diagram

BICK
SDTI

LRCK

PDN
CSN

CCLK

CDTI

CSN

CCLK

CDTI

LRCK

BICK

SDTI

1
2
3
4
5
6
7
8

16
15
14
13
12
11
10

9

DZFL
DZFR
VDD
VSS
AOUTL+
AOUTL­AOUTR+
AOUTR-

MCLK

VDD
VSS

DZFL

uP

Interface

De-emphasis

Control

Clock

Divider

DZFR

AOUTL+
AOUTL-

Audio

8X

Interpolator

Modulator

SCF

Data

Interface

8X

Interpolator

Modulator

SCF

AOUTR+

AOUTR-

PDN

• Pin functions

Pin No. Symbol I/O Description

1 MCLK I Master clock input terminal
2 BICK I Audio serial data clock terminal
3 SDTI I Audio serial data input terminal
4 LRCK I L/R Clock terminal
5 PDN I Power down mode terminal
6 CSN I Chip select
7 CCLK I Control data input terminal
8 CDTI I Control data input terminal

9 AOUTR- O Rch negative analog output terminal
10 AOUTR+ O Rch positive analog output terminal
11 AOUTL- O Lch negative analog output terminal
12 AOUTL+ O Lch positive analog output terminal
13 VSS - Connect to ground
14 VDD - Power supply terminal
15 DZFR O Rch data zero input detection terminal
16 DZFL O Lch data zero input detection terminal

(No.49799)1-27

KD-S890

4.2 AN80T07 (IC901) : Regulator

• Block diagram

*ASO, Peak Current Protection.
*Thermal Protection (Except
VDD, Comp output).

Outputs

MODE1

6

Reference Voltage

ACC

3

NC

5

Pre

Drive

15 11 1 4 8 9 10 7 12 2 16

14

ILM
10V

MODE2 SW5V

ILM

AJ

Out

Pre

Drive

VDD

5.7V

EXT

Out

ANT

Out

Pre

Drive

EXT Vcc ANT CD

8.0V

13

BATT.DET COMP GND

AUDIO

9.0V

• Pin function

Pin No. Symbol Function

1 SW5V Output When Mode 1 pin is "M", "H" SW output is VDD -0.7V (Io=100mA min).

2 COMP Output When ACC input pin is "H" COMP Output is VDD -0.7V (Io=100mA min).

3 ACC Input L: COMP Output OFF and H: COMP Output ON

4 VDD Output 5.7V Output voltage for a microcontroller (Io=100mA min).

5 NC NC pin

6 MODE1 3 Input "L", "M", "H" control pin

7 CD Output When Mode 1 pin is "H" CD output is 8V (Io=1200mA min).

8 EXT Output When Mode 1 pin is "M", "H" EXT output is Vcc-1.0V (Io=300mA min).

9 VCC Connected to car BACKUP Power supply.

10 ANT Output When Mode 2 pin is "H" ANT output is Vcc-1.0V (Io=300mA).

11 MODE2 L: ANT Output OFF and H: ANT Output ON

12 BATT.DET NPN Transistor open collector Output (When battery is lower then 9V "L")

13 Audio Output When Mode 1 pin is "M", "H" Audio output is 9V (Io=500mA min).

14 ILM AJ ILM (Illumination) Output adjustable pin.

15 ILM(Illumination) Output When Mode 1 pin is "M", "H" ILM output is 10V (Io=300mA min).

16 GND Connected to the IC substrate.

Pre

Drive

1-28 (No.49799)

4.3 IC-PST600M/G/-W (IC702) : System reset

T

A

Co1

4.4 NJM4565M-WE (IC581) : CD L.P.F.

OUTPUT

1

OP1

KD-S890

1

IN

3

Vout

2

GND

+

8

V

-

A INPUT

+

A INPUT

V

2

3

-

4

B OUTPU

7

B INPUT

6

5

B INPUT

-

+

(No.49799)1-29

KD-S890

4.5 LA47505 (IC301) : Power amp.

• Terminal layout

206

11

1

12

4

10

Stand by

Switch

Ripple

Filter

Protective

circuit

Mute

circuit

9

7

8

5

3

2

22

15

25

13

14

16

Muting &

On Time Control

Circuit

protective

circuit

17

19

18

21

23

24

1-30 (No.49799)

• Terminal layout

AC CONT1

GND1

OUTFR-

STBY

OUTFR+

Vcc1/2

OUTRR-

GND2

OUTRR+

VREF

INRR

INFR

SGND

INFL

INRL

ONTIME

OUTRL+

GND3

OUTRL-

Vcc3/4

OUTFL+

MUTE

OUTFL-

GND4

NC

• Pin function

Pin No. Symbol Function

1 AC CONT1 Header of IC

2 GND1 Power GND

3 OUTFR- Outpur(-) for front Rch

4 STBY Stand by input

5 OUTFR+ Output (+) for front Rch

6 Vcc1/2 Power input

7 OUTRR- Output (-) for rear Rch

8 GND2 Power GND

9 OUTRR+ Output (+) for rear Rch

10 VREF Ripple filter

11 INRR Rear Rch input

12 INFR Front Rch input

13 SGND Signal GND

14 INFL Front Lch input

15 INRL Rear Lch input

16 ONTIME Power on time control

17 OUTRL+ Output (+) for rear Lch

18 GND3 Power GND

19 OUTRL- Output (-) for rear Lch

20 Vcc3/4 Power input

21 OUTFL+ Output (+) for front

22 MUTE Muting control input

23 OUTFL- Output (-) for front

24 GND4 Power GND

25 NC No connection

KD-S890

(No.49799)1-31

KD-S890

W

4.6 LA6579H-X (IC501) : 4-Channel bridge driver

• Pin layout & Block diagram

VIN1-A

1

­+

VIN1+A

VCCP1

2

3

VIN1_SW
[H]: OP-AMP_A
[L]: OP-AMP_B

[H]

[L]

28

VIN1

27

VIN1-B

-

+

26

VIN1+B

VO+

VO-

VO2+

VO2-

FR

VO3+

VO3-

VO4+

4

5

6

7

FR

8

9

10

Power system
GND

­+

Level shift

Level shift

Level shift

Level shift

33k

11k

-

+

All outputs ON/OFF

H : ON
L : OFF

3.3VREG
(External:PTP Tr)

Signal system
power supply

MUTE

Power system GND

Signal system
power supply

+

-

25

24

23

22

FR

21

20

19

S-GND

VIN1-S

MUTE

VREFIN

FR

VCCS

3.3VREG

REGIN

VO4-

VCCP2

VIN4

VIN4G

1-32 (No.49799)

11

12

13

14

11k

33k

­+

33k

33k

18

VIN2G

11k

-

17

VIN2

+

16

VIN3G

11k

-

15

VIN3

+

• Pin function

Pin No. Symbol Function

1 VIN1-A CH1 input AMP_inverted input

2 VIN1+A CH1 input AMP_non-inverted input

3 VCCP1 CH1 and CH2 power stage power supply

4 VO1+ Output pin(+)for channel 1

5 VO1- CH1 output pin (-) for channel 1

6 VO2+ Output pin(+)for channel 2

7 VO2- Output pin(-)for channel 2

8 VO3+ Output pin(+)for channel 3

9 VO3- Output pin(-)for channel 3

10 VO4+ Output pin(+)for channel 4

11 VO4- Output pin(-)for channel 4

12 VCCP2 CH3 and CH4 power stage powr supply

13 VIN4 Input pin for channel 4

14 VIN4G Input pin for channel 4(for gain adjustment)

15 VIN3 Input pin for channel 3

16 VIN3G Input pin for channel 3(for gain adjustment)

17 VIN2 Input pin for channel 2

18 VIN2G Input pin for channel 2(for gain adjustment)

19 REGIN External PNP transistor base connection

20 3.3VREG 3.3VREG output pin external PNP transistor,collector connection

21 VCCS Signal system GND

22 VREFIN Reference voltage application pin

23 MUTE Output ON/OFF pin

24 VIN1_SW CH1 input OP AMP_changeover pin

25 S_GND Signal system GND

26 VIN1+B CH1 AMP_B non-inverted input pin

27 VIN1-B CH1 AMP_B inverted input pin

28 VIN1 CH1 input pin input OP_AMP output pin

KD-S890

(No.49799)1-33

KD-S890

T

4.7 NJU7241F25-X (IC461) : Regulator

• Pin layout

GND 1

VIN 2

VOUT 3

• Block diagram

VIN 2

STB 5

GND 1

4.8 NJU7241F33-X (IC471) : Voltage regulator

5 STB

4 NC

Short protect

3 VOU

Vref

1 GND

PIN FUNCTION

1

2

3

5

4

1. GND

IN

2. V

3. VOUT

4. +NC

5. STB

4.9 RPM7138-V4 (IC602) : Remote control receiver

LimiterAMP

I/V

BPF

Detection
crimp

Comparator

VCC

22K

OUT

R

1-34 (No.49799)

4.10 PT6523LQ (IC601) : LCD driver

•Pin layout

48 ~ 33

49

KD-S890

32

• Block diagram

64

1 ~ 16

17

COMMON

DRIVER

CLOCK

GENERATOR

ADDRESS

DETECTOR

SEGMENT DRIVER & LATCH

SHIFT REGISTER

• Piin function

Pin No. Pin Name I/O Description

1~ 52 SG1 ~ SG52 O Segment Output Pins

53~55 COM1 ~ COM3 O Common Driver Output Pins

56 VDD - Power Supply

57 INH

I Display OFF Control Input Pin

When this pin is "Low", the Display is forcibly turned OFF. (SG1 to SG52, COM1 to COM3 are
set to "LOW"). (See Note 1)
When this pin is set to "High", the Displa is ON.

58 VDD1 I Used for the 2/3 Bias Voltage when the Bias Voltages are provied externally. Connect to VDD2

when 1/2 Bias is used.

59 VDD2 I Used for 1/3 Bias Voltage when the Bias Voltages are provided externally. Connect to VDD1

when 1/2 Bias is used.

60 VSS - Ground Pin.

61 OSC I/O Oscillation Input /Outout Pin

62 CE I Chip Enable Pin

63 CLK I Synchronization Clock

64 DI I Transfer Data Pin

Note 1:

When INH

= "LOW" : Serial data trensfers can be performed when the display is forcibly OFF.

(No.49799)1-35

KD-S890

4.11 TA2157FN-X (IC521) : RF amp

• Terminal layout

24 ~ 13

1 ~ 12

• Block diagram

13

14

15

16

17

18

19

20

21

10pF

40k30k

20k 20k

20k

20k

15k

50 A

12k

12k

BOTTOM

PEAK

20k

20k

20k

PEAK

1.3V

40k

240k

15pF

240k

15pF

40k

50k

2k

20k

50k

14k

K

1

15k

x0.5
x2

x0.5
x2

1k

2k

1.75k

10pF

12

11

10

9

8

7

6

5

4

PIN

VCTRLPIN

1-36 (No.49799)

180k

40pF

22

23

24

SEL

(APC SW)

180k

40pF

3k

3k

TEB

(TE BAL)

60k

60k

(AGC Gian)

94k

RFGC

VCC APC ON -50% +12dB

HiZ APC ON 0% +6dB

GND

APC OFF

(LDO=H)

50% 0dB

94k

22k

22k

3

2

1

TEB

(TE BAL)

Normal mode

(0dB)

Normal mode

(0dB)

CD-RW mode

(+12dB)

• Pin function

Pin No. Symbol I/O Function

1 VCC - 3.3V power supply pin

2 FNI I Main-beam amp input pin

3 FPI I Main-beam amp input pin

4 TPI I Sub-beam amp input pin

5 TNI I Sub-beam amp input pin

6 MDI I Monitor photo diode amp input pin

7 LDO O Laser diode amp output pin

8 SEL I APC circuit ON/OFF control signal, laser diode (LDO) control signal input

or bottom/peak detection frequency change pin.

KD-S890

SEL

GND

Hiz

VCC

9 TEB I Tracking error balance adjustment signal input pin

Adjusts TE signal balance by eliminating carrier component from PWM signal (3-state output,

PWM carrier = 88.2kHz) output from TC94A14F/FA
TEBC pin using RC-LPF and inputting DC.

TEBC input voltage:GND~VCC

10 TEN I Tracking error signal generation amp negative-phase input pin

11 TEO O Tracking error signal generation amp output pin.

Combining TEO signal RFRP signal with TC94A14F/FA configures tracking search system.

12 RFDC O RF signal peak detection output pin

13 GVSW I AGC/FE/TE amp gain change pin

APC
circuit

LDO

OFF Connected VCC through 1k resistor

ON

Control signal output

ON Control signal output

GVSW Mode

GND

Hiz

CD-RW

Normal

VCC

14 VRO O Reference voltage (VRO) output pin

*VRO=1/2VCC When VCC=3.3V

15 FEO O Focus error signal generation amp output pin

16 FEN I Focus error signal generation amp negative-phase input pin

17 RFRP O Signal amp output pin for track count

Combining RFRP signal and TEO signal with TC94A14F/FA configures tracking search system.

18
19
20

21 AGCIN I RF signal amplitude adjustment amp input pin

22 RFO O RF signal generation amp output pin

23 RFI I RF signal generation amp input pin

24 GND - GND pin

REIS
RFGO
RFGC

I

OIRF signal amplitude adjustment amp output pin

RF amplitude adjustment control signal input pin

Adjusts RF signal amplitude by eliminating carrier component from PWM signal (3-state output,
PWM carrier=88.2kHz)output fromTC94A14F/14FA *RFGC pin using RC-LPF and inputting DC.

*RFGC input voltage:GND~VCC

(No.49799)1-37

KD-S890

4.12 TC94A14FA (IC541) : DSP & DAC

• Terminal layout & block daiagram

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

48 47 46 45 44 43 42 41 40 39

Clock

generator

PWM

LPF

1-bit

DAC

Address

circuit

circuit

Correction

16 k

RAM

Servo
control

ROM

RAM

CLV servo

Synchronous

guarantee

EFM

decoder

Audio out

circuit

Micro-

controller

interface

Digital
output

Sub code

decoder

38 37 36 35 34 33

D/A

A/D

Digital equalizer

automatic

adjustment circuit

Data

slicer

VCO

PLL

TMAX

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

64

17

161514131211101 2 3 4 5 6 7 8 9

• Pin function

Pin

Symbol I/O Descroption

No

1 BCK O Bit clock output pin.32fs48fsor 64fs selectable by command.
2 LRCK O L/R channel clock output pin."L" for L channel and "H" for R channel.

Output polarity can be inverted by command.
3 AOUT O Audio data output pin. MSB-first or LSB-first selectable by command.
4 DOUT O Digital data output pin.Outputs up to double-speed playback.
5 IPF O Correction flag output pin. When set to "H" AOUT output cannot be corrected by C2 correction processing.
6V

DD3

7V

SS3

- Digital 3.3V power supply voltage pin.

- Digital GND pin.
8 SBOK O Subcode Q data CRCC result output pin. "H" level when result is OK.
9 CLCK O Subcode P-W data read I/O pin. I/O polarity selectable by command.

10 DATA O Subcode P-W data output pin.
11 SFSY O Playback frame sync signal output pin.
12 SBSY O Subcode block sync signal output pin. "H" level at S1 when subcode sync is detected.
13 HSO
14 UHSO
15 PV

I/O General-purpose input / output pins.Input port at reset.

- PLL-only 3.3V power supply voltage pin.

DD3

16 PDO O EFM and PLCK phase difference signal output pin.

1-38 (No.49799)

Pin

Symbol I/O Descroption

No
17 TMAX O TMAX detection result output pin.

KD-S890

TMAX Detection Result
Longer than fixed period

Within fixed period
Shorter than fixed period

TMAX Output

DD3"

"PV
"HiZ"
"AV

SS3"

18 LPFN I Inverted input pin for PLL LPF amp.
19 LPFO O Output pin for PLL LPF amp.
20 PVREF - PLL-only VREF pin.
21 VCOF O VCO filter pin.
22 AV

SS3

- Analog GND pin.
23 SLCO O DAC output pin for data slice level generation.
24 RFI I RF signal input pin. Zin selectable by command.
25 AV

DD3

- Analog 3.3V power supply voltage pin.
26 RFCT I RFRP signal center level input pin.
27 RFZI I RFRP signal zero-cross input pin.
28 RFRP I RF ripple signal input pin.
29 FEI I Focus error signal input pin.
30 SBAD I Sub-beam adder signal input pin.
31 TEI I Tracking error input pin. Inputs when tracking servo is on.
32 TEZI I Tracking error signal zero-cross input pin.
33 FOO O Focus equalizer output pin.
34 TRO O Tracking equalizer output pin.
35 VREF - Analog reference power supply voltage pin.
36 RFGC O RF amplitude adjustment control signal output pin.
37 TEBC O Tracking balance control signal output pin.
38 SEL O APC circuit ON/OFF signal output pin. At laser on, high impedance with UHS="L",

H output with UHS="H".

39 AV

DD3

- Analog 3.3V power supply voltage pin.
40 FMO O Feed equalizer output pin.
41 DMO O Disc equalizer output pin.
42 V
43 V

SS3

DD3

- Digital GND pin.

- Digital 3.3V power supply voltage pin.
44 TESIN I Test input pin. Normally, fixed to "L".
45 XV

SS3

- System clock oscillator GND pin.
46 XI I System clock oscillator input pin.
47 XO O System clock oscillator output pin.
48 XV
49 DV

DD3

SS3

- System clock oscillator 3.3V power supply voltage pin.

R - DA converter GND pin.
50 RO O R-channel data forward output pin.
51 DV

DD3

- DA converter 3.3V power supply pin.
52 DVR - Reference voltage pin.
53 LO O L-channel data forward output pin.
54 DV

L - DA converter GND pin.

SS3

55 ZDET O 1 bit DA converter zero detection flag output pin.
56 V

SS5

- Microcontroller interface GND pin.
57 BUS0
58 BUS1

I/O Microcontroller interface data I/O pins.59 BUS2
60 BUS3
61 BUCK I Microcontroller interface clock input pin.
62 /CCE I Microcontroller interface chip enable signal input pin.At "L", BUS0 to BUS3 are active.
63 /RST I Reset signal input pin. At reset, "L".
64 V

DD5

- Microcontroller interface 5V power supply pin.

(No.49799)1-39

KD-S890

4.13 TEA6320T-X (IC161) : E.volume

• Pin layout

SDA

1

GND

TL
B2L
B1L

IVL

ILL

QSL

IDL

MUTE

ICL

IMD

IBL
IAL

2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

OUTLR

OUTLF

• Block diagram

SCL

32

VCC

31

OUTRR

30

OUTRF

29

TR

28

B2R

27

B1R

26

IVR

25

ILR

24

QSR

23

IDR

22

Vref

21

ICR

TAPE

20
19
18
17

CAP
IBR
IAR

CD-CH

TUNER

10 8 9 7 6

5

12

21
31

2

19

POWER

SUPPLY

VOLUME 1

+20 to -31 dB

LOUDNESS

LEFT

16
15
13

11

14

22
20

SOURCE

SELECTOR

VOLUME 1

+20 to -31 dB

LOUDNESS

RIGHT

18
17

23 25 24 26 27 28

• Pin functions

Pin

No.

Symbol I/O Functions

1 SDA I/O Serial data input/output.
2 GND - Ground.
3 OUTLR O output left rear.
4 OUTLF O output left front.
5 TL I Treble control capacitor left channel

or input from an external equalizer.

6 B2L - Bass control capacitor left channel or

output to an external equalizer.
7 B1L - Bass control capacitor left channel.
8 IVL I Input volume 1. left control part.
9 ILL I Input loudness. left control part.

10 QSL O Output source selector. left channel.
11 IDL - Not used
12 MUTE - Not used
13 ICL I Input C left source.
14 IMO - Not used
15 IBL I Input B left source.
16 IAL I Input A left source.

BASS
LEFT

+15 dB

LOGIC

BASS
RIGHT
+15 dB

VOLUME 2

0 to 55 dB
BALANCE

FENDER REAR

VOLUME 2

0 to 55 dB
BALANCE

FENDER FRONT

HC BUS

REC

3

4

32

TREBLE

LEFT

+12 dB

MUTE

FUNCTION

ZERO CROSS

DETECTOR

1

VOLUME 2

TREBLE

RIGHT
+12 dB

Pin

No.

Symbol I/O Functions

0 to -55dB
BALANCE

FENDER FRONT

VOLUME 2

0 to -55dB
BALANCE

FENDER REAR

29

30

17 IAR I Input A right source.
18 IBR I Input B right source.
19 CAP - Electronic filtering for supply.
20 ICR I Input C right source.
21 Vref - Reference voltage (0.5Vcc)
22 IDR - Not used
23 QSR O Output source selector right channel.
24 ILR I Input loudness right channel.
25 IVR I Input volume 1. right control part.
26 B1R - Bass control capacitor right channel
27 B2R O Bass control capacitor right channel

or output to an external equalizer.

28 TR I Treble control capacitor right channel

or input from an external equalizer.
29 OUTRF O Output right front.
30 OUTRR O Output right rear.
31 Vcc - Supply voltage.
32 SCL I Serial clock input.

1-40 (No.49799)

4.14 TB2118F-X (IC31) : PLL

• Terminal Layout

2423222120191817161514

KD-S890

13

• Block diagram

FM VCO

AMVCO

DIN

CK

DOUT

123456789

osc

XO

XI

IFC

CE

2

1

24

15

16

13

3

4

5

6

Buff.

ON/OFF

OSC circuit

AMP

AMP

AMP

Serial

Interface

101112

Prescaler

Reference Counter

4-bit

Swallow counter

Programmable counter

20-bit BINARY COUNTER

Resistor 1
Resistor 2

I/O PORT

22-bit

OUTPUT PORT

Phase

Comparator

12-bit

40bit shift register

Constant

power supply voltage

switch

Vdd

switch

Vcc

AM CP.

20

­+

+

-

RF

22

19

Vt

18

FM cp

7

SL

8

9

I/O -2I/O -1

10 11

12

out-2out-1

vdd2

14

17

21

23

a-gnd

vccd-gndvdd

• Pin Function
Pin

Symbol I/O Function

No.

Pin

Symbol I/O Function

No.

1 XOUT O Crystal oscillator pin 13 IFC I IF signal input

2 OSC - Non connect 14 VDD - Power pins for digital block

3 CE I Chip enable input 15 FMIN I FM band local signal input

4 DI I Serial data input 16 AMIN I AM band local signal input

5 CK I Clock input 17 DGND - Connect to GND (for digital circuit)

6 DOUT O Serial data output 18 FMCP O Charge pump output for FM

7 SR O Register control pin 19 Vt - Tuning voltage biased to 2.5V.

8 I/01 I/O I/O ports 20 AMCP O Charge pump output for AM

9 I/02 I/O I/O ports 21 VCC - Power pins for analog block

10 OUT1 - Non connect 22 RF I Ripple filter connecting pin

11 OUT2 - Non connect 23 AGND - Connect to GND (for analog circuit)

12 VDD2 - Single power supply for REF. frequency block 24 XIN I Crystal oscillator pin

(No.49799)1-41

KD-S890

4.15 UPD784215AGC214 (IC701) : CPU

• Pin layout

75 ~ 51

76 ~ 100

50 ~ 26

1 ~ 25

• Pin function

Pin No Symbol I/O Function

1 (CDRESET) - CD reset signal

2 (CDMUTE) - CD mute signal

3 SW2 I CD mecha switch 2

4 PSW I Power switch

5 LM0 O Loading/Eject motor control (Loading side)

6 MOTORSEL O Loading/Eject motor control (Eject side)

7 NC - Non connect

8 ANTCTRL O Antenna remote control

9 VDD - Micon power supply

10 X2 - Not use

11 X1 - Not use

12 VSS - Connect to GND

13 XT2 - Not use

14 XT1 - Not use

15 RESET I Reset detection

16 SW1 I CD mecha switch 1

17 BUSINT I J-BUS interruption

18 PS2 I Power save 2

19~21 NC - Non connect

22 REMCON I Remocon signal input

23 AVDD - A/D converter power supply

24 AVREF0 - A/D converter reference voltage

25 VOL1 I Volume encoder pulse input 1

26 VOL2 I Volume encoder pulse input 2

27 KEY0 I Key input 0

28 KEY1 I Key input 1

29 KEY2 I Key input 2

30 LEVEL I Level meter input

31 NC - Non connect

32 SM I S.METER input

33 AVSS - Connect to GND

34,35 NC - Non connect

36 AVREF - Reference voltage

37 BUSSI I J-BUS serial data input

38 BUSSO O J-BUS serial data output

39 BUSSCK I/O J-BUS serial clock input/output

40 BUSI/O O J-BUS serial I/O selection output

41 LCDDA O Data output for LCD driver

42 LCDCK O Clock output for LCD driver

43 LCDCE O Chip enable for LCD driver

1-42 (No.49799)

Pin No Symbol I/O Function

44~48 NC - Non connect

49 CSN O Chip select output for DAC

50 CCLK O Clock output for DAC

51 CDTI O Control data output for DAC

52 PDN O Power down signal output for DAC

53 SD/ST I Station detection/Stereo signal detection

54 MP3CLK O Clock output for MP3 decoder

55 MONO O Monoral signal selection output

56 MP3DIN I Data input for MP3 decoder

57 MP3DOUT O Data output for MP3 decoder

58 MP3STBY O Standby signal output for MP3 decoder

59 MP3RESET O Reset signal output for MP3 decoder

60 MP3REQ I Request signal input from MP3 decoder

61 DETACH I Detach detect input

62 NC - Non connect

63 SEEK/STOP O Auto seek and Stop selecting output

64 IFCCONT O IFC control signal output

65 FM/AM O FM/AM band select output

66 PLLCE O Chip enable output for PLL

67 PLLDA O Data output for PLL

68 PLLCLK O Clock output for PLL

69 PLLDI I Data input from PLL

70 (TELMUTE) I Telephone muting detection input

71 NC - Non connect

72 VSS - Connect to GND

73 VSDIMIN I Dimmer detection input

74 PS1 I Power save 1

75 POWER O Power ON/OFF control output

76 CDON O CD power supply control output

77 MUTE O Muting output

78 DIMOUT O Dimmer output

79~80 NC - Non connect

81 VDD - Micon power supply

82 NC - Non connect

83 VOLDA O Data output for E.volume

84 VOLCLK O Clock output for E.vol

85~89 NC - Non connect

90 STAGE I Version select

91 BUCK O Clock output for CD LSI

92 CCE O Chip enable output for CD LSI

93 RST O Reset output for CD LSI

94 TEST - For writing flash memory

95 BUS0 I/O Data input/output 0 for CD LSI

96 BUS1 I/O Data input/output 1 for CD LSI

97 BUS2 I/O Data input/output 2 for CD LSI

98 BUS3 I/O Data input/output 3 for CD LSI

99 NC - Non connect

100 CDRW O RF gain control

KD-S890

(No.49799)1-43

KD-S890

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

(No.49799)

Printed in Japan

200303WPC

PARTS LIST

[ KD-S890 ]

* All printed circuit boards and its assemblies are not available as service parts.

Area suffix

KD-S890

J -------------- Northern America

- Contents -

Exploded view of general assembly and parts list (Block No.M1)
CD mechanism assembly and parts list (Block No.MB)
Electrical parts list (Block No.01~02)

Packing materials and accessories parts list (Block No.M3,M5)

3- 2
3- 5
3- 8
3-14

3-1

KD-S890

Main board

Front

board

LCD1

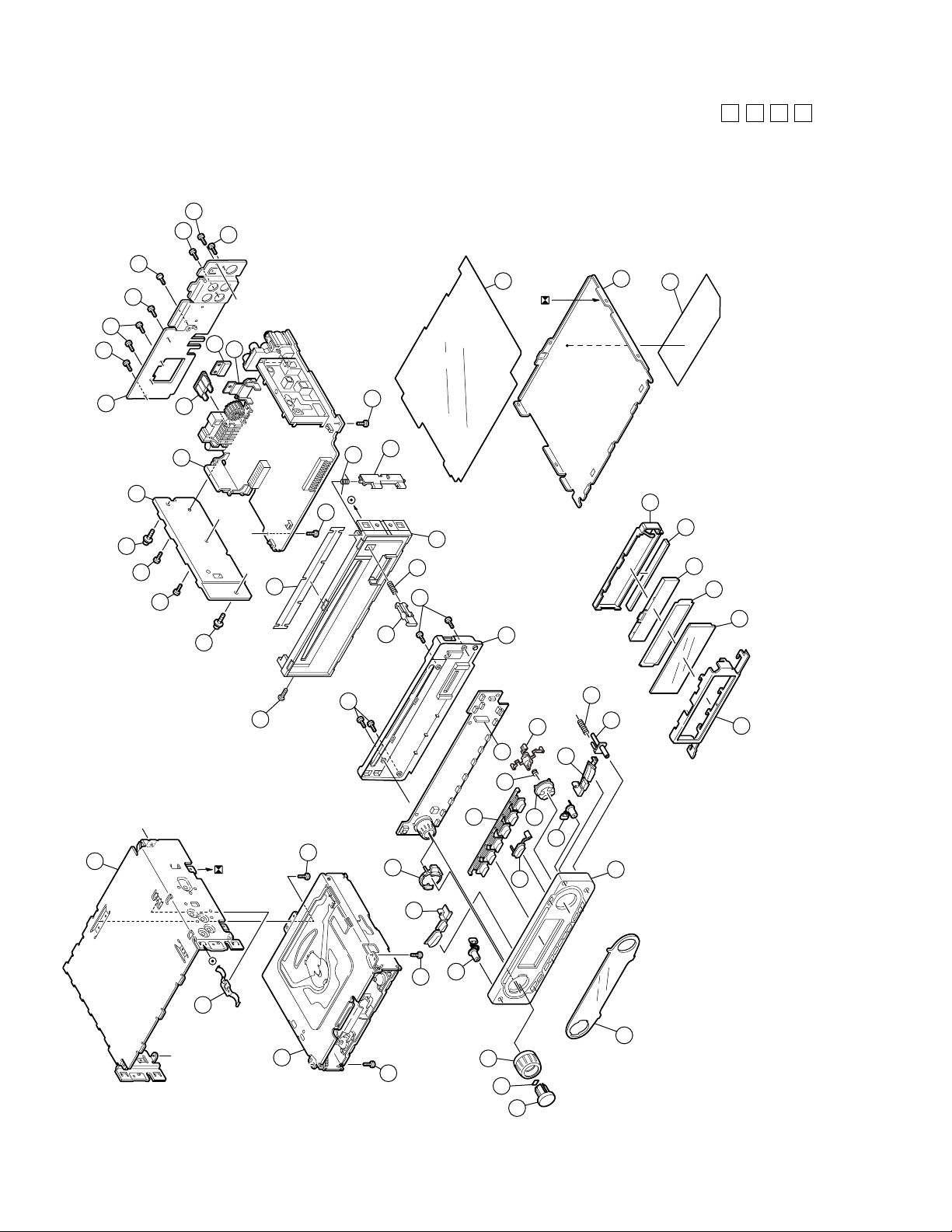

Exploded view of general assembly and parts list

9

49

47

Block No.

M

M

1

M

46

9

48

9

45

3

7

44

50

10

10

A

52

51

8

13

14

Main board

8

B

17

7

12

16

36

15

36

11

Front

board

5

53

35

31

27

32

29

28

4

39

41

43

38

40

LCD1

42

37

3-2

A

2

54

B

6

24

25

6

1

6

26

20

21

23

22

33

30

34

18

19

KD-S890

Parts list (General assembly)

Item

A

1 ---------------------

2 GE10043-210A

3 GE30568-006A

4 GE30393-002A

5 FSMA3004-203

6 QYSDST2604Z

7 FSKZ4005-001

8 QYSDST2606Z

9 QYSDST2604Z

10 QYSDST2612Z

11 GE10056-001A

12 QYSDST2004M

13 GE30583-001A

14 FSKW4005-003

15 FSKW3002-015

16 FSXP3026-002

17 GE40140-001A

18 GE10057-001A

19 GE30802-001A

20 GE30105-002B

21 GE30815-002A

22 GE30816-002A

23 FSYH4036-053

24 GE30817-002A

25 GE30811-002A

26 GE20143-001A

27 GE30814-007A

28 GE30807-001A

29 FSKW3002-012

30 GE30818-001A

31 GE30819-001A

32 GE40127-002A

33 GE30813-001A

34 GE30803-001A

35 GE10058-001A

36 VKZ4777-001

37 GE30804-002A

38 GE30805-001A

39 GE30806-001A

40 GE40150-005A

41 GE30717-001A

42 QLD0256-001

43 QNZ0442-001

44 QMFZ047-150-T

45 GE30382-019A

46 QYSDST2606Z

47 QYSDST2606Z

48 QYSDSF2606Z

Parts number Parts name Area

Q'ty

CD MECHA

TOP CHASSIS

HEAT SINK

BOTTOM COVER

INSULATOR

SCREW 3

SCREW 2

SCREW 2

SCREW

SCREW

FRONT CHASSIS 1

SCREW 1

LOCK LEVER 1

TORSION SPRING 1

COMP.SPRING 1

RLS KNOB 1

BLIND 1

FRONT PANEL 1

FINDER ASSY 1

POWER BUTTON 1

KNOB 1

SEL BUTTON 1

SHEET 1

RIM LENS 1

PUSH BUTTON (L) 1

PRESET BUTTON 1

D FUNC BTN (D) 1

DETACH BUTTON 1

COMP. SPRING 1

NAVIGATION BTN 1

NAVIGATION BASE 1

COMP.SPRING 1

D FUNC BTN (U)

EJECT BUTTON 1

REAR COVER 1

MINI SCREW

LCD CASE 1

LCD LENS 1

LENS CASE 1

LIGHTING SHEET 1

NAME PLATE 1

LCD MODULE 1

LCD CONNECTOR

FUSE

REAR BRACKET 1

SCREW

SCREW 1

SCREW 2

Description

1

1

1

1

1

CHASIS+CD MECHA

CHASIS+HEAT SIN

CHASSIS+MAIN PW

3

CHASSIS+REAR BK

2

HEAT SINK+IC BK

FOR LOCK LEVER

DETACH BUTTON

1

4

1

1

1

REAR BKT+REG BK

REAR BKT+ANT JA

REAR BKT+16P CO

Block No. M1MM

3-3

KD-S890

Parts list (General assembly)

Item

A

49 QYSDSF2606Z

50 GE40136-001A

51 GE40103-002A

52 GE40107-002A

53 GE30854-001A

54 GE40135-001A

Parts number Parts name Area

SCREW

IC BRACKET

REG BRACKET

HEAT SINK

LED HOLDER

EARTH PLATE

Q'ty

1

REAR BKT+PIN JA

1

1

1

1

1

Block No. M1MM

Description

3-4

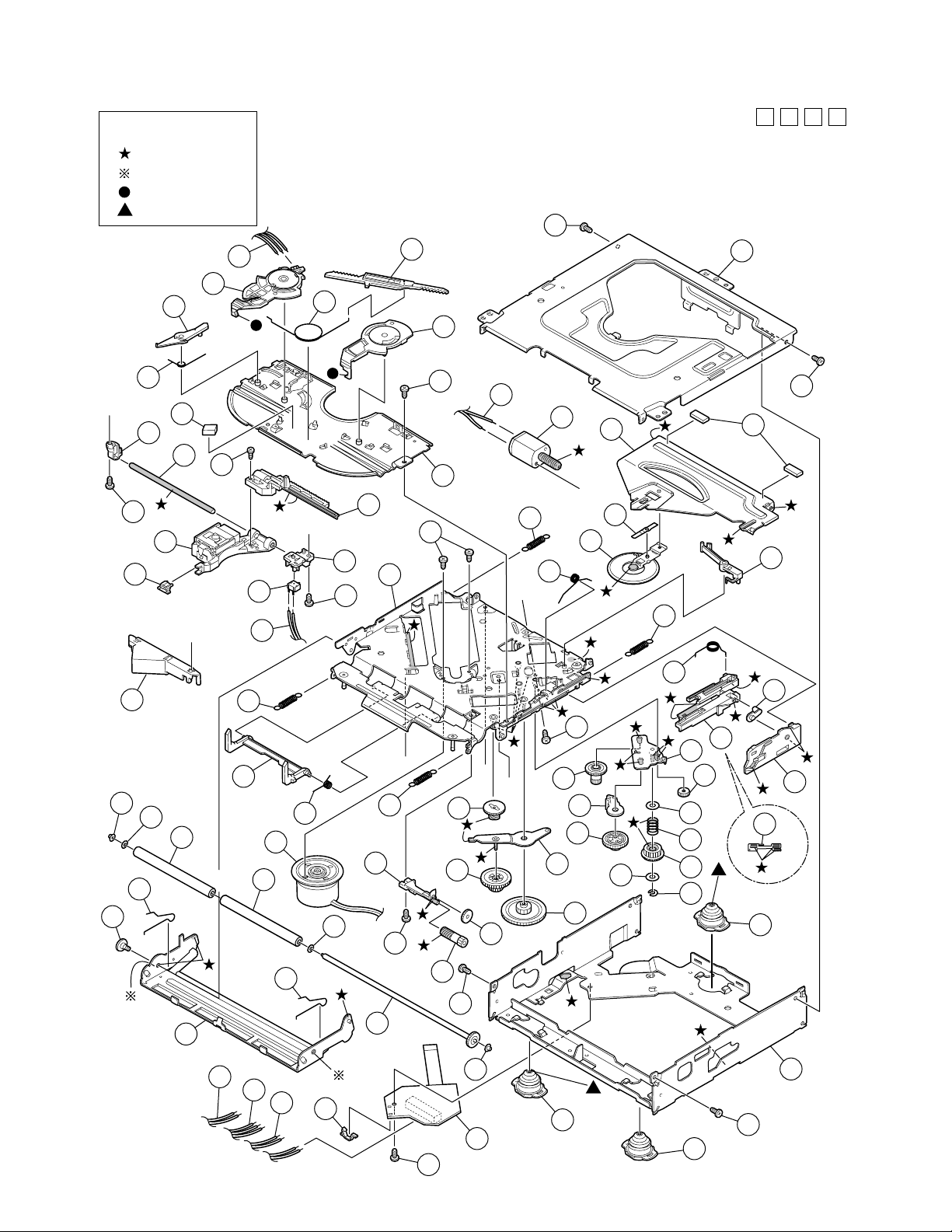

CD mechanism assembly and parts list

KD-S890

Grease

TNG-87
GP-501MK
CFD-005Z
GP-501A

31

C

22

112

24

61

26

36

29

Block No.

M

M

B

M

TN-2001-1011

111

74

72

35

116

34

33

111

25

73

85

15

A

19

B

21

62

D

75

112

114

11

38

30

A

23

13

32

2

111

37

27

101

93

76

94

122

100

84

73

95

38

74

100

a

14

75

94

96

77

123

97

81

32

a

113

99

28

115

D

111

91

90

89

111

93

71

C

B

92

82

18

20

87

125

88

3

12

121

16

17

124

83

86

111

3

98

83

4

1

3-5

KD-S890

Parts list (CD mechanism)

Item

A

1 30320101T

2 30320102T

3 30320115T

4 30320116T

11 303205505T

12 303205503T

13 303205301T

14 303205302T

15 30320502T

16 30320503T

17 30320505T

18 30320506T

19 30320507T

20 30320509T

21 30320510T

22 30320511T

23 30320513T

24 30320514T

25 30320518T

26 30320519T

27 30320520T

28 30320521T

29 30320522T

30 30320525T

31 30320526T

32 30320538T

33 30320529T

34 30320530T

35 30320531T

36 30320523T

37 30320524T

38 30320539T

61 69011614T

62 64180406T

71 303210301T

72 30321002T

73 30321003T

74 30321005T

75 30321009T

76 30321011T

77 19501403T

81 303211301T

82 303211501T

83 303211302T

84 303211502T

85 303211303T

86 30321101T

87 30321102T

Parts number Parts name Area

Q'ty

FRAME

TOP COVER

DANPER F

DANPER R

CHASSIS RIVET

CHANGE P. RVT A

CLAMPER ASS'Y 1

SPINDLE MOTOR A 1

CLAMPER ARM 1

CHANGE GEAR SPG 1

CHANGE GEAR 2 1

FEED GEAR 1

FEED RACK

CHANGE LOCK RAR 1

FEED SW HOLDER 1

PU SHAFT HOLDER 1

CLAMPER SUB SPG 1

FD SUB HOLDER 1

TOP PLATE 1

SELECT LOCK ARM 1

TRIGGER ARM 1

SLIDE HOOK 1

PU SHAFT 1

CLAMPER ARM SPG 1

SELECT L ARM SP

SUSPENSION SP R 1

SELECT ARM R 1

LINK PLATE 1

LINK PLATE SPG

CUSHION F

CUSHION R 2

SUSPENSION SP L

PICKUP OPT-725

DET SW ESE22 1

CONN PWB ASS'Y 1

MODE SW

LOAD MOTOR WIRE 1

MODE SW WIRE 1

SL WIRE

WIRE HOLDER 1

WIRE CLAMPER

ROLLER SHAFT AS

L GEAR PLATE RV

LOADING PLATE A 1

LOCK ARM RV ASS 1

L/F MOTOR ASS'Y

LOADING GEAR 1 1

LOADING GEAR 2 1

Description

1

1

2

1

1

1

MDN-3BL3LSBS

1

1

1

1

2

1

ESE22MH56

1

MMS000690ZMB0

1

1

1

1

1

FF030PK-10180

Block No. MBMM

3-6

KD-S890

Parts list (CD mechanism)

Item

A

88 30321103T

89 30321104T

90 30321105T

91 30321106T

92 30321107T

93 30321111T

94 30321114T

95 30321116T

96 30321117T

97 30321118T

98 30321125T

99 30321131T

100 30321133T

101 18211223T

111 9P0420031T

112 9P0420041T

113 9B0320041T

114 9C0117183T

115 9C0120203T

116 9C0317503T

121 9W0130170T

122 9W0513060T

123 9W0710070T

124 9E0100152T

125 9W0113020T

Parts number Parts name Area

Q'ty

LOADING GEAR 3

LOADING GEAR 4

LOADING GEAR 5 1

LOADING GEAR 6

LOADING GEAR 7

ROLLER GUIDE 2

ROLLER GUIDE SP 2

DISC STOPPER AR

DISC ST ARM SPG 1

LD GEAR BRACKET 1

L SIDE PLATE 1

LOAD PLATE SPG 1

LDG ROLLER

COLLAR SCREW

SCREW M2X3

SCREW(M2 X 4) 2

SCREW(M2 X 4) 1

SCREW

SCREW 1

SCREW 1

PW 3.5X8X0.3 1

HL WASHER 1

L WASHER 1

E RING 1

PW 2.1X4X0.13

1

1

1

1

1

2

1

6

TAP 2X3

TAP 2X4

BIND 2X4

2

SCR M1.7X1.8

SCR M2X2

T SCR M1.7X5

HLW1.85X5X0.13

LW3.1X6X0.1

S 1.5

1

Block No. MBMM

Description

3-7

KD-S890

Electrical parts list (Main board)

Item

A

C 1 QEKJ1CM-226Z E CAPACITOR

C 2 NCB31EK-473X C CAPACITOR

C 3 NCB31EK-103X C CAPACITOR

C 4 QEKJ1AM-227Z E CAPACITOR

C 5 QERF1HM-1 05Z E CAPACITOR

C 6 NCB31HK- 103X C CAPACITOR

C 9 NCB31HK- 391X C CAPACITOR

C 31 QEKJ1AM-107Z E CAPACITOR

C 32 NDC31HJ-470X C CAPACITOR

C 33 QEKJ0JM-476Z E CAPACITOR

C 34 NCB31EK-473X C CAPACITOR

C 35 NDC31HJ-100X C CAPACITOR

C 36 NDC31HJ-7R0X C CAPACITOR

C 37 NDC31HJ-100X C CAPACITOR

C 38 NCB31HK-102X C CAPACITOR

C 39 NCB31HK-102X C CAPACITOR

C 40 QEKJ1CM-106Z E CAPACITOR

C 41 NCB31EK-473X C CAPACITOR

C 42 NCB31HK-103X C CAPACITOR

C 43 QFV61HJ-473Z MF CAPACITOR

C 44 NCB31HK-103X C CAPACITOR

C 45 NCB31HK-272X C CAPACITOR

C 46 NCB31HK-103X C CAPACITOR

C 47 NCB31HK-103X C CAPACITOR

C 48 NCB31EK-473X C CAPACITOR

C 49 NCB31HK-102X C CAPACITOR

C 50 NCS31HJ-101X C CAPACITOR

C 51 NCS31HJ-331X C CAPACITOR

C 81 QEKJ1HM-105Z E CAPACITOR

C 84 NCB31HK-153X C CAPACITOR

C 85 NCB31HK-153X C CAPACITOR

C 91 QEKJ1HM-105Z E CAPACITOR

C 94 NCB31HK-153X C CAPACITOR

C 95 NCB31HK-153X C CAPACITOR

C 161 QEKJ1HM-105Z E CAPACITOR

C 162 QEKJ1HM-105Z E CAPACITOR

C 164 NCB31HK-822X C CAPACITOR

C 165 NCB21CK-184X C CAPACITOR

C 166 NCB21CK-224X C CAPACITOR

C 167 NCB31EK-333X C CAPACITOR

C 168 NCB31HK-562X C CAPACITOR

C 169 QEKJ1EM-475Z E CAPACITOR

C 170 QEKJ1EM-475Z E CAPACITOR

C 171 QEKJ1HM-105Z E CAPACITOR

C 172 QEKJ1HM-105Z E CAPACITOR

C 174 NCB31HK-822X C CAPACITOR

C 175 NCB21CK-184X C CAPACITOR

C 176 NCB21CK-224X C CAPACITOR

C 177 NCB31EK-333X C CAPACITOR

C 178 NCB31HK-562X C CAPACITOR

C 179 QEKJ1EM-475Z E CAPACITOR

C 180 QEKJ1EM-475Z E CAPACITOR

C 191 QEKJ1CM-476Z E CAPACITOR

C 192 QEKJ1AM-107Z E CAPACITOR

C 193 QEKJ1AM-107Z E CAPACITOR

C 194 NCB31EK-823X C CAPACITOR

C 241 QEKJ1HM-105Z E CAPACITOR

C 242 QEKJ1CM-226Z E CAPACITOR

C 243 NCB31EK-473X C CAPACITOR

C 244 QEKJ1HM-224Z E CAPACITOR

C 301 QFV61HJ-334Z MF CAPACITOR

C 302 QFV61HJ-334Z MF CAPACITOR

C 303 NCS31HJ-391X C CAPACITOR

C 304 NCS31HJ-391X C CAPACITOR

C 307 QEKJ1HM-105Z E CAPACITOR

C 308 QEKJ1HM-105Z E CAPACITOR

Parts number Parts name Area

Block No. 01

Remarks

22MF 20% 16V

220MF 20% 10V

1.0MF 20% 50V

100MF 20% 10V

47MF 20% 6.3V

10MF 20% 16V

.047MF 5% 50V

1.0MF 20% 50V

1.0MF 20% 50V

1.0MF 20% 50V

1.0MF 20% 50V

4.7MF 20% 25V

4.7MF 20% 25V

1.0MF 20% 50V

1.0MF 20% 50V

4.7MF 20% 25V

4.7MF 20% 25V

47MF 20% 16V

100MF 20% 10V

100MF 20% 10V

1.0MF 20% 50V

22MF 20% 16V

.22MF 20% 50V

.33MF 5% 50V

.33MF 5% 50V

1.0MF 20% 50V

1.0MF 20% 50V

Item

A

C 311 QFV61HJ-334Z MF CAPACITOR

C 312 QFV61HJ-334Z MF CAPACITOR

C 313 NCS31HJ-391X C CAPACITOR

C 314 NCS31HJ-391X C CAPACITOR

C 315 QEKJ1HM-225Z E CAPACITOR

C 316 QEKJ1EM-475Z E CAPACITOR

C 317 QEKJ1CM-476Z E CAPACITOR

C 318 QEKJ1CM-226Z E CAPACITOR

C 319 NCB31EK-223X C CAPACITOR

C 320 NCB31EK-223X C CAPACITOR

C 321 NCB31EK-473X C CAPACITOR

C 322 NCB31EK-104X C CAPACITOR

C 323 NCB31EK-104X C CAPACITOR

C 324 NCB31EK-104X C CAPACITOR

C 325 NCB31EK-104X C CAPACITOR

C 341 NCB31EK-473X C CAPACITOR

C 401 QEKJ1HM-105Z E CAPACITOR

C 402 NCB31HK-103X C CAPACITOR

C 403 NCB31HK-103X C CAPACITOR

C 404 NCB31HK-103X C CAPACITOR

C 406 NCB31EK-104X C CAPACITOR

C 408 NCB31HK-103X C CAPACITOR

C 409 NCB31EK-104X C CAPACITOR

C 411 QEKJ1AM-107Z E CAPACITOR

C 412 NCB31HK-103X C CAPACITOR

C 413 NCB31AK-334X C CAPACITOR

C 414 NCB31EK-273X C CAPACITOR

C 415 NCB31HK-103X C CAPACITOR

C 416 QEKJ1AM-107Z E CAPACITOR

C 417 QEKJ1AM-107Z E CAPACITOR

C 418 NCB31HK-103X C CAPACITOR

C 419 NDC31HJ-220X C CAPACITOR

C 420 NDC31HJ-220X C CAPACITOR

C 421 NCB31HK-103X C CAPACITOR

C 422 QEKJ1AM-107Z E CAPACITOR

C 427 NCB31HK-221X C CAPACITOR

C 430 NCB31HK-103X C CAPACITOR

C 440 NCB31HK-103X C CAPACITOR

C 461 NCB31EK-104X C CAPACITOR

C 462 QEKJ0JM-107Z E CAPACITOR

C 463 QEKJ0JM-107Z E CAPACITOR

C 464 NCB31EK-104X C CAPACITOR

C 471 NCB31EK-104X C CAPACITOR

C 472 NCB31HK-103X C CAPACITOR

C 473 QEKJ0JM-227Z E CAPACITOR

C 474 QEKJ0JM-227Z E CAPACITOR

C 481 QERF1AM-476Z E CAPACITOR

C 482 NCB31EK-104X C CAPACITOR

C 483 NCB31EK-104X C CAPACITOR

C 501 QERF1AM-476Z E CAPACITOR

C 502 NCB31HK-103X C CAPACITOR

C 503 QEKJ1AM-107Z E CAPACITOR

C 504 NCB31EK-473X C CAPACITOR

C 505 NCB31EK-473X C CAPACITOR

C 506 NCB31EK-473X C CAPACITOR

C 507 NCB31EK-473X C CAPACITOR

C 521 NCB31HK-103X C CAPACITOR

C 522 NCB31HK-103X C CAPACITOR

C 523 QEKJ1AM-107Z E CAPACITOR

C 524 NCB31HK-103X C CAPACITOR

C 525 QEKJ1AM-107Z E CAPACITOR

C 527 NCB31HK-682X C CAPACITOR

C 528 NCB31HK-103X C CAPACITOR

C 529 QEKJ1AM-107Z E CAPACITOR

C 530 NCB31EK-104X C CAPACITOR

C 531 NCB31EK-104X C CAPACITOR

Parts number Parts name Area

Remarks

.33MF 5% 50V

.33MF 5% 50V

2.2MF 20% 50V

4.7MF 20% 25V

47MF 20% 16V

22MF 20% 16V

1.0MF 20% 50V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

100MF 20% 6.3V

100MF 20% 6.3V

220MF 20% 6.3V

220MF 20% 6.3V

47MF 20% 10V

47MF 20% 10V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

3-8

KD-S890

Electrical parts list (Main board)

Item

A

C 532 NCS31HJ-820X C CAPACITOR

C 533 NCB31HK-103X C CAPACITOR

C 534 NDC31HJ-5R0X C CAPACITOR

C 541 QEKJ1AM-107Z E CAPACITOR

C 542 NCB31HK-103X C CAPACITOR

C 543 QEKJ1HM-105Z E CAPACITOR

C 544 QEKJ1AM-107Z E CAPACITOR

C 545 NCB31HK-103X C CAPACITOR

C 546 NDC31HJ-470X C CAPACITOR

C 547 NCB31HK-153X C CAPACITOR

C 548 NCB31HK-103X C CAPACITOR

C 549 NCB31HK-272X C CAPACITOR

C 550 NCB31HK-103X C CAPACITOR

C 551 NCB31EK-333X C CAPACITOR

C 552 NCB31EK-333X C CAPACITOR

C 553 NCB31EK-473X C CAPACITOR

C 554 NCB31EK-473X C CAPACITOR

C 555 NCB31EK-473X C CAPACITOR

C 556 NCB31HK-471X C CAPACITOR

C 557 NCB31HK-471X C CAPACITOR

C 558 NCB31EK-473X C CAPACITOR

C 559 NCB31EK-473X C CAPACITOR

C 560 NCB31HK-103X C CAPACITOR

C 561 QEKJ1AM-107Z E CAPACITOR

C 562 NCB31HK-103X C CAPACITOR

C 565 NCB31HK-103X C CAPACITOR

C 566 QEKJ1AM-107Z E CAPACITOR

C 568 NCB31EK-104X C CAPACITOR

C 569 QEKJ1AM-107Z E CAPACITOR

C 570 QEKJ1AM-107Z E CAPACITOR

C 571 NCB31HK-103X C CAPACITOR

C 572 QERF1AM-107Z E CAPACITOR

C 573 NCB31HK-103X C CAPACITOR

C 581 NCB31HK-332X C CAPACITOR

C 582 NCS31HJ-271X C CAPACITOR

C 583 NCS31HJ-271X C CAPACITOR

C 584 NCB31EK-104X C CAPACITOR

C 585 QEKJ0JM-476Z E CAPACITOR

C 588 QEKJ1EM-475Z E CAPACITOR

C 589 QEKJ1EM-475Z E CAPACITOR

C 591 NCB31HK-332X C CAPACITOR

C 592 NCS31HJ-271X C CAPACITOR

C 593 NCS31HJ-271X C CAPACITOR

C 594 NCB31EK-104X C CAPACITOR

C 595 QEKJ0JM-476Z E CAPACITOR

C 596 QEKJ1AM-107Z E CAPACITOR

C 597 NCB31HK-103X C CAPACITOR

C 598 QEKJ1EM-475Z E CAPACITOR

C 599 QEKJ1EM-475Z E CAPACITOR

C 701 NDC31HJ-220X C CAPACITOR

C 702 NDC31HJ-270X C-CAPACITOR

C 703 NDC31HJ-270X C-CAPACITOR

C 704 NDC31HJ-8R0X C CAPACITOR

C 705 NCB31EK-473X C CAPACITOR

C 706 NCB31EK-473X C CAPACITOR

C 707 NCB31EK-473X C CAPACITOR

C 708 NCB31EK-473X C CAPACITOR

C 709 NCB31HK-103X C CAPACITOR

C 710 QERF0JM-476Z E CAPACITOR

C 711 QEKJ1AM-227Z E CAPACITOR

C 712 NCB31HK-103X C CAPACITOR

C 713 NCB31EK-104X C CAPACITOR

C 716 NCB31EK-104X C CAPACITOR

C 717 NCB31EK-104X C CAPACITOR

C 718 NCB31EK-104X C CAPACITOR

C 781 QEKJ0JM-476Z E CAPACITOR

Parts number Parts name Area

Block No. 01

Remarks

100MF 20% 10V

1.0MF 20% 50V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

100MF 20% 10V

47MF 20% 6.3V

4.7MF 20% 25V

4.7MF 20% 25V

47MF 20% 6.3V

100MF 20% 10V

4.7MF 20% 25V

4.7MF 20% 25V

47MF 20% 6.3V

220MF 20% 10V

47MF 20% 6.3V

Item

A

C 782 NCB31EK-823X C CAPACITOR

C 784 QEKJ1CM-107Z E CAPACITOR

C 901 QEZ0622-338 E CAPACITOR

C 902 QEKJ1HM-225Z E CAPACITOR

C 903 QEKJ1CM-476Z E CAPACITOR

C 904 QEKJ1CM-106Z E CAPACITOR

C 905 QEKJ1CM-476Z E CAPACITOR

C 906 NCB31HK-103X C CAPACITOR

C 907 QEKJ1AM-227Z E CAPACITOR

C 908 QEKJ1AM-227Z E CAPACITOR

C 909 QEKJ1AM-227Z E CAPACITOR

C 910 QEKJ1CM-476Z E CAPACITOR

C 911 NCB31CK-104X C CAPACITOR

C 912 NCB31HK-103X C CAPACITOR

C 913 QEKJ1CM-106Z E CAPACITOR

C 914 QEKJ1CM-107Z E CAPACITOR

C 915 NCB31CK-104X C CAPACITOR

C 919 QEKJ1CM-106Z E CAPACITOR

C 920 NCB31HK-102X C CAPACITOR

C 961 NCS31HJ-101X C CAPACITOR

C 962 NCS31HJ-101X C CAPACITOR

C 963 NCS31HJ-101X C CAPACITOR

C 964 NCS31HJ-101X C CAPACITOR

C 965 NCS31HJ-101X C CAPACITOR

C 966 NCS31HJ-101X C CAPACITOR

C 967 NCS31HJ-101X C CAPACITOR

C 968 NCS31HJ-101X C CAPACITOR

C 971 NCB31EK-104X C CAPACITOR

CN501 QGB2027M4-22S CONNECTOR

CN701 VMC0334-001 CONNECTOR

CN901 QNZ0611-001 CAR CONNECTOR

D 1 1SS355-X DIODE

D 2 1SS355-X DIODE

D 4 1SS355-X DIODE

D 5 1SS355-X DIODE

D 240 1SS355-X DIODE

D 241 1SS355-X DIODE

D 242 1SS355-X DIODE

D 243 RB160M-30-X SB DIODE

D 244 UDZS5.1B-X Z DIODE

D 321 1SS355-X DIODE

D 331 1SS355-X DIODE

D 341 1SS355-X DIODE

D 351 1SS355-X DIODE

D 501 1A3G-T1 DIODE

D 701 UDZS6.2B-X SI DIODE

D 702 UDZS6.2B-X SI DIODE

D 703 UDZS6.2B-X SI DIODE

D 704 UDZS6.2B-X SI DIODE

D 705 UDZS6.2B-X SI DIODE

D 706 UDZS6.2B-X SI DIODE

D 707 UDZS6.2B-X SI DIODE

D 708 UDZS6.2B-X SI DIODE

D 709 UDZS6.2B-X SI DIODE

D 710 1SS355-X DIODE

D 712 UDZS6.2B-X SI DIODE

D 781 1SS355-X DIODE

D 782 1SS355-X DIODE

D 784 UDZS11B-X Z.DIODE

D 901 1N5401-F64 DIODE

D 902 1SS355-X DIODE

D 971 RB160M-30-X SB DIODE

D 972 RB160M-30-X SB DIODE

IC 31 TB2118F-X IC

IC161 TEA6320T-X IC

IC301 LA47505 IC

Parts number Parts name Area

Remarks

100MF 20% 16V

3300MF

2.2MF 20% 50V

47MF 20% 16V

10MF 20% 16V

47MF 20% 16V

220MF 20% 10V

220MF 20% 10V

220MF 20% 10V

47MF 20% 16V

10MF 20% 16V

100MF 20% 16V

10MF 20% 16V

3-9

KD-S890

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (Main board)

Item

A

IC401 TC94A20F-011 IC

IC461 NJU7241F25-X IC

IC471 NJU7241F33-X IC

IC481 AK4381VT-X IC

IC501 LA6579H-X IC

IC521 TA2157FN-X IC

IC541 TC94A14FA IC

IC581 NJM4565M-WE IC

IC701 UPD784215AGC214 I.C(MICRO-COMP)

IC702 IC-PST600M/G/-W I.C(M)

IC901 AN80T07 IC

J 1 QNB0100-002 ANT TERMINAL

J 321 QNN0489-001 PIN JACK

L 1 QQL244J-4R7Z INDUCTOR

L 401 NQL114K-470X INDUCTOR

L 402 NQL114K-470X INDUCTOR

L 403 NQL114K-470X INDUCTOR

L 541 NQL114K-470X INDUCTOR

L 542 NQL114K-470X INDUCTOR

L 543 NQL114K-470X INDUCTOR

L 544 NQL114K-470X INDUCTOR

L 701 NQL114M-4R7X INDUCTOR

L 901 QQR1362-001 CHOKE COIL

R 1 NRS181J-120X MG RESISTOR

R 2 NRSA63 J-473X MG RESISTOR

R 3 NRSA63 J-472X MG RESISTOR

R 4 NRSA63 J-332X MG RESISTOR

R 5 NRSA63 J-473X MG RESISTOR

R 6 NRSA63 J-473X MG RESISTOR

R 7 NRSA63 J-472X MG RESISTOR

R 9 NRSA63 J-470X MG RESISTOR

R 10 NRSA63J-103X MG RESISTOR

R 31 NRS181J-100X MG RESISTOR

R 32 NRSA63J-622X MG RESISTOR

R 33 NRSA63J-103X MG RESISTOR

R 34 NRSA63J-222X MG RESISTOR

R 35 NRSA63J-222X MG RESISTOR

R 36 NRSA63J-222X MG RESISTOR

R 37 NRSA63J-222X MG RESISTOR

R 38 NRSA63J-101X MG RESISTOR

R 39 NRSA63J-0R0X MG RESISTOR

R 40 NRSA63J-393X MG RESISTOR

Parts number Parts name Area

1 2SD601A/R/-X TRANSISTOR

2 2SD601A/R/-X TRANSISTOR

3 UN2111-X TRANSISTOR

5 2SB709A/R/-X TRANSISTOR

6 2SB624/4/-X TRANSISTOR

7 UN2211-X TRANSISTOR

10 UN2211-X TRANSISTOR

31 UN2211-X TRANSISTOR

241 2SD601A/R/-X TRANSISTOR

321 2SD1781K/QR/-X TRANSISTOR

331 2SD1781K/QR/-X TRANSISTOR

341 2SD1781K/QR/-X TRANSISTOR

351 2SD1781K/QR/-X TRANSISTOR

430 UN2211-X TRANSISTOR

440 UN2211-X TRANSISTOR

501 2SB1322/RS/-T TRANSISTOR

521 2SB1241/QR/-T TRANSISTOR

541 UN2111-X TRANSISTOR

542 UN2211-X TRANSISTOR

781 UN2111-X TRANSISTOR

782 UN2211-X TRANSISTOR

784 UN2111-X TRANSISTOR

976 UN2211-X TRANSISTOR

977 2SA1037AK/RS/-X TRANSISTOR

Block No. 01

Remarks

Item

A

R 41 NRSA63J-103X MG RESISTOR

R 42 NRS181J-100X MG RESISTOR

R 43 NRSA63J-471X MG RESISTOR

R 44 NRSA63J-221X MG RESISTOR

R 51 NRSA63J-223X MG RESISTOR

R 81 NRSA63J-222X MG RESISTOR

R 82 NRSA63J-392X MG RESISTOR

R 91 NRSA63J-222X MG RESISTOR

R 92 NRSA63J-392X MG RESISTOR

R 161 NRSA63J-224X MG RESISTOR

R 162 NRSA63J-223X MG RESISTOR

R 163 NRSA63J-222X MG RESISTOR

R 164 NRSA63J-473X MG RESISTOR

R 165 NRSA63J-473X MG RESISTOR

R 171 NRSA63J-224X MG RESISTOR

R 172 NRSA63J-223X MG RESISTOR

R 173 NRSA63J-222X MG RESISTOR

R 174 NRSA63J-473X MG RESISTOR

R 175 NRSA63J-473X MG RESISTOR

R 181 NRSA63J-271X MG RESISTOR

R 182 NRSA63J-271X MG RESISTOR

R 241 NRSA63J-473X MG RESISTOR

R 242 NRSA63J-223X MG RESISTOR

R 243 NRSA63J-184X MG RESISTOR

R 244 NRSA63J-123X MG RESISTOR

R 245 NRSA63J-470X MG RESISTOR

R 246 NRSA63J-102X MG RESISTOR

R 247 NRSA63J-823X MG RESISTOR

R 248 NRSA63J-221X MG RESISTOR

R 301 NRSA63J-273X MG RESISTOR

R 302 NRSA63J-273X MG RESISTOR

R 311 NRSA63J-273X MG RESISTOR

R 312 NRSA63J-273X MG RESISTOR

R 321 NRSA63J-222X MG RESISTOR

R 322 NRSA63J-821X MG RESISTOR

R 323 NRSA63J-101X MG RESISTOR

R 331 NRSA63J-222X MG RESISTOR

R 332 NRSA63J-821X MG RESISTOR

R 333 NRSA63J-101X MG RESISTOR

R 341 NRSA63J-222X MG RESISTOR

R 342 NRSA63J-821X MG RESISTOR

R 343 NRSA63J-101X MG RESISTOR

R 351 NRSA63J-222X MG RESISTOR

R 352 NRSA63J-821X MG RESISTOR

R 353 NRSA63J-101X MG RESISTOR

R 402 NRSA63J-470X MG RESISTOR

R 403 NRSA63J-225X MG RESISTOR

R 404 NRSA63J-103X MG RESISTOR

R 411 NRSA63J-0R0X MG RESISTOR

R 423 NRSA63J-331X MG RESISTOR

R 424 NRSA63J-331X MG RESISTOR

R 425 NRSA63J-470X MG RESISTOR

R 430 NRSA63J-102X MG RESISTOR

R 440 NRSA63J-102X MG RESISTOR

R 451 NRSA63J-223X MG RESISTOR

R 452 NRSA63J-473X MG RESISTOR

R 453 NRSA63J-221X MG RESISTOR

R 454 NRSA63J-471X MG RESISTOR

R 455 NRSA63J-221X MG RESISTOR

R 456 NRSA63J-471X MG RESISTOR

R 457 NRSA63J-221X MG RESISTOR

R 458 NRSA63J-471X MG RESISTOR

R 501 NRSA63J-333X MG RESISTOR

R 502 NRSA63J-822X MG RESISTOR

R 503 NRSA63J-472X MG RESISTOR

R 504 NRSA63J-153X MG RESISTOR

Parts number Parts name Area

Remarks

3-10

KD-S890

Electrical parts list (Main board)

Item

A

R 506 NRSA02J-822X MG RESISTOR

R 507 NRSA63J-682X MG RESISTOR

R 508 NRSA63J-302X MG RESISTOR

R 509 NRSA63J-123X MG RESISTOR

R 510 NRSA63J-822X MG RESISTOR

R 511 NRSA63J-152X MG RESISTOR

R 512 NRSA63J-152X MG RESISTOR

R 513 NRSA63J-182X MG RESISTOR

R 523 NRSA63J-823X MG RESISTOR

R 524 NRSA63J-823X MG RESISTOR

R 525 NRSA63J-334X MG RESISTOR

R 526 NRSA63J-334X MG RESISTOR

R 527 NRSA02J-220X MG RESISTOR

R 528 NRSA02J-220X MG RESISTOR

R 529 NRSA63J-823X MG RESISTOR

R 530 NRSA63J-563X MG RESISTOR

R 531 NRSA63J-103X MG RESISTOR

R 532 NRSA63J-202X MG RESISTOR

R 533 NRSA63J-102X MG RESISTOR

R 534 NRSA63J-153X MG RESISTOR

R 535 NRSA63J-101X MG RESISTOR

R 536 NRSA63J-821X MG RESISTOR

R 537 NRSA63J-0R0X MG RESISTOR

R 539 NRSA02J-151X MG RESISTOR

R 541 NRSA63J-562X MG RESISTOR

R 542 NRSA63J-473X MG RESISTOR

R 543 NRSA63J-474X MG RESISTOR

R 544 NRSA63J-103X MG RESISTOR

R 545 NRSA63J-103X MG RESISTOR

R 546 NRSA63J-0R0X MG RESISTOR

R 547 NRSA63J-0R0X MG RESISTOR

R 548 NRSA63J-0R0X MG RESISTOR

R 549 NRSA63J-101X MG RESISTOR

R 550 NRSA63J-101X MG RESISTOR

R 551 NRSA63J-101X MG RESISTOR

R 552 NRSA63J-101X MG RESISTOR

R 553 NRSA63J-105X MG RESISTOR

R 554 NRSA63J-472X MG RESISTOR

R 555 NRSA63J-472X MG RESISTOR

R 713 NRSA63J-0R0X MG RESISTOR

R 714 NRSA63J-103X MG RESISTOR

R 715 NRSA63J-0R0X MG RESISTOR

R 716 NRSA63J-0R0X MG RESISTOR

R 719 NRSA63J-0R0X MG RESISTOR

R 720 NRSA63J-122X MG RESISTOR

R 721 NRSA63J-102X MG RESISTOR

R 722 NRSA63J-103X MG RESISTOR

R 723 NRSA63J-103X MG RESISTOR

R 725 NRSA63J-103X MG RESISTOR

R 726 NRSA63J-103X MG RESISTOR

R 728 NRSA63J-103X MG RESISTOR

R 729 NRSA63J-473X MG RESISTOR

R 734 NRSA63J-222X MG RESISTOR

R 735 NRSA63J-222X MG RESISTOR

R 736 NRSA63J-222X MG RESISTOR

R 741 NRSA63J-103X MG RESISTOR

R 743 NRSA63J-103X MG RESISTOR

R 744 NRSA63J-103X MG RESISTOR

R 745 NRSA63J-103X MG RESISTOR

R 746 NRSA63J-103X MG RESISTOR

R 747 NRSA63J-472X MG RESISTOR

R 748 NRSA63J-472X MG RESISTOR

R 749 NRSA63J-472X MG RESISTOR

R 750 NRSA63J-103X MG RESISTOR

R 751 NRSA63J-103X MG RESISTOR

R 752 NRSA63J-473X MG RESISTOR

Parts number Parts name Area

Block No. 01

Remarks

Item

A

R 753 NRSA63J-473X MG RESISTOR

R 754 NRSA63J-821X MG RESISTOR

R 755 NRSA63J-106X MG RESISTOR

R 756 NRSA63J-473X MG RESISTOR

R 757 NRSA63J-222X MG RESISTOR

R 758 NRSA63J-473X MG RESISTOR

R 760 NRSA63J-473X MG RESISTOR

R 763 NRSA63J-103X MG RESISTOR

R 783 NRSA63J-822X MG RESISTOR

R 901 QRE142J-102X C RESISTOR

R 902 NRSA02J-912X MG RESISTOR

R 903 NRSA02J-472X MG RESISTOR

R 971 NRS181J-222X MG RESISTOR

R 972 NRS181J-222X MG RESISTOR

R 976 NRSA02J-273X MG RESISTOR

R 977 NRSA02J-123X MG RESISTOR

TU 1 QAU0291-001 TUNER PACK

X 31 QAX0616-001Z CRYSTAL

X 401 QAX0413-001Z CRYSTAL

X 701 QAX0617-001Z CRYSTAL

X 702 QAX0401-001 CRYSTAL

R 556 NRSA63J-472X MG RESISTOR

R 557 NRSA63J-472X MG RESISTOR

R 558 NRSA63J-103X MG RESISTOR

R 559 NRSA63J-155X MG RESISTOR

R 560 NRSA63J-221X MG RESISTOR

R 561 NRSA63J-221X MG RESISTOR

R 562 NRSA63J-221X MG RESISTOR

R 563 NRSA63J-471X MG RESISTOR

R 564 NRSA63J-471X MG RESISTOR

R 565 NRSA63J-471X MG RESISTOR

R 581 NRSA63J-822X MG RESISTOR

R 582 NRSA63J-822X MG RESISTOR

R 583 NRSA63J-822X MG RESISTOR

R 584 NRSA63J-181X MG RESISTOR

R 585 NRSA63J-181X MG RESISTOR

R 586 NRSA63J-682X MG RESISTOR

R 587 NRSA63J-102X MG RESISTOR

R 588 NRSA63J-102X MG RESISTOR

R 591 NRSA63J-822X MG RESISTOR

R 592 NRSA63J-822X MG RESISTOR

R 593 NRSA63J-822X MG RESISTOR

R 594 NRSA63J-181X MG RESISTOR

R 595 NRSA63J-181X MG RESISTOR

R 596 NRSA63J-682X MG RESISTOR

R 597 NRSA63J-102X MG RESISTOR

R 598 NRSA63J-102X MG RESISTOR

R 701 NRSA63J-473X MG RESISTOR

R 702 NRSA63J-0R0X MG RESISTOR

R 703 NRSA63J-0R0X MG RESISTOR

R 704 NRSA63J-473X MG RESISTOR

R 705 NRSA63J-473X MG RESISTOR

R 708 NRSA63J-332X MG RESISTOR

R 710 NRSA63J-0R0X MG RESISTOR

R 711 NRSA63J-0R0X MG RESISTOR

R 712 NRSA63J-0R0X MG RESISTOR

Parts number Parts name Area

Remarks

1.0K 5% 1/4W

3-11

KD-S890

Electrical parts list (Front board)

Item

A

C 601 NCB31HK-223X C CAPACITOR

C 602 NCS31HJ-681X C CAPACITOR

C 603 NBE20JM-106X TS E CAP SVB20J

C 611 NCB31HK-123X C CAPACITOR

C 612 NBE20JM-475X TS E CAPACITOR

C 613 NCB31HK-153X C CAPACITOR

C 614 NCB31HK-153X C CAPACITOR

CJ601 VMC033 5-001 CONNECTOR

D 601 SML-310VT/JK/-X LED

D 602 SML-310VT/JK/-X LED

D 603 SML-310VT/JK/-X LED

D 604 SML-310VT/JK/-X LED

D 605 SML-310VT/JK/-X LED

D 606 SML-310VT/JK/-X LED

D 607 SML-310VT/JK/-X LED

D 608 SML-310VT/JK/-X LED

D 609 SML-310VT/JK/-X LED

D 610 SML-310VT/JK/-X LED

D 611 SML-310VT/JK/-X LED

D 612 SML-310VT/JK/-X LED

D 613 SML-310VT/JK/-X LED

D 614 SML-310VT/JK/-X LED

D 615 SML-310VT/JK/-X LED

D 616 SML-310VT/JK/-X LED

D 617 SML-310VT/JK/-X LED

D 618 SML-310VT/JK/-X LED

D 619 SML-310VT/JK/-X LED

D 620 SML-310VT/JK/-X LED

D 621 SML-310VT/JK/-X LED

D 622 SML-310LT/MN/-X LED

D 641 UDZS5.1B-X Z DIODE

D 642 1SS355-X DIODE

D 644 UDZS5.1B-X Z DIODE

D 645 UDZS6.2B-X SI DIODE

D 731 NSPW310BS/BRS/ LED

D 732 NSPW310BS/BRS/ LED

IC601 LC75823W IC

IC602 RPM6938-SV4 IC

JS690 QSW0793-001 ROTARY ENCODER

R 601 NRSA63J-821X MG RESISTOR

R 602 NRSA63J-392X MG RESISTOR

R 603 NRSA63J-821X MG RESISTOR

R 604 NRSA63J-122X MG RESISTOR

R 605 NRSA63J-182X MG RESISTOR

R 606 NRSA63J-821X MG RESISTOR

R 607 NRSA63J-821X MG RESISTOR

R 608 NRSA63J-122X MG RESISTOR

R 609 NRSA63J-182X MG RESISTOR

R 610 NRSA63J-272X MG RESISTOR

R 612 NRSA63J-821X MG RESISTOR

R 613 NRSA63J-821X MG RESISTOR

R 614 NRSA63J-122X MG RESISTOR

R 615 NRSA63J-182X MG RESISTOR

R 616 NRSA63J-272X MG RESISTOR

R 631 NRSA02J-821X MG RESISTOR

R 632 NRSA02J-122X MG RESISTOR

R 633 NRSA02J-122X MG RESISTOR

R 634 NRSA02J-102X MG RESISTOR

R 635 NRSA02J-102X MG RESISTOR

R 636 NRSA02J-821X MG RESISTOR

R 637 NRSA02J-821X MG RESISTOR

R 638 NRSA02J-391X MG RESISTOR

R 639 NRSA02J-391X MG RESISTOR

R 640 NRSA02J-681X MG RESISTOR

R 641 NRSA02J-681X MG RESISTOR

R 642 NRSA02J-681X MG RESISTOR

Parts number Parts name Area

Block No. 02

Remarks

Item

A

R 643 NRSA02J-681X MG RESISTOR

R 644 NRSA02J-102X MG RESISTOR

R 645 NRSA02J-102X MG RESISTOR

R 646 NRSA02J-102X MG RESISTOR

R 647 NRSA02J-102X MG RESISTOR

R 651 NRSA63J-102X MG RESISTOR

R 653 NRSA63J-103X MG RESISTOR

R 654 NRSA63J-103X MG RESISTOR

R 655 NRS181J-103X MG RESISTOR

R 656 NRS181J-103X MG RESISTOR

R 657 NRSA63J-513X MG RESISTOR

R 658 NRSA63J-184X MG RESISTOR

R 659 NRS181J-431X MG RESISTOR

R 660 NRS181J-431X MG RESISTOR

R 662 NRSA02J-0R0X MG RESISTOR

R 670 NRSA02J-103X MG RESISTOR

R 671 NRSA63J-471X MG RESISTOR

R 672 NRSA63J-473X MG RESISTOR

R 673 NRSA63J-473X MG RESISTOR

R 674 NRSA63J-0R0X MG RESISTOR

S 601 NSW0124-001X TACT SW

S 602 NSW0124-001X TACT SW

S 603 NSW0124-001X TACT SW

S 604 NSW0124-001X TACT SW

S 605 NSW0124-001X TACT SW

S 606 NSW0124-001X TACT SW

S 607 NSW0124-001X TACT SW

S 608 NSW0124-001X TACT SW

S 609 NSW0124-001X TACT SW

S 610 NSW0124-001X TACT SW

S 611 NSW0124-001X TACT SW

S 612 NSW0124-001X TACT SW

S 613 NSW0124-001X TACT SW

S 614 NSW0124-001X TACT SW

S 615 NSW0124-001X TACT SW

S 616 NSW0124-001X TACT SW

S 617 NSW0124-001X TACT SW

S 618 NSW0124-001X TACT SW

Parts number Parts name Area

Remarks

3-12

< MEMO >

KD-S890

3-13

KD-S890

Packing materials and accessories parts list

P1

A1~A8

A16

Block No.

Block No.

P7

M

M

3

M

M

5

M

M

P6

P7

P2

KIT:A9~A13

A15

A17

P5

A19

P4

A18

3-14

P3

A14

KD-S890

Parts list (Packing)

Item

A

P 1 FSPG4002-001

P 2 QPA00801205

P 3 FSYH4036-068

P 4 QPA01003003

P 5 QPC03004315P

P 6 GE30718-001A

P 7 GE10070-001A

Parts number Parts name Area

Parts list (Accessories)

Item

A

A 1 GET0132-001A

A 2 GET0131-002A

A 3 GET0153-001A

A 4 LVT0717-001B

A 5 BT-51018-3

A 6 BT-52006-2

A 7 BT-51028-2

A 8 LVT0770-003C

A 9 VKZ4027-202

A 10 VKH4871-001SS

A 11 VKZ4328-001

A 12 WNS5000Z

A 13 GE40130-001A

A 14 FSJB3002-00C

A 15 GE20137-003A

A 16 GE20135-004A

A 17 RM-RK50

A 18 ----------------------

A 19 QAM0013-006

K I T KSFX480K-SCREW1

Parts number Parts name Area

Q'ty

POLY BAG

POLY BAG

SHEET

POLY BAG

POLY BAG

CARTON 1

EPS CUSHION

Q'ty

INST.BOOK

INSTALL MANUAL 1

CAUTION SHEET

TROUBLE SHEET(C

WARRANTY CARD

WARRANTY CARD

J=REGIST CARD 1

INST SHEET

PLUG NUT

MOUNT BOLT 1

LOCK NUT

WASHER 1

HOOK 2

HARD CASE

MOUNTING SLEEVE

TRIM PLATE 1

REMOCON

LI BATTERY

16P CORD ASS'Y

SCREW PARTS KIT 1

1

FOR INST. BOOK

1

1

MIRAMA SHEET

1

1

1

1

ENG,FRE,SPA

ENG,FRE,SPA

1

ENG,FRE,SPA

1

1

1

1

1

1

1

1

1

1

1

A9~A13

Block No. M3MM

Description

Block No. M5MM

Description

3-15

SCHEMATIC DIAGRAMS

CD RECEIVER

KD-S890

CD-ROM No.SML200302

Area suffix

KD-S890

Contents

Block diagram
Standard schematic diagrams
Printed circuit boards

J ------------ Northern America

SOU N D

ATT

U

SOU RCE

F

R

D

VOL

VOL

2-1
2-2
2-5~7

COPYRIGHT 2003 VICTOR COMPANY OF JAPAN, LTD.

No.49799SCH

2003/02

KD-S890

Safety precaution

!

!

Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.

2-4

Block diagram

KD-S890

J1

5

SW1,SW2,PSW

LM0,LM1

SPINDLE+

CN501

SPINDLE­FEED+
FEED­TRACKING+
TRACKING­FOCUS+
FOCUS-

VF1,VF2,
VT1,VT2,
MD,LD

IC501

CD

DRIVER

IC521

RF AMP

POSITION SET

PSW

SWITCH

4

LOAD&FEED

MOTOR

SPINDLE

FEED+

FEED-

SPINDLE+
SPINDLE-

MOTOR

SW1, SW2

PICK UP

SW1, SW2

VF1,VF2,
VT1,VT2,
LD,MD,
TRACKING+
TRACKING­FOCUS+
FOCUS-

TRO,FOO
DMO,FMO

SEL
TEB
RFDC
TE,RF,FE
RFGC
RFRP

IC541

DSP

IC401

MP3

&

INT. SRAM

IC481

DAC

BUS0,BUS1
BUS2,BUS3
BUCK,CCE
RST

MP3DIN
MP3DOUT
MP3REQ
MP3STBY
MP3CLK
MP3RESET

DAC-CDTI
DAC-CCLK
DAC-CSN
DAC-PDN

ANT

FM/AM

TUNER

AMVT
FMVT
FM/AM OSC

PLLDA
PLLDI
PLLCL
PLLCE

TU1

IC31

PLL

IC701

CPU

SEEK/STOP
SD/ST
MONO
SM

TU.L
TU.R

VOLDA
VOLCL

IC161

E.VOL

OUTFL
OUTFR
OUTRL
OUTRR

CD.L
CD.R

REGULATOR

EACH BLOCK

3

AOUTL
AOUTR

IC581

CD L.P.F.

IC901

OUTLF
OUTRF

OUTLR
OUTRR

J321
LINE OUT

IC301

POWER

AMP

FL+, FL­FR+, FR­RL+, RL­RR+, RR-

CN901

SPK

BATTERY

IC602

REMOCON

REMOCON

S601~S618
KEY MATRIX

KEY0
KEY1

KEY2

CJ601

CJ691

2

LCD1

COM1
COM2
COM3
S1 ~ S50

IC601
LCD
DRIVER

LCDCL
LCDDA
LCDCE

1

AB CD E F G

2-1

KD-S890

g

KD-S890

Standard schematic diagrams

Main amplifier section

TU1

QAU0291-001

J1

B1

5

R37

PLLCE

R36

PLLDA

R35

PLLCL

R34

PLLDI

QNB0100-002

C36
7p

X31

QAX0616-001Z

IC31

TB2118F-X

C35
10p

2.2k

2.2k

2.2k

2.2k

4

10k

R33

R32

6.2k

C34

0.047

9V

CD.R
A-GND

CD.L

PSW
SW1
SW2
LM0
LM1
BUS0
BUS1
BUS2
BUS3

BUCK
CCE
RST

3

2

1

CD8V

MP3REQ
MP3RESET

To

CD servo control section

MP3STBY
MP3DIN
MP3DOUT
MP3CLK
DAC-CDTI
DAC-CCLK
DAC-CSN
DAC-PDN
CDRW

SW5V
VDD5V
CDON

DETACH
10V
ACC5V
REMOCON
ENC1
ENC2
DIMMER

LCDCL
LCDDA
LCDCE
KEY0
KEY1
KEY2

To

LCD & Key control section CJ601

CN701

VMC0334-001

J801

QNZ0095-001

D701

D702

D703

D704

CH.R
A-GND
CH.L

D705

L1

4.7u

1SS355-X

100

R39

39k

0.047
R40

C43

R44
220

C50
100p

0.1

C716

HD74HC126FP-X

0

10k

R41

C44

R42

C717

R806

AM.VCC

0.01

22/16

0.047

C1

C2

C6

C39
1000P

2SB624/4/-X

R7

4.7k

0.0027

C45

0.01

SD/ST

C49

0.001
SQ

100/10

R31

C31

10

2SC2412K/R/-X

IFC-CONT

Q10

UN2211-X

D713

0.1

10k

IC801

47/6.3

1SS355-X

D1 D2

R38

C38

0.001

C37
10p

10/16

C40

0.01

0.047
C42

C41

0.01

C46

0.01

C47

10

R43

470
C32

47p

C48

0.047

Q31

C33

UN2211-X

0.1

D707

D709

D708

D712

C718

R805

100k

R804

22k

R803

100

47K

R802

C8

D706

C802

0.01

0.01

C3

Q6

Q7
UN2211-X

15k
R57

470
R58

C55

0.47/50

Q52

R10

10k

C801

0.047

R810
100

R9

R6
47k

47

C4

10k
R56

SEEK/STOP

SI

R808

330

220/10

D4

1SS355-X

R4

3.3k

C54

0.1

C53

0.0047

2SC2412K/R/-X

R709

SO

R807
100K

R809
22k

R801
47k

D243

R248

CRS03-W

220

D244

R161
220k

C81

1/50

C91

C5

*C85

Q5

2SB709A/R/-X

R8
10k

C52

47k

R52

UN2211-X

Q8

R2

UN2211-X

47k

22k

SEEK/STOP

R51

SM

BUCK
CCE
RST

BUS0
BUS1
BUS2
BUS3

CDRW

330P

C51

C706

Q1

Q53

R59
10k

CDON

0.047

VOLDA
VOLCL

R1

SW5V

2SD601A/R/-X

R3

4.7k

Q3

12

MONO

IC701

UPD784215AGC214

R720

R719

R760
R759

R716
R715

R714
R713
R712
R711
R710

R708

R707

R706

R704
R705

UN2111-X

*C84

*C94

*C95

R5

47k

D5

1SS355-X

R54

R53

10k

47k

0.01

2.2k

R55

Q51

47k

SO

I/O

INT
SCK

SCK

1/50

Q2

Q84
UN2111-X

D84

1SS355-X

AFCK

1.2k

0

47k

47k
0
0

10K
0
0
0
0

3.3k

47k

47k

2SD601A/R/-X

C77
47/6.3

C76

C75
47p

C74

82p

VDD

VPP

47k

47k

Q91

2SD601A/R/-X

C83

0.1

0.01

R71

X71

QAX0263-001Z

*R91

10k

R763

2.2k

R72

RDSCL

*R92

R758

2.2k

47k

1k

R721

*C92

0

R84

IC71

SAA6579T-X

DIMIN

10k

R722

SW2

PSW

X1

Q81

2SD601A/R/-X

R83R93

4.7k4.7k

Q9
UN2111-X

VSS

R703

0

LM0

0.047

*C82

*R82

C71
560p

C72

0.022

C73

2.2/50

100

R74

R73

2.2k

RDSDA

PLLDI

PLLCL

PLLDA

PLLCE

FM/AM

TELMUTE

R755

R702
0

10M

LM1

C705

SEEK/STOP

IFC-CONT

10k

R723

820

R754

X701

8P

C704

27p

C702

C703

QAX0617-001Z QAX0401-001

X702

AFCK

R701

27p

TU.L

CH.L

CD.L

CD.R

TU.R

CH.R

A-GND

10k

R725

47k

C701

MP3REQ

MP3RESET

SW1

INT

22p

MP3STBY

MP3DOUT

47k

R753

C173

C172

C171

C161

C162

C163

MP3DIN

RDSCL

47k

R752

MONO

10k

R726

R751

RDSDA

C708

1/50

1/50

1/50

1/50

1/50

1/50

MP3CLK

DAC-PDN

SD/ST

10k

R728

10k

REMOCON

0.047

DAC-CDTI

10k

R750

ENC1

RESET

R756

R172

22k

C174

0.0082

C164

0.0082

C192C191

R162

100/1047/16

22k

DAC-CSN

DAC-CCLK

R729

47k

R734

2.2k

0.01

10k

2.2k

2.2k

RD

10k
47k

10k
10k
10k

LCDCE
LCDCL
LCDDA

0

4.7k

4.7k

4.7k

4.7k

4.7k

4.7k

R765

47k

R767

47k

R766

IC702
IC-PST600M/G/-W

C710
47/6.3

KEY2
KEY1
KEY0
ENC2

R747
R748
R749

0

I/O
SCK

SO
SI

R735
R736
R737
R738
R739
R740

TD

R741
R742

R743
R744
R745
R746

1SS355-X

47k

C709

D710

*R81

1/50

C175

0.18

C166

0.22

C165

0.18

0.047

LEVEL

C707

SM
SQ

2.2k

R173

C176

R163

2.2k

220k
R171

C177

0.033

0.22

C167

0.033

DIMIN

TELMUTE

R757

2.2k

UDZS5.1B-X

1SS355-X

L701

4.7u

C711

220/10

C713

0.1

C712

0.01

C244

0.22/50

D240

1SS355-X

D241

C178

0.0056

C168

0.0056

R247

C194

0.082

47/6.3

UN2211-X

C781

Q891

D242

C243

0.047

R245

1SS355-X

47

1k

R246

100/10

UN2111-X

D781
1SS355-X

C242
22/16

2SD601A/R/-X

C193

C782

0.082

Q781

D892

1SS355-X

C891

0.1

Q241

C179

C180

R181

R182

C170

C169

R244

12k

R242
22k

R891R892
1k47k

R243
180k

C241
1/50

R241

47k

4.7/25

4.7/25

270

IC161
TEA6320T-X

270

4.7/25

4.7/25

D891

1SS355-X

R881

47k

47k

R165

C909

220/10

47k

R164

R784

47k

D782
1SS355-X

UN2211-X

220/10

C908

Q881
UN2211-X

C881

47k

R174

Q782

22/16

C907

47k

R175

220/10

IC301

LA47505

LEVEL

OUTLF
OUTLR

VOLDA

VOLCL

OUTRR

OUTRF

R782
47k

51k

R783

R979

8.2k

Q976

R980

47k

UN2211-X

IC901

D902

1SS355-X

C919

47/16

0.01

C906

C905

10/16

C913

C910

10/16

47/16

R882

4.7k

0

R978

D784

Q977

2SA1037AK/RS/-X

AN80T07

C904

C915

10/16

0.1

C911

0.1

Q784
UN2111-X

UDZS11B-X

C914

100/16

*C851
10/16

C784

100/16

R976

27k

C912

R852

0

*D851

RB160M-30-X

*D852

RB160M-30-X

R977
12k

0.01

R904

*R851

C903

10k

47/16

4.7k

*C852

0.01

R903 R902

27k

C312

R312

0.33

R311

0.33

27k

C311

390p

R351

2.2k

R331

2.2k

1k

C341

R901

47k47k

R314R304

C301

0.33

0.33
C302

C321

390p

C313

C314

390p

390p

C303

C304

R315

10k

Q351

Q341

2SD1781K/QR/-X

Q321

2SD1781K/QR/-X

100

R323

QNN0489-001

C307

1/50

C316

4.7/25

2SD1781K/QR/-X

Q331

2SD1781K/QR/-X

100

100

R343

R333

J321

47k

R313

47k

R303

R301

27k

R302

27k

R342

820

R352

820

D351

1SS355-X

R341

2.2k

D341

1SS355-X

D321

1SS355-X

R321

2.2k

D331

1SS355-X

R322

820
820

R332

C902

2.2/50

4.7k 9.1k

100

R353

D971

RB160M-30-X

CN901
QNZ0611-001

0.022

C320

1N5401-F64

L901

QQR1362-001

F1

QMFZ047-150-T

C317

RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X
RB160M-30-X

D901

C901

3300/16

RB160M-30-X

0.1

C971

D972

47/16

C315

C322

0.1

C323

0.1

C324

0.1

C325

0.1

100p
100p
100p
100p
100p
100p
100p
100p

C916

C917

R971

R972

2.2k

C961
C962
C963
C964
C965
C966
C967
C968

D991
D992
D993
D994
D995
D996
D997
D998

2.2k

FL-

2.2/50

22/16

C318

RL-

0.022

C319

FL-

RR-

FR-

C308

1/50

RL-

FR+

RR-

RR+

RL+

FR-

FL+

FL+

RL+

RR+

FR+

Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.

Tuner signal

CD si

nal

Front signal

Rear signal

2-2

HAB C DE FG

CD servo control section

KD-S890

CN501

GND
FEED­VF2
FEED+
VCC
GND
VT2
SW1
VT1
SW2

5

VF1
PSW
VR
SPINDLE­LD
SPINDLE+
FOCUS­VREF
FOCUS+
MD
TRACKING+
TRACKING-

4

3

QGB2027M4-22S

FEED-

VF2

FEED+

VCC

VT2
SW1
VT1
SW2
VF1
PSW

SPINDLE-

SPINDLE+

FOCUS-

VREF

FOCUS+

TRACKING+
TRACKING-

R505

LM1

R506

8.2k

R539

VR

150

LD

MD

VREF

C533

0.01

VF1
VF2
VT2
VT1
VCC

C521

0.01

R523
R524
R525
R526

R534

15k

C522

0.01

82k
82k
330k
330k

C532

82p

IC521

R508

R511

LM0

R512

1.5k

R533

1k

R532 R531

2k 10k

TA2157FN-X

C523

100/10

IC501

LA6579H-X

1.5k

1.8k

C534

R509

R513

5p

R507

R535

100

C524

0.01

R510

20k

6.8k

0.047

0.047

C506

C505

0.047

C504

8.2k3k12k

FEED-

FEED+

SPINDLE-

SPINDLE+

FOCUS+

FOCUS-

RF

RF

C531

0.1

LD

RFGC

0.1

C530

MD

Q521

2SB1241/QR/-T

C525

R527

R528

RFRP

SEL

C507

TRACKING+

TRACKING-

100/10

56k

R530

TEB

100/10

22

22

C529

R504

15k

R538

R537

8.2k

4.7k

33K

0

Q501

2SB1322/RS/-T

1A3G-T1

C503

100/10

VREF

CDRW

C527

0.0068

TE

D501

DMO

FOO

FMO

47/10

C501

AOUTR-

AOUTR+

AOUTL+

AOUTL-

TRO

Q541

UN2111

SW5V

L543

47u

Q542
UN2211

C589

R581

8.2k

4.7/25

C588

4.7/25

C598

4.7/25
C599

4.7/25

L541

47u

L542

47u

4.7k

4.7k

4.7k

4.7k

R557

R556

R555

R554

BUS0
BUS1
BUS2

BUS3

CDON

R582

R592

R591

8.2k

8.2k

8.2k

C568

C569

C570

C571

C541
100/10

BUCK
CCE

RST

C581
3300p

C591
3300p

100/10

100/10

0.01

0.1

0.01

C542

R558

R584

180

8.2k

R583

8.2k

R593

R594

180

0.01

100/10

100p

C565

C567

C566

10k

C543

1/50

C593

C583

270p

270p

C585

47/6.3

0.01
C562

1M

R553

220

220

220

R560

R562

R561

47u

L544

R552

DMO

100

C584

0.1

FMO

100

R551

C545

0.01

R588

R587

C561

1k

1k

100/10

R598

1k

C560

C544

100/10

R597

1k

C594

0.1
C595

FOO

TRO

0.01

R550

100

100

R549

47/6.3

R548

R547

R546

C559

C558

C557

C556

R595
R596

R559

1.5M

R541

5.6k

R586
R585

0.047

0.047

470p

470p

0

0

0

IC541

TC94A14FA

C552

0.033

C547

0.015

6.8K
180

C582
270p

IC581
NJM4565M-WE

180

C592
270p

6.8K

C551

R542

0.047

C554

0.033

C553

47k 0.047

C546

C597

0.01

C573

0.01

SEL

TEB

RFGC

TE

RFDC

FE

RFRP

C572
100/10

RF

47p

C550
C549

C548

R544

C596

100/10

0.047

C555

R545

10k

0.01

0.0027

0.01

10K

R543

470k

CD.R

CD.L

9V

9V
CD.R
A-GND
CD.L
PSW
SW1
SW2
LM0
LM1

BUS0
BUS1
BUS2
BUS3
BUCK
CCE
RST
CD8V

GND
MP3REQ
MP3RESET
MP3STBY
MP3DIN
MP3DOUT
MP3CLK
DAC-CDTI
DAC-CCLK
DAC-CSN
DAC-PDN
CDRW
SW5V
VDD5V

CDON

To Main amplifier section

R502

R503

R501

33k

0.047

C502

0.01

C528

0.01

FE

R529

R536

820

82k

RFDC

R411

3.3V

MP3CLK

MP3STBY

R451

22k

47k

R452R456

R453

220

470

R455

220

470

R457

220

L401
47u

0

C409

0.1

C408

0.01

C427

C406

0.1

220p

C404

0.01

470

R458 R454

R440

C440 C430

0.01

UN2211-X

0.01

1k

MP3DOUT

MP3RESET

UN2211-X

R430
1k

Q430Q440

MP3REQ

470

470

MP3DIN

470

C483

R563

R564

R565

0.1

C481C482

47/100.1

DAC-CSN

DAC-PDN

DAC-CDTI

DAC-CCLK

AOUTL+

AOUTL-

AOUTR+

AOUTR-

IC481
AK4381VT-X

NJU7241F33-X

IC471

3.3V

C472

0.01

C473

C474

220/6.3

C471

220/6.3

0.1

VDD5V

CD signal

IC461
NJU7241F25-X

C461 C464

0.1 0 .1

C463C462

100/6.3100/6.3

2

L403
47u

C411

100/10

C412

0.01

R423

C413

R424

330

0.33

330

C414

0.027

C416

100/10

C415

0.01

C417

100/10

0.01

C418

47

1

R402

R401

QAX0413-001Z

X401

R403

10k

C420

22p

C419

2.2M
22p

R404
10k

C402 C403

C401

0.01 0.01

1/50

C421

R425

C422

0.01

100/10

IC401

TC94A20F-011

47

L402

47u

AB CD E F G

2-3

KD-S890

KD-S890

LCD & Key control section

JS690

QSW0793-001

5

IC602

S46

S47

S1S2S3

RPM6938-SV4

10K

D644

R670

UDZS5.1B-X

C611

S36

S37

S38

S39

S40

S41

S42

S43

S44

S45

IC601

LC75823W

S8

S9

S4

S5S6S7

S33

S34

S35

S10

S11

S13

S12

S14

S15

0.012

S16

4.7/6.3

C612

470

R671

DETACH

10V

ACC5V

REMOCON
ENC1

ENC2

R675

DIMMER

0

LCDCL

LCDDA

LCDCE

KEY0

KEY1

S32

S31

S30

S29

S28

S27

S26
S25

S24
S23

S22

S21

S20

S19

S18
S17

KEY2

VMC0335-001
CJ601

To
Main amplifier
section CN701

0

R672

47K

R674

R673

47K

0.015

0.015

C614

LCD1

QLD0256-001

S1

S2

S3S4S5S6S7

S8S9S10

S12

S11

S13

S14

S15

S16

S22

S17

S19

S20

S21

S18

S28

S23

S24

S25

S26

S27

S30

S31

S29

S32

S33

S34

S40

S39

S41

S37

S38

S42

S43

S35

S36

S44

S50

S49

S46

S47

S48

S45

C613

S50

S49

S48

4

D641

UDZS5.1B-X

LCDCE

LCDCL

LCDDA

51K

R657

R654

R655

R663

C601

0

10K

R656

0.022

10K

10K

R605

1.8K

2.7K 1.8K 1.2K

S603

R602

3.9K

R616

R615

S617S618

3

R603

R604

820

1.2K

S604S605S606

S609S610S611S612

R614 R613

1.2K 8201.8K2.7K

R601

820

S602

R606R607R610 R609 R608

820

820

S608

R612

S614S615S616

KEY0

R651

S601

D603

D614

R636

R645

D602

D601

R644

D604

D605

R643

KEY1

S607

KEY2

820

S613

R642

R641

D607

D608

D606

R640

D609

R639

D610

D611

D612

R638

D613

R637

R635

D615

D616

D617

R634

R633

D618

D619

R632

D621

R647

D620

R646

D622

SML-310LT/MN/-X

820

R631

UDZS6.2B-X

D645

R659

D731

R662

R660

D732

430

0

2SB815/7/-X

1K

Q642

UN2211-X

Q641

R648

47K

R649

430

1K

10K

R653

D642

1SS355-X

180k
R658

680P

C602

C603
10/6.3

ENC1

ENC2

DIMMER

2

1

2-4

HAB C DE FG

Printed circuit boards

Main board

5

KD-S890

Forward side

C910

R502

C553

R546

Q501

R542

R541

C557

R550

R543

L541

D781

C556

R549

C549

C548

C552

C801

C503

C544

D501

L544

C541

R806

C904

C914

C905

L543

L542

Q541

C851

R980

R704

R765

X702

R705

L701

C710

Q542

R703

R706

C193

R707

R804

C908

R708

C909

R809

C170

R720

IC702

R807

IC801

R904

R721

X701

R808

C903

R164 R165

R719

R763

C711

R753

R810

R743
R744
R745

CN701

IC161

R756

C180

R712

C708

C169

C907

R760

C802

C173

D851
R851

C179

R759

R742

R747
R748
R749

IC701

C192

C163

C172

D244

R43

R734

J801

C32

C191

C162

C50

R736

R331

R726

C171

R44

R722

R729
R725

R72

R735

D331

IC71

X31

C49

R758

D321

R709

C40

C244

C242

C31

C33

R10

C161

R321

R723

R751

IC31

C41

Q10

C91

Q321

C4

C71

D341

J321

Q341

D351

R351

R341

R7

C73

C43

C48

C81

L1

R6

R8

R93

R741

R53

R57
R54
C54
R56

C52
R52
Q51

J1

TU1

Q52

R58

Q53

R59

C55

C1

C5

C241

Q6

Q8

C42

Q31

Q91

Q81

X71

R83

C77

R746

R750

IC901

C901

C308

IC301

C462

C463

R307

C523

C475

R308

D992

C303
C304

C525

C461

D991

C313
C314

D993

C411

C472

L403

C307

C317

IC471

L402

IC461

IC521

C473

C422

IC401

C421

C412

4

3

2

C318

C302

CN501

C961

C312

D994

R524

Q521

C414

C962

R525

L401

C315

R526

C963

C964

R523

C474

C404

CN901

D996

D995

D998

C524

R539

R588

C529

R586
R585

R583

C585

C599

C427

C481

C415

C416 C417

C966

C598

R404

C418

R587
C584

C588

C965

D997

R584

C968

C403

C402

C967

R304
R303

R425

Q891

R314
R313

C582 C583

X401

D891
D892

IC581

C589

IC481

R565

R562

C592

C593

R597
C594

C483

C311

C301

R596
R595

R594

IC501

R593

R552

C401

D901

R512
R511

R564

R508

R513

R891

R509

R598

R563

R892

C316

R560

R561

R882

Q881

R510

C504

C566

R881

C595

R451
R452
R458
R457

R505

C561

C505

C596

R553

R506

C560

C569

R453
R454
R456
R455

R901

C881

C506

C551

C902

C546

C572

R979

D784

Q781

IC541

R551

L901

C919

C501

C570

C559

R977 R978

Q976

Q977

C781

C507

R545

C913

C558

C784

C547

C555

R548

R559

R544

C543

C554

R547

1

AB C

2-5

KD-S890

5

4

3

2

Main board

J321

R342

R343

R55
C53

Q351

R353

TU1

R2

C716

C34
R32

R352

Q5

C47

R9

R81
C82

Q3

R84

C83

D708

CN701

J1

B1

C8

C2

C6

C1

C3

C39

C94

C95

C84

C85

C51

R51

Q2

C5

R3

C55

C321

D4

Q1

R38

Q9

D713

R42

C46

Reverse side

C916

C917

C891

CN901

R971

R972

C784

R783

R716

C542

C501

R702

D782

Q782

C920

C782

C570

R440

C781

C572

C440

C902

C919

R504

C571

D972

D971

C913

R501

R503

C569

C596

C568

Q430 Q440

R507

C430

R902

R901

C573

R903

L901

C881

C597

R311

R312

R301
R302

C561

C565

R430

D901

C316

C595

C311

C419

C325

C301

C566

C591

C562

R592

C533

R591

C401

R403

X401

C907

R173

C178

C709

JP1

D704

C711

D706

R738

R740
R739
R737

D702

C903

C170

C912

D852

X702

R752

R174

R175

R711

D710

C851

C914

C909

C193

VSS

R710

R757

J801

R322

R332

R333

D2

R41

C92

Q331

R31

R33

R91

C72

C242

C4

C31

C33

D709

R40

R244

R243

R73

R246

R245

X71

R728

D84

C74

R71

C40

X31

R323

C37
C36
C35

R34
R35
R36
R37

D707

C341

R241

C241

R242

D1

L1

R4

D5

Q7

R1

R5

C38

R39

C43

C44

C45

C9

C91

C81

R82

R92

Q84

C75
C76

R74

C77

C73

C718

D712

C717

C243

C162

C161

TD

C244

D705

Q241

C171

C191

C706

D242

C703

C192

C704
C701
C702

D701

R247

R714

VPP

C163

R248

D243

C179

C172

C174

C176

D703

C173

R172

C713

C169

C175

R755

R701

RD

C180

C177

C705

C707

R754

C915

D241

R181

R171

VDD

SCK

B901

C906

X701

RESET

C166

C164

X1

C911

R162

D902

R556
R555

C710

R803

C165

R805

C167

R557

R554
R558

R976

C545

R802

C905

C908

R163

C904

R784

D501

C168

R713

R801

R715

C541

Q784

IC901

C910

R782

C194
R161
R182
D240

C503

Q501

C502

C544

C543

C712

R535
R531

C589

C482

C324

C521

C550

C588

C581

R581

C481

C420

C585

R582

C323

R401

Q521

RF

C598

R402

C322

C599

C417

C315

C406

C531

C474

C408

C529

C416

C409

C302

C530

C971

CN501

C534

C473

C422

C413

C852

R423

C312

C528

R411

C522
R534
R532

R533
C532
R530

R424

C317

C307

C318

R527

R528

VREF

C475

C462

C411

C308

C471

C463

C464

C901

R538
R537
R529
R536
C527

C319

IC301

C320

C525

C523

2-6

1

AB CD

KD-S890

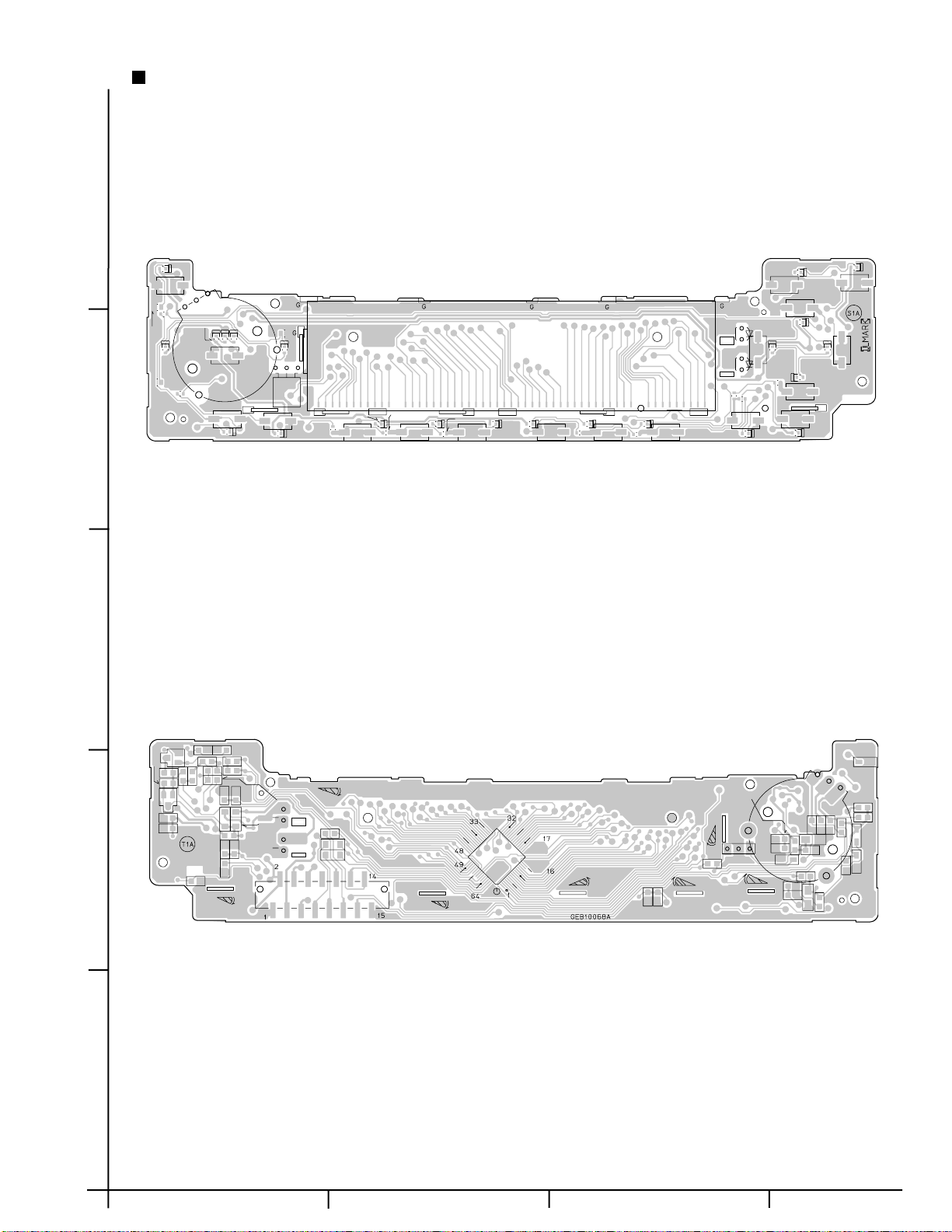

Front board

5

D622

S601

R601

R631

D620

R647

R602

4

D615

D602

D616

D617

S618

S602

JS690

D601

R646

IC602

LCD1

D621

S603

S604

R603

D605

R604

S605

Forward side

D604

R605

D603

S606

D608

S607

R606

D607

S608

R607

D606

S609

D614

D731

R608

R609

D732

S610

S615

D611

R610

D613

D619

D609

D610

S613

D618

S616

S617

S614

D612

S612

S611

3

R612

R613

R632

R641

R637

R633

R657

R662

R663
R675

C602

R640

R659

R660

R614

R615
R616

D731

D732

R654

R656

R655

CJ601

Reverse side

IC601

R643

R642

R670

R635

R634

IC602

JS690

R644

R645

D644

R671

R653

C603

C612

C611

C613

R674

C614

R658

R672

C601

D645

R651
R673

D642

D641

Q642

R649

R648

Q641

R639

R638

2

R636

1

AB C

2-7

KD-S890

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY 10-1,1Chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

(No.49799SCH)

Printed in Japan

2003/02
