INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0137-001A

[EE]

Position And Reproduction Of Labels

Bottom panel of the main unit

ENGLISH

CAUTION: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL: Usynlig laser stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgåudsættelse for stråling. (d)

IMPORTANT FOR LASER PRODUCTS

Name/Rating plate

Caution:

This product contains a laser component of higher laser class than Class 1.

Precautions:

1.CLASS 1 LASER PRODUCT

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

How to reset your unit

While holding SEL (select), press (standby/on/attenuator) for more than 2 seconds. This will reset the built-in microcomputer.

VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

(standby/on/attenuator)

SEL (select)

Notes:

• Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

• If a disc is in the unit, it will eject when you reset the unit. Be careful not to drop the disc.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

operations.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit ............................... 2

How to use the M (MODE) button ............. 3

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

BASIC OPERATIONS ....................... 5

Turning on the power ................................ 5

Setting the clock ........................................ 6

RADIO OPERATIONS ...................... 7

Listening to the radio ................................. 7

Storing stations in memory ....................... 8

Tuning in to a preset station ...................... 9

CD OPERATIONS ........................... 10

Playing a CD ............................................. 10

Locating a track or a particular portion

on a CD .................................................. 11

Selecting CD playback modes .................. 12

Playing a CD Text ...................................... 13

Prohibiting disc ejection ............................ 13

MP3 INTRODUCTION ...................... 14

What is MP3? ............................................ 14

How are MP3 files recorded and

played back? .......................................... 14

MP3 OPERATIONS ......................... 16

Playing an MP3 disc ................................. 16

Locating a file or a particular portion

on an MP3 disc ....................................... 18

Selecting MP3 playback modes ................ 20

SOUND ADJUSTMENTS ................... 21

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 21

Adjusting the sound .................................. 22

OTHER MAIN FUNCTIONS ................ 23

Changing the general settings (PSM) ....... 23

Detaching the control panel ...................... 25

TROUBLESHOOTING ...................... 26

MAINTENANCE ............................. 28

Handling discs ........................................... 28

SPECIFICATIONS........................... 29

ENGLISH

How to use the M (MODE) button

If you press M (MODE), the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

Time countdown indicator

To use these buttons for original functions again after pressing M (MODE), wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

• Pressing M (MODE) again also clears the functions mode.

Control panel

Display window

ENGLISH

LOCATION OF THE BUTTONS

; da s f g

z x c v

j k l /

1 2 3 4 5 7

we tr

1 (standby/on/attenuator) button 2 SEL (select) button 3 Control dial 4 Display window 5 Loading slot 6 4 /¢ buttons 7 FM/AM button 8 5 (up) button

+10 button

9 0 (eject) button p ∞ (down) button

–10 button

q DISP (display) button

• Also functions as SSM buttons when pressed together with M (MODE) button.

w M (MODE) button

• Also functions as SSM buttons when pressed together with DISP (display) button.

e MO (monaural) button r RPT (repeat) button t RND (random) button y Number buttons

u E (EQ: equalizer) button i CD button o (control panel release) button

Display window

; LOUD (loudness) indicator a EQ (equalizer) indicator s CD–in indicator d CD indicator f FM band indicators (FM1, FM2, FM3) g AM band indicator h Tuner reception indicators

MO (monaural), ST (stereo)

j Volume (or audio) level indicator k (folder) indicator l MP3 indicator / (disc) indicator z Disc information indicators

TAG (ID3 tag), (folder), (track/file)

x Main display c RND (random) indicator v RPT (repeat) indicator

BASIC OPERATIONS

ENGLISH

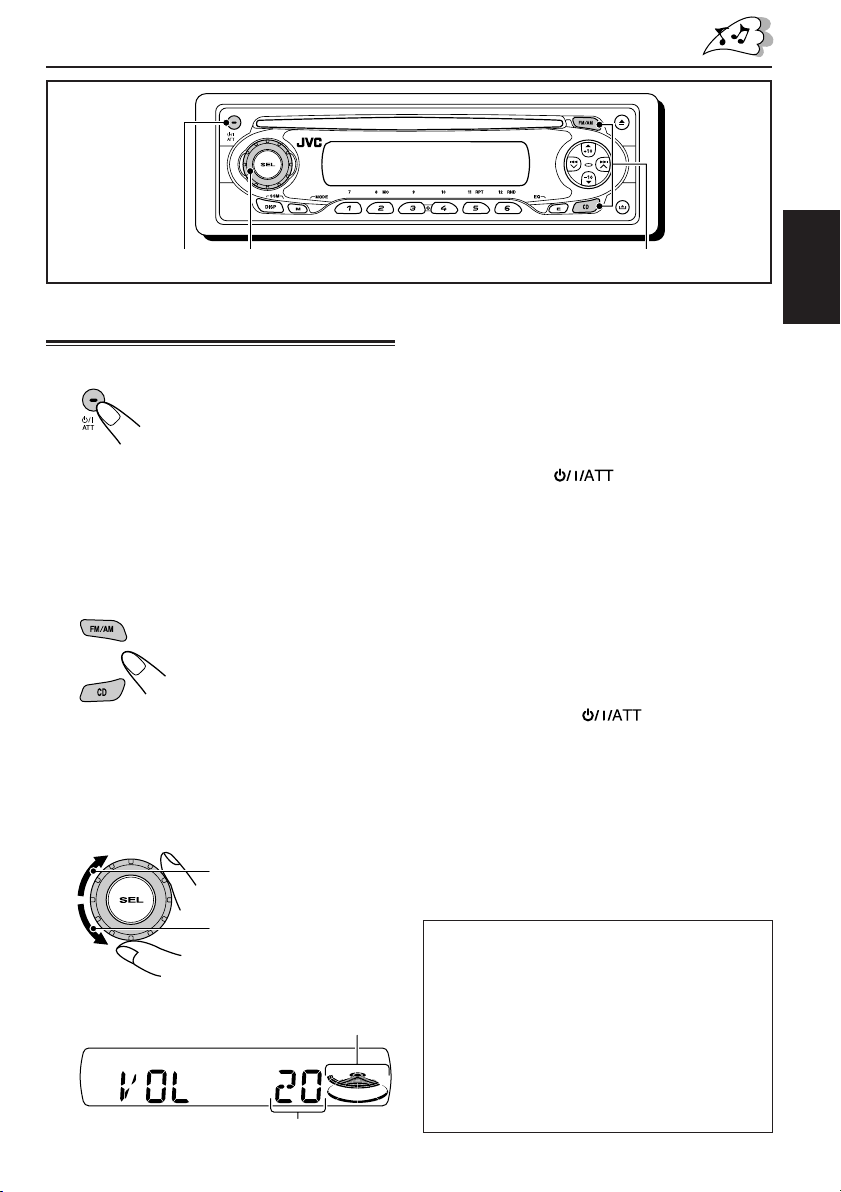

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 7 – 9.

To play a CD,

see pages 10 – 13.

To play an MP3 disc,

see pages 16 – 20.

Adjust the volume.

To increase the volume

To decrease the volume

Volume (or audio) level indicator

(see page 24)

Adjust the sound as you want. (See pages 21 and 22.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold for more than one second.

“SEE YOU” appears, then the unit turns off.

• If you turn off the power while listening to a

disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

Volume level appears.

ENGLISH

Setting the clock

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 23.)

Set the hour.

1 Select “CLOCK H” (hour) if not shown on

the display.

2 Adjust the hour.

Set the minute.

1 Select “CLOCK M” (minute). 2 Adjust the minute.

Finish the setting.

To check the current clock time or change the display mode

• During tuner operation:

Frequency

• During disc operation:

Notes:

• While playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

• For indication change while playing a CD Text or an MP3 disc, see pages 13 and 17.

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

Clock

Elapsed

playing time

Track title

Disc title / performer

Clock

• During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

RADIO OPERATIONS

ENGLISH

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching a station automatically: Auto search

Select the band (FM 1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Selected band appears.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Note:

This receiver has three FM bands (FM1, FM2, FM3).

• FM1/FM2: 87.5 MHz to 108.0 MHz

• FM3: 65.00 MHz to 74.00 MHz

To stop searching before a station is received, press the same button you have

pressed for searching.

Searching a station manually: Manual search

Select the band (FM 1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2

Note:

This receiver has three FM bands (FM1, FM2, FM3).

• FM1/FM2: 87.5 MHz to 108.0 MHz

• FM3: 65.00 MHz to 74.00 MHz

Press and hold ¢ or 4 until “M” (manual) starts flashing on the display.

FM3 AM

Start searching a station.

To search stations of higher frequencies

To search stations of lower frequencies

When a station is received, searching stops.

CONTINUED ON THE NEXT PAGE

Tune in to a station you want while “M” (manual) is flashing.

To tune in to stations of

ENGLISH

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

• If you hold down the button, the frequency keeps changing—in 50 kHz intervals (87.5 MHz – 108.0 MHz for FM 1 and FM 2), in 30 kHz intervals (65.00 MHz –

74.00 MHz for FM 3) and 9 kHz for AM —MW/LW until you release the button.

higher frequencies

To tune in to stations of lower frequencies

When an FM stereo broadcast is hard to receive:

1 Press M (MODE) to enter the

functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while

still in the functions mode, so that the MO indicator lights up on the display. Each time you press the button, the MO indicator lights up and goes off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Press and hold both buttons for more than 2 seconds.

“- -SSM- -” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons—No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

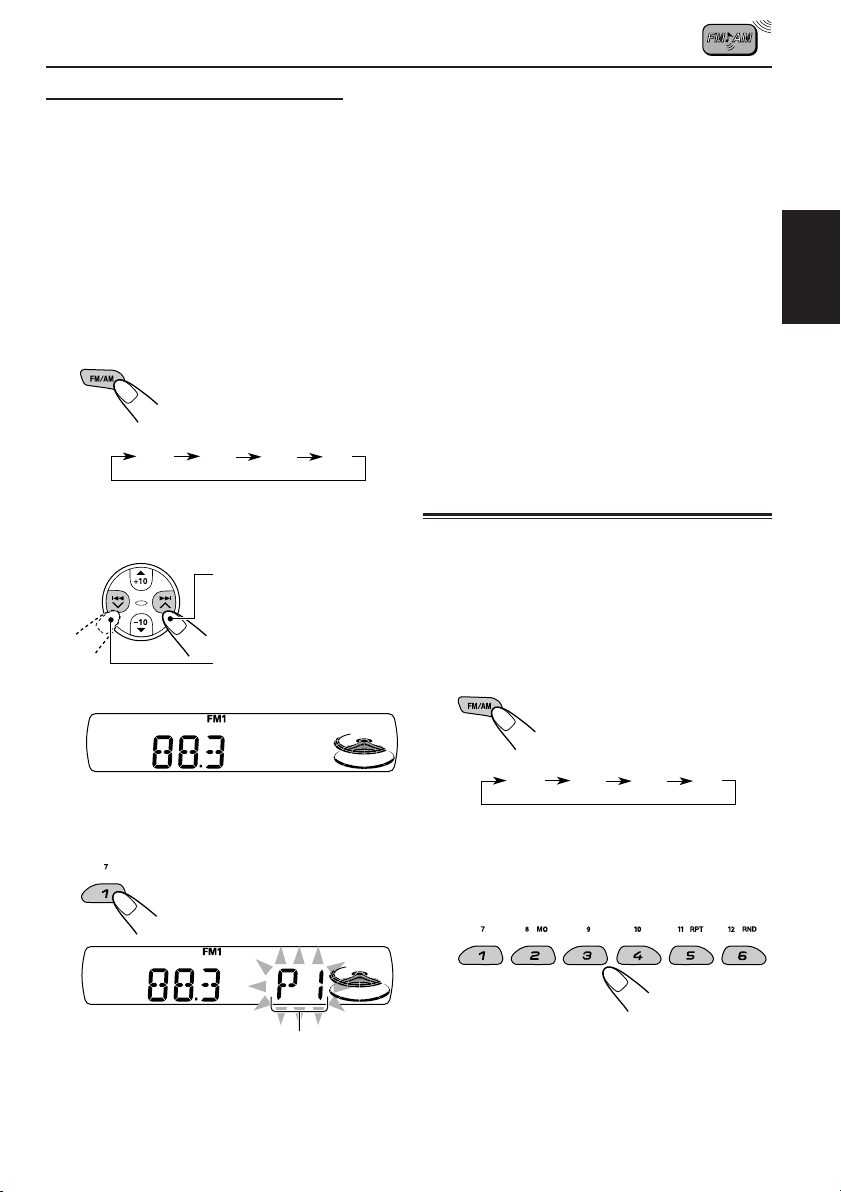

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 88.3 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Tune in to a station (in this example, of 88.3 MHz).

To tune in to stations of higher frequencies

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.

• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on pages 8 and 9.

Select the band (FM1 – 3, AM).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

ENGLISH

To tune in to stations of lower frequencies

Press and hold the number button (in this example, 1) for more than 2 seconds.

“P1” flashes for a few seconds.

Repeat the above procedure to store other stations into other preset numbers.

Select the number (1 – 6) for the preset station you want.

Note:

You can also use the 5 (up) or ∞ (down) button on the unit to select the next or previous preset stations. Each time you press the 5 (up) or ∞ (down) button, the next or previous preset station is tuned in.

ENGLISH

CD OPERATIONS

Refer to “MP3 OPERATIONS” on pages 16 to 20 for operating MP3 discs.

Playing a CD

Insert a CD into the loading slot.

The unit turns on, draws the CD and starts playback automatically.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

The CD–in indicator flashes.

The CD–in indicator lights up.

All tracks will be played repeatedly until you stop playback.

Note:

When a CD is inserted upside down, “EJECT” and the CD–in indicator flash on the display and the CD automatically ejects.

To stop play and eject the CD

Press 0. CD play stops and the CD automatically ejects from the loading slot. The source changes to the tuner (you will hear the last received station.)

• If you change the source, CD play also stops (without ejecting the CD). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc play will not start this time.)

• You can eject the disc even when the unit is turned off.

• If the disc is a CD Text, disc title/performer and then track title will automatically appear.

Total playing time of the inserted disc

Elapsed playing time Current track

Total track number of the inserted disc

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a CD, to fastforward the track.

To go to a track quickly (+10 and –10 buttons)

1 Press M (MODE) to enter the functions mode

while playing a CD.

ENGLISH

2 Press +10 or –10.

Press and hold 4 , while playing a CD, to reverse the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* The first time you press +10 or –10 button,

the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks (see “How to use the +10 and

–10 buttons” below).

• After the last track, the first track will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select track number 32 while playing track number 6

(Three times) (Twice)

Track 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2: To select track number 8 while playing track number 36

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

(Three times) (Twice)

Track 36 \ 30 \ 20 \ 10 \ 9 \ 8

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

ENGLISH

You can play back all tracks on the CD at random.

1 Press M (MODE) to enter the

functions mode while playing a CD.

2 Press RND (random), while

still in the functions mode, so that “DISC RND” appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

(disc) indicator

RND indicator

When disc random play is turned on, the and RND indicators light up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

1 Press M (MODE) to enter the

functions mode while playing a CD.

2 Press RPT (repeat), while still

in the functions mode, so that “TRK RPT” appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

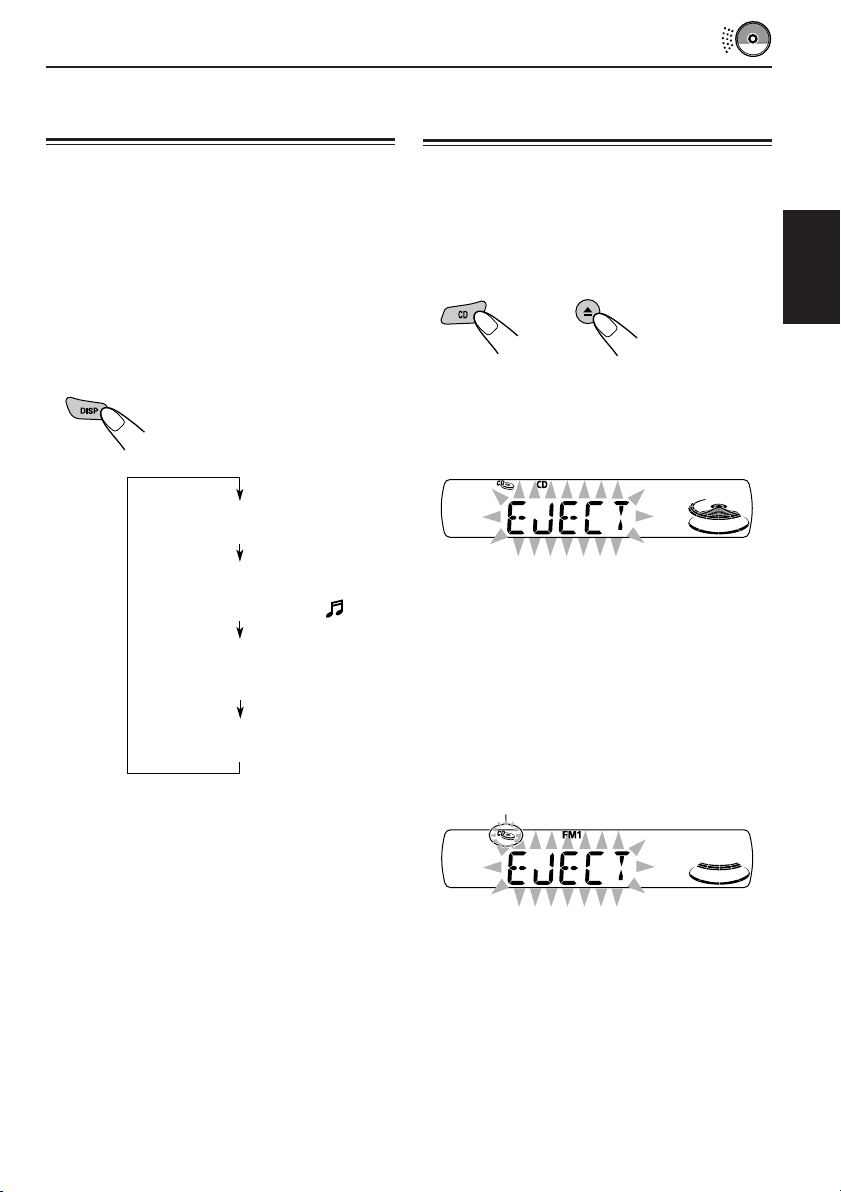

Playing a CD Text

Prohibiting disc ejection

In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text.

To change the CD Text information manually, select text display mode while playing a CD Text.

Each time you press the button, the display changes as follows:

Disc Title / performer

Track title

( lights up on the display)

Elapsed playing time and

Current track number

Clock and

Current track number

Notes:

• The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 24. Some characters or symbols will not be shown (and be blanked) on the display. (Ex. “ABCå!d#” ]“ABCA D ”)

• When you press DISP (display) while playing a conventional CD, “NO NAME” appears for the disc title/performer and the track title.

You can prohibit disc ejection and can lock a disc in the loading slot.

ENGLISH

While pressing CD, press and hold 0 for more than 2 seconds.

“EJECT” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc

While pressing CD, press and hold 0 again for more than 2 seconds. “EJECT” and the CD–in indicator flash on the display, and the disc ejects from the loading slot.

The CD–in indicator flashes.

MP3 INTRODUCTION

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10

ENGLISH

(128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

* Bit rate is the average number of bits that one

second of audio data will consume. The unit used is Kbps (1024 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs.

Compatible with ID3v1 (Version 1)

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 (Version 1) tags (album name, performer name, and song title) on the display. (See page 17.)

• Some characters cannot be shown correctly.

• This unit is not compatible with ID3v2 (Version 2).

Other main features in this unit:

• Maximum number of folders/files:

289 (Total)

• Available characters for folder/file names:

A–Z, 0–9, _ (underscore)

• Maximum number of characters for file name

(ISO 9660 Level 1): 12 (inclusive of

separation mark—“.” and extension code —“mp3”)

(ISO 9660 Level 2): 31 (inclusive of

(Joliet): 64 (inclusive of

• Maximum number of characters for folder

name: 64

separation mark—“.” and extension code —“mp3”)

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2, or Joliet.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “folders”— in PC terminology. During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data. “Root” is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.

Playback order, file search order, and folder search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the folders and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• The unit cannot read or play an MP3 file without the extension code—mp3.

• This player is not compatible with the data encoded with Layer 1 and Layer 2 formats.

• The unit is not compatible with Playlist**.

**A playlist is a simple text file, used on a PC, which

enables users to make their own playback order without physically rearranging the files.

MP3 folder/file configuration

Level 1

Level 2

Level 3

1 2

Hierarchy

Level 4

Level 5

Level 6

ROOT

3 4

: Root

: Folders

5 6

ROOT

ENGLISH

05 09

1110 2120

06 07

1312

15 1614

2322 24

: MP3 files

Note:

There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations.

MP3 playback/search order

• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the MP3 files. Normally this unit plays back MP3 files in the recorded order.

• The numbers inside the folders indicate the playback order and search order of the folders on an MP3 disc. Normally this unit plays back MP3 files in the folders in the recorded order.

ENGLISH

MP3 OPERATIONS

Refer also to “CD OPERATIONS” on pages 10 to 13.

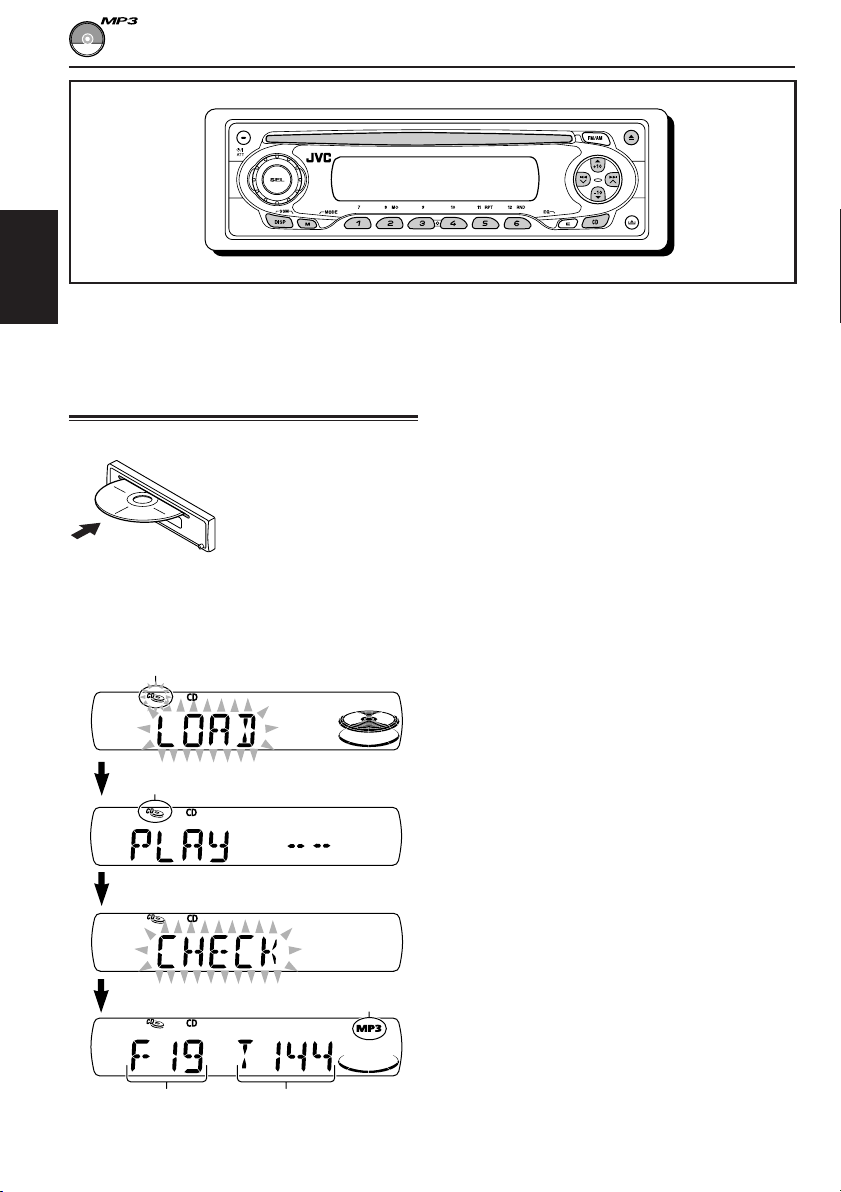

Playing an MP3 disc

Insert an MP3 disc into the loading slot.

The unit turns on, draws the MP3 disc and starts playback automatically.

Note on One-Touch Operation:

When a disc is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

The CD–in indicator flashes.

The CD–in indicator lights up.

All files will be played repeatedly until you stop playback.

Notes:

• MP3 discs require a longer readout time. (It differs due to the complexity of the folder/file configuration.)

• When playback starts, folder and file names (or ID3 tags) will automatically appears. (See also page 17.)

• If you change the source or turn the power off, disc playback stops (without ejecting the disc). Next time you select the CD player as the source or turn the power on, disc playback starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops and the disc automatically ejects from the loading slot.

MP3 indicator lights up.

Total file numberTotal folder number

Ex.: When the disc contains 19 folders and

144 MP3 files

To change the display information

Folder name

( lights up on the display)

File name

( lights up on the display)

Elapsed playing time and

Current file number

Clock and

Current file number

While playing back an MP3 file, you can change the MP3 disc information shown on the display.

Each time you press DISP (display), the display changes to show the following:

• When “TAG DISP” is set to “TAG ON” (initial setting: see page 24)

Album name / performer

(folder name*)

(TAG lights up on the display)

Track title (file name*)

(TAG lights up on the display)

Elapsed playing time and

Current file number

Clock and

Current file number

* If an MP3 file does not have ID3 tags, folder

name and file name appear. In this case, the TAG indicator will not light up on the display.

• When “TAG DISP” is set to “TAG OFF”

ENGLISH

Note:

The display shows up to 8 characters at a time and scrolls if there are more than 8 characters. See also “To select the scroll mode—SCROLL” on page 24.

Locating a file or a particular portion on an MP3 disc

For “MP3 playback/search order” see page 15.

ENGLISH

To fast-forward or reverse the file

Press and hold ¢ while playing an MP3 disc, to fast-forward the file.

To go to a particular file quickly within the current folder (+10 and –10 buttons)

1 Press M (MODE) to enter the functions mode

while playing an MP3 disc.

2 Press +10 or –10.

Press and hold 4 while playing an MP3 disc, to reverse the file.

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back.

Press 4 briefly, while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back.

To skip 10 files* forwards to the last file

To skip 10 files* backwards to the first file

* The first time you press +10 or –10 button,

the file skips to the nearest higher or lower file with a file number of multiple ten (ex.

10th, 20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and

–10 buttons” below).

• After the last file, the first file will be

selected, and vice versa.

How to use the +10 and –10 buttons

• Ex. 1: To select file number 32 while playing file number 6

(Three times) (Twice)

File 6 \ 10 \ 20 \ 30 \ 31 \ 32

• Ex. 2 : To select file number 8 while playing file number 36

(Three times) (Twice)

File 36 \ 30 \ 20 \ 10 \ 9 \ 8

+ 40 hidden pages
