JVC KD-S45, KD-G440 User Manual

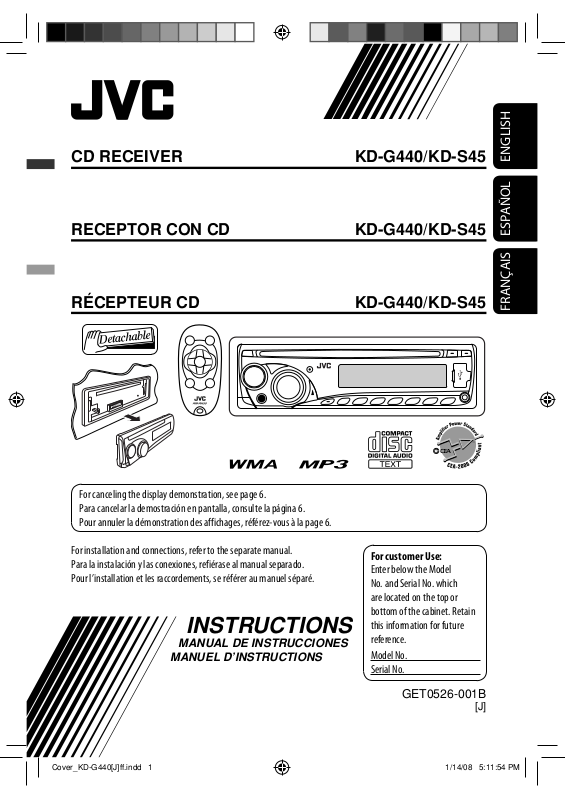

CD RECEIVER KD-G440/KD-S45

RECEPTOR CON CD KD-G440/KD-S45

RÉCEPTEUR CD KD-G440/KD-S45

For canceling the display demonstration, see page 6. Para cancelar la demostración en pantalla, consulte la página 6. Pour annuler la démonstration des affichages, référez-vous à la page 6.

ENGLISHESPAÑOLFRANÇAIS

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

GET0526-001B

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons will work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

CONTENTS

Control panel .................................. 4

Remote controller —

Getting started ................................ 6

Basic operations ................................................... 6

Radio operations ............................. 7

Disc/USB device operations .............. 8

Playing a disc in the unit ..................................... 8

Playing from a USB device .................................... 8

Sound adjustments .......................... 11

General settings — PSM .................. 12

Other external component

operations ................................... 14

Title assignment .............................. 15

More about this unit ........................ 15

Maintenance ................................... 18

Troubleshooting .............................. 19

Specifications .................................. 21

Detaching the control panel

RM-RK50 ........... 5

ENGLISH

To use these buttons for their original functions, press M MODE again.

• Waiting for about 5 seconds without pressing any of these buttons will automatically cancels the functions mode.

This unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate

volume) for connection.

Attaching the control panel

Control panel

Parts identification

ENGLISH

1 5 (up) / ∞ (down) buttons 2 0 (eject) button 3 (standby/on attenuator) button 4 Control dial 5 Remote sensor

Display window

DO NOT expose the remote sensor to strong light

(direct sunlight or artificial lighting).

6 BAND button 7 Loading slot 8 Display window 9 EQ (equalizer) button p DISP (display) button q (control panel release) button w SRC (source) button e 4 /¢ buttons r AUX (auxiliary) button t SEL (select) button y M MODE button u MO (monaural) button i SSM (Strong-station Sequential Memory) button

o Number buttons ; RPT (repeat) button a RND (random) button s AUX (auxiliary) input jack d USB (Universal Serial Bus) input jack f Source display / Track number / Folder number /

Time countdown indicator

g Tr (track) indicator h DISC indicator j Playback mode / item indicators—RND (random),

(disc), (folder), RPT (repeat)

k Tuner reception indicators—ST (stereo),

MO (monaural)

l Sound mode (iEQ: intelligent equalizer) indicators

—CLASSIC, HIP HOP, JAZZ, ROCK, POPS, USER

/ LOUD (loudness) indicator z EQ (equalizer) indicator x Disc information indicators—

TAG (Tag information), (folder), (track/file)

c Main display

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.

Warning:

• Do not install any battery other than CR2025 or

its equivalent; otherwise, it may explode.

• Do not leave the remote controller in a place

(such as the dashboard) exposed to direct sunlight for a long time; otherwise, it may explode.

• Store the battery in a place where children

cannot reach to avoid the risk of accidents.

• To prevent the battery from over-heating,

cracking, or starting a fire:

– Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

– Do not leave the battery with other metallic

materials.

– Do not poke the battery with tweezers or similar

tools.

– Wrap the battery with tape and insulate when

throwing away or saving it.

Main elements and features

ENGLISH

1 (standby/on/attenuator) button

• Turns the power on if pressed briefly or attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5 U (up) / D (down) ∞ buttons

• Changes the FM/AM bands with 5 U.

• Changes the preset stations with D ∞.

• Changes the folder of the MP3/WMA.

3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (iEQ: intelligent equalizer).

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

• Changes the track if pressed briefly.

Getting started

Basic operations

~ Turn on the power.

ENGLISH

* You cannot select these sources if they are not

ready or not connected.

! For FM/AM tuner

⁄ Adjust the volume.

To drop the volume in a moment (ATT)

To restore the sound, press the button again.

To turn off the power

Basic settings

• See also “General settings — PSM” on pages 12 – 14.

1 Canceling the display demonstrations Select “DEMO,” then “DEMO OFF.” 2 Setting the clock Select “CLOCK HOUR,” then adjust the hour. Select “CLOCK MIN” (minute), then adjust the

minute.

Volume level appears.

@ Adjust the sound as you want. (See

pages 11 and 12.)

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

3 Finish the procedure.

To check the current clock time while the power is turned off

Clock time is shown on the display for about 5 seconds. See also page 13.

Radio operations

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step ! above...

When an FM stereo broadcast is hard to receive

Lights up when monaural mode is activated.

Reception improves, but the stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

1 Select the FM band (FM1 – FM3) you want to

store into.

ENGLISH

Select a desired station frequency.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Continued on the next page

Manual presetting

Ex.: Storing the FM station of 92.50MHz into preset

number 4 of the FM1 band.

ENGLISH

Preset number flashes for a while.

Listening to a preset station

Disc / USB device operations

: For built-in CD player operations.

: For external USB device operations.

Playing a disc in the unit

All tracks will be played repeatedly until you change the source or eject the disc.

2 Select the preset station (1 – 6) you want.

To check the other information while listening to an FM or AM station

Frequency = Clock = Station name * = (back to the

beginning)

* If no title is assigned to a station, “NO NAME” appears.

To assign a title to a station, see page 15.

To stop play and eject the disc

• Press SRC to listen to another playback source.

Playing from a USB device

This unit can play MP3/WMA tracks stored in a USB device (except HDD). All tracks in the USB device will be played repeatedly until you change the source.

USB input jack

To fast-forward or reverse the track

USB memory

If a USB device has been attached...

Playback starts from where it has been stopped previously.

• If a different USB device is currently attached, playback starts from the beginning.

To detach the USB device, straightly pull it out from the unit.

• Removing the USB device will also stop playback. Then, press SRC to listen to another playback source.

Cautions:

• Avoid using the USB device if it might hinder your

safety driving.

• Do not pull out or attach the USB device

repeatedly while “READING” appears on the display.

• Do not start a car engine if a USB device is

connected.

• This unit may not be able to play the files

depending on the type of the USB device.

• Operation and power supply may not work as

intended for some USB devices.

• You cannot connect a computer to the USB input

jack of the unit.

• Make sure all important data has been backed up

to avoid losing the data.

• Do not leave a USB device in the car, expose to

direct sunlight, or high temperature to avoid deformation or cause damage to the USB device.

• Some USB devices may not work immediately

after you turn on the power.

• For more details about USB operations, see page

17.

To go to the next or previous track

To go to the next or previous folder (for MP3/WMA)

To locate a particular track (for CD) or folder (for MP3/WMA) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names— 01, 02, 03, and so on.

To select a particular track in a folder (for MP3/WMA):

ENGLISH

Other main functions

Skipping tracks quickly during play

Changing the display information

ENGLISH

• For MP3/WMA, you can skip tracks within the same folder.

Ex.: To select track 32 while playing tracks whose

number is a single digit (1 to 9)

Each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected and vice versa.

Prohibiting disc ejection

You can lock a disc in the loading slot.

While playing an audio CD or CD Text

A = Disc title/performer *1 = Track

title *1 [ ] = B = (back to the beginning)

While playing an MP3/WMA disc or

USB device

• When “TAG DISPLAY” is set to “TAG ON” (see page 13)

A = Album name/performer (folder

name *2) [ ] = Track title (file name *2) [ ] = B = (back to the

beginning)

• When “TAG DISPLAY” is set to “TAG OFF”

A = Folder name [ ] = File name

[ ] = B = (back to the beginning)

A : Clock with the current track number B : The elapsed playing time with the current track

number

[ ] : Corresponding indicator lights up on the display

*1 If the current disc is an audio CD, “NO NAME” appears. *2 If an MP3/WMA file does not have Tag information,

folder name and file name appear. In this case, the TAG indicator will not light up.

To cancel the prohibition, repeat the same procedure.

Selecting the playback modes

You can use only one of the following playback modes at a time.

Sound adjustments

You can select a preset sound mode suitable to the music genre (iEQ: intelligent equalizer).

ENGLISH

2 Select your desired playback mode.

7 Repeat play

Mode Plays repeatedly

TRACK RPT : The current track. [ FOLDER RPT * : All tracks of the current folder.

[ ]

RPT OFF : Cancels.

7 Random play

Mode Plays at random

FOLDER RND * : All tracks of the current folder,

then the tracks of the next folder and so on. [

ALL RND : All tracks of the current disc or

USB device. [ ]

RND OFF : Cancels.

Only while playing a media (MP3/WMA/USB).

[ ] : Corresponding indicator lights up on the

display

Preset values

BAS MID TRE LOUD

Indication (For) USER

(Flat sound)

]

ROCK

(Rock or disco music)

CLASSIC

(Classical music)

POPS

(Light music)

HIP HOP

(Funk or rap music)

JAZZ

(Jazz music)

BAS: Bass MID: Mid-range TRE: Treble LOUD: Loudness

00 00 00 OFF

+03 00 +02 OFF

+01 00 +03 OFF

+02 +01 +02 OFF

+04 –02 +01 OFF

+03 00 +03 OFF

Adjusting the sound

You can adjust the sound characteristics to your preference.

* Displayed only when “L/O MODE” is set to “SUB.W”

(see page 13).

Continued on the next page

Indication, [Range]

, [–06 to +06]

BASS * Adjust the bass.

(mid-range), [–06 to +06]

MIDDLE *

ENGLISH

Adjust the mid-range frequencies sound level.

TREBLE *

, [–06 to +06]

Adjust the treble.

FADER *

, [R06 to F06]

Adjust the front and rear speaker balance.

BALANCE *

, [L06 to R06]

Adjust the left and right speaker balance.

(loudness), [LOUD ON or LOUD OFF]

LOUD * Boost low and high frequencies to produce a well-balanced sound at a low volume level.

, [00 to 08, initial: 04]

SUB.W * Adjust the subwoofer output level.

VOL ADJ (volume adjust), [–05 to +05, initial: 00] Adjust the volume level of each source (except FM), in relation to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

VOLUME, [00 to 50 or 00 to 30] *

Adjust the volume.

When you adjust the bass, mid-range, or treble, the

adjustment you have made is stored for the currently selected sound mode (iEQ) including “USER.”

*2 If you are using a two-speaker system, set the fader

level to “00.” *3 This adjustment will not affect the subwoofer output. *4 The adjustment made (LOUD ON/LOUD OFF) will be

applied to all sound modes. *5 Displayed only when “L/O MODE” is set to “SUB.W”

(see page 13). *6 Depending on the amplifier gain control setting. (See

page 14 for details.)

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table on pages 13 and 14.

2 Select a PSM item.

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust other PSM

items if necessary.

5 Finish the procedure.

Indications Item

Selectable settings, [reference page]

( : Initial)

DEMO

Display demonstration

CLOCK DISP *

Clock display

• DEMO ON

• DEMO OFF

• CLOCK ON

• CLOCK OFF

: The display demonstration will be activated automatically if no

operation is done for about 20 seconds, [6].

: Cancels.

The clock time is shown on the display at all times when the power is

turned off

: Cancels; pressing DISP will show the clock time for about 5 seconds

when the power is turned off, [6].

CLOCK HOUR

1 – 12 [Initial: 1 (1:00)], [6]

Hour adjustment

CLOCK MIN

00 – 59 [Initial: 00 (1:00)], [6]

Minute adjustment

DIMMER

Dimmer

SCROLL * Scroll

• ON

• OFF

• ONCE

• AUTO

• OFF

: Dims the display and button illumination. : Cancels.

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

• Pressing DISP for more than one second can scroll the display regardless of the setting.

L/O MODE

Line output mode

• REAR

• SUB.W

: Select if the REAR LINE OUT terminals are used for connecting the

speakers (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for connecting a

subwoofer (through an external amplifier).

SUB.W FREQ *

Subwoofer cutoff frequency

TAG DISPLAY

Tag display

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select

• LOW

• MID

• HIGH

• TAG ON

• TAG OFF

: Frequencies lower than 90 Hz are sent to the subwoofer. : Frequencies lower than 135 Hz are sent to the subwoofer. : Frequencies lower than 180 Hz are sent to the subwoofer.

: Shows the Tag information while playing MP3/WMA tracks, [10]. : Cancels.

“CLCOK OFF” that you save the car’s battery. *2 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *3 Displayed only when “L/O MODE” is set to “SUB.W.”

ENGLISH

Continued on the next page

Indications Item

AMP GAIN

Amplifier gain

ENGLISH

control

AREA

Tuner channel interval

( : Initial)

•

LOW POWER

• HIGH POWER

• AREA US

• AREA EU

• AREA SA

Selectable settings, [reference page]

: VOLUME 00 – VOLUME 30 (Select this if the maximum power of the

speaker is less than 50 W to avoid damaging the speaker.)

: VOLUME 00 – VOLUME 50

: When using in North/Central/South America. AM/FM intervals are set

to 10 kHz/200 kHz.

: When using in any other areas. AM/FM intervals are set to 9 kHz/

50 kHz (100 kHz during auto search).

: When using in South American countries. AM/FM intervals are set to

10 kHz/100 kHz.

Other external component operations

You can connect an external component to the AUX (auxiliary) input jack on the control panel.

Portable audio player, etc

• You can also select “AUX IN” as the playback source by pressing the SRC (source) button.

3.5 mm (3/16”) stereo mini plug (not supplied)

Ÿ Turn on the connected component and

start playing the source.

! Adjust the volume.

⁄ Adjust the sound as you want. (See

pages 11 and 12.)

To check the other information while listening to an external component

Clock Ô AUX IN

Title assignment

More about this unit

You can assign titles to 30 station frequencies (FM and AM) and up to 8 characters for each station name.

1 Select FM/AM.

2 Show the title entry screen.

3 Assign a title.

1 Select a character.

2 Move to the next (or previous) character

position.

3 Repeat steps 1 and 2 until you finish

entering the title.

4 Finish the procedure.

To erase the entire title

In step 2 above...

Basic operations

Turning on the power

• By pressing SRC or AUX on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and the

stations are stored anew.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in No. 1 will

be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.

• MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

ENGLISH

Continued on the next page

• When a disc is inserted upside down, “PLEASE” and “EJECT appear alternately on the display. Press 0 to eject the disc.

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

ENGLISH

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same type as those which are detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, or for the following reasons:

– Discs are dirty or scratched. – Moisture condensation has occurred on the lens

inside the unit. – The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

• CD-RWs may require a longer readout time since the

reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or protective seal stuck

to the surface. – Discs on which labels can be directly printed by an

ink jet printer. Using these discs under high temperature or high

humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists

(performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) 12 kHz, 11.025 kHz, 8 kHz (for MPEG-2.5) – Disc format: ISO 9660 Level 1/ Level 2, Romeo,

Joliet, Windows long file name – Bit rate of WMA: 16 kbps — 32 kbps (Sampling frequency: 22.05 kHz) 32 kbps — 320 kbps

(Sampling frequency: 48 kHz,

44.1 kHz, 32 kHz)

• The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 128 characters – Joliet: up to 64 characters – Windows long file name: up to 128 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format. – WMA files not based on Windows Media® Audio. – WMA files copy-protected with DRM. – Files which have data such as WAVE, ATRAC3, etc.

• The search function works but search speed is not

constant.

Playing MP3/WMA tracks from a USB device

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• Connect one USB mass storage class device to the unit at a time. Do not use a USB hub.

• If the connected USB device does not have the correct files, “NO FILE” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate of MP3: 16 kbps — 320 kbps – Sampling frequency of MP3: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) 12 kHz, 11.025 kHz, 8 kHz (for MPEG-2.5) – Bit rate of WMA: 16 kbps — 32 kbps

(Sampling frequency: 22.05 kHz)

32 kbps — 320 kbps

(Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz)

• This unit can play back MP3 files recorded in VBR (variable bit rate).

• The maximum number of characters for:

– Folder names : 25 characters – File names : 25 characters – MP3 Tag : 128 characters – WMA Tag : 64 characters

• This unit can recognize a total of 2 500 files, 255 folders (999 files per folder), and of 8 hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• This unit may not recognized a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files not based on Windows Media® Audio.

Changing the source

• If you change the source, playback also stops.

Next time you select the same source again, playback

starts from where it has been stopped previously.

Ejecting a disc or removing a USB device

• If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust.

• After ejecting a disc or removing a USB device, “NO DISC” or “NO USB“ appears and you cannot operate some of the buttons. Insert another disc, reattach a USB device, or press SRC to select another playback source.

General settings—PSM

• If you change the “AMP GAIN” setting from “HIGH POWER” to “LOW POWER” while the volume level is set higher than “VOLUME 30,” the unit automatically changes the volume level to “VOLUME 30.”

Title assignment

• If you try to assign titles to more than 30 station frequencies, “NAMEFULL” appears. Delete unwanted titles before assignment.

ENGLISH

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the

ENGLISH

connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD

—8 cm (3-3/16”) disc

Sticker and

sticker residue

Unusual shape

Warped disc

Stick-on label

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

General

• The unit does not work at all. Reset the unit (see page 3).

• SSM automatic presetting does not work. Store stations manually.

FM/AM

• Static noise while listening to the radio. Connect the antenna firmly.

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 10).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

Disc playback

• “NO DISC” appears on the display.

• “PLEASE” and ”EJECT” appear alternately on the display.

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

• Insert a finalized CD-R/CD-RW.

•

Finalize the CD-R/CD-RW with the component which you used for recording.

• Eject the disc forcibly (see page 3).

• Change the disc.

• Check the cords and connections.

Insert a playable disc into the loading slot.

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

ENGLISH

• Noise is generated. Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA

MP3/WMA playback

• A longer readout time is required

(“READING” keeps flashing on the display).

tracks.)

Do not use too many hierarchical levels and folders.

Continued on the next page

+ 43 hidden pages
