JVC KD-R407 User manual

ENGLISHРУCCKИЙУКРАЇНА

CD RECEIVER

РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ ПРИЙМАЧ З ПРОГРАВАЧЕМ КОМПАКТ-ДИСКІВ

KD-R407

For installation and connections, refer to the separate manual. Указания по установке и выполнению соединений приводятся в отдельной инструкции. Вказівки по встановленню та виконанню підключень наведені у окремій інструкції.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

ІНСТРУКЦІЇ

GET0575-001A

[EE]

For canceling the display demonstration, see page 6. Информацию об отмене демонстрации функций дисплея см. на стр. 6. Інформацію щодо відміни демонстрації функцій дисплею див. на стор. 6.

В соответствии с Законом Российской Федерации “О защите прав потре бителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре. Дополнительные косметические материалы к данному товару, поставляе мые вместе с ним, могут храниться в течение двух (2) лет со дня его производства. Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Available characters on the display

Available characters

Display indications

ENGLISH

Detaching the control panel

Attaching the control panel

How to reset your unit

• Your preset adjustments will also be erased.

How to forcibly eject a disc

• You can forcibly eject the loaded disc even if the disc is

locked. To lock/unlock the disc, see page 10.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

This mark is used to indicate...

Turn the control dial to make a selection, then press to confirm the selection.

CONTENTS

Detaching the control panel ......................... 3

Attaching the control panel ......................... 3

How to reset your unit ................................. 3

How to forcibly eject a disc ........................... 3

OPERATIONS

Basic operations ........................................... 4

Preparation .................................................. 6

Listening to the radio ................................... 7

Disc operations ............................................. 10

Listening to the USB device .......................... 11

EXTERNAL DEVICES

Listening to the other external

components .............................................. 12

SETTINGS

Selecting a preset sound mode .................... 13

Menu operations .......................................... 15

REFERENCES

More about this unit .................................... 18

Troubleshooting ........................................... 21

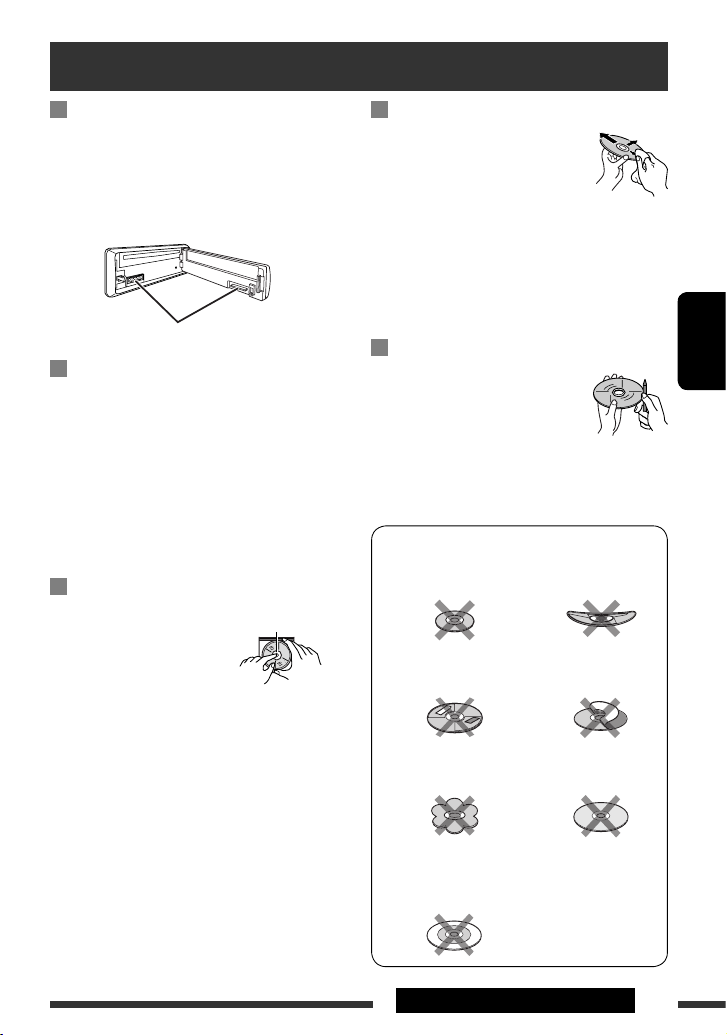

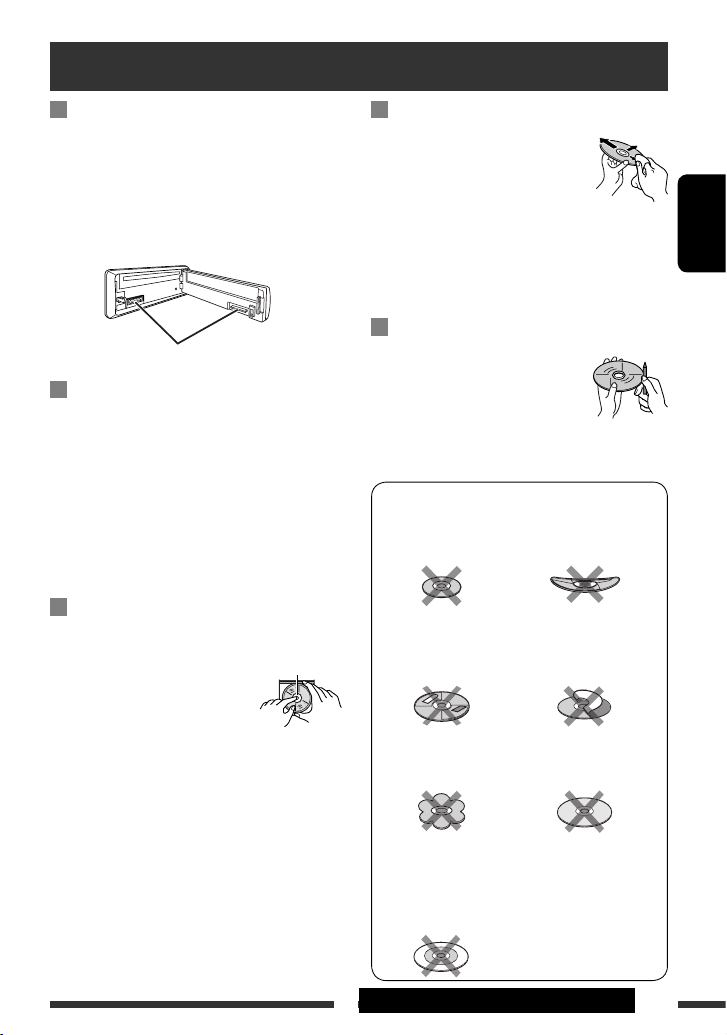

Maintenance ................................................ 23

Specifications ............................................... 24

ENGLISH

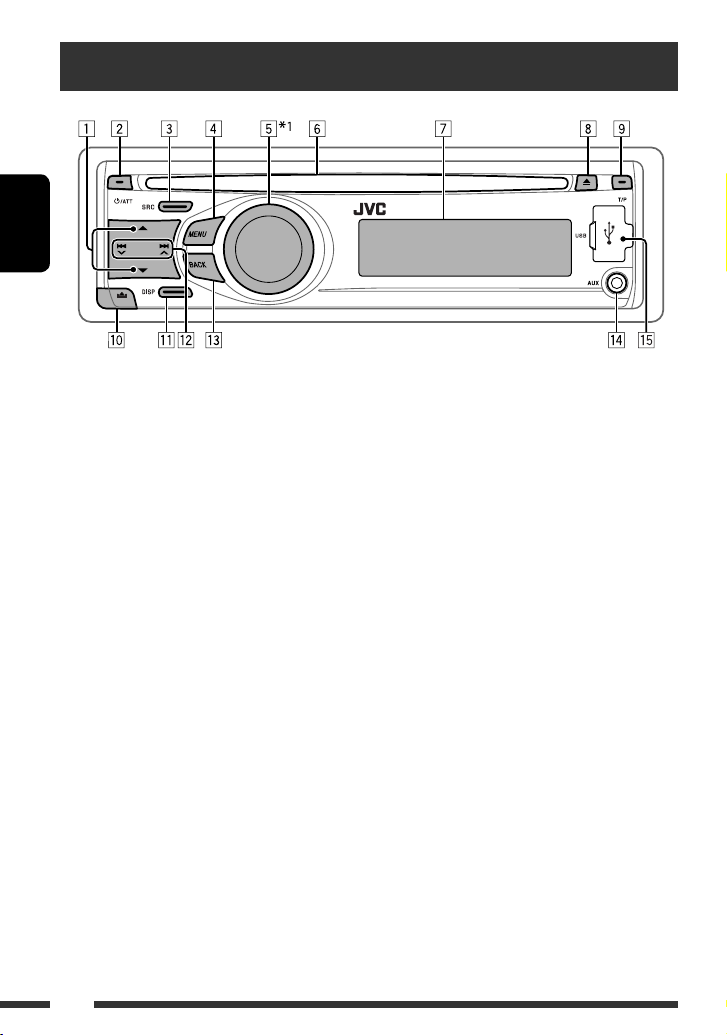

Basic operations

p Detach the panel. q Change the display information. w • FM/AM: Search for station.

• CD/USB: Select track.

e Return to the previous menu. r AUX (auxiliary) input jack t USB (Universal Serial Bus) input jack

*1 Also known as “Control dial” in this manual. *2 You cannot select “CD” as the playback source if no

disc is in the unit.

*3 You cannot select these sources if they were disabled

in the Menu (see “SRC SELECT” in “Menu operations” on page 17).

*4 You can still adjust the volume during pause when

the selected source is CD/USB. Before resume playback, check to be sure that you have not raise the volume level too much.

1 • FM/AM: Select preset station.

• CD/USB: Select folder.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold].

3 Select the source.

FM = CD *2 = USB = AUX IN *3 = AM *3 =

FM-LO = (back to the beginning)

4 • Enter list operations.

• Enter Menu setting [Hold] .

5 • Control the volume *

or select items [Turn].

• Confirm the selection [Press] .

• FM: Enter SSM preset mode [Hold] .

• CD/USB: Enter playback mode [Hold] . Pause/resume playback *4 [Press] .

6 Loading slot 7 Display window 8 Eject disc. 9 • Activate/deactivate TA Standby Reception.

• Enter PTY Searching mode [Hold].

ENGLISH

5OPERATIONS

Display window

1 Tr (track) indicator 2 Source display / Track number / Folder number /

Time countdown indicator

3 DISC indicator 4 Sound mode indicators—CLASSIC, HIP HOP, JAZZ,

ROCK, POPS, USER

5 Playback mode / item indicators— RND (random),

(disc), (folder), RPT (repeat)

6 EQ (equalizer) indicator

7 LOUD (loudness) indicator 8 Disc information indicators—

TAG (Tag information),

(track/file), (folder)

9 Main display p Radio Data System indicators—AF, REG, TP, PTY q Tuner reception indicators—ST (stereo),

MO (monaural)

ENGLISH

Preparation

Canceling the display demonstration and setting the clock

• See also page 15.

Turn on the power.

[Turn] = [Press]

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK” = “CLOCK SET.” Adjust the hour, then press control dial once to proceed to adjust

the minute.

Select “24H/12H,” then “24 HOUR” or “12 HOUR.”

• To return to the previous menu, press BACK.

Changing the display information

When the power is turned off: The current clock time is displayed if “CLOCK DISP” is set to “CLOCK OFF,” (see page 15). When the power is turned on: The display information of the current source changes as follows:

FM/AM: Station Frequency = Clock = (back to the beginning) FM Radio Data System: Station name (PS) = Station Frequency = Programme type (PTY) = Clock =

(back to the beginning)

CD:

CD/USB:

Audio CD/CD Text: Disc title/performer *1 = Track title *1 = Current track

number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

MP3/WMA: Album name/performer (folder name) *2 = Track title (file

name) *2 = Current track number with the elapsed playing time = Current track number with the clock time = (back to the beginning)

*1 If the current disc is an audio CD, “NO NAME” appears. *2 If an MP3/WMA file does not have Tag information or “ TAG DISPLAY” is set to “ TAG OFF” (see page 15),

folder name and file name appear.

Press and hold until the main menu is called up.

• Repeat this procedure.

ENGLISH

7OPERATIONS

Listening to the radio

Select “FM,” “AM,” or “FM-LO.”

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.

Note:

FM: 87.5 MHz – 108.0 MHz FM-LO: 65.00 MHz – 74.00 MHz

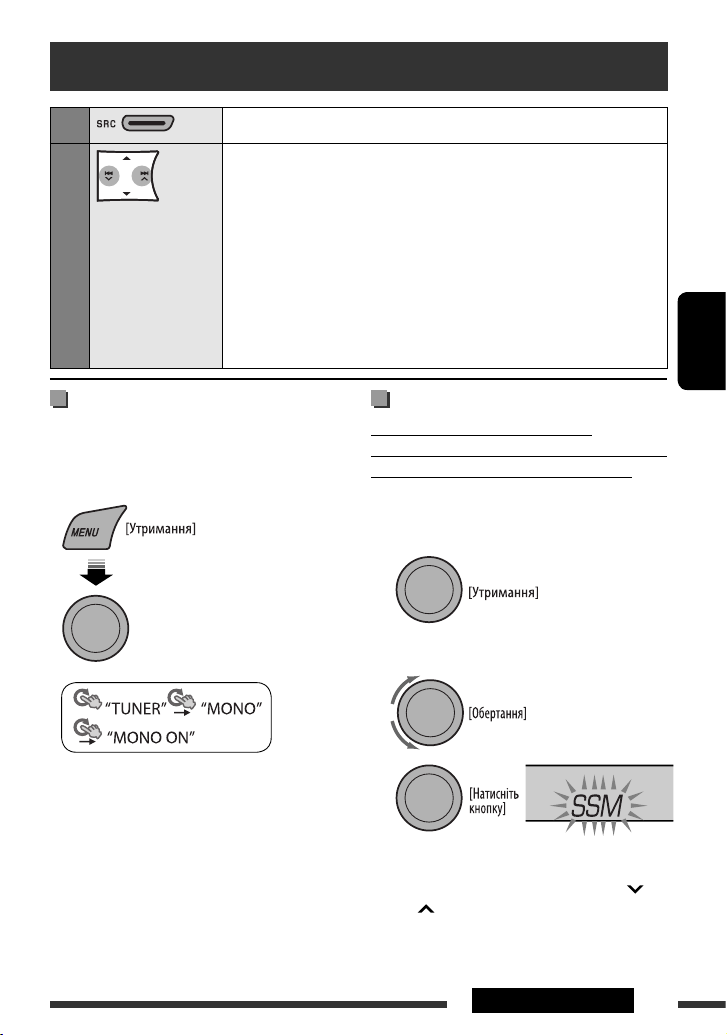

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• See also page 16.

Reception improves, but stereo effect will be lost.

• The MO indicator lights up on the display.

To restore the stereo effect, repeat the same procedure to select “MONO OFF.” The MO indicator goes off.

Storing stations in memory

Automatic presetting (FM/FM-LO)— SSM (Strong-station Sequential Memory)

You can preset up to 12 stations for FM, and 6 stations for FM-LO.

1 While listening to a station...

2 Select the preset number range you want to

store.

FM: SSM 01–06, SSM 07–12 FM-LO: SSM 01–06

Local FM stations with the strongest signals are searched and stored automatically.

• To stop searching, press 4

/¢ .

To preset other 6 stations, repeat from step 1 again.

[Turn] = [Press]

Continued on the next page

ENGLISH

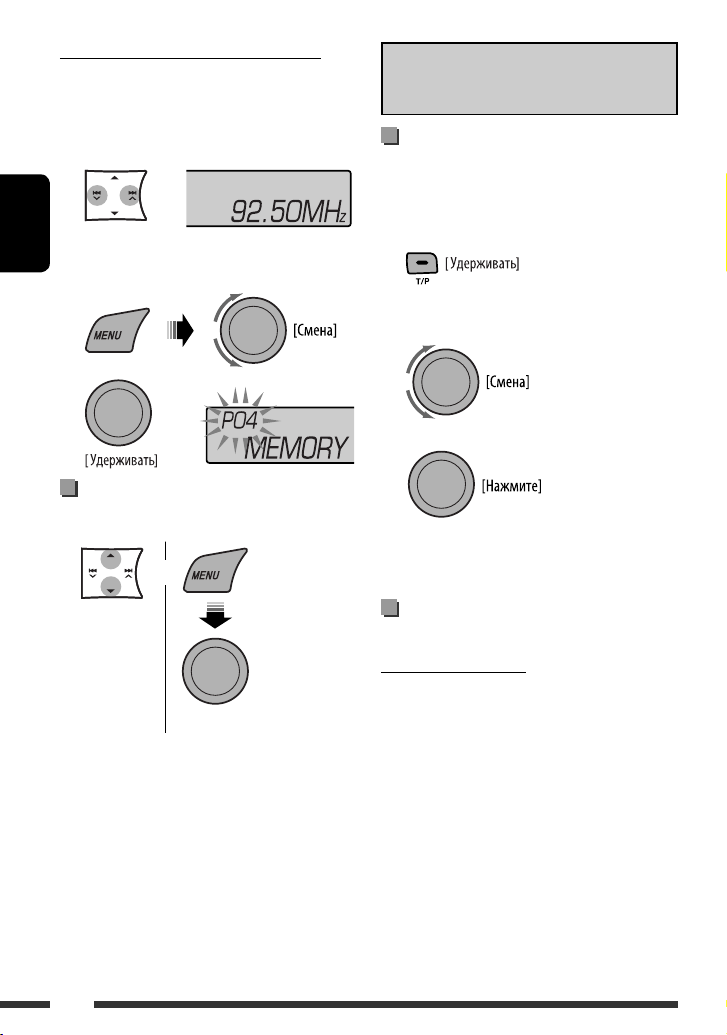

Manual presetting (FM/AM)

You can preset up to 12 stations for FM, 6 stations for FM-LO, and 6 stations for AM. Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

2 Select preset number “04.”

Selecting preset station

[Turn] = [Press]

The following features are available only for FM Radio Data System stations.

Searching for FM Radio Data

System programme—PTY Search

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

1 The last selected PTY code

appears.

2 Select one of your favorite programme types

or a PTY code.

3 Start searching for your favorite programme.

If a station is broadcasting a programme of the

same PTY code as you have selected, that station is tuned in.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM and FM-LO. The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 16).

ENGLISH

9OPERATIONS

To activate TA Standby Reception

The TP (Traffic Programme)

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.

• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the Radio Data System signals required for TA Standby Reception.)

To activate the reception, tune in to another station

providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any

source other than AM and FM-LO.

To activate and select your favorite PTY code for PTY Standby Reception, see page 16.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate the reception, tune in to another station

providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “PTY OFF” for the PTY code (see page 16). The PTY indicator goes off.

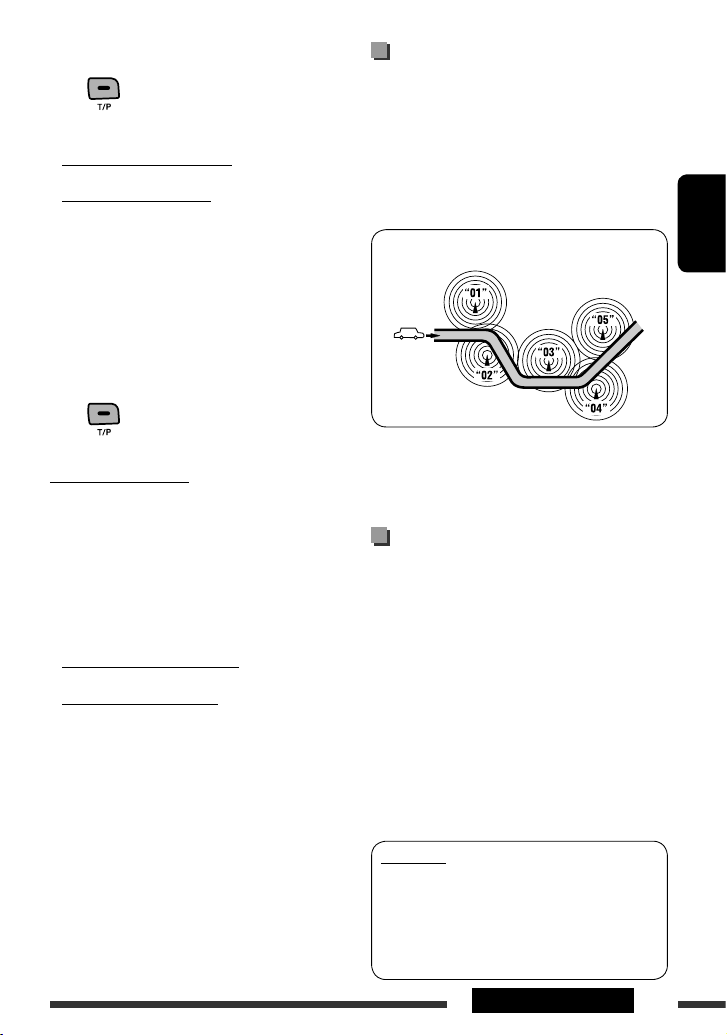

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

Programme A broadcasting on different frequency areas (01 – 05)

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see “AF-REG” on page 16.

Automatic station selection—

Programme Search

Usually when you select a preset number, the station preset in that number is tuned in. If the signals from the FM Radio Data System preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency possibly broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search.

• See also page 16.

PTY codes

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

ENGLISH

Pressing (or holding) the following buttons allows you to...

[Press] Pause/resume playback

MP3/WMA: Select folder

[Press] Select track

[Hold] Reverse/fast-forward track

Selecting the playback modes

You can use only one of the following playback modes at a time.

Disc operations

Turn on the power.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Stop playing and ejecting the disc

• “NO DISC” appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selecting a track/folder

• For MP3/WMA discs, select the desired folder, then the desired track by repeating the control dial procedures.

• To return to the previous menu, press BACK.

[Turn] = [Press]

REPEAT Ô RANDOM

ENGLISH

OPERATIONS

REPEAT

TRACK RPT : Repeats current track FOLDER RPT : MP3/WMA: Repeats current folder

RANDOM

FOLDER RND : MP3/WMA: Randomly plays all

tracks of current folder, then tracks of next folders

ALL RND : Randomly plays all tracks

[Turn] = [Press]

Listening to the USB device

This unit can play MP3/WMA tracks stored in a USB device.

All tracks will be played repeatedly until you change the source or detach the USB device.

USB input jack

USB memory

If a USB device has been attached...

Playback starts from where it has been stopped previously.

• If a different USB device is currently attached, playback starts from the beginning.

To stop play and detach the USB device

Straightly pull it out from the unit.

• Press SRC to listen to another playback source.

You can operate the USB device in the same way you

operate the files on a disc. (See pages 10 and 11.)

Continued on the next page

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

ENGLISH

OPERATIONS & EXTERNAL DEVICES

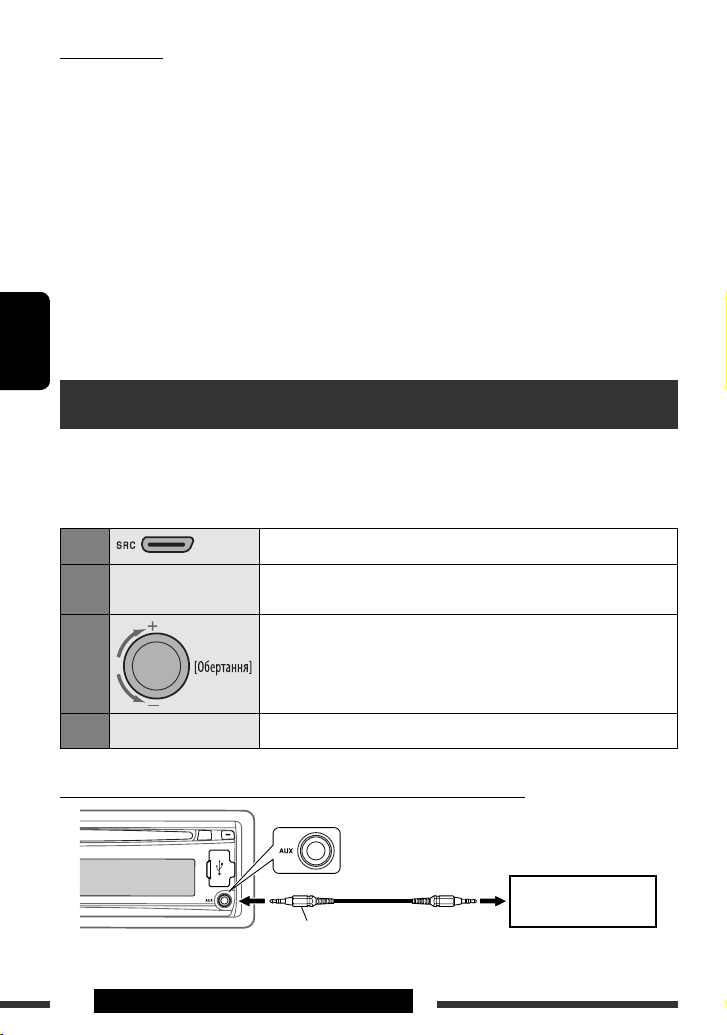

Listening to the other external components

You can connect an external component to AUX (auxiliary) input jack on the control panel. Preparation: Make sure “AUX ON” is selected in the “SRC SELECT” = “AUX IN” setting, see page 17.

Select “AUX IN.”

—

Turn on the connected component and start playing the source.

Adjust the volume.

—

Adjust the sound as you want (see pages 13 and 14).

Connecting an external component to the AUX input jack

3.5 mm stereo mini plug (not supplied)

Portable audio player, etc.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• For more details about USB operations, see page 20.

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “READING” is shown on the display.

• Do not start the car engine if a USB device is connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

ENGLISH

SETTINGS

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

• See also page 15.

• See page 14 for “USER” settings.

Preset value setting for each sound mode

Sound

mode

Preset value

BASS MIDDLE TREBLE LOUD

(loudness)

Freq. Level Q Freq. Level Q Freq. Level Q

USER 60 Hz 00 Q1.25 1.0 kHz 00 Q1.0 10.0 kHz 00 —

OFF

ROCK 100 Hz +03 Q1.0 1.0 kHz 00 Q1.25 10.0 kHz +02 — CLASSIC 80 Hz +01 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 — POPS 100 Hz +02 Q1.25 1.0 kHz +01 Q1.25 10.0 kHz +02 — HIP HOP 60 Hz +04 Q1.0 1.0 kHz –02 Q1.0 10.0 kHz +01 — JAZZ 80 Hz +03 Q1.25 1.0 kHz 00 Q1.25 10.0 kHz +03 —

Freq.: Frequency Q: Q-slope

[Turn] = [Press]

ENGLISH

4 Adjust the sound elements of the selected

tone.

1 Adjust the frequency. 2 Adjust the level. 3 Adjust the Q-slope.

Sound

elements

Range/selectable items

BASS MIDDLE TREBLE

Frequency 60 Hz

80 Hz 100 Hz 200 Hz

0.5 kHz

1.0 kHz

1.5 kHz

2.5 kHz

10.0 kHz

12.5 kHz

15.0 kHz

17.5 kHz

Level –06 to

+06

–06 to +06

Q Q1.0

Q1.25 Q1.5 Q2.0

Q0.75 Q1.0 Q1.25

Fixed

5 Repeat steps 3 and 4 to adjust other sound

characteristics.

The adjustment made will be stored automatically.

Storing your own sound mode

You can store your own adjustments in memory.

1 Select “USER” for “EQ.”

2 While “USER” is shown on the display...

3 Select a tone.

[Turn] = [Press]

ENGLISH

SETTINGS

Initial: Underlined

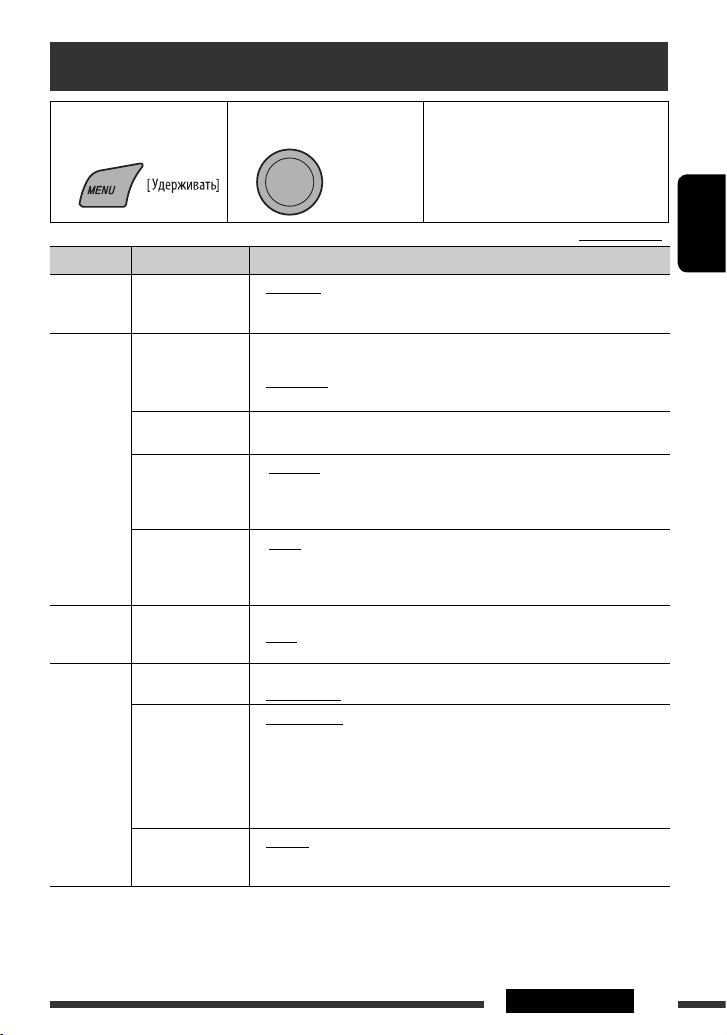

Menu operations

Category Menu items Selectable settings, [reference page]

DEMO

Display demonstration

• DEMO ON

• DEMO OFF

: Display demonstration will be activated automatically if no

operation is done for about 20 seconds, [6].

: Cancels.

CLOCK

CLOCK DISP *

Clock display

• CLOCK ON

• CLOCK OFF

: Clock time is shown on the display at all times when the

power is turned off.

: Cancels; pressing DISP will show the clock time for about

5 seconds when the power is turned off, [6].

CLOCK SET

Clock setting

: Adjust the hour, then the minute, [6]. (Initial: 0:00)

24H/12H

Time display mode

• 24 HOUR

• 12 HOUR

: See also page 6 for setting.

CLOCK ADJ *

Clock adjustment

• AUTO

• OFF

: The built-in clock is automatically adjusted using the CT

(clock time) data in the Radio Data System signal.

: Cancels.

Equalizer

: Select a preset sound mode suitable to the music genre. USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ

DISPLAY

DIMMER

Dimmer

• DIMMER ON

• DIMMER OFF

: Dims the display and button illumination. : Cancels.

SCROLL*

Scroll

• SCROLL ONCE

• SCROLL AUTO

• SCROLL OFF

: Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals). : Cancels.

Pressing DISP for more than one second can scroll the display regardless of the setting.

TAG DISPLAY

Tag display

• TAG ON

• TAG OFF

: Shows the Tag information while playing MP3/WMA

tracks.

: Cancels.

*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select

“CLOCK OFF” to save the car’s battery. *2 Takes effect only when CT data is received. *3 Some characters or symbols will not be shown correctly (or will be blanked) on the display.

1 Call up the menu. 2 Select the desired item. 3 Repeat step 2 if necessary.

• To return to the previous menu, press BACK.

• To exit from the menu, press DISP or MENU.

[Turn] = [Press]

Continued on the next page

ENGLISH

Category Menu items Selectable settings, [reference page]

TUNER

AF-REG *

Alternative frequency/ regionalization reception

• AF ON

• AF-REG ON

• OFF

: When the currently received signals become weak, the unit

switches to another station (the programme may differ from the one currently received), [9].

• The AF indicator lights up. : When the currently received signals become weak, the

unit switches to another station broadcasting the same programme.

• The AF and REG indicators light up. : Cancels.

PTY-STANDBY *

PTY standby

PTY OFF, PTY codes

: Activates PTY Standby Reception with one of the PTY

codes, [9].

TA VOLUME *

Traffic announcement volume

VOLUME 00 – VOLUME 50 (or VOLUME 00 – VOLUME 30)*

: (Initial: VOLUME 15)

P-SEARCH *

Programme search

• SEARCH ON

• SEARCH OFF

: Activates Programme Search, [9]. : Cancels.

MONO *

Monaural mode

• MONO ON

• MONO OFF

: Activate monaural mode to improve FM reception, but

stereo effect will be lost, [7].

: Restore the stereo effect.

IF BAND

Intermediate frequency band

• AUTO

• WIDE

: Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

AUDIO

FADER*

7, *8

Fader

R06 – F06 : Adjust the front and rear speaker output balance.

(Initial: 00)

BALANCE *

Balance

L06 – R06 : Adjust the left and right speaker output balance.

(Initial: 00)

LOUD

Loudness

• LOUD OFF

• LOUD ON

: Cancels. : Boost low and high frequencies to produce a well-balanced

sound at a low volume level.

Only for FM Radio Data System stations.

*5 Depends on the amplifier gain control. *6 Displayed only when the source is “FM.” *7 If you are using a two-speaker system, set the fader level to “00.” *8 This adjustment will not affect the subwoofer output.

ENGLISH

SETTINGS

Category Menu items Selectable settings, [reference page]

AUDIO

VOL ADJUST

Volume adjust

VOL ADJ –05 — VOL ADJ +05

(Initial: VOL ADJ

00)

: Preset the volume adjustment level of each source (except

FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM” is selected as the source.

L/O MODE

Line output mode

• SUB.W

• REAR

: Select if the REAR LINE OUT terminals are used for

connecting a subwoofer (through an external amplifier).

: Select if the REAR LINE OUT terminals are used for

connecting the speakers (through an external amplifier).

SUB.W FREQ *

Subwoofer cutoff frequency

• LOW

• MID

• HIGH

: Frequencies lower than 72 Hz are sent to the subwoofer. : Frequencies lower than 111 Hz are sent to the subwoofer. : Frequencies lower than 157 Hz are sent to the subwoofer.

SUB.W LEVEL *

Subwoofer level

SUB.W 00 — SUB.W 08

: Adjust the subwoofer output level. (Initial: SUB.W 04)

BEEP

Keypress tone

• BEEP OFF

• BEEP ON

: Deactivates the keypress tone. : Activates the keypress tone.

TEL MUTING

Telephone muting

• MUTING 1/

MUTING 2

• MUTING OFF

: Select either one which mutes the sounds while using a

cellular phone.

: Cancels.

AMP GAIN *

Amplifier gain control

• LOW POWER

• HIGH POWER

: VOLUME 00 – VOLUME 30 (Select if the maximum power

of each speaker is less than 50 W to prevent damaging the speaker.)

: VOLUME 00 – VOLUME 50

SRC SELECT

AM *

AM station

• AM OFF

• AM ON

: Disable “AM” in source selection. : Enable “AM” in source selection, [4].

AUX IN *

Auxiliary input

• AUX OFF

• AUX ON

: Disable “AUX IN” in source selection. : Enable “AUX IN” in source selection, [4].

*9 Displayed only when “L/O MODE” is set to “SUB.W.” *10 The volume level automatically changes to “VOLUME 30” if you change to “LOW POWER” with the volume level

set higher than “VOLUME 30.”

*11 Displayed only when any source other than “AM” is selected. *12 Displayed only when any source other than “AUX IN” is selected.

ENGLISH

Basic operations

Turning on the power

• By pressing SRC button on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

• If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

General

• If you change the source while listening to a disc, playback stops.

Next time you select “CD” as the playback source,

playback will start from where it had been stopped previously.

• If no operation is done for about 30 seconds after

pressing MENU button, the operation will be canceled.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and the

stations are stored anew.

– When SSM is over, the station stored in the lowest

preset number will be automatically tuned in.

• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

FM Radio Data System operations

• Network-Tracking Reception requires two types of Radio Data System signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.

• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.

• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically.

Disc operations

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3/WMA formats.

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press 0 to eject the disc.

• MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.

More about this unit

ENGLISH

REFERENCES

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate of MP3: 32 kbps — 320 kbps

– Sampling frequency of MP3: 32 kHz, 44.1 kHz, 48 kHz (for MPEG-1) 16 kHz, 22.05 kHz, 24 kHz (for MPEG-2) – Bit rate of WMA: 32 kbps — 320 kbps – Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

– Disc format: ISO 9660 Level 1/Level 2, Romeo,

Joliet, Windows extension.

• The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo: up to 64 characters – Joliet: up to 32 characters – Windows extension: up to 32 characters

• This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the

elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

• This unit cannot play back the following files:

– MP3 files encoded in MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media ® Audio. – WMA files copy-protected with DRM. – Files which have data such as AIFF, ATRAC3, etc.

• The search function works but search speed is not

constant.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This unit can only play back files of the same type as those detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:

– Discs are dirty or scratched. – Moisture condensation has occurred on the lens

inside the unit. – The pickup lens inside the unit is dirty. – The files on the CD-R/CD-RW are written using the

“Packet Write” method. – There are improper recording conditions (missing

data, etc.) or media conditions (stained, scratched,

warped, etc.).

• CD-RWs may require a longer readout time since the

reflectance of CD-RWs is lower than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective seal stuck

to the surface. – Discs on which labels can be directly printed by an

ink jet printer. Using these discs under high temperature or high

humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the

extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists

(performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

Continued on the next page

ENGLISH

Playing MP3/WMA tracks from a USB device

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• Connect one USB mass storage class device to the unit at a time. Do not use a USB hub.

• If the connected USB device does not have the correct files, “CANNOT PLAY” appears.

• This unit can show Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for MP3 files and for WMA files.

• This unit can play back MP3/WMA files meeting the conditions below:

– Bit rate of MP3: 32 kbps — 320 kbps – Sampling frequency of MP3: 32 kHz, 44.1 kHz, 48 kHz (for MPEG-1) 16 kHz, 22.05 kHz, 24 kHz (for MPEG-2) – Bit rate of WMA: 32 kbps — 320 kbps – Sampling frequency of WMA:

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

• This unit can play back MP3 files recorded in VBR (variable bit rate).

• The maximum number of characters for:

– Folder names : 32 characters – File names : 32 characters – MP3 Tag : 32 characters – WMA Tag : 32 characters

• This unit can recognize a total of 5 000 files, 255 folders (255 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit does not support SD card reader.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• This unit may not recognized a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded in lossless, professional, and

voice format.

– WMA files not based on Windows Media® Audio.

Ejecting a disc or removing a USB device

• If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust.

• After ejecting a disc or removing a USB device, “NO DISC” or “NO USB“ appears and you cannot operate some of the buttons. Insert another disc, reattach a USB device, or press SRC to select another playback source.

Menu operations

• If you change the “AMP GAIN” setting from “HIGH POWER” to “LOW POWER” while the volume level is set higher than “VOLUME 30,” the unit automatically changes the volume level to “VOLUME 30.”

ENGLISH

21REFERENCES

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

General

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

• The unit does not work at all. Reset the unit (see page 3).

• “AUX IN” cannot be selected. Check the “SRC SELECT” = “AUX IN” setting (see

page 17).

FM/AM

• SSM automatic presetting does not work. Store stations manually.

• Static noise while listening to the radio. Connect the aerial firmly.

• “AM” cannot be selected. Check the “SRC SELECT” = “AM” setting (see

page 17).

Discs in general

• Disc cannot be played back. Insert the disc correctly.

• CD-R/CD-RW cannot be played back.

• Tracks on the CD-R/CD-RW cannot be skipped.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

• Disc can neither be played back nor ejected. • Unlock the disc (see page 10).

• Eject the disc forcibly (see page 3).

• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.

• Change the disc.

• Check the cords and connections.

• “NO DISC” appears on the display. Insert a playable disc into the loading slot.

• “PLEASE” and “EJECT“ appear alternately on the display.

Press 0, then insert a disc correctly.

MP3/WMA playback

• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

• Add the extension code <.mp3> or <.wma> to the file names.

• Noise is generated.

Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

Continued on the next page

ENGLISH

Symptoms Remedies/Causes

MP3/WMA playback

• A longer readout time is required (“READING” keeps flashing on the display).

Do not use too many hierarchical levels and folders.

• Tracks do not play back in the order you have intended them to play.

The playback order is determined when the files are recorded.

• The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

how the tracks are recorded on the disc.

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

• The correct characters are not displayed (e.g. album name).

This unit can only display Roman alphabets (upper case), Cyrillic alphabets (upper case), numbers, and a limited number of symbols (see page 2).

USB device playback

• Noise is generated. The track played back is not an MP3/WMA track. Skip to

another file. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

• “READING” keeps flashing on the display. • Readout time varies depending on the USB device.

• Do not use too many hierarchy or folders.

• Turn off the power then on again.

• Reattach the USB device again.

• “NO FILE” appears on the display. Selected folder is an empty folder*. Select another folder

that contains MP3/WMA tracks.

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA track.

• Tracks/folders are not played back in the order you have intended.

The playback order is determined by the write-in time stamp. The first track/folder written into the USB device will be the first track/folder for playback.

• “CANNOT PLAY” flashes on the display.

• “NO USB” appears on the display.

• The unit cannot detect the USB device.

• Attach a USB device that contains tracks encoded in an appropriate format.

• Reattach the USB device again.

• Correct characters are not displayed (e.g. album name).

This unit can only display Roman alphabets (upper case), Cyrillic alphabets (upper case), numbers, and a limited number of symbols (see page 2).

• While playing a track, sound is sometimes interrupted.

The MP3/WMA tracks have not been properly copied into the USB device. Copy MP3/WMA tracks again into the USB device, and try again.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

ENGLISH

23REFERENCES

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in cases after use.

Connectors

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a

pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker residue Stick-on label

Unusual shape

C-thru Disc (semi-

transparent disc)

Transparent or semi-

transparent parts on its

recording area

Maintenance

+ 51 hidden pages
