JVC KD-R330 User Manual

KD-R338/KD-R330

CD RECEIVER / RECEPTOR CON CD /
RÉCEPTEUR CD

ENGLISH

ESPAÑOL

FRANÇAIS

For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla,
consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.

For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet.
Retain this information
for future reference.
Model No.
Serial No.

GET0760-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the
equipment.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare

into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not

view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

WARNING:

[European Union only]

Caution:

Adjust the volume so that you can hear sounds
outside the car. Driving with the volume too
high may cause an accident.

2 ENGLISH

Stop the car before operating the unit.

Caution on volume setting:

Discs produce very little noise compared
with other sources. Lower the volume before
playing a disc to avoid damaging the speakers
by the sudden increase of the output level.

How to attach/detach the control
panel

CONTENTS

3 How to attach/detach the control

panel

3 How to reset your unit
3 How to forcibly eject a disc
3 Maintenance

4 Canceling the display

demonstration

How to reset your unit

Your preset adjustments will
also be erased.

How to forcibly eject a disc

[Hold]

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Maintenance

Cleaning the unit

Wipe off the dirt on the panel with a dry silicon
or soft cloth. Failure to observe this precaution
may result in damage to the monitor or unit.

4 Setting the clock

5 Preparing the remote controller

5 About discs

6 Basic operations

7 Listening to the radio

8 Listening to a disc

9 Connecting the other external

components

9 Listening to the other external

components

10 Selecting a preset sound mode

10 Menu operations

13 Troubleshooting

14 Using Bluetooth ® devices

15 Specifications

Cleaning the connector

Wipe off dirt on the connector of the unit and
panel. Use a cotton swab or cloth.

Caution for DualDisc playback:

The Non-DVD side of a “DualDisc” does not
comply with the “Compact Disc Digital Audio”
standard. Therefore, the use of Non-DVD side
of a DualDisc on this product may not be
recommended.

Condensation : When the car is air­conditioned, moisture may collect on the
laser lens. This may cause disc read errors. In
this case, remove the disc and wait for the
moisture to evaporate.
Temperature inside the car : If you have
parked the car for a long time in hot or cold
weather, wait until the temperature in the car
becomes normal before operating the unit.

3ENGLISH

Canceling the display demonstration

1

Turn on the power.

[Hold]

4

Select <DEMO OFF>.

2

[Hold]

(Initial setting)

3

(Initial setting)

Setting the clock

1

Turn on the power.

[Hold]

2

3

Select <CLOCK>.

[Hold]

(Initial setting)

5

6

Finish the procedure.

4

Select <CLOCK SET>.

5

Adjust the hour.

6

Adjust the minute.

7

Finish the procedure.

4 ENGLISH

(Initial setting)

Preparing the remote controller

When you use the remote controller for the first
time, pull out the insulation sheet.

Insulation sheet

For USA-California Only:
This product contains a CR Coin Cell Lithium
Battery which contains Perchlorate Material—
special handling may apply. See www.dtsc.
ca.gov/hazardouswaste/perchlorate

If the effectiveness of the remote controller
decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.

• Battery shall not be exposed to excessive heat
such as sunshine, fire, or the like.

Warning (to prevent accidents and
damage):

• Do not install any battery other than CR2025
or its equivalent.

• Do not leave the remote controller in a place
(such as dashboards) exposed to direct
sunlight for a long time.

• Store the battery in a place where children
cannot reach.

• Do not recharge, short, disassemble, heat the
battery, or dispose of it in a fire.

• Do not leave the battery with other metallic
materials.

• Do not poke the battery with tweezers or
similar tools.

• Wrap the battery with tape and insulate when
throwing away or saving it.

About discs

This unit can only play the CDs with:

Discs that cannot be used:

• Discs that are not round.

• Discs with coloring on the recording surface
or discs that are dirty.

• You cannot play a Recordable/ReWritable
disc that has not been finalized. (For the
finalization process refer to your disc writing
software, and your disc recorder instruction
manual.)

• 3-inch CD cannot be used. Attempt to insert
using an adapter can cause malfunction.

Handling discs:

• Do not touch the recording surface of the
disc.

• Do not stick tape etc. on the disc, or use a disc
with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move
outward.

• Clean the disc with a dry silicon or soft cloth.
Do not use any solvents.

• When removing discs from this unit, pull them
out horizontally.

• Remove the rims from the center hole and
disc edge before inserting a disc.

5ENGLISH

Basic operations

Control dial Ejects the discLoading slot

Remote sensor

• DO NOT expose to
bright sunlight.

Detaches the panel

When you press or hold the following button(s)...

Main unit

Remote

controller

Display window

Front auxiliary input jack

General operation

/ SOURCE

Control dial

(turn)

Control dial

(press)

EQ SOUND

Number buttons

(1 – 6)

— Turns on/off [Hold].

Selects the sources (FM, CD, F-AUX, BT AUDIO or R-AUX or

SOURCE

VOL – / + Adjusts the volume level.

— Selects items.

— Confirms selection.

—

BT PHONE, AM).

• “CD” is selectable only when a disc is loaded.

Mutes the sound during playback. If the source is “CD,” playback
pauses.

• Press the button again to cancel muting or resume playback.

Selects the sound mode.

• Hold the EQ button on the main unit to enter tone level
adjustment directly. (page 10)

• Selects preset stations.

• Stores the current station into the selected number button
[Hold].

• Press number button 1 (
RANDOM setting directly. (page 8)

) or 2 ( ) to enter REPEAT/

DISP —

6 ENGLISH

— Enters <BRIGHTNESS> menu directly. (page 11)

—

• Returns to the previous menu.

• Exit from the menu [Hold].

• Changes the display information.

• Scrolls the display information [Hold].

Listening to the radio

•

[Press] Searches for stations automatically.

~

]

“FM” or “AM”

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Ÿ

• [Hold] Searches for stations manually.
“M” flashes, then press the button

repeatedly.

Improving the FM reception

1

[Hold]

2

]

<TUNER> ] <MONO> ] <MONO ON>
Reception improves, but stereo effect
will be lost.

To restore the stereo effect, repeat the same
procedure to select <MONO OFF>.

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

1

[Hold]

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6
stations for AM.

1

]

Tune in to a station you want to

preset.

2

[Hold]

“PRESET MODE” flashes.

3

]

Selects preset number.
Preset number flashes and “MEMORY”
appears.

• Pressing and holding the number buttons
(1 – 6) can also store the current station to the
selected number buttons (1 – 6).

2

]

<TUNER> ] <SSM> ]
<SSM 01 – 06 / 07 – 12 / 13 – 18>
“SSM” flashes and local stations with the
strongest signal are searched and stored
automatically.

To preset another 6 stations, repeat the
above procedure by selecting one of the other
SSM setting ranges.

Changing the display information

Frequency j Clock

Selecting a preset station

1

or

2

• Pressing the number buttons (1 – 6) can also
select the preset stations (1 – 6).

Using the remote controller

5

/ ∞ : Changes the preset stations.

2

/ 3 : [Press] Searches for stations

automatically.

[Hold] Searches for stations manually.

7ENGLISH

Listening to a disc

~

]

“CD”

Ÿ

All tracks will be played repeatedly until you change the source
or eject the disc.

Stopping playback and ejecting
the disc

If the ejected disc is not
removed within 15 seconds, it is
automatically inserted into the
loading slot.

Selecting a track/folder

Selects folder of the MP3/WMA

Playback starts
automatically.

Selecting a track/folder from the
list

• If the MP3/WMA disc contains many tracks,
you can fast search (±10, ±100) through the
disc by turning the control dial quickly.

• To return to the previous menu, press

.

Selecting the playback modes

You can use only one of the following playback
modes at a time.

[Press] Selects track.
[Hold] Fast-forwards or
reverses the track.

Using the remote controller

5

/ ∞ : Selects folder of the MP3/WMA.

2

/ 3 : [Press] Selects track.

[Hold] Fast-forwards or reverses the

track.

Changing the display information

Disc title/Album name/performer (folder
name)*
track number with the elapsed playing time
Current track number with the clock time
(back to the beginning)

* “NO NAME” appears for conventional CDs or if

not recorded.

=

Track title (file name)* = Current

=

=

1

[Hold]

• Pressing number button 1 ( ) or

2 (

setting directly. Then, perform step 3.

) can enter REPEAT/RANDOM

2

]

“REPEAT” j “RANDOM”

3

REPEAT
TRACK RPT : Repeats current track
FOLDER RPT : Repeats current folder

RANDOM
FOLDER RND : Randomly plays all tracks

of current folder, then
tracks of next folders

ALL RND : Randomly plays all tracks

8 ENGLISH

To cancel repeat play or random play, select
“RPT OFF” or “RND OFF.”

Connecting the other external components

You can connect an external component to the auxiliary input jack on the control panel (F-AUX)
and/or on the rear side of the unit (R-AUX).

Summary of using the external components through the auxiliary input jacks:

External component

Portable audio
player

Bluetooth device Rear SRC SELECT R-AUX BT ADAPTER BT AUDIO/

* ”BT PHONE” appears when a Bluetooth phone is in use.

Auxiliary

input jack

Front SRC SELECT F-AUX ON F-AUX

Rear SRC SELECT R-AUX ON R-AUX

Menu setting

item

Preparation

Sub­item

Setting

Source

name

BT PHONE *

(not supplied)

See below.

KS-BTA100
(page 14)

On the control panel (F-AUX): On the rear panel (R-AUX):

3.5 mm (1/8”)
stereo mini plug
(not supplied)

3.5 mm (1/8”) stereo mini
plug (with “L” shaped
connector) (not supplied)

Connecting

cable/device

Portable audio player,

etc.

Recommended to use a 3-terminal plug head stereo mini plug for
optimum audio output.

Portable audio player,

etc.

Listening to the other external components

For details, refer also to the instructions supplied with the external components.

~

]

“F-AUX” or “R-AUX”

Ÿ

Turn on the connected component and
start playing the source.

9ENGLISH

Selecting a preset sound mode

You can select a preset sound mode suitable
for the music genre.

FLAT = NATURAL =

=

DYNAMIC
BASS BOOST

to the beginning)

While listening, you can adjust the subwoofer
and tone level of the selected sound mode.

1

[Hold]

VOCAL BOOST =

=

USER = (back

2

Adjust the level:
SUB.W * : 00 to 08
BASS/ MID/ TRE : –06 to +06
The sound mode is automatically stored
and changed to “USER.”

Subwoofer level is adjustable only when

*

<L/O MODE> is set to <SUB.W>. (page 11)

Storing your own sound mode

You can store your own adjustments in
memory.

1

[Hold]

2

]

<PRO EQ> ] <BASS/ MIDDLE/

TREBLE>

3

Adjust the sound elements of the
selected tone.

BASS [Initial: 80 Hz, 00, Q1.0]
Frequency: 60/ 80/ 100/ 200 Hz
Level: –06 to +06
Q: Q1.0/ 1.25/ 1.5/ 2.0
MIDDLE [Initial: 1.0 kHz, 00, Q1.25]
Frequency: 0.5/ 1.0/ 1.5/ 2.5 kHz
Level: –06 to +06
Q: Q0.75/ 1.0/ 1.25
TREBLE [Initial: 10.0 kHz, 00, Q FIX]
Frequency: 10.0/ 12.5/ 15.0/ 17.5 kHz
Level: –06 to +06
Q: Q FIX

Repeat steps 2 and 3 to adjust other

4

tones.
The adjustments made is automatically
stored and changed to “USER.”

Menu operations

1

If no operation is done
for about 60 seconds, the
operation will be canceled.

Menu item

DEMO

CLOCK

10 ENGLISH

[Hold]

ON

: Display demonstration will be activated automatically if no operation is done for

about 20 seconds. /

For settings, see page 4.

2 3

Selectable setting, [Initial: Underlined]

OFF

: Cancels. (page 4)

Repeat step 2 if necessary.

• To return to the previous
menu, press

• To exit from the menu, press
MENU.

.

Menu item

Selectable setting, [Initial: Underlined]

DIMMER

DISPLAY

PRO EQ

DIMMER SET AUTO

: Changes the display and button illumination between the Day/Night

adjustments in <BRIGHTNESS> setting when you turn off/on the car headlights.

ON

: Selects the Night adjustments in <BRIGHTNESS> setting for the display and button
illumination. /
display and button illumination.

BRIGHTNESS DAY [ 31

00

[

SCROLL *

2

ONCE

intervals). /
(Pressing

TAG DISPLAY ON

] /

— 31] for day and night.

: Scrolls the displayed information once. /

OFF

DISP

: Shows the Tag information while playing MP3/WMA tracks. /

See page 10.

FADER *3, *

BALANCE *

LOUD ON

4

4

R06 — F06

L06 — R06

: Boost low and high frequencies to produce a well-balanced sound at a low volume

OFF

level. /

: Cancels.

VOL ADJUST –05 — +05

“FM”), compared to the FM volume level. The volume level will automatically increase or
decrease when you change the source. Before adjustment, select the source you want to
adjust. (“VOL ADJ FIX” appears on the display if “FM” is selected as the source.)

OFF

: Selects the Day adjustments in <BRIGHTNESS> setting for the

NIGHT [ 15

] : Selects the display and button illumination brightness level

AUTO

: Repeats scrolling (at 5-second

: Cancels.

for more than one second can scroll the display regardless of the setting.)

OFF

: Cancels.

[ 00 ] : Adjusts the front and rear speaker output balance.

[ 00 ] : Adjusts the left and right speaker output balance.

[ 00 ] : Presets the volume adjustment level of each source (except

*1 /

L/O MODE SUB.W

AUDIO

SUB.W LPF *

5

an external amplifier). /
the speakers (through an external amplifier).

LOW 55Hz / LOW 85Hz / LOW 120Hz

: Selects if the REAR/SW terminals are used for connecting a subwoofer (through

REAR

: Selects if the REAR/SW terminals are used for connecting

: Frequencies lower than

55 Hz/85 Hz/120 Hz are sent to the subwoofer.

SUB.W LEVEL

HPF ON

BEEP ON / OFF

TEL MUTING *6ON

*500 — 08

: Activates the High Pass Filter. Low frequency signals are cut off from the front/rear

speakers. /

: Mutes the sounds while using the cellular phone (not connected through

KS-BTA100). /

[ 04 ] : Adjusts the subwoofer output level.

OFF

: Deactivates (all signals are sent to the front/rear speakers).

: Activates or deactivates the keypress tone.

OFF

: Cancels.

*1 The illumination control lead connection is required. (See “Installation/Connection Manual.”) This setting may not work

correctly on some vehicles (particularly on those having a control dial for dimming). In this case, change the setting to
any other than <DIMMER AUTO>.

*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display.
*3 If you are using a two-speaker system, set the fader level to “00.”
*4 This adjustment will not affect the subwoofer output.
*5 Displayed only when <L/O MODE> is set to <SUB.W>.
*6 This setting does not work if <BT ADAPTER> is selected for <R-AUX> of the <SRC SELECT>.

Continued...

11ENGLISH

Menu item

Selectable setting, [Initial: Underlined]

AMP
GAIN *

7

AUDIO

8

SSM *

AREA US

TUNER

MONO *

8

IF BAND AUTO

9

AM *

F-AUX *

R-AUX *

9

9

SRC SELECT

LOW POWER

: VOLUME 00 – VOLUME 30 (Selects if the maximum power

of each speaker is less than 50 W to prevent damaging the speakers.) /

HIGH POWER

: VOLUME 00 – VOLUME 50

See page 7.

: When using in North/Central/South America. AM/FM intervals are set to
10 kHz/200 kHz. /
9 kHz/50 kHz (50 kHz during auto search). /

EU

: When using in any other areas. AM/FM intervals are set to

SA

: When using in South American countries

where FM interval is 50 kHz. AM interval is set to 10 kHz.

See page 7.

: Increases the tuner selectivity to reduce interference noises between adjacent

stations. (Stereo effect may be lost.) /

WIDE

: Subject to interference noises from adjacent

stations, but sound quality will not be degraded and the stereo effect will remain.

ON / OFF

ON / OFF

ON / OFF

: Enable or disable “AM” in source selection.

: Enable or disable “F-AUX” in source selection.

: Enable or disable “R-AUX” in source selection. /

BT ADAPTER *10

the rear auxiliary input jack is connected to the Bluetooth adapter, KS-BTA100. (page 9)

: Selects if

*7 The volume level automatically changes to “VOLUME 30” if you change to <LOW POWER> with the volume level set

higher than “VOLUME 30.”

8

*

Displayed only when the source is “FM.”

*9 Displayed only when any source other than “AM/ F-AUX/ R-AUX/ BT AUDIO” is selected separately.

10

*

When <BT ADAPTER> is selected, source name is changed to “BT AUDIO” from “R-AUX.”

Additional information

• This unit can play back multi-session discs; however,
unclosed sessions will be skipped while playing.

• This unit can play back files with the extension code
<.mp3> or <.wma> (regardless of the letter
case—upper/lower).

• This unit can play back the files meeting the conditions
below:

– Bit rate: MP3: 8 kbps — 320 kbps
WMA: 32 kbps — 192 kbps
– Sampling frequency:

MP3: 48 kHz, 44.1 kHz, 32 kHz
24 kHz, 22.05 kHz, 16 kHz
12 kHz, 11.025 kHz, 8 kHz
WMA: 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz

• This unit can show WMA Tag and ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3).

• The search function works but search speed is not
constant.

• The maximum number of characters for file/folder
names vary depending on the disc format used (includes
4 extension characters—<.mp3> or <.wma>).

ISO 9660 Level 1 and 2, Romeo: 64 characters, Joliet:

32 characters, Windows long file name: 64 characters

• This unit can play back files recorded in VBR (variable
bit rate). (Files recorded in VBR have a discrepancy in
elapsed time indication.)

• This unit cannot play back the following files:

– MP3 files: encoded in MP3i and MP3 PRO format; an

inappropriate format; layer 1/2.

– WMA files: encoded in lossless, professional, and

voice format; not based upon Windows Media®
Audio; copy-protected with DRM.

– Files which have data such as AIFF, ATRAC3, etc.

12 ENGLISH

Troubleshooting

Symptom Remedy/Cause

Sound cannot be heard from the speakers. Adjust the volume to the optimum level. / Make sure the unit is

not muted/paused. (page 6) / Check the cords and connections.

“MISWIRING CHK WIRING THEN RESET
UNIT” / “WARNING CHK WIRING THEN
RESET UNIT” appears on the display and no
operations can be done.

The unit does not work at all. Reset the unit. (page 3)

General

“F-AUX” or “R-AUX” cannot be selected. Check the <SRC SELECT>

Sound is sometimes interrupted while
listening to an external component
connected to the auxiliary input jack.

SSM automatic presetting does not work. Store stations manually.

Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

“AM” cannot be selected. Check the <SRC SELECT>

Disc cannot be played back. Insert the disc correctly.

CD-R/CD-RW cannot be played back and
track cannot be skipped.

Disc sound is sometimes interrupted. Stop playback while driving on rough roads. / Change the

Check to be sure the terminals of the speaker leads are covered
with insulating tape properly, then reset the unit. (page 3)
If the message does not disappear, consult your JVC car audio
dealer or a company supplying kits.

=

<F-AUX / R-AUX> setting.

(page 12)

Check to be sure the recommended stereo mini plug is used for
connection. (page 9)

=

<AM> setting. (page 12)

Insert a finalized CD-R/CD-RW (finalize with the component
which you used for recording).

disc. / Check the cords and connections.

“NO DISC” appears on the display. Insert a playable disc into the loading slot.

0

“PLEASE” and “EJECT“ appear alternately

Disc playback

on the display.

“IN DISC” appears on the display. The disc cannot be ejected properly. Make sure nothing is

Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format

Noise is generated. Skip to another track or change the disc.

“READING” keeps flashing on the display. A longer readout time is required. Do not use too many

Tracks do not play back in the order you
have intended them to play.

MP3/WMA playback

The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how

The correct characters are not displayed
(e.g. album name).

Press

blocking the loading slot.

• Add the extension code <.mp3> or <.wma> to the file

hierarchical levels and folders.

The playback order is determined when the files are recorded.

the tracks are recorded on the disc.

This unit can only display letters (upper case), numbers, and a
limited number of symbols.

, then insert a disc correctly.

compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

names.

13ENGLISH

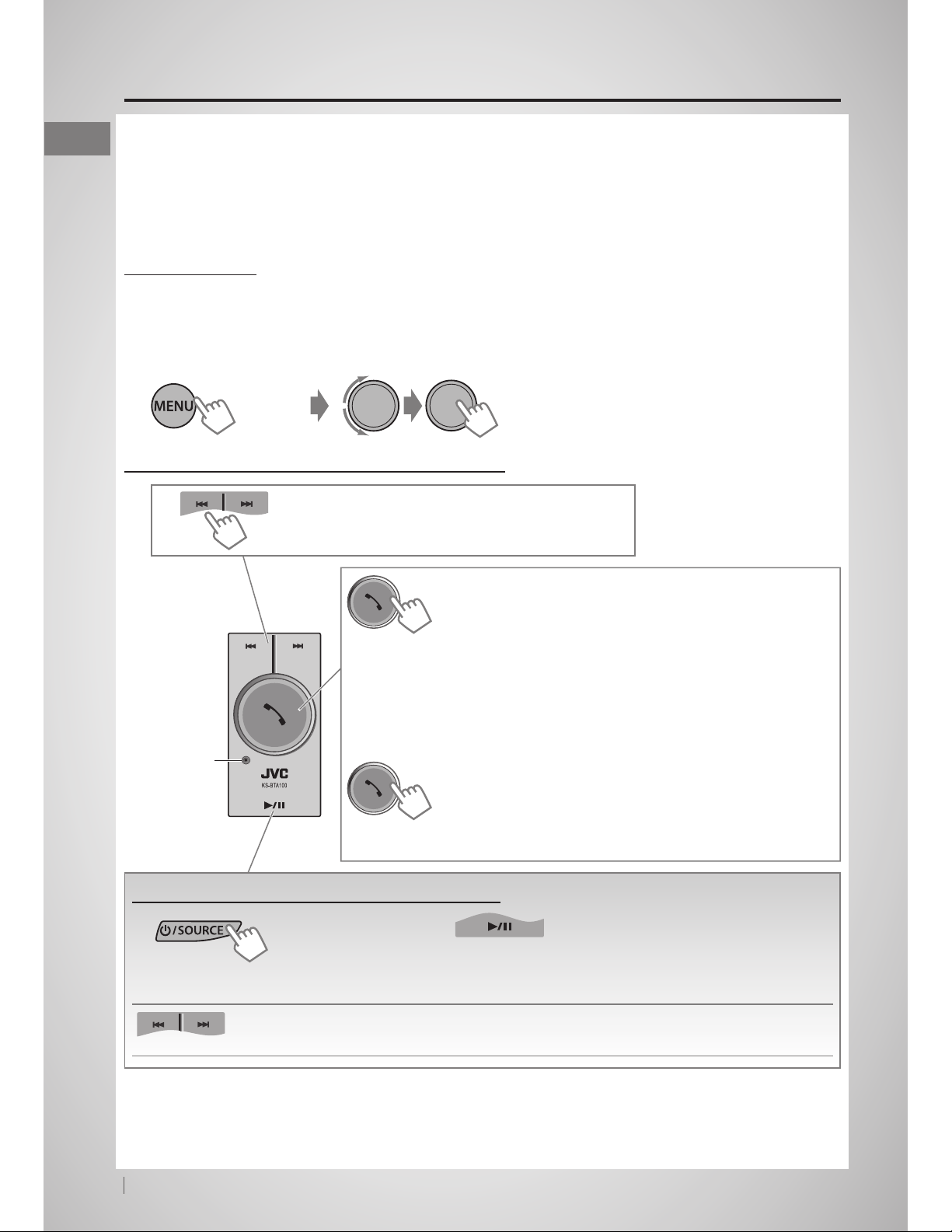

Using Bluetooth ® devices

For Bluetooth operations, it is required to connect the Bluetooth adapter, KS-BTA100 (not supplied)
to the auxiliary input jack (R-AUX/BT ADAPTER) on the rear of the unit. (page 9)

• For details, refer also to the instructions supplied with the Bluetooth adapter and the Bluetooth
device.

• Operations may be different according to the connected device.

Preparation

1

Register (pair) a Bluetooth device with KS-BTA100.

Refer to the instructions manual supplied with KS-BTA100.

2

Change the <SRC SELECT> settings of this unit.

]

[Hold]

Using the Bluetooth mobile phone

Adjusting the microphone volume

(Low) (High)

Volume level: High/ Normal (initial)/ Low

<SRC SELECT> ] <R-AUX> ]

<BT ADAPTER>

• Receiving a call
When a call comes in...

• Making a call

KS-BTA100

Microphone

[Hold]

Making a call to the last connected number from

your phone.

• Switching between handsfree and phone
While talking...

• Ends/rejects call

• Voice dialing

Voice dialing is available only when the connected

mobile phone has the voice recognition system.

Using the Bluetooth audio device

1

]

(CD receiver)

If playback does not start, operate the Bluetooth audio player to start playback.

[Press] Selects track.
[Hold] Fast-forwards or reverses the track.

“BT AUDIO”

2

About microphone volume:

• When you turn off the power of the CD receiver, the volume level changes to Normal.

14 ENGLISH

Specifications

AUDIO AMPLIFIER SECTION

Power Output :

and ≤ 1% THD+N

Signal-to-Noise Ratio : 80 dBA (reference: 1 W

into 4 Ω)

Load Impedance :
Frequency Response :
Line-Out or Subwoofer-Out Level/

Impedance :
Output Impedance :
Other Terminal :

Rear auxiliary/Bluetooth adapter input jack,

Antenna terminal

20 W RMS × 4 Channels at 4 Ω

4 Ω (4 Ω to 8 Ω allowance)

40 Hz to 20 000 Hz

2.5 V/20 kΩ load (full scale)
≤ 600 Ω

Front auxiliary input jack,

TUNER SECTION

Frequency Range :

FM :

– with channel interval set to 200 kHz :

87.9 MHz to 107.9 MHz

– with channel interval set to 50 kHz :

87.5 MHz to 108.0 MHz

AM :

– with channel interval set to 10 kHz : 530 kHz

to 1 700 kHz

– with channel interval set to 9 kHz : 531 kHz

to 1 611 kHz

FM Tuner :

Usable Sensitivity :
50 dB Quieting Sensitivity :

(1.8 μV/75 Ω)

Alternate Channel Selectivity (400 kHz) :

65 dB

Frequency Response :
Stereo Separation:

AM Tuner :

Sensitivity/Selectivity :

9.3 dBf (0.8 μV/75 Ω)

16.3 dBf

40 Hz to 15 000 Hz

40 dB

20 μV/40 dB

CD PLAYER SECTION

Type :

Compact disc player

Signal Detection System :

pickup (semiconductor laser)

Number of Channels :
Frequency Response :
Signal-to-Noise Ratio :
Wow and Flutter :
MP3 Decoding Format (MPEG1/2 Audio

Layer 3) :

WMA (Windows Media® Audio) Decoding

Format :

Max. Bit Rate: 320 kbps

Max. Bit Rate: 192 kbps

Less than measurable limit

Non-contact optical

2 channels (stereo)

5 Hz to 20 000 Hz

98 dB

GENERAL

Power Requirement :

DC 14.4 V (11 V to 16 V allowance)

Grounding System :
Allowable Operating Temperature :

0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D) : (approx.)

– Installation Size :
182 mm × 52 mm × 158 mm
(7-3/16” × 2-1/16” × 6-1/4”)
– Panel Size :
188 mm × 59 mm × 9 mm
(7-7/16” × 2-3/8” × 3/8”)

Mass :

Subject to change without notice.

If a kit is necessary for your car, consult your
telephone directory for the nearest car audio
speciality shop.

1.2 kg (2.8 lbs) (excluding accessories)

Microsoft and Windows Media are either
registered trademarks or trademarks of
Microsoft Corporation in the United States
and/or other countries.

Operating Voltage :

Negative ground

15ENGLISH

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Still having trouble??

USA ONLY

Call 1-800-252-5722

http://www.jvc.com

We can help you!

EN, SP, FR

0811DTSMDTJEIN© 2011 JVC KENWOOD Corporation

KD-R338/KD-R330

Installation/Connection Manual
Manual de instalación/conexión

GET0760-002A

[J]

ENGLISH / ESPAÑOL / FRANÇAIS

Manuel d’installation/raccordement

0811DTSMDTJEIN

© 2011 JVC KENWOOD Corporation

EN, SP, FR

WARNINGS / ADVERTENCIAS / AVERTISSEMENTS

• You need the installation kits which corresponds to your car.

• If you have any questions or require information regarding installation
kits, consult your JVC car audio dealer or a company supplying kits.

• The unit can only be installed in a car with a 12 V DC power supply,
negative ground.

• Disconnect the battery’s negative terminal and make all electrical
connections before installing the unit.

• Connect speakers with a maximum power of more than 50 W
(impedance of 4 Ω to 8 Ω). Otherwise, change the <AMP GAIN>
setting. (See page 12 of the INSTRUCTIONS.)

• Insulate unconnected wires with vinyl tape or other similar material.
To prevent a short circuit, do not remove the caps on the ends of the
unconnected wires or the terminals.

• If the fuse blows, first make sure the wires are not touching to cause
a short circuit, then replace the old fuse with one that has the same
rating.

• Install this unit in the console of your vehicle.

• Mount the unit so that the mounting angle is 30° or less.

• Be sure to ground this unit to the car's chassis again after installation.

• After the unit is installed, check whether the brake lamps, blinkers,
wipers, etc. on the car are working properly.

• Do not touch the metal part of this unit during and shortly after
the use of the unit. Metal part such as the heat sink and enclosure
become hot.

PRECAUTIONS on power supply and speaker
connections

• DO NOT connect the speaker leads of the power cord to the car

battery; otherwise, the unit will be seriously damaged.

• BEFORE connecting the speaker leads of the power cord to the

speakers, check the speaker wiring in your car.

• Necesitará los kits de instalación que corresponden con su vehículo.

•

Si tiene alguna pregunta o necesita información acerca de las herramientas

para instalación, consulte con su concesionario de JVC de equipos de audio
para automóviles o a una compañía que suministra tales herramientas.

• La unidad puede instalarse solamente en un automóvil con fuente de
alimentación de 12 V CC, negativo a masa.

• Desconecte el terminal negativo de la batería y realice todas las
conexiones eléctricas antes de instalar la unidad.

•

Conecte los altavoces con una potencia máxima de más de 50 W
(impedancia de 4 Ω a 8 Ω). De lo contrario, cambie el ajuste <AMP GAIN>.
(Véase la página 12 del MANUAL DE INSTRUCCIONES).

• Aísle los cables no conectados con cinta de vinilo u otro material
similar. Para prevenir los cortocircuitos, no quite las tapas de los
extremos de los cables o terminales no conectados.

• Si se funde un fusible, asegúrese primero de que los cables no estén
en contacto pues pueden ocasionar un cortocircuito, luego reemplace
el fusible dañados por otro de las mismas características.

• Instale esta unidad en la consola de su vehículo.

• Instale la unidad en un ángulo de montaje de 30° o menos.

• Asegúrese de volver a conectar a masa esta unidad al chasis del
automóvil después de la instalación.

• Después de haber instalado la unidad, compruebe que las luces de
freno, los intermitentes, los limpiaparabrisas, etc. del automóvil
funcionan correctamente.

• No toque la parte metálica de esta unidad durante e inmediatamente
después de usar la unidad. Las partes metálicas tal como el disipador
de calor y la carcasa estarán calientes.

PRECAUCIONES sobre las conexiones de la
fuente de alimentación y de los altavoces

• NO conecte los conductores de altavoz del cable de alimentación a
la batería de automóvil, pues podrían producirse graves daños en la
unidad.

• ANTES de conectar a los altavoces los conductores de altavoz del cable
de alimentación, verifique el conexionado de altavoz de su automóvil.

INSTALLATION / INSTALACION / INSTALLATION

In-dash mounting / Montaje en el tablero / Montage encastré

Do the required electrical connections. /

Realice las conexiones eléctricas requeridas. /

Réalisez les connexions électriques.

• Vous avez besoin des kits d’installation correspondants à votre voiture.

• Si vous avez des questions ou avez besoin d’information sur des kits
d’installation, consulter votre revendeur d’autoradios JVC ou une
compagnie d’approvisionnement.

• L'appareil peut uniquement être installé dans une voiture avec une
alimentation de 12 V CC, à masse négative.

• Déconnectez la borne négative de la batterie et réaliser toutes les
connexions avant d’installer l’appareil.

• Connectez des enceintes avec une puissance maximum de 50 W
(impédance de 4 Ω à 8 Ω). Sinon, changez le réglage <AMP GAIN>. (Voir
la page 12 du MANUEL D’INSTRUCTIONS.)

• Isolez les câbles non-connectés avec un ruban de vinyle ou d'un autre
matériel similaire. Pour éviter les courtscircuits, ne retirez pas non plus les
capuchons à l’extrémité des câbles non-connectés ou des prises.

•

Si un fusible saute, assurez-vous d’abord que les câbles n’ont pas causé de
court-circuit puis remplacez le vieux fusible par un nouveau de même valeur.

• Installez cet appareil dans la console de votre véhicule.

• Monter l’unité de façon à ce que l’angle de montage soit de 30˚ ou moins.

• Assurez-vous de raccorder de nouveau la mise à la masse de cet appareil
au châssis de la voiture après l’installation.

• Après avoir installé l’appareil, vérifiez si les lampes de frein, les indicateurs,
les clignotants, etc. de la voiture fonctionnent correctement.

• Ne touchez pas la partie métallique de cet appareil pendant ou juste
après son utilisation. Les parties métalliques, comme le dissipateur de
chaleur et le boîtier, deviennent chaudes.

PRECAUTIONS sur l’alimentation et la
connexion des enceintes

• NE CONNECTEZ PAS les fils d’enceintes du cordon d’alimentation à la
batterie; sinon, l’appareil serait sérieusement endommagé.

• AVANT de connecter les fils d’enceintes du cordon d’alimentation aux
enceintes, vérifiez le câblage des enceintes de votre voiture.

Install the unit at an angle
of less than 30˚. /

Instale la unidad a un
ángulo de menos de 30˚. /

Installez l’appareil avec un
angle de moins de 30˚.

Part list / Lista de componentes / Liste de pièces

A

Control panel / Panel de control / Panneau de

commande (×1)

B

Sleeve / Cubierta / Manchon (×1)

C

Trim plate / Placa de guarnición / Plaque d’assemblage

(×1)

D

Power cord / Cordón de alimentación / Cordon

d’alimentation (×1)

E

Handles / Manijas / Poignées (×2)

Bend the appropriate tabs to hold the sleeve
firmly in place. / Doble las lengüetas apropiadas

para retener firmemente la manga en su lugar. /

Tordez les languettes appropriées pour maintenir le
manchon en place.

When installing the unit without using the sleeve / Instalación de la unidad sin utilizar la cubierta / Lors de
l’installation de l’appareil scans utiliser de manchon

Flat head screws—M5 × 8 mm (M5 × 3/8") /

Tornillos de cabeza plana—M5 × 8 mm
(M5 × 3/8 pulgada) / Vis à tête plate—

M5 × 8 mm (M5 × 3/8 pouces) *

Pocket / Compartimiento / Poche

Bracket / Ménsula / Support *

* Not supplied for this unit.
* No suministrado con esta unidad.
* Non fourni avec cet appareil.

TROUBLESHOOTING / LOCALIZACION DE AVERIAS / EN CAS DE DIFFICULTES

• The fuse blows. ] Are the red and black leads connected correctly?

• Power cannot be turned on.

• No sound from the speakers.
circuited?

• “MISWIRING CHK WIRING THEN RESET UNIT” / “WARNING

CHK WIRING THEN RESET UNIT”
no operation can be done.

circuited or touches the chassis of the car/head unit? ; Have you reset
your unit?

• Sound is distorted.
the “–” terminals of L and R speakers grounded in common?

• Noise interfere with sounds. ] Is the rear ground terminal
connected to the car’s chassis using shorter and thicker cords?

• This unit becomes hot.
Are the “–” terminals of L and R speakers grounded in common?

• This unit does not work at all. ] Have you reset your unit?

]

Is the yellow lead connected?

]

Is the speaker output lead short-

appears on the display and

]

Is the speaker output lead short-

]

Is the speaker output lead grounded? ; Are

]

Is the speaker output lead grounded? ;

• El fusible se quema.

correctamente conectados?

• No es posible conectar la alimentación. ] ¿Está el cable amarillo conectado?

• No sale sonido de los altavoces. ] ¿Está el cable de salida del

altavoz cortocircuitado?

• Aparece “MISWIRING CHK WIRING THEN RESET UNIT” /

“WARNING CHK WIRING THEN RESET UNIT”
no se puede realizar ninguna operación.

salida de altavoz está en cortocircuito o en contacto con el chasis del
automóvil/auriculares? ; ¿Reinicializó la unidad?

• El sonido presenta distorsión.

conectado a masa? ; ¿Están los terminales “–” de los altavoces L y R
conectados a una masa común?

•

Perturbación de ruido. ] ¿El terminal de tierra trasero está conectado
al chasis del automóvil utilizando los cordones más corto y más grueso?

• Esta unidad se calienta. ] ¿Está el cable de salida del altavoz

conectado a masa? ; ¿Están los terminales “–” de los altavoces L y R
conectados a una masa común?

• Esta unidad no funciona en absoluto.

]

¿Están los conductores rojo y negro

en la pantalla y

]

¿El conductor de

]

¿Está el cable de salida del altavoz

]

¿Reinicializó la unidad?

1

• Le fusible saute.

• L’appareil ne peut pas être mise sous tension. ] Le fil jaune est­elle raccordée?

•

Pas de son des enceintes. ] Le fil de sortie d’enceinte est-il court-circuité?

• “MISWIRING CHK WIRING THEN RESET UNIT” / “WARNING CHK

WIRING THEN RESET UNIT”
opération ne peut être réalisée. ] Est-ce qu’un fil de sortie d’enceinte

est court-circuité ou touche le châssis de la voiture/appareil principal? ;
Avez-vous réinitialisé votre appareil?

•

Le son est déformé. ] Le fil de sortie d’enceinte est-il à la masse? ; Les
bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Interférence avec les sons. ] La prise arrière de mise à la terre est-elle
connectée au châssis de la voiture avec un cordon court et épais?

•

Cet appareil devient chaud. ] Le fil de sortie d’enceinte est-il à la masse? ; Les
bornes “–” des enceintes gauche et droit sont-elles mises ensemble à la masse?

• Cet appareil ne fonctionne pas du tout. ] Avez-vous réinitialisé
votre appareil?

Removing the unit / Extracción de la
unidad / Retrait de l’appareil

Release the rear section first... / Primero libere la
sección trasera... / Ouvrez la section arrière en premier...

]

Les fils rouge et noir sont-ils racordés correctement?

apparaît sur l’affichage et aucune

ELECTRICAL CONNECTIONS / CONEXIONES ELECTRICAS / RACCORDEMENTS ELECTRIQUES

Signal cord / Cable de señal / Cordon de signal *

Rear ground terminal /
Terminal de tierra posterior /

Reset the unit. / Reinicialice la
unidad. / Réinitialisez l’appareil.

Factory wiring harness (vehicle) /
Mazo de cables de fábrica (vehículo) /

Faisceau de câbles de l'usine (véhicule)

Borne arrière de masse

Antenna terminal / Terminal de la antena / Borne de l’antenne

10 A fuse / Fusible de 10 A / Fusible 10 A

Caution / Precaución / Précautions

Join the same color leads together. / Junte los cables del mismo color. / Joignez les fils de même
couleur ensemble.

To join the open-ends of the leads: / Para juntar los extremos abiertos de los cables: / Pour joindre les
extrémités des fils:

Strip lead ends / Pele los extremos de los cables / Dénudez les extrémités des
fils
Twist ends together / Retuerza los extremos conjuntamente / Torsadez les
extrémités ensemble

Solder / Suelde / Soudez

Tape / Cinta / Ruban adhésif

1

Amplificador de JVC /

D

Power cord / Cordón

de alimentación /

Cordon d’alimentation

JVC Amplifier /

JVC Amplificateur

Rear speakers
or subwoofer /

Altavoces traseros
o subwoofer /

Enceintes arrière
ou le caisson de

3

grave *

Remote lead /

Cable remoto /

Fil d’alimentation à
distance

Extension lead /
Cable prolongador /
Fil prolongateur *

1

Vehicle-specific Wiring

Harness (separately

purchased) /

Mazo de cables del vehículo

específico (se vende por

separado) /

Faisceau de câble spécifique

pour le véhicule (vendu

séparément)

For more information /
Para más información /
Pour plus d'informations :

Metra Electronics:

www.metraonline.com

Scosche Industries:

www.scosche.com

Recommended connection / Conexión recomendada /

Blue: Automatic antenna / Azul: Antena automática /

Bleu (bande blanche): Mise sous tension de l'amplificateur

Connexion recommandée

Azul (rayas blancas):

Blue (white stripe):

Bleu: Antenne automatique

Alimentación amplificador /

Amp Turn-on /

Illumination / Iluminación / Éclairage

Telephone Muting / Silenc. teléfono /

Sourdine téléphonique

12 V Battery / Batería 12 V / Batterie 12 V

12 V Ignition Switch / Interruptor de encendido 12 V /

Interrupteur d'allumage 12 V

Ground / Tierra / Masse

Front speaker (left) / Altavoz delantero

(izquierdo) / Enceinte avant (gauche)

Front speaker (right) / Altavoz delantero

(derecho) / Enceinte avant (droit)

Rear speaker (left) / Altavoz trasero

(izquierdo) / Enceinte arrière (gauche)

Rear speaker (right) / Altavoz trasero

(derecho) / Enceinte arrière (droit)

Blue (white stripe), 200 mA max. /
Azul (rayas blancas), máx. 200 mA /

Bleu (bande blanche), 200 mA max.

Orange (white stripe) / Naranja (rayas
blancas) / Orange (bande blanche)

Brown / Marrón / Marron

Yellow / Amarillo / Jaune

Red / Rojo / Rouge

Black / Negro / Noir

White / Blanco / Blanc

White (black stripe) / Blanco (rayas negras) /

Blanc (bande noire)

Gray / Gris / Gris

Gray (black stripe) / Gris (rayas negras) /

Gris (bande noire)

Green / Verde / Vert

Green (black stripe) / Verde (rayas negras) /

Vert (bande noire)

Purple / Púrpura / Violet

Purple (black stripe) / Púrpura (rayas negras) /

Violet (bande noire)

Power cannot be turned on? /
¿No se puede conectar la alimentación? /
L'appareil ne peut pas être mis sous tension?

Ignition switch / Interruptor de
encendido / Interrupteur d’allumage

Fuse block / Bloque de
fusibles / Porte-fusible

Separate red lead /
Cable rojo separado /

Fil rouge séparé

If your vehicle factory wiring harness does
not have “12 V ignition switch” lead, connect
the red lead of the supplied power cord,
to the vehicle fuse block (through a separate
red lead provided with the fuse tap). / Si el

mazo de cables de fábrica de su vehículo no
incluye el cable del “interruptor de encendido
de 12 V”, conecte el cable rojo del cordón de
alimentación
fusibles del vehículo (a través del cable rojo
separado suministrado con la toma de fusible). /

Si le faisceau de câbles de votre véhicule ne possède
pas de fil “Interrupteur d'allumage 12 V”, connectez
le fil rouge du cordon d'alimentation fourni, D, au
porte-fusible du véhicule (un fil rouge séparé est
fourni avec le porte-fusible).

D

suministrado, al bloque de

D

,

Connecting the Bluetooth adapter or portable audio player / Conexión del adaptador Bluetooth o del reproductor de audio portátil / Connexion de
l’adaptateur Bluetooth ou d’un lecteur audio portable

Make the <SRC SELECT> setting accordingly,
see pages 9, 12, and 14 of the INSTRUCTIONS. /

Realice el ajuste <SRC SELECT> de conformidad,
consulte las páginas 9, 12 y 14 del MANUAL
DE INSTRUCCIONES. / Réalisez le réglage

<SRC SELECT> en fonction, voir pages 9, 12 et 14 du
MANUEL D'INSTRUCTIONS.

1

Not supplied for this unit.

*

2

Firmly attach the ground wire to the metallic body or to the chassis

*

of the car—to the place uncoated with paint.

3

*

Make the <L/O MODE> setting accordingly, see page 11 of the

INSTRUCTIONS.

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – or / o / ou – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

KS-BTA100

(separately purchased /

se vende por separado /

vendu séparément)

Blue (white stripe) / Azul (rayas
blancas) / Bleu (bande blanche)

Black / Negro / Noir

Brown / Marrón / Marron

3.5 mm (1/8”) stereo mini plug / Miniclavija estéreo de 3,5 mm

(1/8 pulgada) / Mini fiche stéréo de 3,5 mm (1/8 pouces) *

*1 No suministrado con esta unidad.

2

Fije firmemente el cable de tierra a la carrocería metálica o al

*

chasis—a un lugar no cubierto con pintura.

3

*

Realice el ajuste <L/O MODE> de conformidad, consulte la página

11 del MANUAL DE INSTRUCCIONES.

2

1

To the blue (white stripe) lead of the supplied power cord

Al cable azul (rayas blancas) del cordón de alimentación
suministrado / Au fil bleu (bande blanche) du cordon d'alimentation

D

fourni

Ground / Tierra / Masse

D

To the brown lead of the supplied power cord
Al cable marrón del cordón de alimentación D suministrado /

Au fil marron du cordon d'alimentation D fourni

Portable audio player, etc. / Reproductor de
audio portátil, etc. / Lecteur audio portable, etc. *

1

Non fourni avec cet appareil.

*

2

Attachez solidement le fil de mise à la masse au châssis métallique de la

*

voiture—à un endroit qui n’est pas recouvert de peinture.

3

*

Réalisez le réglage <L/O MODE> en fonction, voir page 11 du MANUEL

D’INSTRUCTIONS.

/

D

/

D

1

WHEN

IT

IS

NOT

REQUIRED

TO

DETACH

PANEL

USE

THE

THE

FROM

THE

PROVIDED

FRONT

MAIN

SCREWTO

CONTROL

UNIT,

ATTACHTHECONTROLPANELTO

THE

MAIN

UNIT

.

•

GE40401-001

A

1.\

~

CAUTION CONNECT

OTHERWISE, DAMAGE TO

BLACK

WIRE

{(f)GND)

YOUR

TO GROUND FIRST.

UNIT MAY OCCUR.

w w

0:: c

0

LL

w

m

w 0

__,

m

<C

(.)

:E

0 w

0::

LL

....I

U)

W

......

~

0

Q2

1-

0

..

w

....1

w

ffi

~

_.

w w

m c

::s

UJ

-a

~-

.....

W

~

-=

--

~

~

w

~

I:U

::5

w w

e:;

1-

~

w

_.

a:l

<4:

(.)

~

c

W

I=UJ

~

s

..

w

w

I=

w

0

N

a::=

i=

~

INCORRECT CONNECTION CAUSES SERIOUS DAMAGE TO THIS UNIT
PLEASE READ INSTALLATION/CONNECTION

CONNECT GROUND FIRST

CD

METALLIC
OF THE

BODY

CAR

OR

CHASSIS

@

MANUAL

CONNECT OTHER WIRES

CONNECT POWER CORD TO

CAREFULLY.

THE UNIT

' >

Please do not send products or other
correspondence to this address.

JVC AMERICAS CORP.
1700 Valley Road
Wayne,

NJ

07470

PO BOX 1189

BEDFORD, TX 76095-1189

PLEASE

PLACE
STAMP

HERE

11

...

1.11

••

11

•••

1.1

...

1.1

....

11

...

111

••

1.1.1

•• 1 ••

1.1.1

.. 1 ...

11

PRODUCT REGISTRATION CARD I QUESTIONNAIRE

USA CUSTOMERS ONLY

Registering your product will allow us to contact you

event a product safety notification is required.

This form is for Product Registration purposes only. Failure to return
this form does not diminish your rights during the warranty period.

in

the unlikely

THANK

YOU FOR PURCHASING THIS

REGISTER ONLINE

AT:

JVC

PRODUCT

REGISTER.JVC.COM

First Name:

Last Name:
Address:
Apt.#

City:

State:
Zip Code:

Phone Number:

E-Mail Address:

Registeronline at REGISTER

PRODUCT REGISTRATION

..

JVC.COM

and receive a special offer!

1)

Would you like to receive the JVC Community e-mail newsletter?

2) Would you like to receive special offers from JVC?

3) Have you purchased an extended warranty for this product?

Date

of

Purchase
Model Number:
Serial Number:
Purchase Price:
Dealer:

On a scale
JVC product.

of

1 to

5,

with 5 being the best, please rate each

Performance
Features 1
Ease

of

use 1 2

of

1 2

2 3 4

Yes No
Yes No
Yes No

the following attributes about your new

3

3 4

4

5
5
5

COMMENTS:

BT-51044-1
(0208)

Design

Value 1 2

Instructions: Fold at crease and tape open edge in the middle.

1 2

3
3 4

4

5
5

Thank You
for completing
this questionnare.

Printed in Indonesia

,...

CANADA
ONLY

JVC

,.

OWNER'S COPY OF WARRANTY CARD

COPIE D'ENREGISTREMENT DE LA GARANTIE
DU PROPRIETAIRE

(Save sales docket together with this warranty card, as a proof of date of purchase.

La facture et cette garantie sont vos preuves de

MODEL . SERIAL
MODELE .

Purchase from. Date purchased .

Achete chez · ............ ..........

Dealer's Address .
Adresse du Vendeur·

City or
Ville

Owner's Name .
Nom du Proprietaire :

Owner's Address .
Adresse du Proprietaire· .

City or
Ville

~

~~

........................

BT-52008-1
(1007)

WARRANTY CONTROL CARD
CARTE DE CONTROLE DE LA GARANTIE

IMPORTANT: This warranty control card must be filled in and posted to the address indicated
on the back hereof or register via internet within 7 (seven) days from the date of purchase.
IMPORTANT: Cette carte doit etre renvoyee dument remplie
dans les 7 jours de Ia date d'achat

MODEL
MODELE

Purchased
Achete
Dealer's Address .
Adresse

ciiY·;;~

Ville
Owner's
Nom
Owner's
Adresse

ciiY·;;;:r;;.;;;;····

Ville

WARRANTY
DISTRIBUTED

..

.........

.............

.....................

..........

...
No. Street
No

Town

......

........

.....

..............

No

No

Town

. SERIAL

· ............................................................

from

.

Chez

...

:.

.. . . . . . . ..

..

. .

..

. .. .•. . .

du

Vendeur

· ............................................... ... .................... .... ............................ .......................... .

No

. Street

:r;;~;;

Name

du

Proprietaire · .. ..................................................................................................................

Address
du

No

· · ·· · · · · · · · · · · · ·

Proprietaire · ........

You
at:www.jvc.ca

··

· · · · · · · · · · ·· ·

.

.

........

No

. Street

No

········

·····

············

may also register on-line

APPLIES

ONLY

IN

CANADA

BY

TO

JVC

........... NO

...

.. .............

..........

.... ......

...

...................

.....................

. Street Apt.

Detach here.

(PLEASE

.. ..

. .. ... . . . . . . . . .

··

··

· · · · · · · · · · ·

........... .................................................. ............... ................................ .

··················

PRODUCT

CANADA

..................

Rue

Prov.
Prov.

...

.......

......

....

.....

..............

Prov.
Prov.

ou

aller sur le site par internet pour !'enregistrement.

PRINT/EN

NO

..

. .. . .•. . . . . . . .. . . . . . .. .

Rue

··

· ·

"Priiv.

· · · · · · · · · · · · · ·· · · · · · · · · · · · · · · · · · · · · · · · · · · ·

Prov.

·······················

LA

.

DISTRIBUES

INC

CANADA
SEULEMENT

Ia

date d'achat; rangez-les.)

NO.

DE

....

...

.

SERlE ................................

........

.....

. Date achete : ......................

........

...........

...

.......................

....

.......................................

...................

Rue

.. : ..

....

.............................

~

........

a decouper ici

..........

Printed

a l'adresse indiquee

LETIRES

MOULEES)

NO.

.

DE

SERlE

· .............

..

Date

..

. .

..

.•.

Date

Rue

············

······

Vous pouvez egalement vous
inscrire par internet a:www.jvc.ca

GARANTIE

S'APPLIQUE

AU

CANADA

. ........................ .

purchased

····

··

···········

.

· · · · · · · · · · · · ·

·····p-.;si&i.CC:ida····

achele · ................................ .

····

···

SEULEMENT

PAR

JVC

CANADA

.........

.

........

................. .

Postal Code
Code Postal

.......

, ......

....

........ .

App.

Postal Code
Code Postal

in

Indonesia

au

verso,

·p-.;siai · cCide

Code

Apt.

App.

Code

AUX

Postal

Postal

· · ·· · · · · · · ·

....

PRODUITS

INC

.

...

....

........ .

···

..

.

.

~

~~

···

·

WAIIANTY

GARANT

JVC CANADA INC.

21

Finchdene Square, Toronto,

TEL: (416)

JVC CANADA
the

following express warranty for
product distributed
by

an

authorized JVC dealer. et
JVC warrants that this JVC product
normal
material

and

terms

1.

To

(a)

(b)

(c)

INC

. (hereafter called

in

Canada

use

and

maintenance, from

and

workmanship subject

conditions: modalites et conditions suivantes :

Obtain Warranty Service: 1. Pour obtenir

The JVC Warranty Control Card herein
provided must

posted

or
of date of purchase of
This JVC Warranty Control
completed
with proof of purchase of
requiring service. necessitant une reparation.
The JVC product must
service

to

be

registered

in

full

an

authorized

completed

via

internet

the

and

presented together

JVC

2. Limitation:

This Warranty shall not apply
(a)

Repair or replacement of any cabinets,
batteries, plates, connection cords, anten­nas,

dust covers, knobs, speaker grills,

speaker

cones,

screen savers,

(b)

Any

defects
result of misuse, abusive operation, negli­gence, improper

(c)

Any

defect caused or repairs required
a result of
the

operation manual.

(d)

Any

JVC product tampered
or repaired
authorized JVC Service

projection

and

all

caused

not

by

accessories.

or

repairs

use

and/or

following

any party other than JVC or

293-1311

http:

"JVC")

each

by

be

screens,

the

Centre

new JVC enonce

JVC

and

is

free, under JVC vous garantit que

any

defects

to

the

following materiel et

in

full

within 7 days

JVC product. suivant l'achat

Card

must

the

JVC product

brought

Service

Centre

to:

projection

required

insufficient

instructions
with,

adjusted

personnel.

FAX:

(416)

//www

. jvc.

ca

gives JVC CANADA

sold

nouveau produit

vendu

in

utilisation et entretien normal, de tout defaut

(a)

and

be

in

for

. service chez

La
incluse doit etre completee avec les

renseignements complets et etre postee
enregistree via internet dans les 7 jours

(b)

Cette carte

etre
Ia

(c)

Le

auto

2. Restrictions:

Cette garantie
(a)

Reparation
cabinet, batteries, panneau avant, cordons
de
protection, boutons, couverts

as

care

a
.

as

in

parleur, cones
projection, protecteurs d'ecran
et tous

(b)

Tous
requises suite
mauvaise, negligente
incorrecte.

(c)

Tous
requises suite
recommandations

(d)

Tout

tout autre entreprise que JVC
de service d'entretien
autorise JVC.

IE

ON

M1X

293-8208

Ia

INC

garantie expresse suivante pour tout

JVC

par

un

detaillant JVC autorise.

de

un

carte

de

dOment

preuve d'achat
produit JVC doit etre apporte pour
rise

.

ne

raccord, antennas, housses de

les

accessoires.

defauts occasionnes

defauts occasionnes

produit

1A7

. ( ci-apres

distribue

ce

produit est degage, sous

fabrication sous reserve des

service

controle

du

produit JVC.

de

controle

remplie et etre presentee avec

un

centre

s'applique
ou

remplacement de

de

haut-parleur, ecrans

appeh3

au

Canada par JVC

de

garantie :

de

garantie JVC ci-

de

garantie JVC doit

du

produit JVC

de

service JVC

pas

aux :

de

de

projection

ou

reparations

"JVC")

ou

tout

haut-

de

a une utilisation abusive,

eUou

une

utilisation

ou

a !'omission

du

JVC

altere, ajuste

manuel

reparations

de

suivre les

d'instruction.

ou

repare

ou

un

ou

de service

par

centre

(e) Any

(f)
(g) Conversion to foreign

(h)
( i ) Any

(

j ) Any

(k) Product purchased from

JVC
num-ber has been defaced, modified or
removed.
Maintenance,

frequency.
Any
Electrical

institutional, rental,

Parts
Labour ...

no

longer owned by the original purchaser.

"bankruptcy"

WARRANTY TERM

CONDITIONS

Projection
Colour
D-ILA

~CD

TV
Ecrans
Ecrans
TV projection arriere
Ecrans

• In-home
Where it is
packing,

JVC Authori

*

Service

S'il

n'y a

coOts

l'equipement
Receivers

Projection
Recepteurs et Hauts-Parleurs achetes

Avant et

products on which the serial

cleaning

JVC

product without the Canadian

Safety

JVC

products used for commercial or

......

1 year (except video head
days)

90

JVC

product which has been resold and

or

or

or

Regulations

or

display purposes.

days

"liquidator".

periodic check-up

domestic voltage

10.

"outside Canada

(VALID FROM

DE

GARANTIE

PRODUCT

PRODUIT

TV

In-Home

TV

In-Home

Rear Projection

In-Home

de

projection

de

TV

Couleur

de

LCD

service to

not

sh

i

pment
zed

a

domicile fourni par

pas

de

pour

un

chez et depuis

and
and

Audio

Service

(25"

and

above)

I

n-Home

Servi

ce

·Service
Service

D-ILA Service

Service

be

available,

and

all

Servi

ce

service JVC disponible

emballage

Home

Speakers purchased separately, .Front

Car Audio
d'Auto de

Service

(25"

and

above)

a

Domicile

a

Domicile

a

Domicile

(25"

provided

where

the

Purchaser must assume

costs associated with the

Centre.

un

detaillant

adequat,

le

detaillant JVC autorise

"ARSENAL"

Serie

"

ARSENAL

a

Domicile

!'expedition,

(e)

Tout produit

ete altere, modifie

(f) L'entretien,

nettoyage.

(g)

La

or

-

90

",

THE DATE

(VALABLE

(25"

et

plus)

et

plus)

available

disponible.

a

proximite, l'acheteur doit assumer

Series

separement,

,

the

delivery of

ainsi

le

Projecteur

conversion

tension

(h)

Tout
d'identification conforme aux normes
electriques Canadiennes (GSA).

(i)

Pour
commerciales, institutionnelles, de location
ou

utilise

Pieces.

Main d'oeuvre ...

U)

Tout produit

n'est plus Ia propriete

(k) Produit achete

provenant d'une

OF

a

PARTIR

responsibility

the

que

tous

plus

pres

JVC

les

verifications period

a

etrangere

produit

JVC

tou

t

pro

d

a

des fins

......

..... 1 An (Excepte

JVC ayant

a

"faillite"

PURCHASE)

DE

LA

PARTS

(Years)

PIECES

(

annees)

1 1

and

equipment

les

pour

expense for the proper

to

coOts

associes

un

service d'entretien.

2

dont

le

numero de

ou

enleve.

une

frequence

ou domestique.

n'ayant

uit

d'etalage.

video-

90

Jours

de l'acheteur

"l'exterieur

utilise

90

ete

ou d'un

pas

a

jours)

revendu

du

"liquidateur".

DATE D'ACHAT)

Labour

'

OEU

Ia

livraison

(Years)

V

closest

MAIN-D

and

from the

Ia

responsabilite

a

2

serie

iqu

es

ou une

le

sigle

des f

les tetes

et

original.

Canada",

ER

(

anne

et

les
de

ins

qui

es)

et

a

(

I ) Any defects caused by fire,

power surge, or other eve nts beyond the
control

of

JVC

(m)

FOR

AUTO PRODUCTS
Warranty does not cover elimination
static or
of head, adjustments, or labour cost for the
removal
repair.

3.

Standards
If

any defects
within the applicable terms, necessary repairs
shall

be made at no cost to the purchaser for

parts

or labour when
such defects are due to faulty material
manship.

4.

Exclusion
This warranty constitutes the entire express
warranty given
no dealer
its or their agent or employee is, or are autho­rized to extend
half

of

JVC.

5.

Disclaimer
To

the extent the
any responsibil ity for
product, transportation
indirect, incidental
inconvenience.

And

a

You
at:www.jvc.ca

.

electrical

or

reinstallation of the unit for

:

should

be found

JVC ac

of

All

Other

by

JVC

or

service centre personnel

or

enlarge this warranty on

of

Consequential

law

loss

or

consequential damage or

mail

to

may

also register

fl

ood, lightning,

interferences, cleaning

in

a

JVC

product

kn

owledges that

or

Express
for JVC

permits

the address

of time

cos

ts,

Warranties:

products and

Damage:

JVC

disclaims

or

use of its

or

any

bel

o~

on-line

Det

ach

of

work-

or

oth

.

here.

car

his,

be-

er

(I)

Tout

do

m

ma

ge

cause

pa

r

le

inondatio

au

(m)

POUR LES
La garantie
d'interferences statiques ou elec
Ia
ajustements
associes
reinstallation

3.

Criteres:
Si

un produit
conditions
necessaires
additionnels
main d'oeuvre lorsque
defectuosites sont causees par une defectuosite
de

materiel

4.

Exclusion
Cette garantie constitue
donnee par JVC
representant ou
service d'entretien n'est autorise
ga

rantie

5.

Denegation
Dans Ia
responsabilite
ses produits, des co
dommage ou inconve
consequen

I

N

ouveau

a

decouper

n,

un

tr

e

evenement hors du con

voiture,

de

au

mesure permise par

t.

Veui

I

Vous
enregistrer

eclair,

PRODU

ne couvre pas

le

nettoyage de

et

les

coO

a

l'en

de

!'unite pour reparatio

JVC

s'averait defectueux, selon

app

li

cab

l

se

a

ou de fabrication.

toutes autr

nom de JVC.

des
pour perte de temps ou

l

ici

es

ront effectues sans

l'acheteur pour

JVC

es

l'entiere

pour

employe

dom

mages

Ot

s de transport ou tout autre

ni

ent i

lez

po

st

er

pou

vez egalement

par

P

la

ce

here

Placez

timbre

une surtension ou tout
I

TS

D'AUT

ts

leveme

, les

reconna

garanties

les

produits JVC .

d'un

Ia loi,

nd

irect,

a

l'

adre

interne

stamp

votre

lei

feu,

tr

61e

de

OMOB

!'elimination

tr

iques

tete, l

de main d'

nt

ou

n.

reparati

les

pi

eces

it

que de telles

exp

r

garantie express

detaillant

a

indirects

sse

esses:

ou d'un

prolonger cette

:

JVC nie toute

d'usage de

accidental

ci-dessous.

VOUS

t

a;

w

ww

un

JVC.

ILE

oe

uvre

a

on

coOts

et

Nul

.j

vc

e

de
es

Ia

les

s

Ia

et

.ca

AC

Adapters,

Projector
Adaptateurs
et Lampe de Projecteur

Wood

Enceinte
All

Other

Toutes

Remote

Lamps

AC,

Telecommande,

Cone Speakers

a

Cone

en

Categori

les

es

autres categories

Bois

Controls,

Headphones,

Casque

D'ecoute, Microphones

Microphones

and

90

DAYS

90JOURS

-

5

1

90

90

DAYS

JOURS

5

1

JVC

CANADA INC.

21

Finchdene

Toronto

,

ON

Sq

M1X

u

are
1

A7

TO

OUR VALUED

CUSTOMER--

THANK

WANT

WE

NEED ASSISTANCE

NEED TO

YOU FOR PURCHASING THIS

TO

HELP

YOU ACHIEVE A PERFECT EXPERIENCE.

NEED HELP ON HOW TO

ON HOW TO

LOCATE A

JVC

SERVICE

JVC

PRODUCT.

HOOK

OPERATE?

CENTER?

UP?

LIKE TO PURCHASE ACCESSORIES?

JVC®IS

TOLL

FREE: 1 [phone]

HERETO

HELP!

http://www.jvc.com

Remember

---

retain

to

Do

Caution

To
There

Please refer

your

not

prevent

are

Sale

of

Bill

service

attempt

electrical shock,

no

to

to

serviceable

user

qualified service personnel

Warranty

for

do

product

the

open

not

parts

Service.

the

inside.

for

yourself

cabinet.

repairs.

-5

BT
(1008)

10

18-6

Printed in

Indonesia

******************************************************************************

* *

i

JVC®

~

* JVC Americas Corp. (JVC) warrants this product and

~

ORIGINAL RETAIL

* original purchase for the period shown below.

PURCHASER to be FREE

LIMITED

I

ONLY

FOR

PRODUCT

FROM DEFECTIVE MATERIALS

WARRANTY

PURCHASED

all

parts thereof, except as set forth below ONLY TO

("The

Warranty Period") *

IN

U.S.A.

I

AND

WORKMANSHIP

1-1

I

from the date

USA

ONLY

THE

of

I

i

~

~

*

* *

i

*

THIS LIMITED

* *

~

IN

THE COMMONWEALTH

~

WHAT WE

~

If this product is found to be defective within the warranty period, JVC

* rebuilt equivalents at no charge to the original owner.

~

during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the
* remainder of the Warranty Period.
* Color televisions with a screen size of 37"class or greater qualify for in-home service.

~

come to your home and either repair the TV there

~

WHAT

YOU MUST

*

Please do

~

Instead, return your product

*

center, please

~the

problem(s). Please

*

can

also

*

representative

*

~

If you have any questions concerning your JVC Product, please contact our Customer Care Center

WARRANTY

WILL DO:

DO

FOR

not

return your product to the

be

sure

to

be obtained from

will

call

require

I

PARTS

IS VALID ONLY

OF

PUERTO

All products may

WARRANTY

to

the

package

our

clear

JVC

it

1-BOD-252-5722

carefully,

website http://www.jvc.com.

access

1

IN

RICO.

SERVICE:

retailer

authorized service center nearest you.

preferably

to

to

the product.

YR

THE FIFTY (50) UNITED STATES,

or

locate the nearest

I

LABOR

Such

repair and replacement services

be

brought to a JVC authorized service center

remove and return it if it cannot be repaired in your home.

in

the original packaging, and include a brief description

If

your product

1

YR

THE

DISTRICT OF COLUMBIA

will repair or replace defective parts with new or

If

shipping the product

JVC

authorized service center. Service locations

qualifies

shall

be rendered by JVC *

In

such cases, a technician

for

in-home service, the service

on

a carry-in basis. *

to

the service

at

800-252-5722

AND

will

of

.

i

*

~

~

~

~

*

~

~

*

~

*

~

*

*

*

~

* *

*

WHAT

~

*

~

* JVC to render such service,
* number has been altered, tampered with, defaced or removed; *

~

*

~

* 5.

~

* 7. Accessories; *

~

*
*

~

*

~

*

* *

* JVC

~DAMAGES,

*DAMAGE
*

~WARRANTIES

~

~

* implied warranty lasts,

~

IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1.

Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse,
installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized

2.

Initial

3.

4.

6.

8. Batteries (except that Rechargeable Batteries are covered for

9.

10.
There are no express warranties except
THE

LIMITED TO

OF
WARRANTY

Some
legal rights and you

installation, installation and removal from cabinets
Operational adjustments covered in the Owner's
Damage that occurs
Signal

reception problems and failures due to line power surge; *

User

Removal

Products used for commercial purposes, including, but not limited to rental.
Loss of data resultant from malfunction of hard drive

DURATION

SHALL NOT

ANY BREACH

states

OF

THE

DURATION OF

WHETHER

TO

TAPES, RECORDS OR DISCS) RESULTING FROM

OF MERCHANTABILITY

PERIOD SET FORTH ABOVE.

do

not

in

Memory

ANY IMPLIED WARRANTIES, INCLUDING THE

BE

LIABLE

DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION,

OF THIS WARRANTY. ALL

allow

so

may

also have other rights which

or

if affixed to any attachment not provided with the products,

or

shipment, due to act of God, and cosmetic damage;

Devices/Video

FOR

the

exclusion

these

Pick-up

Tubes/CCD

as

listed above.

THE

EXPRESS

ANY LOSS OF USE OF THE

AND

of

limitations

incidental

or

Manual, normal maintenance, video and audio head cleaning; *

WARRANTY

EXPRESS

FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO

exclusions

mounting systems.


Sensors

90

or

other data storage device; *

HEREIN.

AND

or

consequential

may

vary

not

from state

are

days from the date of purchase); *

IMPLIED

PRODUCT, INCONVENIENCE, OR

THE

USE OF THIS PRODUCT, OR ARISING OUT

IMPLIED WARRANTIES, INCLUDING

apply

to

covered

WARRANTY

damages

to

you.

state.

for

or

This

90

or

if the model

days

from

the

date

OF

MERCHANTABILITY,

limitations

warranty

on

gives

how

or

of

purchase;~

ANY

OTHER

long

you specific *

fAulty*

by~

serial *

IS

THE *
THE

an

*

~

~

~

:

~

*

~

*
*

~

*

~

~

~

~

* *

*

~

~

1700

JVC

ValleyRoad,

AMERICAS

http://www.jvc.com

Wayne, New Jersey 07470

CORP.

*

~

~

********************************************************************~*********

REFURBISHED PRODUCTS
OF

REFURBISHED PRODUCT

INFORMATION

For

customer

Enter below the Model No. and
Retain this information for future reference.

Model
Purchase date :

PACKAGED

use:

No.:

CARRY A SEPARATE WARRANTY,

WARRANTY, PLEASE REFER

WITH

EACH

REFURBISHED

Serial

No. which is located either on the rear, bottom or side of the cabinet.

PRODUCT.

THIS WARRANTY DOES NOT

TO

THE

REFURBISHED PRODUCT WARRANTY

Serial

No.:

Name

of

dealer :

APPLY.

FOR DETAIL
