JVC KD-LHX500, KD-AR5000 Instruction Manual

CD RECEIVER KD-AR5000/KD-LHX500

RECEPTOR CON CD KD-AR5000/KD-LHX500

RECEPTEUR CD KD-AR5000/KD-LHX500

ENGLISH

ESPAÑOL

KD-AR5000

Detachable

KD-LHX500

• This unit is equipped with the display demonstration. To cancel it, see page 7.

• Esta unidad está equipada con demostración en la pantalla. Para cancelarla, consulte la página 7.

• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler, référezvous à la page 7.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

For customer Use:

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No.

FRANÇAIS

Serial No.

LVT1134-001B

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Warning:

If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

How to reset your unit

Press the reset button on the control panel using a ball-point pen or a similar tool. This will reset the built-in microcomputer.

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

Cautions:

• Do not operate the touch panel using a ball-point pen or a similar tool with the sharp tip (it may damage the touch panel).

• If the temperature inside the car is below 0°C (32°F), the movement of animation and text scroll will be halted on the display to prevent the display from being blurred.

appears on the display. When the temperature increases, and the operating temperature is resumed, these functions will start working again.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Important!

How to read this manual:

To make the explanations as simple and easy-to-understand as possible, we have adapted the following methods:

• Some related tips and notes are

explained later in the sections “More about This Receiver” (see pages 46 to

48) but not in the same section explaining the operations. If you want to

know more about the functions, or if you have a doubt about the function, go to the section and you will find the answers.

Contents

• Button and touch panel operations are explained only with the illustrations as follows:

Press briefly.

Press repeatedly.

Hold

Press and hold until your desired response begins.

Press either one.

ENGLISH

How to reset your unit ..................................... 2

Location of the Buttons ................................. 4

Basic Operations ............................................ 6

Canceling the display demonstration ............... 7

Setting the clock .............................................. 8

Radio Operations ........................................... 9

Listening to the radio ....................................... 9

Storing stations in memory ............................ 10

Tuning in to a preset station .......................... 11

Changing the display pattern ......................... 11

Basic Disc Operations ................................. 12

Advanced Disc Operations.......................... 14

Locating a track or folder on a disc ............... 14

Prohibiting disc ejection ................................ 15

Selecting playback modes ............................. 16

Changing the display pattern ......................... 17

Sound Adjustments ...................................... 18

Setting the basic sound selection menu—SEL .... 18

Selecting preset sound modes

(i-EQ: intelligent equalizer) .................... 19

Storing your own sound modes ..................... 20

Graphic Displays ......................................... 21

Basic procedure ............................................. 21

Downloading the file for “OPENING/

ENDING/MOVIE”.................................. 22

Downloading the files for “PICTURE” ......... 23

Deleting all files ............................................ 25

Activating the downloaded files .................... 25

General Settings—PSM .............................. 27

Basic procedure ............................................. 27

Selecting the dimmer mode ........................... 32

Changing the display color ............................ 33

Other Main Functions ................................. 35

Assigning titles to the sources ....................... 35

Changing the control panel angle .................. 36

Detaching the control panel ........................... 36

Basic CD Changer Operations ................... 37

Advanced CD Changer Operations ........... 39

Locating a disc ............................................... 39

Locating a track or folder on a disc ............... 40

Selecting playback modes ............................. 42

Changing the display pattern ......................... 43

External Component Operations ............... 44

Maintenance ................................................. 45

More about This Receiver ........................... 46

Troubleshooting ........................................... 49

Specifications................................................ 51

Location of the Buttons

Control panel

ENGLISH

(Standby/On/Attenuator) button

Turns on and off the power, and also attenuates the sounds.

(angle) button

Adjust the control panel angle.

Remote sensor*

Reset button

Reset the built-in microcomputer.

* DO NOT expose the remote sensor on

the control panel to strong light (direct sunlight or artificial lighting).

WARNINGS on the battery:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.

VOLUME+/– button

Adjust the volume level.

MENU button

Show the Main Menu.

0 (eject) button

Open the control panel (and eject the disc if any).

Touch Panel

Used to operate the receiver.

(control panel release) button

Detach the control panel.

DISP (display) button

Change the information shown on the display.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack, or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack, or start a fire.

Remote controller

(Standby/On/Attenuator) button

SOURCE button

Select the source.

5/∞ buttons

• Change the preset stations.

• Change the folder on the MP3/WMA discs.

Number buttons

• Select the preset station if pressed, or Store a station if pressed and held.

• Select the tracks while playing CDs.

• Select the folders while playing MP3/WMA discs.

• Select the discs while operating the CD changer.

ANGLE button

Adjust the control panel angle.

BAND button

Select the FM/AM band (FM1, FM2, FM3, and AM).

4/¢ buttons

• Searches for stations (Auto Search) if pressed, or Skips frequencies after pressed and held (Manual Search).

• Change the tracks on the disc.

VOL (volume) +/– buttons

ENGLISH

(back side)

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

Lithium coin battery (CR2025)

With the + side facing upwards

Basic Operations

ENGLISH

Turn on the power

The Operation screen for last selected source is recalled.

Select the source

You can also change the

source by....

Then just wait.

Adjust the volume

Hold Hold

Adjust the sound

• For details, see pages 18 to 20.

When operating the touch panel

Make sure to touch the area inside the key icon boundary, but not on the boundary.

Select the source.

Source Selection screen (KD-AR5000)

Main Menu

Not displayed for “SIRIUS”

Not displayed for “LINE-IN” or “SIRIUS”

Main touch panels used in this section

Source Selection screen (KD-LHX500)

* What appears changes depending on

the “Ext Input” setting (see page 31). KD-AR5000: CD-CH/SIRIUS KD-LHX500: CD-CH/LINE-IN/SIRIUS

• To return to the previous screen, press “BACK” (if shown). See also page 46.

What information is shown on the touch panel

The following information are shown commonly for all sources.

• If you press DISP on the control panel, the touch panel will show the different information or different screens. (Details about this will be explained later separately for each source.)

Current source

Current source information icon appears.

• Ex.: Station name icon for the tuner

Clock time

i-EQ setting (page 19)

ENGLISH

To drop the volume in a moment (ATT):

To restore the sound, press it again.

To turn off the power:

Hold

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

○○○○○○○○○

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

To cancel the display demonstration, follow the procedure below:

Select “Off.”

To be continued...

Exit

ENGLISH

To activate the display demonstration, repeat the same procedure and select any one other than “Off” in step

• For more details, see “To show the display demonstration” on page 29.

Select “Clock Min.”

○○○○○○○○○

Setting the clock

You can also set the clock system to 24 hours or 12 hours.

Select “CLOCK.” Now “Clock Hr” setting appears.

The last selected item appears.

Adjust the minute.

Select “24H/12H.”

Select “24Hours” or “12Hours.”

To check the current clock time when the unit is turned off...

To change the voice support system

You can select either “Beep” or “Voice” for the voice support system (VSS).

Adjust the hour.

Furthermore, if you select “Voice,” you can select the language—English, Spanish, or French.

To change them, see pages 30 and 31.

Radio Operations

○○○○○○○○

Listening to the radio

Select the Tuner

You can also change the

source by....

Start searching for a station

“Auto Search” begins. When a station is received, searching stops.

ENGLISH

Then just wait.

Select “TUNER.”

Select the band (FM/AM)

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Main touch panels used in this section

Tuner Operation screen

Main Menu

To stop searching, press the same icon.

To tune in to a station manually

In step

Activate “Manual Search.”

Tuner Mode Menu

Preset Station List*

above...

Hold

Select station frequencies.

Appears only for FM.

• To return to the previous screen, press “BACK” (if shown).

*1The lists show either the station frequency or assigned name (the first 8 characters, see page 35).

Appears only for FM.

• Press to change the FM band (1=2=3=...).

• Hold to change the FM band (3=2=1=...).

When an FM stereo broadcast is hard to

FM1 FM2

FM3AM

receive:

ENGLISH

Hold

On: Reception improves, but stereo

effect will be lost.

Off: Normally select this.

On Off

Exit.

○○○○○○○○○

Storing stations in memory

You can preset 6 stations for each band.

FM station automatic presetting—SSM (Strong-station Sequential Memory)

• This is only for FM bands.

FM1 FM2

FM3AM

Local FM stations with the strongest signals are searched and stored automatically in the selected FM band.

Manual presetting

Ex. Storing an FM station of 92.5 MHz into

the preset number 1 of the FM1 band.

(in this example, FM1)

(in this example, of 92.5 MHz)

• Holding or on the Tuner Operation screen can also display the

Preset Station List (see step

below).

Hold

Select “1” in this example.

○○○○○○○○○

Tuning in to a preset station

○○○○○○○○○

Changing the display pattern

To select a preset station using the Preset Station List

• Holding Operation screen can also display the Preset Station List.

FM1 FM2

FM3AM

Select a preset number.

or on the Tuner

FM1 FM2

FM3AM

Tuner Operation screen

Station name if assigned

Preset number if any

Clock time is enlarged.

Lights while receiving an FM stereo program

ENGLISH

Audio Level Meter* (see page 30)

Graphic screen* (Appears only after you have download a file, see page 25)

Select a preset number.

Goes back to the Tuner Operation screen.

* These screens will be temporarily canceled

when you operate the unit.

Basic Disc Operations

ENGLISH

Open the control panel

The unit turns on, then...

Insert a disc

The unit draws the disc, the control panel closes then goes back to the previous position (see page 36), and playback starts automatically.

To stop play and eject the disc:

To return the control panel to its previous position, press it again.

To fast-forward or reverse the track:

Hold

To go to the next or previous tracks:

To go to the next or previous folders:

For MP3/WMA discs only:

Hold

Main touch panels used in this section

CD/CD Text Operation screen

• When a track or folder whose number is greater than 99 is selected, the icon in front of the number ( , , , ) goes off (to show its assigned 3-digit number).

MP3 Operation screen

WMA Operation screen

About MP3 and WMA discs

MP3 and WMA (Windows Media® Audio) “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.” “Root” is similar to the root of a tree. Every track and folder can be linked to and be accessed from the root.

• When an MP3 or a WMA folder includes an image <jll> file edited by Image Converter (Wide)—supplied in the CD-ROM, you can show the image on the display while the tracks in the folder are played back. (See pages 29 and 47 for details.)

Level 1 Level 2 Level 3 Level 4 Level 5

ROOT

: Folder with its play order

: MP3/WMA track with its

Hierarchy

play order

02 03

ENGLISH

• Display indications when inserting an audio CD or a CD Text:

Track name*

Disc name*

*1Appear only for CD Texts. (“No Name” appears

if no name is recorded).

*2 Appear for CD Texts and CDs if it has been

assigned. (“No Name” appears if no name is recorded or assigned).

CAUTIONS:

• Do not insert 8 cm (3-3/16”) discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape— like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Display indications when inserting an MP3 or a WMA disc

Total track number

Current track*

Total folder number

Current folder*

*3If “Tag” is set to “On” (see page 30), ID3 tag

information will appear on the display if the disc has an ID3 tag. The album name/performer with (disc) indicator appears on the display instead of the folder name; while track title with (track) indicator appears instead of the track name.

Disc type

Advanced Disc Operations

○○○○○○○○○

Locating a track or folder on a disc

ENGLISH

To locate a folder on the screen (only for MP3/WMA discs)

• Holding or on the Disc Operation screen can also display the Folder List.

The current folder is highlighted.

Select a folder number.

• If you select the currently selected folder (highlighted on the screen), the File List screen (see step 3 below), then you can select a track to start with.

To locate a track on the screen (only for MP3/WMA discs)

The current track is highlighted.

Select a track number.

Main touch panels used in this section

Disc Mode Menu screen

Appears only for MP3/WMA.

Skip 10 screen

• To return to the previous screen, press “BACK” (if shown).

Folder List screen (only for MP3/WMA)*

File (Track) List screen (only for MP3/WMA)*

*1The lists show the folder/file names actually

recorded (the first 8 characters).

*2 Press to go to the next list; hold to go back to

the previous list.

To locate a track (or folder) directly using the remote controller

• To select a track (or folder for MP3 and WMA discs) number from 1 – 6:

• To select a track (or folder for MP3 and WMA discs) number from 7 (1) – 12 (6):

Hold

To directly select the folders using the number button(s), it is required that folders be assigned 2 digit numbers at the beginning of their folder names—01, 02, 03, and so on.

To skip 10 tracks at a time

You can quickly reach a desired track on a disc including many tracks.

• For MP3 and WMA, you can select only a track within the current folder.

Ex. To select track number 32 while playing track number 6

(3 times)

First time you press “+10” or “–10,” the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th). Then, each time you press the button, you can skip 10 tracks.

• After the last track, the first track will be selected, and vice versa.

(Twice)

○○○○○○○○○

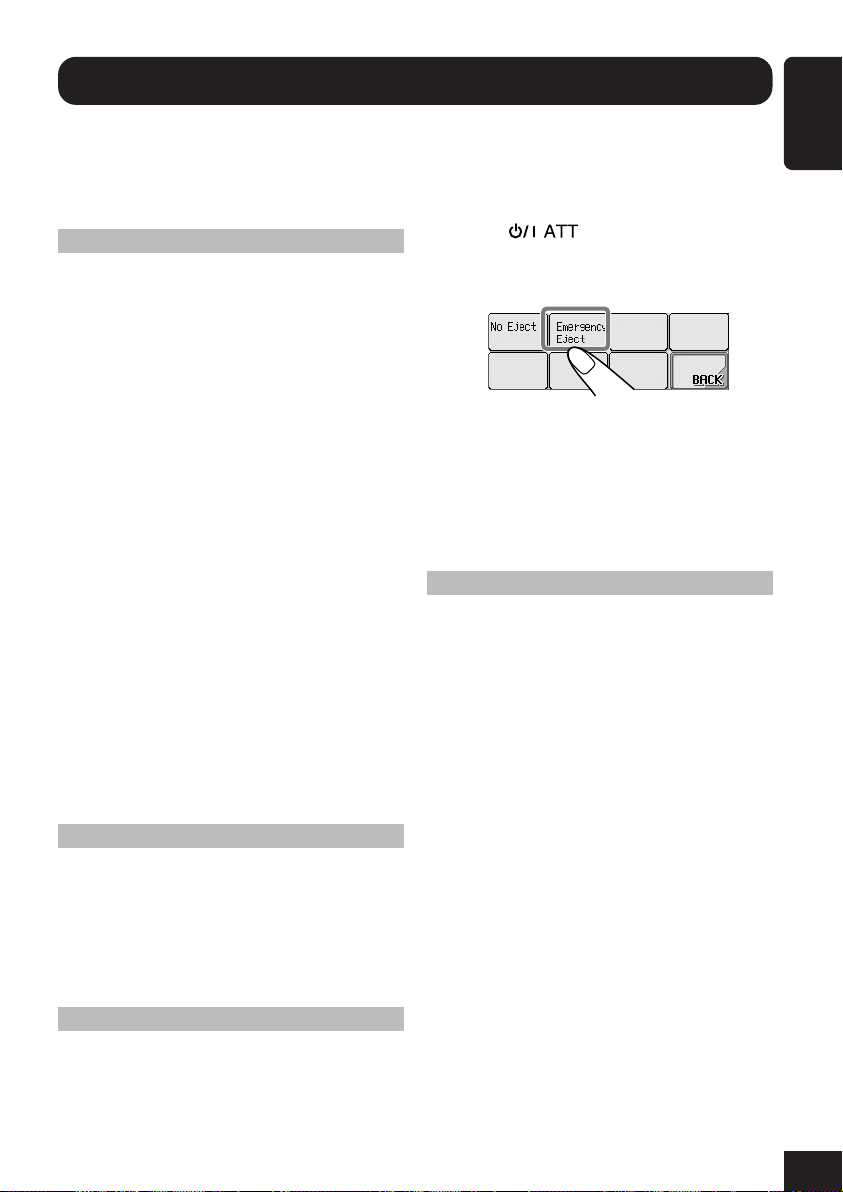

Prohibiting disc ejection

You can lock a disc in the loading slot.

Hold

(at the same time)

Hold

ENGLISH

“No Eject” flashes, and

To cancel the prohibition, repeat the same procedure (press “Eject OK” in step 2 ). “Eject OK” flashes.

the disc cannot be ejected.

○○○○○○○○○

Track Folder

Off

Selecting playback modes

You can use only one of the following playback modes at a time.

ENGLISH

To play back only intros (Intro Scan)

You can play back the first 15 seconds of each track sequentially.

To play back tracks repeatedly (Repeat Play)

You can repeat playback.

Track Folder

Off

Mode Plays the beginnings of

Track : All tracks of the disc.

• While playing, up.

Folder* : First tracks of all folders.

• While playing, lights up.

Off : Cancels Intro Play.

* “Folder” can be selected for MP3 and

WMA discs only.

Exit.

lights

Mode Plays repeatedly

Track : Current track.

• While playing, lights up.

Folder* : All tracks of the current folder.

• While playing, lights up.

Off : Cancels Repeat Play.

* “Folder” can be selected for MP3 and

WMA discs only.

Exit.

To play back tracks at random (Random Play)

You can play back tracks at random.

○○○○○○○○○

Changing the display pattern

ENGLISH

DiscFolder

Off

Mode Plays randomly

Folder* : All tracks of the current folder,

then moves to the next folder and so on.

• While playing, up.

Disc : All tracks on the disc.

• While playing, up.

Off : Cancels Random Play.

* “Folder” can be selected for MP3 and

WMA discs only.

Exit.

Disc Operation screen

Clock time is enlarged.

lights

Audio Level Meter (see page 30)

lights

Graphic screen (Appears only after you have download a file, see page 25)

Goes back to the Disc Operation screen.

Sound Adjustments

○○○○○○○○

Setting the basic sound selection

ENGLISH

○○○○○○○○

menu—SEL

Show the Main Menu

Adjust the item

To adjust fader and balance:

Show the basic sound selection menu

Select a setting item

Return

To adjust fader and balance—FAD/BAL:

Adjust fader—speaker output balance between the front and rear speakers.

To select the cutoff frequency and adjust the subwoofer output level:

To adjust the input level of each source:

Adjust the balance—speaker output balance between the left and right speakers.

F6 (front only)

R6 (rear only)

L6 (left only)

R6 (right only)

These adjustments cannot affect the Voice Support System (VSS: see page 30) output. VSS sound always comes out of all speakers connected.

To adjust subwoofer output—SUB OUT:

Select an appropriate cutoff frequency level according to the subwoofer connected.

Low: Frequencies higher than 55 Hz are cut

off to the subwoofer.

Mid: Frequencies higher than 85 Hz are cut

off to the subwoofer.

High: Frequencies higher than 115 Hz are cut

off to the subwoofer.

Adjust the subwoofer output level.

00 (min.)

08 (max.)

○○○○○○○○○

Selecting preset sound modes

○○○○○○○○○

(i-EQ: intelligent equalizer)

You can select a sound mode suitable to the music genre.

Available sound modes:

• Flat (To cancel the sound mode. No sound

mode is applied)

• Hard Rock

• R & B

• Pop

• Jazz

• Dance

• Country

• Reggae

• Classic

• User 1, User 2, User 3

ENGLISH

To adjust the input level of each source —VOLUME ADJUST:

This setting is required for each source except FM. Before making an adjustment, select an appropriate source for which you want to make an adjustment. Once you have made an adjustment, it is memorized, and the volume level will automatically increase or decrease by adjusted level whenever you change the source.

Adjust to match the input level to the FM sound level.

–05 (min.) to +05 (max.)

Select a sound mode.

Exit.

○○○○○○○○○

Storing your own sound modes

You can adjust the sound modes and store your own adjustments in memory.

ENGLISH

Repeat steps 1 to 3 on page 19 to select a sound mode you want to adjust.

Repeat steps 2 and 3 to adjust the other frequency bands.

Ex. When you select “Flat”

Select the frequency band—60Hz, 150Hz, 400Hz, 1kHz, 2.4kHz, 6kHz, 12kHz.

For details about the preset settings of each sound mode, see below.

Select one of the user modes to store your adjustment (ex. when you selecting “USER1”).

Adjust the level of the selected band within the range of –05 to +05.

Sound Preset equalizing values

Mode 60 Hz 150 Hz 400 Hz 1 kHz 2.4 kHz 6 kHz 12 kHz

Flat 00 00 00 00 00 00 00

Hard Rock +03 +03 +01 00 00 +02 +01

R & B +03 +02 +02 00 +01 +01 +03

Pop 00 +02 00 00 +01 +01 +02

Jazz +03 +02 +01 +01 +01 +03 +02

Dance +04 +02 00 –02 –01 +01 +01

Country +02 +01 00 00 00 +01 +02

Reggae +03 00 00 +01 +02 +02 +03

Classic +02 +03 +01 00 00 +02 00

User 1 00 00 00 00 00 00 00

User 2 00 00 00 00 00 00 00

User 3 00 00 00 00 00 00 00

Graphic Displays

○○○○○○○○

Basic procedure

Before starting the following procedure, prepare a CD-R including still images (pictures) and animations (movies).

• With Image Converter (Wide) included in the supplied CD-ROM, you can create your own images and animations. (The supplied CD-ROM also includes sample images and animations.)

Open the control panel

Show the Main Menu

Show the Picture Menu Screen

ENGLISH

The unit turns on, then...

Insert the prepared CD-R

The unit draws the disc, the control panel closes, then goes back to the previous position (see page 36).

• If the disc includes playable audio files, playback starts.

Main touch panels used in this section

Picture Menu

Select the item

• To download/delete the file for “Opening”

screen \ OPENING (see page 22)

• To download/delete the file for “Ending”

screen \ ENDING (see page 22)

• To download/delete the files for graphic

screen \ PICTURE/MOVIE (see pages 22 and 23)

• To delete all memorized files \ ALL FILE DELETE (see page 25)

Folder List screen*

• To return to the previous screen, press “BACK” (if shown).

*1The lists show the folder/file names actually

recorded (the first 8 characters).

*2 Press to go to the next list; hold to go back to

the previous list.

File List screen*

IMPORTANT:

• Refer to Image Converter PDF files included in the “Manual” folder of the supplied CDROM.

• Still images (pictures) should have <jll>, and animations (movies) should have <jla> as their

ENGLISH

extension code in their file names.

• Before you download or delete the files, observe the following:

– Do not download a file while driving. – Do not turn off the ignition key of the car while downloading or deleting a file.* – Do not detach the control panel while downloading or deleting a file.*

* If you do it, the file download or deletion will not be done correctly.

○○○○○○○○○

Downloading the file for “OPENING

○○○○○○○○○

/ENDING/MOVIE”

• OPENING: Opening screen

To download/delete an animation (consisting of 30 frames maximum) to be shown after the unit is turned on.

• ENDING: Ending screen

To download/delete an animation (consisting of 30 frames maximum) to be shown before the unit is turned off.

• MOVIE: Graphic screen

To download/delete an animation (consisting of 90 frames maximum) to be shown while playing a source.

To download an animation

• It takes a long time to download an animation. For details, see page 48.

• To activate the downloaded animation, see page 25.

Repeat steps 1 to 4 on page 21, then in step 5...

Only the folders including the <jla> files are shown.

(once for the

Select a folder.

currently selected; twice for the others)

Select a file.

File name of the selected file appears.

To delete the stored animation:

Repeat steps 1 to 4 on page 21, then in

...

step

or or

File name of the stored file appears.

○○○○○○○○○

Downloading the files for “PICTURE”

Download pictures (total of 30 still images: each one frame—see also page 48) which can be used for the graphic screen.

• To activate the downloaded animation, see page 25.

Only the folders including the <jll> files are shown.

Select a folder.

(once for the currently selected; twice for the others)

Select a file.

File name of the selected file appears.

ENGLISH

To download pictures

Repeat steps 1 to 4 on page 21, then in

...

step

To be continued...

Download more files if you want.

• To select a file from the same folder:

ENGLISH

• To select a file from another folder:

Delete more files if you want.

Repeat steps 3 to 5.

After downloading all the files you want...

To delete the stored pictures:

Repeat steps 1 to 4 on page 21, then in step 5...

Select a file.

After deleting all the files you do not want...

Exit.

To delete all the stored pictures at a time:

Repeat steps 1 to 4 on page 21, then in step 5...

Select a file.

File name of the selected file appears.

○○○○○○○○○

Deleting all files

You can easily delete all files—animations and pictures stored for “OPENING/ENDING/ MOVIE/PICTURE.”

ENGLISH

Select “MOVIE.” Now “Demo” setting appears.

○○○○○○○○○

Activating the downloaded files

To activate the animations stored for opening and ending screens

Select “Opening” or “Ending.”

Select “User.”

Default: Factory-preset animation is used.

User: Your own animation is used.

Exit.

To activate the graphic screen using either picture or movie

The last selected item appears.

To be continued...

ENGLISH

Select “MOVIE.” Now “Demo” setting appears .

Select “Graphics.”

Select a setting you want.

UserPict.: One of your still images stored

in “PICTURE” is activated for your graphic screen. (To select an image, see the next column.)

UserMovie:

UserSlide: Your still images stored in

Your animation stored in “MOVIE” is activated for your graphic screen.

“PICTURE” are activated and shown in sequence for your graphic screen.

To select a still image for “UserPict.”

• If “UserPict.” is not selected for “Graphics”

you cannot select “UserPict.” in step

below.

The last selected item appears.

Select “MOVIE.” Now “Demo” setting appears .

Select “UserPict.”

Select a file you want.

Exit.

General Settings—PSM

○○○○○○○○

Basic procedure

You can change the Preferred Setting Mode (PSM) items listed on the table that follows.

• The PSM items are grouped into six categories—MOVIE, CLOCK, DISP (display), TUNER, AUDIO, and COLOR.

Show the Main Menu

Show the PSM setting screen

The last selected item appears.

Select a PSM category

Select a PSM item

Change or adjust the setting

Change or adjust other PSM items

If necessary, repeat steps 3 to 5 to change other PSM item settings.

ENGLISH

Ex. When selecting “DISP.” The first listed PSM item in the selected category appears.

Without selecting a PSM category, you can move to a different category by simply changing the PSM items (in step 4).

Exit

Demo

ENGLISH

Graphics

KeyIn CFM

Opening

Ending

UserPict.

PSM items

Demonstration

Graphics

Key-in confirmation

Opening screen

Ending screen

User picture

Selectable settings Initial Pages

All Time

Off

UserPict.

Off On

Default User

From the stored files

ImageLink

UserSlide

Interval

UserMovie

All Time

UserPict.

Default

First stored

7, 29

Clock Hr

Clock Min

CLOCKDISP

24H/12H

Scroll

Dimmer

From– To

Contrast

LCD Type

Font Type

Tag

Theme

Key Info

IF Filter

TUNER

VSS

VSS Level

Language

Ext Input

AUDIO MOVIE

Amp Gain

Clock hour

Clock minute

Clock system

Scroll mode

Dimmer

Dimmer timer

Contrast

Display type

Font type

Tag display

Level meter

Key Information

Intermediate frequency filter

Voice support system

VSS level

Language

External Input

Amp gain control

1 — 12 (0 — 23)

00 — 59

12Hours 24Hours

Once

Auto

Time Set

Auto

Off

Off On

Any hour — Any hour

1 — 10

Negative

Positive

Auto

1 2

Off On

Meter 1

Meter 2

Meter 3

Off On

Wide Auto

Beep Voice

Off 1 2 34

Français

Sirius

Off

Español

Sirius

Line In

Low PWR

High PWR

English

KD-AR5000:

Changer

KD-LHX500:

Changer

KD-AR5000:

High PWR

KD-LHX500:

Low PWR

1 (1:00AM)

00(1:00AM)

12Hours

Once

Auto

6PM–7AM

Auto

Meter 1

Auto

Voice

English

Changer

High PWR

PSM items

SOURCE

USER DAY (USER NIGHT)

COLOR

*1Displayed only after a downloadable file is stored in memory. *2Displayed only after a downloadable file is stored in memory and while selecting “UserPict.” for “Graphics.” *3Displayed only when “Dimmer” is set to “Time Set.” *4Displayed only when the source is not an external component.

Source

User color

Red

Green

Blue

Selectable settings Initial Pages

All sources

USER DAY USER NIGHT

00 — 11

All Source

USER DAY

USER DAY: 07 USER NIGHT:05

USER DAY: USER NIGHT:05

ENGLISH

To show the display demonstration

If no operation is done for about 20 seconds, display demonstration starts.

• All Time: Display demonstration

(animation) appears.

• ImageLink:A still image included in an

MP3/WMA folder appears while playing back the tracks in the folder (see page 13).

• Interval: Display demonstration

(animation) and playback source indication appears alternately.

• Off: Cancels the demonstration.

To turn on and off the animation screens—KeyIn CFM

You can turn on and off the animation screens—opening, ending, source changing, and i-EQ selecting screens.

• On: An animation screens appear...

– When you turn on or off the power, – When you change the sources, and – When you select an i-EQ.

• Off: Cancels the animation screens.

To select the scroll mode—Scroll

The entire text information is shown by scrolling if it cannot be shown at a time.

• Once: Scrolls only once.

• Auto: Repeats the scroll (in 5-second

intervals).

• Off: Cancels scroll mode.

To adjust the display contrast level —Contrast

You can adjust the contrast to make the display clear and legible.

To select the display illumination pattern —LCD Type

You can select the display illumination patterns.

• Auto: Positive pattern will be selected

during the day time*, while negative pattern will be used during the night time*.

• Positive: Positive (normal) pattern of the

display.

• Negative: Negative pattern of the display

(except still images, animations, and audio level meters).

* Depending on the “Dimmer” setting

To select the font type used on the display—Font Type

You can select either of the two fonts (1 or 2).

ENGLISH

To turn the tag display on or off—Tag

An MP3 and WMA track can contain track information called “Tag” where its album name, performer, track title, etc. are recorded.

• On: Shows the Tag display while playing

MP3 or WMA tracks.

• Off: Cancels the Tag display. Only the

folder name and track name appear.

For MP3 tracks only: There are two versions– ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). When both ID3v1 and ID3v2 are recorded, ID3v2 will be shown.

To select the audio level meter—Theme

You can select the level meter.

• To show the level meter, press DISP repeatedly.

• Meter 1:

• Meter 2:

To show or delete the key icon boundary on the touch panel—Key Info

Key icons have their own boundaries on the touch panel to make the operations easy. These boundaries can be shown or deleted according to your preference.

• On: To show the key icon boundary.

• Off: To delete the key icon boundary.

Though “Off” is selected, the key icon boundary will be shown while you are operating the touch panel. About 5 seconds after the operation, it goes off.

To change the FM tuner selectivity —IF Filter

In some areas, adjacent stations may interfere with each other. If this interference occurs, noise may be heard.

• Auto: When this type of interference occurs,

this unit automatically increases the tuner selectivity so that interference noise will be reduced. (But the stereo effect will also be lost.)

• Wide: Subject to the interference from

adjacent stations, but sound quality will not be degraded and the stereo effect will not be lost.

• Meter 3:

To change the voice support system —VSS

You can select either “Beep” or “Voice” for the voice support system (VSS).

• Voice: Guidance is announced in the

language you have selected (see “To select the language for the VSS —Language” on page 31) when you operate the unit.

• Beep: A Beep sounds when you operate the

unit.

To deactivate the VSS, select “Off” for “VSS Level” (see page 31).

+ 123 hidden pages
