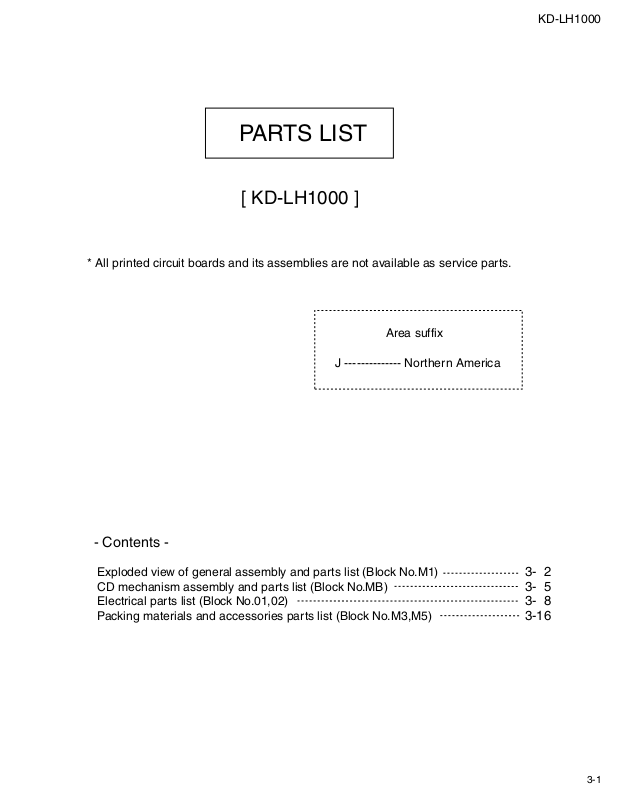

JVC KD-LH1000 Parts List

PARTS LIST

[ KD-LH1000 ]

* All printed circuit boards and its assemblies are not available as service parts.

KD-LH1000

Area suffix

J -------------- Northern America

- Contents -

Exploded view of general assembly and parts list (Block No.M1)
CD mechanism assembly and parts list (Block No.MB)
Electrical parts list (Block No.01,02)
Packing materials and accessories parts list (Block No.M3,M5)

3- 2
3- 5
3- 8
3-16

3-1

KD-LH1000

Exploded view of general assembly and parts list

Block No.

8

66

65

63

8

67

8

59

64

62

57

5

A

61

56

M

M

1

M

9

60 58

3

7

10

7

A

B

Main board

27

9

22

20

18 28

25

12

31

26

24

29

14

17

15

21

23

13

19

30

11

16

12

51

51

52

77

53

4

71

75

69

73

72

74

51

48

76

40

C

54

47

38

78

68

C

70

3-2

6

1

43

6

46

35

2

79

B

6

50

49

37

39

34

41

36

32

33

42

45

44

KD-LH1000

Parts list (General assembly)

Item

A

1 GE10043-001A

2 GE40135-001A

3 GE30568-002A

4 GE30393-001A

5 FSMA3005-001

6 QYSDST2604Z

7 FSKZ4005-001

8 QYSDST2606Z

9 QYSDST2606Z

10 QYSDST2612Z

11 QYSDSF2006M

12 QYSDST2004M

13 GE10049-003A

14 GE30381-001A

15 VKZ4777-001

16 GE30378-001A

17 FSKS3015-001

18 VKS3798-002

19 GE30379-001A

20 VKS3794-003

21 VKS3795-002

22 VKS5563-001

23 VKZ4786-002

24 FSKW4012-001

25 GE40144-001A

26 VKW5262-001

27 QYSDSF2006M

28 VKW5263-002

29 VKZ4777-001

30 FSKW4013-002

31 GE40140-001A

32 GE10044-008A

33 GE30384-006A

34 GE20129-001A

35 GE30537-001A

36 GE20124-003A

37 GE30388-004A

38 GE30541-003A

39 GE30536-002A

40 GE30542-002A

41 GE40138-001A

42 GE40132-002A

43 LV40833-002A

44 GE30539-001A

45 FSYH4036-032

46 GE30387-001A

47 GE30538-002A

48 VKW3001-330

Parts number Parts name Area

Q'ty

TOP CHASSIS

EARTH PLATE

HEAT SINK

BOTTOM COVER

INSULATOR

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

FRONT CHASSIS

LIGHT LENS

MINI SCREW

OPEN LEVER

LOCK LEVER(O.L)

RELEASE LEVER

LOCK LEVER(TOP)

LOCK LEVER(L)

LOCK LEVER(R)

GEAR

OIL DAMPER

T.SPRING

T.SPRING

T.SPRING

SCREW

T.SPRING

MINI SCREW

T.SPRING

BLIND

FRONT PANEL

FINDER ASS'Y

PRESET BUTTON

POWER BUTTON

D.FUNC BUTTON

NAV UP BUT

NAV DN BUT

NAV(L)BUT

NAV(R)BUT

NAV GUIDE

VOL KNOB

SPACER

SEL BUTTON

SHEET

RIM LENS 1

EJECT BUTTON

COMP.SPRING

Description

1

1

1

1

1

3

CHASSIS+CD MECH

2

CHASSIS+SIDE HE

3

CHASSIS+REAR BK

2

CHASSIS+MAIN PW

2

SIDE PANEL+IC B

2

F.CHASSIS+CONEC

2

1

1

1

L.LENS+F.CHASSI

1

1

1

1

1

1

1

1

1

FOR L.LEVER(TOP

1

FOR RELEASE LEV

1

FOR L.LEVER(R)

1

DAMPER+L.LEVER(

1

FOR L.LEVER(L)

1

LOCK LEVER(O.L)

1

FOR OPEN LEVER

1

1

1

1

1-6(2COLOR)

1

1/2/3/4/5/6

1

SND+D.FUNCT

1

1

1

1

1

1

1

1

1

FOR SEL BUTTON

1

1

FOR EJECT BUTTO

Block No. M1MM

3-3

KD-LH1000

Parts list (General assembly)

Item

A

49 GE30547-001A

50 VKW3001-330

51 VKZ4777-001

52 GE10045-001A

53 FSYH4036-035

54 FSYH4036-069

56 LV33443-001A

57 GE40101-001A

58 QMFZ047-150-T

59 GE30382-003A

60 GE40136-001A

61 GE40124-001A

62 QAM0154-001

63 QYSDST2606Z

64 QYSDST2606Z

65 QYSDST2606Z

66 QYSDSF2606Z

67 QYSDST2606Z

68 QLD0232-001

69 LV42850-001A

70 LV33403-003A

71 LV33404-001A

72 LV42884-001A

73 LV42995-001A

74 LV42894-001A

75 LV42955-002A

76 LV43084-001A

77 LV40848-034A

78 LV40846-036A

79 ---------------

Parts number Parts name Area

DETACH BUTTON

COMP.SPRING

MINI SCREW

REAR COVER

SHEET

SHEET

NAME PLATE

PIN CAP

FUSE

REAR BRACKET

IC BRACKET

REG BRACKET

SUB-CABLE

SCREW

SCREW

SCREW

SCREW

SCREW

LCD MODULE

LCD LENS

LCD CASE

LIGHTING CASE

LCD FILTER

LCD FILTER

BRIGHT SHEET

LENS SHEET

DOUBLE FACE

SPACER(P)

SPACER(F)

CD MECHA

Q'ty

1

1

FOR DETACH BUTT

4

FRONT+REAR

1

1

FOR REAR COVER

2

1

2

1

1

1

1

1

1

REAR BKT+REG.BK

1

REAR BKT+ANT JA

1

REAR BKT+CD IN

1

REAR BKT+PIN JA

2

REAR BKT+16PIN

1

1

1

1

1

1

1

1

1

1

1

1

Block No. M1MM

Description

3-4

CD mechanism assembly and parts list

KD-LH1000

Grease

31

C

22

112

24

TNG-87

72

26

36

29

61

D

116

74

62

75

Block No.

M

M

B

M

TN-2001-1001

111

34

35

33

111

25

73

85

15

A

19

B

21

112

114

11

38

30

A

23

13

32

2

111

37

27

101

93

76

94

122

100

84

73

95

38

74

100

a

14

75

94

96

77

123

97

81

32

a

113

99

115

D

91

111

111

82

89

90

93

71

C

B

92

18

20

87

125

88

3

12

121

16

17

124

3

83

86

28

98

4

1

111

3-5

KD-LH1000

Parts list (CD mechanism)

Item

A

1 30320101T

2 30320102T

3 30320109T

4 30320110T

11 303205501T

12 303205503T

13 303205301T

14 303205302T

15 30320502T

16 30320503T

17 30320505T

18 30320506T

19 30320507T

20 30320509T

21 30320510T

22 30320511T

23 30320513T

24 30320514T

25 30320518T

26 30320519T

27 30320520T

28 30320521T

29 30320522T

30 30320525T

31 30320526T

32 30320527T

33 30320529T

34 30320530T

35 30320531T

36 30320523T

37 30320524T

38 30320528T

61 69011614T

62 64180406T

71 303210301T

72 30321002T

73 30321003T

74 30321005T

75 30321009T

76 30321011T

77 19501403T

81 303211301T

82 303211501T

83 303211302T

84 303211502T

85 303211303T

86 30321101T

87 30321102T

Parts number Parts name Area

Q'ty

FRAME

TOP COVER

DAMPER F

DAMPER R

CHASSIS RIVET A

CHANGE P. RVT A

CLAMPER ASS'Y

SPINDLE MOTOR A

CLAMPER ARM

CHANGE GEAR SPG

CHANGE GEAR 2

FEED GEAR

FEED RACK

CHANGE LOCK RAR

FEED SW HOLDER

PU SHAFT HOLDER

CLAMPER SUB SPG

FD SUB HOLDER

TOP PLATE

SELECT LOCK ARM

TRIGGER ARM

SLIDE HOOK

PU SHAFT

CLAMPER ARM SPG

SELECT L ARM SP

SUSPENSION SPG

SELECT ARM R

LINK PLATE

LINK PLATE SPG

CUSHION F

CUSHION R

SUSPENSION SPGL

PICKUP OPT-725

DET SW ESE22

CONN PWB ASS'Y

MODE SW

LOAD MOTOR WIRE

MODE SW WIRE

SL WIRE

WIRE HOLDER

WIRE CLAMPER

ROLLER SHAFT AS

L GEAR PLATE RV

LOADING PLATE A

LOCK ARM RV ASS

L/F MOTOR ASS'Y 1

LOADING GEAR 1

LOADING GEAR 2

Block No. MBMM

Description

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

3-6

KD-LH1000

Parts list (CD mechanism)

Item

A

88 30321103T

89 30321104T

90 30321105T

91 30321106T

92 30321107T

93 30321111T

94 30321114T

95 30321116T

96 30321117T

97 30321118T

98 30321125T

99 30321131T

100 30321133T

101 18211223T

111 9P0420031T

112 9P0420041T

113 9B0320041T

114 9C0117183T

115 9C0120203T

116 9C0317503T

121 9W0130170T

122 9W0513060T

123 9W0710070T

124 9E0100152T

125 9W0113020T

Parts number Parts name Area

LOADING GEAR 3

LOADING GEAR 4

LOADING GEAR 5

LOADING GEAR 6

LOADING GEAR 7

ROLLER GUIDE

ROLLER GUIDE SP

DISC STOPPER AR

DISC ST ARM SPG

LD GEAR BRACKET

L SIDE PLATE

LOAD PLATE SPG

LDG ROLLER

COLLAR SCREW

SCREW M2X3

SCREW(M2 X 4)

SCREW(M2 X 4)

SCREW

SCREW

SCREW

PW 3.5X8X0.3

HL WASHER

L WASHER

E RING

PW 2.1X4X0.13

Q'ty

Block No. MBMM

Description

1

1

1

1

1

2

2

1

1

1

1

1

2

1

6

2

1

2

1

1

1

1

1

1

1

3-7

KD-LH1000

ea

Electrical parts list (Main board)

Item

A

BZ795 QAN0002-001Z BUZZER

C 1 NCB31EK-473X C CAPACITOR

C 2 NCB31HK-103X C CAPACITOR

C 3 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 4 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 6 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 7 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 10 NCB31EK-473X C CAPACITOR

C 25 NCS31HJ-331X C CAPACITOR

C 27 QERF1HM-104Z E CAPACITOR .10MF 20% 50V

C 101 NCB31EK-223X C CAPACITOR

C 102 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 103 NCS31HJ-821X C CAPACITOR

C 104 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 111 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 112 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 113 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 114 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 115 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 116 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 117 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 118 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 119 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 120 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 121 NCB31EK-473X C CAPACITOR

C 122 NCB31EK-473X C CAPACITOR

C 123 NCS31HJ-101X C CAPACITOR

C 124 NBE20JM-106X TS E CAP SVB20J

C 131 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 132 NCB31EK-333X C CAPACITOR

C 133 NCB31EK-273X C CAPACITOR

C 134 NCB31EK-273X C CAPACITOR

C 135 NCB31HK-562X C CAPACITOR

C 136 NCB31EK-123X C CAPACITOR

C 137 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 138 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 139 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 140 NCB31HK-682X C CAPACITOR

C 141 NCB31EK-823X C CAPACITOR

C 142 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 143 NCB31EK-473X C CAPACITOR

C 144 NCS31HJ-101X C CAPACITOR

C 151 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 152 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 153 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 154 NCS31HJ-101X C CAPACITOR

C 155 NCS31HJ-101X C CAPACITOR

C 156 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 157 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 158 NCS31HJ-101X C CAPACITOR

C 159 NCS31HJ-101X C CAPACITOR

C 160 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 171 NCS31HJ-101X C CAPACITOR

C 172 NCB31HK-822X C CAPACITOR

C 173 QERF0JM-226Z E CAPACITOR 22MF 20% 6.3V

C 174 NCB31HK-102X C CAPACITOR

C 175 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 176 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 177 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 181 NCB31EK-473X C CAPACITOR

C 191 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 192 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 193 NCB31EK-473X C CAPACITOR

Parts number Parts name Ar

Block No. 01

Remarks

Item

A

C 194 QERF1HM-224Z E CAPACITOR .22MF 20% 50V

C 201 NCB31EK-223X C CAPACITOR

C 202 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 203 NCS31HJ-821X C CAPACITOR

C 204 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 211 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 212 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 213 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 214 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 215 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 216 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 251 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 252 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 253 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 254 NCS31HJ-101X C CAPACITOR

C 255 NCS31HJ-101X C CAPACITOR

C 256 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 257 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 258 NCS31HJ-101X C CAPACITOR

C 259 NCS31HJ-101X C CAPACITOR

C 271 NCS31HJ-101X C CAPACITOR

C 272 NCB31HK-822X C CAPACITOR

C 273 QERF0JM-226Z E CAPACITOR 22MF 20% 6.3V

C 274 NCB31HK-102X C CAPACITOR

C 275 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 276 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 601 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 602 NCB31HK-103X C CAPACITOR

C 603 QERF0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 604 NCB31HK-103X C CAPACITOR

C 605 NCB31HK-682X C CAPACITOR

C 606 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 607 NCB31HK-103X C CAPACITOR

C 608 NCB31CK-104X C CAPACITOR

C 609 NCB31CK-104X C CAPACITOR

C 610 NCS31HJ-5R0X C CAPACITOR

C 611 NCS31HJ-820X C CAPACITOR

C 612 NCB31HK-103X C CAPACITOR

C 613 NCB31HK-103X C CAPACITOR

C 614 NCB31HK-103X C CAPACITOR

C 621 NCB31HK-103X C CAPACITOR

C 622 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 623 NCS31HJ-470X C CAPACITOR

C 624 NCB31EK-153X C CAPACITOR

C 625 NCB31HK-103X C CAPACITOR

C 626 NCB31HK-272X C CAPACITOR

C 627 NCB31HK-103X C CAPACITOR

C 628 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 629 NCB31EK-333X C CAPACITOR

C 630 NCB31EK-333X C CAPACITOR

C 631 NCS31HJ-471X C CAPACITOR

C 632 NCS31HJ-471X C CAPACITOR

C 633 NCB31EK-473X C CAPACITOR

C 634 NCB31EK-473X C CAPACITOR

C 635 NCB31EK-473X C CAPACITOR

C 636 NCB31EK-473X C CAPACITOR

C 637 NCB31EK-473X C CAPACITOR

C 638 NCB31HK-103X C CAPACITOR

C 639 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 640 NCB31HK-103X C CAPACITOR

C 641 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 642 NCS31HJ-101X C CAPACITOR

C 643 NCB31HK-103X C CAPACITOR

Parts number Parts name Ar

Remarks

3-8

KD-LH1000

ea

Electrical parts list (Main board)

Item

A

C 644 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 645 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 646 NCB31HK-103X C CAPACITOR

C 648 QERF0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 649 QERF0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 651 NCS31HJ-100X C CAPACITOR

C 652 NCS31HJ-100X C CAPACITOR

C 682 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 683 NCB31CK-104X C CAPACITOR

C 684 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 685 NBE20JM-106X TS E CAP SVB20J

C 686 NCB31EK-473X C CAPACITOR

C 687 NCB31EK-473X C CAPACITOR

C 688 NCB31EK-473X C CAPACITOR

C 689 NCB31EK-473X C CAPACITOR

C 701 NCB31CK-104X C CAPACITOR

C 702 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 703 NCS31HJ-8R0X C CAPACITOR

C 704 NCS31HJ-270X C CAPACITOR

C 705 NCS31HJ-270X C CAPACITOR

C 706 NCS31HJ-220X C CAPACITOR

C 707 NCB31HK-103X C CAPACITOR

C 708 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 709 NCS31HJ-471X C CAPACITOR

C 710 NCB31EK-473X C CAPACITOR

C 711 NCB31CK-104X C CAPACITOR

C 713 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 714 NCB31HK-103X C CAPACITOR

C 715 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 716 NCB31EK-473X C CAPACITOR

C 717 NCS31HJ-101X C CAPACITOR

C 724 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 725 QERF0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 781 NCB31EK-473X C CAPACITOR

C 795 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 901 QEZ0338-228 E CAPACITOR 2200MF

C 902 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 903 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 904 NCB31HK-103X C CAPACITOR

C 905 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 906 NCB31CK-104X C CAPACITOR

C 907 NCB31HK-103X C CAPACITOR

C 908 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 910 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 911 NCB31CK-104X C CAPACITOR

C 912 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 914 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 921 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 922 NCB31HK-272X C CAPACITOR

C 923 QERF1CM-107Z E CAPACITOR 100MF 20% 16V

C 924 NCB31EK-473X C CAPACITOR

C 941 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 942 QERF0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 951 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 952 NCB31EK-473X C CAPACITOR

C 953 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 954 QERF1HM-474Z E CAPACITOR .47MF 20% 50V

C 955 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 956 NCB31CK-104X C CAPACITOR

C 957 NCB31CK-104X C CAPACITOR

C 958 NCB31CK-104X C CAPACITOR

C 959 NCB31CK-104X C CAPACITOR

C 961 NCB31EK-223X C CAPACITOR

Parts number Parts name Ar

Block No. 01

Remarks

Item

A

C 962 NCB31EK-223X C CAPACITOR

C 963 NCB31EK-223X C CAPACITOR

C 964 NCB31EK-223X C CAPACITOR

C 965 NCB31EK-223X C CAPACITOR

C 966 NCB31EK-223X C CAPACITOR

C 967 NCB31EK-223X C CAPACITOR

C 968 NCB31EK-223X C CAPACITOR

CN131 QGA2006C1-04 CONNECTOR

CN601 QGB2027M4-22S CONNECTOR

CN701 QNZ0007-002 CAR CONNECTOR

CN702 QGF0501F1-06X CONNECTOR

CN901 QNZ0002-001 JACK UNIT

CN902 QNZ0095-001 CONNECTOR

D 1 1SS355-X DIODE

D 2 1SS355-X DIODE

D 3 MA152WK-X SI DIODE

D 111 CRS03-W SB DIODE

D 121 MA152WA-X DIODE

D 131 MA152WK-X SI DIODE

D 151 UDZS5.1B-X Z DIODE

D 191 MA152WK-X SI DIODE

D 192 1SS355-X DIODE

D 193 1SS355-X DIODE

D 221 MA152WA-X DIODE

D 251 UDZS5.1B-X Z DIODE

D 681 1SR154-400-X DIODE

D 682 1SR154-400-X DIODE

D 683 CRS03-W SB DIODE

D 701 1SS355-X DIODE

D 702 1SS355-X DIODE

D 703 1SS355-X DIODE

D 704 1SS355-X DIODE

D 711 UDZS6.2B-X SI DIODE

D 712 UDZS6.2B-X SI DIODE

D 713 UDZS6.2B-X SI DIODE

D 714 UDZS6.2B-X SI DIODE

D 715 UDZS6.2B-X SI DIODE

D 716 UDZS6.2B-X SI DIODE

D 718 SML-310LT/MN/-X LED

D 719 SML-310LT/MN/-X LED

D 901 1N5404-TU-15 DIODE

D 904 CRS03-W SB DIODE

D 905 CRS03-W SB DIODE

D 921 CRS03-W SB DIODE

D 941 UDZ11B-X Z.DIODE

D 942 1SS355-X DIODE

D 951 1SS355-X DIODE

D 961 CRS03-W SB DIODE

D 962 CRS03-W SB DIODE

D 963 CRS03-W SB DIODE

D 964 CRS03-W SB DIODE

D 965 CRS03-W SB DIODE

D 966 CRS03-W SB DIODE

D 967 CRS03-W SB DIODE

D 968 CRS03-W SB DIODE

IC111 M61508FP-X IC

IC131 BU4066BCFV-X IC

IC132 NJM4565V-X IC

IC151 NJM4565V-X IC

IC171 NJM4565V-X IC

IC251 NJM4565V-X IC

IC601 TA2157FN-X IC

IC621 TC94A14FA IC

Parts number Parts name Ar

Remarks

3-9

KD-LH1000

ea

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

ea

Electrical parts list (Main board)

Item

A

IC681 LA6579H-X IC

IC701 UPD784216AGC171 IC

IC702 IC-PST9333U-X IC

IC703 HN58X2416FPI-X IC

IC781 HD74HC126FP-X IC

IC901 HA13164A IC

IC921 NJM2360M-X IC

IC951 TA8273H IC

J 1 QNB0100-002 ANT TERMINAL

J 121 QNN0490-001 PIN JACK

L 1 NQL114K-100X IND UCTOR

L 621 NQL114K-470X IND UCTOR

L 622 NQL114K-470X IND UCTOR

L 624 NQL114K-470X IND UCTOR

L 701 NQL114K-470X IND UCTOR

L 702 NQL114K-470X IND UCTOR

L 901 QQR0703-001 CHOKE COIL

L 921 NQLZ007-151X INDU CTOR

R 1 NRSA63J-473X MG RESISTOR

R 2 NRSA63J-270X MG RESISTOR

R 3 NRSA63J-100X MG RESISTOR

R 4 NRSA63J-393X MG RESISTOR

R 5 NRSA63J-220X MG RESISTOR

R 6 NRSA63J-220X MG RESISTOR

R 7 NRSA63J-473X MG RESISTOR

R 8 NRSA63J-472X MG RESISTOR

R 9 NRSA63J-473X MG RESISTOR

R 10 NRSA63J-332X MG RESISTOR

R 11 NRSA63J-103X MG RESISTOR

R 30 NRSA63J-0R0X MG RESISTOR

R 101 NRSA63J-822X MG RESISTOR

R 102 NRSA63J-682X MG RESISTOR

R 111 NRSA63J-332X MG RESISTOR

R 112 NRSA63J-473X MG RESISTOR

R 113 NRSA63J-473X MG RESISTOR

R 114 NRSA63J-473X MG RESISTOR

R 115 NRSA63J-224X MG RESISTOR

Parts number Parts name Ar

1 2SB815/7/-X TRAN SISTOR

2 UN2211-X TRANSISTOR

3 2SB815/7/-X TRAN SISTOR

121 2SD1048/6-7/-X TRANS ISTOR

122 2SD1048/6-7/-X TRANS ISTOR

131 UN2211-X TRANSISTOR

132 UN2211-X TRANSISTOR

133 2SC2412K/RS/-X C HIP TRANSISTOR

191 2SD601A/QR/-X TRANSISTOR

221 2SD1048/6-7/-X TRANS ISTOR

222 2SD1048/6-7/-X TRANS ISTOR

601 2SB1132/QR/-X TRANSI STOR

621 UN2111-X TRANSISTOR

622 UN2211-X TRANSISTOR

681 2SB1184/QR/-X TRANSI STOR

701 UN2213-X TRANSISTOR

702 UN2211-X TRANSISTOR

703 UN2211-X TRANSISTOR

795 UN2211-X TRANSISTOR

901 UN2111-X TRANSISTOR

902 UN2211-X TRANSISTOR

903 2SB709A/QR/-X T RANSISTOR

904 2SD601A/QR/-X TRANSISTOR

941 UN2111-X TRANSISTOR

942 UN2113-X TRANSISTOR

951 UN2211-X TRANSISTOR

Block No. 01

Remarks

Item

A

R 116 NRSA63J-103X MG RESISTOR

R 121 NRSA63J-821X MG RESISTOR

R 122 NRSA63J-821X MG RESISTOR

R 123 NRSA63J-181X MG RESISTOR

R 124 NRSA63J-181X MG RESISTOR

R 125 NRSA63J-103X MG RESISTOR

R 126 NRSA63J-103X MG RESISTOR

R 131 NRSA63J-105X MG RESISTOR

R 132 NRSA63J-105X MG RESISTOR

R 133 NRSA63J-473X MG RESISTOR

R 134 NRSA63J-105X MG RESISTOR

R 135 NRSA63J-105X MG RESISTOR

R 136 NRSA63J-473X MG RESISTOR

R 137 NRSA63J-104X MG RESISTOR

R 138 NRSA63J-103X MG RESISTOR

R 139 NRSA63J-103X MG RESISTOR

R 140 NRSA63J-104X MG RESISTOR

R 141 NRSA63J-0R0X MG RESISTOR

R 142 NRSA63J-473X MG RESISTOR

R 143 NRSA63J-104X MG RESISTOR

R 144 NRSA63J-562X MG RESISTOR

R 145 NRSA63J-153X MG RESISTOR

R 146 NRSA63J-473X MG RESISTOR

R 147 NRSA63J-821X MG RESISTOR

R 148 NRSA63J-181X MG RESISTOR

R 149 NRSA63J-472X MG RESISTOR

R 151 NRSA63J-223X MG RESISTOR

R 152 NRSA63J-223X MG RESISTOR

R 153 NRSA63J-102X MG RESISTOR

R 154 NRSA63J-104X MG RESISTOR

R 155 NRSA63J-104X MG RESISTOR

R 156 NRSA63J-103X MG RESISTOR

R 157 NRSA63J-103X MG RESISTOR

R 171 NRSA63J-202X MG RESISTOR

R 172 NRSA63J-122X MG RESISTOR

R 173 NRSA63J-332X MG RESISTOR

R 174 NRSA63J-473X MG RESISTOR

R 175 NRSA63J-103X MG RESISTOR

R 176 NRSA63J-103X MG RESISTOR

R 181 NRSA63J-104X MG RESISTOR

R 182 NRSA63J-101X MG RESISTOR

R 191 NRSA63J-473X MG RESISTOR

R 192 NRSA63J-184X MG RESISTOR

R 193 NRSA63J-223X MG RESISTOR

R 194 NRSA63J-123X MG RESISTOR

R 195 NRSA63J-391X MG RESISTOR

R 196 NRSA63J-102X MG RESISTOR

R 197 NRSA63J-274X MG RESISTOR

R 201 NRSA63J-822X MG RESISTOR

R 202 NRSA63J-682X MG RESISTOR

R 211 NRSA63J-332X MG RESISTOR

R 212 NRSA63J-473X MG RESISTOR

R 213 NRSA63J-473X MG RESISTOR

R 214 NRSA63J-473X MG RESISTOR

R 215 NRSA63J-224X MG RESISTOR

R 216 NRSA63J-103X MG RESISTOR

R 221 NRSA63J-821X MG RESISTOR

R 222 NRSA63J-821X MG RESISTOR

R 223 NRSA63J-181X MG RESISTOR

R 224 NRSA63J-181X MG RESISTOR

R 225 NRSA63J-103X MG RESISTOR

R 226 NRSA63J-103X MG RESISTOR

R 251 NRSA63J-223X MG RESISTOR

Parts number Parts name Ar

Remarks

3-10

KD-LH1000

ea

Electrical parts list (Main board)

Item

A

R 252 NRSA63J-223X MG RESISTOR

R 253 NRSA63J-102X MG RESISTOR

R 254 NRSA63J-104X MG RESISTOR

R 255 NRSA63J-104X MG RESISTOR

R 256 NRSA63J-103X MG RESISTOR

R 257 NRSA63J-103X MG RESISTOR

R 271 NRSA63J-202X MG RESISTOR

R 272 NRSA63J-122X MG RESISTOR

R 273 NRSA63J-332X MG RESISTOR

R 274 NRSA63J-473X MG RESISTOR

R 275 NRSA63J-103X MG RESISTOR

R 276 NRSA63J-103X MG RESISTOR

R 281 NRSA63J-104X MG RESISTOR

R 282 NRSA63J-101X MG RESISTOR

R 601 NRSA63J-823X MG RESISTOR

R 602 NRSA63J-823X MG RESISTOR

R 603 NRSA63J-334X MG RESISTOR

R 604 NRSA63J-334X MG RESISTOR

R 605 NRSA63J-220X MG RESISTOR

R 606 NRSA63J-220X MG RESISTOR

R 607 NRSA63J-823X MG RESISTOR

R 608 NRSA63J-821X MG RESISTOR

R 609 NRSA63J-563X MG RESISTOR

R 610 NRSA63J-101X MG RESISTOR

R 611 NRSA63J-103X MG RESISTOR

R 612 NRSA63J-202X MG RESISTOR

R 613 NRSA63J-102X MG RESISTOR

R 614 NRSA63J-153X MG RESISTOR

R 615 NRSA63J-151X MG RESISTOR

R 616 NRSA63J-103X MG RESISTOR

R 624 NRSA63J-562X MG RESISTOR

R 625 NRSA63J-473X MG RESISTOR

R 626 NRSA63J-474X MG RESISTOR

R 627 NRSA63J-153X MG RESISTOR

R 628 NRSA63J-225X MG RESISTOR

R 629 NRSA63J-103X MG RESISTOR

R 630 NRSA63J-101X MG RESISTOR

R 631 NRSA63J-101X MG RESISTOR

R 632 NRSA63J-0R0X MG RESISTOR

R 633 NRSA63J-0R0X MG RESISTOR

R 634 NRSA63J-0R0X MG RESISTOR

R 635 NRSA63J-101X MG RESISTOR

R 636 NRSA63J-101X MG RESISTOR

R 637 NRSA63J-105X MG RESISTOR

R 638 NRSA63J-472X MG RESISTOR

R 639 NRSA63J-472X MG RESISTOR

R 640 NRSA63J-472X MG RESISTOR

R 641 NRSA63J-472X MG RESISTOR

R 642 NRSA63J-103X MG RESISTOR

R 643 NRSA63J-330X MG RESISTOR

R 681 NRSA63J-682X MG RESISTOR

R 682 NRSA63J-682X MG RESISTOR

R 683 NRSA63J-472X MG RESISTOR

R 684 NRSA63J-153X MG RESISTOR

R 685 NRSA63J-333X MG RESISTOR

R 686 NRSA63J-822X MG RESISTOR

R 687 NRSA63J-103X MG RESISTOR

R 701 NRSA63J-473X MG RESISTOR

R 702 NRSA63J-473X MG RESISTOR

R 703 NRSA63J-102X MG RESISTOR

R 704 NRSA63J-102X MG RESISTOR

R 705 NRSA63J-101X MG RESISTOR

R 706 NRSA63J-101X MG RESISTOR

Parts number Parts name Ar

Block No. 01

Remarks

Item

A

R 708 NRSA63J-821X MG RESISTOR

R 709 NRSA63J-473X MG RESISTOR

R 710 NRSA63J-106X MG RESISTOR

R 711 NRSA63J-103X MG RESISTOR

R 712 NRSA63J-102X MG RESISTOR

R 713 NRSA63J-102X MG RESISTOR

R 714 NRSA63J-473X MG RESISTOR

R 715 NRSA63J-102X MG RESISTOR

R 716 NRSA63J-102X MG RESISTOR

R 717 NRSA63J-102X MG RESISTOR

R 718 NRSA63J-473X MG RESISTOR

R 719 NRSA63J-472X MG RESISTOR

R 720 NRSA63J-472X MG RESISTOR

R 721 NRSA63J-103X MG RESISTOR

R 722 NRSA63J-102X MG RESISTOR

R 724 NRSA63J-102X MG RESISTOR

R 725 NRSA63J-102X MG RESISTOR

R 726 NRSA63J-102X MG RESISTOR

R 727 NRSA63J-102X MG RESISTOR

R 728 NRSA63J-102X MG RESISTOR

R 729 NRSA63J-103X MG RESISTOR

R 730 NRSA63J-103X MG RESISTOR

R 731 NRSA63J-271X MG RESISTOR

R 732 NRSA63J-271X MG RESISTOR

R 733 NRSA63J-102X MG RESISTOR

R 734 NRSA63J-102X MG RESISTOR

R 735 NRSA63J-392X MG RESISTOR

R 736 NRSA63J-392X MG RESISTOR

R 737 NRSA63J-392X MG RESISTOR

R 739 NRSA63J-102X MG RESISTOR

R 740 NRSA63J-102X MG RESISTOR

R 741 NRSA63J-102X MG RESISTOR

R 742 NRSA63J-102X MG RESISTOR

R 743 NRSA63J-222X MG RESISTOR

R 744 NRSA63J-222X MG RESISTOR

R 745 NRSA63J-222X MG RESISTOR

R 746 NRSA63J-222X MG RESISTOR

R 747 NRSA63J-102X MG RESISTOR

R 748 NRSA63J-102X MG RESISTOR

R 749 NRSA63J-102X MG RESISTOR

R 750 NRSA63J-103X MG RESISTOR

R 751 NRSA63J-472X MG RESISTOR

R 752 NRSA63J-472X MG RESISTOR

R 753 NRSA63J-102X MG RESISTOR

R 754 NRSA63J-102X MG RESISTOR

R 755 NRSA63J-102X MG RESISTOR

R 756 NRSA63J-102X MG RESISTOR

R 757 NRSA63J-102X MG RESISTOR

R 758 NRSA63J-102X MG RESISTOR

R 759 NRSA63J-102X MG RESISTOR

R 760 NRSA63J-473X MG RESISTOR

R 762 NRSA63J-473X MG RESISTOR

R 764 NRSA63J-102X MG RESISTOR

R 765 NRSA63J-102X MG RESISTOR

R 766 NRSA63J-0R0X MG RESISTOR

R 767 NRSA63J-103X MG RESISTOR

R 768 NRSA63J-331X MG RESISTOR

R 769 NRSA63J-331X MG RESISTOR

R 770 NRSA63J-331X MG RESISTOR

R 771 NRSA63J-331X MG RESISTOR

R 772 NRSA63J-332X MG RESISTOR

R 773 NRSA63J-473X MG RESISTOR

R 774 NRSA63J-473X MG RESISTOR

Parts number Parts name Ar

Remarks

3-11

KD-LH1000

Electrical parts list (Main board)

Item

A

R 775 NRSA63J-222X MG RESISTOR

R 776 NRSA63J-222X MG RESISTOR

R 777 NRSA63J-473X MG RESISTOR

R 778 NRSA63J-682X MG RESISTOR

R 779 NRSA63J-682X MG RESISTOR

R 780 NRSA63J-682X MG RESISTOR

R 781 NRSA63J-223X MG RESISTOR

R 782 NRSA63J-104X MG RESISTOR

R 783 NRSA63J-473X MG RESISTOR

R 784 NRSA63J-101X MG RESISTOR

R 785 NRSA63J-103X MG RESISTOR

R 786 NRSA63J-104X MG RESISTOR

R 787 NRSA63J-331X MG RESISTOR

R 788 NRSA63J-101X MG RESISTOR

R 789 NRSA63J-223X MG RESISTOR

R 790 NRSA63J-473X MG RESISTOR

R 791 NRSA63J-473X MG RESISTOR

R 792 NRSA63J-473X MG RESISTOR

R 794 NRSA63J-473X MG RESISTOR

R 795 NRSA63J-332X MG RESISTOR

R 797 NRSA63J-561X MG RESISTOR

R 798 NRSA63J-561X MG RESISTOR

R 901 NRSA63J-912X MG RESISTOR

R 902 NRSA63J-472X MG RESISTOR

R 903 NRSA63J-562X MG RESISTOR

R 904 NRSA63J-102X MG RESISTOR

R 905 NRSA63J-103X MG RESISTOR

R 906 NRSA63J-473X MG RESISTOR

R 908 NRSA63J-682X MG RESISTOR

R 909 NRSA63J-183X MG RESISTOR

R 910 QRE142J-102X C RESISTOR 1.0K 5% 1/4W

R 911 NRSA63J-222X MG RESISTOR

R 912 NRSA63J-222X MG RESISTOR

R 913 NRSA63J-104X MG RESISTOR

R 914 NRSA63J-103X MG RESISTOR

R 915 NRSA63J-473X MG RESISTOR

R 917 NRSA63J-473X MG RESISTOR

R 921 NRSA63J-220X MG RESISTOR

R 922 NRSA63J-220X MG RESISTOR

R 923 NRSA63J-220X MG RESISTOR

R 924 NRSA63J-220X MG RESISTOR

R 925 NRSA63J-181X MG RESISTOR

R 926 NRSA63J-473X MG RESISTOR

R 927 NRSA63J-472X MG RESISTOR

R 928 NRSA63J-273X MG RESISTOR

R 951 NRSA63J-222X MG RESISTOR

R 952 NRSA63J-273X MG RESISTOR

R 953 NRSA63J-102X MG RESISTOR

R 981 NRSA63J-102X MG RESISTOR

R 982 NRSA63J-473X MG RESISTOR

R 984 NRSA63J-473X MG RESISTOR

R 998 NRSA63J-0R0X MG RESISTOR

R 999 NRSA63J-0R0X MG RESISTOR

S 701 QSW0451-001 DETECT SWITCH

S 702 QSW0451-001 DETECT SWITCH

S 703 QSW0534-001 TACT SWITCH

TU 1 QAU0204-002 TUNER

X 621 QAX0413-001Z CRYSTAL

X 701 QAX0617-001Z CRYSTAL

X 702 QAX0401-001 CRYSTAL

Parts number Parts name Ar

Block No. 01

Remarks

3-12

KD-LH1000

ea

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (Front board)

Item

A

C 451 NCB31EK-473X C CAPACITOR

C 452 NCB31EK-473X C CAPACITOR

C 453 NCB31EK-473X C CAPACITOR

C 454 NCB31EK-473X C CAPACITOR

C 455 NCB31EK-473X C CAPACITOR

C 456 NCB31EK-473X C CAPACITOR

C 457 NCB31EK-473X C CAPACITOR

C 458 NCB31EK-473X C CAPACITOR

C 459 NCB31CK-473X C CAPACITOR

C 801 NBE20JM-106X TS E CAP SVB20J

C 802 NCB31EK-473X C CAPACITOR

C 805 NCS31HJ-471X C CAPACITOR

C 806 NCB31EK-473X C CAPACITOR

C 807 NBE20JM-475X TS E CAPACITOR

C 808 NBE20JM-475X TS E CAPACITOR

C 809 NBE20JM-475X TS E CAPACITOR

C 810 NCB31EK-473X C CAPACITOR

C 811 NCB31EK-473X C CAPACITOR

C 812 NBE20JM-475X TS E CAPACITOR

C 813 NBE20JM-106X TS E CAP SVB20J

C 814 NCB31EK-473X C CAPACITOR

C 815 NCS31HJ-471X C CAPACITOR

C 816 NCB31EK-473X C CAPACITOR

C 817 NCB31EK-473X C CAPACITOR

C 818 NCB31EK-473X C CAPACITOR

C 819 NCB31EK-473X C CAPACITOR

C 820 NCB31EK-473X C CAPACITOR

C 821 NCB31EK-473X C CAPACITOR

C 822 NCB31EK-473X C CAPACITOR

C 823 NCB31EK-473X C CAPACITOR

C 824 NCB31EK-473X C CAPACITOR

C 825 NBE20JM-106X TS E CAP SVB20J

C 826 NBE20JM-106X TS E CAP SVB20J

C 827 NCB31EK-473X C CAPACITOR

C 828 NBE20JM-106X TS E CAP SVB20J

C 829 NBE20JM-475X TS E CAPACITOR

CN801 QNZ0006-001 CAR CONNECTOR

CN802 QGF0523F1-40W FFC CON NECTOR

D 401 MA152WK-X SI DIODE

D 402 SML-310LT/MN/-X LED

D 403 SML-310LT/MN/-X LED

D 404 SML-310LT/MN/-X LED

D 405 SML-310LT/MN/-X LED

D 406 SML-310LT/MN/-X LED

D 407 SML-310LT/MN/-X LED

D 408 SML-310LT/MN/-X LED

D 409 SML-310LT/MN/-X LED

D 410 SML-310LT/MN/-X LED

D 411 SML-310LT/MN/-X LED

D 412 SML-310LT/MN/-X LED

D 413 SML-310LT/MN/-X LED

D 414 SML-310LT/MN/-X LED

D 415 SML-310LT/MN/-X LED

D 416 SML-310LT/MN/-X LED

D 417 SML-310LT/MN/-X LED

D 418 CL-190UB-X-X LED

D 419 CL-190UB-X-X LED

D 420 SML-310LT/MN/-X LED

D 421 SML-310LT/MN/-X LED

D 422 SML-310LT/MN/-X LED

D 423 UDZS6.2B-X SI DIODE

D 424 UDZS6.2B-X SI DIODE

D 425 UDZS6.2B-X SI DIODE

Parts number Parts name Ar

Block No. 02

Remarks

Item

A

D 426 UDZS6.2B-X SI DIODE

D 427 UDZS6.2B-X SI DIODE

D 428 UDZS6.2B-X SI DIODE

D 429 UDZS6.2B-X SI DIODE

D 430 UDZS6.2B-X SI DIODE

D 431 UDZS6.2B-X SI DIODE

D 433 SML-310LT/MN/-X LED

D 434 SML-310LT/MN/-X LED

D 451 NSCM315C-W LED

D 452 NSCM315C-W LED

D 453 NSCM315C-W LED

D 801 MA152WK-X SI DIODE

D 803 1SS355-X DI ODE

D 804 UDZS6.2B-X SI DIODE

D 805 UDZS6.2B-X SI DIODE

D 806 UDZS6.2B-X SI DIODE

D 807 UDZS6.2B-X SI DIODE

D 808 UDZS6.2B-X SI DIODE

D 809 UDZS6.2B-X SI DIODE

D 810 UDZS6.2B-X SI DIODE

D 811 UDZS6.2B-X SI DIODE

EN801 QSW0793-001 ROTARY ENCODER

IC801 MN102H60KCA IC

IC802 MX23L8103-90-M1 IC

IC803 IC-PST9322U-X IC

IC804 NJU7241F33-X IC

IC805 RPM6938-SV4 IC

L 801 NQL114K-470X INDUCTOR

R 401 NRSA63J-102X MG RESISTOR

R 402 NRSA63J-102X MG RESISTOR

R 403 NRSA63J-122X MG RESISTOR

R 404 NRSA63J-122X MG RESISTOR

R 405 NRSA63J-681X MG RESISTOR

R 406 NRSA63J-681X MG RESISTOR

Parts number Parts name Ar

401 UN2211-X TRANSISTOR

402 UN2211-X TRANSISTOR

403 UN2211-X TRANSISTOR

404 UN2211-X TRANSISTOR

405 UN2211-X TRANSISTOR

406 UN2211-X TRANSISTOR

407 UN2211-X TRANSISTOR

408 2SD601A/QR/-X TRANSISTOR

409 2SD601A/QR/-X TRANSISTOR

410 2SD601A/QR/-X TRANSISTOR

411 2SD601A/QR/-X TRANSISTOR

412 2SD601A/QR/-X TRANSISTOR

413 2SD601A/QR/-X TRANSISTOR

414 2SD601A/QR/-X TRANSISTOR

415 2SD601A/QR/-X TRANSISTOR

416 2SD601A/QR/-X TRANSISTOR

417 2SD601A/QR/-X TRANSISTOR

418 2SD601A/QR/-X TRANSISTOR

419 2SD601A/QR/-X TRANSISTOR

420 2SD601A/QR/-X TRANSISTOR

421 2SD601A/QR/-X TRANSISTOR

422 2SD601A/QR/-X TRANSISTOR

423 2SD601A/QR/-X TRANSISTOR

424 2SD601A/QR/-X TRANSISTOR

425 2SD601A/QR/-X TRANSISTOR

427 UN2211-X TRANSISTOR

801 2SB709A/QR/-X TRANSIST OR

802 2SB709A/QR/-X TRANSIST OR

803 2SD601A/QR/-X TRANSISTOR

Remarks

3-13

KD-LH1000

ea

Electrical parts list (Front board)

Item

A

R 407 NRSA63J-471X MG RESISTOR

R 408 NRSA63J-471X MG RESISTOR

R 409 NRSA63J-471X MG RESISTOR

R 410 NRSA63J-471X MG RESISTOR

R 411 NRSA63J-681X MG RESISTOR

R 412 NRSA63J-681X MG RESISTOR

R 413 NRSA63J-102X MG RESISTOR

R 414 NRSA63J-102X MG RESISTOR

R 415 NRSA63J-681X MG RESISTOR

R 416 NRSA63J-681X MG RESISTOR

R 417 NRSA63J-471X MG RESISTOR

R 418 NRSA63J-471X MG RESISTOR

R 419 NRSA63J-471X MG RESISTOR

R 420 NRSA63J-471X MG RESISTOR

R 421 NRSA63J-391X MG RESISTOR

R 422 NRSA63J-391X MG RESISTOR

R 423 NRSA63J-391X MG RESISTOR

R 424 NRSA63J-561X MG RESISTOR

R 425 NRSA63J-561X MG RESISTOR

R 426 NRSA63J-561X MG RESISTOR

R 427 NRSA63J-391X MG RESISTOR

R 428 NRSA63J-391X MG RESISTOR

R 429 NRSA63J-391X MG RESISTOR

R 430 NRSA63J-391X MG RESISTOR

R 431 NRSA63J-391X MG RESISTOR

R 432 NRSA63J-391X MG RESISTOR

R 433 NRSA63J-561X MG RESISTOR

R 434 NRSA63J-561X MG RESISTOR

R 435 NRSA63J-561X MG RESISTOR

R 436 NRSA63J-391X MG RESISTOR

R 437 NRSA63J-391X MG RESISTOR

R 438 NRSA63J-391X MG RESISTOR

R 439 NRSA63J-391X MG RESISTOR

R 440 NRSA63J-391X MG RESISTOR

R 441 NRSA63J-391X MG RESISTOR

R 442 NRSA63J-561X MG RESISTOR

R 443 NRSA63J-561X MG RESISTOR

R 444 NRSA63J-561X MG RESISTOR

R 445 NRSA63J-391X MG RESISTOR

R 446 NRSA63J-391X MG RESISTOR

R 447 NRSA63J-391X MG RESISTOR

R 450 NRSA63J-681X MG RESISTOR

R 451 NRSA63J-681X MG RESISTOR

R 471 NRSA63J-331X MG RESISTOR

R 472 NRSA63J-331X MG RESISTOR

R 473 NRSA63J-331X MG RESISTOR

R 474 NRSA63J-331X MG RESISTOR

R 475 NRSA63J-331X MG RESISTOR

R 476 NRSA63J-331X MG RESISTOR

R 477 NRSA63J-331X MG RESISTOR

R 478 NRSA63J-331X MG RESISTOR

R 479 NRSA63J-331X MG RESISTOR

R 801 NRSA63J-331X MG RESISTOR

R 803 NRSA63J-331X MG RESISTOR

R 804 NRSA63J-331X MG RESISTOR

R 805 NRSA63J-471X MG RESISTOR

R 807 NRSA63J-473X MG RESISTOR

R 808 NRSA63J-331X MG RESISTOR

R 809 NRSA63J-331X MG RESISTOR

R 810 NRSA63J-331X MG RESISTOR

R 811 NRSA63J-331X MG RESISTOR

R 812 NRSA63J-331X MG RESISTOR

R 813 NRSA63J-331X MG RESISTOR

Parts number Parts name Ar

Block No. 02

Remarks

Item

A

R 814 NRSA63J-331X MG RESISTOR

R 815 NRSA63J-331X MG RESISTOR

R 816 NRSA63J-331X MG RESISTOR

R 817 NRSA63J-331X MG RESISTOR

R 818 NRSA63J-331X MG RESISTOR

R 819 NRSA63J-331X MG RESISTOR

R 820 NRSA63J-331X MG RESISTOR

R 821 NRSA63J-822X MG RESISTOR

R 822 NRSA63J-102X MG RESISTOR

R 823 NRSA63J-331X MG RESISTOR

R 824 NRSA63J-104X MG RESISTOR

R 825 NRSA63J-104X MG RESISTOR

R 826 NRSA63J-104X MG RESISTOR

R 827 NRSA63J-102X MG RESISTOR

R 828 NRSA63J-102X MG RESISTOR

R 829 NRSA63J-473X MG RESISTOR

R 830 NRSA63J-473X MG RESISTOR

R 831 NRSA63J-103X MG RESISTOR

R 832 NRSA63J-103X MG RESISTOR

R 833 NRSA63J-103X MG RESISTOR

R 834 NRSA63J-103X MG RESISTOR

R 835 NRSA63J-103X MG RESISTOR

R 836 NRSA63J-103X MG RESISTOR

R 837 NRSA63J-103X MG RESISTOR

R 838 NRSA63J-102X MG RESISTOR

R 839 NRSA63J-102X MG RESISTOR

R 841 NRSA63J-152X MG RESISTOR

R 842 NRSA63J-152X MG RESISTOR

R 843 NRSA63J-152X MG RESISTOR

R 844 NRSA63J-473X MG RESISTOR

R 845 NRSA63J-473X MG RESISTOR

R 846 NRSA63J-103X MG RESISTOR

R 847 NRSA63J-473X MG RESISTOR

R 848 NRSA63J-102X MG RESISTOR

R 849 NRSA63J-331X MG RESISTOR

R 850 NRSA63J-331X MG RESISTOR

R 851 NRSA63J-331X MG RESISTOR

R 852 NRSA63J-331X MG RESISTOR

R 853 NRSA63J-331X MG RESISTOR

R 854 NRSA63J-331X MG RESISTOR

R 855 NRSA63J-331X MG RESISTOR

R 856 NRSA63J-331X MG RESISTOR

R 857 NRSA63J-331X MG RESISTOR

R 858 NRSA63J-331X MG RESISTOR

R 859 NRSA63J-331X MG RESISTOR

R 860 NRSA63J-331X MG RESISTOR

R 861 NRSA63J-331X MG RESISTOR

R 862 NRSA63J-331X MG RESISTOR

R 863 NRSA63J-331X MG RESISTOR

R 864 NRSA63J-331X MG RESISTOR

R 865 NRSA63J-473X MG RESISTOR

R 866 NRSA63J-222X MG RESISTOR

R 867 NRSA63J-225X MG RESISTOR

R 868 NRSA63J-473X MG RESISTOR

R 869 NRSA63J-473X MG RESISTOR

R 870 NRSA63J-474X MG RESISTOR

R 871 NRSA63J-331X MG RESISTOR

R 872 NRSA63J-473X MG RESISTOR

R 873 NRSA63J-473X MG RESISTOR

R 874 NRSA63J-104X MG RESISTOR

R 875 NRSA63J-333X MG RESISTOR

R 876 NRSA63J-0R0X MG RESISTOR

R 877 NRSA63J-470X MG RESISTOR

Parts number Parts name Ar

Remarks

3-14

KD-LH1000

ea

Electrical parts list (Front board)

Item

A

R 878 NRSA63J-301X MG RESISTOR

R 879 NRSA63J-271X MG RESISTOR

R 880 NRSA63J-391X MG RESISTOR

R 881 NRSA63J-561X MG RESISTOR

R 882 NRSA63J-301X MG RESISTOR

R 883 NRSA63J-271X MG RESISTOR

R 884 NRSA63J-391X MG RESISTOR

R 885 NRSA63J-561X MG RESISTOR

R 886 NRSA63J-821X MG RESISTOR

R 887 NRSA63J-301X MG RESISTOR

R 888 NRSA63J-271X MG RESISTOR

R 889 NRSA63J-391X MG RESISTOR

R 890 NRSA63J-561X MG RESISTOR

R 891 NRSA63J-821X MG RESISTOR

R 892 NRSA63J-474X MG RESISTOR

R 893 NRSA63J-331X MG RESISTOR

R 894 NRSA63J-331X MG RESISTOR

S 802 NSW0066-001X TACT SWITCH

S 803 NSW0066-001X TACT SWITCH

S 804 NSW0066-001X TACT SWITCH

S 805 NSW0066-001X TACT SWITCH

S 806 NSW0066-001X TACT SWITCH

S 807 NSW0066-001X TACT SWITCH

S 808 NSW0066-001X TACT SWITCH

S 809 NSW0066-001X TACT SWITCH

S 810 NSW0066-001X TACT SWITCH

S 811 NSW0066-001X TACT SWITCH

S 812 NSW0066-001X TACT SWITCH

S 813 NSW0066-001X TACT SWITCH

S 814 NSW0066-001X TACT SWITCH

S 815 NSW0066-001X TACT SWITCH

S 816 NSW0066-001X TACT SWITCH

S 817 NSW0066-001X TACT SWITCH

S 818 NSW0066-001X TACT SWITCH

TH801 NAD0022-103X N THERMIS TOR

X 801 NAX0552-001X RESON ATOR

Parts number Parts name Ar

Block No. 02

Remarks

3-15

KD-LH1000

Packing materials and accessories parts list

P4

A1~A4

P1

Block No.

Block No.

P2

M

M

3

M

M

5

M

M

P2

P4

A5~A9

P3

A19

A21

A20

P5

KIT:

A10~A14

P8

A17

A15

A16

P6

3-16

P7

A18

KD-LH1000

Parts list (Packing)

Item

A

P 1 LV33447-001A

P 2 GE10036-001A

P 3 VPE3005-064

P 4 FSPG4002-001

P 5 QPA00801205

P 6 FSYH4036-068

P 7 QPA01003003

P 8 QPA01003003

Parts number Parts name Area

Parts list (Accessories)

Item

A

A 1 LVT0855-001A

A 2 LVT0855-002A

A 3 LVT0928-001A

A 4 LV43133-001A

A 5 LVT0717-001B

A 6 BT-51018-3

A 7 BT-52004-2

A 8 BT-51028-1

A 9 BT-20071B

A 10 VKZ4027-202

A 11 VKH4871-001SS

A 12 VKZ4328-001

A 13 WNS5000Z

A 14 GE40130-001A

A 15 RM-RK50

A 16 ---------------

A 17 QAM0306-001

A 18 FSJB3001-30C

A 19 GE20126-001A

A 20 GE20127-005A

A 21 LV43135-001A

KIT KSFX480K-SCREW1

Parts number Parts name Area

Q'ty

CARTON

ESP CUSHION

POLY BAG

POLY BAG

POLY BAG

SHEET

POLY BAG

POLY BAG

Q'ty

INST.BOOK

INST MANUAL

IMPORTANT SHEET

ERRATA SHEET

TROUBLE SHEET(C

WARRANTY CARD

WARRANTY CARD

REGIST CARD

JVC CENTER LIST

PLUG NUT 1

MOUNT BOLT

LOCK NUT 1

WASHER

HOOK

REMOCON

LI BATTERY

16P CORD ASS'Y

HARD CASE 1

MOUNTING SLEEVE

TRIM PLATE 1

CAUTION SHEET 1

SCREW PARTS KIT

1

2

1

SET

2

FOR INST.BOOK

1

1

1

1

1

ENG,SPA,FRE

1

ENG,SPA,FRE

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

A10-A14

Block No. M3MM

Description

Block No. M5MM

Description

3-17
