JVC KD-HDR50, KD-AHD59 User Manual

CD RECEIVER

RECEPTOR CON CD RÉCEPTEUR CD

KD-AHD59/KD-HDR50

For canceling the display demonstration, see page 7. Para cancelar la demostración en pantalla, consulte la página 7. Pour annuler la démonstration des affichages, référez-vous à la page 7.

ENGLISHESPAÑOLFRANÇAIS

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT1942-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

INFORMATION (For U.S.A.)

ENGLISH

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Caution:

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

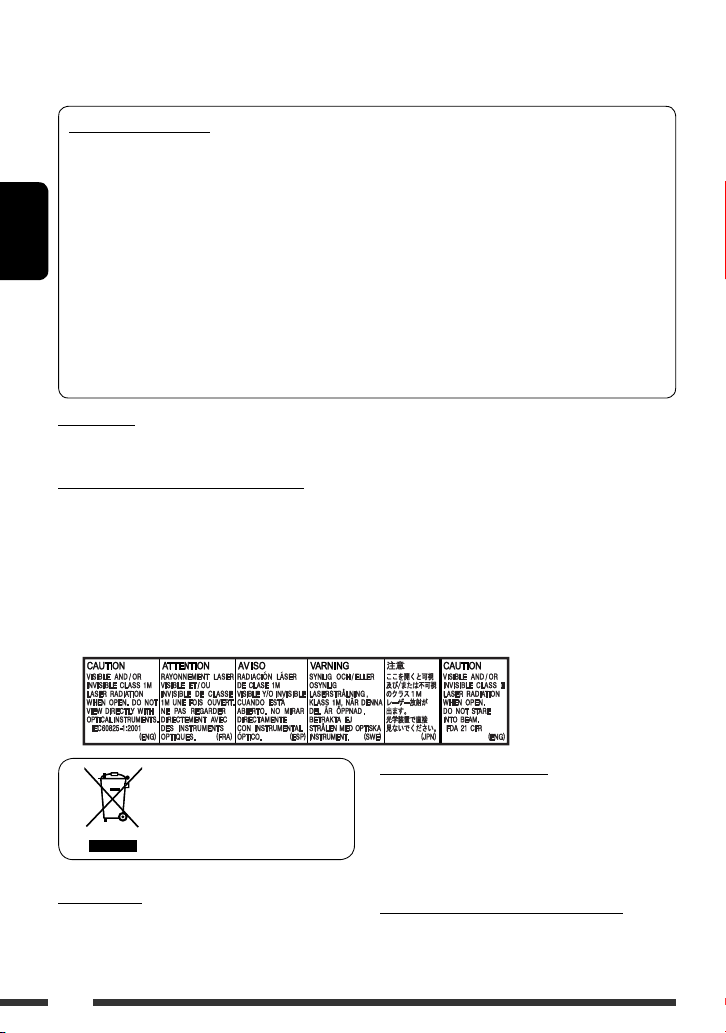

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

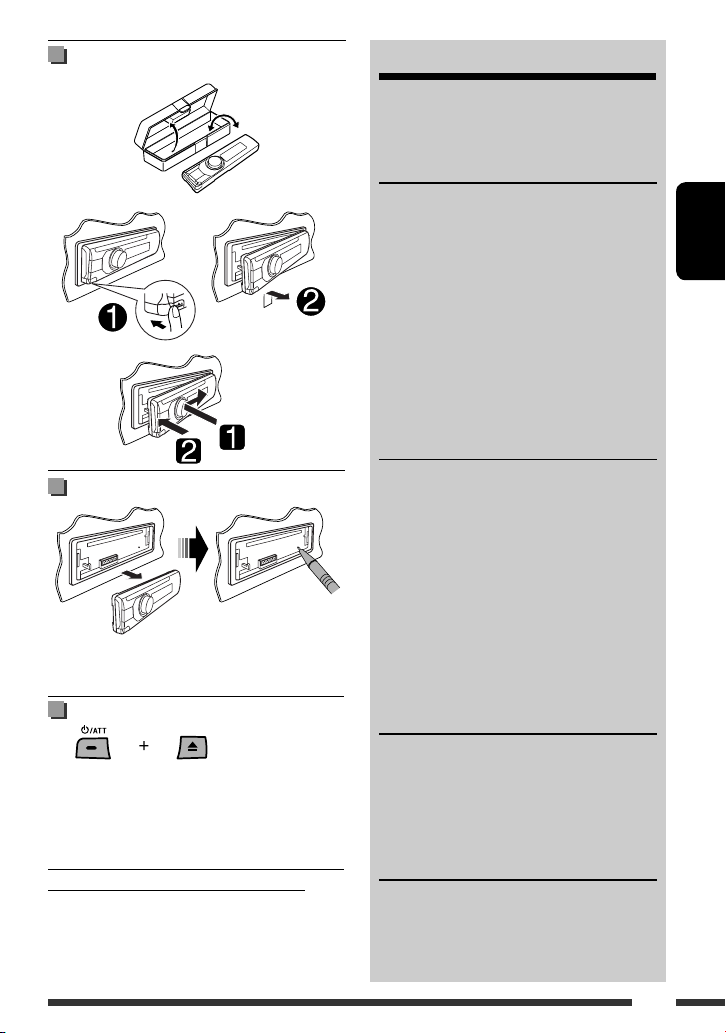

Detaching/attaching control panel

Detaching...

Attaching...

How to reset your unit

• Your preset adjustments will also be erased (except the

registered Bluetooth devices, see page 14).

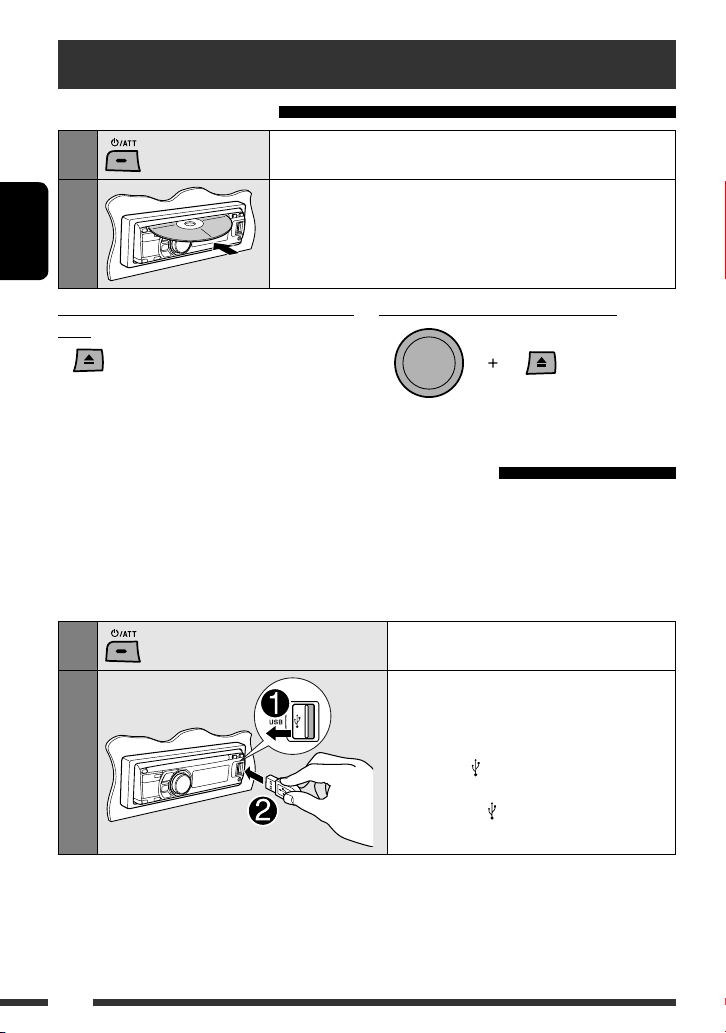

How to forcibly eject a disc

CONTENTS

Detaching/attaching control panel .............. 3

How to reset your unit ................................. 3

How to forcibly eject a disc ........................... 3

OPERATIONS

Basic operations ........................................... 4

• Using the control panel ............................... 4

• Using the remote controller (RM-RK50) ...... 5

• Changing the display information .............. 7

Preparation .................................................. 7

Listening to the radio ................................... 8

Disc/USB operations ..................................... 12

• Playing a disc .............................................. 12

• Playing a file on USB device ........................ 12

• Disc/file operations ..................................... 13

EXTERNAL DEVICES

Using the Bluetooth

• Using the Bluetooth cellular phone ............ 16

• Using the Bluetooth audio player ............... 17

Listening to the CD changer ......................... 18

Listening to the Satellite Radio .................... 19

Listening to the iPod/iPhone ....................... 21

• When connected with the USB cable .......... 21

When connected with the interface adapter ...

•

• Purchasing your favorite songs

Listening to the other external components

® devices ....................... 14

....................

... 25

ENGLISH

[Hold]

• You can forcibly eject the loaded disc even if the disc is

locked. To lock/unlock the disc, see page 12.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by the sudden increase of the output level.

SETTINGS

Selecting a preset sound mode .................... 26

Bluetooth settings ....................................... 27

Menu operations .......................................... 28

Color settings ............................................... 32

REFERENCES

More about this unit .................................... 33

Troubleshooting ........................................... 37

Maintenance ................................................ 43

Specifications ............................................... 44

Basic operations

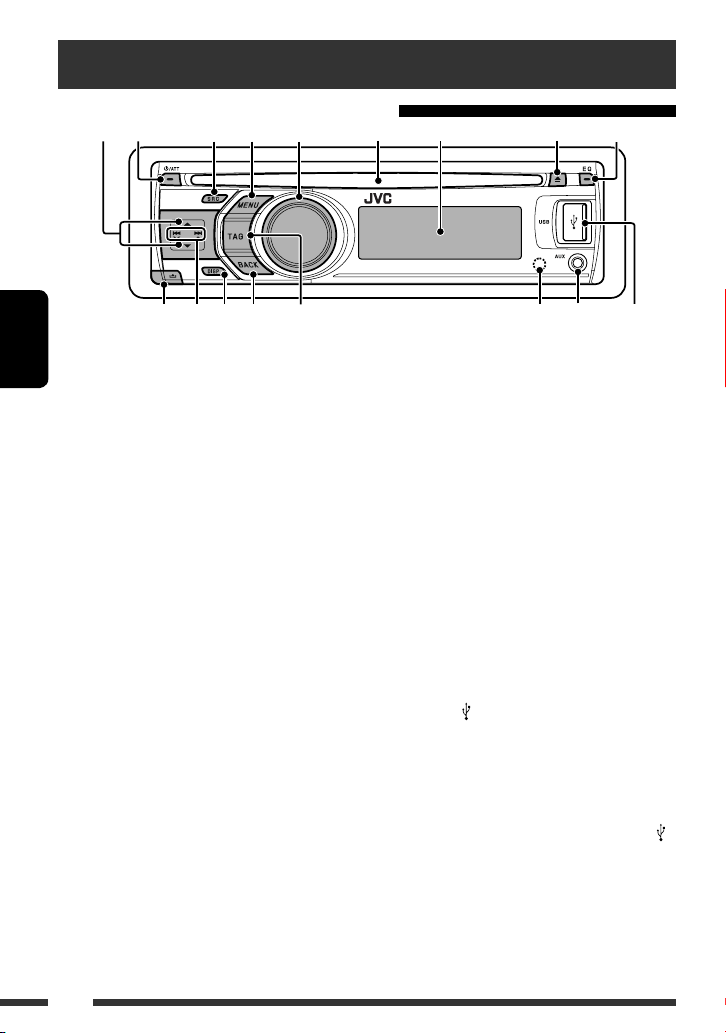

Using the control panel

1345

ENGLISH

qew

1 • FM/AM:

– Select HD Radio™ multicast channel. – Search for HD Radio stations only [Hold].

• SIRIUS/XM: Select category.

• CD/USB/CD-CH: Select folder.

• IPOD: Enter the main menu/Pause playback/

Confirm selection.

• BT PHONE/BT AUDIO: Enter/go back to

previous Bluetooth menu.

2 • Turn on the power.

• Attenuate the sound (if the power is on).

• Turn off the power [Hold]. 3 • Select the source.

FM = AM *2 = SIRIUS *3/XM *3 = CD *3 =USB / USB-IPOD *3, *4 = CD-CH *3/IPOD *3 (or

EXT INPUT) = BT PHONE *3 = BT AUDIO *3 = AUX IN *2 = (back to the beginning)

• Enter the DIAL menu when the Bluetooth cellular phone is connected [Hold].

4 • FM/AM/SIRIUS/XM/CD/USB/CD-CH: Enter list

operations.

• Enter Menu setting [Hold].

• USB-IPOD: Enter the main menu of the iPod/ iPhone.

5 • Control the volume*5 or select items [Turn].

• Confirm the selection [Press].

• FM/AM: Enter SSM preset mode [Hold].

• CD/USB/USB-IPOD: Pause/resume playback*5 [Press].

• CD/USB/USB-IPOD/CD-CH/IPOD: Enter playback mode [Hold].

6 Loading slot 7 Display window

8 Eject disc. 9 Select the sound mode. p Detach the panel. q • FM/AM/SIRIUS/XM: Search for station/channel.

• CD/USB/USB-IPOD/CD-CH: Select track.

• IPOD: Select category/track.

• BT PHONE/BT AUDIO: Select setting item/

registered device.

w Change the display information. e • Return to the previous menu.

• USB-IPOD: Switch the setting between “HEAD MODE” and “IPOD MODE”*6 [Hold].

r • Tag the PSD (Program Service Data) from HD

Radio broadcast.

• USB-IPOD: Cancel transferring the tagged PSD to your iPod/iPhone [Hold].

t Remote sensor y AUX (auxiliary) input jack u USB ( ) terminal

*1 Also known as “Control dial” in this manual. *2 Yo u cannot select these sources if they were disabled

in Menu (see “SELECT SRC” on page 31).

*3 Yo u cannot select these sources if they are not ready or

not connected.

*4 When connecting the iPod/iPhone to the USB ( )

terminal, “USB” appears on the display ﬁ rst, then “USB-IPOD.”

*5 Yo u can still adjust the volume during pause when the

selected source is CD/USB/USB-IPOD. Before resume playback, check to be sure that you have not raised the volume too much.

*6 Yo u can use this function when “IPOD MODE” is

available for the connected iPod/iPhone.

Display window

q23 45789

ENGLISH

1 Status of Bluetooth device

(Device number, [P: 1 – 5]; signal strength, [ : 0 – 3]*; battery reminder, [ : 0 – 3]*)

2 Tr (track) indicator 3 Source display / Preset number / Disc number /

Track number / Folder number / Setting and list operation information

4 (USB) indicator 5 (iPod/iPhone) indicator 6 HD (HD Radio™ broadcast) indicator 7 Playback mode / item indicators—RND (random),

(disc), (folder), RPT (repeat)

You can change the display and button illumination (see page 32).

8 HOLD (reception hold) indicator 9 ST (stereo) indicator p TAG (PSD reception) indicator q Disc/device information indicators— (track/

w (Bluetooth) indicator e Main display r Menu hierarchy position indicator— (top),

* As the number increases, the signal/battery power

becomes stronger.

Using the remote controller (RM-RK50)

Installing the lithium coin battery (CR2025)

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

file) and (folder)

(middle), (bottom)

If the effectiveness of the remote controller decreases, replace the battery.

Remote sensor

Continued on the next page

5OPERATIONS

ENGLISH

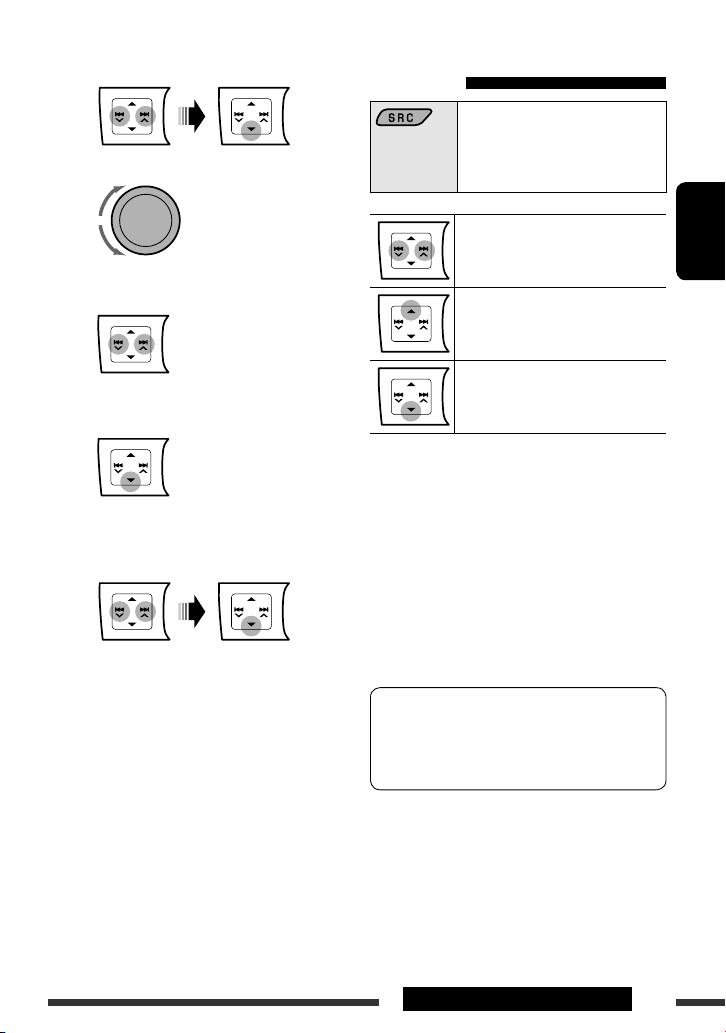

1 • Turns the power on if pressed briefly or

attenuates the sound when the power is on.

• Turns the power off if pressed and held. 2 • Selects the preset radio station if pressed briefly.

• Selects HD Radio multicast channel if pressed and held.

• Changes the folder of the MP3/WMA.

• While playing an MP3 disc on an MP3-compatible CD changer: – Changes the disc if pressed briefly. – Changes the folder if pressed and held.

• While listening to the Satellite (SIRIUS or XM) Radio: – Changes the categories.

• While listening to an iPod (connected with the interface adapter): – Pauses or resumes playback with D ∞. – Enters the main menu with 5 U. (Now 5 U/D ∞/2 R/F 3 work as the menu

selecting buttons.)*

3 Adjusts the volume level. 4 Selects the sound mode. 5 Selects the source. 6 For Bluetooth cellular phone:

– Answers calls if pressed briefly. – Ends or rejects calls if pressed and held.

7 • Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held.

• Changes the tracks if pressed briefly.

• While listening to the Satellite Radio: – Changes the channels if pressed briefly. – Changes the channels rapidly if pressed and

held.

• While listening to an iPod connected with the interface adapter (in menu selecting mode): – Selects an item if pressed briefly. (Then, press

D ∞ to confirm the selection.)

– Skips 10 items at a time if pressed and held.

• Reverse skip/forward skip for Bluetooth audio player.

* 5 U : Returns to the previous menu. D ∞ : Conﬁ rms the selection.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its

equivalent.

• Do not leave the remote controller in a place (such

as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot

reach.

• Do not recharge, short, disassemble, heat the battery,

or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or similar

tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

KD-AHD59 is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Changing the display information

• When the power is turned off: The current clock time is displayed if “CLOCK DISP” is set to “CLOCK OFF”

(see page 28).

• When the power is turned on: The display information of the current source changes as follows:

FM/AM Call Sign*

CD/USB /CD-CH

USB-IPOD Album name/artist name = Track title = Current track number with the elapsed playing

IPOD Album name/artist name = Track name = Current track number with the elapsed playing

SIRIUS/XM Category name = Channel name = Artist name = Composer name*

Displayed only when a Call Sign is received.

*2 When no program type (PTY) is received, “HD RADIO” appears for HD Radio broadcasting, and “ANALOG” appears for

conventional FM/AM broadcasting.

*3 “NO TEX T” appears when no text is received. *4 If the current disc is an audio CD, “NO NAME” appears. *5 If an MP3/WMA ﬁ le does not have Tag information or “TAG DISPLAY” is set to “TAG OFF” (see page 29),

folder name and ﬁ le name appear.

*6 Only while transferring the tagged PSDs is in progress (see page 24). *7 Only for SIRIUS Sa tellite Radio.

= Frequency = PTY (Program Type)*2 = Text*3 = Clock = (back to the

beginning)

• Audio CD/CD Text: Disc title/performer *

time = Current track number with the clock time = (back to the beginning)

• MP3/WMA: Album name/performer (folder name) *

with the elapsed playing time = Current track number with the clock time = (back to the beginning)

time = Current track number with the clock time = Current status of transferring the tagged

PSDs*

= (back to the beginning)

time = Current track number with the clock time = (back to the beginning)

name/title = Clock = (back to the beginning)

= Track title *4 = Current track number with the elapsed playing

= Track title (file name) *5 = Current track number

= Song/program

ENGLISH

Preparation

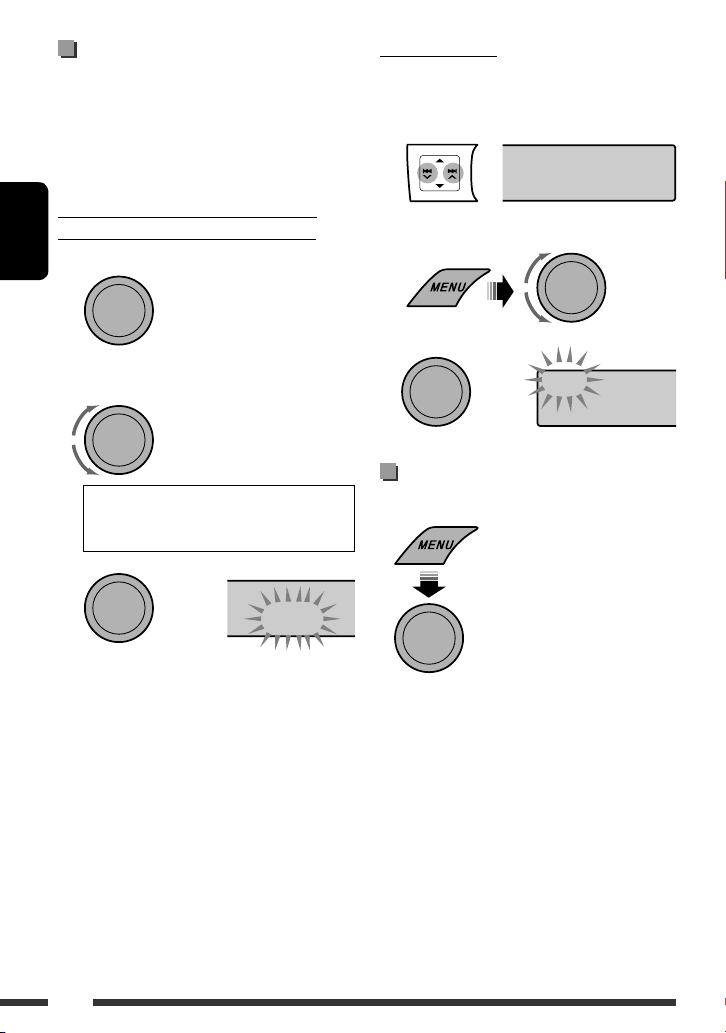

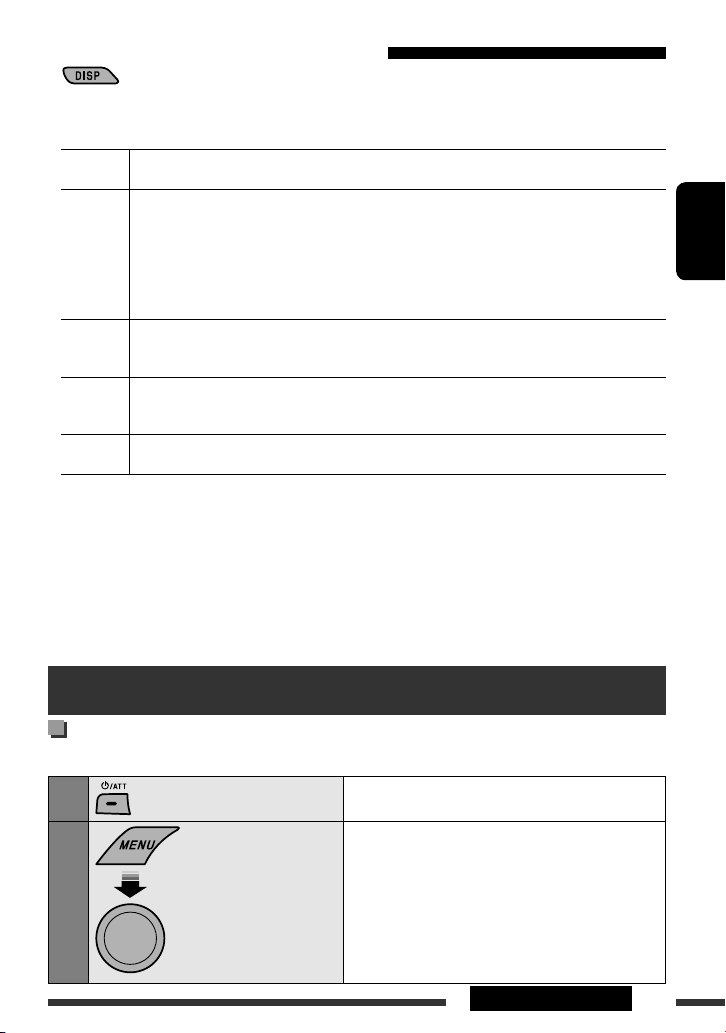

Canceling the display demonstration and setting the clock

• See also page 28.

1 2

[Hold]

Press and hold until Menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Turn on the power.

Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK” = “CLOCK SET.” Adjust the hour, then press the Control dial once to proceed to adjust the minute.

• To return to the previous menu, press BACK.

7OPERATIONS

Listening to the radio

You can tune in to both conventional and HD Radio broadcasts.

• If you want to search for HD Radio stations only, see “Searching for HD Radio stations only” on page 9.

ENGLISH

What is HD Radio™ broadcasting?

HD Radio stations can deliver high-quality digital sound—AM digital will have FM-like sound quality (in stereo) and FM digital will have CD-like sound quality—with static-free and clear reception. Furthermore, stations can offer text and data, such as artist names, song titles, and Program Service Data (PSD).

• HD Radio tuners can also tune in to conventional analog broadcasts.

• Many HD Radio stations offer more than one channel of programming. This service is called multicasting.

• By using PSD, you can easily purchase the songs at iTunes Store.

• To find HD Radio stations in your area, visit <http://www.hdradio.com/>.

1 2

Select “FM” or “AM.”

Search for a station to listen—Auto Search.

When a station is tuned in, searching stops. To stop searching, press the same button again.

• You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator lights up on the display.

• When the TAG indicator lights up on the display, you can tag the song for your future purchase at iTunes Store (see page 24).

Ex.: When receiving a conventional FM station

Ex.: When receiving an HD Radio station

Lights up when a digital audio is broadcast. Flashes when an analog audio is broadcast.

87.50MHz

Selected frequency

WXYZ-FM

Station Call Sign

When receiving HD Radio multicast

channels...

4 Select “MONO ON.”

[Turn] = [Press]

HD1 WXYZ-FM

Channel number

Select your desired channel.

• “LINKING” appears while linking to a multicast channel.

Searching for HD Radio stations

only

[Hold]

When a station is tuned in, searching stops.

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• See also page 29.

1 Call up the menu.

[Hold]

2 Select “TUNER.”

[Turn] = [Press]

3 Select “MONO.”

[Turn] = [Press]

Reception improves, but stereo effect will be lost.

• The ST indicator goes off. To restore the stereo effect, repeat the same procedure to select “MONO OFF.”

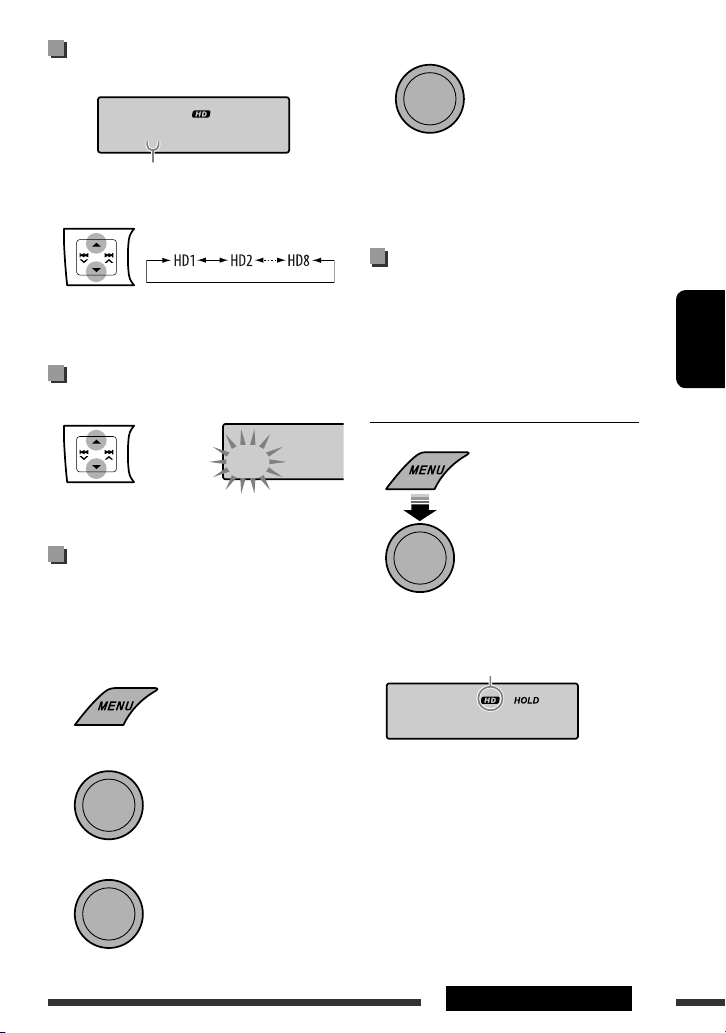

Changing HD Radio reception

mode

While receiving an HD Radio broadcast, the unit receives digital or analog audio automatically due to the receiving condition.

While listening to an HD Radio station...

• See also page 29.

[Hold]

The menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Select “TUNER” = “BLEND HOLD” = “AUTO/DIGITAL/ANALOG”

Lights up when holding the digital reception. Flashes when holding the analog reception.

WXYZ-FM

• If no sound can be heard with “AUTO,” change the setting to “ANALOG” or “DIGITAL.”

• The setting automatically returns to “AUTO” in the following cases: – When you tune in to another broadcast. – When you change to another source. – When you turn off the power.

• This setting cannot take effect for the conventional FM/AM stations.

• If the radio station forces the reception mode to digital, the HOLD indicator flashes.

ENGLISH

9OPERATIONS

Storing stations in memory

You can preset up to 18 stations for FM and 6 stations for AM.

• The HD Radio multicast channels can also be preset.

ENGLISH

Automatic presetting — SSM (Strong-station Sequential Memory)

1 While listening to a radio...

Manual presetting

Ex.: Storing FM station of 92.50 MHz into preset number “P04.”

1 Tune in to the station or channel you want to

preset.

92.50MHz

[Hold]

2 Select the preset number range you want to

store.

[Turn]

• For FM: SSM 01–06 Ô SSM 07–12 Ô

SSM 13–18

• For AM: SSM 01–06

[Press]

Local stations with the strongest signals are searched and stored automatically.

• To stop searching, press MENU.

To preset other 6 stations, repeat from step 1 again.

SSM

2 Select a preset number.

[Hold]

P04

MEMORY

Selecting preset station/channel

[Turn] = [Press]

[Turn]

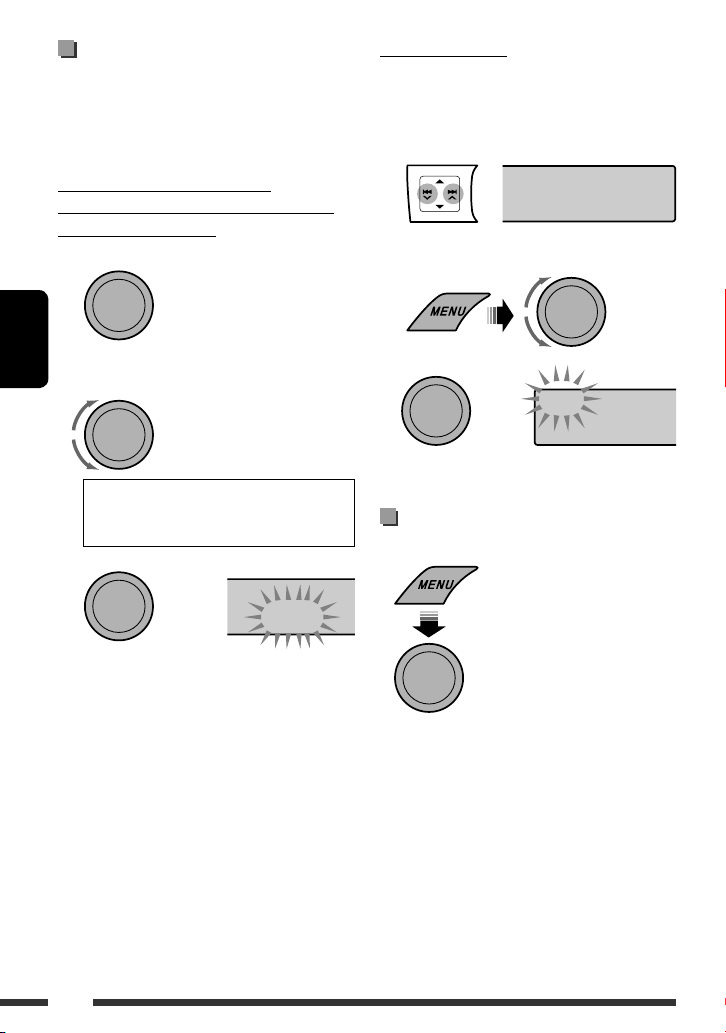

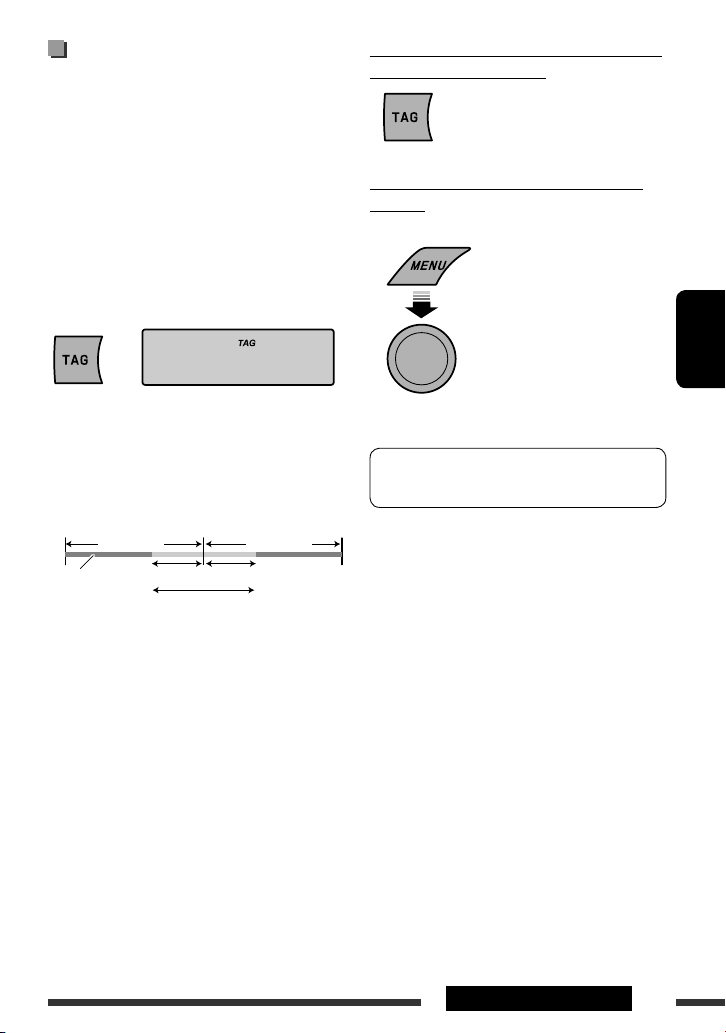

Tagging your favorite songs

Some HD Radio broadcasts provide PSD (Program Service Data) for a song. You can tag the song and store its PSD (maximum 60 songs) while listening the song— iTunes Tagging.

• For details how to purchase the tagged songs, see page 24.

To check the number of tagged songs stored on the unit

[Hold]

ENGLISH

To clear the tagged songs from the unit

• See also page 31.

While listening to the song (with the TAG indicator lit on the display)...

TAG SAVED

The TAG indicator start flashing, then the PSD of the song is stored into the memory.

• When pressing TAG within 10 seconds before or after the PSD changes, the tags for two songs are stored.

1st song 2nd song

PSD

(Program

Service Data)

• You cannot tag a song in the following cases: – When the broadcast currently received does not

support the iTunes Tagging.

– When the broadcast does not provide PSD. (TAG

indicator does not light up.)

– When you try to store the 61st PSD. (“MEMORY

FULL” appears.)

– When you try to tag the song for the 2nd time

while receiving one song. (“TAG ALREADY SAVED” appears.)

– While transferring the tagged PSDs to your iPod/

iPhone is in progress.

(10 sec.) (10 sec.)

Pressing TAG during this period tags PSD of both 1st and 2nd songs.

[Hold]

The menu is called up.

[Turn] = [Hold]

Select “TAG ALL CLR.”

See page 36 about warning messages for iTunes Tagging.

11OPERATIONS

Disc/USB operations

Playing a disc

ENGLISH

Turn on the power.

Stop playing and ejecting the disc

• “NO DISC” appears. Press SRC to listen to another playback source.

Insert a disc.

All tracks will be played repeatedly until you change the source or eject the disc.

Prohibiting disc ejection

[Hold]

To cancel the prohibition, repeat the same procedure.

Playing a file on USB device

This unit can play MP3/WMA files stored on a USB mass storage class device. You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to the unit.

• You can also connect the iPod/iPhone to the USB terminal of the unit. For details of the operations, see page 21.

Turn on the power.

Connect a USB.

All tracks will be played repeatedly until you change the source or disconnect a device.

• The indicator lights up on the display.

• You cannot connect a computer to the USB ( ) terminal of the unit.

Caution:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “READING” is flashing on the display.

• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• For more details about USB operations, see page 34.

Disc/file operations

Selecting a track/folder

[Turn] = [Press]*

* For MP3/WMA, select the desired folder, then the

desired track by repeating this procedure.

• To return to the previous menu, press BACK.

Pressing (or holding) the following buttons allows you to...

[Press]: Pause/resume playback

MP3/WMA: Select folder

[Press]: Select track [Hold]: Reverse/fast-forward track

Selecting the playback modes

You can use only one of the following playback modes at a time.

[Hold]

The playback mode menu is called up.

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

REPEAT TRACK RPT Repeats current track FOLDER RPT MP3/WMA: Repeats all tracks of

current folder

RANDOM FOLDER RND MP3/WMA: Randomly plays all tracks

of current folder, then tracks of next folders

ALL RND Disc: Randomly plays all tracks

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

ENGLISH

13OPERATIONS

Using the Bluetooth ® devices

For Bluetooth operations, it is required to connect the Bluetooth adapter (KS-BTA200) (not supplied) to the CD changer jack on the rear of this unit.

ENGLISH

• Refer also to the instructions supplied with the

Bluetooth adapter and the Bluetooth device.

• Refer to the list (included in the box) to check

the countries where you may use the Bluetooth ® function.

To use a Bluetooth device through the unit (“BT PHONE” and “BT AUDIO”) for the first time, you need to establish Bluetooth wireless connection between the unit and the device.

• Once the connection is established, it is registered in

the unit even if you reset your unit. Up to five devices can be registered in total.

• Only one device can be connected at a time for each

source (“BT PHONE” and “BT AUDIO”).

See page 35 about warning messages for Bluetooth operations.

Registering a Bluetooth device

Registration (Pairing) methods

Use either of the following items in the Bluetooth menu to register and establish the connection with a device.

• Select “BT PHONE” or “BT AUDIO” as the source to

operate the Bluetooth menu.

OPEN Make the unit ready to establish a new

Bluetooth connection. Connection is established by operating the Bluetooth device.

SEARCH Make the unit ready to establish a new

Bluetooth connection. Connection is established by operating the unit.

Registering using “OPEN”

Preparation: Operate the device to turn on its

Bluetooth function.

1 Select “BT PHONE” or “BT AUDIO.”

2 Select “NEW DEVICE.”

3 Select “OPEN.”

4 Enter a PIN (Personal Identification Number)

code to the unit.

• You can enter any number you like (1-digit to 16-digit number). [Initial: 0000] – Some devices have their own PIN code. Enter

the specified PIN code to the unit.

1 Move to the next (or previous) number

position.

2 Select a number.

[Turn]

3 Repeat steps 1 and 2 until you finish

entering a PIN code.

4 Confirm the entry.

“OPEN..” flashes on the display.

5 Use the Bluetooth device to search and

connect.

On the device to be connected, enter the same PIN code you have just entered for this unit. “CONNECTED” appears on the display. Now connection is established and you can use the device through the unit.

The device remains registered even after you disconnect the device. Use “CONNECT“ (or activate “AUTO CNNCT”) to connect the same device from next time on. (See the following and page 27.)

Connecting a device

1 Select “BT PHONE” or “BT AUDIO.”

2 Select “NEW DEVICE.”

5 For available devices...

1 Enter the specific PIN code of the device to the

unit. Refer to the instructions supplied with the device to check the PIN code.

2 Use the Bluetooth device to connect.

Now connection is established and you can use the device through the unit.

For special device... Use “OPEN” or “SEARCH” to connect.

Connecting/disconnecting/deleting a registered device

1 Select “BT PHONE” or “BT AUDIO.”

2 Select a registered device you want to

connect/disconnect/delete.

ENGLISH

3 To search for available devices: Select “SEARCH.”

The unit searches and displays the list of the available devices. If no available device is detected, “UNFOUND” appears.

To connect a special device:

Select “SPECIAL.”

The unit displays the list of the preset devices.

4 Select a device you want to connect.

3 To connect/disconnect the selected device: Select “CONNECT” or “DISCONNECT.”

To delete the selected device:

Select “DELETE,” then “YES.”

You can set the unit to connect the Bluetooth device automatically when the unit is turned on. (See “AUTO CNNCT” on page 27.)

EXTERNAL DEVICES

Using the Bluetooth cellular phone

1 2

ENGLISH

Select “BT PHONE.”

Enter the Bluetooth menu.

—

Make a call or setting using the Bluetooth setting menu. (See the following and page 27.)

When a call comes in...

The source is automatically changed to “BT PHONE.”

• The display will flash in blue (see “RING COLOR”

on page 30.)

When “AUTO ANSWER” is activated...

The unit answers the incoming calls automatically, see page 27.

• When “AUTO ANSWER” is deactivated, press any button (except / /0) to answer the incoming call.

• You can adjust the microphone volume level (see “MIC SETTING” on page 27).

To end the call

Hold any button (except / /0).

When a text message comes in...

If the cellular phone is compatible with text message (notified through JVC Bluetooth adapter) and “MSG INFO” (message info) is set to “AUTO” (see page 27), the unit rings to inform you of the message arrival.

• “RCV MSG” (receiving message) appears on the display and the display illuminate in blue (see “RING COLOR” on page 30.)

Making a call

You can make a call using the following methods. Select “BT PHONE,” then follow the following steps to

make a call:

• To return to the previous menu, press 5.

1 Enter the “DIAL” menu.

2 Select a calling method.

Call history:

1 Select a call history (REDIAL*, RECEIVED*,

MISSED*).

2 Then select a name (if it is acquired) or phone

number.

Phone book:

1 Select “PHONE BOOK*.”

The list of phone number appears.

2 Select a name from the list.

* Displays only when your cellular phone is

equipped with these functions and is compatible with this unit.

Direct dialing:

1 Select “NUMBER.”

2 Select a number.

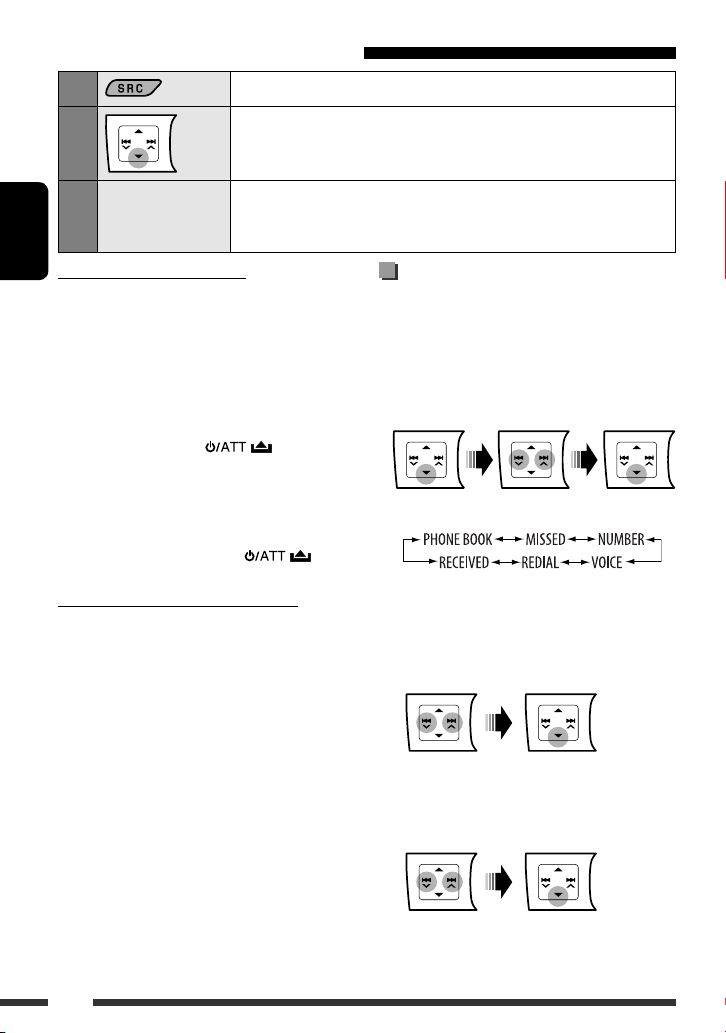

Using the Bluetooth audio player

Select “BT AUDIO.”

If playback does not start, operate the Bluetooth audio player to start playback.

ENGLISH

[Turn]

3 Move to the next (or previous) number

position.

4 Repeat steps 2 and 3 until you finish

entering the phone number.

Voice dialing:

1 Select “VOICE.”

“SAY NAME” appears on the display.

2 Speak the name you want to call.

• If your cellular phone does not support the voice recognition system, “ERROR” appears on the display.

• Using “VOICE” may be difficult in a noisy environment or at an emergency.

Reverse skip/forward skip

Pause/start playback*

Enter the Bluetooth menu (see page 27)

* Operation may be diﬀ erent according to the connected

Bluetooth audio player.

• Refer also to page 15 for connecting/disconnecting/ deleting a registered device.

• When the sound is stopped or interrupted while using a Bluetooth device, turn off, then turn on the unit. – If the sound is not yet restored, connect the device

again (see page 15).

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

EXTERNAL DEVICES

Listening to the CD changer

It is recommended to use a JVC MP3-compatible CD changer (not supplied) with your unit. You can connect a CD changer to the CD changer jack on the rear of the unit.

• You can only play conventional CDs (including CD Text) and MP3 discs.

ENGLISH

Preparation: Make sure “CH/IPOD” is selected in the “SELECT SRC” = “EXT IN” setting, see page 31.

1 2

Select “CD-CH.”

Enter the list mode.

[Turn] = [Press]

• Repeat this procedure.

• For MP3 disc: To select another folder/track while playing, repeat steps 2 and 3 above until the desired folder/

track is selected. The selection always start from disc number first.

MP3: Select folders

[Press]: Select track [Hold]: Reverse/fast-forward track

Selecting the playback modes

[Hold]

The playback mode menu is called up.

[Turn] = [Press]

REPEAT Ô RANDOM

Select a disc, folder, then the track.

Playback starts automatically.

• If there is no disc on the selected tray, the unit beeps.

REPEAT TRACK RPT Repeats current track FOLDER RPT MP3: Repeats all tracks of current

folder

DISC RPT Repeats all tracks of the current disc RANDOM FOLDER RND MP3: Randomly plays all tracks of

current folder, then tracks of next folders

DISC RND Randomly plays all tracks of the

current disc

ALL RND Randomly plays all tracks

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

[Turn] = [Press]

Listening to the Satellite Radio

Before operating, connect either one of the following (not supplied) to the CD changer jack on the rear of this unit.

• JVC SIRIUS Satellite Radio System, SC-C1 and KS-SRA100, PnP, SC-VDOC1 and KS-SRA100, for listening to the

SIRIUS Satellite Radio.

• XM Satellite Radio System, JVC Smart Digital Adapter–XMDJVC100, CNP2000UC and CNPJVC1 for listening to

the XM Satellite Radio.

GCI (Global Control Information) update

• If channels are updated after subscription, updating starts automatically. “UPDATING” or “UPDATE XXX%” flashes and no sound can be heard.

• Update takes a few minutes to complete.

• During update, you cannot operate your Satellite Radio.

ENGLISH

Activate your SIRIUS subscription after connection

SIRIUS Satellite Radio starts updating all the SIRIUS channels. Once completed, SIRIUS Satellite Radio tunes in to the preset channel, CH184.

3 Check your SIRIUS ID (see page 29). 4 Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“SUB UPDT PRESS ANY KEY” scrolls on the display once subscription has been completed.

Activate your XM subscription after connection

• Only Channel 0, 1, and 247 are available before activation.

XM Tuner* starts updating all the XM channels. “Channel 1” is tuned in automatically.

3 Check your XM Satellite Radio ID labelled

on the casing of the XM Tuner, or tune in to “Channel 0” (see page 20).

4 Contact XM Satellite Radio on the internet

at <http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XM-RADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the available channels (Channel 4 or higher).

* XM Tuner: XMDirec t ™ Tuner Box or XMDirect2 Tuner

System

EXTERNAL DEVICES

1 2

Select “SIRIUS” or “XM.”

Select a category.

SIRIUS: If you select “ALL,” you can tune in to all the channels of all categories.

ENGLISH

Select a channel to listen.

• Holding the button changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped. XM: If you do not select a channel within 15 seconds, category selected in step 2

is canceled. You can select all channels of all categories now (including noncategorized channels).

Storing channels in memory

You can preset up to 18 channels for both SIRIUS and XM.

Ex.: Storing channel into preset number “P04.”

1 Tune in to a channel you want to store (see

steps 1 – 3 above).

2 Select preset number.

[Hold]

P04

MEMORY

Checking the XM Satellite Radio ID

While selecting “XM,” select “Channel 0.”

The display alternately shows “RADIO ID” and the 8-digit (alphanumeric) ID number.

To cancel the ID number display, select any channel other than “Channel 0.”

[Turn]

Selecting SIRIUS/XM preset station

[Turn] = [Press]

Listening to the iPod/iPhone

You can connect the iPod/iPhone using the following cable or adapter:

Cable/adapter To operate

USB 2.0 cable (accessory of the iPod/iPhone) See “When connected with the USB cable” below. Interface Adapter for iPod—KS-PD100 (not supplied)* See “When connected with the interface adapter” on

page 22.

* You cannot connect the iPhone.

When connected with the USB cable

Preparation: Select the controlling terminal, “HEAD MODE (this unit)” or “IPOD MODE (iPod/iPhone)” for

iPod/iPhone playback (see page 31). The operations explained below are under “HEAD MODE.”

ENGLISH

Select “USB-IPOD.”

Playback starts automatically.

• The and indicators light up on the display.

Select a song.

Selecting a track from the menu

1 Enter the main menu.

2 Select the desired menu.

[Turn] = [Press]

PLAYLISTS Ô ARTISTS Ô ALBUMS Ô SONGS Ô PODCASTS Ô GENRES Ô COMPOSERS

3 Select the desired track.

[Turn] = [Press]

• To return to the previous menu, press BACK.

• Holding BACK allows you to switch the setting between “HEAD MODE” and “IPOD MODE.”

Pressing (or holding) the following buttons allows you to...

[Press]: Pause/resume playback

[Press]: Select track [Hold]: Reverse/fast-forward track

EXTERNAL DEVICES

Selecting the playback modes

ENGLISH

[Hold]

The playback mode menu is called up.

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

REPEAT ONE RPT Functions the same as “Repeat One”

of the iPod/iPhone.

ALL RPT Functions the same as “Repeat All”

of the iPod/iPhone.

RANDOM SONG RND Functions the same as “Shuffle

Songs” of the iPod/iPhone.

• When “Repeat” is set to “Off” for the iPod/iPhone, connecting the iPod/iPhone changes the setting to “ALL RPT.” You cannot select “RPT OFF” for the iPod/iPhone connected with the USB cable.

• To cancel random play, select “RND OFF.”

• To return to the previous menu, press BACK.

When connected with the interface adapter

Preparation: Make sure “CH/IPOD” is selected in the “SELECT SRC” = “EXT IN” setting, see page 31.

Select “IPOD.”

• The indicator lights up on the display.

Select a song.

Playback starts automatically.

Selecting a track from the menu

1 Enter the main menu.

This mode will be canceled if no operations are done for about 5 seconds.

2 Select the desired menu.

Selecting the playback modes

[Hold]

The playback mode menu is called up.

[Turn] = [Press]

REPEAT Ô RANDOM

[Turn] = [Press]

ENGLISH

PLAYLISTS Ô ARTISTS Ô ALBUMS Ô SONGS Ô GENRES Ô COMPOSERS Ô

(back to the beginning)

• Pressing and holding the button skips 10 items at a time.

3 Confirm the selection.

• To return to the previous menu, press 5.

• If a track is selected, playback starts automatically.

Pause playback

• To resume playback, press the button again.

[Press]: Select tracks [Hold]: Reverse/fast-forward track

REPEAT ONE RPT Functions the same as “Repeat One”

of the iPod.

ALL RPT Functions the same as “Repeat All”

of the iPod.

RANDOM ALBUM RND * Functions the same as “Shuffle

Albums” of the iPod.

SONG RND Functions the same as “Shuffle

Songs” of the iPod.

• To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

• To return to the previous menu, press BACK.

* Functions only if you select “ALL” for “ALBUMS” in the

main menu.

EXTERNAL DEVICES

Purchasing your favorite songs

You can easily purchase the songs you have tagged while listening to HD Radio programs (see page 11) — iTunes Tagging. For purchasing the tagged songs, you need to perform

ENGLISH

the following operations: 1 Transfer the PSDs of the tagged songs to the iPod/

iPhone. (See “Transferring the tagged PSD to your iPod/iPhone.”)

2 Transfer the PSDs of the tagged songs to iTunes, then

purchase the songs at iTunes Store. (See “Purchasing songs at iTunes Store.”)

Transferring the tagged PSD to

your iPod/iPhone

• For the type of iPod/iPhone compatible with iTunes Tagging, see page 36.

• Your iPod/iPhone must have 32 KB free space, which is required for transferring a tagged PSD.

Connect the iPod/iPhone to the unit after storing the tagged PSDs on the unit.

• You cannot transfer the tagged PSDs to the iPod/ iPhone in the following cases: – When the connected iPod/iPhone is not compatible

with iTunes Tagging. (“UNSUPPORTED DEVICE FOR TAGGING” appears.)

– When the memory of the iPod/iPhone is full.

(“CAN’T TRANS IPOD FULL” appears.)

– When disconnecting the iPod/iPhone during data

transfer. (“TRANS ERROR” appears.)

• After the data transfer is completed, the tagged PSDs are automatically deleted from the unit.

To cancel the data transfer, press and hold TAG. (Available only when USB-IPOD is selected.)

Purchasing songs at iTunes Store

• iTunes 7.4 or later version is required to purchase the tagged songs.

• For details about iPod/iPhone and iTunes, refer also to the instructions supplied with the iPod/iPhone or visit <http://www.apple.com>.

1 Connect the iPod/iPhone to the PC.

iPod/iPhone

The tagged PSDs are transferred to your iPod/iPhone.

• While transferring the tagged PSDs...

TRANS 02 / 15

Number of PSDs transferred to the iPod/iPhone Number of PSDs stored on the unit

• When all tagged PSDs are transferred to the iPod/ iPhone...

COMPLETED

2 Synchronize the iPod/iPhone to the iTunes.

The tagged PSDs are transferred to PC, and iTunes displays the list of the tagged songs.

• You can purchase the tagged songs at iTunes store.

• After the data transfer is completed, the stored PSDs are automatically deleted from the iPod/iPhone.

See page 36 about warning messages for iTunes Tagging.

Listening to the other external components

You can connect an external component to:

• EXT INPUT: CD changer jack on the rear of this unit using the following adapters (not supplied): – KS-U57: For connecting the component with pin jacks – KS-U58: For connecting the component with stereo mini jack

Preparation: Make sure “EXT INPUT” is selected in the “SELECT SRC” = “EXT IN” setting, see page 31.

• AUX IN: Input jack on the control panel.

Preparation: Make sure “AUX ON” is selected in the “SELECT SRC” = “AUX IN” setting, see page 31.

ENGLISH

1 2

—

Connecting an external component to the AUX input jack

—

Select “EXT INPUT” or “AUX IN.”

Turn on the connected component and start playing the source.

Adjust the volume.

[Turn]

Adjust the sound as you want (see page 26).

3.5 mm (3/16") stereo mini plug (not supplied)

Portable audio player, etc.

EXTERNAL DEVICES

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre.

ENGLISH

Selecting from Menu. (See also page 28.)

[Hold]

The menu is called up.

[Turn] = [Press]

• Repeat this procedure.

Select “EQ” HIP HOP/JAZZ/FLAT.”

= “USER/ROCK/CLASSIC/POPS/

Preset value setting for each sound mode

Preset value

Mode SUB BASS BASS MID BASS MID MID HIGH HIGH ULTRA

Frequency 60 Hz 150 Hz 400 Hz 1 kHz 2.4 kHz 6 kHz 15 kHz USER 00 00 00 00 00 00 00 ROCK +06 +04 00 00 +02 +04 +04 CLASSIC +02 +06 +02 00 00 +04 00 POPS 00 +04 00 00 00 +02 +04 HIP HOP +08 +02 -02 -04 00 +02 00 JAZZ +06 +04 +02 +02 +02 +06 +02 FLAT 00 00 00 00 00 00 00

Storing your own sound mode

You can store your own adjustments in memory.

1 Select “USER” for “EQ.” (See above.)

3 Select your desired tone.

[Turn] = [Press]

HIGH

2 While “USER” is shown on the display...

[Hold]

• If no operation is done for about 30 seconds, the operation will be canceled.

4 Adjust the tone level (–10 to +10).

[Turn] = [Press]

5 Repeat the procedure from steps 3 and 4 to

adjust other sound characteristics.

Bluetooth settings

You can change the settings listed on the right column according to your preference.

1 Select “BT PHONE” or “BT AUDIO.”

2 Enter the Bluetooth menu.

3 Select “SETTINGS.”

4 Select a setting item.

*1 Appears only when a Bluetooth phone is

connected.

*2 Appears only when a Bluetooth phone is

connected and it is compatible with text message.

5 Change the setting accordingly.

Setting menu ( : Initial)

AUTO CNNCT (connect)

When the unit is turned on, the connection is established automatically with...

OFF: No Bluetooth device. LAST: The last connected Bluetooth device. ORDER: The available registered Bluetooth device

found first.

AUTO ANSWER

Only for the device being connected for “BT PHONE.” ON: The unit answers the incoming calls

automatically.

OFF: The unit does not answer the calls

automatically. Answer the calls manually.

REJECT: The unit rejects all incoming calls.

MSG INFO (message info)

Only for the device being connected for “BT PHONE.” AUTO: The unit informs you of the arrival of

a message by ringing and displaying “RCV MSG” (receiving message).

• The display illuminate in blue (see

“RING COLOR” on page 30).

MANUAL: The unit does not inform you of the arrival

of a message.

MIC SETTING (microphone setting)

Only for the device being connected for “BT PHONE.” Adjust the volume of the microphone connected to the Bluetooth adapter.

LEVEL 01/02/03

ENGLISH

VERSION

The Bluetooth software and hardware versions are shown.

27SETTINGS

Menu operations

1 Call up the menu.

ENGLISH

Category Menu items Selectable settings, [reference page]

DEMO

CLOCK

If the power supply is not interrupted by turning oﬀ the ignition key of your car, it is recommended to select

“CLOCK OFF” to save the car’s battery.

*2 Displayed only when “CLOCK ADJ” is set to “AUTO.”

[Hold]

DEMO

Display demonstration

CLOCK DISP * Clock display

CLOCK SET

Clock setting CLOCK ADJ

Clock adjustment

TIME ZONE * Time zone

DST * Daylight savings time

Equalizer

2 Select the desired item.

[Turn] = [Press]

• DEMO ON:

• DEMO OFF:

• CLOCK ON:

• CLOCK OFF:

Adjust the hour, then the minute, [7]. [Initial: 1:00]

• AUTO:

• OFF:

Select your residential area from one of the time zones for clock adjustment

EASTERN, ATLANTIC, NEWFOUND, ALASKA, PACIFIC, MOUNTAIN, CENTRAL

• DST ON:

• DST OFF: Select a preset sound mode suitable to the music genre.

USER, ROCK, CLASSIC, POPS, HIP HOP, JAZZ, FLAT

Display demonstration will be activated automatically if no operation is done for about 20 seconds, [7]. Cancels.

Clock time is shown on the display at all times when the power is turned off. Cancels; pressing DISP will show the clock time for about 5 seconds when the power is turned off, [7].

The built-in clock is automatically adjusted using the clock data provided via the Satellite Radio channel or the HD Radio broadcast. Cancels.

Activates daylight savings time if your residential area is subject to DST. Cancels.

3 Repeat step 2 if necessary.

• To return to the previous menu, press BACK.

• To exit from the menu, press DISP or MENU.

Initial: Underlined

Category Menu items Selectable settings, [reference page]

DIMMER

Dimmer

SCROLL* Scroll

DISPLAY

• DIMMER AUTO:

• DIMMER OFF:

• DIMMER ON:

• SCROLL ONCE:

• SCROLL AUTO:

• SCROLL OFF:

Dims the display when you turn on the headlights.* Cancels. Dims the display and button illumination.

Scrolls the displayed information once. Repeats scrolling (at 5-second intervals). Cancels.

Pressing DISP for more than one second can scroll the display regardless of the setting.

TAG DISPLAY

Tag display

AREA

Tuner channel interval

• TAG ON:

• TAG OFF:

• AREA US:

• AREA EU:

Shows the Tag information while playing MP3/WMA tracks. Cancels.

When using in North/Central/South America. AM/FM intervals are set to 10 kHz/200 kHz. When using in any other areas. AM/FM intervals are set to 9 kHz/50 kHz (100 kHz during auto search).

• AREA SA:

When using in South American countries where FM interval is 100 kHz. AM interval is set to 10 kHz.

MONO

Monaural mode

SID *

TUNER

SIRIUS ID BLEND HOLD *

HD Radio reception mode

IF BAND

Intermediate frequency band

• MONO ON:

Activate monaural mode to improve FM reception, but stereo effect will be lost, [9].

• MONO OFF:

Restore the stereo effect.

Your SIRIUS identification number scrolls on the display 5 seconds after “SID” is selected, [19].

• AUTO:

• DIGITAL:

• ANALOG:

• AUTO:

Switch between digital and analog audio automatically [9]. Tuning to digital audio only. Tuning to analog audio only.

Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.)

• WIDE:

Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.

The illumination control lead connection is required. (See “Installation/Connec tion Manual.”)

*4 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *5 Displayed only when SIRIUS Satellite Radio is connected. *6 Displayed only when FM or AM is selected as the source.

ENGLISH

29SETTINGS

Category Menu items Selectable settings, [reference page]

COLOR

ENGLISH

COLOR 01 — COLOR 29, USER

MENU COLOR

Menu color

COLOR

Select one of the preset or user color for display and button (except EQ/ /0) illumination. (See also page 32 for USER color setting.)

• OFF:

• ON:

Cancels. Changes the display and button (except EQ/ illumination during menu, list search and playback mode operations.

RING COLOR * Ring color

• OFF:

• ON:

Cancels. When a call comes in, the display will flash in blue.

• The display will change to the original color when you answer the call or the incoming call stops.

RING COLOR

When the unit receive a text message, the display only illuminate in blue.

FADER* Fader

BALANCE * Balance

VOL ADJUST

Volume adjust

AUDIO

FADER R12 — FADER F12:

BALANCE L12 — BALANCE R12:

VOL ADJ –10 — VOL ADJ +10:

[Initial: VOL ADJ 00]

Adjust the front and rear speaker output balance. [Initial: 00]

Adjust the left and right speaker output balance. [Initial: 00]

Preset the volume adjustment level of each source (except FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• Before making an adjustment, select the source you want to adjust.

• “VOL ADJ FIX” appears on the display if “FM”, “BT PHONE“, or “BT AUDIO“ is selected as the source.

SUB.W FREQ

Subwoofer cutoff frequency

Displayed only when Bluetooth adapter, KS-BTA200 is connected.

If you are using a two-speaker system, set the fader level to “00.”

This adjustment will not aﬀ ect the subwoofer output.

• LOW:

• MID:

• HIGH:

Frequencies lower than 72 Hz are sent to the subwoofer. Frequencies lower than 111 Hz are sent to the subwoofer. Frequencies lower than 157 Hz are sent to the subwoofer.

/0)

+ 104 hidden pages
