SERVICE MANUAL
DVD/CD RECEIVER
MA25020063
KD-ADV6270J,KD-DV6200J,KD-DV6201E,
KD-DV6201EU,KD-DV6202E,KD-DV6202EU,
KD-DV7205U,KD-DV7205UN,KD-DV7205UT,
KD-DV7205A,KD-DV7206U,KD-DV7206UN,
KD-DV7206UT,KD-DV7206A,KD-DV6207EE
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31
COPYRIGHT © 2006 Victor Company of Japan, Limited
No.MA250
2006/3
SPECIFICATION
KD-ADV6270/KD-DV6200
Power Output 20 W RMS × 4 Channels at 4 Ω and [< or =] 1% THD+N
Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω)
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz
Level ±10 dB
Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm
Line-Out Level/Impedance KD-ADV6270 : 5.0 V/20 kΩ load (full scale)
Output Impedance 1 kΩ
Subwoofer-out Level/Impedance KD-ADV6270 : 2.5 V/20 kΩ load (full scale)
Color system NTSC
Video Output (composite) 1 Vp-p/75 Ω
Other Terminals LINE IN, CD changer, 2nd AUDIO OUT
Frequency Range FM 87.5 MHz to 107.9 MHz (with channel interval set to 100 kHz or 200 kHz)
AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
AM Tuner Sensitivity/Selectivity 20 µV/35 dB
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz
DVD, fs=96 kHz 16 Hz to 22 000 Hz
CD, fs=44.1 kHz 16 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
DivX Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 384 kbps
Sampling Frequency 32 kHz, 44.1 kHz, 48 kHz
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
WMA Bit Rate 32 kbps - 320 kbps
Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
WAV Quantization Bit Rate 16 bit
Sampling Frequency 44.1 kHz
Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz
WMA Bit Rate 5 kbps - 320 kbps
Sampling Frequency 8 kHz - 48 kHz
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm (7-3/16" × 2-1/16" × 6-1/4")
Panel Size (approx.) 188 mm × 58 mm × 11 mm (7-7/16" × 2-5/16" × 7/16")
Mass (approx.) 1.7 kg (3.3 lbs) (excluding accessories)
AUDIO AMPLIFIER SECTION
Output level : -21 dBm to -15 dBm
KD-DV6200 : 2.5 V/20 kΩ load (full scale)
KD-DV6200 : 2.0 V/20 kΩ load (full scale)
TUNER SECTION
87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)
531 kHz to 1 602 kHz (with channel interval set to 9 kHz)
DVD/CD PLAYER SECTION
720 × 576 pixels (25 fps)
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
720 × 576 pixels (25 fps)
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
USB MEMORY
MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz
MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz
GENERAL
1-2 (No.MA250)
KD-DV6201/KD-DV6202
Maximum Power Output Front/Rear 50 W per channel
Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz
Level ±10 dB
Signal to Noise Ratio 70 dB
Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm
Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ
Subwoofer-out Level/Impedance 2.0 V/20 kΩ load (full scale)
Color system PAL
Video Output (composite) 1 Vp-p/75 Ω
Other Terminals LINE IN, CD changer, 2nd AUDIO OUT
Frequency Range FM 87.5 MHz to 108.0 MHz
AM (MW) 522 kHz to 1 620 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
MW Tuner Sensitivity/Selectivity 20 µV/35 dB
LW Tuner Sensitivity 50 µV
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz
DVD, fs=96 kHz 16 Hz to 22 000 Hz
CD, fs=44.1 kHz 16 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
DivX Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 384 kbps
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
WMA Bit Rate 32 kbps - 320 kbps
Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
WAV Quantization Bit Rate 16 bit
Sampling Frequency 44.1 kHz
Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz
WMA Bit Rate 5 kbps - 320 kbps
Sampling Frequency 8 kHz - 48 kHz
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm
Panel Size (approx.) 188 mm × 58 mm × 11 mm
Mass (approx.) 1.7 kg (excluding accessories)
AUDIO AMPLIFIER SECTION
Output level : -21 dBm to -15 dBm
TUNER SECTION
(LW) 144 kHz to 279 kHz
DVD/CD PLAYER SECTION
720 × 576 pixels (25 fps)
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
720 × 576 pixels (25 fps)
Sampling Frequency : 32 kHz, 44.1 kHz, 48 kHz
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
USB MEMORY
MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz
MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz
GENERAL
(No.MA250)1-3
KD-DV7205/KD-DV7206
Maximum Power Output Front/Rear 50 W per channel
Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz
Level ±10 dB
Signal to Noise Ratio 70 dB
Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm
Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ
Subwoofer-out Level/Impedance 2.0 V/20 kΩ load (full scale)
Color system PAL/NTSC
Video Output (composite) 1 Vp-p/75 Ω
Other Terminals LINE IN, CD changer, 2nd AUDIO OUT
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity/Selectivity 20 µV/35 dB
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz
DVD, fs=96 kHz 16 Hz to 22 000 Hz
CD, fs=44.1 kHz 16 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
DivX Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 384 kbps
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
WMA Bit Rate 32 kbps - 320 kbps
Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
WAV Quantization Bit Rate 16 bit
Sampling Frequency 44.1 kHz
Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz
WMA Bit Rate 5 kbps - 320 kbps
Sampling Frequency 8 kHz - 48 kHz
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm
Panel Size (approx.) 188 mm × 58 mm × 11 mm
Mass (approx.) 1.7 kg (excluding accessories)
AUDIO AMPLIFIER SECTION
Output level : -21 dBm to -15 dBm
TUNER SECTION
DVD/CD PLAYER SECTION
720 × 576 pixels (25 fps)
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
720 × 576 pixels (25 fps)
Sampling Frequency : 32 kHz, 44.1 kHz, 48 kHz
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
USB MEMORY
MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz
MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz
GENERAL
1-4 (No.MA250)
KD-DV6207
Maximum Power Output Front/Rear 50 W per channel
Continuous Power Output (RMS) Front/Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
Load Impedance 4 Ω (4 Ω to 8 Ω allowance)
Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 15 kHz
Level ±10 dB
Signal to Noise Ratio 70 dB
Audio Output Level Digital (DIGITAL OUT: Optical) Signal wave length : 660 nm
Line-Out Level/Impedance 2.5 V/20 kΩ load (full scale)
Output Impedance 1 kΩ
Subwoofer-out Level/Impedance 2.0 V/20 kΩ load (full scale)
Color system PAL
Video Output (composite) 1 Vp-p/75 Ω
Other Terminals LINE IN, CD changer, 2nd AUDIO OUT
Frequency Range FM1 /FM2 87.5 MHz to 108.0 MHz
FM3 65.00 MHz to 74.00 MHz
AM (MW) 522 kHz to 1 620 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
MW Tuner Sensitivity/Selectivity 20 µV/35 dB
LW Tuner Sensitivity 50 µV
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz
DVD, fs=96 kHz 16 Hz to 22 000 Hz
CD, fs=44.1 kHz 16 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
DivX Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
MPEG Video Video : Max. Resolution 720 × 480 pixels (30 fps)
Audio Bit Rate : 32 kbps - 384 kbps
Sampling Frequency 32 kHz, 44.1 kHz, 48 kHz
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 32 kHz, 44.1 kHz, 48 kHz
WMA Bit Rate 32 kbps - 320 kbps
Sampling Frequency 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz
WAV Quantization Bit Rate 16 bit
Sampling Frequency 44.1 kHz
Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
MP3 Bit Rate 32 kbps - 320 kbps
Sampling Frequency MPEG-1 : 48 kHz, 44.1 kHz, 32 kHz
WMA Bit Rate 5 kbps - 320 kbps
Sampling Frequency 8 kHz - 48 kHz
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 158 mm
Panel Size (approx.) 188 mm × 58 mm × 11 mm
Mass (approx.) 1.7 kg (excluding accessories)
AUDIO AMPLIFIER SECTION
Output level : -21 dBm to -15 dBm
TUNER SECTION
(LW) 144 kHz to 279 kHz
DVD/CD PLAYER SECTION
720 × 576 pixels (25 fps)
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
720 × 576 pixels (25 fps)
MPEG-2 : 16 kHz, 22.05 kHz, 24 kHz
USB MEMORY
MPEG-2 : 24 kHz, 22.05 kHz, 16 kHz
MPEG-2.5 : 12 kHz, 11.025 kHz, 8 kHz
GENERAL
Design and specifications are subject to change without notice.
(No.MA250)1-5
1.1 Safety Precautions
SECTION 1
PRECAUTIONS
!
!
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
1-6 (No.MA250)
1.2 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.2.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(caption)
Anti-static wrist strap
1M
Conductive material
(conductive sheet) or iron plate
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.3 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

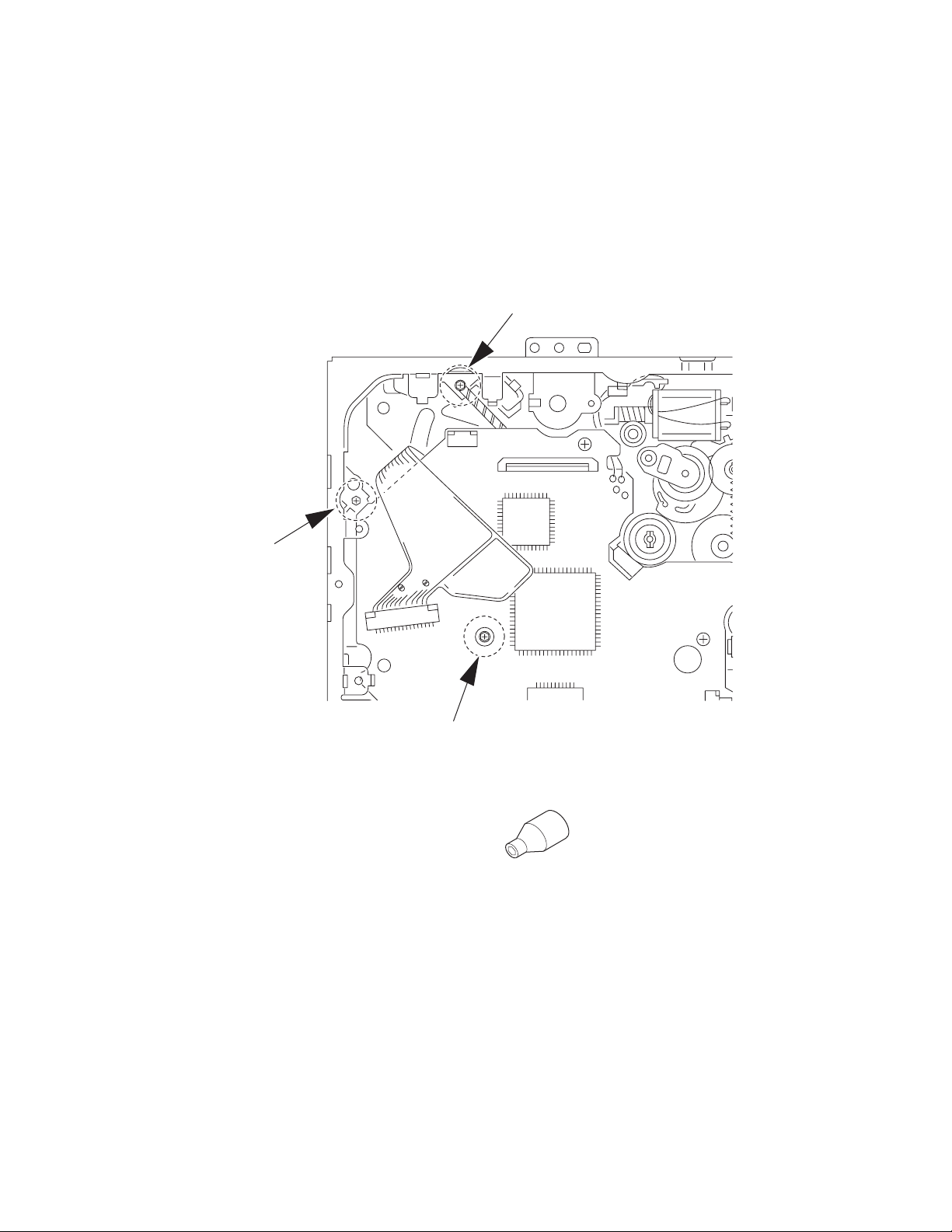

1.4 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land before the flexible wire is disconnected from the connector on the pickup unit.
(If the flexible wire is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.
Flexible wire
CN101
Short-circuit points
Mechanism control board
(No.MA250)1-7
1.5 Important for laser products
!
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The CD,MD and DVD player uses invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
REPRODUCTION AND POSITION OF LABELS
WARNING LABEL
CAUTION : Visible and Invisible
CLASS 1
LASER PRODUCT
laser radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE TO
BEAM. (e)
ADVARSEL : Synlig og usynlig
laserstråling når maskinen er
åben eller interlocken fejeler.
Undgå direkte eksponering til
stråling. (d)
VARNING : Synlig och
osynling laserstrålning när
den öppnas och spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO : Avattaessa ja suojalukitus
ohitettuna tai viallisena olet alttiina
näkyvälle ja näkymättömälle
lasersäteilylle. Vältä säteen
kohdistumista suoraan itseesi. (f)
1-8 (No.MA250)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
(No.MA250)1-9
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the control panel release button in the lower left part
of the front panel assembly and remove the front panel assembly.
(2) Take out the front panel assembly.
3.1.2 Removing the bottom cover
(See Fig.2)
(1) Turn the main body up side down.
(2) Insert a screwdriver under the joints to release the joints a
on the left side, joints b on the right side and joint c on the
back side of the main body, then remove the bottom cover
from the main body.
Caution:
When releasing the joints using a screwdriver, do not damage
the main board.
When remove the bottom cover, do not missing the cooling
rubber.
Front panel assembly
Control panel release button
Fig.1
Bottom cover
b
a
b
a
c
Fig.2
1-10 (No.MA250)
3.1.3 Removing the front chassis assembly
(See Figs.3 and 4)
• Remove the front panel assembly and bottom cover.
(1) Remove the two screws A on the front side of the main
body. (See Fig.3)
(2) Remove the two screws B on the both sides of the main
body. (See Fig.4)
(3) Release the joints d and joints e on the both sides of the
main body, and then remove the front chassis assembly toward the front. (See Fig.4)
Front chassis assembly
A
Fig.3
3.1.4 Removing the side panel
(See Fig.5)
Reference:
Remove the front panel assembly as required.
(1) Remove the two screws C and two screws D attaching the
side panel on the left side of the main body.
(2) Take out the side panel from the main body.
B
d
Front chassis assembly
Fig.4
C CD D
B
e
Side panel
Fig.5
(No.MA250)1-11
3.1.5 Removing the rear bracket
(See Fig.6) [except KD-DV6201]
• Remove the bottom cover.
(1) Remove the five screws E, one screw F, two screws G and
two screws G attaching the rear bracket on the back side
of the main body.
(2) Take out the rear bracket.
3.1.6 Removing the rear bracket
(See Fig.6) [For KD-DV6201]
• Remove the bottom cover.
(1) Remove the six screws E, one screw F, two screws G and
two screws G attaching the rear bracket on the back side
of the main body.
(2) Take out the rear bracket.
for except KD-DV6201
Rear bracket
HG
for KD-DV6201
Composite cable
Rear bracket
Composite cable
HP cable
Fig.6
FE
Anntena cord
HG
FE
Anntena cord
1-12 (No.MA250)
3.1.7 Removing the main board
(See Figs.6 to 8)
• Remove the front panel assembly, bottom cover, front chassis
assembly and side panel.
(1) Remove the five screws E except KD-DV6201 or six
screws E for KD-DV6201 attaching the rear bracket on the
back side of the main body. (See Fig.6.)
(2) Remove the three screws J attaching the main board. (See
Fig.7)
(3) Disconnect the connector CN961
board. (See Fig.7)
(4) Remove the one screw K attaching the USB board. (See
Fig.8)
Reference:
Remove the rear bracket as required.
and take out the main
JJ
Main board
J
Fig.7
DVD mechanism assembly
3.1.8 Removing the DVD mechanism assembly
(See Fig.9)
• Remove the front panel assembly, bottom cover, front chassis
assembly, side panel, main board and CD mechanism control
board.
(1) Remove the three screws L attaching the top chassis.
(2) Take out the DVD mechanism assembly.
Main board
DVD mechanism assembly
K
Fig.8
L
Top chassis
L
Fig.9
(No.MA250)1-13
3.1.9 Removing the switch board
(See Figs.10 to 13)
• Remove the front panel assembly.
(1) Release the main volume knob from the front panel assem-
bly. (See Fig.10)
(2) Remove the five screws M and one screw N attaching the
front panel assembly. (See Fig.11)
(3) Release the nine joints f and take out the rear cover. (See
Fig.12)
(4) Lift the switch board from the front panel assembly little by
little and take out the switch board. (See Fig.13)
Front panel assembly
Volume knob
Fig.10
M
N
Rear cover
Fig.11
f
Rear cover
f
f
Fig.12
Switch board
1-14 (No.MA250)
Fig.13
3.2 DVD mechanism assembly
3.2.1 Removing the mechanism control board
(See Fig.1)
Caution:
Before disconnecting the flexible wire extending from the DVD
pickup, solder the short-circuit point on the flexible wire using
a grounding soldering iron. If you do not follow this instruction,
the DVD pickup may be damaged.
(1) Turn over the body, and solder the short-circuit points on
the flexible wire extending from the DVD pickup.
(2) Disconnect the flexible wire from connector CN101
mechanism control board.
(3) Disconnect the card wire from connector CN201
mechanism control board.
(4) Disconnect the flexible wire from connector CN202
mechanism control board.
(5) Unsolder two soldered points a on the mechanism control
board and remove the wire extending from the feed motor.
(6) Remove the screw A attaching the lug wire.
(7) Remove the two screws B and screw C attaching the
mechanism control board.
Caution:
• As the flexible wire to be connected to CN101
attach it to the mechanism control board using a double
tape.
• After reassembling, unsolder the short-circuit points.
on the
on the
on the
, make sure to
Flexible wire
Double tape
CN101
B
Short-circuit points
A
Lug wire
B
CN201
Feed motor
a
C
CN202
Mechanism control board
Fig.1
(No.MA250)1-15
3.2.2 Removing the top cover
(See Fig.2)
(1) Remove the two screws D attaching the top cover on the
back of the body.
(2) Remove the top cover upward.
Reference:
When reassembling, set part b of the top cover under the
bending part c of the chassis frame.
3.2.3 Removing the mechanism section
(See Fig.2 to 4)
• Remove the top cover.
(1) From the bottom of the body, remove the screw E attaching
the lug wire. (See Fig.2.)
(2) Remove the two screws F attaching the right and left stop-
pers on the front side. (See Fig.2.)
(3) Remove the two floating springs on the bottom of the body.
(See Fig.3.)
(4) Move the mechanism section upward and remove from the
chassis frame.
The three damper springs come off from the dampers.
(See Fig.4.)
Caution:
• When reassembling, reattach the damper spring to the
damper respectively and insert the three shafts on the bottom of the mechanism to the dampers.
• Before inserting the shaft to the dampers, apply IPA to the
hole of damper.
Floating spring
Fig.3
Mechanism section
Stopper
F
Top cover
Stopper
F
D
D
b
c
E
Lug wire
Damper SP.(F)
(Silver)
Damper (F)
(Black)
Damper SP.(F)
(Silver)
Damper (F)
(Black)
Fig.4
Damper SP.(R)
(Red)
Damper (R)
(Purple)
Chassis frame
1-16 (No.MA250)
Fig.2
3.2.4 Removing the clamper unit
(See Fig.5 to 7)
• Remove the top cover and the mechanism section.
(1) Remove the clamper2 spring on the bottom of the mecha-
nism section. (See Figs.5.and 6.)
(2) Release the part d of the clamper spring from the bending
part of the chassis base assembly. (See Fig.7.)
(3) Move the clamper unit in the direction of the arrow and turn.
Release the two joints e and f, then remove the clamper
unit upward. (See Fig.6.)
3.2.5 Reattaching the clamper unit
(See Fig.5 to 9)
(1) Attach the clamper spring to the clamper unit. (See Fig.8.)
(2) Move the clamper unit to set the side joints e and f to each
boss of the chassis base assembly. Make sure that part g
is inserted to the notch of the chassis base assembly. (See
Figs.5 and 9.)
(3) Move the part d of the clamper spring to the outside of the
bending part of the chassis base assembly. (See Fig.7.)
(4) Attach the clamper2 spring to the chassis base assembly.
(See Figs.5 and 6.)
Caution:
When reattaching, temporarily hook the end of the clamper
spring as shown in the figure to make the work easy. (See
Fig.8.)
Clamper unit
Clamper2 spring
Chassis base assembly
Fig.6
Clamper spring
Clamper spring
f
Clamper2 spring
Chassis base assembly
g
d
Chassis base assembly
Fig.7
e
Fig.5
(No.MA250)1-17
Clamper unit
Clamper unit
Clamper spring
Fig.8
1-18 (No.MA250)
Fig.9
g
Notch
3.2.6 Removing the front unit
(See Fig.10 to 12)
• Remove the top cover and the mechanism section.
(1) Disconnect the flexible wire from connector CN202
mechanism control board at the bottom of the body. (See
Fig.10.)
(2) Remove the screw G attaching the front unit on the top of
the body. (See Fig.11.)
(3) Move the front unit toward the front to release joint h, and
release two joints i and j on the right side of the chassis
base assembly. Then remove the front unit upward. (See
Figs.11 and 12.)
(4) Remove the two screws H attaching the switch board. (See
Fig.12.)
Reference:
You can remove the switch board only without removing the
front unit.
Caution:
When reassembling, attach the flexible wire extending from
the switch board using the double tape. (See Figs.10 and 12.)
Mechanism control board
on the
G
Front unit
h
Fig.11
CN202
Double tape
Fig.10
Flexible wire
Double tape
j
i
H
Switch board
Front unit
G
Fig.12
h
(No.MA250)1-19
3.2.7 Removing the loading arm assembly
(See Fig.13 , 14)
• Remove the top cover, the mechanism section and the front
unit.
(1) From the top of the body, move the loading arm assembly
from the front side upward, and release the bosses from
the right and left joints k and m of the chassis base assembly.
(2) Release the boss from notch n of the connect arm on the
right side of the body, and release the boss from notch p of
the slide cam assembly on the left side.
m
Loading arm assembly
Side cam
assembly
p
m
k
Fig.13
Loading arm assembly
k
n
n
Connect arm
1-20 (No.MA250)
Fig.14
3.2.8 Removing the rod (L)(R)/roller assembly
(See Fig.15 and 16)
• Remove the top cover, the mechanism section, the front unit
and the loading arm assembly.
(1) Release the rod (L) and (R) from the joints q at the bottom
of the loading arm assembly (See Fig.15.)
(2) Remove the roller assembly from the loading arm assem-
bly. (See Fig.16.)
(3) Remove the two collars and washer from the roller assem-
bly. (See Fig.16.)
Caution:
After attaching the loading arm assembly to the roller assembly, attach the rod (L) and (R). Attach the rods to the right and
left collars of the roller. (See Fig.15.)
When reattaching the rod (L) and (R) to the loading arm assembly, engage each joint as shown in Fig.15. As joints q of
the rod (L), let the rod through q before reattaching it.
Collar
Collar
Rod(R) Rod(L)
q
q
q
Collar
Rod(L)
Rod(R)
q
Loading arm assembly
Fig.15
Roller assembly
Loading arm assembly
q
Rod(L)
q
Collar
Washer
Rod(R)
Fig.16
(No.MA250)1-21
3.2.9 Removing the DVD pickup assembly
(See Fig.17 to 19)
• Remove the mechanism control board.
(1) From the bottom of the body, turn the feed gear in the di-
rection of the arrow to move the DVD pickup outwards.
(See Fig.17.)
(2) Remove the screw J attaching the thrust spring. (See
Fig.17.)
(3) Remove the DVD pickup assembly upward on the L.S.gear
side and release from sub shaft at joint r. Move the lead
screw of the DVD pickup assembly in the direction of the
arrow to release from joint s. (See Fig.18.)
Caution:
• When releasing the lead screw at joint s, the L.S.collar
comes off at the end of the lead screw. When reassembling, reattach the L.S.collar to the lead screw and
engage joint s. (See Fig.18.)
• When reattaching the L.S.collar, reattach it to the point
s of the lead screw, and to the rod (M). Make sure that
the L.S.collar is set on the rod (M) spring. (See Fig.18.)
(4) Remove the screw K attaching the rack spring/ rack plate
on the DVD pickup. (See Fig.19.)
(5) Pull out the lead screw. (See Fig.19.)
Caution:
Perform adjustment after replacing the pickup.
DVD Pickup assembly
DVD Pickup assembly
Feed gear
J
Thrust spring
Fig.17
s
L.S.collar
Rod(M)
Lead screw
Sub shaft
L.S.collar
r
L.S.gear
Fig.18
K
Rack spring
Lead screw
Rack plate
DVD Pickup
Fig.19
1-22 (No.MA250)
3.2.10 Removing the spindle motor
r
(See Fig.20)
• Remove the mechanism control board.
Remove the two screws L attaching the spindle motor on the
bottom of the body.
Caution:
Perform adjustment when reattaching the spindle motor.
3.2.11 Removing the feed motor assembly
(See Fig.21 and 22)
• Remove the mechanism control board.
(1) Remove the feed TRI. spring on the bottom of the body.
(See Fig.21.)
(2) Remove the two screws M attaching the feed motor as-
sembly. (See Fig.21.)
(3) Remove the slit washer from the motor H. assembly and
pull out the worm wheel. (See Fig.22.)
Remove the two screws N attaching the feed motor. (See
Fig.22.)
Spindle motor
Feed TRI. spring
L
Fig.20
M
Feed motor assembly
Fig.21
Slit washer
Worm wheel
Feed moto
N
Motor H. assembly
Fig.22
(No.MA250)1-23
SECTION 4
ADJUSTMENT
4.1 Test instruments required for adjustment
(1) Digital oscilloscope (199MHz)
(2) Jitter meter
(3) Digital tester
(4) Electric voltmeter
(5) Tracking offset meter
(6) Test Disc : VT501 or VT502
(7) Extension studs : STDV001-3P
(8) Extension cable : EXTDV002-30P
4.3 Connection method
Connection procedure
(1) Attach the front chassis assembly to the main board.
(2) Connect the front panel assembly to the main board.
(3) Attach the heat sink and rear bracket to the main board.
(4) Attach the extension studs to the DVD mechanism assembly.
(5) Connect the DVD mechanism assembly and the main board with a extension cable.
4.2 Standard measuring conditions
Power supply voltage DC14.4V(11 to 16V)
Load impedance 4Ω(2 Speakers connection)
Line Output 20KΩ
Caution:
Be sure to attach the heat sink and rear bracket onto the power
amplifier IC and regulator IC respectively, before supply the
power. If voltage is applied without attaching these parts, the
power amplifier IC and regulator IC will be destroyed by heat.
Extension cable
EXTDV002-30P
Heat sink
Extension stud
STDV001-3P
Extension studs
STDV001-3P
1-24 (No.MA250)
4.4 Adjustment method for jitter
After replacing the pickup, set the unit in the service mode to display a jitter value on the LCD.
Confirm that the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD.
If it is within 12%, then adjustment is not necessary.
If the measured jitter value is outside the 12% tolerance range, perform the following adjustments.
4.4.1 Adjustment procedure
(1) Set the unit to the service mode and display a jitter value (hex data) on the LCD.
(2) Turn each of the screws a, b and c, by a half-turn per step, in the direction that reduces the jitter value in order to minimize it .
(Do not turn a screw more than a half turn at a time, but adjust the screws in the cycle of the same level is turned in the pair of
b+c and the same level is turned in the pair of a+b.)
(3) After completing the adjustment, secure the screws with screw lock paint.
c
b
a
Jitter value adjustment procedure (Pickup horizontal level adjustment relative to the DVD recording surface)
(For the adjustment tool use a 3 mm wrench and not a screwdriver, this procedure will make the adjustment easier.)
3 mm wrench
(1) Set the unit to the service mode and display a jitter value (hex data) on the LCD.
(2) Turn each of the screws a, b and c, by a half-turn per step, in the direction that reduces the jitter value in order to minimize it.
(Do not turn a screw more than a half turn at a time, but adjust the screw in the cycle of same level turn by pair of b+c→ pair of
a+b.)
(3) After completing the adjustment, secure the screws with screw lock paint.
(No.MA250)1-25
4.5 Jitter value conversion table
Load the test DVD and set the unit to the service mode. A jitter value converted to the hex value is displayed on the LCD. Refer to the
corresponding decimal notation value shown in the following Jitter Conversion Table.
The adjustment is OK if the jitter value measured with a jitter meter is within 12% of the jitter value displayed on the LCD.
If the measured jitter value is outside the 12% tolerance range, adjust it to minimize the difference between the measured value and
the displayed value.
Indicated
on the LCD
EF56
EF22
EEEE
EEBA
EE86
EE52
EE1E
EDEA
EDB6
ED82
ED4E
ED1A
ECE6
ECB2
EC7E
EC4A
EC16
EBE2
EBAE
EB7A
EB46
EB12
EADE
EAAA
EA76
EA42
EA0E
E9DA
E9A6
E972
E93E
E90A
E8D6
E8A2
E86E
E83A
E806
E7D2
Jitter value
(%)
4.7
4.8
4.9
5.0
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
6.0
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
7.0
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
8.0
8.1
8.2
8.3
8.4
Indicated
on the LCD
E79E
E76A
E736
E702
E6CE
E69A
E666
E632
E5FE
E5CA
E596
E562
E52E
E4FA
E4C6
E492
E45E
E42A
E3F6
E3C2
E38E
E35A
E326
E2F2
E2BE
E28A
E256
E222
E1EE
E1BA
E186
E152
E11E
E0EA
E0B6
E082
E04E
E01A
Jitter value
(%)
8.5
8.6
8.7
8.8
8.9
9.0
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
10.0
10.1
10.2
10.3
10.4
10.5
10.6
10.7
10.8
10.9
11.0
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
11.9
12.0
12.1
12.2
Indicated
on the LCD
DFE6
DFB2
DF7E
DF4A
DF16
DEE2
DEAE
DE7A
DE46
DE12
DDDE
DDAA
DD76
DD42
DD0E
DCDA
DCA6
DC72
DC3E
DC0A
DBD6
DBA2
DB6E
DB3A
DB06
DAD2
DA9E
DA6A
DA36
DA02
D9CE
D99A
D966
D932
D8FE
D8CA
D896
D862
Jitter value
(%)
12.3
12.4
12.5
12.6
12.7
12.8
12.9
13.0
13.1
13.2
13.3
13.4
13.5
13.6
13.7
13.8
13.9
14.0
14.1
14.2
14.3
14.4
14.5
14.6
14.7
14.8
14.9
15.0
15.1
15.2
15.3
15.4
15.5
15.6
15.7
15.8
15.9
16.0
1-26 (No.MA250)
Calculation
Indicated on the LCD
E9A6 7.5
Jitter (%)
4.6 Service mode
4.6.1 Standard input/output conditions
Power supply voltage DC14.4V(11 to 16V)
Load impedance 4Ω(2 Speakers connection)
Line Output 20KΩ
4.6.2 Service mode setting procedure
(The DVD does not need to be loaded before starting the following procedure.)
[SOURCE] button
[DISC UP] button
[STANDBY/ON ATTENUATOR] button
(1) Press a [STANDBY/ON ATTENUATOR] button on a main unit and switch it on.
(2) Keep this state more than 2 seconds while continuing pressing the [SEL] button, [STANDBY/ON ATTENUATOR] button and
[SOURCE] button sequentially.
(3) This unit is set by a service mode.
*Exchanging it operate a menu of a service mode with the [DISC UP] button and [DISC DOWN] button.
Operate choice of a menu with a [SEL] button.
[SEL] button
[DISC DOWN] button
4.6.3 Operation procedures
Keep this state more than 2 seconds while
continuing pressing the [SEL] button,
[STANDBY/ON ATTENUATOR] button and
[SOURCE] button sequentially.
The unit enters the service mode.
"INIT ALL" is Press the [SEL] key Initialize all data to the factory setting
indicated on the LCD.
"VERSION" is Press the [SEL] key Microcomputer version display
indicated on the LCD.
"AREA/RGN" is Press the [SEL] key Destination area/region display
indicated on the LCD.
:The system control EEPROM is
initialized entirely.
S-XXX-YY System control CPU
version/ROM correction version
DVD-XXXX DVD version
USB-XXXXφ USB version
*Exchanging it operate each indication with the
[DISC UP] button and [DISC DOWN] button.
STS-X XX System control destination
DVD-X XX DVD unit destination
DVDRGN X DVD unit region
*Exchanging it operate each indication with the
[DISC UP] button and [DISC DOWN] button.
BA
(No.MA250)1-27
BA
"CLR ERR" is Press the [SEL] key Clear loading/ejection error history
indicated on the LCD.
:The error history stored in the EEPROM is
cleared.
"CD ERROR" is
indicated on the LCD.
Error code (1 byte)
First byte [01] Eject error
Detailed error code (2 bytes)
First byte Higher 4 bits Route NO. (Process of error occurrence)
Second byte bit7
(Example) When a switch status error occurs during loading route 3 and
Route No.(EJECT route No.)
Press the [SEL] key Read loading and ejection error history
:The error history saved in the system control
is read and displayed.
TOT-xxxx : Total error count.
Total error count
(A figure between 0 and 9999 is
displayed. 10000 or more is also
displayed as 9999.)
Enyyzzzz: Latest three error code.
Detailed error code
Error code
Counter
0nyyzzzz: First five error code
Detailed error code
Error code
Counter
*Exchanging it operate each indication with the
[DISC UP] button and [DISC DOWN] button.
[02] Loading error
*Displayed with loading/ejection error only.
. . . .
Refer to charts 1.1 and 1.2.
Lower 4 bits Error type
. . . .
[1] Time out
[2] Switch status error
[3] Swinging error
. . . .
Disc type (0: 12 cm. 1: 8 cm)
bit6,5
bit4
bit3
bit2
bit1 SW 1 status
bit0 RESET SW status
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
Fixed at 0
SW 1 status
SW 2 status
SW 3 status
the switch status is L/L/H/H/H (00111B = 07H), the error code
and detailed error code become: [09 3207].
SW1/2/3/4 [Rest SW] Loading Eject Reload
-
1(2)
1(2)
2(2)
2(2)
2(2)
2(2)
3(1)
3(1)
1,1,1,1 [0] No Disc No Disc
0,1,1,1 [0] Disc insert Disc push in
0,0,1,1 [0] Eject
0,0,0,1 [0] Reload start
0,0,1,1 [0]
0,1,1,1 [0]
1,1,1,1 [0]
1,1,1,0 [0]
1,1,1,0
[1]
detection
completion
Load completion Eject start Load completion
Chart 1.1 12cm Disc switch status transition
1-28 (No.MA250)
DC
DC
Route No.(EJECT route No.)
-
1(2)
1(2)
2(2)
2(2)
3(1)
3(1)
SW1/2/3/4 [Rest SW] Loading
1,1,1,1 [0] No Disc No Disc Disc push in
0,1,1,1 [0] Disc insert Eject
0,0,1,1 [0] Reload start
0,1,1,1 [0]
1,1,1,1 [0]
1,1,1,0 [0]
1,1,1,0 [1] Load completion Eject start Load completion
*Transition in the center loading (Similar to 12cm in the side loading)
Chart 1.2 8cm Disc switch status transition
*
detection completion
Eject Reload
"DVD-TEMP" is Thermistor's temperature data readout
Press the [SEL] key
indicated on the LCD. : Data in the temperature sensor in the DVD unit
is read every 5 seconds and displayed in hex numbers.
"SYS-TEMP" is
Press the [SEL] key
Thermistor's temperature data readout
indicated on the LCD. : Data in the temperature sensor in the system control
is read every 5 seconds and displayed in hex numbers.
"CHK MODE" is DVD unit check mode
Press the [SEL] key
indicated on the LCD. (See section " DVD unit check mode" for details.)
"RUNNING" is Running mode: For use in running tests.
Press the [SEL] key
indicated on the LCD.
"MEMCHECK" is Memory check
Press the [SEL] key
indicated on the LCD. : The remaining data capacity of the disc is displayed on
the LCD.
"INIT" is Initialize user set data
Press the [SEL] key
indicated on the LCD. : The system control EEPROM is initialized except for the
loading/ejection error history.
(No.MA250)1-29
4.6.4 DVD unit check mode
Change LCD indication with a [FF ] button and a [REW ] button.
Check item list
No. A/D key DVD unit operation Indication contents
1 [1] Start at normal speed NORMPLAY
2 [2] Tracking off on the outermost position of CD EF-BAL
3 [3] Tracking off on the innermost position of CD EF-BAL
4 [4] CD_LD lights and laser current is displayed CDLD ON
5 [5] DVD_LD lights and laser current is displayed DVDLD ON
6 [6] DVD x1 jitter measuring mode DVDx1JIT
7 [DISP] Indication of EEPROM contents ROM DATA
8 [SOURCE] Initialization of EEPROM contents ROMCLEAR
9 [SEL] Indication of temperature TEMP
10 [MODE] Search & jitter measurement to an appointed DVD JIT
11 [BAND] Setting of MONITOR terminal MONITOR
12 [DISC UP
13 [DISC DW
Example of
LCD indication
(After start, it is measured JITTER on the CUR Laser current value
internal position) JIT Jitter value
(for use in mechanism measurement) CUR Laser current value
position of DVD PLC (Position measured with
]
DVDx1 double speed start PLAY
(After start, it is measured JITTER on the CUR Laser current value
internal position) JIT Jitter value
]
Disc stopped & LD-OFF STOP
* * * *
* * * *
OUTTROFF For EF phase error
INNTROFF For EF phase error
CUR Laser current value
* * * *
JIT Jitter value
* * * *
CUR Laser current value
* * * *
JIT Jitter value
* * * *
* * * *
JIT Jitter value
* * * *
ADDR EEPROM address
* * * *
DATA EEPROM contents
* * * *
TEMP Temperature
* * * *
* * * *
JIT VT-501 jitter value)
* * * *
M1
* * * *
M2
* * * *
* * * *
* * * *
Note :
• In the case of the jitter measurement: Begin a service mode after insert a disc.
• Press key [1] of No.1 before an item in which the No.2 or 3 key is pressed.
• Press key [1] of No.1 or key [12] of No.12 before an item in which the No.10 key is pressed and confirm the indication of jitter
value on the LCD.
• No.6 starts only a DVD1 layer disc. Even other discs start DVD1 layer.
• When No.1 and No.12 are pushed after jitter indication, a focus jump is executed. (only DVD2 layer)
• Stop a disc before OPEN, CLOSE by all means.(OPEN and CLOSE are not executed in a disc turn.)
• The check mode can be exited either by pressing the [POWER] key or by resetting the unit.
1-30 (No.MA250)
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.
(No.MA250)1-31
Victor Company of Japan, Limited
Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,Gumma-ken, 371-8543,Japan
(No.MA250)
Printed in Japan
VPT
PARTS LIST
KD-ADV6270J,KD-DV6200J
KD-DV6201E,KD-DV6201EU,KD-DV6202E,KD-DV6202EU
KD-DV7205U,KD-DV7205UN,KD-DV7205UT
KD-DV7205A,KD-DV7206U,KD-DV7206UN
KD-DV7206UT,KD-DV7206A,KD-DV6207EE
* All printed circuit boards and its assemblies are not available as service parts.
MA250
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
DVD mechanism assembly and parts list (Block No.MJ)
Electrical parts list (Block No.01~10)
Packing materials and accessories parts list (Block No.M3)
3- 2
3- 7
3-10
3-30
3-1
Exploded view of general assembly and parts list
6
6
6
7
7
6
Block No.
5
16
5
9
3
C
M
M
1
M
DV7205UT
DV7206UT
98
1
B
18
DV
DV
DV
DV
DV
2
32
11
38
48
26
10
27
53
31
39
28
D
36
29
37
30
44
E
46
43
54
52
56
D
42
40
33
45
45
11 34
49
47
62
64
55
41
57
65
60
35
63
90
51
72
A
50
59
Switch board
58
12
85
e
6
19
59
20
3-2
61
71
Main sub board
13
18
DV6201E,EU
DV6202E,EU
DV7205U,UN,UT,A
DV7206U,UN,UT,A
DV6207EE
2
C
84
87
7
88
78
88
81
7
h
b
77
g
D
B
22
79
D
j
80
g
h
83
82
k
a
G
14
b
97
DV6201E,EU
DV6202E,EU
14
75
86
76
76
85
j
89
f
a
d
G
8
USB board
6
E
6
68
92
A
17
19
Main board
94
6
95
f
k
d
74
91
93
15
9
67
66
e
0
rd
13
25
13
12
73
21
4
70
4
24
23
4
96
23
DV6201E,EU
DV6202E,EU
DV7205U,UN,UT,A
DV7206U,UN,UT,A
DV6207EE
69
3-3
General Assembly
Symbol No. Part No. Part Name Description Local
Block No. [M][1][M][M]
1 GE10154-002A TOP CHASSIS
2 GE40135-001A EARTH PLATE
3 GE32126-002A SIDE PANEL
4 QYSDST2605ZA TAP SCREW M2.6 x 5mm(x3)
5 GE40235-001A SCREW (x2)
6 GE40235-004A SCREW (x3)
7 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2)
8 QYSDST2606ZA TAP SCREW M2.6 x 6mm
9 QYSDST2610ZA TAP SCREW M2.6 x 10mm
10 QYSDSF2006ZA TAP SCREW M2 x 6mm(x2)
11 QYSDST2004ZA TAP SCREW M2 x 4mm(x2)
12 QYSDST2003ZA TAP SCREW M2 x 3mm(x2)
13 QYSDST2606ZA TAP SCREW M2.6 x 6mm(x2)
14 QYSDST2604ZA TAP SCREW M2.6 x 4mm
14 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2) DV6201E,DV6201EU,DV6202E,DV6202EU
15 QYSDST2604ZA TAP SCREW M2.6 x 4mm
16 QYSDST2610ZA TAP SCREW M2.6 x 10mm
17 FSYH4036-100 SHEET
18 LV40848-044A SPACER(P)
19 LV34460-001A INSULATOR
20 GE40311-001A SUP BRACKET
21 GE20192-001A DUST COVER
22 GE40332-001A INSULATOR
23 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2)
24 GE40218-034A SHEET
25 GE40278-001A SHEET
26 GE32144-002A F.CHASSIS ASSY
27 GE32173-004A FRONT COVER ASS
27 GE32173-002A FRONT COVER ASS DV6200J
27 GE32173-003A FRONT COVER ASS
28 GE32136-004A EJECT BUTTON
28 GE32136-002A EJECT BUTTON DV6200J
28 GE32136-003A EJECT BUTTON
29 GE40202-015A COMP.SPRING
30 GE32116-001A LOCK LEVER GUID
31 GE32117-002A LOCK LEVER(L)
32 GE32118-002A DETACH LEVER
33 GE32119-002A LOCK LEVER (TOP
34 GE32120-001A LOCK LEVER(R)
35 GE32121-001A OPEN LEVER
36 GE40154-001A GEAR
37 QZW0108-002 OIL DAMPER
38 GE40202-014A COMPRESSION SPRING
39 GE40301-002A SPRING
40 GE40303-003A T.SPRING
41 GE40304-001A T.SPRING
42 GE40305-001A T.SPRING
43 GE40156-001A BLIND
44 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)
45 VKZ4777-010 MINI SCREW (x2)
46 GE10150-029A FRONT PANEL ADV6270J
46 GE10150-030A FRONT PANEL DV6200J
46 GE10150-035A FRONT PANEL DV6201E,DV6201EU
46 GE10150-036A FRONT PANEL DV6202E,DV6202EU
46 GE10150-031A FRONT PANEL DV7205U,DV7205UN,DV7205UT,DV7205A
46 GE10150-032A FRONT PANEL DV7206U,DV7206UN,DV7206UT,DV7206A
46 GE10150-037A FRONT PANEL DV6207EE
47 GE32143-015A FINDER ASSY ADV6270J
47 GE32143-014A FINDER ASSY DV6200J
47 GE32143-020A FINDER ASSY
48 GE40314-001A VOLUME KNOB ASS
49 GE32135-001A BAND DISP BTN
DV6201E,DV6201EU,DV6202E,DV6202EU
,DV7205U,DV7205UN,DV7205UT,
DV7205A,DV7206U,DV7206UN,DV7206UT
,DV7206A,DV6207EE
ADV6270J,DV6200J,DV7205U,DV7205UN,
DV7205UT,DV7205A,DV7206U,DV7206UN
,DV7206UT,DV7206A,DV6207EE
ADV6270J,DV6202E,DV6202EU,DV7206U
,DV7206UN,DV7206UT,DV7206A,
DV6207EE
DV6201E,DV6201EU,DV7205U,
DV7205UN,DV7205UT,DV7205A
ADV6270J,DV6202E,DV6202EU,DV7206U
,DV7206UN,DV7206UT,DV7206A,
DV6207EE
DV6201E,DV6201EU,DV7205U,
DV7205UN,DV7205UT,DV7205A
DV6201E,DV6201EU,DV6202E,DV6202EU
,DV7205U,DV7205UN,DV7205UT,
DV7205A,DV7206U,DV7206UN,DV7206UT
,DV7206A,DV6207EE
3-4
Symbol No. Part No. Part Name Description Local
50 GE20193-003A PRESET BUTTON
50 GE20193-005A PRESET BUTTON
51 GE32137-002A UP/DOWN BTN
51 GE32137-001A UP/DOWN BTN
52 GE32134-001A SRC BUTTON
53 GE32133-001A RIM COVER
54 GE32138-004A DETACH BTN TOP
54 GE32138-002A DETACH BTN TOP DV6200J
54 GE32138-003A DETACH BTN TOP
55 GE32139-001A DETACH BTN BASE
56 GE40202-016A COMP.SPRING
57 VKZ4777-010 MINI SCREW
58 GE10151-001A REAR COVER
59 VKZ4777-010 MINI SCREW (x5)
60 VKZ4777-011 MINI SCREW
61 GE32140-001A LCD CASE
62 GE32142-001A LENS
63 GE32141-001A LENS CASE
64 GE40313-001A LIGHTING SHEET
65 GE40321-001A SHEET
66 GE32128-002A BOTTOM COVER
67 GE32147-002A INSULATOR
68 GE40320-003A COOLING RUBBER
69 GE32076-001A NAME PLATE ADV6270J
69 GE32079-001A NAME PLATE DV6200J
69 GE32099-001A NAME PLATE DV6201E,DV6201EU
69 GE32102-001A NAME PLATE DV6202E,DV6202EU
69 GE32082-001A NAME PLATE DV7205U,DV7205UN,DV7205UT,DV7205A
69 GE32086-001A NAME PLATE DV7206U,DV7206UN,DV7206UT,DV7206A
69 GE32105-001A NAME PLATE DV6207EE
70 GE31683-017A LABEL (DVD) ADV6270J,DV6200J
70 GE31683-018A LABEL (DVD) DV6201E,DV6201EU,DV6202E,DV6202EU
70 GE31683-019A LABEL (DVD)
70 GE31683-020A LABEL (DVD) DV7205A,DV7206A
70 GE31683-024A LABEL (DVD) DV6207EE
71 QLD0384-001 LCD MODULE
72 QNZ0867-001 RUBBER CONN
73 QUQP05-4510BB-E FFC WIRE 45pin 10cm
74 QAM0548-001 L-IN CABLE ADV6270J
74 QAM0685-001 LINE IN CABLE
75 QAM0683-001 COMPOSITE CABLE
76 VYTA500-001 PIN CAP (x4)
77 QMFZ039-150-T FUSE 15A
78 QAR0353-001 FAN
79 GE32124-001A REAR BARCKET
80 QYSDST2606ZA TAP SCREW M2.6 x 6mm
81 QYSDST2606ZA TAP SCREW M2.6 x 6mm
82 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
83 QYSDSF2606ZA TAP SCREW M2.6 x 6mm
84 GE40307-002A IC BRACKET
85 GE40308-001A REG BRACKET
86 GE40310-001A REG BRACKET
87 GE40324-001A FAN BRACKET
88 QYSDST2604ZA TAP SCREW M2.6 x 4mm(x2)
89 GE40270-001A SHIELD COVER
90 GE30854-001A LED HOLDER
91 QAM0813-001 AUDIO CABLE
92 GE32129-002A PWB USB BRACKET
93 QYSDST2606ZA TAP SCREW M2.6 x 6mm
94 GE40218-047A SHEET
95 GE40218-048A SHEET
96 LV41843-002A LASER CAUTION
97 QAM0686-001 STEERING REMOTE DV6201E,DV6201EU,DV6202E,DV6202EU
98 GE31574-034A UT LABEL DV7205UT
ADV6270J,DV6202E,DV6202EU,DV7206U
,DV7206UN,DV7206UT,DV7206A,
DV6207EE
DV6200J,DV6201E,DV6201EU,DV7205U,
DV7205UN,DV7205UT,DV7205A
ADV6270J,DV6200J,DV7205U,DV7205UN,
DV7205UT,DV7205A,DV7206U,DV7206UN
,DV7206UT,DV7206A
DV6201E,DV6201EU,DV6202E,DV6202EU
,DV6207EE
ADV6270J,DV6202E,DV6202EU,DV7206U
,DV7206UN,DV7206UT,DV7206A,
DV6207EE
DV6201E,DV6201EU,DV7205U,
DV7205UN,DV7205UT,DV7205A
DV7205U,DV7205UN,DV7205UT,
DV7206U,DV7206UN,DV7206UT
DV6200J,DV6201E,DV6201EU,DV6202E,
DV6202EU,DV7205U,DV7205UN,
DV7205UT,DV7205A,DV7206U,DV7206UN
,DV7206UT,DV7206A,DV6207EE
DV6201E,DV6201EU,DV6202E,DV6202EU
,DV7205U,DV7205UN,DV7205UT,
DV7205A,DV7206U,DV7206UN,DV7206UT
,DV7206A,DV6207EE
3-5
Symbol No. Part No. Part Name Description Local
98 GE31574-035A UT LABEL DV7206UT
3-6
DVD mechanism assembly and parts list
Grease
34
30
=
JVS-1003
=
MOBIL-1
=
JVG-31N
=
JC-803B
=
1401C
= FG-87HS
29
93
FMU-JD6-11D
97
94
95
92
96
15
91
90
18
14
87
Block No.
18
A
J
M
M
M
62
17
13
32
16
53
10
56
36
55
57
21
88
INSIDE
OUTSIDE
24
59
58
37
22
38
B
19
43
c
65
J
71
26
E
73
72
83
G
H
D
K
F
3
7420
70
28
27
B
29
31
34
35
33
C
23
3
48
47
F
44
50
54
H
G
49
60
61
7
75
AFTER SET PICK UP SA.
APPLY GREASE
52
K
51
63
45
46
BACK SIDE
6
89
c
64
40
43
39
41
42
25
76
79
80
86
67
10
11
9
INSIDE
68
86
66
a
85
E
81
84
86
J
1
a
82
1
77
5
A
78
69
b
4
2
16
12
10
5
D
8
12
8
17
The parts without symbol number are not service.
3-7
DVD mechanism
Symbol No. Part No. Part Name Description Local
1 VKZ4539-056 MINI SCREW (x2)
2 QYSPSFT2040ZA TAP SCREW M2 x 4mm
3 LV43481-001A COOLING RUBBER (x2)
4 LV10674-001A CHASSIS FRAME
5 LV30225-0J6A SPACER (x2)
6 VKZ4539-056 MINI SCREW
7 VYSA1R4-056 SPACER
8 LV35272-001A DAMPER(F) (x2)
9 LV35273-001A DAMPER(R)
10 QYSDST2005ZA SCREW M2 x 5mm(x3)
11 LV43039-001A DAMPER SP.(R)
12 LV43849-001A DAMPER SP(F2) (x2)
13 LV43041-001A FLOATING SPRING (x2)
14 LV10675-001A TOP COVER
15 LV30225-0J5A SPACER
16 VKZ4539-056 MINI SCREW (x2)
17 LV33669-001A STOPPER (x2)
18 VKZ4539-056 MINI SCREW (x2)
19 LV21297-004A CHAS. BASE ASSY
20 LV33608-002A GEAR HOLDER
21 VKZ4539-056 MINI SCREW
22 LV43561-002A ABSORBER
23 LV30225-0J5A SPACER
24 LV36831-001A SLIDE CAM ASSY2
25 LV33610-002A FLOATING ARM
26 LV33611-001A CONNECT ARM
27 LV33678-003A LOADING A. ASSY
28 LV43049-001A LOADING SHAFT
29 LV43052-003A ROLLER (x2)
30 LV33612-001A LOADING GEAR
31 QYWFM124013 WASHER 4mm/1.2mm x 0.13mm
32 LV43053-002A ROD(L)
33 LV43054-003A ROD(R)
34 LV43001-001A COLLAR (x2)
35 LV21285-003A PROTECTOR
36 LV43055-001A PROTECTOR SP.
37 QAR0373-001 MOTOR
38 LV43002-002A WORM GEAR
39 QYSPSPT2025MA SCREW M2 x 2.5mm(x2)
40 LV33679-001A MOTOR H. ASSY
41 LV33614-003A WORM WHEEL
42 QYWDL1230250 SLIT WASHER 3mm/1.2mm x 0.25mm
43 VKZ4539-056 MINI SCREW (x2)
44 LV33615-001A GEAR 2
45 LV43057-004A IDLER ARM ASSY
46 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
47 LV21286-001A CONTROL CAM
48 QYWDL1230196 SLIT WASHER 3mm/1.2mm x 0.19mm
49 LV33616-002A LOAD.LOCK LEVER
50 LV43060-001A CAM SPRING
51 LV43005-001A GEAR 4
52 LV43006-002A GEAR 5
53 LV33617-002A GEAR 6
54 LV33618-002A LOADING G. ARM
55 QYWDL1635252 SLIT WASHER 3.5mm/1.6mm x 0.25mm
56 LV43007-002A GEAR 7
57 LV33619-002A GEAR 8
58 LV42132-001A E RING
59 QYWFM215013 WASHER 5mm/2.1mm x 0.13mm
60 LV33620-001A GEAR 9
61 LV43008-001A GEAR10
62 LV43061-001A LOAD SPRING
63 LV33621-001A FEED GEAR
64 LV33622-002A TRIGGER ARM
65 LV43062-001A FEED TRI.SPRING
66 QAR0240-002 SPINDLE MOTOR
67 LV21287-002A SPINDLE BASE
68 LV44169-001A SPECIAL SCREW (x2)
69 VKZ4539-056 MINI SCREW (x2)
70 QAL0742-001 DVD PICK UP
71 LV34583-002A CD RACK PLATE
72 LV34579-001A CD RACK SPRING
73 LV43903-002A MINI TAP SCREW
74 LV43037-001A LEAD SCREW
Block No. [M][J][M][M]
3-8
Symbol No. Part No. Part Name Description Local
75 LV43010-001A L.S.GEAR
76 LV43063-001A L.S.COLLAR
77 LV43011-001A THRUST SPRING
78 QYSPSFT2040ZA TAP SCREW M2 x 4mm
79 LV33624-001A HOLDER(M)
80 VKZ4539-056 MINI SCREW (x2)
81 LV22130-001A HOLDER(S) 2
82 VKZ4539-056 MINI SCREW (x2)
83 LV43064-001A ROD(M)
84 LV43065-001A ROD(S)
85 LV43066-001A SUB SHAFT
86 VKZ4730-002 SPECIAL SCREW (x3)
87 LV21298-007A CLAMPER UNIT
88 LV43070-001A CLAMPER SPRING
89 LV43355-001A CLAMPER2 SPRING
90 LV30225-0J6A SPACER
91 LV22185-001A FRONT UNIT (C)
92 VKZ4539-056 MINI SCREW
93 LVB30012-002A SW FPC
94 NSW0187-001 SWITCH
95 NSW0187-001 SWITCH
96 NSW0187-001 SWITCH
97 VKZ4539-055 MINI SCREW (x2)
3-9
Electrical parts list
Main board
Symbol No.
Part No. Part Name Description Local
(KD-ADV6170J,DV6200J,DV7205U,
DV7205UN,DV7205UT,DV7205A,
DV7206U,DV7206UN,DV7206UT,
DV7206A)
Block No. [0][1]
Symbol No.
IC161 TDA7416 IC
IC162 CD4066BPW-X IC
IC301 TB2904HQ IC
IC371 NJM2792V-X IC ADV6270J
IC401 SN74AHCT1G08V-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC
IC421 NJM4580V-X IC
IC431 LC75344M-X IC
IC471 BA05CC0WT-V5 IC REGULATOR
IC721 UPD784218AGC329 IC
IC722 BR24L16F-W-X IC(DIGITAL)
IC723 S-80833CNNB-G-W IC
IC801 SN74AHC126NS-X IC
IC901 R2S25401DS-E IC
IC921 BA33BC0FP-X IC
IC922 BD9781HFP-W IC
IC961 SN74LVC32APW-X IC
IC962 SN74HCT32APW-X IC
Q2 RT1N141C-X DIGI TRANSISTOR
Q161 RT1N141C-X DIGI TRANSISTOR
Q162 RT1N141C-X DIGI TRANSISTOR
Q191 KTD1304-X TRANSISTOR
Q192 RT1P441C-X DIGI TRANSISTOR
Q301 RT1N441C-X TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q303 RT1N141C-X DIGI TRANSISTOR
Q304 RT1N141C-X DIGI TRANSISTOR
Q324 KTD1304-X TRANSISTOR
Q334 KTD1304-X TRANSISTOR
Q344 KTD1304-X TRANSISTOR
Q354 KTD1304-X TRANSISTOR
Q421 KTD1304-X TRANSISTOR
Q422 KTD1304-X TRANSISTOR
Q431 KTD1304-X TRANSISTOR
Q432 KTD1304-X TRANSISTOR
Q476 2SA1365/F/-X TRANSISTOR
Q477 RT1N141C-X DIGI TRANSISTOR
Q701 2SA1530A/R/-X TRANSISTOR
Q781 RT1P141C-X DIGI TRANSISTOR
Q782 RT1P141C-X DIGI TRANSISTOR
Q783 RT1P141C-X DIGI TRANSISTOR
Q784 RT1P141C-X DIGI TRANSISTOR
Q821 RT1N141C-X DIGI TRANSISTOR
Q822 RT1P141C-X DIGI TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q881 2SC3928A/R/-X TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q891 RT1N141C-X DIGI TRANSISTOR
Q903 2SA1530A/R/-X TRANSISTOR
Q904 RT1N141C-X DIGI TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
D1 1SS355W-X DIODE C.M
D2 1SS355W-X DIODE C.M
Part No. Part Name Description Local
ADV6270J,
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
D192 1SS355W-X DIODE C.M
D301 UDZW11B-X Z DIODE
D302 1SS355W-X DIODE C.M
D305 CRS03-W SB DIODE
D308 CRS03-W SB DIODE
D324 1SS355W-X DIODE C.M
D334 1SS355W-X DIODE C.M
D344 1SS355W-X DIODE C.M
D354 1SS355W-X DIODE C.M
D401 CRS03-W SB DIODE
D421 1SS355W-X DIODE C.M
D431 1SS355W-X DIODE C.M
D472 1A3G-T1 SI DIODE
D701 UDZW6.2B-X DIODE
D702 UDZW6.2B-X DIODE
D703 UDZW6.2B-X DIODE
D704 UDZW6.2B-X DIODE
D705 UDZW6.2B-X DIODE
D706 UDZW6.2B-X DIODE
D707 UDZW6.2B-X DIODE
D709 UDZW6.2B-X DIODE
D710 UDZW6.2B-X DIODE
D711 UDZW6.2B-X DIODE
D716 UDZW6.2B-X DIODE
D717 UDZW6.2B-X DIODE
D719 SLR-56VC3F DIODE C.M
D731 1SS355W-X DIODE C.M
D732 UDZW6.2B-X DIODE
D781 MC2836-X DIODE
D782 MC2836-X DIODE
D783 UDZW11B-X Z DIODE
D784 UDZW11B-X Z DIODE
D785 1SS355W-X DIODE C.M
D801 CRS03-W SB DIODE
D821 UDZW12B-X Z DIODE
D851 CRS03-W SB DIODE
D852 CRS03-W SB DIODE
D885 1SS355W-X DIODE C.M
D891 MC2836-X DIODE
D901 1N5401-F64 SI DIODE
D903 1SS355W-X DIODE C.M
D906 UDZW5.1B-X SI DIODE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D923 CRS03-W SB DIODE
D924 CRS03-W SB DIODE
D925 CRS03-W SB DIODE
D981 CRS03-W SB DIODE
D982 CRS03-W SB DIODE
C1 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C4 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C8 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C9 QEKJ1HM-224Z E CAPACITOR 0.22uF 50V M
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
ADV6270J,
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
3-10
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C12 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C14 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C83 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C93 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C141 NCB31HK-471X C CAPACITOR 470pF 50V K
C151 NCB31HK-471X C CAPACITOR 470pF 50V K
C155 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C163 NFV81CM-105X MF CAPACITOR 1uF 16V M
C164 NFV81CM-105X MF CAPACITOR 1uF 16V M
C165 NFV81CM-105X MF CAPACITOR 1uF 16V M
C166 QTE1C57-106Z E CAPACITOR 10uF 16V
C168 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C169 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C170 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C171 QTE1H57-225Z E CAPACITOR 2.2uF 50V
C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C174 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C176 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C177 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C181 QTE1H57-225Z E CAPACITOR 2.2uF 50V
C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C184 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C186 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C187 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C191 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C267 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C311 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M
C312 QTE1C57-476Z E CAPACITOR 47uF 16V
C313 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C314 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C315 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C316 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C326 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C328 NFV81CM-105X MF CAPACITOR 1uF 16V M
C329 NCS31HJ-101X C CAPACITOR 100pF 50V J
C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C336 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C338 NFV81CM-105X MF CAPACITOR 1uF 16V M
C339 NCS31HJ-101X C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 NFV81CM-105X MF CAPACITOR 1uF 16V M
C349 NCS31HJ-101X C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 NFV81CM-105X MF CAPACITOR 1uF 16V M
C359 NCS31HJ-101X C CAPACITOR 100pF 50V J
C373 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M ADV6270J
C374 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M ADV6270J
C377 NCB31HK-152X C CAPACITOR 1500pF 50V K ADV6270J
C378 NCB31HK-152X C CAPACITOR 1500pF 50V K ADV6270J
C379 QEKJ1AM-227Z E CAPACITOR 220uF 10V M ADV6270J
C380 QEKJ1AM-227Z E CAPACITOR 220uF 10V M ADV6270J
C384 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M ADV6270J
C389 NCB31HK-104X C CAPACITOR 0.1uF 50V K ADV6270J
C390 QEKJ1AM-107Z E CAPACITOR 100uF 10V M ADV6270J
C391 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M ADV6270J
C392 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M ADV6270J
C401 NCS31HJ-220X C CAPACITOR 22pF 50V J
C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NCS31HJ-220X C CAPACITOR 22pF 50V J
C406 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C415 NCS31HJ-101X C CAPACITOR 100pF 50V J
C416 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C423 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C424 NCS31HJ-151X C CAPACITOR 150pF 50V J
C425 NCS31HJ-101X C CAPACITOR 100pF 50V J
C426 NCS31HJ-221X C CAPACITOR 220pF 50V J
C427 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C428 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C433 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C434 NCS31HJ-151X C CAPACITOR 150pF 50V J
C435 NCS31HJ-101X C CAPACITOR 100pF 50V J
C436 NCS31HJ-221X C CAPACITOR 220pF 50V J
C437 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C438 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C441 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C451 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C461 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C462 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C463 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C464 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C465 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C474 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C475 NCB31HK-102X C CAPACITOR 1000pF 50V K
C476 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C477 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C478 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C479 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C480 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C701 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C721 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C722 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C723 NCS31HJ-471X C CAPACITOR 470pF 50V J
C724 NCS31HJ-471X C CAPACITOR 470pF 50V J
C725 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C726 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C727 NDC31HJ-270X C CAPACITOR 27pF 50V J
C728 NDC31HJ-270X C CAPACITOR 27pF 50V J
C729 NDC31HJ-220X C CAPACITOR 22pF 50V J
C730 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C731 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C732 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C733 NCS31HJ-471X C CAPACITOR 470pF 50V J
C781 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C782 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C783 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C784 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C802 NCS31HJ-220X C CAPACITOR 22pF 50V J
C803 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C804 NCS31HJ-220X C CAPACITOR 22pF 50V J
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C851 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C881 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C892 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C901 QEZ0722-338 E CAPACITOR 3300uF
C902 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C903 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C904 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C905 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C906 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C908 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C909 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C910 NCB31HK-102X C CAPACITOR 1000pF 50V K
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
ADV6270J,
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
3-11
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C911 NCB31HK-102X C CAPACITOR 1000pF 50V K
C912 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C913 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C918 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C919 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C925 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C926 QEXF1AM-476Z E CAPACITOR 47uF 10V M
C927 QEZ0595-477Z E CAPACITOR 470uF
C928 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C929 NCB31HK-472X C CAPACITOR 4700pF 50V K
C930 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C961 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C962 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C963 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C964 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C965 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C966 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C968 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C969 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C970 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C971 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C981 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C999 NRSA63J-0R0X MG RESISTOR 0
R2 NRSA63J-102X MG RESISTOR 1k
R3 NRSA63J-102X MG RESISTOR 1k
R5 NRSA63J-330X MG RESISTOR 33
R6 NRSA63J-330X MG RESISTOR 33
R7 NRSA63J-103X MG RESISTOR 10k
R8 NRSA63J-332X MG RESISTOR 3.3k
R9 NRSA63J-473X MG RESISTOR 47k
R10 NRSA63J-472X MG RESISTOR 4.7k
R11 NRSA63J-472X MG RESISTOR 4.7k
R12 NRS181J-4R7X MG RESISTOR 4.7
R13 NRS181J-6R8X MG RESISTOR 6.8
R81 NRSA63J-223X MG RESISTOR 22k
R82 NRSA63J-512X MG RESISTOR 5.1k
R82 NRSA63J-822X MG RESISTOR 8.2k
R91 NRSA63J-223X MG RESISTOR 22k
R92 NRSA63J-512X MG RESISTOR 5.1k
R92 NRSA63J-822X MG RESISTOR 8.2k
R141 NRSA63J-473X MG RESISTOR 47k
R142 NRSA63J-0R0X MG RESISTOR 0
R151 NRSA63J-473X MG RESISTOR 47k
R152 NRSA63J-0R0X MG RESISTOR 0
R155 NRSA63J-471X MG RESISTOR 470
R161 NRSA63J-0R0X MG RESISTOR 0
R162 NRSA63J-473X MG RESISTOR 47k
R163 NRSA63J-473X MG RESISTOR 47k
R164 NRSA63J-473X MG RESISTOR 47k
R165 NRSA63J-473X MG RESISTOR 47k
R166 NRSA63J-221X MG RESISTOR 220
R171 NRSA63J-222X MG RESISTOR 2.2k
R172 NRSA63J-222X MG RESISTOR 2.2k
R173 NRSA63J-0R0X MG RESISTOR 0
R191 NRSA63J-472X MG RESISTOR 4.7k
R192 NRSA63J-821X MG RESISTOR 820
R193 NRSA63J-101X MG RESISTOR 100
R194 NRSA63J-101X MG RESISTOR 100
R197 NRSA63J-471X MG RESISTOR 470
R302 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
ADV6270J,
DV6200J
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
ADV6270J,
DV6200J
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
R304 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R305 NRSA63J-103X MG RESISTOR 10k
R306 NRSA63J-273X MG RESISTOR 27k
R307 NRSA63J-100X MG RESISTOR 10
R308 NRSA63J-222X MG RESISTOR 2.2k
R323 NRSA63J-473X MG RESISTOR 47k
R324 NRSA63J-222X MG RESISTOR 2.2k
R325 NRSA63J-102X MG RESISTOR 1k
R326 NRSA63J-101X MG RESISTOR 100
R327 NRSA63J-0R0X MG RESISTOR 0
R329 NRSA63J-102X MG RESISTOR 1k
R330 NRSA63J-102X MG RESISTOR 1k
R333 NRSA63J-473X MG RESISTOR 47k
R334 NRSA63J-222X MG RESISTOR 2.2k
R335 NRSA63J-102X MG RESISTOR 1k
R336 NRSA63J-101X MG RESISTOR 100
R337 NRSA63J-0R0X MG RESISTOR 0
R339 NRSA63J-102X MG RESISTOR 1k
R340 NRSA63J-102X MG RESISTOR 1k
R343 NRSA63J-473X MG RESISTOR 47k
R344 NRSA63J-222X MG RESISTOR 2.2k
R345 NRSA63J-102X MG RESISTOR 1k
R346 NRSA63J-101X MG RESISTOR 100
R347 NRSA63J-0R0X MG RESISTOR 0
R349 NRSA63J-102X MG RESISTOR 1k
R350 NRSA63J-102X MG RESISTOR 1k
R353 NRSA63J-473X MG RESISTOR 47k
R354 NRSA63J-222X MG RESISTOR 2.2k
R355 NRSA63J-102X MG RESISTOR 1k
R356 NRSA63J-101X MG RESISTOR 100
R357 NRSA63J-0R0X MG RESISTOR 0
R359 NRSA63J-102X MG RESISTOR 1k
R360 NRSA63J-102X MG RESISTOR 1k
R371 NRSA63J-102X MG RESISTOR 1k
R371 NRSA63J-0R0X MG RESISTOR 0
R372 NRSA63J-102X MG RESISTOR 1k
R372 NRSA63J-0R0X MG RESISTOR 0
R373 NRSA63J-104X MG RESISTOR 100k
R374 NRSA63J-104X MG RESISTOR 100k
R375 NRSA63J-243X MG RESISTOR 24k
R376 NRSA63J-243X MG RESISTOR 24k
R377 NRSA63J-363X MG RESISTOR 36k
R378 NRSA63J-363X MG RESISTOR 36k
R381 NRSA63J-102X MG RESISTOR 1k
R381 NRSA63J-0R0X MG RESISTOR 0
R382 NRSA63J-102X MG RESISTOR 1k
R382 NRSA63J-0R0X MG RESISTOR 0
R383 NRSA63J-104X MG RESISTOR 100k
R384 NRSA63J-104X MG RESISTOR 100k
R385 NRSA63J-243X MG RESISTOR 24k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J ADV6270J
Ω
1/16W J
Ω
1/16W J ADV6270J
Ω
1/16W J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J
Ω
1/16W J ADV6270J
Ω
1/16W J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
DV6200J,D
V7205U,D
V7205UN,
DV7205UT,
DV7205A,
DV7206U,
DV7206UN
,DV7206U
T,DV7206A
DV6200J,D
V7205U,D
V7205UN,
DV7205UT,
DV7205A,
DV7206U,
DV7206UN
,DV7206U
T,DV7206A
DV6200J,D
V7205U,D
V7205UN,
DV7205UT,
DV7205A,
DV7206U,
DV7206UN
,DV7206U
T,DV7206A
DV6200J,D
V7205U,D
V7205UN,
DV7205UT,
DV7205A,
DV7206U,
DV7206UN
,DV7206U
T,DV7206A
3-12
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R386 NRSA63J-243X MG RESISTOR 24kΩ 1/16W J ADV6270J
R387 NRSA63J-363X MG RESISTOR 36k
R388 NRSA63J-363X MG RESISTOR 36k
R390 NRSA63J-0R0X MG RESISTOR 0
R401 NRSA63J-471X MG RESISTOR 470
R402 NRSA63J-100X MG RESISTOR 10
R403 NRSA63J-471X MG RESISTOR 470
R404 NRSA63J-2R2X MG RESISTOR 2.2
R410 NRS181J-0R0X MG RESISTOR 0
R411 NRSA63J-0R0X MG RESISTOR 0
R412 NRSA63D-682X MG RESISTOR 6.8k
R413 NRSA63J-100X MG RESISTOR 10
R414 NRSA63J-102X MG RESISTOR 1k
R415 NRSA63J-750X MG RESISTOR 75
R416 NRSA63J-0R0X MG RESISTOR 0
R417 NRSA63D-181X MG RESISTOR 180
R421 NRSA63J-220X MG RESISTOR 22
R422 NRSA63J-222X MG RESISTOR 2.2k
R423 NRSA63J-222X MG RESISTOR 2.2k
R424 NRSA63J-390X MG RESISTOR 39
R425 NRSA63J-102X MG RESISTOR 1k
R426 NRSA63J-183X MG RESISTOR 18k
R427 NRSA63J-682X MG RESISTOR 6.8k
R428 NRSA63J-472X MG RESISTOR 4.7k
R429 NRSA63J-104X MG RESISTOR 100k
R431 NRSA63J-220X MG RESISTOR 22
R432 NRSA63J-222X MG RESISTOR 2.2k
R433 NRSA63J-222X MG RESISTOR 2.2k
R434 NRSA63J-390X MG RESISTOR 39
R435 NRSA63J-102X MG RESISTOR 1k
R436 NRSA63J-183X MG RESISTOR 18k
R437 NRSA63J-682X MG RESISTOR 6.8k
R438 NRSA63J-472X MG RESISTOR 4.7k
R439 NRSA63J-104X MG RESISTOR 100k
R441 NRSA63J-223X MG RESISTOR 22k
R442 NRSA63J-223X MG RESISTOR 22k
R451 NRSA63J-223X MG RESISTOR 22k
R452 NRSA63J-223X MG RESISTOR 22k
R461 NRSA63J-100X MG RESISTOR 10
R462 NRSA63J-100X MG RESISTOR 10
R463 NRSA63J-100X MG RESISTOR 10
R471 NRSA63J-101X MG RESISTOR 100
R474 NRSA63J-101X MG RESISTOR 100
R475 NRSA63J-101X MG RESISTOR 100
R479 NRSA63J-0R0X MG RESISTOR 0
R480 NRSA63J-0R0X MG RESISTOR 0
R481 NRSA63J-103X MG RESISTOR 10k
R482 NRSA63J-473X MG RESISTOR 47k
R483 NRSA63J-102X MG RESISTOR 1k
R484 NRSA63J-103X MG RESISTOR 10k
R704 NRSA63J-271X MG RESISTOR 270
R705 NRSA63J-271X MG RESISTOR 270
R706 NRSA63J-103X MG RESISTOR 10k
R707 NRSA63J-103X MG RESISTOR 10k
R708 NRS181J-561X MG RESISTOR 560
R709 NRSA63J-562X MG RESISTOR 5.6k
R710 NRSA63J-102X MG RESISTOR 1k
R711 NRSA63J-103X MG RESISTOR 10k
R712 NRSA63J-104X MG RESISTOR 100k
R713 NRSA63J-103X MG RESISTOR 10k
R714 NRSA63J-104X MG RESISTOR 100k
R715 NRSA63J-271X MG RESISTOR 270
R716 NRSA63J-271X MG RESISTOR 270
R717 NRSA63J-331X MG RESISTOR 330
R718 NRSA63J-103X MG RESISTOR 10k
R719 NRSA63J-103X MG RESISTOR 10k
R720 NRSA63J-0R0X MG RESISTOR 0
R721 NRSA63J-222X MG RESISTOR 2.2k
R722 NRSA63J-222X MG RESISTOR 2.2k
R725 NRSA63J-473X MG RESISTOR 47k
R726 NRSA63J-103X MG RESISTOR 10k
R727 NRSA63J-562X MG RESISTOR 5.6k
R728 NRSA63J-472X MG RESISTOR 4.7k
R729 NRSA63J-0R0X MG RESISTOR 0
R730 NRSA63J-222X MG RESISTOR 2.2k
R733 NRSA63J-103X MG RESISTOR 10k
R735 NRSA63J-0R0X MG RESISTOR 0
R738 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J ADV6270J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
R739 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R740 NRSA63J-222X MG RESISTOR 2.2k
R744 NRSA63J-821X MG RESISTOR 820
R745 NRSA63J-106X MG RESISTOR 10M
R746 NRSA63J-473X MG RESISTOR 47k
R747 NRSA63J-473X MG RESISTOR 47k
R749 NRSA63J-473X MG RESISTOR 47k
R750 NRSA63J-473X MG RESISTOR 47k
R751 NRSA63J-333X MG RESISTOR 33k
R755 NRSA63J-103X MG RESISTOR 10k
R756 NRSA63J-222X MG RESISTOR 2.2k
R757 NRSA63J-473X MG RESISTOR 47k
R758 NRSA63J-224X MG RESISTOR 220k
R759 NRSA63J-224X MG RESISTOR 220k
R760 NRSA63J-472X MG RESISTOR 4.7k
R761 NRSA63J-472X MG RESISTOR 4.7k
R762 NRSA63J-472X MG RESISTOR 4.7k
R763 NRSA63J-103X MG RESISTOR 10k
R765 NRSA63J-103X MG RESISTOR 10k
R766 NRSA63J-0R0X MG RESISTOR 0
R767 NRSA63J-0R0X MG RESISTOR 0
R768 NRSA63J-0R0X MG RESISTOR 0
R769 NRSA63J-0R0X MG RESISTOR 0
R771 NRSA63J-392X MG RESISTOR 3.9k
R772 NRSA63J-221X MG RESISTOR 220
R773 NRSA63J-221X MG RESISTOR 220
R774 NRSA63J-472X MG RESISTOR 4.7k
R775 NRSA63J-472X MG RESISTOR 4.7k
R776 NRSA63J-472X MG RESISTOR 4.7k
R777 NRSA63J-102X MG RESISTOR 1k
R778 NRSA63J-103X MG RESISTOR 10k
R779 NRSA63J-222X MG RESISTOR 2.2k
R780 NRSA63J-222X MG RESISTOR 2.2k
R781 NRSA63J-471X MG RESISTOR 470
R782 NRSA63J-471X MG RESISTOR 470
R799 NRSA63J-222X MG RESISTOR 2.2k
R801 NRSA63J-101X MG RESISTOR 100
R802 NRSA63J-473X MG RESISTOR 47k
R803 NRSA63J-223X MG RESISTOR 22k
R804 NRSA63J-104X MG RESISTOR 100k
R805 NRSA63J-103X MG RESISTOR 10k
R806 NRSA63J-104X MG RESISTOR 100k
R807 NRSA63J-331X MG RESISTOR 330
R808 NRSA63J-223X MG RESISTOR 22k
R809 NRSA63J-101X MG RESISTOR 100
R810 NRSA63J-473X MG RESISTOR 47k
R811 NRSA63J-0R0X MG RESISTOR 0
R821 NRSA63J-100X MG RESISTOR 10
R822 NRSA63J-471X MG RESISTOR 470
R825 NRSA63J-223X MG RESISTOR 22k
R841 NRSA63J-473X MG RESISTOR 47k
R843 NRSA63J-473X MG RESISTOR 47k
R844 NRSA63J-473X MG RESISTOR 47k
R846 NRSA63J-392X MG RESISTOR 3.9k
R847 NRSA63J-392X MG RESISTOR 3.9k
R848 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
DV6200J,D
V7205A,D
V7206A
ADV6270J,
DV7205U,
DV7205UN
,DV7205U
T,DV7206U
,DV7206U
N,DV7206
UT
DV6200J,D
V7205U,D
V7205UN,
DV7205UT,
DV7206U,
DV7206UN
,DV7206U
T
ADV6270J,
DV7205A,
DV7206A
3-13
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R851 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R857 NRS181J-0R0X MG RESISTOR 0
R859 NRSA63J-222X MG RESISTOR 2.2k
R860 NRS181J-561X MG RESISTOR 560
R881 NRSA63J-473X MG RESISTOR 47k
R882 NRSA63J-103X MG RESISTOR 10k
R883 NRSA63J-104X MG RESISTOR 100k
R885 NRSA63J-473X MG RESISTOR 47k
R886 NRSA63J-472X MG RESISTOR 4.7k
R887 NRSA63J-103X MG RESISTOR 10k
R888 NRSA63J-0R0X MG RESISTOR 0
R889 NRSA63J-0R0X MG RESISTOR 0
R891 NRSA63J-473X MG RESISTOR 47k
R892 NRSA63J-102X MG RESISTOR 1k
R894 NRSA63J-0R0X MG RESISTOR 0
R901 QRE142J-102X C RESISTOR 1k
R902 NRSA63J-912X MG RESISTOR 9.1k
R903 NRSA63J-472X MG RESISTOR 4.7k
R909 NRSA63J-473X MG RESISTOR 47k
R910 NRSA63J-222X MG RESISTOR 2.2k
R914 NRS181J-221X MG RESISTOR 220
R921 NRS181J-0R0X MG RESISTOR 0
R923 NRSA63J-393X MG RESISTOR 39k
R924 NRSA63J-103X MG RESISTOR 10k
R925 NRSA63J-154X MG RESISTOR 150k
R926 NRSA63D-304X MG RESISTOR
R927 NRSA63J-0R0X MG RESISTOR 0
R928 NRSA63J-473X MG RESISTOR 47k
R961 NRS181J-0R0X MG RESISTOR 0
R962 NRSA63J-101X MG RESISTOR 100
R967 NRS181J-0R0X MG RESISTOR 0
R968 NRS181J-0R0X MG RESISTOR 0
R969 NRS181J-0R0X MG RESISTOR 0
R973 NRSA63J-223X MG RESISTOR 22k
R974 NRSA63J-223X MG RESISTOR 22k
R975 NRSA63J-223X MG RESISTOR 22k
R976 NRSA63J-563X MG RESISTOR 56k
R977 NRSA63J-183X MG RESISTOR 18k
R981 NRS181J-222X MG RESISTOR 2.2k
R982 NRS181J-222X MG RESISTOR 2.2k
RA721 NRZ0065-222X NET RESISTOR 2.2k
RA722 NRZ0065-222X NET RESISTOR 2.2k
RA723 NRZ0065-103X NET RESISTOR 10kΩ 1/16W J
L1 NQL334J-4R7X INDUCTOR CM 4.7uH J
L2 NQL093K-R22X COIL 0.22uH K
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X COIL 47uH K
L421 NQR0007-002X FERRITE BEADS
L430 NQR0007-002X FERRITE BEADS
Ω
1/8W J
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
Ω
1/8W J
Ω
Ω
300k
D
Ω
1/16W J
Ω
Ω
1/8W J
Ω
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
1/8W J
1/16W J
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/4W J
Ω
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
1/8W J
1/16W J
1/16W J
Ω
1/16W J
Ω
1/16W
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
Ω
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
ADV6270J,
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
ADV6270J,
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
ADV6270J,
DV7205U,
DV7205UN
,DV7205U
T,DV7205A
,DV7206U,
DV7206UN
,DV7206U
T,DV7206A
L431 NQR0007-002X FERRITE BEADS
L721 NQL38DK-330X COIL 33uH K
L722 NQL114K-470X COIL 47uH K
L901 QQR1378-002 COIL
L902 NQL56CK-220X COIL 22uH K
L924 NQL56CK-220X COIL 22uH K
L925 NQL71EM-330X COIL 33uH M
CN141 QGA2006C1-04 CONNECTOR W-B (1-4)
CN411 QGA2501F1-02 CONNECTOR W-B (1-2)
CN421 QGA2006C1-04 CONNECTOR W-B (1-4)
CN471 QGB1004J2-16X CONNECTOR B-B (1-16)
CN701 QNZ0605-001 CAR CONNECTOR
CN702 WJK0224-001A-E 2PIN CABLE
CN821 QGA2001C1-02 CONNECTOR W-B (1-2)
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2027M3-30S CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR
CN963 QGB2027L9-30X CONNECTOR B-B (1-30)
J331 QNN0748-001 PIN JACK ADV6270J
J331 QNN0747-001 MODULAR JACK
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS
PP1 QZW0010-001 STYLE PIN
PP2 QZW0010-001 STYLE PIN
S701 QSW0451-001 DETECT SW
S702 QSW0451-001 DETECT SW
S723 QSW1049-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k
TU21 QAU0443-002 TUNER PACK
W21 QAM0105-003 CAR CABLE
X721 QAX0617-001Z CRYSTAL 12.500MHz
X722 QAX0401-001 CRYSTAL 32.768KHz
FFC/FPC (1-
45)
Ω
DV6200J,D
V7205U,D
V7205UN,
DV7205UT,
DV7205A,
DV7206U,
DV7206UN
,DV7206U
T,DV7206A
Switch board
(KD-ADV6170J,DV6200J,DV7205U,
DV7205UN,DV7205UT,DV7205A,
DV7206U,DV7206UN,DV7206UT,
DV7206A)
Block No. [0][2]
Symbol No.
IC601 PT6523LQ-L LCD DRIVER
IC602 RPM7338-V4 RM.RECEIVER
Q640 2SA1365/F/-X TRANSISTOR
Q641 RT1N141C-X DIGI TRANSISTOR
D601 LSQ971/KL/-X LED
D602 LSQ971/KL/-X LED
D603 LSQ971/KL/-X LED
D604 LSQ971/KL/-X LED
D605 LSQ971/KL/-X LED
D606 LSQ971/KL/-X LED
D607 LSQ971/KL/-X LED
D608 SML310BA1T/HJ-X LED
D609 SML310BA1T/HJ-X LED
D610 LSQ971/KL/-X LED
D611 LSQ971/KL/-X LED
Part No. Part Name Description Local
3-14
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
D612 LSQ971/KL/-X LED
D613 LSQ971/KL/-X LED
D614 LSQ971/KL/-X LED
D615 LSQ971/KL/-X LED
D616 LSQ971/KL/-X LED
D617 LSQ971/KL/-X LED
D618 SML310BA1T/HJ-X LED
D620 SML310BA1T/HJ-X LED
D621 SML310BA1T/HJ-X LED
D640 MC2838-X DIODE
D641 UDZW5.1B-X SI DIODE
D642 1SS355W-X DIODE C.M
D643 UDZW6.2B-X DIODE
D645 NSPW310BS/BRST/ LED
D646 NSPW310BS/BRST/ LED
C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C602 NCS31HJ-681X C CAPACITOR 680pF 50V J
C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
Ω
R601 NRSA63J-821X MG RESISTOR 820
R602 NRSA63J-821X MG RESISTOR 820
R603 NRSA63J-122X MG RESISTOR 1.2k
R604 NRSA63J-182X MG RESISTOR 1.8k
R605 NRSA63J-272X MG RESISTOR 2.7k
R606 NRSA63J-392X MG RESISTOR 3.9k
R607 NRSA63J-821X MG RESISTOR 820
R608 NRSA63J-821X MG RESISTOR 820
R609 NRSA63J-122X MG RESISTOR 1.2k
R610 NRSA63J-182X MG RESISTOR 1.8k
R611 NRSA63J-272X MG RESISTOR 2.7k
R612 NRSA63J-392X MG RESISTOR 3.9k
R613 NRSA63J-821X MG RESISTOR 820
R614 NRSA63J-821X MG RESISTOR 820
R632 NRSA02J-821X MG RESISTOR 820
R634 NRSA63J-301X MG RESISTOR 300
R636 NRSA63J-301X MG RESISTOR 300
R638 NRSA63J-301X MG RESISTOR 300
R640 NRSA63J-680X MG RESISTOR 68
R641 NRS181J-101X MG RESISTOR 100
R642 NRSA63J-680X MG RESISTOR 68
R643 NRSA63J-680X MG RESISTOR 68
R644 NRSA63J-431X MG RESISTOR 430
R646 NRSA63J-431X MG RESISTOR 430
R648 NRSA63J-431X MG RESISTOR 430
R650 NRS181J-221X MG RESISTOR 220
R651 NRSA63J-222X MG RESISTOR 2.2k
R652 NRSA63J-222X MG RESISTOR 2.2k
R653 NRSA63J-103X MG RESISTOR 10k
R654 NRSA63J-103X MG RESISTOR 10k
R655 NRSA63J-103X MG RESISTOR 10k
R656 NRSA63J-103X MG RESISTOR 10k
R657 NRSA63J-513X MG RESISTOR 51k
R658 NRSA63J-184X MG RESISTOR 180k
R660 NRSA02J-391X MG RESISTOR 390
R661 NRSA02J-391X MG RESISTOR 390
R670 NRSA63J-0R0X MG RESISTOR 0
R672 NRSA02J-471X MG RESISTOR 470
R673 NRSA02J-473X MG RESISTOR 47k
R674 NRSA02J-102X MG RESISTOR 1k
R680 NRSA63J-680X MG RESISTOR 68
R681 NRSA63J-680X MG RESISTOR 68
R691 NRSA63J-103X MG RESISTOR 10k
R692 NRSA63J-471X MG RESISTOR 470
CN601 NNZ0085-001 CAR CONNECTOR
EN601 QSW1163-001 ROTARY ENCODER
S601 NSW0206-001X TACT SWITCH
S602 NSW0206-001X TACT SWITCH
S603 NSW0206-001X TACT SWITCH
S604 NSW0206-001X TACT SWITCH
S605 NSW0206-001X TACT SWITCH
S606 NSW0206-001X TACT SWITCH
S607 NSW0206-001X TACT SWITCH
S608 NSW0206-001X TACT SWITCH
S609 NSW0206-001X TACT SWITCH
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
S610 NSW0206-001X TACT SWITCH
S611 NSW0206-001X TACT SWITCH
S612 NSW0206-001X TACT SWITCH
S613 NSW0206-001X TACT SWITCH
S614 NSW0206-001X TACT SWITCH
S616 NSW0206-001X TACT SWITCH
S617 NSW0206-001X TACT SWITCH
USB board
(KD-ADV6170J,DV6200J,DV7205U,
DV7205UN,DV7205UT,DV7205A,
DV7206U,DV7206UN,DV7206UT,
DV7206A)
Block No. [0][3]
Symbol No.
IC401 TCC760 IC
IC441 SA04D70TFI021A IC(PROGRAMED)
IC442 K4S161622H-UC60 IC
IC451 AK4385ET-X IC
IC452 NJM4565V-X IC
IC481 SN74LVC2G07V-X LOGIC IC
IC482 SN74AHCT1G08V-X IC
IC521 BH18LB1WG-W 1.8V REG
Q401 RT1N141C-X DIGI TRANSISTOR
D532 UDZW5.1B-X SI DIODE
D533 UDZW5.1B-X SI DIODE
D600 SML-310LT/MN/-X LED
C402 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C403 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C404 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C406 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C407 NDC31HJ-270X C CAPACITOR 27pF 50V J
C408 NDC31HJ-270X C CAPACITOR 27pF 50V J
C409 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C410 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C411 NDC31HJ-331X C CAPACITOR 330pF 50V J
C412 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C413 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C414 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C415 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C416 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C417 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C418 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C419 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C420 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C440 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C441 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C442 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C443 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C444 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C445 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C446 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C447 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C448 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C449 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C451 NCB31HK-331X C CAPACITOR 330pF 50V K
C453 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C454 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C455 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C456 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C457 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C461 NCB31HK-332X C CAPACITOR 3300pF 50V K
C462 NCS31HJ-471X C CAPACITOR 470pF 50V J
C463 NCS31HJ-471X C CAPACITOR 470pF 50V J
C464 NCB31CK-104X C CAPACITOR 0.1uF 16V K
Part No. Part Name Description Local
3-15
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C465 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C471 NCB31HK-332X C CAPACITOR 3300pF 50V K
C472 NCS31HJ-471X C CAPACITOR 470pF 50V J
C473 NCS31HJ-471X C CAPACITOR 470pF 50V J
C474 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C475 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C482 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C521 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M
C522 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C531 NCB31AK-474X C CAPACITOR 0.47uF 10V K
Ω
R398 NRSA63J-0R0X MG RESISTOR 0
R399 NRSA63J-0R0X MG RESISTOR 0
R401 NRSA63J-0R0X MG RESISTOR 0
R402 NRSA63J-0R0X MG RESISTOR 0
R403 NRSA63J-0R0X MG RESISTOR 0
R404 NRSA63J-472X MG RESISTOR 4.7k
R405 NRSA63J-472X MG RESISTOR 4.7k
R406 NRSA63J-472X MG RESISTOR 4.7k
R407 NRSA63J-0R0X MG RESISTOR 0
R408 NRSA63J-0R0X MG RESISTOR 0
R409 NRSA63J-102X MG RESISTOR 1k
R410 NRSA63J-0R0X MG RESISTOR 0
R411 NRSA63J-152X MG RESISTOR 1.5k
R412 NRSA63J-105X MG RESISTOR 1M
R414 NRSA63J-0R0X MG RESISTOR 0
R415 NRSA63J-0R0X MG RESISTOR 0
R416 NRSA63J-0R0X MG RESISTOR 0
R417 NRSA63J-0R0X MG RESISTOR 0
R418 NRSA63J-0R0X MG RESISTOR 0
R420 NRSA63J-104X MG RESISTOR 100k
R421 NRSA63J-472X MG RESISTOR 4.7k
R425 NRSA63J-103X MG RESISTOR 10k
R426 NRSA63J-0R0X MG RESISTOR 0
R435 NRSA63J-472X MG RESISTOR 4.7k
R436 NRSA63J-472X MG RESISTOR 4.7k
R437 NRSA63J-472X MG RESISTOR 4.7k
R441 NRSA63J-102X MG RESISTOR 1k
R444 NRSA63J-0R0X MG RESISTOR 0
R446 NRSA63J-472X MG RESISTOR 4.7k
R447 NRSA63J-0R0X MG RESISTOR 0
R448 NRSA63J-473X MG RESISTOR 47k
R451 NRSA63J-473X MG RESISTOR 47k
R452 NRSA63J-0R0X MG RESISTOR 0
R453 NRSA63J-4R7X MG RESISTOR 4.7
R454 NRSA63J-100X MG RESISTOR 10
R455 NRSA63J-100X MG RESISTOR 10
R460 NRSA63J-122X MG RESISTOR 1.2k
R461 NRSA63J-472X MG RESISTOR 4.7k
R462 NRSA63J-472X MG RESISTOR 4.7k
R463 NRSA63J-223X MG RESISTOR 22k
R464 NRSA63J-472X MG RESISTOR 4.7k
R465 NRSA63J-201X MG RESISTOR 200
R466 NRSA63J-223X MG RESISTOR 22k
R467 NRSA63J-472X MG RESISTOR 4.7k
R468 NRSA63J-201X MG RESISTOR 200
R469 NRSA63J-102X MG RESISTOR 1k
R470 NRSA63J-122X MG RESISTOR 1.2k
R471 NRSA63J-472X MG RESISTOR 4.7k
R472 NRSA63J-472X MG RESISTOR 4.7k
R473 NRSA63J-223X MG RESISTOR 22k
R474 NRSA63J-472X MG RESISTOR 4.7k
R475 NRSA63J-201X MG RESISTOR 200
R476 NRSA63J-223X MG RESISTOR 22k
R477 NRSA63J-472X MG RESISTOR 4.7k
R478 NRSA63J-201X MG RESISTOR 200
R479 NRSA63J-102X MG RESISTOR 1k
R482 NRSA63J-103X MG RESISTOR 10k
R483 NRSA63J-103X MG RESISTOR 10k
R484 NRSA63J-103X MG RESISTOR 10k
R532 NRSA63J-153X MG RESISTOR 15k
R533 NRSA63J-153X MG RESISTOR 15k
RA401 NRZ0065-472X MG RESISTOR 4.7k
L401 NQL38DK-330X COIL 33uH K
L531 NQR0536-001X CHOKE COIL
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
CN531 QNZ0855-001 USB CONNECTOR
CN532 QGB1004K1-16 CONNECTOR B-B (1-16)
CN600 QGA1501C6-02 CONNECTOR W-B (1-2)
F531 NAD0031-004X N THERMISTOR
K441 NQR0502-001X FERRITE BEADS
X402 NAX0832-001X CRYSTAL
Ω
Main board
(KD-DV6201E,DV6201EU,
DV6202E,6202EU)
Block No. [0][4]
Symbol No.
IC71 LC72725NM-X IC
IC161 TDA7416 IC
IC162 CD4066BPW-X IC
IC301 TB2904HQ IC
IC401 SN74AHCT1G08V-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC
IC421 NJM4580V-X IC
IC431 LC75344M-X IC
IC471 BA05CC0WT-V5 IC REGULATOR
IC721 UPD784218AGC328 IC
IC722 BR24L32F-W-X IC(DIGITAL)
IC723 S-80833CNNB-G-W IC
IC801 SN74AHC126NS-X IC
IC901 R2S25401DS-E IC
IC921 BA33BC0FP-X IC
IC922 BD9781HFP-W IC
IC961 SN74LVC32APW-X IC
IC962 SN74HCT32APW-X IC
Q2 RT1N141C-X DIGI TRANSISTOR
Q161 RT1N141C-X DIGI TRANSISTOR
Q162 RT1N141C-X DIGI TRANSISTOR
Q191 KTD1304-X TRANSISTOR
Q192 RT1P441C-X DIGI TRANSISTOR
Q301 RT1N441C-X TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q303 RT1N141C-X DIGI TRANSISTOR
Q304 RT1N141C-X DIGI TRANSISTOR
Q324 KTD1304-X TRANSISTOR
Q334 KTD1304-X TRANSISTOR
Q344 KTD1304-X TRANSISTOR
Q354 KTD1304-X TRANSISTOR
Q421 KTD1304-X TRANSISTOR
Q422 KTD1304-X TRANSISTOR
Q431 KTD1304-X TRANSISTOR
Q432 KTD1304-X TRANSISTOR
Q476 2SA1365/F/-X TRANSISTOR
Q477 RT1N141C-X DIGI TRANSISTOR
Q701 2SA1530A/R/-X TRANSISTOR
Q781 RT1P141C-X DIGI TRANSISTOR
Q782 RT1P141C-X DIGI TRANSISTOR
Q783 RT1P141C-X DIGI TRANSISTOR
Q784 RT1P141C-X DIGI TRANSISTOR
Q821 RT1N141C-X DIGI TRANSISTOR
Q822 RT1P141C-X DIGI TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q881 2SC3928A/R/-X TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q891 RT1N141C-X DIGI TRANSISTOR
Q903 2SA1530A/R/-X TRANSISTOR
Q904 RT1N141C-X DIGI TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
D1 1SS355W-X DIODE C.M
D2 1SS355W-X DIODE C.M
D192 1SS355W-X DIODE C.M
Part No. Part Name Description Local
3-16
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
D301 UDZW11B-X Z DIODE
D302 1SS355W-X DIODE C.M
D305 CRS03-W SB DIODE
D308 CRS03-W SB DIODE
D324 1SS355W-X DIODE C.M
D334 1SS355W-X DIODE C.M
D344 1SS355W-X DIODE C.M
D354 1SS355W-X DIODE C.M
D401 CRS03-W SB DIODE
D421 1SS355W-X DIODE C.M
D431 1SS355W-X DIODE C.M
D472 1A3G-T1 SI DIODE
D701 UDZW6.2B-X DIODE
D702 UDZW6.2B-X DIODE
D703 UDZW6.2B-X DIODE
D704 UDZW6.2B-X DIODE
D705 UDZW6.2B-X DIODE
D706 UDZW6.2B-X DIODE
D707 UDZW6.2B-X DIODE
D709 UDZW6.2B-X DIODE
D710 UDZW6.2B-X DIODE
D711 UDZW6.2B-X DIODE
D716 UDZW6.2B-X DIODE
D717 UDZW6.2B-X DIODE
D719 SLR-56VC3F DIODE C.M
D731 1SS355W-X DIODE C.M
D732 UDZW6.2B-X DIODE
D781 MC2836-X DIODE
D782 MC2836-X DIODE
D783 UDZW11B-X Z DIODE
D784 UDZW11B-X Z DIODE
D785 1SS355W-X DIODE C.M
D801 CRS03-W SB DIODE
D821 UDZW12B-X Z DIODE
D831 UDZW6.2B-X DIODE
D885 1SS355W-X DIODE C.M
D891 MC2836-X DIODE
D901 1N5401-F64 SI DIODE
D903 1SS355W-X DIODE C.M
D906 UDZW5.1B-X SI DIODE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D923 CRS03-W SB DIODE
D924 CRS03-W SB DIODE
D925 CRS03-W SB DIODE
D981 CRS03-W SB DIODE
D982 CRS03-W SB DIODE
C1 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C4 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C8 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C9 QEKJ1HM-224Z E CAPACITOR 0.22uF 50V M
C12 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C14 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C71 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C72 NCB31HK-331X C CAPACITOR 330pF 50V K
C73 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C74 NCS31HJ-561X C CAPACITOR 560pF 50V J
C75 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C76 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C77 NDC31HJ-330X C CAPACITOR 33pF 50V J
C78 NDC31HJ-330X C CAPACITOR 33pF 50V J
C83 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C93 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C141 NCB31HK-471X C CAPACITOR 470pF 50V K
C151 NCB31HK-471X C CAPACITOR 470pF 50V K
C155 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C163 NFV81CM-105X MF CAPACITOR 1uF 16V M
C164 NFV81CM-105X MF CAPACITOR 1uF 16V M
C165 NFV81CM-105X MF CAPACITOR 1uF 16V M
C166 QTE1C57-106Z E CAPACITOR 10uF 16V
C168 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C169 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C170 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C171 QTE1H57-225Z E CAPACITOR 2.2uF 50V
C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C174 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C176 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C177 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C181 QTE1H57-225Z E CAPACITOR 2.2uF 50V
C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C184 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C186 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C187 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C191 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C267 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C311 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M
C312 QTE1C57-476Z E CAPACITOR 47uF 16V
C313 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C314 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C315 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C316 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C326 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C328 NFV81CM-105X MF CAPACITOR 1uF 16V M
C329 NCS31HJ-101X C CAPACITOR 100pF 50V J
C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C336 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C338 NFV81CM-105X MF CAPACITOR 1uF 16V M
C339 NCS31HJ-101X C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 NFV81CM-105X MF CAPACITOR 1uF 16V M
C349 NCS31HJ-101X C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 NFV81CM-105X MF CAPACITOR 1uF 16V M
C359 NCS31HJ-101X C CAPACITOR 100pF 50V J
C401 NCS31HJ-220X C CAPACITOR 22pF 50V J
C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NCS31HJ-220X C CAPACITOR 22pF 50V J
C406 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C415 NCS31HJ-101X C CAPACITOR 100pF 50V J
C416 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C423 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C424 NCS31HJ-151X C CAPACITOR 150pF 50V J
C425 NCS31HJ-101X C CAPACITOR 100pF 50V J
C426 NCS31HJ-221X C CAPACITOR 220pF 50V J
C427 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C428 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C433 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C434 NCS31HJ-151X C CAPACITOR 150pF 50V J
C435 NCS31HJ-101X C CAPACITOR 100pF 50V J
C436 NCS31HJ-221X C CAPACITOR 220pF 50V J
C437 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C438 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C441 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C451 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C461 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C462 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C463 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C464 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C465 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C474 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C475 NCB31HK-102X C CAPACITOR 1000pF 50V K
C476 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C477 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C478 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C479 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C480 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C701 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C721 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C722 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C723 NCS31HJ-471X C CAPACITOR 470pF 50V J
C724 NCS31HJ-471X C CAPACITOR 470pF 50V J
3-17
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
C725 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C726 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C727 NDC31HJ-270X C CAPACITOR 27pF 50V J
C728 NDC31HJ-270X C CAPACITOR 27pF 50V J
C729 NDC31HJ-220X C CAPACITOR 22pF 50V J
C730 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C731 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C732 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C733 NCS31HJ-471X C CAPACITOR 470pF 50V J
C781 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C782 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C783 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C784 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C802 NCS31HJ-220X C CAPACITOR 22pF 50V J
C803 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C804 NCS31HJ-220X C CAPACITOR 22pF 50V J
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C831 NCS31HJ-101X C CAPACITOR 100pF 50V J
C881 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C892 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C901 QEZ0722-338 E CAPACITOR 3300uF
C902 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C903 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C905 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C906 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C908 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C909 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C910 NCB31HK-102X C CAPACITOR 1000pF 50V K
C911 NCB31HK-102X C CAPACITOR 1000pF 50V K
C912 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C913 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C918 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C919 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C925 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C926 QEXF1AM-476Z E CAPACITOR 47uF 10V M
C927 QEZ0595-477Z E CAPACITOR 470uF
C928 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C929 NCB31HK-472X C CAPACITOR 4700pF 50V K
C930 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C961 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C962 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C963 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C964 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C965 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C966 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C968 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C969 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C970 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C971 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C981 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C999 NRSA63J-0R0X MG RESISTOR 0
R2 NRSA63J-102X MG RESISTOR 1k
R3 NRSA63J-102X MG RESISTOR 1k
R5 NRSA63J-330X MG RESISTOR 33
R6 NRSA63J-330X MG RESISTOR 33
R7 NRSA63J-103X MG RESISTOR 10k
R8 NRSA63J-332X MG RESISTOR 3.3k
R9 NRSA63J-473X MG RESISTOR 47k
R10 NRSA63J-472X MG RESISTOR 4.7k
R11 NRSA63J-472X MG RESISTOR 4.7k
R12 NRS181J-4R7X MG RESISTOR 4.7
R13 NRS181J-6R8X MG RESISTOR 6.8
R14 NRSA63J-0R0X MG RESISTOR 0
R71 NRSA63J-101X MG RESISTOR 100
R72 NRSA63J-202X MG RESISTOR 2k
R73 NRSA63J-103X MG RESISTOR 10k
R81 NRSA63J-223X MG RESISTOR 22k
R82 NRSA63J-822X MG RESISTOR 8.2k
R91 NRSA63J-223X MG RESISTOR 22k
R92 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
R141 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J
R142 NRSA63J-0R0X MG RESISTOR 0
R151 NRSA63J-473X MG RESISTOR 47k
R152 NRSA63J-0R0X MG RESISTOR 0
R155 NRSA63J-471X MG RESISTOR 470
R161 NRSA63J-0R0X MG RESISTOR 0
R162 NRSA63J-473X MG RESISTOR 47k
R163 NRSA63J-473X MG RESISTOR 47k
R164 NRSA63J-473X MG RESISTOR 47k
R165 NRSA63J-473X MG RESISTOR 47k
R166 NRSA63J-221X MG RESISTOR 220
R171 NRSA63J-222X MG RESISTOR 2.2k
R172 NRSA63J-222X MG RESISTOR 2.2k
R173 NRSA63J-0R0X MG RESISTOR 0
R191 NRSA63J-472X MG RESISTOR 4.7k
R192 NRSA63J-821X MG RESISTOR 820
R193 NRSA63J-101X MG RESISTOR 100
R194 NRSA63J-101X MG RESISTOR 100
R197 NRSA63J-471X MG RESISTOR 470
R302 NRSA63J-0R0X MG RESISTOR 0
R304 NRSA63J-473X MG RESISTOR 47k
R305 NRSA63J-103X MG RESISTOR 10k
R306 NRSA63J-273X MG RESISTOR 27k
R307 NRSA63J-100X MG RESISTOR 10
R308 NRSA63J-222X MG RESISTOR 2.2k
R323 NRSA63J-473X MG RESISTOR 47k
R324 NRSA63J-222X MG RESISTOR 2.2k
R325 NRSA63J-102X MG RESISTOR 1k
R326 NRSA63J-101X MG RESISTOR 100
R327 NRSA63J-0R0X MG RESISTOR 0
R329 NRSA63J-102X MG RESISTOR 1k
R330 NRSA63J-102X MG RESISTOR 1k
R333 NRSA63J-473X MG RESISTOR 47k
R334 NRSA63J-222X MG RESISTOR 2.2k
R335 NRSA63J-102X MG RESISTOR 1k
R336 NRSA63J-101X MG RESISTOR 100
R337 NRSA63J-0R0X MG RESISTOR 0
R339 NRSA63J-102X MG RESISTOR 1k
R340 NRSA63J-102X MG RESISTOR 1k
R343 NRSA63J-473X MG RESISTOR 47k
R344 NRSA63J-222X MG RESISTOR 2.2k
R345 NRSA63J-102X MG RESISTOR 1k
R346 NRSA63J-101X MG RESISTOR 100
R347 NRSA63J-0R0X MG RESISTOR 0
R349 NRSA63J-102X MG RESISTOR 1k
R350 NRSA63J-102X MG RESISTOR 1k
R353 NRSA63J-473X MG RESISTOR 47k
R354 NRSA63J-222X MG RESISTOR 2.2k
R355 NRSA63J-102X MG RESISTOR 1k
R356 NRSA63J-101X MG RESISTOR 100
R357 NRSA63J-0R0X MG RESISTOR 0
R359 NRSA63J-102X MG RESISTOR 1k
R360 NRSA63J-102X MG RESISTOR 1k
R371 NRSA63J-0R0X MG RESISTOR 0
R372 NRSA63J-0R0X MG RESISTOR 0
R381 NRSA63J-0R0X MG RESISTOR 0
R382 NRSA63J-0R0X MG RESISTOR 0
R401 NRSA63J-471X MG RESISTOR 470
R402 NRSA63J-100X MG RESISTOR 10
R403 NRSA63J-471X MG RESISTOR 470
R404 NRSA63J-2R2X MG RESISTOR 2.2
R410 NRS181J-0R0X MG RESISTOR 0
R411 NRSA63J-0R0X MG RESISTOR 0
R412 NRSA63D-682X MG RESISTOR 6.8k
R413 NRSA63J-100X MG RESISTOR 10
R414 NRSA63J-102X MG RESISTOR 1k
R415 NRSA63J-750X MG RESISTOR 75
R416 NRSA63J-0R0X MG RESISTOR 0
R417 NRSA63D-181X MG RESISTOR 180
R421 NRSA63J-220X MG RESISTOR 22
R422 NRSA63J-222X MG RESISTOR 2.2k
R423 NRSA63J-222X MG RESISTOR 2.2k
R424 NRSA63J-390X MG RESISTOR 39
R425 NRSA63J-102X MG RESISTOR 1k
R426 NRSA63J-183X MG RESISTOR 18k
R427 NRSA63J-682X MG RESISTOR 6.8k
R428 NRSA63J-472X MG RESISTOR 4.7k
R429 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
3-18
Symbol No.
Part No. Part Name Description Local
Symbol No.
Part No. Part Name Description Local
R431 NRSA63J-220X MG RESISTOR 22Ω 1/16W J
R432 NRSA63J-222X MG RESISTOR 2.2k
R433 NRSA63J-222X MG RESISTOR 2.2k
R434 NRSA63J-390X MG RESISTOR 39
R435 NRSA63J-102X MG RESISTOR 1k
R436 NRSA63J-183X MG RESISTOR 18k
R437 NRSA63J-682X MG RESISTOR 6.8k
R438 NRSA63J-472X MG RESISTOR 4.7k
R439 NRSA63J-104X MG RESISTOR 100k
R441 NRSA63J-223X MG RESISTOR 22k
R442 NRSA63J-223X MG RESISTOR 22k
R451 NRSA63J-223X MG RESISTOR 22k
R452 NRSA63J-223X MG RESISTOR 22k
R461 NRSA63J-100X MG RESISTOR 10
R462 NRSA63J-100X MG RESISTOR 10
R463 NRSA63J-100X MG RESISTOR 10
R471 NRSA63J-101X MG RESISTOR 100
R474 NRSA63J-101X MG RESISTOR 100
R475 NRSA63J-101X MG RESISTOR 100
R479 NRSA63J-0R0X MG RESISTOR 0
R480 NRSA63J-0R0X MG RESISTOR 0
R481 NRSA63J-103X MG RESISTOR 10k
R482 NRSA63J-473X MG RESISTOR 47k
R483 NRSA63J-102X MG RESISTOR 1k
R484 NRSA63J-103X MG RESISTOR 10k
R704 NRSA63J-271X MG RESISTOR 270
R705 NRSA63J-271X MG RESISTOR 270
R706 NRSA63J-103X MG RESISTOR 10k
R707 NRSA63J-103X MG RESISTOR 10k
R708 NRS181J-561X MG RESISTOR 560
R709 NRSA63J-562X MG RESISTOR 5.6k
R710 NRSA63J-102X MG RESISTOR 1k
R711 NRSA63J-103X MG RESISTOR 10k
R712 NRSA63J-104X MG RESISTOR 100k
R713 NRSA63J-103X MG RESISTOR 10k
R714 NRSA63J-104X MG RESISTOR 100k
R715 NRSA63J-271X MG RESISTOR 270
R716 NRSA63J-271X MG RESISTOR 270
R717 NRSA63J-331X MG RESISTOR 330
R718 NRSA63J-103X MG RESISTOR 10k
R719 NRSA63J-103X MG RESISTOR 10k
R720 NRSA63J-0R0X MG RESISTOR 0
R721 NRSA63J-222X MG RESISTOR 2.2k
R722 NRSA63J-222X MG RESISTOR 2.2k
R725 NRSA63J-473X MG RESISTOR 47k
R726 NRSA63J-103X MG RESISTOR 10k
R727 NRSA63J-562X MG RESISTOR 5.6k
R728 NRSA63J-472X MG RESISTOR 4.7k
R729 NRSA63J-0R0X MG RESISTOR 0
R730 NRSA63J-222X MG RESISTOR 2.2k
R733 NRSA63J-103X MG RESISTOR 10k
R735 NRSA63J-0R0X MG RESISTOR 0
R738 NRSA63J-472X MG RESISTOR 4.7k
R739 NRSA63J-472X MG RESISTOR 4.7k
R740 NRSA63J-222X MG RESISTOR 2.2k
R744 NRSA63J-821X MG RESISTOR 820
R745 NRSA63J-106X MG RESISTOR 10M
R746 NRSA63J-473X MG RESISTOR 47k
R747 NRSA63J-473X MG RESISTOR 47k
R750 NRSA63J-473X MG RESISTOR 47k
R751 NRSA63J-333X MG RESISTOR 33k
R752 NRSA63J-223X MG RESISTOR 22k
R753 NRSA63J-222X MG RESISTOR 2.2k
R754 NRSA63J-222X MG RESISTOR 2.2k
R755 NRSA63J-103X MG RESISTOR 10k
R756 NRSA63J-222X MG RESISTOR 2.2k
R757 NRSA63J-473X MG RESISTOR 47k
R758 NRSA63J-224X MG RESISTOR 220k
R759 NRSA63J-224X MG RESISTOR 220k
R760 NRSA63J-472X MG RESISTOR 4.7k
R761 NRSA63J-472X MG RESISTOR 4.7k
R762 NRSA63J-472X MG RESISTOR 4.7k
R763 NRSA63J-103X MG RESISTOR 10k
R765 NRSA63J-103X MG RESISTOR 10k
R766 NRSA63J-0R0X MG RESISTOR 0
R767 NRSA63J-0R0X MG RESISTOR 0
R768 NRSA63J-0R0X MG RESISTOR 0
R769 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
R771 NRSA63J-392X MG RESISTOR 3.9kΩ 1/16W J
R772 NRSA63J-221X MG RESISTOR 220
R773 NRSA63J-221X MG RESISTOR 220
R774 NRSA63J-472X MG RESISTOR 4.7k
R775 NRSA63J-472X MG RESISTOR 4.7k
R776 NRSA63J-472X MG RESISTOR 4.7k
R777 NRSA63J-102X MG RESISTOR 1k
R778 NRSA63J-103X MG RESISTOR 10k
R779 NRSA63J-222X MG RESISTOR 2.2k
R780 NRSA63J-222X MG RESISTOR 2.2k
R781 NRSA63J-471X MG RESISTOR 470
R782 NRSA63J-471X MG RESISTOR 470
R799 NRSA63J-222X MG RESISTOR 2.2k
R801 NRSA63J-101X MG RESISTOR 100
R802 NRSA63J-473X MG RESISTOR 47k
R803 NRSA63J-223X MG RESISTOR 22k
R804 NRSA63J-104X MG RESISTOR 100k
R805 NRSA63J-103X MG RESISTOR 10k
R806 NRSA63J-104X MG RESISTOR 100k
R807 NRSA63J-331X MG RESISTOR 330
R808 NRSA63J-223X MG RESISTOR 22k
R809 NRSA63J-101X MG RESISTOR 100
R810 NRSA63J-473X MG RESISTOR 47k
R811 NRSA63J-0R0X MG RESISTOR 0
R821 NRSA63J-100X MG RESISTOR 10
R822 NRSA63J-471X MG RESISTOR 470
R825 NRSA63J-223X MG RESISTOR 22k
R831 NRSA63J-0R0X MG RESISTOR 0
R832 NRSA63J-271X MG RESISTOR 270
R841 NRSA63J-473X MG RESISTOR 47k
R844 NRSA63J-473X MG RESISTOR 47k
R845 NRSA63J-222X MG RESISTOR 2.2k
R846 NRSA63J-392X MG RESISTOR 3.9k
R847 NRSA63J-392X MG RESISTOR 3.9k
R848 NRSA63J-331X MG RESISTOR 330
R857 NRS181J-0R0X MG RESISTOR 0
R859 NRSA63J-222X MG RESISTOR 2.2k
R860 NRS181J-561X MG RESISTOR 560
R881 NRSA63J-473X MG RESISTOR 47k
R882 NRSA63J-103X MG RESISTOR 10k
R883 NRSA63J-104X MG RESISTOR 100k
R885 NRSA63J-473X MG RESISTOR 47k
R886 NRSA63J-472X MG RESISTOR 4.7k
R887 NRSA63J-103X MG RESISTOR 10k
R888 NRSA63J-0R0X MG RESISTOR 0
R889 NRSA63J-0R0X MG RESISTOR 0
R891 NRSA63J-473X MG RESISTOR 47k
R892 NRSA63J-102X MG RESISTOR 1k
R894 NRSA63J-0R0X MG RESISTOR 0
R901 QRE142J-102X C RESISTOR 1k
R902 NRSA63J-912X MG RESISTOR 9.1k
R903 NRSA63J-472X MG RESISTOR 4.7k
R909 NRSA63J-473X MG RESISTOR 47k
R910 NRSA63J-222X MG RESISTOR 2.2k
R914 NRS181J-221X MG RESISTOR 220
R921 NRS181J-0R0X MG RESISTOR 0
R923 NRSA63J-393X MG RESISTOR 39k
R924 NRSA63J-103X MG RESISTOR 10k
R925 NRSA63J-154X MG RESISTOR 150k
R926 NRSA63D-304X MG RESISTOR
R927 NRSA63J-0R0X MG RESISTOR 0
R928 NRSA63J-473X MG RESISTOR 47k
R961 NRS181J-0R0X MG RESISTOR 0
R962 NRSA63J-101X MG RESISTOR 100
R967 NRS181J-0R0X MG RESISTOR 0
R968 NRS181J-0R0X MG RESISTOR 0
R969 NRS181J-0R0X MG RESISTOR 0
R973 NRSA63J-223X MG RESISTOR 22k
R974 NRSA63J-223X MG RESISTOR 22k
R975 NRSA63J-223X MG RESISTOR 22k
R976 NRSA63J-563X MG RESISTOR 56k
R977 NRSA63J-183X MG RESISTOR 18k
R981 NRS181J-222X MG RESISTOR 2.2k
R982 NRS181J-222X MG RESISTOR 2.2k
RA721 NRZ0065-222X NET RESISTOR 2.2k
RA722 NRZ0065-222X NET RESISTOR 2.2k
RA723 NRZ0065-103X NET RESISTOR 10kΩ 1/16W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
1/8W J
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
1/8W J
Ω
Ω
300k
D
Ω
1/16W J
Ω
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
1/16W J
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
1/16W J
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
1/16W J
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/4W J
Ω
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
Ω
1/8W J
1/16W J
1/16W J
Ω
1/16W J
Ω
1/16W
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
Ω
3-19
Symbol No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
L1 NQL334J-4R7X INDUCTOR CM 4.7uH J
L2 NQL093K-R22X COIL 0.22uH K
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X COIL 47uH K
L421 NQR0007-002X FERRITE BEADS
L430 NQR0007-002X FERRITE BEADS
L431 NQR0007-002X FERRITE BEADS
L721 NQL38DK-330X COIL 33uH K
L722 NQL114K-470X COIL 47uH K
L901 QQR1378-002 COIL
L902 NQL56CK-220X COIL 22uH K
L924 NQL56CK-220X COIL 22uH K
L925 NQL71EM-330X COIL 33uH M
CN141 QGA2006C1-04 CONNECTOR W-B (1-4)
CN411 QGA2501F1-02 CONNECTOR W-B (1-2)
CN421 QGA2006C1-04 CONNECTOR W-B (1-4)
CN471 QGB1004J2-16X CONNECTOR B-B (1-16)
CN701 QNZ0605-001 CAR CONNECTOR
CN702 WJK0224-001A-E 2PIN CABLE
CN821 QGA2001C1-02 CONNECTOR W-B (1-2)
CN831 QGA2006C1-02 CONNECTOR W-B (1-2)
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2027M3-30S CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR
CN963 QGB2027L9-30X CONNECTOR B-B (1-30)
J331 QNN0747-001 MODULAR JACK
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS
K831 NQR0007-002X FERRITE BEADS
PP1 QZW0010-001 STYLE PIN
PP2 QZW0010-001 STYLE PIN
PP3 QZW0010-001 STYLE PIN
S701 QSW0451-001 DETECT SW
S702 QSW0451-001 DETECT SW
S723 QSW1049-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k
TU21 QAU0443-002 TUNER PACK
W21 QAM0105-003 CAR CABLE
X71 QAX0263-001Z CRYSTAL 4.332MHz
X721 QAX0617-001Z CRYSTAL 12.500MHz
X722 QAX0401-001 CRYSTAL 32.768KHz
FFC/FPC (1-
45)
Switch board
(KD-DV6201E,DV6201EU,
DV6202E,6202EU)
Block No. [0][5]
Symbol
No.
IC601 PT6523LQ-L LCD DRIVER
IC602 RPM7338-V4 RM.RECEIVER
Q640 2SA1365/F/-X TRANSISTOR
Q641 RT1N141C-X DIGI TRANSISTOR
D601 LSQ971/KL/-X LED
D602 LSQ971/KL/-X LED
D603 LSQ971/KL/-X LED
D604 LSQ971/KL/-X LED
D605 LSQ971/KL/-X LED
D606 LSQ971/KL/-X LED
D607 LSQ971/KL/-X LED
D608 SML310BA1T/HJ-X LED
D609 SML310BA1T/HJ-X LED
D610 LSQ971/KL/-X LED
D611 LSQ971/KL/-X LED
Part No. Part Name Description Local
D612 LSQ971/KL/-X LED
D613 LSQ971/KL/-X LED
D614 LSQ971/KL/-X LED
D615 LSQ971/KL/-X LED
D616 LSQ971/KL/-X LED
D617 LSQ971/KL/-X LED
D618 SML310BA1T/HJ-X LED
D620 SML310BA1T/HJ-X LED
D621 SML310BA1T/HJ-X LED
D640 MC2838-X DIODE
D641 UDZW5.1B-X SI DIODE
D642 1SS355W-X DIODE C.M
D643 UDZW6.2B-X DIODE
D645 NSPW310BS/BRST/ LED
D646 NSPW310BS/BRST/ LED
C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C602 NCS31HJ-681X C CAPACITOR 680pF 50V J
C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
Ω
R601 NRSA63J-821X MG RESISTOR 820
R602 NRSA63J-821X MG RESISTOR 820
R603 NRSA63J-122X MG RESISTOR 1.2k
R604 NRSA63J-182X MG RESISTOR 1.8k
R605 NRSA63J-272X MG RESISTOR 2.7k
R606 NRSA63J-392X MG RESISTOR 3.9k
R607 NRSA63J-821X MG RESISTOR 820
R608 NRSA63J-821X MG RESISTOR 820
R609 NRSA63J-122X MG RESISTOR 1.2k
R610 NRSA63J-182X MG RESISTOR 1.8k
R611 NRSA63J-272X MG RESISTOR 2.7k
R612 NRSA63J-392X MG RESISTOR 3.9k
R613 NRSA63J-821X MG RESISTOR 820
R614 NRSA63J-821X MG RESISTOR 820
R632 NRSA02J-821X MG RESISTOR 820
R634 NRSA63J-301X MG RESISTOR 300
Ω
R636 NRSA63J-301X MG RESISTOR 300
R638 NRSA63J-301X MG RESISTOR 300
R640 NRSA63J-680X MG RESISTOR 68
R641 NRS181J-101X MG RESISTOR 100
R642 NRSA63J-680X MG RESISTOR 68
R643 NRSA63J-680X MG RESISTOR 68
R644 NRSA63J-431X MG RESISTOR 430
R646 NRSA63J-431X MG RESISTOR 430
R648 NRSA63J-431X MG RESISTOR 430
R650 NRS181J-221X MG RESISTOR 220
R651 NRSA63J-222X MG RESISTOR 2.2k
R652 NRSA63J-222X MG RESISTOR 2.2k
R653 NRSA63J-103X MG RESISTOR 10k
R654 NRSA63J-103X MG RESISTOR 10k
R655 NRSA63J-103X MG RESISTOR 10k
R656 NRSA63J-103X MG RESISTOR 10k
R657 NRSA63J-513X MG RESISTOR 51k
R658 NRSA63J-184X MG RESISTOR 180k
R660 NRSA02J-391X MG RESISTOR 390
R661 NRSA02J-391X MG RESISTOR 390
R670 NRSA63J-0R0X MG RESISTOR 0
R672 NRSA02J-471X MG RESISTOR 470
R673 NRSA02J-473X MG RESISTOR 47k
R674 NRSA02J-102X MG RESISTOR 1k
R680 NRSA63J-680X MG RESISTOR 68
R681 NRSA63J-680X MG RESISTOR 68
R691 NRSA63J-103X MG RESISTOR 10k
R692 NRSA63J-471X MG RESISTOR 470
CN601 NNZ0085-001 CAR CONNECTOR
EN601 QSW1163-001 ROTARY ENCODER
S601 NSW0206-001X TACT SWITCH
S602 NSW0206-001X TACT SWITCH
S603 NSW0206-001X TACT SWITCH
S604 NSW0206-001X TACT SWITCH
S605 NSW0206-001X TACT SWITCH
S606 NSW0206-001X TACT SWITCH
S607 NSW0206-001X TACT SWITCH
S608 NSW0206-001X TACT SWITCH
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
3-20
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
S609 NSW0206-001X TACT SWITCH
S610 NSW0206-001X TACT SWITCH
S611 NSW0206-001X TACT SWITCH
S612 NSW0206-001X TACT SWITCH
S613 NSW0206-001X TACT SWITCH
S614 NSW0206-001X TACT SWITCH
S616 NSW0206-001X TACT SWITCH
S617 NSW0206-001X TACT SWITCH
USB board
(KD-DV6201E,DV6201EU,
DV6202E,6202EU)
Block No. [0][6]
Symbol
No.
IC401 TCC760 IC
IC441 SA04D70TFI021A IC(PROGRAMED)
IC442 K4S161622H-UC60 IC
IC451 AK4385ET-X IC
IC452 NJM4565V-X IC
IC481 SN74LVC2G07V-X LOGIC IC
IC482 SN74AHCT1G08V-X IC
IC521 BH18LB1WG-W 1.8V REG
Q401 RT1N141C-X DIGI TRANSISTOR
D532 UDZW5.1B-X SI DIODE
D533 UDZW5.1B-X SI DIODE
D600 SML-310LT/MN/-X LED
C402 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C403 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C404 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C406 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C407 NDC31HJ-270X C CAPACITOR 27pF 50V J
C408 NDC31HJ-270X C CAPACITOR 27pF 50V J
C409 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C410 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C411 NDC31HJ-331X C CAPACITOR 330pF 50V J
C412 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C413 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C414 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C415 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C416 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C417 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C418 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C419 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C420 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C440 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C441 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C442 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C443 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C444 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C445 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C446 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C447 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C448 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C449 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C451 NCB31HK-331X C CAPACITOR 330pF 50V K
C453 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C454 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C455 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C456 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C457 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C461 NCB31HK-332X C CAPACITOR 3300pF 50V K
C462 NCS31HJ-471X C CAPACITOR 470pF 50V J
C463 NCS31HJ-471X C CAPACITOR 470pF 50V J
C464 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C465 NBE41AM-476X TA E CAPACITOR 47uF 10V M
Part No. Part Name Description Local
C471 NCB31HK-332X C CAPACITOR 3300pF 50V K
C472 NCS31HJ-471X C CAPACITOR 470pF 50V J
C473 NCS31HJ-471X C CAPACITOR 470pF 50V J
C474 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C475 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C482 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C521 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M
C522 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C531 NCB31AK-474X C CAPACITOR 0.47uF 10V K
Ω
R398 NRSA63J-0R0X MG RESISTOR 0
R399 NRSA63J-0R0X MG RESISTOR 0
R401 NRSA63J-0R0X MG RESISTOR 0
R402 NRSA63J-0R0X MG RESISTOR 0
R403 NRSA63J-0R0X MG RESISTOR 0
R404 NRSA63J-472X MG RESISTOR 4.7k
R405 NRSA63J-472X MG RESISTOR 4.7k
R406 NRSA63J-472X MG RESISTOR 4.7k
R407 NRSA63J-0R0X MG RESISTOR 0
R408 NRSA63J-0R0X MG RESISTOR 0
R409 NRSA63J-102X MG RESISTOR 1k
R410 NRSA63J-0R0X MG RESISTOR 0
R411 NRSA63J-152X MG RESISTOR 1.5k
R412 NRSA63J-105X MG RESISTOR 1M
R414 NRSA63J-0R0X MG RESISTOR 0
R415 NRSA63J-0R0X MG RESISTOR 0
R416 NRSA63J-0R0X MG RESISTOR 0
R417 NRSA63J-0R0X MG RESISTOR 0
R418 NRSA63J-0R0X MG RESISTOR 0
R420 NRSA63J-104X MG RESISTOR 100k
R421 NRSA63J-472X MG RESISTOR 4.7k
R425 NRSA63J-103X MG RESISTOR 10k
R426 NRSA63J-0R0X MG RESISTOR 0
R435 NRSA63J-472X MG RESISTOR 4.7k
R436 NRSA63J-472X MG RESISTOR 4.7k
R437 NRSA63J-472X MG RESISTOR 4.7k
R441 NRSA63J-102X MG RESISTOR 1k
R444 NRSA63J-0R0X MG RESISTOR 0
R446 NRSA63J-472X MG RESISTOR 4.7k
R447 NRSA63J-0R0X MG RESISTOR 0
R448 NRSA63J-473X MG RESISTOR 47k
R451 NRSA63J-473X MG RESISTOR 47k
R452 NRSA63J-0R0X MG RESISTOR 0
R453 NRSA63J-4R7X MG RESISTOR 4.7
R454 NRSA63J-100X MG RESISTOR 10
R455 NRSA63J-100X MG RESISTOR 10
R460 NRSA63J-122X MG RESISTOR 1.2k
R461 NRSA63J-472X MG RESISTOR 4.7k
R462 NRSA63J-472X MG RESISTOR 4.7k
R463 NRSA63J-223X MG RESISTOR 22k
R464 NRSA63J-472X MG RESISTOR 4.7k
R465 NRSA63J-201X MG RESISTOR 200
R466 NRSA63J-223X MG RESISTOR 22k
R467 NRSA63J-472X MG RESISTOR 4.7k
R468 NRSA63J-201X MG RESISTOR 200
R469 NRSA63J-102X MG RESISTOR 1k
R470 NRSA63J-122X MG RESISTOR 1.2k
R471 NRSA63J-472X MG RESISTOR 4.7k
R472 NRSA63J-472X MG RESISTOR 4.7k
R473 NRSA63J-223X MG RESISTOR 22k
R474 NRSA63J-472X MG RESISTOR 4.7k
R475 NRSA63J-201X MG RESISTOR 200
R476 NRSA63J-223X MG RESISTOR 22k
R477 NRSA63J-472X MG RESISTOR 4.7k
R478 NRSA63J-201X MG RESISTOR 200
R479 NRSA63J-102X MG RESISTOR 1k
R482 NRSA63J-103X MG RESISTOR 10k
R483 NRSA63J-103X MG RESISTOR 10k
R484 NRSA63J-103X MG RESISTOR 10k
R532 NRSA63J-153X MG RESISTOR 15k
R533 NRSA63J-153X MG RESISTOR 15k
RA401 NRZ0065-472X MG RESISTOR 4.7k
L401 NQL38DK-330X COIL 33uH K
L531 NQR0536-001X CHOKE COIL
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
3-21
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
CN531 QNZ0855-001 USB CONNECTOR
CN532 QGB1004K1-16 CONNECTOR B-B (1-16)
CN600 QGA1501C6-02 CONNECTOR W-B (1-2)
F531 NAD0031-004X N THERMISTOR W
K441 NQR0502-001X FERRITE BEADS
X402 NAX0832-001X CRYSTAL
Main board
(KD-DV6207EE)
Block No. [0][7]
Symbol
No.
IC71 LC72725NM-X IC
IC161 TDA7416 IC
IC162 CD4066BPW-X IC
IC301 TB2904HQ IC
IC401 SN74AHCT1G08V-X IC
IC402 TOTX177L OPTICAL JACK
IC411 MM1510XN-X IC
IC421 NJM4580V-X IC
IC431 LC75344M-X IC
IC471 BA05CC0WT-V5 IC REGULATOR
IC721 UPD784218AGC328 IC
IC722 BR24L32F-W-X IC(DIGITAL)
IC723 S-80833CNNB-G-W IC
IC801 SN74AHC126NS-X IC
IC901 R2S25401DS-E IC
IC921 BA33BC0FP-X IC
IC922 BD9781HFP-W IC
IC961 SN74LVC32APW-X IC
IC962 SN74HCT32APW-X IC
Q2 RT1N141C-X DIGI TRANSISTOR
Q161 RT1N141C-X DIGI TRANSISTOR
Q162 RT1N141C-X DIGI TRANSISTOR
Q191 KTD1304-X TRANSISTOR
Q192 RT1P441C-X DIGI TRANSISTOR
Q301 RT1N441C-X TRANSISTOR
Q302 RT1P441C-X DIGI TRANSISTOR
Q303 RT1N141C-X DIGI TRANSISTOR
Q304 RT1N141C-X DIGI TRANSISTOR
Q324 KTD1304-X TRANSISTOR
Q334 KTD1304-X TRANSISTOR
Q344 KTD1304-X TRANSISTOR
Q354 KTD1304-X TRANSISTOR
Q421 KTD1304-X TRANSISTOR
Q422 KTD1304-X TRANSISTOR
Q431 KTD1304-X TRANSISTOR
Q432 KTD1304-X TRANSISTOR
Q476 2SA1365/F/-X TRANSISTOR
Q477 RT1N141C-X DIGI TRANSISTOR
Q701 2SA1530A/R/-X TRANSISTOR
Q781 RT1P141C-X DIGI TRANSISTOR
Q782 RT1P141C-X DIGI TRANSISTOR
Q783 RT1P141C-X DIGI TRANSISTOR
Q784 RT1P141C-X DIGI TRANSISTOR
Q821 RT1N141C-X DIGI TRANSISTOR
Q822 RT1P141C-X DIGI TRANSISTOR
Q823 2SC4485/ST/-T TRANSISTOR
Q881 2SC3928A/R/-X TRANSISTOR
Q885 RT1N141C-X DIGI TRANSISTOR
Q891 RT1N141C-X DIGI TRANSISTOR
Q903 2SA1530A/R/-X TRANSISTOR
Q904 RT1N141C-X DIGI TRANSISTOR
Q976 RT1N441C-X TRANSISTOR
Q977 2SA1530A/R/-X TRANSISTOR
D1 1SS355W-X DIODE C.M
D2 1SS355W-X DIODE C.M
D192 1SS355W-X DIODE C.M
Part No. Part Name Description Local
D301 UDZW11B-X Z DIODE
D302 1SS355W-X DIODE C.M
D305 CRS03-W SB DIODE
D308 CRS03-W SB DIODE
D324 1SS355W-X DIODE C.M
D334 1SS355W-X DIODE C.M
D344 1SS355W-X DIODE C.M
D354 1SS355W-X DIODE C.M
D401 CRS03-W SB DIODE
D421 1SS355W-X DIODE C.M
D431 1SS355W-X DIODE C.M
D472 1A3G-T1 SI DIODE
D701 UDZW6.2B-X DIODE
D702 UDZW6.2B-X DIODE
D703 UDZW6.2B-X DIODE
D704 UDZW6.2B-X DIODE
D705 UDZW6.2B-X DIODE
D706 UDZW6.2B-X DIODE
D707 UDZW6.2B-X DIODE
D709 UDZW6.2B-X DIODE
D710 UDZW6.2B-X DIODE
D711 UDZW6.2B-X DIODE
D716 UDZW6.2B-X DIODE
D717 UDZW6.2B-X DIODE
D719 SLR-56VC3F DIODE C.M
D731 1SS355W-X DIODE C.M
D732 UDZW6.2B-X DIODE
D781 MC2836-X DIODE
D782 MC2836-X DIODE
D783 UDZW11B-X Z DIODE
D784 UDZW11B-X Z DIODE
D785 1SS355W-X DIODE C.M
D801 CRS03-W SB DIODE
D821 UDZW12B-X Z DIODE
D885 1SS355W-X DIODE C.M
D891 MC2836-X DIODE
D901 1N5401-F64 SI DIODE
D903 1SS355W-X DIODE C.M
D906 UDZW5.1B-X SI DIODE
D921 1A3G-T1 SI DIODE
D922 RB051L-40-X SB DIODE
D923 CRS03-W SB DIODE
D924 CRS03-W SB DIODE
D925 CRS03-W SB DIODE
D981 CRS03-W SB DIODE
D982 CRS03-W SB DIODE
C1 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C4 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C6 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C7 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C8 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C9 QEKJ1HM-224Z E CAPACITOR 0.22uF 50V M
C12 NDC31HJ-2R0X C CAPACITOR 2pF 50V J
C14 NDC31HJ-100X C CAPACITOR 10pF 50V J
C71 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C72 NCB31HK-331X C CAPACITOR 330pF 50V K
C73 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C74 NCS31HJ-561X C CAPACITOR 560pF 50V J
C75 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C76 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C77 NDC31HJ-330X C CAPACITOR 33pF 50V J
C78 NDC31HJ-330X C CAPACITOR 33pF 50V J
C83 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C93 QTE1E57-475Z E CAPACITOR 4.7uF 25V
C141 NCB31HK-471X C CAPACITOR 470pF 50V K
C151 NCB31HK-471X C CAPACITOR 470pF 50V K
C155 NCB31AK-474X C CAPACITOR 0.47uF 10V K
C161 QTE1A57-107Z E CAPACITOR 100uF 10V
C162 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C163 NFV81CM-105X MF CAPACITOR 1uF 16V M
C164 NFV81CM-105X MF CAPACITOR 1uF 16V M
C165 NFV81CM-105X MF CAPACITOR 1uF 16V M
C166 QTE1C57-106Z E CAPACITOR 10uF 16V
C168 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C169 NCB31HK-103X C CAPACITOR 0.01uF 50V K
3-22
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
C170 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C171 QTE1H57-225Z E CAPACITOR 2.2uF 50V
C172 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C174 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C176 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C177 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C181 QTE1H57-225Z E CAPACITOR 2.2uF 50V
C182 QTE1H55-225Z E CAPACITOR 2.2uF 50V
C184 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C186 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C187 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C191 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C267 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C301 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C302 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C311 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M
C312 QTE1C57-476Z E CAPACITOR 47uF 16V
C313 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C314 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C315 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C316 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C326 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C328 NFV81CM-105X MF CAPACITOR 1uF 16V M
C329 NCS31HJ-101X C CAPACITOR 100pF 50V J
C331 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C336 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C338 NFV81CM-105X MF CAPACITOR 1uF 16V M
C339 NCS31HJ-101X C CAPACITOR 100pF 50V J
C346 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C348 NFV81CM-105X MF CAPACITOR 1uF 16V M
C349 NCS31HJ-101X C CAPACITOR 100pF 50V J
C356 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C358 NFV81CM-105X MF CAPACITOR 1uF 16V M
C359 NCS31HJ-101X C CAPACITOR 100pF 50V J
C401 NCS31HJ-220X C CAPACITOR 22pF 50V J
C402 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C403 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C404 QEKJ0JM-107Z E CAPACITOR 100uF 6.3V M
C405 NCS31HJ-220X C CAPACITOR 22pF 50V J
C406 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C411 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C412 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C413 QCZ0202-155Z C CAPACITOR 1.5uF 25V Z
C414 QERF0JM-337Z E CAPACITOR 330uF 6.3V M
C415 NCS31HJ-101X C CAPACITOR 100pF 50V J
C416 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C423 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C424 NCS31HJ-151X C CAPACITOR 150pF 50V J
C425 NCS31HJ-101X C CAPACITOR 100pF 50V J
C426 NCS31HJ-221X C CAPACITOR 220pF 50V J
C427 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C428 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C433 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C434 NCS31HJ-151X C CAPACITOR 150pF 50V J
C435 NCS31HJ-101X C CAPACITOR 100pF 50V J
C436 NCS31HJ-221X C CAPACITOR 220pF 50V J
C437 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C438 QEKJ1EM-475Z E CAPACITOR 4.7uF 25V M
C441 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C451 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C461 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C462 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C463 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C464 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C465 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C474 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C475 NCB31HK-102X C CAPACITOR 1000pF 50V K
C476 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C477 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C478 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C479 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C480 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C701 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C702 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C721 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C722 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C723 NCS31HJ-471X C CAPACITOR 470pF 50V J
C724 NCS31HJ-471X C CAPACITOR 470pF 50V J
C725 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C726 NDC31HJ-8R0X C CAPACITOR 8pF 50V J
C727 NDC31HJ-270X C CAPACITOR 27pF 50V J
C728 NDC31HJ-270X C CAPACITOR 27pF 50V J
C729 NDC31HJ-220X C CAPACITOR 22pF 50V J
C730 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C731 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C732 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C733 NCS31HJ-471X C CAPACITOR 470pF 50V J
C781 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C782 QEKJ0JM-476Z E CAPACITOR 47uF 6.3V M
C783 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C784 QEKJ1CM-476Z E CAPACITOR 47uF 16V M
C802 NCS31HJ-220X C CAPACITOR 22pF 50V J
C803 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C804 NCS31HJ-220X C CAPACITOR 22pF 50V J
C821 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C822 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C823 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C881 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C885 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C892 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C901 QEZ0722-338 E CAPACITOR 3300uF
C902 QEKJ1HM-225Z E CAPACITOR 2.2uF 50V M
C903 QEKJ1CM-106Z E CAPACITOR 10uF 16V M
C905 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C906 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C907 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C908 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C909 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C910 NCB31HK-102X C CAPACITOR 1000pF 50V K
C911 NCB31HK-102X C CAPACITOR 1000pF 50V K
C912 QEKJ1CM-226Z E CAPACITOR 22uF 16V M
C913 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C918 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C919 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C921 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C922 QEKJ1AM-107Z E CAPACITOR 100uF 10V M
C925 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C926 QEXF1AM-476Z E CAPACITOR 47uF 10V M
C927 QEZ0595-477Z E CAPACITOR 470uF
C928 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C929 NCB31HK-472X C CAPACITOR 4700pF 50V K
C930 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z
C961 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C962 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C963 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C964 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C965 QEKJ1AM-227Z E CAPACITOR 220uF 10V M
C966 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C967 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C968 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C969 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C970 QEKJ1CM-107Z E CAPACITOR 100uF 16V M
C971 NCB31EK-473X C CAPACITOR 0.047uF 25V K
C981 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C999 NRSA63J-0R0X MG RESISTOR 0
R2 NRSA63J-102X MG RESISTOR 1k
R3 NRSA63J-102X MG RESISTOR 1k
R5 NRSA63J-330X MG RESISTOR 33
R6 NRSA63J-330X MG RESISTOR 33
R7 NRSA63J-103X MG RESISTOR 10k
R8 NRSA63J-332X MG RESISTOR 3.3k
R9 NRSA63J-473X MG RESISTOR 47k
R10 NRSA63J-472X MG RESISTOR 4.7k
R11 NRSA63J-472X MG RESISTOR 4.7k
R12 NRS181J-4R7X MG RESISTOR 4.7
R13 NRS181J-6R8X MG RESISTOR 6.8
R14 NRSA63J-0R0X MG RESISTOR 0
R71 NRSA63J-101X MG RESISTOR 100
R72 NRSA63J-202X MG RESISTOR 2k
R73 NRSA63J-103X MG RESISTOR 10k
R81 NRSA63J-223X MG RESISTOR 22k
R82 NRSA63J-822X MG RESISTOR 8.2k
R91 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
3-23
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
R92 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J
R141 NRSA63J-473X MG RESISTOR 47k
R142 NRSA63J-0R0X MG RESISTOR 0
R151 NRSA63J-473X MG RESISTOR 47k
R152 NRSA63J-0R0X MG RESISTOR 0
R155 NRSA63J-471X MG RESISTOR 470
R161 NRSA63J-0R0X MG RESISTOR 0
R162 NRSA63J-473X MG RESISTOR 47k
R163 NRSA63J-473X MG RESISTOR 47k
R164 NRSA63J-473X MG RESISTOR 47k
R165 NRSA63J-473X MG RESISTOR 47k
R166 NRSA63J-221X MG RESISTOR 220
R171 NRSA63J-222X MG RESISTOR 2.2k
R172 NRSA63J-222X MG RESISTOR 2.2k
R173 NRSA63J-0R0X MG RESISTOR 0
R191 NRSA63J-472X MG RESISTOR 4.7k
R192 NRSA63J-821X MG RESISTOR 820
R193 NRSA63J-101X MG RESISTOR 100
R194 NRSA63J-101X MG RESISTOR 100
R197 NRSA63J-471X MG RESISTOR 470
R302 NRSA63J-0R0X MG RESISTOR 0
R304 NRSA63J-473X MG RESISTOR 47k
R305 NRSA63J-103X MG RESISTOR 10k
R306 NRSA63J-273X MG RESISTOR 27k
R307 NRSA63J-100X MG RESISTOR 10
R308 NRSA63J-222X MG RESISTOR 2.2k
R323 NRSA63J-473X MG RESISTOR 47k
R324 NRSA63J-222X MG RESISTOR 2.2k
R325 NRSA63J-102X MG RESISTOR 1k
R326 NRSA63J-101X MG RESISTOR 100
R327 NRSA63J-0R0X MG RESISTOR 0
R329 NRSA63J-102X MG RESISTOR 1k
R330 NRSA63J-102X MG RESISTOR 1k
R333 NRSA63J-473X MG RESISTOR 47k
R334 NRSA63J-222X MG RESISTOR 2.2k
R335 NRSA63J-102X MG RESISTOR 1k
R336 NRSA63J-101X MG RESISTOR 100
R337 NRSA63J-0R0X MG RESISTOR 0
R339 NRSA63J-102X MG RESISTOR 1k
R340 NRSA63J-102X MG RESISTOR 1k
R343 NRSA63J-473X MG RESISTOR 47k
R344 NRSA63J-222X MG RESISTOR 2.2k
R345 NRSA63J-102X MG RESISTOR 1k
R346 NRSA63J-101X MG RESISTOR 100
R347 NRSA63J-0R0X MG RESISTOR 0
R349 NRSA63J-102X MG RESISTOR 1k
R350 NRSA63J-102X MG RESISTOR 1k
R353 NRSA63J-473X MG RESISTOR 47k
R354 NRSA63J-222X MG RESISTOR 2.2k
R355 NRSA63J-102X MG RESISTOR 1k
R356 NRSA63J-101X MG RESISTOR 100
R357 NRSA63J-0R0X MG RESISTOR 0
R359 NRSA63J-102X MG RESISTOR 1k
R360 NRSA63J-102X MG RESISTOR 1k
R371 NRSA63J-0R0X MG RESISTOR 0
R372 NRSA63J-0R0X MG RESISTOR 0
R381 NRSA63J-0R0X MG RESISTOR 0
R382 NRSA63J-0R0X MG RESISTOR 0
R401 NRSA63J-471X MG RESISTOR 470
R402 NRSA63J-100X MG RESISTOR 10
R403 NRSA63J-471X MG RESISTOR 470
R404 NRSA63J-2R2X MG RESISTOR 2.2
R410 NRS181J-0R0X MG RESISTOR 0
R411 NRSA63J-0R0X MG RESISTOR 0
R412 NRSA63D-682X MG RESISTOR 6.8k
R413 NRSA63J-100X MG RESISTOR 10
R414 NRSA63J-102X MG RESISTOR 1k
R415 NRSA63J-750X MG RESISTOR 75
R416 NRSA63J-0R0X MG RESISTOR 0
R417 NRSA63D-181X MG RESISTOR 180
R421 NRSA63J-220X MG RESISTOR 22
R422 NRSA63J-222X MG RESISTOR 2.2k
R423 NRSA63J-222X MG RESISTOR 2.2k
R424 NRSA63J-390X MG RESISTOR 39
R425 NRSA63J-102X MG RESISTOR 1k
R426 NRSA63J-183X MG RESISTOR 18k
R427 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
R428 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J
R429 NRSA63J-104X MG RESISTOR 100k
R431 NRSA63J-220X MG RESISTOR 22
R432 NRSA63J-222X MG RESISTOR 2.2k
R433 NRSA63J-222X MG RESISTOR 2.2k
R434 NRSA63J-390X MG RESISTOR 39
R435 NRSA63J-102X MG RESISTOR 1k
R436 NRSA63J-183X MG RESISTOR 18k
R437 NRSA63J-682X MG RESISTOR 6.8k
R438 NRSA63J-472X MG RESISTOR 4.7k
R439 NRSA63J-104X MG RESISTOR 100k
R441 NRSA63J-223X MG RESISTOR 22k
R442 NRSA63J-223X MG RESISTOR 22k
R451 NRSA63J-223X MG RESISTOR 22k
R452 NRSA63J-223X MG RESISTOR 22k
R461 NRSA63J-100X MG RESISTOR 10
R462 NRSA63J-100X MG RESISTOR 10
R463 NRSA63J-100X MG RESISTOR 10
R471 NRSA63J-101X MG RESISTOR 100
R474 NRSA63J-101X MG RESISTOR 100
R475 NRSA63J-101X MG RESISTOR 100
R479 NRSA63J-0R0X MG RESISTOR 0
R480 NRSA63J-0R0X MG RESISTOR 0
R481 NRSA63J-103X MG RESISTOR 10k
R482 NRSA63J-473X MG RESISTOR 47k
R483 NRSA63J-102X MG RESISTOR 1k
R484 NRSA63J-103X MG RESISTOR 10k
R704 NRSA63J-271X MG RESISTOR 270
R705 NRSA63J-271X MG RESISTOR 270
R706 NRSA63J-103X MG RESISTOR 10k
R707 NRSA63J-103X MG RESISTOR 10k
R708 NRS181J-561X MG RESISTOR 560
R709 NRSA63J-562X MG RESISTOR 5.6k
R710 NRSA63J-102X MG RESISTOR 1k
R711 NRSA63J-103X MG RESISTOR 10k
R712 NRSA63J-104X MG RESISTOR 100k
R713 NRSA63J-103X MG RESISTOR 10k
R714 NRSA63J-104X MG RESISTOR 100k
R715 NRSA63J-271X MG RESISTOR 270
R716 NRSA63J-271X MG RESISTOR 270
R717 NRSA63J-331X MG RESISTOR 330
R718 NRSA63J-103X MG RESISTOR 10k
R719 NRSA63J-103X MG RESISTOR 10k
R720 NRSA63J-0R0X MG RESISTOR 0
R721 NRSA63J-222X MG RESISTOR 2.2k
R722 NRSA63J-222X MG RESISTOR 2.2k
R725 NRSA63J-473X MG RESISTOR 47k
R726 NRSA63J-103X MG RESISTOR 10k
R727 NRSA63J-562X MG RESISTOR 5.6k
R728 NRSA63J-472X MG RESISTOR 4.7k
R729 NRSA63J-0R0X MG RESISTOR 0
R730 NRSA63J-222X MG RESISTOR 2.2k
R733 NRSA63J-103X MG RESISTOR 10k
R735 NRSA63J-0R0X MG RESISTOR 0
R738 NRSA63J-472X MG RESISTOR 4.7k
R739 NRSA63J-472X MG RESISTOR 4.7k
R740 NRSA63J-222X MG RESISTOR 2.2k
R744 NRSA63J-821X MG RESISTOR 820
R745 NRSA63J-106X MG RESISTOR 10M
R746 NRSA63J-473X MG RESISTOR 47k
R748 NRSA63J-473X MG RESISTOR 47k
R749 NRSA63J-473X MG RESISTOR 47k
R751 NRSA63J-333X MG RESISTOR 33k
R754 NRSA63J-222X MG RESISTOR 2.2k
R755 NRSA63J-103X MG RESISTOR 10k
R756 NRSA63J-222X MG RESISTOR 2.2k
R757 NRSA63J-473X MG RESISTOR 47k
R758 NRSA63J-224X MG RESISTOR 220k
R759 NRSA63J-224X MG RESISTOR 220k
R760 NRSA63J-472X MG RESISTOR 4.7k
R761 NRSA63J-472X MG RESISTOR 4.7k
R762 NRSA63J-472X MG RESISTOR 4.7k
R763 NRSA63J-103X MG RESISTOR 10k
R765 NRSA63J-103X MG RESISTOR 10k
R766 NRSA63J-0R0X MG RESISTOR 0
R767 NRSA63J-0R0X MG RESISTOR 0
R768 NRSA63J-0R0X MG RESISTOR 0
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
3-24
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
R769 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J
R771 NRSA63J-392X MG RESISTOR 3.9k
R772 NRSA63J-221X MG RESISTOR 220
R773 NRSA63J-221X MG RESISTOR 220
R774 NRSA63J-472X MG RESISTOR 4.7k
R775 NRSA63J-472X MG RESISTOR 4.7k
R776 NRSA63J-472X MG RESISTOR 4.7k
R777 NRSA63J-102X MG RESISTOR 1k
R778 NRSA63J-103X MG RESISTOR 10k
R779 NRSA63J-222X MG RESISTOR 2.2k
R780 NRSA63J-222X MG RESISTOR 2.2k
R781 NRSA63J-471X MG RESISTOR 470
R782 NRSA63J-471X MG RESISTOR 470
R799 NRSA63J-222X MG RESISTOR 2.2k
R801 NRSA63J-101X MG RESISTOR 100
R802 NRSA63J-473X MG RESISTOR 47k
R803 NRSA63J-223X MG RESISTOR 22k
R804 NRSA63J-104X MG RESISTOR 100k
R805 NRSA63J-103X MG RESISTOR 10k
R806 NRSA63J-104X MG RESISTOR 100k
R807 NRSA63J-331X MG RESISTOR 330
R808 NRSA63J-223X MG RESISTOR 22k
R809 NRSA63J-101X MG RESISTOR 100
R810 NRSA63J-473X MG RESISTOR 47k
R811 NRSA63J-0R0X MG RESISTOR 0
R821 NRSA63J-100X MG RESISTOR 10
R822 NRSA63J-471X MG RESISTOR 470
R825 NRSA63J-223X MG RESISTOR 22k
R841 NRSA63J-473X MG RESISTOR 47k
R844 NRSA63J-473X MG RESISTOR 47k
R845 NRSA63J-222X MG RESISTOR 2.2k
R846 NRSA63J-392X MG RESISTOR 3.9k
R847 NRSA63J-392X MG RESISTOR 3.9k
R848 NRSA63J-331X MG RESISTOR 330
R857 NRS181J-0R0X MG RESISTOR 0
R859 NRSA63J-222X MG RESISTOR 2.2k
R860 NRS181J-561X MG RESISTOR 560
R881 NRSA63J-473X MG RESISTOR 47k
R882 NRSA63J-103X MG RESISTOR 10k
R883 NRSA63J-104X MG RESISTOR 100k
R885 NRSA63J-473X MG RESISTOR 47k
R886 NRSA63J-472X MG RESISTOR 4.7k
R887 NRSA63J-103X MG RESISTOR 10k
R888 NRSA63J-0R0X MG RESISTOR 0
R889 NRSA63J-0R0X MG RESISTOR 0
R891 NRSA63J-473X MG RESISTOR 47k
R892 NRSA63J-102X MG RESISTOR 1k
R894 NRSA63J-0R0X MG RESISTOR 0
R901 QRE142J-102X C RESISTOR 1k
R902 NRSA63J-912X MG RESISTOR 9.1k
R903 NRSA63J-472X MG RESISTOR 4.7k
R909 NRSA63J-473X MG RESISTOR 47k
R910 NRSA63J-222X MG RESISTOR 2.2k
R914 NRS181J-221X MG RESISTOR 220
R921 NRS181J-0R0X MG RESISTOR 0
R923 NRSA63J-393X MG RESISTOR 39k
R924 NRSA63J-103X MG RESISTOR 10k
R925 NRSA63J-154X MG RESISTOR 150k
R926 NRSA63D-304X MG RESISTOR
R927 NRSA63J-0R0X MG RESISTOR 0
R928 NRSA63J-473X MG RESISTOR 47k
R961 NRS181J-0R0X MG RESISTOR 0
R962 NRSA63J-101X MG RESISTOR 100
R967 NRS181J-0R0X MG RESISTOR 0
R968 NRS181J-0R0X MG RESISTOR 0
R969 NRS181J-0R0X MG RESISTOR 0
R973 NRSA63J-223X MG RESISTOR 22k
R974 NRSA63J-223X MG RESISTOR 22k
R975 NRSA63J-223X MG RESISTOR 22k
R976 NRSA63J-563X MG RESISTOR 56k
R977 NRSA63J-183X MG RESISTOR 18k
R981 NRS181J-222X MG RESISTOR 2.2k
R982 NRS181J-222X MG RESISTOR 2.2k
RA721 NRZ0065-222X NET RESISTOR 2.2k
RA722 NRZ0065-222X NET RESISTOR 2.2k
RA723 NRZ0065-103X NET RESISTOR 10kΩ 1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
1/8W J
300k
D
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/4W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/8W J
Ω
Ω
L1 NQL334J-4R7X INDUCTOR CM 4.7uH J
L2 NQL093K-R22X COIL 0.22uH K
L401 NQR0007-002X FERRITE BEADS
L411 NQL114K-470X COIL 47uH K
L421 NQR0007-002X FERRITE BEADS
L430 NQR0007-002X FERRITE BEADS
L431 NQR0007-002X FERRITE BEADS
L721 NQL38DK-330X COIL 33uH K
L722 NQL114K-470X COIL 47uH K
L901 QQR1378-002 COIL
L902 NQL56CK-220X COIL 22uH K
L924 NQL56CK-220X COIL 22uH K
L925 NQL71EM-330X COIL 33uH M
CN141 QGA2006C1-04 CONNECTOR W-B (1-4)
CN411 QGA2501F1-02 CONNECTOR W-B (1-2)
CN421 QGA2006C1-04 CONNECTOR W-B (1-4)
CN471 QGB1004J2-16X CONNECTOR B-B (1-16)
CN701 QNZ0605-001 CAR CONNECTOR
CN702 WJK0224-001A-E 2PIN CABLE
CN821 QGA2001C1-02 CONNECTOR W-B (1-2)
CN901 QNZ0607-001 CAR CONNECTOR
CN961 QGB2027M3-30S CONNECTOR B-B (1-30)
CN962 QGF0534F3-45X CONNECTOR
CN963 QGB2027L9-30X CONNECTOR B-B (1-30)
J331 QNN0747-001 MODULAR JACK
J801 QNZ0095-001 CONNECTOR
K401 NQR0007-002X FERRITE BEADS
K402 NQR0007-002X FERRITE BEADS
K411 NQR0201-004X FERRITE BEADS
PP1 QZW0010-001 STYLE PIN
PP2 QZW0010-001 STYLE PIN
S701 QSW0451-001 DETECT SW
S702 QSW0451-001 DETECT SW
S723 QSW1049-001Z TACT SW
TH721 NAD0028-103X N THERMISTOR 10k
TU21 QAU0453-001 TUNER PACK
W21 QAM0105-003 CAR CABLE
X71 QAX0263-001Z CRYSTAL 4.332MHz
X721 QAX0617-001Z CRYSTAL 12.500MHz
X722 QAX0401-001 CRYSTAL 32.768KHz
FFC/FPC (1-
45)
Switch board
(KD-DV6207EE)
Block No. [0][8]
Symbol
No.
IC601 PT6523LQ-L LCD DRIVER
IC602 RPM7338-V4 RM.RECEIVER
Q640 2SA1365/F/-X TRANSISTOR
Q641 RT1N141C-X DIGI TRANSISTOR
D601 LSQ971/KL/-X LED
D602 LSQ971/KL/-X LED
D603 LSQ971/KL/-X LED
D604 LSQ971/KL/-X LED
D605 LSQ971/KL/-X LED
D606 LSQ971/KL/-X LED
D607 LSQ971/KL/-X LED
D608 SML310BA1T/HJ-X LED
D609 SML310BA1T/HJ-X LED
D610 LSQ971/KL/-X LED
D611 LSQ971/KL/-X LED
D612 LSQ971/KL/-X LED
D613 LSQ971/KL/-X LED
D614 LSQ971/KL/-X LED
D615 LSQ971/KL/-X LED
D616 LSQ971/KL/-X LED
Part No. Part Name Description Local
Ω
3-25
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
D617 LSQ971/KL/-X LED
D618 SML310BA1T/HJ-X LED
D620 SML310BA1T/HJ-X LED
D621 SML310BA1T/HJ-X LED
D640 MC2838-X DIODE
D641 UDZW5.1B-X SI DIODE
D642 1SS355W-X DIODE C.M
D643 UDZW6.2B-X DIODE
D645 NSPW310BS/BRST/ LED
D646 NSPW310BS/BRST/ LED
C601 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C602 NCS31HJ-681X C CAPACITOR 680pF 50V J
C603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C611 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C612 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
Ω
R601 NRSA63J-821X MG RESISTOR 820
R602 NRSA63J-821X MG RESISTOR 820
R603 NRSA63J-122X MG RESISTOR 1.2k
R604 NRSA63J-182X MG RESISTOR 1.8k
R605 NRSA63J-272X MG RESISTOR 2.7k
R606 NRSA63J-392X MG RESISTOR 3.9k
R607 NRSA63J-821X MG RESISTOR 820
R608 NRSA63J-821X MG RESISTOR 820
R609 NRSA63J-122X MG RESISTOR 1.2k
R610 NRSA63J-182X MG RESISTOR 1.8k
R611 NRSA63J-272X MG RESISTOR 2.7k
R612 NRSA63J-392X MG RESISTOR 3.9k
R613 NRSA63J-821X MG RESISTOR 820
R614 NRSA63J-821X MG RESISTOR 820
R632 NRSA02J-821X MG RESISTOR 820
R634 NRSA63J-301X MG RESISTOR 300
R636 NRSA63J-301X MG RESISTOR 300
R638 NRSA63J-301X MG RESISTOR 300
R640 NRSA63J-680X MG RESISTOR 68
R641 NRS181J-101X MG RESISTOR 100
R642 NRSA63J-680X MG RESISTOR 68
R643 NRSA63J-680X MG RESISTOR 68
R644 NRSA63J-431X MG RESISTOR 430
R646 NRSA63J-431X MG RESISTOR 430
R648 NRSA63J-431X MG RESISTOR 430
R650 NRS181J-221X MG RESISTOR 220
R651 NRSA63J-222X MG RESISTOR 2.2k
R652 NRSA63J-222X MG RESISTOR 2.2k
R653 NRSA63J-103X MG RESISTOR 10k
R654 NRSA63J-103X MG RESISTOR 10k
R655 NRSA63J-103X MG RESISTOR 10k
R656 NRSA63J-103X MG RESISTOR 10k
R657 NRSA63J-513X MG RESISTOR 51k
R658 NRSA63J-184X MG RESISTOR 180k
R660 NRSA02J-391X MG RESISTOR 390
R661 NRSA02J-391X MG RESISTOR 390
R670 NRSA63J-0R0X MG RESISTOR 0
R672 NRSA02J-471X MG RESISTOR 470
R673 NRSA02J-473X MG RESISTOR 47k
R674 NRSA02J-102X MG RESISTOR 1k
R680 NRSA63J-680X MG RESISTOR 68
R681 NRSA63J-680X MG RESISTOR 68
R691 NRSA63J-103X MG RESISTOR 10k
R692 NRSA63J-471X MG RESISTOR 470
CN601 NNZ0085-001 CAR CONNECTOR
EN601 QSW1163-001 ROTARY ENCODER
S601 NSW0206-001X TACT SWITCH
S602 NSW0206-001X TACT SWITCH
S603 NSW0206-001X TACT SWITCH
S604 NSW0206-001X TACT SWITCH
S605 NSW0206-001X TACT SWITCH
S606 NSW0206-001X TACT SWITCH
S607 NSW0206-001X TACT SWITCH
S608 NSW0206-001X TACT SWITCH
S609 NSW0206-001X TACT SWITCH
S610 NSW0206-001X TACT SWITCH
S611 NSW0206-001X TACT SWITCH
S612 NSW0206-001X TACT SWITCH
S613 NSW0206-001X TACT SWITCH
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/8W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/10W J
Ω
1/10W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
S614 NSW0206-001X TACT SWITCH
S616 NSW0206-001X TACT SWITCH
S617 NSW0206-001X TACT SWITCH
USB board
(KD-DV6207EE)
Block No. [0][9]
Symbol
No.
IC401 TCC760 IC
IC441 SA04D70TFI021A IC(PROGRAMED)
IC442 K4S161622H-UC60 IC
IC451 AK4385ET-X IC
IC452 NJM4565V-X IC
IC481 SN74LVC2G07V-X LOGIC IC
IC482 SN74AHCT1G08V-X IC
IC521 BH18LB1WG-W 1.8V REG
Q401 RT1N141C-X DIGI TRANSISTOR
D532 UDZW5.1B-X SI DIODE
D533 UDZW5.1B-X SI DIODE
D600 SML-310LT/MN/-X LED
C402 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C403 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C404 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C406 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C407 NDC31HJ-270X C CAPACITOR 27pF 50V J
C408 NDC31HJ-270X C CAPACITOR 27pF 50V J
C409 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C410 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C411 NDC31HJ-331X C CAPACITOR 330pF 50V J
C412 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C413 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C414 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C415 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C416 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C417 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C418 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C419 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C420 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C440 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C441 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C442 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C443 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C444 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C445 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C446 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C447 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C448 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C449 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C451 NCB31HK-331X C CAPACITOR 330pF 50V K
C453 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C454 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C455 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C456 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C457 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C461 NCB31HK-332X C CAPACITOR 3300pF 50V K
C462 NCS31HJ-471X C CAPACITOR 470pF 50V J
C463 NCS31HJ-471X C CAPACITOR 470pF 50V J
C464 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C465 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C471 NCB31HK-332X C CAPACITOR 3300pF 50V K
C472 NCS31HJ-471X C CAPACITOR 470pF 50V J
C473 NCS31HJ-471X C CAPACITOR 470pF 50V J
C474 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C475 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C482 NCB31CK-104X C CAPACITOR 0.1uF 16V K
Part No. Part Name Description Local
3-26
Symbol
No.
C521 NBE21CM-475X TA E CAPACITOR 4.7uF 16V M
C522 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C531 NCB31AK-474X C CAPACITOR 0.47uF 10V K
R398 NRSA63J-0R0X MG RESISTOR 0
R399 NRSA63J-0R0X MG RESISTOR 0
R401 NRSA63J-0R0X MG RESISTOR 0
R402 NRSA63J-0R0X MG RESISTOR 0
R403 NRSA63J-0R0X MG RESISTOR 0
R404 NRSA63J-472X MG RESISTOR 4.7k
R405 NRSA63J-472X MG RESISTOR 4.7k
R406 NRSA63J-472X MG RESISTOR 4.7k
R407 NRSA63J-0R0X MG RESISTOR 0
R408 NRSA63J-0R0X MG RESISTOR 0
R409 NRSA63J-102X MG RESISTOR 1k
R410 NRSA63J-0R0X MG RESISTOR 0
R411 NRSA63J-152X MG RESISTOR 1.5k
R412 NRSA63J-105X MG RESISTOR 1M
R414 NRSA63J-0R0X MG RESISTOR 0
R415 NRSA63J-0R0X MG RESISTOR 0
R416 NRSA63J-0R0X MG RESISTOR 0
R417 NRSA63J-0R0X MG RESISTOR 0
R418 NRSA63J-0R0X MG RESISTOR 0
R420 NRSA63J-104X MG RESISTOR 100k
R421 NRSA63J-472X MG RESISTOR 4.7k
R425 NRSA63J-103X MG RESISTOR 10k
R426 NRSA63J-0R0X MG RESISTOR 0
R435 NRSA63J-472X MG RESISTOR 4.7k
R436 NRSA63J-472X MG RESISTOR 4.7k
R437 NRSA63J-472X MG RESISTOR 4.7k
R441 NRSA63J-102X MG RESISTOR 1k
R444 NRSA63J-0R0X MG RESISTOR 0
R446 NRSA63J-472X MG RESISTOR 4.7k
R447 NRSA63J-0R0X MG RESISTOR 0
R448 NRSA63J-473X MG RESISTOR 47k
R451 NRSA63J-473X MG RESISTOR 47k
R452 NRSA63J-0R0X MG RESISTOR 0
R453 NRSA63J-4R7X MG RESISTOR 4.7
R454 NRSA63J-100X MG RESISTOR 10
R455 NRSA63J-100X MG RESISTOR 10
R460 NRSA63J-122X MG RESISTOR 1.2k
R461 NRSA63J-472X MG RESISTOR 4.7k
R462 NRSA63J-472X MG RESISTOR 4.7k
R463 NRSA63J-223X MG RESISTOR 22k
R464 NRSA63J-472X MG RESISTOR 4.7k
R465 NRSA63J-201X MG RESISTOR 200
R466 NRSA63J-223X MG RESISTOR 22k
R467 NRSA63J-472X MG RESISTOR 4.7k
R468 NRSA63J-201X MG RESISTOR 200
R469 NRSA63J-102X MG RESISTOR 1k
R470 NRSA63J-122X MG RESISTOR 1.2k
R471 NRSA63J-472X MG RESISTOR 4.7k
R472 NRSA63J-472X MG RESISTOR 4.7k
R473 NRSA63J-223X MG RESISTOR 22k
R474 NRSA63J-472X MG RESISTOR 4.7k
R475 NRSA63J-201X MG RESISTOR 200
R476 NRSA63J-223X MG RESISTOR 22k
R477 NRSA63J-472X MG RESISTOR 4.7k
R478 NRSA63J-201X MG RESISTOR 200
R479 NRSA63J-102X MG RESISTOR 1k
R482 NRSA63J-103X MG RESISTOR 10k
R483 NRSA63J-103X MG RESISTOR 10k
R484 NRSA63J-103X MG RESISTOR 10k
R532 NRSA63J-153X MG RESISTOR 15k
R533 NRSA63J-153X MG RESISTOR 15k
RA401 NRZ0065-472X MG RESISTOR 4.7k
L401 NQL38DK-330X COIL 33uH K
L531 NQR0536-001X CHOKE COIL
CN531 QNZ0855-001 USB CONNECTOR
CN532 QGB1004K1-16 CONNECTOR B-B (1-16)
CN600 QGA1501C6-02 CONNECTOR W-B (1-2)
F531 NAD0031-004X N THERMISTOR W
K441 NQR0502-001X FERRITE BEADS
X402 NAX0832-001X CRYSTAL
Part No. Part Name Description Local
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
Ω
Ω
Ω
Ω
Ω
Ω
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
1/16W J
Front end board
Block No. [1][0]
Symbol
No.
IC201 BA5835FM-X IC
IC251 BD6671FM-X IC
IC301 MN2DS0009AA IC
IC302 BA00HC5WF-X IC
IC304 S-80827CNNB-G-W IC
IC398 SG32M90TFIR34F IC(PROGRAMED)
IC399 EDS1232AATA-75 IC(DIGITAL)
IC401 AK4385ET-X IC
IC411 NJM4580V-X IC
IC481 BR24L16F-W-X IC
Q101 2SB1424/R/-W TRANSISTOR
Q102 2SC4617/R/-X TRANSISTOR
Q103 2SB1424/R/-W TRANSISTOR
Q104 2SC4617/R/-X TRANSISTOR
Q105 2SC4617/R/-X TRANSISTOR
Q106 2SK3019-X MOS FET
Q107 2SK3019-X MOS FET
Q231 DTC114EE-X DIGI TRANSISTOR
Q301 DTC144EE-X DIGI TRANSISTOR
Q302 DTC144EE-X DIGI TRANSISTOR
C1 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C2 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C3 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C7 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C8 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C9 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C11 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C12 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C13 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C14 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C15 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C16 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C17 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C18 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C105 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C106 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C108 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C111 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C112 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C201 NEAF1CM-107X E CAPACITOR 100uF 16V M
C202 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C203 NCS31HJ-271X C CAPACITOR 270pF 50V J
C204 NDC31HJ-151X C CAPACITOR 150pF 50V J
C205 NCB31HK-681X C CAPACITOR 680pF 50V K
C206 NCB31HK-561X C CAPACITOR 560pF 50V K
C211 NEAF1CM-107X E CAPACITOR 100uF 16V M
C212 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C213 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C221 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C222 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C251 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C252 NEAF1CM-107X E CAPACITOR 100uF 16V M
C253 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C254 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C255 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C256 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C257 NCB31HK-102X C CAPACITOR 1000pF 50V K
C258 NCB31HK-102X C CAPACITOR 1000pF 50V K
C259 NCB31HK-102X C CAPACITOR 1000pF 50V K
C264 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C265 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C266 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C267 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C268 NCB31HK-153X C CAPACITOR 0.015uF 50V K
Part No. Part Name Description Local
3-27
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
C301 NEAF0JM-227X E CAPACITOR 220uF 6.3V M
C302 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C308 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C310 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C311 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C312 NCB21CK-105X C CAPACITOR 1uF 16V K
C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C316 NCB31CK-105X C CAPACITOR 1uF 16V K
C317 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C324 NCB21CK-105X C CAPACITOR 1uF 16V K
C325 NDC31HJ-100X C CAPACITOR 10pF 50V J
C326 NDC31HJ-100X C CAPACITOR 10pF 50V J
C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K
C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C336 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C337 NCB31HK-183X C CAPACITOR 0.018uF 50V K
C338 NCB31HK-562X C CAPACITOR 5600pF 50V K
C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C340 NCB21CK-105X C CAPACITOR 1uF 16V K
C341 NCB21CK-105X C CAPACITOR 1uF 16V K
C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C358 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C359 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C364 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C365 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C366 NCB21CK-105X C CAPACITOR 1uF 16V K
C369 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C371 NCB21CK-105X C CAPACITOR 1uF 16V K
C380 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C381 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C382 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C383 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C384 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C385 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C386 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C387 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C388 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C391 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C393 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C394 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C396 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C397 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C401 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C402 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C403 NCB31HK-331X C CAPACITOR 330pF 50V K
C404 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C411 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C412 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C421 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C422 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C431 NCB31HK-332X C CAPACITOR 3300pF 50V K
C432 NCS31HJ-471X C CAPACITOR 470pF 50V J
C433 NCS31HJ-471X C CAPACITOR 470pF 50V J
C451 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C452 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C453 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C454 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C481 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C491 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C521 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C522 NBE41AM-476X TA E CAPACITOR 47uF 10V M
C531 NCB31HK-332X C CAPACITOR 3300pF 50V K
C532 NCS31HJ-471X C CAPACITOR 470pF 50V J
C533 NCS31HJ-471X C CAPACITOR 470pF 50V J
Ω
R101 NRSA63J-910X MG RESISTOR 91
R102 NRSA63J-910X MG RESISTOR 91
R103 NRSA63D-432X MG RESISTOR 4.3k
R104 NRSA63D-242X MG RESISTOR 2.4k
R105 NRS125J-120X MG RESISTOR 12
R106 NRSA63J-2R2X MG RESISTOR 2.2
R107 NRSA63J-102X MG RESISTOR 1k
R108 NRSA63J-471X MG RESISTOR 470
R109 NRSA63J-331X MG RESISTOR 330
R110 NRSA63J-0R0X MG RESISTOR 0
R111 NRSA63D-432X MG RESISTOR 4.3k
R112 NRSA63D-242X MG RESISTOR 2.4k
R113 NRS125J-120X MG RESISTOR 12
R114 NRSA63J-2R2X MG RESISTOR 2.2
R115 NRSA63J-102X MG RESISTOR 1k
R116 NRSA63J-471X MG RESISTOR 470
R117 NRSA63J-331X MG RESISTOR 330
R118 NRSA63J-0R0X MG RESISTOR 0
R119 NRSA63J-0R0X MG RESISTOR 0
R120 NRSA63J-0R0X MG RESISTOR 0
R122 NRSA63J-0R0X MG RESISTOR 0
R123 NRSA63J-0R0X MG RESISTOR 0
R125 NRS125J-1R0X MG RESISTOR 1
R126 NRSA02J-0R0X MG RESISTOR 0
R127 NRSA63J-103X MG RESISTOR 10k
R128 NRSA63J-103X MG RESISTOR 10k
R129 NRSA63J-104X MG RESISTOR 100k
R201 NRS125J-1R0X MG RESISTOR 1
R202 NRSA63J-473X MG RESISTOR 47k
R203 NRSA63J-303X MG RESISTOR 30k
R204 NRSA63J-273X MG RESISTOR 27k
R205 NRSA63J-273X MG RESISTOR 27k
R206 NRSA63J-0R0X MG RESISTOR 0
R207 NRSA63J-0R0X MG RESISTOR 0
R208 NRSA63J-203X MG RESISTOR 20k
R209 NRSA63J-223X MG RESISTOR 22k
R211 NRSA63J-0R0X MG RESISTOR 0
R219 NRSA63J-153X MG RESISTOR 15k
R220 NRSA63J-183X MG RESISTOR 18k
R221 NRSA63J-103X MG RESISTOR 10k
R222 NRSA63J-103X MG RESISTOR 10k
R223 NRSA63J-0R0X MG RESISTOR 0
R224 NRSA63J-103X MG RESISTOR 10k
R231 NRSA63J-272X MG RESISTOR 2.7k
R232 NRSA63J-153X MG RESISTOR 15k
R233 NRSA63J-0R0X MG RESISTOR 0
R234 NRSA63J-394X MG RESISTOR 390k
R235 NRSA63J-682X MG RESISTOR 6.8k
R251 NRS125J-R47X MG RESISTOR 0.47
R252 NRSA63J-103X MG RESISTOR 10k
R253 NRSA63J-0R0X MG RESISTOR 0
R254 NRSA63J-103X MG RESISTOR 10k
R255 NRSA63J-203X MG RESISTOR 20k
R256 NRSA63J-470X MG RESISTOR 47
R257 NRSA63J-0R0X MG RESISTOR 0
R258 NRSA63J-103X MG RESISTOR 10k
R259 NRSA63J-103X MG RESISTOR 10k
R260 NRSA63J-470X MG RESISTOR 47
R300 NRSA63J-0R0X MG RESISTOR 0
R301 NRSA63J-0R0X MG RESISTOR 0
R303 NRSA63J-270X MG RESISTOR 27
R304 NRSA63J-103X MG RESISTOR 10k
R306 NRSA63J-102X MG RESISTOR 1k
R307 NRSA63J-102X MG RESISTOR 1k
R308 NRSA63J-223X MG RESISTOR 22k
R309 NRSA63J-104X MG RESISTOR 100k
R310 NRSA63J-102X MG RESISTOR 1k
R312 NRSA63J-0R0X MG RESISTOR 0
R313 NRSA63J-0R0X MG RESISTOR 0
R314 NRSA63J-0R0X MG RESISTOR 0
R315 NRSA63J-0R0X MG RESISTOR 0
R316 NRSA63J-0R0X MG RESISTOR 0
R317 NRSA63J-223X MG RESISTOR 22k
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W D
Ω
1/2W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W D
Ω
1/2W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/2W J
Ω
1/10W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/2W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/2W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
1/16W J
1/16W J
1/16W J
3-28
Symbol
No.
Part No. Part Name Description Local
Symbol
No.
Part No. Part Name Description Local
R318 NRSA63D-332X MG RESISTOR 3.3kΩ 1/16W D
R319 NRSA63J-223X MG RESISTOR 22k
R320 NRSA63J-101X MG RESISTOR 100
R322 NRSA63J-103X MG RESISTOR 10k
R323 NRSA63J-0R0X MG RESISTOR 0
R325 NRSA63J-161X MG RESISTOR 160
R332 NRSA63J-102X MG RESISTOR 1k
R333 NRSA63D-162X MG RESISTOR 1.6k
R334 NRSA63J-151X MG RESISTOR 150
R335 NRSA63J-151X MG RESISTOR 150
R336 NRSA63J-151X MG RESISTOR 150
R337 NRSA63J-151X MG RESISTOR 150
R338 NRSA63J-0R0X MG RESISTOR 0
R339 NRSA63J-0R0X MG RESISTOR 0
R340 NRSA63D-303X MG RESISTOR 30k
R345 NRSA63J-0R0X MG RESISTOR 0
R346 NRSA63J-473X MG RESISTOR 47k
R347 NRSA63J-473X MG RESISTOR 47k
R348 NRSA63J-473X MG RESISTOR 47k
R349 NRSA63J-473X MG RESISTOR 47k
R350 NRSA63J-181X MG RESISTOR 180
R351 NRSA63J-102X MG RESISTOR 1k
R352 NRSA63J-105X MG RESISTOR 1M
R353 NRSA63J-101X MG RESISTOR 100
R354 NRSA63J-101X MG RESISTOR 100
R357 NRSA63J-0R0X MG RESISTOR 0
R358 NRSA63J-0R0X MG RESISTOR 0
R359 NRSA63J-181X MG RESISTOR 180
R360 NRSA63J-181X MG RESISTOR 180
R361 NRSA63J-0R0X MG RESISTOR 0
R362 NRSA63J-0R0X MG RESISTOR 0
R363 NRSA63J-151X MG RESISTOR 150
R364 NRSA63J-151X MG RESISTOR 150
R365 NRSA63D-911X MG RESISTOR 910
R366 NRSA63D-202X MG RESISTOR 2k
R370 NRSA63J-103X MG RESISTOR 10k
R371 NRSA63J-0R0X MG RESISTOR 0
R372 NRSA63J-331X MG RESISTOR 330
R373 NRSA63J-331X MG RESISTOR 330
R374 NRSA63J-0R0X MG RESISTOR 0
R380 NRSA63J-102X MG RESISTOR 1k
R384 NRSA63J-102X MG RESISTOR 1k
R385 NRSA63J-102X MG RESISTOR 1k
R386 NRSA63J-0R0X MG RESISTOR 0
R390 NRSA63J-103X MG RESISTOR 10k
R396 NRSA63J-473X MG RESISTOR 47k
R399 NRSA63J-0R0X MG RESISTOR 0
R401 NRSA63J-100X MG RESISTOR 10
R402 NRSA63J-4R7X MG RESISTOR 4.7
R403 NRSA63J-0R0X MG RESISTOR 0
R404 NRSA63J-473X MG RESISTOR 47k
R411 NRSA63J-100X MG RESISTOR 10
R421 NRSA63J-102X MG RESISTOR 1k
R422 NRSA63J-122X MG RESISTOR 1.2k
R431 NRSA63J-472X MG RESISTOR 4.7k
R432 NRSA63J-472X MG RESISTOR 4.7k
R433 NRSA63J-223X MG RESISTOR 22k
R434 NRSA63J-201X MG RESISTOR 200
R435 NRSA63J-472X MG RESISTOR 4.7k
R436 NRSA63J-201X MG RESISTOR 200
R437 NRSA63J-472X MG RESISTOR 4.7k
R438 NRSA63J-223X MG RESISTOR 22k
R441 NRSA63J-0R0X MG RESISTOR 0
R442 NRSA63J-0R0X MG RESISTOR 0
R481 NRSA63J-103X MG RESISTOR 10k
R491 NRSA63D-472X MG RESISTOR 4.7k
R492 NRSA63J-0R0X MG RESISTOR 0
R521 NRSA63J-102X MG RESISTOR 1k
R522 NRSA63J-122X MG RESISTOR 1.2k
R531 NRSA63J-472X MG RESISTOR 4.7k
R532 NRSA63J-472X MG RESISTOR 4.7k
R533 NRSA63J-223X MG RESISTOR 22k
R534 NRSA63J-201X MG RESISTOR 200
R535 NRSA63J-472X MG RESISTOR 4.7k
R536 NRSA63J-201X MG RESISTOR 200
R537 NRSA63J-472X MG RESISTOR 4.7k
R538 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W D
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
Ω
1/16W J
R621 NQL093K-1R8X COIL 1.8uH K
L303 NQL044K-100X COIL 0.26
L305 NQL093K-1R8X COIL 1.8uH K
L306 NQL093K-1R8X COIL 1.8uH K
L307 NQL093K-1R8X COIL 1.8uH K
L451 NQL044K-100X COIL 0.26
CN101 QGF0501F8-30X CONNECTOR
CN201 QGF1038F2-11X CONNECTOR
CN202 QGF0523F2-05W CONNECTOR FFC/FPC (1-5)
CN402 QGF0522F3-06W CONNECTOR FFC/FPC (1-6)
CN403 QGF0534F3-45X CONNECTOR
K101 NQR0007-002X FERRITE BEADS
K102 NQR0007-002X FERRITE BEADS
K301 NQR0502-001X FERRITE BEADS
K311 NQR0129-002X FERRITE BEADS
K399 NQR0502-001X FERRITE BEADS
K401 NQR0022-005X FERRITE BEADS
K402 NQR0022-005X FERRITE BEADS
K404 NQR0022-005X FERRITE BEADS
K405 NQR0022-005X FERRITE BEADS
K406 NQR0022-005X FERRITE BEADS
K407 NQR0022-005X FERRITE BEADS
K425 NQL093K-1R8X COIL 1.8uH K
K435 NQR0022-005X FERRITE BEADS
K441 NQR0022-005X FERRITE BEADS
K442 NQR0022-005X FERRITE BEADS
K443 NQR0022-005X FERRITE BEADS
K444 NQR0022-005X FERRITE BEADS
K445 NQR0022-005X FERRITE BEADS
K451 NQR0022-005X FERRITE BEADS
K452 NQR0022-005X FERRITE BEADS
K601 NQR0022-005X FERRITE BEADS
SW4 NSW0184-001X DETECT SW
SW5 NSW0183-001X DETECT SW
TH491 NAD0025-103X N THERMISTOR 10k
X351 NAX0730-001X CRYSTAL
Ω
10uH K
Ω
10uH K
FFC/FPC (1-
30)
FFC/FPC (1-
11)
FFC/FPC (1-
45)
Ω
3-29
Packing materials and accessories parts list
No additional / supplemental order of WARRANTY CARDs are available.
A19
P1
P2
KD-ADV6270J
KD-DV6200J
A1 A2 A3
A4 A5
A1 A2
A3
(only E)
A20
(only E)
A22(only E)
KD-DV6201E,EU
KD-DV6202E,EU
A17
A21
P2
P2
KD-DV6207EE
P8
A1 A2
A22
P4
2/2
P7
A3
3
Block No.
P2
KD-DV7205U,UN,UT,A
KD-DV7206U,UN,UT,A
M
A1 A2 A19
M
M
P4
1/2
A16
P2
A18
KD-DV6201E,EU
KD-DV6202E,EU
KD-DV7205U
KD-DV7206U
P3
KIT:
P6
A15
A14
A6 A7A8
A9 A10 A11
A13
P5
A12
3-30
Packing and Accessories
Block No. [M][3][M][M]
Symbol No. Part No. Part Name Description Local
A 1 GET0374-001A INSTR. BOOK ENG FRE SPA ADV6270J,DV6200J
A 1 GET0378-002A INST BOOK SPA ITA SWE DV6201E,DV6202E
A 1 GET0378-003A INST BOOK ENG FRE DV6201EU,DV6202EU
A 1 GET0375-001A INST BOOK ENG CHI(TAIWAN) DV7205U,DV7206U
A 1 GET0375-003A INST BOOK ENG INA DV7205UN,DV7206UN
A 1 GET0375-004A INST BOOK ENG CHI(TAIWAN) DV7205UT,DV7206UT
A 1 GET0375-005A INST BOOK ENG DV7205A,DV7206A
A 1 GET0379-001A INST BOOK ENG RUS DV6207EE
A 2 GET0374-002A INSTALL MANUAL ADV6270J,DV6200J
A 2 GET0378-005A INSTALL MANUAL DV6201E,DV6202E
A 2 GET0378-007A INSTALL MANUAL DV6201EU,DV6202EU
A 2 GET0375-006A INSTALL MANUAL DV7205U,DV7205UT,DV7206U,DV7206UT
A 2 GET0375-008A INSTALL MANUAL DV7205UN,DV7206UN
A 2 GET0375-009A INSTALL MANUAL DV7205A,DV7206A
A 2 GET0379-002A INSTALL MANUAL DV6207EE
A 3 ------------ WARRANTY CARD BT-52006-2 ADV6270J,DV6200J
A 3 ------------ WARRANTY CARD BT-54028-1 DV6201E,DV6202E,DV6207EE
A 4 ------------ WARRANTY CARD BT-51029-2 ADV6270J
A 4 ------------ WARRANTY CARD BT-51018-4 DV6200J
A 5 BT-51034-2 REGISTRATION CARD ADV6270J,DV6200J
A 6 VKZ4027-202 PLUG NUT
A 7 VKH4871-003 MOUNT BOLT
A 8 VKZ4328-003 LOCK NUT
A 9 QYWWS53A008ZA WASHER 0mm/5.3mm x
A 10 GE40130-002A HOOK (x2)
A 11 LV41478-002A CORD CONNECTOR
A 12 GE32149-001A HARD CASE ASSY
A 13 RM-RK230 REMOCON UNIT
A 14 ------------ BATTERY
A 15 QAM0687-001 POWER CORD ADV6270J
A 15 QAM0453-002 CAR CABLE DV6200J
A 15 QAM0450-002 POWER CORD
A 15 QAM0455-002 CAR CABLE
A 16 GE20137-003A MOUNTING SLEEVE
A 17 GE20149-015A TRIM PLATE
A 17 GE20149-013A TRIM PLATE DV6200J
A 17 GE20149-007A TRIM PLATE
A 18 GET0378-001A INST BOOK ENG GER FRE DUT DV6201E,DV6202E
A 18 GET0378-004A INST BOOK SPA TUR PER DV6201EU,DV6202EU
A 18 GET0375-002A INST BOOK THA ARA PER KOR DV7205U,DV7206U
A 19 GET0378-006A INSTALL MANUAL DV6201E,DV6202E
A 19 GET0378-008A INSTALL MANUAL DV6201EU,DV6202EU
A 19 GET0375-007A INSTALL MANUAL DV7205U,DV7206U
A 20 VND3050-002 IDENTITY CARD DV6201E,DV6202E
A 21 LVT1435-001A INST SHEET DV6201E,DV6201EU,DV6202E,DV6202EU
A 22 VND3046-001 SERIAL TICKET DV6201E,DV6202E,DV6207EE
KIT SRW-ADV6160J SCREW PARTS KIT A6 A7 A8 A9 A10 A11
P 1 GE32077-002A CARTON ADV6270J
P 1 GE32080-002A CARTON DV6200J
P 1 GE32100-001A CARTON DV6201E,DV6201EU
P 1 GE32103-001A CARTON DV6202E,DV6202EU
P 1 GE32083-001A CARTON DV7205U,DV7205UN,DV7205UT
P 1 GE32085-001A CARTON DV7205A
P 1 GE32087-001A CARTON DV7206U,DV7206UN,DV7206UT
P 1 GE32089-001A CARTON DV7206A
P 1 GE32106-002A CARTON DV6207EE
P 2 FSPG4002-001 POLY BAG
P 2 FSPG4002-001 POLY BAG (x2)
P 3 QPA00801205 POLY BAG 8cm x 12cm
P 4 GE10162-001A CUSHION
P 5 QPC01002515 POLY BAG 10cm x 25cm
P 6 QPA01003003 POLY BAG 10cm x 30cm
P 7 QPC03004315P POLY BAG 30cm x 43cm
P 8 QPC01002515 POLY BAG 10cm x 25cm
DV6201E,DV6201EU,DV6202E,DV6202EU
,DV6207EE
DV7205U,DV7205UN,DV7205UT,DV7205A
,DV7206U,DV7206UN,DV7206UT,
DV7206A
ADV6270J,DV6202E,DV6202EU,DV7206U
,DV7206UN,DV7206UT,DV7206A,
DV6207EE
DV6201E,DV6201EU,DV7205U,DV7205U
N,DV7205UT,DV7205A
ADV6270J,DV6200J,DV7205UN,DV7205U
T,DV7205A,DV7206UN,DV7206UT,DV7206
A,DV6207EE
DV6201E,DV6201EU,DV6202E,DV6202EU
,DV7205U,DV7206U
3-31
SCHEMATIC DIAGRAMS
DVD/CD RECEIVER
KD-ADV6270J,KD-DV6200J,KD-DV6201E
KD-DV6201EU,KD-DV6202E,KD-DV6202EU
KD-DV7205U,KD-DV7205UN,KD-DV7205UT
KD-DV7205A,KD-DV7206U,KD-DV7206UN
KD-DV7206UT,KD-DV7206A,KD-DV6207EE
CD-ROM No.SML200603
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Contents
Block diagram
Standard schematic diagrams
Printed circuit boards
COPYRIGHT 2006 Victor Company of Japan, Limited.
2-1
2-2
2-9 to 10
No.MA250SCH
2006/3
Safety precaution
!
!
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
Block diagram
FOCUS
&
TRACKING
COIL
PICK UP
LOAD&FEED
MOTOR
SPINDLE
MOTOR
SW1 to SW3
DVD section
CN403
CN962
FAN
MOTOR
CN600
W21
ANT
M
CN101
CD VR, DVD VR
CD/DVD
FLM+
M
M
FLM-
H1+,H1H2+,H2H3+,H3-
CN201
SM1 to Sm3
VH
Q105 to Q107
A,B,C,D,E,F,RF+,RF-,LPC1,LPC2,HANGUP
DVD LD
Q101
LPCO1
DVDLDCUR
Q102
CD_LD
Q103
LPCO2
CDLDCUR
Q104
F+,FT+,T-
/DRVMUTE, VHALF
TRDRV, FODRV
TRSDRV, DRVCONT
IC201
DRIVER
IC251
SP MOTOR
LDIN
Q231
SPDRV
/SPMUTE
FG
LM
DRIVER
MA0 to MA11
MDQ0 to MDQ31
DQM0 to DQM3
BA0,BA1,MCK
NWE,NCSM
IC399
NCAS,NRAS
IC301
DV3.2
AOUT3
BCK
LRCLK
PCMCLK
DACPDN
DACOCS
DCLK
DDATA
LRMUTE
UCS,SCS
SCLK
U2SDT,S2UDT
DAC4OUT
TX
EPDIO
EPSK
EPCS
CPURST
IC401
D/A
AOUTL+
AOUTLAOUTR+
AOUTR-
IC411
AMP
IC481
EPROM
L-CH
R-CH
SDRAM
IC304
RESET
D1.2V
IC302
2V to 1.2V REG.
D2V
SW1,SW4
CN202
SW2,SW3
SW1
FLASH ROM
TRVSW
SW4,SW5
IC398
EXADT0 to EXADT15
EXADR16 to EXADR20
EXDAT0 to EXDAT15
NEXOE,NEXCE
NEXWE,/FL_RST
SW4
Q301
Q302
D600
LED
LCD & Key control section
S601 to S617
KEY MATRIX
DIMOUT
Q640,Q641
D601 to D618
D620,D621
D645,D646
LIGHTING
DISPLAY
KEY0 to 2
ENC1
ENC2
EN601
ENCODER
CN601
LCD1
LCD
COM1 to COM3
S1 to S52
IC602
REMOCON
REMOCON
LCDCL
LCDDA
LCDCE
IC601
LCD
DRIVER
Main amplifier section
TU21
FM/AM
TUNER
USED FOR
KD-DV6201
KD-DV6202
KD-DV6207
IC961,IC962
LEVEL
CONVERTOR
CN821
CN702
10V
CN963
S701
PAN EL
OPEN
SWITCH
S702
PAN EL
DETACH
SWITCH
IC722
EPROM
IC723
RESET
Q821 to Q823
FAN
CONTROL
CN701
TU.L, TU.R
TU_SDA,TU_SCL,SSTOP
Q_OUT,AFS,FSU,SW_FLUG
MPXIN
IC71
RDS
DETECTOR
RDSDA
RDSSCK
DVDL,DVDR
CN961
LRMUTE,CPURST
SCS,UCS,SCLK
U2SDT,S2UDT,SW1,SW4
COMPOSITE,TX
P_OPEN
PDETACH
EPCLK
EPDAI
EPDAO
RESET
FAN
KEY0 to 2
LCDCL
LCDDA
LCDCE
REMOCON
ENC1,ENC2
DIMOUT
USB section
IC441
FLASH ROM
IC401
USB
DECODER
XA0 to XA19
XD0 to XD15
OE, WE, RESET
NOR_CS, MODE0
VOLDA,VOLCK
VOLMUTE
SACLK,SAOUT
IC721
CPU
IC442
SDRAM
XD0 to XD15
XA0 to XA10
XA13, XA15
XA16, XA20
XA21, WE, SD_CS
SD_CLK, SD_CKE
MUTE
HPDATA
HPCK
HPSTB
HEADPHONE
E.VOLUME
Q781, Q782
MUTE
CONTROL
ANT,PON
TELMUTE
TELCONT
PBRK
DIMMER
USB/CH
I/O,BUSINT
BUSSO,BUSSCK
SI/SO
IC451
24Bit DAC
MCLK, BCLK
DDATA, DAO
LRCK, DCLK
DACPDN
DACOCS
IC431
DVDL
DVDR
IC161
E.VOLUME
Q891,Q892
TEL MUTE
PAR K
Q885
ILL
Q881
IC801
JVC BUS
ADUTL+/ADUTR+/-
IC421
HEADPHONE
AMP.
LOUT,ROUT
LINE-L, LINE-R
ONLY USED FOR KD-ADV6270
W-MUTE
TEL
USB/CH-L
USB/CH-R
IC162
Q161,Q162
USB/CH
SWITCH
USBL
USBR
SCK
USB_TX,USB_RX
USB_RST,USB_MUTE
L-CH
R-CH
IC452
AMP.
USB_MUTE
Q401
MUTE CONTROL
UART_TX1
UART_RX1
TRST1
CONVERTOR
Q421, Q422,Q431, Q432
HEADPHONE MUTING
IC371
5V L-CH LINE AMP.
Q324, Q334,Q344, Q354
LINE OUT MUTING
Q191, Q192
SUBWOOFER MUTING
MUTE
Q303
AMPKILL
D2V,D3.3V,P3.3V,A5V,ACC5V
D5V,M5V,USB5V,S5V,SW5V
A9V,M9V,10V
STBY
Q304
OUTLF,OUTRF
OUTLR,OUTRR
EACH BLOCK
IC901
REGULATOR
USED FOR
KD-DV7205
KD-DV7206
CHL
CHR
VMUTE
COMPOSITE
DOUTMUTE
CN471
CN532
USB_TX(UART_RX)
USB_RX(UART_TX)
USB_RST(TRST2)
IC481,IC482
LEVEL
IC301
POWER
AMP.
AUTO ANT
D851
POWER
ANTENNA
IC411
VIDEO
AMP.
IC401
DIGITAL
TX
MUTE
HNDLEREM
USED FOR
KD-DV6201
KD-DV6202
OUTLF
OUTRF
OUTLR
OUTRR
OUTSW
FRONT L+/FRONT R+/REAR L+/REAR R+/-
VOUT
USB HD+/-
CN421
2nd
AUDIO OUT
CN141
LINE INPUT
J331
FRONT
LINE OUT
REAR
LINE OUT
SUB WOOFER
LINE OUT
CN901
SPK
BATTERY
J801
CD CHANGER
CONTROL
CN411
VIDEO
OUT
IC402
DIGITAL
OUT
CN831
OE REMOTE
CN531
USB
2-1
Standard schematic diagrams
Main section (except KD-DV6201, KD-DV6202 and KD-DV6207)
TU21
!
QAU0443-002
L2
SUDT
CRST
LRM
DA4
US
SK
UT
DL
DR
S4
S1
CN962
US
US1
LRM
LRM1
QGF0534F3-45X
C966
SN74LVC32APW-X
SN74HCT32APW-X
C967
L1
0.22u
4.7u
R4
CN471
QGB1004J2-16X
CN961
QGB2027M3-30S
COMPOSITE
47/10
R962
LRMUTE
CPURST
C907
0.01
0.001
C932
C933
0
R922
100/10
C479
R475
R474
R471
TX
UCS
SCS
S2UDT
SCLK
U2SDT
DVDL
DVDR
SW1
SW4
VGND
L902
D701
D702
D703
UDZW6.2B-X
UDZW6.2B-X
D1
1SS355W-X
C473
220/10
NQL56CK-220X
C926
D922
KEY0
UDZW6.2B-X
NI
D2
C480
220/10
100
100
100
USB_RST
USB_MUTE
C970
0.047
C971
C969
0.047
C965
220/10
C964
220/10
C921
100/10
C925
220/10
QEXF1AM-476Z
C927
470/25
RB051L-40-X
0.1
C931
C915
100P
KEY1
KEY2
100/16
R926
C930
W21
QAM0105-003
0.1/16
IC961
R973
22k
IC962
0.1/16
QGB2027L9-30X
CN963
SUDT
LRM1
CRST
US1
R975
SK1
22k
22k
R974
UT1
DL
UT
DR
UT1
S1
S4
SK
SK1
DA4
C934
47/10
2P
C12
1SS355W-X
220/10
C922
C928
0.1
R929
0.1
10K
R924
LCDCL
R1
47K
R19
CRS03-W
CRS03-W
CRS03-W
D925
D924
D923
220/10
0.001
C968
0.047
C961
C474
C475
220/10
220/10
0.001
C963
C911
!
0
NQL79GM-100X
0
R967
R961
L921
D921
1A3G-T1
NQL56CK-220X
L924
39K
L925
R923
NQL71EM-330X
NI
300K
150K
4700P
R925
C929
0
R927
47k
R928
0.1
C914
ENC1
ENC2
LCDDA
LCDCE
REMOCON
10K
270
10K
270
R706
R704
R705
R707
R2
10k
0.1
C1
SW_FLAG
220/10
C476
220/10
C962
NI
CN701
QNZ0605-001
1k
0.082
C2
FSU
2SA1530A/R/-X
UDZW5.1B-X
D906
IC921
BA33BC0FP-X
B922
0
L927
D704
D705
D706
D707
D709
D710
C701
C702
D711
USB_RX
Q474
R476
220
D471
UDZW5.1B-X
RT1N141C-X
R914
220
RT1N141C-X
0
R921
0.082
C3
USB_TX
Q475
2SA1530A/R/-X
Q904
0
0
R969
R968
IC922
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
0.01
0.1
UDZW6.2B-X
C11
0.082
0.082
R9
47K
R479
2.2K
R477
Q903
2.2K
R910
!
BD9781HFP-W
560
C10
SSTOP
R10
4.7k
R480
R478
47K
R485
47K
R909
R860
WJK0224-001A-E
CN702
R7
R5
R6
33
33
C4
0.1
TU_SDA
TU_SCL
R11
4.7k
0
0
47K
R3
47/16
C74
LC72725NM-X
R725
47K
C721
0.047
C722
220/10
C723
470P
LRMUTE
SCS
CPURST
USB_RST
1K
C6
C7
3.3k
0.1
0.1
C81
C91
220/10
C8
R8
Q_OUT
R12
4.7
R13
6.8
R71
100
RDSSCK
RDSDA
2K
330P
10/16
C71
R72
C73
0.01
C72
560p
0.01
10k
0
C999
C76
1A3G-T1
33P
C77
X71
QAX0263-001Z
R481
10K
D472
0
R861
HPMUTE
DOUTMUTE
VMUTE
MUTE
DIMMER
PBRK
ANT
PON
DIMOUT
TELMUTE
TELCONT
FAN
33P
C78
IC471
BA05CC0WT-V5
C477
100/10
R727
R728
R729
R733
R734
RA722
NRZ0065-222X
R769
R738
R739
R758
R759
D719
R73
C478
C482
0.1
0.1
IC721
UPD784218AGC329
VOLMUTE
2.2k
R726
R735
AMPKILL
5.6k
4.7k
0
R731
2.2k
10K
47K
0
VPP
4.7K
4.7K
220k
220k
R708
560
SLR-56VC3F
!
R859
10K
0
R710
2SA1530A/R/-X
47/6.3
C75
0.01
C997
10k
C5
IC71
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
UDZW6.2B-X
R14
0.22/50
C9
R723
R724
1k
Q701
C428
4.7/25
DVDR
DVDL
C438
D141
D142
LINE-R
LINE-G
LINE-L
TU.L
TU.R
RDSDA
2.2K
R845
R745
R746
QAX0617-001Z
27P
27P
C728
4.7/25
R452
22k
C451
22k22k1047/6.3
R451R441
47/6.3
C441
R442
22k
R461
C166
10/16
QTE1H55-225Z
DVDL
C172
DVDR
QTE1H55-225Z
2.2/50
TU.L
C171
2.2/50
TU.R
C181
LINE-L
470P
LINE-G
LINE-R
470P
NI
47k
R842
R843
R844
AFS
SSTOP
10k
0
R720
R719
10k
R718
2.2k
10M
2.2k
R740
R753
UCS
REMOCON
47K
RESET
RESET
33k
X722C729
QAX0401-001
R751
22P
BUSINT
HNDLEREM
22/16
C461
HPSTB
HPDATA
HPCK
C161
100/10
C162
0.047
C163
1
C164
1
C182
R152
2.2/50
C174
0
C175
C185
R841
R755
10k
VDD
GND
2.2/50
C168
R142
2.2/50
C184
0
TU_SDA
TU_SCL
SW_FLAG
330
330
R717
R715
R848
TD
2.2K
R754
MAINRESET
S723
UDZW6.2B-X
QSW1049-001Z
22k
D732
R752
CN141
QGA2006C1-04
D151
D152
C155
R155
0.47
470
47K47K
R141R151
C141C151
470P
C83
4.7/25
22k
22k
C93
4.7/25
0
2k
R15
47k
R17
Q2
RT1N141C-X
2SA1365/F/-X
Q477
RT1N141C-X
47K
47K
R709
5.6k
470P
R81
R91
C94
C84
R92
R82
0
R18
AFS
Q476
47K
R482
R483
1K
R484
10K
USB_3.3V
HPCK
9VSW
HPSTB
SACLK
VOLDA
VOLCK
HPDATA
W-MUTE
2.2k
2.2k
2.2k
R721
R722
10k
R763
SW1
ENC1
47k
R749
R750
2.2K
R730
NRZ0065-222X
R850
RA721
3.9K
3.9K
10k
100p
820
R765
L721
R846
R847
R744
C734
SW4
ENC2
LCDDA
LCDCL
NQL38DK-330X
NI
R747
R748
X721
470P
220/10
8P
C724
C725
C727
C726
100K100K
R439
C437
R438
4.7K
4.7/25
IC431
LC75344M-X
C426 C436
C427
4.7/25
R428
4.7K
47/16
0.1
R429
10
R462
C462
C463
0
R161
C165
1
47K
R162
TDA7416
R163
47K
IC722
BR24L16F-W-X
270
270
R716
C733
470P
RD
SCK
100k
R713
10k
10k
R711
R780
2.2k
2.2k
R779
2.2k
R799
R778
10K
1k
R777
4.7k
R776
R775
4.7k
4.7k
R774
220
R773
220
R772
R771
3.9k
R770
47K
0
R766
R768
0
R767
0
R812
47K
R785
TH721
NAD0028-103X
RA723
NRZ0065-103X
4.7K
4.7K
R760
R761
S-80833CNNB-G-W
IC723
C730
R756
2.2k
47/6.3
100k
IC161
USB_TX
USB_RX
10K
4.7K
R762
RDSSCK
6.8K
R437
220P 220P
R164
R166
R714
R712
SCLK
S2UDT
U2SDT
LCDCE
FSU
Q_OUT
KEY2
KEY1
KEY0
47k
0.01
C731
R757
C435
100P
IC421
NJM4580V-X
C424
150P 220/10
C425
100P
R426
6.8K
R427
W-MUTE
R165
47K
47K
C267
10/16
220
VOLMUTE
D731
1SS355W-X
18K
SAOUT
SACLK
VOLCK
VOLDA
USBL
USBR
SAOUT
USB_MUTE
C732
C434
150P
R463
BUSSCK
BUSSO
SI/SO
220/10
R436
18K
C464
C465
10
0.1
9VSW
I/O
C433
R434
39 22
220/10
1k
R435
1k
R425
C423
R424
47/16
R373
R371
R381
R372
C176
2.2/50
C186
2.2/50
RT1N141C-X
RT1N141C-X
D785
1SS355W-X
Q784
RT1P141C-X
D784
UDZW11B-X
QSW0451-001
S701
L722
R857
0
NQL114K-470X
R431
R432
2.2K
470P470P
KTD1304-X
Q431
C431
R422
2.2K
D421
1SS355W-X
C380
C378
0.0015
C783
UDZW6.2B-X
D716
IC371
NJM2792V-X
220/10
CD4066BPW-X
47/16
QSW0451-001
S702
D783
D903
Q421
R172
2.2k
Q976
R421
KTD1304-X
2239
R386
R388
IC162
D782
MC2836-X
Q783
RT1P141C-X
UDZW11B-X
PDETACH
1SS355W-X
C421
24K
4.7/25
36K
C384
36K
R387
24K
R385
RT1P141C-X
UDZW6.2B-X
D717
RT1N441C-X
D431
1SS355W-X
R384
100K
100K
R382
R374 R383
100K 100K
C177
2.2/50
Q161
Q162
USB/CH
C784
47/16
P_OPEN
R433
2.2K
2.2K
R423
4.7/25
47/6.3
C373
C391
C392
47/6.3
0.1
C389
R782
R781
Q782
C782
47/6.3
HPMUTE
2SA1530A/R/-X
CN421
Q432
QGA2006C1-04
L431
NQR0007-002X
KTD1304-X
L430
NQR0007-002X
L421
NQR0007-002X
0.022
Q422
KTD1304-X
C430
1SS355W-X
AMPKILL
R892
1K
D891
MC2836-X
R893
3.3k
0.001
C910
4.7/25
C356
C336
47k
4.7/25
R333
47k
R353
47k
R323
47k
C326
R343
4.7/25
C346
4.7/25
R337
0
R357
0
47K
47K47K
R358
R338R348
47K
R328
R347
0
R327
0
R304
D302
47k
R308
2.2k
10
R307
22/16
C315
27k
R306
Q304
RT1N141C-X
RT1N141C-X
ILL
TEL
R882
10K
R881
R885
47k
47k
RT1N141C-X
Q881
C892
C891
0.1
0.1
C881
22/16
PBRK
DIMMER
2SC3928A/R/-X
!
IC901
R2S25401DS-E
220/10
100/16
C908
C909
PON
I/O
SI/SO
BUSSO
R811
R805
R804
100k
R803
22K
R802
R801
100
47K
C802
22P
IC801
SN74AHC126NS-X
24K
R375
B106
B103
36K
R377
220/10
C379
4.7/25
36K
R378
B104
B105
0.0015
24K
R376
C374
C377
R390
0
C390
100/10
2SA1530A/R/-X
Q371
R379
R380
47K
2.2K
Q372
RT1N141C-X
R171
2.2k
CHR
2.2/50
C187
CHL
0.01
C169
R173
0
C170
10/16
9V
470
470
Q977
MC2836-X
R976
R891
47K
Q781
RT1P141C-X
D781
Q891
Q892
RT1N141C-X
C781
47/6.3
TELMUTE
TELCONT
MUTE
220/10
0.1
0.01
100/10
10/16
C918
C919
C903
C904
C905
C906
ANT
R977
18k
56k
C338
1/16
C358
1/16
C348
1/16
C328
1/16100
0
10k
TB2904HQ
Q303
D885
1SS355W-X
R886
4.7k
Q885
RT1N141C-X
0.047
C913
D192
1SS355W-X
R355
R335
1SS355W-X
1SS355W-X
1SS355W-X
1SS355W-X
R325
R345
IC301
R339
R340
1k
1k
R359
R360
1k
1k
100P
100P
C359
C339
100P
100P
C349
C329
R349
R350
1k
1k
R329
R330
1k
1k
R302
0
R305
10k
C314
2.2/50
PARK
R888
0
R887
10k
C885
10/16
SW5V
22/16
C912
BUSINT
R807
330
R809
100
R810
C803
47K
0.047
RT1P441C-X
Q192
C191
47/6.3
1K
1K
D354
D334
D324
D344
1K
1K
C330
0.1
D303
C303
C304
D981
CRS03-W
CRS03-W
9.1K
R902
10V
R903
4.7K
SCK
BUSSCK
100K
R806
R808
22k
C804
22P
R191
4.7k
470
R197
R354
2.2k
Q354
KTD1304-X
R334
2.2k
Q334
KTD1304-X
R324
2.2k
Q324
R344
KTD1304-X
2.2k
Q344
KTD1304-X
C311
C306
D851
C312
C350
0.1
D306
FAN
HNDLEREM
DOUTMUTE
C981
R821
10
R825
47/16
D305
CRS03-W
0.1
R822
22k
TX
R413
10
COMPOSITE
VGND
CRS03-W
D852
CRS03-W
470
R824
NQL114K-470X
R411
0
4.7/16
D308
C307
R981
470
SN74AHCT1G08V-X
R401
470
L411
D307
RT1P141C-X
Q821
RT1N141C-X
C313
0.01
D304
C305
D982
CRS03-W
VMUTE
R192
Q191
820
KTD1304-X
R356
100
R336
100
100P
C335
100P
R326
C325
100
100
R346
Q301
RT1N441C-X
0.01
C316
0.01
C851
C340
0.1
C308
C309
0.1
2SC4485/ST/-T
R832
270
IC401
R405
0
0.047
C412
R412
C302
C902
2.2/50
GND
D309
D310
C310
R982
2.2K2.2k
R851
4.7K
Q823
C821
D821
10/16
C822
10/16
UDZW12B-X
K831
NQR0007-002X
UDZW6.2B-X
D831
NQR0007-002X
0.01
22p
0.01
C402
C401
C403
IC411
MM1510XN-X
C413
1.5
6.8k
R417
180
C360
0.1
Q822
220/10
C411
100P
C355
100P
C345
RT1P441C-X
C801
NI
CRS03-W
10
K401
NQR0007-002X
D401
CRS03-W
NQR0007-002X
330/6.3
R193
100
R194
100
J331
0.022
C156
0.047
C331
Q302
C301
D301
47/16
UDZW11B-X
CN901
R889
R883
QEZ0722-338
R404
2.2
C404
R414
1K
B921
R894
0
0
100k
QQR1378-002
C901
CHL
QNZ0095-001
D801
QGA2001C1-02
QGA2006C1-02
C831
100P
IC402
TOTX177L
100/6.3
C405
75
K922
NQR0201-004X
L901
D901
1N5401-F64
!
J801
SI/SO
R831
0
22p
0.01
C406
VOUT
R415
R416
0
K411
NQR0201-004X
0
QNZ0607-001
!
SCK
CN821
CN831
CN411
QGA2501F1-02
R901
1k
TEL
PARK
ILL
NI
C889
CHR
C823
0.01
R402
R403
470
L401
K402
C414
0
R410
C415
C416
100P
0.01
2-2
Main section (for KD-DV6201 and KD-DV6202)
TU21
!
QAU0443-002
L2
L1
US
SK
UT
SUDT
CRST
LRM
DL
DR
S4
S1
DA4
CN962
US
US1
LRM
LRM1
QGF0534F3-45X
C966
SN74LVC32APW-X
SN74HCT32APW-X
C967
0.22u
4.7u
NI
CN471
R475
R474
R471
QGB2027M3-30S
R962
100
LRMUTE
CPURST
COMPOSITE
C907
0.01
0.001
C932
47/10
C933
0
R922
100/10
C479
220/10
TX
UCS
SCS
S2UDT
SCLK
U2SDT
DVDL
DVDR
SW1
SW4
VGND
L902
D701
D702
D703
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
D1
1SS355W-X
C480
100
100
100
C473
USB_MUTE
C970
0.047
220/10
C964
220/10
NQL56CK-220X
C926
QEXF1AM-476Z
RB051L-40-X
D922
KEY0
KEY1
D2
220/10
USB_RST
0.047
C971
C969
C965
C921
C925
220/10
C927
470/25
C931
C915
KEY2
R4
1SS355W-X
100/16
100/10
R929
0.1
100P
R1
2P
C12
47K
R19
CRS03-W
CRS03-W
CRS03-W
D925
D924
D923
0.001
220/10
C968
0.047
C961
220/10
C475
C474
220/10
0.001
C963R927
C911
!
0
0
NQL79GM-100X
R961
L921
R967
220/10
C922
D921
1A3G-T1
NQL56CK-220X
L924
39K
L925
R923
NQL71EM-330X
C928
0.1
NI
R926
300K
C930
0.1
150K
4700P
10K
R925
C929
R924
0
47k
R928
0.1
C914
ENC1
ENC2
LCDCL
LCDDA
LCDCE
REMOCON
270
10K
270
10K
R705
R707
R706
R704
W21
QAM0105-003
QGB1004J2-16X
0.1/16
IC961
SUDT
CRST
R975
R973
22k
22k
22k
R974
UT
UT1
SK
SK1
IC962
0.1/16
CN961
QGB2027L9-30X
CN963
LRM1
US1
SK1
UT1
DL
DR
S1
S4
DA4
C934
47/10
R2
10k
0.1
C1
SW_FLAG
220/10
C476
220/10
C962
BA33BC0FP-X
NI
CN701
QNZ0605-001
1k
0.082
C2
FSU
2SA1530A/R/-X
R476
D471
RT1N141C-X
R914
UDZW5.1B-X
RT1N141C-X
D906
IC921
B922
0
L927
D704
D705
D706
D707
D709
D710
C701
C702
D711
USB_RX
Q474
220
UDZW5.1B-X
Q475
220
Q904
0
R921
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
0.01
0.1
UDZW6.2B-X
0.082
C3
0
R968
IC922
C11
0.082
0.082
R9
47K
USB_TX
R479
2.2K
R477
Q903
2SA1530A/R/-X
2.2K
R910
0
R969
BD9781HFP-W
C10
SSTOP
R10
4.7k
R480
R478
47K
R485
47K
R909
!
560
R860
WJK0224-001A-E
CN702
R5
33
TU_SDA
R11
4.7k
0
0
47K
C428
4.7/25
DVDR
DVDL
C438
LINE-R
LINE-G
LINE-L
TU.L
TU.R
8.2k
RDSDA
2.2K
R845
R850
R745
R746
QAX0617-001Z
27P
C728
4.7/25
R452
D141
22k
R461
QTE1H55-225Z
QTE1H55-225Z
LINE-L
LINE-G
LINE-R
47k
R844
R718
2.2k
33k
R751
BUSINT
C172
C171
C181
R442
C166
10/16
NI
R843
10k
2.2k
R753
R451R441
22k
C182
2.2/50
2.2/50
C175
470P
C185
470P
47k
NI
R841
R842
REMOCON
R755
10k
VDD
GND
HNDLEREM
22k22k1047/6.3
C161
C162
0.047
C164
1
R152
0
R142
0
SW_FLAG
2.2K
R754
22k
R752
C451
47/6.3
C441
HPDATA
100/10
C163
1
TU_SCL
330
R848
S723
QSW1049-001Z
C174
C168
C184
HPCK
22/16
C461
HPSTB
2.2/50
330
R717
MAINRESET
UDZW6.2B-X
D732
2.2/50
2.2/50
TU_SDA
TD
D142
DVDL
DVDR
TU.L
TU.R
AFS
SSTOP
0
10k
R719
R720
10M
R740
UCS
RESET
47K
RESET
X722C729
QAX0401-001
22P
27P
CN141
UDZW6.2B-X
QGA2006C1-04
D151
C155
D152
R155
0.47
470
47K47K
R141R151
C141
C151
470P
470P
C83
4.7/25
C482
0.1
!
R859
10K
0
5.6k
4.7k
0
2.2k
47K
0
R710
2SA1530A/R/-X
R708
R81
22k
R91
22k
C93
4.7/25
0
R14
R92
R484
47K
10K
W-MUTE
10k
R765
SW4
470P
C724
3.9K
R846
LCDCL
USB_3.3V
R82
C94
C84
8.2k
AFS
HPCK
HPSTB
SACLK
9VSW
HPDATA
2.2K
NRZ0065-222X
RA721
3.9K
100p
820
L721
C734
R847
R744
LCDDA
NQL38DK-330X
NI
47k
R748
R747
X721
220/10
8P
C727
C726
C725
2k
R15
47k
R17
0
Q2
R18
0.22/50
RT1N141C-X
C9
Q476
2SA1365/F/-X
R482
R483
1K
Q477
RT1N141C-X
VOLDA
VOLCK
2.2k
2.2k
2.2k
R722
R730
R721
R723
47K
47K
R724
10k
R763
SW1
ENC1
ENC2
1k
R709
5.6k
NI
47k
Q701
R749
R750
1K
C5
IC71
47/16
C74
560p
LC72725NM-X
R725
47K
C721
0.047
C722
220/10
C723
470P
LRMUTE
SCS
CPURST
USB_RST
R3
C6
C7
3.3k
0.1
0.1
C81
C91
220/10
C8
R8
Q_OUT
R12
4.7
R13
6.8
R71
100
RDSDA
RDSSCK
2K
330P
10/16
C71
R72
C73
0.01
C72
47/6.3
0.01
10k
R73
33P
33P
C75
C76
C77
X71
C78
QAX0263-001Z
IC471
BA05CC0WT-V5
R481
10K
1A3G-T1
D472
C478
0.1
C477
100/10
0
0
0.01
C997
R861
C999
HPMUTE
IC721
UPD784218AGC328
VOLMUTE
2.2k
DOUTMUTE
VMUTE
MUTE
R726
DIMMER
R735
PBRK
ANT
AMPKILL
R727
R728
PON
R729
DIMOUT
TELMUTE
R731
TELCONT
10K
R733
R734
RA722
NRZ0065-222X
R769
FAN
VPP
4.7K
R738
4.7K
R739
R758
220k
R759
220k
560
D719
SLR-56VC3F
10k
R7
R6
33
C4
0.1
TU_SCL
R439
100K
C437
R438
4.7K
4.7/25
IC431
LC75344M-X
C426 C436
C427
4.7/25
R428
4.7K
100K
47/16
0.1
R429
10
R462
C462
C463
0
R161
47K
1
C165
R162
TDA7416
R163
47K
IC722
BR24L32F-W-X
R715
270
270
R716
C733
470P
RD
SCK
10k
100k
R713
10k
100k
R711
R780
2.2k
2.2k
R779
2.2k
R799
R778
10K
1k
R777
R776
4.7k
R775
4.7k
4.7k
R774
220
R773
R772
220
3.9k
R771
47K
R770
R766
0
R768
0
R767
0
R812
47K
R785
TH721
NAD0028-103X
RA723
NRZ0065-103X
4.7K
4.7K
R760
R761
S-80833CNNB-G-W
IC723
C730
R756
2.2k
47/6.3
IC161
USB_TX
USB_RX
10K
4.7K
R762
RDSSCK
R436
18K
6.8K
R437
220P
IC421
NJM4580V-X
220P
C425
100P
R427
47K
R164
R166
R714
R712
SCLK
S2UDT
U2SDT
LCDCE
FSU
Q_OUT
KEY2
KEY1
KEY0
D731
47k
0.01
C731
R757
6.8K
R165
47K
220
1SS355W-X
C435
100P
W-MUTE
C267
C424
150P
R426
18K
10/16
VOLMUTE
SAOUT
SACLK
VOLCK
VOLDA
USBL
USBR
SAOUT
USB_MUTE
C433
C434
R434
39 22
150P
220/10
1k
R435
1k
R425
D431
C423
R424
220/10
C464
C465
47/16
0.1
10
R463
R373
R384
100K
0
R371
R382
R381
0
R372
0
9VSW
C176
2.2/50
C177
2.2/50
C186
Q161
2.2/50
RT1N141C-X
Q162
RT1N141C-X
D785
1SS355W-X
Q784
RT1P141C-X
D784
UDZW11B-X
C784
P_OPEN
I/O
BUSSCK
BUSSO
QSW0451-001
SI/SO
C732
220/10
S701
L722
R857
NQL114K-470X
0
1SS355W-X
100K
0
R374 R383
100K 100K
USB/CH
47/16
R432
2.2K
R422
2.2K
1SS355W-X
C378
UDZW6.2B-X
D716
D421
C380
220/10
0.0015
C783
47/16
S702
IC371
NJM2792V-X
CD4066BPW-X
QSW0451-001
R431
470P470P
C431
Q431
KTD1304-X
C421
KTD1304-X
Q421
R421
2239
24K
R386
4.7/25
36K
R388
C384
36K
R387
24K
R385
IC162
R172
2.2k
D782
MC2836-X
RT1P141C-X
Q783
RT1P141C-X
D783
UDZW11B-X
PDETACH
UDZW6.2B-X
D717
1SS355W-X
D903
2SA1530A/R/-X
Q976
RT1N441C-X
CN421
Q432
QGA2006C1-04
L431
NQR0007-002X
R433
R423
47/6.3
C391
C392
R782
R781
Q782
HPMUTE
L430
2.2K
KTD1304-X
NQR0007-002X
L421
2.2K
NQR0007-002X
0.022
Q422
KTD1304-X
C430
0
0
R375
24K
4.7/25
B106
B103
36K
R377
C373
220/10
C379
4.7/25
36K
R378
0
0
24K
0.0015
B104
B105
47/6.3
R376
C374
C377
0.1
C389
470
470
C782
47/6.3
Q977
R390
0
C390
100/10
Q371
2SA1530A/R/-X
R379
2.2K
47K
R380
Q372
RT1N141C-X
R171
2.2k
CHR
2.2/50
C187
CHL
C169
0.01
R173
0
C170
10/16
9V
R891
47K
Q781
RT1P141C-X
D781
MC2836-X
R976
Q891
Q892
RT1N141C-X
C781
47/6.3
MUTE
TELMUTE
TELCONT
0.1
220/10
0.1
100/10
0.01
10/16
C905
C903
C918
C919
C904
C906
ANT
R977
18k
56k
D302
1SS355W-X
AMPKILL
R892
1K
D891
MC2836-X
R893
3.3k
0.001
C910
4.7/25
C356
C336
4.7/25
47k
R333
47k
R353
47k
R323
47k
C326
R343
4.7/25
C346
4.7/25
IC301
TB2904HQ
C338
R339
R337
1/16
0
1k
R359
R357
C358
1k
0
1/16
47K
47K
R358
R338
47K
47K
C348
R349
1/16
R347
R328
1k
R348
0
R327
R329
C328
0
1/16
R304
47k
R308
2.2k
R307
Q304
RT1N141C-X
TEL
R881
47k
RT1N141C-X
Q881
C891
C892
0.1
0.1
DIMMER
2SC3928A/R/-X
IC901
R2S25401DS-E
220/10
100/16
C908
C909
PON
I/O
BUSSO
SI/SO
R804
100k
R803
22K
R801
R802
100
47K
C802
22P
SN74AHC126NS-X
1k
10
22/16
C315
27k
R306
Q303
RT1N141C-X
ILL
D885
1SS355W-X
R882
10K
R886
4.7k
R885
47k
Q885
C881
RT1N141C-X
PBRK
22/16
!
0.047
22/16
C912
C913
R811
0
10k
R805
IC801
C191
RT1P441C-X
Q192
47/6.3
D192
1SS355W-X
1K
R355
R335
1K
1SS355W-X
D354
D334
1SS355W-X
D324
1SS355W-X
D344
1SS355W-X
1K
R325
1K
R345
R340
1k
R360
1k
100P
100P
C359
C339
100P
100P
R350
C349
C329
1k
R330
1k
C330
0.1
R302
0
R305
10k
C314
2.2/50
D303
C303
C304
D981
CRS03-W
CRS03-W
PARK
R888
0
R887
10k
9.1K
R902
C885
10/16
SW5V
10V
4.7K
R903
SCK
BUSSCK
BUSINT
100K
R806
R807
330
R808
22k
R809
100
C804
R810
C803
22P
47K
0.047
R191
4.7k
470
R197
R354
2.2k
Q354
KTD1304-X
R334
2.2k
Q334
KTD1304-X
R324
2.2k
R344
C313
D304
D982
VMUTE
2.2k
0.01
C305
CRS03-W
C306
D851
C312
47/16
C350
0.1
D305
D306
C981
0.1
R821
10
R825
FAN
HNDLEREM
DOUTMUTE
KTD1304-X
Q344
KTD1304-X
CRS03-W
D852
R822
22k
TX
R413
10
COMPOSITE
VGND
CRS03-W
CRS03-W
470
R824
R401
470
NQL114K-470X
R411
0
Q324
C311
4.7/16
C360
D308
C307
D307
R981
470
Q822
RT1P141C-X
Q821
RT1N141C-X
SN74AHCT1G08V-X
L411
R192
Q191
820
KTD1304-X
R356
100
R336
100
100P
C335
100P
R326
C325
100
100
R346
Q301
RT1N441C-X
0.01
C316
0.01
C340
0.1
C308
C412
C309
D309
R982
2.2K2.2k
0.1
2SC4485/ST/-T
R832
270
IC401
R405
0
0.047
R412
C310
6.8k
R851
D821
IC411
C413
R417
D310
UDZW12B-X
MM1510XN-X
1.5
180
4.7K
Q823
C821
10/16
NQR0007-002X
D831
0.01
22p
C402
C401
C302
C822
10/16
K831
UDZW6.2B-X
0.01
C403
C902
2.2/50
GND
NQR0007-002X
0.1
C851
220/10
C411
100P
C355
100P
C345
RT1P441C-X
C801
NI
CRS03-W
10
K401
NQR0007-002X
D401
CRS03-W
NQR0007-002X
R193
100
R194
100
J331
QNN0747-001
0.022
C156
0.047
C331
Q302
C301
D301
47/16
UDZW11B-X
CN901
C901
QEZ0722-338
CHL
D801
QGA2006C1-02
C831
100P
2.2
C404
100/6.3
R414
1K
B921
NQR0201-004X
R894
0
0
100k
QQR1378-002
D901
1N5401-F64
!
J801
QNZ0095-001
QGA2001C1-02
IC402
TOTX177L
22p
C405
VOUT
75
R415
R416
0
NQR0201-004X
0
K922
QNZ0607-001
L901
!
SI/SO
SCK
CN821
CN831
R831
0
0.01
C406
CN411
K411
QGA2501F1-02
R901
1k
TEL
R889
PARK
ILL
R883
NI
C889
CHR
C823
0.01
R403
R402
470
R404
L401
K402
C414
330/6.3
0
R410
C415
C416
100P
0.01
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
2-3
Main section (for KD-DV6207)
TU21
!
QAU0443-002
L1
4.7u
W21
QAM0105-003
D1
1SS355W-X
CN471
QGB1004J2-16X
100/10
C479
R475
100
R474
100
R471
100
C473
220/10
0.1/16
SUDT
CRST
LRM
DA4
US
SK
UT
DL
DR
S4
S1
CN962
QGF0534F3-45X
C966
IC961
SN74LVC32APW-X
R973
22k
US
US1
LRM
LRM1
SN74HCT32APW-X
IC962
0.1/16
C967
QGB2027L9-30X
CN963
SUDT
LRM1
CRST
US1
R975
SK1
22k
22k
R974
UT1
DL
DR
UT
UT1
S1
SK
S4
SK1
DA4
C934
47/10
QGB2027M3-30S
CN961
COMPOSITE
47/10
R962
C907
0.001
100
0.01
C932
C933
0
R922
LRMUTE
CPURST
TX
UCS
SCS
S2UDT
SCLK
U2SDT
DVDL
DVDR
SW1
SW4
VGND
L902
D701
D702
D703
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
USB_MUTE
NQL56CK-220X
C926
QEXF1AM-476Z
D922
KEY0
KEY1
L2
0.22u
NI
R4
D2
C480
220/10
USB_RST
C970
0.047
C971
C969
0.047
C965
220/10
C964
220/10
C921
100/10
C925
220/10
C927
470/25
RB051L-40-X
0.1
C931
C915
100P
KEY2
1SS355W-X
100/16
220/10
C922
C928
0.1
R929
R926
C930
0.1
10K
R924
LCDCL
C428
4.7/25
DVDR
DVDL
C438
D141
D142
TU.L
TU.R
8.2k
RDSDA
2.2K
R845
R745
R746
QAX0617-001Z
27P
27P
C728
4.7/25
R452
22k
C451
22k22k1047/6.3
R451R441
C441
47/6.3
R442
22k
R461
C166
10/16
QTE1H55-225Z
DVDL
C182
C172
DVDR
QTE1H55-225Z
2.2/50
TU.L
C171
2.2/50
TU.R
C181
LINE-L
C175
LINE-G
470P
C185
LINE-R
470P
NI
47k
NI
AFS
R842
R843
R844
SSTOP
0
10k
R720
R719
10k
R718
2.2k
10M
2.2k
R740
R753
UCS
REMOCON
R755
RESET
47K
10k
RESET
VDD
GND
X722C729
33k
QAX0401-001
R751
BUSINT
22P
HNDLEREM
22/16
C461
HPSTB
HPDATA
HPCK
C161
100/10
C162
0.047
C163
1
C164
1
R152
0
C174
2.2/50
2.2/50
C168
R142
0
2.2/50
C184
47k
R841
TU_SCL
2.2K
330
R848
S723
QSW1049-001Z
330
R717
MAINRESET
UDZW6.2B-X
D732
TU_SDA
TD
R754
22k
R752
SW_FLAG
CN141
UDZW6.2B-X
QGA2006C1-04
D151
D152
C155
R155
0.47
470
47K47K
R141R151
C141
C151
LINE-R
470P
470P
LINE-G
R484
47K
10K
W-MUTE
10k
R765
SW4
470P
C724
3.9K
R846
LCDCL
USB_3.3V
3.9K
R847
LCDDA
220/10
C725
LINE-L
C94
C84
R92
R82
8.2k
AFS
HPCK
9VSW
HPSTB
SACLK
HPDATA
2.2K
NRZ0065-222X
R850
RA721
100p
820
L721
R744
C734
NQL38DK-330X
NI
47k
R748
R747
X721
8P
C727
C726
C83
4.7/25
C482
0.1
!
R859
10K
0
5.6k
4.7k
0
2.2k
R710
2SA1530A/R/-X
R81
22k
R91
22k
C93
4.7/25
R14
0
R15
2k
47k
R17
0
Q2
R18
0.22/50
RT1N141C-X
C9
Q476
2SA1365/F/-X
R482
R483
1K
Q477
RT1N141C-X
VOLDA
VOLCK
2.2k
2.2k
2.2k
R721
R722
R723
R724
1k
R730
47K
47K
10k
R763
SW1
ENC1
ENC2
R709
5.6k
NI
47k
Q701
R749
R750
1K
C5
IC71
47/16
C74
LC72725NM-X
R725
47K
C721
0.047
C722
220/10
C723
470P
LRMUTE
SCS
CPURST
USB_RST
R3
C6
C7
3.3k
0.1
0.1
C81
C91
220/10
C8
R8
Q_OUT
R12
4.7
R13
6.8
R71
100
RDSDA
RDSSCK
2K
330P
10/16
C71
R72
C73
0.01
C72
560p
47/6.3
0.01
10k
R73
33P
33P
X71
C76
C77
C75
C78
QAX0263-001Z
IC471
BA05CC0WT-V5
R481
10K
1A3G-T1
D472
C478
0.1
C477
100/10
0
0
0.01
R861
C997
C999
HPMUTE
IC721
UPD784218AGC328
VOLMUTE
2.2k
DOUTMUTE
VMUTE
MUTE
R726
DIMMER
R735
PBRK
ANT
AMPKILL
R727
R728
PON
R729
DIMOUT
TELMUTE
R731
TELCONT
10K
R733
R734
47K
RA722
NRZ0065-222X
R769
0
FAN
VPP
R738
4.7K
R739
4.7K
R758
220k
R759
220k
R708
560
D719
SLR-56VC3F
Parts are safety assurance parts.
C10
SSTOP
R10
4.7k
R480
R478
47K
R485
47K
R909
!
560
R860
WJK0224-001A-E
CN702
10k
R7
R5
R6
33
33
C4
0.1
TU_SDA
TU_SCL
R11
4.7k
0
0
47K
C11
R2
1k
0.082
0.082
0.082
R1
10k
2P
C12
R19
47K
CRS03-W
CRS03-W
CRS03-W
D925
D924
D923
0.001
220/10
C968
0.047
C961
220/10
C474
C475
220/10
0.001
C963R927
C911
!
0
NQL79GM-100X
0
L921
R961
R967
D921
1A3G-T1
NQL56CK-220X
L924
39K
L925
R923
NQL71EM-330X
NI
300K
150K
4700P
R925
C929
0
47k
R928
C914
0.1
ENC1
ENC2
LCDDA
LCDCE
REMOCON
10K
270
270
10K
R706
R704
R705
R707
0.1
C1
SW_FLAG
220/10
C476
220/10
C962
BA33BC0FP-X
NI
CN701
QNZ0605-001
C2
FSU
2SA1530A/R/-X
UDZW5.1B-X
D906
IC921
B922
0
L927
D704
D705
D706
D707
D709
D710
C701
C702
D711
USB_RX
Q474
R476
220
D471
UDZW5.1B-X
Q475
RT1N141C-X
R914
220
Q904
RT1N141C-X
0
R921
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
UDZW6.2B-X
0.01
0.1
UDZW6.2B-X
C3
0
R968
IC922
0.082
R9
47K
USB_TX
R479
2.2K
R477
Q903
2SA1530A/R/-X
2.2K
R910
0
R969
BD9781HFP-W
R439
100K
C437
R438
4.7K
4.7/25
IC431
LC75344M-X
C426 C436
C427
4.7/25
R428
4.7K
100K
47/16
0.1
R429
10
R462
C462
C463
0
R161
47K
1
C165
R162
TDA7416
R163
47K
IC722
BR24L32F-W-X
R715
270
270
R716
C733
470P
RD
SCK
10k
100k
R713
10k
100k
R711
R780
2.2k
R779
2.2k
R799
2.2k
R778
10K
R777
1k
R776
4.7k
R775
4.7k
R774
4.7k
220
R773
R772
220
R771
3.9k
47K
R770
R766
0
R768
0
R767
0
R812
47K
R785
TH721
NAD0028-103X
RA723
NRZ0065-103X
4.7K
4.7K
R760
R761
S-80833CNNB-G-W
IC723
C730
R756
2.2k
47/6.3
IC161
USB_TX
USB_RX
10K
4.7K
R762
RDSSCK
0.01
C731
R436
18K
6.8K
R437
220P
IC421
NJM4580V-X
220P
C425
100P
R427
R165
47K
47K
R164
R166
R714
R712
SCLK
S2UDT
U2SDT
LCDCE
FSU
Q_OUT
KEY2
KEY1
KEY0
D731
47k
R757
C435
100P
C424
150P
R426
6.8K
W-MUTE
C267
220
1SS355W-X
18K
10/16
VOLMUTE
SAOUT
SACLK
VOLCK
VOLDA
USBL
USBR
SAOUT
C732
USB_MUTE
C434
150P
R463
BUSSCK
BUSSO
SI/SO
220/10
C464
C465
0.1
10
9VSW
I/O
C433
R434
220/10
1k
R435
1k
R425
C423
R424
220/10
47/16
R373
0
R371
R381
R372
C176
2.2/50
C186
2.2/50
D785
Q784
D784
UDZW11B-X
QSW0451-001
S701
R857
NQL114K-470X
0
39 22
R432
2.2K
Q431
R422
2.2K
D431
Q421
D421
1SS355W-X
1SS355W-X
IC371
R384
100K
100K
C380
NJM2792V-X
220/10
0
R382
C378
0.0015
0
R374 R383
100K 100K
0
CD4066BPW-X
C177
2.2/50
Q161
RT1N141C-X
Q162
RT1N141C-X
USB/CH
1SS355W-X
RT1P141C-X
C783
C784
D783
47/16
47/16
P_OPEN
UDZW6.2B-X
QSW0451-001
D716
S702
D903
L722
R172
2.2k
Q976
IC162
PDETACH
R431
KTD1304-X
KTD1304-X
R421
2239
R386
R388
D782
MC2836-X
Q783
RT1P141C-X
UDZW11B-X
1SS355W-X
470P470P
C431
C421
24K
4.7/25
36K
C384
36K
R387
24K
R385
RT1P141C-X
UDZW6.2B-X
D717
2SA1530A/R/-X
RT1N441C-X
CN421
Q432
QGA2006C1-04
L431
NQR0007-002X
R433
R423
47/6.3
C391
C392
R782
R781
Q782
47/6.3
HPMUTE
L430
2.2K
KTD1304-X
NQR0007-002X
L421
2.2K
NQR0007-002X
0.022
Q422
KTD1304-X
C430
0
0
R375
24K
4.7/25
B103
B106
36K
R377
C373
220/10
C379
4.7/25
36K
0
0
R378
24K
B104
B105
0.0015
R376
47/6.3
C374
C377
R171
2.2k
R173
0
MC2836-X
R976
Q371
D781
56k
C390
100/10
2SA1530A/R/-X
R379
2.2K
Q372
RT1N141C-X
2.2/50
C187
C170
RT1P141C-X
C781
47/6.3
220/10
0.01
C918
C919
R390
0
47K
R380
CHR
CHL
0.01
C169
10/16
9V
R891
47K
Q781
Q891
RT1N141C-X
MUTE
TELMUTE
0.1
10/16
100/10
C903
C904
C905
R977
18k
0.1
C389
470
470
C782
Q977
C356
4.7/25
C336
4.7/25
47k
R333
47k
R353
47k
R323
47k
C326
R343
4.7/25
C346
4.7/25
IC301
TB2904HQ
C338
R339
R337
1/16
0
1k
R359
R357
C358
1k
0
1/16
47K
47K
R358
R338
47K
47K
C348
R349
1/16
R347
R328
1k
R348
0
R327
R329
C328
0
1/16
R304
D302
1SS355W-X
47k
R308
2.2k
R307
Q304
RT1N141C-X
AMPKILL
R892
1K
TEL
D891
MC2836-X
R881
R893
47k
3.3k
RT1N141C-X
Q892
TELCONT
0.1
C906
ANT
Q881
C891
C892
0.1
0.1
DIMMER
2SC3928A/R/-X
IC901
R2S25401DS-E
220/10
0.001
100/16
C908
C909
C910
PON
I/O
BUSSO
SI/SO
R804
100k
R803
22K
R801
R802
100
47K
C802
22P
SN74AHC126NS-X
1k
10
22/16
C315
R882
10K
C881
22/16
!
R305
R306
27k
Q303
RT1N141C-X
ILL
D885
1SS355W-X
R886
4.7k
R885
47k
Q885
RT1N141C-X
PBRK
0.047
22/16
C912
C913
R811
0
R805
10k
IC801
C191
RT1P441C-X
Q192
47/6.3
D192
1SS355W-X
R355
1K
R335
1K
1SS355W-X
D354
D334
1SS355W-X
D324
1SS355W-X
D344
1SS355W-X
1K
R325
1K
R345
R340
1k
R360
1k
100P
100P
C359
C339
100P
100P
R350
C349
C329
1k
R330
1k
C330
0.1
R302
0
10k
C314
2.2/50
C303
C304
D303
D981
CRS03-W
CRS03-W
PARK
R888
0
R887
10k
9.1K
R902
C885
10/16
SW5V
10V
4.7K
R903
SCK
BUSINT
BUSSCK
R806
100K
R807
330
R808
22k
R809
100
C804
R810
C803
22P
47K
0.047
R191
4.7k
R197
470
R354
2.2k
Q354
KTD1304-X
R334
2.2k
Q334
KTD1304-X
R324
2.2k
R344
C313
D304
D982
VMUTE
2.2k
0.01
C305
CRS03-W
C306
D851
C312
C350
0.1
D306
R821
10
R825
FAN
HNDLEREM
DOUTMUTE
47/16
D305
C981
0.1
TX
COMPOSITE
VGND
CRS03-W
R822
22k
R413
10
KTD1304-X
Q344
KTD1304-X
D852
470
NQL114K-470X
R411
Q324
C311
4.7/16
D308
CRS03-W
C307
R981
CRS03-W
470
R824
SN74AHCT1G08V-X
R401
470
L411
0
C360
D307
Q822
RT1P141C-X
Q821
RT1N141C-X
R192
Q191
820
KTD1304-X
R356
100
R336
100
100P
C335
100P
R326
C325
100
R346
100
Q301
RT1N441C-X
0.01
C316
0.01
C340
0.1
C308
0.047
C412
C309
D309
R982
2.2K2.2k
0.1
2SC4485/ST/-T
R832
270
IC401
R405
0
R412
6.8k
C310
D821
IC411
D310
R851
C413
1.5
R417
4.7K
Q823
C821
UDZW12B-X
NQR0007-002X
D831
22p
C401
MM1510XN-X
180
10/16
K831
0.01
C402
C302
C902
2.2/50
GND
C822
10/16
UDZW6.2B-X
NQR0007-002X
0.01
C403
0.1
C851
220/10
C411
100P
C355
100P
C345
RT1P441C-X
C801
NI
CRS03-W
10
R402
K401
NQR0007-002X
D401
CRS03-W
NQR0007-002X
330/6.3
R193
100
R194
100
J331
QNN0747-001
0.022
C156
0.047
C331
Q302
C301
D301
47/16
UDZW11B-X
CN901
R894
100k
C901
QEZ0722-338
CHL
D801
QGA2001C1-02
QGA2006C1-02
C831
100P
2.2
C404
100/6.3
R414
1K
B921
NQR0201-004X
0
0
QQR1378-002
D901
!
J801
QNZ0095-001
IC402
TOTX177L
C405
VOUT
75
NQR0201-004X
K922
L901
1N5401-F64
SI/SO
R831
22p
C406
R415
R416
0
0
QNZ0607-001
!
SCK
CN821
CN831
0
0.01
CN411
K411
QGA2501F1-02
R901
1k
TEL
R889
PARK
ILL
R883
NI
C889
CHR
C823
0.01
R403
470
R404
L401
K402
C414
0
R410
C415
C416
100P
0.01
When replacing those parts make
sure to use the specified one.
2-4
LCD & Key control section (except KD-DV6201 & KD-DV6202)
IC602
RPM7338-V4
0.022
0.022
C681
C682
3.9K
3.9K
R606
S607S614
R612
ENC1
R605
2.7K
QSW1163-001
ENC2
S606
S613
EN601
S605
S612
S604
S611
0.012
10K
D643
R691
S13
R645
S10
R644
D606
D607
S12A
S11
S14
S15
S16
S17
S18
S19
S20
S21
S22
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
R638
D603
D610
D611
S41
300
R636
R637
D612
D613
D614
S23
R642
D608
68
100
R641
MC2838-X
D640
68
220
R650
68
R680
D620 D621
R681
R639
68
R643
68
R640
D609
430
S1S2S3
S4
LCD1
COM1
QLD0384-001
R601
R602R603R604
8201.2K1.8K
820
S602
S603
R607R608R611 R610 R609
8208202.7K 1.8K 1.2K
S610
R614
R613
820
820
S617
S609
S616
KEY2
S601
KEY1
S608
KEY0
COM2
R649
COM3
R648
D601
D602
S5S6S7S8S9
430
430
R647
R646
D604
D605
S47
S48
S49
S50
S46
R634
D615
D616
D617
S51
S52
S48
S51
S52
S50
R654
R655
R656
S49
10k
10k
10k
IC601
PT6523LQ-L
470
R672
R671
470
820
NI
300
R632
R633
D618
390
R661
D646
NSPW310BS/BRST/
R660
390
D645
NSPW310BS/BRST/
Q640
2SA1365/F/-X
Q641
RT1N141C-X
R674
R673
47k
1k
DIM_CON
C603
R658
180k
R653
10k
10/6.3
R652
UDZW5.1B-X
D641
2.2k
R651
2.2k
D642
1SS355W-X
C601
0.022
C602
680p
COM1
COM2
COM3
LCDCE
LCDCL
LCDDA
R657
51k
S47
S2
S1
S42
S45
S44
S43
300
R635
S45
S46
S44
S3S4S5S6S7
C611
UDZW6.2B-X
S41
S42
S43
S39
S40
S8
S9
C612
S38
S10
470
R692
4.7/6.3
CN601
NNZ0085-001
ACC5V
10V
DIM_CON
R670
S35
S37
S36
S33
S34
S32
S31
S30
S29
S28
S27
S26
S25
S24
S23
S22
S21
S20
S19
S18
S17
S12
S13
S14
S15
S16
S11
0
DIMOUT
REMOCON
ENC1
ENC2
LCDCE
LCDDA
LCDCL
KEY2
KEY1
KEY0
GND
GND
2-5
LCD & Key control section (for KD-DV6201 & KD-DV6202)
IC602
RPM7338-V4
0.022
0.022
C681
C682
R606
3.9K
R612
3.9K
S607S614
ENC1
R605
2.7K
QSW1163-001
ENC2
S606
S613
EN601
S605
S612
S604
S611
0.012
10K
D643
R691
S13
R645
S10
R644
D606
D607
S12A
S11
S14
S15
S16
S17
S18
S19
S20
S21
S22
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
D610
D611
R638
D603
S41
300
R636
R637
D612
D613
D614
S23
R642
D608
68
100
R641
MC2838-X
D640
68
220
R650
68
R680
D620 D621
R681
R639
68
R643
68
R640
D609
430
S1S2S3
S4
LCD1
COM1
QLD0384-001
R601
R602R603R604
820
8201.2K1.8K
S602
S603
R607R608R611 R610 R609
8208202.7K 1.8K 1.2K
S610
R614
R613
820
820
S617
S609
KEY2
S601
KEY1
S608
KEY0
S616
COM2
R649
COM3
R648
D601
D602
S5S6S7S8S9
430
430
R647
R646
D604
D605
S47
S48
S49
S50
S42
S45
S44
S43
300
R635
S51
S46
R634
D615
D616
D617
S52
S51
S50
S52
C602
680p
S49
10k
10k
10k
R657
51k
IC601
PT6523LQ-L
470
R672
R671
470
820
NI
300
R632
R633
D618
390
R661
D646
NSPW310BS/BRST/
390
R660
D645
NSPW310BS/BRST/
Q640
2SA1365/F/-X
Q641
RT1N141C-X
R674
R673
47k
1k
DIM_CON
C603
R658
180k
R653
10k
10/6.3
R652
2.2k
UDZW5.1B-X
D641
R651
2.2k
D642
1SS355W-X
C601
0.022
LCDCE
LCDCL
LCDDA
R654
COM1
COM2
COM3
R655
R656
S47
S48
S2
UDZW6.2B-X
S42
S43
S44
S45
S46
S3S4S5S6S7S8S9
C611
S39
S40
S41
470
R692
C612
4.7/6.3
CN601
NNZ0085-001
ACC5V
10V
R670
0
DIMOUT
REMOCON
ENC1
ENC2
LCDCE
LCDDA
LCDCL
KEY2
KEY1
KEY0
GND
GND
DIM_CON
S33
S34
S35
S36
S37
S38
S32
S31
S30
S29
S28
S27
S26
S25
S24
S23
S22
S21
S20
S19
S18
S17
S10
S11S1S12
S13
S14
S15
S16
2-6
DVD control section (common)
P3.3V
K399
EXADR16
R399
0
NQR0502-001X
EXDAT15
EXDAT7
EXDAT14
EXDAT6
EXDAT13
EXDAT5
EXDAT12
EXDAT4
EXDAT11
EXDAT3
EXDAT10
EXDAT2
EXDAT9
EXDAT1
EXDAT8
EXDAT0
NEXOE
R397
NI
NEXCE
DGND
NI
NI
R121
R124
R123
R122
0
R119
0
91
R102
R128R127
10k
2SK3019-X2SK3019-X
F+T-T+
NI
NI
1
C207
C208
C201
C202
100/16
C211
C212
100/16
NI
C209
R232
15k
390k
Q231
DTC114EE-X
MGND
0.047
C254
10/10
0.1/16
C253
0.1/16
C256
C266
SBRK
SPDRV
0
R257
C255
C267
0.1/16
100/16
SPDRV
/SPMUTE
CN201
QGF1038F2-11X
TP201
TP202
CN101
QGF0501F8-30X
CN202
C101
0.1/16
C103
0.1/16
TP2
TP1
B211
B212
TP32
TP31
TP41
QGF0523F2-05W
SW4
NSW0184-001X
SW5
NSW0183-001X
0.1/16
TP40
C104
TP3
TP33
TP39
SW1
EXADT15
EXADT14
EXADT13
EXADT12
EXADT11
EXADT10
EXADT9
EXADT8
EXADR19
EXADR20
NEXWE
/FL_RST
NI
R398
R396
47k
EXADR18
EXADR17
EXADT7
EXADT6
EXADT5
EXADT4
EXADT3
EXADT2
EXADT1 EXADT0
TP22
TP21
TP20
TP16
TP17
TP18
TP19
C102
0.1/16
K101
NQR0007-002X
K102
NQR0007-002X
R126
TP9
TP7
TP6
TP5
TP4
TP8
TP11
TP12
TP10
TP51
NI
NI
TP52
TP36
TP35
TP34
SM3
SM2
SM1
H3-
H3+
VH
H1+
H1-
H2+
H2-
TP37
TP38
SW2
SW3
B201
NI
B202
NI
B203
NI
B204
NI
B205
NI
TRVSW
DGND
REST
L-END
SWGND
TP15
T+
F-
T-
F+
SW1
SW2
SW3
SW4
TP14
0
SG32M90TFIR3
TP13
IC398
0.1/16
VREFH
HAGUP
LPC2
RF+
RF-
LPC1
E
F
D
C
B
A
CD/DVD
10k
Q105 Q106Q107
2SC4617/R/-X
D5V
0
R233
47
R260
NI
C269
C396
100k
R129
M5V
R201
M8V
R231
2.7k
R235 R234
6.8k
SBRK
M8V
C252
MGND
MDQ0
MDQ1
MDQ2
C397
22/6.3
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
DQM0
NWE
NCAS
NRAS
NCSM
MA11
BA0
BA1
MA10
MA0
MA1
MA2
DQM2
MDQ16
MDQ17
MDQ18
MDQ19
MDQ20
MDQ21
MDQ22
MDQ23
DVDLDCUR
NI
NI
C109
C110
0
R120
0
91
R101
R103
4.3k
R203
0.1/16
IC201
BA5835FM-X
0.1/16
MGND
C265
0.1/16
IC251
BD6671FM-X
R259
10K
R252
10k
0.01
/SPMUTE
IC399
C391
0.1/16
C381
0.1/16
C382
0.1/16
C392
0.1/16
C393
0.1/16
C383
0.1/16
C384
0.1/16
C394
0.1/16
LPCO1
CDLDCUR
0
R110
C106
47/10
12
R105
R104
2.4k 2.4k
2SC4617/R/-X
C203
270p
30k
R253
470
2.2
R106
R108
R107
1k 1k
Q101
2SB1424/R/-W 2SB1424/R/-W
Q102
C111
R111
0.1/16
H3-
0
R251
4.3k
330
R109
R205
C204
150p
27k
R204
R202
27k
47k
15k
R219
R220
18k
C213
0.1/16
TRSDRV
R221
10k
R222
R223
10k
0
C221
0.022
H3+
H2-
H2+
H1-
H1+
0.001
0.001
0.001
C257
C258
C259
R256
47
R254
10k
C264
20k
R255
0.47
C251
0.1/16
R112
0.1/16
NI
C261
C260
0.01
EDS1232AATA-75
12
R113
2SC4617/R/-X
C112
TDRV
R207
FDRV
R206
VHALF2
VH
SM1
SM2
SM3
NI
NI
C262
NI
C263
R302
NI
TP321
D2V
D3.3V
VGND
B601
NQR0022-005X
R602
NI
NI
D3.3V
NI
NI
NI
NI
R355
R356
C303
D2V
C365
C364
47/6.3
0.1/16
NI
R21
NI
R22
FG1
TP322
TP323
TP324
TP325
NI
R25
NI
R26
DGND
NI
R23
NI
R24
FG2
TP318
TP316
CN402
QGF0522F3-06W
R390
10k
K461
NI
NI
K462
NI
K420
NI
K421
NI
K422
NI
K423
NI
K424
NI
K434
NI
K426
NI
K427
NI
K428
NI
K429
NI
K430
K431
NI
NI
K432
NI
K433
C453
C454
0.1/16
DGND
NQR0022-005X
K401
NQR0022-005X
K402
NI
K403
NQR0022-005X
K404
NQR0022-005X
K405
K406
NQR0022-005X
NQR0022-005X
K407
NQR0022-005X
K441
K442
NQR0022-005X
K443
NQR0022-005X
NQR0022-005X
K444
0
R441
NQR0022-005X
K445
0
R442
NQR0022-005X
K451
NQR0022-005X
K452
L451
NQL044K-100X
S3.3V
C451
0.1/16
0
S5V
DGND
C452
0.1/16
D5V
M5V
M8V
MGND
CN403
QGF0534F3-45X
TP417
TP416
0.1/16
TP420
TP422
TP425
TP426
TP427
TP428
TP429
TP430
TP431
TP432
TP433
TP434
TP435
TP436
TP437
TP439
TP440
TP441
TP442
TP444
TP446
TP448
TP452
TP453
TP455
TP457
R300
IC303
P3.3V
MDQ15
MDQ14
MDQ13
C388
MDQ12
0.1/16
MDQ11
MDQ10
MDQ9
C387
MDQ8
0.1/16
DQM1
MCK
MA9
MA8
MA7
MA6
MA5
MA4
MA3
DQM3
MDQ31
C386
MDQ30
0.1/16
MDQ29
MDQ28
MDQ27
C385
MDQ26
0.1/16
MDQ25
MDQ24
S5V
LPCO2
S-5V
1
R125
0
C108
R118
47/10
2.2
470
R116
R114
R115
Q103
Q104
0
0
C105
47/10
330
R117
DGND
/DRVMUTE
TRDRV
FODRV
VHALF
NI
R210
0
R211
P3.3V
TRSDRV
1k1k
R384R385
DRVCONT
FG
1/16
C371
LM
FG
P3.3V
MDQ18
C1
MDQ28
MDQ19
MDQ27
MDQ20
MDQ26
MDQ21
MDQ25
MDQ22
MDQ24
MDQ23
EXADT0
NEXCE
NEXOE
EXDAT0
EXDAT8
EXDAT1
EXDAT9 LRCLK
EXDAT2
EXDAT10
EXDAT3
EXDAT11
EXDAT4
EXDAT12
EXDAT5
EXDAT13
EXDAT6
EXDAT14
EXDAT7
EXDAT15
EXADR16
EXADT15
EXADT14
R321
EXADT13
EXADT12
EXADT11
EXADT10
EXADT9
EXADT8
R389
EXADR19
NEXWE
EXADR18
EXADR17
EXADT7
EXADT6
EXADT5
EXADT4
EXADT3
EXADT2
EXADT1
NEXWE
EXADR20
/FL_RST
0.1/16
C2
0.1/16
C3
0.1/16
C4
0.1/16
C5
0.1/16
NI
10k
R322
C6
0.1/16
C7
NI
NI
R388
0.1/16
R304
10k
DGND
1k
0.1/16
C380
R310
IC304
S-80827CNNB-G-W
100k
C310
R309
R323
0
C481
0.1/16
IC481
BR24L16F-W-X
MDQ31
DQM2
MA3
MA4
MA2
MA5
MA1
MA6
MA0
MA7
MA10
MA8
C17
0.1/16
R308
AK4385ET-X
0.1/16
22K
1k
R380
CPURST
MA9
BA0
BA1
MA11
C16
0.1/16
10k
10k
R258
R224C222
C268
TRSDRV
CD/DVD
HAGUP
SPDRV
FG
/SPMUTE
TRVSW
IC401
0
R403
DGND
DQM3
MDQ16
MDQ30
MDQ17
MDQ29
C18
0.1/16100
0
R386
NI
R324
0.01
EPSK
EPDIO
NI
10k
R481
R482
EPDIO
EPSK
100
C8
0.1/16
R353
R354
TUBUYAKI
TP319
22k
R319
10k
R370
SCLK
S2UDT
EPCS
SACK
U2SDT
EPCS
EPSK
EPDIO
PCMCLK
BCK
EPCS
AOUT3
LRCLK
DACPDN
DACOCS
DCLK
DDATA
C309
NI
R369
DRVCONT
/DRVMUTE
SCS
UCS
LRCLK
PCMCLK
BCK
AOUT3
330p
C403
47k
DCLK
R404
DDATA
NCSM
NRAS
NCAS
MN2DS0009AA
0.1/16
C308
0.01
NININI
R329
0.015
WPCDCLK
CN404
NI
10
R401
C401
0.1/16
NI
R405
C404
MCK
NWE
DQM1
27
R303
C15
0.1/16
IC301
TP308
TP307
TP309
TP312
TP302
TP303
TP313
NI
NI
NI
NI
NI
R631
R632
R378
R379
R328
R327
R326
NI
R395
S-3.3V
DATA1
CMD
DGND
DATA0
R535
4.7K
R531 R534
4.7K 200
22k22k
R533
C402
47/10
NJM4580V-X
R433
4.7
R402
R431
4.7K 200
R435
0.047
4.7K 4.7K
C342
K313
CDLDCUR
C336
R349
LRMUTE
DACPDN
DACOCS
DDATA
DCLK
NI
C352
47k
R492
0
NI
NI
C318
R344
R333
1.6k
R334
R335
R336
R337
R338
R339
NI
C351
C492
C343
C344
C345
C346
47k
R348
R362
R315
R316
R342
C312
1/16
C305
47k
47k
R347
R346
DTC144EE-X
NI
DAC2
DAC3
R318
3.3k
C205
0.1/16
TH491
NAD0025-103X
R493
NI
C491
0.1/16
TP491
NI
NI
NI
NI
NQR0502-001X
C302
0.1/16
47/6.3
NI
R330
Q301
K425
R618
R619
R620
R361
R358
R357
R345
R351
1k
1M
R352
0
0
NI
0
K312
K311
0.1/16
NQR0129-002X
NI
NI
VGND
R341
NI
NQL044K-100X
L304
NI
680p
DVDLDCUR
150
150
150
150
0
0
R491
4.7k
DQM0
C14
0.1/16
C335
0.1/16
TP306
0.033
C331
0
R314
R391
R392
R393
R394
R381
R382
R383
R305
K631
DATA3
DATA2
C531
3300P
4.7K
R532
IC411
R432
4.7K
R434
C431
3300P
MDQ10F-MDQ4
MDQ11
MDQ3
MDQ12
MDQ2
MDQ15
MDQ0
MDQ14
MDQ1
MDQ13
C13
0.1/16
C330
0.1/16
C333
C332
C337
0.018
0.1/16
0.1/16
C338
0.0056
NI
0
NI
NI
R313
NI
NI
NI
NI
NI
NI
470P
C532
C432
470P
R437
R438
C12
0.1/16
TP314
TP315
0.1/16
0.1/16
0.1/16
0.1/16
0.1/16
0.1/16
C320
C321
C322
C323
C348
C350
5p
5p
C359
C358
150
150
R363
R364
RF+
RF-
DGND
22k
R538
4.7K
R537
R536
C533
200
470P
C433
R436
470P
C412
47/10
200
C411
22k
C11
0.1/16
0.1/16
C349
0.1/16
0.1/16
C319
C347
0
R312
LPCO2
LPC2LMLPCO1
LPC1
1k
C522
47/10
1.2k
C521
R522 R521
0.1/16
C421
0.1/16
R422
C422
1k 1.2k
47/10
R421
0.1/16
R317
22k
1K
1K
R367
NI
R306
R307
TP317
C315
0.1/16
330
R373
R372
330
C311
0.1/16
100
R320
NQL093K-1R8X
R621
NQL093K-1R8X
L306
NQL093K-1R8X
L307
NQL093K-1R8X
L305
0.1/16
C9
0.1/16
C313
0.1/16
C339
160
R325
1/16
C316
30k
R340
1/16
C341
180
R360
180
R359
180
R350
20k
R208
22k
R209
C317
0.1/16
R371
0
0
R374
VHALF
1/16
1/16
C340
C324
L301
NI
VREFH
VHALF
A5V
L-CH
AGND
R411
A9V
10
R-CH
MDQ9
MDQ5
MDQ7
MDQ8
MDQ6
K301
D1.2V
NI
R331
SW1
NQL093K-1R8X
NI
NI
NI
X351
NAX0730-001X
L303
FODRV
TRDRV
S-5V
C206
560p
0
R301
NI
0
NINI
C361
IC302
BA00HC5WF-X
UCS
SCS
SACK
SCLK
U2SDT
S2UDT
CPURST
LRMUTE
A5V
A9V
L-CH
AGND
R-CH
SW4
SW1
C360
K435
NQR0022-005X
K601
R601
C362
NI
9102k
R365R366
C368
47/6.3
NI
1/16
R332
C369
Q302
SW2
SW3
0
0
0
0
C325
C326
A
B
D
C
F
E
1k
C367
C366
DTC144EE-X
SW4
AOUT3
BCK
PCMCLK
10p
10p
DAC4
NI
NI
R604
R603
S3.3V
C301
220/6.3
DGND
2-7
USB module section (common)
R402
0
LRCK
0
TDI
BCLK
R401
TMS
R399
0
TCK
R398
TDO
OE
0
R422
TRST
X402
NAX0832-001X
NQL38DK-330X
C408
C440
C406
C407
C409
C410
C411
27P
27P
DCLK
DACPDN
DACOCS
DDATA
C412
L401
0.1
0.1
0.1
330p
0.15
C414
0.1
C413
DAO
MCLK
RESET
MODE0
0
0
0
R410
R406
R408
R407
1M
R411
R412
1.5K
10
R413
0.1
R419
100K
R420
100K
0
0
0
0
0
0
R414
R415
R416
R417
R418
R426
NRZ0065-472X
RA401
QGF0523F1-05W
0.1
R403
C404
0.1
0
R404
4.7K
R405
4.7K
4.7K
R421
4.7K
CN401
WE
1k
SD_CKE
R409
IC401
TCC760
100k
100k
R433
0
1k
R441
R443
R432
R435
4.7K
C415 C417
0.1
6.8k
R444
0
NOR_CS
C416
0.1
SD_CS
47k
100K
R440
4.7K
R436
4.7K
R437
R439
XA21
SD_CLK
0.1
XA20
C403
0.1
P.DET
XA19
XA18
XA17
XA16
XA15
XD0
XA14
XD1
XA13
XD2
C402
0.1
XD3
CN531
NAD0031-004X
F531
B402
QNZ0855-001
15K
UDZW5.1B-X
R533
D532
D600
UDZW5.1B-X
D533
0
15K
R532
R531
0.47
C531
SML-310LT/MN/-X
K531
NQR0201-004X
CN600
QGA1501C6-02
CN532
QGB1004K1-16
STATICGND
L531
NQR0536-001X
B401
DAGND
0
DGND
C401
100P
22k
R476
R477
4.7K
C446
XA20
R483
200
C463
470P
XA9
XA8
XA7
XA6
XA5
XA4
470P
C473
C475
47/10
C474
0.1/16
0.1/16
C464
C465
47/10
C457
47/10
C456
4.7K
22k
XD15
XD14
XD13
XD12
XD11
XD10
XD9
XD8
10K
0.1/16
AGND
R478
470P
470P
200
R468
R467
R466
0.1/16
0.1
C447
SD_CLK
SD_CKE
L-CH
1K
R479
1.2K
R470
AGND
1.2K
R460
1K
R469
R455
A9V
10
R-CH
Q401
RT1N141C-X
C454
47/10
R453
0.047
C453
R484
4.7
10K
R472
4.7K
R471
4.7K
22k
R473
NJM4565V-X
R463
22k
R461
4.7K
R462
4.7K
K4S161622H-UC60
C481
IC481
SN74LVC2G07V-X
UART_RX
C471
3300P
IC452
C461
3300P
0.1/16
4.7K
4.7K
R475
200
200
R474
R464
C472
C462
R465
IC442
10
22/6.3
XA21
WE
XA15
XA16
SD_CS
XA13
XA10
XA0
XA1
XA2
XA3
0.1/16
0.1/16
0.1/16
R452
C444
C443
R454
C455
0.1/16
0
C452
NI
C449
0.1/16
C445
47k
C448
R448
47K
NOR_CS
0
C451
330p
OE
XA0
IC451
AK4385ET-X
NQR0502-001X
XD15
XD7
XD14
XD6
XD13
XD5
XD12
XD4
XD11
XD3
XD10
XD2
XD9
XD1
XD8
XD0
K441
XD0
XD1
XD2
XD3
XD4
XD5
XD6
XD7
C442
UART_TX
1.8V
MCLK
BCLK
DAO
LRCK
DACPDN
DACOCS
DCLK
DDATA
IC482
R451
22/6.3
R447
0.1/16
C441
XA12
XA11
XA10
XD15
XD14
XD13
XD12
XD11
XD10
XD9
XD8
XD7
XD6
XD5
XD4
XA9
XA8
XA7
XA6
C420
0.1
XA5
XA4
XA3
XA2
XA1
XA0
C419
0.1
C418
0.1
XA16
XA15
XA14
XA13
XA12
XA11
XA10
XA9
XA8
XA19
WE
RESET
NI
MODE0
XA18
XA17
XA7
XA6
XA5
XA4
XA3
XA2
XA1
R445
R446
4.7K
IC441
SA04D70TFI021A
10K
R482
SN74AHCT1G08V-X
UART_TX1
R425
4.7/16
BH18LB1WG-W
C521
IC521
C522
0.1/16
10K
0
2-8
C482
0.1/16
TRST2
UART_RX1
TRST1
Printed circuit boards
Main board
(Main board) (Main board)
S702
C702
C912
C701
R704
R705
R707
R706
C927
CN701
D719
R725
R749
R750
R726
R739
R765
R759
R738
R758
R747
R748
R763
L721
C734
R746
R745
C725
R755
R751
R752
R753
IC723
C731
X721
X722
R811
C803
R804
R801
R803
R802
C802
IC801
S723
C480
CN702
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
forward side reverse side
C316
C961
R922
C918
R961
C925
C965
R921
B922
L927
C926
L925
R929
D921
R769
R731
R733
R729
RA722
C724
C730
Q476
R482
Q477
R483
S701
R967
L924
IC922
C928
D922
R926
C930
R924
R923
C921
R727
C722
R728
C723
R757
R760
D731
R756
R484
C479
CN471
L902
R968
C964
L921
C413
IC411
R927
C929
C931
R925
R928
CN411
R722
R721
C922
R730
R850
RA721
R715
L722
R716
R718
R842
R844
R859
R735
IC721
R761
R719
R762
R714
R848
R712
C732
C176
C474
C475
IC901
C909
C962
C963
C412
L411
C411
C428
C414
R841
C783
R843
C784
C782
C733
IC722
R845
R720
C186
C476
C303
C304
R330
D305
C305
R350
C306
C349
C329
Q301
Q302
CN961
R977
Q976
R413
C177
C373
C392
R372
R382
C438
C267
R462
R374
R384
C384
IC431
C462
C463
R388
R386
C391
IC162
R171
C169
R172
Q783Q784
D785
R782
R781
C781
D782
Q782
X71
R73
C71
R72
C73 C74
C9
R785
TH721
RA723
C315
R329
R349
R307 R308
R901
C905
C970
C902
C903
Q977
R976
C187
C172
C374
C182
R173
C170
Q161
Q162
C181
C461
Q781
C427
C441
C171
C464
C465
IC71
C423
C75
R380
R379
C7
R767
R766
R768
R772
R773
R774
R775
R776
Q304
R824
Q372
Q822
C83
Q821
R304
R302
C314
R305
Q303
D141
D151
R822
R821
C163
C164
IC161
C437
C378
Q371
R390
R777
R778
R711
D302
CN141
C93
R713
CN421
R717
D301
C301
D142
D152
Q823
C822
C165
C451
C380
TU21
C312
C908
C348
C328
C338
R441
C426
IC421
C358
R338
R358
R461
R337
R452
R439
R442
R451
C436
R438
R437
C161
CN831
R377
R375
C885
R381
R371
R373
C184
C168
C379
R378
C377
C389
C390
R376
R323
C356
R343
R353
Q422
C346
D431
R423
R432
D421
R422
Q421
Q431
C191
R328
R348
R327
R347
R429
R427
R428
C821
C166
C162
R383
IC371
R387
R385
C433
C326
Q432
R433
C5
IC301
C311
D308
C307
R340
C359
C339
C302
R359 R360
R339
C901
R357
R825
CN821
C174
R404
L401
D401
K401
R402
C403
C402
C401
R401
IC401
R405
R403
D334
R334
C336
D354
R333
R354
PP2
D324
Q324
R324
R197
Q192
R191
Q191
R192
W21
C308
Q334
Q354
J801
C310
C309
CN901
PP3
D901
L901
C881
(Main sub board)
PP1
D472
R481
IC471
C477
C404
IC402
C967
IC962
CN962
D344
J331
R344
Q344
R4
L2
D1
C12
D2
L1
IC961
C966
CN963
C934
(Main sub board)
R975
R974
R973
L901
C821
D821
IC471
J801
C801
Q892
C891
R893
C892
D891
Q891
R891
R981
R982
D982
PP3
C981
CN901
C851
R851
Q881
R881
R882
R883
D852
D851
D901
Q823
C822
CN821
C823
D472
PP1
CN141
C478
C155
C477
R155
C482
R151
C404
K402
C406
C405
IC402
J331
C331
C156
C340
D801
R894
R892
C901
D981
C881
R141
C997
TU21
C184
C185
C141
R142
C151
C175
R152
C379
C390
C356
C999
C336
R193
PP2
C191
R194
W21
IC301
C313
C330
C350
C360
R832
R889
C889
C831
D831
D885
R888
CN831
R887
R831
Q885
R885
R886
R161
C161
R164
C885
C373
C392
C168
C374
B106
C384
C174
C391
B105
R335
R336
C335
R355
R356
C355
C346
C421
L421
R421
L430
L431
R431
C431
C325
R325
R326
R345
R346
C345
D192
C2
C3
C10
C312
B103
CN421
C315
R306
C314
C301
C908
K831
C166
R162
R166
R163
R165
C267
C438
C462
C437
B104
C451
C380
C433
C326
R435
R434
R424
R425
R92
C84
C94
R82
R91
C5
C93
C4
R7
C11
C81
C913
C910
R903
R902
C971
C968
R901
C914
C915
R962
C902
C905
C970
C903
D903
C177
C187
C172
C182
C170
C428
C461
C181
C427
C171
R463
C441
C464
C435
C425
R436
R426
C424
C434
X71
C423
C77
R12
R13
C75
C76
R71
R81
C7
C83
C6
C91
R1
R2
R19
R3
R6
R11
R5
C1
R9
R10
IC901
D923
C969
D924
C904
CN961
Q903
C72
R17
C909
D925
R914
C963
R909
K922
C784
D781
C78
Q2
R18
R14
R15
C962
R910
Q904
B921
C416
C415
R414
R415
R416
K411
K412
CN411
C783
D783
D784
C781
C782
C71
C9
C186
C476
R476
D471
C998
R478
Q475
R477
C919
C906
R8
C8
C932
C933
C907
C911
D906
C413
R410
C411
C414
R857
C176
B999
R479
C474
R480
Q474
R485
C961
C918
R969
R412
R417
R411
C964
D921
C922
IC921
VPP
C721
R740
R779
R780
R799
RD
TD
VDD
R812
C732
C479
R474
R475
C965
C925
C722
R771
RESET
R754
D716
R471
C912
D711
C927
D710
D709
D707
D706
C926
D705
D704
D703
D702
D701
R708
Q701
R710
R709
D719
C921
R847
R846
X721
X722
R805
R806
C730
R809
C804
R810
C480
S701
CN702
S702
D717
CN701
C725
C726C727
R861
R744
C728
C729
R807
R808
D732
S723
R860
Switch board
D601
S616
CP601
D618
R648
R649
CP602
R632
R633
D608
S608
R681
CP604
D621
EN601
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
forward side reverse side
7
D609
D602
LCD1
S609
R643
R640
IC
6
R641
D640
R680
0
2
D645
R650
D620
CP603
D646
D606
S601
D607
S602
R601
R605
R606
R602
R603
R604
R634
R644
R645
R635
R636
R637
D613
D612
S603
S604
S605
D615
D614
S606
S607
D616
R614
R608
R607
R609
D617
S610 S611
R612
R610
R611
D605
D604
S612
1
6
S
D603
4
1
6
S
D610
3
1
6
S
D611
R639
R638
R647
R646
C601
D641
C603
D642
R652
R651
R658
IC601
C602
R657
R653
R655
R654
R656
CN601
R622
R621
R625
R626
R624
R623
R673
R674
Q641
Q640
R671
R672
R660
D645
R661
R670
D643
R691
D646
2
0
6
IC
C612
C611
R692
C682
EN601
R613
R642
C681
2-9
DVD module board
C366
K301
C305
C361
IC303
R302
C264
R251
R255
C263
IC304
R386
R233
C360
C213
R300
C260C261
C262
R235
R301
R310
C380
C254
R231
R232
R253
C253
R234
Q231
C252
C211
C201
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
forward side reverse side
IC411
C454
K403
K406
K405
K404
L307
R324
R309
C338
R356
R355
L306
C310
C332
C108
R534
L305
C333
R118
R532
R361
K429
R113
R357
R373
C331
R358
R380
R323
R117
SW4
K431
R353
K430
Q104
Q103
K433
R354
IC401
R345
R388
R116
R389
R370
R308
R322
R114
R321
R115
SW5
R438
C433
R437
C431
C432
R436
R435
R434
R432
R433
R431
R25
R26
C8
C396
R399
R23
EPSK
TP319
R319
R369
R397
C391
C381
R24
C383
C384
C394
IC398
C382
C393
C330C335
R313R314
C392
K399
TP427
TP426
TP5
CN101
TP429
TP428
C103
R126
B212
TP51 TP52
R396
R398
EPDIO
TP6
C104
B211
C397
IC481
K102
TP8
IC399
R304
R481
TP7
B205
REST
C386
TP9
C387 C388
C385
C481
TP10
TP18
TP19
TP21
K452
C301
C452
R344
R362
R341
L304
R331
K445
C451
Q302
R22
R442
L451
C318
R342
C533
K444
R604
R320
R618
R619
R620
K313
K312
K425
DAC3
C351
R492
R493
TH491
R491
R201
C492
R531
R533
C532
R535
C531
R441
R536
R537
R538
C453
R603
K401 K402
K407
R621
R372
R325
R360
R359
DAC2
R350
C319
C337
C347
C352
C491
C1C2C3
C4
C5
C6
NEXWE
C7
R482
TP11
TP16
K101
C101
C102
R122
R123
R124
TP202
TP201
TP12
TP22
TP13
TP20
R102
R101
R127
C18
IC301
TUBUYAKI
EPCS
R391
R392
R381
R382
TP14
TP15
TP17
R119
C110
C109
R108
R129
C17
C309
R305
R383
CN404
R120
R121
C15
C16
R107
R128
Q107
Q106
Q105
SWGND
DCLK DDATA
C308
Q101
B204
L-END
LRCLK
AOUT3
PCMCLK
BCK
CN401
TP416
TP417 TP420
R390
R303
C14
R631
R395
R394
R109
Q102
R104
C401
C402
C522
TP425
K420
K461
TP325
TP324
C13
L301
TP314
R632
R106
R103
R111R112
K421
C358
C343
R378
K631
R393
R110
R421
R521
C521
R522
K422
R379
C346
C345
C344
R364
C111
C112
R422
R401
K423
C350
C359
R363
R105
C421
K424
K462
TP323
C320
TP315
R334
R335
C106
C422
K442
K434
C11C12
R338
R339
R336
R337
C105
TP313
TP312
TP303
TP302
TP444
TP446
C412
K426
TP321
TP322
R367
C349
R312
TP491
R329
K427
C322
C324
C340
R328
TP309
TP308
C411
R411
K428
C313
C316C317
R318
R327
TP4
K443
R317
R306
R307
C315
C311
C9
C339
VHALF
R207
R205
TDRV
R326
R125
TP3
TP2
TP306TP307
TP441 TP442
TP433
K432
TP317
C312
R371
R374
C348
R204
R206
TP1
TP435
TP434
K441
K435
R349
R352
R333
C336
C321
C323
R202
C204
C403
R404
C404
TP437
TP436
TP432
K601
R346
R347
R348
R209
B601
R601
R602
Q301
C205
C206
R385
R21
C341
R210
R402
R405
R403
B201
B202
B203
CN403
TP431
TP430
TP422
R330
C325
R208
R211
R384
C371
FDRV
C207
X351
C326
C342
L303
C258
SBRK
R203
C208
SW2
SW1
TP439
TP440
TP455
TP448
TP452
K311
TP38
TP37
C259
TP34
TP35
C265
C266
VHALF2
C256
R219
R220
C203
C202
R259
C255
TRSDRV
K451
C367
TP453
TP41
TP40
C257
R252
SPDRV
SW3
C365
C302
R260
CN201
IC251
IC201
R257
TP457
C269
C369
CN202
R221
TP39
R315
R316
R340
R256
R223
R222
IC302
C368
R365
R332
R258
C222
C268
R254
C221
C364
R351
R224
C212
C209
TP316
TP318
TP36
C267
TP31
R366
C303
C362
CN402
FG
C251
TP33
TP32
/SPMUTE
USB module board
forward side
CN532
C457
R455
C413
C414
C454
R414
C451
R454
R451
R416
C453
R469
R460
C465
R420
C475
R419
R479
R470
R453
R418
R417
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
C412
R452
R415
C447
C411
C452
R404
C446
C410
R405
IC442
K441
C522
C442
IC521
R444
C521
C444
C443
R443
C445
C449
R435
R441
C415 C416
R409
L531
R422
R421
C417
L401
C409
R412
C408
RA401
R411
C407
C406
IC401
X402
C403
R403
C404
C402
CN600
R532
R533
CN531
2-10
R468
R467
R466
C463
IC451
C456
IC452
C455
CN532
Q401
C448
C474
R473
R474
C472
C473
R472
C471
R475
R478
R477
R476
R471
reverse side
R447
R445
R484
R483
R425
R446
C481
C441
IC441
IC481
C482
R436
R432
R433
R399
IC482
R398
R482
C418
R448
R401
R402
R408
R439
R440
R426
C419
C440
R407
R406
R437
R410
C420
C461
R465
R462
R461
C464
D601
D600
K531
R531
R463
R464
C462
F531
CN531
CN600
C531
D532
D533
< MEMO >
Victor Company of Japan, Limited
Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,Gumma-ken,371-8543,Japan
(No.MA250SCH)
Printed in Japan
VPT
Loading...
